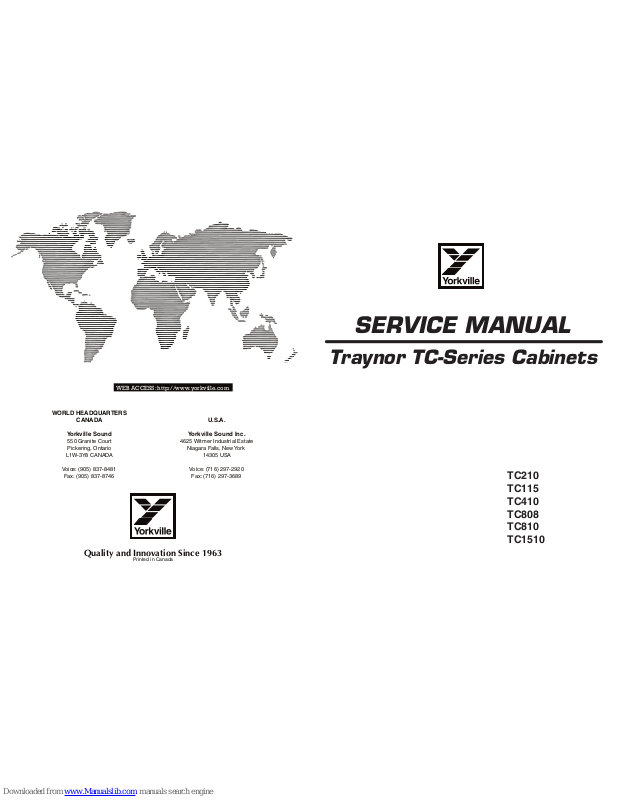

SERVICE MANUAL

Traynor TC-Series Cabinets

TC210 TC115 TC410 TC808 TC810 TC1510

IMPORTANT SAFETY INSTRUCTIONS

This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Ce symbole d’éclair avec tête de flèche dans un triangle équilatéral est prévu pour alerter l’utilisateur de la présence d’un « voltage dangereux » non-isolé à proximité de l’enceinte du produit qui pourrait être d’ampleur suffisante pour présenter un risque de choque électrique.

S2125A

FOLLOW ALL INSTRUCTIONS SUIVEZ TOUTES LES INSTRUCTIONS

Instructions pertaining to a risk of fire,

electric shock, or injury to a person

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

Read Instructions: The Owner’s Manual should be read and

understood before operation of your unit. Please, save these instructions for future reference and heed all warnings.

Clean only with dry cloth.

Packaging: Keep the box and packaging materials, in case the unit

needs to be returned for service.

Warning: To reduce the risk or fire or electric shock, do not expose

this apparatus to rain or moisture. Do not use this apparatus near water!

Warning: When using electric products, basic precautions should

always be followed, including the following:

Power Sources

Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precautions should be taken so that the grounding scheme on the unit is not defeated.

Hazards

Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer.

The apparatus should not be exposed to dripping or splashing water; no objects

filled with liquids should be placed on the apparatus.

Terminals marked with the “lightning bolt” are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.

Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Power Cord

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NOT OPERATE THE UNIT.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Service

The unit should be serviced only by qualified service personnel.

The exclamation point within an equilatereal triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance. Le point d’exclamation à l’intérieur d’un triangle équilatéral

est prévu pour alerter l’utilisateur de la présence d’instructions importantes dans la littérature accompagnant l’appareil en ce qui concerne l’opération et la maintenance de cet appareil.

Instructions relatives au risque de feu,

choc électrique, ou blessures aux personnes

AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC

ELECTRIQUE, N’ENLEVEZ PAS LE COUVERT (OU LE

PANNEAU ARRIERE) NE CONTIENT AUCUNE PIECE

REPARABLE PAR L’UTILISATEUR.

CONSULTEZ UN TECHNICIEN QUALIFIE

POUR L’ENTRETIENT

Veuillez Lire le Manuel: Il contient des informations qui devraient

êtres comprises avant l’opération de votre appareil. Conservez. Gardez S.V.P. ces instructions pour consultations ultérieures et observez tous les avertissements.

Nettoyez seulement avec le tissu sec.

Emballage: Conservez la boite au cas ou l’appareil devait être

retourner pour réparation. Avertissement: Pour réduire le risque de feu ou la décharge

électrique, n'exposez pas cet appareil à la pluie ou à l'humidité.

N’utilisez pas cet appareil près de l’eau!

Attention: Lors de l’utilisation de produits électrique, assurez-vous

d’adhérer à des précautions de bases incluant celle qui suivent:

Alimentation

L’appareil ne doit être branché qu’à une source d’alimentation correspondant au voltage spécifié dans le manuel ou tel qu’indiqué sur l’appareil. Cet appareil est équipé d’une prise d’alimentation polarisée. Ne pas utiliser cet appareil avec un cordon de raccordement à moins qu’il soit possible d’insérer complètement les trois lames. Des précautions doivent êtres prises afin d’eviter que le système de mise à la terre de l’appareil ne soit désengagé.

Risque

Ne pas placer cet appareil sur un chariot, un support, un trépied ou une table instables. L’appareil pourrait tomber et blesser quelqu’un ou subir des dommages importants. Utiliser seulement un chariot, un support, un trépied ou une table recommandés par le fabricant ou vendus avec le produit. Suivre les instructions du fabricant pour installer l’appareil et utiliser les accessoires recommandés par le fabricant.

Il convient de ne pas placer sur l’appareil de sources de flammes nues, telles que

des bougies allumées.

L’appeil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures

et qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.

Assurez que lappareil est fourni de la propre ventilation. Ne procédez pas à l’installation près de source de chaleur tels que radiateurs, registre de chaleur, fours ou autres appareils (incluant les amplificateurs) qui produisent de la chaleur.

Les dispositifs marqués d’une symbole “d’éclair” sont des parties dangereuses au toucher et que les câblages extérieurs connectés à ces dispositifs de connection extérieure doivent être effectivés par un opérateur formé ou en utilisant des cordons déjà préparés.

Cordon d’Alimentation

Ne pas enlever le dispositif de sécurité sur la prise polarisée ou la prise avec tige de mise à la masse du cordon d’alimentation. Une prise polarisée dispose de deux lames dont une plus large que l’autre. Une prise avec tige de mise à la masse dispose de deux lames en plus d’une troisième tige qui connecte à la masse. La lame plus large ou la tige de mise à la masse est prévu pour votre sécurité. La prise murale est désuète si elle n’est pas conçue pour accepter ce type de prise avec dispositif de sécurité. Dans ce cas, contactez un électricien pour faire remplacer la prise murale. Évitez d’endommager le cordon d’alimentation. N’UTILISEZ PAS L’APPAREIL si le cordon d’alimentation est endommagé.

Débranchez cet appareil durant les orages ou si inutilisé pendant de longues périodes.

Service

Consultez un technicien qualifié pour l’entretien de votre appareil.

safety-4v5.eps • April 3/2007

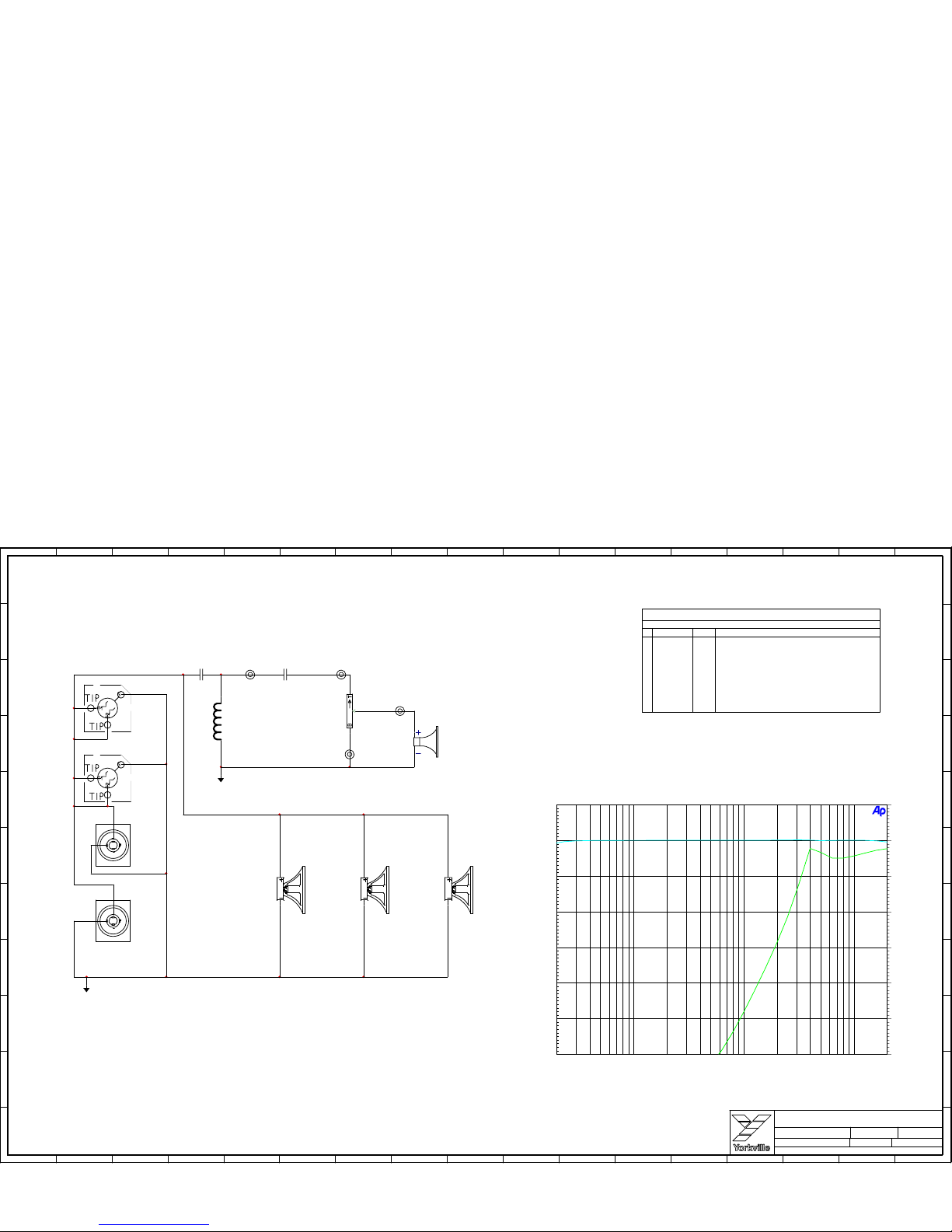

TC210 Parts List 11/30/2007

0

5

L

R

YS No. Description Qty. YS No. Description Qty.

5942 __3U3 100DC10%CAP BLK RAD POLYE FLM 1 4476 L-PAD 8R 50WATT 1 8803 8-32 X 3/8 PAN PHIL TAPTITE JS500 2

713 25 X 20 X 50 2 MIL PLASTIC BAG 1 3784 _300UH COIL 22AWG R000 BOBBIN 1 8504 CORNER, 2 LEGS NOTCED LIP NICKEL 8 8522 RUBBER BUMPER WITH WASHER -SMALL- 4 8533 RUBBER BUMPER TAPERED 1.375 X 1.0 3478 CLIP 205/187X032 18-22AWG DISCO/INS 2 3491 CLIP 205/187X020 18-22AWG DISCO/INS 6 3924 1/4" JCK PCB MT VERT 2XTIP HICURNT 2 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 8514 BLACK BLANK XOVERDISH PLASTIC CNFG 3451 EYELET SMALL 0.089 OD PLATED 3 8600 HANDLE,RECESSED,PULL,BLACK META 8604 10-32 T NUT 12 3803 NYLON SECUR-A-TACH MINI PLASTIC TIE 1 8619 L-PAD KNOB #TP-150-006 BLACK(SIFAM) 1

8508L LARGE DISH ALUMINIZED "L" PAD DECA

8268 TRAYNOR LOGO PLASTIC NICKEL PLATING 1 3543 20 PIN BRKAWAY 90 LOCK .156 0.2 3549 TRIFURCON TERM .156 4 3558 TERM HOUSING 4 CIR .156/RAMP 1 8729 #4 X 3/8 FLAT QUAD TYPE A JS500 BLK 4 8835 6-32 X 1/2 PAN QUAD MS TIN PLATED 1 8785 #8 X 3/4 OVAL PH TYPE A BLACK OXIDE 6 8815 8-32 X 3/4 PAN PH TAPTITE JS500 4 8734 #10 X 1/2 PAN PH TYP A BRITE NICKEL 14 8756 #10 X 3/4 PAN PH TYPE A BLACK OXIDE 12 8781 #10 X 7/8 FLAT PHIL TYPE A JS500BLK 4 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 8 8751 10-32 X 2 PAN PH MS JS500 4 8906 #14X2 ALLEN FLAT HD WOOD SCRW JS500 9 8739 M6 X 30 PAN PHIL M/S ZINC CLEA 7473 10" 16R 150WPG SPEAKER 2 8818 3/4 OD X 3/8 ID X .080 THICK WASHER 1 8489 1/4-20 SPLIT WASHER ZINC 2 8817 #10 FLAT WASHER FOR 3/16" BOLT 2

9

1

2

1

2

11 11

10 10

9 9

8 8

7 7

6 6

5 5

4 4

3 3

2 2

1 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

of

Filename:

PCB# Sheet 31

Product

Date: Rev: YsType:YsType

X1014-1V00sch.SCH2002

X1014

Tue Jun 12, 2007

Sheet1

1V00

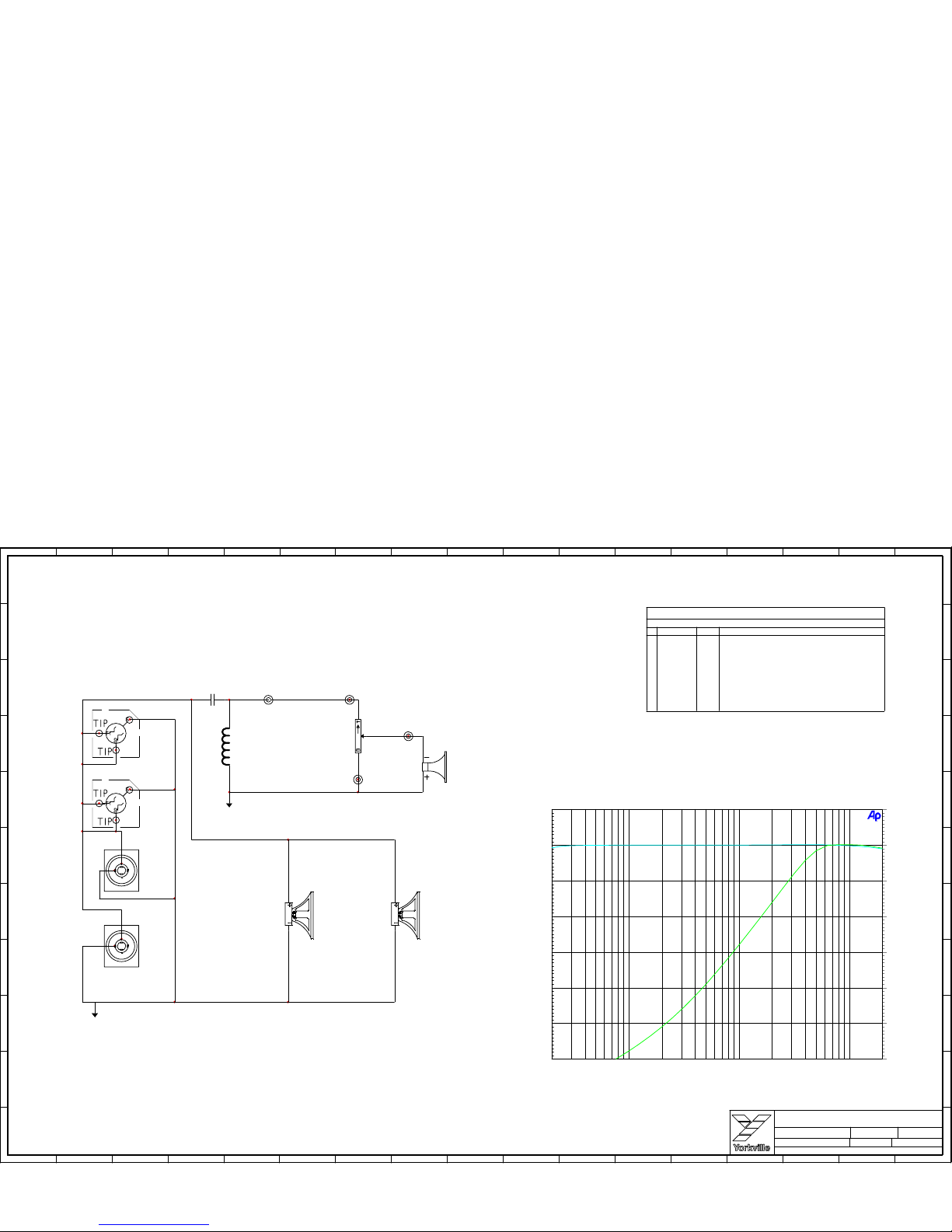

TC 210

of

Filename:

PCB# Sheet 31

Product

Date: Rev: YsType:YsType

X1014-1V00sch.SCH2002

X1014

Tue Jun 12, 2007

Sheet1 M1335

1V00

TC 210

16R 150WPGM

RED

W4

SP1 #7473 10"

WOOFER

RED

W3

1+

1_

3628

SPEAKON 4C

J3:A

2+

2_

3628

SPEAKON 4C

J3:B

300UH: M1335 / 370UH: M1338

_L1

M

Taper

P1:A

4476

8R

2+

2_

3628

SPEAKON 4C

J4:B

1+

1_

3628

SPEAKON 4C

J4:A

_C1

100V3U3

16R 150WPGM

SP2 #7473 10"

WOOFER

W5BLACK

W6

YELLOW

SLEEVE

1/4in JCK

J1

3924

SLEEVE

1/4in JCK

J2

3924

HORN

SP5

#7454 1" 8R 40W

NOTE: TC210, HORN IS OUT OF FACE

13

10

7

4

1

9

11 12

8

#

2 3

5 6

VER#

MODEL(S):-

DATE DESCRIPTION OF CHANGE

V

1.00

V

D

MAY-07-2007

N

FIRST DESIGN

D D

D

N

M1335 X1014 HISTORY

TC210

Yorkville Sound 06/04/07 10:52:29

HORNWOOF.ATS2

-50

+20

-40

-30

-20

-10

+0

+10

d B V

-50

+20

-40

-30

-20

-10

+0

+10

d B V

20 20k50 100 200 500 1k 2k 5k 10k

Hz

HORNWOOF

NOTE: TC210, HORN IS OUT OF FACE

VCD

CLINCH

ORIGIN

LONG AXIS

SHORT AXIS

INSERT

ORIGIN

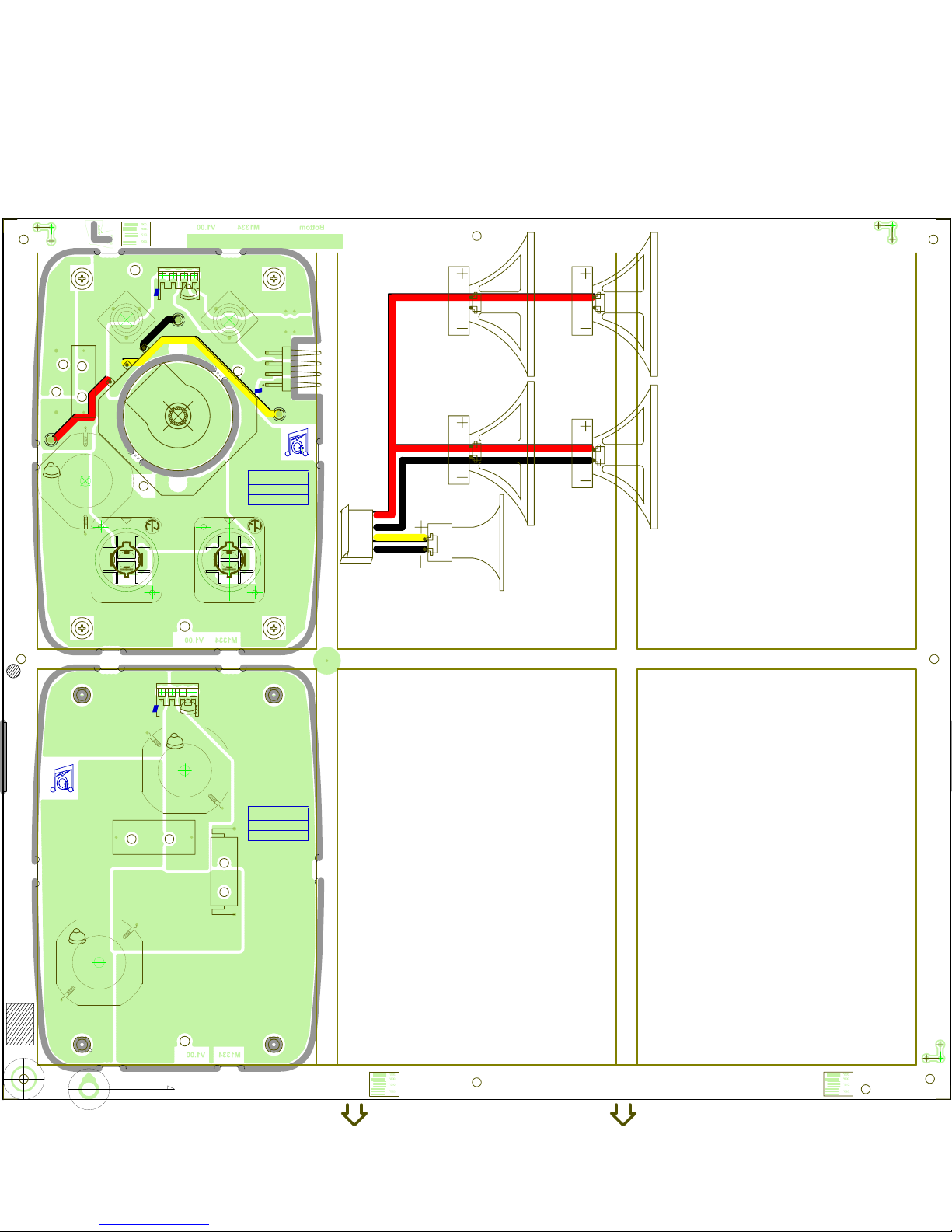

M1335 TC210

Pcb Mech X1014 V1.00

BlankSize - 13825x12850

StepAndRepeat - [email protected]@6.075

TAB

NORMAL

SOCKET

SOCKET WITH DIRECTION

NORMAL LARGE

SOCKET UPSIDE DOWN

BLACK

YELLOW

RED

BLACK

NOTE: TC210 HORN IS REVERSE POLARITY

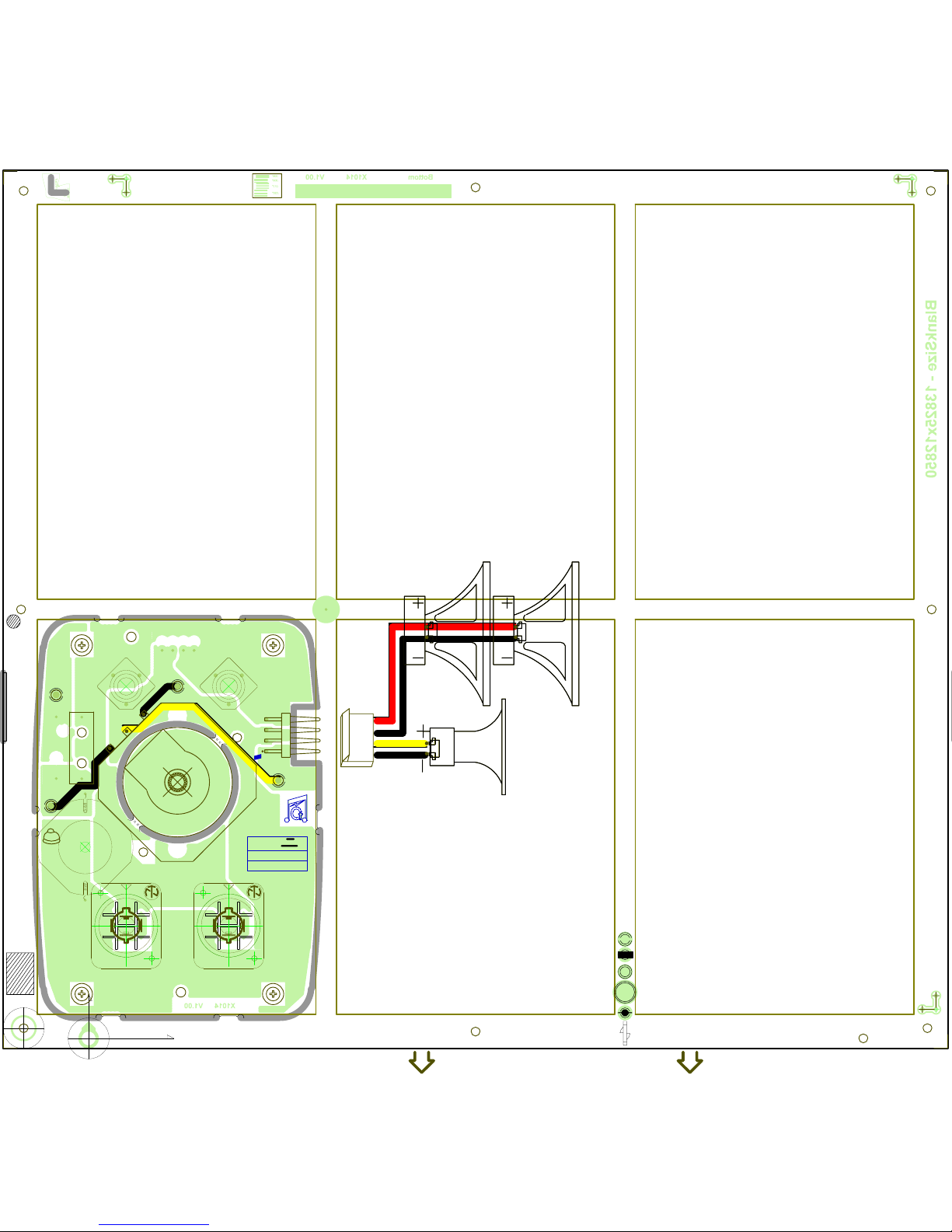

M1335 TC210

Top Assy X1014 V1.00

SEE LAYOUT DOCUMENTATION

V

T

R

T V

V

T

R

GUIDE

ETCH

V

T

R

T V

1 2 3 4

PCB CONN 4 CIR BOTTOM .156

TIP2

SLEEVE

TIP1

TIP2

SLEEVE

TIP1

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

V

T

R

4 OF 24 PIN BREAKAWAY LOCK .156

OUT

S

I

DE

WIRE

I

NS

I

DE

W

IRE

D.N.S.

3903

392

4

392

4

3628 3628

5932

3543

4476

100V

2U2

8R

22AWG

300

U

H: M

1

335 / 370UH: M1338

100V

H+ H-

W-

Cable tie

V1.00

X1014

M1335 / M1338

TC 210/1510

W+

Cable tie

STUFF C2 ONLY FOR TC1510

W5

BLACK

W6

YELLOW

W2

W4

RED

FOR TC210

J1

J2

W3

RED

FOR TC1510

J3

J4

_C2

W1

P1

_L1

_C1

5942

3U3

SEE LAYOUT DIAGRAM

1. TC210: - M1335

- DO NOT STUFF W2

- P1 RED WIRE GOES TO W4

TC1510: - M1338

- DO NOT STUFF W2

- P1 RED WIRE GOES TO W3

2. NOTE THE DIFFERENT VALUE PARTS FOR

PRODUCTION NOTES

MODELS:

MULTI VALUE PARTS

TC210 . TC1510 -

8

5

2

6 7

3 4

1

D

V

N

D D

D

V V

V

N N

N

4

1

6

5

3

#

2

MODEL(S):-

PC#

*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY

PENDING CHANGE

X

PC

TC210 / TC1510

X1014 PENDING CHANGES

5

2

#

6

3 4

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

VVN

N

D

D D

V

V V

N

N N

TC210 / TC1510

X1014 DRILL HISTORY

APR-27-2007 P3 P3 FIX LPAD HOLES

12

9

6

3

#

13

11

10

5

4

8

7

2

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

V

N

D

D D

V V

V

V V

N N

N

N N

TC210 / TC1510

X1014 HISTORY

MAY-07-2007 1.00 FIRST DESIGN

NVD

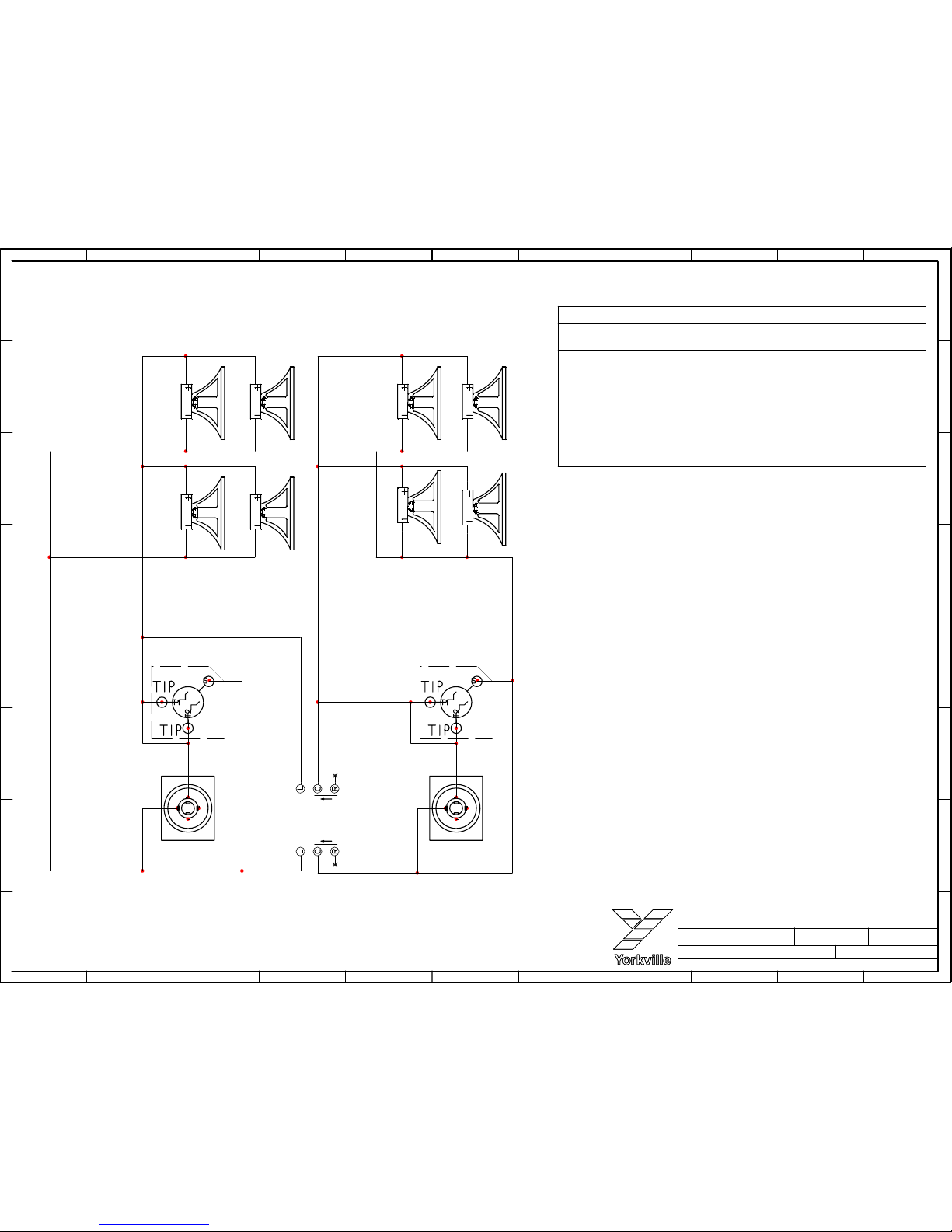

TC115 Parts List 11/30/2007

0

L

YS No. Description Qty. YS No. Description Qty.

8504 CORNER, 2 LEGS NOTCED LIP NICKEL 8 8522 RUBBER BUMPER WITH WASHER -SMALL- 4 8533 RUBBER BUMPER TAPERED 1.375 X 1.0 3491 CLIP 205/187X020 18-22AWG DISCO/INS 2 3924 1/4" JCK PCB MT VERT 2XTIP HICURNT 2 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 8515 SMALL BLACK XOVERDISH PLASTIC CNFG1 1 8600 HANDLE,RECESSED,PULL,BLACK META 8604 10-32 T NUT 4 3803 NYLON SECUR-A-TACH MINI PLASTIC TIE 1

8517DV2ALUMINIZED DECAL FOR 8517 SM. DISH 1

8268 TRAYNOR LOGO PLASTIC NICKEL PLATING 1 3543 20 PIN BRKAWAY 90 LOCK .156 0.2 3549 TRIFURCON TERM .156 2 3558 TERM HOUSING 4 CIR .156/RAMP 1 4597 22AWG STRAN TC WIR JMP 10 8729 #4 X 3/8 FLAT QUAD TYPE A JS500 BLK 4 8785 #8 X 3/4 OVAL PH TYPE A BLACK OXIDE 8 8815 8-32 X 3/4 PAN PH TAPTITE JS500 4 8734 #10 X 1/2 PAN PH TYP A BRITE NICKEL 34 8756 #10 X 3/4 PAN PH TYPE A BLACK OXIDE 20 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 4 8906 #14X2 ALLEN FLAT HD WOOD SCRW JS500 8 7475 15" 8R 400WPGM SPEAKER 1

8

2

8 8

7 7

6 6

5 5

4 4

3 3

2 2

1 1

A

B

C

D

E

F

G

H

I

J

K

Product

Date: Filename:

PCB#

X8000-8V00sch.sch2002

TC115 / LS SERIES

Tue Nov 06, 2007

LS SERIES SUBW/TC115

ofSheet

Rev:21V8.00

X8000

Product

Date: Filename:

PCB#

X8000-8V00sch.sch2002

TC115 / LS SERIES

Tue Nov 06, 2007

LS SERIES SUBW/TC115

ofSheet

Rev:21V8.00

X8000

S1:A

3424

SLEEVE

1/4in JCK

J1

3924

S1:B

3424

1+

1_

J4:A

3628

SPEAKON 4C

1+

1_

J3:A

3628

SPEAKON 4C

TC115: DO NOT STUFF S1 IN PCB REPLACED WITH TWO JUMPERS SEE LAYOUT PRODUCTION NOTES

2+

2_

J4:B

3628

SPEAKON 4C

SLEEVE

1/4in JCK

J2

3924

+

SUB_WOOFER

SP2

2+

2_

FUNCTION

J3:B

3628

SPEAKON 4C

+

SUB_WOOFER

SP1

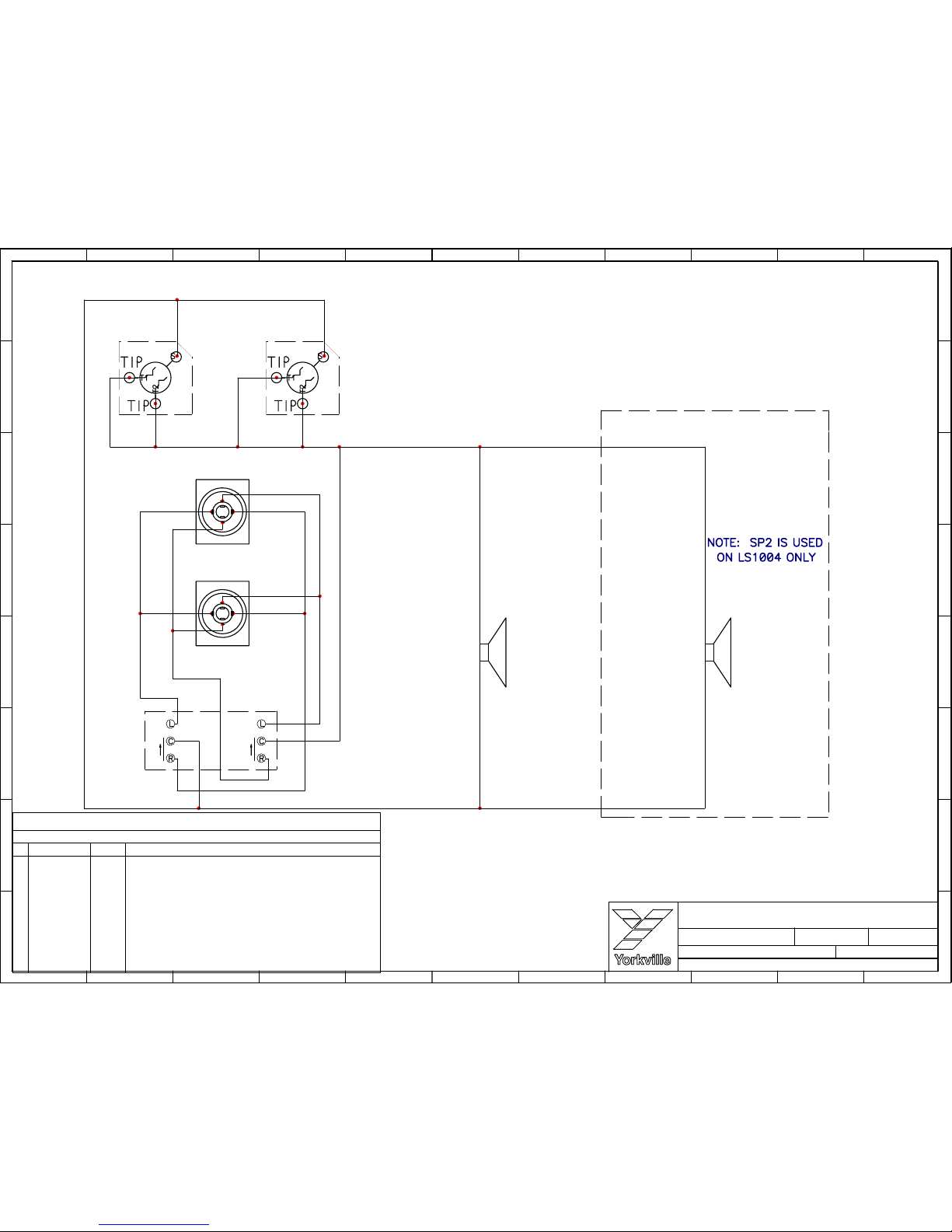

SPEAKER LIST: LS1004 #7458 18" 8R 800WPGM (2 IN PARALLEL) LS1208 #7469 18" 4R 1200WPGM LS608 #7458 18" 8R 800WPGM LS808 #7465 18" 8R 1200WPGM LS908 #7458 18" 8R 800WPGM TS18H PS46Y8M 18" 8R 600WPGM TC115 #7475 15" 8R 400WPGM

13

10

7

4

1

9

11 12

8

#

2 3

5 6

VER#

MODEL(S):-

DATE DESCRIPTION OF CHANGE

V

D

N

D D

D

N

06-NOV-2007 V8.00 RELEASE IDENTICAL VER. # FOR TC115 AND LS SUB' S DVN DVN DVN

DVN

07-JUN-2007 V1.00 DERIVED FROM M593 LS-SUB PCB

LS SERIES SUB-WOOFERS/TC115

X8000 HISTORY

25-SEP-2007 V2.00 ROTATED ALL THE JUMPERS TO ZERO

NOTE: SP2 IS USED ON LS1004 ONLY

SP1 SP2

VCD

CLINCH

ORIGIN

LONG AXIS

SHORT AXIS

INSERT

ORIGIN

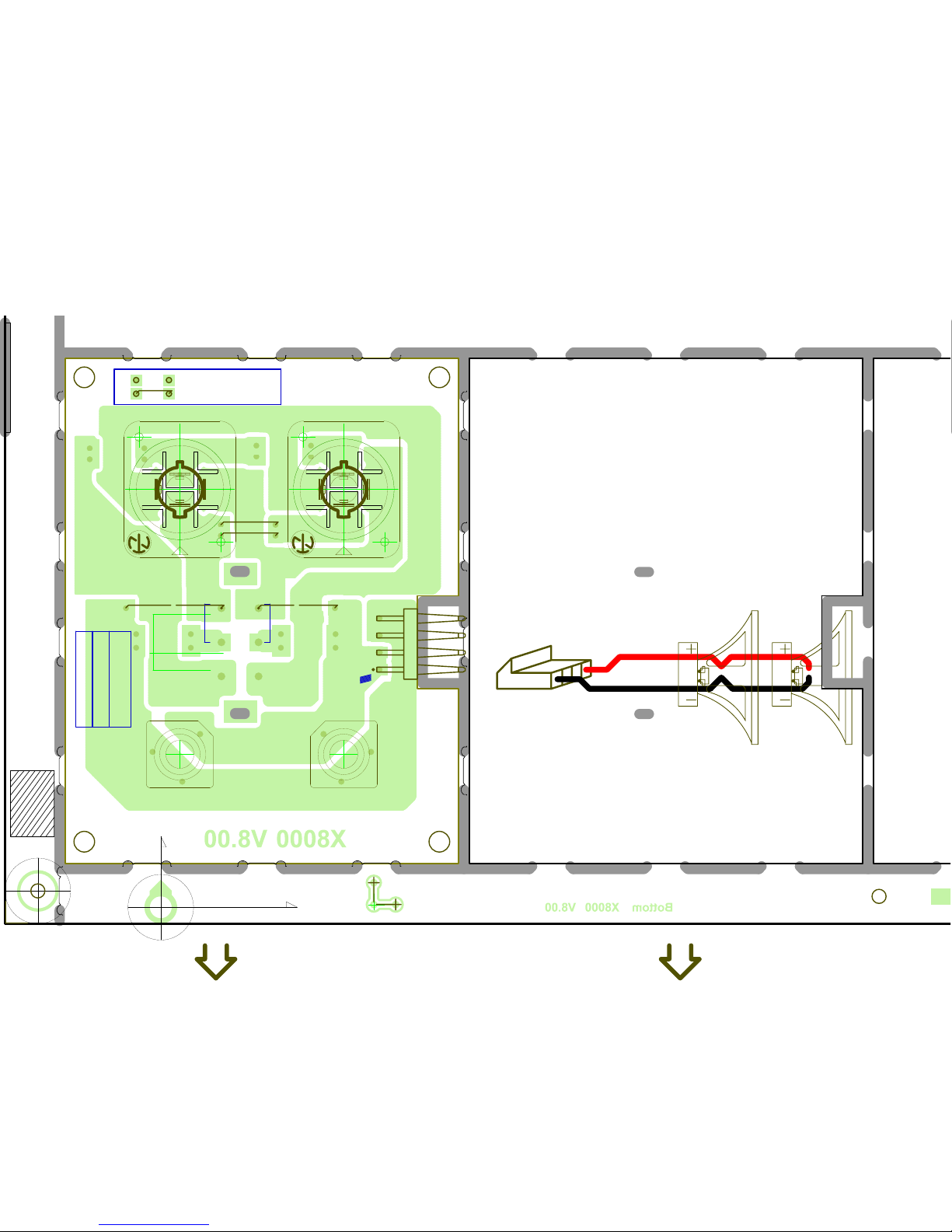

V8.00X8000Top Assy

SEE LAYOUT DOCUMENTATION

TIP2

SLEEVE

TIP1

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

TIP2

SLEEVE

TIP1

24 PIN BREAKAWAY LOCK .156

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

3628

3543

3628

3424

DPDT SLID

TC115 M1333

V8.00

TC115 M1333

LS-SERIES M593

J1

J3

X7

J2

X8

W1

J4

X8000

LS-SERIES/TC115

X14

X11 X12

S1

X13

X5 X6

X10

X9

X2

X1

X4

X3

TC410 Parts List 11/30/2007

0

5

L

K

R

YS No. Description Qty. YS No. Description Qty.

713 25 X 20 X 50 2 MIL PLASTIC BAG 1 3784 _300UH COIL 22AWG R000 BOBBIN 2 3805 _370UH COIL 22AWG R000 BOBBIN 1 8504 CORNER, 2 LEGS NOTCED LIP NICKEL 8 8522 RUBBER BUMPER WITH WASHER -SMALL- 4 8533 RUBBER BUMPER TAPERED 1.375 X 1.0 3478 CLIP 205/187X032 18-22AWG DISCO/INS 2 3491 CLIP 205/187X020 18-22AWG DISCO/INS 14 3924 1/4" JCK PCB MT VERT 2XTIP HICURNT 2 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 8514 BLACK BLANK XOVERDISH PLASTIC CNFG 3451 EYELET SMALL 0.089 OD PLATED 3 8600 HANDLE,RECESSED,PULL,BLACK META 8604 10-32 T NUT 20 3803 NYLON SECUR-A-TACH MINI PLASTIC TIE 1 3810 4" NYLON CABLE TIE 1 8619 L-PAD KNOB #TP-150-006 BLACK(SIFAM) 1

8508L LARGE DISH ALUMINIZED "L" PAD DECA

8268 TRAYNOR LOGO PLASTIC NICKEL PLATING 1 3543 20 PIN BRKAWAY 90 LOCK .156 0.2 3549 TRIFURCON TERM .156 4 3558 TERM HOUSING 4 CIR .156/RAMP 1 3668 4 CIR CHASSIS MOUNT HDR .156 1 3903 PCB CONN 4 CIR BOTTOM .156 2 4733 5.0W 5R6 5% BLK RES 1 8729 #4 X 3/8 FLAT QUAD TYPE A JS500 BLK 4 8785 #8 X 3/4 OVAL PH TYPE A BLACK OXIDE 8 8874 8-32 X 1" PAN PHIL TAPTITE JS500 4 8734 #10 X 1/2 PAN PH TYP A BRITE NICKEL 30 8756 #10 X 3/4 PAN PH TYPE A BLACK OXIDE 36 8727 #10 X 1" PAN PH TYPE A JS500 BLAC 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 16 8751 10-32 X 2 PAN PH MS JS500 4 8906 #14X2 ALLEN FLAT HD WOOD SCRW JS500 12 8739 M6 X 30 PAN PHIL M/S ZINC CLEA 3751 SNAP IN 5/16 SPACER RICHCO 4 7474 10"32R 200WPGM SPEAKER 4 8818 3/4 OD X 3/8 ID X .080 THICK WASHER 1 8489 1/4-20 SPLIT WASHER ZINC 2 8817 #10 FLAT WASHER FOR 3/16" BOLT 2 3515 NYLON SHOULDER WASHER (SWS 4003) 1

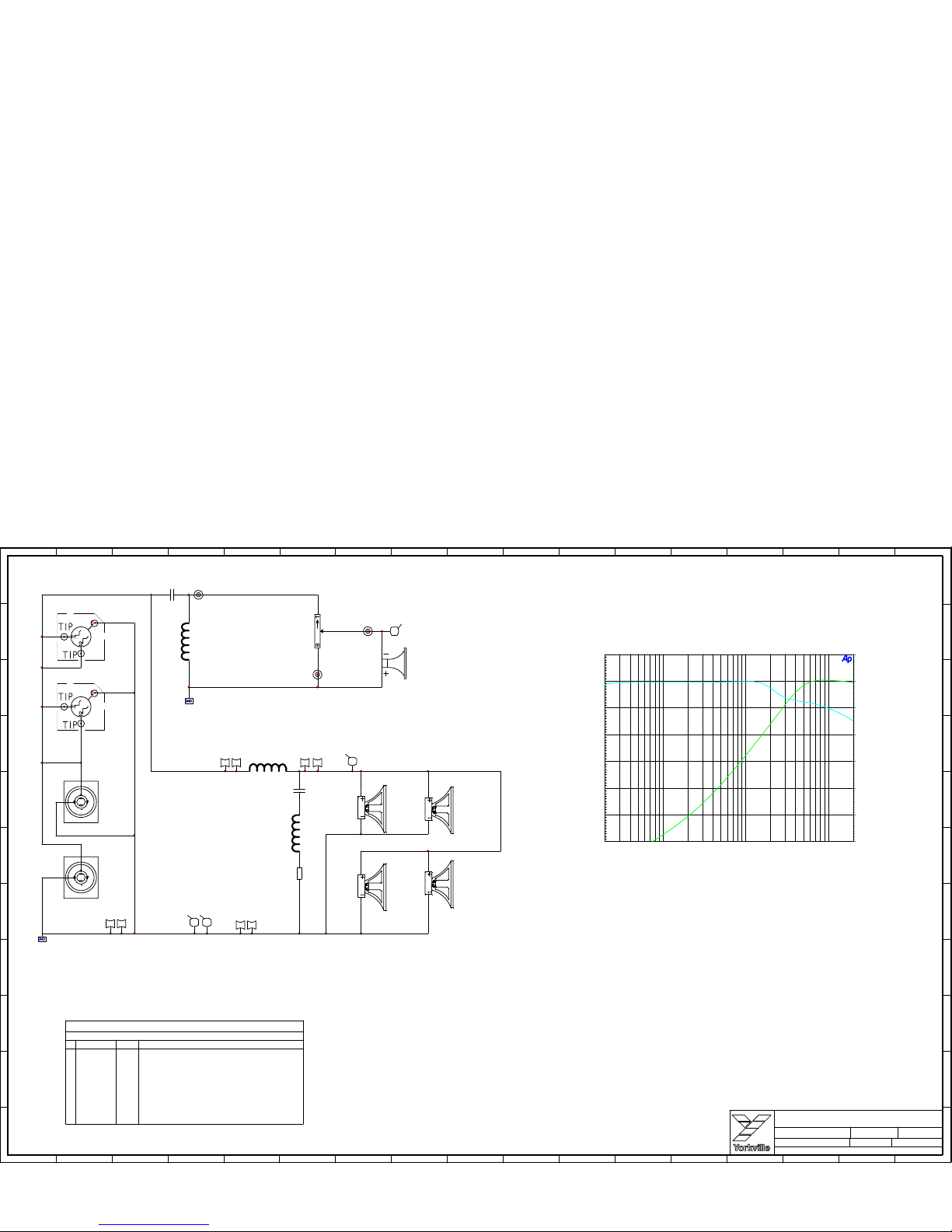

12

1

2

1

4

2

11 11

10 10

9 9

8 8

7 7

6 6

5 5

4 4

3 3

2 2

1 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

of

Filename:

PCB# Sheet 21

Product

Date: Rev: YsType:YsType

M1334-1V00sch.sch2002

M1334

Wed May 23, 2007

Sheet1

1.00

TC410

of

Filename:

PCB# Sheet 21

Product

Date: Rev: YsType:YsType

M1334-1V00sch.sch2002

M1334

Wed May 23, 2007

Sheet1

1.00

TC410

1

W2:A4

2

W1:B4

3

W3:C4

4

W2:D4

2

W2:B4

C1

100V3U3

RED

W4

4

W3:D4

5.0W

5R6

R1

.

100V

C2

10U

W5BLACK

1

W1:A4

W6

YELLOW

3784

300UH

L2

1

W3:A4

2

W3:B43W2:C4

M

Taper

P1:A

4476

8R

4

W1:D4

3805

370UH

L3

3

W1:C4

300UH 3784

L1

32R 200WPGM

HORN

SP5

#7454 1" 8R 40W

2+

2_

3628

SPEAKON 4C

J3:B

1+

1_

3628

SPEAKON 4C

J4:A

2+

2_

3628

SPEAKON 4C

J4:B

SLEEVE

1/4in JCK

J2

3924

SLEEVE

1/4in JCK

J1

3924

WOOFER

SP3 #7474 10"

WOOFER

SP4 #7474 10"

32R 200WPGM

WOOFER

SP1 #7474 10"

WOOFER

SP2 #7474 10"

13

10

7

4

1

9

11 12

8

#

2 3

5 6

VER#

MODEL(S):-

DATE DESCRIPTION OF CHANGE

V

1.00

V

D

MAY-08-2007

N

FIRST DESIGN

TC410

D D

D

N

M1334 HISTORY

1+

1_

3628

SPEAKON 4C

J3:A

Yorkville Sound 06/05/07 14:51:28

HORNWOOF.ATS2

-50

+20

-40

-30

-20

-10

+0

+10

d B V

-50

+20

-40

-30

-20

-10

+0

+10

d B V

20 20k50 100 200 500 1k 2k 5k 10k

Hz

HORNWOOF

VCD

CLINCH

ORIGIN

LONG AXIS

SHORT AXIS

INSERT

ORIGIN

M1334 V1.00Pcb Mech

BlankSize - 13825x12850

StepAndRepeat - [email protected]@0.0

RED

YELLOW

Top Assy M1334

BLACK

V1.00

SEE LAYOUT DOCUMENTATION

V

T

R

V

T

R

V

T

R

V

T

R

T V

R

T V

V

T

R

T

V

T

R

T V

GUIDE

ETCH

V

T

R

1 2 3 4

PCB CONN 4 CIR BOTTOM .156

1 2 3 4

PCB CONN 4 CIR BOTTOM .156

R

T V

V

T

R

GUIDE

ETCH

GUIDE

ETCH

OUTSIDE WIRE

INSIDE WIRE

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

T

IP

2

S

LE

E

VE

T

IP

1

T

IP

2

S

LE

E

VE

T

IP

1

4 OF 24 PIN BREAKAWAY LOCK .156

OUTSIDE WIRE

INSIDE WIRE

O

U

TS

ID

E

W

I

R

E

I

N

SI

DE

W

IR

E

3903

5942

5930

3805

3628 3628

3

9

2

4

3

9

2

4

3543

3784

3

7

8

4

4476

3U3

100V

10U

100V

22AWG

370UH

5.0W

5R6

22AWG

300UH

2

A

W

G

3

0

UH

8R

H+ H-

W-

Cable tie

M1334

V1.00

1/2

TC410

W+

Cable tie

2/2

V1.00

TC410

M1334

W4

RED

W5

BLACK

W6

YELLOW

W3

W2

C1

C2

L3

R1

J3

J4

J1

J2

W1

L1

L2

P1

SEE LAYOUT DIAGRAM

PRODUCTION NOTES

11

8

5

2

12

9

6

13

10

7

3 4

1

D

V

N

D

D D

D

V

V V

V

N

N N

N

4

1

6

5

3

#

2

MODEL(S):-

PC#

*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY

PENDING CHANGE

X

PC

M1334 PENDING CHANGES

TC410

5

2

#

6

3 4

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

VVN

N

D

D D

V

V V

N

N N

M1334 DRILL HISTORY

TC410

P3APR-27-2007 CORRECT LPAD PATTERN AND DOUBLE ROUTE LINES

12

9

6

3

#

13

11

10

5

4

8

7

2

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

V

N

D

D D

V V

V

V V

N N

N

N N

M1334 HISTORY

TC410

MAY-08-2007 1.00

NVD

FIRST DESIGN

11

8

5

2

12

9

6

13

10

7

3 4

1

D

V

N

D

D D

D

V

V V

V

N

N N

N

TC808 Parts List 11/30/2007

0

R

5

R

L

YS No. Description Qty. YS No. Description Qty.

6875 1N5359B 24V0 5W0 ZENER 5% T&R 4 6494 0R10 20% 2W1 1.85AMP PTC AUTOFUSE 1 5932 __2U2 100V 10%CAP BLK RAD POLYE FLM 1 4476 L-PAD 8R 50WATT 1 8803 8-32 X 3/8 PAN PHIL TAPTITE JS500 2

713 25 X 20 X 50 2 MIL PLASTIC BAG 1 3780 _220UH COIL 22AWG R000 BOBBIN 1 3756 _500UH COIL 14AWG R000 AIR CORE 1 8504 CORNER, 2 LEGS NOTCED LIP NICKEL 6 8533 RUBBER BUMPER TAPERED 1.375 X 1.0 8545 RECESSED RUBBER BUMPER WITH WASHER 2 8579 4000 SERIES RIGID CASTE 3491 CLIP 205/187X020 18-22AWG DISCO/INS 4 3494 CLIP 205/187X020 14-16AWG DISCO/INS 14 3924 1/4" JCK PCB MT VERT 2XTIP HICURNT 2 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 8514 BLACK BLANK XOVERDISH PLASTIC CNFG 3451 EYELET SMALL 0.089 OD PLATED 3 3542 EYELET LARGE SE44 TIN-PLAT BRASS 2 8551 BAR HANDLE RIGHT ANGLE TOP LOAD 2 8565 BAR HANDLE ALL METAL RECTANGULA 8604 10-32 T NUT 32 7435 _8R 50W TWEETER PIEZO S 1 3853 1/2-13X 2" NYLON HEX SCREW 1 3855 1/2-13 NYLON HEX NUT 1 3803 NYLON SECUR-A-TACH MINI PLASTIC TIE 1 3810 4" NYLON CABLE TIE 1 8619 L-PAD KNOB #TP-150-006 BLACK(SIFAM) 1

8508L LARGE DISH ALUMINIZED "L" PAD DECA

8268 TRAYNOR LOGO PLASTIC NICKEL PLATING 1 3538 24 PIN BREAKAWAY LOCK .156 0.2 3549 TRIFURCON TERM .156 4 3558 TERM HOUSING 4 CIR .156/RAMP 1 3668 4 CIR CHASSIS MOUNT HDR .156 1 3903 PCB CONN 4 CIR BOTTOM .156 2 5989 4 CIR CABLE HOLDER .098 1 8602 1/4-20 T NUT 8 4706 10.W 22R 5% BLK RES 1 4858 25.W 22R 10% BLK RES 2 8811 #6 X 1 1/4 FLAT QDRX WS LR CLEAR ZN 34 8785 #8 X 3/4 OVAL PH TYPE A BLACK OXIDE 8 8874 8-32 X 1" PAN PHIL TAPTITE JS500 4 8734 #10 X 1/2 PAN PH TYP A BRITE NICKEL 76 8756 #10 X 3/4 PAN PH TYPE A BLACK OXIDE 4 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 32 8906 #14X2 ALLEN FLAT HD WOOD SCRW JS500 9 8770 1/4-20 X 1 5/16 TRUSS PH MS JS500 10 3751 SNAP IN 5/16 SPACER RICHCO 4 7426 8" 32R 100WPGM SPEAKER CELESTION 8 8818 3/4 OD X 3/8 ID X .080 THICK WASHER 1 3515 NYLON SHOULDER WASHER (SWS 4003) 1

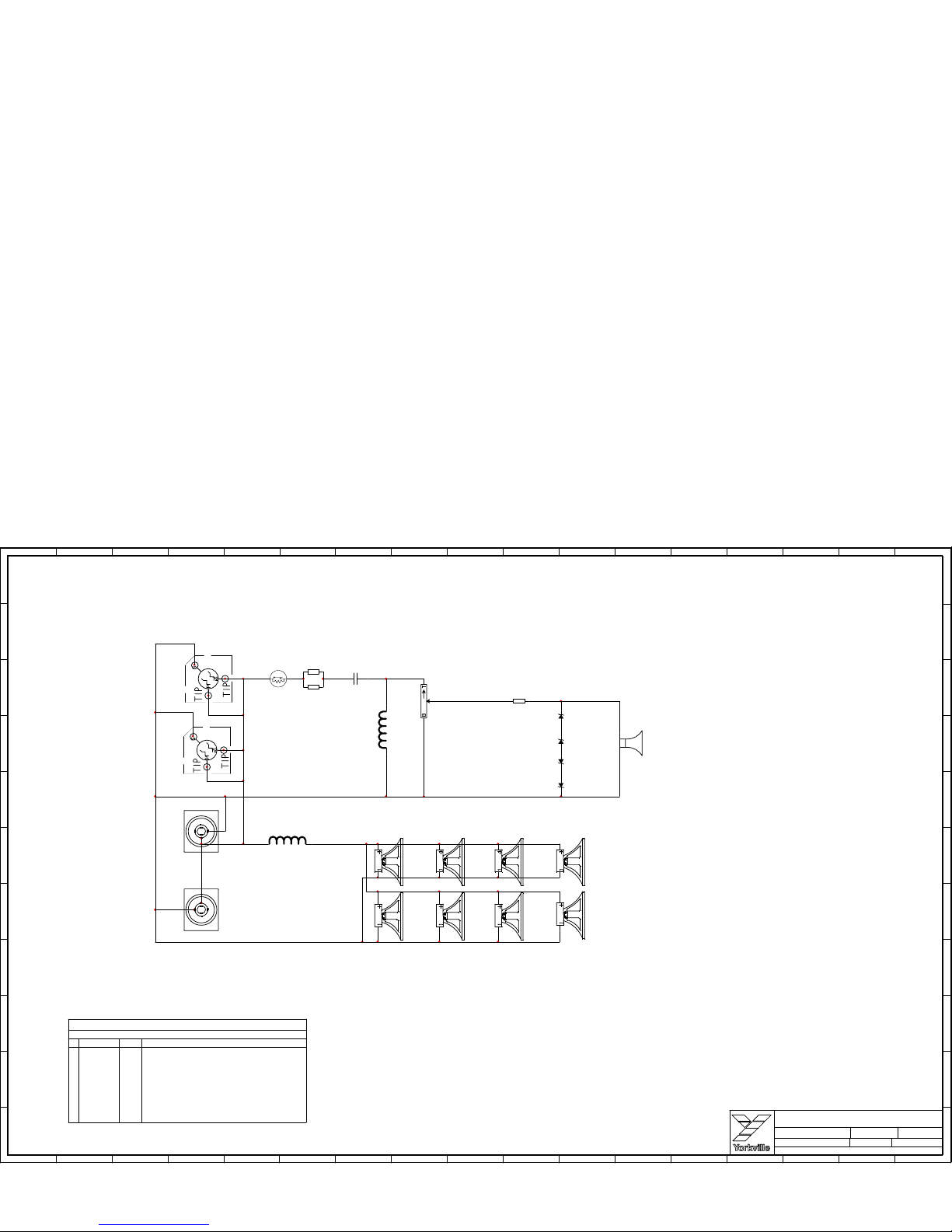

9

2

1

4

1

11 11

10 10

9 9

8 8

7 7

6 6

5 5

4 4

3 3

2 2

1 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

of

Filename:

PCB# Sheet 21

Product

Date: Rev: YsType:YsType

M1336-1V00sch.sch2002

M1336

Thu May 24, 2007

Sheet1

1.00

TC808

of

Filename:

PCB# Sheet 21

Product

Date: Rev: YsType:YsType

M1336-1V00sch.sch2002

M1336

Thu May 24, 2007

Sheet1

1.00

TC808

#7435 Description: 8R 30W TWEETER

R5

25.W

.

22R

R3

10.W

.

22R

D1

5W0

24V0

1N5359B

R4

25.W

.

22R

3780

220UH

L1

M

4476

P1:A

8R

D2

5W0

24V0

1N5359B

+

#7435 HORN

SP9

2+

2_

Function

J4:B

3628

SPEAKON 4C

WOOFER

#7426

SP7

WOOFER

#7426

SP6

WOOFER

#7426

SP5

WOOFER

#7426

SP3

WOOFER

#7426

SP2

WOOFER

#7426

SP1

D4

5W0 24V0

1N5359B

D3

5W0 24V0

1N5359B

1+

1_

Function

J4:A

3628

SPEAKON 4C

1A85

6494

R2

20%

SLEEVE

1/4in JCK

FUNCTION

J2

3924

2+

2_

FUNCTION

J3:B

SPEAKON 4C

SLEEVE

FUNCTION

1/4in JCK

3924

J1

#7426 Description: 8" 32R 100WPGM

C1

100V2U2

1+

1_

FUNCTION

J3:A

SPEAKON 4C

13

10

7

4

1

9

11 12

8

#

2 3

5 6

VER#

MODEL(S):-

DATE DESCRIPTION OF CHANGE

V

1.00

V

D

24-MAY-2007

N

FIRST DESIGN

D D

D

N

M1336 HISTORY

TC808

WOOFER

#7426

SP8

WOOFER

#7426

SP4

500UH

3756

L2

VCD

CLINCH

ORIGIN

LONG AXIS

SHORT AXIS

INSERT

ORIGIN

M1336 V1.00Pcb Mech

BlankSize - 13825x12850

StepAndRepeat - [email protected]@0.0

TAB

NORMAL

SOCKET

SOCKET WITH DIRECTI

O

NORMAL LARGE

SOCKET UPSIDE DOWN

RED

BLACK

YELLOW

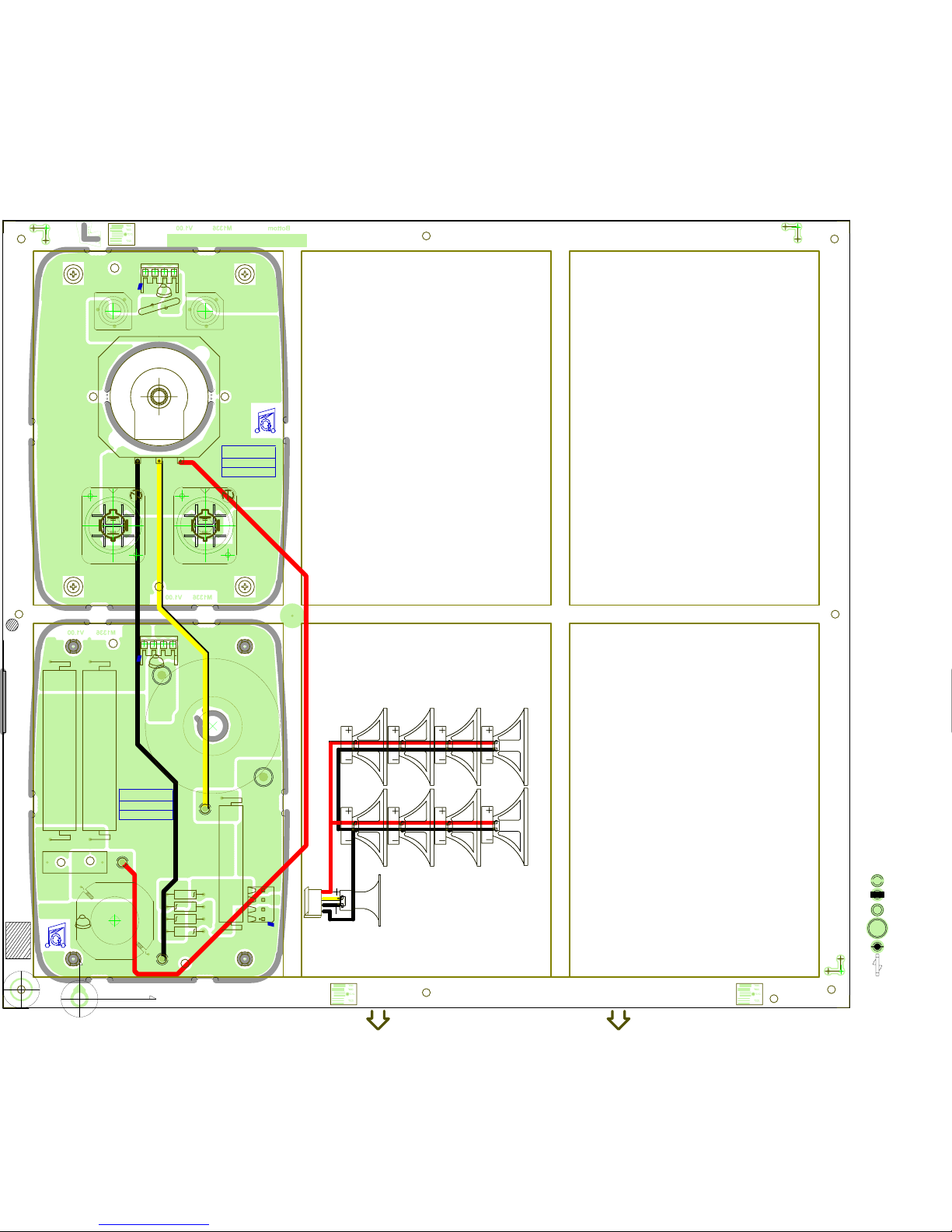

Top Assy M1336 V1.00

SEE LAYOUT DOCUMENTATION

V

T

R

T

V

T

R

GUIDE

ETCH

R

T V

R

T V

1 2 3 4

PCB CONN 4 CIR BOTTOM .156

9

TIP2

SLEEVE

TIP1

TIP2

SLEEVE

TIP1

GUIDE

ETCH

GUIDE

ETCH

OUTSIDE WIRE

INSIDE WIRE

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

1 2 3 4

PCB CONN 4 CIR BOTTOM .156

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

9

6494

3538

3903

4706

6875

39243924

3780

5932

3628

3903

3628

3756

4476

6

0

V

1

A8

5

10.W

22R

25.W

22R

24V0

22AWG

220UH

2U2

100V

500UH

25.W

22R

8R

Cable tie

H-

V1.00

1/2

TC808

Cable tie

V1.00

2/2

TC808

W+

H+

W-

M1336

W4

RED

W5

BLACK

R2

W1

W2

R3

R5

D4

D1

D3

D2

J2

J1

L1

C1

W6

YELLOW

J4

W3

J3

L2

R4

P1

SEE LAYOUT DIAGRAM

PRODUCTION NOTES

11

8

5

2

12

9

6

13

10

7

3 4

1

D

V

N

D

D D

D

V

V V

V

N

N N

N

4

1

6

5

3

#

2

MODEL(S):-

PC#

*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY

PENDING CHANGE

X

PC

TC808

M1336 PENDING CHANGES

5

2

#

6

3 4

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

VVN

N

D

D D

V

V V

N

N N

TC808

M1336 DRILL HISTORY

APR-27-2007 P2 CORRECT LPAD PATTERN AND DOUBLE ROUTE LINES

12

9

6

3

#

13

11

10

5

4

8

7

2

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

V

N

D

D D

D

V V

V

V V

V

N N

N

N N

N

M1336 HISTORY

TC808

24-MAY-2007 1.00 FIRST DESIGN

11

8

5

2

12

9

6

13

10

7

3 4

1

D

V

N

D

D D

D

V

V V

V

N

N N

N

TC810 Parts List 11/30/2007

0

R

K

YS No. Description Qty. YS No. Description Qty.

8504 CORNER, 2 LEGS NOTCED LIP NICKEL 6 8533 RUBBER BUMPER TAPERED 1.375 X 1.0 8545 RECESSED RUBBER BUMPER WITH WASHER 2 8579 4000 SERIES RIGID CASTE 3491 CLIP 205/187X020 18-22AWG DISCO/INS 20 3494 CLIP 205/187X020 14-16AWG DISCO/INS 4 3924 1/4" JCK PCB MT VERT 2XTIP HICURNT 2 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 8515 SMALL BLACK XOVERDISH PLASTIC CNFG1 1 8551 BAR HANDLE RIGHT ANGLE TOP LOAD 2 8565 BAR HANDLE ALL METAL RECTANGULA 8604 10-32 T NUT 40 3803 NYLON SECUR-A-TACH MINI PLASTIC TIE 1 8261 GE VELVET/MATTE LEXAN .007"X12"X24" 0.167 8268 TRAYNOR LOGO PLASTIC NICKEL PLATING 1 3543 20 PIN BRKAWAY 90 LOCK .156 0.2 3549 TRIFURCON TERM .156 4 3558 TERM HOUSING 4 CIR .156/RAMP 1 8602 1/4-20 T NUT 8 8639 BUMPER, BLACK UHMW 1/2 X 3/4 X 39" 2 4599 22AWG SOLID SC WIR T&R JMP 4 8729 #4 X 3/8 FLAT QUAD TYPE A JS500 BLK 4 8811 #6 X 1 1/4 FLAT QDRX WS LR CLEAR ZN 51 8785 #8 X 3/4 OVAL PH TYPE A BLACK OXIDE 11 8815 8-32 X 3/4 PAN PH TAPTITE JS500 4 8734 #10 X 1/2 PAN PH TYP A BRITE NICKEL 76 8756 #10 X 3/4 PAN PH TYPE A BLACK OXIDE 32 8727 #10 X 1" PAN PH TYPE A JS500 BLAC 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 32 8906 #14X2 ALLEN FLAT HD WOOD SCRW JS500 11 8770 1/4-20 X 1 5/16 TRUSS PH MS JS500 10 7287 10"32R 200WPGM SPEAKER 2" V COIL 8 3424 DPDT SLID SW PCMT H GOLD CONTACTS 1

11

2

4

14

8 8

7 7

6 6

5 5

4 4

3 3

2 2

1 1

A

B

C

D

E

F

G

H

I

J

K

Product

Date: Filename:

PCB#

M1337-TC810-1V00sch.sch2002

TC810

Mon Apr 16, 2007

ofSheet

Rev:211V00

M1337

Product

Date: Filename:

PCB#

M1337-TC810-1V00sch.sch2002

TC810

Mon Apr 16, 2007

ofSheet

Rev:211V00

M1337

DUAL MODE

2+

2_

SPEAKON 4C

MONO

SP8

SP4

2+

2_

SPEAKON 4C

SP3

SP7

S1:B

3424

S1:A 3424

MONO/DUAL MODE

UPPER SPEAKERS LOWER SPEAKERS

SP6

SP5

MONO MODE: 4 OHM 8X10 CABINET. (SINGLE AMP)

DUAL MODE: TWO INDEPENDANT 8 OHM 4X10 CABINETS. (TWO SEPARATE AMPLIFIERS, OR STEREO AMPLIFIER)

#7287 10" 32R 100WPGM NEO

WOOFER

SP2

SLEEVE

1/4in JCK

J3

LOWER 4X10 DUAL MODE OR MONO MODE IN/OUT JACK

1+

1_

SPEAKON 4C

J1:A

LOWER 4X10 DUAL MODE OR MONO MODE IN/OUT JACK

1+

1_

SPEAKON 4C

J2:A

UPPER 4X10 DUAL MODE OR MONO MODE IN/OUT JACK

SLEEVE

1/4in JCK

J4

UPPER 4X10 DUAL MODE OR MONO MODE IN/OUT JACK

13

10

7

4

1

9

11 12

8

#

2 3

5 6

VER#

MODEL(S):-

DATE DESCRIPTION OF CHANGE

V

D

N

TC810

D D

D

N

M1337 HISTORY

16-APR-2007 1V00 FIRST DESIGN

SP1

WOOFER

#7287 10" 32R 100WPGM NEO

VCD

CLINCH

ORIGIN

LONG AXIS

SHORT AXIS

INSERT

ORIGIN

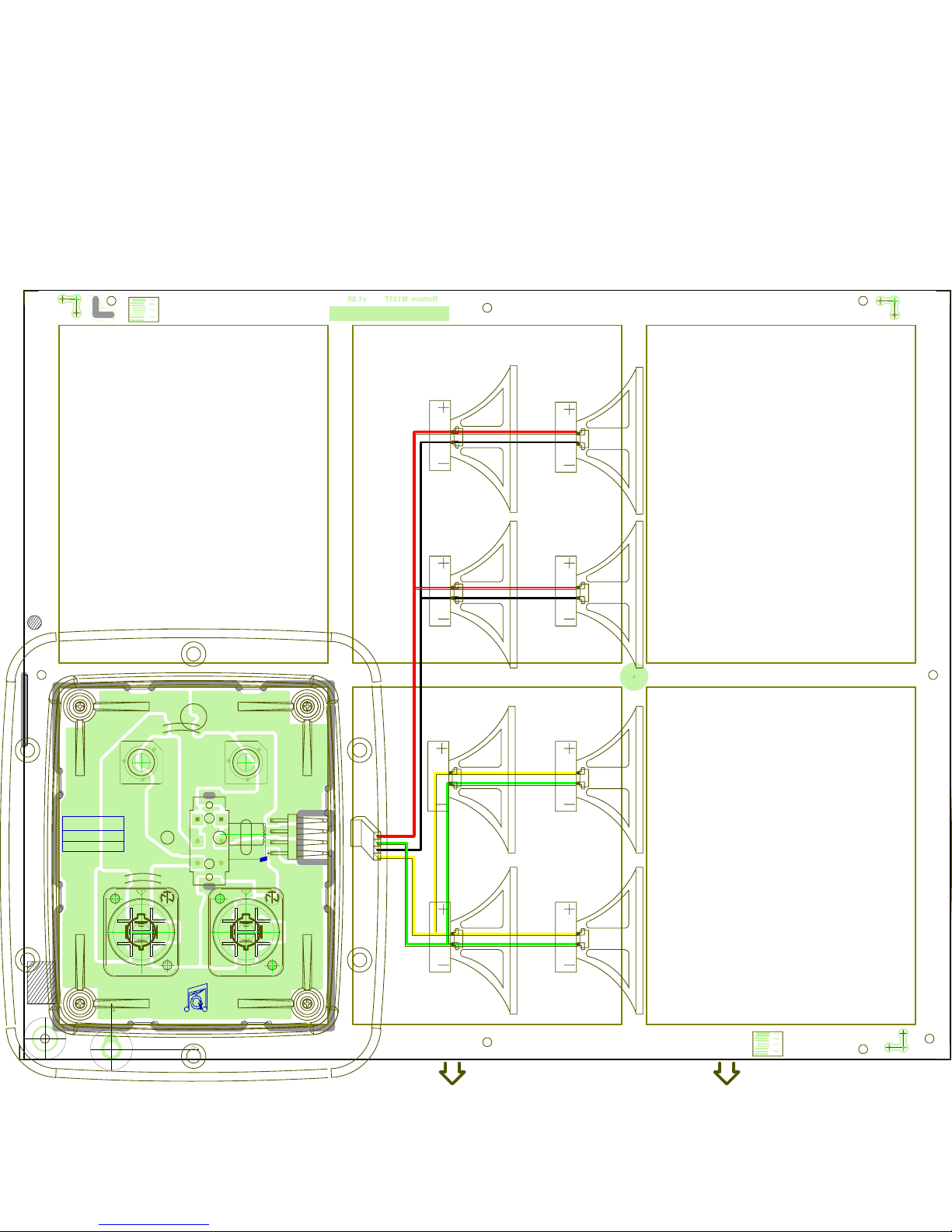

Pcb Mech v1.00M1337

BlankSize - 13250x11000

StepAndRepeat - [email protected]@5.175

YELLOW

RED

BLACK

DUAL

MONO

Top Assy v1.00

GREEN

UPPER SPEAKERS

M1337

LOWER SPEAKERS

SEE LAYOUT DOCUMENTATION

GUIDE

ETCH

4 OF 24 PIN BREAKAWAY LOCK .156

GUIDE

ETCH

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

TIP2

SLEEVE

TIP1

TIP2

SLEEVE

TIP1

MONO/DUAL MODE

LOWER 4X10 DUAL MODE OR MONO MODE IN/OUT JACK

UPPER 4X10 DUAL MODE OR MONO MODE IN/OUT JACK

3543

3628 3628

3424

39243924

DPDT SLID

+W U

-W U

v1.00

-W L

TC810

+W L

M1337

X2

X1

W2

X3 X4

J2 J1

S1

J3J4

1.

SEE LAYOUT DIAGRAM

PRODUCTION NOTES

11

8

5

2

12

9

6

13

10

7

3 4

1

D

V

N

D

D D

D

V

V V

V

N

N N

N

5

2

#

6

3 4

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

VVN

N

D

D D

D

V

V V

V

N

N N

N

M1337 DRILL HISTORY

TC810

4

1

6

5

3

#

2

MODEL(S):-

PC#

*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY

PENDING CHANGE

X

PC

TC810

M1337 PENDING CHANGES

12

9

6

3

#

13

11

10

5

4

8

7

2

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

V

N

D

D D

16-APR-2007 D

V V

V

V V

1V00 V

N N

N

N N

N

FIRST DESIGN

M1337 HISTORY

TC810

5

2

6

3 4

1

D

V

N

D

D D

D

V

V V

V

N

N N

N

TC1510 Parts List 11/30/2007

0

5

L

K

YS No. Description Qty. YS No. Description Qty.

5932 __2U2 100V 10%CAP BLK RAD POLYE FLM 2 4476 L-PAD 8R 50WATT 1 8803 8-32 X 3/8 PAN PHIL TAPTITE JS500 2

713 25 X 20 X 50 2 MIL PLASTIC BAG 1 3805 _370UH COIL 22AWG R000 BOBBIN 1 8504 CORNER, 2 LEGS NOTCED LIP NICKEL 8 8522 RUBBER BUMPER WITH WASHER -SMALL- 4 8533 RUBBER BUMPER TAPERED 1.375 X 1.0 3489 CLIP 250X032 18-22AWG DISCO/INSL 1 3491 CLIP 205/187X020 18-22AWG DISCO/INS 10 4026 CLIP 205/187X032 18-22AWG DISCO/RED 1 3924 1/4" JCK PCB MT VERT 2XTIP HICURNT 2 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 8514 BLACK BLANK XOVERDISH PLASTIC CNFG 3451 EYELET SMALL 0.089 OD PLATED 3 8600 HANDLE,RECESSED,PULL,BLACK META 8604 10-32 T NUT 16 7448 _8R 40W 1.00" DRIVER HD120F8R 1 8619 L-PAD KNOB #TP-150-006 BLACK(SIFAM) 1

8508L LARGE DISH ALUMINIZED "L" PAD DECA

8268 TRAYNOR LOGO PLASTIC NICKEL PLATING 1 3543 20 PIN BRKAWAY 90 LOCK .156 0.2 3549 TRIFURCON TERM .156 4 3558 TERM HOUSING 4 CIR .156/RAMP 1 8729 #4 X 3/8 FLAT QUAD TYPE A JS500 BLK 4 8835 6-32 X 1/2 PAN QUAD MS TIN PLATED 1 8785 #8 X 3/4 OVAL PH TYPE A BLACK OXIDE 8 8815 8-32 X 3/4 PAN PH TAPTITE JS500 4 8734 #10 X 1/2 PAN PH TYP A BRITE NICKEL 30 8756 #10 X 3/4 PAN PH TYPE A BLACK OXIDE 30 8727 #10 X 1" PAN PH TYPE A JS500 BLAC 8786 10-32 X 1 1/4 PAN QD MS JS500 BLACK 12 8751 10-32 X 2 PAN PH MS JS500 4 8906 #14X2 ALLEN FLAT HD WOOD SCRW JS500 11 8987 M5 X 25 PAN PHIL JS500 ZINC 2 7406 10" 16R 150WPGM SPEAKER 2 7336 15" 8R 225WPGM SPEAKER 1 8818 3/4 OD X 3/8 ID X .080 THICK WASHER 1 8489 1/4-20 SPLIT WASHER ZINC 2 8817 #10 FLAT WASHER FOR 3/16" BOLT 2

11

1

2

1

4

11 11

10 10

9 9

8 8

7 7

6 6

5 5

4 4

3 3

2 2

1 1

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

of

Filename:

PCB# Sheet 32

Product

Date: Rev: YsType:YsType

X1014-1V00sch.SCH2002

X1014

Tue Jun 12, 2007

Sheet2

1V00

TC 1510

of

Filename:

PCB# Sheet 32

Product

Date: Rev: YsType:YsType

X1014-1V00sch.SCH2002

X1014

Tue Jun 12, 2007

Sheet2 M1338

1V00

1_

1+

3628

J3:A

J4:B

J4:A

2U2 100V

C1

SP1

W3

RED

W5

P1:A

4476

8R

SP4

12

9

6

3

#

V

1+

1_

J3:B

3628

13

10 11

7 8

4 5

1 2

V

V V

V

SPEAKON 4C

2_

SPEAKON 4C

3628

SPEAKON 4C

2+

3628

1/4in JCK

J2

1/4in JCK

J1

L1 370UH 3805

W4

RED

WOOFER

#7406 10"

BLACK

SP2

W6

YELLOW

Traper

HORN

D

DATE

N

VER#

2+

2_

SPEAKON 4C

SLEEVE

D

D D

D

N N

N

1.00 N

N N

TC1510

WOOFER

#7406 10"

SP3

DESCRIPTION OF CHANGE

M1338 X1014 HISTORY

16R 150WPGM

#7448 1" 8R 40W

MODEL(S):-

MAY-07-2007 FIRST DESIGN

16R 150WPGM

Yorkville Sound 06/04/07 10:47:52

HORNWOOF.ATS2

-50

+20

-40

-30

-20

-10

+0

+10

d B V

-50

+20

-40

-30

-20

-10

+0

+10

d B V

20 20k50 100 200 500 1k 2k 5k 10k

Hz

HORNWOOF

2U2 100V

C2

VCD

CLINCH

ORIGIN

LONG AXIS

SHORT AXIS

INSERT

ORIGIN

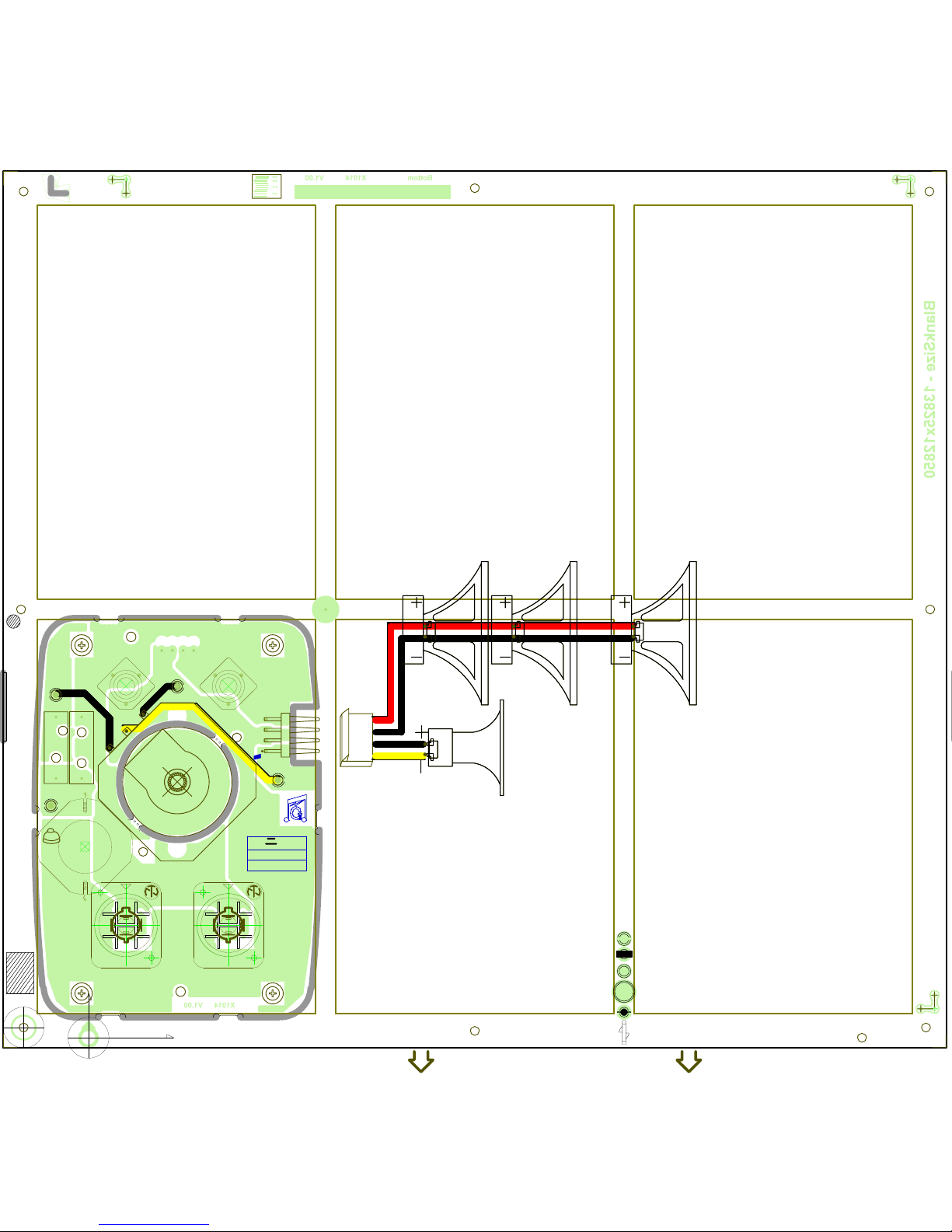

M1338 TC1510

Pcb Mech X1014 V1.00

BlankSize - 13825x12850

StepAndRepeat - [email protected]@6.075

TAB

NORMAL

SOCKET

SOCKET WITH DIRECTION

NORMAL LARGE

SOCKET UPSIDE DOWN

BLACK

RED

YELLOW

BLACK

NOTE: TC1510 HORN IS NORMAL POLARITY

M1338 TC1510

Top Assy X1014 V1.00

SEE LAYOUT DOCUMENTATION

V

T

R

T V

V

T

R

GUIDE

ETCH

V

T

R

T V

1 2 3 4

PCB CONN 4 CIR BOTTOM .156

TIP2

SLEEVE

TIP1

TIP2

SLEEVE

TIP1

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

1-

2+

1+

2+

1+

2-

NL4MP-1

1-

SPEAKON 4C

V

T

R

4 OF 24 PIN BREAKAWAY LOCK .156

OUT

S

I

DE

WIRE

I

NS

I

DE

W

IRE

15"

10"10"

D.N.S.

3903

392

4

392

4

3628 3628

5932

3543

4476

100V

2U2

8R

22AWG

300

U

H: M

1

335 / 370UH: M1338

100V

H+ H-

W-

Cable tie

V1.00

X1014

M1335 / M1338

TC 210/1510

W+

Cable tie

STUFF C2 ONLY FOR TC1510

W5

BLACK

W6

YELLOW

W2

W4

RED

FOR TC210

J1

J2

W3

RED

FOR TC1510

J3

J4

_C2

W1

P1

_L1

_C1

2U2

5932

SEE LAYOUT DIAGRAM

1. TC210: - M1335

- DO NOT STUFF W2

- P1 RED WIRE GOES TO W4

TC1510: - M1338

- DO NOT STUFF W2

- P1 RED WIRE GOES TO W3

2. NOTE THE DIFFERENT VALUE PARTS FOR

PRODUCTION NOTES

MODELS:

MULTI VALUE PARTS

TC210 . TC1510 -

8

5

2

6 7

3 4

1

D

V

N

D D

D

V V

V

N N

N

4

1

6

5

3

#

2

MODEL(S):-

PC#

*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY

PENDING CHANGE

X

PC

TC210 / TC1510

X1014 PENDING CHANGES

5

2

#

6

3 4

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

VVN

N

D

D D

V

V V

N

N N

TC210 / TC1510

X1014 DRILL HISTORY

APR-27-2007 P3 P3 FIX LPAD HOLES

12

9

6

3

#

13

11

10

5

4

8

7

2

1

DATE

MODEL(S):-

VER# DESCRIPTION OF CHANGE

D

V

N

D

D D

V V

V

V V

N N

N

N N

TC210 / TC1510

X1014 HISTORY

MAY-07-2007 1.00 FIRST DESIGN

NVD
