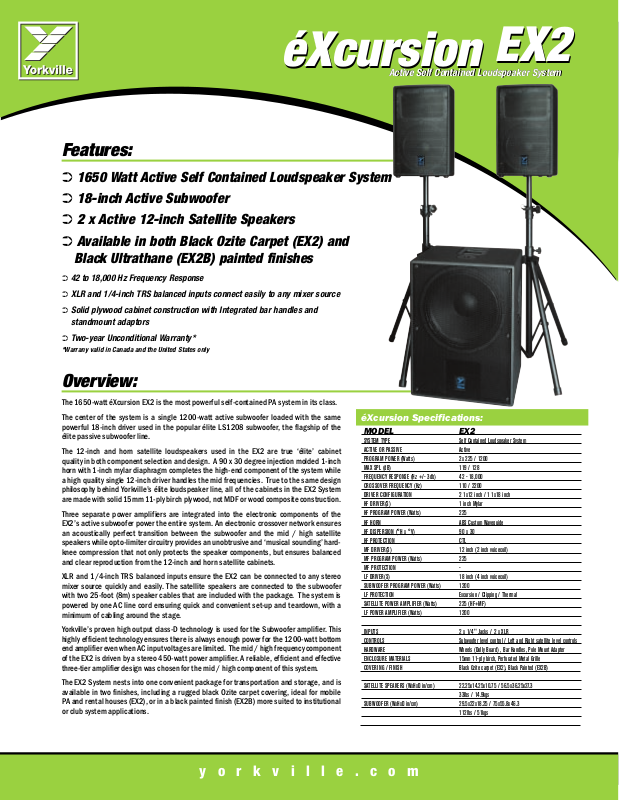

Yorkville EXCURSION EX2 Specifications
éXcursion
éXcursion
Features:
➲ 1650 Watt Active Self Contained Loudspeaker System
➲ 18-inch Active Subwoofer
➲ 2 x Active 12-inch Satellite Speakers
➲ Available in both Black Ozite Carpet (EX2) and
Black Ultrathane (EX2B) painted finishes
➲ 42 to 18,000 Hz Frequency Response
➲ XLR and 1/4-inch TRS balanced inputs connect easily to any mixer source
➲ Solid plywood cabinet construction with Integrated bar handles and
standmount adaptors
➲ Two-year Unconditional Warranty*
*Warrany valid in Canada and the United States only
EX2
EX2
Active Self Contained Loudspeaker System
Active Self Contained Loudspeaker System
Overview:
The 1650-watt éXcursion EX2 is the most powerful self-contained PA system in its class.
The center of the system is a single 1200-watt active subwoofer loaded with the same
powerful 18-inch driver used in the popular élite LS1208 subwoofer, the flagship of the
élite passive subwoofer line.
The 12-inch and horn satellite loudspeakers used in the EX2 are true ‘élite’ cabinet
quality in both component selection and design. A 90 x 30 degree injection molded 1-inch
horn with 1-inch mylar diaphragm completes the high-end component of the system while
a high quality single 12-inch driver handles the mid frequencies. True to the same design
philosophy behind Y
are made with solid 15mm 11-ply birch plywood, not MDF or wood composite construction.
Three separate power amplifiers are integrated into the electronic components of the
EX2’s active subwoofer power the entire system. An electronic crossover network ensures
an acoustically perfect transition between the subwoofer and the mid / high satellite
speakers while opto-limiter circuitry provides an unobtrusive and ‘musical sounding’ hardknee compr
and clear reproduction from the 12-inch and horn satellite cabinets.
XLR and 1/4-inc
er source quickly and easily. The satellite speakers are connected to the subwoofer
mix
with two 25-foot (8m) speaker cables that are included with the package. The system is
powered by one AC line cord ensuring quick and convenient set-up and teardown, with a
minimum of cabling around the stage.
s pr
’
kville
or
Y
highly efficient technology ensures there is always enough power for the 1200-watt bottom
end amplif
he EX2 is driven by a stereo 450-watt power amplifier. A reliable, efficient and effective
of t
three-tier amplifier design was chosen for the mid / high component of this system.
The EX2 Sy
available in two finishes, including a rugged black Ozite carpet covering, ideal for mobile
PA and rental houses (EX2), or in a black painted finish (EX2B) more suited to institutional
s
or club sy
orkville’s élite loudspeaker line, all of the cabinets in the EX2 System
tects the speaker components, but ensures balanced
o
y pr
t onl
hat no
ession t
h TRS balanced inputs ensur
oven high output class-D technology is used for the Subwoofer amplifier. This
en when AC input voltages are limited. The mid / high frequency component
v
ier e
enient pac
ts int
em nes
t
s
em applications.
t
o one con
v
e the EX2 can be connected to any stereo
age for transportation and storage, and is
k
éXcursion Specifications:
MODEL EX2
SYSTEM TYPE Self Contained Loudspeaker System
ACTIVE OR PASSIVE Active
PROGRAM P OWER (Watts) 2x 225 / 1200
MAX SPL (dB) 119 / 128
FREQUEN CY RESPONSE (Hz +/- 3db) 42 - 18,000
CROSSOV ER FREQUENCY (Hz) 110 / 2200
DRIVER CONFIGURATION 2 1x12 inch / 1 1x18 inch
HF DRIVE R(S) 1 inch Mylar
HF PROGRAM POWER (Watts) 225
HF HORN ABS Custom Waveguide
HF DISPERSION (°H x °V) 90 x 30
HF PROTECTION CTL
MF DRIVE R(S) 12 inch (2 inch voicecoil)
MF PROGRAM POWER (Watts) 225
MF PROTECTION LF DRI VER(S) 18 inch (4 inch voicecoil)
SUBWOOFER PROGRAM PO WER (Watts) 1200
LF PROTE CTION Excursion / Clipping / Thermal
SATELLITE P OWER AMPLIFIER (Watts) 225 (HF+MF)
LF POWER AMPLIFIER (Watts) 1200
R
UTS
P
N
I
S
L
O
NTR
O
C
E Wheels (Dolly Board) , Bar Handles, Pole Mount Adapter
R
A
W
D
R
A
H
RE MATERIALS 15mm 11-ply birch, Perforated Metal Grille
U
S
O
L
C
N
E
NG / FIN ISH Black Ozite carpet (EX2), Black Painted (EX2B)
I
R
E
V
O
C
PEAKERS (WxHxD in/cm) 22.25x14.25x10.75 / 56.5x36.25x27.3
ITE S
L
L
TE
A
S
FER (WxHxD in/cm) 29.5x22x18.25 / 75x55.8x46.3
O
O
W
B
U
S
2 x 1/4" Jacks / 2 x X
Subwoofer level contr
33lbs / 14.9kgs
112lbs / 51kgs
L
ol / Left and Right satellite level controls
y orkville.com
