York PD180, PC240, PD240, YC090, YC120 Technical Manual

TECHNICAL GUIDE

R-410A
SPLIT-SYSTEM
AIR-COOLED CONDENSING UNITS
AND AIR HANDLERS

PREDATOR® SERIES

YC090-240 and YD120-240

CONDENSING UNIT MODELS

PC090-240 and PD180-240

HEAT PUMP UNIT MODELS

NC090-240 and ND120-240

AIR HANDLING UNIT MODELS

7.5 - 20 Ton
60 Hertz

®

ISO 9001

Certified Quality

Management System

NC\ND Air Handlers

YC\YD\PC Outdoor Units

YC\YD\PC\PD Outdoor Units

505428-YTG-C-0309

Description

Predator® condensing units and heat pumps are completely
assembled, piped and wired at the factory to provide a single-piece
unit for shipment and rigging. Each unit is pressurized with a holding
charge of refrigerant R-410A for storage and/or shipping.

The compact design, clean styling, small footprint, and quiet operation
make these condensing units and heat pumps suitable for almost any
outdoor location. On rooftops... because they weigh much less than a
single package unit of similar capacity and are much easier to rig and
support. On the ground... because the footprint is compact allowing a
variety of applications.

Both the Predator® condensing units and heat pumps are equipped
with reliable Simplicity® microprocessor controls to assure proper
operation and unit protection for long product life. Products from 10 to
20 tons are available in single or dual (2 or 4 pipe) refrigerant circuits
for redundancy in operation and various application choices such as
one outdoor unit matched with two indoor units.

The Predator® air handling units are completely assembled units,
including a well-insulated cabinet, a DX cooling coil with copper tubing,
aluminum fins, expansion valve(s), distributor(s), 2” throwaway filters,
a centrifugal blower, a blower motor, an adjustable belt drive, a blower
motor contactor and a small holding charge of refrigerant R-410A.

Units are shipped in the vertical position ready for field installation, but
can be easily converted to horizontal position. An added benefit of the
Predator® air handling units is they are designed to operate with either
a condensing unit or a heat pump and no field modification or special
unit is required for heat pump applications.

505428-YTG-C-0309

Table of Contents

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Condensing Unit Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Outdoor Unit Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Air Handling Unit Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Guide Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Physical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Unit Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cooling and Heating Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Capacity Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Airflow Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Sound Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Typical Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Weights And Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

2 Johnson Controls Unitary Products

Nomenclature

Product Category

Y = Split System, Condenser, AC, R-410A

Product Identifier

C = Standard Efficiency, 2-Pipe, R-410A
D = Standard Efficiency, 4-Pipe, R-410A

Nominal Cooling Capacity - MBH

090 = 7.5 Ton
120 = 10 Ton
150 = 12.5 Ton
180 = 15 Ton
240 = 20 Ton

C00 = Cooling Only

Product Options

AA = None
AB = Phase Monitor
AC = Coil Guard
AE = Phase Monitor + Coil Guard
LA = Low Ambient
LB = Low Ambient + Phase Monitor
LC = Low Ambient + Coil Guard
LD = Low Ambient + Phase Monitor
+ Coil Guard
LE = Low Ambient + Technicoat Cond. Coil
LF = Low Ambient + Technicoat Cond. Coil
+ Phase Monitor
LG = Low Ambient + Technicoat Cond. Coil
+ Coil Guard
LH = Low Ambient + Technicoat Cond. Coil
+ Phase Monitor + Coil Guard
TA = Technicoat Condenser Coil
TB = Technicoat Condenser Coil + Phase

Monitor

TC = Technicoat Condenser Coil + Coil Guard
TE = Technicoat Condenser Coil + Coil Guard
+ Phase Monitor

Installation Options

A = None

2 = 208/230-3-60
4 = 460-3-60
5 = 575-3-60
7 = 380/415-3-50

Configured Split Condenser Model Number Nomenclature

A = Standard Motor

Airflow

Product Generation

1 = First Generation

Voltage

Heat Type & Nominal Heat Capacity

YC240

C00 A

2

A

AA

2

A

Product Style

A = Style A

P = Split System, Condenser, HP, R-410A

2 = Non Pwr’d Conv Outlet

1 = Disconnect

T = Options 1 & 5

S = Options 5

D = Options 1 & 2

C = Option 2

B = Option 1

Options

5 = Pwr’d Conv Outlet

Product Category

N = Split System, Air Handler, AC & HP R-410A

Product Identifier

C = Standard Efficiency, 2-Pipe, R-410A
D = Standard Efficiency, 4-Pipe, R-410A

Nominal Cooling Capacity - MBH

090 = 7-1/2 Ton
120 = 10 Ton
180 = 15 Ton
240 = 240 Ton

C00 = Cooling Only

Product Options

AA = No Options Installed

Installation Options

A = No Options Installed

5 = 575-3-60
6 = 208/230/460-3-60
7 = 380/415-3-50

Configured Split Air Handler Model Number Nomenclature

B = 1.5 HP Motor
C = 2.0 HP Motor
D = 3.0 HP Motor
E = 5.0 HP Motor
F = 7.5 HP Motor

Airflow

Product Generation

1 = First Generation

Voltage

Heat Type & Nominal Heat Capacity

NC240

C00 B

6

A

AA

2

A

Product Style

A = Style A

505428-YTG-C-0309

Johnson Controls Unitary Products 3

505428-YTG-C-0309

Condensing Unit Features and Benefits

Features

• Meets or exceed s ASHRAE 90.1 standards.

• Scroll compressors provide both high efficiency and
reliability.

• Simplicity

• Dual refrigerant circuits on PD and YD models.

• Condensing unit coils are constructed of reliable and
durable Micro-Channel aluminum tube and fins for long
lasting, efficient operation. Mirco-Channel technology
provides exceptional durability along with reduced
product weight and less refrigerant charge. Heat pumps
units are equipped with aluminum fin, copper tube coils
providing durability, reliability and value.

• Multiple condensing unit and air handler match-ups
provide a wide range of application choices from
oversized indoor motors to dual indoor units matched­up with single outdoor units.

• Crankcase heaters that will be de-energized when
compressors are operating.

• Both high and low pressure controls. Since these
controls are self-contained, there are no capillary lines
to be damaged.

• Internal compressor motor protection.

• Class 2, 24-volt thermostat control circuit protected by a
re-settable breaker.

• Standard factory installed service valves.

• Filter-driers are shipped in the unit's control box for field
installation in the liquid line leaving the outdoor unit.

• Copper stub-outs are factory mounted on the suction
and liquid lines to simplify the field piping connections.

• Simplicity® Controls provide stable cooling operation at
ambient temperatures down to 40°F with low ambient
kits available for operation to 0°F.

• Capacity staging for more economical operation and
stable temperature levels within the conditioned space.

• Simplicity® Controls prevent the unit from cycling on
safety control with “Three Outs” technology preventing
nuisance trips, but protecting the equipment when valid
operational issues are experienced.

• Simplicity® Controls monitor each safety independently
(High pressure, low pressure, low voltage) allowing
ease of troubleshooting if any problems arise.

• Inh erently protected condenser fan motors.

• Technicoated outdoor coils for sea coast or corrosive
environment applications.

• Factory installe d disconnect to allow power to be
removed from the unit when performing periodic
maintenance or for service.

®

Controls

• Factory installed powered or non-powered 115 volt GFI
outlet.

• Factory installed phase monitor to protect the unit from
phase loss or phase reversal.

Benefits

The Predator® condensing units and heat pumps can be
applied on a rooftop or at ground level... due to their ample
sub-cooling capacity which allows them to be located three or
more stories below the evaporator coil.

After assembly, the unit is pressurized with a combination of
Refrigerant R-410A and nitrogen for pressure testing and
additional leak testing. During this pressure test, the
operation of the high pressure control is checked. As the unit
is being evacuated and dehydrated, the operation of the low
pressure control is also checked.

Every compressor, condenser fan motor, crankcase heater,
and electrical control circuit is checked to assure a trouble­free start-up and years of reliable operation. The condenser
fan guards are vinyl-coated to provide additional rust
protection and to enhance the appearance of the unit.
Compressors are mounted on rubber isolators to reduce the
transmission of vibration. Vertical discharge condenser fans
direct sound upward and away from any surrounding
structures.

All sheet metal parts are constructed of commercial grade
galvanized steel. After fabrication, each part is thoroughly
cleaned to remove any grease or dirt from its surfaces. The
external parts are coated with a powder paint to assure a
quality finish for many years. This UL approved coating
system has passed the 1000 hour, 20% salt spray test per
ASTM Standard B117.

All condensing unit and heat pump models include a 5-year
limited warranty on the compressor(s) and 1-year limited
warranty on all other parts. The matching line of air handling
units carries a 1-year limited parts warranty.

Outdoor Unit Accessories

Coil Guards: Wireform coil guards for added protection of
outdoor coils. Designed to mount on each side of the product
if required to provide protection from minor impacts or large
debris.

Hail Guards:
outdoor coils from hail. Can be installed on a single side or
both to provide protection from storms that may produce hail.

Low Ambient Kits:
units to operate between 0°F and 40°F in the cooling mode.
Standard cooling is allowed to 40°F. (Not designed for
operation on heat pump units).

Hood type hail guards designed to protect the

Kits designed to allow the cooling only

4 Johnson Controls Unitary Products

505428-YTG-C-0309

Air Handling Unit Features and Benefits

Features

These air handlers can be arranged for a variety of air
discharge patterns in either the horizontal or vertical position.
Refer to the unit installation instructions for other application
possibilities.

Benefits

Air handling units are designed with two distinct modules to
provide maximum application flexibility. All are shipped as
single packages with the blower module mounted on top of
the coil module. The blower module can be repositioned in
the field to meet a large number of vertical and horizontal
applications.

The blower module includes the blower wheels along with
factory-mounted motor and drive. All models offer two motor
horsepower options to meet both standard and high static
airflow requirements. The coil module includes direct
expansion coils, 2 in. throwaway filters with the option to
accept 4” filters, liquid line solenoid valves for capacity
reduction, thermal expansion valves, distributors and a non­corrosive, composite condensate drain pan.

Every air handling coil is pressurized with air and leak tested
under water. After the headers are brazed onto the coil and
the coil is installed in the unit, the coil is pressurized with a
combination of Refrigerant R-410A and nitrogen for pressure
testing and additional leak testing. After the coil is evacuated
and dehydrated, it is pressurized with a holding charge of
Refrigerant R-410A for storage and/or shipping.

These air handlers, combined with condensing units, provide
years of quiet, efficient and dependable operation. These
units are manufactured under ISO 9001 Quality System
Certification.

Unit Installation

Units may be bottom-supported or ceiling-suspended and
can be arranged to meet almost any space or duct
requirements. Each unit is available with a choice of blower
motors horsepower and other accessories to make them
suitable for most applications.

Blower Motors:
unit to meet almost any air delivery requirement. All motors
are UL approved, have permanently lubricated ball bearings
and are factory-mounted within the insulated cabinet of the
units to minimize the transmission of sound to the
surrounding space.

Air Handling units are availabl e in either two or four pipe
configurations from 7.5 to 20 tons. The dual and single circuit
options provide a wide variety of application and unit match­up possibilities.

Different HP motors are available for each

Factory-Mounted Components

Part Load Operation:
Expansion) coils rated at 10 tons of capacity and above have
multiple coils with pre-piped distributors, expansion valves
and solenoid valves. Field modifications are not required for
part load operations. Capacity reduction not only provides
economical operation, but also maintains stable temperature
and humidity levels in the conditioned space.

Easy Service:
every unit. These valves are factory-installed to provide many
years of trouble-free operation. If service is required, it is not
necessary to unbraze any joints. The expansion valves also
include a tee fitting to allow easy installation of hot gas
bypass if required.

Coil Protection:
factory Technicoated to provide extended life to the indoor
coil in standard applications and additional corrosion
protection on those applications in sea coast or corrosive
environments.

Blower Motors: Different HP motors are available for each
unit to meet almost any air delivery requirement. 1.5-5 HP
motors are inherently protected. 7.5 HP will come equipped
with a motor starter and overload protection.

Accessories

Base Sections:
above the floor. If desired, a moderate percentage of outdoor
air may be introduced through these sections by cutting an
access opening to accommodate the outdoor air duct
connection. These bases include a durable finish to match
the evaporator blower unit. The base may have to be
insulated for certain applications.

Hot Water Coils:
installation between the blower and the coil modules of both
horizontal and vertical units. Since their casings match the
dimensions and the finish of the basic units, they become an
integral part of the unit after installation. The coils slide out of
their casings for easy installation. Hot water coils have
copper tubes that have been mechanically expanded into
aluminum fins. Both headers are located on the same end of
the coil. Coils are leak-tested at 325 psig under water and
dried before their connections are capped for storage and
shipping.

Steam Coils:
between the blower and coil modules of both horizontal and
vertical units. Since the casing matches the dimensions and
the finish of the basic unit, it becomes an integral part of the
unit after installation. The coil slides out of the casings for
easy installation and is pitched in the casings to facilitate
condensate drainage. The coil has copper tubes that have
been mechanically expanded into aluminum fins. Both
headers are located on the same end of the coil. The coil is
leak-tested at 325 psig and dried before the connections are
capped for storage and shipping.

Steam coils are available for installation

These air handlers with DX (Direct

Serviceable expansion valves are provided on

The indoor coils of these air handlers can be

Base sections can be used to elevate units

Drainable water coils are available for field

Johnson Controls Unitary Products 5

505428-YTG-C-0309

Guide Specifications

Split System Cooling Only Condensing Units
Models: YC090-240, YD120-240 & Split System Heat
Pump Models: PC090-240, PD180-240

General

• Factory assembled, single piece, air cooled condensing
unit designed for outdoor installation.

• Factory wired, pip ed, and tested for leakage and
functionality to assure trouble-free installation and start­up.

• Rated in accordance with ARI Standard 340/360.

• Manufactured in a facility registered under the ISO 9002
manufacturing quality standard.

• Designed and tested in accordance with ASHRAE 15
Safety Code for Mechanical Refrigeration and comply
with NEC.

• Cooling performance rated in accordance with DOE
and ARI test procedures.

• CSA listed and classified to UL 1995/CAN/CSA No.
236- M90 standards.

• One year limited parts warranty on complete unit with
an additional four year compressor warranty.

Unit Operating Characteristics

Operating Range shall be between 125° F to 40° F in cooling
as standard from factory.

Unit Construction

• Constructed of zinc-c oated, galvanized steel.

• Exterior surfaces bonded and coated with baked
enamel finish by a powder paint process capable of
withstanding a minimum of 1000 salt spray hours
according to ASTM B117.

• Cabinet screws that comply with ASTM B117 salt spray
test for a minimum of 750 hours.

• Permanently attached heavy-gage perimeter base rails
with forklift slots and lifting holes.

• Removable access panels to all internal components.

• S eparate access panel to controls.

• Access panels to allow outdoor coil cleaning.

Compressor(s)

• Hermetic scroll type, internally protected with high­pressure relief and over temperature protection.

• Two stage units operate in 50% capacity increments.

• Suction gas cooled

• V oltage range of ±10% of unit nameplate voltage.

• Neoprene isolators minimize sound transmission and
vibration.

• B elly-band crankcase heaters keep refrigerant from
diluting sump oil.

• Full charge of compressor oil

Outdoor Condenser Unit Coils

• The capacity of the condensing unit shall meet or
exceed _____ Btuh at a suction temperature of _____
F. The power consumption at full load shall not exceed
_____ kW.

• The combination of the condensing unit and the
evaporator or fan coil unit shall have a total net cooling
capacity of _____ Btuh or greater at conditions of
_____ cfm entering-air temperature at the evaporator at
_____ F wet bulb and _____ F dry bulb, and air
entering the condensing unit at _____F.

• The system shall have an EER of _____ Btuh/ Watt or
greater at standard ARI conditions.

Installer Shall

• Furnish York® air-cooled condensing units, heat pump
or equivalent in accordance with the performance
schedule shown on the plans, and

• Unit shall be stored and handled in accordance with unit
manufacturer's instructions.

• Install each unit as shown on the plans in accordance
with the manufacturer’s recommendations and all
applicable national and local codes

• Draw thru configuration

• Constructed with Micro-c hannel aluminum fins and
aluminum tubing. All refrigerant tubing must share a
common header.

Heat Pump Unit Outdoor Unit Coils

• Draw thru configuration

• Constructed with aluminum plate fins mechanically
bonded to seamless internally enhanced copper tubes
with all joints brazed.

Condenser Fans

• Direct driven propeller-type fans

• S tatically and dynamically balanced

• Aluminum blades riveted to corrosion resistant steel
spider brackets.

• A rranged for vertical air discharge.

• Equipped with PVC coated steel wire safety guards.

Condenser Motors

• Totally enclosed, air over cooled.

• Inherent overload protection.

• Permanently lubricated bearings.

6 Johnson Controls Unitary Products

505428-YTG-C-0309

• M ust cycle to allow cooling operation down to 40°F.

Refrigerant Piping

• S olid core filter-drier(s) ship loose for field installation.

• Liquid and suction line service valves with gauge ports.

• S uction and discharge line service ports accessible
from unit. Ports capped for leak prevention.

• Liquid line magnetic check valves

• Holding charge of R410A refrigerant.

Electrical Requirements

• S ingle-point connection electrical power.

• Nominal unit electrical characteristics shall be _____ v,
3-ph, 60 Hz. The unit shall be capable of satisfactory
operation within voltage limits of ____ v to _____ v.

• Condenser fan motors and secondary of transformers
shall be grounded.

Unit Controls

• All 24-volt control circuit, powered by a 24 volt
transformer(s) and protected by a resettable breaker.

• Conventional thermostat must provide operation for
both condensing units and heat pumps without an “O”
output from the thermostat.

• Low voltage terminal strip for simple hook-up.

• Compressor motor protection shuts down unit for motor
over-current, over-temperature or low voltage
conditions.

• S afety lockouts provide reset capability at the space
thermostat or base unit should any of the following
standard safety devices trip and shut off compressor:

a. Loss-of-charge/Low-pressure switch.
b. High-pressure switch.
c. Control board diagnostics and fault code display.
d. Safety lockouts send a 24 volt signal to the control

board's "X" terminal, allowing notification to the user
via the thermostat fault light (if present).

e. Control board shall retain last 5 fault codes in non-

volatile memory, which will not be lost in the event of a
power loss. An LED (light-emitting diode) indicator
flashes a fault code that indicates which safety switch
has tripped.

Non-fused Disconnect Switch

• Factory-installed, internally mounted.

• Accessible from outside the unit.

• NEC and UL approved non-fused switch.

• P rovides power off lockout capability.

Convenience Outlet

• Factory-in stalled, internally mounted.

• Accessible from outside the unit.

• 115V, 15 amp GFI receptacle with independent fuse
protection.

• Required voltage provided by factory-installed step­down transformer or field supplied 115v circuit.

Low-ambient Head Pressure Control

• S tandard operation down to 40 °F without a low
ambient kit.

• Operation down to 0°F with a field-installed low ambient
kit accessory. The controller modulates the fan motor
speed in response to liquid line temperature or
pressure.

Coil Guard

Factory or field installed decorative grille shall be placed on
the units to protect condenser coil after installation.

Hail Guard Package

Field installed hail guard package shall protect coils against
damage from hail and other flying debris.

Phenolic Coated Condenser Coils

Special phenolic coating available as a factory option on both
outdoor and indoor coils.

Each Unit Shall Be:

• Covered by a 1-year limited parts warranty on the
complete unit and 5-year on compressor(s).

• In current prod uction with published literature available
to check performance, limitations, specifications, power
requirements, dimensions, operation and appearance.

• Indoor unit shall be equipped with a V-belt drive option
that will permit the blower RPM to be adjusted to meet
the CFM requirements of the air delivery system. (Refer
to Technical Guide for Airflow Capabilities.)

Each Unit Enclosure Shall Have:

• Exterior panels of 18 gauge steel, finished with baked
enamel to provide a long lasting quality appearance

• Removable panels to provide easy access to the
internal components for maintenance and service on
condensing units, heat pumps and air handlers

• A Ir handling units must have a filter rack that accepts
both 2” and 4” filters.

• The dimensions of each unit shall not exceed those
specified in the manufacture’s literature.

Johnson Controls Unitary Products 7

505428-YTG-C-0309

• The minimum application clearances for condensing
units, heat pumps and air handlers must meet those
specified in the manufacturer’s litera tu re .

The Blower Motor Shall:

• Be mounted within the insulated cabinet to minimize the
transmission of sound to the surrounding space, and
any motor 7.5 HP or greater must have a service factor
of 1.15.

The Evaporator Coil Shall:

• Consist of copper tubes arranged in staggered rows,
mechanically expanded into aluminum fins,

• Be draw-through, and

• Include factory-mounted distributors, expansion valves
and solenoid valves for capacity reduction.

The Blower Wheels Shall:

Be dynamically balanced to minimize the levels of sound and
vibration generated by the unit.

8 Johnson Controls Unitary Products

505428-YTG-C-0309

PC090 - 240 and PD180 - 240 Physical Data

Component

Nominal Tonnage 7.5 10 15 15 20 20

REFRIGERANT

Refrigerant type R-410A R-410A R-410A R-410A R-410A R-410A
Holding charge (lb)

Operating Charge (lb)

DIMENSIONS (inches)

Length 59.1 59.1 59.1 59.1 59.1 59.1
Width 31.9 31.9 64.1 64.1 64.1 64.1
Height 44.5 50.0 44.5 44.5 50.0 50.0

Shipping 405 550 815 810 985 980
Operating 415 560 840 835 1010 1005

Type Single Scroll Tandem Scroll Tandem Scroll Single Scroll Tandem Scroll Tandem Scroll
Quantity 1 1 1212

Nominal Capacity (Tons)

Capacity Stages

No. Refrigeration Circuits 111212
Suction Line OD (in.) 1 1/8 1 3/8 1 5/8 1 1/8 1 5/8 1 3/8
Liquid Line OD (in.) 5/8 7/8 7/8 5/8 7/8 7/8

OUTDOOR COIL DATA

Face area (Sq. Ft.) 23.75 29.03 29.03 29.03 47.5 47.5
Rows 222222
Fins per inch 20 20 20 20 20 20
Tube diameter (in./MM) 0.38 / 10 0.38 / 10 0.38 / 10 0.38 / 10 0.38 / 10 0.38 / 10
Circuitry Type Interlaced Interlaced Interlaced Interlaced Interlaced Interlaced
Refrigerant Control TXV TXV TXV TXV TXV TXV

CONDENSER FAN DATA

No. Fans / Diameter (in.) 2/24 2/24 2/24 2/24 4/24 4/24
Type Axial Axial Axial Axial Axial Axial
Drive type Direct Direct Direct Direct Direct Direct
No. speeds 1 1 1111

Number of motors
Motor HP (ea.) 1/3 3/4 1/3 1/3 3/4 3/4

3

Rotation
RPM 850 1100 850 850 1100 1100

Nominal CFM

1

2

WEIGHTS (lb)

COMPRESSORS

SYSTEM DATA

System #1 16.1 23.3 35.7 17.9 44.2 22.1
System #2 --- --- --- 17.9 --- 22.1

System #1 7.5 10 15 7. 5 20 10
System #2 --- --- --- 7.5 --- 10
System #1122121
System #2 --- --- --- 1 --- 1

System #1224242
System #2 --- --- --- 2 --- 2

System #1 7500 9800 15000 7500 19600 9800
System #2 --- --- --- 7500 --- 9800

PC090 PC120 PC180 PD180 PC240 PD240

1.0 1.0 1.0 1.0 1.0 1.0

CW CW CW CW CW CW

Models

10 Johnson Controls Unitary Products

505428-YTG-C-0309

Unit Limitations

Condenser Unit limitations

Outdoor DB Temp

Size

090

(7.5)

090

(7.5)

150

(12.5)

Model

PC

YC

YC/YD

(Tons)

120 (10) PC

120 (10) YC /YD

180 (15) PC /PD

180 (15) YC /YD

240 (20) PC /PD

240 (20) YC /YD

Unit Voltage

Applied Voltage

Min Max Max Min

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

208/230-3-60 187 252

575-3-60 540 630

1

Cooling (°F)

125 40 86 68 70 0 80 50460-3-60 432 504

125 40 86 68 - - - -460-3-60 432 504

125 40 86 68 70 0 80 50460-3-60 432 504

125 40 86 68 - - - -460-3-60 432 504

125 40 86 68 - - - -460-3-60 432 504

125 40 86 68 70 0 80 50460-3-60 432 504

125 40 86 68 - - - -460-3-60 432 504

125 40 86 68 70 0 80 50460-3-60 432 504

125 40 86 68 - - - -460-3-60 432 504

1. Rated in accordance with ARI Standard 110, Range “A” Utilization Voltage.
†. Low Ambient accessories are available to permit stable system operation at ambient temperatures down to 0°F.

Indoor DB Temp

†

Cooling (°F)

Max Min Max Min Max Min

Outdoor DB Temp

Heating (°F)

Indoor DB Temp

Heating (°F)

12 Johnson Controls Unitary Products

505428-YTG-C-0309

Cooling and Heating Ratings

Cooling And Heating Rating

Condensing Unit Only

Outdoor Unit

PC120
PC120
PC180
PD180
PC240
PD240

YC090 85 6.8 12.4 NC090 94 11.2 13.0 --- N/A N/A N/A N/A 3000
YC090 85 6.8 12.4 NC120 99 11.9 13.0 --- N/A N/A N/A N/A 3000
YC120 110 9.3 11.9 NC120 124 11.4 12.5 12.9 N/A N/A N/A N/A 4000
YD120 108 9.1 11.8 ND120 124 11.2 11.2 11.6 N/A N/A N/A N/A 4000
YC150 133 11.6 11.5 NC180 150 11.0 13.3 13.8 N/A N/A N/A N/A 5000
YD150 136 11.5 11.8 ND180 150 11.0 12.1 12.3 N/A N/A N/A N/A 5000
YC180 160 13.4 12.0 NC180 181 11.2 12.2 12.5 N/A N/A N/A N/A 6000
YC180 160 13.4 12.0 NC240 190 11.7 12.7 12.5 N/A N/A N/A N/A 6000
YD180 166 12.3 13.4 ND180 181 11.2 11.6 12.4 N/A N/A N/A N/A 6000
YD180 166 12.3 13.4 (2)NC090 187 11.2 -- -- N/A N/A N/A N/A 6000
YD180 166 12.3 13.4 (2)NC120 187 11.2 -- -- N/A N/A N/A N/A 6000
YD180 166 12.3 13.4 ND240 190 11.7 13.4 11.2 N/A N/A N/A N/A 6000
YC240 233 17.5 13.2 NC240 242 11.3 13.6 13.1 N/A N/A N/A N/A 8000
YD240 222 17.3 12.8 ND240 242 11.3 11.9 12.6 N/A N/A N/A N/A 8000
YD240 222 17.3 12.8 (2)NC120 240 11.6 -- -- N/A N/A N/A N/A 8000

1

Certified in accordance with the Unitary Large Equipment certification program, which is based on ARI Standard 340/360.

2

Condensing unit only ratings are at 45°F SST and 95°F entering-air temperature.

3

Gross capacity does not include heat added by blower motor. Refer to appropriate table for blower horsepower.

4

Heat Pumps designed for matched systems only.

Gross Capacity

(MBH)

4

4
4
4
4
4

2

KW EER

N/A N/A N/A NC090 92 11.0 11.4 --- 82 3.3 49 2.3 3000
N/A N/A N/A NC120 124 11.0 11.4 11.8 109 3.3 63 2.1 4000
N/A N/A N/A NC180 180 10.6 11.5 12.4 168 3.3 104 2.3 6000
N/A N/A N/A ND180 180 10.6 11.5 12.0 168 3.4 103 2.4 6000
N/A N/A N/A NC240 238 10.6 12.4 12.5 216 3.3 139 2.5 8000
N/A N/A N/A ND240 238 10.6 11.7 12.1 220 3.4 124 2.2 8000

Indoor

Unit

System Cooling Capacity

Gross Capacity

(MBH)

3

EER IEER IPLV

1

Capacity

Heating Capacity

High Outdoor Low Outdoor

Gross

2

(MBh)

COP

Gross

Capacity

(MBh)

1

Rated

Airflow

COP

(CFM)

2

LEGEND
EER = Energy Efficiency Ratio
ARI = Air Conditioning and Refrigeration Institute
IPLV = Integration Part-Load Value
IEER = Integrated Energy Efficiency Ratio

14 Johnson Controls Unitary Products

505428-YTG-C-0309

Heat Pump and Air Handling Cooling Capacities
PC090/NC090 Cooling Capacities

Air on

Evaporator Coil

CFM

2250

2625

3000

3375

3750

2250

2625

3000

3375

3750

Total
WB
(°F)

Capacity

(MBh)

77 112.8 5.9 54.5 44.9 35.3 - - - 107.0 6.5 51.9 42.4 32.9 - - ­72 104.8 5.8 68.7 59.1 49.5 40.0 - - 99.3 6.4 66.3 56.8 47.3 37.9 - ­67 96.7 5.7 82.9 73.4 63.8 54.2 44.6 - 91.7 6.3 80.8 71.3 61.8 52.3 42.8 ­62 89.0 5.5 89.0 89.0 80.5 70.9 61.3 51.7 84.4 6.2 84.4 84.4 76.5 67.0 57.5 48.0
57 88.9 5.6 88.9 88.9 80.5 70.9 61.4 51.8 84.6 6.2 84.6 84.6 75.7 66.2 56.8 47.3
77 117.0 5.9 58.7 48.7 37.9 - - - 110.7 6.6 57.0 46.2 35.5 - - ­72 108.6 5.8 74.8 64.0 53.2 42.5 - - 102.7 6.5 72.5 61.8 51.1 40.4 - ­67 100.3 5.7 90.9 79.3 68.5 57.8 47.0 - 94.8 6.3 88.1 77.4 66.7 56.0 45.3 ­62 92.3 5.6 92.3 92.3 86.5 76.2 64.9 54.1 87.3 6.2 87.3 87.3 82.6 71.9 61.1 50.4
57 92.2 5.6 92.2 92.2 86.6 76.3 65.0 54.2 87.5 6.2 87.5 87.5 81.7 71.0 60.3 49.6
77 121.1 5.9 63.0 52.6 40.6 - - - 114.3 6.6 62.0 50.1 38.1 - - ­72 112.5 5.8 80.9 68.9 56.9 45.0 - - 106.1 6.5 78.7 66.8 54.9 42.9 - ­67 103.8 5.7 98.9 85.3 73.3 61.3 49.3 - 97.9 6.4 95.4 83.5 71.6 59.6 47.7 ­62 95.6 5.6 95.6 95.6 92.5 81.5 68.6 56.6 90.2 6.3 90.2 90.2 88.6 76.7 64.8 52.8
57 95.4 5.6 95.4 95.4 92.6 81.7 68.6 56.6 90.4 6.2 90.4 90.4 87.7 75.8 63.9 51.9
72 114.6 5.8 88.6 75.6 62.6 49.6 - - 108.6 6.5 85.9 73.0 60.0 47.1 - ­67 105.7 5.7 103.3 93.6 80.6 67.6 54.6 - 100.3 6.4 99.0 91.3 78.3 65.4 52.4 ­62 97.4 5.6 97.4 97.4 95.8 83.3 69.8 56.8 92.3 6.3 92.3 92.3 91.6 78.6 65.7 52.7
57 97.2 5.6 97.2 97.2 95.8 83.3 69.7 56.7 92.5 6.3 92.5 92.5 91.2 78.3 65.3 52.3
72 116.6 5.8 96.3 82.3 68.3 54.2 - - 111.2 6.5 93.1 79.2 65.2 51.2 - ­67 107.7 5.7 107.7 101.9 87.9 73.8 59.8 - 102.6 6.4 102.6 99.0 85.1 71.1 57.1 ­62 99.1 5.6 99.1 99.1 99.1 85.1 71.0 57.0 94.5 6.3 94.5 94.5 94.5 80.5 66.5 52.6
57 99.0 5.6 99.0 99.0 99.0 84.9 70.9 56.8 94.7 6.3 94.7 94.7 94.7 80.7 66.7 52.8

77 101.2 7.2 49.3 39.9 30.6 - - - 100.5 8.0 59.5 50.1 40.7 - - ­72 93.9 7.1 63.9 54.6 45.2 35.8 - - 90.2 7.9 67.7 58.3 48.9 39.4 - ­67 86.6 7.0 78.6 69.2 59.8 50.4 41.0 - 79.9 7.8 75.8 66.4 57.0 47.6 38.2 ­62 79.8 6.9 79.8 79.8 72.5 63.1 53.7 44.4 74.8 7.7 74.8 74.8 67.3 57.9 48.5 39.0
57 80.3 6.8 80.3 80.3 70.9 61.5 52.1 42.8 74.9 7.7 74.9 74.9 65.7 56.2 46.8 37.4
77 104.3 7.3 55.2 43.8 33.1 - - - 103.7 8.0 68.8 55.1 44.4 - - ­72 96.8 7.1 70.2 59.6 49.0 38.3 - - 93.0 8.0 74.6 63.9 53.3 42.6 - ­67 89.3 7.0 85.3 75.4 64.8 54.2 43.5 - 82.4 7.9 80.4 72.8 62.1 51.4 40.8 ­62 82.3 6.9 82.3 82.3 78.6 67.5 57.4 46.7 77.2 7.7 77.2 77.2 73.3 62.4 52.0 41.3
57 82.8 6.9 82.8 82.8 76.9 65.7 55.6 45.0 77.2 7.7 77.2 77.2 71.5 60.6 50.2 39.5
77 107.5 7.3 61.0 47.6 35.7 - - - 106.8 8.1 78.1 60.0 48.1 - - ­72 99.7 7.2 76.5 64.6 52.8 40.9 - - 95.9 8.0 81.5 69.6 57.7 45.8 - ­67 92.0 7.0 92.0 81.7 69.8 57.9 46.1 - 84.9 7.9 84.9 79.1 67.2 55.3 43.4 ­62 84.7 6.9 84.7 84.7 84.7 71.9 61.0 49.1 79.6 7.8 79.6 79.6 79.3 66.9 55.5 43.6
57 85.3 6.9 85.3 85.3 82.9 69.9 59.1 47.2 79.6 7.7 79.6 79.6 77.4 64.9 53.6 41.6
72 102.7 7.2 83.2 70.3 57.4 44.6 - - 98.8 8.0 87.6 76.1 63.2 50.2 - ­67 94.8 7.1 94.8 88.9 76.0 63.1 50.2 - 87.5 7.9 87.5 84.2 73.6 60.6 47.7 ­62 87.3 6.9 87.3 87.3 87.3 73.9 61.5 48.6 82.0 7.8 82.0 82.0 81.8 68.6 55.9 43.0
57 87.8 6.9 87.8 87.8 86.6 73.2 60.8 48.0 82.0 7.8 82.0 82.0 80.9 67.7 55.0 42.1
72 105.7 7.2 89.9 76.0 62.1 48.2 - - 101.7 8.0 93.8 82.7 68.7 54.7 - ­67 97.5 7.1 97.5 96.1 82.2 68.3 54.4 - 90.1 7.9 90.1 89.4 79.9 65.9 52.0 ­62 89.8 7.0 89.8 89.8 89.8 75.9 62.0 48.1 84.4 7.8 84.4 84.4 84.4 70.4 56.4 42.4
57 90.4 6.9 90.4 90.4 90.4 76.5 62.6 48.7 84.4 7.8 84.4 84.4 84.4 70.5 56.5 42.5

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

95°F 105°F

Temperature of Air on Condenser Coil

Total

1

Capacity

(MBh)

Total
Input

(kW)

Sensible Capacity (MBh)

2

46 Johnson Controls Unitary Products

505428-YTG-C-0309

PC090/NC090 Cooling Capacities (Continued)

Air on

Evaporator Coil
CFM

2250

2625

3000

3375

3750

1

WB
(°F)

77 99.8 8.8 69.7 60.3 50.9 - - - 99.1 9.6 79.9 70.5 61.0 - - -

72 86.5 8.7 71.4 62.0 52.6 43.1 - - 82.7 9.5 75.2 65.7 56.3 46.8 - -

67 73.1 8.7 73.1 63.7 54.2 44.8 35.4 - 66.4 9.5 66.4 60.9 51.5 42.0 32.6 -

62 69.9 8.5 69.9 69.9 62.0 52.6 43.2 33.7 64.9 9.4 64.9 64.9 56.8 47.3 37.9 28.4

57 69.5 8.5 69.5 69.5 60.4 50.9 41.5 32.1 64.1 9.4 64.1 64.1 55.1 45.6 36.2 26.7

77 103.0 8.8 82.4 66.4 55.7 - - - 102.3 9.6 92.7 77.7 67.0 - - -

72 89.2 8.8 78.9 68.2 57.6 46.9 - - 85.4 9.6 83.3 72.6 61.9 51.2 - -

67 75.5 8.7 75.5 70.1 59.4 48.7 38.0 - 68.5 9.6 68.5 67.4 56.7 46.0 35.3 -

62 72.1 8.6 72.1 72.1 67.9 57.3 46.6 35.9 67.0 9.4 67.0 67.0 62.6 52.1 41.2 30.5

57 71.7 8.6 71.7 71.7 66.1 55.4 44.8 34.1 66.2 9.4 66.2 66.2 60.7 50.3 39.3 28.6

77 106.2 8.9 95.1 72.5 60.5 - - - 105.6 9.7 105.6 84.9 73.0 - - -

72 92.0 8.8 86.4 74.5 62.6 50.6 - - 88.1 9.6 88.1 79.4 67.5 55.5 - -

67 77.8 8.7 77.8 76.5 64.6 52.6 40.7 - 70.7 9.6 70.7 70.7 62.0 50.0 38.0 -

62 74.4 8.6 74.4 74.4 73.8 61.9 50.0 38.0 69.2 9.5 69.2 69.2 68.4 56.9 44.5 32.5

57 73.9 8.6 73.9 73.9 71.9 59.9 48.0 36.1 68.3 9.5 68.3 68.3 66.4 54.9 42.4 30.5

72 94.8 8.8 92.1 81.9 68.9 55.9 - - 90.9 9.7 90.9 87.7 74.6 61.5 - -

67 80.2 8.8 80.2 79.6 71.1 58.1 45.1 - 72.9 9.6 72.9 72.9 68.7 55.6 42.5 -

62 76.7 8.6 76.7 76.7 76.4 63.4 50.4 37.4 71.3 9.5 71.3 71.3 71.0 58.1 44.8 31.7

57 76.2 8.6 76.2 76.2 75.2 62.2 49.2 36.2 70.4 9.5 70.4 70.4 69.5 56.7 43.3 30.3

72 97.7 8.8 97.7 89.3 75.2 61.1 - - 93.7 9.7 93.7 93.7 81.8 67.6 - -

67 82.6 8.8 82.6 82.6 77.7 63.6 49.5 - 75.2 9.6 75.2 75.2 75.2 61.2 47.0 -

62 79.0 8.7 79.0 79.0 79.0 64.9 50.8 36.7 73.5 9.5 73.5 73.5 73.5 59.3 45.2 31.0

57 78.5 8.6 78.5 78.5 78.5 64.4 50.3 36.3 72.6 9.5 72.6 72.6 72.6 58.4 44.2 30.0

These capacities are gross ratings. For net capacity, deduct supply air blower motor, MBh. Example: Refer to the appropriate Blower

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

115°F 125°F

Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
efficiency.

2

These ratings include the condenser fan motors and the compressor motors but not the supply air blower motor.

Temperature of Air on Condenser Coil

Total

1

Capacity

(MBh)

Total
Input

(kW)

Sensible Capacity (MBh)

2

÷ nameplate rated motor

Johnson Controls Unitary Products 47

505428-YTG-C-0309

PC120/NC120

Air on

Evaporator Coil

CFM

3000

3500

4000

4500

5000

3000

3500

4000

4500

5000

WB
(°F)

77 140.5 7.5 70.2 58.2 46.2 - - - 134.2 8.6 65.0 52.8 40.6 - - ­72 133.6 7.5 87.5 75.5 63.5 51.5 - - 127.3 8.5 84.4 72.2 59.9 47.7 - ­67 126.6 7.4 104.8 92.8 80.8 68.9 56.9 - 120.3 8.5 103.8 91.5 79.3 67.1 54.8 ­62 120.2 7.4 120.2 120.2 107.7 95.7 83.8 71.8 113.2 8.4 113.2 113.2 101.2 88.9 76.7 64.5
57 121.8 7.3 121.8 123.0 114.5 102.5 90.5 78.6 117.1 8.4 117.1 117.1 106.6 94.4 82.2 69.9
77 147.3 7.7 74.8 62.4 49.1 - - - 140.4 8.7 71.4 57.6 43.7 - - ­72 140.0 7.6 93.9 80.6 67.3 54.1 - - 133.2 8.7 92.3 78.4 64.6 50.7 - ­67 132.8 7.6 112.9 98.8 85.5 72.3 59.0 - 125.9 8.6 113.2 99.3 85.5 71.6 57.8 ­62 126.0 7.6 126.0 126.0 114.2 101.0 87.6 74.4 118.5 8.5 118.5 118.5 109.0 95.2 81.3 67.5
57 127.7 7.5 127.7 128.3 121.4 108.7 94.9 81.6 122.5 8.5 122.5 122.5 114.9 101.1 87.2 73.4
77 154.1 7.8 79.4 66.6 52.0 - - - 146.6 8.9 77.8 62.3 46.9 - - ­72 146.5 7.8 100.2 85.7 71.1 56.6 - - 139.0 8.8 100.2 84.7 69.2 53.8 - ­67 138.9 7.8 121.1 104.8 90.2 75.7 61.1 - 131.5 8.7 122.5 107.1 91.6 76.2 60.7 ­62 131.8 7.8 131.8 131.8 120.6 106.3 91.5 76.9 123.7 8.7 123.7 123.7 116.9 101.4 86.0 70.5
57 133.6 7.6 133.6 133.6 128.3 114.8 99.2 84.6 127.9 8.6 127.9 127.9 123.2 107.7 92.3 76.8
72 148.2 7.7 110.0 94.1 78.1 62.2 - - 140.9 8.7 108.1 91.5 74.8 58.1 - ­67 140.5 7.7 131.6 115.2 99.3 83.4 67.5 - 133.2 8.6 128.7 115.6 99.0 82.3 65.6 ­62 133.4 7.7 133.4 133.4 127.8 112.0 95.9 80.0 125.3 8.6 125.3 125.3 121.9 105.3 88.6 71.9
57 135.2 7.5 135.2 135.2 132.5 117.2 100.7 84.8 129.6 8.6 129.6 129.6 127.2 110.6 93.9 77.2
72 150.0 7.6 119.7 102.4 85.1 67.9 - - 142.7 8.6 116.1 98.2 80.3 62.5 - ­67 142.2 7.5 142.2 125.6 108.3 91.1 73.8 - 134.9 8.5 134.9 124.2 106.3 88.4 70.5 ­62 134.9 7.5 134.9 134.9 134.9 117.6 100.4 83.1 127.0 8.5 127.0 127.0 127.0 109.1 91.2 73.3
57 136.7 7.4 136.7 136.7 136.7 119.5 102.2 84.9 131.3 8.5 131.3 131.3 131.3 113.4 95.5 77.6

77 128.0 9.7 59.9 47.4 34.9 - - - 120.6 10.9 59.2 46.6 34.0 - - ­72 121.0 9.6 81.3 68.8 56.3 43.8 - - 113.1 10.8 79.6 67.0 54.4 41.8 - ­67 114.1 9.5 102.8 90.3 77.8 65.3 52.8 - 105.6 10.7 100.0 87.4 74.7 62.1 49.5 ­62 106.3 9.3 106.3 106.3 94.7 82.2 69.7 57.2 101.1 10.6 101.1 101.1 90.6 78.0 65.4 52.8
57 112.4 9.5 112.4 111.3 98.8 86.3 73.8 61.3 104.8 10.7 104.8 104.2 92.7 80.1 67.5 54.9
77 133.6 9.8 68.0 52.7 38.3 - - - 126.1 11.0 69.7 51.8 37.3 - - ­72 126.3 9.7 90.7 76.3 61.9 47.4 - - 118.3 10.9 88.6 74.1 59.6 45.1 - ­67 119.0 9.6 113.4 99.8 85.4 71.0 56.5 - 110.4 10.8 107.6 96.5 82.0 67.5 53.0 ­62 111.0 9.4 111.0 111.0 103.9 89.4 75.1 60.6 105.7 10.7 105.7 105.7 99.3 84.8 70.3 55.8
57 117.3 9.6 117.3 116.7 108.4 93.4 79.6 65.1 109.5 10.8 109.5 109.3 101.6 86.9 72.6 58.1
77 139.1 9.9 76.2 58.1 41.7 - - - 131.6 11.1 80.1 56.9 40.5 - - ­72 131.6 9.8 100.1 83.7 67.4 51.0 - - 123.4 11.0 97.7 81.3 64.9 48.5 - ­67 124.0 9.7 124.0 109.4 93.0 76.6 60.3 - 115.2 10.9 115.2 105.6 89.2 72.8 56.4 ­62 115.6 9.5 115.6 115.6 113.2 96.5 80.5 64.1 110.3 10.8 110.3 110.3 108.1 91.6 75.3 58.9
57 122.2 9.7 122.2 122.2 118.1 100.6 85.4 69.0 114.3 10.9 114.3 114.3 110.6 93.6 77.8 61.4
72 133.5 9.7 106.3 88.9 71.5 54.0 - - 124.9 10.9 104.6 86.9 69.3 51.7 - ­67 125.8 9.6 125.8 116.1 98.6 81.2 63.8 - 116.6 10.8 116.6 110.6 95.3 77.7 60.1 ­62 117.3 9.5 117.3 117.3 116.1 98.5 81.2 63.8 111.6 10.7 111.6 111.6 110.5 92.8 75.3 57.6
57 124.0 9.6 124.0 124.0 122.0 104.0 87.1 69.7 115.7 10.8 115.7 115.7 113.8 95.9 78.6 61.0
72 135.4 9.6 112.5 94.0 75.5 57.0 - - 126.3 10.9 111.5 92.6 73.8 55.0 - ­67 127.6 9.5 127.6 122.8 104.3 85.8 67.3 - 118.0 10.8 118.0 115.5 101.5 82.6 63.8 ­62 119.0 9.4 119.0 119.0 119.0 100.5 82.0 63.5 112.9 10.7 112.9 112.9 112.9 94.1 75.2 56.4
57 125.8 9.5 125.8 125.8 125.8 107.3 88.8 70.3 117.0 10.7 117.0 117.0 117.0 98.2 79.4 60.5

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

95°F 105°F

Temperature of Air on Condenser Coil

Total

1

Capacity

(MBh)

Total
Input

(kW)

Sensible Capacity (MBh)

2

48 Johnson Controls Unitary Products

505428-YTG-C-0309

PC120/NC120 (Continued)

Air on

Evaporator Coil

CFM

3000

3500

4000

4500

5000

1

WB
(°F)

77 113.3 12.1 58.5 45.8 33.1 - - - 105.9 13.2 57.8 45.0 32.1 - - ­72 105.2 12.0 77.8 65.1 52.4 39.7 - - 97.3 13.2 76.1 63.2 50.4 37.6 - ­67 97.2 11.9 97.2 84.4 71.7 59.0 46.3 - 88.7 13.1 88.7 81.5 68.7 55.8 43.0 ­62 95.9 11.8 95.9 95.9 86.5 73.8 61.1 48.4 90.6 13.1 90.6 90.6 82.5 69.6 56.8 43.9
57 97.1 11.8 97.1 97.1 86.6 73.9 61.2 48.4 89.5 13.0 89.5 89.5 80.5 67.7 54.8 42.0
77 118.7 12.2 71.3 50.8 36.2 - - - 111.3 13.4 72.9 49.8 35.2 - - ­72 110.2 12.1 86.5 72.0 57.4 42.8 - - 102.2 13.3 84.4 69.8 55.1 40.5 - ­67 101.8 12.0 101.8 93.1 78.5 64.0 49.4 - 93.2 13.2 93.2 89.8 75.1 60.4 45.8 ­62 100.4 11.9 100.4 100.4 94.8 80.2 65.6 51.0 95.2 13.2 95.2 95.2 90.2 75.6 60.9 46.2
57 101.8 12.0 101.8 101.8 94.8 80.3 65.7 51.1 94.0 13.2 94.0 94.0 88.1 73.7 58.8 44.1
77 124.1 12.3 84.0 55.8 39.4 - - - 116.6 13.5 88.0 54.6 38.2 - - ­72 115.3 12.2 95.2 78.8 62.4 45.9 - - 107.1 13.4 92.8 76.3 59.9 43.4 - ­67 106.4 12.1 106.4 101.8 85.4 68.9 52.5 - 97.7 13.3 97.7 97.7 81.5 65.1 48.6 ­62 105.0 12.1 105.0 105.0 103.0 86.6 70.1 53.7 99.7 13.3 99.7 99.7 97.9 81.6 65.0 48.5
57 106.4 12.1 106.4 106.4 103.1 86.7 70.2 53.8 98.5 13.3 98.5 98.5 95.6 79.7 62.7 46.2
72 116.3 12.1 102.8 85.0 67.2 49.4 - - 107.6 13.3 101.0 83.1 65.1 47.1 - ­67 107.3 12.0 107.3 105.0 92.0 74.2 56.4 - 98.1 13.3 98.1 98.1 88.7 70.7 52.7 ­62 105.9 12.0 105.9 105.9 104.9 87.1 69.3 51.5 100.2 13.2 100.2 100.2 99.3 81.4 63.3 45.4
57 107.3 12.0 107.3 107.3 105.7 87.9 70.1 52.3 98.9 13.2 98.9 98.9 97.5 79.8 61.5 43.6
72 117.2 12.1 110.4 91.2 72.0 52.9 - - 108.1 13.3 108.1 89.8 70.3 50.8 - ­67 108.3 12.0 108.3 108.3 98.6 79.5 60.3 - 98.6 13.2 98.6 98.6 95.8 76.3 56.8 ­62 106.8 11.9 106.8 106.8 106.8 87.6 68.5 49.3 100.7 13.2 100.7 100.7 100.7 81.2 61.7 42.2
57 108.2 11.9 108.2 108.2 108.2 89.0 69.9 50.7 99.4 13.1 99.4 99.4 99.4 79.9 60.4 40.9

These capacities are gross ratings. For net capacity, deduct supply air blower motor, MBh. Example: Refer to the appropriate Blower

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

115°F 125°F

Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
efficiency.

2

These ratings include the condenser fan motors and the compressor motors but not the supply air blower motor.

Temperature of Air on Condenser Coil

Total

1

Capacity

(MBh)

Total
Input

(kW)

Sensible Capacity (MBh)

2

÷ nameplate rated motor

Johnson Controls Unitary Products 49

505428-YTG-C-0309

PC180/NC180

Air on

Evaporator Coil

CFM

4500

5250

6000

6750

7500

4500

5250

6000

6750

7500

WB

(°F)

77 223.0 12.5 104.1 85.2 66.4 - - - 216.7 13.8 104.7 85.9 67.0 - - ­72 209.3 12.3 134.7 115.8 97.0 78.1 - - 200.9 13.6 133.0 114.1 95.2 76.3 - ­67 195.7 12.1 165.2 146.4 127.6 108.7 89.9 - 185.0 13.4 161.2 142.3 123.4 104.5 85.7 ­62 176.7 11.8 176.7 176.7 152.0 133.2 114.3 95.5 169.4 13.0 169.4 169.4 151.2 132.4 113.5 94.6
57 179.6 11.8 179.6 179.6 159.1 140.3 121.4 102.6 173.1 13.1 173.1 173.1 154.4 135.5 116.7 97.8
77 229.0 12.6 113.8 93.3 71.8 - - - 221.4 13.9 114.8 93.3 71.7 - - ­72 215.0 12.4 147.9 126.3 104.8 83.3 - - 205.2 13.6 145.0 123.5 101.9 80.3 - ­67 200.9 12.2 181.9 159.4 137.8 116.3 94.8 - 189.1 13.4 175.2 153.7 132.1 110.5 88.9 ­62 181.4 11.8 181.4 181.4 164.3 143.6 121.3 99.8 173.0 13.1 173.0 173.0 161.9 140.3 118.7 97.1
57 184.5 11.9 184.5 184.5 171.9 151.4 128.9 107.4 176.9 13.1 176.9 176.9 165.3 143.7 122.1 100.6
77 235.0 12.6 123.5 101.4 77.2 - - - 226.1 13.9 124.9 100.6 76.4 - - ­72 220.6 12.4 161.0 136.9 112.7 88.5 - - 209.6 13.7 157.1 132.8 108.6 84.3 - ­67 206.2 12.2 198.5 172.3 148.1 123.9 99.8 - 193.1 13.4 189.3 165.0 140.8 116.5 92.2 ­62 186.2 11.9 186.2 186.2 176.7 154.1 128.3 104.1 176.7 13.1 176.7 176.7 172.5 148.2 124.0 99.7
57 189.3 11.9 189.3 189.3 184.8 162.6 136.4 112.2 180.6 13.2 180.6 180.6 176.1 151.8 127.6 103.3
72 223.2 12.5 170.5 144.3 118.1 91.9 - - 213.0 13.7 168.5 142.1 115.7 89.3 - ­67 208.6 12.3 204.8 181.5 155.3 129.1 102.9 - 196.2 13.5 194.3 176.4 150.0 123.6 97.3 ­62 188.4 11.9 188.4 188.4 183.6 158.3 131.3 105.1 179.6 13.2 179.6 179.6 177.5 151.1 124.7 98.3
57 191.6 12.0 191.6 191.6 189.3 164.1 136.9 110.7 183.6 13.2 183.6 183.6 181.3 154.9 128.5 102.2
72 225.9 12.6 179.9 151.7 123.5 95.3 - - 216.4 13.8 179.9 151.4 122.9 94.4 - ­67 211.1 12.4 211.1 190.7 162.5 134.3 106.1 - 199.4 13.5 199.4 187.8 159.3 130.8 102.3 ­62 190.6 12.0 190.6 190.6 190.6 162.4 134.2 106.0 182.5 13.2 182.5 182.5 182.5 154.0 125.5 97.0
57 193.8 12.1 193.8 193.8 193.8 165.6 137.4 109.2 186.5 13.3 186.5 186.5 186.5 158.0 129.5 101.0

77 210.5 15.1 105.4 86.5 67.6 - - - 192.8 16.7 98.9 80.0 61.1 - - ­72 192.4 14.9 131.3 112.4 93.4 74.5 - - 177.2 16.5 125.6 106.7 87.8 68.9 - ­67 174.4 14.6 157.1 138.2 119.3 100.4 81.4 - 161.6 16.3 152.4 133.5 114.6 95.7 76.8 ­62 162.0 14.3 162.0 162.0 150.5 131.6 112.6 93.7 150.1 16.0 150.1 150.1 142.4 123.5 104.6 85.7
57 166.6 14.4 166.6 166.6 149.8 130.8 111.9 93.0 155.1 16.1 155.1 155.1 137.9 119.0 100.1 81.2
77 213.8 15.2 115.9 93.2 71.6 - - - 196.5 16.7 114.1 86.9 65.3 - - ­72 195.5 14.9 142.2 120.6 99.0 77.3 - - 180.6 16.5 137.1 115.5 93.8 72.2 - ­67 177.2 14.6 168.6 148.0 126.3 104.7 83.1 - 164.7 16.3 160.1 144.1 122.4 100.8 79.2 ­62 164.7 14.4 164.7 164.7 159.4 136.9 116.1 94.5 153.0 16.1 153.0 153.0 152.2 130.1 108.9 87.3
57 169.2 14.4 169.2 169.2 158.6 136.0 115.3 93.7 158.1 16.1 158.1 158.1 147.3 125.2 104.1 82.4
77 217.2 15.2 126.3 99.9 75.6 - - - 200.2 16.8 129.3 93.8 69.4 - - ­72 198.6 14.9 153.1 128.8 104.5 80.1 - - 184.1 16.5 148.6 124.2 99.9 75.5 - ­67 180.0 14.6 180.0 157.7 133.4 109.0 84.7 - 167.9 16.3 167.9 154.7 130.3 106.0 81.6 ­62 167.3 14.4 167.3 167.3 168.3 142.3 119.6 95.3 155.9 16.1 155.9 155.9 162.0 136.8 113.2 88.9
57 171.9 14.4 171.9 171.9 167.5 141.1 118.8 94.5 161.1 16.1 161.1 161.1 156.7 131.4 108.0 83.7
72 202.8 15.0 166.5 139.9 113.4 86.8 - - 187.4 16.6 160.8 134.3 107.7 81.1 - ­67 183.8 14.7 183.8 171.3 144.7 118.2 91.6 - 170.9 16.4 170.9 163.6 140.5 113.9 87.3 ­62 170.8 14.4 170.8 170.8 171.3 143.9 118.2 91.6 158.7 16.1 158.7 158.7 161.7 134.7 108.6 82.0
57 175.6 14.5 175.6 175.6 173.3 145.8 120.2 93.6 164.0 16.2 164.0 164.0 161.8 134.7 108.6 82.1
72 207.0 15.0 179.8 151.0 122.2 93.5 - - 190.7 16.6 173.1 144.3 115.5 86.7 - ­67 187.6 14.7 187.6 184.9 156.1 127.3 98.5 - 173.9 16.4 173.9 172.5 150.7 121.9 93.1 ­62 174.3 14.4 174.3 174.3 174.3 145.5 116.7 87.9 161.5 16.2 161.5 161.5 161.5 132.7 103.9 75.1
57 179.2 14.5 179.2 179.2 179.2 150.4 121.6 92.8 166.8 16.2 166.8 166.8 166.8 138.1 109.3 80.5

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

95°F 105°F

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

50 Johnson Controls Unitary Products

505428-YTG-C-0309

PC180/NC180 (Continued)

Air on

Evaporator Coil

CFM

4500

5250

6000

6750

7500

1

WB

(°F)

77 175.1 18.3 92.4 73.5 54.6 - - - 157.4 19.9 85.8 67.0 48.1 - - ­72 162.0 18.1 120.0 101.1 82.2 63.3 - - 146.7 19.8 114.3 95.5 76.6 57.8 - ­67 148.8 18.0 147.6 128.7 109.8 91.0 72.1 - 136.1 19.6 136.1 124.0 105.1 86.3 67.4 ­62 138.1 17.8 138.1 138.1 134.4 115.5 96.6 77.7 126.2 19.5 126.2 126.2 126.2 107.5 88.6 69.7
57 143.6 17.8 143.6 143.6 126.1 107.2 88.3 69.4 132.1 19.6 132.1 132.1 114.2 95.4 76.5 57.6
77 179.2 18.3 112.3 80.6 58.9 - - - 161.8 19.9 110.6 74.3 52.6 - - ­72 165.7 18.1 132.0 110.4 88.7 67.1 - - 150.8 19.8 126.9 105.3 83.6 62.0 - ­67 152.3 18.0 151.7 140.2 118.6 96.9 75.3 - 139.9 19.6 139.9 136.3 114.7 93.0 71.4 ­62 141.3 17.8 141.3 141.3 145.0 123.4 101.7 80.1 129.7 19.5 129.7 129.7 129.7 116.6 94.6 72.9
57 146.9 17.8 146.9 146.9 136.1 114.4 92.8 71.1 135.7 19.6 135.7 135.7 124.8 103.6 81.5 59.9
77 183.2 18.3 132.3 87.6 63.3 - - - 166.2 19.9 135.3 81.5 57.1 - - ­72 169.5 18.1 144.0 119.6 95.3 70.9 - - 154.9 19.8 139.5 115.1 90.6 66.2 - ­67 155.8 18.0 155.8 151.6 127.3 102.9 78.5 - 143.6 19.6 143.6 143.6 124.2 99.8 75.4 ­62 144.5 17.8 144.5 144.5 155.7 131.3 106.9 82.5 133.2 19.5 133.2 133.2 133.2 125.8 100.5 76.1
57 150.2 17.9 150.2 150.2 146.0 121.6 97.3 72.9 139.4 19.6 139.4 139.4 135.3 111.9 86.5 62.1
72 171.9 18.2 155.2 128.6 102.0 75.4 - - 156.4 19.8 149.5 122.9 96.3 69.7 - ­67 158.0 18.0 158.0 155.9 136.3 109.7 83.1 - 145.1 19.7 145.1 145.1 132.0 105.4 78.8 ­62 146.6 17.8 146.6 146.6 152.1 125.6 99.0 72.4 134.5 19.5 134.5 134.5 134.5 116.4 89.4 62.7
57 152.4 17.9 152.4 152.4 150.3 123.7 97.1 70.5 140.8 19.6 140.8 140.8 138.8 112.7 85.5 58.9
72 174.3 18.2 166.3 137.5 108.8 80.0 - - 158.0 19.9 158.0 130.8 102.0 73.2 - ­67 160.2 18.1 160.2 160.2 145.3 116.5 87.7 - 146.5 19.8 146.5 146.5 139.9 111.1 82.3 ­62 148.6 17.9 148.6 148.6 148.6 119.8 91.0 62.3 135.8 19.6 135.8 135.8 135.8 107.0 78.2 49.4
57 154.5 18.0 154.5 154.5 154.5 125.7 96.9 68.1 142.2 19.7 142.2 142.2 142.2 113.4 84.6 55.8

These capacities are gross ratings. For net capacity, deduct supply air blower motor, MBh. Example: Refer to the appropriate Blower

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

115°F 125°F

Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
efficiency.

2

These ratings include the condenser fan motors and the compressor motors but not the supply air blower motor

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

÷ nameplate rated motor

Johnson Controls Unitary Products 51

505428-YTG-C-0309

PD180/ND180

Air on

Evaporator Coil

CFM

4500

5250

6000

6750

7500

4500

5250

6000

6750

7500

WB

(°F)

77 231.4 12.4 111.6 93.0 74.5 - - - 219.9 13.7 106.4 87.9 69.5 - - ­72 215.6 12.0 142.9 124.4 105.8 87.2 - - 204.0 13.4 138.2 119.7 101.2 82.8 - ­67 199.7 11.7 174.3 155.7 137.2 118.6 100.0 - 188.1 13.1 169.9 151.4 133.0 114.5 96.0 ­62 183.7 11.4 183.7 183.7 170.7 152.1 133.6 115.0 174.3 12.8 174.3 174.3 163.8 145.3 126.9 108.4
57 184.6 11.4 184.6 184.6 173.2 154.6 136.1 117.5 175.3 12.8 175.3 175.3 164.8 146.3 127.8 109.4
77 233.6 12.4 117.3 98.2 76.9 - - - 222.0 13.7 114.1 92.9 71.7 - - ­72 217.6 12.1 151.9 130.6 109.3 88.0 - - 206.0 13.4 146.9 125.7 104.5 83.3 - ­67 201.6 11.7 186.5 163.0 141.7 120.4 99.1 - 189.9 13.1 179.7 158.5 137.2 116.0 94.8 ­62 185.5 11.4 185.5 185.5 176.3 155.6 133.7 112.4 176.0 12.8 176.0 176.0 169.1 147.9 126.6 105.4
57 186.3 11.4 186.3 186.3 178.9 158.5 136.3 115.0 177.0 12.8 177.0 177.0 170.1 148.8 127.6 106.4
77 235.8 12.4 123.1 103.4 79.4 - - - 224.2 13.7 121.8 97.9 73.9 - - ­72 219.7 12.1 160.9 136.9 112.8 88.7 - - 208.0 13.4 155.6 131.7 107.7 83.8 - ­67 203.5 11.7 198.8 170.3 146.2 122.2 98.1 - 191.8 13.1 189.4 165.5 141.5 117.6 93.6 ­62 187.2 11.4 187.2 187.2 182.0 159.2 133.8 109.8 177.7 12.9 177.7 177.7 174.3 150.4 126.4 102.5
57 188.0 11.4 188.0 188.0 184.6 162.4 136.5 112.4 178.7 12.9 178.7 178.7 175.4 151.4 127.5 103.5
72 222.5 12.1 171.1 144.6 118.1 91.7 - - 210.6 13.5 165.7 139.4 113.2 86.9 - ­67 206.2 11.8 203.8 179.6 153.2 126.7 100.2 - 194.2 13.2 193.0 174.9 148.6 122.4 96.1 ­62 189.7 11.5 189.7 189.7 187.0 161.2 134.1 107.6 180.0 12.9 180.0 180.0 178.3 152.0 125.7 99.5
57 190.5 11.5 190.5 190.5 188.8 163.3 135.9 109.4 181.0 12.9 181.0 181.0 179.3 153.1 126.8 100.5
72 225.4 12.2 181.3 152.4 123.5 94.6 - - 213.3 13.6 175.8 147.2 118.6 90.0 - ­67 208.9 11.8 208.9 189.0 160.1 131.2 102.3 - 196.7 13.2 196.7 184.4 155.8 127.2 98.6 ­62 192.1 11.5 192.1 192.1 192.1 163.2 134.3 105.5 182.2 13.0 182.2 182.2 182.2 153.6 125.0 96.4
57 193.0 11.5 193.0 193.0 193.0 164.1 135.2 106.3 183.3 13.0 183.3 183.3 183.3 154.7 126.1 97.5

77 208.3 15.1 101.3 82.9 64.5 - - - 192.0 17.0 96.4 77.9 59.4 - - ­72 192.4 14.8 133.4 115.0 96.6 78.3 - - 177.3 16.7 128.6 110.2 91.7 73.2 - ­67 176.4 14.5 165.5 147.2 128.8 110.4 92.0 - 162.5 16.4 157.1 142.5 124.0 105.5 87.0 ­62 164.9 14.3 164.9 164.9 156.9 138.5 120.2 101.8 153.2 16.2 153.2 153.2 149.2 130.7 112.3 93.8
57 166.1 14.3 166.1 166.1 156.3 138.0 119.6 101.2 155.2 16.2 155.2 155.2 146.0 127.5 109.0 90.6
77 210.5 15.1 110.9 87.6 66.5 - - - 193.9 17.0 110.4 82.4 61.2 - - ­72 194.3 14.8 141.9 120.8 99.7 78.5 - - 179.0 16.7 136.8 115.7 94.5 73.4 - ­67 178.2 14.5 172.8 153.9 132.8 111.7 90.6 - 164.1 16.4 161.4 149.0 127.8 106.6 85.5 ­62 166.5 14.3 166.5 166.5 161.8 140.1 119.6 98.5 154.7 16.2 154.7 154.7 154.2 132.7 111.9 90.7
57 167.8 14.3 167.8 167.8 161.2 139.2 119.0 97.9 156.8 16.2 156.8 156.8 150.5 128.9 108.2 87.0
77 212.6 15.1 120.6 92.3 68.5 - - - 195.8 17.0 124.4 86.9 63.1 - - ­72 196.3 14.8 150.3 126.5 102.7 78.8 - - 180.8 16.7 145.0 121.2 97.3 73.5 - ­67 180.0 14.5 180.0 160.6 136.8 113.0 89.2 - 165.7 16.4 165.7 155.5 131.6 107.8 83.9 ­62 168.2 14.3 168.2 168.2 166.7 141.6 119.0 95.2 156.2 16.2 156.2 156.2 159.2 134.7 111.5 87.6
57 169.5 14.3 169.5 169.5 166.1 140.4 118.4 94.6 158.3 16.2 158.3 158.3 155.0 130.2 107.3 83.4
72 198.7 14.9 160.3 134.2 108.2 82.1 - - 183.0 16.8 155.6 129.3 103.0 76.7 - ­67 182.2 14.6 182.2 170.2 144.1 118.0 92.0 - 167.8 16.5 167.8 161.5 139.3 113.0 86.7 ­62 170.3 14.3 170.3 170.3 169.5 142.8 117.4 91.3 158.2 16.2 158.2 158.2 159.7 133.0 107.1 80.8
57 171.6 14.4 171.6 171.6 169.9 142.9 117.7 91.6 160.3 16.3 160.3 160.3 158.6 131.9 106.0 79.7
72 201.2 14.9 170.3 142.0 113.6 85.3 - - 185.3 16.8 166.3 137.5 108.8 80.0 - ­67 184.5 14.6 184.5 179.8 151.4 123.1 94.8 - 169.9 16.5 169.9 167.5 147.1 118.3 89.6 ­62 172.4 14.4 172.4 172.4 172.4 144.1 115.7 87.4 160.1 16.3 160.1 160.1 160.1 131.4 102.6 73.9
57 173.7 14.5 173.7 173.7 173.7 145.3 117.0 88.7 162.3 16.4 162.3 162.3 162.3 133.5 104.8 76.0

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

95°F 105°F

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

52 Johnson Controls Unitary Products

505428-YTG-C-0309

PD180/ND180 (Continued)

Air on

Evaporator Coil

CFM

4500

5250

6000

6750

7500

1

WB

(°F)

77 175.7 18.9 91.5 72.9 54.3 - - - 159.4 20.8 86.6 67.9 49.2 - - ­72 162.2 18.6 123.9 105.3 86.8 68.2 - - 147.1 20.5 119.1 100.5 81.8 63.1 - ­67 148.6 18.2 148.6 137.8 119.2 100.6 82.0 - 134.7 20.1 134.7 133.1 114.4 95.7 77.1 ­62 141.5 18.1 141.5 141.5 141.5 123.0 104.4 85.8 129.9 20.0 129.9 129.9 129.9 115.2 96.5 77.8
57 144.4 18.1 144.4 144.4 135.6 117.1 98.5 79.9 133.6 20.1 133.6 133.6 125.3 106.6 88.0 69.3
77 177.4 18.9 109.8 77.2 56.0 - - - 160.8 20.9 109.2 72.0 50.7 - - ­72 163.7 18.6 131.8 110.6 89.4 68.2 - - 148.4 20.5 126.8 105.5 84.3 63.0 - ­67 150.0 18.3 150.0 144.0 122.8 101.6 80.4 - 135.9 20.1 135.9 135.9 117.8 96.5 75.3 ­62 142.9 18.1 142.9 142.9 146.6 125.4 104.2 82.9 131.0 20.0 131.0 131.0 131.0 118.0 96.4 75.2
57 145.8 18.1 145.8 145.8 139.8 118.5 97.3 76.1 134.8 20.1 134.8 134.8 129.1 108.2 86.5 65.2
77 179.0 18.9 128.1 81.5 57.6 - - - 162.3 20.9 131.9 76.1 52.2 - - ­72 165.2 18.6 139.8 115.9 92.0 68.2 - - 149.7 20.5 134.5 110.6 86.7 62.8 - ­67 151.4 18.3 151.4 150.3 126.4 102.6 78.7 - 137.1 20.1 137.1 137.1 121.3 97.4 73.5 ­62 144.2 18.1 144.2 144.2 151.7 127.8 103.9 80.1 132.2 20.0 132.2 132.2 132.2 120.9 96.4 72.5
57 147.1 18.2 147.1 147.1 143.9 120.0 96.1 72.3 136.0 20.1 136.0 136.0 132.8 109.8 85.0 61.1
72 167.3 18.7 151.0 124.5 97.9 71.4 - - 151.6 20.6 146.3 119.6 92.8 66.1 - ­67 153.3 18.3 153.3 152.8 134.6 108.0 81.5 - 138.9 20.2 138.9 138.9 129.8 103.0 76.3 ­62 146.0 18.1 146.0 146.0 149.8 123.2 96.7 70.2 133.9 20.0 133.9 133.9 133.9 113.5 86.4 59.6
57 149.0 18.2 149.0 149.0 147.4 120.9 94.3 67.8 137.7 20.1 137.7 137.7 136.1 109.9 82.6 55.9
72 169.4 18.7 162.2 133.0 103.9 74.7 - - 153.5 20.6 153.5 128.6 99.0 69.4 - ­67 155.3 18.4 155.3 155.3 142.7 113.5 84.3 - 140.7 20.3 140.7 140.7 138.3 108.7 79.1 ­62 147.9 18.2 147.9 147.9 147.9 118.7 89.5 60.3 135.6 20.1 135.6 135.6 135.6 106.0 76.4 46.8
57 150.9 18.3 150.9 150.9 150.9 121.7 92.5 63.3 139.5 20.2 139.5 139.5 139.5 109.9 80.3 50.6

These capacities are gross ratings. For net capacity, deduct supply air blower motor, MBh. Example: Refer to the appropriate Blower

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

115°F 125°F

Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
efficiency.

2

These ratings include the condenser fan motors and the compressor motors but not the supply air blower motor.

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

÷ nameplate rated motor

Johnson Controls Unitary Products 53

505428-YTG-C-0309

PC240/NC240

Air on

Evaporator Coil

CFM

6000

7000

8000

9000

10000

6000

7000

8000

9000

10000

WB
(°F)

Total

Capacity

(MBh)

77 291.6 15.5 130.3 106.9 83.5 - - - 282.9 17.2 129.6 106.1 82.6 - - ­72 272.3 15.2 169.8 146.3 122.9 99.5 - - 261.4 16.8 167.2 143.7 120.2 96.7 - ­67 252.9 14.9 209.2 185.8 162.4 138.9 115.5 - 239.8 16.5 204.8 181.3 157.8 134.3 110.9 ­62 232.6 14.7 232.6 220.7 195.8 172.4 149.0 125.5 223.0 16.3 223.0 217.0 193.5 170.0 146.6 123.1
57 235.8 14.7 235.8 228.8 205.4 181.9 158.5 135.1 226.3 16.3 226.3 222.0 198.5 175.0 151.6 128.1
77 302.5 15.5 144.0 117.5 91.0 - - - 291.7 17.2 142.1 115.7 89.4 - - ­72 282.4 15.2 187.0 160.5 134.0 107.5 - - 269.5 16.9 182.8 156.4 130.1 103.8 - ­67 262.3 15.0 230.0 203.5 177.0 150.5 123.9 - 247.3 16.6 223.5 197.1 170.8 144.4 118.1 ­62 241.3 14.8 241.3 235.3 213.5 188.4 160.5 134.0 229.9 16.4 229.9 227.0 209.4 183.1 156.7 130.4
57 244.6 14.7 244.6 241.1 223.8 199.2 170.8 144.3 233.4 16.4 233.4 231.2 214.8 188.5 162.1 135.8
77 313.4 15.5 157.8 128.2 98.6 - - - 300.6 17.3 154.6 125.4 96.2 - - ­72 292.5 15.2 204.3 174.7 145.1 115.5 - - 277.7 17.0 198.4 169.2 140.0 110.8 - ­67 271.7 15.0 250.8 221.2 191.6 162.0 132.4 - 254.8 16.7 242.1 212.9 183.7 154.5 125.3 ­62 249.9 14.8 249.9 249.9 231.2 204.4 172.0 142.4 236.9 16.4 236.9 236.9 225.3 196.1 166.9 137.7
57 253.3 14.7 253.3 253.3 242.3 216.4 183.1 153.5 240.5 16.4 240.5 240.5 231.1 201.9 172.7 143.5
72 302.9 15.2 218.5 186.3 154.2 122.0 - - 286.0 17.0 212.2 180.3 148.3 116.4 - ­67 281.3 14.9 270.8 235.8 203.6 171.5 139.3 - 262.4 16.7 256.1 226.7 194.7 162.8 130.9 ­62 258.8 14.7 258.8 258.8 249.4 218.6 185.1 153.0 244.0 16.4 244.0 244.0 238.2 206.2 174.3 142.4
57 262.3 14.7 262.3 262.3 256.8 226.5 192.5 160.4 247.7 16.4 247.7 247.7 243.0 211.0 179.1 147.2
72 313.2 15.2 232.6 197.9 163.3 128.6 - - 294.2 17.0 226.0 191.4 156.7 122.1 - ­67 290.8 14.9 290.8 250.3 215.6 180.9 146.3 - 270.0 16.7 270.0 240.4 205.7 171.1 136.4 ­62 267.6 14.7 267.6 267.6 267.6 232.9 198.2 163.6 251.0 16.4 251.0 251.0 251.0 216.3 181.7 147.0
57 271.3 14.6 271.3 271.3 271.3 236.6 201.9 167.2 254.8 16.4 254.8 254.8 254.8 220.1 185.5 150.8

77 274.1 18.8 128.8 105.3 81.8 - - - 254.0 21.0 122.0 98.5 75.1 - - ­72 250.4 18.5 164.6 141.0 117.5 94.0 - - 233.3 20.6 158.2 134.8 111.3 87.9 - ­67 226.8 18.1 200.3 176.8 153.3 129.8 106.2 - 212.6 20.3 194.5 171.1 147.6 124.2 100.7 ­62 213.3 17.8 213.3 213.3 191.2 167.7 144.2 120.7 200.4 20.0 200.4 200.4 181.8 158.3 134.9 111.4
57 216.9 17.9 216.9 215.2 191.7 168.1 144.6 121.1 203.4 19.9 203.4 202.5 180.1 156.6 133.2 109.7
77 280.9 19.0 140.1 113.9 87.8 - - - 261.2 21.2 137.6 107.4 81.1 - - ­72 256.6 18.6 178.5 152.3 126.2 100.0 - - 239.9 20.8 173.0 146.7 120.3 94.0 - ­67 232.4 18.2 216.9 190.7 164.6 138.4 112.3 - 218.7 20.4 208.5 185.9 159.6 133.2 106.9 ­62 218.6 18.0 218.6 218.6 205.3 177.8 153.0 126.9 206.0 20.1 206.0 206.0 196.5 169.4 143.8 117.4
57 222.3 18.0 222.3 221.4 205.8 177.8 153.5 127.3 209.1 20.1 209.1 208.7 194.6 167.3 141.9 115.6
77 287.7 19.1 151.4 122.6 93.8 - - - 268.3 21.3 153.2 116.4 87.1 - - ­72 262.9 18.7 192.4 163.6 134.8 106.1 - - 246.5 20.9 187.8 158.6 129.3 100.1 - ­67 238.0 18.4 233.5 204.7 175.9 147.1 118.3 - 224.7 20.6 222.4 200.8 171.5 142.3 113.0 ­62 223.9 18.1 223.9 223.9 219.4 187.8 161.8 133.0 211.7 20.3 211.7 211.7 211.2 180.5 152.7 123.5
57 227.7 18.1 227.7 227.7 219.9 187.4 162.3 133.5 214.8 20.2 214.8 214.8 209.2 178.1 150.7 121.4
72 269.0 18.8 205.9 174.2 142.5 110.8 - - 253.1 21.0 202.1 170.0 137.9 105.8 - ­67 243.6 18.4 241.3 217.6 185.9 154.2 122.4 - 230.7 20.6 229.6 214.1 182.8 150.7 118.6 ­62 229.2 18.1 229.2 229.2 226.9 193.8 163.5 131.8 217.4 20.3 217.4 217.4 217.1 184.3 152.9 120.8
57 233.0 18.2 233.0 233.0 229.1 195.6 165.7 134.0 220.6 20.3 220.6 220.6 217.8 184.8 153.6 121.5
72 275.2 18.8 219.5 184.8 150.2 115.5 - - 259.8 21.0 216.3 181.3 146.4 111.4 - ­67 249.2 18.5 249.2 230.5 195.9 161.2 126.6 - 236.8 20.7 236.8 227.4 194.2 159.2 124.2 ­62 234.4 18.2 234.4 234.4 234.4 199.8 165.1 130.5 223.1 20.4 223.1 223.1 223.1 188.2 153.2 118.2
57 238.4 18.2 238.4 238.4 238.4 203.7 169.1 134.4 226.4 20.3 226.4 226.4 226.4 191.5 156.5 121.5

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

95°F 105°F

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

54 Johnson Controls Unitary Products

505428-YTG-C-0309

PC240/NC240 (Continued)

Air on

Evaporator Coil

CFM

6000

7000

8000

9000

10000

1

WB
(°F)

77 233.9 23.2 115.1 91.7 68.3 - - - 213.8 25.4 108.3 85.0 61.6 - - ­72 216.2 22.8 151.9 128.5 105.1 81.8 - - 199.1 25.0 145.6 122.3 99.0 75.6 - ­67 198.5 22.4 188.7 165.3 141.9 118.6 95.2 - 184.4 24.6 182.9 159.6 136.3 113.0 89.6 ­62 187.4 22.2 187.4 187.4 172.3 148.9 125.5 102.1 174.5 24.3 174.5 174.5 162.9 139.5 116.2 92.9
57 189.8 22.0 189.8 189.8 168.5 145.1 121.7 98.3 176.3 24.0 176.3 176.3 156.9 133.6 110.2 86.9
77 241.4 23.4 135.1 100.9 74.4 - - - 221.7 25.6 132.6 94.5 67.7 - - ­72 223.2 23.0 167.6 141.0 114.5 87.9 - - 206.4 25.2 162.1 135.4 108.6 81.9 - ­67 204.9 22.6 200.0 181.1 154.6 128.0 101.5 - 191.2 24.8 191.2 176.3 149.5 122.8 96.1 ­62 193.5 22.3 193.5 193.5 187.6 161.1 134.5 108.0 180.9 24.5 180.9 180.9 178.8 152.7 125.3 98.6
57 195.9 22.1 195.9 195.9 183.4 156.9 130.4 103.8 182.7 24.1 182.7 182.7 172.3 146.5 118.8 92.1
77 249.0 23.5 155.0 110.2 80.5 - - - 229.6 25.7 156.9 103.9 73.8 - - ­72 230.1 23.1 183.2 153.5 123.8 94.1 - - 213.8 25.3 178.6 148.4 118.3 88.2 - ­67 211.3 22.8 211.3 196.8 167.2 137.5 107.8 - 198.0 24.9 198.0 192.9 162.8 132.7 102.5 ­62 199.5 22.5 199.5 199.5 202.9 173.2 143.5 113.9 187.3 24.7 187.3 187.3 187.3 165.9 134.4 104.3
57 202.0 22.3 202.0 202.0 198.4 168.7 139.0 109.3 189.2 24.3 189.2 189.2 187.6 159.3 127.4 97.2
72 237.2 23.2 198.2 165.7 133.2 100.7 - - 221.3 25.4 194.3 161.4 128.6 95.7 - ­67 217.8 22.8 217.8 210.6 179.8 147.3 114.9 - 205.0 25.0 205.0 205.0 176.8 143.9 111.1 ­62 205.7 22.5 205.7 205.7 207.4 174.9 142.4 109.9 193.9 24.7 193.9 193.9 193.9 165.4 131.9 99.0
57 208.3 22.3 208.3 208.3 206.4 174.0 141.5 109.0 195.9 24.4 195.9 195.9 195.1 163.2 129.4 96.5
72 244.3 23.2 213.2 177.9 142.6 107.3 - - 228.9 25.4 210.0 174.4 138.8 103.2 - ­67 224.4 22.9 224.4 224.4 192.5 157.2 121.9 - 211.9 25.1 211.9 211.9 190.8 155.2 119.6 ­62 211.8 22.6 211.8 211.8 211.8 176.5 141.3 106.0 200.5 24.8 200.5 200.5 200.5 164.9 129.3 93.7
57 214.5 22.4 214.5 214.5 214.5 179.2 143.9 108.6 202.6 24.4 202.6 202.6 202.6 167.0 131.4 95.8

These capacities are gross ratings. For net capacity, deduct supply air blower motor, MBh. Example: Refer to the appropriate Blower

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

115°F 125°F

Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
efficiency.

2

These ratings include the condenser fan motors and the compressor motors but not the supply air blower motor.

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

÷ nameplate rated motor

Johnson Controls Unitary Products 55

505428-YTG-C-0309

PD240/ND240

Air on

Evaporator Coil

CFM

6000

7000

8000

9000

10000

6000

7000

8000

9000

10000

WB
(°F)

Total

Capacity

(MBh)

77 314.8 15.1 142.6 118.0 93.5 - - - 300.0 17.0 137.0 112.4 87.8 - - ­72 285.9 14.8 177.4 152.9 128.3 103.8 - - 271.7 16.7 171.9 147.4 122.8 98.3 - ­67 257.1 14.5 212.3 187.7 163.2 138.6 114.0 - 243.5 16.4 206.9 182.4 157.8 133.2 108.7 ­62 239.1 14.2 239.1 225.1 200.5 175.9 151.4 126.8 227.5 16.1 227.5 219.3 194.7 170.2 145.6 121.1
57 239.5 14.3 239.5 237.8 213.3 188.7 164.1 139.6 230.2 16.2 230.2 227.8 203.3 178.7 154.1 129.6
77 321.1 15.2 154.7 127.4 100.0 - - - 305.7 17.1 148.9 121.5 94.1 - - ­72 291.7 14.9 192.0 164.7 137.3 110.0 - - 276.9 16.8 186.4 159.0 131.6 104.2 - ­67 262.3 14.6 229.3 201.9 174.6 147.2 119.9 - 248.1 16.5 223.9 196.5 169.1 141.7 114.4 ­62 243.9 14.3 243.9 236.9 214.5 188.2 159.8 132.5 231.9 16.2 231.9 227.7 208.7 181.3 154.0 126.6
57 244.3 14.5 244.3 243.5 228.2 203.0 173.5 146.1 234.5 16.3 234.5 233.4 217.9 190.5 163.1 135.7
77 327.5 15.3 166.9 136.7 106.6 - - - 311.4 17.2 160.9 130.7 100.5 - - ­72 297.5 15.0 206.6 176.5 146.3 116.2 - - 282.1 16.9 200.9 170.7 140.5 110.2 - ­67 267.5 14.8 246.3 216.2 186.0 155.9 125.7 - 252.8 16.6 240.9 210.7 180.5 150.2 120.0 ­62 248.8 14.4 248.8 248.8 228.6 200.4 168.3 138.1 236.2 16.2 236.2 236.2 222.7 192.5 162.3 132.1
57 249.2 14.6 249.2 249.2 243.2 217.3 182.9 152.7 238.9 16.4 238.9 238.9 232.5 202.2 172.0 141.8
72 303.3 15.2 219.3 184.7 150.2 115.7 - - 287.2 17.1 212.0 178.0 144.0 110.1 - ­67 272.7 14.9 262.1 225.5 191.0 156.5 122.0 - 257.4 16.8 251.5 219.1 185.1 151.1 117.1 ­62 253.6 14.6 253.6 253.6 234.7 201.2 165.6 131.1 240.5 16.4 240.5 240.5 228.4 194.4 160.4 126.5
57 254.0 14.7 254.0 254.0 249.7 217.3 180.6 146.1 243.3 16.6 243.3 243.3 238.4 204.4 170.4 136.4
72 309.0 15.4 231.9 193.0 154.1 115.2 - - 292.4 17.3 223.1 185.4 147.6 109.9 - ­67 277.8 15.1 277.8 234.9 196.0 157.1 118.2 - 262.0 17.0 262.0 227.4 189.7 151.9 114.2 ­62 258.4 14.7 258.4 258.4 240.8 201.9 163.0 124.1 244.8 16.6 244.8 244.8 234.1 196.4 158.6 120.9
57 258.8 14.9 258.8 258.8 256.2 217.3 178.4 139.5 247.6 16.8 247.6 247.6 244.3 206.6 168.8 131.1

77 285.2 18.9 131.3 106.8 82.2 - - - 264.8 21.2 126.0 101.4 76.8 - - ­72 257.5 18.6 166.4 141.9 117.3 92.8 - - 240.1 20.9 161.0 136.3 111.7 87.1 - ­67 229.9 18.2 201.5 177.0 152.4 127.9 103.3 - 215.3 20.5 195.9 171.3 146.7 122.1 97.5 ­62 216.0 18.0 216.0 213.5 189.0 164.4 139.9 115.3 203.2 20.2 203.2 202.0 183.1 158.5 133.9 109.2
57 220.8 18.1 220.8 217.8 193.2 168.7 144.1 119.6 209.8 20.4 209.8 206.5 181.9 157.3 132.6 108.0
77 290.2 19.0 143.1 115.7 88.3 - - - 269.2 21.3 142.0 110.2 82.7 - - ­72 262.1 18.6 180.8 153.4 126.0 98.5 - - 244.1 20.9 175.3 147.8 120.3 92.8 - ­67 234.0 18.3 218.5 191.1 163.7 136.3 108.8 - 219.0 20.6 208.6 185.4 157.9 130.4 102.9 ­62 219.8 18.0 219.8 218.6 202.9 174.5 148.1 120.7 206.6 20.3 206.6 206.0 197.1 169.1 142.1 114.6
57 224.7 18.2 224.7 223.2 207.5 177.9 152.6 125.2 213.3 20.5 213.3 211.7 195.8 167.2 140.8 113.3
77 295.2 19.0 154.9 124.6 94.3 - - - 273.7 21.4 158.1 119.0 88.5 - - ­72 266.6 18.7 195.2 164.9 134.6 104.3 - - 248.1 21.0 189.7 159.3 128.9 98.4 - ­67 238.0 18.4 235.5 205.2 174.9 144.6 114.3 - 222.6 20.7 221.3 199.6 169.2 138.8 108.3 ­62 223.6 18.1 223.6 223.6 216.9 184.6 156.3 126.0 210.0 20.4 210.0 210.0 211.2 179.7 150.3 119.9
57 228.6 18.3 228.6 228.6 221.8 187.2 161.2 130.9 216.9 20.6 216.9 216.9 209.7 177.2 148.9 118.5
72 271.1 19.0 204.8 171.3 137.9 104.4 - - 252.2 21.2 199.3 165.7 132.2 98.6 - ­67 242.1 18.6 240.8 212.6 179.1 145.7 112.3 - 226.2 20.9 225.6 207.1 173.6 140.0 106.4 ­62 227.4 18.3 227.4 227.4 222.1 187.7 155.2 121.8 213.4 20.6 213.4 213.4 213.0 179.0 145.9 112.4
57 232.5 18.5 232.5 232.5 227.1 191.5 160.2 126.8 220.4 20.8 220.4 220.4 215.2 180.5 148.0 114.5
72 275.7 19.2 214.3 177.7 141.1 104.5 - - 256.2 21.5 208.9 172.2 135.5 98.8 - ­67 246.1 18.8 246.1 219.9 183.4 146.8 110.2 - 229.8 21.1 229.8 214.6 177.9 141.2 104.6 ­62 231.2 18.6 231.2 231.2 227.3 190.8 154.2 117.6 216.8 20.8 216.8 216.8 214.9 178.2 141.5 104.8
57 236.4 18.7 236.4 236.4 232.5 195.9 159.3 122.7 223.9 21.0 223.9 223.9 220.6 183.9 147.2 110.5

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

75°F 85°F

95°F 105°F

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

56 Johnson Controls Unitary Products

505428-YTG-C-0309

PD240/ND240 (Continued)

Air on

Evaporator Coil

CFM

6000

7000

8000

9000

10000

1

WB
(°F)

77 244.4 23.6 120.7 96.0 71.4 - - - 224.0 25.9 115.4 90.7 65.9 - - ­72 222.6 23.2 155.5 130.8 106.2 81.5 - - 205.1 25.5 150.0 125.3 100.6 75.8 - ­67 200.8 22.8 190.3 165.6 140.9 116.3 91.6 - 186.2 25.1 184.7 159.9 135.2 110.5 85.7 ­62 190.4 22.5 190.4 190.4 177.2 152.5 127.8 103.2 177.6 24.8 177.6 177.6 171.3 146.5 121.8 97.1
57 198.8 22.8 198.8 195.2 170.5 145.8 121.2 96.5 187.8 25.1 187.8 183.9 159.2 134.4 109.7 85.0
77 248.3 23.6 140.9 104.7 77.1 - - - 227.3 25.9 139.8 99.1 71.4 - - ­72 226.1 23.2 169.8 142.2 114.6 87.0 - - 208.1 25.5 164.3 136.6 108.9 81.3 - ­67 204.0 22.9 198.7 179.8 152.2 124.6 97.0 - 188.9 25.2 188.8 174.1 146.4 118.7 91.1 ­62 193.4 22.6 193.4 193.4 191.3 163.7 136.1 108.5 180.2 24.8 180.2 180.2 180.2 158.3 130.1 102.4
57 201.9 22.8 201.9 200.1 184.1 156.5 128.9 101.3 190.6 25.1 190.6 188.6 172.4 145.8 117.0 89.3
77 252.1 23.7 161.2 113.3 82.7 - - - 230.6 26.0 164.3 107.6 76.9 - - ­72 229.6 23.3 184.1 153.6 123.1 92.5 - - 211.1 25.6 178.6 148.0 117.3 86.7 - ­67 207.1 22.9 207.1 194.0 163.4 132.9 102.4 - 191.7 25.2 191.7 188.3 157.7 127.0 96.4 ­62 196.4 22.6 196.4 196.4 205.4 174.9 144.4 113.8 182.8 24.9 182.8 182.8 182.8 170.1 138.4 107.8
57 205.1 22.9 205.1 205.1 197.7 167.2 136.6 106.1 193.3 25.2 193.3 193.3 185.7 157.2 124.4 93.7
72 233.2 23.5 193.9 160.2 126.5 92.8 - - 214.2 25.8 188.4 154.6 120.8 87.0 - ­67 210.3 23.2 210.3 201.6 168.0 134.3 100.6 - 194.5 25.5 194.5 194.5 162.4 128.6 94.8 ­62 199.4 22.8 199.4 199.4 203.9 170.3 136.6 102.9 185.4 25.1 185.4 185.4 185.4 161.6 127.3 93.5
57 208.3 23.1 208.3 208.3 203.2 169.5 135.9 102.2 196.1 25.4 196.1 196.1 191.3 158.5 123.7 89.9
72 236.7 23.8 203.6 166.8 129.9 93.1 - - 217.2 26.1 198.2 161.3 124.3 87.4 - ­67 213.5 23.4 213.5 209.3 172.5 135.7 98.9 - 197.2 25.7 197.2 197.2 167.1 130.2 93.2 ­62 202.5 23.1 202.5 202.5 202.5 165.6 128.8 92.0 188.1 25.4 188.1 188.1 188.1 153.1 116.1 79.2
57 211.4 23.4 211.4 211.4 208.7 171.9 135.1 98.3 198.9 25.7 198.9 198.9 196.8 159.9 123.0 86.0

These capacities are gross ratings. For net capacity, deduct supply air blower motor, MBh. Example: Refer to the appropriate Blower

Total

Capacity

(MBh)

Total

1

Input

2

(kW)

Sensible Capacity (MBh)

Return Dry Bulb (°F) Return Dry Bulb (°F)

90 85 80 75 70 65 90 85 80 75 70 65

115°F 125°F

Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
efficiency.

2

These ratings include the condenser fan motors and the compressor motors but not the supply air blower motor.

Temperature of Air on Condenser Coil

Total

Capacity

(MBh)

Total

1

Input

(kW)

Sensible Capacity (MBh)

2

÷ nameplate rated motor

Johnson Controls Unitary Products 57

505428-YTG-C-0309

Heat Pump And Air Handler Heating Capacities

PC090 / NC090

Air Over Evaporator Coil

CFM DB (°F) -10 0 10 20 30 40 50 60

55

2250

3000

3750

1

These capacities do not include the supply air blower motor heat. For net capacity, add motor heat, MBh. Example: Refer to the appropriate

Blower Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
motor efficiency.

70

80

55

70

80

55

70

80

Capacity

1

&

kW

MBH 34.0 39.6 46.2 53.9 62.9 73.5 86.0 100.6

KW 4.9 5.3 5.6 6.0 6.3 6.7 7.0 7.3

MBH 31.0 36.6 43.2 50.9 60.0 70.6 83.0 97.6

KW 5.8 6.1 6.5 6.8 7.1 7.5 7.8 8.2

MBH 28.7 34.3 40.9 48.6 57.7 68.3 80.7 95.3

KW 6.4 6.8 7.1 7.4 7.8 8.1 8.5 8.8

MBH 35.3 40.9 47.5 55.2 64.3 74.9 87.3 101.9

KW 4.7 5.1 5.4 5.8 6.1 6.5 6.8 7.1

MBH 32.4 38.0 44.5 52.3 61.3 71.9 84.4 99.0

KW 5.6 5.9 6.3 6.6 6.9 7.3 7.6 8.0

MBH 30.1 35.7 42.3 50.0 59.0 69.6 82.1 96.7

KW 6.2 6.5 6.9 7.2 7.6 7.9 8.3 8.6

MBH 36.6 42.2 48.8 56.5 65.6 76.2 88.6 103.2

KW 5.2 5.6 5.9 6.3 6.6 7.0 7.3 7.6

MBH 33.7 39.3 45.8 53.6 62.6 73.2 85.7 100.3

KW 6.1 6.4 6.8 7.1 7.4 7.8 8.1 8.5

MBH 31.4 37.0 43.6 51.3 60.3 70.9 83.4 98.0

KW 6.7 7.0 7.4 7.7 8.1 8.4 8.8 9.1

Outdoor Temperature (°F @ 72% RH)

÷ nameplate rated

PC120 / NC120

Air Over Evaporator Coil

CFM DB (°F) -10 0 10 20 30 40 50 60

55

3000

4000

5000

1

These capacities do not include the supply air blower motor heat. For net capacity, add motor heat, MBh. Example: Refer to the appropriate

Blower Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746
motor efficiency.

70

80

55

70

80

55

70

80

Capacity

1

&

kW

MBH 29.1 36.4 45.3 56.0 69.0 84.7 103.8 126.8

KW 6.9 7.3 7.6 8.0 8.3 8.7 9.1 9.4

MBH 26.3 33.6 42.4 53.1 66.1 81.8 100.9 124.0

KW 8.2 8.6 8.9 9.3 9.7 10.0 10.4 10.7

MBH 24.2 31.5 40.4 51.1 64.1 79.8 98.8 121.9

KW 9.2 9.6 10.0 10.3 10.7 11.1 11.4 11.8

MBH 37.4 44.7 53.5 64.3 77.2 93.0 112.0 135.1

KW 6.7 7.1 7.4 7.8 8.1 8.5 8.9 9.2

MBH 34.5 41.8 50.7 61.4 74.4 90.1 109.2 132.2

KW 8.0 8.4 8.7 9.1 9.5 9.8 10.2 10.6

MBH 32.5 39.8 48.6 59.3 72.3 88.0 107.1 130.2

KW 9.0 9.4 9.8 10.1 10.5 10.9 11.2 11.6

MBH 44.1 51.4 60.3 71.0 84.0 99.7 118.7 141.8

KW 6.9 7.2 7.6 8.0 8.3 8.7 9.0 9.4

MBH 41.3 48.6 57.4 68.1 81.1 96.8 115.9 138.9

KW 8.2 8.6 8.9 9.3 9.6 10.0 10.4 10.7

MBH 39.2 46.5 55.3 66.1 79.0 94.8 113.8 136.9

KW 9.2 9.6 9.9 10.3 10.7 11.0 11.4 11.7

Outdoor Temperature (°F @ 72% RH)

÷ nameplate rated

58 Johnson Controls Unitary Products

505428-YTG-C-0309

PC180 / NC180

Air Over Evaporator Coil

Capacity

CFM DB (°F) -10 0 10 20 30 40 50 60

55

4500

70

80

55

6000

70

80

55

7500

70

80

1

These capacities do not include the supply air blower motor heat. For net capacity, add motor heat, MBh. Example: Refer to the appropriate

Blower Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746 ÷ nameplate rated

1

&

kW

MBH 68.2 80.0 93.8 110.0 129.1 151.5 177.8 208.7

KW 11.8 12.2 12.7 13.2 13.7 14.1 14.6 15.1

MBH 61.5 73.2 87.0 103.2 122.3 144.7 171.0 201.9

KW 13.5 14.0 14.4 14.9 15.4 15.9 16.3 16.8

MBH 57.6 69.3 83.1 99.3 118.4 140.8 167.1 198.0

KW 15.0 15.5 16.0 16.4 16.9 17.4 17.9 18.3

MBH 74.0 85.8 99.6 115.8 134.9 157.3 183.6 214.5

KW 11.2 11.7 12.2 12.6 13.1 13.6 14.1 14.6

MBH 67.3 79.0 92.8 109.0 128.1 150.5 176.8 207.7

KW 12.9 13.4 13.9 14.4 14.8 15.3 15.8 16.3

MBH 63.4 75.1 88.9 105.1 124.2 146.6 172.9 203.8

KW 14.5 14.9 15.4 15.9 16.4 16.8 17.3 17.8

MBH 72.4 84.1 97.9 114.1 133.2 155.6 181.9 212.8

KW 12.0 12.5 13.0 13.4 13.9 14.4 14.9 15.4

MBH 65.6 77.3 91.1 107.4 126.4 148.8 175.1 206.0

KW 13.7 14.2 14.7 15.2 15.6 16.1 16.6 17.1

MBH 61.7 73.4 87.3 103.5 122.5 144.9 171.2 202.1

KW 15.3 15.7 16.2 16.7 17.2 17.6 18.1 18.6

motor efficiency.

Outdoor Temperature (°F @ 72% RH)

PD180 / ND180

Air Over Evaporator Coil

Capacity

CFM DB (°F) -10 0 10 20 30 40 50 60

55

4500

70

80

55

6000

70

80

55

7500

70

80

1

These capacities do not include the supply air blower motor heat. For net capacity, add motor heat, MBh. Example: Refer to the appropriate

Blower Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746 ÷ nameplate rated

1

&

kW

MBH 65.6 77.0 90.3 105.8 123.9 145.1 169.7 198.5

KW 10.0 10.5 11.1 11.6 12.2 12.7 13.3 13.8

MBH 62.2 73.6 86.9 102.4 120.5 141.6 166.3 195.1

KW 12.0 12.5 13.1 13.6 14.2 14.7 15.3 15.8

MBH 59.5 70.9 84.1 99.7 117.8 138.9 163.6 192.4

KW 13.4 13.9 14.5 15.0 15.6 16.1 16.7 17.2

MBH 71.6 83.0 96.3 111.8 129.9 151.0 175.7 204.5

KW 9.6 10.2 10.7 11.3 11.8 12.4 12.9 13.4

MBH 68.1 79.5 92.8 108.3 126.5 147.6 172.3 201.1

KW 11.6 12.2 12.7 13.3 13.8 14.3 14.9 15.4

MBH 65.4 76.8 90.1 105.6 123.7 144.9 169.6 198.3

KW 13.0 13.6 14.1 14.7 15.2 15.8 16.3 16.9

MBH 74.0 85.4 98.7 114.2 132.4 153.5 178.2 207.0

KW 11.3 11.8 12.4 12.9 13.5 14.0 14.6 15.1

MBH 70.6 82.0 95.3 110.8 128.9 150.1 174.7 203.5

KW 13.3 13.8 14.4 14.9 15.5 16.0 16.6 17.1

MBH 67.9 79.3 92.6 108.1 126.2 147.4 172.0 200.8

KW 14.7 15.3 15.8 16.4 16.9 17.5 18.0 18.5

motor efficiency.

Outdoor Temperature (°F @ 72% RH)

Johnson Controls Unitary Products 59

505428-YTG-C-0309

PC240 / NC240

Air Over Evaporator Coil

Capacity

CFM DB (°F) -10 0 10 20 30 40 50 60

55

6000

70

80

55

8000

70

80

55

9000

70

80

1

These capacities do not include the supply air blower motor heat. For net capacity, add motor heat, MBh. Example: Refer to the appropriate

Blower Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746 ÷ nameplate rated

1

&

kW

MBH 84.3 98.8 115.6 135.0 157.4 183.2 212.9 247.3

KW 13.7 14.4 15.2 15.9 16.6 17.3 18.1 18.8

MBH 90.0 104.5 121.3 140.7 163.1 188.8 218.6 253.0

KW 16.1 16.8 17.6 18.3 19.0 19.7 20.5 21.2

MBH 88.3 102.8 119.6 139.0 161.3 187.1 216.9 251.2

KW 17.8 18.5 19.3 20.0 20.7 21.5 22.2 22.9

MBH 88.8 103.4 120.2 139.5 161.9 187.7 217.4 251.8

KW 13.2 13.9 14.7 15.4 16.1 16.8 17.6 18.3

MBH 94.5 109.1 125.8 145.2 167.6 193.4 223.1 257.5

KW 15.6 16.3 17.0 17.8 18.5 19.2 19.9 20.7

MBH 92.8 107.3 124.1 143.5 165.9 191.6 221.4 255.8

KW 17.3 18.0 18.8 19.5 20.2 20.9 21.7 22.4

MBH 92.3 106.8 123.6 143.0 165.3 191.1 220.9 255.2

KW 14.5 15.3 16.0 16.7 17.4 18.2 18.9 19.6

MBH 97.9 112.5 129.3 148.7 171.0 196.8 226.6 260.9

KW 16.9 17.7 18.4 19.1 19.8 20.6 21.3 22.0

MBH 96.2 110.8 127.6 146.9 169.3 195.1 224.8 259.2

KW 18.7 19.4 20.1 20.8 21.6 22.3 23.0 23.7

motor efficiency.

Outdoor Temperature (°F @ 72% RH)

PD240 / ND240

Air Over Evaporator Coil

Capacity

CFM DB (°F) -10 0 10 20 30 40 50 60

55

6000

70

80

55

8000

70

80

55

10000

70

80

1

These capacities do not include the supply air blower motor heat. For net capacity, add motor heat, MBh. Example: Refer to the appropriate

Blower Performance Table for the BHP of the supply air blower motor, MBh = 3.415 x kW and kW = BHP x 0.746 ÷ nameplate rated
motor efficiency.

1

&

kW

MBH 64.6 79.5 97.4 118.8 144.3 174.9 211.4 255.1

KW 15.7 16.5 17.3 18.1 19.0 19.8 20.6 21.4

MBH 69.5 84.4 102.3 123.7 149.2 179.8 216.3 260.0

KW 15.4 16.2 17.0 17.9 18.7 19.5 20.3 21.2

MBH 63.3 78.3 96.2 117.5 143.1 173.6 210.2 253.8

KW 17.2 18.0 18.8 19.6 20.5 21.3 22.1 23.0

MBH 71.6 86.6 104.5 125.8 151.4 181.9 218.5 262.1

KW 15.1 15.9 16.8 17.6 18.4 19.2 20.1 20.9

MBH 76.5 91.5 109.4 130.7 156.3 186.8 223.4 267.0

KW 14.8 15.6 16.5 17.3 18.1 19.0 19.8 20.6

MBH 70.4 85.3 103.2 124.6 150.1 180.7 217.2 260.9

KW 16.6 17.4 18.3 19.1 19.9 20.7 21.6 22.4

MBH 73.3 88.3 106.1 127.5 153.1 183.6 220.1 263.8

KW 15.3 16.1 17.0 17.8 18.6 19.4 20.3 21.1

MBH 78.2 93.2 111.0 132.4 158.0 188.5 225.0 268.7

KW 15.0 15.8 16.7 17.5 18.3 19.1 20.0 20.8

MBH 72.1 87.0 104.9 126.3 151.8 182.4 218.9 262.6

KW 16.8 17.6 18.5 19.3 20.1 20.9 21.8 22.6

Outdoor Temperature (°F @ 72% RH)

60 Johnson Controls Unitary Products

505428-YTG-C-0309

Sound Performance

Outdoor Sound Power Levels (dB), 60 Hz

Size

(Tons)

090

(7.5)

120

(10.0)

150

(12.5)

180

(15.0

240

(20.0)

1

Rated in accordance with ARI 270 Standard.

Model
PC090 89 88 90 89 87 84 81 77 72

YC090 89 88 89 89 87 84 81 78 73
PC120 89 88 90 89 87 84 81 77 72
YC120 90 91 87 90 88 85 80 76 70
YD120 90 92 89 91 88 85 80 77 71
YC150 91 96 88 90 89 86 82 77 71
YD150 91 92 92 92 89 86 81 78 73
PC180 93 93 96 93 90 89 84 77 71
PD180 93 93 96 93 90 89 84 77 71
YC180 89 88 90 89 87 84 81 77 72
YD180 89 88 90 89 87 84 81 77 72
PC240 93 93 96 93 90 89 84 77 71
PD240 93 93 96 93 90 89 84 77 71
YC240 93 93 96 93 90 89 84 77 71
YD240 93 93 96 93 90 89 84 77 71

Sound

Rating

1

63 125 250 500 1000 2000 4000 8000

Octave Bands (Hz)

70 Johnson Controls Unitary Products

Electrical Data - Outdoor Unit - HP Without Powered Convenience Outlet

Compressors Outdoor Fan Motor

Model

PC090

PC120

PC180

PD180

PC240

PD240

1

Based on three, 75°C insulated copper conductors in conduit and ambient of 30°C.

2

Maximum fuse or maximum circuit breaker (HACR type per NEC).
Refer to NEC/NFPA No. 70, Articles 440-11, 12 for information on minimum disco nnect sizing.

Power

Supply

208/230-3-60 1 25.0 39 164 2 2.1 0.0 35.5 45

460-3-60 1 12.2 19 100 2 1.2 0.0 17.6 25
575-3-60 1 9.0 14 78 2 0.9 0.0 13.1 20

208/230-3-60 2 15.6 24 110 2 3.0 0.0 41.2 50

460-3-60 2 7.8 12 52 2 1.6 0.0 20.8 25
575-3-60 2 5.8 9 39 2 1.4 0.0 15.8 20

208/230-3-60 2 25.0 39 164 4 2.1 0.0 64.7 80

460-3-60 2 12.2 19 100 4 1.2 0.0 32.2 40
575-3-60 2 9.0 14 78 4 0.9 0.0 24.0 30

208/230-3-60 2 25.0 39 164 4 2.1 0.0 64.7 80

460-3-60 2 12.2 19 100 4 1.2 0.0 32.2 40
575-3-60 2 9.0 14 78 4 0.9 0.0 24.0 30

208/230-3-60 2 30.1 47 225 4 3.0 0.0 79.8 100

460-3-60 2 16.7 26 114 4 1.6 0.0 44.0 60
575-3-60 2 12.2 19 80 4 1.4 0.0 32.9 45

208/230-3-60 2 30.1 47 225 4 3.0 0.0 79.8 100

460-3-60 2 16.7 26 114 4 1.6 0.0 44.0 60
575-3-60 2 12.2 19 80 4 1.4 0.0 32.9 45

Qty.

RLA

(each)

MCC

(each)

LRA

(each)

Qty

FLA

(each)

Pwr Conv

Outlet

FLA

505428-YTG-C-0309

Minimum

Circuit

Ampacity

1

Maximum
Fuse Size

2

(A)

Electrical Data - Outdoor Unit - HP With Powered Convenience Outlet

Compressors Outdoor Fan Motor

Model

PC090

PC120

PC180

PD180

PC240

PD240

1

Based on three, 75°C insulated copper conductors in conduit and ambient of 30°C.

2

Maximum fuse or maximum circuit breaker (HACR type per NEC).
Refer to NEC/NFPA No. 70, Articles 440-11, 12 for information on minimum disco nnect sizing.

Power

Supply

208/230-3-60 1 25.0 39 164 2 2.1 10.0 45.5 60

460-3-60 1 12.2 19 100 2 1.2 5.0 22.6 30
575-3-60 1 9.0 14 78 2 0.9 4.0 17.1 25

208/230-3-60 2 15.6 24 110 2 3.0 10.0 51.2 60

460-3-60 2 7.8 12 52 2 1.6 5.0 25.8 30
575-3-60 2 5.8 9 39 2 1.4 4.0 19.8 25

208/230-3-60 2 25.0 39 164 4 2.1 10.0 74.7 90

460-3-60 2 12.2 19 100 4 1.2 5.0 37.2 45
575-3-60 2 9.0 14 78 4 0.9 4.0 28.0 35

208/230-3-60 2 25.0 39 164 4 2.1 10.0 74.7 90

460-3-60 2 12.2 19 100 4 1.2 5.0 37.2 45
575-3-60 2 9.0 14 78 4 0.9 4.0 28.0 35

208/230-3-60 2 30.1 47 225 4 3.0 10.0 89.8 110

460-3-60 2 16.7 28 114 4 1.6 5.0 49.0 60
575-3-60 2 12.2 19 80 4 1.4 4.0 36.9 45

208/230-3-60 2 30.1 47 225 4 3.0 10.0 89.8 110

460-3-60 2 16.7 26 114 4 1.6 5.0 49.0 60
575-3-60 2 12.2 19 80 4 1.4 4.0 36.9 45

Qty.

RLA

(each)

MCC

(each)

LRA

(each)

Qty

FLA

(each)

Pwr Conv

Outlet

FLA

Minimum

Circuit

Ampacity

Maximum
Fuse Size

1

(A)

2

Johnson Controls Unitary Products 73

505428-YTG-C-0309

Heat Pump Units

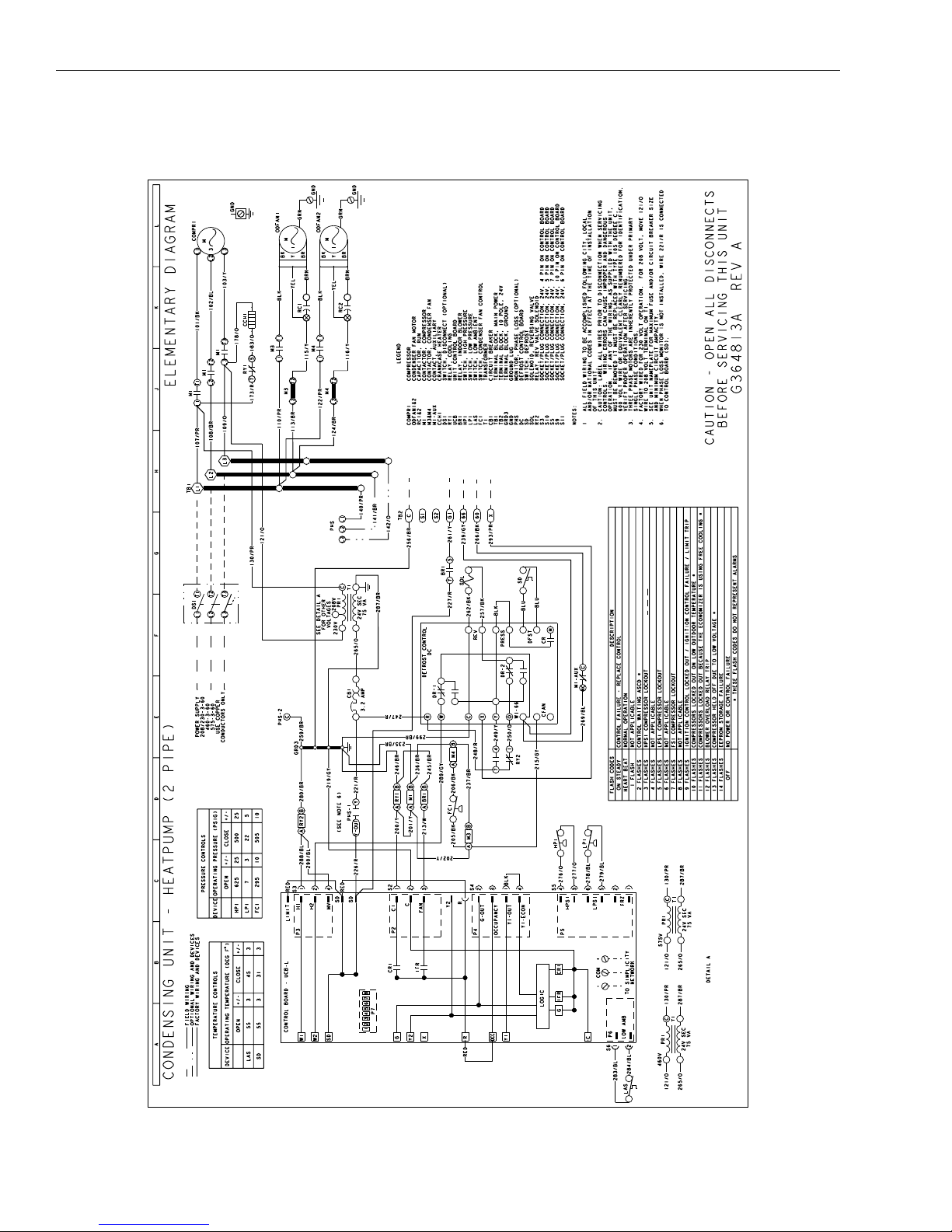

Typical PC090 Wiring Diagram

82 Johnson Controls Unitary Products

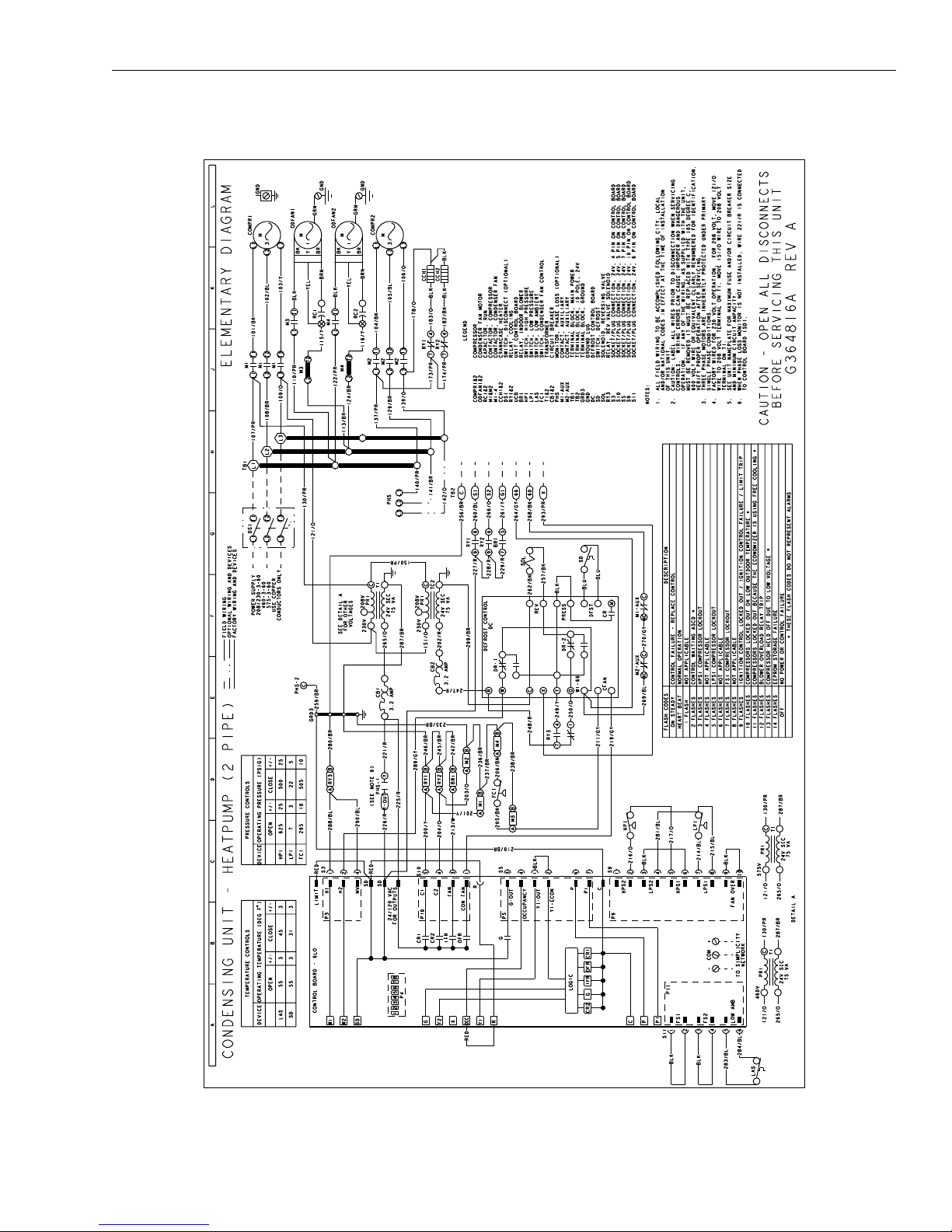

Typical PC120 Wiring Diagram

505428-YTG-C-0309

Johnson Controls Unitary Products 83

505428-YTG-C-0309

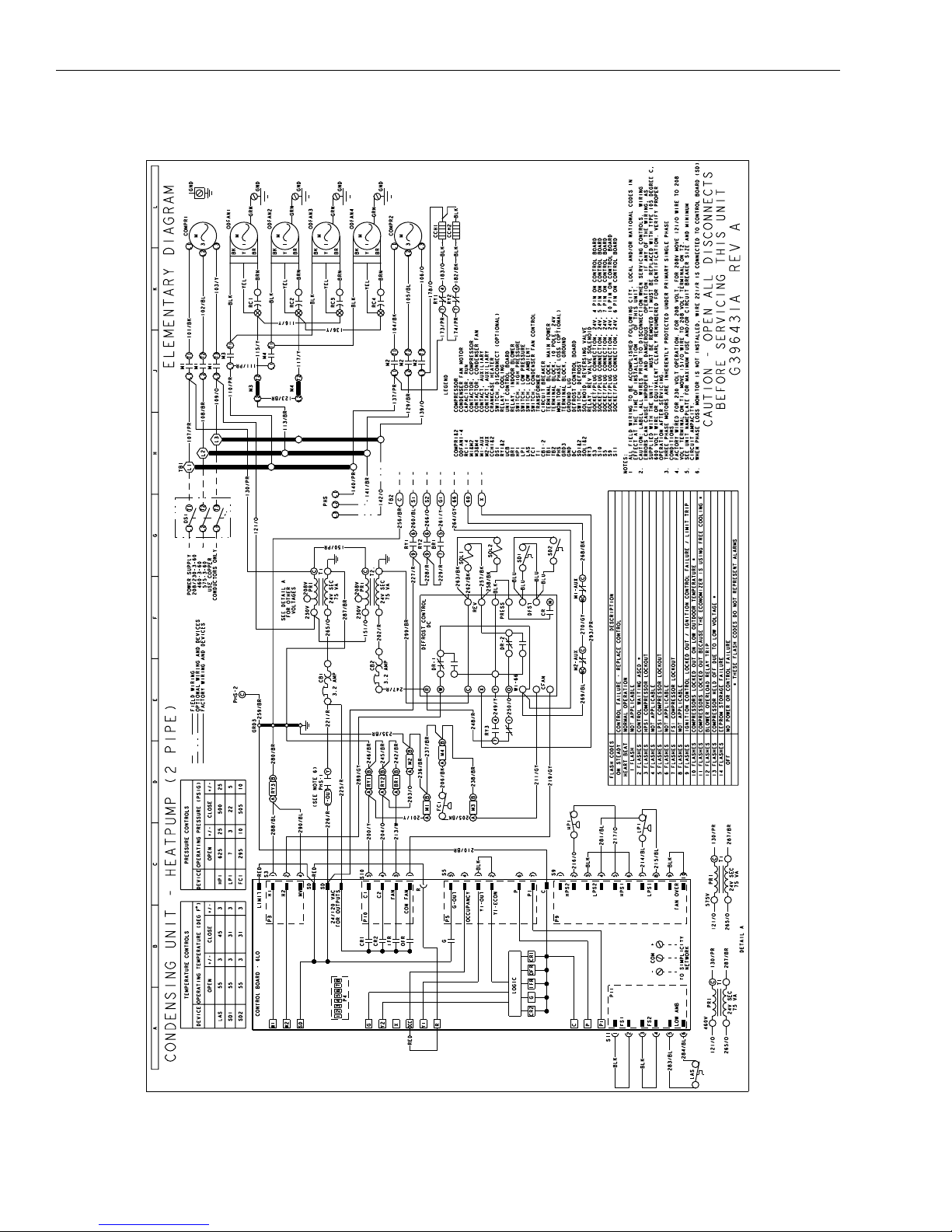

Typical PC180 - 240 Wiring Diagram

84 Johnson Controls Unitary Products

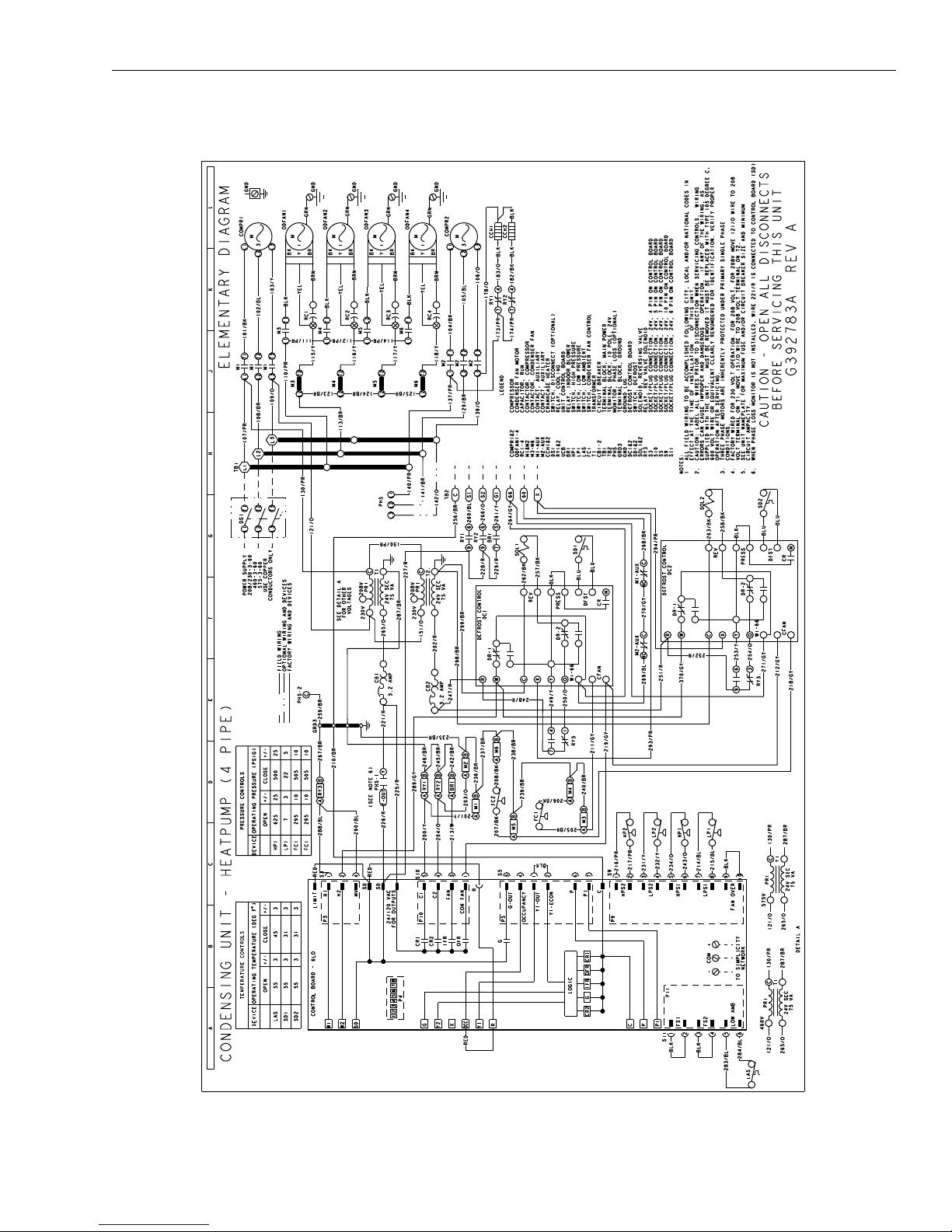

Typical PD180 - 240 Wiring Diagram

505428-YTG-C-0309

Johnson Controls Unitary Products 85

505428-YTG-C-0309

DIM X

DIM Y

LENGTH

WIDTH

C

A

B

D

CG

FRONT

RIGHT

REAR

LEFT

CG

DIM X

DIM Y

LENGTH

WIDTH

C

B

A

D

FRONT

REAR

LEFT

RIGHT

PC090, PC120,

YC090, YC120, YD120,

YC150, YD150

PC180, PD180,
PC240, PD240,
YC180, YD180,
YC240, YD240

Weights And Dimensions

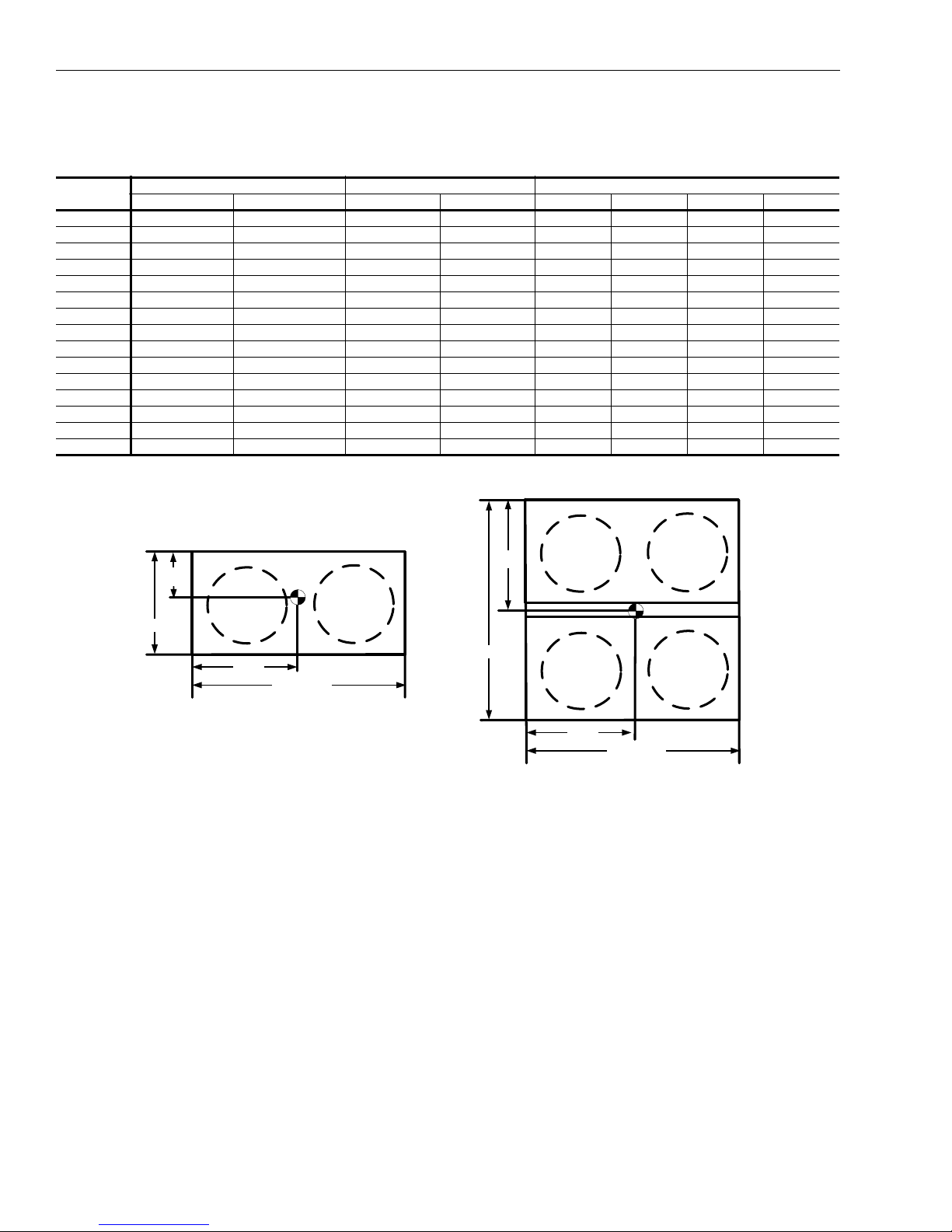

Corner Weights & Center of Gravity AC/HP Units

Model

PC090 405 415 16 32.5 114 114 94 93
PC120 550 560 17.5 32.9 141 171 136 112
PC180 815 840 32.5 33 231 238 188 183
PD180 810 835 34 32.5 216 244 199 176
PC240 985 1010 31 32.5 287 269 220 235
PD240 980 1005 30.5 31.5 281 255 223 246
YC090 330 325 18.5 30.8 71 98 90 65
YC120 450 445 18 34 112 144 107 82
YD120 445 440 16.5 33.5 120 129 99 92
YC150 450 445 18 34 112 144 107 82
YD150 445 440 16.5 33.5 120 129 99 92
YC180 680 675 32.5 31.5 177 182 160 155
YD180 680 675 32.5 31.5 177 182 160 155
YC240 710 710 32 37 223 222 133 133
YD240 710 710 32 37 223 222 133 133

Weight (lbs.) Center of Gravity (in.) 4 Point Load Location (lbs.)

Shipping Operating X Y A B C D

NOTE: Front of unit is considered the side having the unit

control box.

88 Johnson Controls Unitary Products

FRONT

LEFT

REAR

RIGHT

FRONT

4X Ø 1.375
KNOCKOUT

4X Ø 0.875
KNOCKOUT

2.250
TYP

Ø 1.500 THRU

TYP

REAR

P

O

A

E
D

C

M

H

I

G

F

N

J

L

K

SYSTEM 1

SYSTEM 2

L

K

J

3.38

5.17

4 PIPE APPLICATION ONLY

- DETAIL ­REAR

CONVENIENCE
OUTLET

POWER DISCONNECT
SWITCH

3.00

B

LEFT

REAR

RIGHT

FRONT

505428-YTG-C-0309

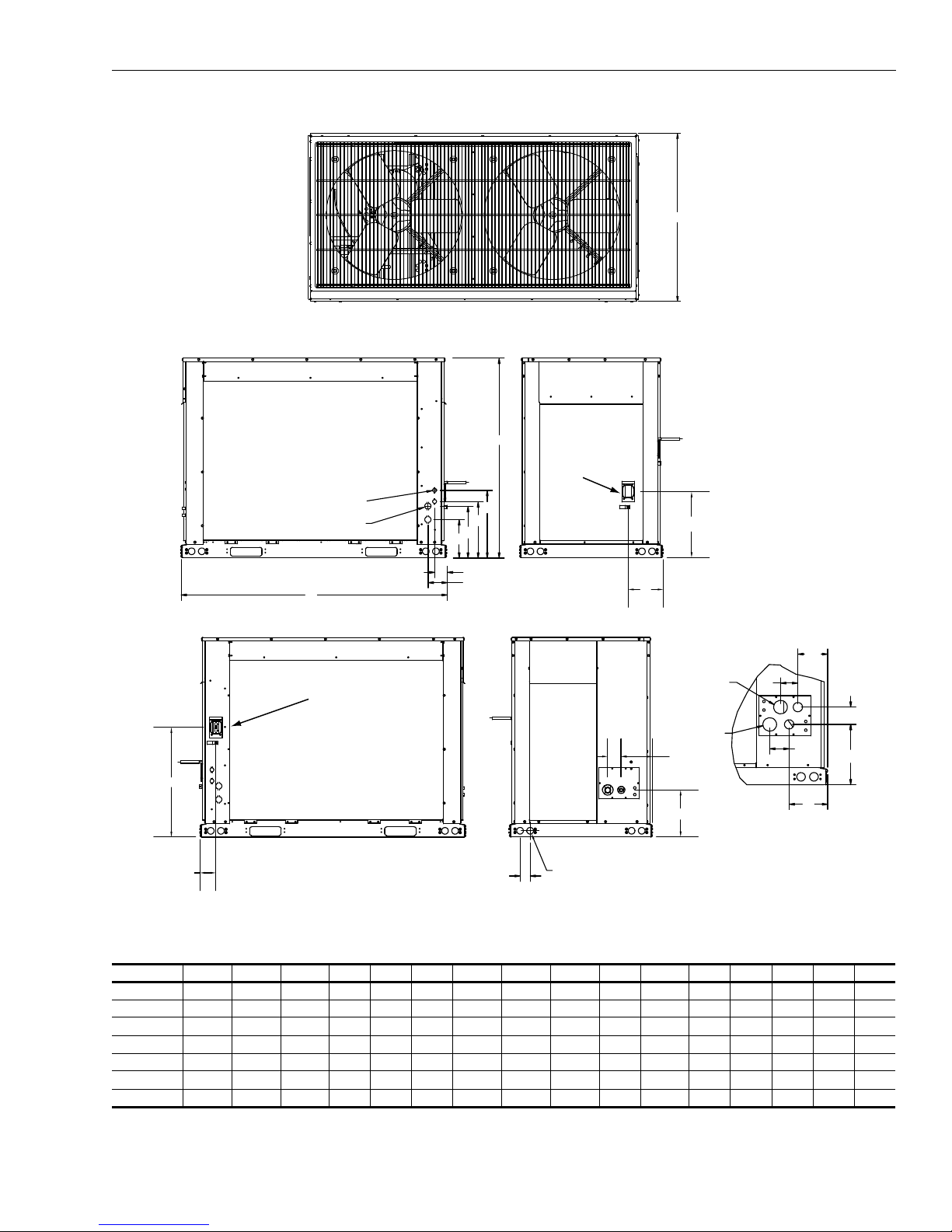

Unit Dimensions PC090, PC120, YC090, YC/YD120, YC/YD150

Unit Dimensions

MODEL A B C D E F G H I J K L M N O P

PC090 59.1 31.9 44.5 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5
PC120 59.1 31.9 50.0 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5
YC090 59.1 31.9 44.5 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5

Johnson Controls Unitary Products 89

YC120 59.1 31.9 50.0 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5
YD120 59.1 31.9 50.0 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5
YC150 59.1 31.9 50.0 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5
YD150 59.1 31.9 50.0 4.2 2.7 8.5 11.4 12.4 14.9 6.9 10.5 3.0 7.7 14.7 3.3 24.5

505428-YTG-C-0309

LEFT

RIGHT

FRONT

REAR

B

A

Convenience Outlet

Control and Power
wiring connections

YC180/240

FRONT

L

M

O

Weatherproof cover
shown in open position

Power Disconnect Switch

ED

F

G

I

J

H

K

N

C

S

Q

R

P

YD180/240 FRONT

(PIPING DETAIL)

E

D

E1

D1

F1

F

G1

G

YC/YD180 & YC/YD240

RIGHT

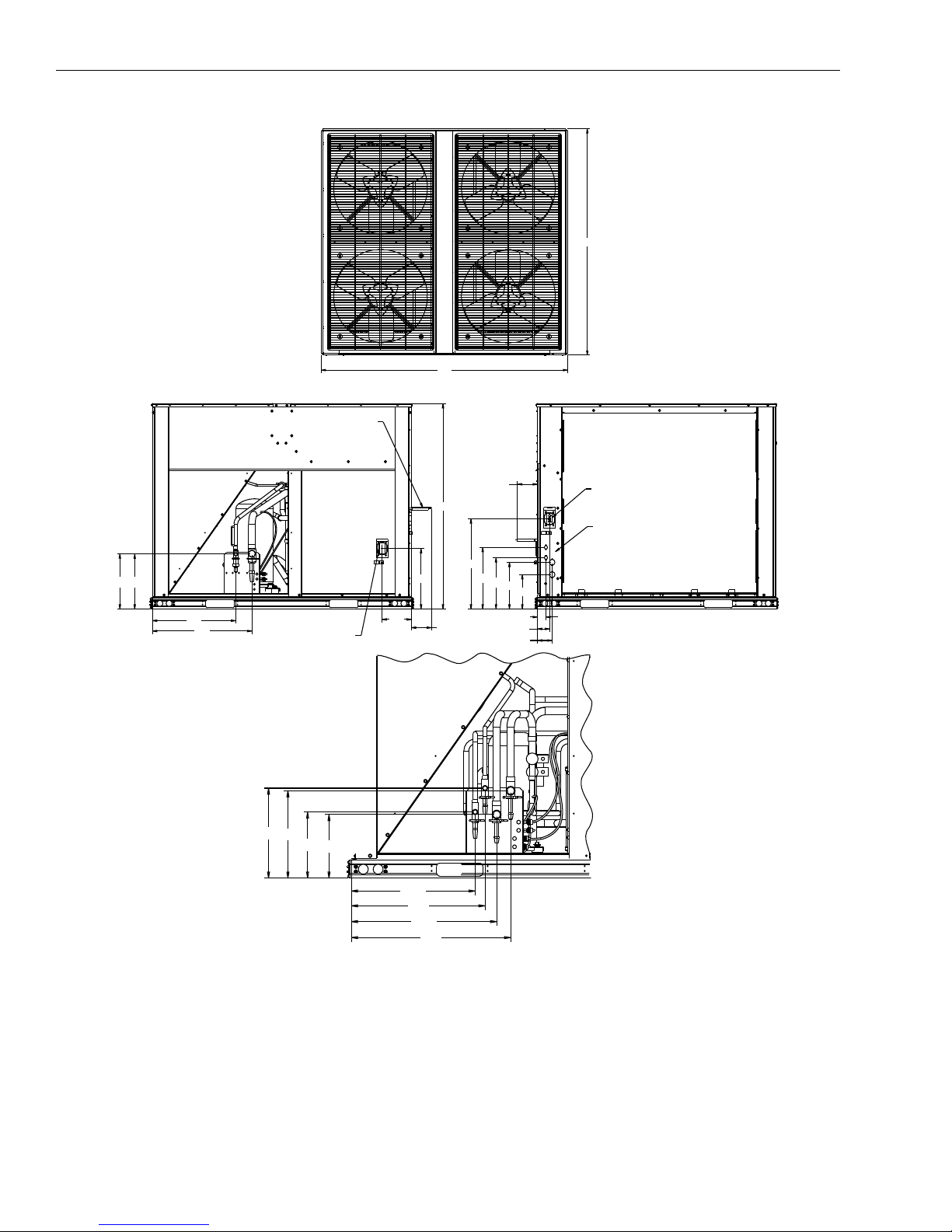

Unit Dimensions PC/PD180, PC/PD240, YC/YD180, YC/YD240

90 Johnson Controls Unitary Products

505428-YTG-C-0309

Unit Dimensions

MODEL A B C D DI E EI F FI G G I H I J K L M N O P Q R S

PC180 59.1 64.1 44.5 13.8 N/A 13.4 N/A 20.2 N/A 23.9 N/A 15.0 12.5 11.4 8.4 2.4 3.9 22.0 2.9 4.9 7.1 4.8 14.7
PD180 59.1 64.1 44.5 13.7 10.1 13.3 9.7 10.3 18.8 24.2 22.0 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7
PC240 59.1 64.1 50.0 13.8 N/A 13.4 N/A 20.2 N/A 23.9 N/A 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7
PD240 59.1 64.1 50.0 14.0 10.5 13.5 9.9 20.3 18.8 24.1 22.0 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7
YC180 59.1 64.1 44.5 13.4 N//A 13.4 N/A 20.2 N/A 24.1 N/A 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7
YD180 59.1 64.1 44.5 13.1 9.6 12.9 9.4 20.2 18.7 24.2 22.0 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7
YC240 59.1 64.1 50.0 13.5 N/A 13.4 N/A 20.2 N/A 24.2 N/A 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7
YD240 59.1 64.1 50.0 13.1 9.6 12.9 9.4 20.2 18.7 24.2 22.0 15.0 12.5 11.4 8.4 2.1 3.6 22.0 2.9 4.9 7.1 4.8 14.7

NOTE: The ‘I’ designation indicates a four pipe system.

PIPING AND ELECTRICAL CONNECTIONS

Piping connections are made from the rear of 7.5 thru 12.5
Ton units and the front of 15 thru 20 Ton units. Connections
can be made directly to the suction and liquid line service
valves.

With the piping connections being made at the rear of 7.5
thru 12.5 Ton units and the front of 15 thru 20 Ton units, the
piping can be routed to the units from the left or right side.

Electrical connections for power and control wiring are made
from the front of the units, right or left of 7.5 thru 12.5 Ton
electrical control box access or left of the electrical control
box access on 15 thru 20 Ton units. See Unit Dimensions

and Piping and Electrical Connection Sizes tables for piping
sizes and electrical knockout details.

UNIT CLEARANCES

Location Dimensions

Overhead (Top)

Front access panels 36”

Left Side 30”

Right Side 30”

Rear 24”

Bottom

1

Units must be installed outdoors. Overhanging structures or

shrubs should not obstruct condenser air discharge.

1

2

120”

0”

Piping And Electrical Connection Sizes (Inches)

MODEL PC090 YC090 PC120 YC120 YD120 YC150 YD150
No. Refrigeration Circuits 1111212
Suction Line OD (in.) 1 1/8 1 1/8 1 1/8 1 3/8 1 1/8 1 3/8 1 1/8
Liquid Line OD (in.) 5/8 5/8 5/8 7/8 5/8 7/8 5/8
Power Wiring Knockout 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8
Control Wiring Knockout 7/8 7/8 7/8 7/8 7/8 7/8 7/8

MODEL PC180 PD180 PC240 PD240 YC180 YD180 YC240 YD240
No. Refrigeration Circuits 12121212
Suction Line OD (in.) 1 5/8 1 1/8 1 5/8 1 3/8 1 5/8 1 1/8 1 5/8 1 3/8
Liquid Line OD (in.) 7/8 5/8 7/8 7/8 7/8 5/8 7/8 7/8
Power Wiring Knockout 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8
Control Wiring Knockout 7/8 7/8 7/8 7/8 7/8 7/8 7/8 7/8

Johnson Controls Unitary Products 91

Subject to change without notice. Printed in U.S.A. 505428-YTG-C-0309
Copyright © 2009 by Johnson Controls, Inc. All rights reserved. Supersedes: 505428-YTG-B-0209

Johnson Controls Unitary Products

5005 York Drive

Norman, OK 73069
