Page 1

036-21311-003-A-0104

TECHNICALGUIDE

Champion Series

SINGLE PACKAGE HEAT PUMPS

BHA018 THRU 060 1-1/2 THRU 5 NOMINAL TONS 10 SEER

DESCRIPTION

These packagedheatpumpsaredesignedforoutdoorinstallation. Only utility and duct connections are required at the point of installation.

Field-installed electric heater accessories are available to provide electric heat, if required.

STANDARD FEATURES / BENEFITS

OPERATING EFFICIENCY - All units provide high operating

efficienciesof10SEERorgreater,3.0COP or greater andup to

7.0 HSPF. All efficiencies exceed legislated minimum levels. ON SITE FLEXIBILITY - All model sizes share a common,

compact design cabinet with a single footprint. The installer has the flexibility of setting one curb or pad and placing the proper tonnage unit on that curb after the internal load has been determined. Field convertible duct connections from side shot to down shot allows the installer to have greater flexibility and needs to carry less inventory.

LOWER INSTALLATION COST - Installation timeand costs are reduced by easy power and control wiring connections. The small base dimension means less space is required on the ground orroof, plus,the installercan fitthis unit between the wheel wells of full size pick-up truck. All models are well under 500 pounds.

tistics such as system pressure, motor currents, air velocityand temperature and unit vibration are monitored and recorded by the system to insure unit performance.

Equal size, side supply and return duct connections allows easyhook-up of ductsto matchlow crawlspaces withouttran sition pieces.

UTILITY CONNECTIONS MADE EASY - Electrical utility knockoutsareprovided throughthe bottom as well asthe side ofthe unit. Utility connections can be made quickly and with a minimum amount of field labor. A field supplied and field in stalled electrical disconnect switch must be installed.

CONVERTIBLE AIRFLOW DESIGN - The bottom duct open ings are covered when they leave the factoryready to be used fora side supply / sidereturn application.If abottom supply/ bot tom return application is desired, you simply remove the two panels from the bottom of the unit and place them in the side supply / side return duct openings. No panel cutting is required andno accessorypanel isnecessary.Convertibleairflow design allows maximum field flexibility and minimum inventory.

CONDENSATEPAN-A non-corrosive,long-lasting, water-tight panispositionedbelow theevaporatorcoil tocollect anddrainall condensate. Less collection of stagnate condensate will buildup.The condensate panconforms toASHRAE 62-89 standards (Ventilation for Acceptable Indoor Air Quality).

All units are completely wired, charged with R-22 and tested prior to shipment. Unique teststations using a newstate of the art computerized process system are used to insure product quality. Refrigerant charge, and component part numbers are verified via computers atmanufacturing point. Vit alrun test sta

FOR DISTRIBUTION USE ONLY- NOT TO BE USED AT POINT OF RETAIL SALE

CONDENSATEDRAIN-The heavy duty, connection is more tolerable during installation and is more durable over time. The connection is rigidly mounted to as sure proper fit and leak tight seal.

inchNPTI copper

Page 2

STANDARD FEATURES and BENEFITS - continued

DURABLE FINISH - With a heavy duty cabinet made of

powder-painted,galvanizedsteel theneutral colorblends into surroundingareas.The poweredpaint,provides abetter paint tosteelbond, whichresistscorrosion andrust creep. Thespe cial primer formulas and glossy earth tone finish insure less fading when exposed tosunlight andoffers amore attractive on site appearance. This paint finish exceeds ASTM-B117 standardsfor 750hours salt sprayrating, the highestin the in dustry.

FANSYSTEM - All models operateover a wide rangeof design conditions with a 3-speed direct-drive fan motor. These units easily match all types of applications and provides greater on site flexibility to match comfort requirement.

SIMPLE CONTROL CIRCUIT - A low voltage printed circuit boardcontainsa lowvoltage terminalstrip. Theelectrical con trolbox is notlocated in thecompressor compartment. Allwir ing internal to the unit is color/number coded.

036-21311-003-A-0104

FULL PERIMETER BASE RAILS - The easily removable base rails provide a solid foundation for the entire unit and protectsthe unit during shipment. The railsprovide fork liftac cessfromall sides,and riggingholes arealsoprovided sothat an overhead crane can be used to place the units on a roof. Onapplications whenthe unit isplaced on apad, thebase will keep the unit off the pad to deter corrosion. On applications whereheight is limited, the

inchhigh base rails maybe re

moved on location. MOREATTRACTIVEAPPEARANCE - Asinglepiece “Water

Shed”top cover containing a top discharge condenserfan ar rangement requires less square footage on installation and providesa wider varietyof installations. Theone piece design adds greater water integrity.Rounded corners with water drip edges add to the attractive appearance. The cabinet panels have a non-fibrous insulation that reduces insulation fibers into conditioned area.

TOP DISCHARGE - The top discharge condenser fan does notdisrupt neighboring areasand doesnot dry-outvegetation surroundingtheunit. Thewarmair fromthe top mountedfan is blown up awayfrom the structure and any landscaping. This allows compact location on multi-unit applications.

OUTDOOR COIL GRILLE - A multi-piece totally enclosed, rigidlymountedoutdoor coilgrilleprovides protectionfrom objects and personal after installation and provides protection during transit and installation.

LOWOPERATINGSOUNDLEVEL-The upward airflow car ries the normal operating noise up and away from the living area.The rigid toppanel effectively isolatesany motor sound. Isolator mounted compressorand therippled finsof the con densercoilmuffle thenormal fanmotor andcompressor oper atingsounds. The unique formedbase pan alsoaids in sound alterations with it's “Super-Structure” design. This design strategically places embossments in the pan for optimum strength and rigidity.

CONTROLS - Reliable time-temperaturedefrost controlpro

vides defrost including field selectable time periods between cycles(30, 60 and 90 minutes). factory set at 30 minutes. De

frost control also provides an“X” terminal to providea 24 volt signal for room thermostat “LED” indication of unit lockout, plus built in 5 minute anti-short cycle protection.

PROTECTEDCOMPRESSOR -The compressoris internally

protected against high pressureand temperature.This is ac

complished by the simultaneous operation of high pressure

relief valve and a temperaturesensor which protectthe com pressor if undesirable operating conditions occur.

EXCLUSIVE COIL DESIGN - Grooved copper tubes and en

hanced aluminum fin construction improves heat transfer for maximum efficiency and durability.

LOW MAINTENANCE - Long life, permanently lubricated condenser and evaporator fan motor bearings need no annualmaintenance adding greater reliability to theunit. Blower assembly can be easily removed for cleaning by the unique “Slip Track” slide-out blower assembly.

SECURED SERVICE ACCESS PORTS - Protected, externally mounted, re-usable service access ports are provided on both the high and low lines for ease of evacuating and chargingthe system.

EASYSERVICE ACCESS - A large, single hinged panel cov

ers the electrical controls and makes servicing easy. The blowercompartmenthas anadditionallarge panelwith abuiltin handle tab. Removing this panel will allow the blower as

sembly to slide-out for easy removal for maintenance and ease of trouble shooting.

REPLACEMENT PARTS- The installer has no needto carry an inventory of unique parts or needs special training to re placeany of thecomponents partsfor these units.All are eas

ily obtained from Source 1 or other major part houses.

2 Unitary Products Group

Page 3

036-21311-003-A-0104

FIELD-INSTALLED ACCESSORIES

ECONOMIZER DOWN DISCHARGE / SUPPLYKIT - Modu

lating integrated economizer provides simultaneous opera tion between the mechanical cooling and economizer operation. Independent blade design insures proper control and less than 1% leak rate. Includes hood and mesh bird screen filter integrated intothe hood,dry bulbsensor and re liefdamper.Separate fieldaccessories of singleenthalpy and dual enthalpy are also available.

SINGLE ENTHALPY SENSOR - Sensor replaces dry bulb sensorstandard ineconomizer kit. Provides improved econo mizeroperationby sensingthe drybulb temperaturefrom out doors plus the enthalpy content of the outdoor air.

DUALENTHALPYSENSOR - Additionalsensor to single en thalpy sensor.Sensor senses both the returnair temperature dry bulb and humidity in conjunction with thesingle enthalpy todetermine themost economicalmix. Single Enthalpysen

sor also required.

UPGRADE PRESSURE PACKAGE - Containsscrew in type High pressure, Low Pressure/Loss of Charge switch, freeze protection switch and lockout relay.Switches are placed onto existing schrader ports located in the unit by furnished adapt ers. When abnormal conditions are sensed through the pres sure switches, the unit will lock out preventing any further operationuntil resetor problemis corrected.Package agency approved.

HAIL GUARD KIT - Kitcontains protected grillesmade of expanded aluminum grilles with full perimeter Sloped hoods are also included to assure maximum protection.

FILTER / FRAME KIT (Single Phase only) - Kitcontains the necessary hardware to field install return air filters into the base unit. Pre-cut filter racks and appropriate cleanable standard size filters are shipped in one kit. (1" filter is supplied) This kit is available for single phase horizontal or vertical duct application only. Standard in all 3 Phase models.

inch frame.

MOTORIZED FRESH AIR DAMPER - Designed for duct mounted side supply/return and unit mounted down sup

ply/return applications. Damper capable of providing0% thru 50% of outdoorair (field supplied). Closes on power loss,in

cludes hood and screen assembly.

RECTANGLETO ROUND ADAPTERS - Kit includesone sup

ply and one return air rectangle to round duct adapter.Adapters arepreformed and designed to fit over current duct openingson the base unit. Transition is from 15" square to 14" round.

ROOF CURBS - NRCA approved curbs provide proper fit to base unit for rooftop installations. Curbs are designed to be assembled through hinge pins in each corner. Kit also pro

videsseal strip toassure a water tight seal. 8 and14 inch high

roof curbs are available.

MANUALOUTDOOR DAMPER -Provides 0% thru 50% out

door air capability (field adjustable). Designed for duct mounted side supply/return applications. Includes hood and screen assembly.

WALL THERMOSTAT - The units are designed to operate

with 24-volt electronic and electro-mechanical thermostats. All units can operate with single stage heat / single stage cool thermostats - with or without the economizer.

TRANSFORMER KIT (Single Phase only) - Kit provides necessaryhardware to providesingle phasemodels fromfactory furnished 40 VA transformer capability to 75 VA transformer capability.

ELECTRIC HEATERS- Each heaterpackage provides easy installation of electric heat strips.Slide in design with plug in harness and agency approved. Heaters are available from

5.0 KW sizes and are designedfor single anddual point connections.

Description Features and Benefits Field-installed Accessories Ratings Physical Data Cooling Capacities - BHA018 Cooling Capacities - BHA024 Cooling Capacities - BHA030 Cooling Capacities - BHA036 Cooling Capacities - BHA042 Cooling Capacities - BHA048 Cooling Capacities - BHA060

.........................................................................

.................................................

................................................

...............................................................................

.....................................................................

............................................

..........................................

...........................................

Heating Capacities - BHA018 & 024 Heating Capacities - BHA030 & 036 Heating Capacities - BHA042 & 048 Heating Capacities - BHA060 Application Data

Unitary Products Group 3

...............................................................

..........................................

TABLE OF CONTENTS

1 & 2

................................

10 11 12 13 14 15 15

Additional Static Pressure Resistance

Side and Bottom Supply Air Blower Performance 3 4 4 5 6 7 8 9

Field Wiring Diagram

Electrical Data (basic unit)

Electrical Data (cooling / electric heat)

Unit Dimensions

Center of Gravity

Clearances

.......................................................................

Typical Applications Roof Curb Dimensions Roof Curb Application

.......................................................

...............................................

...............................................................

..............................................................

.........................................................

.....................................................

......................................................

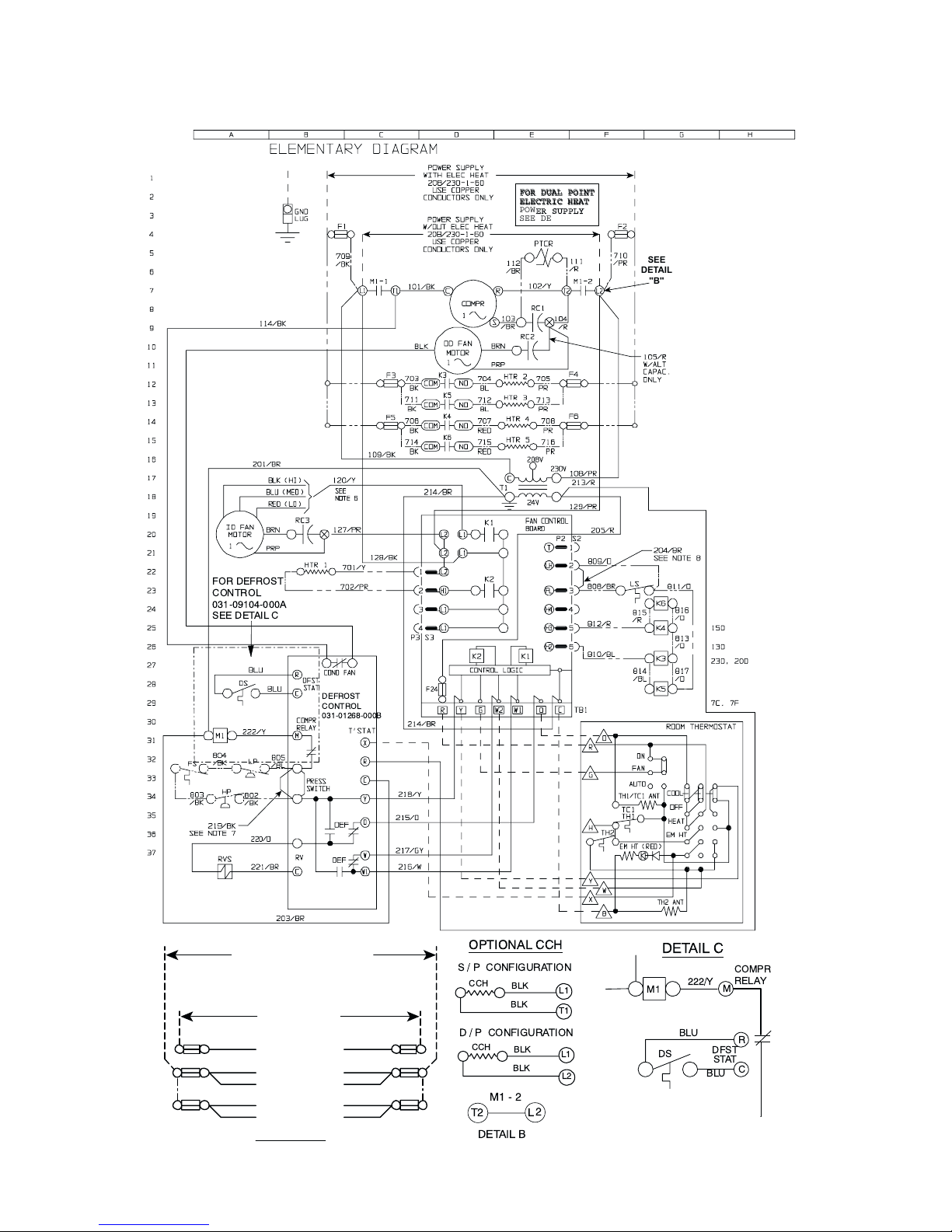

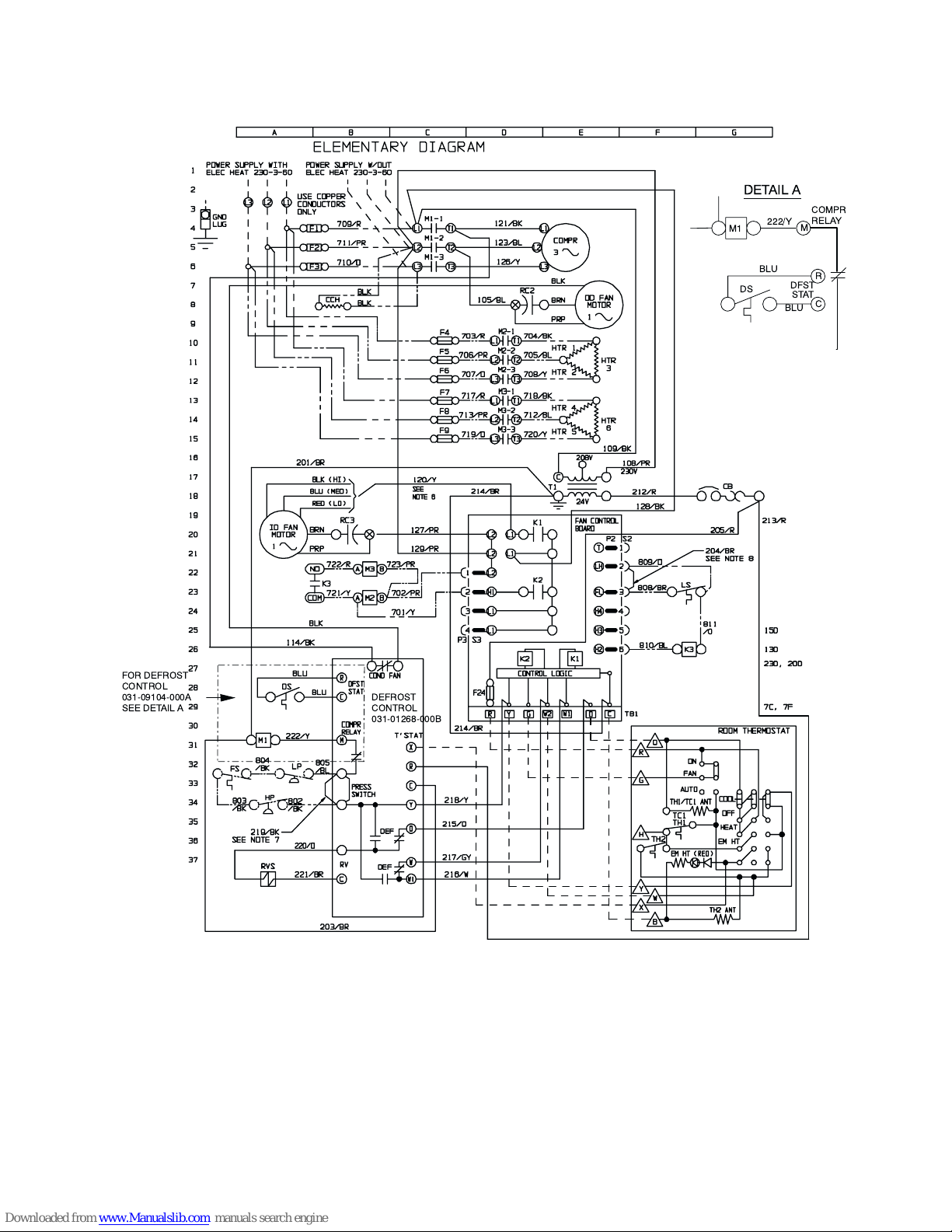

Typical Wiring Diagram (208/230-1-60) Typical Wiring Diagram (208/230-3-60) Typical Wiring Diagram (460-3-60 & 575-3-60) Typical Wiring Diagram Notes

..........................................

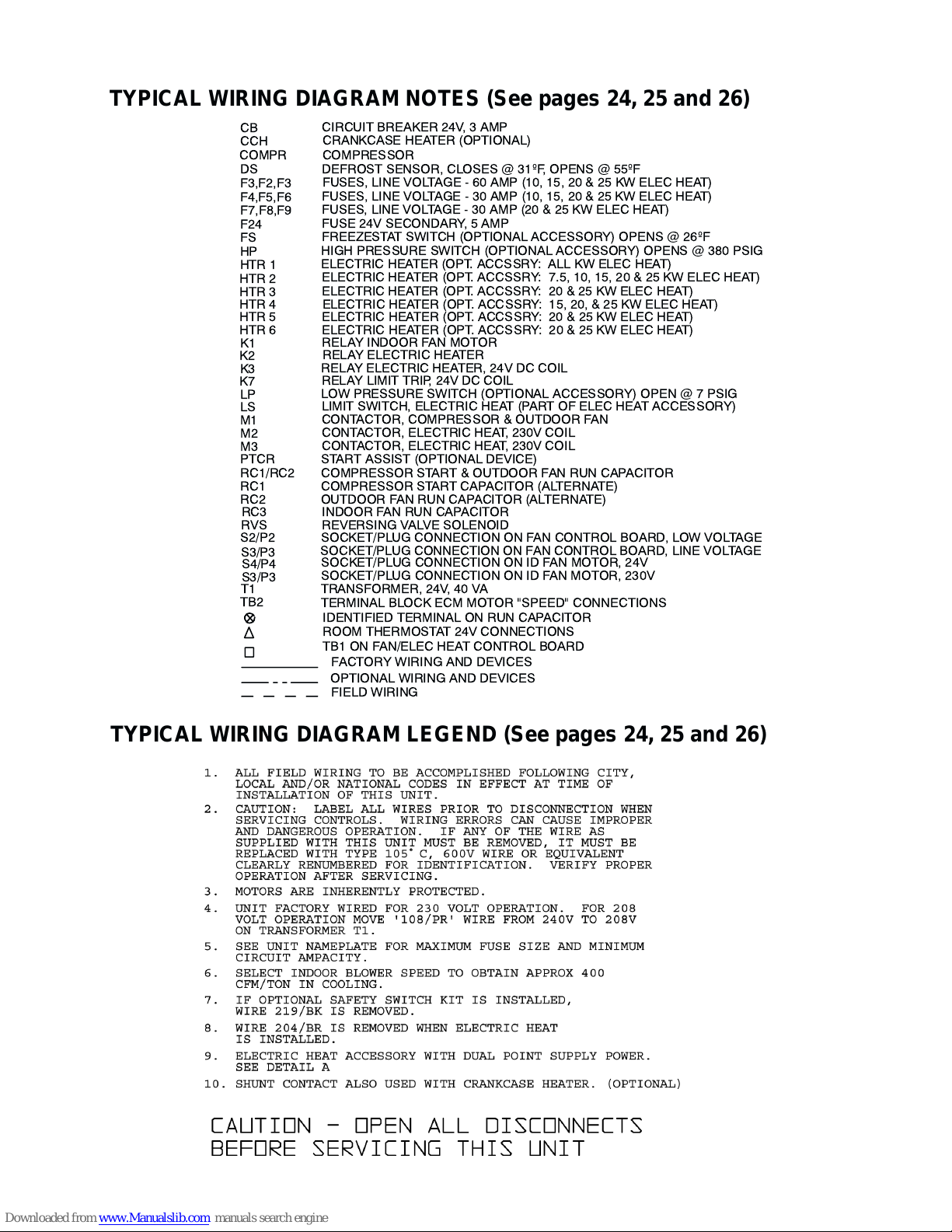

Typical Wiring Diagram Legend Mechanical Specification

.........................................

.............................

...........

.............................

...........................

...............

.......................................

28 & 29

15 16 17 17 18 20 21 21 22 23 23 24 25 26 27 27

Page 4

BACK AND BOTTOM

RETURN AIR

AND SUPPLYAIR

DUCT OPENING

HIGH VOLTAGE

TERMINAL BLOCK

LOW VOLTAGE

TERMINAL BLOCK

LONG LASTING

POWDER PAINT

FINISH EARTH

TONE COLOR

HIGH EFFICIENCY

COMPRESSOR

RIGIDLY

MOUNTED

036-21311-003-A-0104

DIRECT DRIVE

CONDENSER

FAN MOTOR

HIGHLYEFFICIENT ENHANCED

COPPER TUBE/ALUMINUM FIN

INDOOR COIL

HIGHLYEFFICIENT ENHANCED COPPER TUBE/ALUMINUM FIN

OUTDOOR COIL

DECORATIVE PROTECTIVE

COIL GUARD

3-SPEED DIRECT DRIVE

BLOWER MOTOR WITH

SLIDE-OUT BLOWER ASSEMBLY

HEAVYGAUGE

REMOVABLE

BASE RAILS

RATINGS

NET HEATING CAPACITY

@ 47°F @ 17°F

AVAILABLE ELECTRIC HEAT

NOMINAL CAPACITY KW

MODEL

BHA

COOLING

CAPACITY

80 / 67-95°F

MBH SEER MBH COP MBH COP SINGLE PHASE THREE PHASE

HSPF

SOUND

RATING

(dbels)

018 18.5 10.2 6.6 77 18.5 3.0 9.3 2.0 5.0, 7.5 N / A 024 23.8 11.0 7.0 75 23.8 3.0 12.1 2.0 5.0. 7.5. 10.0 N / A 030 29.8 10.2 7.0 79 29.0 3.0 14.7 2.0 5.0, 7.5, 10.0, 15.0 N / A 036 36.0 10.6 7.0 83 36.0 3.0 19.2 2.0 5.0, 7.5, 10.0, 15.0 10.0, 15.0 042 41.0 10.2 7.0 83 41.5 3.0 20.8 2.0 5.0, 7.5, 10.0, 15.0 10.0, 15.0 048 48.0 10.0 7.0 79 47.0 3.0 22.0 2.0 10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0 060 57.5 10.0 7.0 79 58.5 3.0 35.0 2.0 10.0, 15.0, 20.0, 25.0 10.0, 15.0, 20.0, 25.0

SEER = Seasonal Energy Efficiency Ratio - the total cooling output in BTU's during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the

same period.

COP = Coefficient of Performance - the total heating capacity provided by the refrigeration system, including circulating fan heat but excluding supplementary resistance (BTU's per hour)

divided by the total electric input (watts) x 3.412.

HSPF = Heating Seasonal Performance Factor - the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period.

(Based on Region IV minimum design heating requirement).

Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240.2Rated in accordance with ARI Standard 270.

PHYSICAL DATA

BHA

4.28 / 2 / 14" x 22"

INDOOR

BLOWER

INDOOR

COIL

OUTDOOR

FAN

OUTDOOR

COIL

CHARGE

FILTER

COMPRESSOR

MODELS

CENTRIFUGAL BLOWER (Dia. x Wd. in.) FAN MOTOR HP(Three Speed) ROWS DEEP FINS PER INCH FACE AREA(Sq. Ft.) PROPELLER DIA. (in.) FAN MOTOR HP NOM. CFM TOTAL ROWS DEEP FINS PER INCH FACE AREA(Sq. Ft.) REFRIGERANT 22 (lbs./oz.) FACE AREA(Sq. Ft. / Qty. / Size) HERMETIC Type, (Qty. = 1)

018 024 030 036 042 048 060

9 X 6 10 X 8 10 X 8 10 x 8 11 X 10 11 X 10 11 X 10

2233333

15 13 13 15 15 16 16

4.38 4.38 4.38 4.38 4.38 5.62 5.62 22 22 22 22 22 22 22

1,800 1.800 1,800 2,400 2,400 2,800 2,800

1111111

20 20 20 20 20 16 20

8.3 11.7 11.7 11.7 11.7 16.4 16.4

4 / 12 5 / 12 7 / 8 5 / 5 5 / 5 9 / 0 10 / 0

Recip Recip Recip Recip Recip Scroll Scroll

4 Unitary Products Group

Page 5

036-21311-003-A-0104

COOLING CAPACITIES - 1-1/2 TON (BHA018)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input kW

86 11.9 14.9 16.8 17.4 13.2 16.6 17.5 18.1 14.6 18.2 18.2 18.8 15.6 19.4 18.5 19.1 16.7 20.7 18.8 19.4

85 °F

Sensible Capacity

83 10.6 13.6 16.0 16.4 11.7 15.0 17.1 17.6 12.8 16.4 18.2 18.8 13.6 17.4 18.5 19.1 14.4 18.4 18.8 19.4 80 9.3 12.3 14.8 15.1 10.2 13.5 16.2 16.5 11.1 14.7 17.6 18.0 11.6 15.4 18.2 18.7 12.2 16.2 18.8 19.4 77 8.0 11.1 13.5 13.8 8.7 12.0 14.7 15.0 9.3 12.9 15.8 16.2 9.6 13.5 16.2 16.7 10.0 14.0 16.6 17.2

MBH

Bulb,°F

74 6.7 9.8 12.2 12.5 7.1 10.5 13.1 13.5 7.6 11.2 14.1 14.5 7.6 11.5 14.2 14.7 7.7 11.7 14.3 15.0

Entering Dry

71 - 8.5 10.9 11.3 - 9.0 11.6 12.0 - 9.4 12.3 12.7 - 9.5 12.2 12.7 - 9.5 12.1 12.7 68 - 7.2 9.6 10.0 - 7.5 10.1 10.5 - 7.7 10.6 11.0 - 7.5 10.2 10.7 - 7.3 9.9 10.5

Net Cap

MBH

Total Power

Input kW

86 11.4 14.2 15.0 15.0 12.8 15.8 15.7 15.7 14.2 17.5 16.4 16.4 15.5 18.8 16.8 16.8 16.7 20.1 17.2 17.2

95 °F

Sensible Capacity

83 10.1 12.9 14.8 14.8 11.3 14.3 15.6 15.6 12.5 15.8 16.4 16.4 13.5 17.0 16.8 16.8 14.5 18.3 17.2 17.2 80 8.9 11.6 13.6 13.6 9.8 12.8 15.0 15.0 10.7 14.0 16.4 16.4 11.5 15.0 16.8 16.8 12.2 16.0 17.2 17.2 77 7.6 10.3 12.3 12.3 8.3 11.3 13.4 13.5 9.0 12.3 14.6 14.6 9.5 13.0 14.8 14.8 10.0 13.8 14.9 15.0

MBH

Bulb,°F

74 6.3 9.0 11.0 11.0 6.7 9.8 11.9 11.9 7.2 10.5 12.9 12.9 7.5 11.0 12.8 12.8 7.8 11.6 12.7 12.7

Entering Dry

71 - 7.7 9.7 9.7 - 8.3 10.4 10.4 - 8.8 11.1 11.1 - 9.0 10.8 10.8 - 9.3 10.5 10.5 68 - 6.5 8.4 8.4 - 6.7 8.9 8.9 - 7.0 9.4 9.4 - 7.0 8.8 8.8 - 7.1 8.2 8.3

Net Cap

MBH

Total Power

Input KW

86 10.9 13.4 13.9 13.8 12.3 14.8 14.4 14.3 13.6 16.3 14.9 14.8 14.9 17.1 15.3 15.2 16.2 17.9 15.7 15.6

105 °F

Sensible Capacity

83 9.6 12.1 13.6 13.5 10.7 13.5 14.3 14.2 11.9 14.9 14.9 14.8 12.9 16.0 15.3 15.2 13.9 17.0 15.7 15.6 80 8.3 10.9 12.3 12.2 9.2 12.0 13.6 13.5 10.1 13.2 14.9 14.8 10.9 14.2 15.3 15.2 11.7 15.2 15.7 15.6 77 7.0 9.6 11.0 10.9 7.7 10.5 12.1 12.0 8.4 11.4 13.2 13.1 8.9 12.2 13.3 13.2 9.5 13.0 13.4 13.3

MBH

Bulb,°F

74 5.8 8.3 9.7 9.7 6.2 9.0 10.6 10.5 6.6 9.7 11.4 11.3 6.9 10.2 11.3 11.2 7.2 10.8 11.2 11.1

Entering Dry

71 - 7.0 8.5 8.4 - 7.5 9.1 9.0 - 7.9 9.7 9.6 - 8.2 9.3 9.2 - 8.5 9.0 8.9 68 - 5.7 7.2 7.1 - 6.0 7.6 7.5 - 6.2 7.9 7.8 - 6.2 7.3 7.2 - 6.3 6.7 6.6

Net Cap

MBH

Total Power

Input kW

86 10.4 12.7 12.7 12.5 11.7 13.9 13.1 12.9 13.0 15.0 13.5 13.3 14.3 15.4 13.8 13.6 15.6 15.8 14.2 13.9

115 °F

Sensible Capacity

83 9.1 11.4 12.4 12.2 10.2 12.8 12.9 12.7 11.3 14.1 13.5 13.3 12.3 14.9 13.8 13.6 13.4 15.8 14.2 13.9 80 7.8 10.1 11.1 10.9 8.7 11.3 12.3 12.1 9.5 12.4 13.5 13.3 10.3 13.4 13.8 13.6 11.1 14.5 14.2 13.9 77 6.5 8.9 9.8 9.6 7.1 9.7 10.8 10.6 7.8 10.6 11.8 11.5 8.3 11.4 11.8 11.6 8.9 12.2 11.9 11.7

MBH

Bulb,°F

74 5.2 7.6 8.5 8.3 5.6 8.2 9.3 9.1 6.0 8.9 10.0 9.8 6.3 9.4 9.9 9.6 6.7 10.0 9.7 9.5

Entering Dry

71 - 6.3 7.2 7.0 - 6.7 7.7 7.5 - 7.1 8.3 8.0 - 7.4 7.9 7.6 - 7.8 7.5 7.2 68 - 5.0 5.9 5.8 - 5.2 6.2 6.0 - 5.4 6.5 6.3 - 5.4 5.9 5.6 - 5.5 5.2 5.0

Net Cap

MBH

Total Power

Input kW

86 9.8 12.0 11.6 11.3 11.1 12.9 11.8 11.5 12.4 13.8 12.1 11.7 13.7 13.7 12.4 12.0 15.0 13.6 12.7 12.3

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 8.6 10.7 11.1 10.8 9.6 12.0 11.6 11.3 10.7 13.3 12.1 11.7 11.7 13.9 12.4 12.0 12.8 14.5 12.7 12.3 80 7.3 9.4 9.8 9.6 8.1 10.5 10.9 10.6 8.9 11.6 12.1 11.7 9.8 12.6 12.4 12.0 10.6 13.7 12.7 12.3 77 6.0 8.1 8.5 8.3 6.6 9.0 9.4 9.1 7.2 9.8 10.3 10.0 7.8 10.6 10.4 10.0 8.3 11.4 10.4 10.1

MBH

Bulb,°F

74 4.7 6.8 7.3 7.0 5.1 7.4 7.9 7.6 5.4 8.1 8.6 8.2 5.8 8.6 8.4 8.0 6.1 9.2 8.2 7.8

Entering Dry

71 - 5.6 6.0 5.7 - 5.9 6.4 6.1 - 6.3 6.8 6.5 - 6.6 6.4 6.0 - 7.0 6.0 5.6 68 - 4.3 4.7 4.4 - 4.4 4.9 4.6 - 4.6 5.1 4.7 - 4.6 4.4 4.1 - 4.7 3.7 3.4

450 CFM 525 CFM 600 CFM 675 CFM 750 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

20.5 19.2 16.8 17.4 21.4 19.9 17.5 18.1 22.2 20.7 18.2 18.8 22.6 21.1 18.5 19.1 23.0 21.4 18.8 19.4

1.84 1.81 1.80 1.79 1.87 1.84 1.83 1.81 1.89 1.87 1.86 1.84 1.92 1.89 1.88 1.86 1.94 1.92 1.90 1.89

19.4 17.5 15.0 15.0 20.3 18.3 15.7 15.7 21.2 19.1 16.4 16.4 21.7 19.6 16.8 16.8 22.2 20.1 17.2 17.2

1.98 1.94 1.90 1.90 2.01 1.97 1.92 1.93 2.03 1.99 1.94 1.95 2.06 2.02 1.97 1.98 2.09 2.04 1.99 2.00

18.0 15.9 13.9 13.8 18.7 16.5 14.4 14.3 19.4 17.1 14.9 14.8 19.9 17.5 15.3 15.2 20.4 17.9 15.7 15.6

2.11 2.04 1.99 2.00 2.14 2.07 2.02 2.03 2.17 2.10 2.05 2.05 2.20 2.13 2.08 2.08 2.23 2.16 2.11 2.12

16.6 14.2 12.7 12.5 17.1 14.6 13.1 12.9 17.6 15.0 13.5 13.3 18.1 15.4 13.8 13.6 18.5 15.8 14.2 13.9

2.23 2.13 2.09 2.09 2.26 2.17 2.13 2.12 2.30 2.20 2.16 2.16 2.34 2.24 2.19 2.19 2.38 2.27 2.23 2.23

15.2 12.5 11.6 11.3 15.5 12.7 11.8 11.5 15.8 13.0 12.1 11.7 16.2 13.3 12.4 12.0 16.6 13.6 12.7 12.3

2.4 2.2 2.2 2.2 2.4 2.3 2.2 2.2 2.4 2.3 2.3 2.3 2.5 2.3 2.3 2.3 2.5 2.4 2.4 2.3

ALL SENSIBLE CAPACITY

Air On Indoor Coil

Unitary Products Group 5

Page 6

COOLING CAPACITIES - 2 TON (BHA024)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input kW

86 15.1 18.8 20.8 20.8 16.7 20.9 21.7 21.6 18.4 22.9 22.5 22.5 19.9 24.5 23.1 23.0 21.4 26.2 23.6 23.5

85 °F

Sensible Capacity

83 13.4 17.1 20.1 20.6 14.7 18.8 21.3 21.5 16.1 20.6 22.5 22.5 17.3 22.0 23.1 23.0 18.5 23.5 23.6 23.5 80 11.6 15.4 18.4 18.9 12.7 16.8 20.0 20.6 13.8 18.2 21.7 22.3 14.6 19.4 22.6 22.9 15.5 20.5 23.6 23.5 77 9.9 13.7 16.7 17.2 10.7 14.8 18.0 18.6 11.4 15.9 19.4 20.0 12.0 16.7 20.0 20.3 12.5 17.5 20.6 20.5

MBH

Bulb,°F

74 8.2 12.0 14.9 15.4 8.7 12.8 16.0 16.5 9.1 13.6 17.1 17.6 9.3 14.0 17.3 17.6 9.5 14.5 17.6 17.6

Entering Dry

71 - 10.3 13.2 13.7 - 10.8 14.0 14.5 - 11.2 14.7 15.3 - 11.4 14.7 14.9 - 11.5 14.6 14.6 68 - 8.6 11.5 12.0 - 8.7 12.0 12.5 - 8.9 12.4 13.0 - 8.7 12.0 12.3 - 8.6 11.7 11.6

Net Cap

MBH

Total Power

Input kW

86 14.7 18.2 19.3 19.3 16.3 20.2 20.0 20.0 18.0 22.2 20.6 20.7 19.4 23.1 21.0 21.1 20.9 24.0 21.4 21.4

95 °F

Sensible Capacity

83 13.0 16.5 19.1 19.2 14.3 18.2 19.9 20.0 15.6 19.8 20.6 20.7 16.8 21.2 21.0 21.1 17.9 22.6 21.4 21.4 80 11.3 14.8 17.4 17.5 12.3 16.2 19.0 19.1 13.3 17.5 20.5 20.7 14.1 18.5 20.9 21.1 14.9 19.6 21.4 21.4 77 9.6 13.1 15.7 15.8 10.3 14.1 16.9 17.1 11.0 15.2 18.2 18.3 11.4 15.9 18.3 18.4 11.9 16.6 18.4 18.5

MBH

Bulb,°F

74 7.9 11.4 14.0 14.1 8.2 12.1 14.9 15.1 8.6 12.8 15.9 16.0 8.8 13.2 15.6 15.7 8.9 13.6 15.4 15.5

Entering Dry

71 - 9.7 12.3 12.4 - 10.1 12.9 13.0 - 10.5 13.5 13.7 - 10.6 13.0 13.1 - 10.7 12.4 12.5 68 - 8.0 10.6 10.7 - 8.1 10.9 11.0 - 8.2 11.2 11.3 - 7.9 10.3 10.4 - 7.7 9.4 9.5

Net Cap

MBH

Total Power

Input kW

86 13.9 17.3 17.9 17.9 15.5 18.8 18.5 18.4 17.1 20.3 19.1 19.0 18.6 21.0 19.4 19.4 20.1 21.6 19.8 19.8

105 °F

Sensible Capacity

83 12.2 15.6 17.6 17.6 13.5 17.3 18.4 18.3 14.8 19.0 19.1 19.0 16.0 19.9 19.4 19.4 17.1 20.9 19.8 19.8 80 10.4 13.9 15.9 15.9 11.5 15.3 17.5 17.5 12.5 16.6 19.0 19.0 13.3 17.7 19.4 19.4 14.1 18.8 19.8 19.8 77 8.7 12.2 14.2 14.2 9.4 13.2 15.4 15.4 10.1 14.3 16.7 16.7 10.6 15.1 16.8 16.7 11.1 15.8 16.8 16.8

MBH

Bulb,°F

74 7.0 10.5 12.5 12.5 7.4 11.2 13.4 13.4 7.8 12.0 14.4 14.3 8.0 12.4 14.1 14.1 8.2 12.9 13.9 13.8

Entering Dry

71 - 8.8 10.8 10.8 - 9.2 11.4 11.4 - 9.6 12.0 12.0 - 9.8 11.4 11.4 - 9.9 10.9 10.8 68 - 7.1 9.1 9.1 - 7.2 9.4 9.4 - 7.3 9.7 9.7 - 7.1 8.8 8.8 - 6.9 7.9 7.8

Net Cap

MBH

Total Power

Input kW

86 13.0 16.4 16.6 16.4 14.7 17.4 17.0 16.9 16.3 18.4 17.5 17.3 17.8 18.8 17.9 17.7 19.3 19.2 18.3 18.1

115 °F

Sensible Capacity

83 11.3 14.7 16.2 16.0 12.7 16.4 16.8 16.7 14.0 18.1 17.5 17.3 15.2 18.7 17.9 17.7 16.3 19.2 18.3 18.1 80 9.6 13.0 14.4 14.3 10.6 14.4 16.0 15.8 11.7 15.8 17.5 17.3 12.5 16.9 17.9 17.7 13.4 18.0 18.3 18.1 77 7.9 11.3 12.7 12.6 8.6 12.4 14.0 13.8 9.3 13.4 15.2 15.0 9.9 14.2 15.2 15.1 10.4 15.1 15.3 15.1

MBH

Bulb,°F

74 6.2 9.6 11.0 10.9 6.6 10.3 11.9 11.8 7.0 11.1 12.8 12.7 7.2 11.6 12.6 12.4 7.4 12.1 12.3 12.1

Entering Dry

71 - 7.9 9.3 9.2 - 8.3 9.9 9.8 - 8.8 10.5 10.3 - 8.9 9.9 9.7 - 9.1 9.3 9.2 68 - 6.2 7.6 7.5 - 6.3 7.9 7.7 - 6.4 8.2 8.0 - 6.3 7.3 7.1 - 6.1 6.4 6.2

Net Cap

MBH

Total Power

Input kW

86 12.2 15.5 15.2 14.9 13.9 16.0 15.6 15.3 15.5 16.6 16.0 15.7 17.0 16.7 16.3 16.0 18.5 16.9 16.7 16.4

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 10.5 13.8 14.7 14.4 11.8 15.5 15.3 15.0 13.2 17.2 16.0 15.7 14.4 17.4 16.3 16.0 15.6 17.6 16.7 16.4 80 8.8 12.1 13.0 12.7 9.8 13.5 14.5 14.2 10.8 14.9 16.0 15.7 11.7 16.1 16.4 16.0 12.6 17.3 16.7 16.4 77 7.1 10.4 11.3 11.0 7.8 11.5 12.5 12.2 8.5 12.6 13.7 13.3 9.1 13.4 13.7 13.4 9.6 14.3 13.8 13.4

MBH

Bulb,°F

74 5.4 8.7 9.5 9.3 5.8 9.4 10.4 10.1 6.2 10.2 11.3 11.0 6.4 10.8 11.1 10.7 6.6 11.3 10.8 10.5

Entering Dry

71 - 7.0 7.8 7.6 - 7.4 8.4 8.1 - 7.9 9.0 8.7 - 8.1 8.4 8.1 - 8.3 7.8 7.5 68 - 5.2 6.1 5.8 - 5.4 6.4 6.1 - 5.6 6.7 6.3 - 5.5 5.7 5.4 - 5.3 4.8 4.5

600 CFM 700 CFM 800 CFM 900 CFM 1,000 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

25.3 23.1 20.8 20.8 26.4 24.1 21.7 21.6 27.4 25.0 22.5 22.5 28.1 25.6 23.1 23.0 28.7 26.2 23.6 23.5

2.21 2.18 2.14 2.12 2.26 2.23 2.18 2.16 2.30 2.27 2.22 2.20 2.33 2.30 2.25 2.22 2.35 2.32 2.27 2.25

24.3 21.6 19.3 19.3 25.2 22.4 20.0 20.0 26.0 23.2 20.6 20.7 26.5 23.6 21.0 21.1 26.9 24.0 21.4 21.4

2.37 2.32 2.26 2.24 2.42 2.37 2.31 2.29 2.47 2.42 2.36 2.34 2.50 2.44 2.38 2.36 2.53 2.47 2.40 2.39

22.2 19.5 17.9 17.9 23.0 20.2 18.5 18.4 23.7 20.8 19.1 19.0 24.1 21.2 19.4 19.4 24.6 21.6 19.8 19.8

2.53 2.45 2.41 2.39 2.58 2.51 2.46 2.44 2.64 2.56 2.51 2.49 2.67 2.59 2.54 2.52 2.70 2.62 2.57 2.54

20.2 17.4 16.6 16.4 20.8 17.9 17.0 16.9 21.3 18.4 17.5 17.3 21.8 18.8 17.9 17.7 22.3 19.2 18.3 18.1

2.69 2.59 2.56 2.53 2.75 2.64 2.61 2.58 2.80 2.70 2.67 2.64 2.84 2.73 2.70 2.67 2.87 2.77 2.73 2.70

18.1 15.4 15.2 14.9 18.5 15.7 15.6 15.3 19.0 16.1 16.0 15.7 19.4 16.5 16.3 16.0 19.9 16.9 16.7 16.4

2.8 2.7 2.7 2.7 2.9 2.8 2.8 2.7 3.0 2.8 2.8 2.8 3.0 2.9 2.9 2.8 3.0 2.9 2.9 2.9

036-21311-003-A-0104

Air On Indoor Coil

ALL SENSIBLE CAPACITY

6 Unitary Products Group

Page 7

036-21311-003-A-0104

COOLING CAPACITIES - 2-1/2 TON (BHA030)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input kW

86 19.5 23.9 26.4 26.0 21.4 26.2 27.1 26.7 23.4 28.4 27.9 27.5 25.7 31.0 29.0 28.6 28.1 33.5 30.1 29.7

85 °F

Sensible Capacity

83 17.4 21.8 25.7 26.0 18.9 23.6 26.8 26.7 20.4 25.5 27.9 27.5 22.4 28.0 29.0 28.6 24.4 30.4 30.1 29.7 80 15.2 19.6 23.5 23.9 16.4 21.1 25.3 25.7 17.5 22.6 27.1 27.5 19.1 24.6 28.6 28.6 20.7 26.7 30.1 29.7 77 13.1 17.5 21.4 21.7 13.9 18.6 22.8 23.2 14.6 19.7 24.2 24.6 15.8 21.3 25.3 25.3 16.9 22.9 26.4 26.0

MBH

Bulb,°F

74 10.9 15.4 19.2 19.6 11.3 16.1 20.2 20.6 11.7 16.8 21.2 21.7 12.5 18.0 22.0 22.0 13.2 19.2 22.7 22.2

Entering Dry

71 - 13.2 17.1 17.5 - 13.5 17.7 18.1 - 13.9 18.3 18.8 - 14.7 18.6 18.6 - 15.5 19.0 18.5 68 - 11.1 15.0 15.3 - 11.0 15.2 15.6 - 10.9 15.4 15.8 - 11.3 15.3 15.3 - 11.8 15.2 14.8

Net Cap

MBH

Total Power

Input kW

86 18.4 23.0 24.3 24.5 20.3 25.3 24.9 25.1 22.2 27.5 25.5 25.7 24.2 28.6 26.0 26.2 26.2 29.7 26.5 26.7

95 °F

Sensible Capacity

83 16.3 20.9 24.2 24.3 17.8 22.7 24.9 25.0 19.3 24.6 25.5 25.7 20.9 26.6 26.0 26.2 22.5 28.5 26.5 26.7 80 14.2 18.7 22.0 22.2 15.3 20.2 23.8 23.9 16.4 21.7 25.5 25.7 17.6 23.3 26.0 26.2 18.8 24.8 26.5 26.7 77 12.0 16.6 19.9 20.1 12.8 17.7 21.3 21.4 13.5 18.8 22.6 22.8 14.3 19.9 22.7 22.9 15.1 21.1 22.8 22.9

MBH

Bulb,°F

74 9.9 14.5 17.8 17.9 10.2 15.2 18.7 18.9 10.6 15.9 19.7 19.9 11.0 16.6 19.4 19.5 11.3 17.4 19.0 19.2

Entering Dry

71 - 12.3 15.6 15.8 - 12.6 16.2 16.4 - 12.9 16.8 17.0 - 13.3 16.1 16.2 - 13.6 15.3 15.5 68 - 10.2 13.5 13.6 - 10.1 13.7 13.8 - 10.0 13.9 14.0 - 10.0 12.7 12.9 - 9.9 11.6 11.8

Net Cap

MBH

Total Power

Input kW

86 17.6 21.9 22.5 22.6 19.5 23.6 23.0 23.0 21.5 25.3 23.5 23.5 23.5 26.1 23.9 24.0 25.5 26.9 24.4 24.4

105 °F

Sensible Capacity

83 15.5 19.8 22.2 22.3 17.0 21.7 22.8 22.9 18.5 23.5 23.5 23.5 20.1 24.9 23.9 24.0 21.7 26.3 24.4 24.4 80 13.4 17.6 20.1 20.1 14.5 19.1 21.8 21.8 15.6 20.6 23.5 23.5 16.8 22.2 23.9 24.0 18.0 23.8 24.4 24.4 77 11.2 15.5 17.9 18.0 12.0 16.6 19.2 19.3 12.7 17.7 20.6 20.6 13.5 18.9 20.6 20.6 14.3 20.0 20.6 20.7

MBH

Bulb,°F

74 9.1 13.4 15.8 15.8 9.4 14.1 16.7 16.8 9.8 14.8 17.6 17.7 10.2 15.6 17.3 17.3 10.6 16.3 16.9 17.0

Entering Dry

71 - 11.2 13.7 13.7 - 11.6 14.2 14.2 - 11.9 14.7 14.8 - 12.2 14.0 14.0 - 12.6 13.2 13.2 68 - 9.1 11.5 11.6 - 9.0 11.7 11.7 - 9.0 11.8 11.9 - 8.9 10.6 10.7 - 8.9 9.5 9.5

Net Cap

MBH

Total Power

Input kW

86 16.8 20.8 20.7 20.6 18.7 22.0 21.1 21.0 20.7 23.1 21.4 21.3 22.7 23.6 21.8 21.8 24.7 24.0 22.2 22.2

115 °F

Sensible Capacity

83 14.7 18.7 20.2 20.2 16.2 20.6 20.8 20.8 17.8 22.5 21.4 21.3 19.4 23.2 21.8 21.8 20.9 24.0 22.2 22.2 80 12.5 16.5 18.1 18.0 13.7 18.1 19.8 19.7 14.8 19.6 21.4 21.3 16.0 21.1 21.8 21.8 17.2 22.7 22.2 22.2 77 10.4 14.4 16.0 15.9 11.2 15.5 17.2 17.2 11.9 16.7 18.5 18.4 12.7 17.8 18.5 18.4 13.5 19.0 18.5 18.4

MBH

Bulb,°F

74 8.3 12.3 13.8 13.8 8.6 13.0 14.7 14.6 9.0 13.7 15.6 15.5 9.4 14.5 15.2 15.1 9.8 15.3 14.8 14.7

Entering Dry

71 - 10.1 11.7 11.6 - 10.5 12.2 12.1 - 10.8 12.7 12.6 - 11.2 11.9 11.8 - 11.5 11.1 11.0 68 - 8.0 9.6 9.5 - 7.9 9.6 9.6 - 7.9 9.7 9.7 - 7.9 8.5 8.5 - 7.8 7.3 7.3

Net Cap

MBH

Total Power

Input kW

86 16.0 19.7 18.9 18.7 17.9 20.3 19.1 18.9 19.9 20.9 19.4 19.2 21.9 21.1 19.7 19.5 23.9 21.2 20.1 19.9

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 13.9 17.6 18.3 18.1 15.4 19.5 18.8 18.6 17.0 21.4 19.4 19.2 18.6 21.6 19.7 19.5 20.2 21.7 20.1 19.9 80 11.7 15.5 16.1 16.0 12.9 17.0 17.7 17.6 14.0 18.5 19.4 19.2 15.2 20.1 19.7 19.5 16.4 21.7 20.1 19.9 77 9.6 13.3 14.0 13.8 10.4 14.5 15.2 15.0 11.1 15.6 16.4 16.2 11.9 16.8 16.4 16.2 12.7 17.9 16.4 16.2

MBH

Bulb,°F

74 7.5 11.2 11.9 11.7 7.8 11.9 12.7 12.5 8.2 12.7 13.5 13.3 8.6 13.4 13.1 12.9 9.0 14.2 12.6 12.4

Entering Dry

71 - 9.0 9.7 9.6 - 9.4 10.2 10.0 - 9.8 10.6 10.4 - 10.1 9.8 9.6 - 10.5 8.9 8.7 68 - 6.9 7.6 7.4 - 6.9 7.6 7.5 - 6.8 7.7 7.5 - 6.8 6.4 6.2 - 6.8 5.2 5.0

750 CFM 875 CFM 1,000 CFM 1,125 CFM 1,250 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

32.5 29.3 26.4 26.0 33.4 30.2 27.1 26.7 34.4 31.1 27.9 27.5 35.7 32.3 29.0 28.6 37.1 33.5 30.1 29.7

2.94 2.85 2.76 2.74 3.02 2.93 2.84 2.81 3.11 3.02 2.92 2.89 3.15 3.06 2.96 2.93 3.20 3.10 3.01 2.98

30.9 27.3 24.3 24.5 31.7 27.9 24.9 25.1 32.4 28.6 25.5 25.7 33.0 29.2 26.0 26.2 33.7 29.7 26.5 26.7

3.14 3.02 2.92 2.94 3.22 3.09 3.00 3.01 3.29 3.17 3.07 3.09 3.36 3.23 3.13 3.15 3.43 3.30 3.19 3.21

28.5 24.8 22.5 22.6 29.1 25.3 23.0 23.0 29.7 25.9 23.5 23.5 30.3 26.4 23.9 24.0 30.8 26.9 24.4 24.4

3.31 3.17 3.08 3.10 3.40 3.25 3.16 3.17 3.48 3.33 3.23 3.25 3.54 3.39 3.29 3.31 3.60 3.44 3.35 3.36

26.1 22.4 20.7 20.6 26.5 22.7 21.1 21.0 27.0 23.1 21.4 21.3 27.5 23.6 21.8 21.8 28.0 24.0 22.2 22.2

3.49 3.32 3.24 3.25 3.57 3.40 3.32 3.33 3.66 3.48 3.40 3.41 3.71 3.54 3.45 3.46 3.77 3.59 3.50 3.51

23.7 19.9 18.9 18.7 24.0 20.1 19.1 18.9 24.2 20.4 19.4 19.2 24.7 20.8 19.7 19.5 25.2 21.2 20.1 19.9

3.7 3.5 3.4 3.4 3.8 3.6 3.5 3.5 3.8 3.6 3.6 3.6 3.9 3.7 3.6 3.6 3.9 3.7 3.7 3.7

ALL SENSIBLE CAPACITY

Air On Indoor Coil

Unitary Products Group 7

Page 8

COOLING CAPACITIES - 3 TON (BHA036)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input kW

86 22.5 28.4 30.2 29.4 25.3 31.9 32.4 31.5 28.2 35.4 34.6 33.7 30.7 38.5 36.1 35.2 33.3 41.5 37.7 36.6

85 °F

Sensible Capacity

83 19.9 25.8 30.2 29.4 22.3 28.9 32.4 31.5 24.7 31.9 34.6 33.7 26.8 34.5 36.1 35.2 28.8 37.1 37.7 36.6 80 17.3 23.2 27.6 27.5 19.3 25.8 30.7 30.6 21.2 28.4 33.8 33.7 22.8 30.5 35.7 35.2 24.3 32.6 37.7 36.6 77 14.8 20.7 25.0 25.0 16.2 22.8 27.7 27.6 17.7 24.9 30.3 30.2 18.8 26.5 31.7 31.2 19.9 28.1 33.2 32.2

MBH

Bulb,°F

74 12.2 18.1 22.5 22.4 13.2 19.8 24.6 24.5 14.2 21.4 26.8 26.7 14.8 22.6 27.8 27.2 15.4 23.7 28.7 27.7

Entering Dry

71 - 15.5 19.9 19.8 - 16.7 21.6 21.5 - 17.9 23.3 23.2 - 18.6 23.8 23.2 - 19.2 24.3 23.2 68 - 13.0 17.3 17.3 - 13.7 18.6 18.5 - 14.4 19.8 19.7 - 14.6 19.8 19.2 - 14.7 19.8 18.8

Net Cap

MBH

Total Power

Input kW

86 22.6 27.1 27.5 26.9 25.5 30.5 29.4 28.8 28.4 34.0 31.4 30.7 31.2 36.3 32.7 32.0 34.0 38.7 34.1 33.3

95 °F

Sensible Capacity

83 20.0 24.5 27.5 26.9 22.5 27.5 29.4 28.8 24.9 30.5 31.4 30.7 27.2 33.3 32.7 32.0 29.5 36.0 34.1 33.3 80 17.4 22.0 25.5 25.0 19.4 24.5 28.4 27.8 21.4 27.0 31.4 30.7 23.2 29.3 32.7 32.0 25.1 31.6 34.1 33.3 77 14.9 19.4 23.0 22.4 16.4 21.4 25.4 24.8 17.9 23.5 27.9 27.2 19.3 25.3 28.7 28.0 20.6 27.1 29.6 28.8

MBH

Bulb,°F

74 12.3 16.8 20.4 19.9 13.4 18.4 22.4 21.8 14.4 20.0 24.4 23.7 15.3 21.3 24.7 24.0 16.1 22.6 25.1 24.4

Entering Dry

71 - 14.3 17.8 17.3 - 15.4 19.4 18.7 - 16.5 20.9 20.2 - 17.3 20.7 20.0 - 18.2 20.6 19.9 68 - 11.7 15.3 14.7 - 12.3 16.3 15.7 - 13.0 17.4 16.7 - 13.3 16.8 16.1 - 13.7 16.2 15.4

Net Cap

MBH

Total Power

Input kW

86 21.0 25.8 25.1 23.7 23.9 28.4 27.0 25.5 26.9 31.1 28.8 27.2 29.5 32.9 30.0 28.3 32.1 34.6 31.2 29.5

105 °F

Sensible Capacity

83 18.5 23.2 25.1 23.7 20.9 26.2 27.0 25.5 23.4 29.3 28.8 27.2 25.5 31.3 30.0 28.3 27.6 33.3 31.2 29.5 80 15.9 20.6 23.1 21.8 17.9 23.2 26.0 24.5 19.9 25.8 28.8 27.2 21.5 27.9 30.0 28.3 23.2 30.1 31.2 29.5 77 13.3 18.1 20.5 19.2 14.8 20.2 22.9 21.5 16.4 22.3 25.3 23.7 17.5 24.0 26.0 24.3 18.7 25.6 26.7 25.0

MBH

Bulb,°F

74 10.8 15.5 18.0 16.7 11.8 17.2 19.9 18.4 12.9 18.8 21.8 20.2 13.5 20.0 22.0 20.4 14.2 21.2 22.3 20.5

Entering Dry

71 - 12.9 15.4 14.1 - 14.1 16.9 15.4 - 15.3 18.3 16.7 - 16.0 18.1 16.4 - 16.7 17.8 16.0 68 - 10.4 12.8 11.5 - 11.1 13.8 12.4 - 11.8 14.8 13.2 - 12.0 14.1 12.4 - 12.2 13.3 11.6

Net Cap

MBH

Total Power

Input kW

86 19.5 24.5 22.8 20.5 22.4 26.4 24.5 22.1 25.3 28.3 26.3 23.7 27.8 29.4 27.3 24.7 30.2 30.5 28.4 25.6

115 °F

Sensible Capacity

83 16.9 21.9 22.8 20.5 19.4 25.0 24.5 22.1 21.8 28.1 26.3 23.7 23.8 29.3 27.3 24.7 25.7 30.5 28.4 25.6 80 14.4 19.3 20.6 18.6 16.3 22.0 23.5 21.2 18.3 24.6 26.3 23.7 19.8 26.6 27.3 24.7 21.3 28.6 28.4 25.6 77 11.8 16.8 18.1 16.1 13.3 18.9 20.4 18.1 14.8 21.1 22.8 20.2 15.8 22.6 23.3 20.7 16.8 24.2 23.9 21.1

MBH

Bulb,°F

74 9.2 14.2 15.5 13.5 10.3 15.9 17.4 15.1 11.3 17.6 19.3 16.7 11.8 18.7 19.4 16.7 12.3 19.7 19.4 16.7

Entering Dry

71 - 11.6 12.9 10.9 - 12.9 14.4 12.1 - 14.1 15.8 13.2 - 14.7 15.4 12.7 - 15.2 14.9 12.2 68 - 9.1 10.4 8.4 - 9.8 11.3 9.0 - 10.6 12.3 9.7 - 10.7 11.4 8.7 - 10.7 10.5 7.7

Net Cap

MBH

Total Power

Input kW

86 18.0 23.2 20.4 17.4 20.8 24.3 22.1 18.8 23.7 25.4 23.7 20.2 26.0 25.9 24.6 21.0 28.3 26.4 25.5 21.7

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 15.4 20.6 20.4 17.4 17.8 23.8 22.1 18.8 20.2 26.9 23.7 20.2 22.0 27.3 24.6 21.0 23.8 27.7 25.5 21.7 80 12.8 18.0 18.2 15.5 14.8 20.7 21.0 17.8 16.7 23.4 23.7 20.2 18.0 25.3 24.6 21.0 19.4 27.2 25.5 21.7 77 10.3 15.5 15.6 12.9 11.7 17.7 17.9 14.8 13.2 19.9 20.2 16.7 14.1 21.3 20.6 17.0 14.9 22.7 21.0 17.3

MBH

Bulb,°F

74 7.7 12.9 13.1 10.3 8.7 14.7 14.9 11.8 9.7 16.4 16.7 13.2 10.1 17.3 16.7 13.0 10.4 18.2 16.6 12.8

Entering Dry

71 - 10.3 10.5 7.8 - 11.6 11.9 8.8 - 12.9 13.2 9.7 - 13.3 12.7 9.0 - 13.8 12.1 8.3 68 - 7.8 7.9 5.2 - 8.6 8.8 5.7 - 9.4 9.7 6.2 - 9.4 8.7 5.0 - 9.3 7.6 3.9

900 CFM 1,050 CFM 1,200 CFM 1,350 CFM 1,500 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

37.1 33.9 30.2 29.4 39.8 36.4 32.4 31.5 42.5 38.9 34.6 33.7 44.4 40.6 36.1 35.2 46.3 42.3 37.7 36.6

3.62 3.49 3.41 3.40 3.67 3.54 3.46 3.45 3.72 3.59 3.51 3.49 3.78 3.65 3.57 3.55 3.84 3.71 3.62 3.61

36.3 31.3 27.5 26.9 38.8 33.5 29.4 28.8 41.4 35.7 31.4 30.7 43.1 37.2 32.7 32.0 44.9 38.7 34.1 33.3

3.84 3.70 3.62 3.62 3.88 3.75 3.67 3.66 3.93 3.80 3.71 3.71 4.00 3.86 3.77 3.77 4.06 3.92 3.83 3.83

32.4 27.9 25.1 23.7 34.8 29.9 27.0 25.5 37.1 32.0 28.8 27.2 38.7 33.3 30.0 28.3 40.2 34.6 31.2 29.5

4.06 3.90 3.85 3.84 4.10 3.95 3.89 3.89 4.15 3.99 3.94 3.93 4.22 4.06 4.00 4.00 4.29 4.13 4.07 4.07

28.5 24.5 22.8 20.5 30.7 26.4 24.5 22.1 32.9 28.3 26.3 23.7 34.3 29.4 27.3 24.7 35.6 30.5 28.4 25.6

4.27 4.10 4.07 4.07 4.32 4.14 4.12 4.12 4.37 4.19 4.16 4.16 4.44 4.26 4.23 4.23 4.52 4.33 4.30 4.30

24.7 21.1 20.4 17.4 26.7 22.8 22.1 18.8 28.7 24.5 23.7 20.2 29.8 25.5 24.6 21.0 30.9 26.4 25.5 21.7

4.5 4.3 4.3 4.3 4.5 4.3 4.3 4.3 4.6 4.4 4.4 4.4 4.7 4.5 4.5 4.5 4.7 4.5 4.5 4.5

036-21311-003-A-0104

Air On Indoor Coil

ALL SENSIBLE CAPACITY

8 Unitary Products Group

Page 9

036-21311-003-A-0104

COOLING CAPACITIES - 3-1/2 TON (BHA042)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input kW

86 24.9 30.8 33.1 30.6 28.4 35.0 36.2 33.4 31.9 39.3 39.2 36.3 34.4 42.2 39.9 36.8 37.0 45.1 40.5 37.4

85 °F

Sensible Capacity

83 21.9 27.8 32.7 30.6 24.9 31.5 36.0 33.4 27.8 35.2 39.2 36.3 29.8 37.6 39.9 36.8 31.8 40.0 40.5 37.4 80 18.9 24.8 29.7 28.9 21.3 28.0 33.5 32.6 23.8 31.1 37.3 36.3 25.1 33.0 38.9 36.8 26.5 34.8 40.5 37.4 77 15.9 21.8 26.7 25.9 17.8 24.4 30.0 29.0 19.7 27.0 33.2 32.2 20.5 28.3 34.3 32.2 21.3 29.6 35.3 32.2

MBH

Bulb,°F

74 12.9 18.8 23.8 22.9 14.3 20.9 26.5 25.5 15.6 23.0 29.2 28.1 15.9 23.7 29.6 27.5 16.1 24.3 30.1 27.0

Entering Dry

71 - 15.8 20.8 19.9 - 17.3 22.9 22.0 - 18.9 25.1 24.0 - 19.0 25.0 22.9 - 19.1 24.9 21.8 68 - 12.8 17.8 16.9 - 13.8 19.4 18.4 - 14.8 21.0 19.9 - 14.4 20.3 18.2 - 13.9 19.6 16.5

Net Cap

MBH

Total Power

Input kW

86 24.6 30.7 30.5 28.0 27.6 34.3 33.0 30.2 30.6 38.0 35.4 32.5 33.1 39.7 36.0 33.0 35.6 41.5 36.5 33.5

95 °F

Sensible Capacity

83 21.6 27.7 30.5 28.0 24.0 30.8 33.0 30.2 26.5 33.9 35.4 32.5 28.4 36.2 36.0 33.0 30.4 38.6 36.5 33.5 80 18.6 24.7 29.4 26.9 20.5 27.2 32.4 29.7 22.4 29.8 35.4 32.5 23.8 31.6 36.0 33.0 25.2 33.4 36.5 33.5 77 15.6 21.7 26.4 23.9 17.0 23.7 28.9 26.2 18.4 25.7 31.4 28.4 19.1 27.0 31.3 28.4 19.9 28.2 31.3 28.3

MBH

Bulb,°F

74 12.6 18.7 23.4 21.0 13.4 20.2 25.3 22.7 14.3 21.6 27.3 24.4 14.5 22.3 26.7 23.7 14.7 23.0 26.1 23.1

Entering Dry

71 - 15.7 20.4 18.0 - 16.6 21.8 19.1 - 17.5 23.2 20.3 - 17.7 22.0 19.1 - 17.8 20.9 17.9 68 - 12.7 17.4 15.0 - 13.1 18.3 15.6 - 13.5 19.1 16.2 - 13.0 17.4 14.4 - 12.5 15.7 12.7

Net Cap

MBH

Total Power

Input kW

86 23.4 29.0 27.9 25.3 26.5 31.9 30.1 27.3 29.6 34.8 32.3 29.3 32.0 35.8 32.7 29.7 34.4 36.9 33.1 30.1

105 °F

Sensible Capacity

83 20.4 26.0 27.9 25.3 23.0 29.2 30.1 27.3 25.5 32.3 32.3 29.3 27.3 33.9 32.7 29.7 29.2 35.5 33.1 30.1 80 17.4 23.0 26.3 23.9 19.4 25.6 29.3 26.6 21.4 28.2 32.3 29.3 22.7 29.9 32.7 29.7 24.0 31.6 33.1 30.1 77 14.4 20.0 23.3 20.9 15.9 22.1 25.8 23.1 17.3 24.2 28.2 25.2 18.0 25.3 28.1 25.1 18.7 26.4 27.9 24.9

MBH

Bulb,°F

74 11.5 17.0 20.3 17.9 12.3 18.6 22.2 19.5 13.2 20.1 24.1 21.1 13.4 20.6 23.4 20.4 13.5 21.2 22.7 19.7

Entering Dry

71 - 14.1 17.4 14.9 - 15.0 18.7 16.0 - 16.0 20.0 17.1 - 16.0 18.8 15.8 - 16.0 17.5 14.5 68 - 11.1 14.4 11.9 - 11.5 15.1 12.5 - 11.9 15.9 13.0 - 11.3 14.1 11.1 - 10.8 12.3 9.2

Net Cap

MBH

Total Power

Input kW

86 22.3 27.4 25.3 22.7 25.4 29.5 27.2 24.4 28.5 31.6 29.1 26.1 30.8 31.9 29.4 26.4 33.2 32.3 29.7 26.7

115 °F

Sensible Capacity

83 19.3 24.4 25.3 22.7 21.9 27.6 27.2 24.4 24.4 30.8 29.1 26.1 26.2 31.5 29.4 26.4 28.0 32.3 29.7 26.7 80 16.3 21.4 23.3 20.9 18.3 24.1 26.2 23.5 20.3 26.7 29.1 26.1 21.5 28.3 29.4 26.4 22.7 29.9 29.7 26.7 77 13.3 18.4 20.3 17.9 14.8 20.5 22.7 20.0 16.3 22.6 25.0 22.0 16.9 23.6 24.8 21.7 17.5 24.6 24.5 21.5

MBH

Bulb,°F

74 10.3 15.4 17.3 14.9 11.2 17.0 19.1 16.4 12.2 18.5 20.9 17.9 12.2 19.0 20.1 17.1 12.3 19.4 19.3 16.3

Entering Dry

71 - 12.4 14.3 11.9 - 13.4 15.6 12.9 - 14.5 16.8 13.9 - 14.3 15.5 12.4 - 14.2 14.1 11.0 68 - 9.4 11.3 8.9 - 9.9 12.0 9.4 - 10.4 12.8 9.8 - 9.7 10.8 7.8 - 9.0 8.9 5.8

Net Cap

MBH

Total Power

Input kW

86 21.1 25.7 22.7 20.0 24.3 27.1 24.3 21.5 27.5 28.4 25.9 22.9 29.7 28.0 26.1 23.1 32.0 27.7 26.3 23.3

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 18.1 22.7 22.7 20.0 20.8 26.0 24.3 21.5 23.4 29.3 25.9 22.9 25.1 29.2 26.1 23.1 26.7 29.1 26.3 23.3 80 15.2 19.8 20.3 17.9 17.2 22.5 23.1 20.4 19.3 25.2 25.9 22.9 20.4 26.6 26.1 23.1 21.5 28.1 26.3 23.3 77 12.2 16.8 17.3 14.9 13.7 18.9 19.6 16.9 15.2 21.1 21.8 18.8 15.8 22.0 21.5 18.4 16.3 22.9 21.1 18.0

MBH

Bulb,°F

74 9.2 13.8 14.3 11.9 10.2 15.4 16.0 13.3 11.1 17.0 17.8 14.7 11.1 17.3 16.8 13.8 11.1 17.6 15.9 12.8

Entering Dry

71 - 10.8 11.3 8.9 - 11.8 12.5 9.8 - 12.9 13.7 10.7 - 12.7 12.2 9.1 - 12.4 10.7 7.6 68 - 7.8 8.3 5.9 - 8.3 8.9 6.2 - 8.8 9.6 6.6 - 8.0 7.5 4.5 - 7.2 5.5 2.4

1,050 CFM 1,225 CFM 1,400 CFM 1,575 CFM 1,750 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

39.6 36.8 33.1 30.6 43.3 40.3 36.2 33.4 46.9 43.7 39.2 36.3 47.7 44.4 39.9 36.8 48.4 45.1 40.5 37.4

4.15 4.05 3.98 4.01 4.17 4.07 4.00 4.03 4.19 4.09 4.02 4.05 4.33 4.22 4.14 4.18 4.46 4.35 4.27 4.30

38.5 34.6 30.5 28.0 41.6 37.4 33.0 30.2 44.8 40.3 35.4 32.5 45.5 40.9 36.0 33.0 46.2 41.5 36.5 33.5

4.34 4.25 4.15 4.18 4.40 4.31 4.20 4.24 4.46 4.37 4.26 4.30 4.58 4.49 4.38 4.42 4.71 4.61 4.50 4.54

35.6 31.0 27.9 25.3 38.4 33.5 30.1 27.3 41.2 35.9 32.3 29.3 41.7 36.4 32.7 29.7 42.3 36.9 33.1 30.1

4.62 4.50 4.42 4.46 4.68 4.56 4.47 4.51 4.74 4.61 4.53 4.57 4.87 4.74 4.66 4.70 5.01 4.88 4.79 4.83

32.6 27.4 25.3 22.7 35.1 29.5 27.2 24.4 37.5 31.6 29.1 26.1 38.0 31.9 29.4 26.4 38.4 32.3 29.7 26.7

4.91 4.75 4.69 4.73 4.96 4.80 4.74 4.79 5.02 4.86 4.80 4.84 5.17 5.00 4.94 4.98 5.32 5.15 5.08 5.13

29.7 23.8 22.7 20.0 31.8 25.5 24.3 21.5 33.9 27.2 25.9 22.9 34.2 27.4 26.1 23.1 34.5 27.7 26.3 23.3

5.2 5.0 5.0 5.0 5.2 5.1 5.0 5.1 5.3 5.1 5.1 5.1 5.5 5.3 5.2 5.3 5.6 5.4 5.4 5.4

ALL SENSIBLE CAPACITY

Air On Indoor Coil

Unitary Products Group 9

Page 10

COOLING CAPACITIES - 4 TON (BHA048)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input KW

86 31.3 38.8 44.5 43.1 34.7 42.8 45.9 44.5 38.1 46.8 47.4 45.9 41.5 50.3 48.4 46.9 44.9 53.9 49.4 47.8

85 °F

Sensible Capacity

83 27.9 35.4 41.7 41.9 30.7 38.8 44.5 43.9 33.4 42.2 47.4 45.9 36.2 45.6 48.4 46.9 39.0 49.1 49.4 47.8 80 24.5 32.0 38.3 38.5 26.6 34.7 41.6 41.8 28.7 37.5 44.9 45.2 30.9 40.3 47.1 46.5 33.0 43.1 49.4 47.8 77 21.1 28.5 34.8 35.1 22.6 30.7 37.5 37.8 24.1 32.8 40.2 40.5 25.6 35.0 41.8 41.2 27.1 37.1 43.4 41.9

MBH

Bulb,°F

74 17.6 25.1 31.4 31.7 18.5 26.6 33.5 33.8 19.4 28.2 35.6 35.9 20.2 29.7 36.5 35.9 21.1 31.2 37.5 35.9

Entering Dry

71 - 21.7 28.0 28.2 - 22.6 29.4 29.7 - 23.5 30.9 31.2 - 24.4 31.2 30.6 - 25.2 31.5 30.0 68 - 18.3 24.6 24.8 - 18.6 25.4 25.7 - 18.8 26.2 26.5 - 19.0 25.9 25.3 - 19.2 25.5 24.0

Net Cap

MBH

Total Power

Input KW

86 29.4 36.9 41.4 40.0 32.8 41.1 42.9 41.4 36.3 45.3 44.4 42.9 39.7 48.2 45.5 43.9 43.1 51.0 46.6 45.0

95 °F

Sensible Capacity

83 25.9 33.5 38.8 38.8 28.8 37.1 41.6 40.8 31.6 40.6 44.4 42.9 34.4 44.1 45.5 43.9 37.1 47.6 46.6 45.0 80 22.5 30.1 35.3 35.3 24.7 33.0 38.8 38.8 26.9 36.0 42.3 42.3 29.1 38.8 44.4 43.6 31.2 41.6 46.6 45.0 77 19.1 26.6 31.9 31.9 20.7 29.0 34.8 34.8 22.3 31.3 37.6 37.6 23.8 33.5 39.1 38.3 25.2 35.7 40.6 39.0

MBH

Bulb,°F

74 15.7 23.2 28.5 28.5 16.6 24.9 30.7 30.7 17.6 26.6 33.0 33.0 18.4 28.2 33.8 33.0 19.3 29.7 34.6 33.0

Entering Dry

71 - 19.8 25.1 25.1 - 20.9 26.7 26.7 - 22.0 28.3 28.3 - 22.9 28.5 27.7 - 23.7 28.7 27.1 68 - 16.4 21.7 21.7 - 16.8 22.6 22.7 - 17.3 23.6 23.6 - 17.5 23.2 22.4 - 17.8 22.7 21.1

Net Cap

MBH

Total Power

Input KW

86 28.3 35.7 38.8 36.8 31.6 39.3 40.0 38.0 34.9 43.0 41.3 39.2 38.2 44.7 42.1 40.0 41.4 46.5 43.0 40.9

105 °F

Sensible Capacity

83 24.8 32.3 36.9 36.0 27.5 35.7 39.1 37.6 30.2 39.1 41.3 39.2 32.8 42.0 42.1 40.0 35.4 44.8 43.0 40.9 80 21.4 28.9 33.4 32.6 23.5 31.7 36.7 35.8 25.6 34.5 39.9 38.9 27.5 37.1 41.5 39.9 29.5 39.7 43.0 40.9 77 18.0 25.4 30.0 29.2 19.5 27.6 32.6 31.7 20.9 29.8 35.3 34.2 22.2 31.8 36.2 34.6 23.5 33.7 37.0 34.9

MBH

Bulb,°F

74 14.6 22.0 26.6 25.7 15.4 23.6 28.6 27.7 16.2 25.1 30.6 29.6 16.9 26.4 30.8 29.3 17.5 27.8 31.1 28.9

Entering Dry

71 - 18.6 23.2 22.3 - 19.5 24.6 23.6 - 20.5 25.9 24.9 - 21.1 25.5 23.9 - 21.8 25.1 23.0 68 - 15.2 19.8 18.9 - 15.5 20.5 19.6 - 15.8 21.3 20.3 - 15.8 20.2 18.6 - 15.8 19.2 17.0

Net Cap

MBH

Total Power

Input KW

86 27.2 34.5 36.2 33.7 30.4 37.6 37.2 34.6 33.5 40.6 38.1 35.5 36.6 41.3 38.8 36.1 39.7 42.0 39.4 36.7

115 °F

Sensible Capacity

83 23.8 31.1 35.0 33.3 26.3 34.4 36.5 34.4 28.9 37.6 38.1 35.5 31.3 39.8 38.8 36.1 33.7 42.0 39.4 36.7 80 20.3 27.7 31.5 29.8 22.3 30.3 34.6 32.7 24.2 32.9 37.6 35.5 26.0 35.4 38.5 36.1 27.8 37.8 39.4 36.7 77 16.9 24.2 28.1 26.4 18.2 26.3 30.5 28.6 19.5 28.3 32.9 30.9 20.7 30.0 33.2 30.8 21.8 31.8 33.5 30.8

MBH

Bulb,°F

74 13.5 20.8 24.7 23.0 14.2 22.2 26.5 24.6 14.9 23.6 28.2 26.2 15.4 24.7 27.9 25.5 15.8 25.9 27.5 24.8

Entering Dry

71 - 17.4 21.3 19.6 - 18.2 22.4 20.5 - 19.0 23.6 21.5 - 19.4 22.6 20.2 - 19.9 21.6 18.9 68 - 14.0 17.9 16.1 - 14.1 18.4 16.5 - 14.3 18.9 16.9 - 14.1 17.2 14.9 - 13.9 15.6 12.9

Net Cap

MBH

Total Power

Input KW

86 26.1 33.3 33.6 30.6 29.1 35.8 34.3 31.2 32.2 36.6 35.0 31.8 35.1 37.1 35.4 32.2 38.0 37.5 35.9 32.6

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 22.7 29.9 33.1 30.5 25.1 33.0 34.0 31.2 27.5 36.1 35.0 31.8 29.7 37.1 35.4 32.2 32.0 37.5 35.9 32.6 80 19.2 26.5 29.6 27.1 21.0 29.0 32.4 29.6 22.8 31.4 35.0 31.8 24.4 33.6 35.4 32.2 26.0 35.9 35.9 32.6 77 15.8 23.1 26.2 23.7 17.0 24.9 28.4 25.6 18.2 26.8 30.5 27.5 19.1 28.3 30.2 27.1 20.1 29.9 29.9 26.7

MBH

Bulb,°F

74 12.4 19.6 22.8 20.2 12.9 20.9 24.3 21.5 13.5 22.1 25.9 22.8 13.8 23.0 24.9 21.8 14.1 23.9 24.0 20.7

Entering Dry

71 - 16.2 19.4 16.8 - 16.8 20.3 17.5 - 17.4 21.2 18.1 - 17.7 19.6 16.4 - 18.0 18.0 14.7 68 - 12.8 16.0 13.4 - 12.8 16.2 13.4 - 12.8 16.5 13.5 - 12.4 14.3 11.1 - 12.0 12.0 8.8

1200 CFM 1400 CFM 1600 CFM 1800 CFM 2000 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

53.1 48.6 44.5 43.1 54.8 50.1 45.9 44.5 56.4 51.6 47.4 45.9 57.7 52.8 48.4 46.9 58.9 53.9 49.4 47.8

4.76 4.68 4.55 4.56 4.89 4.81 4.67 4.69 5.03 4.94 4.80 4.82 5.12 5.03 4.89 4.91 5.21 5.13 4.98 5.00

49.6 45.3 41.4 40.0 51.4 47.0 42.9 41.4 53.3 48.7 44.4 42.9 54.5 49.8 45.5 43.9 55.8 51.0 46.6 45.0

5.12 4.98 4.90 4.88 5.27 5.12 5.04 5.03 5.42 5.27 5.19 5.18 5.53 5.38 5.30 5.28 5.64 5.49 5.40 5.39

46.0 41.9 38.8 36.8 47.5 43.3 40.0 38.0 49.0 44.6 41.3 39.2 50.0 45.6 42.1 40.0 51.0 46.5 43.0 40.9

5.60 5.43 5.32 5.27 5.76 5.58 5.47 5.42 5.91 5.74 5.62 5.56 6.02 5.84 5.73 5.67 6.13 5.95 5.83 5.77

42.4 38.5 36.2 33.7 43.6 39.6 37.2 34.6 44.7 40.6 38.1 35.5 45.5 41.3 38.8 36.1 46.3 42.0 39.4 36.7

6.08 5.89 5.75 5.65 6.24 6.04 5.90 5.80 6.40 6.20 6.05 5.95 6.51 6.30 6.15 6.05 6.62 6.41 6.25 6.15

38.9 35.1 33.6 30.6 39.7 35.9 34.3 31.2 40.5 36.6 35.0 31.8 41.0 37.1 35.4 32.2 41.5 37.5 35.9 32.6

6.6 6.3 6.2 6.0 6.7 6.5 6.3 6.2 6.9 6.7 6.5 6.3 7.0 6.8 6.6 6.4 7.1 6.9 6.7 6.5

036-21311-003-A-0104

Air On Indoor Coil

ALL SENSIBLE CAPACITY

10 Unitary Products Group

Page 11

036-21311-003-A-0104

COOLING CAPACITIES - 5 TON (BHA060)

Temperature of Air on

Outdoor Coil

Net Cap

MBH

Total Power

Input KW

86 37.2 47.6 52.4 52.6 41.0 52.3 53.5 53.6 44.9 57.0 54.5 54.7 46.0 58.3 54.0 54.1 47.1 59.5 53.4 53.5

85 °F

Sensible Capacity

83 32.9 43.4 50.7 41.3 36.0 47.3 52.6 53.0 39.0 51.2 54.5 54.7 39.8 52.1 54.0 54.1 40.5 53.0 53.4 53.5 80 28.6 39.1 46.4 47.1 30.9 42.2 50.1 50.9 33.2 45.4 53.9 54.7 33.6 45.9 53.6 54.1 34.0 46.4 53.4 53.5 77 24.3 34.8 42.1 42.8 25.9 37.2 45.1 45.8 27.4 39.6 48.0 48.8 27.4 39.7 47.4 47.9 27.4 39.8 46.8 47.0

MBH

Bulb,°F

74 20.0 30.5 37.8 38.5 20.8 32.1 40.0 40.8 21.5 33.7 42.2 43.0 21.2 33.5 41.2 41.7 20.8 33.3 40.3 40.4

Entering Dry

71 - 26.2 33.6 34.2 - 27.1 35.0 35.7 - 27.9 36.4 37.2 - 27.3 35.0 35.5 - 26.7 33.7 33.8 68 - 22.0 29.3 30.0 - 22.0 29.9 30.6 - 22.1 30.5 31.3 - 21.1 28.8 29.3 - 20.2 27.2 27.3

Net Cap

MBH

Total Power

Input KW

86 35.5 46.0 50.2 49.2 39.5 51.1 51.4 50.3 43.6 56.1 52.6 51.5 45.1 57.5 53.4 52.3 46.6 58.9 54.2 53.0

95 °F

Sensible Capacity

83 31.2 41.8 48.6 47.7 34.5 46.0 50.6 49.6 37.8 50.3 52.6 51.5 38.9 51.7 53.4 52.3 40.0 53.2 54.2 53.0 80 26.9 37.5 44.3 43.4 29.4 41.0 48.4 47.4 31.9 44.5 52.6 51.5 32.7 45.5 53.4 52.3 33.5 46.6 54.2 53.0 77 22.6 33.2 40.0 39.1 24.4 35.9 43.4 42.4 26.1 38.6 46.7 45.6 26.5 39.3 47.2 46.1 26.9 40.1 47.6 46.5

MBH

Bulb,°F

74 18.4 28.9 35.8 34.8 19.3 30.9 38.3 37.3 20.3 32.8 40.9 39.8 20.3 33.2 41.0 39.9 20.4 33.5 41.1 39.9

Entering Dry

71 - 24.6 31.5 30.6 - 25.8 33.3 32.3 - 27.0 35.1 34.0 - 27.0 34.8 33.7 - 27.0 34.5 33.4 68 - 20.4 27.2 26.3 - 20.7 28.2 27.2 - 21.1 29.2 28.2 - 20.8 28.6 27.5 - 20.4 27.9 26.8

Net Cap

MBH

Total Power

Input KW

86 34.5 44.3 46.6 45.4 38.4 48.2 47.8 46.5 42.3 52.2 48.9 47.6 43.7 53.1 49.6 48.3 45.1 54.1 50.3 48.9

105 °F

Sensible Capacity

83 30.3 40.0 45.7 44.6 33.4 44.1 47.3 46.1 36.5 48.1 48.9 47.6 37.5 49.3 49.6 48.3 38.5 50.6 50.3 48.9 80 26.0 35.8 41.5 40.4 28.3 39.0 45.2 44.0 30.7 42.2 48.9 47.6 31.3 43.1 49.6 48.3 32.0 44.0 50.3 48.9 77 21.7 31.5 37.2 36.1 23.3 33.9 40.1 38.9 24.8 36.4 43.1 41.8 25.1 36.9 43.4 42.1 25.4 37.4 43.7 42.4

MBH

Bulb,°F

74 17.4 27.2 32.9 31.8 18.2 28.9 35.1 33.9 19.0 30.6 37.3 36.0 18.9 30.7 37.2 35.9 18.8 30.9 37.2 35.8

Entering Dry

71 - 22.9 28.6 27.5 - 23.8 30.0 28.8 - 24.7 31.5 30.2 - 24.5 31.0 29.7 - 24.3 30.6 29.3 68 - 18.7 24.3 23.2 - 18.8 25.0 23.8 - 18.9 25.6 24.3 - 18.3 24.8 23.5 - 17.8 24.0 22.7

Net Cap

MBH

Total Power

Input KW

86 33.6 42.6 43.1 41.6 37.3 45.4 44.2 42.7 41.1 48.2 45.3 43.8 42.3 48.8 45.9 44.3 43.5 49.3 46.4 44.8

115 °F

Sensible Capacity

83 29.3 38.3 42.9 41.6 32.3 42.1 44.1 42.7 35.2 45.8 45.3 43.8 36.1 46.9 45.9 44.3 37.0 47.9 46.4 44.8 80 25.0 34.1 38.6 37.3 27.2 37.0 42.0 40.6 29.4 40.0 45.3 43.8 29.9 40.7 45.9 44.3 30.4 41.4 46.4 44.8 77 20.8 29.8 34.3 33.0 22.2 32.0 36.9 35.5 23.6 34.2 39.5 38.0 23.7 34.5 39.7 38.1 23.9 34.8 39.8 38.3

MBH

Bulb,°F

74 16.5 25.5 30.0 28.8 17.1 26.9 31.9 30.5 17.7 28.3 33.7 32.2 17.5 28.3 33.5 31.9 17.3 28.3 33.3 31.7

Entering Dry

71 - 21.2 25.8 24.5 - 21.9 26.8 25.4 - 22.5 27.8 26.3 - 22.1 27.3 25.7 - 21.7 26.7 25.2 68 - 16.9 21.5 20.2 - 16.8 21.7 20.3 - 16.7 22.0 20.5 - 15.9 21.1 19.6 - 15.2 20.2 18.6

Net Cap

MBH

Total Power

Input KW

86 32.7 40.9 39.5 37.8 36.2 42.6 40.6 38.9 39.8 43.7 41.7 40.0 40.9 44.1 42.1 40.4 42.0 44.5 42.5 40.7

125 °F

Sensible Capacity

= These capacities are net capacities - indoor fan heat deducted.

83 28.4 36.6 39.5 37.8 31.2 40.1 40.6 38.9 34.0 43.6 41.7 40.0 34.7 44.1 42.1 40.4 35.5 44.5 42.5 40.7 80 24.1 32.3 35.7 34.3 26.1 35.1 38.7 37.1 28.2 37.8 41.7 40.0 28.5 38.3 42.1 40.4 28.9 38.8 42.5 40.7 77 19.8 28.1 31.4 30.0 21.1 30.0 33.7 32.1 22.3 31.9 35.9 34.2 22.3 32.1 35.9 34.2 22.3 32.2 35.9 34.2

MBH

Bulb,°F

74 15.5 23.8 27.2 25.7 16.0 25.0 28.6 27.0 16.5 26.1 30.0 28.3 16.1 25.9 29.7 28.0 15.8 25.6 29.4 27.6

Entering Dry

71 - 19.5 22.9 21.4 - 19.9 23.6 22.0 - 20.3 24.2 22.5 - 19.7 23.5 21.8 - 19.1 22.8 21.1 68 - 15.2 18.6 17.1 - 14.8 18.5 16.9 - 14.5 18.4 16.7 - 13.5 17.3 15.6 - 12.5 16.3 14.5

1500 CFM 1750 CFM 2000 CFM 2100 CFM 2200 CFM

WB°FWB°FWB°FWB°FWB°F

72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57 72 67 62 57

64.1 58.6 52.4 52.6 65.4 59.8 53.5 53.6 66.7 60.9 54.5 54.7 66.0 60.3 54.0 54.1 65.3 59.7 53.4 53.5

5.52 5.49 5.37 5.44 5.68 5.65 5.52 5.60 5.84 5.81 5.68 5.75 5.95 5.92 5.79 5.87 6.06 6.03 5.90 5.98

60.1 54.6 50.2 49.2 61.5 55.8 51.4 50.3 63.0 57.1 52.6 51.5 63.9 58.0 53.4 52.3 64.9 58.9 54.2 53.0

6.00 5.90 5.81 5.77 6.19 6.09 5.99 5.95 6.37 6.27 6.17 6.12 6.49 6.38 6.28 6.24 6.60 6.50 6.39 6.35

56.1 50.2 46.6 45.4 57.5 51.4 47.8 46.5 58.9 52.7 48.9 47.6 59.7 53.4 49.6 48.3 60.5 54.1 50.3 48.9

6.56 6.43 6.35 6.32 6.75 6.62 6.53 6.51 6.94 6.80 6.71 6.69 7.06 6.92 6.83 6.80 7.18 7.04 6.94 6.92

52.0 45.8 43.1 41.6 53.4 47.0 44.2 42.7 54.8 48.2 45.3 43.8 55.4 48.8 45.9 44.3 56.1 49.3 46.4 44.8

7.13 6.96 6.89 6.88 7.32 7.15 7.07 7.06 7.51 7.34 7.26 7.25 7.64 7.46 7.38 7.37 7.76 7.58 7.50 7.49

48.0 41.4 39.5 37.8 49.3 42.6 40.6 38.9 50.7 43.7 41.7 40.0 51.2 44.1 42.1 40.4 51.6 44.5 42.5 40.7

7.69 7.49 7.42 7.43 7.89 7.68 7.61 7.62 8.08 7.87 7.80 7.81 8.21 8.00 7.92 7.93 8.34 8.12 8.05 8.06

Air On Indoor Coil

ALL SENSIBLE CAPACITY

Unitary Products Group 11

Page 12

036-21311-003-A-0104

HEATING CAPACITIES - 1-1/2 TON (BHA018)

CFM

450

600

750

RETURN AIR CAP

°F 55

& KW-100 102030405060

MBH 5.024 6.289 7.836 9.728 12.041 14.869 18.326 22.553

KW 1.062 1.160 1.257 1.354 1.451 1.548 1.645 1.742

MBH 4.297 5.562 7.109 9.001 11.314 14.142 17.599 21.826

KW 1.199 1.297 1.394 1.491 1.588 1.685 1.782 1.879

MBH 3.080 4.345 5.892 7.784 10.097 12.925 16.382 20.609

KW 1.261 1.359 1.456 1.553 1.650 1.747 1.844 1.941

MBH 6.412 7.677 9.224 11.116 13.429 16.257 19.714 23.941

KW 1.072 1.170 1.267 1.364 1.461 1.558 1.655 1.752

MBH 5.685 6.950 8.497 10.389 12.702 15.530 18.987 23.214

KW 1.209 1.307 1.404 1.501 1.598 1.695 1.792 1.889

MBH 4.468 5.733 7.280 9.172 11.485 14.313 17.770 21.997

KW 1.271 1.369 1.466 1.563 1.660 1.757 1.854 1.951

MBH 7.000 8.265 9.812 11.704 14.017 16.845 20.302 24.529

KW 1.066 1.164 1.261 1.358 1.455 1.552 1.649 1.746

MBH 6.273 7.538 9.085 10.977 13.290 16.118 19.575 23.802

KW 1.203 1.301 1.398 1.495 1.592 1.689 1.786 1.883

MBH 5.056 6.321 7.868 9.760 12.073 14.901 18.358 22.585

KW 1.265 1.363 1.460 1.557 1.654 1.751 1.848 1.945

OUTDOOR AIR TEMPERATURE, °F (72% RH)

HEATING CAPACITIES - 2 TON (BHA024)

CFM

600

800

1,000

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

RETURN AIR CAP

°F 55

& KW-100 102030405060

MBH 6.195 7.735 9.640 11.996 14.910 18.513 22.970 28.481

KW 1.227 1.380 1.532 1.685 1.837 1.989 2.142 2.294

MBH 4.898 6.438 8.343 10.699 13.613 17.216 21.673 27.184

KW 1.342 1.495 1.647 1.800 1.952 2.104 2.257 2.409

MBH 3.414 4.954 6.859 9.215 12.129 15.732 20.189 25.700

KW 1.402 1.555 1.707 1.860 2.012 2.164 2.317 2.469

MBH 7.803 9.343 11.248 13.604 16.518 20.121 24.578 30.089

KW 1.233 1.386 1.538 1.691 1.843 1.995 2.148 2.300

MBH 6.506 8.046 9.951 12.307 15.221 18.824 23.281 28.792

KW 1.348 1.501 1.653 1.806 1.958 2.110 2.263 2.415

MBH 5.022 6.562 8.467 10.823 13.737 17.340 21.797 27.308

KW 1.408 1.561 1.713 1.866 2.018 2.170 2.323 2.475

MBH 9.523 11.063 12.968 15.324 18.238 21.841 26.298 31.809

KW 1.253 1.406 1.558 1.711 1.863 2.015 2.168 2.320

MBH 8.226 9.766 11.671 14.027 16.941 20.544 25.001 30.512

KW 1.368 1.521 1.673 1.826 1.978 2.130 2.283 2.435

MBH 6.742 8.282 10.187 12.543 15.457 19.060 23.517 29.028

KW 1.428 1.581 1.733 1.886 2.038 2.190 2.343 2.495

OUTDOOR AIR TEMPERATURE,°F (72% RH)

12 Unitary Products Group

Page 13

036-21311-003-A-0104

HEATING CAPACITIES - 2-1/2 TON (BHA030)

CFM

750

1,000

1,250

RETURN AIR CAP

°F 55

& KW-100 102030405060

MBH 8.239 10.151 12.469 15.280 18.687 22.817 27.824 33.893

KW 1.515 1.673 1.832 1.990 2.148 2.306 2.465 2.623

MBH 7.038 8.950 11.268 14.079 17.486 21.616 26.623 32.692

KW 1.690 1.848 2.007 2.165 2.323 2.481 2.640 2.798

MBH 5.302 7.214 9.532 12.343 15.750 19.880 24.887 30.956

KW 1.802 1.960 2.119 2.277 2.435 2.593 2.752 2.910

MBH 10.209 12.121 14.439 17.250 20.657 24.787 29.794 35.863

KW 1.530 1.688 1.847 2.005 2.163 2.321 2.480 2.638

MBH 9.008 10.920 13.238 16.049 19.456 23.586 28.593 34.662

KW 1.705 1.863 2.022 2.180 2.338 2.496 2.655 2.813

MBH 7.272 9.184 11.502 14.313 17.720 21.850 26.857 32.926

KW 1.817 1.975 2.134 2.292 2.450 2.608 2.767 2.925

MBH 11.402 13.314 15.632 18.443 21.850 25.980 30.987 37.056

KW 1.552 1.710 1.869 2.027 2.185 2.343 2.502 2.660

MBH 10.201 12.113 14.431 17.242 20.649 24.779 29.786 35.855

KW 1.727 1.885 2.044 2.202 2.360 2.518 2.677 2.835

MBH 8.465 10.377 12.695 15.506 18.913 23.043 28.050 34.119

KW 1.839 1.997 2.156 2.314 2.472 2.630 2.789 2.947

OUTDOOR AIR TEMPERATURE,°F (72% RH)

HEATING CAPACITIES - 3 TON (BHA036)

CFM

900

1,200

1,500

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

RETURN AIR CAP

°F 55

& KW-100 102030405060

MBH 9.144 11.465 14.209 17.452 21.284 25.814 31.167 37.494

KW 2.186 2.314 2.442 2.570 2.698 2.826 2.955 3.083

MBH 8.834 11.155 13.899 17.142 20.974 25.504 30.857 37.184

KW 2.451 2.579 2.707 2.835 2.963 3.091 3.220 3.348

MBH 7.285 9.606 12.35 15.593 19.425 23.955 29.308 35.635

KW 2.596 2.724 2.852 2.980 3.108 3.236 3.365 3.493

MBH 13.075 15.396 18.14 21.383 25.215 29.745 35.098 41.425

KW 2.156 2.284 2.412 2.540 2.668 2.796 2.925 3.053

MBH 12.765 15.086 17.83 21.073 24.905 29.435 34.788 41.115

KW 2.421 2.549 2.677 2.805 2.933 3.061 3.190 3.318

MBH 11.216 13.537 16.281 19.524 23.356 27.886 33.239 39.566

KW 2.566 2.694 2.822 2.950 3.078 3.206 3.335 3.463

MBH 15.343 17.664 20.408 23.651 27.483 32.013 37.366 43.693

KW 2.156 2.284 2.412 2.540 2.668 2.796 2.925 3.053

MBH 15.033 17.354 20.098 23.341 27.173 31.703 37.056 43.383

KW 2.421 2.549 2.677 2.805 2.933 3.061 3.190 3.318

MBH 13.484 15.805 18.549 21.792 25.624 30.154 35.507 41.834

KW 2.566 2.694 2.822 2.950 3.078 3.206 3.335 3.463

OUTDOOR AIR TEMPERATURE,°F (72% RH)

Unitary Products Group 13

Page 14

036-21311-003-A-0104

HEATING CAPACITIES - 3-1/2 TON (BHA042)

CFM

RETURN AIR CAP

°F 55

1,050

1,400

1,750

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

OUTDOOR AIR TEMPERATURE,°F (72% RH)

& KW-100 102030405060

MBH 9.904 12.549 15.725 19.537 24.114 29.608 36.204 44.121

KW 2.419 2.565 2.711 2.858 3.004 3.150 3.296 3.443

MBH 8.570 11.215 14.391 18.203 22.780 28.274 34.870 42.787

KW 2.700 2.846 2.992 3.139 3.285 3.431 3.577 3.724

MBH 6.102 8.747 11.923 15.735 20.312 25.806 32.402 40.319

KW 2.904 3.050 3.196 3.343 3.489 3.635 3.781 3.928

MBH 14.531 17.176 20.352 24.164 28.741 34.235 40.831 48.748

KW 2.415 2.561 2.707 2.854 3.000 3.146 3.292 3.439

MBH 13.197 15.842 19.018 22.830 27.407 32.901 39.497 47.414

KW 2.696 2.842 2.988 3.135 3.281 3.427 3.573 3.720

MBH 10.729 13.374 16.550 20.362 24.939 30.433 37.029 44.946

KW 2.900 3.046 3.192 3.339 3.485 3.631 3.777 3.924

MBH 15.133 17.778 20.954 24.766 29.343 34.837 41.433 49.350

KW 2.562 2.708 2.854 3.001 3.147 3.293 3.439 3.586

MBH 13.799 16.444 19.620 23.432 28.009 33.503 40.099 48.016

KW 2.843 2.989 3.135 3.282 3.428 3.574 3.720 3.867

MBH 11.331 13.976 17.152 20.964 25.541 31.035 37.631 45.548

KW 3.047 3.193 3.339 3.486 3.632 3.778 3.924 4.071

HEATING CAPACITIES - 4 TON (BHA048)

CFM

RETURN AIR CAP

°F 55

1,200

1,600

2,000

These capacities are net capacities - the indoor motor heat has been added. These power inputs are total power inputs - the indoor motor watts have been added.

OUTDOOR AIR TEMPERATURE,°F (72% RH)

& KW-100 102030405060

MBH 17.108 20.080 23.566 27.654 32.449 38.073 44.669 52.406

KW 3.178 3.283 3.388 3.493 3.598 3.702 3.807 3.912

MBH 15.640 18.612 22.098 26.186 30.981 36.605 43.201 50.938

KW 3.687 3.792 3.897 4.002 4.107 4.211 4.316 4.421

MBH 14.678 17.650 21.136 25.224 30.019 35.643 42.239 49.976

KW 3.982 4.087 4.192 4.297 4.402 4.506 4.611 4.716

MBH 18.660 21.632 25.118 29.206 34.001 39.625 46.221 53.958

KW 3.077 3.182 3.287 3.392 3.497 3.601 3.706 3.811

MBH 17.192 20.164 23.650 27.738 32.533 38.157 44.753 52.490

KW 3.586 3.691 3.796 3.901 4.006 4.110 4.215 4.320

MBH 16.230 19.202 22.688 26.776 31.571 37.195 43.791 51.528

KW 3.881 3.986 4.091 4.196 4.301 4.405 4.510 4.615

MBH 21.227 24.199 27.685 31.773 36.568 42.192 48.788 56.525

KW 3.138 3.243 3.348 3.453 3.558 3.662 3.767 3.872

MBH 19.759 22.731 26.217 30.305 35.100 40.724 47.320 55.057

KW 3.647 3.752 3.857 3.962 4.067 4.171 4.276 4.381

MBH 18.797 21.769 25.255 29.343 34.138 39.762 46.358 54.095

KW 3.942 4.047 4.152 4.257 4.362 4.466 4.571 4.676

14 Unitary Products Group

Page 15

036-21311-003-A-0104

HEATING CAPACITIES - 5 TON (BHA060)

CFM

1,500

2,000

2,500

RETURN AIR CAP

°F 55

& KW-100 102030405060

MBH 19.316 23.261 27.902 33.364 39.79 47.351 56.247 66.714

KW 3.57 3.829 4.088 4.347 4.606 4.865 5.124 5.383

MBH 18.491 22.436 27.077 32.539 38.965 46.526 55.422 65.889

KW 4.061 4.32 4.579 4.838 5.097 5.356 5.615 5.874

MBH 15.362 19.307 23.948 29.41 35.836 43.397 52.293 62.76

KW 4.358 4.617 4.876 5.135 5.394 5.653 5.912 6.171

MBH 23.164 27.109 31.75 37.212 43.638 51.199 60.095 70.562

KW 3.624 3.883 4.142 4.401 4.66 4.919 5.178 5.437

MBH 22.339 26.284 30.925 36.387 42.813 50.374 59.27 69.737

KW 4.115 4.374 4.633 4.892 5.151 5.41 5.669 5.928

MBH 19.21 23.155 27.796 33.258 39.684 47.245 56.141 66.608

KW 4.412 4.671 4.93 5.189 5.448 5.707 5.966 6.225

MBH 24.796 28.741 33.382 38.844 45.27 52.831 61.727 72.194

KW 3.754 4.013 4.272 4.531 4.79 5.049 5.308 5.567

MBH 23.971 27.916 32.557 38.019 44.445 52.006 60.902 71.369

KW 4.245 4.504 4.763 5.022 5.281 5.54 5.799 6.058

MBH 20.842 24.787 29.428 34.89 41.316 48.877 57.773 68.24

KW 4.542 4.801 5.06 5.319 5.578 5.837 6.096 6.355

OUTDOOR AIR TEMPERATURE,°F (72% RH)

APPLICATION DATA

MODEL

MINIMUM AIR FLOW

(CFM)

MAXIMUM AIR FLOW

(CFM)

MINIMUM OPERATING TEMPERATURE IN COOLING MODE

(AMBIENT, °F)

MINIMUM MIXED AIR IN COOLING MODE

(RETURN AIR, DB°F/WB°F)

MINIMUM MIXED AIR IN HEATING MODE

(RETURN AIR, °F)

COOLING 450 600 750 900 1,050 1,200 1,500

HEATING 450 600 750 900 1,050 1,200 1,500

COOLING 750 1,000 1,250 1,500 1,750 2,000 2,500

HEATING 750 1,000 1,250 1,500 1,750 2,000 2,500

68 / 57 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57 68 / 57

BHA

018 024 030 036 042 048 060

45 45 45 45 45 45 45

55 55 55 55 55 55 55

ADDITIONAL STATIC PRESSURE RESISTANCE

DESCRIPTION

500 600 700 800 900 1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 1,800 1,900 2,000 Wet Indoor coil Economizer Filter/Frame Kit Electric Heat

NOTE: 1. Deduct these resistance values from the available external static pressure shown in the respective Blower Performance Table.

2. The pressure thru the economizer is greater for 100% outdoor air then for 100% return air. If the resistance of the return air duct system is less then 0.25 IWG, the unit will deliver less CFM during full economizer operation.

Unitary Products Group 15

0.01 0.01 0.01 0.02 0.02 0.03 0.03 0.04 0.04 0.04 0.04 0.04 0.05 0.05 0.06 0.07

0.00 0.00 0.00 0.01 0.01 0.01 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.07 0.08 0.08

0.01 0.02 0.02 0.02 0.02 0.02 0.03 0.03 0.03 0.03 0.04 0.05 0.05 0.06 0.06 0.07

0.02 0.03 0.03 0.03 0.04 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.01 0.11 0.11 0.12

RESISTANCE, IWG

CFM

Page 16

SIDE AND BOTTOM SUPPLY AIR BLOWER PERFORMANCE

230/460/575 volts

EXTERNAL STATIC PRESSURE - IWG

MODEL NO.

BHA

018

024

030

036

042

048

060

NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.

MOTOR

SPEED

HI MED LOW

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00 1.10

CFM

900

1200

900

1462

1876 1544

2242

290

390 280

526

792 620

1090

WATTS

1134

1400

1680

1829 1508

2454 2201

850

CFM

287

397 267

506

607

772 610

1163 1053

WATTS

1068

1472 1337

1608

1783 1472

2387 2161

702

800

CFM

220

243

368 243

647 486

584

753 600

1117 1017

WATTS

1002

1394 1275

1673 1630

1947 1736 1436

2499 2320 2120

641

760

CFM

206

220

367

626 467

830 660

882 733 590

1290 1070

980

WATTS

1414 1297 1167

1697 1566 1425

1867 1668 1375

2391 2229 2041

654 536

935 697

936

CFM

233 183

338 238

339

617 495 440

740 594 528

857 706 573

1233 1023

927

WATTS

1200

1317 1199 1100

1580 1439 1320

1786 1599 1313

2283 2137 1962

668 541

867 843

897

CFM

401 209

322 183

640 322

688 465 414

706 558 496

832 680 557

1177

977 873

WATTS

1100

1219 1102 1012

1463 1322 1214

1706 1531 1252

2175 2046 1883

652

800

CFM

386

304

620 304

660 435 387

672 522 464

807 653 540

1120

930 820

WATTS

1116

1339 1182 1050

1637 1434

2067 1950 1797

987 733

987

985

CFM

507 286

507

533 397

640 476 420

782 622

1080

887 787

WATTS

1013

1216

1569 1337

1958 1854 1711

CFM

873 867

873

1040

036-21311-003-A-0104

493 268

493

507

608

757 591

843 753

WATTS

1092

1500 1240

1850 1758 1625

CFM

760

910

1000

480

576

732 560

800 720

WATTS

CFM

WATTS

208 volts

EXTERNAL STATIC PRESSURE - IWG

MODEL NO.

BHA

018

024

030

036

042

048

060

NOTE: Above data includes allowances for a dry indoor coil and no filters. For additional pressure drops, refer to the “Additional Static Pressure Resistance” table.

MOTOR

SPEED

HI MED LOW

.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00 1.10

CFM

741

810

1080

810

1465 1316

1679

1694 1385

2339 1929

226

261

351 261

631 473

867

690 520

1170

940

WATTS

1021

1395 1260

1674 1612

1982 1662 1349

2275 1877

686

765

766

CFM

212

240

341 240

512 455

614 646

870 673 510

1118

903

WATTS

1440 1325 1204

1728 1590 1449

1939 1629 1312

2450

2211

1824

632

961 720

961

CFM

198

351 219

331

608 492 438

725 590 526

850 657 500

1213 1067

867

WATTS

1381 1255 1148

1633 1506 1377

1897 1597 1276

2366 2147 1772

690 577

902 675

902

CFM

231 185

321 198

321

581 473 420

697 567 504

830 640 490

1165

1015

830

WATTS

1171

1273 1167 1069

1527 1400 1282

1813 1542 1235

2282 2083 1720

689 659 453

841 627

841

CFM

374 210 165

305 215

604 306

656 446 396

666 636 476

800 623 480

1117

963 793

WATTS

1080

1185 1079

1422 1296 1188

1728 1486

2198 2019 1667

593 487

751

781

990

CFM

361 188

290

486 280

530 419 372

636 602 447

770 607

1068

912 757

WATTS

1097

1317 1190 1093

1644 1431

2114 1955 1615

497

990 720

980

952 911

CFM

347

468 274

468

604 392 348

606 470 418

740 590

1020

860 720

WATTS

1004

1205 1063

1559 1336

1989 1854 1586

888 660

888

CFM

456 257

456

480

676 428

707 563

993 824 706

WATTS

1094

1474 1240

1864 1753 1557

CFM

786

912

444

456

547

673 537

967 788 691

WATTS

1389

1739 1652 1528

684

CFM

432

640

940 752 677

WATTS

CFM

WATTS

16 Unitary Products Group

Page 17

036-21311-003-A-0104

FIELD WIRING DIAGRAM

** = Minimum wire size of 18 AWG

wire should be used for all field

installed 24 volt wire.

PROGRAMMABLE

THERMOSTAT ONLY

* = Only required on units with

supplemental electric heat.

CAUTION: Label all wires prior to disconnection whenservicing controls. Wiring errors can

causeimproperand dangerousoperation.Verifyproperoperation afterservicing.

CONTROL WIRING

REFER TO ELECTRICAL DATA

TABLES TO SIZE THE DIS

CONNECT

THERMOSTAT

O O

UNIT TERMINAL STRIP

W 2

W 1

REFER TO ELECTRICAL DATA

NOTE: HEATANTICIPATOR SHOULD BE SET AT0.25 AMPS FOR ALL MODELS.

24 VOLTTRANSFORMER

TABLES TO SIZE THE DIS

CONNECT

POWER WIRING

ELECTRICAL DATA

VOLTAGE

MODEL

POWER SUP-

BHA

PLY

018 208/230-1-60 187 253 9.0 48.0 1.1 2.6 14.9 20 20 .96 40 024 208/230-1-60 187 253 11.2 60.0 1.1 2.6 17.7 25 25 .96 40 030 208/230-1-60 187 253 12.0 73.0 1.1 2.6 18.7 25 25 .96 40 036 208/230-1-60 187 253 17.3 94.0 1.1 3.5 26.2 35 35 .96 40 042 208/230-1-60 187 253 20.5 120.0 1.1 3.5 30.2 40 40 .96 40 048 208/230-1-60 187 253 24.4 140.0 1.5 4.0 36.0 50 50 .96 40 060 208/230-1-60 187 253 28.9 165.0 1.5 7.0 44.6 60 60 .96 40 036 208/230-3-60 187 253 10.9 78.0 1.1 3.5 18.2 25 25 .96 75 042 208/230-3-60 187 253 14.1 110.0 1.1 3.5 22.2 30 30 .96 75 048 208/230-3-60 187 253 14.1 105.0 1.5 4.0 23.1 30 30 .96 75 060 208/230-3-60 187 253 16.0 125.0 1.5 7.0 28.5 40 40 .96 75 036 460-3-60 414 504 5.8 40.0 0.6 1.8 9.6 15 15 .96 75 042 460-3-60 414 504 7.1 54.0 0.6 1.8 11.2 15 15 .96 75 048 460-3-60 414 504 7.1 55.0 0.8 2.0 11.7 15 15 .96 75 060 460-3-60 414 504 8.0 67.0 0.8 3.5 14.3 20 20 .96 75 036 575-3-60 518 630 4.5 32.0 0.4 1.5 7.6 15 15 .96 75 042 575-3-60 518 630 5.8 44.0 0.4 1.5 9.1 15 15 .96 75 048 575-3-60 518 630 5.6 44.0 0.6 1.6 9.3 15 15 .96 75 060 575-3-60 518 630 6.4 50.0 0.6 2.8 11.4 15 15 .96 75

= Rated in accordance with ARI Standard 110, utilization range “A”.

LIMITATIONS

MIN. MAX. RLA LRA

(BASIC UNIT)

COMPRESSOR

OUTDOOR

FAN

MOTOR,

FLA

= Dual element, time delay type.

SUPPLY

AIR

BLOWER

MOTOR,

FLA

MINIMUM

CIRCUIT

AMPACITY

MAX. FUSE SIZE,

AMPS

MAX.

HACR

BREAKER

SIZE,

AMPS

UNIT

POWER

FACTOR

TRANSFORMER

SIZE (VA)

Unitary Products Group 17

ELECTRIC HEAT

CORRECTION

FACTORS

NOMINAL VOLTAGE VOLTAGE

240 480 460 .92

600 575 .92

208 230

KW CAP. MULTI

PLIER

.75 .92

Page 18

ELECTRICAL DATA(HEATPUMP / ELECTRIC HEAT)

036-21311-003-A-0104

BHA

COMPRESSOR

POWER SUPPLY

RLA LRA MODEL NO.

OUTDOOR

FAN

MOTOR

FLA

MODEL

018 208/230-1-60 9.0 48.0 1.1 2.6

024 208/230-1-60 11.2 60.0 1.1 2.6

14.7 73.0 1.1 2.6

030 208/230-1-60

14.7 73.0 1.1 2.6

0.0 0.0 0.0 0.0 7.5/10.0 36.1/41.7 45.1/52.1 50/60 50/60

17.3 94.0 1.1 3.5

036 208/230-1-60

17.3 94.0 1.1 3.5

0.0 0.0 0.0 0.0 7.5/10.0 36.1/41.7 45.1/52.1 50/60 50/60

20.5 120.0 1.1 3.5

042 208/230-1-60

20.5 120.0 1.1 3.5

0.0 0.0 0.0 0.0 7.5/10.0 36.1/41.7 45.1/52.1 50/60 50/60

048 208/230-1-60 24.4 140.0 1.5 4.0

060 208/230-1-60 28.9 165.0 1.5 7.0

036 208/230-3-60 10.9 78.0 1.1 3.5

042 208/230-3-60 14.1 110.0 1.1 3.5

048 208/230-3-60 14.1 105.0 1.5 4.0

060 208/230-3-60 16.0 125.0 1.5 7.0

036 460-3-60 5.8 40.0 0.6 1.8

042 460-3-60 7.1 54.0 0.6 1.8

048 460-3-60 7.1 55.0 0.8 2.0

060 460-3-60 8.0 67.0 0.8 3.5

= Dual element, time delay type. * = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.

= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table at top of page for 460 volts.

over 60 amps where the heaters are separately fused. *** = KW listed is for 600 volts, use table at top of page for 575 volts.

SUPPLY

AIR

BLOWER

MOTOR,

FLA

ELECTRIC HEATACCESSORY

STAGE

2NH04500506 2NH0450070612

2NH04500506 2NH04500706 2NH04501006

2NH04500506 2NH04500706 2NH04501006 2NH04501506

2ND04501506 2 2NH04500506

2NH04500706 2NH04501006 2NH04501506

2ND04501506 2 2NH04500506

2NH04500706 2NH04501006 2NH04501506

2ND04501506 2 2NP04501006

2NP04501506 2NP04502006 2NX04502506

2NH04501006 2NH04501506 2NH04502006 2NH04502506

2NH04501025 2NH0450152511

2NP04501025 2NP04501525 2NP04502025 2NH04502525

2NH04501025 2NH04501525 2NH04502025 2NH04502525

2NH04501046 2NH0450154611

2NP04501046 2NH04501546 2NH04502046 2NH04502546

2NH04501046 2NH04501546 2NP04502046 2NP04502546

3.8/5.0 *

5.6/7.5 *

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

11.3/15.0 *

3.8/5.0 18.1/20.8 44.7/48.2 50/50 50/50

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

11.3/15.0 *

3.8/5.0 18.1/20.8 48.8/52.3 60/60 60/60

3.8/5.0 *

5.6/7.5 *

7.5/10.0 *

11.3/15.0 *

3.8/5.0 18.1/20.8 52.8/56.3 60/70 60/70

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

7.5/10.0 *

11.3/15.0 *

7.5/10.0 *

11.3/15.0 *

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

7.5/10.0 *

11.3/15.0 *

15.0/20.0 *

18.8/25.0 *

10.0 **

15.0 **

10.0 **

15.0 **

10.0 **

15.0 **

20.0 **

25.0 **

10.0 **

15.0 **

20.0 **

25.0 **

TOTAL

AMPS

18.1/20.8

27.1/31.3

18.1/20.8

27.1/31.3

36.1/41.7

18.1/20.8

27.3/31.3

36.1/41.7

54.2/62.5

18.1/20.8

27.1/31.3

36.1/41.7

54.2/62.5

18.1/20.8

27.1/31.3

36.1/41.7

54.2/62.5

36.1/41.7

54.2/62.5

72.2/83.3

90.3/104.2

36.1/41.7

54.2/62.5

72.2/83.3

90.3/104.2

20.8/24.1

31.3/36.1

20.8/24.1

31.3/36.1

20.8/24.1

31.3/36.1

41.7/48.1

52.1/60.1

20.8/24.1

31.3/36.1

41.7/48.1

52.1/60.1

12.8

18.0

12.0

18.0

12.0

18.0

24.1

30.1

12.0

18.0

24.1

30.1

MINIMUM

CIRCUIT

AMPACITY

37.5/41.0

48.8/54.0

40.7/44.2

52.0/57.2

63.3/70.2

44.7/48.2

56.0/61.2

67.3/74.2

89.8/100.3

48.8/52.3

60.1/65.3

71.4/78.3

93.9/104.4

52.8/56.3

64.1/69.3

75.4/82.3

97.9/108.4

81.1/88.1

103.7/114.1

126.3/140.2

148.8/166.2

89.8/96.7

112.3/122.8

134.9/148.8

157.5/174.8

44.3/48.3

57.3/63.3

48.3/57.3

61.3/67.3

49.2/53.2

62.2/68.2

75.3/83.3

88.3/98.3

54.6/58.6

67.6/73.6

80.7/88.7

93.7/103.7

24.6

32.2

26.2

33.8

26.7

34.2

41.7

49.3

29.4

36.9

44.4

51.9

MAX.

FUSE SIZE AMPS

40/45

50/60

45/50

60/60

70/80

50/50

60/70

70/80 90/110

60/60

70/70

80/80

100/110

60/70

70/80

80/90

100/110

90/100

110/125 150/150 150/175

100/110 125/125 150/150 175/175

45/50

60/70

50/60

70/70

50/60

70/70

80/90 90/100

60/60

70/80

90/90

100/110

25 35

30 35

30 35 45 50

30 40 45 60

MAX.

HACR

BREAKER

SIZE

40/45 50/60

45/50 60/60 70/80

50/50 60/70 70/80

90/110

60/60 70/70 80/80

100/110

60/70 70/80 80/90

100/110

90/100 110/125 150/150 150/175

100/110 125/125 150/150 175/175

45/50 60/70

50/60 70/70

50/60 70/70 80/90

90/100

60/60 70/80 90/90

100/110

25 35

30 35

30 35 45 50

30 40 45 60

18 Unitary Products Group

Page 19

036-21311-003-A-0104

ELECTRICAL DATA(HEATPUMP / ELECTRIC HEAT) (CONTINUED)

BHA

POWER SUPPLY

MODEL

COMPRESSOR

RLA LRA MODEL NO.

OUT

DOOR

FAN

MOTOR

FLA

036 575-3-60 4.5 32.0 0.4 1.5

042 575-3-60 5.8 44.0 0.4 1.5

048 575-3-60 5.6 44.0 0.6 1.6

060 575-3-60 6.4 50.0 0.6 2.8

= Dual element, time delay type. * = KW listed is for 240 volts, use table at top of page for 208 or 230 volts.

= Standard circuit breakers may be used in Canada and on applications ** = KW listed is for 480 volts, use table at top of page for 460 volts.

over60ampswhere theheatersareseparately fused. ***=KWlisted isfor600volts, use tableattopof pagefor575volts.

SUPPLY

AIR

BLOWER

MOTOR,

FLA

ELECTRIC HEATACCESSORY

STAGE

2NH04501058 2NH04501558

2NH04501058 2NH04501558 2NH04502058 2NH04502558

2NH04501058 2NH04501558

2NP04502058 2NP04502558

1 1

1 1 2 2

ELECTRIC HEAT

CORRECTION

FACTORS

MINIMUM

CIRCUIT

10.0 ***

15.0 ***

10.0 ***

15.0 ***

10.0 ***

15.0 ***

20.0 ***

25.0 ***

10.0 ***

15.0 ***

20.0 ***

25.0 ***

NOMINAL VOLTAGE VOLTAGE

TOTAL

AMPS

9.6

14.4

9.6

14.4

9.6

14.4

19.2

24.1

9.6

14.4

19.2

24.1

240 480 460 .92

600 575 .92

AMPAC

ITY

19.6

25.6

21.1

27.2

21.3

27.3

33.3

39.3

23.4

29.5

35.5

41.5

208 230

MAX.

FUSE SIZE

AMPS

KW CAP. MULTI

20 30

25 30

25 30 35 40

25 30 40 45

PLIER

.75 .92

HACR

BREAKER

MAX.

SIZE

20 30

25 30

25 30 35

25 30 40 45

Unitary Products Group 19

Page 20

UNIT DIMENSIONS

HIGH VOLTAGE CONN.

" DIA. KNOCKOUT

HIGH VOLTAGE CONN.

" DIA. KNOCKOUT

LOW VOLTAGE CONN.

“ DIA. KNOCKOUT

SIDE SUPPLY AIR OPENING

SIDE RETURN

AIR OPENING

LOW VOLTAGE

CONN.

“ DIA. KNOCKOUT

(OVERALL)

036-21311-003-A-0104

FRONT

“A”

(OVERALL)

FRONT

UNIT CONDENSATE

CONNECTION

(TRAP REQUIRED)

(OVERALL)

“ NPTI

COMPRESSOR

SERVICE ACCESS

COMPARTMENTPANEL

UNIT SIZE

018 - 042 048 - 060

CONNECTIONS

HIGH VOLTAGE CONN.

DIMENSION

“A”

REFRIGERANT

ELECTRICAL/FILTER

SERVICE ACCESS

COMPARTMENTPANEL

" DIA. KNOCKOUT

All dimensions are in inches. They are

HIGH VOLTAGE

CONN.

KNOCKOUT

OUTDOOR

COIL

BOTTOM SUPPLY

AIR OPENING

CONDENSATE

DRAIN

“ NPTI

“ x

" DIA.

subject to change without notice. Certified dimensions will be provided upon request.

SIDE SUPPLY AIR OPENING

BACK

SIDE RETURN AIR OPENING

20 Unitary Products Group

BOTTOM RETURN

AIR OPENING

Page 21

036-21311-003-A-0104

CENTER OF GRAVITY

FRONT

UNIT

CLEARANCES

UNIT CLEARANCES

(Minimum) Front 12" Back 0" Left Side (Filter Access) 24" Right Side 24" Below Unit

Above Unit

Units may be installed on combustible floors made from wood or class A, B or C roof covering material.

Units must be installed outdoors. Overhanging structures or shrubs should not obstruct outdoor air discharge outlet.

0" 36" (For Condenser

Air Discharge)

BHA

UNIT

SIZE

SHIPPING

WEIGHT

OPERATING

WEIGHT

CORNER WEIGHTS

ABCD

018 350 345 103 92 73 82 024 350 345 95 92 80 83 030 360 355 98 94 82 85 036 367 362 100 96 84 87 042 394 389 107 103 90 93 048 445 440 121 117 102 105 060 490 485 133 129 112 116

MINIMUM CLEARANCE OF 1" ALL SIDES FOR THE FIRST 3' OF DUCT FOR 20 & 25 kW. ZERO INCHES THEREAFTER, FOR ALL OTHER HEATERS, ZERO INCH CLEARANCE ALL SIDES FOR ENTIRE LENGTH OF DUCT.

NOTE:FOR UNITS APPLIED WITH A ROOF CURB, THE MINIMUM CLEARANCE MAY BE REDUCED FROM 1 INCH TO 1/2 INCH BETWEEN COMBUSTIBLE ROOF CURB MATERIAL AND THE SUPPLY DUCT.

FLEXIBLE DUCT COLLAR

Unitary Products Group 21

Page 22

TYPICAL APPLICATIONS

TYPICAL SLAB ON GROUND INSTALLATION

SUPPLYAIR

DUCT

RETURN AIR

DUCT

FIELD SUPPLIED

DISCONNECT SWITCH

LOCATED TO REAR OF UNIT

TO POWER SUPPLY

CONTROL WIRING

TO INDOOR

THERMOSTAT

036-21311-003-A-0104

FIELD SUPPLIED

DISCONNECT SWITCH

MOUNTED ON UNIT

TO POWER SUPPLY

ROOF CURB

INSTALLATION

REAR DUCT

TYPICAL ROOF CURB INSTALLATION

CONTROL WIRING

TO INDOOR THERMOSTAT

ROOF CURB

INSTALLATION

BOTTOM DUCT

SUPPLYAIR

DUCT

RETURN AIR

DUCT

22 Unitary Products Group

SLAB ON GROUND

INSTALLATION

Page 23

036-21311-003-A-0104

ROOF CURB DIMENSIONS

(8" roof curb also available)

FRONT

INSULATED

PANELS

SUPPLYAIR DUCT

RETURN AIR DUCT

OPENING FOR

RETURN AIR DUCT

RECOMMENDED DUCT SIZE

OPENING FOR

SUPPLYAIR DUCT

WOOD NAILER

" x

ROOF CURB APPLICATION

" x 1" WIDE GASKETING FOR CURB FRAME

AND ALL DUCT SUPPORTSURFACES

UNIT BASE

WOOD NAILER

8" MIN. ABOVE FINISHED ROOF

CURB FRAME

INSULATION

Unitary Products Group 23

14"

UNIT BASE RAIL

COUNTERFLASHING

CANT STRIP

INSULATION AND ROOFING MATERIAL

ROOF DECK AND ROOFING MATERIAL

Page 24

TYPICAL WIRING DIAGRAM (208/230-1-60 POWER SUPPLY)

POWER SUPPLY 208/230-1-60 USE COPPER CONDUCTORS ONLY

SECONDARY POWER SUPPLY FOR DUAL POINT ELEC HEAT 208/230-1-60 USE COPPER CONDUCTORS ONLY

(HTR5)

(HTR4)

(HTR3)

(HTR2)

(M1)

705/PR

708/PR

716/PR

713/PR

710/PR

(K6)

(K4)

(K5)

(K3)

(M1)

714/BK

706/BK

711/BK

703/BK

709/BK

DUAL POINT ELECTRIC HEAT (SEE NOTE 9)

DETAIL A

FOR DUAL POINT ELECTRIC HEAT POWER SUPPLY SEE DETAIL A

036-21311-003-A-0104

FOR DEFROST CONTROL 031-09104-000A SEE DETAIL C

DEFROST CONTROL 031-01268-000B

SEE

DETAIL

"B"

SECONDARY POWER SUPPLY FOR DUAL POINT ELEC HEAT 208/230-1-60 USE COPPER CONDUCTORS ONLY

POWER SUPPLY

711/BK

714/BK

208/230-1-60 USE COPPER CONDUCTORS ONLY

(HTR2) (HTR3)

(HTR4) (HTR5)

(M1)

(K3) (K5)

(K4) (K6)

DETAIL A

709/BK

703/BK

706/BK

24 Unitary Products Group

DUAL POINT ELECTRIC HEAT (SEE NOTE 9)

710/PR

705/PR

713/PR

708/PR

716/PR

OPTIONAL CCH

S / P CONFIGURATION

CCH

BLK

D / P CONFIGURATION

CCH

M1-2

BLK

DETAIL C

BLU

222/Y

DFST

STAT

BLU

COMPR RELAY

DETAIL B

Page 25

036-21311-003-A-0104

TYPICAL WIRING DIAGRAM (230-3-60 POWER SUPPLY)

DETAIL A

222/Y

COMPR RELAY

FOR DEFROST CONTROL 031-09104-000A SEE DETAIL A

DEFROST CONTROL 031-01268-000B

BLU

DFST STAT

Unitary Products Group 25

Page 26

TYPICAL WIRING DIAGRAM (460-3-60 & 575-3-60 POWER SUPPLY)

036-21311-003-A-0104

B L U

2 2 1 / B R

E L E M E N T A R Y D I A G R A M

G N D

U S E C O P P E R

L U G

C O N D U C T O R S O N L Y

P O W E R S U P P L Y W / E L E C H E A T 4 6 0 - 3 - 6 0 O R 5 7 5 - 3 - 6 0

( S E E D E T A )

I O F A N M O T O R

B R N

P R P

2 2 3 / B R

F O R D E F R O S T C O N T R O L 0 3 1 - 0 9 1 0 4 - 0 0 0 A S E E D E T A I L B

2 0 3 / B R

F S

8 0 3

/ B K

D S

B L U

R V S

2 2 0 / O

R C 3

M 3

D S

M 1

8 0 4 / B K

H P

2 1 9 / B K S E E N O T E 7

R V S

1 2 0 / Y

S E E N O T E 6

1 3 0 / P R

B L U

2 2 2 / Y

L P

8 0 2

/ B K

2 2 0 / O

2 2 1 / B R

2 0 3 / B R

2 0 1 / B R

B L U

8 0 5 / B L

2 0 2 / Y

2 1 3 / R

R V

L 3

D F S T S T A T

P R E S S S W I T C H

C O M P R R E L A Y

L 2

K 3

C O N D F A N

D E F R O S T C O N T R O L 0 3 1 - 0 1 2 6 8 - 0 0 0 B

D E F

L 1

8 1 3 / B R

8 1 4 / Y

T 'S T A T

D E F

P O W E R S U P P L Y W / O U T E L E C H E A T 4 6 0 - 3 - 6 0 O R 5 7 5 - 3 - 6 0

7 0 9 / R

7 1 1 / P R

7 1 0 / O

B L K

7 0 6 / P R

7 0 7 / 0

7 1 3 / P R

2 2 4 / R

2 1 8 / Y

2 1 5 / O

2 1 7 / G Y

2 1 6 / W

W 1

T 1

7 0 3 / R

7 1 7 / R

7 1 9 / 0

P 3

M 2 - 1

C C H

2 0 7 / B R

S 3

2 0 5 / R

F 2 4

1 1 0 / O

7 4

9 6

M 1 - 1

L 1

M 1 - 2

L 2

M 1 - 3

L 3

L 1

B L K

K 3 - 1

K 3 - 2

K 3 - 3

K 4 - 1

K 4 - 2

K 4 - 3

2 1 3 / R

M 2

L 2

L 21

H 1

L 1

R Y G

T 1

T 2

T 3

7 0 4 / B K

7 0 5 / B L

7 0 8 / Y

7 1 8 / B K

7 1 2 / B L

7 2 0 / Y

2 0 8 / P R

K 1

L 1

2 0 9 \ R

K 2

C O N T R O L L O G I C

1 1 4 / B K

H T R

W 2

L 1

1 0 5 / B L

H T R

W 1

1 2 1 / B K

1 2 3 / B L

L 2

1 2 6 / Y

M 3 - 1

T 1

H T R

C B

2 0 6 / B R

F A N C O N T R O L B O A R D

L H

F L

H 4

H 3

H 2

K 1

O C

L 1

C O M P R

L 3

B L K

R C 2

0 0 F A N M O T O R

B R N

P R P

M 1

D F S T S T A T

C O M P R R E L A Y

D E T A I L B

1 0 9 / B K

T 1

2 1 2

/ R

2 4 V

S 2

P 2

8 0 9 / O

8 0 8 / B R

8 1 0 / B L

T B 1

T H 2

L S

K 4

O N

F A N

A U T O

T H 1 / T C 1

T C 1 T H 1

E M H T ( R E D )

1 0 8 / P R

4 8 0 O R 6 0 0 2 1 4 / B R

2 0 4 / B R S E E N O T E 8

8 1 1 / 0

R O O M T H E R M O S T A T

C O O L

A N T

O F F

H E A T

E M H T

T H 2 A N T

8 D

7 E

1 1 D , 1 4 D , 1 5 D

2 1 D , 2 4 D

4 D , 5 D , 6 D

26 Unitary Products Group

Page 27

036-21311-003-A-0104

TYPICAL WIRING DIAGRAM NOTES (See pages 24, 25 and 26)

CB CCH

COMPR COMPRESSOR

DS DEFROST SENSOR, CLOSES @ 31ºF, OPENS @ 55ºF F3,F2,F3 F4,F5,F6 F7,F8,F9 F24 FS HP

HTR 1 HTR 2 HTR 3 HTR 4 ELECTRIC HEATER (OPT. ACCSSRY: 15, 20, & 25 KW ELEC HEAT) HTR 5 ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT) HTR 6 ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)

K1 K2

K3 K7

PTCR START ASSIST (OPTIONAL DEVICE)

RC1/RC2

RC1

RC2

RC3

RVS S2/P2 S3/P3

S4/P4

S3/P3 T1 TB2

CIRCUIT BREAKER 24V, 3 AMP

CRANKCASE HEATER (OPTIONAL)

FUSES, LINE VOLTAGE - 60 AMP (10, 15, 20 & 25 KW ELEC HEAT) FUSES, LINE VOLTAGE - 30 AMP (10, 15, 20 & 25 KW ELEC HEAT) FUSES, LINE VOLTAGE - 30 AMP (20 & 25 KW ELEC HEAT) FUSE 24V SECONDARY, 5 AMP FREEZESTAT SWITCH (OPTIONAL ACCESSORY) OPENS @ 26ºF HIGH PRESSURE SWITCH (OPTIONAL ACCESSORY) OPENS @ 380 PSIG ELECTRIC HEATER (OPT. ACCSSRY: ALL KW ELEC HEAT) ELECTRIC HEATER (OPT. ACCSSRY: 7.5, 10, 15, 20 & 25 KW ELEC HEAT) ELECTRIC HEATER (OPT. ACCSSRY: 20 & 25 KW ELEC HEAT)

RELAY INDOOR FAN MOTOR RELAY ELECTRIC HEATER RELAY ELECTRIC HEATER, 24V DC COIL RELAY LIMIT TRIP, 24V DC COIL LOW PRESSURE SWITCH (OPTIONAL ACCESSORY) OPEN @ 7 PSIG LIMIT SWITCH, ELECTRIC HEAT (PART OF ELEC HEAT ACCESSORY) CONTACTOR, COMPRESSOR & OUTDOOR FAN CONTACTOR, ELECTRIC HEAT, 230V COIL CONTACTOR, ELECTRIC HEAT, 230V COIL

COMPRESSOR START & OUTDOOR FAN RUN CAPACITOR COMPRESSOR START CAPACITOR (ALTERNATE) OUTDOOR FAN RUN CAPACITOR (ALTERNATE) INDOOR FAN RUN CAPACITOR REVERSING VALVE SOLENOID SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LOW VOLTAGE

SOCKET/PLUG CONNECTION ON FAN CONTROL BOARD, LINE VOLTAGE

SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 24V

SOCKET/PLUG CONNECTION ON ID FAN MOTOR, 230V TRANSFORMER, 24V, 40 VA TERMINAL BLOCK ECM MOTOR "SPEED" CONNECTIONS

IDENTIFIED TERMINAL ON RUN CAPACITOR ROOM THERMOSTAT 24V CONNECTIONS TB1 ON FAN/ELEC HEAT CONTROL BOARD

FACTORY WIRING AND DEVICES

OPTIONAL WIRING AND DEVICES

FIELD WIRING

TYPICAL WIRING DIAGRAM LEGEND (See pages 24, 25 and 26)

Unitary Products Group 27

Page 28

MECHANICAL SPECIFICATIONS

GENERAL DESCRIPTION

036-21311-003-A-0104

INDOOR (SUPPLY) FAN ASSEMBLY

Units shall be factory-assembled, single packaged, Heat Pumps,designedfor outdoor mountedinstallation.Units shall have minimum SEER ratings of 10.0. They shall have built in, equal size, field convertible duct connections for down dis charge supply/return or horizontal discharge supply/return.

The units shall be factory wired, piped,charged with R-22 re frigerant and factory tested prior to shipment. All unit wiring shall be both numbered and color coded.

All units shall be manufactured in a facility certified to ISO 9001standards,and thecoolingperformance shallbe rated in accordancewith DOEand ARI testprocedures. Units shallbe certified to UL 1995/CAN/CSA C22.2 No. 236 standards.

UNIT CABINET

1. Unitcabinet shall beconstructed of G90 galvanized steel, with exterior surfaces coated with a non-chalking, pow ered paint finish, certified at 750 hours salt spraytest per ASTM-B117 standards.

2. The unit top shallbe asingle piece “Water Shed” design, with drip edges and no-seam cornersto provide optimum water integrity.

3. Unitshall havea rigidlymounted condensercoil guardto provideprotection from objectsand personnelafter installation.

1. Fanshall bedirect drive, multi-speeddesign. Job sitese lected (BHP) brake horse power shall not exceed the mo

tors nameplate horse power rating.

2. Fan wheel shall be double-inlet type with forward-curved blades, dynamically balanced to operate smoothly

throughout the entire range of operation. Airflow design shall be constant air volume.

3. Bearings shall be sealed and permanently lubricated for longer life and no maintenance.

4. Fan assembly shall be “Slip Track” (slide-out) design for easy removal and cleaning.

OUTDOOR FAN ASSEMBLY

1. The outdoor fan shall be of the direct-driven propeller

type, discharge air vertically, have aluminum blades riv

eted to corrosion resistant steel spider bracket and shall be statically balanced for smooth operation.

2. The outdoor fan motor shall be totally enclosed withper

manently lubricated bearings and internally protected against overload conditions.

REFRIGERANT COMPONENTS

1. Compressors:

4. Indoor blower section shall be insulated with up to 3/4” thick, aluminum, foil facedinsulation, fastened toprevent insulation from entering the air stream.

5. Cabinetpanels shallbe “large”size, easilyremovable for servicing and maintenance, with built-in lift handles.

6. Unit shall be built on a formed, “Super-Structure” design base pan, with embossments at critical points to add strength, rigidity and aid in minimizing sound.

7. Full perimeter base rails shall be provided to assure reli able transit of equipment, overhead rigging, fork truckac cess and proper sealing on roof curb applications. Base rails shall be removable, when required, to lower unit height.

8. Filtersshall befurnished andbe accessiblethrough are movableaccess door,sealedairtight. (Singlephase mod els - accessory kit available. Three phase models standard from factory.)

9. Units vertical discharge and return duct configuration shallbe designed to fit between standard 24” O.C. beams without modification to building structure, duct work and base unit.

10.Condensate pan shall beinternally sloped and conform to ASHRAE 62-89 self-draining standards, with

“ NPTI

copper, ridged mount connection.

A. Shall befully hermetic type, direct drive,internally pro-

tected with internal high-pressure relief and overtemperature protection. The hermetic motor shall be suction gas cooled andhave avoltage rangeof +or 10% of the unit nameplate voltage.

B. Shall have internal isolation and sound muffling to

minimize vibration and noise, and be externally iso

lated on a dedicated, independent mounting.

2. Coils:

A. Evaporator and condensercoils shallhave aluminum

platefinsmechanically bondedto seamlessinternallyenhanced copper tubes with all joints brazed.

B. Evaporator and Condensercoils shallbe ofthe direct

expansion, blow-thru design.

3. Refrigerant Circuit and Refrigerant Safety Components shall include:

A. Independent fixed-orifice expansion devices. B. Filter/strainer to eliminate any foreign matter. C.Accessible service gage connections on both suction

and discharge lines to charge, evacuate, and meas ure refrigerant pressure duringany necessaryservic

ing or troubleshooting, without losing charge and without disrupting condenser or evaporator air flow.

D.The refrigeration system shall provideat least 10° F of

liquid sub-cooling at design conditions.

E. Unit shall have a suction line accumulator and auto

matic reversing valve.

28 Unitary Products Group

Page 29

036-21311-003-A-0104

4. Unit Controls: A. Unit shall containa large,low voltageTerminalBoard

for easy connection of field low voltage wiring.

B. Controls shall be mounted in a large control box with

tilt-out, hinged access door, allowing easy access for trouble shooting and maintenance without affecting the normal system operation pressures.

C.Unit shall contain a reliable time-temperature defrost

control to provide defrost, including field selectable time periods between cycles (30, 60 and 90minutes), factorysetat 60minutes. Thedefrostcontrol shallalso have an “X” terminal to provide a 24 volt signal for room thermostat “LED” indicationof unit lockout,plus built in 5 minute anti-short cycle protection.

D.Unit shall have large,easily removable panels, cover

ing electrical controls and compressor, allowing easy access for any necessary maintenance or servicing.

ELECTRIC HEATING SECTION

1. An electric heating section, with nickel chromium ele

ments,shall be provided in a range of 5 thru 25 KW, offer ing two stages of capacity-7KWandabove on single phaseheaters, and one 20KW and above onthree phase heaters.

2. The heating section shall have a primary limit control(s) and automatic reset, to prevent the heating elementsys

tem from operating at an excessive temperature.

3. Theheating section assembly shall slide outof the unit for easy maintenance and service.

4. Unitswithelectricheating sections shallbe wiredfor asin

gle point power supply, with branch circuit fusing (where required).

UNIT OPERATING CHARACTERISTICS

1. Unitshallbe capable of starting andrunning at 125°F out

door temperature, exceeding maximum load criteria of

ARI Standard 210/240.

2. The compressor,with standard controls, shall be capable of operation down to 45° F outdoor temperature.

ELECTRICAL REQUIREMENTS

Allunit power wiring shall enter unitcabinet at a single factory provided location and be capable of side or bottom entry, to minimize roof penetrations andavoid unit fieldmodifications. Separate side and bottomopenings shallbe providedfor the control wiring.

Unitary Products Group 29

Page 30

036-21311-003-A-0104

30 Unitary Products Group

Page 31

036-21311-003-A-0104

Unitary Products Group 31

Page 32

Unitary Products Group 5005 York Drive, Norman, Oklahoma 73069 Subject to change without notice. Printed in U.S.A.

Supersedes: 036-21311-002-A-0703

036-21311-003-A-0104
