Yokogawa DX1002N, DX1004, DX1004N, DX1012N, DX1006N User Manual

User’s
Manual

Models DX1002/DX1004/DX1006/DX1012/

DX1002N/DX1004N/DX1006N/DX1012N

Daqstation DX1000/DX1000N
Operation Guide

IM 04L41B01-02E

6th Edition

PRS 108-02E

User Registration

Thank you for purchasing YOKOGAWA products.

We invite you to register your products in order to receive the most up to date product
information. To register, visit the following URL.

http://www.yokogawa.com/ns/reg/

1

IM 04L41B01-02E

Contents

Safety Precautions .....................................................................................................................................................4

Handling Precautions of the DX .................................................................................................................................5

Handling Precautions of the External Storage Medium (CF Card) ............................................................................5

Checking the Contents of the Package ......................................................................................................

...............5

Style number, release number

, and rmware version number of the DX ..................................................................6

Protection of Environment ......................................................................................................

...................................7

Conventions Used in This Manual ......................................................................................................

.......................7

Opening the Electronic Manuals ................................................................................................................................7

Revision History .........................................................................................................................................................7

Introduction to Functions .............................................................................................................................................8

Measured Items

......................................................................................................

...................................................8

Data Storage Function .......................................................................................................

........................................8

Display Function ........................................................................................................................................................8

Other Functions

......................................................................................................

...................................................8

DAQSTANDARD

........................................................................................................................................................8

DX System Conguration ..........................................................................................................................................9

T

erminology ......................................................................................................

.........................................................9

Names of Parts ............................................................................................................................................................10

DX1000/DX1000N Workow

........................................................................................................................................12

Turning the Power ON/OFF (DX1002, DX1004, DX1006, and DX1012 Only) ...........................................................13

Turning the Power ON ......................................................................................................

.......................................13

Turning the Power OFF

...........................................................................................................................................13

Basic Operation ...........................................................................................................................................................14

Panel Keys .......................................................................................................

........................................................14

Display ......................................................................................................

...............................................................14

Display on the Status Display Section .....................................................................................................................15

Run Modes ..............................................................................................................................................................16

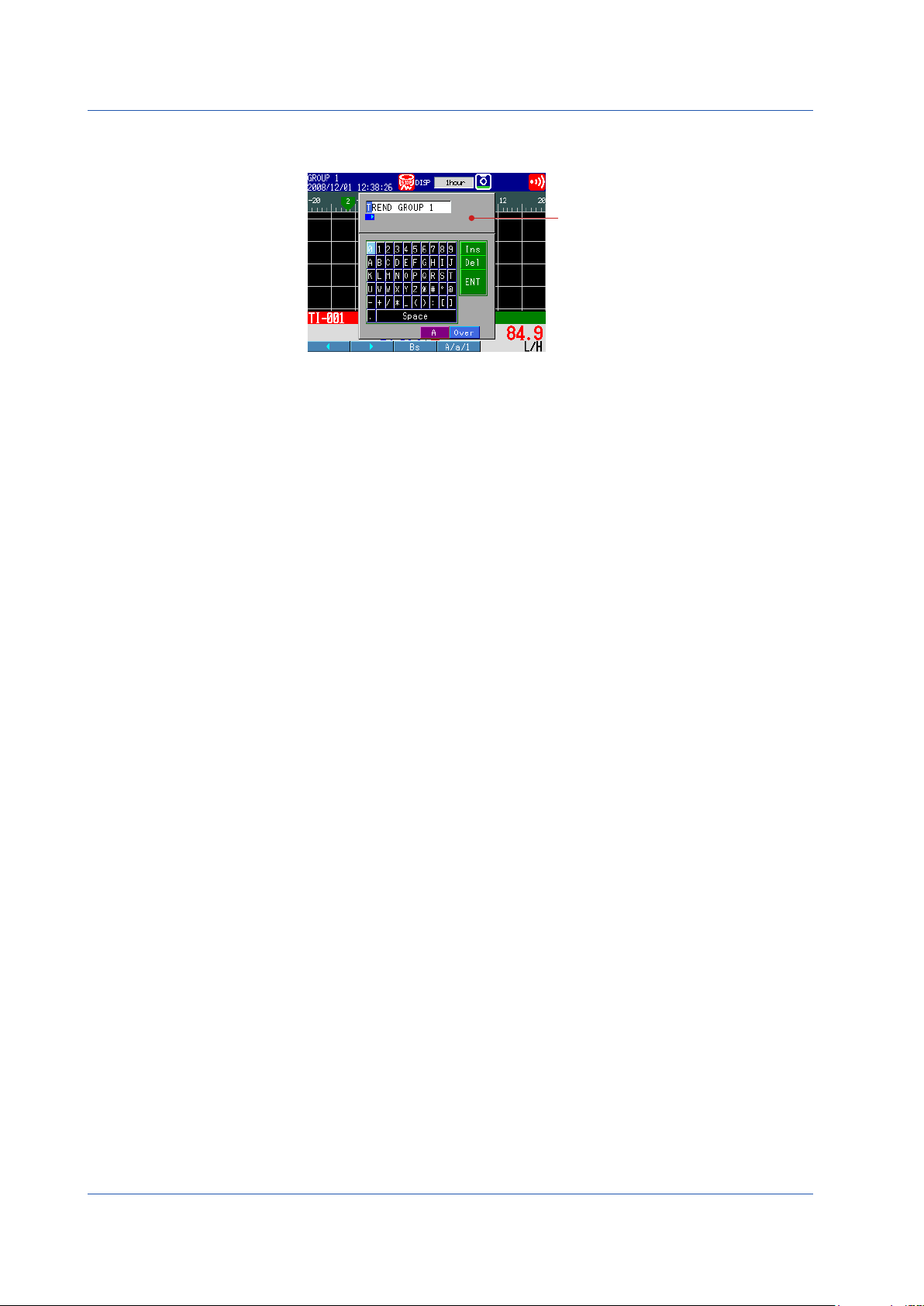

Entering V

alues and Characters ......................................................................................................

........................17

Changing the Date/Time

..........................................................................................................................................18

Operation Example in the Setting Mode: Changing the Input Range ......................................................................19

Operation Example in the Basic Setting Mode: Changing the Scan Interval ...........................................................

22

Inserting/Removing a CF Card ......................................................................................................

..........................24

Saving the Setup Data .............................................................................................................................................26

Loading the Setup Data ...........................................................................................................................................27

Setting the Input Range and

Alarm ............................................................................................................................

28

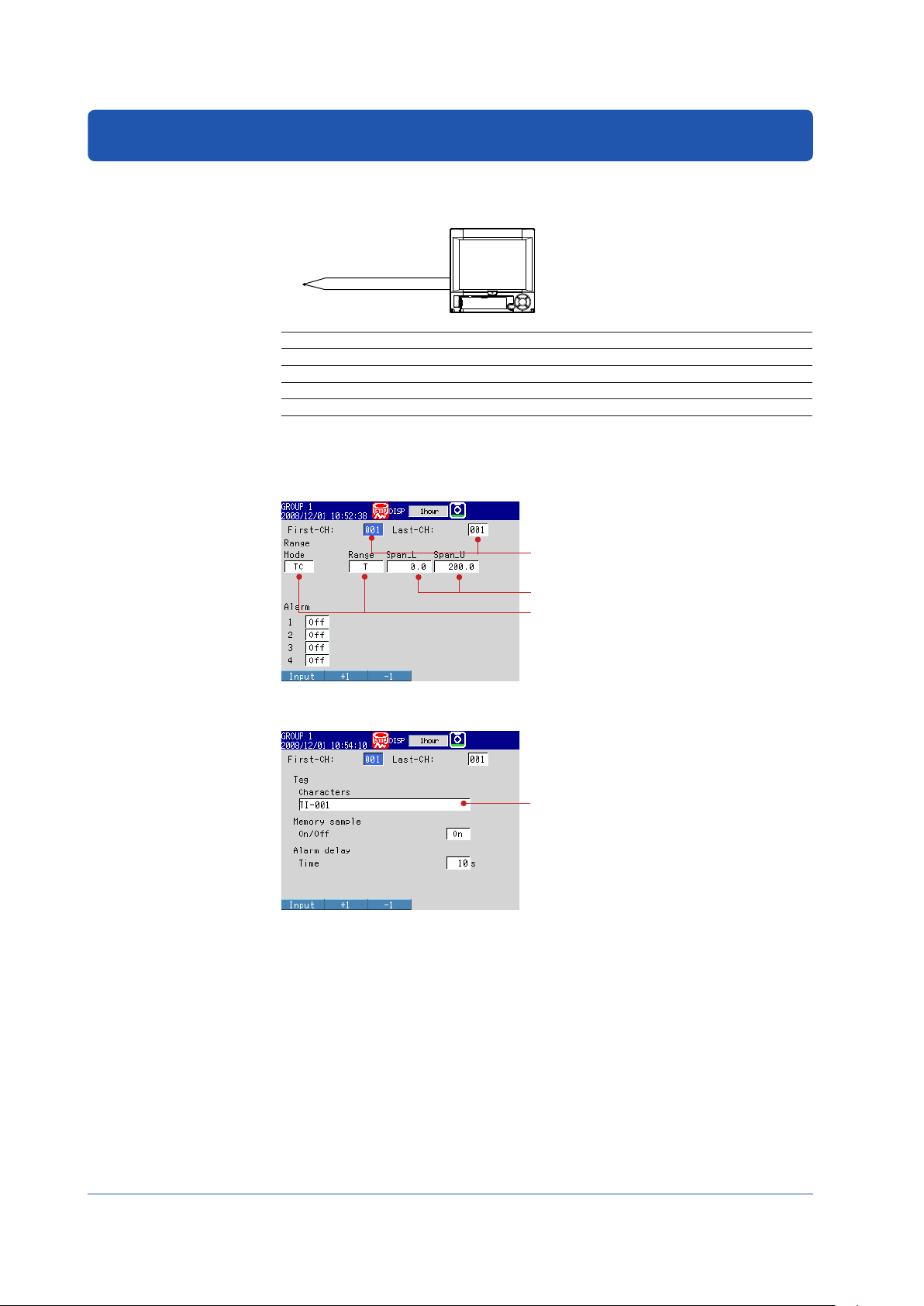

Setup Example 1: Temperature Measurement Channel ..........................................................................................28

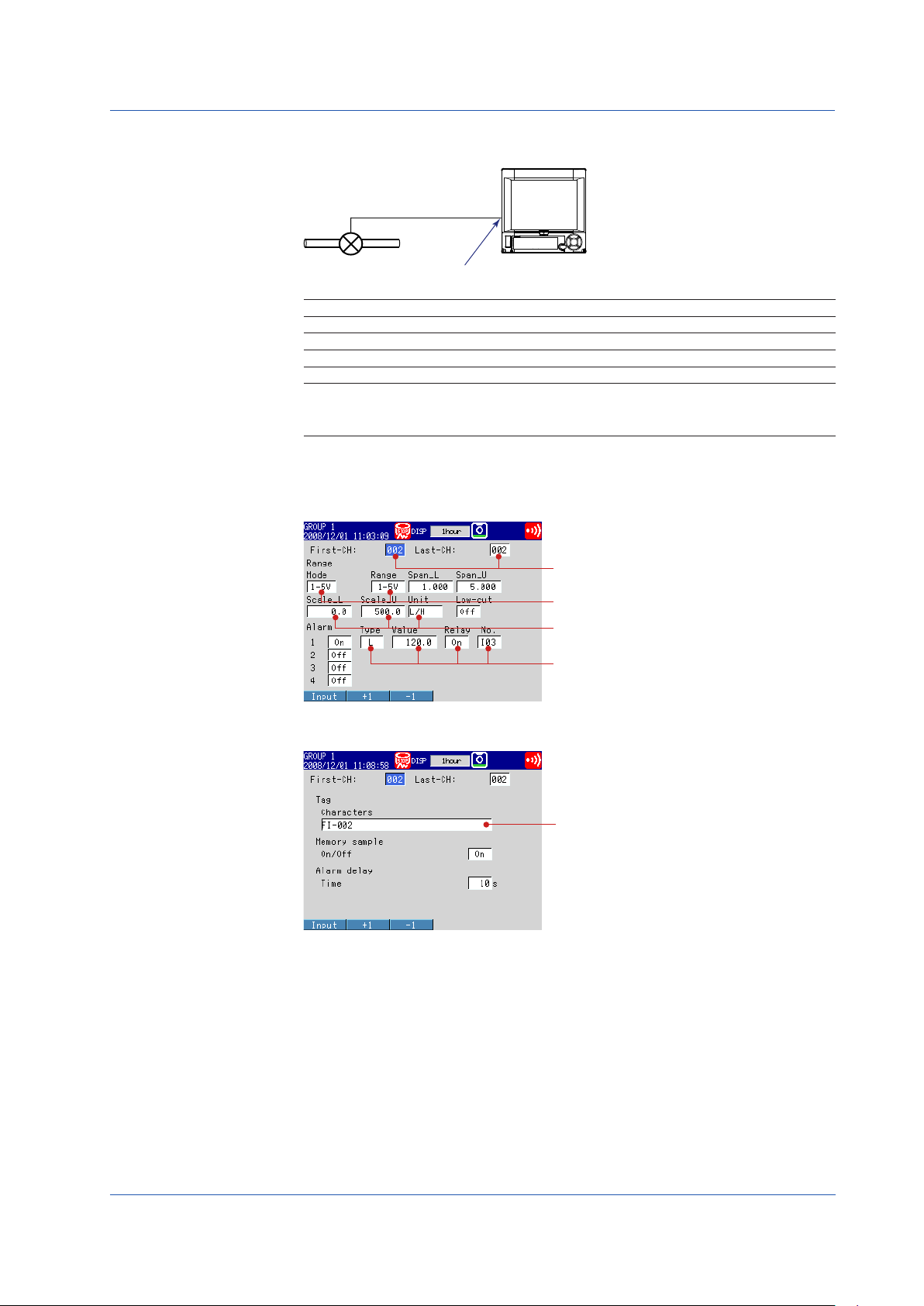

Setup Example 2: Flow Rate Measurement Channel and Alarm .............................................................................29

Setting the Display ......................................................................................................................................................30

Setup Example 3: Assigning Channels to Groups ...................................................................................................30

Setup Example 4: Setting the Time Scale ......................................................................................................

.........31

Setting the Data Storage .............................................................................................................................................32

Setup Example 5: Continuously Record Measured Data and

Automatically Save ..................................................32

Setup Example 6: Saving Measured Data at the Specied Time ............................................................................35

Customizing the Operation .........................................................................................................................................36

Setup Example 7: Assigning the Screen Image Data Storage Function to the USER Key .....................................36

Setup Example 8: Registering Frequently Used Screens to the Favorite Key ........................................................37

2

IM 04L41B01-02E

Contents

Daqstation DX1000/DX1000N User’s Manual (Electronic Manual Provided on the Accompanying CD)

Chapter 1 Overview of Functions
Chapter 2 Common Operations
Chapter 3 Measurement Channels and

Alarms
Chapter 4 Switching Operation Screens
Chapter 5 Operations for Changing the Displayed Contents
Chapter 6 Saving and Loading Data
Chapter 7 Customizing the Action

Using the Event Action and Remote Control Functions (/R1 and /PM1 Options)
Chapter 8 Using the Security Function
Chapter 9 Computation and Report Functions (/M1 and /PM1 Options)
Chapter 10

Troubleshooting

Chapter 11 Maintenance

Chapter 12 Specications

Daqstation DX1000/DX1000N/DX2000 Communication Interface User’s Manual
(Electronic Manual Provided on the Accompanying CD)

Chapter 1

Using the Ethernet Interface
Chapter 2 Using the Serial Interface
Chapter 3 Commands
Chapter 4

Responses
Chapter 5 Status Reports

Chapter 6 Specications

Operation ......................................................................................................................................................................39

Starting the Memory Sample ...................................................................................................................................39

Stopping the Memory Sample .................................................................................................................................39

Switching the

T

rend Display, Digital Display, and Bar Graph Display ......................................................................40

Writing the Message “START” ......................................................................................................

...........................41

Connecting to an Ethernet Network ..........................................................................................................................43

Setup Example 9: Monitoring the DX on a PC Browser ..........................................................................................

43

Setup Example 10: Automatically Transferring the Measured Data File to an FTP Server .....................................46

Using DAQSTANDARD ................................................................................................................................................48

Displaying the Measured Data on DAQSTANDARD ...............................................................................................48

Installation and Wiring ................................................................................................................................................49

Installation Location ......................................................................................................

...........................................49

Installation Procedure ..............................................................................................................................................50

Input Signal Wiring ...................................................................................................................................................52

Optional

Terminal Wiring ..........................................................................................................................................55

Alarm Output T

erminal, FAIL Output Terminal, and Status Output Terminal (/A1, /A2, /A3, and /F1) ................58

Remote Control Input Terminal (/R1) ......................................................................................................

...........58

Pulse Input T

erminal (/PM1) ...............................................................................................................................58

24 VDC T

ransmitter Power Supply Output Terminal (/TPS2 and /TPS4) ...........................................................58

Serial Interface .......................................................................................................

..................................................58

Connecting to the USB Port (/USB1) .......................................................................................................................59

Connecting to the Ethernet Port ..............................................................................................................................59

Power Supply Wiring ...............................................................................................................................................60

Recommended Replacement Periods for W

orn Parts

.............................................................................................62

Setup Items and Default Values .................................................................................................................................63

Setup Items in Setting Mode and Their Default Values ...........................................................................................65

Setup Items in Basic Setting Mode and Their Default Values ..................................................................................77

3

IM 04L41B01-02E

Thank you for purchasing the Daqstation DX1000/DX1000N
(DX).This manual describes the basic functions and operating
procedures of the DX1000/DX1000N.To ensure correct use,
please read this manual thoroughly before operation.The following
manuals are provided as DX1000/DX1000N manuals.

Paper Manual

Manual Title Manual No.

DX1000/DX1000N Operation Guide IM 04L41B01-02E

This manual. It is also provided in the CD.

Control of Pollution Caused by the Product IM 04L41B01-91C

Gives a description of pollution control.

Electronic Manuals Provided on the Accompanying CD

Manual Title Manual No.

DX1000/DX1000N Operation Guide IM 04L41B01-02E

This is the electronic version of the paper manual.

DX1000/DX1000N User’s Manual IM 04L41B01-01E

Describes how to use the convenient functions of the
DX1000.The communication and network functions, custom

display functions, and some of the options are excluded.
DX1000/DX1000N/DX2000 IM 04L41B01-03E
Multi Batch (/BT2) User’s Manual

Describes how to use the multi batch function (/BT2 option

).

DX1000/DX1000N/DX2000 Custom IM 04L41B01-04E
Display User’s Manual

Describes how to use the custom display function.
DX1000/DX1000N/DX2000 Advanced
Security (/AS1) User’s Manual

IM 04L41B01-05EN

Describes how to use the advanced security function

(/AS1 option).
DX1000/DX1000N/DX2000 IM 04L41B01-17E
Communication Interface User’s Manual

Describes how to use the communication functions using the

Ethernet and serial interfaces.
DX1000/DX1000N/DX2000 IM 04L41B01-18E
EtherNet/IP Communication Interface User’s Manual

Describes how to use communication functions through the

EtherNet/IP interface.
DX1000/DX1000N/DX2000 IM 04L41B01-19E
PROFIBUS-DP (/CP1) Communication Interface User’s Manual

Describes how to use communication functions through the

PROFIBUS-DP interface (/CP1 option).

DAQST

ANDARD Manuals

All manuals other than IM 04L41B01-66EN are contained in the
DAQSTANDARD CD.

Manual Title Manual No.

DAQSTANDARD Viewer User’s Manual IM 04L41B01-63EN
DAQSTANDARD Hardware Configurator
User’s Manual

IM 04L41B01-64EN

DAQSTANDARD DX-P Hardware
Configurator User’s Manual

IM 04L41B01-65EN

Installing DAQSTANDARD IM 04L41B01-66EN

Notes

• The contents of this manual are subject to change without prior
notice as a result of continuing improvements to the instrument’s
performance and functions.

•

Every effort has been made in the preparation of this manual to

ensure the accuracy of its contents. However, should you have
any questions or find any errors, please contact your nearest
YOKOGA

WA dealer.

•

Copying or reproducing all or any part of the contents of this

manual without YOKOGAW

A’s permission is strictly prohibited.

• The TCP/IP software of this product and the document
concerning the

TCP/IP software have been developed/created
by YOKOGAWA based on the BSD Networking Software,
Release 1 that has been licensed from the Regents of the
University of California.

Revisions

1st Edition: December 2005
2nd Edition: October 2006
3rd Edition: April 2007

4th Edition: December 2007

5th Edition: November 2008
6th Edition: March 2010

Trademarks

• vigilantplant, DAQSTATION, Daqstation, and DXAdvanced are
registered trademarks of Yokogawa Electric Corporation.

• Microsoft and Windows are registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other
countries.

• Adobe and

Acrobat are registered trademarks or trademarks of

Adobe Systems Incorporated.

• Kerberos is a trademark of the Massachusetts Institute of
Technology (MIT).

• Company and product names that appear in this manual are
registered trademarks or trademarks of their respective holders.

• The company and product names used in this manual are not
accompanied by the registered trademark or trademark symbols
(® and ™).

6th Edition: March 2010 (YK)
All Rights Reserved, Copyright © 2005, Yokogawa Electric Corporation

4

IM 04L41B01-02E

Safety Precautions

This instrument conforms to IEC safety class I (provided with
terminal for protective grounding), Installation Category II, and
EN61326-1 (EMC standard), Measurement Category II (CAT II)*.
*

Measurement category II (CAT II) applies to measuring circuits

connected to low voltage installation, and electrical instruments
supplied with power from fixed equipment such as electric
switchboards.

This instrument is an EN61326-1 (EMC standard) class

A
instrument (for use in commercial, industrial, or business
environments).
The general safety precautions described here must be observed
during all phases of operation. If the DX is used in a manner not
described in this manual, the DX safety features may be impaired.
Yokogawa Electric Corporation assumes no liability for the
customer’s failure to comply with these requirements.
The DX is designed for indoor use.

•

About This Manual

• Please pass this manual to the end user. W

e also ask you to

store this manual in a safe place.

• Read this manual thoroughly and have a clear understanding of

the product before operation.

• This manual explains the functions of the product. It does not

guarantee that the product will suit a particular purpose of the
user.

• Precautions Related

to the Protection, Safety, and Alteration of

the Product

The following safety symbols are used on the product and in this
manual.

“Handle with care.” To avoid injury and damage to
the instrument, the operator must refer to the
explanation in the manual.

Protective ground terminal

Functional ground terminal (do not use this terminal
as a protective ground terminal.)

Alternating current

Direct current

ON (power)

OFF (power)

• For the protection and safe use of the product and the system in

which this product is incorporated, be sure to follow the instructions
and precautions on safety that are stated in this manual whenever
you handle the product. Take special note that if you handle the
product in a manner that violates these instructions, the protection
functionality of the product may be damaged or impaired. In such
cases, YOKOGAWA does not guarantee the quality, performance,
function, and safety of product.

•

When installing protection and/or safety circuits such as lightning

protection devices and equipment for the product and control
system or designing or installing separate protection and/or
safety circuits for fool-proof design and fail-safe design of the
processes and lines that use the product and the control system,
the user should implement these using additional devices and
equipment.

•

If you are replacing parts or consumable items of the product,

make sure to use parts specified by YOKOGAWA.

• This product is not designed or manufactured to be used in

critical applications that directly affect or threaten human lives.
Such applications include nuclear power equipment, devices
using radioactivity, railway facilities, aviation equipment, air
navigation facilities, aviation facilities, and medical equipment.
If so used, it is the user

’s responsibility to include in the system

additional equipment and devices that ensure personnel safety.

•

Do not modify this product.

WARNING

• Use the Correct Power Supply

Ensure that the source voltage matches the voltage of the

power supply before turning ON the power. In the case of a
desktop type, ensure that it is within the maximum rated voltage
range of the provided power cord before connecting the power
cord.

•

Use the Correct Power Cord and Plug (Desktop Type)

To prevent electric shock or fire, be sure to use the power

cord supplied by

YOKOGAWA. The main power plug must
be plugged into an outlet with a protective earth terminal. Do
not disable this protection by using an extension cord without
protective earth grounding.

•

Connect the Protective Grounding Terminal

Make sure to connect the protective grounding to prevent

electric shock before turning ON the power.

The power cord that comes with the desktop type is a three-

prong type power cord. Connect the power cord to a properly
grounded three-prong outlet.

•

Do Not Impair the Protective Grounding

Never cut off the internal or external protective grounding wire

or disconnect the wiring of the protective grounding terminal.
Doing so invalidates the protective functions of the instrument
and poses a potential shock hazard.

•

Do Not Operate with Defective Protective Grounding

Do not operate the instrument if the protective grounding might

be defective. Also, make sure to check them before operation.

•

Do Not Operate in an Explosive Atmosphere

Do not operate the instrument in the presence of flammable

liquids or vapors. Operation in such an environment constitutes
a safety hazard.

Prolonged use in a highly dense corrosive gas (H

2

S, SOx, etc.)

will cause a malfunction.

• Do Not Remove Covers

The cover should be removed by YOKOGAW

A’s qualified
personnel only. Opening the cover is dangerous, because some
areas inside the instrument have high voltages.

•

Gro

und the Instrument before Making External Connections

Connect the protective grounding before connecting to the item

under measurement or control unit.

• Damage to the Protection

Operating the instrument in a manner not described in this

manual may damage the instrument’s protection.

CAUTION

This instrument is a Class A product. Operation of this

instrument in a residential area may cause radio interference, in
which case the user is required to take appropriate measures to
correct the interference.

•

Exemption from Responsibility

• YOKOGAW

A makes no warranties regarding the product except

those stated in the WARRANTY that is provided separately.

• YOKOGAWA

assumes no liability to any party for any loss
or damage, direct or indirect, caused by the user or any
unpredictable defect of the product.

• Handling Precautions of the Software

• YOKOGAW

A makes no warranties regarding the software
accompanying this product except those stated in the
WARRANTY that is provided separately.

•

Use the software on a single PC.

• You must purchase another copy of the software, if you are to
use the software on another PC.

•

Copying the software for any purposes other than backup is

strictly prohibited.

5

IM 04L41B01-02E

• Please store the original media containing the software in a safe
place.

• Reverse engineering, such as decompiling of the software, is
strictly prohibited.

• No portion of the software supplied by YOKOGAW

A may be
transferred, exchanged, or sublet or leased for use by any third
party without prior permission by YOKOGAWA.

Handling Precautions of the DX

• Use care when cleaning this instrument, especially its plastic
parts. Use a soft dry cloth. Do not use organic solvents, such
as benzene or thinner, or other cleansers. They may cause
discoloring and deformation.

•

Kee

p electrically charged objects away from the signal terminals.

If you do, the DX may malfunction.

• Do not apply volatile chemicals to the display, panel keys, etc.
Do not allow rubber and vinyl products to remain in contact
with the DX for long periods of time. If you do, the DX may
malfunction.

•

When not in use, make sure to turn OFF the power switch.

• If there are any symptoms of trouble such as strange odors or
smoke coming from the DX, immediately turn OFF the power
switch and the power supply source. Then, contact your nearest
YOKOGA

WA dealer.

Handling Precautions of the External Storage Medium (CF Card)

• Use caution in the handling of the external storage medium as it
is a delicate product.

• Write operation to storage media may fail under high­temperature or low-temperature environments. If you are using
the DX in a low-temperature environment (around 10 °C or
less), use the DX after the warm-up time (at least 30 minutes)
has elapsed. If you are using the DX under a high-temperature
environment (around 40 °C or more), it is recommended that the
external storage medium be inserted into the drive when saving
the data and be removed after the data storage operation is
finished.

•

Remove the

storage medium from the drive when turning the DX

ON/OFF.

• Touching the compact flash section when static electricity is built
up on the human body can lead to erroneous operation.

• For the general handling precautions of the external storage
medium, see the instruction manual that came with the external
storage medium.

CAUTION

• Do not eject the external storage medium while the access
indicator is illuminated. This can damage the data.

• Do not access the storage medium in a place with vibrations or
shock. The storage medium or drive may malfunction.

Checking the Contents of the Package

Unpack the box and check the contents before operating the
instrument. If some of the contents are not correct or missing or
if there is physical damage, contact the dealer from which you
purchased them.

DX

A name plate is located on the top panel of the DX (side panel on
models with the /H5[ ] option). Check that the model name and
suffix code given on the name plate match those on your order.

name plate

DISP/

ENTER

6

9

7

8

10

11

12

1

2

3

4

5

100-240V AC

50/60Hz 100VA MAX

N

L

MODEL

FREQUENCY

NO.

SUFFIX

SUPPLY

STYLE

H

S

NO. (Instrument Number)

When contacting the dealer from which you purchased the
instrument, please give them the instrument number.

MODEL

and SUFFIX Cod

-3

-4

-1

-2

Model code Suffix code

Optional

code

Description

Daqstation DX1000 2ch, 125ms (25ms

*12

)

Daqstation DX1000 4ch, 125ms (25ms

*12

)

Daqstation DX1000 6ch, 1s (125ms

*12

)

Daqstation DX1000 12ch, 1s (125ms

*12

)

Daqstation DX1000N 2ch, 125ms (25ms

*12

)

Daqstation DX1000N 4ch, 125ms (25ms

*12

)

Daqstation DX1000N 6ch, 1s (125ms

*12

)

Daqstation DX1000N 12ch, 1s (125ms

*12

)

Standard Memory (400 MB)

CF card (with medium)
English/German/French, deg F, and DST

(English version of DAQSTANDARD included)

DX1002
DX1004
DX1006
DX1012
DX1002N

*11

DX1004N

*11

DX1006N

*11

DX1012N

*11

Internal memory
size
External storage medium
Language

Options

/A1 Alarm output 2 points

*1

/A2 Alarm output 4 points

*1

/A3 Alarm output 6 points

*1*2

/C2 RS-232 interface

*3

/C3 RS-422/485 interface

*3

/F1 FAIL/Status output

*2

/H2 Clamped input terminal (detachable)
/H5[ ] Desktop type

*4

/M1 Mathmatical functions
/N1 Cu10, Cu25 RTD input/3 leg isolated RTD
/N2 3 leg isolated RTD

*5

/N3 Extended input type (PR40-20, JPt50, etc.)
/P1 24 VDC/AC power supply

*4

/R1 Remote control
/TPS2 24VDC transmitter power supply (2 loops)

*6

/TPS4 24VDC transmitter power supply (4 loops)

*7

/KB1 Easy text entry (with input terminal)

*8*9

/KB2 Easy text entry (without input terminal)

*8

/USB1 USB interface
/PM1

Pulse input (including remote control and mathmatical functions)

*10

/CC1 Calibration correction function

/BT2 Multi batch function

*12

/CP1 PROFIBUS-DP

*3

/AS1 Advanced security function

*1 /A1, /A2, /A3 cannot be specified together.
*2 /A3 and /F1 cannot be specified together.
*3 /C2, /C3, and /CP1 cannot be specified together.
*4 /H5[ ] can be specified for only DX1002, DX1004, DX1006, and DX1012.
D: Power cord UL, CSA st’d
F: Power cord VDE st’d
R: Power cord AS st’d
J: Power cord BS st’d
H: Power cord GB st’d
Null (/H5): Only for /P1 model (without power cord)
*5 /N2 can be specified for only DX1006, DX1006N, DX1012, and DX1012N.
*6 In case that /TPS2 is specified, /TPS4, /A2, /A3, or /F1 cannot be specified

together.

*7 In case that /TPS4 is specified, /TPS2, /A1, /A2, /A3, or /F1 cannot be

specified together.
*8 /KB1 and /KB2 cannot be specified together.
*9 In case that /KB1 is specified, remote input terminal (438227) is included.
*10 In case that /PM1 is specified, /A3, /M1, /R1, /TPS2, or /TPS4 cannot be

specified. And combination of /A2, /F1 cannot be specified together.
*11 DX1002N, DX1004N, DX1006N, and DX1012N are Pull Out Models.
*12 /BT2 can only be specified for the DX1006, DX1006N, DX1012, and DX1012N.

6

IM 04L41B01-02E

Standard Accessories

The standard accessories below are supplied with the instrument.
Check that all contents are present and undamaged.

9

ID No.

1 2 43

6

7

5

32

MB

8. One of these power cord types is supplied according

/H5F

/H5D

/H5R

/H5H/H5J

to the instrument’s suffix code

No. Name Part Number/

Model

Qty. Notes

1 Terminal screws E9655FX 5 M4 (spares)

2 Mounting brackets B9900BX 2 For panel mounting

Except for the /H5[ ]
models.

3 Door lock key B8706FX 2 –

4 DAQSTANDARD DXA120 1 CD. Contains the

software and user’s
manuals.

5 DX1000/DX1000N

Operation Guide (this
manual)

IM 04L41B01-02E

1 A4 size

DXA120 Installing
DAQSTANDARD

IM 04L41B01­066EN

1

Control of Pollution
Caused by the
Product

IM 04L41B01-91C

1

6 User’s Manuals

for the DX1000/
DX1000N/DX2000

B8706ZZ 1 CD. Contains the

PDF file of the user’s
manual.

7 CF card B8706NQ 1 128 MB (The size and

model may change.)

8 Power cord A1006WD 1 Supplied only for

models with the /H5D
option. Maximum
rated voltage: 125 V

A1009WD 1 Supplied only for

models with the /H5F
option. Maximum
rated voltage: 250 V

A1024WD 1 Supplied only for

models with the /H5R
option. Maximum
rated voltage: 250 V

A1054WD 1 Supplied only for

models with the /H5J
option. Maximum
rated voltage: 250 V

A1064WD 1 Supplied only for

models with the /H5H
option. Maximum
rated voltage: 250 V

No. Name Part Number/

Model

Qty. Notes

9 Remote control

terminal

438227 1 Remote controller.

Supplied only for
models with the /KB1
option. With two AA
alkaline batteries and
labels for the remote
control terminal.

Optional Accessories (Sold Separately)

The following optional accessories are available for purchase
separately. If you make an order, make sure that all contents
are present and undamaged. For information about ordering
accessories, contact the dealer from which you purchased the DX.

No. Name Model Minimum Notes

Q’ty

1 CF card 772091 1 128 MB

772092 1 256 MB

772093 1 512 MB

772094 1 1 GB

2 CF card adapter 772090 1 –

3 Shunt resistor 415920 1 250 Ω ± 0.1%

(for screw input terminal)

415921 1 100 Ω ± 0.1%

415922 1 10 Ω ± 0.1%

4 Shunt resistor

(for clamped input
terminal)

438920 1 250 Ω ± 0.1%

438921 1 100 Ω ± 0.1%

438922 1 10 Ω ± 0.1%

5 Mounting brackets B9900BX 2 –

6 Door lock key B8706FX 1 –

7 Remote control terminal 438227 1 Remote

controller.

8 Validation document – 1 Electronic file

Style number, release number, and firmware

version number of the DX

Style number: This is the DX hardware number that is indicated

on the name plate.

Release number: This is the DX firmware number that is indicated

on the name plate. The number corresponds to
the integer part of the firmware version number.

Example:

If the firmware version number is 2.01, the release
number is 2.

Firmware version number: This number is displayed on the DX

system information screen. For the procedure,
see section 2.5, “Viewing the DX Information”
in the DX1000/DX1000N User

’s Manual (IM

04L41B01-01E).

MODEL

FREQUENCY

NO.

SUFFIX

SUPPLY

STYLE

H

2 2

S

Style number

Release number

7

IM 04L41B01-02E

Protection of Environment

Control of Pollution Caused by the Product

For details, see the Control of Pollution Caused by the Product
(IM04L41B01-91C).

Proper Disposal of This Product

This is an explanation of how to dispose of this product based
on Waste Electrical and Electronic Equipment (WEEE), Directive
2002/96/EC. This directive is only valid in the EU.

•

Marking

This product complies with the WEEE Directive (2002/96/EC)

marking requirement.

The affixed product label (see below) indicates that you must not

discard this electrical/electronic product in domestic household
waste.

• Product Category
With reference to the equipment types in the WEEE directive

Annex 1, this product is classified as a “Monitoring and Control

instrumentation” product.
Do not dispose in domestic household waste.
To return unwanted products, contact your local Yokogawa

Europe B. V

. office.

Conventions Used in This Manual

• This manual covers information regarding DX1000/DX1000Ns

that have a suffix code for language “-2” (English).

• For details on how to set the language, see section 2.6,

“Changing the Language” in the DX1000/DX1000N User’s

Manual (IM 04L41B01-01E).

Unit

K:

Denotes 1024. Example: 768 KB (file size)
k: Denotes 1000.
The following markings are used in this manual.

Improper handling or use can lead to injury to the user or damage
to the instrument. This symbol appears on the instrument to

indicate that the user must refer to the user’s manual for special
instructions. The same symbol appears in the corresponding place
in the user’s manual to identify those instructions. In the manual,
the symbol is used in conjunction with the word “WARNING” or
“CAUTION.”

WARNING

Calls attention to actions or conditions that could cause serious or
fatal injury to the user, and precautions that can be taken to prevent
such occurrences.

CAUTION

Calls attentions to actions or conditions that could cause light
injury to the user or damage to the instrument or user’s data, and
precautions that can be taken to prevent such occurrences.

Note

Calls attention to information that is important for proper operation
of the instrument.

Indicates after this mark reference to related procedure or
explanation.

Bold characters

Indicates character strings that appear on the screen and the
operation keys.

Opening the Electronic Manuals

The accompanying CD contains PDF files of the manuals. When
you load the CD into the CD-ROM drive on your PC, a startup
screen appears. Click the manual title to open the respective
manual.
If the startup screen does not appear, double-click DX_manual in
My Computer, and open the manuals in the English directory.

Revision History

The contents of this manual corresponds to the DX with release
number 4 and style number 3. For details on the functions that
have been added or changed, see “DX’s Version and Functions
Described in This Manual” in the DX1000/DX1000N User’s Manual
IM04L41B01-01E.

Edition DX Description

2

Version 1.11

Additions and improvements to
functionality.

Version 1.21

3

Release number 2

(Version 2.0x)

Additions and improvements to
functionality.

Style number 2

NEMA4 compliance.

4

Same as edition 3

Additions and improvements to
functionality.
Changed the direction of the
clamp input terminal (/H2 option).

5

Release number 3

(Version 3.0x)

Additions and improvements to
functionality.

Style number 3

Changed the boot ROM.

6

Release number 4
(version 4.0x)

Additions and improvements to
functionality. Internal memory
suffix code -3 has been added,
and -1 and -2 have been removed.

Style number 3

8

IM 04L41B01-02E

Introduction to Functions

Measured Items

You can connect DC voltage, thermocouple, RTD, and ON/OFF input and measure
various values such as temperature and flow rate. The DX samples the input signals at
the scan interval to obtain the measured values. The fastest scan interval is 25 ms on
the DX1002, DX1002N, DX1004, and DX1004N and 125 ms on the DX1006, DX1006N,
DX1012, and DX1012N.
Up to four alarm conditions can be set for each measurement channel.

Data Storage Function

There are two methods of recording measured data. One is to record the measured data
continuously, and the other is to record only when certain events occur such as alarms.
The measured data is recorded to the internal memory at a specified interval. The data in
the internal memory can be stored to a CF card automatically or manually. By connecting
to a network via the Ethernet interface, the measured data can also be automatically
transferred to an FTP server on a network.

DX

Measurement input

Ethernet

Automatic data transfer to an FTP server

CF card

FTP server

Internal memory

Display Function

Measured data can be displayed as trends, numeric values, and bar graphs for each
group. In addition, the overview display can be used to display and monitor all channels
on a single screen.

Trend display

Numeric (digital) display

Overview display Bar graph display

Other Functions

Computation Function (option) Various types of computation can be performed by

assigning equations to computation channels.

FAIL/status output function (option) Outputs an alarm when the DX fails. The function

also monitors the DX status such as the remaining
amount of internal memory and outputs alarms.

Remote control function (option) A specified action is executed when a remote input

signal is applied to the terminal on the rear panel.

Security function Enables only registered users can operate the

DX. The function can also be used to prohibit key
operation.

Communication function The Ethernet interface can be used to monitor the

DX using a Web browser and transmit e-mail when
an event occurs such as an alarm. In addition,
data of devices on the network can be loaded and
displayed using the Modbus protocol.

DAQSTANDARD

The accompanying software program, DAQSTANDARD, can be used to display the
measured data, convert the measured data format, and create DX setup data.

9

IM 04L41B01-02E

DX System Configuration

The DX can be used to configure a system as shown below.
Referenced sections are of the DX1000/DX1000N User’s Manual.
Referenced pages are of this manual.

Ethernet

Sec. 3.5–3.8

Serial
communication*

RS-232, RS-422/485, or PROFIBUS-DP

*

†

Transmitter power supply

*

Page 58

PC

PLC

PC

DX

RecorderTemperature

controller

FAIL/status output

*

Sec. 2.9

Sec. 2.11

Signal input

Sec. 3.3

Pulse input

*

Sec. 3.10

Sec. 7.1

Sec. 2.10

Page 24

Keys

Sec. 2.11

Sec. 2.12

*: Option
†: Release number 3 or later

PLC (programmable
logic controller)

EtherNet/IP

†

Communication Interface User’s Manual
EtherNet/IP Communication Interface User’s Manual
PROFIBUS-DP Communication Interface User’s Manual

USB port*

Alarm output

*

CF card

USB flash memory

Keyboard

Remote Terminal

*

Barcode reader

*

†

Remote input

*

Terminology

• Memory sample

The operation of recording measured data.

• Memory start

The operation of starting the memory sample.

• Memory stop

The operation of stopping the memory sample.

• Display data

The waveform data shown on the DX display. The data recorded at the sampling

interval for the displayed data.

• Event data

Measured data recorded at a sampling interval separate from that of the display data.

Introduction to Functions

10

IM 04L41B01-02E

Names of Parts

Front View

USB CF CARD

NO.

Do not remove the cover.
Repair by trained personnel only.

START USER FUNC ESC MENU

STOP

Key panel opened

Front cover opened

LCD

Display various operation displays
such as the trend display as well as
setup displays.

Power indicator

Illuminates in red when the
power is turned ON. Illuminates
in green when recording to the
memory.

Power switch

Not available on the DX1002N,
DX1004N, DX1006N, and
DX1012N.

USB port

A USB port conforming to Rev.

1.1.

Remote control sensor
(/KB1 and /KB2 options)

Receives infrared light from the
remote control terminal.

Label (front of the key panel cover)

Write arbitrary labels for your
convenience.

Front cover (key panel)

Open the front cover by pulling the
cover while holding down the tab at
the center of the upper section of the
cover.

When closing the front cover, press
the front cover in until the tab at the
center of the upper section of the
cover is all the way up. If the front
cover is not closed completely, the
water and dust proof capability may
be impaired.

CF card slot

Lock key

CF card access indicator

CF card eject button

Used when ejecting the CF card.

Key panel cover

Open the cover by pinching the
left tab and pulling forward.

Door lock key (included)

Insert the pin in the left hole to lock.
Insert the pin in the right hole to unlock.

DISP/

ENTER

6

9

7

8

10

11

12

1

2

3

4

5

CAUTION

11

IM 04L41B01-02E

Rear Panel

Ethernet port

A 10Base-T port.

USB port (/USB1 option)

A USB Rev. 1.1 compliant port.

Optional terminals (/A[ ], /F1, /R1,
/TPS[ ], and /PM1 options)

Used to connect optional
input/output signal wires.

Power supply terminals

Serial port
(/C3 option)

RS-422/485 port.

Serial port
(/C2 option)

RS-232 port.

Input terminals (screw
terminals or clamped
terminals; /H2 option)

Used to connect input signal

PROFIBUS-DP port
(/CP1 option)

PROFIBUS connector.

Desktop Type (/H5[ ] Option)

Power
connector

Handle

Feet and Stand

Functional ground
terminal

Names of Parts

12

IM 04L41B01-02E

DX1000/DX1000N Workflow

When using the DX for the first time, carry out the following procedure.

Installation

Wiring

Power ON

Environmental
Settings

Functional
Settings

Measurement

Data
Management

Install the DX.

Page 49 and subsequent pages

Connect input/output wires to the terminals and connectors on the

rear panel, and connect the power cord.

Page 52 and subsequent pages

Turn the power ON. (DX1002, DX1004, DX1006, and DX1012 Only)

Page 13

Set the date/time, load the CF card, and so on.

Page 18 and 24

Set measurement functions.

Page 19 and subsequent page, page 28 and subsequent pages

Start the measurement. Perform operations such as switching the

screen and writing messages. Save the measured data.

Page 39 and subsequent pages

Check and manage the measured data.

Use the accompanying software program, DAQSTANDARD, to display

the measured data and convert the measured data to Excel, Lotus, and

ASCII formats.

Page 48

DAQSTANDARD Viewer User's manual (IM 04L41B01-63EN)

On a DX with advanced security (/AS1 option; release number 4 or later), carry out the
following procedure after turning the DX on.

User

Registration

Environmental

Settings

Functional

Settings

Measurement

Data

Management

CF Card
Insertion

Register the users who will operate the DX.

Advanced Security Function (/AS1 option) User’s Manual

(IM04L41B01-05EN)

Check the measured data, and attach approval information

to the measured data file.

Advanced Security Function (/AS1 option) User’s Manual

(IM04L41B01-05EN)

You can also attach approval information to the measured data file

by using the accompanying software program, DAQSTANDARD.

DAQSTANDARD Viewer User’s Manual (IM 04L41B01-63EN)

Set the date/time.

Page 18

Insert a CF card into the DX.

Page 24

Set measurement functions.

Page 19 and subsequent pages, page 28 and subsequent pages

Start the measurement. Perform operations such as switching

the screen and writing messages. Save the measured data.

Page 39 and subsequent pages

13

IM 04L41B01-02E

Turning the Power ON/OFF

(DX1002, DX1004, DX1006, and DX1012 Only)

Turning the Power ON

CAUTION

Before turning ON the power switch, check that

• The power cord/wires are connected correctly to the DX.

• The DX is connected to the correct power supply (see page 60).
If the input wires are connected in parallel with other devices, do not turn ON/OFF
the power switch of the DX or another device during operation. This can have
adverse effects on the measured values.

1.

Open the operation cover.

2.

Turn ON the power switch.

After performing a self-test for a few seconds, the operation screen appears.

3.

Close the operation cover.

CAUTION

• If nothing is displayed when the power switch is turned ON, turn OFF the
power switch and check the points listed above one more time. After checking
the points, turn ON the power switch again. If the DX still does not work, it is
probably a malfunction. Contact your nearest YOKOGAWA dealer for repairs.

• If an error message is displayed on the screen, take measures according to the
description in chapter 10, “T

roubleshooting” in the DX1000/DX1000N User’s

Manual.

• Turn ON the power switch, let the DX warm up for at least 30

minutes, and then

start the measurements.

Turning the Power OFF

CAUTION

Before turning OFF the power switch, check that the external storage medium is
not being accessed.

1.

Open the operation cover.

2.

Turn OFF the power switch.

3.

Close the operation cover.

14

IM 04L41B01-02E

Basic Operation

Panel Keys

START USER FUNC ESC MENU

STOP

START USER FUNC ESC MENU

STOP

LCD

Key panel

Soft keys

Selects the menu that is displayed
at the bottom of the screen

START/STOP key

Memory start/stop

ESC key

Cancels an
operation

USER key

Executes the assigned
operation

Favorite key

Displays the operation screen (up to eight
screens) that are registered to the key

MENU key

Switches between the operation
mode and setting mode

FUNC key

• Displays the soft key menu in operation mode

• Hold down this key at least 3 s in the setting mode to switch from the
setting mode to the basic setting mode

DISP/ENTER key and four arrow
keys (up, down, left, and right)

Switches the operation screen.
Selects and enters setup items.

DISP/ENTER key

Up arrow key

Right arrow key

Down arrow key

Left arrow key

Display

Status display section

Shows the display name, date/time, data recording, alarm icon, etc.

Data display section

Shows the measured data and the functional setup

15

IM 04L41B01-02E

Display on the Status Display Section

The following information is displayed in the status display section.

Memory sampling status

Error in internal memory.
Contact your nearest YOKOGAWA dealer for repairs.

Memory sampling icon

Data type
DISP: Display data
EVENT: Event data

Memory sampling progress

Displays the progress using a green bar graph. The frame indicates the file
save interval (display data) or the data length (event data).

Displays the remaining memory sampling time for the left bar graph.

Memory sampling

stopped

Memory sampling

in progress

If the “batch number-lot number” exceeds 20 characters,
the “date and time” position is used to display the “batch
number-lot number.”

Batch name and the display
name are shown alternately.

Name of the user logged in

Batch name, the display
name, and date and time are
shown alternately.

Date and time

Displayed in yellow while the time is being corrected.

Display name or group name

For all channel display on the trend display, “All” is
displayed.

When using the login function

When using the batch function

Date and time

Name of the user logged in

When using the login and batch functions

Date and time and the
display name are shown
alternately.

Displayed when any alarm is activated.
Blinks when there are alarms that are
occurring but have not been acknowledged.

All alarms have been released after they
have occurred, but there are alarms that
have not been acknowledged.

The status assigned to the status output
relay (/F1 option) is occurring.

CF card icon

Keys are locked.

E-mail transmission is enabled.

White icon: Computation started

Yellow icon: Computation data dropout occurred

CF card is being accessed.

Waiting.

Light blue icon: CF card in the slot is not
recognized. Remove and reset it.

CF card error.
Carry out the procedure below to reset the CF
card icon to normal.

• Remove the CF card, and then reinsert it.

• Replace the CF card with a normal one.

• Format the CF card on the DX (the data on
the CF card will be erased).

The green level display indicates the amount
of CF card used. If Media FIFO* is not enabled
and the free space on the CF card falls below
10%, the level indicator changes to red.
* See section 1.4, in the DX1000/DX1000N User’s

Manual. Media FIFO is a function available on

release number 2 or later.

Alarm icon

status icon

Computation icon (/M1 or /PM1 option)

(Red)

(Green)

Displayed when the user is locked.

User Locked Icon (/AS1 option)

Basic Operation

16

IM 04L41B01-02E

Run Modes

Hold down FUNC
for 3 s or
Basic Setting Mode
> DISP/ENTER
(release number 3
or later)

End menu > DISP/ENTER or
ESC > DISP/ENTER
(release number 3 or later)

Power ON

Operation mode

Mode Transition Diagram

Basic setting mode

Setting mode

Operation display

MENU key

MENU key
or ESC key

Setting menu
display

Setup display

MENU key
or ESC key

DISP/ENTER
key

Basic setting
menu display

Setup display

DISP/ENTER
key

ESC key

On a DX with advanced security
(/AS1 option; release number 4 or later):
MENU key or ESC key > DISP/ENTER
or

End menu > DISP/ENTER

The DX has three modes.

Mode Description

Operation mode A mode for performing measurements.
Setting mode A mode in which input range, measurement method, and so on

are configured. Settings can be changed when memory sample is
in progress excluding some items.

Basic setting mode A mode used to set basic items such as the scan interval and

storage format of measured data. On a DX with advanced
security (/AS1 option; release number 4 or later), the login
settings can be changed during memory sampling.

* For further details on the basic setting mode and setting mode, see page 63.

Carry out the steps given in the following pages. It will help you to understand the DX
operation.

Basic Operation

17

IM 04L41B01-02E

Entering Values and Characters

The character/number input window and DISP/ENTER key are used to set the date/time,
set the display span of the input range, set the tag, set the message string, enter the
password, etc.

Number input window

Press the left and right arrow keys to move the cursor
to the appropriate input position

Press the up arrow key to increase the number

Press the down arrow key to decrease the number

Character/number input window

DISP/ENTER key and four arrow
keys (up, down, left, and right)

Cursor

Text box for entering
the character string

Select the character
(keypad)

Input status of the Ins soft key

Input status of the A/a/1 soft key

Left and right
arrow soft keys

Entering Character Strings

When a window for entering a character string appears, enter it by performing the
following key operation.

• Left and right arrow soft keys: Moves the cursor in the text box to select the input

position.

• Keypad: Use the four arrow keys (up, down, left, and right) to move the

cursor on the keypad to select the desired character

.

Ins: Switches between insert and overwrite.
Del: Deletes the character at the cursor position in the text box.
ENT: Enters the character string in the text box.

•

DISP/ENTER key: Enter the character that you selected with the keypad in the te

xt

box or execute Ins, Del, or ENT.

• Bs soft key: Backspace. Deletes the character before the cursor

.

• A/a/1 soft key: Selects uppercase alphabet (A), lowercase alphabet (a), or value
(1).

The character type that you can enter changes each time

you press the A/a/1 soft key

. The selected character type is
displayed at the bottom section of the character/number input
window.

Basic Operation

18

IM 04L41B01-02E

The contents of the screens in the operation examples below may change depending on
which options are installed and how the settings are configured.

Changing the Date/Time

In this example, we will change the date from the 1st to the 6th. After carrying out this
step, reset the time to the correct date/time.

1.

Display the operation mode screen.

2.

Press MENU once to display the setting menu.

3.

Press the down arrow key once.

The cursor moves to

Date/Time

.

4.

Press the right arrow key once.

Select Date & Time

5.

Press DISP/ENTER once to open the Time set window.

6.

Change the date from 01 to 06.

Select the input position: Press the

right arrow key

five times to move the cursor in

the text box.

Enter the value:

Pre

ss the

up or down arrow key

several times to display 6.

Enter the input: Press

DISP/ENTER

once.

Cancel the setting: Press

ESC

before pressing

DISP/ENTER

(entering the

input).

Display the Time set window
(Display after entering 6)

Basic Operation

19

IM 04L41B01-02E

7.

Press ESC twice or MENU once to return to the operation mode screen.

On a DX with advanced security (/AS1 option; release number 4 or later):

Press ESC twice or MENU once to display a confirmation screen. To return to the

operation mode screen, select Yes, and press DISP/ENTER once.

Operation complete.

Operation Example in the Setting Mode: Changing the Input Range

Set the input range of channel 2 to thermocouple type T and 0.0 to 400.0°C.

Type T
thermocouple

Channel 2

DX

1.

Display the operation mode screen.

2.

Press MENU once to display the setting menu.

3.

Press the down arrow key twice to select Meas channel.

4.

Press the right arrow key once.

Select the Range, Alarm

Basic Operation

20

IM 04L41B01-02E

5.

Press DISP/ENTER once.

Select First-CH

6.

Press the +1 soft key once to set First-CH and Last-CH to 2.

7.

Press the down arrow key once to move the cursor to Mode.

8.

Press the TC soft key once. The cursor moves to Range, and the changed item is

displayed in yellow.

Select TC

9.

Press the Next soft key.

10.

Press the T soft key once. The cursor moves to Span_L.

11.

Press the Input soft key once.

Display the Span_L setting window

12.

Enter 0.0 in the Span Lower box.

Select the input position: Press the

right arrow key

once to move the cursor in the

text box to the right.

Delete the minus sign: Press the

up arrow key

once to delete the minus sign.
Delete the 2 and 0 in the same way.
Enter the input:

Press

DISP/ENTER

once.

Span_L

is set, and the cursor

moves to

Span_U

.

Cancel the setting: Press

ESC

before pressing

DISP/ENTER

(entering the

input).

13.

Enter 400.0 in the Span Upper box.

See step 12 for the procedure.

Basic Operation

21

IM 04L41B01-02E

14.

Press DISP/ENTER once. The changed items are entered, and the cursor returns

to First-CH. The changed items change from yellow to white.

15.

Press ESC three times or MENU twice to return to the operation mode screen.

On a DX with advanced security (/AS1 option; release number 4 or later):

Press ESC three times or MENU twice to display a confirmation screen. To return

to the operation mode screen, select Yes, and press DISP/ENTER once.

Operation complete.

Basic Operation

22

IM 04L41B01-02E

Operation Example in the Basic Setting Mode: Changing the Scan Interval

In this example, we will change the scan interval. Here, the scan interval on the DX1012
is changed to 2 s. The selectable scan intervals are different on the model, but the
procedure is the same.

Type T
thermocouple

Channel 2

Measures every 2 s

DX

1.

Display the operation mode screen.

2.

Press MENU once to display the setting menu.

3.

Hold down FUNC for at least 3 s.

Alternatively, you can execute the following procedure to switch to Basic Setting mode.

Use the

up or down arrow key

to select

Basic setting mode

on the

Menu

tab, and

press

DISP/ENTER

.

A confirmation window will appear. Select

Yes

, and press

DISP/ENTER

.

Display the Basic Setting Mode menu

Basic Operation

23

IM 04L41B01-02E

4.

Press the down arrow key twice to select A/D, Memory.

5.

Press DISP/ENTER once.

6.

Press the down arrow key once to move the cursor to Scan interval.

7.

Press the 2s soft key once. The cursor moves to A/D integrate, and the changed

item is displayed in yellow.

Cancel the setting: Press

ESC

before pressing

DISP/ENTER

.

8.

Press DISP/ENTER once. The changed items are entered, and the cursor returns

to Scan mode.

Set the scan interval to 2 s

9.

Press ESC once to return to the basic setting mode menu.

10.

Press ESC once more.

Alternatively, use the

up or down arrow key

to select

End

, and press

DISP/ENTER

.

Display the confirmation window

11.

Press DISP/ENTER once. The settings are saved, and the DX returns to the

operation mode screen.

Discard the changes: Select No and press

DISP/ENTER

.

Do not end the basic setting mode: Select

Cancel

and press

DISP/ENTER

.

Operation complete.

Basic Operation

24

IM 04L41B01-02E

Inserting/Removing a CF Card

Inserting a CF Card

1.

Open the operation cover.

CF card

With the label “This side up”
facing up

This side up

CAUTION

Forcing the CF card into the slot with
the upside down may cause damage.

2.

Insert the CF card into the slot.

Displays the CF card icon

If the DX does not recognize the CF card,
try reinserting it.

3.

Close the operation cover.

Operation complete.

Removing a CF Card

<Operations in the Operation Mode>

1.

Press FUNC once.

2.

Press the Media eject soft key once.

CF card icon

Media eject

3.

Press the CF soft key once. The message “Media can be removed safely”

appears. Displays the CF card icon in blue.

4.

Open the operation cover.

Basic Operation

25

IM 04L41B01-02E

5.

Press the CF card eject button. When you eject the CF card, the CF card icon

disappears.

Eject button

Press the eject button in until it clicks.
The eject button stops at depressed position.
Pinch the left and right sides of the CF card
and remove it.

6.

Close the operation cover.

Operation complete.

<Operation in the Basic Setting Mode>

1.

Press MENU (to switch to setting mode), hold down FUNC for 3 s (to switch to

basic setting mode), select the File/Initialize tab > Media eject > CF *, and press
DISP/ENTER.

* Select CF if you have a choice between CF and

USB

.

The message “Media can be removed safely” appears.

2.

Open the operation cover.

3.

Press the CF card eject button. Remove the CF card.

4.

Close the operation cover.

Operation complete.

Note

If you remove the CF card without carrying out the media eject procedure, the message “Media

was removed compulsorily” appears. Remove the CF card by carrying out the procedure above

to prevent damaging the data that is stored.

Basic Operation

26

IM 04L41B01-02E

Saving the Setup Data

In this example, we will save the setup data to a file named “SF2” on the CF card.

1.

Display the operation mode screen.

2.

Press MENU once to display the setting menu.

3.

Press the right arrow key once to select the File tab.

4.

Press the down arrow key four times.

Select Save settings

5.

Press DISP/ENTER once.

6.

Press the Input soft key once.

7.

Enter “SF2” for the file name.

For the input procedure, see “Entering Values and Characters” on page 17.

8.

Press DISP/ENTER once. The message “Data are being saved to media”

appears, and the setup data is saved.

9.

Press ESC or MENU twice to return to the operation mode screen.

Operation complete.

Basic Operation

27

IM 04L41B01-02E

Loading the Setup Data

In this example, we will load the setup data “SF2” from the CF card and update the DX
settings.
This procedure only loads the setup data that the DX uses for setting mode.To load the
setup data for both setting mode and basic setting mode, press MENU, hold down FUNC
for 3 s, select the File/Initialize tab > Load settings, and press DISP/ENTER.

1.

Display the operation mode screen.

2.

Press MENU once to display the setting menu.

3.

Press the right arrow key once to select the File tab.

4.

Press the down arrow key three times.

Select Load settings

5.

Press DISP/ENTER once to select the root directory (CF:/).

6.

Press DISP/ENTER once to display the files in the root directory.

7.

Select the file SF2.PDL using the up and down arrow keys.

To move to a lower directory

Select the directory, and press
DISP/ENTER

To move to a higher directory

Press ESC

8.

Press DISP/ENTER once. The message “File is being loaded from media”

appears, and the setup data is loaded. The DX automatically returns to the
operation mode screen.

Operation complete.

Basic Operation

28

IM 04L41B01-02E

Setting the Input Range and Alarm

Setup Example 1: Temperature Measurement Channel

Type T
thermocouple

Channel 1

0.0 to 200.0°C

DX

Setup Item Description Number in the Figure

Channel Use channel 1. 1
Tag TI-001 2
Sensor Type T thermocouple 3
Input range 0.0 to 200.0°C 4

(1) Input Range

Press MENU (switch to the setting mode)
Select the Menu tab > Meas channel > Range, Alarm

1

4

3

(2) Tag

Select the Menu tab > Meas channel > Tag, Memory, Delay

2

Operation complete.

29

IM 04L41B01-02E

Setting the Input Range and Alarm

Setup Example 2: Flow Rate Measurement Channel and Alarm

DX

Flowmeter Channel 2

4 - 20 mA

Convert to 1-5 V with a shunt resistor

Setup Item Description Number in the Figure

Channel Use channel 2. 1
Tag FI-002 2
Input signal 1-5V 3
Input range 0.0 to 500.0 L/H 4
Alarm condition Output an alarm if the measured value is

less than or equal to 120.0 L/H.
Output destination: Relay contact (I03)

5

(1) Input Range and Alarm

Press MENU (switch to the setting mode)
Select the Menu tab > Meas channel > Range, Alarm

1

5

4

3

(2) Tag

Select the Menu tab > Meas channel > Tag, Memory, Delay

2

Operation complete.

30

IM 04L41B01-02E

Setting the Display

Setup Example 3: Assigning Channels to Groups

In this example, we will assign channels 1 and 2 to group 1.

Channel 1

Group 1

Channel 2

Setup Item Description Number in the Figure

Group Assign channel 1 and 2 to group 1. 1

(1) Group

Press MENU (to switch to setting mode) > select the Menu tab > Group set, Trip line

1

Operation complete.

31

IM 04L41B01-02E

Setting the Display

Setup Example 4: Setting the Time Scale

Set the time per division of the trend waveform to 2 minutes.

The sampling interval (the time
corresponding to 1 dot) is 4 s when the trend
interval is 2 min.

30 dots × 4 s = 2 min

30 dots/div

Setup Item Description Number in the Figure

Trend interval Set the time per division to 2 minutes.

The waveform is updated at every 4 s.

1

(1) Trend interval

Press MENU (to switch to setting mode) > select the Menu tab > Display > Trend/

Save interval

1

Operation complete.

32

IM 04L41B01-02E

Setting the Data Storage

Setup Example 5: Continuously Record Measured Data and Automatically Save

In this example, we will continuously record and save the measured data of channel 1
and 2.
For the procedure to set the channel, see “Setting the Input Range and Alarm” on page

28. For the procedure to set groups, see “Setting the Display” on page 30.

Automatically save to
the CF card periodically

Channel 1

Channel 2

Setup Item Description Number in the Figure

Source channels Channel 1 (TI-001) and channel 2 (FI-002) 1
Data to be recorded Continuously record the display data from the start of the

measurement.

2

Data storage method Automatically store every 24 hours. 3
Sampling interval 4 seconds. Set using the trend interval.

Sampling interval = (trend interval setting)/30 dots

*

* 40 dots when the trend interval is set to 5 or 10 seconds.

4

Data file name Add “sample” to the file name. 5

Example: 000123_sampleYYMMDD_HHMMSS.DAD

↑ ↑

Sequential number Date/Time of the first recorded data
Save Destination
Directory

DATA-101 6

(1) Data to be Recorded

Press MENU (switch to the setting mode), hold down FUNC for 3 s (switch to the

basic setting mode)

Select the Menu tab > A/D, Memory

2

33

IM 04L41B01-02E

(2) Method of Storing to the CF Card (Auto Save ON/OFF)

Select the Environment tab > Security, Media save

3

(3) Save the Settings

1.

Press ESC to return to the basic setting menu.

2.

Press ESC once more.

The window appears for you to confirm the saving of the settings.

3.

Select Yes and press DISP/ENTER. The DX returns to the operation mode

screen.

(4) Channels to Be Recorded

Press MENU (switch to the setting mode)
Select the Menu tab > Meas channel > Tag, Memory, Delay

1

(5) Interval for Saving the Data to the CF Card

Select the Menu tab > Display > Trend/Save interval

4
3

(6) Data File Name

Select the Menu tab > Data save > File header, File name

5

Setting the Data Storage

34

IM 04L41B01-02E

(7) Save Destination Directory (within the CF Card)

Select the Menu tab > Data save > Save directory

6

Operation complete.

Setting the Data Storage

35

IM 04L41B01-02E

Setup Example 6: Saving Measured Data at the Specified Time

Using the settings of Setup Example 5, we will save the measured data once at hour 0
every day.

DX

Every hour 0

Automatically save
to the CF card

7 5

6

12

11

10

8 4

2

1

9 3

All settings other than those listed below are the same as Setup Example 5.

Setup Item Description Number in the Figure

Data storage time Save the data once at hour 0 every day. 7
Data storage method Automatically save the measured data at

the specified time.

8

(1) Setting the Time

Press MENU (switch to the setting mode)
Select the Menu tab > Timer, Event action > Match time timer

7

(2) Specifying the Data Storage

Select the Menu tab > Timer, Event action > Event action

8

Operation complete.

Setting the Data Storage

36

IM 04L41B01-02E

Customizing the Operation

Setup Example 7: Assigning the Screen Image Data Storage Function to the

USER Key

In this example, we will set the DX so that the displayed screen image data can be saved
to the CF card by pressing the USER key. This function is called snapshot. The extension
of snapshot data files is .png.

START USER FUNC ESC MENU

STOP

USER key

Setup Item Description Number in the Figure

Event action Save the screen image data of the DX

using the USER key.

1

(1) Assigning an Action to the USER Key

Press MENU (to switch to setting mode) > select the Menu tab > Timer, Event action

> Event action

1

Operation complete.

37

IM 04L41B01-02E

Customizing the Operation

Setup Example 8: Registering Frequently Used Screens to the Favorite Key

Up to eight operation mode screens that are frequently used can be registered to the
Favorite key. This enables you to monitor the operation by using only the Favorite key.
This feature is convenient when comparing data such as historical trends.

Favorite key

Favorite key

Favorite key

Favorite key

Operation mode screens registered to the Favorite key
(example when three screens are registered)

Favorite key

1.

Display the screen to be registered.

2.

Press FUNC once to display the FUNC key menu.

3.

Press the Next soft key to display Favorite regist.

4.

Press the Favorite regist soft key to display the registration list window.

Register the historical trend to the
Favorite key

38

IM 04L41B01-02E

5.

Press the favorite number (1 to 8) soft key.

6.

Press the Regist soft key.

Show the window for entering the
display name

7.

Enter the screen name.

Select the input position:

Left and right arrow soft keys

Enter characters:

Arrow keys and DISP/ENTER

Delete a character: Use the

arrow keys

to select

Del

and press

DISP/ENTER

, or

press the

Bs soft key

.

Enter the input: Use the

arrow keys

to select

ENT

and press

DISP/ENTER

.

Cancel the setting: Press

ESC

before pressing

DISP/ENTER

.

For the input procedure, see “Entering Values and Characters” on page 17.

8.

Press DISP/ENTER once.

9.

Repeat steps 1 to 8 to register up to eight screens.

Operation complete.

Customizing the Operation

39

IM 04L41B01-02E

Operation

Starting the Memory Sample

1.

Press START once.

Memory sample starts.

START USER FUNC ESC MENU

STOP

START key

Memory sample progress
DISP: Display data
EVENT: Event data

Recording data

Operation complete.

Stopping the Memory Sample

1.

Press STOP once.

Display the confirmation window

2.

Select Mem+Math or Memory using the left and right arrow keys.

Memory

: Stops memory sample.

Mem+Math

: Stops memory sample and computation (option).

On models without the computation function (option), the confirmation message “Do you

want to stop data storage?” appears. Select

Yes

.

3.

Press DISP/ENTER once.

Stop memory sampling

Operation complete.

40

IM 04L41B01-02E

Switching the Trend Display, Digital Display, and Bar Graph Display

1.

Press DISP/ENTER once to show the display selection menu.

Down arrow key

Right arrow key

Left arrow key

Up arrow key

DISP/ENTER key

2.

Press the down arrow key to select TREND, DIGITAL, or BAR.

3.

Press the right arrow key once to display the sub menu. To close the sub menu

that you opened, press the left arrow key.

4.

Press the down arrow key to select the group.

Select DIGITAL > GROUP 1

5.

Press DISP/ENTER once to show the operation display of the selected group. To

close the menu without switching the display, press ESC.

Digital display

Group number

Operation complete.

Press the down arrow key when the trend, digital, or bar graph is displayed to switch the
display in the order trend, digital, bar graph, trend, and so on. Press the up arrow key
to switch the display in reverse order. Press the right arrow key or the left arrow key to
switch the group.

Operation

41

IM 04L41B01-02E

Operation

Writing the Message “START”

Registering the Word “START” in Message Number 1

1.

Press MENU (to switch to setting mode) > select the Menu tab > Message,

Comment > Message

2.

Press the 1-10 soft key.

3.

Press the Input soft key.

Show the message registration window

Select the input position:

Left and right arrow soft keys

Enter characters:

Arrow keys and DISP/ENTER

Delete a character: Use the

arrow keys

to select

Del

and press

DISP/ENTER

, or

press the

Bs soft key

.

Enter the input: Use the

arrow keys

to select

ENT

and press

DISP/ENTER

.

Cancel the setting: Press

ESC

before pressing

DISP/ENTER

.

For the input procedure, see “Entering Values and Characters” on page 17.

4.

Press DISP/ENTER.

5.

Press ESC three times or MENU twice to return to the operation mode screen.

Operation complete.

42

IM 04L41B01-02E

Writing Message Number 1 “START”

This operation can be carried out while memory sample is in progress. The message is
displayed on the trend display. Show the trend display first.

1.

Press FUNC (display the FUNC key menu), press the Message soft key, and

press the 1-10 soft key.

Show the message registration window

1 soft key

2.

Press the 1 soft key.

Shows the message
(time, message, and message mark)
Also recorded to the internal memory

Operation complete.

Operation

43

IM 04L41B01-02E

Connecting to an Ethernet Network

Setup Example 9: Monitoring the DX on a PC Browser

In this example, we will connect the PC and the DX via hub in a one-to-one relationship
and display and monitor the DX screen on a browser on the PC.

DX

PC

Ethernet

HUB

DX

Setup Item Description Number in the Figure

IP address 192.168.1.101 1
Subnet mask 255.255.255.0
Web server function Monitor from a Web browser on the PC

using operator page.

2

Access to the DX Display the Web page and do not set

access privileges.

3

PC

Setup Item Description Number in the Figure

IP address 192.168.1.100 4
Subnet mask 255.255.255.0

(1) IP Address of the DX

Press MENU (switch to the setting mode), hold down FUNC for 3 s (switch to the

basic setting mode)

Select the Menu tab > Communication (Ethernet) > IP-address

1

44

IM 04L41B01-02E

(2) Enabling the Web Server Function on the DX

Select the Menu tab > Communication (Ethernet) > Server > Server

2

(3) Display the DX Screen on the PC

Select the Menu tab > Communication (Ethernet) > Web page

2

3

(4) Save the Settings

1.

Press ESC twice to return to the basic setting menu.

2.

Press ESC once more.

The window appears for you to confirm the saving of the settings.

3.

Select Yes and press DISP/ENTER.

The DX returns to the operation mode screen.

(5) Setting the PC

Set the IP address and subnet mask on the PC.

4

Connecting to an Ethernet Network

45

IM 04L41B01-02E

(6) Checking the Connection

Send the command below from the PC and check that a correct response is returned.
Send
>ping 192.168.1.101

Response example
>Reply from 192.168.1.101: bytes=32 time<10ms TTL=255

(7) Displaying the DX Screen on the Browser

1.

Start the browser on the PC.

2.

Enter the following URL.

http://192.168.1.101/operator.htm

3.

Check that the DX screen appears.

Operation complete.

Connecting to an Ethernet Network

46

IM 04L41B01-02E

Setup Example 10: Automatically Transferring the Measured Data File to an FTP

Server

In this example, we will configure the DX so that the measured data is automatically
transferred to an FTP server on the network when the measured data is automatically
saved to the CF card. To automatically transfer the measured data files and report files,
the auto saving of the measured data must be configured in advance (“Data storage
method” of Example 5).
This example assumes that the following network environment is used: DHCP enabled,
automatically obtain the DNS server information, and automatically register the DX host
name to the DNS server. Set the parameters according to your network environment.

DX

Measurement input

Ethernet

Automatic data transfer to an FTP server

CF card

FTP server

Internal
memory

Setup Item Description Number in the Figure

Host name DAQSTATION1 1
Obtain the IP address Obtain automatically (DHCP) 2
Type of data to be transferred Acquired measured data 3
FTP server Server name abcdefg.co.jp 4

Port number 21
Login name ftpuser1
Password a1234

(1) IP Address of the DX

Press MENU (switch to the setting mode), hold down FUNC for 3 s (switch to the

basic setting mode)

Select the Menu tab > Communication (Ethernet) > IP-address

2
Automatically obtain the DNS server information.
Automatically register the DX host name to the

DNS server.

(2) Host Settings Address of the DX

Select the Menu tab > Communication (Ethernet) > Host settings

1

Connecting to an Ethernet Network

47

IM 04L41B01-02E

Installation and Wiring

(3) Data to Be Transferred to the FTP Server

Select the Menu tab > Communication (Ethernet) > FTP client > FTP transfer le

3

(4) Connected setting FTP Server

Select the Menu tab > Communication (Ethernet) > FTP client > FTP connection

4

(5) Save the Settings

1.

Press ESC three times to return to the basic setting menu.

2.

Press ESC once more.

The window appears for you to confirm the saving of the settings.

3.

Select Yes and press DISP/ENTER.

The DX returns to the operation mode screen.

Operation complete.

Executing a File Transfer Test

1.

Press FUNC once to display the FUNC key menu.

2.

Press the Next soft key until FTP test is displayed, and then press the FTP test

soft key.

3

3.

Press the Primary soft key. The messages “FTP test is being executed” and

“Execution is complete” appear and the test file (FTP_TEST.TXT) is sent to the
FTP server.

Operation complete.

Transferring the Data Files

When you start memory sample, the measured data file is transferred to the FTP server
when the data is saved to the CF card.

Connecting to an Ethernet Network

48

IM 04L41B01-02E

Using DAQSTANDARD

Displaying the Measured Data on DAQSTANDARD

In this example, we will display the measured data using the accompanying software
program, DAQSTANDARD.

1.

Insert the CF card containing the measured data file into the PC that has

DAQSTANDARD installed.

2.

Start DAQSTANDARD Viewer.

3.

From the File menu, choose Open.

4.

In the Open dialog box, select the desired file, and click Open.

The data is displayed.

Operation complete.

49

IM 04L41B01-02E

Installation and Wiring

Installation and Wiring

Installation Location

Install the DX indoors in a location that meets the following conditions.

• Instrumentation Panel

The DX is designed to be installed in an instrumentation panel except for the desktop

type.

• Well-Ventilated Location

To prevent overheating, install the DX in a well-ventilated location. For the panel cut

dimensions when arranging multiple DXs, see the page 51. Follow the panel cut
dimensions providing adequate space between instruments when other instruments
are arranged on the panel. For the desktop type, we recommend that a space of at
least 50 mm be provided around the left, right, top, and rear panels of the DX.

• Minimum Mechanical Vibrations

Choose an installation location with the minimum mechanical vibration. Installing the

DX in a location with large mechanical vibration not only causes adverse effects on
the mechanism but also may hinder normal recording.

• Horizontal

Install the DX horizontally (However, the DX can be inclined up to 30 degrees

backwards for panel mounting).

Note

Condensation may occur if the DX is moved to another place where the ambient

temperature is higher, or if the temperature changes rapidly. In addition, measurement

errors will result when using thermocouples. If this happens, let the DX adjust to the new

environment for at least one hour before using it.

Do not install the DX in the following places.

• Outdoors

• In Direct Sunlight or Near Heat Sources

Install the DX in a place with small temperature uctuations near room temperature

(23°C). Placing the DX in direct sunlight or near heat appliances can cause adverse
effects on the internal circuitry.

• Where an Excessive Amount of Soot, Steam, Moisture, Dust, or
Corrosive Gases Are Present

Soot, steam, moisture, dust, and corrosive gases will adversely affect the DX. Avoid

such locations.

• Near Strong Magnetic Field Sources

Do not bring magnets or instruments that produce electromagnetic elds close to the

DX. Operating the DX in strong magnetic elds can cause errors in the measurements.

• Where the Viewing of the Display Is Poor

The DX uses a TFT color LCD for the display. Therefore, viewing of the display from

an extreme angle is difcult. Install the DX so that the user can view the display from

the front.

50

IM 04L41B01-02E

Installation Procedure

Installation Procedure (Panel Mount Type)

Use a steel panel of thickness 2 mm to 26 mm.

1.

Insert DX from the front of the panel.

2.

Mount the DX to the panel using the mounting brackets that come with the

package as shown in the figure below.

• Use two brackets to support the top and bottom or the left and right sides of
th

e case (remove the seal that is covering the holes for the mounting brackets

beforehand).

• The proper torque for tightening the mounting screws is 0.7 to 0.9 N•m.

• Mount the DX to the rack according to the procedure below

.

• First, attach the two mounting brackets and temporarily fasten the

attachment screws.

• Next, x the DX in place by tightening the attachment screws with the

appropriate torque. When the DX is approximately perpendicular to the
panel as you fasten the screws, press the mounting bracket against the
case so that they are in contact with each other.

CAUTION

• Tightening the screws too much can deform the case or damage the bracket.

• Be careful not to insert foreign objects or tools through the holes for the
mounting brackets in the case.

Panel Mounting Diagram

Screw temporarily

Fixed

Front

Panel

Panel

Mounting
brackets

Mounting
brackets

Torque driver
(flat blade)

Attachment screw

DX case

In contact with
each other

(The figure shows the case when the mounting brackets
are used on the top and bottom of the case.)

Attachment
screw

Note

To achieve sufficient dust and water proof performance, mount the DX in the middle of the

panel cut out.

Installation (Desktop Type (/H5[ ] Option)

The front (leg) stand can be pulled out.

CAUTION

On the desktop type, do not apply force to the DX when the front leg (stand) is

out. This can break the front leg.

Installation and Wiring

51

IM 04L41B01-02E

Installation and Wiring

External Dimensions and Panel Cut Dimensions

Unit: mm (approx. inch)
Unless otherwise specified, tolerance is ±3%
(however, tolerance is 0.3 mm when below 10 mm).

Panel mount type

Desktop type (/H5[ ] Option)

144.3

(5.68)

143

(5.63)

40

(1.57)

15

14.4
(0.57)

39.3

(1.55)

138.8

(5.46)

MAX 252.5 (99.4) (/H2 or /PM1)

144.3

(5.68)

Panel cut dimensions

137

(5.39)

+2

0

137

(5.39)

(5.39)

+2

0

137

(5.39)

(6.89)

(6.89)

+2

0

175 MIN

175 MIN

L

+2

0

L

+2

0

L

+2

0

137

+2

0

2
3
4
5
6
7
8
9

10

n

282 (11.10)
426 (16.77)
570 (22.44)
714 (28.11)
858 (33.78)
1002 (39.45)
1146 (45.12)
1290 (50.79)
1434 (56.46)
(144×n)-6

Side-by-Side Mounting
(vertically, max. 3 units)

Side-by-Side Mounting
(horizontally)

Single-Unit
Mounting

Units

(Dimensions after attaching
the mounting bracket)

(Dimensions before attaching
the mounting bracket)

136.5

(5.37)

+0.4

0

136.5

151.5 (5.96)

144 (5.67)

*7

*5

7.5 9.4

(0.37)(5.37)(0.30)

+0.4

0

*6

*4

151.5 (5.96)

24.0
(0.94)

*2

MAX *1 (/H2 or /PM1)

*3

MAX 28.0 (1.10)
(/KB1 or /KB2)

144 (5.67)

2 to 26

(Allowable panel thickness)

DX1000

228.5 (9.0)

224.1 (8.82)

170.5 (6.71)

40.9 (1.61)

41.4 (1.63)

103.4 (4.07)

99.9 (3.93)

*1
*2
*3
*4
*5
*6
*7

DX1000N

258.5 (10.18)

254.1 (10.0)

200.5 (7.89)

30.9 (1.22)

34.9 (1.37)

103.4 (4.07)

106.3 (4.19)

±

Installation and Wiring

52

IM 04L41B01-02E

Input Signal Wiring

WARNING

• To prevent electric shock while wiring, ensure that the power supply source is
turned OFF.

CAUTION

• If a strong tension is applied to the cable wired to the DX, the terminals of the DX
and/or the cable can be damaged. In order to prevent tension from being applied
directly on the terminals, fasten all wiring cables to the rear of the mounting
panel.

•

To prevent fire, use signal wires having a temperature rating of 70°C or more.

•

Do not apply a voltage exceeding the following value to the input terminals.

Otherwise, damage to the DX may result.

• Maximum input voltage: ±60 VDC

• Maximum common mode voltage: ±60 VDC (under measure

ment category II

conditions)

• The DX is a product of installation category II.

Precautions to Be Taken While Wiring

Take the following precautions when wring the input signal cables.

When using a screw terminal, we recommend that you use a crimp-on lug
with an insulation sleeve (designed for 4-mm screws).

Crimp-on lug with insulation sleeves (for 4 mm screws)

When using a clamp terminal (/H2), we recommend that you use the
following kind of cable:

• Conductive cross-sectional area: 0.08 mm2 to 1.5 mm2 (AWG 28 to 16)

• Length of the stripped section of the wire: Approx. 7 mm

Take measures to prevent noise from entering the measurement circuit.

• Move the measurement circuit away from the power cable (power circuit) and ground
circuit.

• It is desirable that the object being measured does not generate noise. However, if
this is unavoidable, isolate the measurement circuit from the object.

Also, ground the

object being measured.

• Shielded wires should be used to minimize noise caused by electrostatic induction.
Connect the shield to the ground terminal of the DX as necessary (make sure you are
not grounding at two points).

• To minimize noise caused by electromagnetic induction, twist the measurement circuit
wires at short, equal intervals.

• Make sure to earth ground the protective ground terminal through minimum resistance

(less than 100 Ω).

When using internal reference junction compensation on the thermocouple
input, take measures to stabilize the temperature at the input terminal.

• Always use the terminal cover.

• Do not use thick wires which may cause large heat dissipation (cross sectional area of

0.5 mm

2

or less recommended).

• Make sure that the ambient temperature remains reasonably stable. Large

temperature uctuations can occur if a nearby fan turns ON or OFF.

Connecting the input wires in parallel with other devices can cause signal

degradation, affecting all connected devices. If you need to make a parallel
connection, then

• Turn the burnout detection function OFF.

• Ground the instruments to the same point.

• Do not turn ON or OFF another instrument during operation. This can have adverse
effects on the other instruments.

• RTDs cannot be wired in parallel.

Installation and Wiring

53

IM 04L41B01-02E

Installation and Wiring

Wiring Procedure

A terminal cover is screwed in place on the measuring input terminal block on the rear
panel. A label indicating the terminal arrangement is affixed to the cover.

1.

Turn OFF the DX and remove the terminal cover.

2.

Connect the signal wires to the terminals.

R

ecommended torque for

tightening the screws

Screw terminals 0.9 to 1.0 N•m
Clampted terminals 0.22 to 0.25 N•m

3.

Replace the terminal cover and fasten it with screws. The proper torque for

tightening the screws is 0.6 N•m.

Note

Input signal wires of diameter less than or equal to 0.3 mm may not be secured firmly for

clamped terminals (/H2). Fold over the conducting section of the wire, for example, to make

sure that the wire is securely connected to the clamped terminal.

Arrangement of the Input Terminals

Input terminal block

+/A

/b

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

CH5

CH6

-/B

+/A

/b

-/B

CH1

CH2

CH5 CH3 CH1

CH6 CH4 CH2

CH3 CH1

CH4 CH2

/b

+/A

-/B

/b

+/A

-/B

/b

+/A

-/B

+/A

/b

CH1

CH2

-/B

Screw terminal

Input terminal block of
the DX1002 and DX1002N

Input terminal block of
the DX1004 and DX1004N

Input terminal block of
the DX1006 and DX1006N

Input terminal block of
the DX1012 and DX1012N

Clamp terminal

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9CH11

CH10CH12

+/A

/b

-/B

CH5 CH3 CH1

CH6 CH4 CH2

CH9 CH7

CH10

CH11

CH12

CH8

/b

+/A

-/B

Installation and Wiring

54

IM 04L41B01-02E

Wiring Screw Terminals

–

+

+

–

DC voltage input

TC input

DC voltage input/DI (ON/OFF) input

RTD input

DC current input

DC current input

Shunt resistor

Example: For 4 to 20 mA input, use a

shunt resistor of 250 Ω

–

+

–

+

–

+

A

B

b

Lead wire resistance per wire of

10 Ω or less. Make the resistance

of the three wires equal.

A

b

B

Compensating leadwire

±

0.1%.

Wiring Clamped Terminals

CAUTION

As of August, 2007, the direction of the terminal blocks for the clamp input terminals
(/H2 option) has changed. To use clamp input terminal blocks wired for use with
previous YOKOGAWA recorders, rewire them to match the DX.

Remove the terminal block

Hold both ends of the terminal
block and pull straight.

Input signal wire

First, loosen the screw at the front using a flat-blade
screwdriver. Insert the input signal wire into the slit on the
left side of the terminal block, and fasten the screw at the front.

Recommended wire size

0.08 to 1.5 mm

2

(AWG 28 to 16)

Recommended
length of stripped
wire: 7 mm

Connect the wires

Flat-blade
screwdriver

Connect the terminal block

Hold both ends of the terminal block,
align with the connector on the DX
side, and push the terminal block into
the connector.

Note

RTD input terminals A and B are isolated on each channel. Terminal b is shorted internally
across all channels. However, terminal b is also isolated on each channel on models with the
/N1 option (Cu10, Cu25 RTD input/3 leg isolated RTD) and /N2 option (3 leg isolated RTD).

Installation and Wiring

55

IM 04L41B01-02E

Installation and Wiring

Optional Terminal Wiring

WARNING

• To prevent electric shock while wiring, ensure that the power supply source is
turned OFF.

• If a voltage of more than 30 VAC or 60 VDC is to be applied to the output
terminals, use ring-tongue crimp-on lugs with insulation sleeves on all terminals
to prevent the wires from slipping out when the screws become loose.
Furthermore, use double-insulated wires (dielectric strength of 2300 V

AC or
more) for the signal wires on which a voltage of more than 30 VAC or 60 VDC is
to be applied. For all other wires, use basic insulated wires (dielectric strength of
1390 VAC). To prevent electric shock, attach the terminal cover after wiring and
make sure not to touch the terminals.

CAUTION

• Use the following circuit voltage for the connection to the alarm/FAIL/status
output terminal.

• When the connection is to Mains Circuits (primary AC power source circuits):

150 V or less

• When the connection is to circuits derived from Mains Circuits (secondary

circuits): 250 V or less

(Mains Circuits voltage is less than 300 V, and connection must be used by

isolation transformer.)

• To prevent fire, use signal wires having a temperature rating of 70°C or more.

•

If a strong tension is applied to the cable wired to the DX, the terminals of the DX

and/or the cable can be damaged. In order to prevent tension from being applied
directly on the terminals, fasten all wiring cables to the rear of the mounting
panel.

• Do not short the transmitter power supply output terminal or apply external
voltage to it. If you do, the DX may malfunction.

• When using the transmitter power supply output terminal, do not use current
that exceeds the maximum output current (25 mADC). If you do, the DX may
malfunction.

Note

For remote control wiring, use shielded wires to reduce noise. Connect the shield to the

functional ground terminal or the ground terminal of the DX.

Precautions to Be Taken While Wiring

It is recommended that crimp-on lug with insulation sleeves (designed
for 4-mm screws) be used when connecting wires to the optional input

terminals.

Crimp-on lug with insulation sleeves (for 4-mm screws)

Wiring Procedure

As shown in the figure on next page, the optional terminal block is located on the rear
panel. The optional terminal block is provided on the DX when an option that requires
input/output is installed such as the alarm output relay (/A[ ] option), FAIL/status output
relay (/F1 option), and remote control function (/R1 option), etc. A terminal cover is
screwed in place on the measuring input terminal block. A label indicating the terminal
arrangement is affixed to the cover.

1.

Turn OFF the DX and remove the terminal cover.

2.

Connect the signal wires to the terminals. The recommended torque for tightening

the screws is 0.9 to 1.0 N•m

3.

Replace the terminal cover and fasten it with screws. The proper torque for

tightening the screws is 0.6 N•m.

Installation and Wiring

56

IM 04L41B01-02E

Arrangement of the Optional Terminals

Optional terminal block

02 0104 03

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

02 0104 0306 05

C

1

2

8

7

6

5

4

3

C

1

2

8

7

6

5

4

3

C

1

2

8

7

6

5

4

3

C

1

2

8

7

6

5

4

3

C

1

2

8

7

6

5

4

3

NC

NC: Normally closed
C: Common
NO: Normally opened

See page 58.

C

NO

NC

C

NO

NC

02 01

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

C

1

2

8

7

6

5

4

3

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

/A1 /A2 /A3

/A1/R1 /A2/R1 /A3/R1

/R1 /A1 /F1 /A2 /F1

/F1 /A1 /F1 /R1 /A2 /F1 /R1

Symbols such as “NC”: Terminal functions

Alarm output, FAIL, Status

1 to 8: Terminal number
C: Common

See page 58.

Remote control input

A terminal that is not used. (With a screw)

A terminal that is not used. (Without screw)

Alarm
output

Alarm
output

02 01

Alarm
output

Remote

control

input

02 0104 03

Alarm

output

Remote

control

input

Remote

control

input

02 01

Alarm
output

FAIL

FAIL

02 0102 01

Alarm
output

Remote

control

input

FAIL

(To next page)

H and L: See page 58.

Pulse input

+ and –: See page 58.

Transmitter power supply

Alarm
output

02 0104 0306 05 02 0104 0306 05

Alarm

output

Remote

control

input

02 0104 03

Alarm

output

FAIL

02 0104 03

Alarm
output

Remote

control

input

FAIL

Status

Status

Status

Status

Status

Installation and Wiring

57

IM 04L41B01-02E

Installation and Wiring

NC

C

NO

NC

C

NO

Pulse

input

Pulse

input

02 0104 03

NC

C

NO

NC

C

NO

02 01

C

HL HL H

L

1

2

5

4

3

Alarm

output

Alarm

output

Alarm
output

Alarm
output

Alarm
output

NC

C

NO

NC

C

NO

02

7 68

02 01

C

HL HL H

L

1

2

5

4

3

NC

C

NO

NC

C

NO

02 7 68

C

HL HL H

L

1

2

5

4

3

7 68

C

1

2

8

7

6

5

4

3

Remote

control

input

Remote

control

input

Pulse

input

Remote

control

input

Pulse

input

Remote

control

input

Pulse

input

Remote

control

input

Remote

control

input

Remote

control

input

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

FAIL

FAIL

FAIL

/F1 /R1 /A1 /PM1 /A2 /PM1

/A1 /F1 /PM1 /PM1 /F1 /PM1

/A1 /TPS2 /A1 /R1 /TPS2 /TPS4

/TPS2 /R1 /TPS2 /R1 /TPS4

02 01

C

1

2

8

7

6

5

4

3

C

1

2

8

7

6

5

4

3

C

1

2

8

7

6

5

4

3

NC

C

NO

NC

C

NO

NC

C

NO

NC

C

NO

02 01

C

+

+

-

-

+

+

-+-+-

-

02 01

NC

C

NO

NC

C

NO

02 01

+

+

-

-

HL HL H

L

1

2

5

4

3

+

+

-+-+-

-

Transmitter

power
supply

Transmitter

power
supply

Transmitter

power

supply

Transmitter

power

supply

Transmitter

power
supply

Transmitter

power

supply

+

+

-

-

7 68

C

HL HL H

L

1

2

5

4

3

7 68

+

+

-

-

(From previous page)

Remote

control

input

Remote

control

input

Status

Status

Status

Installation and Wiring

58

IM 04L41B01-02E

Alarm Output Terminal, FAIL Output Terminal, and Status Output Terminal (/A1, /A2, /A3, and /F1)

C

NC

NO

Output format: Relay contact
Contact rating: 250 VAC (50/60 Hz)/3 A,

250 VDC/0.1 A (for resistor load)

Withstand voltage: 1600 VAC at 50/60 Hz for one

minute (between output terminals
and the ground terminal)

NO C NC NO C NC NO C NC

NO C NC NO C NC NO C NC

FAIL
output

During normal

operation

When a failure

occurs

When power is

turned OFF

During normal

operation

When specified

status occurs

When power is

turned OFF

Other
output

Remote Control Input Terminal (/R1)

C

C

1

1~ 8

2

3

4
5

6

7
8

• Transistor input (open collector)

Internal circuit

• Relay contact input
(voltage-free contact)

C

1

2

3

4
5

6

7
8

Withstand voltage: 1000 VDC for one minute between input terminals and the ground terminal

Input format:

Photocoupler isolation
Shared common (C)

Allowable input voltage:

5 VDC

5 V

Contact closed at 200 Ω
Contact open at 100 kΩ or greater

ON voltage: 0.5 V or less (30 mADC)
Leakage current when turned OFF:

0.25 mA or less

Pulse Input Terminal (/PM1)

H

L

H

L

H

L

H

L

H

L

H

L

H

8 7 6

678

L

Withstand voltage: 1000 VDC for one minute between input terminals and the ground terminal

Input format:

Photocoupler isolation
Shared common (L)

Allowable input voltage:

5 V

Internal circuit

•Transistor input (open collector)

• Relay contact input
(voltage-free contact)

Contact closed at 200 Ω or less
Contact open at 100 kΩ or greater

ON voltage: 0.5 V or less (30 mADC)
Leakage current when turned OFF:

0.25 mA or less

30 VDC

24 VDC Transmitter Power Supply Output Terminal (/TPS2 and /TPS4)

Connect the DX to the transmitter as shown below.

–

+

+

–

Transmitter

Current

DX

Transmitter power
supply output terminal

Input terminal

Shunt resistor: 250 Ω

To reduce noise, use a shielded cable for wiring.
Connect the shield to the functional ground
terminal or the ground terminal of the DX.

Note

Serial Interface

Connecting to the RS-232 Connector (/C2)

2

1 3

4 5

6

7

9

8

(male)

2 RD (Received Data): Received data from the PC. Input signal to the DX.
3 SD (Send Data): Transmitted data to the PC. Output signal from the DX.
5 SG (Signal Ground): Signal ground.
7 RS (Request to Send): Handshaking signal when receiving data from the PC. Output signal

from the DX.
8 CS (Clear to Send): Handshaking signal when transmitting data to the PC. Input signal to
the DX.
* Pins 1, 4, 6, and 9 are not used.

Connecting to the PROFIBUS-DP Connector (/CP1)

RxD/TxD-P: Positive data input/output.
CNTR-P: RTS (needed when using a repeater).
DGND: Ground.
VP +5V: +5 V.
RxD/TxD-N: Negative data input/output.

* Pins 1, 2, 7, and 9 are not used.
** The DX does not have a built-in terminator. If you need to terminate the cable at the DX,
use a terminated connector.

5 4 3 2 1

9 8 7 6

(female)

3
4
5
6
8

Installation and Wiring

59

IM 04L41B01-02E

Installation and Wiring

Connecting to the RS-422/485 (/C3)

FG (Frame Ground) Frame ground of the DX.
SG (Signal Ground) Signal ground.
SDB (Send Data B) Send data B (+).
SDA (Send Data A) Send data A (–).
RDB (Received Data B) Receive data B (+).
RDA (Received Data A) Receive data A (–).

FG SG SDB SDA RDB RDA

Two-wire system

FG SG SDB SDA RDB RDA

Electric potential of the shield

Four-wire system

Shield

Recommended length of stripped wire: 9 mm. Recommended tightening torque: 0.4-0.5 N•m

Cable

There are two types of cables available, the four-wire cable and the two-wire cable (used only for the
Modbus protocol). The cable should meet the following specifications.

• Type: Shielded twisted pair cable: 3 pairs 24 AWG or more (four-wire),
2 pair 24 AWG or more (two-wire)

• Characteristic impedance: 100 Ω

• Capacitance: 50 pF/m

•Total cable length: Up to 1.2 km

Connecting to the USB Port (/USB1)

The USB port complies with Rev. 1.1.

USB port

USB port

RearFront

USB CF CARD

Connecting to the Ethernet Port

Ethernet port

Indicator

Do not connect an Ethernet cable whose plug does
not comply with FCC specifications. If you do, the
DX may malfunction.

CAUTION

Checking the Connection/Communication Status

The connection status of the Ethernet interface can be confirmed with the indicator that is
located above the Ethernet connector of the DX.

Indicator Connection Status of the Ethernet Interface

Illuminated (green) The Ethernet interface is electrically connected.
Blinking (red) Transmitting data.
Off The Ethernet interface is not electrically connected.

Checking the Connection on the DX Display

• Checking the Connection at the status indication section of the DX
display.

You can check the connection status of the Ethernet interface on the Ethernet Link

indicator located on the right side of the status indication section of the basic setting
mode display. The basic setting menu appears by pressing MENU to display the
setting menu followed by FUNC for approximately 3 s.

• Checking the Connection Status in the Display Section in the Upper
Right Corner of the COMMUNICATION LOG Display of the DX

You can check the connection status of the Ethernet interface on the Link indicator on

the display section in the upper right corner of the COMMUNICATION LOG display.

Indicator Connection Status of the Ethernet Interface

Illuminated (green) The Ethernet interface is electrically connected.
Off The Ethernet interface is not electrically connected.

Installation and Wiring

60

IM 04L41B01-02E

Power Supply Wiring

Panel Mount Type, or Desktop Type with /P1 (Models with /H5 and /P1 Options)

Precautions to Be Taken While Wiring the Power Supply

Make sure to follow the warnings below when wiring the power supply. To prevent electric
shock and damage to the DX, observe the following warnings.

WARNING

• To prevent electric shock when wiring, ensure the main power supply is turned
OFF.

• To prevent the possibility of fire, use 600 V PVC insulated wire (A

WG20-16) or

an equivalent wire for power wiring.

• Make sure to earth ground the protective earth terminal through a grounding

resistance less than 100 Ω before turning ON the power.

•

Use crimp-on lug with insulation sleeves (for 4-mm screws) for power supply

wires and protective grounding wires.

• To prevent electric shock, make sure to close the transparent

cover for the

power supply wires.

•

Mak

e sure to provide a power switch (double-pole type) on the power supply line in
order to separate the DX from the main power supply. Put an indication on this switch
as the breaker on the power supply line for the DX and indications of ON and OFF.
Switch specifications

Steady-state current rating: 1 A or more (other than /P1), 3 A

or more (/P1).
Inrush current rating: 60 A or more (other than /P1), 70 A or more (/P1).
Use a switch complies with IEC60947-1, 3.

• Connect a fuse (between 2 A and 15 A) to the power line. Use a fuse approved

by CSA (for the use in North America) or VDE (for the use in Europe).

• Do not add a switch or fuse to the ground line.

Use a power supply that meets the following conditions:

Item Other than /P1 /P1

Rated supply voltage 100 to 240 VAC 24 VDC/AC
Allowable power supply voltage range 90 to 132/180 to 264 VAC 21.6V to 26.4 VDC/AC
Rated power supply frequency 50/60 Hz 50/60 Hz (for AC)
Allowable power supply frequency range 50/60 Hz ± 2% 50/60 Hz±2% (for AC)
Maximum power consumption 45 VA (100 V)/60 VA (240 V) 28 VA (for DC), 45 VA (for AC)

Note

Do not use a supply voltage in the range 132 to 180 VAC, as this may have adverse effects on
the measurement accuracy.

Wiring Procedure

1.

Turn OFF the power to the DX and open the transparent power terminal cover.

2.

Wire the power cord and the protective ground cord to the power supply terminals.

Use ring-tongue crimp-on lugs (designed for 4 mm screws). The proper torque for
tightening the screw is 1.4 to 1.5 N•m (12.4 to 13.2 inch•lbs).

Power cord

Functional ground terminal

Protective grounding cord

NL

AC~

60VA MAX50/60Hz

100-240V

Note

Do not wire the protective grounding
cord to the functional ground terminal.

24V DC

24V AC 50/60Hz 45VA MAX

28VA MAX

Other than /P1 /P1

(24 VDC/AC power supply)

3.

Replace the power terminal cover, and fasten it with screws.

Installation and Wiring

61

IM 04L41B01-02E

Installation and Wiring

Desktop Type (/H5[ ] Option)

Precautions to Be Taken While Connecting the Power Supply

Make sure to follow the warnings below when connecting the power supply. To prevent
electric shock and damage to the DX, observe the following warnings.

WARNING

• Before connecting the power cord, ensure that the source voltage matches the
rated supply voltage of the DX and that it is within the maximum rated voltage
range of the provided power cord.

•

Connect the power cord after checking that the power switch of the DX is turned

OFF.

•

To prevent electric shock or fire, be sure to use the power cord supplied by

YOKOGA

WA.

• Make sure to perform protective earth grounding to prevent electric shock.
Connect the power cord of the desktop type to a three-prong power outlet with a
protective earth terminal.

• Do not use an extension cord without protective earth ground. Otherwise, the
protection function will be compromised.

Use a power supply that meets the following conditions:

Item Condition

Rated supply voltage 100 to 240 VAC
Allowable power supply voltage range 90 to 132, 180 to 264 VAC
Rated power supply frequency 50/60 Hz
Allowable power supply frequency range 50/60 Hz ± 2%
Maximum power consumption 45 VA (100V) and 60 VA (240 V)

Note

Do not use a supply voltage in the range 132 to 180 VAC, as this may have adverse effects on

the measurement accuracy.

Connection Procedure

1.

Check that the power switch is OFF.

2.

Connect the power cord plug to the power connector on the rear panel. (Use the

power cord that comes with the package.)

3.

Check that the power outlet meets the conditions given in the table above and

that the supply voltage is within the maximum rated voltage range of the power
cord that comes with the package. Then, connect the other end of the power cord
to the power outlet. The AC outlet must be of a three-prong type with a protective
earth ground.

Installation and Wiring

62

IM 04L41B01-02E

Recommended Replacement Periods for Worn Parts

To preserve the reliability of the DX and to use the DX in a good condition for an
extended time, it is recommended that periodic replacements be made on parts. The
replacement parts may change to accommodate preventive maintenance over extended
time. Be sure to check with your nearest YOKOGAWA dealer.
The following table shows the recommended replacement period for expendable parts.
The replacement period shown here applies when the recorder is used under standard
operating conditions. For the actual replacement period, consider the actual conditions
of use. Replacement of parts will be carried out by a YOKOGAWA engineer or an
engineer certified by YOKOGAWA. Contact your nearest YOKOGAWA dealer when such
replacement is necessary.

Item

Replacement
period

Name Part No.

Quantity
Used

Notes

LCD 5 years Back Light Unit B8703KB 1
Battery 10 years Battery Assembly B9900BR 1
Dust and water
proof strip

5 years Packing B8705FY 1
5 years Key Case Assembly B8705BM 1 Without /KB1 or /KB2

5 years Key Case Assembly B8705BY 1 With /KB1 or /KB2
Aluminum
electrolytic capacitor

5 years* Power Supply Assembly – 1

5 years* AD Assembly Depends on the model

* Replacement period at the upper limit of the normal operating temperature (50°C)
The replacement period varies depending on the operating temperature and the specifications of the DX.
The lower the operating temperature, the longer is the replacement period. For example, if the operating
temperature is 30°C, it may be possible to use the parts for more than 10 years.

Note

• The LCD replacement period indicates the half life of the brightness when the brightness

is set to the factory default setting. The half life is shortened as the brightness is set

higher. The deterioration of brightness varies depending on the condition of use, and its

determination is subjective. Consider these facts for determining the actual replacement

period.

• The color of the LCD may become yellowish as time elapses. The discoloration tends to

progress faster as the brightness is set higher.

63

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Setup Items and Default Values

The setup items and the default values in the setting mode are listed below. Enter the
settings that you are using in the Setting column for your convenience.

Setting mode menu

Page 65
Page 65 to 67
Page 68 and 69*
Page 70
Page 71
Page 71
Page 71 to 73
Page 74
Page 74*
Page 74

Page 74

Page 74

Page 75
Page 75
Page 76
Page 76
Page 76*
Page 76*
Page 76*
Page 76*
Page 76
Page 76

Page 75*
Page 75*
Page 75*

Page 75*
Page 75*

*: Optional.

End: /AS1 option

64

IM 04L41B01-02E

Basic setting mode menu

Page 77
Page 77
Page 77
Page 77
Page 77*

1

Page 78
Page 78
Page 78
Page 78*

1

Page 79*

1

Page 80
Page 80
Page 80
Page 81*

2

Page 81*

2

Page 83*

1

Page 83
Page 84 to 87
Page 88*

1

Page 89*

1

Page 90
Page 90
Page 90
Page 90

Page 79

Page 89
Page 89

*1: Optional.
*2: Displayed when the function is enabled in the Environment settings.

Communication (PROFIBUS-DP): For models with
thePROFIBUS-DP interface (/CP1 option).

Signature: For models with the Advanced Security
(/CP1 option).

Setup Items and Default Values

65

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Setup Items in Setting Mode and Their Default Values

This section uses the following notations in tables.
*1: This indicates functions that are available for release number 2 or later.
*2: This indicates functions that are available for release number 3 or later.
*3: This indicates functions that are available for release number 4 or later.

Menu tab

*2

Date/Time > Date&Time

Setup Item Selectable Range or Selections Default Value Setting

Date&Time > Time set – 2008/01/01

*2

00:00:00

Date/Time > Daylight Saving Time

Setup Item Selectable Range or Selections Default Value Setting

Use/Not Use/Not Not
Start time > Month JAN/FEB/MAR/APR/MAY/JUN/JUL/AUG/SEP/

OCT/NOV/DEC

MAR

Start time > Day order 1st/2nd/3rd/4th/Last 2nd
Start time > Day of the week SUN/MON/TUE/WED/THU/FRI/SAT SUN
Start time > Hour of the day Numerical value 2
End time > Month JAN/FEB/MAR/APR/MAY/JUN/JUL/AUG/SEP/

OCT/NOV/DEC

NOV

End time > Day order 1st/2nd/3rd/4th/Last 1st
End time > Day of the week SUN/MON/TUE/WED/THU/FRI/SAT SUN
End time > Hour of the day Numerical value 1

Meas channel > Range, Alarm

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH
Range > Mode

Channel number
Skip/Volt/TC/RTD/Scale/Delta/DI/
1-5V/Sqrt

001
Volt

Mode=Volt

Range
Span Lower
Span Upper

20mV/60mV/200mV/2V/6V/20V/50V
Depends on the range.
Depends on the range.

2V
–
–

Mode=TC

Range
Span Lower
Span Upper

R/S/B/K/E/J/T/N/W/L/U/WRe
(Options may add additional settings.)
Depends on the range.
Depends on the range.

R
–
–

Mode=RTD

Range
Span Lower
Span Upper

Pt/JPt (Options may add additional settings.)
Depends on the range.
Depends on the range.

Pt
–
–

Mode=Scale

Type
Range
Span Lower
Span Upper
Scale Lower
Scale Upper
Unit

Volt/TC/RTD/DI
Depends on the type.
Depends on the range.
Depends on the range.
–30000 to 30000, decimal position: 0 to 4
–30000 to 30000, decimal position: 0 to 4
6 characters or less

Volt
–
–
–

0.00

200.00
–

Mode=Delta

Type
Range
Span Lower
Span Upper
Ref.CH

Volt/TC/RTD/DI
Depends on the type.
Depends on the range.
Depends on the range.
Meas channel number

Volt
–
–
–
–

Setup Items and Default Values

66

IM 04L41B01-02E

Setup Item Selectable Range or Selections Default Value Setting

Mode=DI

Range
Span Lower
Span Upper

Level/Cont
0, 1
0, 1

Level
0
1

Mode=1-5V

Range
Span Lower
Span Upper
Scale Lower
Scale Upper
Unit
Low-cut

1-5V

0.800 to 5.200

0.800 to 5.200
–30000 to 30000, decimal position :0 to 4
–30000 to 30000, decimal position :0 to 4
6 characters or less
On/Off

1-5V

1.000

5.000

0.00

200.00
–
Off

Mode=Sqrt

Range
Span Lower
Span Upper
Scale Lower
Scale Upper
Unit
Low-cut
Low-cut value

20mV/60mV/200mV/2V/6V/20V/50V
Depends on the range.
Depends on the range.
–30000 to 30000, decimal position: 0 to 4
–30000 to 30000, decimal position: 0 to 4
6 characters or less
On/Off

0.0 to 5.0

–
–

0.00

200.00
–
Off

0.5

Alarm

1, 2, 3, 4
Type

Value
Relay
Number

Detect

On/Off
H:High/L:Low/h:delta H/l:delta L/R:rate H/

r:rate L/T:delayH/t:delayL
Numerical value
On/Off
I01/.../I06 (Depends on the option.)
S01/S02/S03/.../S29/S30
On/Off

Off
H

–
Off
I01

On

Meas channel > Tag, Memory, Delay

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

First-CH, Last-CH Channel number 001
Tag > Comment

*2

32 characters or less

*2

–

Tag > No.

*2

16 characters or less –
Memory sample > On/Off On/Off On
Alarm delay > Time 1 to 3600 10

With /AS1

*3

The First-CH, Last-CH, Tag, and Memory sample items are the same as on a DX without the /AS1 option.
Alarm delay > Time 1 to 3600 when the unit is seconds. 1 to 24 when

the unit is hours.

10

Alarm delay > Unit Hour/Sec Sec

Meas channel > Moving average

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Moving average > On/Off On/Off Off
Moving average > Count 2 to 400 2

Setup Items and Default Values

67

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Meas channel > Color

Setup Item Selectable Range or Selections Default Value Setting

Group of channel 001-006, etc Depends on the model.
Color Red/Green/Blue/B.violet/Brown/Orange/

Y.green/Lightblue/Violet/Graly/Lime/Cyan/
Darkblue/Yellow/Lightgray/Purple/Black/Pink/
L.brown/L.green/Darkgray/Olive/DarkCyan/
S.green (24 colors)

Red to Gray

Meas channel > Zone, Scale

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Zone > Lower
Zone > Upper

0 to 95
5 to 100

0

100
Scale > Position
Scale > Division

Off/1/2/3/4/5/6
4/5/6/7/8/9/10/11/12/C10

1

10

Meas channel > Bar graph

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Bar graph > Base position
Bar graph > Division

Normal/Center/Lower

*1

/Upper

*1

4/5/6/7/8/9/10/11/12

Normal
10

Meas channel > Partial

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
On/Off On/Off Off
Expand 1 to 99% 50
Boundary Span Lower+1digit to Span Upper-1digit 0.0000

Meas channel > Alarm mark

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Mark kind
Indicate on Scale
Alarm mark color > Alarm 1
Alarm mark color > Alarm 2
Alarm mark color > Alarm 3
Alarm mark color > Alarm 4

Alarm/Fixed
On/Off
Auto

*2

/Red/Green/.../S.green (24 colors)
Same as Alarm 1
Same as Alarm 1
Same as Alarm 1

Alarm
Off
Red
Orange
Orange
Red

Meas channel > Color scale band

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Band area
Color
Display position > Lower
Display position > Upper

Off/In/Out
Red/Green/.../S.green (24 colors)
Measuring range
Measuring range

Off
Lime

0.0000

0.0100

Meas channel > Calibration correction

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Number of set points Off/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16 Off
1 to n > MES val
1 to n > True val

Value in the measuring range/measured value
Measuring range

–
–

Setup Items and Default Values

68

IM 04L41B01-02E

Math channel > Expression, Alarm

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 101
Math On/Off
Calculation expression
Span Lower
Span Upper
Unit

On/Off
120 characters or less
–9999999 to 99999999, decimal position: 0 to 4
–9999999 to 99999999, decimal position: 0 to 4
6 characters or less

Off
–
–200.00

200.00
–

Math alarm

1, 2, 3, 4
Type
Value
Relay
No.

Detect

On/Off
H:High/L:Low/T:delayH/t:delayL
Numerical value
On/Off
I01/.../I06 (Depends on the option.)
S01/S02/S03/.../S29/S30
On/Off

Off
H
–
Off
I01

On

Math channel > Constant

Setup Item Selectable Range or Selections Default Value Setting

Number of constant K01 to K60 K01
Value –9.9999E+29 to –1.0000E–30, 0,

1.0000E–30 to –9.9999E+29

1

Math channel > Tag, Memory, Delay

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 101
Tag > Comment

*2

32 characters or less –

Tag > No.

*2

16 characters or less –
Memory sample > On/Off On/Off On
Alarm delay > Time 1 to 3600 10

Math channel > TLOG, Rolling average

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 101
TLOG > Timer type

*2

TLOG > Timer No.

TLOG > Sum scale
TLOG > Reset

Timer/Match T

1/2/3/4

1/2/3/.../11/12 (on models with the /BT2 multi

batch option)

*2

Off, /s, /min, /h

On/Off

Timer
1

Off

Off
Rolling average > On/Off
Rolling average > Interval

Rolling average > Number of samples

On/Off
1s/2s/3s/4s/5s/6s/10s/12s/15s/20s/30s/

1min/2min/3min/4min/5min/6min/10min/12min/
15min/20min/30min/1h

1 to 1500

Off

10s

1

Math channel > Color

Setup items and values are the same as those for measurement channels, except the channel numbers.

Math channel > Zone, Scale

Setup items and values are the same as those for measurement channels, except the channel numbers.

Math channel > Bar graph

Setup items and values are the same as those for measurement channels, except the channel numbers.

Setup Items and Default Values

69

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Math channel > Partial

Setup items and values are the same as those for measurement channels, except the channel numbers.

Math channel > Alarm mark

Setup items and values are the same as those for measurement channels, except the channel numbers.

Math channel > Color scale band

Setup items and values are the same as those for measurement channels, except the channel numbers.

Math channel > Math start action

Setup Item Selectable Range or Selections Default Value Setting

Math start action > Math start Off/Start/Rst+St Start

Setup Items and Default Values

70

IM 04L41B01-02E

Display > Trend/Save interval

Setup Item Selectable Range or Selections Default Value Setting

Trend interval [/div]

Save interval
Second interval [/div]

5s

*2

/10s*2/15s/30s/1min/2min/5min/10min/
15min/20min/30min/1h/2h/4h/10h (Depends on
the model.)

10min to 31day (Depends on the trend interval.)
5s

*2

/10s*2/15s/30s/1min/2min/5min/10min/
15min/20min/30min/1h/2h/4h/10h (Depends on
the model.)

1min

1h

1min

Display > Trend

Setup Item Selectable Range or Selections Default Value Setting

Direction
Trend clear
Message direction
Scale > Digit
Scale > Value indicator
Trend line
Grid

Horizontal/Vertical/Wide/Split
On/Off
Horizontal/Vertical
Normal/Fine
Mark/Bargraph
1/2/3
Auto/4/5/6/7/8/9/10/11/12

Vertical
Off
Horizontal
Normal
Mark
2
Auto

Display > Bar graph

Setup Item Selectable Range or Selections Default Value Setting

Direction Horizontal/Vertical Vertical

Display > LCD

Setup Item Selectable Range or Selections Default Value Setting

Brightness
Backlight saver > Mode
Backlight saver > Saver time
Backlight saver > Restore

1/2/3/4/5/6/7/8
Off/Dimmer/Timeoff
1min/2min/5min/10min/30min/1h
Key, Key+Alarm

2
Off
1h
Key+Alarm

Display > Monitor

Setup Item Selectable Range or Selections Default Value Setting

Background > Display
Background > Historical trend
Scroll time
Jump default display

White/Black
White/Cream/Black/Lightgray
5s/10s/20s/30s/1min
Off/1min/2min/5min/10min/20min/30min/1h

White
Black
10s
Off

Display > Annunciator

*2

Setup Item Selectable Range or Selections Default Value Setting

Annunciator position 1 to 24 1
On/Off On/Off Off
Channel Channel number 001
Level 1 /2/3/4/All 1
Comment txt block No. 1 to 50 1

Display > FAVORITE Key action

*2

Setup Item Selectable Range or Selections Default Value Setting

Action History/Favorite Favorite
Group display Current/Saved Saved
Time axis zoom Current/Saved Saved

Setup Items and Default Values

71

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Group set, Trip line

Setup Item Selectable Range or Selections Default Value Setting

Group number 1/2/3/.../9/10 1
Group set > On/Off

Group set > Group name
Group set > CH set

On/Off

16 characters or less
39 characters or less

Group 1 to 4: On
Group 5 to 10: Off
GROUP1 etc.
Depends on the model.

Trip line

1, 2, 3, 4
Position
Color

Width

On/Off
0 to 100
Red/Green/.../S.green (24 colors)

1/2/3

Off
50
1:Red, 2:Green

3:Blue, 4:Yellow
2

Message, Comment Text*2 > Message

Setup Item Selectable Range or Selections Default Value Setting

Message No. 1-10/11-20/21-30/31-40/41-50/51-60/

61-70/71-80/81-90/91-100

11-20

*3

1 to 100 32 characters or less –

Message, Comment Text > Comment text fields

*2

Setup Item Selectable Range or Selections Default Value Setting

Coment txt field no 1 to 100 1
Text info 32 characters or less –

Message, Comment Text > Comment text block

*2

Setup Item Selectable Range or Selections Default Value Setting

Coment txt block no 1 to 50 1
Line > 1 > Comment txt field no 1 to 100 1
Line > 2 > Comment txt field no 1 to 100 1
Line > 3 > Comment txt field no 1 to 100 1
Line > 4 > Comment txt field no 1 to 100 1
Line > 5 > Comment txt field no 1 to 100 1

Timer, Event action > Timer

Setup Item Selectable Range or Selections Default Value Setting

Timer No. 1/2/3/4

1/2/3/.../11/12 (on models with the /BT2 multi
batch option)

*2

1

Mode Off/Relative/Absolute Off
Relative > Interval
Relative > Reset at Math Start

00:01 to 24:00
On/Off

01:00
On

Absolute > Interval

Absolute > Ref.time

1min/2min/3min/4min/5min/6min/10min/
12min/15min/20min/30min/1h/2h/3h/4h/
6h/8h/12h/24h

0 to 23

1h

0:00

Timer, Event action > Match time timer

Setup Item Selectable Range or Selections Default Value Setting

Timer number 1/2/3/4

1/2/3/.../11/12 (on models with the /BT2 multi
batch option)

*2

1

Kind Off/Day/Week/Month/Year Off
Day 1 to 31 (varies depending on the month) 1
Day of the week SUN/MON/TUE/WED/THU/FRI/SAT SUN
Hour 00:00 to 23:59 00:00
Timer action Single/Repeat Repeat

Setup Items and Default Values

72

IM 04L41B01-02E

Timer, Event action > Event action

Setup Item Selectable Range or Selections Default Value Setting

Logic box number 1/2/3/.../39/40 1
Event

Remote > Remote number
Relay > Relay number
Switch > Switch No.
Timer > Timer No.

MatchTimeTimer > Match Time Timer
No.

EventLevelSwitch > Event Switch No

*2

EventEdgeSwitch > Event Switch No

*2

Relay-Off > Relay number

*3

Switch-Off > Switch No.

*

EventLevelSwitch-Off > Event Switch
No

*3

None/Remote/Relay/Switch/Timer/
Matchtime/Alarm/UserKey/EventLevelSwitch*2/
EventEdgeSwitch*2/

Relay-Off

*3

/Switch-Off*3/Alarm-Off*3/

EventLevelSwitch-Off

*3

1/2/3/4/5/6/7/8
I01/.../I06 (Depends on the option.)
S01/S02/S03/.../S29/S30
1/2/3/4

1/2/3/.../11/12 (on models with the /BT2 multi
batch option)

*2

1/2/3/4
1/2/3/.../11/12 (on models with the /BT2 multi
batch option)

*2

1/2/3/.../29/30
1/2/3/.../29/30
I01/.../I06 (Depends on the option.)
S01/S02/S03/.../S29/S30
1/2/3/.../30

None

1
I01
S01
1

1

1
1
I01
S01
1

Setup Items and Default Values

73

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Setup Item Selectable Range or Selections Default Value Setting

Action

Message > Message No.
Message > Write to
Message > Group number
Group > Group numbe
FavoriteDisplay > Action

*2

FavoriteDisplay > Select
> Favorite Screen No

*2

CommentDisplay
> Comment Txt Block No

*2

Flag > Flag number
TimerReset > Timer No.

PanelLoad > Setting file number

MemoryStart/Stop, MemoryStart, MemoryStop,
Trigger (not selectable on a DX with the /AS1
option

*3

) , AlarmACK, AlarmDisplayReset*2,
MathStart/Stop, MathStart, MathStop, MathReset,
SaveDisplay, SaveEvent, Message, Snapshot,
DisplayRate1/2, ManualSample, TimerReset,
DisplayGroupChange, FavoriteDisplay*2,
CommentDisplay*2, Flag, PanelLoad (not
selectable on a DX with the /AS1 option*3) ,
TimeAdjust (Depends on the events, etc)

1 to 100
All/Select
1/2/3/.../9/10
1/2/3/.../9/10
Key/Select

1/2/3/4/5/6/7/8

1 to 50
1/2/3/4/5/6/7/8
1/2/3/4

1/2/3/.../11/12 (on models with the /BT2 multi
batch option)

*2

1/2/3

Group

1
All
1
1
Key

1

1
1
1

1

The following menus appear when the multi batch function

*2

is in use.
MemoryStart/Stop > Target Action
MemoryStart/Stop > Select
> Batch Group No
MemoryStart > Target Action
MemoryStart > Select
> Batch Group No
MemoryStop > Target Action
MemoryStop > Select
> Batch Group No
SaveDisplay > Target Action
SaveDisplay > Select
> Batch Group No
SaveEvent > Target Action
SaveEvent > Select
> Batch Group No
MathReset > Target Action
MathReset > Select
> Batch Group No
Message > Message No.
Message > Write to
Message > Select
> Batch Group No
> Display Group No
Message > All
> Batch Group No
DisplayGroupChange
> Batch Group No
DisplayGroupChange
> Display Group No

All/Select

1/2/3/4/5/6 (varies depending on settings)
All/Select

1/2/3/4/5/6 (varies depending on settings)
All/Select

1/2/3/4/5/6 (varies depending on settings)
All/Select

1/2/3/4/5/6 (varies depending on settings)
All/Select

1/2/3/4/5/6 (varies depending on settings)
All/Select

1/2/3/4/5/6 (varies depending on settings)
1 to 100
All/Select

1/2/3/4/5/6 (varies depending on settings)
1/2/3/4/5/6

1/2/3/4/5/6 (varies depending on settings)

1/2/3/4/5/6 (varies depending on settings)

1/2/3/4/5/6

All

1
All

1
All

1
All

1
All

1
All

1
1
All

1
1

1

1

1

Setup Items and Default Values

74

IM 04L41B01-02E

Data save > File header, File name

Setup Item Selectable Range or Selections Default Value Setting

File header > Characters 50 characters or less –
Data file name > Structure Date/Serial/Batch Date
Data file name > Identified strings 16 characters or less –

Data save > Save directory

Setup Item Selectable Range or Selections Default Value Setting

Directory name 20 characters or less DATA0

Data save > Event data

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Sample rate 25ms/125ms/250ms/500ms/1s/2s/5s/10s/30s/

60s/120s/300s/600s/15min

*2

/20min*2/30min

*2

(Depends on the model.)

1s

Mode Free/Single/Repeat Free
Data length 10min to 31day (Depends on the sample rate.) 1h
Pre-trigger 0/5/25/50/75/95/100 0
Trigger signal > Key On/Off On

With /AS1

*3

The Sample rate and Data length items are the same as on a DX without the /AS1 option.
Mode Fixed at Free Free
There are no Pre-trigger or Trigger signal > Key items.

Data save > Batch text

Setup Item Selectable Range or Selections Default Value Setting

Text field number 1 to 24

*2

1
Text field > Title of field
Text field > Characters

20 characters or less
30 characters or less

–

–

Web Report

*2

Setup Item Selectable Range or Selections Default Value Setting

Web Report No 1/2/3/4/5/6/7/8/9/10 1
On/Off On/Off Off
Title 64 characters or less –
Item No 1-5/6-10 1-5
Item > 1 to 10 On/Off Off
Item > 1 to 10 > Channel R01/R02/.../R24 R01
Item > 1 to 10 > Value Max/Min/Ave/Sum/Inst Sum
Item > 1 to 10 > Name 16 characters or less –

Menu customize

Setup Item Selectable Range or Selections Default Value Setting

Function menu Select/Hide/View/Transfer –
Display menu Separate/Select/Hide/View/Transfer –

End (/AS1 option)

*3

Setup Item Selectable Range or Selections Default Value Setting

End Yes/No –

Basic setting mode

*2

Setup Item Selectable Range or Selections Default Value Setting

Entering basic setting mode. ... Yes/No –

Setup Items and Default Values

75

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Multi batch tab

*2

Group set, Trip line > Group set

*2

Setup Item Selectable Range or Selections Default Value Setting

First Batch Group, Last Batch Group 1/2/3/4/5/6 (varies depending on settings) 1
Display Group No 1/2/3/4/5/6 1
Set Display Group > On/Off
Set Display Group > Group name
Set Display Group > CH set

On/Off
16 characters or less
23 characters or less

Off
BATCH-1, etc.
Depends on the model.

Group set, Trip line > Trip line

*2

Setup Item Selectable Range or Selections Default Value Setting

First Batch Group, Last Batch Group 1/2/3/4/5/6 (varies depending on settings) 1
Display Group No 1/2/3/4/5/6 1
Trip line

1, 2, 3, 4
Position
Color

Width

On/Off
0 to 100
Red/Green/.../S.green (24 colors)

1/2/3

Off
50
1:Red, 2:Green

3:Blue, 4:Yellow
2

File header, File name

*2

Setup Item Selectable Range or Selections Default Value Setting

First Batch Group, Last Batch Group 1/2/3/4/5/6 (varies depending on settings) 1
File header > Characters 50 characters or less –
Data file name > Structure Date/Serial/Batch Date
Data file name > Identified strings 16 characters or less –

Data save > Batch text

*2

Setup Item Selectable Range or Selections Default Value Setting

First Batch Group, Last Batch Group 1/2/3/4/5/6 (varies depending on settings) 1
Text field number 1 to 24 1
Text field > Title of field 20 characters or less –
Text field > Characters 30 characters or less –

End (/AS1 option)

*3

Setup Item Selectable Range or Selections Default Value Setting

End Yes/No –

Set Calibration Tab

*3

Setup Item Selectable Range or Selections Default Value Setting

Calibration correction Same as Meas channel > Calibration correction
Finish Calibration > Next calibration due Year, month, and date –
Finish Calibration > Execute – –

End (/AS1 option)

*3

Setup Item Selectable Range or Selections Default Value Setting

End Yes/No –

File tab

*2

Load display data

Setup Item Selectable Range or Selections Default Value Setting

Kind CF/USB CF

Setup Items and Default Values

76

IM 04L41B01-02E

Load event data

Setup Item Selectable Range or Selections Default Value Setting

Kind CF/USB CF

Load settings

Setup Item Selectable Range or Selections Default Value Setting

Kind CF/USB CF

Save settings

Setup Item Selectable Range or Selections Default Value Setting

Kind CF/USB CF
File name 32 characters or less –

Custom display load > Select

*2

Setup Item Selectable Range or Selections Default Value Setting

Display No. Internal 1 to Internal 3, External 1 to External 25 Internal 1
File selection screen – –

Custom display load > All

*2

Setup Item Selectable Range or Selections Default Value Setting

Directory selection screen – –

Custom display save > Select

*2

Setup Item Selectable Range or Selections Default Value Setting

Display No. Internal 1 to Internal 3, External 1 to External 25 Internal 1
File name 32 characters or less –

Custom display save > All

*2

Setup Item Selectable Range or Selections Default Value Setting

Directory name 20 characters or less –

File list/delete (Delete is not available on DXs with the /AS1 option.)

*3

Setup Item Selectable Range or Selections Default Value Setting

Kind CF/USB CF

Load template

*3

Setup Item Selectable Range or Selections Default Value Setting

Report Kind Hour, Day, Week, Month, Hour+Day, Day+Week,

Day+Month

–

Save template

*3

Setup Item Selectable Range or Selections Default Value Setting

Report Kind Hour, Day, Week, Month, Hour+Day, Day+Week,

Day+Month

–

Template data save > File name 32 characters or less –

Format (Without /AS1)

Setup Item Selectable Range or Selections Default Value Setting

Kind CF/USB CF
Format > Volume name 11 characters or less –

End (/AS1 option)

*3

Setup Item Selectable Range or Selections Default Value Setting

End Yes/No –

Setup Items and Default Values

77

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Setup Items in Basic Setting Mode and Their Default Values

This section uses the following notations in tables.
*1: This indicates functions that are available for release number 2 or later.
*2: This indicates functions that are available for release number 3 or later.
*3: This indicates functions that are available for release number 4 or later.

Environment tab

*2

Operating environment

Setup Item Selectable Range or Selections Default Value Setting

Tag/Channel Tag/Channel Tag
Language English/Japanese/German/French/Chinese English
Remote Controller ID Off/0/1/.../30/31 Off
Temperature C/F C
Decimal Point Type

*2

Point/Comma Point

Basic setting mode Menu display

*2

On/Off On

View, Message

Setup Item Selectable Range or Selections Default Value Setting

View > Trend type
View > Partial
View > Trend rate switching

T-Y
On/Off
On/Off

T-Y
Off

Off
Message > Write group
Message > Power-fail message
Message > Change message

Common/Separate
On/Off
On/Off

Common

Off

Off

Input, Tag

*2

Setup Item Selectable Range or Selections Default Value Setting

Input > Value on over-range Free/Over Over
Tag Basic settings > Tag No. Use/Not

*2

Use/Not Not

Alarm > Action

*2

Setup Item Selectable Range or Selections Default Value Setting

No logging On/Off Off
Annunciator mode

*2

Sequence

*2

Time off color

*2

On/Off
ISA-A-4/ISA-A/ISA-M
White/Green

Off

ISA-A

Green

Alarm > Level/Color

*2

Setup Item Selectable Range or Selections Default Value Setting

Level 1-2-3-4/1-4-2-3/1-4-3-2 1-2-3-4
Color > 1
Color > 2
Color > 3
Color > 4

Red/Yellow/Orange/Pink
Red/Yellow/Orange/Pink
Red/Yellow/Orange/Pink
Red/Yellow/Orange/Pink

Red

Red

Red

Red

Remote

*2

Setup Item Selectable Range or Selections Default Value Setting

Level 1-2-3-4/1-4-2-3/1-4-3-2 1-2-3-4
Remote Input > 1
Remote Input > 2
Remote Input > 3
Remote Input > 4
Remote Input > 5
Remote Input > 6
Remote Input > 7
Remote Input > 8

N.O/N.C
N.O/N.C
N.O/N.C
N.O/N.C
N.O/N.C
N.O/N.C
N.O/N.C
N.O/N.C

N.O

N.O

N.O

N.O

N.O

N.O

N.O

N.O

Setup Items and Default Values

78

IM 04L41B01-02E

Security, Media save

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Security > Key
Security > Communication

Off/Login/Keylock
Off/Login

Off

Off
Save > Auto save
Save > Media FIFO

*1

On/Off
On/Off

On

Off

With /AS1

*3

Security > Key Login Login
Security > Communication Off/Login Off
Security > Multi login On/Off Off
Security > Password management On/Off Off
The Save items are the same as on a DX without the /AS1 option.

Batch

Setup Item Selectable Range or Selections Default Value Setting

On/Off
Lot-No. digit
Auto increment
Batch operation qty

*2

On/Off/MultiBatch

*2

Off/4/6/8
On/Off
2/3/4/5/6

Off (With /AS1, On)

6

On

4

Communication > Service port

Setup Item Selectable Range or Selections Default Value Setting

FTP 1 to 65535 21
HTTP 1 to 65535 80
SNTP 1 to 65535 123
Modbus 1 to 65535 502

Communication > POP3 Details

*2

Setup Item Selectable Range or Selections Default Value Setting

POP Before SMTP > Send delay [second] 0/1/2/3/4/5/6/7/8/9/10 2
POP3 Login PLANE/APOP PLAIN

Communication > FTP Server Details

*2

Setup Item Selectable Range or Selections Default Value Setting

Output Directory Format MS-DOS/UNIX MS-DOS

Math

Setup Item Selectable Range or Selections Default Value Setting

Value on Error
Value on Overflow > SUM, AVE
Value on Overflow > MAX, MIN, P-P

+Over/–Over
Error/Skip/Limit
Over/Skip

+Over
Skip
Over

Setup Items and Default Values

79

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Report

Setup Item Selectable Range or Selections Default Value Setting

Report select > 1
Report select > 2
Report select > 3
Report select > 4
File type
Use Template

*3

Max/Min/Ave/Sum/Inst
Off/Max/Min/Ave/Sum/Inst
Off/Max/Min/Ave/Sum/Inst
Off/Max/Min/Ave/Sum/Inst
Separate/Combine/Separate2

*3

Use/Not

Ave
Max
Min
Sum
Separate
Not

End

Setup Item Selectable Range or Selections Default Value Setting

Do you want to store and
make the new settings take effect?

Yes/No/Cancel –

Setup Items and Default Values

80

IM 04L41B01-02E

Menu tab

*2

Alarm > Basic settings

Setup Item Selectable Range or Selections Default Value Setting

Reflash
Rate of change > Decrease
Rate of change > Increase
Indicator

On/Off/On-1s

*3

/On-2s

*3

1 to 32
1 to 32
Hold/Nonhold

Off
1
1
Nonhold

Alarm > Switch, Relay

Setup Item Selectable Range or Selections Default Value Setting

Internal Switch > AND
Relay > AND
Relay > Action
Relay > Hold
Relay > Relay Action on ACK

*1

None/S01/S01-S02/.../S01-S29/S01-S30
None/I01/I01-I02/.../I01-I06 (Depends on the option.)
Energize/De_energ
Hold/Nonehold
Normal/Reset

None
None
Energize
Nonhold
Normal

Alarm > Hysteresis

Setup Item Selectable Range or Selections Default Value Setting

Meas CH > High/Low
Meas CH > Delta High/Low
Math CH > High/Low

0.0 to 5.0

0.0 to 5.0

0.0 to 5.0

0.5

0.0

0.0

A/D, Memory

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Scan interval > Scan mode

Normal > Scan interval

Normal > A/D integrate
Fast

†

> Scan interval

Fast

†

> A/D integrate

Normal/Fast

125ms/250ms (DX1002, DX1002N, DX1004, DX1004N)

1s/2s/5s (DX1006, DX1006N, DX1012, DX1012N)
Auto/50Hz/60Hz/100ms
25ms (DX1002, DX1002N, DX1004, DX1004N)

125ms (DX1006, DX1006N, DX1012, DX1012N)
600Hz

Normal
125ms

1s
Auto
25ms

125ms
600Hz

Memory > Data kind Display/E+D/Event Display

With /AS1

*3

The Scan interval items are the same as on a DX without the /AS1 option.
Memory > Data kind Display/Event Display
†: You cannot select this option on a DX with external input channels (/MC1) or when the multi batch function (/BT2) is in use.

Signature (/AS1 option)

*3

Setup Item Selectable Range or Selections Default

Value

Setting

Process type Batch/Continue Batch
Sign from recorder Off/Sign1/Sign1+2/Sign1+2+3 Off
Signature at batch stop On/Off Off
FTP transfer at signing On/Off Off

Burnout, RJC

Setup Item Selectable Range or Selections Default Value Setting

First-CH, Last-CH Channel number 001
Burnout set > Mode Off/Up/Down Off
RJC > Mode
RJC > Volt

Internal/External
–20000 to 20000µV

Internal
0

Setup Items and Default Values

81

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Keylock > Password, Key action, Media (Without /AS1)

Setup Item Selectable Range or Selections Default Value Setting

Password 8 characters or less –
Key action > START
Key action > STOP
Key action > MENU
Key action > USER
Key action > DISP/ENTER
Key action > FAVORITE

Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock

Free
Free
Free
Free
Free

Free
Media/USB > External media
Media/USB > Load settings

*2

Free/Lock
Free/Lock

Free

Free

Keylock > Action of Function (Without /AS1)

Setup Item Selectable Range or Selections Default Value Setting

Action of Function > AlarmACK
Action of Function > Message/Batch
Action of Function > Math
Action of Function > Data save
Action of Function > E-mail/FTP
Action of Function > Time set
Action of Function > Display Function

Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock

Free

Free

Free

Free

Free

Free

Free

Login > Basic settings

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Auto logout Off/1min/2min/5min/10min Off
Operation without Login Off/Display Off

With /AS1

*3

Auto logout Off/1min/2min/5min/10min Off
Operation without Login Off/Display Off
User ID Use/Not Use
Password retry frequency 3/5/Off 3
Root password > Password 20 characters or less ????????

Login > Admin settings

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Admin number 1 to 5 1
Mode
User name
Password

Off/Key/Comm/Web/Key+Comm
20 characters or less
20

*3

characters or less

Off
Admin1 etc.
????????

With /AS1

*3

Admin number 1 to 5 1
Mode Off/Key/Web/Key+Comm Off
User name 20 characters or less Admin1 etc.
User ID 8 characters or less –
Password 20 characters or less ????????
Password expire Off/1month/3month/6month Off

Setup Items and Default Values

82

IM 04L41B01-02E

Login > User settings

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

User number 1 to 30 1
Mode
User name
Password
Authority of user

Off/Key/Comm/Web/Key+Comm
20 characters or less
20

*3

characters or less

Off/1/2/3/4/5/6/7/8/9/10

Off
User1 etc.
????????
Off

With /AS1

*3

User number 1 to 90 1
Mode Off/Key/Comm/Web/Key+Comm Off
User name 20 characters or less User1 etc.
User ID 8 characters or less –
Password 20 characters or less ????????
Password expire Off/1month/3month/6month Off
Authority of user Off/1/2/3/4/5/6/7/8/9/10 Off

Login > Authority of user > Key action, Media

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Authority of user 1/2/3/4/5/6/7/8/9/10 1
Key action > START
Key action > STOP
Key action > MENU
Key action > USER
Key action > DISP/ENTER
Key action > FAVORITE

Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock

Free
Free
Free
Free
Free

Free
Media/USB > External media
Media/USB > Load settings

*2

Free/Lock
Free/Lock

Free

Free
Authority of user
Action of Function > AlarmACK
Action of Function > Message/Batch
Action of Function > Math
Action of Function > Data save
Action of Function > E-mail/FTP
Action of Function > Time set
Action of Function > Display Function

1/2/3/4/5/6/7/8/9/10
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock
Free/Lock

1

Free

Free

Free

Free

Free

Free

Free

With /AS1

*3

The Authority of user, Key action, and Media/USB items are the same as on a DX without the /AS1 option.
Actions > AlarmACK Free/Lock Free
Actions > Message/Batch Free/Lock Free
Actions > Math Free/Lock Free
Actions > Data save Free/Lock Free
Actions > E-mail/FTP Free/Lock Free
Actions > Time set Free/Lock Free
Actions > Display Function Free/Lock Free
Action > Calibration Free/Lock Free
Sign record > Signature1 Free/Lock Free
Sign record > Signature2 Free/Lock Free
Sign record > Signature3 Free/Lock Free

Setup Items and Default Values

83

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Report > Basic settings

Setup Item Selectable Range or Selections Default Value Setting

Report kind Off/Hour/Day/Hour+Day/Day+Week/Day+Month Off
Date 1 to 28 1
Day of the week (Day+week) SUN/MON/TUE/WED/THU/FRI/SAT SUN
Time (hour) 0 to 23 0:00

Report > Report settings

Setup Item Selectable Range or Selections Default Value Setting

Report channel number R01/R02/R03/.../R23/R24 R01
On/Off On/Off Depends on

the model
Channel Channel number 1 etc.
Sum scale Off, /s, /min, /h, /day /s

Time settings

Setup Item Selectable Range or Selections Default Value Setting

Time zone (HHMM)
Time deviation limit
Date format

–1300 to 1300
Off/10s/20s/30s/1min/2min/3min/4min/5min
Y/M/D, M/D/Y, D/M/Y, D.M.Y

900
30s
Y/M/D

Calender display > 1st weekday

*2

SUN/MON MON

Setup Items and Default Values

84

IM 04L41B01-02E

Communication (Ethernet) > IP-address

Setup Item Selectable Range or Selections Default Value Setting

DHCP Use/Not Not
DNS accession Use/Not Use
Host-name register Use/Not Use
Fixed IP-address > IP-address
Fixed IP-address > Subnet mask
Fixed IP-address > Default gateway

0.0.0.0 to 255.255.255.255

0.0.0.0 to 255.255.255.255

0.0.0.0 to 255.255.255.255

0.0.0.0

0.0.0.0

0.0.0.0

Communication (Ethernet) > Host settings

Setup Item Selectable Range or Selections Default Value Setting

Host name 64 characters or less –
Domain name 64 characters or less –

Communication (Ethernet) > DNS settings

Setup Item Selectable Range or Selections Default Value Setting

Server search order > Primary
Server search order > Secondary

0.0.0.0 to 255.255.255.255

0.0.0.0 to 255.255.255.255

0.0.0.0

0.0.0.0
Domain suffix search order > Primary
Domain suffix search order > Secondary

64 characters or less
64 characters or less

–
–

Communication (Ethernet) > Keep alive, Timeout

Setup Item Selectable Range or Selections Default Value Setting

Keep alive On/Off On
Application time out > On/Off
Application time out > Time

On/Off
1 to 120 (min)

Off
1

Communication(Ethernet) > Server > Server modes

Setup Item Selectable Range or Selections Default Value Setting

FTP Use/Not Use

*2

Web Use/Not Use

*1

SNTP Use/Not Not
Modbus Use/Not Not
EtherNet/IP

*2

Use/Not Not

Communication(Ethernet) > Server > Allowed Modbus clients

*2

Setup Item Selectable Range or Selections Default Value Setting

Use/Not Use/Not Not
Client number 1/2/3/4/5/6/7/8/9/10 1
On/Off On/Off Off

Setup Items and Default Values

85

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Setup Items and Default Values

Communication (Ethernet) > Web page

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Page type Operator/Monitor Operator
Page type=Operator

Web page > On/Off
Web page > Access control
Web page > Command

On/Off
Off/Admin
Use/Not

Off
Off
Not

Page type=Monitor

Web page > On/Off
Web page > Access control

On/Off
Off/Admin/User

Off
Off

With /AS1

*3

Page type Operator/Monitor Operator
Page type=Operator

Web page > On/Off On/Off Off
Web page > Access control Off/Admin Off

The items when Page type is set to Monitor are the same as on a DX without the /AS1 option.

Communication (Ethernet) > E-Mail > Basic settings

Setup Item Selectable Range or Selections Default Value Setting

SMTP server name
Port number
Security

*2

64 characters or less
0 to 65535
Off/PbS

*2

/Auth

*3

–
25

Off
SMTP authorization > User name
(when Auth is selected)

*3

32 characters or less –

SMTP authorization > Password
(when Auth is selected)

*3

32 characters or less –

Communication (Ethernet) > E-Mail > Recipients

Setup Item Selectable Range or Selections Default Value Setting

Recipient 1 150 characters or less –
Recipient 2 150 characters or less –
Sender 64 characters or less –

Communication (Ethernet) > E-Mail > POP3 settings

*2

Setup Item Selectable Range or Selections Default Value Setting

POP3 Server name 64 characters or less –
Port number 0 to 65535 110
Login name 32 characters or less –
Password 32 characters or less ******...***

Communication (Ethernet) > E-Mail > Alarm settings

Setup Item Selectable Range or Selections Default Value Setting

Recipient 1
Recipient 2

On/Off
On/Off

Off

Off
Active Alarms > Alarm 1
Active Alarms > Alarm 2
Active Alarms > Alarm 3
Active Alarms > Alarm 4

On/Off
On/Off
On/Off
On/Off

Off

Off

Off

Off
Include INST
Include source URL
Subject
Header 1
Header 2

On/Off
On/Off
32 characters or less
64 characters or less
64 characters or less

Off

Off

Alarm_summary

–

–
Send alarm action

*2

On+Off/On On+Off

Include tag/ch in Subject

*2

On/Off Off

86

IM 04L41B01-02E

Communication (Ethernet) > E-Mail > Scheduled settings

Setup Item Selectable Range or Selections Default Value Setting

Recipient 1
Interval
Ref.time
Recipient 2
Interval
Ref.time

On/Off
1h/2h/3h/4h/6h/8h/12h/24h
00:00 to 23:59
On/Off
1h/2h/3h/4h/6h/8h/12h/24h
00:00 to 23:59

Off
24h
00:00
Off
24h

00:00
Include INST
Include source URL
Subject
Header 1
Header 2

On/Off
On/Off
32 characters or less
64 characters or less
64 characters or less

Off

Off

Periodic_data

–

–

Communication (Ethernet) > E-Mail > System settings

Setup Item Selectable Range or Selections Default Value Setting

Recipient 1
Recipient 2

On/Off
On/Off

Off

Off
Include source URL
Subject
Header 1
Header 2

On/Off
32 characters or less
64 characters or less
64 characters or less

Off

System_warning

–

–

Communication (Ethernet) > E-Mail > Report settings

Setup Item Selectable Range or Selections Default Value Setting

Recipient 1
Recipient 2

On/Off
On/Off

Off

Off
Include source URL
Subject
Header 1
Header 2

On/Off
32 characters or less
64 characters or less
64 characters or less

Off

Report_data

–

–

Communication (Ethernet) > FTP client > FTP transfer file

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

FTP transfer file > Disp&Event data
FTP transfer file > Report
FTP transfer file > Snapshot

On/Off
On/Off
On/Off

Off
Off
Off

Transfer wait time > Disp&Event data

*2

Transfer wait time > Report

*2

0 to 120 min
0 to 120 min

0
0

With /AS1

*3

FTP transfer file > Disp&Event data On/Off Off
FTP transfer file > Report On/Off Off
FTP transfer file > Snapshot On/Off Off
FTP transfer file > Setting On/Off Off
The Transfer wait time items are the same as on a DX without the /AS1 option.

Setup Items and Default Values

87

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Communication (Ethernet) > FTP client > FTP connection

Setup Item Selectable Range or Selections Default Value Setting

FTP connection Primary/Secondary Primary
FTP server name 64 characters or less –
Port number 0 to 65535 21
Login name 32 characters or less –
Password 32 characters or less ******...***
Account 32 characters or less –
PASV mode On/Off Off
Initial path 64 characters or less –

Communication (Ethernet) > SNTP client

Setup Item Selectable Range or Selections Default Value Setting

Use/Not Use/Not Not
Server name 64 characters or less –
Port number 0 to 65535 123
Access interval Off/1h/8h/12h/24h 8h
Access reference time 00:00 to 23:59 00:00
Access timeout 10s/30s/90s 30s
Time adjust on Start action On/Off Off

Communication (Ethernet) > Modbus client > Basic settings

Setup Item Selectable Range or Selections Default Value Setting

Read cycle 125ms/250ms/500ms/1s/2s/5s/10s 1s
Retry interva Off/10s/20s/30s/1min/2min/5min/10min/

20min/30min/1h

2min

Communication (Ethernet) > Modbus client > Modbus server settings

Setup Item Selectable Range or Selections Default Value Setting

Server number 1-8/9-16 1-8
Port
Modbus server name
Unit
No.

0 to 65535
64 characters or less
Auto/Fixed
0 to 255

502
–
Auto
1

Communication (Ethernet) > Modbus client > Command settings

Setup Item Selectable Range or Selections Default Value Setting

Client command number 1-8/9-16 1-8
1 to 16
First
Last
Server
Regi.
Type

Off/R/R-M/W/W-M/E-M

*3

Depends on the command type.
Depends on the command type.
1/2/3/.../15/16
Numerical value
INT16/UINT16/INT32_B/INT32_L/UINT32_B/
UINT32_L/FLOAT_B/FLOAT_L

Off
–
–
1
30001
INT16

Communication (Ethernet) > Password management > KDC connection (/AS1 option)

*3

Setup Item Selectable Range or Selections Default Value Setting

KDC connection Primary/Secondary Primary
KDC server name 64 characters or less –
Port number 0 to 65535 88

Setup Items and Default Values

88

IM 04L41B01-02E

Communication (Ethernet) > Password management > Certification key (/AS1 option)

*3

Setup Item Selectable Range or Selections Default Value Setting

Host principal 20 characters or less –
Realm name 64 characters or less –
Password 20 characters or less –
Encryption AES128/AES256/ARC4 AES128

Communication (Serial) > Basic settings

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Baud rate 1200/2400/4800/9600/19200/38400 9600
Data length 7/8 8
Parity Odd/Even/None Even
Handshaking Off:Off/XON:XON/XON:RS/CS:RS Off:Off
Address 1 to 99 1
Protocol Normal/Modbus/Modbus-M Normal

With /AS1

*3

The baud rate, data length, parity, handshaking, address items are the same as on a DX without the /AS1 option.
Protocol Normal/Modbus/Modbus-M/Barcode Normal

Communication (Serial) > Modbus master > Basic settings

Setup Item Selectable Range or Selections Default Value Setting

Read cycle 125ms/250ms/500ms/1s/2s/5s/10s 1s
Timeout 125ms/250ms/500ms/1s/2s/5s/10s/1min 1s
Retrials Off/1/2/3/4/5/10/20 1
Inter-block delay Off/5ms/10ms/15ms/45ms/100ms Off
Auto recovery Off/1min/2min/5min/10min/20min/30min/1h 2min

Communication (Serial) > Modbus master > Command settings

Setup Item Selectable Range or Selections Default Value Setting

Master command number 1-8/9-16 1-8
1 to 16
First
Last
Addr.
Regi.
Type

Off/R/R-M/W/W-M

*3

Depends on the command type.
Depends on the command type.
1 to 247
Numerical value
INT16/UINT16/INT32_B/INT32_L/UINT32_B/

UINT32_L/FLOAT_B/FLOAT_L

Off
–
–
1
30001
INT16

Communication (PROFIBUS-DP)

*2

Setup Item Selectable Range or Selections Default Value Setting

Node Address 0 to 125 3

Setup Items and Default Values

89

IM 04L41B01-02E

Installation and Wiring

Recommended Replacement

Periods for Worn Parts

Setup Items and

Default Values

Status relay

*3

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Fail relay Fail/Status relay Fail
Status relay Fail/Status relay Status relay

With /AS1

Fail relay Fail/Status relay/Mem. sample/Invalid user/Login Fail
Status relay Fail/Status relay/Mem. sample/Invalid user/Login Status relay

Status Relay > Status Relay Details

*3

Setup Item Selectable Range or Selections Default Value Setting

Memory/Media status On/Off Off
Measurement error On/Off Off
Communication error On/Off Off
Memory stop On/Off Off
Alarm

*2

On/Off Off

Set Calibration

*3

Setup Item Selectable Range or Selections Default Value Setting

Use/Not Use/Not Not
Notification 1 to 10 1
Renotification 10min/30min/1h/8h/24h 1h

End

Setup Item Selectable Range or Selections Default Value Setting

Do you want to store and
make the new settings take effect?

Yes/No/Cancel –

Setup Items and Default Values

90

IM 04L41B01-02E

File/Initialize tab

*2

Load settings

Setup Item Selectable Range or Selections Default Value Setting
Without /AS1

Load settings > Kind CF/USB CF
Initialize > Kind Clear 1/Clear 2/Clear 3 Clear 3
Media eject CF/USB –

With /AS1

*3

Load settings > All settings > Kind CF/USB CF
Load settings > Login info only > Kind CF/USB CF
Load settings > Other settings > Kind CF/USB CF
Initialize > Kind Clear 1/Clear 2/Clear 3/Clear 4 Clear 3
Media eject CF/USB –

End

Setup Item Selectable Range or Selections Default Value Setting

Do you want to store and
make the new settings take effect?

Yes/No/Cancel –

Setup Items and Default Values
