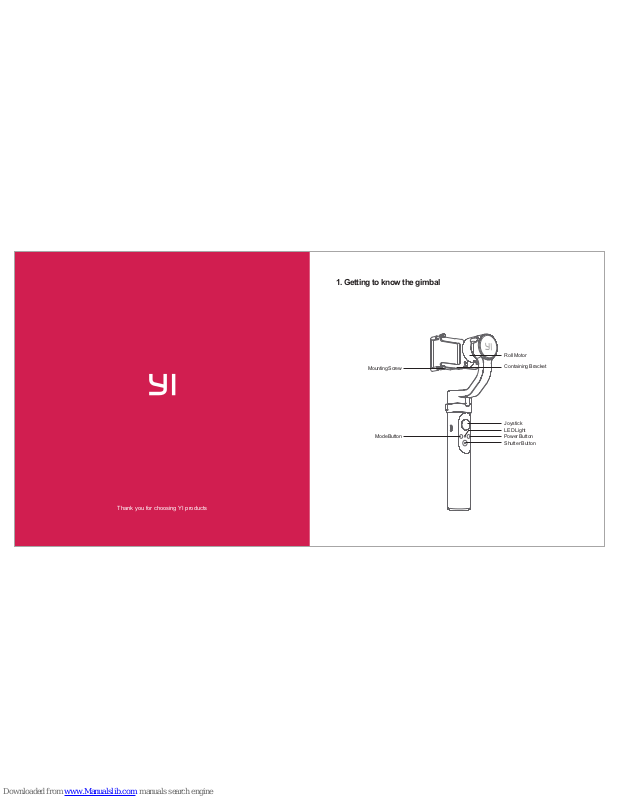

Thank you for choosing YI products
LED Light
Power Button
Joystick
Shutter Button
Mode Button
Mounting Screw
Roll Motor
Containing Bracket
1. Getting to know the gimbal
You can charge YI Action Gimbal through the Micro USB port, the standard
charger output should be 5V/ 2A.
2) Indicator
1. When charging with gimbal powered ON, the LED will
flash, when charging is complete, the LED will remain
on.
2. When charging with gimbal powered OFF, the LED will
flash red, when charging is complete, the LED will turn
green.
3. We don’t advise charging the gimbal through PC, it is
too slow.
4. The gimbal has a built-in battery that should not be
removed.
1) Charging
Tilt Motor
Securing Bracket
Pan Motor
Micro USB Port
1/4" Thread
2. How to use the gimbal
Carefully place the camera in the containing bracket, align
the securing bracket with the screws, then tighten.
Attention: Secure the camera before turning on the gimbal.
3) Insert the camera
Power Button
Press and hold the power button for 3 seconds to turn
on/off the gimbal.
4) Power on and off
