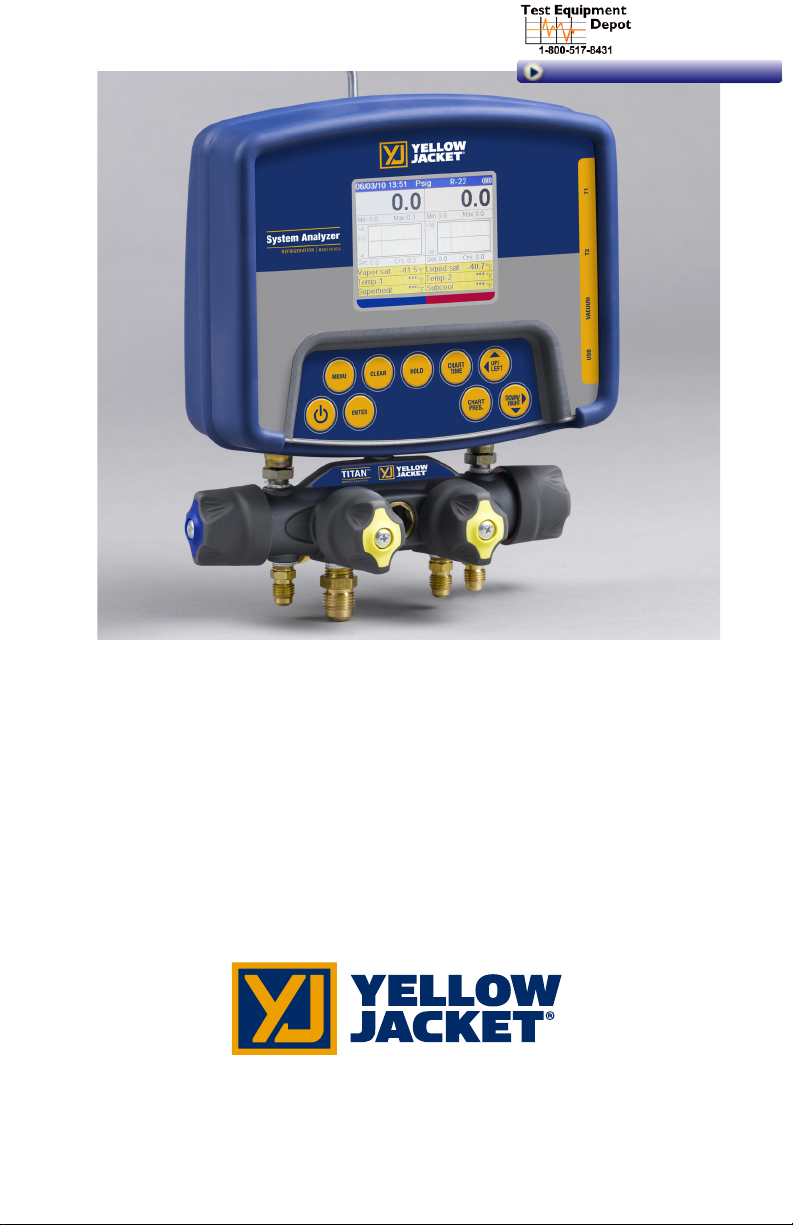

YELLOW JACKET

Refrigeration System Analyzer

Users Manual

UPC# 40812, 40813 and 40815

(Versions 1.06 and higher)

Note: These instructions do not cover the manifold

attached to the instrument.

Page 2

Table of Contents

Chapter Title Pg.

1 Before You Start

Contact and Safety Information

2 Getting Acquainted

Turning the Instrument On and Off

Battery Considerations

Keyboard Keys

Understanding the Displays

Using the Temperature and Vacuum Sensors

3 Getting the Job Done

Temperature and Pressure Mode

Vacuum Mode

Vacuum Sensor Calibration

4 Data Logging

Begin Logging

Playback and USB Functionality

Erase Files

5 Settings

Refrigerant Type

Temperature Unit

Elevation

Auto Vacuum Gauge

Power Saving Mode

Auto Power Off

Battery Type

Graph Type

Time Format

Time and Date

Refrigerant Favorites

Zero Pressure

Exiting the Set-Up Display

Settings Shortcut

6 Maintenance

General Maintenance

Replacing the Batteries

Spare Parts

Software Updates

Further Assistance

7 Specications

Safety

Chapter Title Pg.

Features and Specications 15

Instrumentation Specications 16

Warranty Policy

List of Tables

Table Title Pg.

1-1 Safety Information

1-2 Symbols

2-1 Key Functions

6-1 Spare Parts

List of Figures

Table Title Pg.

2-1 Menu Display

2-2 Battery Power Symbol

2-3 Low Battery Pop-up Message

2-4 Menu Display

2-5 System Analyzer Display

2-6 P/T Chart Display

2-7 Vacuum Gauge Display

2-8 Data Logging Start-up Display

2-9 Set-Up Display

2-10 Sensor Connections

2-11 Sensors without Boots

2-12 Sensors with Boots

3-1 First System Analyzer Display

3-2 2nd System Analyzer Display

3-3 3rd System Analyzer Display

3-4 Vacuum Gauge Display

3-5 Sensor Calibration Number

4-1 Data Logging Menu

4-2 Data Logging Start-Up Screen

4-3 Data Log Files

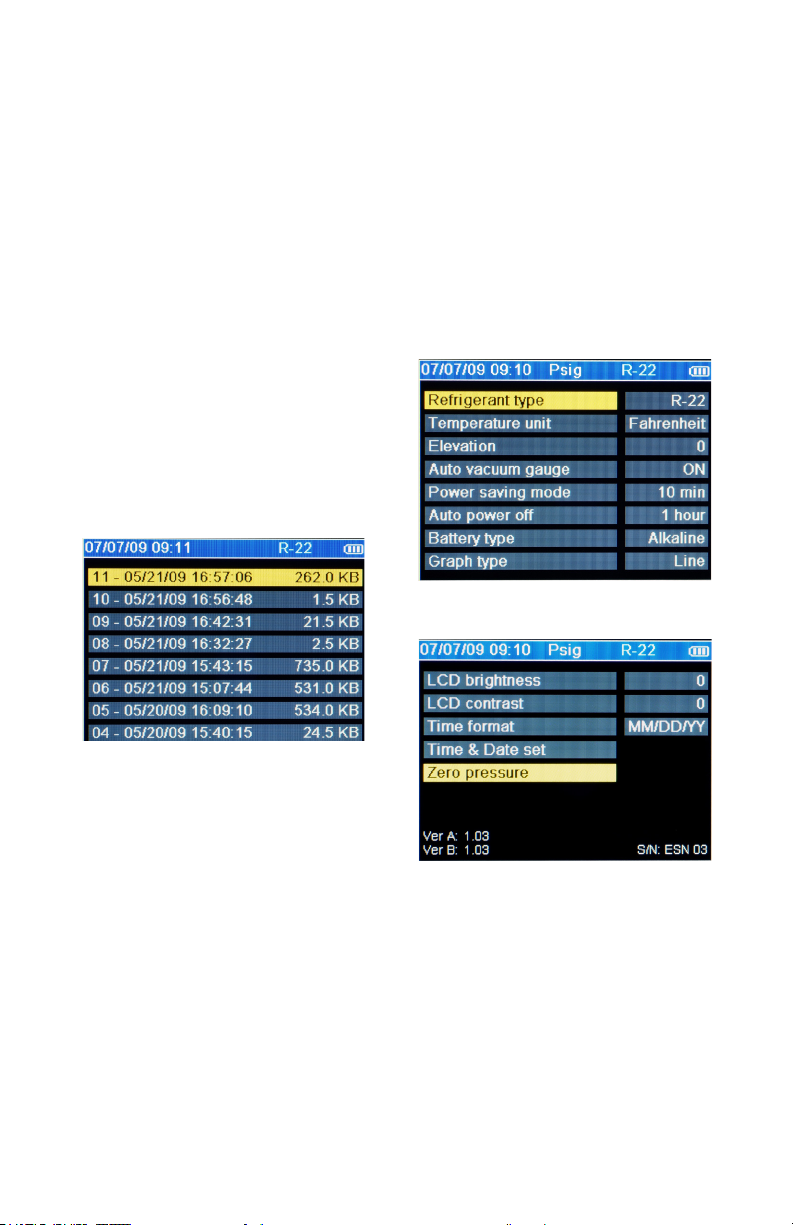

5-1 (a, b) Set-up Displays

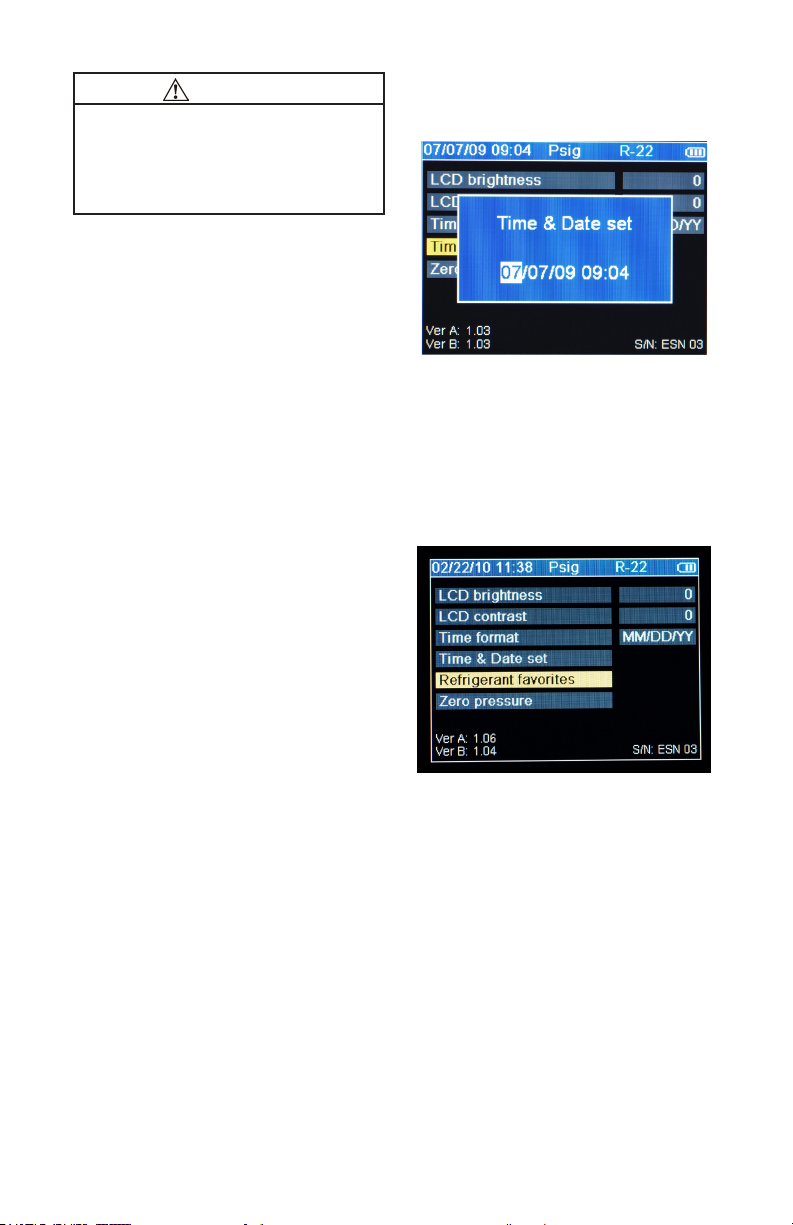

5-2 Time & Date Setting Screen

5-3 Refrigerant Favorites Set-up

5-4 Refrigerant Favorites Screen

5-5 Settings Shortcut

5-6 Battery Access

5-7 Battery Servicing

Page 3

Chapter 1 Before You Start

Contacting Ritchie

To order accessories, receive assistance, or locate the nearest YELLOW JACKET distributor.

Safety Information

Use the instrument only as specied in this

manual. Otherwise, the protection provided by the instrument may be impaired. Refer to safety information in Table 1-1.

A Warning identies conditions and actions that pose hazards to the user. A Caution identies

conditions and actions that may damage the instrument or the equipment under test.

Table 1-1. Safety Information

Warning

To avoid personal injury or death, follow these guidelines:

●

Most governments and legal authorities require that HVAC technicians be trained and

certied in the safe and proper operation of

HVAC tools, such as this instrument. Since this tool may be connected to many types of equipment through a limitless combination

of hoses and ttings, proper training is the

most important element of using this tool safely.

●

Read the entire Users Manual before using the instrument.

●

Use the instrument only as described in the Users Manual, otherwise the protection provided by the equipment may be impaired.

Do not use the instrument if it is damaged.

●

Before you use the instrument, inspect the case. Look for cracks or loose components.

Table 1-1. Safety Information

Warning

●

The instrument contains no internal userserviceable parts other than batteries that may be accessed through the battery door. Do not open the instrument other than opening the battery door. Have the instrument serviced only by Ritchie Engineering Co. or authorized service centers.

●

Do not use the instrument if it operates abnormally. Protection may be impaired. When in doubt, have the instrument serviced.

●

Refer to warnings supplied with batteries acquired for use in this instrument. If the batteries are not supplied with warnings, obtain them from the manufacturer or supplier.

Do not operate the instrument or service bat-

●

teries around explosive gas, vapor, or dust.

●

Various refrigerants have been intentionally

excluded for very signicant safety reasons.

Never use refrigerants in this instrument that are not listed in the Set-up menu.

●

The refrigerant database in this unit may

include refrigerants classied as ammable.

If such refrigerants are selected, the operator

may need additional certications and/or

training. Consult your government and legal authority and comply fully with all requirements.

●

Always wear eye and skin protection when working with refrigerants. Escaping refrigerant vapors will present a freezing danger. Do not direct refrigerant vapors venting from hoses towards the skin.

Maximum Working Pressure: High Side: 700

●

psia (4.83 MPa)

Maximum Working Pressure: Low Side: 350

●

psia (2.41 MPa)

●

Because this instrument allows for various inputs including electrical and mechanical, care must be taken to observe any ways that an electrical shock hazard could develop. Example: Wet or humid conditions, along with a damaged thermocouple or vacuum sensor, could allow an electrical path across the instrument and over wet hoses. Keep all interconnected equipment clean, organized, and in proper condition. Do not use the in-

strument if you are not qualied to recognize

potential electrical faults.

cont. next page.......

Page 4

Table 1-1. Safety Information

Caution

To avoid damage to equipment, follow these guidelines:

Do not allow pressures beyond the speci-

●

cations listed in this manual.

●

Be aware that internal pressures can change unintentionally when equipment is stored with pressure in the system during temperature changes. If sub-cooled liquid refrigerant is trapped in a hose or manifold with no room for expansion, it may result in dramatic pressure variations with seemingly small temperature changes. Pressures can reach high enough levels to cause damage to the instrument’s internal pressure transducers. Release liquid refrigerant from the hoses and manifold when disconnecting from a system.

Refer to cautions supplied with batteries

●

acquired for use in this instrument.

Do not attempt to introduce liquid or

●

samples heavily laden with oil into the instrument.

●

Read and observe instructions and speci-

cations related to the batteries used in this instrument that may cause damage to it.

Do not use this instrument on systems

●

containing leak sealing chemicals. These leak sealants can collect and harden in the instrument, causing permanent damage.

Chapter 2 Getting Acquainted

Introduction

This instrument will clearly and accurately report critical information needed to properly service refrigeration and air-conditioning equipment. With its many features, time can be saved and the quality

of service can be veried through data reports for customer satisfaction. Some of the most signi-

cant features include:

●

High accuracy and resolution

●

Very fast and sensitive leak detection

●

Robust temperature compensation with fault detection

●

Data logging and downloading for reporting and analysis

●

High durability and weather-resistance

Note that these instructions do not cover the manifold attached to the instrument.

Turning the Instrument On and Off

Press and release the key to turn unit on. After the logo appears briey, the instrument will present the main menu.

Press and hold the key (~two seconds) to turn unit off.

REC

||><||

Table 1-2 Symbols

Important information

Power On/Off

Temperature 1

Temperature 2

Indicates that the instrument is recording readings (data logging)

Indicates page-by-page scrolling mode (during data log playback)

Battery

Battery connector orientation

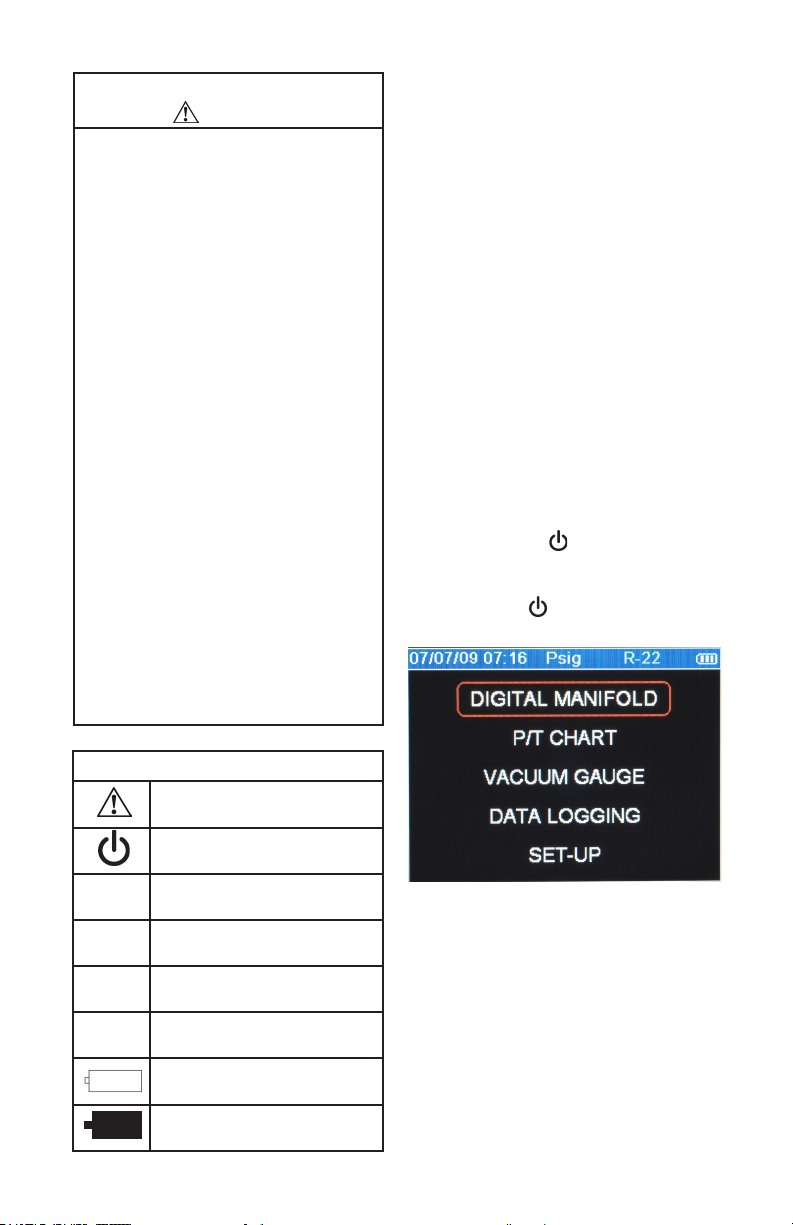

Figure 2-1. Menu Display

Battery Considerations

The instrument uses eight AA batteries. The user may select batteries of the following types: Alkaline, AA-Lithium, Ni-MH, Ni-Cd, Li-Pol, Li-Ion from the Setup menu (see Chapter 5). Do not mix battery types, including rating (i.e., do not mix four Ni-MH rated at 1600mAh with four Ni-MH rated at 1800mAh). Also, each battery in a set of eight must be at the same power state, preferably fully charged. The battery life indicator is only accurate when the correct battery type is selected in the SET-UP menu.

Page 5

The illustration below shows three bars that indicate a fresh or well-charged battery pack. When the battery weakens, the bars will disappear oneby-one as the battery power decays. When one bar remains, the symbol will turn yellow. When all bars are gone, the batteries are nearly dead and

the symbol will turn red. The unit will briey show

a pop-up message just before the unit stores all data and then automatically shuts off.

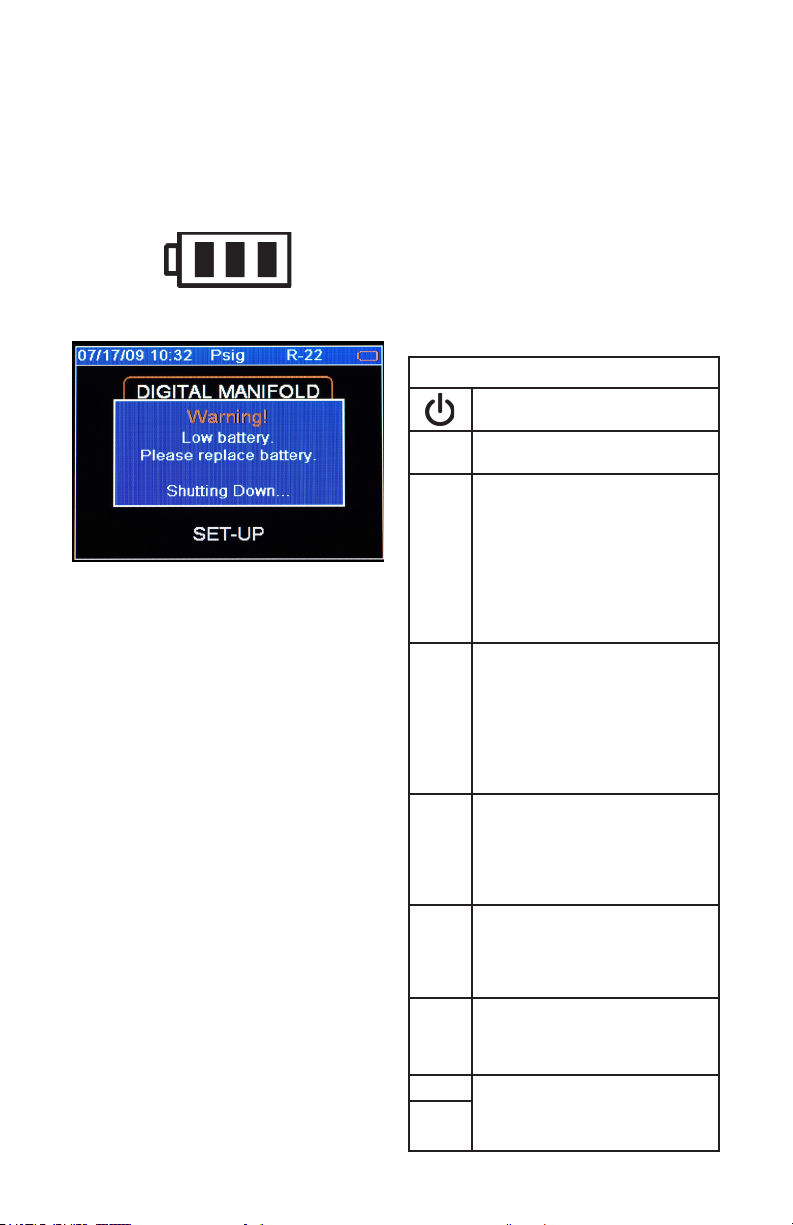

Figure 2-2. Battery Power Symbol

Figure 2-3. Low Battery Pop-Up Message

Automatic Power Off

The instrument may automatically turn off after a period of time. The default is one hour. The user may select other settings from ten minutes to four hours from the Setup menu (see Chapter

5). The user may also disable this feature. The Auto Power Off time limit is automatically disabled during data logging and is automatically restored once data logging has terminated.

Power Saving Mode

The display backlight will fade, darkening the display to save battery life if a key has not been pressed for a set period of time. While in Power Saving Mode, pressing any key turns the display backlight back to full brightness. Note that backlighting is independent from the display brightness and contrast settings (see Chapter 5) which do not affect battery life.

The Power Saving Mode is preset to 10 minutes. From the Setup menu (see Chapter 5), you can specify settings from 30 seconds to 60 minutes.

Low Battery Conditions

The unit will attempt to store all logged data if low battery power is detected. Once the data is stored, unit will turn off.

Maximizing Battery Life

Battery life decays fastest when the DIGITAL MANIFOLD display is selected, the vacuum sensor is attached, and the backlight is on. Battery life during data logging is maximized by using high-performance batteries, detaching the vacuum sensor (if not in use), and a short Power Saving Mode time setting is selected.

Keyboard Keys

Note that pressing a key that has not been assigned to a function will result in three, short beeps.

Table 2-1. Key Functions

Power On/Off (see Chapter 2, Turning the Instrument On and Off).

Menu Accesses menu of instrument

functions.

Enter Accepts selected functions and

values.

This key will also toggle the instrument data display modes. See Chapter 3.

During playback of logged data, toggles between point-by-point and page-by-page scrolling.

Clear A single press clears the chart set

point. (See Figure 3-1, item 11)

Press and hold to clear ‘Min.’ and ‘Max.’ values. (See Figure 3-1, item 5)

Resets vacuum timer to 0:00:00. (See Chapter 3)

Hold Freezes the data display at the

moment the key is depressed when data is being displayed. A second key press will return the display to the normal, dynamic mode (not accessible during data logging).

Chart

Toggles time resolution to display

Time

more or less of the data acquisition event, enhancing a user’s ability to

see signicant events (not accessible

during data logging).

Chart

Toggles pressure resolution to t

Pres-

analog pressure data within the

sure

display, enhancing a user’s ability to

see signicant events.

Up/Left Assists in selection of values and

data points depending on the func-

Down/

tion feature involved (not accessible

Right

during data logging).

Page 6

Understanding the Displays

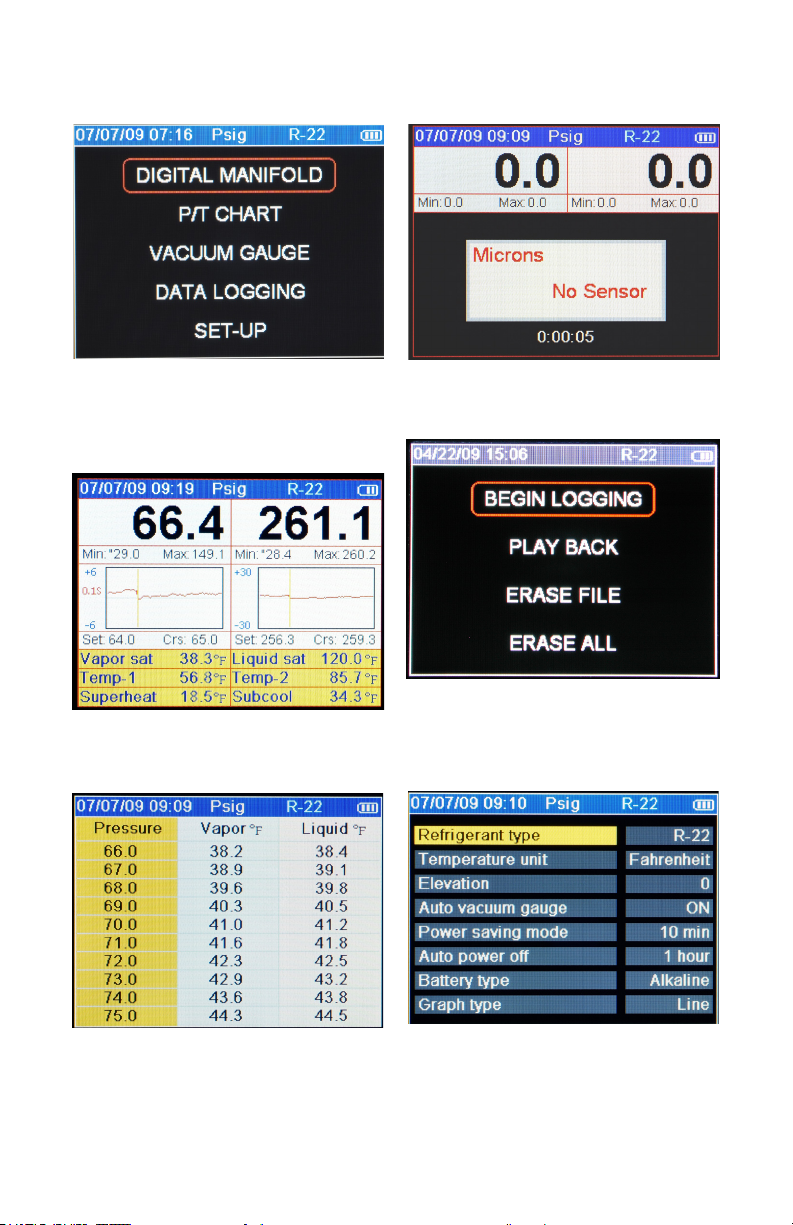

Figure 2-4. Menu Display

Use the ▲ or ▼ keys to scroll through the menu.

Press the “Enter” key to make a selection.

Figure 2-5. System Analyzer Display

(See Chapter 3)

Figure 2-7. Vacuum Gauge Display

(See Chapter 3)

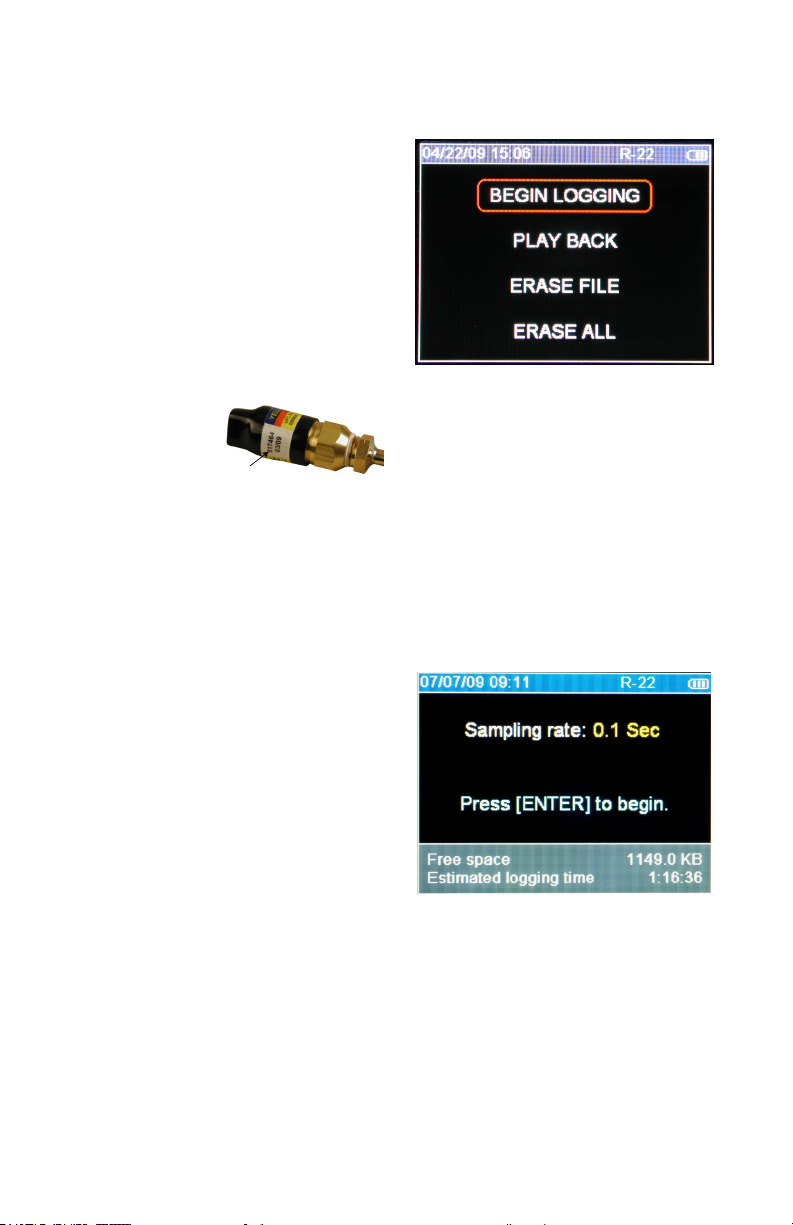

Figure 2-8. Data Logging

Start-Up Display

(See Chapter 4)

Figure 2-6. P/T Chart Display

This display shows the “P/T” (Pressure/Temperature) chart for the refrigerant that is selected in the

“Set-Up” display. Use the ▲ or ▼ keys to scroll

through the chart. Press the “Menu” key to exit.

Figure 2-9. Set-Up Display

(See Chapter 5)

Page 7

Using the Temperature and Vacuum Sensors

To use the external temperature and vacuum sensors, plug them into the connectors located on the side of the instrument. The use of rubber connector boots is optional. They will, however, increase the weather resistance of the unit and reduce the amount of dust that could enter at the vacuum connector, if that boot isn’t used. When not in use, the vacuum and USB connector openings should be covered with the tethered plugs.

Vacuum

T2T1

(Plugged)

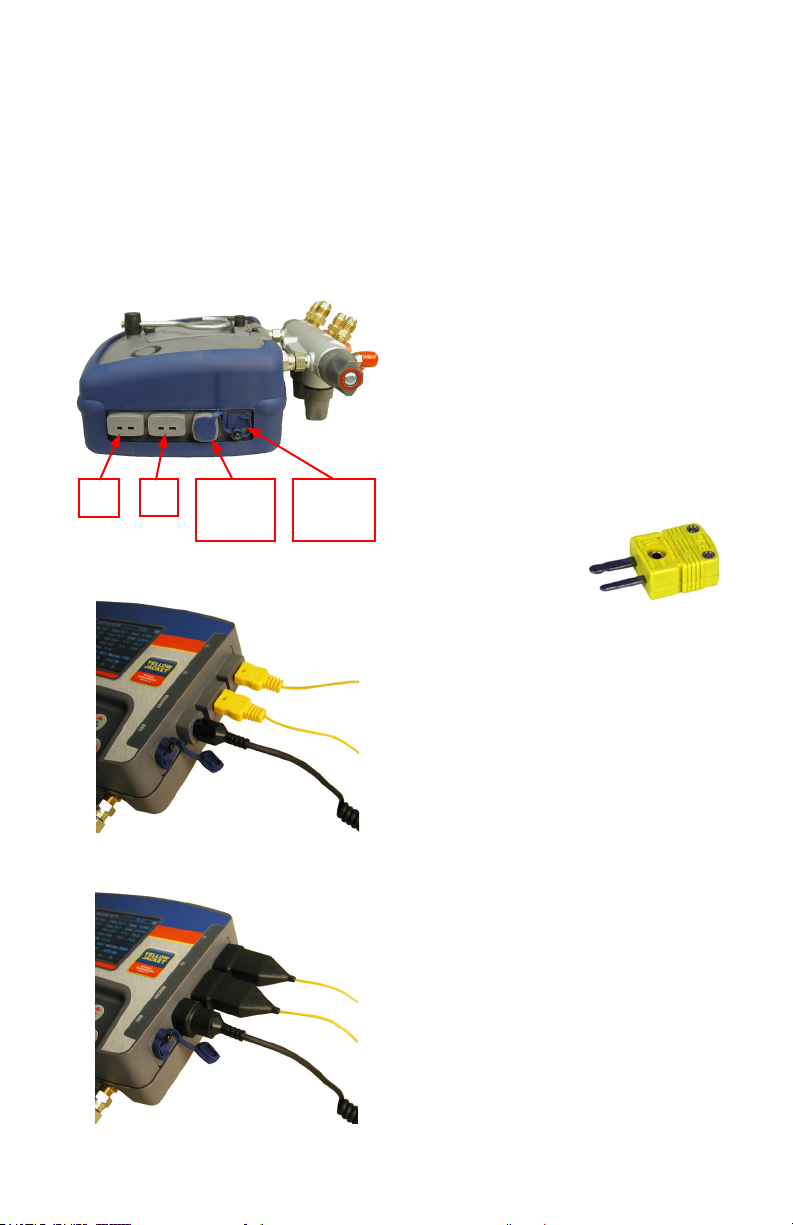

Figure 2-10. Sensor Connections

Figure 2-11. Sensors without Boots

USB

(Plugged)

Chapter 3 Getting the Job Done

Temperature and Pressure Mode

Note: A common mistake is to forget to zero the pressure sensors before using the instrument for a job, resulting in incorrect pressure readings and calculations. See Chapter 5 - Settings, Zero pressure, for more information.

The unit will simultaneously display inputs from four sources:

T1 Temperature Sensor (Suction line

●

temperature for superheat) T2 Temperature Sensor (Liquid line

●

temperature for subcooling) Low Side Pressure Transducer (internal)

●

High Side Pressure Transducer (internal)

Temperature Probes – The system analyzer will display readings from any K-type thermocouple probe with a miniature style connector (see picture). The K-type is usually indicated with a letter K on the connector. The miniature style thermocouple connectors have two at blade contacts. The two blade contacts are different widths to ensure proper polarity. Plug the blade contacts into the matching slots in the analyzer.

Your system analyzer includes a pair of K-type clamp probes for easy pipe temperature measurement.

Figures 3-1, 3-2, and 3-3 show the three digital manifold displays for monitoring system charging and operation.

●

The rst display (see Figure 3-1) presents

all available data outputs including XY Time-Pressure charting.

●

The second display (see Figure 3-2) is the

same as the rst except for the exclusion of

the Temp-1, Temp-2, vapor (Low sat.) and liquid (High sat.) saturation points.

●

The third display (see Figure 3-3) is the same

as the rst except for the exclusion of the XY

Time-Pressure charting.

Once the default digital manifold display has been selected from the main menu, pressing the “Enter” key will advance through all three displays.

Figure 2-12. Sensors with Boots

Page 8

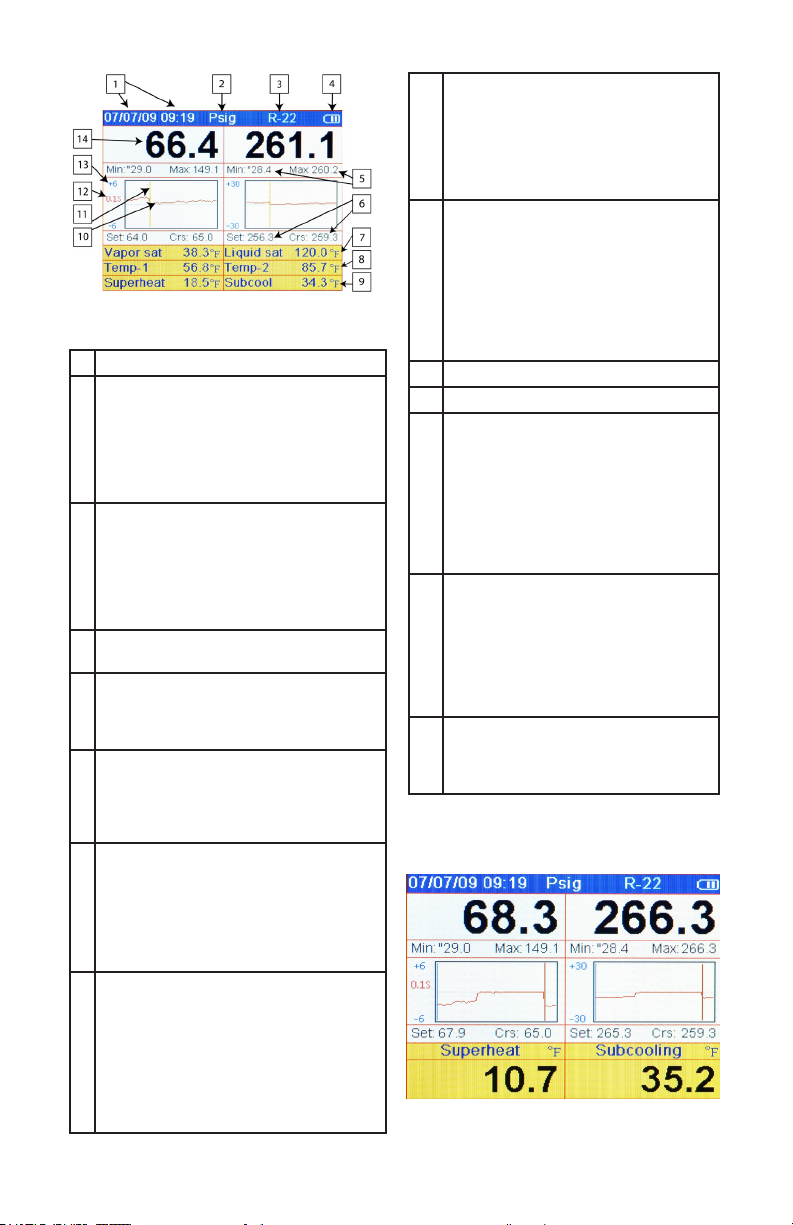

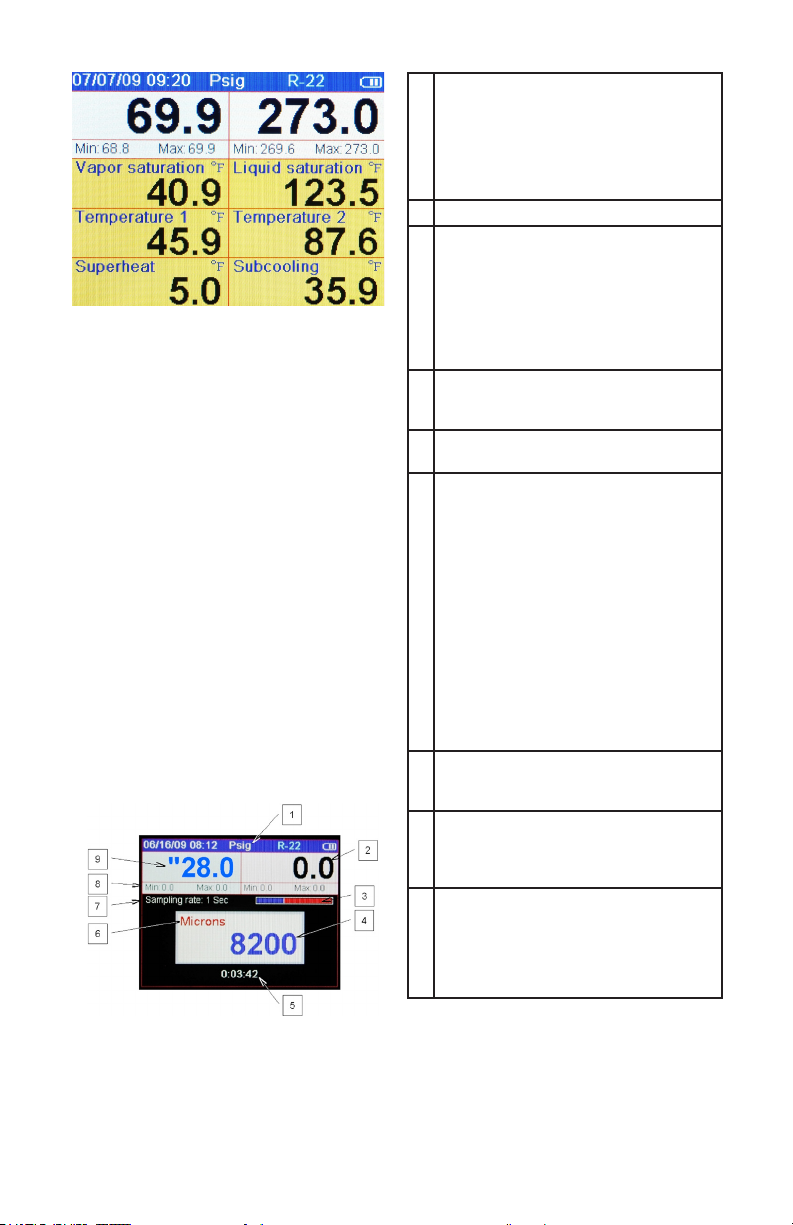

Figure 3-1. First System

Analyzer Display

1 Date and Time. (See Chapter 5 to set).

2 Pressure units. While using any of the digital

manifold or vacuum gauge display screens, press the UP/LEFT key to activate a pop-up screen where options can be changed using the UP/LEFT and DOWN/RIGHT keys. Press the MENU key to save the selections and exit the pop-up screen.

3 Refrigerant type. While using any of the

digital manifold or vacuum gauge display screens, press the UP/LEFT key to activate a pop-up screen where options can be changed using the UP/LEFT and DOWN/ RIGHT keys. Press the MENU key to save the selections and exit the pop-up screen.

4 Battery strength. (See Chapter 2 for battery

considerations).

5 The minimum and maximum pressures

encountered since the memory was last cleared. (“Clear” key - typical for high and low sides).

6 Set: The pressure represented by the center

horizontal line on both charts.

Crs: (Cursor) The charted pressure marked by the vertical line on both charts.

7 Left Side: Vapor Saturate. The vapor satura-

tion temperature for the selected refrigerant. (Also known as dew point)

Right Side: Liquid Saturate. The liquid saturation temperature for the selected refrigerant. (Also known as bubble point)

8 Temp-1 (T1): The temperature indicated by

the T1 thermocouple. (For proper superheat measurement, the T1 probe should be measuring the suction line temperature.)

Temp-2 (T2): The temperature indicated by the T2 thermocouple. (For proper subcooling measurement, the T2 probe should be measuring the liquid line temperature.)

While using any of the digital manifold or vacuum gauge display screens, press the UP/LEFT key to activate a pop-up screen where options can be changed using the UP/LEFT and DOWN/RIGHT keys. Press the MENU key to save the selections and exit the pop-up screen.

9 Superheat: The calculated superheat for

the selected refrigerant.

Subcool: The calculated subcooling for the selected refrigerant.

NOTE: These calculations are based on the measured pressures and temperatures.

10 Charted pressure

11 Time indication (cursor)

12 Seconds per samples (sample interval).

Use the “Chart Time” key to toggle this value through the available settings.

A small number will show rapid pressure changes by displaying a short period of time (‘zoom in’). A large number will show only slower pressure changes by displaying a larger period of time (‘zoom out’).

13 Pressure scale range. Use the “Chart

Pres.” Key to toggle pressure resolution

to t analog pressure data within the

display, enhancing a user’s ability to see

signicant events. A small range will show

small pressure changes (‘zoom in’). A larger range will show only larger pressure changes (‘zoom out’).

14 Left Side: Suction pressure (‘Low Side’)

Right Side: Discharge pressure (‘High Side’)

Figure 3-2. 2nd System Analyzer Display

Page 9

Figure 3-3. 3rd System Analyzer Display

Vacuum Mode

Note: If you are using a new vacuum sensor for the rst time, the vacuum sensor calibration number must be entered. The instrument will report incorrect data if this is not done. Go to ‘Vacuum Sensor Calibration Utility’ further down in this chapter for instructions.

The instrument can simultaneously use display inputs from two sources:

●

Vacuum Sensor

●

Internal Pressure Transducers

Note: Although the internal pressure transducers are primarily used for positive pressures, they also give a helpful indication of vacuum activity before the vacuum sensor indicates values in the ranges that are typical when operating vacuum pumps.

This screen can be accessed from the main menu, “Vacuum Gauge” selection, or the “Digital Manifold” screen by simply plugging in a vacuum sensor if the “Auto micron meter” is set to “ON”. (See “Settings - Auto Vacuum Gauge” in the Setup menu.)

1 Pressure units. While using any of the

2 Discharge pressure (‘High Side’).

3 When data recording is activated, this

indicator will gradually change from red to blue indicating the size of one page of data. During playback, it will help the user to decide whether to move through the data slowly or page-by-page. Adjusting the sampling rate will affect the amount of data on each page.

4 Vacuum reading. The message “Out of

range” will appear until the vacuum reaches 25,000 microns.

5 Elapsed time display. Press “Clear” to reset

counter to 0:00:00.

6 Vacuum Units. Vacuum readings can be

displayed in Microns, mTorr, Torr, mmHg, mBar, KPa, and Pa.

If it is desirable to match the pressure units with the vacuum units, the pressure units must be selected before proceeding with vacuum procedure.

7 When recording is activated, the sampling

rate is displayed here. See “Chapter 4 – Data Logging” to set the sampling rate.

8 The minimum and maximum pressures

encountered since the memory was last cleared (“Clear” key). (Typical for high and low sides.)

9 Left Side: Suction pressure (‘Low Side’).

Press the UP/LEFT key to activate a popup screen where options can be changed using the UP/LEFT and DOWN/RIGHT keys. Press the MENU key to save the selections and exit the pop-up screen.

Figure 3-4. Vacuum Gauge Display

Page 10

Vacuum Sensor Calibration Utility

Calibration Number

Whenever a new vacuum sensor is used, the sixdigit calibration number printed on the side of the vacuum sensor must be entered. At the screen shown in Figure 3-4, press and hold the “ENTER” key. A small pop-up window will appear where the elapsed time usually appears. The 6 digit number displayed is the sensor calibration number currently in memory. These digits need to be changed to match the number on the new sensor. The white highlighted digit indicates the digit being edited. Use the UP/DOWN buttons to change the highlighted value. When the highlighted value matches the digit on the sensor label, press the ENTER button to move to the next digit position. Repeat until all 6 digits match the digits on the sensor label. When the sensor number is properly entered, press the CLEAR button. The sensor

number eld will disappear and the elapsed time eld will reappear.

The instrument is now ready for use with the new sensor.

Figure 3-5. Sensor Calibration Number

Connect the gauge to a dry part of the system.

The sensor will not work if it becomes lled with

system oil. When the pressure falls into the readout range, the numeric readout will appear.

The vacuum sensor requires approximately 30 seconds of operating (warm-up) time before the readings are accurate.

Before data logging, verify that the units (temperature, pressure, vacuum) are set to the desired values. They cannot be changed when data logging is active.

Figure 4-1. Data Logging Menu

Begin Logging

To activate data logging, select the BEGIN LOGGING option from the main Data Logging menu. The data logging start-up screen will appear, allowing you to select the sampling rate. The

sampling rate denes how often readings will

be stored. This screen also shows the available data logging memory and the calculated time limit (based on the current sampling rate).

When data logging, the sampling rate will dictate the chart time setting on the Digital Manifold screen.

Tips for avoiding sensor contamination

●

Inspect tting for signs of oil before connecting

the 69086 vacuum gauge sensor.

●

Keep the sensor vertical when possible. Connect the gauge directly to the system,

●

away from the pump. Isolate the pump from the system (and the

●

gauge) with a valve before turning the pump off. This is very important when the gauge is mounted near the pump.

Chapter 4 Data Logging

Introduction

Data simultaneously generated by the temperature and pressure inputs and vacuum sensor may be stored in the instrument’s memory for viewing later via the instrument’s PLAYBACK mode or by downloading the data to a PC.

Figure 4-2. Data Logging

Start-Up Screen

After selecting the sampling rate and pressing ENTER, the digital manifold screen will appear as usual. When the instrument is logging data, the

REC icon will ash at the top of the screen and

the red indicator light next to the keypad will ash

periodically.

Page 11

Playback and USB Functionality

Saved data log les can be viewed using the

“Playback” option. In Playback mode, the digital manifold screen will appear just as it did during the logging process. Use the <> buttons to scroll through the recorded data. As you scroll, the date, time, pressures, temperatures, and charts will change to match the stored values. To scroll faster, use the ENTER key to switch to page by page scrolling (indicated by ||<>|| icon). Pressing ENTER again will switch back to the slower point by point scrolling.

Instructions for utilizing the USB functionality are supplied with the software which is available at www.yellowjacket.com/sa.

Note that data log les, whether viewed on the

analyzer (as shown in Figure 4-3) or on a PC,

will always be identied by the date and time

when the recording was started. Keeping track of the dates and times of your service jobs and your recordings will allow for easier playback and reporting at a later time.

Chapter 5 Settings

Introduction

This following display presents the instrument settings that may be changed by the user. Use the

▲ or ▼ keys to scroll through the settings. Press the “Enter” key to select a setting for modication.

The various setting options will then be available

by using the ▲ or ▼ keys to scroll through the

options. Once the desired option is displayed, press the enter key to activate it and return to the list of settings.

Figure 5-1a. Set-Up Display

Figure 4-3. Data Log Files

Erase File

Use the arrow keys to highlight the data le to be

erased. Press clear to erase.

Erase All Files

Press clear to erase all data les.

Figure 5-1b. Set-Up Display

Refrigerant Type

The proper refrigerant type must be entered in this eld in order to get accurate saturation temperatures and superheat/subcooling calculations. Your system analyzer is pre-loaded with an extensive

list of refrigerants, identied by their ofcial

ASHRAE numbers. This list of refrigerants can be updated. See our website at www.yellowjacket. com/sa for more information about updating the refrigerant list.

Page 12

Warning

The refrigerant database in this unit may

include refrigerants classied as ammable.

If such refrigerants are selected, the operator

may need additional certications and/or

training. Consult your government and legal authority and comply fully with all requirements.

Note: As you scroll through the list the names of

ammable refrigerants are highlighted with a red background. If a ammable refrigerant is selected,

a warning message will appear. This warning message must be acknowledged before proceeding. Refrigerants that do not have ASHRAE designations (if any) are designated with abbreviated trade names.

Temperature Unit - Select Fahrenheit

(F) or Celsius (C) degrees.

Elevation - For accurate refrigerant PT

data and psia calculations, the operating elevation must be entered. The more accurately you set the elevation, the more accurate your readings will be. Remember to change the elevation setting when your job takes you to higher or lower elevations. The factory default is zero (sea level).

Auto Vacuum Gauge - Choose

from “ON” or “OFF” (see Chapter 3 - Vacuum Mode).

Power Saving Mode - Choose

from the available values (discussed in Chapter 2 – Battery Considerations – Power saving mode).

key. After setting each component, the values are accepted by, once again, pressing the “Enter” key. The changes may be discarded by pressing the “Menu” key while the pop-up window is active.

Figure 5-2. Time & Date Setting Screen

Refrigerant Favorites

This feature allows customization of the refrigerant list so only the refrigerants likely to be used will be visible in the selection list. Refrigerant favorites can be changed at any time by going to the SET-UP menu (second page) and selecting “Refrigerant Favorites”.

Auto Power Off - Choose from the

available values (see Chapter 2 – Battery Considerations – Auto power off).

Battery Type - Choose from the avail-

able types.

Graph Type - Choose from the available

types.

Time Format - Multiple date display

formats are supported. This setting will determine how dates are displayed on the instrument. The factory default is MM/DD/YY.

Time and Date

These settings are modied in a slightly different manner: Selecting this setting for modication

will open a pop-up window. Each component of the time and date values may be changed by

using the ▲ or ▼ keys to scroll though them. To

advance to the next component, press the “Enter”

Figure 5-3. Refrigerant Favorites Set-up

The refrigerant favorites screen will appear, giving several options. Favorite refrigerants will be identi-

ed with the standard blue or red background

colors. Refrigerants that are not favorites will be

identied with a grey background color.

●

The CLEAR button will clear all favorites except the currently active refrigerant shown at the top of the screen.

●

The HOLD button will set all refrigerants as favorites.

●

Use the UP/LEFT or DOWN/RIGHT buttons to scroll through the refrigerant list. The yellow underline will identify the location in the list. To change a favorite, identify it with the yellow underline, and press the ENTER button. The ENTER button will either remove the refrigerant as a favorite by turning it grey, or make it a favorite by turning it red or blue.

●

The MENU button will close the refrigerant favorites screen, saving changes.

Page 13

Chapter 6 Maintenance

Introduction

Basic operator maintenance is covered in this chapter. For more extensive maintenance and for repair, contact Ritchie Customer Service. See Chapter 1 for contact information.

Figure 5-4. Refrigerant Favorites Screen

Zero Pressure

The “Zero pressure” setting changes the pressure reading from whatever the unit is reading to zero.

Selecting this setting for modication will open a

pop-up window with further instructions. Verify that manifold pressures have been released before performing this procedure.

Exiting the Set-Up Display

To exit the Set-up display, press the “Menu” key.

Settings Shortcut

Figure 5-5. Settings Shortcut Screen

General Maintenance

Since this instrument may be used in the presence of a wide range of chemical liquids and vapors, it is recommended that the case be cleaned fairly often with a damp cloth and mild detergent such as dish soap.

If the unit encounters enough exposure to liquid chemicals that the chemical wicks between the instrument boot and the case, immediately remove the boot and clean the case as described above. The rubber boot may be immersed in soapy water to clean it.

Although the display has a tough, hard-coated, protective lens, clean the lens carefully, since display clarity is a critical component of this instrument:

Normally, the lens can be cleaned as one

●

would clean plastic eyeglass lenses: Use

a soft, 100% cotton or microber cloth and

water or eyeglass lens cleaning solution. Do not use paper products.

If the lens is very dirty, generously soak a soft

●

cloth with warm, soapy (dish soap) water and place the cloth for a couple of minutes over the lens to loosen any stubborn dirt. Wipe off excess water with a clean, less dampened,

100% cotton or microber cloth, and complete

the cleaning using the normal lens cleaning method described above.

●

If a non-water-soluble substance adheres to the lens, soak a small piece of soft cloth with kerosene and place the cloth for a couple of minutes over the substance to loosen it. Gently dab the loosened substance with clean, less kerosene-dampened pieces of 100% cotton cloth until the substance is lifted. Allow to dry and then complete the cleaning using the normal lens cleaning method described above.

Page 14

Replacing the Batteries

The main batteries will need to be replaced on a routine basis. Battery performance issues are discussed in Chapter 2. The coin cell battery maintains the time and date information. It may need to be replaced once or twice in the life of the instrument. To exit the Set-up display, press the “Menu” key.

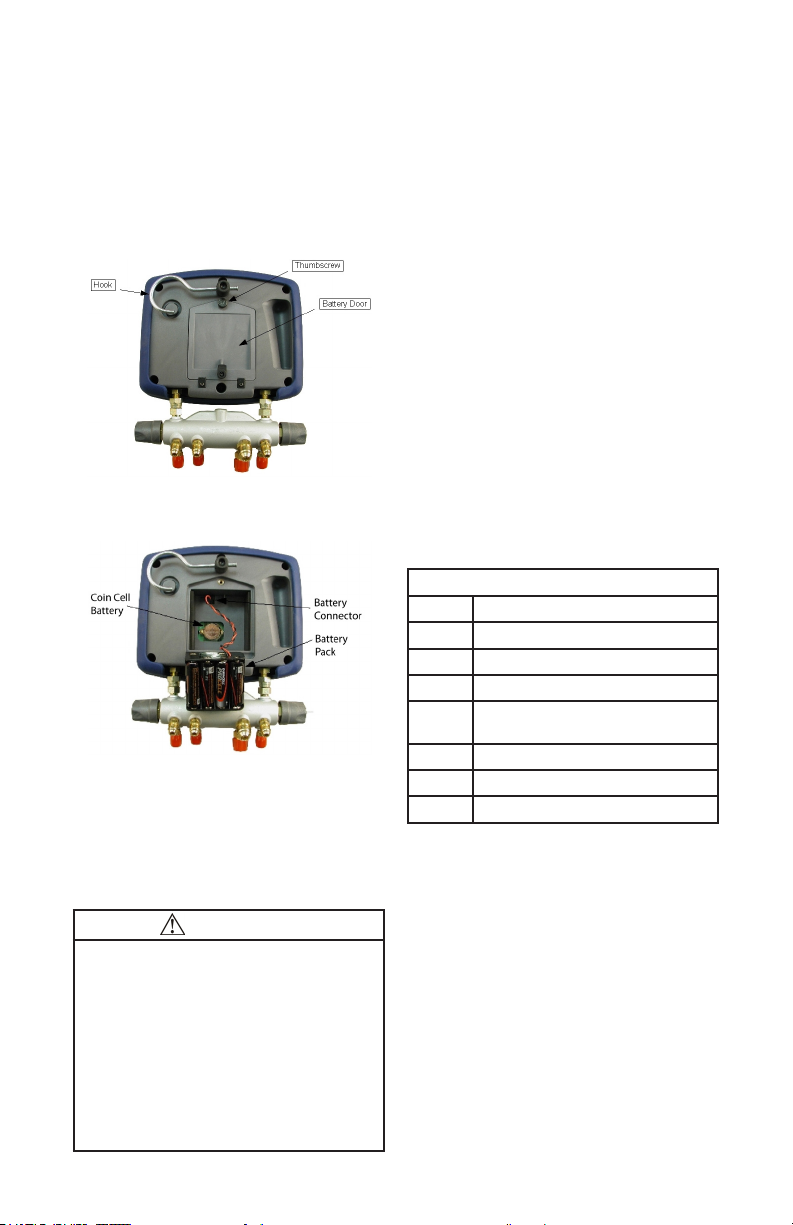

Figure 5-6. Battery Access

Figure 5-7. Battery Servicing

Main Batteries

Turn the unit off. Rotate the hook (1) out of the way of the battery door. Unscrew the battery door thumbscrew (2) and remove the battery door. Lift the battery pack out somewhat to allow access to the battery connection (3). Reconnect the battery pack. Tuck the battery harness to the side of the battery compartment as shown if Figure 6-2 as the battery assembly is lowered into the battery compartment.

Coin Cell Battery

If the unit is not maintaining the correct time and date, follow the instructions above to remove the main battery pack and expose the coin cell battery

through an access hole in the oor of the battery

compartment. Using a tool such as a small screw-

driver, deect the battery to the side until a corner

of the battery springs up slightly. It may be lifted out of the battery socket at this point. Reverse this procedure to install the fresh battery.

Spare Parts

Spare parts are listed in Table 6-1. See Chapter 1 for contact information. See the included TITAN manifold instructions for manifold-related spare parts.

Table 6-1 Spare Parts

UPC# Description

40820 Battery Holder, ‘AA’ Size, 2x4

40821 System Analyzer Instrument Boot

40823 System Analyzer Battery Door

40824 System Analyzer Bumper,

Plugs, & Sensor Boots

40827 USB cable

69101 Vacuum Sensor/Cord Assembly

69217 “K-Type” Clamp Probe (10 ft.)

See Chapter 7 for battery type specications.

Warning

if you are not qualied to recognize potential

electrical faults.

Software Updates

Details related to software updates are available online at www.yellowjacket.com/sa or by contacting Ritchie Engineering. See Chapter 1 for contact information.

Page 15

When Further Assistance is Needed

If this manual does not include information need-

ed to resolve any difculty you may experience:

1. Examine the instrument for any cracks or other damage. It may be necessary to remove the boots and battery door for a complete inspection. If damage is found, contact Ritchie Engineering. See the contact information in Chapter 1.

2. Replace the sensors, probes, and/or batteries.

3. Additional technical information may be available at www.yellowjacket.com/sa.

4. It may be necessary to return the instrument to Ritchie if the information in this manual and the help provided here does not resolve the issue. If this is the case, determine the version and serial numbers for your instrument by accessing the set-up screen. If the unit is not functional,

the serial number is printed on the oor of

the battery compartment. After you have secured your version and serial number, see the contact information in Chapter 1 to obtain an RMA number and arrange for service. For warranty information, please see the warranty listed at the end of this Users Manual.

Chapter 7

Specications

Safety

Maximum Liquid and/or

Vapor Pressure

Physical Specications

Operating Temperature

Storage Temperature

Size 8.3” wide x 6.7” tall x 3.6” thick

Weight 3.2 lbs (1.45 kg), manifold

Display unit Digital color TFT display with

-4 to 122°F (-20 to 50°C)

-20 to 170°F

(21 x 17 x 9 cm), manifold excluded

excluded

adjustable brightness and contrast behind anti-glare, scratch resistant, protective lens

High side: 700 psia Low Side: 350 psia

Features

Display Graphics

Superheat and Subcool

Max. and Min. Pressures

Hold Function

Refrigerant Database

Data Logging

Computer Interface

Real-Time Clock

Temperature Sensors

Vacuum Sensor

Pressure Transducers

Manifold Mates with TITAN 4-Valve

Pressure Zeroing

Elevation

Compensation

PT Chart Reference Screen

Batteries (Main)

Battery (Coin Cell)

Digital/analog redundancy for pressure values; adjustable chart resolutions to display more or less data; three screen layouts to facilitate various viewing distances

Automatically calculated

Displays and records the maximum and minimum pressures

Holds current reading and scrolls back to past readings

98 NIST refrigerant proles

included; upgradeable

Adjustable time intervals from

0.1 to 10 seconds; minimum of 24 hours at 1.0 second intervals

Downloads data log les for

equipment performance reports via USB port

Real-time clock for time and date stamping of equipment performance reports

Two, temperature compensated, continuity fault detecting, K-type temperature sensor ports

Full scale via pressure transducers and micron gauge; Proprietary sensor: part # 69087

Two transducers plumbed to manifold

Manifold

Press key in setup menu to zero

Enter elevation in setup menu for psia compensation

All installed refrigerant

proles may be displayed

AA size (Quantity: 8); Alkaline, NiCd, NiMH, A-A Lithium, Li Ion, Li Pol; One day of continuous operation when using fresh alkaline batteries or healthy rechargeable batteries

Coin type lithium clock battery for maintaining time and date: Panasonic CR2032 or equivalent.

Page 16

Features, cont.

Housing Highly weather resistant; glass-

ber reinforced, engineering

grade thermoplastic

Hook Integral hook swivels 360° and

stows when not used

Leaks Due to high accuracy and reso-

lution of the pressure transducers, leaks in equipment can be quickly sensed

Warranty Policy

The YELLOW JACKET® Refrigeration System Analyzer from Ritchie Engineering Company, Inc. is guaranteed to be free from material and workmanship defects for a period of two years. All other YELLOW JACKET® products included in this package are guaranteed to be free from material and workmanship defects for a period of one year. These guarantees do not cover products that have been altered, abused, misused or improperly maintained.

Not all catalogued products are stocked and eligible for return. Please check with your YELLOW JACKET representative or the factory for more information.

All returns must have an RGA number and proof of purchase/copy of invoice. Please obtain an RGA number from Ritchie Engineering Customer Service by calling 800-769-8370.

All returns must be pre-paid.

Instrumentation

Specications

Pressure Sensing Resolution

Pressure Sensing Accuracy

Working Pressure

Proof Pressure

Burst Pressure

Temperature Sensor Range (Instrument)

Temperature Display Resolution

Temperature Accuracy (Instrument)

Vacuum Display Resolution

Vacuum Accuracy

Low side: 0.1 psi, 0.01bar, 1kPa, 0.01MPa, 0.01kg/cm²

High side: 0.1 psi, 0.01bar, 1kPa, 0.01MPa, 0.01kg/cm²

0.5% of full scale at 25ºC

1% of full scale 55ºF to 130ºF

2% of full scale -40ºC to 120ºC

Low side: 0 – 350 psia

High side: 0 – 700 psia

Tolerable pressure without internal damage

Low side: 1000 psi

High side: 1000 psi

Tolerable pressure without loss of seal

Low side: 1500 psi

High side: 1500 psi

-100°F to 600°F

0.1°F or °C

±1.8°F (±1°C)

Shows two most signicant

digits in microns (25xxx10xxx, 99xx-10xx, 99x-10x, 99-

10); other units - direct conversions from the micron value

20% of reading

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

TestEquipmentDepot.com

yellow jacket 40813, 40815 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
