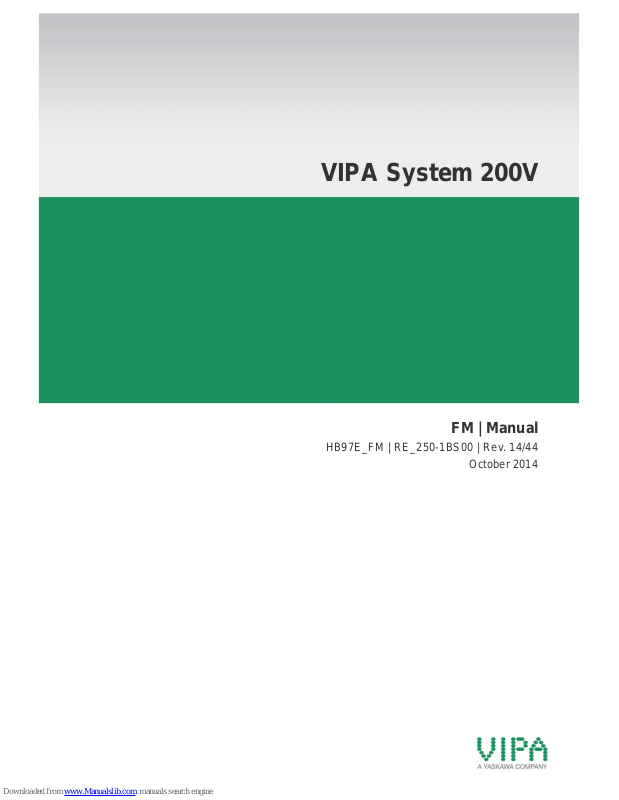

YASKAWA VIPA System 200V User Manual

VIPA System 200V

FM | Manual

HB97E_FM | RE_250-1BS00 | Rev. 14/44

October 2014

Copyright © VIPA GmbH. All Rights Reserved.

This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable
agreements.

This material is prot ected by the copyright laws. It may not be reproduced, distributed, or al tered in any fashion by any entity (either
internal or external to VIPA), except in ac cordance with applicable agreements, contracts or licensing, without the express written
consent of VIPA and the business management owner of the material.

For permission to reproduce or dis tribute, please contact:
VIPA, Gesellsc haft für Visualisierung und Prozes sautomatisierung mbH
Ohmstraße 4, D-91074 Herzogenaurach, Germany
Tel.: [phone]
Fax.: [phone]
EMail: [e-mail]
http://www.vipa.com

Note

Every effort has been made to ens ure that the information cont ai ned i n this document was compl ete and accurate at the tim e of
publishing. Nevertheless, the authors retain the right to m odi fy the information. This customer document des cribes all the hardware
units and functions known at t he present time. Descriptions may be included for units which are not present at the customer site. The
exact scope of delivery is descri bed i n the respective purchase contract.

CE Conformity Declaration

Hereby, VIPA GmbH declares that the products and syst ems are in compliance with t he essential requirements and ot her rel evant
provisions.

Conformity is indicated by the CE marking affixed to the product.

Conformity Information

For more information regarding CE marking and Declaration of Conformity (DoC), please contact your l ocal VIPA customer service
organization.

Trademarks

VIPA, SLIO, Sys tem 100V, System 200V, System 300V, Sys t em 300S, System 400V, System 500S and Commander Compact are
registered trademarks of VIPA Gesellschaft f ü r V i sualisierung und Prozessautom atisierung mbH.

SPEED7 is a registered t rademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are registered trademarks of Siemens AG.
Microsoft und Wi ndows are registered trademarks of Micros oft Inc., USA.
Portable Document Form at (PDF) and Postscript are regist ered trademarks of Adobe Systems, Inc.
All other trademarks, logos and service or product marks specified herein are owned by their respective companies.

Information product support

Contact your local VIPA Customer Service Organization repres entative if you wish to report errors or questions regarding the contents
of this document. If you are unable to locate a customer service center, contact VIPA as follows:

VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax:[phone]

EMail: [e-mail]

Technical support

Contact your local VIPA Customer Service Organization repres entative if you encounter problems with the product or have questions
regarding the product. If you are unable to l ocate a customer servic e center, contact VIPA as follows:

VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telephone: [phone] (Hotline)

EMail: [e-mail]

Manual VIPA System 200V Contents

HB97E - FM - RE_250-1BS00 - Rev. 14/44 i

Contents

About this manual....................................................................................1

Safety information.................................................................................... 2

Chapter 1

Basics and Assembly.....................................................1-1

Safety Information for Users.................................................................1-2

System conception...............................................................................1-3

Dimensions..........................................................................................1-5

Installation............................................................................................1-7

Demounting and module exchange....................................................1-11

Wiring.................................................................................................1-12

Installation guidelines.........................................................................1-14

General data ...................................................................................... 1-17

Chapter 2 Hardware description .....................................................2-1

Properties.............................................................................................2-2

Structure ..............................................................................................2-3

Technical data......................................................................................2-5

Chapter 3 Deployment.....................................................................3-1

Functionality.........................................................................................3-2

Configuration........................................................................................3-4

Contents Manual VIPA System 200V

ii HB97E - FM - RE_250-1BS00 - Rev. 14/44

Manual VIPA System 200V About this manual

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1

About this manual

This manual describes the System 200V SSI module FM 250S from VIPA.
Here you may find every information for com m issioning and operation.

Chapter 1: Basics and Assembly

The focus of this chapter is on the introduction of the VIPA System 200V.
Here you will find the information required to assemble and wire a
controller system consisting of System 200V component s.

Besides the dimensions the general technical data of System 200V will be
found.

Chapter 2: Hardware description

Here the hardware components of the FM 250-1BS00 are described.
The technical data are at the end of t he chapter.

Chapter 3: Deployment

This chapter contains every information on the deployment and the
configuration of t he SSI module FM 250S.

Overview

About this manual Manual VIPA System 200V

2 HB97E - FM - RE_250-1BS00 - Rev. 14/44

This manual describes the System 200V SSI module FM 250S from VIPA.
It contains a description of the construction, project implementation and
usage.

This manual is part of the document at ion package with order number
HB97E_FM and relevant for:

Product Order number as of state:

HW

FM 250S VIPA 250-1BS00 02

The manual is targeted at users who have a background in automation
technology.

The manual consists of chapters. Every chapter provides a self-contained
description of a specific topic.

The following guides are available in the manual:

• an overall table of contents at the beginning of the manual

• an overview of the topics for every chapter

The manual is available in:

• printed form, on paper

• in electronic form as PDF-f ile (Adobe Acrobat Reader)

Important passages in the text are highlighted by following icons and
headings:

Danger!

Immediate or likely danger.
Personal injury is possible.

Attention!

Damages to property is likely if t hese warning s ar e not heeded.

Note!

Supplementary information and usef ul t ips.

Objective and
contents

Target audience

Structure of the
manual

Guide to the
document

Availability

Icons
Headings

Manual VIPA System 200V Safety information

HB97E - FM - RE_250-1BS00 - Rev. 14/44 3

Safety information

The FM 250S is constructed and produced for:

• all VIPA System 200V components

• communication and process control

• general control and automation applications

• industrial applications

• operation within the environmental conditions specified in the technical

data

• installation into a cubicle

Danger!

This device is not certified for applicat ions in

• in explosive environments (EX-zone)

The manual must be available to all personnel in the

• project design department

• installation department

• commissioning

• operation

The following conditions must be met bef ore usi ng or commissioning
the components described in this manual:

• Hardware modifications to the process control system should only be
carried out when the system has been disconnected from power!

• Installation and hardware modification only by properly trained
personnel.

• The national rules and regulations of the respective country must be
satisfied (installation, safety, EMC ...)

National rules and regulations apply to the disposal of t he uni t !

Applications
conforming with
specifications

Documentation

Disposal

Safety information Manual VIPA System 200V

4 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-1

Chapter 1 Basics and Assembly

The focus of this chapter is on the introduction of the VIPA System 200V.
Here you will find the information req uir ed to assemble and wire a controller
system consisting of System 200V components.

Besides the dimensions the general technical data of System 200V will be
found.

Topic Page
Chapter 1

Basics and Assembly.....................................................1-1

Safety Information for Users ................................................................. 1-2

System conception...............................................................................1-3

Dimensions..........................................................................................1-5

Installation............................................................................................1-7

Demounting and module exchange....................................................1-11

Wiring.................................................................................................1-12

Installation gu idelines.........................................................................1-14

General data...................................................................................... 1-17

Overview

Contents

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-2 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Safety Information for Users

VIPA modules make use of highly integrated components in MOS­Technology. These components are extremely sensitive to over-voltages
that can occur during electrostatic discharges.

The following symbol is attached to modules that can be destroyed by
electrostatic discharges.

The Symbol is located on the module, the module rack or on packing
material and it indicates the presence of elect r ostatic sensitive equipment.

It is possible that electrostatic sensitive equipm ent is destr oyed by energies
and voltages that are far less than the human threshold of perception.
These voltages can occur where persons do not discharge themselves
before handling electrostatic sensitive modules and they can damage
components thereby, causing the module to become inoperable or
unusable.

Modules that have been damaged by electrostatic discharges can f ail after
a temperature change, mechanical shock or changes in the electrical load.

Only the consequent implementation of protection devices and meticulous
attention to the applicable rules and regulat ions for handling the respective
equipment can prevent failures of electrostatic sensitive modules.

Modules must be shipped in the original packing mater ial.

When you are conducting measurements on electrostatic sensitive modules
you should take the following precautions:

• Floating instruments must be discharged before use.

• Instruments must be grounded.

Modifying electrostatic sensitive modules you should only use soldering
irons with grounded tips.

Attention!

Personnel and instruments should be grounded when working on
electrostatic sensitive modules.

Handling of
electrostatic
sensitive modules

Shipping of
electrostatic
sensitive modules

Measurements and
alterations on
electrostatic
sensitive modules

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-3

System conception

The System 200V is a modular automation system for assembly on a
35mm profile rail. By means of the peripheral modules with 4, 8 and 16
channels this system may properly be adapted matching to your
automation tasks.

PW
SF
FC
MC

CPU 215

DC
24V

+

-

1
2

RN
ST
MR

X1

MMC

R
S

X2
34

VIPA 215-1BA03

M
P

I

2

DI 8xDC24V

SM 221

.0
.1
.2
.3
.4
.5
.6
.7

VIPA 221-1BF00

X2
34

1
2
3
4
5
6
7
8
9

I0

DI 8xDC24V

SM 221

.0
.1
.2
.3
.4
.5
.6
.7

VIPA 221-1BF00

X2
34

1
2
3
4
5
6
7
8
9

I0

DI 8xDC24V

SM 221

.0
.1
.2
.3
.4
.5
.6
.7

VIPA 221-1BF00

X2
34

1
2
3
4
5
6
7
8
9
I0

DI 8xDC24V

SM 221

.0
.1
.2
.3
.4
.5
.6
.7

VIPA 221-1BF00

X2
34

1
2
3
4
5
6
7
8
9

I0

The System 200V consists of the following components:

• Head modules like CPU and bus coupler

• Periphery modules like I/O, function und communication modules

• Power supplies

• Extension modules

CPU 214

M
P

I

PW
SF
FC
MC

R
S

RN
ST
MR

MMC

2

1
2

-

DC
24V

+

X1

VIPA 214-1BC03

X2
34

PW
ER
RD
DE

IM 253DP

ADR.

X8
910

VIPA 253-1DP00

+

-

1
2

DC
24V

X1

D
P

99

With a head module CPU r espectively bus
interface and DC 24V power supply are
integrated to one casing.

Via the integrated power supply the CPU
respectively bus interface is power
supplied as well as the electronic of the
connected periphery modules.

.0
.1
.2
.3
.4
.5
.6
.7
.0
.1
.2
.3
.4
.5
.6
.7

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

VIPA 221-1BH10

X2
3

4

DI 16xDC24V

n+1

n

DI 8xAC/..48V

SM 221

.0
.1
.2
.3
.4
.5
.6
.7
N

VIPA 221-1FF30

X2
3

4

1
2
3
4
5
6
7
8
9

I0

1
2
3
4
5
6
7
8
9
10

The modules are direct installed on a
35mm profile rail and connected to the
head module by a bus connector, which
was mounted on the profile rail before.

Most of the periphery modules are
equipped with a 10pin respectively 18pin
connector. This connector provides the
electrical interface for the signaling and
supplies lines of the modules.

Overview

Components

Head modules

Periphery modules

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-4 HB97E - FM - RE_250-1BS00 - Rev. 14/44

PS 207/2

X2
34

VIPA 207-1BA00

L
N
P

E

100-240V AC

550-230mA

50-60Hz

OH

OL
OK

X1

1
2
3
4

+

-

+

-

OUT DC 24V /

∑Ι:

2A

4A (peak)

G

DC 24V

DC 24V

With t he System 200V the DC 24V power
supply can take place either externally or
via a particularly for this developed power
supply.

The power supply may be mounted on the
profile rail together with the System 200V
modules. It has no connector to the back ­plane bus.

CM 201

VIPA 201-1AA00

X2
34

X2.X1.

The expansion modules are complemen­tary modules providing 2- or 3wire con­nection facilities.

The modules are not connected to the
backplane bus.

• Profile rail 35mm

• Dimensions of the basic enclosure:

1tier width: (HxWxD) in mm: 76x25.4x74 in inches: 3x1x3
2tier width: (HxWxD) in mm: 76x50.8x74 in inches: 3x2x3

Please note that you can only install head modules, lik e the CPU, the PC
and couplers at slot 1 or 1 and 2 (for double width modules).

[1] Head module

(double width)

[2] Head module

(single width)
[3] Periphery module
[4] Guide rails

1

2

4

3

0

1

Clack

D
P

Note

Information about the max.
number of pluggable modules
and the max. current at the
backplane bus can be found in
the "Technical Data" of the
according head module.

Please install modules with a
high current consumption direct ­ly beside the head module.

Power supplies

Expansion
modules

Structure/
dimensions

Installation

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-5

Dimensions

1tier width (HxWxD) in mm: 76 x 25.4 x 74
2tier width (HxWxD) in mm: 76 x 50.8 x 74

80 mm

60 mm

74 mm

88 mm

ca. 110 mm

84 mm

85 mm

76,62 mm

76 mm

2,77 cm

24 mm

Dimensions
Basic enclosure

Installation
dimensions

Installed and wired
dimensions

In- / Output
modules

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-6 HB97E - FM - RE_250-1BS00 - Rev. 14/44

84,46 mm

88 mm

4,66 mm

27 mm

8 cm

76 mm

24 mm

11 mm

85 mm

89 mm

89 mm

27 mm

8 cm

76 mm

12 cm

125 mm

91 mm

65 mm

24 mm

5 mm

11 mm

85 mm

Function modules/
Extension modules

CPUs (here with
EasyConn from
VIPA)

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-7

Installation

The modules are each installed on a 35mm profile rail and connected via a
bus connector. Before installing the module the bus connector is to be
placed on the profile rail before.

For installation the following 35mm profile rails may be used:

35 mm

27 mm

15 mm

1,5 mm

35 mm

27 mm

7,5 mm

1 mm

Order number Label Description
290-1AF00 35mm profile rail Length 2000mm, height 15mm
290-1AF30 35mm profile rail Length 530mm, height 15m m

System 200V modules communicate via a backplane bus connector. T he
backplane bus connector is isolated and available from VIPA in of 1-, 2-, 4­or 8tier width.

The following figure shows a 1tier connector and a 4t ier connector bus:

The bus connector is to be placed on the profile r ail until it clips in its place

and the bus connections look out from t he pr ofile rail.
Order number Label Description
290-0AA10 Bus connector 1tier
290-0AA20 Bus connector 2tier
290-0AA40 Bus connector 4tier
290-0AA80 Bus connector 8tier

General

Profile rail

Bus connector

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-8 HB97E - FM - RE_250-1BS00 - Rev. 14/44

The following figure shows the installation of a 4tier width bus connector in

a profile rail and the slots for the modules.

The different slot s ar e defined by guide rails.

[1] Head module

(double width)

[2] Head module

(single width)

[3] Peripheral module

PW
ER
RD
BA

ADR.

DC24V

+

-

1
2

0

1

1

2

4

3

PW
SF
FC
MC

MMC

R
S

[4] Guide rails

• Use bus connectors as long as possible.

• Sort the modules with a high current consumption right beside the head

module. In the service area of www.vipa.com a list of current
consumption of every System 200V module can be found.

Installation on a
profile rail

Assembly regarding
the current
consumption

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-9

hoizontal assembly

lying assembly

vertical

assembly

01

0

1

Please regard the allowed environmental temperatures:

• horizontal assembly: from 0 to 60°C

• vertical assembly: from 0 to 40°C

• lying assembly: from 0 to 40°C

The horizontal assembly always starts at the lef t side with
a head module, then you install the peripheral modules
beside to the right.

You may install up to 32 peripheral modules.

80 mm

60 mm

Please follow these rules during the assembly!

• Turn off the power supply befor e you install or remove
any modules!

• Make sure that a clearance of at least 60mm exists
above and 80mm below the middle of the profile rail.

• Every row must be completed from left to right and it
has to start with a head module.

[1] Head module (double width)
[2] Head module (single width)

12

4

3

[3] Peripheral modules

[4] Guide rails

• Modules are to be installed side by side. Gaps are not
permitted between the modules since this would
interrupt the backplane bus.

• A module is only installed properly and connected
electrically when it has clicked into place with an
audible click.

• Slots after the last module may rem ain unoccupied.

Note!

Information about the max. number of pluggable modules and the max.
current at the backplane bus can be found in the "Technical Data" of the
according head module.

Please install modules with a high current consumption directly beside the
head module.

Assembly
possibilities

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-10 HB97E - FM - RE_250-1BS00 - Rev. 14/44

• Install the profile rail. Make sure that a clearance of at least 60mm
exists above and 80mm below the middle of the profile rail.

• Press the bus connector into the profile rail until it clips securely into
place and the bus-connectors look out from the profile rail. This
provides the basis for the installation of your m odules.

• Start at the out er left location with the installation of your head m odule
and install the peripheral modules to the right of this.

[1] Head module

(double width)

[2] Head module

(single width)

[3] Peripheral module

12

4

3

[4] Guide rails

• Insert the module that you are installing into t he profile rail at an angle
of 45 degrees f rom the top and rotate the module into place until it
clicks into the prof ile rail with an audible click. The proper connect ion
to the backplane bus can only be guaranteed when the module has
properly clicked into place.

Clack

Attention!

Power must be turned off before modules are
installed or removed!

Assembly
procedure

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-11

Demounting and module exchange

1

2

3

4

5

• Remove if exists the wiring to the module, by pressing both
locking lever on the connector and pulling the connect or .

• The casing of the module has a spring loaded clip at the
bottom by which the module can be removed.

• The clip is unlocked by pressing the screwdriver in an upward
direction.

• Withdraw the module with a slight r otation to the top.

Attention!
Power must be turned off before modules are installed or

removed!
Please regard that t he backplane bus is interrupted at the point

where the module was removed!

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-12 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Wiring

Most peripheral modules are equipped with a 10pole or a 18pole connector.
This connector provides the electrical interf ace for the signaling and supply
lines of the modules.

The modules carry spring-clip connectors for interconnections and wiring.
The spring-clip connector technolog y simplifies the wiring requirements for

signaling and power cables.
In contrast to screw terminal connections, spring-clip wiring is vibration

proof. The assignment of the terminals is contained in the description of the
respective modules.

You may connect conductors with a diameter from 0.08mm

2

up to 2.5mm2

(max. 1.5mm

2

for 18pole connectors).

The following figure shows a module with a 10pole connector.

1
2
3
4
5
6
7
8
9

10

1
2
3

3 4 5

1

1

1
2
3
4
5
6
7
8
9

10

2

[1]
[2]
[3]
[4]
[5]

Locking lever
Pin no. at the module
Pin no. at the connector
Wiring port
Opening for screwdriver

Note!

The spring-clip is destroyed if you push the screwdriver into the wire port!
Make sure that you only insert the screwdriver into the square hole of t he

connector!

Overview

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-13

• Install the connector on the module unt il it locks with an audible click.
For this purpose you press the two clips together as shown.

The connector is now in a permanent position and can easily be wired.

The following section shows the wiring procedure from top view.

• Insert a screwdriver at an angel into the square opening as shown.

• Press and hold the screwdriver in the opposite direction to open the

contact spring.

• Insert the stripped end of the wire into the r ound opening. You can use
wires with a diameter of 0.08mm

2

to 2.5mm2

(1.5mm

2

for 18pole connectors).

• By removing the screwdriver the wire is connected safely with the plug
connector via a spring.

Note!

Wire the power supply connections first followed by the signal cables
(inputs and outputs).

Wiring procedure

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-14 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Installation guidelines

The installation guidelines contain information about the interference free
deployment of System 200V systems. There is the descript ion of the ways,
interference may occur in your control, how you can make sure the
electromagnetic digestibility (EMC), and how you manage the isolat ion.

Electromagnetic digestibilit y (EMC) means the ability of an electrical device,
to function error free in an electromagnetic environment without being
interferenced res. without interferencing the environment.

All System 200V components are developed for the deployment in hard
industrial environments and fulfill hig h demands on the EMC. Nevertheless
you should project an EMC planning before installing the components and
take conceivable interference causes into account.

Electromagnetic interf erences may interfere your control via diff er ent ways:

• Fields

• I/O signal conductors

• Bus system

• Current supply

• Protected earth conductor

Depending on the spreading medium (lead bound or lead free) and the
distance to the interference cause, interferences to your control occur by
means of different coupling mechanisms.

One differs:

• galvanic coupling

• capacitive coupling

• inductive coupling

• radiant coupling

General

What means EMC?

Possible
interference
causes

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-15

In the most times it is enough to take care of some elementary rules to
guarantee the EMC. Please regard the f ollowing basic rules when installing
your PLC.

• Take care of a correct area-wide grounding of the inactive metal parts
when installing your components.

- Install a central connection between the ground and the protected

earth conductor system.

- Connect all inactive metal extensive and impedance-low.

- Please try not to use aluminum parts. Aluminum is easily oxidizing

and is therefore less suitable for grounding.

• When cabling, t ake care of the correct line rout ing.

- Organize your cabling in line groups (high voltage, current supply,

signal and data lines).

- Always lay your high voltage lines and signal res. data lines in

separate channels or bundles.

- Route the signal and data lines as near as possible beside ground

areas (e.g. suspension bars, metal r ails, tin cabinet).

• Proof the correct f ixing of the lead isolation.

- Data lines must be laid isolated.

- Analog lines must be laid isolated. When transmitting signals with

small amplitudes the one sided laying of the isolation may be
favorable.

- Lay the line isolation extensively on an isolation/protected earth con-

ductor rail directly after the cabinet entry and fix the isolation with
cable clamps.

- Make sure that the isolation/protected earth conductor rail is

connected impedance-low with the cabinet.

- Use metallic or metalized plug cases for isolated data lines.

• In special use cases you should appoint special EMC actions.

- Wire all inductivities with erase links.

- Please consider luminescent lamps can influence signal lines.

• Create a homogeneous reference potential and ground all electrical
operating supplies when possible.

- Please take care for the targeted employment of the grounding

actions. The grounding of the PLC is a protection and functionality
activity.

- Connect installation parts and cabinets with the System 200V in star

topology with the isolation/protected earth conductor system . So you
avoid ground loops.

- If potential dif ferences between installation parts and cabinets occur,

lay sufficiently dimensioned potential compensation lines.

Basic rules for
EMC

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-16 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Electrical, magnetically and electromagnetic interference fields are
weakened by means of an isolation, one talks of absor pt ion.

Via the isolation rail, that is connected conductive with the rack,
interference currents are shunt via cable isolation to the ground. Hereby
you have to make sure, that the connection to the protected earth conduc­tor is impedance-low, because otherwise the interference currents may
appear as interference cause.

When isolating cables you have to reg a r d t he following:

• If possible, use only cables with isolation tangle.

• The hiding power of the isolation should be higher than 80%.

• Normally you should always lay the isolation of cables on both sides.

Only by means of the both-sided connection of the isolation you achieve
high quality interference suppression in the higher frequency area.

Only as exception you may also lay the isolation one-sided. Then you
only achieve the absorption of the lower frequencies. A one-sided
isolation connection may be convenient, if:

- the conduction of a potential compensating line is not possible

- analog signals (some mV res. µA) are transferred

- foil isolations (static isolations) are used.

• With data lines always use metallic or metalized plugs for serial
couplings. Fix the isolation of the data line at the plug rack. Do not lay
the isolation on the PIN 1 of the plug bar !

• At stationary operation it is convenient to strip the insulated cable
interruption free and lay it on the isolation/protected earth conductor line.

• To fix the isolation tangles use cable clamps out of metal. The clamps
must clasp the isolation extensively and have well contact.

• Lay the isolation on an isolation rail directly after the ent ry of the cable in
the cabinet. Lead the isolation further on to the System 200V module
and don't lay it on there again!

Please regard at installation!

At potential differences between the grounding points, there may be a
compensation current via the isolation connected at both sides.

Remedy: Potential compensation line.

Isolation of
conductors

Manual VIPA System 200V Chapter 1 Basics and Assembly

HB97E - FM - RE_250-1BS00 - Rev. 14/44 1-17

General data

• Profile rail 35mm

• Peripheral modules with recessed labelling

• Dimensions of the basic enclosure:

1tier width: (HxWxD) in mm: 76x25.4x74 in inches: 3x1x3
2tier width: (HxWxD) in mm: 76x50.8x74 in inches: 3x2x3

• Wiring by means of spring pressure connections (CageClamps) at the
front-facing connector, core cross-section 0.08 ... 2.5mm

2

or 1.5mm2

(18pole plug)

• Complete isolation of the wiring when modules are exchanged

• Every module is isolated from the backplane bus

Structure/
dimensions

Reliabilit

y

Chapter 1 Basics and Assembly Manual VIPA System 200V

1-18 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Conformity and approval

Conformity
CE 2006/95/EC Low-voltage directive
2004/108/EC EMC directive
Approval
UL UL 508 Approval for USA and Canada
others
RoHS 2011/65/EU Product is lead-free; Restriction of the use of

certain hazardous substances in electrical and
electronic equipment

Protection of persons and device protection

Type of protection - IP20
Electrical isolation
to the field bus - electrically isolated
to the process level - electrically isolated
Insulation resistance EN 61131-2 ­Insulation voltage to reference earth
Inputs / outputs - AC / DC 50V, test voltage AC 500V
Protective measures - against short circuit

Environmental conditions to EN 61131-2

Climatic
Storage / transport EN 60068-2-14 -25…+70°C
Operation
Horizontal installation EN 61131-2 0…+60°C
Vertical installation EN 61131-2 0…+60°C
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 10…95%)
Pollution EN 61131-2 Degree of pollution 2

Mechanical

Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz
Shock EN 60068-2-27 15g, 11ms

Mounting conditions

Mounting place - In the control cabinet
Mounting position - Horizontal and vertical

EMC Standard Comment

Emitted
interference

EN 61000-6-4 Class A (Industrial area)
EN 61000-6-2 Industrial area

EN 61000-4-2 ESD

8kV at air discharge (degree of severity 3),
4kV at contact discharge (degree of severity 2)

EN 61000-4-3 HF field immunity (casing)

80MHz … 1000MHz, 10V/m, 80% AM (1kHz)

1.4GHz ... 2.0GHz, 3V/m, 80% AM (1kHz)
2GHz ... 2.7GHz, 1V/m, 80% AM (1kHz)

EN 61000-4-6 HF conducted

150kHz … 80MHz, 10V, 80% AM (1kHz)

EN 61000-4-4 Burst, degree of severity 3

Noise immunity
zone B

EN 61000-4-5 Surge, installation class 3 *

)

*) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with

lightning protection elements like conductors for lightning and overvoltage is necessary.

General data

Manual VIPA System 200V Chapter 2 Hardware description

HB97E - FM - RE_250-1BS00 - Rev. 14/44 2-1

Chapter 2 Hardware description

Here the hardware components of the FM 250-1BS00 are described.
The technical data are at the end of t he chapter.

Topic Page
Chapter 2

Hardware description......................................................2-1

Properties.............................................................................................2-2

Structure .............................................................................................. 2-3

Technical data......................................................................................2-5

Overview

Contents

Chapter 2 Hardware description Manual VIPA System 200V

2-2 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Properties

• Wiring does not depend on the length of the data word. The interface
always uses 4 wires.

• Maximum security due to the use of symmetrical clock and data signals.

• Secure data acquisition die to the use of single-step gray code

(configurable).

• Galvanic isolation of receiver and encoder by means of optocouplers

• 1 SSI channel

• Direct power supply to the SSI transducer via front-facing connector

• DC 24V power supply

• Baud rate selection 100kBaud / 300kBaud

• 2 configurable digital output s, one may be used as hold input to freeze

the current SSI transducer value

• Measured value available in gray or in binary code

• 6Byte of parameter data

• 4Byte of input data

• 4Byte of output data

• Configuration by means of cont r ol byte

FM 250S

L+
Cl+
Cl­D+
D­Us
M
.0
.1
F

VIPA 250-1BS00

X2
34

SSI-Interface

1
2
3
4
5
6
7
8
9

I0

Type Order number Description

FM 250S VIPA 250-1BS00 SSI module

FM 250S
250-1BS00

Order data

Manual VIPA System 200V Chapter 2 Hardware description

HB97E - FM - RE_250-1BS00 - Rev. 14/44 2-3

Structure

SSI is the abbreviation for Synchronous Serial Interf ace. The SSI module
provides the connection for transducers with absolute coding and a SSI
module.

The module converts the serial information of the transducer into parallel
information for t he controller. Data can be transferred in gray or in binary
code.

The interface has connections for the SSI signals clock, data and the
transducer supply voltage as well as two additional outputs that may be set
or reset when a limit value is exceeded.

Output 0 can also be programmed as hold input. This causes the SSI
transducer value to be frozen when a 24V high level is applied to output 0.
A low level will cause the transducer to transmit the actual SSI values.

You can also configure the outputs that they will remain set if the BASP
signal is active.

LED

L+

Ci+

D+

.0

.1

F

Description

LED (yellow)
Supply voltage

available
LED (green)
Clock output
LED (green)
Transducer data

input
LED (green)
Input/Output 0
LED (green)
Output 1
LED (red)
Error /overload

FM 250S

L+
Cl+
Cl­D+
D­Us
M
.0
.1
F

VIPA 250-1BS00

X2
34

SSI-Interface

1
2
3
4
5
6
7
8
9
I0

Pin

1
2
3
4
5
6

7
8
9

10

Assignment

Supply voltage DC +24V
CLK+ (Output)
CLK- (Output)
Data+ (Input)
Data- (Input)
DC 24V SSI transducer supply

voltage
Common SSI transducer supply
Input/Output .0 and hold input
Output .1
Common of supply voltage

Functionalit

y

Configurable
outputs

Status indicator
pin assignment

Chapter 2 Hardware description Manual VIPA System 200V

2-4 HB97E - FM - RE_250-1BS00 - Rev. 14/44

The SSI module has a number of LEDs.
The following table explains the significance of these LEDs:

Name Color Description

L+ yellow Indicates that 24V power is available

C+ green ON when clock pulses are transmitted

OFF when hold function has been activated and 24V at I/O .0

D+ green ON when data is received from t he t r ansducer (wiring test)

.0 green ON when 24V power is available at I/O .0
.1 green ON when 24V power is available at O .1

F red ON when short circuit or overload is detected on one of the I/O .0 / O .1

The baudrate depends on the length of the communication line and on the
SSI transducer. W iring has to consist of screened twisted pair cables. The
specifications below are only intended as a guideline.

< 400m: → 100kBaud
< 100m: → 300kBaud

The SSI module has an internal power supply. This power supply requires
a voltage of DC 24V via L+ and M.

The supply voltage provides power to the interf ace electronics as well as
the SSI transducer connected with DC 24V to pin 6 and 7.

DC 24

V

1
2
3

4
5
6
7

8
9
10 M

L+

Clock +
Clock -

Direction +
Direction ­DC24V SSI
M SSI

I/O .0
O .1

SPS

Param

Data In

Data Out

Shift clock

:

Trans­ducer

Shift register

MSB is transferred first, LSB is truncated

Baudrate

Mode selection

24 Bit

Gray/Binary

Output .0
Output .1

Input .0

Hold

Hold enable

BASP
Mode

LEDs

Line distances

Wiring diagram
schematic
diagramm

Manual VIPA System 200V Chapter 2 Hardware description

HB97E - FM - RE_250-1BS00 - Rev. 14/44 2-5

Technical data

Order no. 250-1BS00

Type FM 250S

Current consumption/power loss

Current consumption from backplane bus 120 mA
Power loss 1 W

Technical data digital inputs

Number of inputs 1
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage

9

Current consumption from load voltage L+ (without
load)

-

Rated value ­Input voltage for signal "0" Differential signal RS422
Input voltage for signal "1" Differential signal RS422
Input voltage hysteresis ­Frequency range ­Input resistance ­Input current for signal "1" ­Connection of Two-Wire-BEROs possible ­Max. permissible BERO quiescent current ­Input delay of "0" to "1" ­Input delay of "1" to "0" ­Number of simultaneously utilizable inputs
horizontal configuration

-

Number of simultaneously utilizable inputs vertical
configuration

-

Input characteristic curve ­Initial data size 4 Byte

Technical data digital outputs

Number of outputs 2
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage

9

Current consumption from load voltage L+ (without
load)

5 mA

Total current per group, horizontal configuration,
40°C

2 A

Total current per group, horizontal configuration,
60°C

2 A

Total current per group, vertical configuration 2 A
Output voltage signal "1" at min. current L+ (-0.8 V)
Output voltage signal "1" at max. current L+ (-125 mV)
Output current at signal "1", rated value 1 A
Output current, permitted range to 40°C ­Output current, permitted range to 60°C ­Output current at signal "0" max. (residual current) ­Output delay of "0" to "1" max. 100 µs
Output delay of "1" to "0" max. 350 µs
Minimum load current ­Lamp load 5 W
Parallel switching of outputs for redundant control not possible

Chapter 2 Hardware description Manual VIPA System 200V

2-6 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Order no. 250-1BS00

of a load
Parallel switching of outputs for increased power not possible
Actuation of digital input ­Switching frequency with resistive load max. 1000 Hz
Switching frequency with inductive load max. 0.5 Hz
Switching frequency on lamp load max. 10 Hz
Internal limitation of inductive shut-off voltage L+ (-52 V)
Short-circuit protection of output yes, electronic
Trigger level 1.8 A
Number of operating cycle of relay outputs ­Switching capacity of contacts ­Output data size 4 Byte

Status information, alarms, diagnostics

Status display yes
Interrupts no
Process alarm no
Diagnostic interrupt no
Diagnostic functions no
Diagnostics information read-out none
Supply voltage display yes
Group error display yes
Channel error display none

Isolation

Between channels ­Between channels of groups to ­Between channels and backplane bus

9
Between channels and power supply ­Max. potential difference between circuits ­Max. potential difference between inputs (Ucm) ­Max. potential difference between Mana and

Mintern (Uiso)

-

Max. potential difference between inputs and Mana
(Ucm)

-

Max. potential difference between inputs and
Mintern (Uiso)

-

Max. potential difference between Mintern and
outputs

-

Insulation tested with DC 500 V

Datasizes

Input bytes 4
Output bytes 4
Parameter bytes 6
Diagnostic bytes 0

Housing

Material PPE / PA 6.6
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 25.4 x 76 x 78 mm
Weight 100 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes

Manual VIPA System 200V Chapter 2 Hardware description

HB97E - FM - RE_250-1BS00 - Rev. 14/44 2-7

Technical data SSI VIPA 250-1BS00

SSI module
Signal cable
Clock
Baudrate

Transducer supply voltage
RS422, isolated
RS422, isolated
configurable:

100 / 300kBaud (default: 300kBaud)
Signal voltage "0" -5 ... 7V
Signal voltage "1" 13 ... 36V
Output stage 24V DC high side switch 1A

Additional
Technical Data

Chapter 2 Hardware description Manual VIPA System 200V

2-8 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Manual VIPA System 200V Chapter 3 Deployment

HB97E - FM - RE_250-1BS00 - Rev. 14/44 3-1

Chapter 3 Deployment

This chapter contains every information on the deployment and the
configuration of t he SSI module FM 250S.

Topic Page
Chapter 3

Deployment .....................................................................3-1

Functionality.........................................................................................3-2

Configuration........................................................................................3-4

Overview

Contents

Chapter 3 Deployment Manual VIPA System 200V

3-2 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Functionality

SSI is the abbreviation for Synchronous Serial Interf ace. The SSI module
provides the connection for transducers with absolute coding and a SSI
module.

The module converts the serial information of the transducer into parallel
information for t he controller. Data can be transferred in gray or in binary
code.

The interface has connections for the SSI signals clock, data and the
transducer supply voltage as well as two additional outputs that may be set
or reset when a limit value is exceeded.

Output 0 can also be programmed as hold input. This causes the SSI
transducer value to be frozen when a 24V high level is applied to output 0.
A low level will cause the transducer to transmit the actual SSI values.

You can also configure the outputs that they will remain set if the BASP
signal is active.

Input data (Data In)

The input data f rom the SSI transducer has a leng th of 4Byte. Byte 0 can
be used as an Input/Output status indicator for the. Data is supplied in
binary or in gray code, depending on the selected mode.

Byte Data In

0 Bit 0: Status Input/Output .0

Bit 1: Status Output .1

Bit 7 ... 2: reserved
1 SSI transducer value: HB
2 SSI transducer value: MB
3 SSI transducer value: LB

Overview

Configurable
outputs

Access to the
SSI module

Manual VIPA System 200V Chapter 3 Deployment

HB97E - FM - RE_250-1BS00 - Rev. 14/44 3-3

Output data (Data Out)

Data Out provides the option of contro lling the 2 Output ports on the SSI
module depending on the value of a transducer input. Out put data consists
of 4Byte.

The SSI transducer stores 8Byte of output data, i.e. you may define two
comparative values along with the respective control byte.

In the control byte you are able to specify how the reference value should
affect which output. The status of the I/Os is signaled via the input bytes.

The following table shows the assignment of t hese out put bytes.

Byte Data Out

0 Bit 1 ... 0: set point value

00: no set point value

01: for Output 0

10: for Output 1

11: for both Outputs

Bit 2: reserved

Bit 3: set conditions for Output

0: when actual value exceeds comparison value

1: when actual value is less than comparison value

Bit 7 ... 4: reserved
1 Comparison value: HB
2 Comparison value: MB
3 Comparison value: LB

Chapter 3 Deployment Manual VIPA System 200V

3-4 HB97E - FM - RE_250-1BS00 - Rev. 14/44

Configuration

4Byte of config uration data are transferred. In these bytes you define the
baud rate, the coding and the analysis of the combined I/O .0 as well as the
BASP signal.

The structure of the configuration data is as follows:

Byte Bit 7 ... 0

0 Bit 7 ... 0: reserved
1 Bit 7 ... 0: reserved
2 Baud rate

0: 300kBaud (default)
1: 100kBaud
2: 300kBaud
3 ... 255: reserved

3 Bit 0: Coding

0: Binary code (default)
1: Gray code
Bit 2: SSI format
0: Multi turn (24 bit)
1: reserved
Bit 4: Hold function
0: deactivate
1: activate
Bit 7: BASP signal
0: ignore
1: analyze

The transducer connected to the SSI channel transmits serial data. It
requires a clock pulse from the SSI module. The baud rate defines this
clock. You may choose a value of 100 or 300kBaud.
The default setting is 300kBaud.

Configuration
data

Baud rate

Manual VIPA System 200V Chapter 3 Deployment

HB97E - FM - RE_250-1BS00 - Rev. 14/44 3-5

The gray code is a different form of binary code. The principle of the gray
code is that two neighbor ing gray numbers will differ in exactly one single
bit.

When t he gr ay code is used, t ransmission errors can be detected easily as
neighboring characters may only be different in a single location.

Table of rules for the gray code:

Decimal Gray Code

0 0 0 0 0
1 0 0 0 1
2 0 0 1 1
3 0 0 1 0
4 0 1 1 0
5 0 1 1 1
6 0 1 0 1
7 0 1 0 0
8 1 1 0 0

9 1 1 0 1
10 1 1 1 1
11 1 1 1 0
12 1 0 1 0
13 1 0 1 1
14 1 0 0 1
15 1 0 0 0

I.e. the last digit of the number results from the vertical repetition of the
sequence "0 11 0", the penultimate digit results from the repetition "00 1111
00", the third-last number from the repetition of 4x"0", 8x"1" and again
4x"0", etc. (see columns in the table!).

Here you define that I/O .0 should be used as hold input. When you have
activated this function, the current transducer value will be stored when
I/O .0 is connected to 24V. The transducer value is only updated when the
24V level is removed from I/O .0.

In this case you have to be aware that I/O .0 operates only in input mode.

BASP is a German abbreviation for command output inhibited, i.e. all
outputs are reset and inhibited as long as the BASP sig nal is applied via
the backplane bus. You may disable the evaluation of the BASP sig nals by
setting this bit. This means t hat the outputs will remain set.

Coding

Hold function

BASP signal

Chapter 3 Deployment Manual VIPA System 200V

3-6 HB97E - FM - RE_250-1BS00 - Rev. 14/44
