Yard-Man 131824H User Manual
Specifications and Main Features
- Model: LAWN TRACTOR 131824H
- Engine: Equipped with an 18 H.P internal engine
- Transmission: Comes with an Hydrostatic transmission
- Safety features: For engine starting safety interlock system is designed.
- Ignition Type: The ignition is electrical and operated using a key swtich.
- Controls: Include throttle, choke, hydrostatic control lever and PTO switch.
- Indicator Lights: Comes equipped with three indicator lights for clutch, PTO and reverse functioning.
- Tire Pressure: Operating pressure should be near 12 psi.
- Weight: There are no specifications provided for approximate weight.
- Dimensions: Not provided
- Battery: The amp rating of the battery is 275 Cold Crank Amps
- Fuel System: Requires gas fuel.
- Optional Accessories: A collector model for grass is also available.
- Cutting Deck: Attachable devices are available for mowing purposes.
Frequently Asked Questions
Q: What kind of engine is leveraged in the lawn tractor?
A: This lawn tractor consists of an internal combustion engine which has a power rating of 18 HP.
Q: How do I engage the lawn tractor?

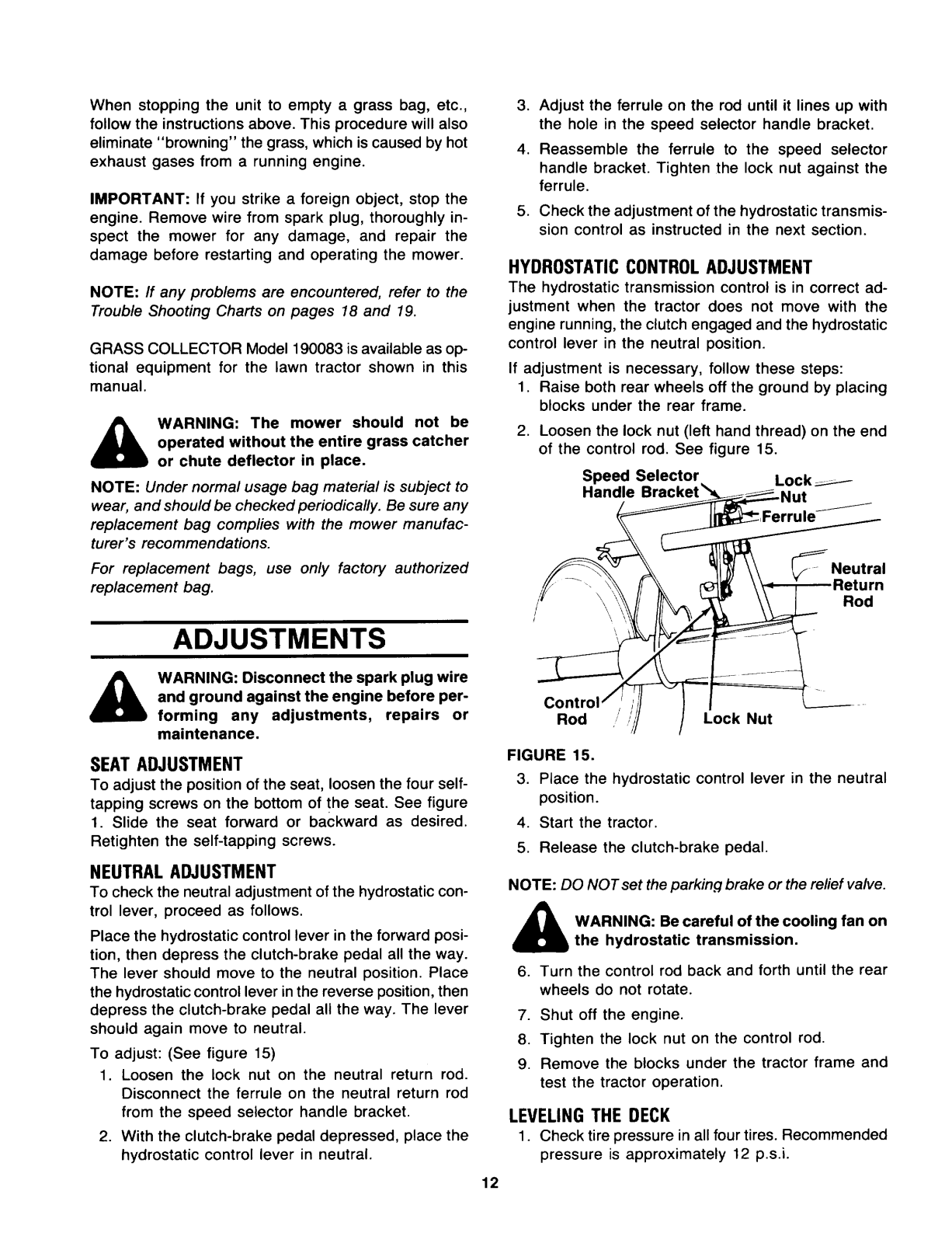

A: You need to engage the throttle pedal, check if the PTO switch is set to OFF position, move the lever of hydrostatic control into neutral, set the throttle to FAST position, and turn the ignition key to START position to engage the lawn tractor.
Q: Are there other features provided in the lawn tractor to enhance safety?
A: Yes, lawn tractors come with a safety interlock mechanism which immobilises the engine from being started when the PTO switch is set on and the clutch-brake pedal is off.
Q: I have a lawn tractor that is lying idle for two months, would I have to check the battery? If yes, how do I check the charge?
A: Yes, set the battery in a storage area where there are no extreme temperatures and ensure that the battery contacts are free from dirt and corrosion which would help you maintain the balance charge of the battery.
Q: Is there a preferably high and low limit for the tire pressure?
A: Ideally, low limit for pressure should not go below 12 p.s.i and high limits should not exceed 30 psi as it might affect the performance of the lawn tractor.
Q: Lifting weights is something I often do for exercise, would it be a good idea to engage in sloping while using the tractor?
A: Engaging in a slope with the tractor is dangerous and could lead to serious injuries so even the ideal slope of 15 degrees should be avoided during usage.
Q: How do I resolve an issue when the ignition fails to start?
A: One quite common reason could be from faulty components in the ignition system or blown fuses, failing which confirm that the battery is properly fitted and adequately charged.
