Thank you for selecting this YAMAHA NS-P400 Speaker Package system.
PROFILE OF THIS SYSTEM
“NS-P400” is the package number which includes the YAMAHA speaker system NS-M40, NS-C40, NS-E40 and SW-P40.
This speaker package system is designed for use in a multi-channel audio system, for example a home theater system, so includes
a pair of main speakers (NS-M40), a center speaker (NS-C40), a pair of effect speakers (NS-E40) and a subwoofer system (SWP40).
English
<Main speakers (NS-M40)>
2-Way Acoustic-Suspension Speaker System
<Center speaker (NS-C40)>
Full range Acoustic-Suspension Speaker System
<Effect speakers (NS-E40)>
Full range Acoustic-Suspension Speaker System
CONTENTS
<Subwoofer (SW-P40)>
Active Servo Processing Subwoofer System with a
built-in power amplifier
This subwoofer system employs YAMAHA Active Servo
•
Technology which YAMAHA developed for reproducing
higher quality super-bass sound. (Refer to page 15 for
details on Active Servo Technology.)
This unit can be added easily to your existing audio system
•
by connecting to either the speaker terminals or the line
output (pin jack) terminals of the amplifier.
The high frequency cut off point (HIGH CUT) control
•
enables you to adjust the tone balance between the
subwoofer and the main speakers.
A newly employed AUTO POWER ON/OFF switch saves
•
you the trouble of pressing the POWER switch when turning
this unit on or in the standby mode.
Supplied accessories.......................................2
Profile of This System .....................................3
Caution ............................................................4
Setting up the speakers ...................................5
Connections ....................................................8
Using the subwoofer (SW-P40)......................12
Controls and their functions ........................12
Adjustment before using the subwoofer .....13
Active Servo Technology ............................15
Troubleshooting (for SW-P40)........................16
Specifications ................................................17
3
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
●
To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
●
Install the speakers in a cool, dry, clean place – away from
windows, heat sources, sources of excessive vibration, dust,
moisture and cold. Avoid sources of humming
(transformers, motors).
●
To prevent fire or electrical shock, do not expose the
speakers to rain or water.
●
To prevent the enclosure from warping or discoloring, do not
place the speakers where it will be exposed to direct
sunlight or excessive humidity.
●
Do not place the speakers where it is liable to be knocked
over or struck by falling objects. Stable placement will also
ensure better sound performance.
●
Placing the speakers on the same shelf or rack as the
turntable can result in feedback.
●
Any time you note distortion, reduce the volume control on
your amplifier to a lower setting. Never allow your amplifier
to be driven into “clipping”. Otherwise the speakers may be
damaged.
●
When using an amplifier with a rated output power higher
than the nominal input power of the speakers, care should
be taken never to exceed the speakers’ maximum input.
●
As these speakers contain strong magnets (though NSM40, NS-C40 and SW-P40 are magnetically shielded
types), avoid placing watches, magnetic tapes, etc. near
them. Also, placing the speakers near a TV set may impair
picture color. If this happens, move the the speakers away
from TV set.
●
Do not attempt to clean the speakers with chemical
solvents; this might damage the finish. Use a clean, dry
cloth.
●
Secure placement or installation is the owner’s
responsibility.
YAMAHA shall not be liable for any accident caused by
improper placement or installation of the speakers.
<For SW-P40 only>
●
Never open the cabinet. If something drops into the set,
contact your dealer.
●
Do not use force on switches, controls or connection wires.
When moving the unit, first disconnect the power plug and
the wires connected to other equipment. Never pull the wire
itself.
●
Be sure to read the “TROUBLESHOOTING” section
regarding common operating errors before concluding that
the unit is faulty.
●
When not planning to use this unit for long periods of time
(ie., vacation, etc.), disconnect the AC power plug from the
wall outlet.
●
To prevent lightning damage, disconnect the AC power plug
when there is an electrical storm.
●
Since this unit has a built-in power amplifier, heat will radiate
from the rear panel. Therefore, place the unit apart from the
walls, allowing a space of at least 20 cm (7-7/8”) above,
behind and on the both sides of the unit. Also, do not
position with the rear panel facing down on the floor or other
surface.
●
Super-bass frequencies reproduced by this unit may cause
a turntable to generate a howling sound. In such a case,
move this unit away from the turntable.
●
If you hear distortion (i.e., unnatural, intermittent “rapping” or
“hammering” sounds) coming from this unit, reduce the
volume level. Extremely loud playing of a movie
soundtrack’s low frequency, bass-heavy sounds or similarly
loud popular music passages can damage this speaker
system.
●
This unit has a port called “air woofer” which is for
reproducing a super-bass sound.
Be careful not to put a hand or some objects into the port,
otherwise it may give you an electric shock or give this unit
a damage, or cause a fire.
●
Voltage Selector (General Model only)
The voltage selector on the rear panel of this unit must
be set for your local main voltage BEFORE plugging
into the AC main supply.
Voltages are AC 110/120/220/240V, 50/60 Hz.
4
This unit is not disconnected from the AC power source as
long as it is connected to the wall outlet, even if this unit
itself is turned off.
In this state, this unit is designed to consume a very small
quantity of power.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
SETTING UP THE SPEAKERS
Before you make connections, place all speakers in their proper positions respectively. The positioning of speakers are important,
because it controls the whole sound quality of this system.
Position the speakers on the basis of your listening position by following instructions on this section.
Speaker configuration
This system employs a 6 speaker configuration: 2 main speakers, 2 effect speakers, a center speaker and a subwoofer.
The main speakers are used for the main source sound plus the effect sounds. The effect speakers are used for the effect and
surround sounds, and the center speaker is for the center sounds (dialog etc.). The subwoofer is for reinforcing low frequencies on
your audio system.
Main L Center Main R
Subwoofer
English
Effect L Effect R
Placing speakers
Main speakers: On both sides of the TV and in almost the
same height as the TV.
Effect speakers: Behind your listening position, facing
slightly inward. Nearly 1.8 m (approx. 6
feet) up from the floor.
Center speaker: Precisely between the main speakers.
Subwoofer: The position of the subwoofer is not so
critical because low bass tones are not
highly directional.
Center
Main L
Main R
Subwoofer
TV set
Effect R
Effect L
5
■ Placing the subwoofer
A
B
( : subwoofer, : main speaker)
It is recommended to place the subwoofer on the outside of
either the right or the left main speaker. (See fig. .) The
placement shown in fig. is also possible, however, if the
subwoofer system is placed directly facing the wall, the bass
effect may die because the sound from it and the sound
reflected by the wall may cancel. To prevent this, face the
subwoofer system obliquely to the wall as shown in fig. .
Note
There may be a case that you cannot obtain enough superbass sounds from this unit when listening at the middle of the
room. This is because “standing waves” have developed
between two parallel walls and the bass sounds are being
canceled.
In such a case, face the subwoofer obliquely to the wall. It also
may be necessary to break up the parallel surfaces by placing
bookshelves etc. along the walls.
B
A
A
Use the rubber pads
Put the provided rubber pads at the four corners on the bottom
of the subwoofer to prevent the subwoofer moving due to
vibrations etc.
6
■ Mounting the effect speakers
1
2
Mount the effect speakers on a shelf, rack or on the floor
directly, or hang them on the wall.
To mount the effect speakers on a wall
The speakers can be mounted on a wall by using the holes
provided on the speakers’ rear panels.
Fasten screws into a firm wall or wall support as shown in the
diagram, and hang the holes on the rear of the speaker on the
protruding screws.
* Make sure that the screws are caught by a narrow part of
the holes securely.
English
WARNING:
• Each speaker weighs 1.6 kg (3 lbs. 8 oz.). Do not mount
them on thin plywood or soft wall surface material, as
the screws may come out of the flimsy surface, causing
the speakers to fall down and be damaged, or result in
personal injury.
• Do not fasten the speakers to wall with nails, adhesives,
or other unsound hardware. Long-term use and
vibrations may cause them to fall down.
• To avoid accidents resulting from tripping over loose
speaker cords, fix them to the wall.
Diam. 4 – 5mm
40mm
Min.
12mm
Holes
■ Mounting the center speaker
Place the center speaker on top of the TV or on the floor under
the TV or inside the TV rack so that it is stabilized.
When placing the speaker on top of the TV, to prevent the
speaker from falling down, put the provided velcro strips at two
points on both bottom of the speaker and top of the TV.
2mm
Tapping screw (Available at the
hardware store)
Wall/
wall support
Notes
• Do not place the speaker on top of the TV whose area is
smaller than the bottom area of the speaker. If placed,
the speaker may drop out causing an injury to you.
• Though this speaker is a magnetically shielded type,
there may be some influence on a TV picture depending
on the type of TV or the placement of the speaker. In
such a case, place the speaker apart from the TV so that
there is no influence on TV picture.
TV set
Velcro
strip
Screen
7
CONNECTIONS
OUTPUT
TO SPEAKERS
INPUT1
FROM AMPLIFIER
INPUT2
ON OFF
AUTO
POWER
OUTPUT
TO SPEAKERS
INPUT1
FROM AMPLIFIER
REAR REARCENTER
CAUTION
SEE INSTRUCTION MANUAL FOR CORRECT SETTING.
MAIN
SPEAKERS
A
B
REAR
SINGLE
Never plug in the subwoofer and other audio/video components until all connections are completed.
• Connect the speakers to the speaker output terminals of
your amplifier with the provided speaker cords.
• Connect the speakers making sure not to reverse the
polarity (+, –). Connect the (+) terminals on both the
amplifier and the speakers using one side of the cord.
Connect the (–) terminals on both components using the
other side of the cord. If one speaker is connected with
reversed polarity, the sound will be unnatural and lack bass.

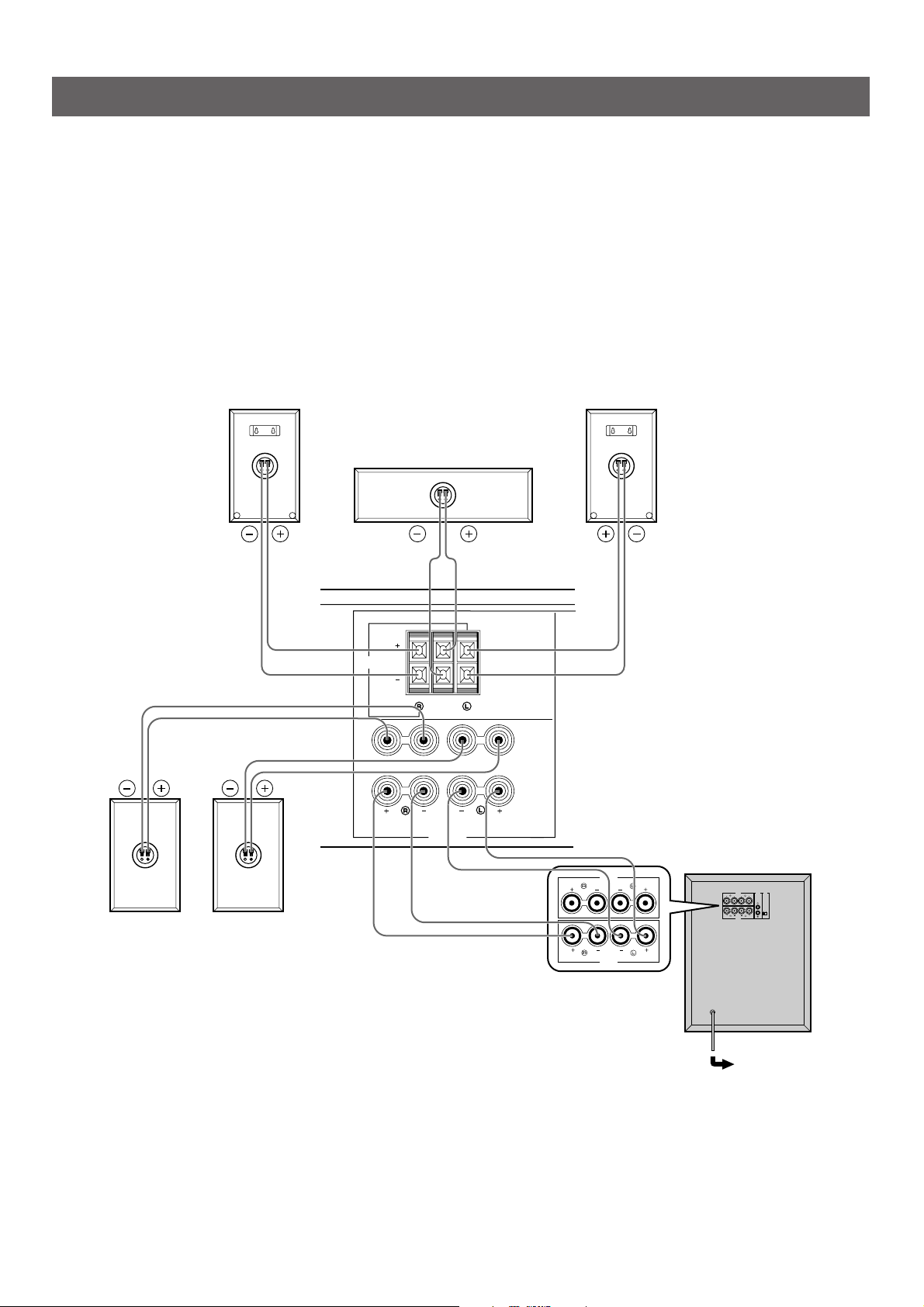

Effect speaker
Right
Center speaker
• For the main and effect speakers only
, connect one
speaker to the left (marked L) terminals of your amplifier,
and another speaker to the right (marked R) terminals.
• The subwoofer can be connected to either the speaker
output terminals or the line output (pin jack) terminals of the
amplifier. Choose one of the ways shown in this section
which is suitable for your audio system. Also, refer to the
owner’s manual for each component to be connected to this
unit.
Effect speaker
Left
Amplifier
Right Left
Main speakers
Note
This diagram shows an example of connecting speakers to an amplifier which has two sets of main speaker output terminals. If you
select this connecting way, make the amplifier output signals from both sets of main speaker output terminals.
This system can also be connected to the amplifier in other ways depending on the type of amplifier. Refer to pages 10 to 11 for
details.
8
Subwoofer
To AC outlet
Good No good
1
2
3

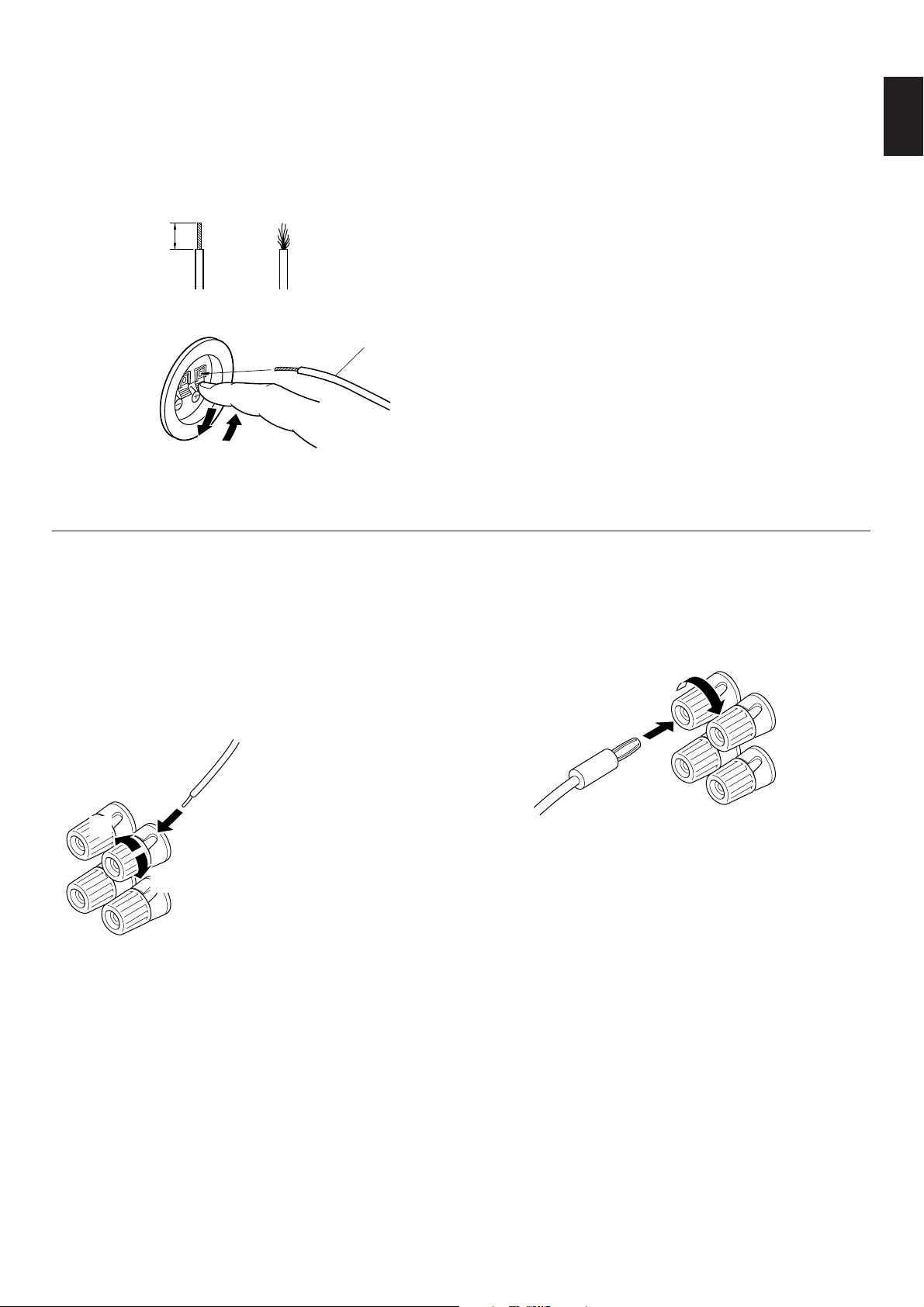

How to connect speaker cords to the input terminals of the speakers
1
2
3
(except the subwoofer)
How to Connect:
➀ Press the tab on the terminal down, as shown in the figure.
10 mm
➁ Insert the bare wire end properly into the terminal hole.
[Remove approx. 10 mm (3/8”) insulation from the speaker
cord.]
➂ Remove your finger from the tab to allow it to lock snugly
on the cord’s wire end.
Red: positive (+)
Black: negative (–)
Red
➃ Test the security of the connection by tugging lightly on the
cord at the terminal.
Note
Do not let the bare speaker wires touch each other as this
could damage the speaker and/or the amplifier.
English
How to connect speaker cords to the subwoofer’s OUTPUT/INPUT1 terminals
For connections, cut the speaker wires as short as possible.
If the connections are faulty, no sound will be heard from the
speakers.
How to Connect:
Red: positive (+)
Black: negative (–)
* Banana Plug connections are also possible (except for
Europe model). Simply insert the Banana Plug connector
into the corresponding terminal.
➀Unscrew the knob.
➁Insert the bare wire.
[Remove approx. 10 mm
(3/8”) insulation from the
speaker cord.]
➂Tighten the knob and
secure the wire.
Note
Do not let the bare speaker wires touch each other as this
could damage the speaker and/or the amplifier.
9
If your amplifier has only one set of main speaker output terminals
OUTPUT
TO SPEAKERS
INPUT1
FROM AMPLIFIER
INPUT2
ON OFF
AUTO
POWER
OUTPUT
TO SPEAKERS
INPUT1
FROM AMPLIFIER
INPUT2
ON OFF
AUTO
POWER
Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the OUTPUT terminals
of the subwoofer to the main speakers.
Main speaker Main speaker
Right Left
Subwoofer
To AC outlet
Amplifier
10
OUTPUT
TO SPEAKERS
INPUT1
FROM AMPLIFIER
INPUT2
ON OFF
AUTO
POWER
INPUT2
ON OFF
AUTO
POWER
PRE OUT
(SPLIT, SUBWOOFER)
LOW PASS
(SUBWOOFER)

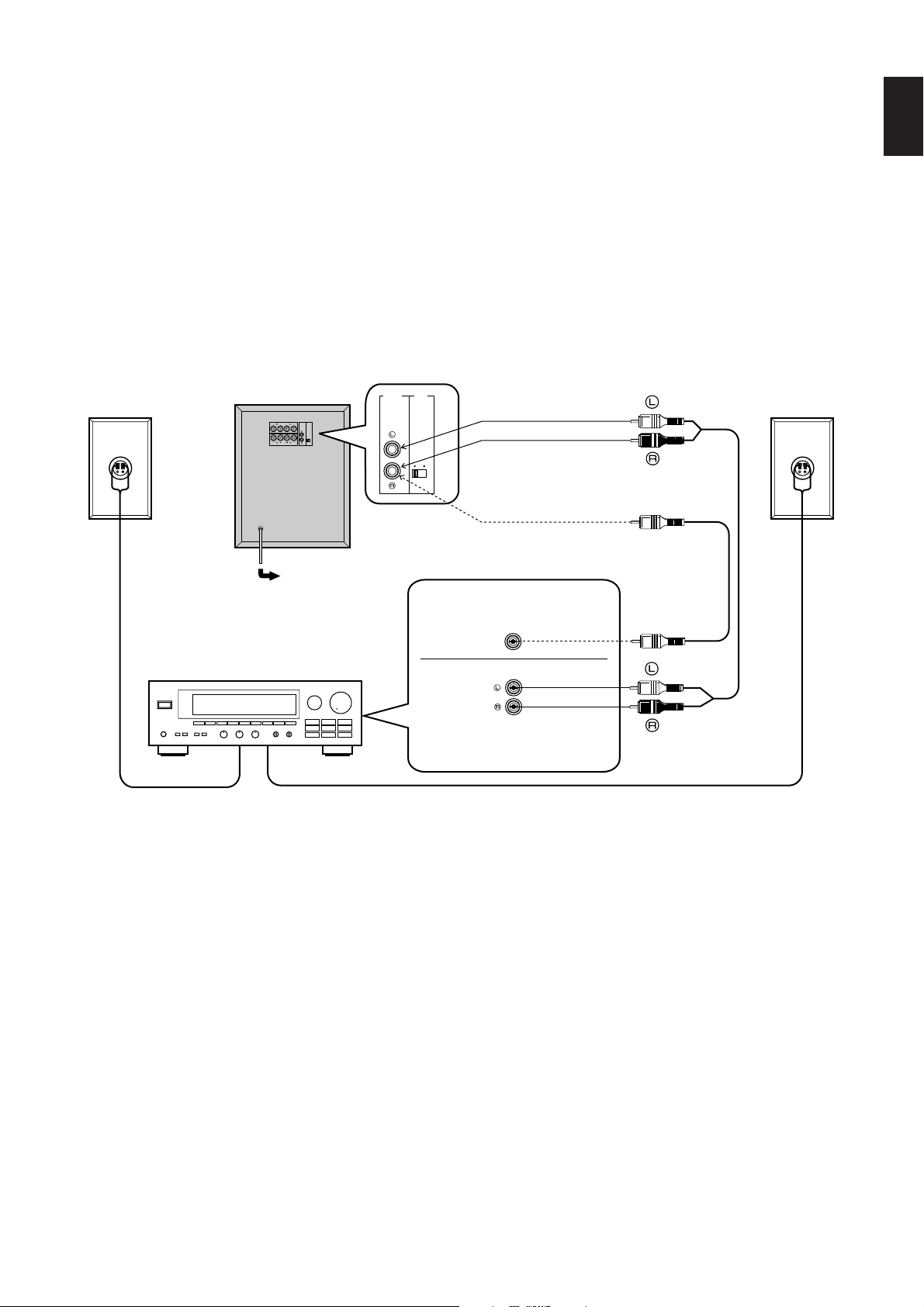

To connect the subwoofer to line output (pin jack) terminals of the amplifier
English
• Connect the main speakers to the speaker output terminals
of the amplifier.
• Amplifier line output terminals are generally labeled PRE
OUT or SUBWOOFER OUT.
* For PRE OUT terminal connection, the amplifier must
possess at least two sets of PRE OUT terminals. With
some amplifiers with only one set of PRE OUT terminals,
connection can result in no sound from the main left and
• To connect with a YAMAHA DSP amplifier (or AV receiver),
connect the LOW PASS (or SUBWOOFER etc.) terminal on
the rear of the DSP amplifier (or AV receiver) to either the
left (L) or right (R) INPUT2 terminal of the subwoofer.
To connect the subwoofer to the SPLIT SUBWOOFER
terminals on the rear of the DSP amplifier, connect them to
both of the left (L) and right (R) INPUT2 terminals of the
subwoofer.
right speakers. In this case, select the method of
connecting to the speaker output terminals.
Main speaker Main speaker
Subwoofer
Left Right
Pin plug cords
To AC outlet
Amplifier
Notes
• When connected to line output terminals of the amplifier,
other speakers should not be connected to the OUTPUT
terminals on the rear panel of the subwoofer. If connected,
they will not produce sound.
• When connecting to a monaural line output terminal of the
amplifier, connect to either the left or right INPUT2 terminal.
11
USING THE SUBWOOFER (SW-P40)
OUTPUT
TO SPEAKERS
INPUT1
FROM AMPLIFIER
INPUT2
ON OFF
AUTO
POWER
1
2 3 4
POWER
VOLUME
0I0
HIGH CUT
50Hz I50Hz
5
6
7
8
50Hz
60 140
70 130
80 120
90 110
100
I50Hz
CONTROLS AND THEIR FUNCTIONS
Rear panel
1 OUTPUT (TO SPEAKERS) terminals
Can be used for connections with the main speakers.
These terminals send signals output from the amplifier to
the main speakers directly.
2 INPUT1 (FROM AMPLIFIER) terminals
Used to connect this unit with the speaker terminals of the
amplifier.
Side panel
8 HIGH CUT control
Adjusts the high frequency cut off point.
Frequencies higher than the frequency selected by this
control are all cut off (and not output).
* One graduation of this control represents 10 Hz.
3 INPUT2 terminals
Used to input line level signals from the amplifier.
4 AUTO POWER ON/OFF switch
By setting this switch to the ON position, this unit’s
automatic power ON/OFF function operates as described
below. If you do not need this function, set to the OFF
position.
* Make sure to change the setting of this switch only when
this unit is in the standby mode.
5 POWER indicator
Lights in green when the POWER switch is turned on, and
goes off when turned into the standby mode.
* Standby mode
If the AUTO POWER ON/OFF switch on the rear panel
is set to ON, this indicator lights in red when no signal
is input to this unit.
6 POWER switch
Turns the power to this unit on and turns this unit into the
standby mode alternately whenever pressed. When this
switch is turned on, the POWER indicator over the
POWER switch lights up.
7 VOLUME control
Adjusts the volume level.
12
Automatic power ON/OFF function
When you play a source, the power to this unit turns on
automatically by sensing audio signals input to this unit.
This unit turns into the standby mode automatically if the
source being played is stopped or the input signal is cut off
for several minutes.
This function will operate responding to a certain level of
low frequency input signal. Increase the output level on
the input source if the automatic power ON function will not
operate, or decrease the level if the automatic power OFF
function will not operate.
* There may be a case that the power turns on
unexpectedly by sensing noise from other appliances. If
it occurs, set the AUTO POWER ON/OFF switch to the
OFF position.
* The level of low frequency input signal differs with each
source, and each different part on the same source. So,
this function may not operate properly depending on
some source.
This function is available only when the power of this
unit is on (by setting the POWER switch (
6) to “on”).
POWER
VOLUME
0I0
HIGH CUT
50Hz I50Hz
ADJUSTMENT BEFORE USING THE SUBWOOFER
Before using the subwoofer, make an adjustment on the subwoofer to obtain the optimum volume and tone balance between the
subwoofer and the main speakers by following the procedures shown below.
Side panel
1, 4
5
English
1 Set the VOLUME control to minimum.
2 Turn on the power supply to all the components.
3 Play any source and adjust the amplifier’s volume control
to the desired listening level.
4 Turn up the VOLUME control gradually to adjust the
volume balance between this unit and the main speakers.
5 If you prefer, set the HIGH CUT control to the position
where you can obtain the optimum tone balance between
the subwoofer and the main speakers.
Notes
Once the volume balance between the subwoofer and the
•
main speakers is adjusted, you can adjust the volume of
your whole sound system by using only the amplifier’s
volume control.
However, if you change the main speakers NS-M40 to
others, you must make this adjustment again.
For adjusting the VOLUME control and the HIGH CUT
•
control, refer to “FREQUENCY CHARACTERISTICS” on
the next page.
Note about setting the HIGH CUT control
This system is designed so that the optimum tone balance
between the subwoofer and the main speakers is obtained
when this control is set at the point of 80 Hz. However, the tone
balance may change depending on the room size, the distance
from the subwoofer to the main speakers, and so on.
So, if you prefer, turn the HIGH CUT control to set it to a
position where a better tone balance is obtained.
13

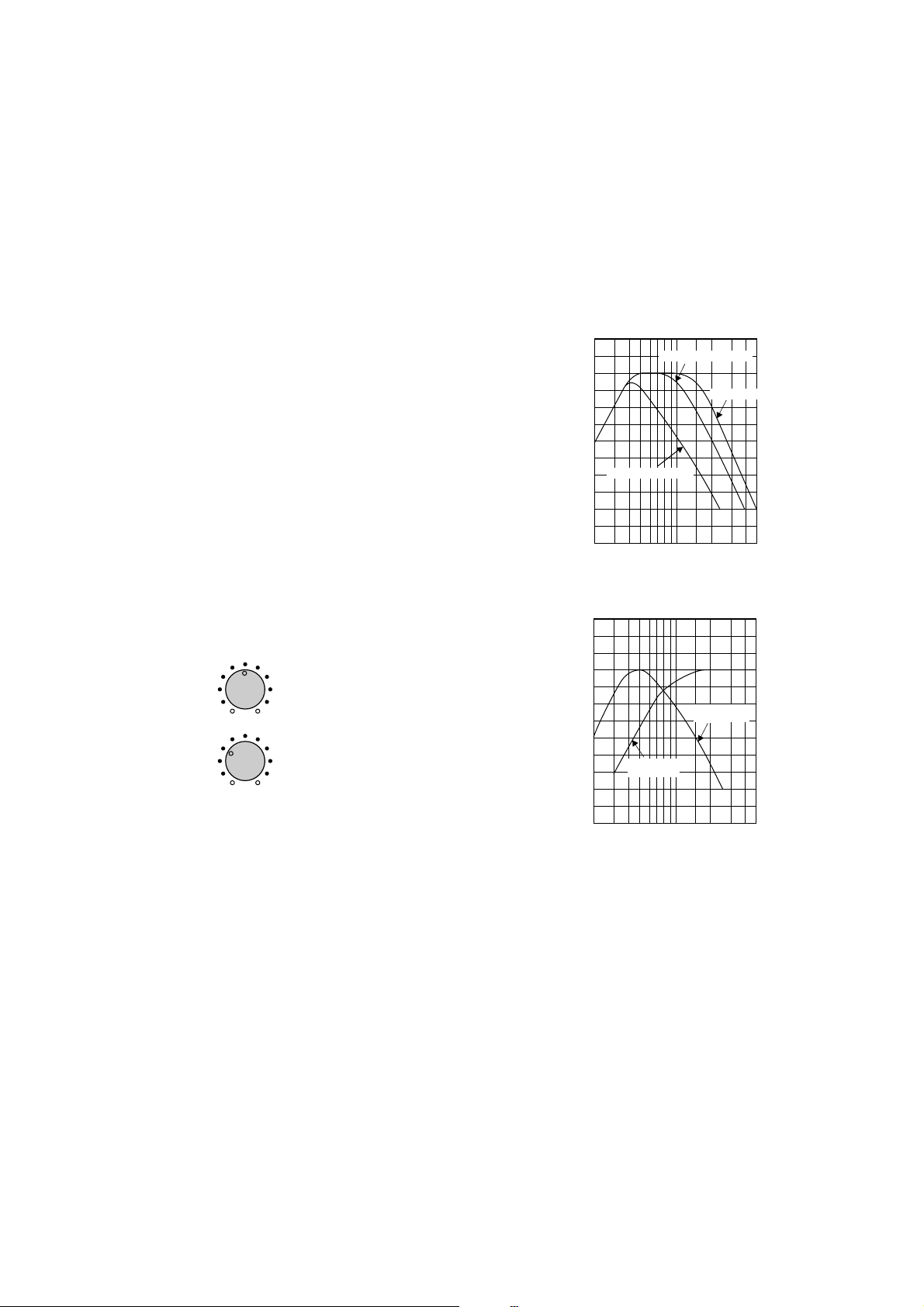

■ FREQUENCY CHARACTERISTICS
VOLUME
0I0
HIGH CUT
50Hz I50Hz
20 50 100 200 500Hz
40
50
60
70
80
90
dB
HIGH CUT 50 Hz
HIGH CUT 100 Hz
HIGH CUT 150 Hz
20 50 100 200 500Hz
40
50
60
70
80
90
dB
SW-2
Adjustment of the VOLUME control and the HIGH CUT control should be changed depending on the room size, the distance from
the subwoofer to the main speakers, sources, etc.
Following figures show the optimum adjustment of each control and the frequency characteristics when this subwoofer is combined
with NS-M40.
Frequency characteristics of this subwoofer
(SW-P40)
When combined with NS-M40
•
SW-P40
NS-M40
14

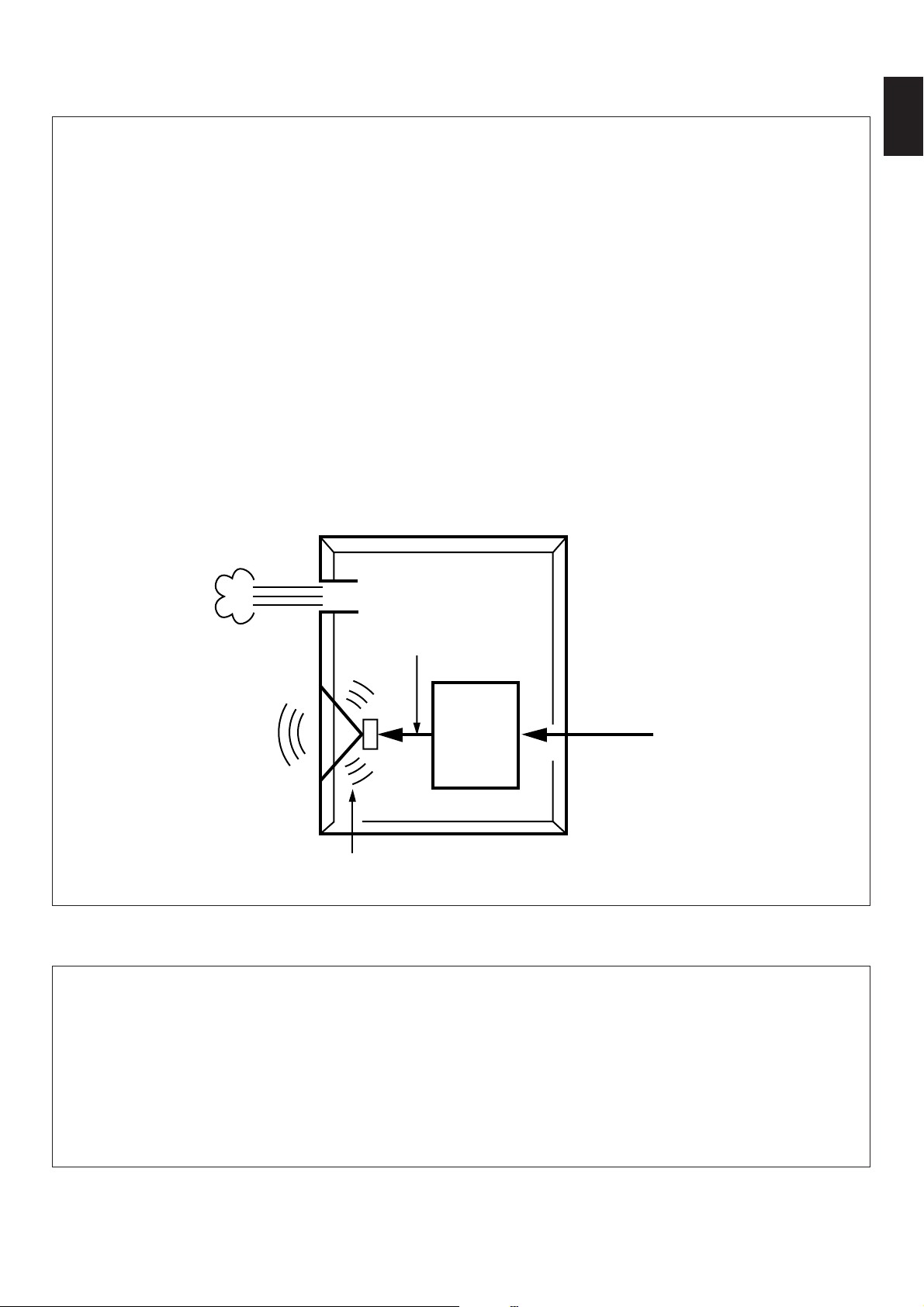

ACTIVE SERVO TECHNOLOGY
The theory of Active Servo Technology is based upon two
major factors, the Helmholtz resonator and negativeimpedance drive. Active Servo Processing speakers
reproduce the bass frequencies through an “air woofer”,
which is a port or opening in the speaker’s cabinet. This
opening is used instead of, and performs the functions of,
a woofer in a conventionally designed speaker system.
Thus, signals of low amplitude within the cabinet can,
according to the Helmholtz resonance theory, be output
from this opening as waves of great amplitude if the
design is such that the size of the opening and the volume
of the cabinet are in the correct proportion to satisfy a
certain ratio.
In order to accomplish this, moreover, the amplitudes
within the cabinet must be both precise and of sufficient
power because these amplitudes must overcome the
“load” presented by the air that exists within the cabinet.
English
Thus it is this problem that is resolved through the
employment of a design in which the amplifier functions to
supply special signals. If the electrical resistance of the voice
coil could be reduced to zero, the movement of the speaker
unit would become linear with respect to signal voltage, and,
to accomplish this, a special negative-impedance output-drive
amplifier for subtracting output impedance of the amplifier is
used.
By employing negative-impedance drive circuits, the amplifier
is able to generate precise, low-amplitude low-frequency
waves with superior damping characteristics, and these
waves are then radiated from the cabinet opening as highamplitude signals. The system can, therefore, by employing
the negative-impedance output drive amplifier and a speaker
cabinet with the Helmholtz resonator, reproduce an extremely
wide range of frequencies with amazing sound quality and
less distortion.
The features described above, then, are combined to be the
fundamental structure of the Active Servo Technology.
Highamplitude
bass
sound
Cabinet
Port
Negative-impedance
output drive
Signals of low amplitude
Active
Servo
Processing
Amplifier
Air woofer
(Helmholtz resonator)
Signals
REMOVING THE FRONT GRILLE (for NS-M40 and SW-P40 only)
The front grille is fastened to the enclosure at four points,
and can be removed if desired. To remove the grille, first
hold the bottom of the grille and unfasten the lower part of
the grille by pulling it gently, and then hold both sides of the
grille and slowly pull straight away from the speaker. To
reattach, line up the four pegs on the inside surface of the
grille with the four corresponding holes on the speaker and
push gently.
Note
When the grille is removed, take care not to touch the
speaker unit with your hands or to exert excessive force with
tools.
15
TROUBLESHOOTING (for SW-P40)
If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple
measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and
contact your authorized YAMAHA dealer or service center for help.
SYMPTOM
Power is not supplied even though the
POWER switch is ON.
No sound.
Sound level is too low.
Automatic power ON function will not
work.
Automatic power OFF function will work
unexpectedly.
Automatic power ON function will work
unexpectedly.
CAUSE
The power plug is not securely connected.
The VOLUME control is set to 0.
Speaker cables are not connected securely.
Speaker cables are connected incorrectly.
A source sound with few bass frequencies is
played.
It is influenced by standing waves.
The POWER switch is turned off.
The level of input signal is too low.
The level of input signal is too low.
An influence of noise generated from
external digital equipment etc.
REMEDY
Connect it securely.
Turn the VOLUME control to right.
Connect them securely.
Connect them correctly, that is to say L (left)
to L, R (right) to R, “+” to “+” and “–” to “–”.
Play a source sound with bass frequencies.
Set the HIGH CUT control to a higher
position. (Turn the knob to right.)
Re-position the subwoofer or break up the
parallel surface by placing bookshelves etc.
along the walls.
Turn the POWER switch on.
Increase the level of input signal on the
source.
Increase the level of input signal on the
source.
Move this unit farther away from such
equipment and/or change the position of
connected speaker cables.
Otherwise, do not use the automatic power
ON function of this unit.
16
SPECIFICATIONS
English
<NS-M40, NS-C40, NS-E40>
Type
<NS-M40>.......2-Way Acoustic-Suspension Speaker System
Magnetically-shielded type
<NS-C40>.............................Full range Acoustic-Suspension
Speaker System
Magnetically-shielded type
<NS-E40>.............................Full range Acoustic-Suspension
Speaker System
Speaker Unit
<NS-M40>....................................14 cm (5-1/2”) cone woofer
19 mm (3/4”) semidome tweeter
<NS-C40>.........................10 cm (3-15/16”) cone speaker x 2
<NS-E40>...............................10 cm (3-15/16”) cone speaker
Nominal Input Power
<NS-M40>........................................................................40W
<NS-C40>........................................................................50W
<NS-E40>.........................................................................25W
Maximum Input Power
<NS-M40>......................................................................120W
<NS-C40>......................................................................150W
<NS-E40>.........................................................................80W
Impedance......................................................................6 ohms
Frequency Response
<NS-M40>.........................................................65 Hz–20 kHz
<NS-C40>.........................................................65 Hz–20 kHz
<NS-E40>.........................................................70 Hz–20 kHz
Sensitivity.................................................................90 dB/W●m
Dimensions (W x H x D)
<NS-M40>..............................171 mm x 281 mm x 188.5 mm
(6-3/4” x 11-1/16” x 7-7/16”)
<NS-C40>..............................436 mm x 131 mm x 210.5 mm
(17-3/16” x 5-3/16” x 8-5/16”)
<NS-E40>.................................171 mm x 281 mm x 112 mm
(6-3/4” x 11-1/16” x 4-7/16”)
Weight
<NS-M40>...........................................2.5 kg (5 lbs. 8 oz.) x 2
<NS-C40>.................................................3.2 kg (7 lbs. 1 oz.)
<NS-E40>............................................1.6 kg (3 lbs. 8 oz.) x 2
<SW-P40>
Type......................Active Servo Processing Subwoofer System
Magnetically-shielded type
Speaker Unit...................................20 cm (7-7/8”) cone woofer
Amplifier Output....................................................50W/5 ohms
High-Cut Filter...............................50 Hz–150 Hz (–24 dB/oct.)
Impedance
INPUT1....................................................................4.7 k-ohms
INPUT2.....................................................................10 k-ohms
Frequency Response ..........................30 Hz–200 Hz (–10 dB)
Power Supply
Europe model..............................................AC 230V, 50 Hz
Australia model...........................................AC 240V, 50 Hz
General model...................AC 110/120/220/240V, 50/60 Hz
Power Consumption..........................................................50W
Dimensions (W x H x D) .............320 mm x 400 mm x 344 mm
(12-5/8” x 15-3/4” x 13-9/16”)
Weight....................................................12.2 kg (26 lbs. 13 oz.)
* Please note that all specifications are subject to change
without notice.
17
YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY
YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND
YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
VV18440
documentation manual, user maintenance, brochure, user reference, pdf manual
This file has been downloaded from:
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
Loading...
