Yamaha Audio CLP-130, CLP-120 User Manual

Page 1

Owner's Manual Bedienungsanleitung Mode d'emploi Manual de instrucciones

Before using the Clavinova, be sure to read “PRECAUTIONS„ on pages 6 -7. Achten Sie darauf, vor Einsatz des Clavinova die “VORSICHTSMASSNAHMEN„ auf Seite 6-7 durchzulesen. Avant d'utiliser le Clavinova, lire attentivement la section «PRECAUTIONS D'USAGE» aux pages 6- 7. Antes de utilizar el Clavinova, lea las “PRECAUCIONES„ que debe tener en cuenta en las páginas 6- 7.

IMPORTANT

Check your power supply

Make sure that your local AC mains voltage matches the voltage specified on the name plate on the bottom panel. In some areas a voltage selector may be provided on the bottom panel of the main keyboard unit near the power cord. Make sure that the voltage selector is set for the voltage in your area. The voltage selector is set at 240V when the unit is initially shipped. To change the setting use a "minus" screwdriver to rotate the selector dial so that the correct voltage appears next to the pointer on the panel.

WICHTIG

Überprüfung der Stromversorgung

Vergewissern Sie sich vor dem Anschließen an das Stromnetz, daß die örtliche Netzspannung den Betriebsspannungswerten auf dem Typenschild an der Unterseite des Instruments entspricht. In bestimmten Verkaufsgebieten ist das Instrument mit einem Spannungswähler an der Unterseite neben der Netzkabeldurchführung ausgestattet. Falls vorhanden, muß der Spannungswähler auf die örtliche Netzspannung eingestellt werden. Der Spannungswähler wurde werkseitig auf 240 V voreingestellt. Zum Verstellen drehen Sie den Spannungsregler mit einem Schlitzschraubendreher, bis der Zeiger auf den korrekten Spannungswert weist.

IMPORTANT

Contrôler la source d'alimentation

Vérifiez que la tension spécifiée sur le panneau inférieur correspond à la tension du secteur. Dans certaines régions, l'instrument peut être équipé d'un sélecteur de tension situé sur le panneau inférieur du clavier à proximité du cordon d'alimentation. Vérifiez que ce sélecteur est bien réglé en fonction de la tension secteur de votre région. Le sélecteur de tension est réglé sur 240 V au départ d'usine. Pour modifier ce réglage, utilisez un tournevis à lame plate pour tourner le sélecteur afin de mettre l'indication correspondant à la tension de votre région vis à vis du repère triangulaire situé sur le panneau.

IMPORTANTE

Verifique la alimentación de corriente

Asegúrese de que tensión de alimentación de CA de su área corresponde con la tensión especificada en la placa de características del panel inferior. En algunas zonas puede haberse incorporado un selector de tensión en el panel inferior de la unidad del teclado principal, cerca del cable de alimentación. Asegúrese de que el selector de tensión esté ajustado a la tensión de su área. El selector de tensión se ajusta a 240V cuando la unidad sale de fábrica. Para cambiar el ajuste, emplee un destornillador de cabeza "recta" para girar el selector de modo que aparezca la tensión correcta al lado del indicador del panel.

Page 2

Introduction

SPECIAL MESSAGE SECTION

PRODUCT SAFETY MARKINGS:

Yamaha electronic products may have either labels similar to the graphics shown below or molded/stamped facsimiles of these graphics on the enclosure. The explanation of these graphics appears on this page. Please observe all cautions indicated on this page and those indicated in the safety instruction section.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

See bottom of Keyboard enclosure for graphic symbol markings.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning ﬂash with arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electrical shock.

Battery Notice:

This product MAY contain a small nonrechargable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately ﬁve years. When replacement becomes necessary, contact a qualiﬁed service representative to perform the replacement.

Warning:

Do not attempt to recharge, disassemble, or incinerate this type of battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by applicable laws. Note: In some areas, the servicer is required by law to return the defective parts. However, you do have the option of having the servicer dispose of these parts for you.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc.

NOTICE:

Service charges incurred due to lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

NAME PLATE LOCATION:

The graphic below indicates the location of the name plate. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

IMPORTANT NOTICE:

All Yamaha electronic products are tested and approved by an independent safety testing laboratory in order that you may be sure that when it is properly installed and used in its normal and customary manner, all foreseeable risks have been eliminated. DO NOT modify this unit or commission others to do so unless speciﬁcally authorized by Yamaha. Product performance and/or safety standards may be diminished. Claims ﬁled under the expressed warranty may be denied if the unit is/has been modiﬁed. Implied warranties may also be affected.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the speciﬁcations without notice or obligation to update existing units.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

CLP-130

Model

Serial No.

Purchase Date

CLP-120

92-469 1 (bottom)

Page 3

CLP-130/120 About this Owner’s Manual

ENGLISH

Thank you for purchasing the Yamaha Clavinova! We recommend that you read this manual carefully so that you can fully take advantage of the advanced and convenient functions of the Clavinova. We also recommend that you keep this manual in a safe and handy place for future reference.

About this Owner’s Manual

This manual consists of three main sections: “Introduction,” “Reference” and “Appendix.”

Introduction (page 2):

Please read this section ﬁrst.

Reference (page 13):

This section explains how to make detailed settings for the Clavinova’s various functions.

Appendix (page 69):

This section introduces reference material.

*The models CLP-130/120 will be referred to as the CLP/Clavinova in this Owner’s Manual. *The illustrations and LED displays shown in this owner’s manual are for instructional purposes only and may appear

somewhat different from those on your instrument.

Trademarks:

•Apple and Macintosh are trademarks of Apple Computer, Inc.

•Windows is a registered trademark of Microsoft® Corporation.

•All other trademarks are the property of their respective holders.

This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, MIDI ﬁles, WAVE data. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of copyright has legal consequences. DON’T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.

“The Clavinova-Computer Connection,” is a supplementary guidebook that describes, for beginners, what you can

do with your Clavinova and a personal computer and how to set up a Clavinova-Computer system (the manual is not written for any speciﬁc models). The document is available as a PDF ﬁle (in English) at the following Internet address:

Clavinova Web site (English only):

http://www.yamahaclavinova.com/

Yamaha Manual Library:

http://www2.yamaha.co.jp/manual/english/

Page 4

CLP-130/120 Table of Contents

ENGLISH

Ta b le of Contents

Introduction

SPECIAL MESSAGE SECTION ...................... 2

About this Owner’s Manual........................ 3

Application Index........................................ 5

PRECAUTIONS............................................. 6

Accessories .................................................. 8

Maintenance ............................................... 8

Features....................................................... 9

Before Using the Clavinova ...................... 10

Key Cover ...........................................................10

Music Rest ..........................................................10

Turning the Power On.......................................11

Setting the Volume.............................................11

Using Headphones.............................................12

Using the Speaker Switch...................................12

Reference

Part Names................................................ 14

Listening to the Demonstration Tunes .... 16

Listening to 50 Piano Preset Songs .......... 17

Practicing a One-Hand Part Using 50 Preset

Songs (Part Cancel Function) .......................18

A-B Repeat for 50 Preset Songs .........................20

Selecting & Playing Voices........................ 21

Selecting Voices..................................................21

Using the Pedals .................................................21

Adding Variations to the Sound –

[VARIATION] (CLP-130)/[BRILLIANCE]/

[REVERB]/[EFFECT]....................................22

Touch Sensitivity – [TOUCH] ..........................24

Transposition – [TRANSPOSE]........................25

Combining Two Voices (Dual mode)...............26

Splitting the Keyboard Range and Playing Two

Different Voices (Split mode) (CLP-130) ....27

Using the Metronome........................................29

Recording Your Performance ................... 30

Recording to [TRACK1]....................................30

Re-recording TRACK1 ......................................32

Recording to [TRACK2]....................................32

Changing the Initial Settings (Data recorded at

the beginning of a song) ................................34

Playing Back Recorded Songs................... 35

Playing Back a Song ...........................................35

Useful Playback Functions.................................36

Detailed Settings – [FUNCTION]............... 37

Basic Procedure in Function Mode .................. 38

About Each Function......................................... 40

F1. Fine Tuning of the Pitch....................... 40

F2. Selecting a Scale..................................... 41

F3. Dual Mode Functions ........................... 42

F4. (CLP-130) Split Mode Functions......... 43

F5. (CLP-130) / F4. (CLP-120)

Other Functions.................................... 44

F.6 (CLP-130) / F.5 (CLP-120)

Metronome Volume............................. 45

F7. (CLP-130) / F6. (CLP-120)

Preset Song Part Cancel Volume ......... 45

F8. (CLP-130) / F7. (CLP-120)

MIDI Functions .................................... 45

F9. (CLP-130) / F8. (CLP-120)

Backup Functions ................................. 48

About MIDI................................................ 49

Connections ..............................................50

Connectors......................................................... 50

Connecting a Personal Computer .................... 52

Troubleshooting........................................ 56

Options...................................................... 56

CLP-120: Keyboard Stand Assembly ......... 57

CLP-130: Keyboard Stand Assembly ......... 60

Preset Voice List ........................................ 63

Demo Song List .........................................66

Index.......................................................... 67

Appendix

Factory Setting List ...................................70

MIDI Data Format ..................................... 71

MIDI Implementation Chart ..................... 75

Specifications ............................................76

Page 5

Application Index

Use this index to ﬁnd reference pages that may be helpful for your particular application and situation.

Listening

Listening to demo songs with different voices....................................... “Listening to the Demonstration Tunes” on page 16

Listening to songs from “50 Greats for the Piano” ...................................... “Listening to 50 Piano Preset Songs” on page 17

Listening to my recorded performance.................................................................“Playing Back Recorded Songs” on page 35

Playing

Using the three performance control pedals.............................................................................. “Using the Pedals” on page 21

Playing an accompaniment that matches pitch................................................“Transposition – [TRANSPOSE]” on page 25

Selecting a touch sensitivity type......................................................................... “Touch Sensitivity – [TOUCH]” on page 24

Fine tuning the pitch of the entire instrument when you play the Clavinova along

with other instruments or CD music. ............................................................................ “Fine tuning of the pitch” on page 40

ENGLISH

Changing voices

Viewing the list of voices..............................................................................................................“Preset Voice List” on page 63

Simulating a concert hall ..................................................................................................................... “[REVERB]” on page 22

Combining two voices............................................................................... “Combining Two Voices (Dual mode)” on page 26

Playing different sounds with left and right hands

................................ “Splitting the Keyboard Range and Playing Two Different Voices (Split mode) (CLP-130)” on page 27

Making the sound more brilliant or mellower ...........................................................................“[BRILLIANCE]” on page 22

Adding spread or swell to the sound.................................................................................................... “[EFFECT]” on page 23

Enhancing the sound with effects............................................................................... “[VARIATION] (CLP-130)” on page 22

Practicing

Muting the right- or left-hand part

...................................................... “Practicing a One-Hand Part Using 50 Preset Songs (Part Cancel Function)” on page 18

Practicing a speciﬁed phrase repeatedly..............................................................“A-B Repeat for 50 Preset Songs” on page 20

Practicing with an accurate and steady tempo .................................................................“Using the Metronome” on page 29

Practicing using your recorded song..................................................................... “Recording Your Performance” on page 30

Recording

Recording your performance................................................................................. “Recording Your Performance” on page 30

Settings

Adjusting the Clavinova settings ...................................................................“Detailed Settings – [FUNCTION]” on page 37

Connecting the Clavinova to other devices

What is MIDI? .................................................................................................................................... “About MIDI” on page 49

Recording your performance.......................................................................................................“AUX OUT jacks” on page 50

Raising the volume....................................................................................................................... “AUX OUT jacks” on page 50

Outputting other instruments’ sound from the Clavinova............................................................ “AUX IN jacks” on page 51

Connecting a computer ..................................................................................“Connecting a Personal Computer” on page 52

Assembling

Assembling and disassembling the Clavinova ................. “CLP-130/120”: Keyboard Stand Assembly” on pages page 57–62

CLP-130/120

Application Index

Page 6

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, ﬁre or other hazards. These precautions include, but are not limited to, the following:

Power supply/Power cord

●

ENGLISH

●

Do not open

●

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

Only use the voltage speciﬁed as correct for the instrument. The required voltage is printed on the name plate of the instrument. Check the electric plug periodically and remove any dirt or dust which may have accumulated on it. Use only the supplied power cord/plug. Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualiﬁed Yamaha service personnel.

CAUTION

Water warning

●

Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.

●

Never insert or remove an electric plug with wet hands.

Fire warning

●

Do not put burning items, such as candles, on the unit. A burning item may fall over and cause a ﬁre.

If you notice any abnormality

●

If the power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the electric plug from the outlet, and have the instrument inspected by qualiﬁed Yamaha service personnel.

Power supply/Power cord

●

When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.

●

Remove the electric plug from the outlet when the instrument is not to be used for extended periods of time, or during electrical storms.

●

Do not connect the instrument to an electrical outlet using a multiple-connector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet.

Assembly

●

Read carefully the attached documentation explaining the assembly process. Failure to assemble the instrument in the proper sequence might result in damage to the instrument or even injury.

CLP-130/120

PRECAUTIONS

(1)B-7

Location

●

Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disﬁguration or damage to the internal components.

●

Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio may generate noise.

●

Do not place the instrument in an unstable position where it might accidentally fall over.

●

Before moving the instrument, remove all connected cables.

●

Do not place the instrument against a wall (allow at least 3 cm/ one-inch from the wall), since this can cause inadequate air circulation, and possibly result in the instrument overheating.

1/2

Page 7

Connections

●

Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum. Also, be sure to set the volumes of all components at their minimum levels and gradually raise the volume controls while playing the instrument to set the desired listening level.

Maintenance

●

When cleaning the instrument, use a soft, dry or slightly damp cloth. Do not use paint thinners, solvents, cleaning ﬂuids, or chemical-impregnated wiping cloths.

Handling caution

●

Take care that the key cover does not pinch your ﬁngers, and do not insert a ﬁnger or hand in any gaps on the key cover or instrument.

●

Never insert or drop paper, metallic, or other objects into the gaps on the key cover, panel or keyboard. If this happens, turn off the power immediately and unplug the power cord from the AC outlet. Then have the instrument inspected by qualiﬁed Yamaha service personnel.

●

Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.

●

Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.

●

Do not operate the instrument for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

Using the bench (If included)

●

Do not place the bench in an unstable position where it might accidentally fall over.

●

Do not play carelessly with or stand on the bench. Using it as a tool or step-ladder or for any other purpose might result in accident or injury.

●

Only one person should sit on the bench at a time, in order to prevent the possibility of accident or injury.

●

If the bench screws become loose due to extensive long-term use, tighten them periodically using the included tool.

Saving data

Saving and backing up your data

●

Depending upon the Backup Settings (page 48), internal data is retained for about 1 week after the power is turned off. If the period is exceeded, the data will be lost. Be sure to turn the power switch on for a few minutes at least once a week. The data could be lost due to malfunction or incorrect operation. Save important data to external media such as the Yamaha MDF3 MIDI data ﬁler.

Backing up the external media

●

To protect against data loss through media damage, we recommend that you save your important data onto two external media.

ENGLISH

Yamaha cannot be held responsible for damage caused by improper use or modiﬁcations to the instrument, or data that is lost or destroyed.

Always turn the power off when the instrument is not in use.

(1)B-7

2/2

CLP-130/120

PRECAUTIONS

Page 8

Accessories

• “50 Greats for the Piano” (Music Book)

• Owner’s Manual

This manual contains complete instructions for operating your Clavinova.

• Bench

A bench may be included or optional, depending on your locale.

Maintenance

ENGLISH

Clean the instrument using a dry or slightly damp soft cloth (wring well).

Do not use benzene, thinner, detergent, or chemically-treated cloth for cleaning. Do not place vinyl, plastic or rubber products on the instrument. Otherwise, the panel or keys may become discolored or degraded.

Before using the Clavinova, be sure to read “Precautions” on pages 6 – 7.

CAUTION

Tuning

Unlike an acoustic piano, the Clavinova does not need to be tuned. It always stays perfectly in tune.

Transporting

If you move to another location, you can transport the Clavinova along with your other belongings. You can move the unit as it is (assembled) or you can disassemble the unit. Transport the keyboard horizontally. Do not lean it up against a wall or stand it up on its side. Do not subject the instrument to excessive vibration or shock.

CLP-130/120

Accessories / Maintenance

Page 9

CLP-130/120 Features

ENGLISH

Features

The Yamaha Clavinova CLP-130/120 digital piano offers unmatched sonic realism and natural grand-piano type playability as well as Yamaha’s original “AWM Dynamic Stereo Sampling (CLP-130)/AWM Stereo Sampling (CLP-120)” tonegeneration technology for rich, musical voices, and a special “Graded Hammer” keyboard that provides graded key weight and response throughout the keyboard range. The CLP-130/120 Grand Piano 1 and 2 voices feature totally new samples painstakingly recorded from a full concert grand piano. The CLP-130 Grand Piano 1 voice features three velocity-switched samples (Dynamic Sampling), special “Sustain Sampling” (page 88) that samples the unique resonance of an acoustic grand piano’s soundboard and strings when the damper pedal is pressed, and “Keyoff Samples” that add the subtle sound produced when the keys are released. The CLP-130/120 comes much closer to the sound of a true acoustic piano.

PEDAL

AUX IN

AUX OUT

L/L+RRL/L+RRL

LEVEL FIXED

TO HOST HOST SELECT

MIDI

THRU

MIDI

PC-2

Mac

PC-1

OUT IN

PHONES

SPEAKER

NORMAL

OFF

HP. SW

MASTER VOLUME

BRILLIANCE

DEMO METRONOME

TEMPO

FUNCTION

TEMPO

OTHER VALUE

MELLOW BRIGHT

START

STOP

TEMPO FUNCTION

MIN MAX

–

NO +/YES PRESET

USER 1 USER 2

TRACK1TRACK2START

STOP

REC

GRAND PIANO 1

CHURCH ORGAN

E.PIANO

STRINGS

E.PIANO2HARPSI-

CHORD

E.CLAVICHORD

VIBRAPHONE

CHOIR GUITAR E.BASS SPLIT

ROOM HALL 1 HALL 2 STAGE

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

VARIATION

GRAND PIANO 2

JAZZ

ORGAN

WOOD

BASS

USER 3

VOICE

REVERB EFFECT TOUCH TRANSPOSE

SONG

MASTER VOLUME

BRILLIANCE

DEMO METRONOME

TEMPO

FUNCTION

TEMPO

OTHER VALUE

MELLOW BRIGHT

START

STOP

TEMPO FUNCTION

MIN MAX

–

NO +/YES PRESET

USER 1 USER 2

TRACK1TRACK2START

STOP

REC

GRAND PIANO 1

CHURCH ORGAN

E.PIANO

STRINGS

E.PIANO2HARPSI-

CHORD

E.CLAVICHORD

VIBRA-

PHONE

CHOIR GUITAR E.BASS SPLIT

ROOM HALL 1 HALL 2 STAGE

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

VARIATION

GRAND PIANO 2

JAZZ ORGAN

WOOD BASS

USER 3

VOICE REVERB EFFECT TOUCH TRANSPOSESONG

POWER

This jack and selector switch allow direct connection to a personal computer for sequencing and other music applications (pages 52–55).

A set of standard stereo headphones can be plugged in here for private practice (page 12).

Delivers the output of the Clavinova for connection to an instrument amplifier, mixing console, PA system, or recording equipment (page 51).

[MASTER VOLUME]

Adjust the volume level using this slider (page 11).

[METRONOME]

Control the metronome functions (page 29).

The Clavinova includes 50 preset songs.

This section enables you to listen to these songs, practice using a convenient practice function, and record and play back your performance (pages 17–20, 30–36).

TEMPO [] []

You can change the song tempo (speed) and select useful functions using this buttons (pages 37–48).

Voice buttons

Select voices from 14 internal sounds including Grand Piano 1 and 2 (page 21). You can also combine two voices at the same time (page 26).

[REVERB] / [EFFECT]

Add reverb (reverberation) and effects to the sound (pages 22, 23).

[SPLIT]

You can play different voices on the left- and right-hand sections of the keyboard (CLP-130) (page 27).

[TRANSPOSE]

You can shift the pitch of the entire keyboard up or down so that the pitch will match that of another instrument or singer, while you play the same, unshifted keys (page 25).

[TOUCH]

Fine-tune the touch response (page 24).

[DEMO]

Demonstration playback is available for each voice (page 16).

[BRILLIANCE]

Adjust the brightness of the tone

using this slider (page 22).

Connect a MIDI device here to use various MIDI functions (pages 45–47). (About MIDI  page 49)

This switch turns the internal speakers on or off (page 12).

(CLP-130)

Connect recording equipment (such as a cassette tape recorder) here to record your performance (page 50).

Connect the pedal cord here to use the Clavinova’s pedals (page 51).

Page 10

CLP-130/120 Before Using the Clavinova

ENGLISH

Before Using the Clavinova

Key Cover

To open the key cover:

Lift the cover slightly, then push and slide it open.

To close the key cover:

Slide the cover toward you and gently lower the cover over the keys.

CAUTION

Hold the cover with both hands when opening or closing it. Do not release it until it is fully opened or closed. Be careful to avoid catching ﬁngers (yours or others, especially children’s) between the cover and main unit.

CAUTION

Do not place objects such as a piece of metal or paper on top of the key cover. Small objects placed on the key cover may fall inside the unit when the cover is opened and may be nearly impossible to remove. This could cause electric shock, short circuit, ﬁre or other serious damage to the instrument.

Music Rest

To raise the music rest:

1. Pull the music rest up and toward yourself as far as it will go.

2. Flip down the two metal supports at the left and right on

the rear of the music rest.

3. Lower the music rest so that it rests on the metal supports.

To lower the music rest:

1. Pull the music rest toward yourself as far as it will go.

2. Raise the two metal supports (at the rear of the music rest).

3. Gently lower the music rest backward until it is all the way

down.

CAUTION

Do not try to use the music rest in a half-raised position. When lowering the music rest, do not release your hands from the music rest until it is all the way down.

Be careful to avoid catching your fingers when opening or closing the cover.

CAUTION

Page 11

Turning the Power On

1. Connect the power cord.

Insert the plugs at the ends of the cord, one into the AC INLET on the Clavinova, and the other into a standard AC outlet. In some areas, a plug adaptor may be provided to match the pin conﬁguration of the AC wall outlets in your area.

(bottom surface)

(The shape of plug differs depending on locale.)

2. Turn the power on.

Press the [POWER] button.

• The display located in the center of the front panel and the power indicator located below the left end of the key-

board lights up.

[POWER]

Power indicator

Display

Normally indicates tempo.

When you’re ready to turn off the power, press the [POWER] button again.

• The display and the power indicator turn off.

TIP

Power indicator

If you close the key cover without turning the power off, the power indicator remains lit, indicating that the power is still on.

ENGLISH

Setting the Volume

Initially set the [MASTER VOLUME] control about halfway between the “MIN” and “MAX” settings. Then, when you start playing, re-adjust the [MASTER VOLUME] control to the most comfortable listening level.

The level decreases. The level increases.

CAUTION

Do not use the Clavinova at a high volume level for a long period of time, or your hearing may be damaged.

TERMINOLOGY

TIP

MASTER VOLUME:

The volume level of the entire keyboard sound

You can also adjust the [PHONES] output level and the AUX IN input level using the [MASTER VOLUME] slider.

MIN MAX

MASTER VOLUME

CLP-130/120 Before Using the Clavinova

Page 12

Using Headphones

Connect a pair of headphones to one of the Tw o You can connect two sets of standard stereo headphones. (If you are using only one pair of headphones, you can plug them into either jack.)

ENGLISH

Using the Headphone Hanger

A headphone hanger is included in the CLP-130/120 package so that you can hang the headphones on the Clavinova. Install the headphone hanger using included two screws (4 × 10mm) as shown in the ﬁgure.

[PHONES]

jacks are provided.

[PHONES]

jacks.

bottom surface

OFF

NORMAL

HP. SW

SPEAKER

PHONES

standard stereo phone plug

CAUTION

Do not hang anything other than the headphones on the hanger. Otherwise, the Clavinova or the hanger may be damaged.

Using the Speaker Switch

This switch turns the internal speakers on or off.

NORMAL (HP. SW) ......... The speakers produce sound as long as a pair of headphones is not con-

nected.

....................................... The speakers always produce sound.

OFF ...................................... The speakers produce no sound.

NORMAL

HP. SW

SPEAKER

PHONES

OFF

CLP-130/120

Before Using the Clavinova

Page 13

CLP-130/120

ENGLISH

Reference

Part Names................................................................14

Listening to the Demonstration Tunes ................... 16

Listening to 50 Piano Preset Songs.......................... 17

Practicing a One-Hand Part Using 50 Preset Songs

(Part Cancel Function)............................................ 18

A-B Repeat for 50 Preset Songs .................................. 20

Selecting & Playing Voices ....................................... 21

Selecting Voices ........................................................... 21

Using the Pedals .......................................................... 21

Adding Variations to the Sound – [VARIATION]

(CLP-130)/[BRILLIANCE]/[REVERB]/

[EFFECT]................................................................. 22

Touch Sensitivity – [TOUCH].................................... 24

Transposition – [TRANSPOSE] ................................. 25

Combining Two Voices (Dual mode)......................... 26

Splitting the Keyboard Range and Playing Two

Different Voices (Split mode) (CLP-130)............... 27

Using the Metronome................................................. 29

Recording Your Performance................................... 30

Recording to [TRACK1] ............................................. 30

Re-recording TRACK1................................................ 32

Recording to [TRACK2] ............................................. 32

Changing the Initial Settings (Data recorded at the

beginning of a song)................................................ 34

Playing Back Recorded Songs.................................. 35

Playing Back a Song .................................................... 35

Useful Playback Functions.......................................... 36

Detailed Settings – [FUNCTION]........................... 37

Basic Procedure in Function Mode............................ 38

About Each Function.................................................. 40

F1. Fine Tuning of the Pitch ....................................... 40

F2. Selecting a Scale..................................................... 41

F3. Dual Mode Functions ........................................... 42

F4. (CLP-130) Split Mode Functions........................ 43

F5. (CLP-130) / F4. (CLP-120) Other Functions..... 44

F.6

(CLP-130)

/ F.5

(CLP-120)

Metronome Volume .. 45

F7. (CLP-130) / F6. (CLP-120) Preset Song

Part Cancel Volume .............................................. 45

F8. (CLP-130) / F7. (CLP-120) MIDI Functions ..... 45

F9. (CLP-130) / F8. (CLP-120) Backup Functions.. 48

About MIDI.............................................................. 49

Connections ............................................................. 50

Connectors .................................................................. 50

Connecting a Personal Computer .............................. 52

Troubleshooting ....................................................... 56

Options..................................................................... 56

CLP-120: Keyboard Stand Assembly....................... 57

CLP-130: Keyboard Stand Assembly....................... 60

Preset Voice List........................................................ 63

Demo Song List........................................................ 66

Index......................................................................... 67

This section explains how to make detailed settings for the Clavinova’s various functions.

Page 14

Part Names

Top panel (CLP-130)

ENGLISH

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

C0 D0 E0 F0 G0 A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4

B-1A-1

45 6

STOP

START

DEMO METRONOME

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

DEMO METRONOME

OTHER VALUE

TEMPO

—

NO+/YES PRESET

FUNCTION /

STOP

START

FUNCTION

TEMPO

USER 1 USER 2 USER 3

TEMPO FUNCTION

TEMPO

TRACK1TRACK2START

SONG

FUNCTION

GRAND

PIANO 1

CHURCH

ORGAN

GRAND

E.PIANO2HARPSI-

E.PIANO

GRAND

PIANO 1

CHORD

PIANO 2

CHURCH

JAZZ

STOP

REC

ORGAN

CHOIR GUITAR E.BASS SPLIT

STRINGS

VOICE

TEMPO

E.PIANO

GRAND

PIANO 2

JAZZ

ORGAN

STRINGS

E.CLAVI-

VIBRA-

VARIATION

CHORD

PHONE

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

WOOD

STAGE

DELAY

SOFT

BASS

REVERB EFFECT TOUCHTRANSPOSE

E5 F5 G5 A5 B5 C6 D6 E6 F6 G6 A6 B6 C7

OTHER VALUE

—

E.PIANO2HARPSI-

CHOIR GUITAR E.BASS SPLIT

VOICE

CHORD

E.CLAVI-

CHORD

WOOD

BASS

NO +/YES PRESET

VIBRA-

VARIATION

PHONE

POWER

USER 1 USER 2

TRACK1TRACK2START

USER 3

SONG

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

ROOM HALL 1 HALL 2 STAGE

REVERB EFFECT TOUCH TRANSPOSE

PEDAL

Connectors (CLP-130)

STOP

REC

OFF

NORMAL

HP. SW

SPEAKER

PHONES

1 [POWER] ....................................... P11

2 [MASTER VOLUME] ....................... P11

3 [BRILLIANCE] ................................ P22

4 [DEMO] ........................................ P16

5 METRONOME [START/STOP] ........ P29

6 [TEMPO/FUNCTION #▲▼] ..... P29, 38

7 LED display ................................... P15

8 [–/NO] / [+/YES]

[PRESET] [USER1] [USER2] [USER3] (CLP-130) [TRACK1] [TRACK2] SONG [START/STOP]

[REC].......................... P17–20, P30–36

LEVEL FIXED

AUX OUT

Mac

PC-2

PC-1

TO HOST HOST SELECT

MIDI

THRU

AUX IN

MIDI

OUT IN

L/L+RRL/L+RRL

9 Voice buttons................................ P21

0 [SPLIT] (CLP-130).......................... P27

A [REVERB] ....................................... P22

B [EFFECT] ....................................... P23

C [TOUCH]....................................... P24

D [TRANSPOSE]................................ P25

E [PEDAL]......................................... P51

F AUX OUT ...................................... P50

G AUX IN ......................................... P51

CLP-130/120 Part Names

Page 15

Top panel (CLP-120)

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

C0 D0 E0 F0 G0 A0 B0 C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4

B-1A-1

45 6

START

STOP

DEMO METRONOME

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

DEMO METRONOME

TEMPO

OTHER VALUE

TEMPO

—

FUNCTION /

STOP

START

NO+/YES PRESET

TEMPO

FUNCTION

TEMPO FUNCTION

TEMPO

TRACK1TRACK2START

SONG

FUNCTION

GRAND PIANO 1

CHURCH ORGAN1

E.PIANO1E.PIANO2HARPSI-

GRAND

CHORD 1

PIANO 1

PIANO 2

CHURCH

STRINGS1STRINGS2JAZZ

STOP

REC

ORGAN 1

ORGAN 2

ORGAN

VOICE

OTHER VALUE

TEMPO

GRAND

E.PIANO1E.PIANO2HARPSI-

PIANO 2

JAZZ

CHURCH ORGAN2

HARPSI-

VIBRA-

CHORD 2

PHONE

CHOIR GUITAR

REVERB EFFECT TOUCHTRANSPOSE

STRINGS1STRINGS

ORGAN

CHORUS

ROOM

PHASER

HALL 1

HARD

TREMOLO

HALL 2

MEDIUM

DELAY

STAGE

SOFT

C5 D5 E5 F5 G5 A5 B5 C6 D6 E6 F6 G6 A6 B6 C7

VOICE

CHORD1

—

NO +/YES PRESET

HARPSI-

VIBRA-

CHORD2

PHONE

CHOIR GUITAR

POWER

TRACK1TRACK2START

SONG

CHORUS

ROOM

PHASER

HALL 1

TREMOLO

HALL 2

DELAY

STAGE

REVERB EFFECT TOUCH TRANSPOSE

STOP

HARD MEDIUM SOFT

REC

ENGLISH

OFF

NORMAL

HP. SW

SPEAKER

PHONES

H [TO HOST] ...............................P49–55

I HOST SELECT...........................P49–55

J MIDI [IN] [OUT] [THRU] ...........P49–55

K [SPEAKER] ..................................... P12

LEVEL FIXED

R L/L+RRLR

AUX OUT AUX IN

MIDIMac

L/L+R

TO HOST HOST SELECT

PC-2PC-1

L [PHONES] ..................................... P12

M Soft (Left) Pedal ............................ P22

N Sostenute (Center) Pedal............... P22

O Damper (Right) Pedal ................... P21

Display

• Check the operation on the display in the center of the top panel as you proceed.

• The display indicates different values, as shown below, depending on the operation.

Tempo

(Normal indication)

A song number of

“50 Greats for the Piano”

Function number Parameter value

Connectors (CLP-120)

MIDI

THRU

OUT IN

PEDAL

CLP-130/120 Part Names

Page 16

Listening to the Demonstration Tunes

Demonstration tunes are provided that effectively demonstrate each of the CLP-130/120’s voices.

Procedure

1. Turn the power on.

ENGLISH

2. Engage Demo mode.

3. Play a Voice demo.

425

GRAND

PIANO 1

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

TEMPO

STOP

FUNCTION

TEMPO

FUNCTION

TEMPO

OTHER VALUE

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

REC

(In case the power is not turned ON) Press the [POWER] button. When the power is turned ON, one of the voice button LEDs will light. Initially set the [MASTER VOLUME] control about half way between the “MIN” and “MAX” settings. Then, when you start playing, re-adjust the [MASTER

VOLUME]

control to the most comfortable listening level.

Press the [DEMO] button to engage Demo mode. The voice button indicators will ﬂash in sequence.

Press one of the voice buttons to start playback of all songs starting from the corresponding voice demo tune — featuring the voice normally selected by that voice button. (If you press the SONG [START/STOP] button instead of a voice button, the GRAND PIANO 1 demo tune will begin playback.)

Adjust the volume/brilliance

Use the [MASTER VOLUME] control to adjust the volume and the [BRIL-

LIANCE]

control to adjust the brilliance (page 22).

CHURCH

PIANO 2

JAZZ

ORGAN

E.PIANO

E.PIANO2HARPSI-

CHORD

STRINGS

CHOIR GUITAR E.BASS SPLIT

VOICE

E.CLAVI-

VIBRA-

VARIATION

CHORD

PHONE

WOOD BASS

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

STAGE

DELAY

SOFT

REVERB EFFECT TOUCH TRANSPOSE

TIP

For a list of the demo songs, see page 66.

NOTE

MIDI reception is not possible in Demo Song mode. Demo song data is not transmitted via the MIDI connectors.

NOTE

Demo mode cannot be engaged while a user song recorder (page 30) or user song playback (page 35) is in use.

TERMINOLOGY

Mode:

A mode is a status under which you can execute a certain function. In Demo mode, you can play back demonstration tunes.

4. Stop the Voice demo.

Press the SONG [START/STOP] button or the voice button of the currently- playing demo to stop playback.

5. Exit from Demo mode.

Press the [DEMO] button to exit from Demo mode and return to normal play mode. The voice button indicators will stop ﬂashing in sequence.

NOTE

You cannot adjust the tempo of demo songs. You cannot use the part cancel function (page 45) or the song A–B repeat function (page 20) in Demo mode.

NOTE

On the CLP-130, you can demo the piano voices with various effects by pressing the [VARIA- TION] button, then pressing the desired voice button. Refer to the “Piano Voice Demo Description” on page 66 for the complete list of demo sounds for the piano voices with various effects.

CLP-130/120 Listening to the Demonstration Tunes

Page 17

Listening to 50 Piano Preset Songs

The Clavinova provides performance data of 50 piano songs. You can simply listen to these songs (page 17) or use them for practice (page 18). You can also refer to the included “50 Greats for the Piano” that contains scores for 50 piano preset songs.

-1

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

TEMPO

STOP

FUNCTION

TEMPO

FUNCTION

TEMPO

OTHER VALUE

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

Procedure

1. Engage Preset Song mode.

Press the [PRESET] button to engage Preset Song mode. The [PRESET],

[TRACK1] and [TRACK2] indicators will light.

2. Play any of the 50 preset songs.

2-1 Press the [–/NO], [+/YES] buttons to select the number

of the tune you want to play (the number will appear on the LED display). 1 – 50: Select a preset song number and play only

the song.

ALL: Play all preset songs in sequence. rnd: Play all preset songs continuously in random order.

223

-2

GRAND

E.PIANO

E.PIANO2HARPSI-

E.CLAVI-

GRAND

PIANO 2

PIANO 1

JAZZ

STOP

CHURCH

REC

ORGAN

STRINGS

CHOIR GUITAR E.BASS SPLIT

VIBRA-

CHORD

VOICE

VARIATION

CHORD

PHONE

WOOD

BASS

Preset Song mode cannot be engaged while the unit is in Demo Song mode (page 16), while a song is playing back (page 35), or when the user song recorder (page 30) is in use.

TERMINOLOGY

Song:

song number

On the CLP-130/120, performance data is called a “Song.” This includes demonstration tunes and piano preset tunes.

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

DELAY

SOFT

STAGE

REVERB EFFECT TOUCH TRANSPOSE

NOTE

ENGLISH

2-2 Press the SONG [START/STOP] button to start playback.

Adjust the Volume

Use the [MASTER VOLUME] control to adjust the volume.

Adjust the tempo

You can use the [TEMPO/FUNCTION# ▼

▲] buttons to adjust the playback tempo

as required. The default tempo can be recalled by simultaneously pressing the [▼] and [▲] buttons.

This produces a relative tempo variation, with a range from “–50” through “---” to “50” at maximum; the range will differ depending on the selected song.

3. Stop playback.

Playback will stop automatically when the selected preset song has ﬁnished. To stop the song during playback (or continuous playback), press the SONG

[START/STOP] button.

• To play back another song continuously, see procedure 2 above.

TIP

You can play the keyboard along with the preset song. You can change the voice playing on the keyboard.

TIP

You can adjust the Brilliance control (page 22) and Reverb type (page 22) that is applied to the voice you play on the keyboard and for the preset song playback. You can change the Effect type (page 23) and Touch sensitivity (page 24) for the keyboard voice.

NOTE

The default tempo “---” is automatically selected whenever a new preset song is selected, or when playback of a new preset song begins during “ALL” or “rnd” playback.

NOTE

When you select a different song (or a different song is selected during chained playback), an appropriate reverb type will be selected accordingly.

CLP-130/120 Listening to 50 Piano Preset Songs

Page 18

4. Exit from Preset Song mode.

How to use the practice functions

You can turn the left- and right-hand parts on or off as required so you can practice the corresponding part (part cancel function) and continuously repeat a speciﬁed phrase within a song (song A-B repeat function). For more information, see pages 18–20.

The 50 preset songs have separate left- and right-hand parts on individual tracks. You can turn the

ENGLISH

left- and right-hand parts on or off as required so you can practice the corresponding part (the part that is turned off) on the keyboard. The right-hand part is played by [TRACK1] and the left-hand part is played by [TRACK2].

Press the [PRESET] button to exit Preset Song mode. The indicator turns off, and the unit returns to normal play mode.

MIDI reception is not possible in Piano Song mode. Piano song data is not transmitted via the MIDI connectors.

NOTE

Practicing a One-Hand Part Using 50 Preset Songs (Part Cancel Function)

GRAND

E.PIANO

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

GRAND

TEMPO

STOP

FUNCTION

TEMPO

OTHER VALUE

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

PIANO 1

CHURCH

REC

ORGAN

PIANO 2

JAZZ

ORGAN

STRINGS

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

CHORD

PHONE

WOOD BASS

CHOIR GUITAR E.BASS SPLIT

VOICE

VARIATION

ROOM HALL 1 HALL 2 STAGE

REVERB EFFECT TOUCH TRANSPOSE

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

Procedure

1. Turn off the playback part you wish to practice.

After you select a song to practice, press the [TRACK1] or [TRACK2] button to turn off the corresponding part. When you ﬁrst select a song, both [TRACK1] and [TRACK2] indicators light up, indicating that you can play back both parts. When you press one of the buttons to turn off playback, the corresponding button indicator turns off and the corresponding part playback is muted.

• Pressing the buttons repeatedly toggles playback between on and off.

2. Start playback and playing.

Press the SONG [START/STOP] button to start playback. Play the part you just turned off.

NOTE

The Preset Song Part Cancel function cannot be used during “ALL” or “rnd” (page 17) playback.

TIP

The parts can be turned on or off even during playback.

TIP

The “Preset Song Part Cancel Volume” function described on page 45 can be used to set the canceled part so that it plays at a volume from “0” (no sound) to “20”. The normal setting is “5”.

CLP-130/120 Listening to 50 Piano Preset Songs

Page 19

Starting playback automatically as you start playing the keyboard (Synchro Start)

When the Synchro Start function is engaged, play back of the selected preset song will begin automatically as soon as you start playing on the keyboard. To engage the Synchro Start function press the

SONG [START/STOP]

part button for the ON part. A dot will appear in the lower right corner of the display. (Repeat the previous operation to disengage the Synchro Start function.) Playback will then start as soon as you begin playing on the keyboard.

Left Pedal Start/Stop

The left pedal can be assigned to start and stop preset song playback via the “Left Pedal Mode” function described on page 44.

Stop playback.

When playback is complete, it automatically stops and the Clavinova locates the top of the song. If you wish to stop playback in the middle of a song, press the

SONG[START/STOP]

button while holding the

button.

song number

synchro start mark

NOTE

If you hold a track button that is OFF while pressing the SONG

[START/STOP] button, that

track will be turned ON and the unit will engage Synchro Start mode.

NOTE

Both parts are automatically turned ON whenever a new song is selected.

ENGLISH

CLP-130/120 Listening to 50 Piano Preset Songs

Page 20

A-B Repeat for 50 Preset Songs

The A-B Repeat function can be used to continuously repeat a speciﬁed phrase within a preset song. Combined with the Part Cancel function described below, this provides an excellent way to practice difﬁcult phrases.

Procedure

ENGLISH

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

OTHER VALUE

FUNCTION

TEMPO

—

NO +/YES PRESET

TEMPO

STOP

FUNCTION

TEMPO

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

GRAND PIANO 1

STOP

CHURCH

REC

ORGAN

Specify the beginning (A) and the end (B) of the phrase, and start practicing.

Select and play a preset song, then press the

FUNCTION#]

button at the beginning of the phrase

you want to repeat.

This sets the “A” point ( will appear on the display).

To specify the end (B) of the phrase, press the

FUNCTION#]

button a second time at the end of the

phrase.

This sets the “B” point ( will appear on the display). At this point, repeat playback will begin between the speciﬁed A and B points.

[TEMPO/

GRAND

E.PIANO

PIANO 2

JAZZ

ORGAN

STRINGS

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

CHORD

CHOIR GUITAR E.BASS SPLIT

VOICE

VARIATION

CHORD

PHONE

WOOD

BASS

ROOM HALL 1 HALL 2 STAGE

REVERB EFFECT TOUCH TRANSPOSE

NOTE

The A-B Repeat function cannot be used during “ALL” or “rnd” (page 17) playback.

NOTE

• To set the “A” point at the very beginning of the song, press the [TEMPO/FUNC-

TION#] button before start-

ing playback.

• To set the B point at the song’s end, press the

[TEMPO/FUNCTION#] but-

ton after song playback is complete and before disappears from the display.

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

Stop playback.

Press the

SONG [START/STOP]

button to stop playback while retaining the

speciﬁed A and B points. A-B repeat playback will resume if you press the

[START/STOP]

To cancel the A and B points, press the

button again.

[TEMPO/FUNCTION#]

TIP

An automatic lead-in (to help guide you into the phrase) starts at the A point of the song. However, when the A point is set at the beginning of the song, the automatic lead-in is not played.

SONG

button once.

NOTE

The A and B points are automatically canceled when a new song is selected.

CLP-130/120

Listening to 50 Piano Preset Songs

Page 21

Selecting & Playing Voices

Selecting Voices

Voice buttons

GRAND

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

DEMO METRONOME

Procedure

TEMPO

START

STOP

FUNCTION

TEMPO

OTHER VALUE

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

PIANO 1

CHURCH

REC

ORGAN

GRAND

E.PIANO

PIANO 2

JAZZ

ORGAN

STRINGS

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

CHORD

PHONE

WOOD

BASS

CHOIR GUITAR E.BASS SPLIT

VOICE

VARIATION

ROOM HALL 1 HALL 2 STAGE

REVERB EFFECT TOUCH TRANSPOSE

CHORUS PHASER

HARD

TREMOLO

MEDIUM SOFT

DELAY

Select the desired voice by pressing one of the

Then, when you start playing, re-adjust the

[MASTER VOLUME]

comfortable listening level.

Using the Pedals

[VOICE]

buttons.

control for the most

TIP

To learn characteristics of the voices, listen to demo songs for each voice (page 16). Refer to “Preset Voice List” on page 63 for more information on the characteristics of each preset voice.

TERMINOLOGY

Voice:

On the Clavinova, a voice means a “tone” or “tonal color.”

TIP

You can control the loudness of a voice by adjusting the force with which you strike the keys, although different playing styles (touch sensitivities) have little or no effect with certain musical instruments.

Refer to “Preset Voice List” on page 63.

ENGLISH

The Clavinova has three foot pedals that produce a range of expressive effects similar to those produced by the pedals on an acoustic piano.

Damper (Right) Pedal

The damper pedal functions in the same way as a damper pedal on an acoustic piano. When the damper pedal is pressed, notes sustain longer. Releasing the pedal immediately stops (damps) any sustained notes. When you select the

GRAND PIANO 1

voice on the CLP130, pressing the damper pedal activates the instrument’s special “Sustain Samples” to accurately recreate the unique resonance of an acoustic grand piano’s soundboard and strings.















When you press the damper pedal here, the notes you play before you release the pedal have a longer sustain.

CLP-130/120

NOTE

If the damper pedal doesn’t work, make sure that the pedal cord is properly plugged into the main unit (page 61: CLP-130, page 58: CLP-120).

TIP

The depth of the effect produced by the “Sustain Samples” can be adjusted via the “Pedal Functions” (page 44) in Function mode.

Selecting & Playing Voices

Page 22

Sostenuto (Center) Pedal

If you play a note or chord on the keyboard and press the sostenuto pedal while the note(s) are held, those notes will sustain as long as you hold the pedal (as if the













damper pedal had been pressed) but all subsequently played notes will not be sustained. This makes it possible to sustain a chord, for example, while other notes are played “staccato.”

When you press the sostenuto pedal here while holding the note, the note will sustain as long as you hold the pedal.

Soft (Left) Pedal

The soft pedal reduces the volume and slightly changes the timbre of notes played while the pedal is pressed. The soft pedal will not affect notes that are already playing when it is pressed.

TIP

Organ, string and choir voices will continue to sound for as long as the sostenuto pedal is depressed.

TIP

The left pedal can be assigned to song start/stop operation or variation function (CLP-130) via the “Left Pedal Mode” described on page 44.

ENGLISH

[VARIATION] (CLP-130)

Lets you alter another aspect of the effect, depending on the selected type. Refer to “Preset Voice List” on page 63 for more information on the characteristics of each variation.

Procedure

Pressing the The indicator lights (ON) each time the

[BRILLIANCE]

This control can be used to change the tonality or “timbre” of the sound output. The control range is from MELLOW to BRIGHT.

[REVERB]

This control enables you to select various digital reverb effects that would add extra depth and expression to the sound to create a realistic acoustic ambience.

OFF: ROOM: This setting adds a continuous reverb effect to the sound, similar to the

HALL 1: For a “bigger” reverb sound, use the HALL 1 setting. This effect simulates

HALL 2: For a truly spacious reverb sound, use the HALL 2 setting. This effect simu-

STAGE: Simulates the reverb of a stage environment.

Adding Variations to the Sound – [VARIATION] (CLP-130)/[BRILLIANCE]/[REVERB]/[EFFECT]

[BRILLIANCE]

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

[VARIATION]

When no reverb effect is selected, no REVERB indicator is lit.

acoustic reverberation you would hear in a room.

the natural reverberation of a small-size concert hall.

lates the natural reverberation of a large concert hall.

START

DEMO METRONOME

TEMPO

STOP

FUNCTION

TEMPO

or selected voice button toggles the variation on and off.

[—/NO] [+/YES]

TEMPO

OTHER VALUE

—

[VARIATION]

USER 1 USER 2

NO +/YES PRESET

USER 3

button is pressed.

TRACK1TRACK2START

SONG

[EFFECT][REVERB][VARIATION]

GRAND

E.PIANO

E.PIANO2HARPSI-

E.CLAVI-

GRAND

PIANO 2

PIANO 1

CHURCH

STOP

REC

JAZZ

ORGAN

STRINGS

CHOIR GUITAR E.BASS SPLIT

VIBRA-

CHORD

VOICE

VARIATION

CHORD

PHONE

WOOD

BASS

ROOM

CHORUS

HALL 1

PHASER

HALL 2

TREMOLO

STAGE

DELAY

REVERB EFFECT TOUCH TRANSPOSE

TIP

Normal setting = OFF

TERMINOLOGY

Normal setting:

The “Normal setting” refers to the default setting (factory setting) obtained when you ﬁrst turn on the power to the Clavinova.

TIP

The left pedal can be assigned to ON or OFF the variation via the “Left Pedal Mode” function described on page 44 (CLP-

130).

NOTE

When the BRILLIANCE is set to BRIGHT, the overall sound will be slightly louder. If the MASTER VOLUME is set at a high level the sound may become distorted. If so, lower the MASTER VOLUME level.

TIP

The default reverb type (including OFF) and depth settings are different for each voice.

HARD MEDIUM SOFT

CLP-130/120

Selecting & Playing Voices

Page 23

Procedure

Pressing the [REVERB] button repeatedly toggles the reverb on and off. The indicators light in sequence each time the [REVERB] button is pressed. No effect is produced when all indicators are off.

Even if the REVERB effect is OFF, a “Soundboard Reverb” effect will be applied when the GRAND PIANO 1 voice is selected.

Adjusting Reverb Depth

Adjust the reverb depth for the selected voice by using the

[–/NO] [+/YES] buttons while holding the [REVERB] but-

ton. The depth range is from 0 through 20. The current depth setting appears on the LED display while the

[REVERB] button is held.

[EFFECT]

The [EFFECT] button allows you to select an effect to give your sound greater depth and animation.

OFF: When no effect is selected, no EFFECT indicator is lit. CHORUS: A shimmering, broadening effect PHASER: Adds a sweeping effect to the sound. TREMOLO: Tremolo effect DELAY: Echo effect

depth

TIP

Releasing the [REVERB] button changes the reverb type. If you are changing the reverb depth by holding the [REVERB] button, pressing the [REVERB] button will not change the reverb type.

TIP

depth 0: no effect

depth 20: maximum reverb

depth

TIP

Default depth settings are different for each voice.

TIP

The default effect type (including OFF) and depth settings are different for each voice.

ENGLISH

Procedure

To select an effect type press the [EFFECT] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time you press the [EFFECT] button). No effect is produced when all indicators are off.

Adjusting Effect Depth

You can adjust the effect depth for the selected voice by using the [–/NO] and [+/YES] buttons while holding the

[EFFECT] button.

The depth range is from 0 through 20. The current depth setting appears on the LED display while the [EFFECT] button is held.

depth

TIP

Releasing the [EFFECT] button changes the effect type. If you are changing the depth settings by holding the

[EFFECT] button, pressing the [EFFECT] button will not

change the effect type.

TIP

depth 0: no effect

depth 20: maximum effect

depth

TIP

Default depth settings are different for each voice.

CLP-130/120 Selecting & Playing Voices

Page 24

Touch Sensitivity – [TOUCH]

You can select four different types of keyboard touch sensitivity — HARD, MEDIUM, SOFT or FIXED — to match different playing styles and preferences.

HARD: Requires that the keys be played quite hard to produce maximum loud-

MEDIUM: Produces a fairly “standard” keyboard response. SOFT: Allows maximum loudness to be produced with relatively light key pres-

FIXED: All notes are produced at the same volume no matter how hard the key-

ENGLISH

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

ness.

sure.

board is played. You can adjust the volume.

TEMPO

START

DEMO METRONOME

TEMPO

STOP

FUNCTION

TEMPO

OTHER VALUE

[—/NO] [+/YES]

USER 1 USER 2

—

NO +/YES PRESET

USER 3

TRACK1TRACK2START

SONG

TIP

This setting does not change the weight of the keyboard.

TIP

Normal setting = MEDIUM

TIP

The touch sensitivity type will become the common setting for all voices. However, the touch sensitivity settings may have little or no effect with certain voices that are not normally responsive to keyboard dynamics. (Refer to the “Preset Voice List” on page 63.)

[TOUCH]

E.PIANO2HARPSI-

E.CLAVI-

E.PIANO

GRAND

PIANO 1

PIANO 2

CHURCH

STOP

REC

JAZZ

ORGAN

CHOIR GUITAR E.BASS SPLIT

STRINGS

VIBRA-

CHORD

VOICE

VARIATION

CHORD

PHONE

WOOD BASS

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

STAGE

DELAY

SOFT

REVERB EFFECT TOUCH TRANSPOSE

Procedure

To select a touch sensitivity type press the [TOUCH] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time the

[TOUCH] button is pressed). No indicator is lit when “FIXED” is selected.

Changing the volume when FIXED is selected

When you select FIXED, you can set the volume for notes played in FIXED mode by using the [–/NO] and [+/YES] buttons while you hold the [TOUCH] button. The current volume level appears on the display. The volume range is from 1 through 127. The default setting is 64.

volume range

TIP

1: minimum volume 127: maximum volume

TIP

The touch volume set in FIXED mode will become the common setting for all voices.

TIP

Releasing the [TOUCH] button changes the touch type. If you are changing the volume by holding the [TOUCH] button, pressing the [TOUCH] button will not change the touch sensitivity type. (FIXED mode will remain selected.)

CLP-130/120 Selecting & Playing Voices

Page 25

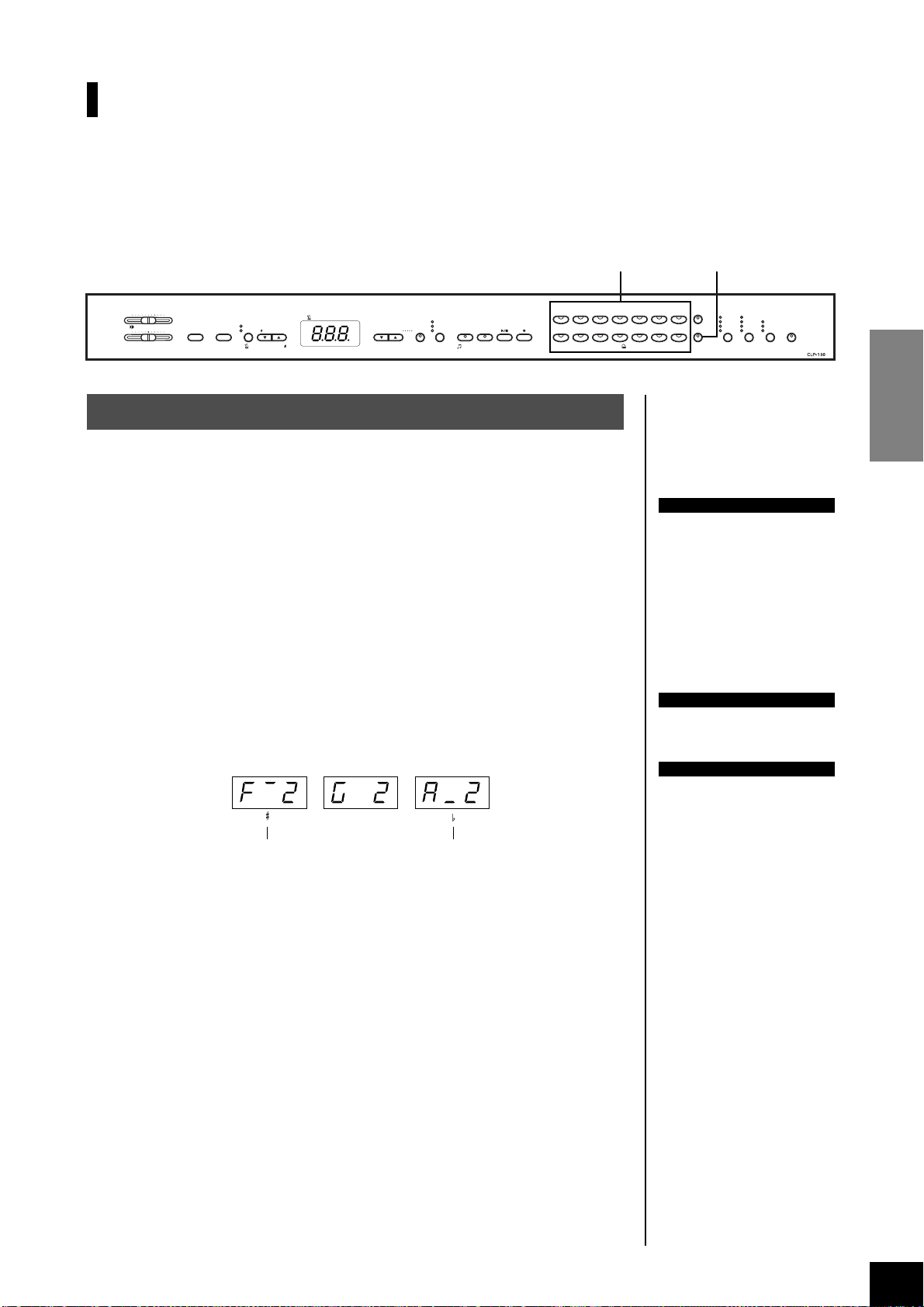

Transposition – [TRANSPOSE]

The Clavinova’s Transpose function makes it possible to shift the pitch of the entire keyboard up or down in semitone intervals to facilitate playing in difﬁcult key signatures, and to let you easily match the pitch of the keyboard to the range of a singer or other instruments. For example, if you set the transposition amount to “5,” playing key C produces pitch F. In this way, you can play a song as though it were in C major, and the Clavinova will transpose it to the key of F.

[—/NO] [+/YES]

GRAND

E.PIANO

GRAND

PIANO 2

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

OTHER VALUE

TEMPO

STOP

FUNCTION

TEMPO

—

NO +/YES PRESET

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

PIANO 1

JAZZ

CHURCH

REC

ORGAN

STRINGS

Procedure

Use the [–/NO] and [+/YES] button while holding the

[TRANSPOSE] button to transpose down or up as required.

The amount of transposition appears on the LED display while the [TRANSPOSE] button is held. The default transpose setting is “0”.

The [TRANSPOSE] button indicator remains lit when a transpose setting other than “0” is selected. Every time the [TRANSPOSE] button is pressed after that switches the transpose function ON or OFF.

transposition

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

CHORD

PHONE

WOOD BASS

CHOIR GUITAR E.BASS SPLIT

VOICE

Transpose:

Changing the key signature of a song. On the Clavinova, transposing shifts the pitch of the entire keyboard.

The transposition range:

–12: –12 semitones

0: normal pitch

12: 12 semitones

[TRANSPOSE]

VARIATION

ROOM

CHORUS

HARD

HALL 1

PHASER

MEDIUM

HALL 2

TREMOLO

STAGE

DELAY

SOFT

REVERB EFFECT TOUCH TRANSPOSE

TERMINOLOGY

TIP

(down one octave)

(up one octave)

ENGLISH

TIP

Notes below and above the A-1 …. C7 range of the CLP-130/ 120 sound one octave higher and lower, respectively.

CLP-130/120 Selecting & Playing Voices

Page 26

Combining Two Voices (Dual mode)

You can play two voices simultaneously across the entire range of the keyboard. In this way, you can simulate a melody duet or combine two similar voices to create a thicker sound.

E.PIANO

E.PIANO2HARPSI-

E.CLAVI-

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

DEMO METRONOME

Procedure

GRAND

PIANO 1

TEMPO

START

STOP

FUNCTION

TEMPO

OTHER VALUE

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

REC

CHURCH

PIANO 2

JAZZ

ORGAN

STRINGS

CHOIR GUITAR E.BASS SPLIT

VOICE

VIBRA-

CHORD

VARIATION

CHORD

PHONE

WOOD

BASS

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

STAGE

DELAY

SOFT

REVERB EFFECT TOUCH TRANSPOSE

ENGLISH

1. Engage Dual mode.

2. Exit Dual mode and return to normal play mode.

Press two voice buttons at the same time (or press one voice button while holding another). The voice indicators of both selected voices will light when Dual mode is active.

• According to the voice numbering priority shown in the diagram on the right, the lower value voice number will be designated as Voice 1 (the other voice will be designated as Voice 2).

Voice numbering priority

GRAND PIANO 1

CHURCH

ORGAN

8 9 10 11

34567

E.PIANO

GRAND PIANO 2

JAZZ

ORGAN

E.PIANO2HARPSI-

CHOIR GUITAR E.BASS

STRINGS

E.CLAVI-

CHORD

WOOD

BASS

VOICE

12 13 14

VIBRA-

PHONE

The CLP-130/120 Function mode provides access to a number of other Dual mode functions, such as volume balance setting or octave setting (page 42). (If you do not set Dual mode functions, the appropriate setting will be set in each voice by default.)

To return to the normal single-voice play mode, press any single voice button.

NOTE (CLP-130)

Dual and Split (page 27) modes cannot be engaged at the same time.

TIP

[VARIATION] in Dual Mode (CLP-130)

The [VARIATION] button’s indi- cator will light if the variation is engaged for either or both of the Dual mode voices. While Dual mode is engaged, the [VARIA- TION] button can be used to turn the variation for both voices on or off. To turn the variation on or off for only one of the voices, hold the voice button for the other voice and press the button of the voice for which you want to change the variation.

TIP

[REVERB] in Dual Mode

The reverb type assigned to Voice 1 will take priority over the other. (If the reverb is set to OFF, Voice 2 reverb type will be in effect.) Reverb depth setting via the panel controls (i.e., pressing the [–/NO] or [+/YES] buttons while holding the [REVERB] button — see page 22) will be applied only to Voice 1.

CLP-130/120 Selecting & Playing Voices

TIP

[EFFECT] in Dual Mode

Depending on the conditions, one effect type may take priority over the other. Depth will be decided according to the depth default value of the voice combination. However, using function F3 (page 42) you can adjust the depth value for each voice to your liking. Effect depth setting via the panel controls (i.e., pressing the [–/ NO] or [+/YES] buttons while holding the [EFFECT] button — see page 23) will be applied only to Voice 1.

Page 27

Splitting the Keyboard Range and Playing Two Different Voices (Split mode) (CLP-130)

Split mode enables you to play two different voices on the keyboard — one with the left hand and another with the right hand. For example, you can play a bass part using the Wood Bass or Electric Bass voice with the left hand, and a melody with the right hand.

Voice buttons

GRAND

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

OTHER VALUE

TEMPO

STOP

FUNCTION

TEMPO

FUNCTION

TEMPO

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

PIANO 1

CHURCH

REC

ORGAN

Procedure

1. Engage Split mode.

Press the [SPLIT] button so that its indicator lights. The default setting (WOOD

BASE) will be selected for the left-hand voice at ﬁrst.

The Function mode provides access to a number of other Split mode functions (page 43). (If you make no settings for Split mode functions, the appropriate setting will be set in each voice by default.)

2. Specify the split point (the border between the

right-and left-hand range).

You can change the split point to any other key by pressing the key while holding the [SPLIT] button (the name of the current split-point key appears on the LED display while the [SPLIT] button is held).

An example of split-point key display

(G2) (A 2)

GRAND

E.PIANO

PIANO 2

JAZZ

ORGAN

STRINGS

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

CHORD

PHONE

WOOD

BASS

CHOIR GUITAR E.BASS SPLIT

VOICE

Dual (page 26) and Split (page 26) modes cannot be engaged simultaneously.

A speciﬁed “split point” key is included in the left-hand range.

The split point can also be set via Function 4 (page 43).

[SPLIT]

VARIATION

ROOM HALL 1 HALL 2 STAGE

REVERB EFFECT TOUCH TRANSPOSE

CHORUS PHASER TREMOLO DELAY

NOTE

TIP

HARD MEDIUM SOFT

ENGLISH

followed by a high bar if sharp

The split point is initially set at the F♯2 key by default. If you do not need to change the split point, skip this procedure.

followed by a low bar if flat

CLP-130/120 Selecting & Playing Voices

Page 28

3. Select a voice for the right hand.

4. Select a voice for the left hand.

5. Exit Split mode and return to normal play mode.

ENGLISH

Press a voice button.

Press the corresponding voice button while holding the [SPLIT] button. (The indicator of the Left Voice button will light while the [SPLIT] button is pressed.) To turn the variation on or off for the split voice, hold the [SPLIT] button and press the [VARIATION] button or the currently-selected voice button.

Press the [SPLIT] button again so that its indicator goes out.

TIP

[VARIATION] in Split Mode

You can turn the variation on or off for Split mode voices. Normally, the voice indicator of the right voice lights in Split mode. The [VARIATION] can be used to turn the variation for the right voice on or off as required. While the [SPLIT] button is held, however, the voice indicator of the left voice lights. In this state the [VARIATION] button turns the variation for the left voice on or off.

TIP

[REVERB] in Split Mode

The reverb type assigned to the right voice will take priority over the other. (If the reverb is set to OFF, the left voice’s reverb type will be in effect.) Reverb depth setting via the panel controls (i.e. pressing the [–/NO] or [+/

YES] buttons while holding the [REVERB] button — see

page 22) will be applied to the right voice only.

TIP

[EFFECT] in Split Mode

Depending on the conditions, one effect type will take priority over the other. The depth will be decided according to the depth default value of the voice combination. However, using function F4 (page 43) you can change the depth value for each voice as you like. Effect depth setting via the panel controls (i.e. pressing the [–/NO] or [+/YES] buttons while holding the [EFFECT] button — see page 23) will be applied to the right voice only.

CLP-130/120 Selecting & Playing Voices

Page 29

Using the Metronome

The Clavinova features a built-in metronome (a device that keeps an accurate tempo) that is convenient for practicing.

MELLOW BRIGHT

MIN MAX

MASTER VOLUME

BRILLIANCE

[TEMPO/FUNCTION# ▲▼]

TEMPO

START

DEMO METRONOME

TEMPO

STOP

FUNCTION

TEMPO

FUNCTION

OTHER VALUE

[—/NO] [+/YES]

USER 1 USER 2

—

NO +/YES PRESET

USER 3

TRACK1TRACK2START

SONG

STOP

REC

Procedure

1. Start the metronome.

The metronome sound is turned on by pressing the METRONOME [START/STOP] button.

The beat indicator flashes at the current tempo.

Adjusting the tempo

The tempo of the metronome and user song recorder playback (the recorder is described in the next section) can be set from 32 to 280 beats per minute by using the [TEMPO/FUNCTION# ▼, ▲] buttons (when the [TEMPO/FUNC-

TION# ▼, ▲] button’s [TEMPO] indicator is lit).

Adjusting the time signature

The time signature (beat) of the metronome can be set by using the [–/NO] and [+/YES] buttons while holding the METRONOME [START/STOP] button. You can set the beat to 0, 2, 3, 4, 5 or 6. The current setting appears on the LED display while you are holding the METRONOME [START/STOP] button.

PIANO 1

CHURCH ORGAN

E.PIANO

E.PIANO2HARPSI-

E.CLAVI-

GRAND

PIANO 2

JAZZ

ORGAN

STRINGS

CHOIR GUITAR E.BASS SPLIT

VOICE

VIBRA-

CHORD

VARIATION

CHORD

PHONE

WOOD

BASS

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

STAGE

DELAY

SOFT

REVERB EFFECT TOUCH TRANSPOSE

ENGLISH

TIP

If the [TEMPO/FUNCTION#] button’s [FUNCTION#] indicator is lit, press the [TEMPO/FUNC-

TION#] button to light the [TEMPO] indicator.

TIP

The volume of the metronome can be adjusted via the Metronome Volume function in Func-

beat

tion mode (page 45).

2. Stop the metronome.

Turn off the metronome by pressing the METRONOME [START/STOP] button.

CLP-130/120 Selecting & Playing Voices

Page 30

CLP-130/120 Recording Your Performance

ENGLISH

Recording Your Performance

The ability to record and play back what you’ve played on the CLP130/120 keyboard can be an effective practice aid. You can, for example, record just the left-hand part, and then practice the right-hand part while playing back the recorded left-hand part. Or, since you can record up to two tracks separately, you could record the left- and righthand parts separately, or record both parts of a duet and hear how they sound when played back. The CLP-130/120’s two-track Song Recorder allows the recording of up to three User Songs (one User Song on the CLP-120).

Recording to [TRACK1]

CAUTION

Notes on recording

All user song recorder data will be retained in memory for about one week after the power is turned off. If you want to keep your recorded data for longer periods of time, turn the power on for a few minutes at least once a week. It is also possible to store the data to an external MIDI storage device such as the Yamaha MIDI Data Filer MDF3 by using the Bulk Data Dump function described on page 47.

1. Select a song for recording. (CLP-130)

Press the

[USER 1/2/3]

button to select a song for recording. The indicator of the selected song will light. (No song is selected if none of the indicators are lit.)

Make all the initial settings.

Before you begin to record, select the voice you want to record (or voices if you will be using Dual or Split mode). Make any other desired settings (tempo, reverb, etc.) as well. You might also want to set the volume. You can also adjust the playback volume using

[MASTER VOLUME].

TIP

You can record your performance (audio data) to a cassette tape recorder or other recording device via the AUX OUT connector (page 50).

TERMINOLOGY

Recording vs. Saving:

The format of performance data recorded on a cassette tape differs from that of data recorded on the Clavinova. A cassette tape records audio signals. The Clavinova “saves” information regarding note timing, voices, and a tempo value, but not audio signals. When you play back recorded songs, the Clavinova produces sound based on the saved information. Therefore, recording on the Clavinova may be more accurately called “saving information.” However, this book often uses the word “recording” because it seems to make more sense.

541673

MASTER VOLUME

BRILLIANCE

DEMO METRONOME

TEMPO

FUNCTION

TEMPO

OTHER VALUE

MELLOW BRIGHT

START

STOP

TEMPO FUNCTION

MIN MAX

—

NO +/YES PRESET

USER 1 USER 2

TRACK1TRACK2START

STOP

REC

GRAND PIANO 1

CHURCH

ORGAN

E.PIANO

STRINGS

E.PIANO2HARPSI-

CHORD

E.CLAVICHORD

VIBRAPHONE

CHOIR GUITAR E.BASS SPLIT

ROOM HALL 1 HALL 2 STAGE

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

VARIATION

GRAND PIANO 2

JAZZ

ORGAN

WOOD BASS

USER 3

VOICE

REVERB EFFECT TOUCH TRANSPOSE

SONG

NOTE (CLP-130)

When the unit is in Demo Song mode, the [USER 1/2/3] button cannot be used to select a song.

NOTE

When the unit is in Demo Song or Preset Song mode, Record mode cannot be engaged.

NOTE

To avoid erasing data from the track:

CLP-130

If the track contains data, the track indicator lights up green when you press the [USER1/2/ 3] button. Note that recording new data on this track will erase the existing data.

CLP-120

Press the [TRACK1/2] button. If the indicator lights up green, the track already contains data. Note that the existing data will be erased if you record new data on the track.

Procedure

Page 31

3. Engage Record Ready mode.

Press the [REC] button to engage Record Ready mode. Recording does not actually start yet. The [TRACK1] or the [TRACK2] indicator ﬂashes in red. The amount of memory available for recording will be shown on the LED display in approximate kilobytes, and the right-most dot on the LED display will ﬂash at the current METRONOME tempo setting.

Record Ready mode can be disengaged before recording by pressing the [REC] button a second time.

4. Select the record track.

When Record mode is engaged in the previous step, the last-recorded track will automatically be selected for recording and its indicator — i.e. the [TRACK1] or

[TRACK2] button indicator — will glow red. If you want to record on a different

track, press the appropriate track button so that its indicator glows red.

flash

NOTE

The amount of memory available for recording:

This value in KiloBytes (a unit used of measurement for data) indicates how much space remains available for recording on the Clavinova. You can record up to a maximum of about 9,400 notes on the CLP130/120 depending on pedal usage and other factors.

TIP (CLP-130)

If a user song ([USER 1/2/3]) is not selected (the lamp is not lit), pressing the [REC] button will result in the [USER 1] song’s [TRACK1] being selected and Record Ready mode engaged. At this time, [TRACK2] playback will be turned off if the track contains data.

ENGLISH

5. Start recording.

Recording will begin automatically as soon as you play a note on the keyboard or press the SONG [START/STOP] button. The current measure number will appear on the display while recording.

6. Stop recording.

Press either the [REC] or SONG [START/STOP] button to stop recording. The indicator of the recorded track will glow green to indicate that it now contains data. (Record mode is disengaged automatically.)

7. Play back the recorded performance.

Press the SONG[START/STOP] button to play back the recorded performance. To stop playback in the middle of a song, press the SONG[START/STOP] button.

TIP

If the metronome was on when you started recording, you’ll be able to keep time with the metronome while recording, but the metronome sound will not be recorded.

TIP

For more recording information, see page 33.

TIP

The left pedal can be assigned to start and stop recording via the “Left Pedal Mode” function described on page 44.

NOTE

The record track indicator will begin to ﬂash when the recorder memory is almost full. If the memory becomes full during recording, “FUL” will appear on the display and recording will stop automatically. (All recorded data up to that point will be retained.)

NOTE

Pressing the SONG [START/ STOP] button to start recording,

then pressing it again to stop recording will erase all previously-recorded data on the selected track.

CLP-130/120 Recording Your Performance

Page 32

Re-recording TRACK1

This section explains how to record again in case your performance was not satisfactory.

1. Select a voice or voices (and other settings) for recording, if necessary.

2. Re-engage Record Ready mode.

Follow the procedure from Step 5 on page 31 to re-record.

ENGLISH

This section explains how to record another part on the second track.

1. Select a voice or voices (and other settings) for the recording.

2. Re-engage Record Ready mode.

Repeat Step 1 on page 30 if you wish to change the previous settings.

Press the [REC] button, again. The selected track’s indicator ﬂashes in red.

Recording to [TRACK2]

Select a voice (or voices) for recording. Select other settings, if necessary.

Press the [REC] button again. The selected track’s indicator ﬂashes in red.

TIP

If you want to change the tempo, time signature, reverb type, or effect type when rerecording a track or when recording to another track, do so after you engage Record Ready mode (step 3).

NOTE

You cannot re-record in the middle of a song.

TIP

If you want to change the tempo, time signature, reverb type, or effect type when rerecording a track or when recording to another track, do so after entering Record Ready mode (step 3).

3. Select a recording track.

Select a track that you have not already used for recording. The selected track’s indicator lights up red. (The indicator of a track that contains previously-recorded data will glow green.)

You can record new sounds and notes on each pass while listening to the recorded track.

Follow the procedure from Step 5 on page 31 to record.

NOTE

If you don’t want to hear the previously-recorded track while you record (for example, when you want to record a song different from what you recorded on the previous track), press the playback track button before pressing the [REC] button (step 2, above) so that its indicator is turned off.

CLP-130/120 Recording Your Performance

Page 33

The user song recorder records the following data:

Data in addition to the notes and voices you play is recorded. This data includes “Individual Tracks” and “Entire Song.” See below.

Individual Tracks

• Notes played

• Voice selection

• [VARIATION] ON/OFF (CLP-130)

• Pedal (Damper/Soft/Sostenuto)

• [REVERB] depth

• [EFFECT] depth

• Dual mode voices

• Dual balance (F3)

• Dual detune (F3)

• Dual octave shift (F3)

• Split mode voices (CLP-130)

• Split balance (F4: CLP-130)

• Split octave shift (F4:CLP-130)

Entire Song

•Tempo

• Time signature (beat)

• [REVERB] type (including OFF)

• [EFFECT] type (including OFF)

ENGLISH

CLP-130/120 Recording Your Performance

Page 34

The initial settings (data recorded at the beginning of a song) can be changed after the recording. For example, after recording, you can change the voice to create a different ambience or adjust the song tempo to your taste.

You can change the following initial settings.

Individual Tracks

• Voice selection

• [VARIATION] ON/OFF (CLP-130)

• [REVERB] depth

• [EFFECT] depth

ENGLISH

• Dual mode voices

• Split mode voices (CLP-130)

Entire Song

•Tempo

• Time signature (beat)

• [REVERB] type (including OFF)

• [EFFECT] type (including OFF)

Changing the Initial Settings (Data recorded at the beginning of a song)

1. Engage Record mode and select a track to change the initial settings.

The indicator glows red. (Data shared by two tracks can be changed via either track.)

2. Change the settings via the panel controls.

For example, if you wish to change the recorded voice from [E. PIANO 1] to

[E. PIANO 2], press the [E. PIANO 2] button.

Be careful not to press the SONG [START/STOP] button or a key on the keyboard, either of which will start recording and erase all previously-recorded data on the selected track.

3. Press the [REC] button to exit Record mode.

Be careful not to press the SONG [START/STOP] button or a key on the keyboard, either of which will start recording and erase all previously-recorded data on the selected track.

NOTE

You can cancel changes made to the initial settings by selecting a different track after Step 2, then exiting Record mode during Step 3 without pressing the [REC] button. (Changes made to the data shared by two tracks are also canceled.)

CLP-130/120 Recording Your Performance

Page 35

Playing Back Recorded Songs

You can play back songs recorded using the Record function (pages 30–34). You can also play the keyboard along with the playback.

Playing Back a Song

213

E.PIANO

GRAND

E.PIANO2HARPSI-

PIANO 1

MIN MAX

MASTER VOLUME

MELLOW BRIGHT

BRILLIANCE

START

DEMO METRONOME

TEMPO

STOP

FUNCTION

TEMPO

OTHER VALUE

NO +/YES PRESET

—

USER 1 USER 2 USER 3

TRACK1TRACK2START

SONG

STOP

REC

CHURCH ORGAN

PIANO 2

JAZZ

ORGAN

CHORD

STRINGS

CHOIR GUITAR E.BASS SPLIT

VOICE

NOTE

Song data is not transmitted via the MIDI connectors.

E.CLAVI-

VIBRA-

VARIATION

CHORD

PHONE

WOOD

BASS

ROOM

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

STAGE

DELAY

SOFT

REVERB EFFECT TOUCH TRANSPOSE

Procedure

1. Select the desired song. (CLP-130)

Press the [USER 1/2/3] button to select a song for recording. The indicator of the selected song will light. (No song is selected if none of the indicators are lit.)

2. Start playback.

Press the SONG [START/STOP] button. The current measure number appears on the display during playback.

• You can play the keyboard while the Clavinova is playing back a song. You

can also play the notes in a voice different from the playback voice by selecting a voice from the panel.

Adjust the volume

Use the [MASTER VOLUME] control to adjust the volume.

Adjust the tempo

You can use the [TEMPO/FUNCTION# ▼, ▲] buttons to adjust the playback tempo as required before or during playback. The default tempo (the song’s original tempo) is set when you press the [▼] and [▲] buttons simultaneously.

3. Stop playback.

When playback is complete, the Clavinova automatically stops and locates the top of the song. To stop playback in the middle of a song, press the SONG

[START/STOP] button.

NOTE (CLP-130)

When the unit is in Demo Song mode, you cannot use the [USER 1/2/3] button to select a song.

NOTE

When the unit is in Demo Song or Preset Song mode, you cannot play back recorded songs.

NOTE

The track indicators will not light up green automatically when the power is turned on to the CLP120, even if the user song recorder contains data. Make sure that you press the track buttons before you start playback.

NOTE

Playback cannot be started when the recorder contains no data.

TIP

You can also enjoy playing duets with yourself by recording one part of a duet or a song for two pianos, then playing the other part while the recorded part plays back.

TIP

If the metronome is being used during playback, the metronome will automatically stop when playback is stopped.

TIP

If the REVERB type is changed via the panel controls during playback, both the playback and keyboard reverb effects will be changed.

ENGLISH

TIP

If the EFFECT type is changed via the panel controls during playback, the playback effect may be switched off in some cases.

CLP-130/120 Playing Back Recorded Songs

Page 36

Useful Playback Functions

Turning track playback on and off

When you select a song on the Clavinova, the indicators for tracks that contain data (one of [TRACK1] [TRACK2] or both) are lit in green. While the Clavinova is play- ing or stopped, pressing these track buttons turns off the indicators, and the data on those tracks is not played. Pressing the track buttons toggles track playback on and off.

TIP

Tracks can be turned on or off before or during playback. If both tracks are turned off on the CLP-120, playback will not start (or the playback will stop).

Starting playback automatically when you start playing the keyboard (Synchro Start)

You can start playback as soon as you start playing the keyboard. This is called the “Synchro Start” function. To engage the Synchro Start function, press the SONG [START/STOP] button while holding a track button that is ON. The right-most dot on the display will ﬂash at the current

ENGLISH

tempo.

(Repeat the previous operation to disengage the Synchro Start function.)

Playback will then start as soon as you begin playing on the keyboard.

This function is useful when you wish to match the timing of the beginning of the playback sound and the start of your own performance.

Assigning the START/STOP function to the left pedal

The left pedal can also be assigned to song start/stop operation via the “Pedal Start/ Stop” (page 44). This is convenient for starting playback of the recorded part anytime after you have started playing.

Flash

TIP

You can adjust the volume of a part of a song from “50 Greats for the Piano” for which playback is turned off (pages 18, 45). During recorder playback, the volume of a track that is turned off will always be “0.”

NOTE

If you press the SONG [START/ STOP] button while holding

down a track button that is OFF, track playback is turned on and the Synchro Start function is placed on stand-by.

TERMINOLOGY

Synchro:

Synchronous; occurring at the same time

CLP-130/120 Playing Back Recorded Songs

Page 37

Detailed Settings – [FUNCTION]

You can set various parameters to make the best use of Clavinova functions, such as ﬁne tuning the pitch, selecting a voice for the metronome, repeating playback, etc.

The following parameters are available. The CLP-130 has nine main functions, and the CLP-120 has eight main functions. Some of these main functions consist of a set of sub-modes.

Parameter List

Function Sub-Mode CLP-130 CLP-120 Reference page

Fine tuning of the pitch

Selecting a scale

Dual mode functions

Split mode functions

Other Functions

Metronome volume

Preset Song Part Cancel Volume

MIDI Functions

Backup Functions

— F1 F1 40

Scale F2.1 F2.1 41

Base Note F2.2 F2.2 41

Dual Balance F3.1 F3.1 42

Dual Detune F3.2 F3.2 42

Voice 1 Octave Shift F3.3 F3.3 42

Voice 2 Octave Shift F3.4 F3.4 42

Voice 1 Effect Depth F3.5 F3.5 42

Voice 2 Effect Depth F3.6 F3.6 42

Reset F3.7 F3.7 42

Split Point F4.1 — 43

Split Balance F4.2 — 43

Right Voice Octave Shift F4.3 — 43

Left Voice Octave Shift F4.4 — 43

Right Voice Effect Depth F4.5 — 43

Left Voice Effect Depth F4.6 — 43

Damper Pedal Range F4.7 — 43

Reset F4.8 — 43

Left Pedal Mode F5.1 F4.1 44

Soft Pedal Effect Depth F5.2 F4.2 44

Sustain Sample Depth F5.3 — 44

Keyoff Sample Volume F5.4 — 44

— F6 F5 45

— F7 F6 45

MIDI Transmit Channel Selection F8.1 F7.1 45

MIDI Receive Channel Selection F8.2 F7.2 46

Local Control ON/OFF F8.3 F7.3 46

Program Change ON/OFF F8.4 F7.4 46

Control Change ON/OFF F8.5 F7.5 46

MIDI Transmit Transpose F8.6 F7.6 47

Panel/Status Transmit F8.7 F7.7 47

Bulk Data Dump F8.8 F7.8 47

Voice F9.1 F8.1 48

MIDI F9.2 F8.2 48

Tuning F9.3 F8.3 48

Others F9.4 F8.4 48

ENGLISH

CLP-130/120 Detailed Settings – [FUNCTION]

Page 38

CLP-130/120 Detailed Settings – [FUNCTION]

ENGLISH

Basic Procedure in Function Mode

Follow the steps below to use the functions. (If you become lost while using a function, return to this page and read the basic procedure.)

Engage Function mode.

Press the [TEMPO/FUNCTION#] button so that its [FUNCTION#] indicator lights.

will appear on the display. (The indication of “ ” varies depending on

the status of the unit and usage.)

Select a function.

Use the [TEMPO/FUNCTION# ▼, ▲] buttons to select the desired function from F1–F9 (CLP-130) / F1–F8 (CLP-120).

3. Use the [–/NO] [+/YES] buttons.

If the function does not include sub-modes, start setting the parameters. If the function includes sub-modes, press the [+/YES] button once to enter the respective sub-mode.

Operate the desired function using the following two buttons.

1 [TEMPO/FUNCTION# ▼, ▲]

Selects the desired function/sub-mode.

2 [–/NO] or [+/YES]

After you select the desired function or sub-mode, set the ON/OFF, select the type, or change the value, accordingly. Depending on the setting, the default setting (which is used when you ﬁrst turn on the power to the Clavinova) is recalled by pressing the

[–/

NO]

and [+/YES] buttons simultaneously.

124 45

MASTER VOLUME

BRILLIANCE

DEMO METRONOME

TEMPO

FUNCTION

TEMPO

OTHER VALUE

MELLOW BRIGHT

START

STOP

TEMPO FUNCTION

MIN MAX

–

NO +/YES PRESET

USER 1 USER 2

TRACK1TRACK2START

STOP

REC

GRAND

PIANO 1

CHURCH

ORGAN

E.PIANO

STRINGS

E.PIANO2HARPSI-

CHORD

E.CLAVI-

CHORD

VIBRAPHONE

CHOIR GUITAR E.BASS SPLIT

ROOM HALL 1 HALL 2 STAGE

CHORUS PHASER TREMOLO DELAY

HARD MEDIUM SOFT

VARIATION

GRAND PIANO 2

JAZZ

ORGAN

WOOD BASS

USER 3

VOICE

REVERB EFFECT TOUCH TRANSPOSE

SONG

Procedure

NOTE

Functions cannot be selected during Demo/Preset Song mode or when the user song recorder is in operation.

NOTE

To cancel the function in Step 2, 3, or 4, press the [TEMPO/ FUNCTION# ▼, ▲] button any time to exit Function mode.

TEMPO/FUNCTION

TEMPO FUNCTION

TIP

After you select the function, the current setting will be displayed when the [–/NO] or [+/YES] but- ton is pressed for the ﬁrst time.

Page 39

Operation Example 1 (F1. Fine tuning of the pitch)

TEMPO FUNCTION

LCD indication

TEMPO/FUNCTION

Engage Function mode.

–/NO +/YES

TEMPO/FUNCTION

Select a desired function.

LCD indication

Change the value.

Operation Example 2 (F3.1 “Dual Balance”)

TEMPO FUNCTION

TEMPO/FUNCTION

Engage function mode.

+/YES

Engage the respective

sub-mode.

NO +/YES

–

TEMPO FUNCTION

TEMPO/FUNCTION

Select a desired function.

TEMPO

FUNCTION

TEMPO/FUNCTION

Select a desired sub-mode.

LCD indication

ENGLISH

LCD indication

Change the value.

5. Do the following when you ﬁnish using the func-

tion.

To exit Function mode, press the [TEMPO/FUNCTION#] button so that its

[TEMPO] indicator lights.

CLP-130/120 Detailed Settings – [FUNCTION]

Page 40

About Each Function

F1. Fine Tuning of the Pitch

You can ﬁne tune the pitch of the entire instrument. This function is useful when you play the Clavinova along with other instruments or CD music.

1. Engage Function mode and select .

2. Use the [–/NO] and [+/YES] buttons to lower

ENGLISH

or raise the pitch of the A3 key in approximately 0.2 Hz increments.

..... .....

Tenths of a hertz are indicated on the LED display by the appearance and position of one or two dots, as in the following example:

Display Value

440.0

440.2

440.4

440.6

Setting range:

427.0–453.0 (Hz)

Normal setting:

440.0 (Hz)

TIP

You can also tune in about 1Hz steps (in any mode other than Function mode).

To tune down or up, respectively, in approximately 1 Hz increments: Hold the A-1 and A♯-1 keys (a white and a black

key at the left end) or A-1 and B-1 keys (two white keys at the left end) simultaneously and press the [–/NO] or [+/YES] button.

To restore standard pitch: Hold the A-1 and A♯-1 keys (a white and a black key at the left end) or A-1 and B-1 keys (two white keys at the left end) simultaneously and press the [–/NO] [+/YES] buttons simultaneously.

(During the procedure described above, the display indi-

cates a value in Hz < … >. After the procedure, the display returns to the previous indication.)

440.8

TERMINOLOGY

Hz (Hertz):

This unit of measurement refers to the frequency of a sound and represents the number of times a sound wave vibrates in a second.

TIP

You can also use the keyboard to set the pitch (in any mode other than Function mode).

To tune up (in about 0.2Hz steps): Hold the A-1 and B-1

keys (two white keys at the left end) simultaneously and press any key between C3 and B3.

To tune down (in about 0.2Hz steps): Hold the A-1 and A♯- 1 keys (a white and a black key at the left end) simultaneously and press any key between C3 and B3.

To restore standard pitch: Hold the A-1, A♯ -1 and B-1 (two white keys and one black key at the left end) simultaneously and press any key between C3 and B3.

• Refer to “Part Names” on page 14 for information on the key and key name assignment.

(During the procedure described above, the display indi-

cates a value in Hz < … >. After the procedure, the display returns to the previous indication.)

CLP-130/120 Detailed Settings – [FUNCTION]

Page 41

F2. Selecting a Scale

You can select various scales. Equal Temperament is the most common contemporary piano tuning scale. However, history has known numerous other scales, many of which serve as the basis for certain genres of music. You can experience these tunings with the Clavinova.

1. Engage Function mode and select .

2. Press the [+/YES] button to engage the scale function’s sub-mode, then use the [TEMPO/ FUNCTION# ▼, ▲] buttons to select the desired sub-mode. Press the [–/NO] and [+/YES] buttons to select the number of the desired tuning.

Sub-mode

Equal

One octave is divided into twelve equal intervals. Currently the most popular piano tuning scale.

PureMajor/PureMinor

Based on natural overtones, three major chords using these scales produce a beautiful, pure sound. They are sometimes used for chorus parts.

Pythagorean

This scale, designed by Pythagoras, a Greek philosopher, is based on the interval of a perfect 5th. The 3rd produces swells, but the 4th and 5th are beautiful and suitable for some leads.

MeanTone

This scale is an improvement of the Pythagorean in that the swell of the 3rd has been eliminated. The scale became popular during the late 16th century through the late 18th century, and was used by Handel.

WerckMeister/KirnBerger

These scales combine Mean Tone and Pythagorean in different ways. With these scales, modulation changes the impression and feel of the songs. They were often used in the era of Bach and Beethoven. They are often used today to reproduce the music of that era on harpsichords.

F2.1: Scale

Setting range: 1: Equal Temperament

2: Pure Major 3: Pure Minor 4: Pythagorean 5: Mean Tone 6: Werckmeister 7: Kirnberger

Normal setting: 1: Equal Temperament

F2.2: Base Note

If you select a scale other than Equal Temperament, you need to specify the root. (You can specify the root note with Equal Temperament selected, but it is not effective. The base note setting is effective for tunings other than the Equal Temperament tuning.)

Setting range:

Normal setting:

• Root indication example

(F♯) (G)

followed by a high bar if sharp

(A)

followed by a low bar if flat

ENGLISH

CLP-130/120 Detailed Settings – [FUNCTION]

Page 42

F3. Dual Mode Functions

F3.3: Voice 1 Octave Shift

You can set various parameters for Dual mode to optimize the settings for the songs you play, such as adjusting the volume balance between two voices. Dual mode function settings are set individually for each voice combination.

1. Select the voices in Dual mode and engage

2. Press the [+/YES] button to engage the Dual

ENGLISH

Sub-mode

Function mode and select .

mode function’s sub-mode, then use the [TEMPO/FUNCTION# ▼, ▲] buttons to select the desired sub-mode. Press the [–/NO] [+/ YES] button to assign values.

NOTE

If Dual mode is not engaged, will appear instead of

and you will be unable to select Dual mode functions.

You can switch from Function mode to Dual mode.

F3.4: Voice 2 Octave Shift

Setting range: –1, 0, 1 Normal setting: Different for each voice combina-

tion. You can shift the pitch up and down in octave steps for Voice 1 and Voice 2 independently. Depending on which voices you combine in Dual mode, the combination may sound better if one of the voices is shifted up or down an octave.

F3.5: Voice 1 Effect Depth

F3.6: Voice 2 Effect Depth

Setting range: 0 – 20 Normal setting: Different for each voice combina-

tion. These functions make it possible to individually set the depth of the effect for Voices 1 and 2 for Dual mode. (The effect depth settings cannot be changed unless the

[EFFECT] is ON. Function mode must be exited before

the [EFFECT] can be turned ON.)

F3.1: Dual Balance

Setting range: 0 – 20 (A setting of “10” produces an

equal balance between the two Dual mode voices. Settings below “10” increase the volume of Voice 2 in relation to Voice 1, and settings above “10” increase the volume of Voice 1 in relation to Voice 2.)

Normal setting: Different for each voice combina-

tion. You can set one voice as the main voice, and another voice as a softer, mixed voice.

F3.2: Dual Detune

Setting range: -10 – 0 – 10 (With positive values,

the pitch of Voice 1 is raised and the

pitch of Voice 2 is lowered. With neg-

ative values, the pitch of Voice 1 is

lowered and the pitch of Voice 2 is

raised.)

TIP

The available setting range is wider in the lower range (± 60 cents for A-1), and narrower in the higher range (± 5 cents for C7). (100 cents equal one semitone.)

• “Voice 1” and “Voice 2” are explained on page 26.

F3.7: Reset

This function resets all Dual mode functions to their default values. Press the [+/YES] button to reset the values.

TIP

SHORTCUT:

You can jump directly to the Dual mode functions by pressing the [TEMPO/FUNCTION#] button while holding the two Dual mode voice buttons.

To exit Function mode, you still need to press the [TEMPO/ FUNCTION#] button so that the TEMPO indicator lights up.

Normal setting: Different for each voice combina-

tion. Detune Voice 1 and Voice 2 for Dual mode to create a thicker sound.

CLP-130/120 Detailed Settings – [FUNCTION]

Page 43

F4. (CLP-130) Split Mode Functions

The volume level of the two voices combined in Split mode can be adjusted as required.

This menu enables you to make various detailed settings for Split mode. By changing the split point or other setting, you can optimize the settings for the songs you play. You can make these settings for each combination of voices individually.

1. Select the voices in Split mode and engage

Function mode and select .

2. Press the [+/YES] button to engage the Split

mode function’s sub-mode, then use the [TEMPO/FUNCTION# ▼, ▲] buttons to select the desired sub-mode. Press the [–/NO] [+/ YES] button to assign values.

NOTE

If Split mode is not engaged, will appear instead of

and you will be unable to select Split mode functions. Also note that you must exit Function mode before you can engage Split mode.

Sub-mode

F4.1: Split Point

Setting range: The entire keyboard Normal setting: F♯2

Set the point on the keyboard that separates the right and left-hand sections (split point). The pressed key is included in the left-hand range.

• Instead of pressing the [–/NO] [+/YES] buttons, you can engage the split point by pressing the appropriate key on the keyboard.

• If Function mode is not engaged, you can change the split point to any other key by pressing the key while holding the [SPLIT] button (page 27).

• An example of a key name indication for a split point

(F♯2) (G2)

followed by a high bar if sharp

(A2)

followed by a low bar if flat

F4.3: Right Voice Octave Shift

F4.4: Left Voice Octave Shift

Setting range: –1, 0, 1 Normal setting: Different for each voice combination

You can shift the pitch up and down in octave steps for the Right Voice and Left Voice independently. Make a setting depending on the note range of the songs you play.

F4.5: Right Voice Effect Depth

F4.6: Left Voice Effect Depth

Setting range: 0 – 20 Normal setting: Different for each voice combination

These functions make it possible to individually set the depth of the effect for the left and right Split mode voices. The effect depth settings cannot be changed unless the

[EFFECT] is ON. You must exit Function mode before

you can turn on an [EFFECT].

F4.7: Damper Pedal Range

Setting range: ALL (for both voices)

1 (for the right Voice) 2 (for the left Voice)

Normal setting: ALL The Damper Pedal Range function determines whether the damper pedal affects the right voice, the left voice, or both the left and right voices in Split mode.

F4.8: Reset

This function resets all Split mode functions to their default values. Press the [+/YES] button to reset the values.

TIP

SHORTCUT:

You can jump directly to Split mode functions by pressing the [TEMPO/FUNCTION#] button while holding the [SPLIT] button.

To exit Function mode, you still need to press the [TEMPO/ FUNCTION#] button so that the TEMPO indicator lights up.

ENGLISH

F4.2: Split Balance

Setting range: 0 – 20 (A setting of “10” produces an

equal balance between the two Split mode voices. Settings below “10” increase the volume of the left voice in relation to the right voice, and settings above “10” increase the volume of the right voice in relation to the left voice.)

Normal setting: Different for each voice combina-

tion.

CLP-130/120 Detailed Settings – [FUNCTION]

Page 44

F5. (CLP-130) / F4. (CLP-120) Other Functions

This function conveniently lets you set operation of the left pedal to one of the modes listed below.

1. Engage Function mode and select (CLP-

2. Press the [+/YES] button to engage the other

ENGLISH

Sub-mode

F5.1 (CLP-130)/F4.1 (CLP-120) Left Pedal Mode

Setting range:

1. Soft Pedal

2. Song Start/Stop

3. Variation (CLP-130)

Normal setting: 1(Soft Pedal)

F5.4 (CLP-130) Keyoff Sample Volume

Setting range: 0 – 20 Normal setting: 10

You can adjust the volume of the keyoff sound (the subtle sound produced when the keys are released) for voices

[GRAND PIANO1], [HARPSICHORD], [E.CLAVICHORD]

(including their variations).

130)/ (CLP-120).

functions’ sub-mode, then use the [TEMPO/ FUNCTION# ▼, ▲] buttons to select the desired sub-mode. Press the [–/NO] or [+/YES] button to select the desired pedal function or assign the values.

The soft pedal reduces the volume and slightly changes the timbre of notes played while the pedal is pressed. The soft pedal will not affect notes that are already playing.

This mode allows you to start or stop song playback. In this mode, the Left Pedal functions in the same manner as the SONG [START/STOP] button on the panel.

This mode enables you to switch the Voice’s variation on or off. In this mode, the left pedal functions in the same manner as the [VARIATION] button on the panel.

F5.2 (CLP-130)/F4.2 (CLP-120) Soft Pedal Effect Depth

Setting range: 1 – 15 Normal setting: 3

This function sets the depth of the soft pedal effect.

F5.3 (CLP-130) Sustain Sample Depth

Setting range: 0 – 20 Normal setting: 12

The GRAND PIANO 1 voice features special “Sustain Samples” that recreate the unique resonance of an acoustic grand piano’s soundboard and strings when the damper pedal is pressed. This function lets you adjust the depth of this effect.

CLP-130/120 Detailed Settings – [FUNCTION]

Page 45

F.6 (CLP-130) / F.5 (CLP-120) Metronome Volume

F8. (CLP-130) / F7. (CLP-120) MIDI Functions

You can change the volume of the metronome sound. Use this function to adjust the metronome volume.

1. Engage Function mode and select (CLP-

130)/ (CLP-120).

2. Use the [–/NO] and [+/YES] buttons to set the metronome volume as required.

Setting range: 1 – 20 Normal setting: 10

TIP

SHORTCUT:

You can jump directly to the metronome functions (CLP-130)/ (CLP-120) by pressing the [TEMPO/FUNC-

TION#] button while holding the METRONOME [START/ STOP] button.

To exit Function mode, you still need to press the [TEMPO/ FUNCTION#] button so that the TEMPO indicator lights up.

F7. (CLP-130) / F6. (CLP-120) Preset Song Part Cancel Volume

You can make detailed adjustments to MIDI settings. For more information about MIDI, see the “About MIDI” section (page 49).

TIP

The HOST SELECT switch on the bottom surface must be set to “MIDI” to enable the MIDI connectors. When you use the TO HOST connector, set the HOST SELECT switch to the appropriate position for the type of computer you are using (pages 49–55). In this situation, all MIDI settings described below will affect the MIDI signal in and out of the TO HOST connector.

1. Engage Function mode and select (CLP-

130)/ (CLP-120).

2. Press the [+/YES] button to engage the MIDI function’s sub-mode, then use the [TEMPO/ FUNCTION# ▼, ▲] buttons to select the desired sub-mode. Press the [–/NO] or [+/YES] button to set a selected parameter.

Sub-mode

ENGLISH

This function sets the volume at which a “canceled” part is played during preset song playback. Adjust the part volume to a comfortable level and use the “canceled” part as a guide with which to play along.

1. Engage Function mode and select (CLP-

130)/ (CLP-120).

2. Use the [–/NO] and [+/YES] buttons to set the volume as required.

Setting range: 0 – 20 Normal setting: 5

F8.1: (CLP-130)/F7.1: (CLP-120) MIDI Transmit Channel Selection

In any MIDI control setup, the MIDI channels of the transmitting and receiving equipment must be matched for proper data transfer. This parameter enables you to specify the channel on which the Clavinova transmits MIDI data.

Setting range: 1 – 16, OFF (not transmitted) Normal setting: 1

NOTE

In Dual mode, Voice 1 data is transmitted on its speciﬁed channel. In Split mode (CLP-130), right voice data is transmitted on its speciﬁed channel. In Dual mode, Voice 2 data is transmitted on the next greater channel number relative to the speciﬁed channel. In Split mode (CLP-130), left voice data is transmitted on the next greater channel number relative to the speciﬁed channel. In either mode, no data is transmitted if the transmit channel is set to “OFF”.

NOTE

Demo/preset song data and recorder playback data are not transmitted via MIDI.

CLP-130/120 Detailed Settings – [FUNCTION]

Page 46

F8.2: (CLP-130)/F7.2: (CLP-120) MIDI Receive Channel Selection

F8.4: (CLP-130)/F7.4: (CLP-120) Program Change ON/OFF

Setting range: ALL, 1&2, 1 – 16 Normal setting: ALL

ENGLISH

F8.3: (CLP-130)/F7.3: (CLP-120) Local Control ON/OFF

“Local Control” refers to the fact that, normally, the CLP-130/120 keyboard controls its internal tone generator, allowing the internal voices to be played directly from the keyboard. This situation is “Local Control On,” since the internal tone generator is controlled locally by its own keyboard. Local control can be turned OFF, however, so that the CLP-130/120 keyboard does not play the internal voices, but the appropriate MIDI information is still transmitted via the MIDI OUT connector when notes are played on the keyboard. At the same time, the internal tone generator responds to MIDI information received via the MIDI IN connector.

Setting range: ON/OFF Normal setting: ON

TIP

ALL:

A “Multi-timbre” Receive mode is available. It allows simultaneous reception of different parts on all 16 MIDI channels, enabling the Clavinova to play multi-channel song data received from a music computer or sequencer.

1&2:

A “1&2” Receive mode is available. It allows simultaneous reception on channels 1 and 2 only, enabling the Clavinova to play 1 and 2 channel song data received from a music computer or sequencer.

TIP

Program change and other like channel messages received will not affect the CLP-130/120’s panel settings or the notes you play on the keyboard.

NOTE

No MIDI reception occurs when Demo/Preset Song mode is engaged.

Normally the CLP-130/120 will respond to MIDI program change numbers received from an external keyboard or other MIDI device, causing the correspondingly-numbered voice to be selected on the corresponding channel (the keyboard voice does not change). The CLP-130/120 will normally also send a MIDI program change number whenever one of its voices is selected, causing the correspondingly-numbered voice or program to be selected on the external MIDI device if the device is set up to receive and respond to MIDI program change numbers. This function makes it possible to cancel program change number reception and transmission so that voices can be selected on the CLP-130/120 without affecting the external MIDI device.

TIP

For information on program change numbers for each of the CLP-130/120’s voices, refer to page 71 in the MIDI Data Format section.

Setting range: ON/OFF Normal setting: ON

F8.5: (CLP-130)/F7.5: (CLP-120) Control Change ON/OFF

Normally the CLP-130/120 will respond to MIDI control change data received from an external MIDI device or keyboard, causing the voice on the corresponding channel to be affected by pedal and other “control” settings received from the controlling device (the keyboard voice is not affected). The CLP-130/120 also transmits MIDI control change information when the pedal or other appropriate controls are operated. This function makes it possible to cancel control change data reception and transmission so that, for example, the CLP-130/120’s pedal and other controls can be operated without affecting an external MIDI device.

TIP

For information on control changes that can be used with the CLP-130/120, refer to the MIDI Data Format on page 71.

Setting range: ON/OFF Normal setting: ON

CLP-130/120 Detailed Settings – [FUNCTION]

Page 47

F8.6: (CLP-130)/F7.6: (CLP-120) MIDI Transmit Transpose

F8.8: (CLP-130)/F7.8: (CLP-120) Bulk Data Dump

This function allows the MIDI note data transmitted by the CLP-130/120 to be transposed up or down in semitone increments by up to plus or minus 12 semitones. The pitch of the CLP-130/120 itself is not affected.

Setting range: -12 – 0 – 12 (in semitones) Normal setting: 0

F8.7: (CLP-130)/F7.7: (CLP-120) Panel/Status Transmit

This function causes all the current CLP-130/120 panel settings (selected voice, etc.) to be transmitted via the MIDI OUT terminal. This is particularly useful if you will be recording performances to a MIDI sequence recorder, such as the Yamaha MIDI Data Filer MDF3, which will be used to control the CLP-130/120 on playback. By transmitting the CLP-130/120 panel settings and recording them on the MIDI sequence recorder prior to the actual performance data, the CLP-130/120 will be automatically restored to the same settings when the performance is played back.

TERMINOLOGY

Setup Data:

Data that contains a set of panel settings for the Clavinova.

Procedure

1. Set up the panel controls as desired.

2. Connect the Clavinova to a sequencer via MIDI, and set up the sequencer so it can receive the setup data.

3. Engage Function mode and select (CLP-130)/

(CLP-120).

4. Press the data.

been successfully transmitted.

[+/YES] button to transmit the panel/status

will appear on the LED display when the data has

You can save current song data on the Clavinova as MIDI bulk data by transferring it to a connected MIDI data ﬁler (such as an MDF3) or a sequencer. To play back the saved song data, send the bulk data back from the storage device to the Clavinova and follow the usual playback procedure.

TERMINOLOGY

bulk data:

A complete set or extended sequence of data

Procedure

1. Record your performance on the Clavinova.

2. Connect the Clavinova to MDF3, a MIDI data ﬁler via MIDI, and set up the MDF3 so it will receive bulk data.

3. Engage Function mode and select (CLP-130)/

(CLP-120).

4. Press the [+/YES] button to begin bulk transmission.

will appear on the LED display when the data has

been successfully transmitted.

NOTE

No MIDI note/panel data transmission or data reception occurs during a bulk data dump transmit operation.

TIP

Receiving (returning) the transmitted data:

1. Connect the CLP-130/120 via MIDI to the device to which

the data was previously transmitted.

2. Start sending the data from the device.

The CLP-130/120 automatically receives the data from the unit. (At this time, any data previously stored in the Clavinova will be erased.)

Then, follow the usual playback procedure.

(For the data to be accepted, the Clavinova that receives the data should be the same model as the one from which the data was once transmitted to the MIDI data ﬁler.)

ENGLISH

TIP

See page 72 for a list of the “Panel Data Contents” transmitted by this function.

TIP

Receiving the transmitted data:

1. Connect the Clavinova via MIDI to the device to which the setup data was transmitted previously.

2. Start sending the setup data from the device.

The Clavinova automatically receives the setup data, which will be reﬂected in the panel settings.

(For the data to be accepted, the Clavinova that receives the setup data should be the same model as the one that transmitted the setup data to the sequencer.)

TIP

For more information on transmitting and receiving setup data via MIDI, refer to the owner’s manual for the connected MIDI device.

NOTE

The reload operation cannot be executed when Demo/Preset Song mode or the user song recorder is in operation, or when Function mode is engaged.

TIP

For more information on transmitting and receiving bulk data via MIDI, refer to the owner’s manual for the connected MIDI device.

CLP-130/120 Detailed Settings – [FUNCTION]

Page 48

F9. (CLP-130) / F8. (CLP-120) Backup Functions

However, the backup settings themselves, and the contents of the user song recorder memory, are always

ENGLISH

backed up.

Even if the backup function is turned on via one of the functions described below, the data will be retained in memory for only about one week if the power is not turned on during this time. If the backup period is exceeded, all settings will be reset to their default values. If you want to retain the backup settings for longer periods, be sure to turn the power on for a few minutes at least once a week.

TERMINOLOGY

Backup:

You can back up some settings, such as voice selection and reverb type, so that they will not be lost when you turn off the power to the Clavinova.

If the backup function is turned on, the settings at power off are effective. If the backup function is turned off, the settings in memory are erased when you turn off the power. In this case, when you turn on the power to the unit, the default settings (the initial settings) will be used. (The factory setting default list is found on page 70.)

CAUTION

Description of sub-modes

F9.1: (CLP-130)/F8.1: (CLP-120) Voice

• Voice (Keyboard, Dual, and Split <CLP-130>)

• Dual (ON/OFF, Voice, and Dual Functions for each voice combination)

• Split (CLP-130) (ON/OFF, Voice, and Split Functions for each voice combination)

• Reverb (ON/OFF, Type, and Depth for each voice)

• Effect (ON/OFF, Type, and Depth for each voice)

• Variation (CLP-130) (for each voice)

• Touch Sensitivity (including the FIXED volume)

• Metronome (Beat, Volume < (CLP-130)/ (CLP-120) settings>)

• Preset Song Part Cancel Volume ( <CLP-130>/

<CLP-120> settings)

F9.2: (CLP-130)/F8.2: (CLP-120) MIDI

The MIDI functions ( <CLP-130>/ <CLP120> settings)

(expect for the <CLP-130>/ <CLP-120>)

F9.3: (CLP-130)/F8.3: (CLP-120) Tuning

• Transpose

• Tuning ( settings)

• Scale (including base note) ( settings)

You can turn the backup function on or off for each function group (each of the following sub-mode functions).

1. Engage Function mode and select (CLP-

130)/ (CLP-120).

2. Press the [+/YES] button to engage the backup function’s sub-mode, then use the [TEMPO/FUNCTION# ▼, ▲] buttons to select the desired sub-mode. Press the [–/NO] or [+/YES] button to turn the backup function on or off.

Sub-mode

F9.1: (CLP-130)/F8.1: (CLP-120) Voice

F9.2: (CLP-130)/F8.2: (CLP-120) MIDI

F9.3: (CLP-130)/F8.3: (CLP-120) Tuning

F9.4: (CLP-130)/F8.4: (CLP-120) Others

Other functions ( <CLP-130>/ <CLP-120> settings)

Factory Preset Recall

All Dual mode, Split mode, reverb, effect, touch sensitivity, tuning settings, and the settings affected by the Backup Functions can be restored to their original factory preset values by holding the C7 key (right-most key on the keyboard) while turning the [POWER] button ON. This also erases all user song recorder data, and sets all backup on/off settings (F9) to “OFF”. (The factory setting list is found on page 70.)

Setting range: ON/OFF Normal setting: OFF (all groups)

CLP-130/120 Detailed Settings – [FUNCTION]

Page 49

About MIDI

MIDI (Musical Instrument Digital Interface) is a standard format for data transmission/reception. It enables the transfer of performance data and commands between MIDI devices and personal computers.

Using MIDI, you can control a connected MIDI device from the Clavinova, or control the Clavinova from a connected MIDI device or computer.

MIDI connectors

MIDI

Mac

PC-1

HOST SELECT

MIDI [IN]: Receives MIDI data. MIDI [OUT]: Transmits MIDI data. MIDI [THRU]: Transmits data received at the MIDI [IN] connector as it is.

MIDI cables

Prepare dedicated MIDI cables.

PC-2

MIDI

THRU

OUT IN

(CLP-130)

TIP

MIDI performance data and commands are transferred in the form of numeric values.

TIP

Since MIDI data that can be transmitted or received varies depending on the type of MIDI device, check the “MIDI Implementation Chart” to ﬁnd out what MIDI data and commands your devices can transmit or receive. The Clavinova’s MIDI Implementation Chart appears on page 75.

NOTE

When you are using the MIDI connectors, set the [HOST SELECT] switch to “MIDI” (page 54).

ENGLISH

[TO HOST] connector

Use this connector to connect the Clavinova to a computer.

Mac

PC-1

TO HOST HOST SELECT

PC-2

MIDI

NOTE

When you are using the [TO HOST] connector, set the [HOST SELECT] switch,

according to the type of computer you are using (page 54).

TIP

You can also obtain detailed information about MIDI from various music books and other publications.

CLP-130/120 About MIDI

Page 50

Connections

Connectors

CAUTION

Before connecting the Clavinova to other electronic components, turn off the power to all the components. Before turning the power on or off to all components, set all volume levels to minimum (0). Otherwise, electrical shock or damage to the components may result.

PEDAL

AUX IN

L/L+RRL/L+RRL

CLP-130

TO HOST HOST SELECT

MIDI

Mac

PC-2

PC-1

MIDI

LEVEL FIXED

THRU

OUT IN

AUX OUT

ENGLISH

1 AUX OUT [R] [L] Pin jacks (LEVEL FIXED), [R] [L/L+R] Phone jacks

Do not route the output from the AUX OUT jacks to the AUX IN jacks. That is, when you connect an external audio device to the AUX OUT jacks, do not connect the audio device to the Clavinova’s AUX IN jacks. If you make this connection, the signal input at the AUX IN jacks will be output from AUX OUT. This creates an audio loop, causing audio oscillation and abnormal playback, and leading to malfunction of both pieces of equipment.

When the Clavinova’s AUX OUT jacks are connected to an external audio system, ﬁrst turn on the power to the Clavinova, then to the external audio system. Reverse this order when you turn the power off.

CLP-120

LEVEL FIXED

MIDIMac

L/L+R

R L/L+RRLR

AUX OUT AUX IN

TO HOST HOST SELECT

PC-2PC-1

You can connect these jacks to a stereo system to amplify the Clavinova or to a cassette tape recorder to record your performance. Refer to the diagram below and use audio cables to make the connections.

CAUTION

Clavinova

Stereo

L/L+RRL

phone plug (standard)

AUX IN

RCA pin plug

RCA

pin plug

LEVEL FIXED

AUX OUT

MIDI

THRU

OUT IN

PEDAL

NOTE

Use audio cables and adaptor plugs with no resistance.

NOTE

The Clavinova’s [MASTER VOLUME] and [BRILLIANCE]

slider setting does not affect the signal output from the AUX OUT (LEVEL FIXED) jacks.

audio cable

When these are connected (with RCA pin plug; LEVEL FIXED), the sound is output to the external device at a fixed level, regardless of the [MASTER VOLUME] control setting.

CLP-130/120 Connections

To powered speakers

When these are connected (with standard phone plugs), you can use the [MASTER VOLUME] control to adjust the volume of the sound output to the external device.

Page 51

2 AUX IN [R], [L/L+R] jacks

The stereo outputs from another instrument can be connected to these jacks, allowing the sound of an external instrument to be reproduced via the Clavinova’s speakers. Refer to the diagram below and use audio cables to make the connections.

CAUTION

When the Clavinova’s AUX IN jacks are connected to an external device, ﬁrst turn on the power to the external device, then to the Clavinova. Reverse this order when you turn the power off.

Clavinova

phone plug (standard)

AUX OUT

phone plug

(standard)

AUX IN

L/L+RR

AUX IN

audio cable

Tone Generator

3 TO HOST jack

This jack allows direct connection to a personal computer. (Refer to “Connecting a personal computer” on page 52 for more information.)

NOTE

The Clavinova’s [MASTER VOLUME] and [BRILLIANCE]

slider settings affect the input signal from the AUX IN jacks, but the [REVERB] and [EFFECT] settings do not.

NOTE

If you connect the Clavinova to a monaural device, use only the

AUX IN [L/L+R] jack or AUX OUT [L/L+R] jack.

ENGLISH

4 HOST SELECT switch

This switch should be set according to the type of connected MIDI device or personal computer. (Refer to “Connecting a personal computer” on page 52 for more information.)

5 MIDI [IN], [OUT], [THRU] connectors

Use MIDI cables to connect external MIDI devices to these connectors. Make sure you set the HOST SELECT switch to MIDI when you use these connectors. (Refer to “About MIDI” on page 49 for more information.)

6 PEDAL jack

Connect the pedal cord from the pedal box. (Refer to “Keyboard Stand Assembly” on pages 57-62.)

CLP-130/120 Connections

Page 52

CLP-130/120 Connections

ENGLISH

Connecting a Personal Computer

You can enjoy computer music data on the Clavinova by connecting a computer to the TO HOST (or MIDI) jack.

There are three methods by which to connect the Clavinova to a personal computer:

1. Connect the serial port on the computer to the Clavinova’s TO HOST jack (page 53).

2. Use a MIDI interface and the Clavinova’s MIDI connectors (page 54).

3. Use the USB port on the computer and the UX256, UX96, or UX16, a USB interface (page 55).

For more information, refer to the speciﬁed pages.

NOTE

When the Clavinova is used as a tone module, performance data with voices that are not found on the Clavinova will not be played correctly.

“The Clavinova-Computer Connection,” is a supplementary guidebook that describes, for beginners, what you can do with your Clavinova and a personal computer and how to set up a Clavinova-Computer system (the manual is not written for any speciﬁc models). The document is available as a PDF ﬁle (in English) at the following Internet address:

Clavinova Web site (English only):

http://www.yamahaclavinova.com/

Yamaha Manual Library:

http://www2.yamaha.co.jp/manual/english/

NOTE

When connecting the Clavinova to a personal computer, ﬁrst turn off the power to both the Clavinova and the computer before you connect any cables or set the HOST SELECT switch. After making the connections and switch settings, turn on the power to the computer ﬁrst, then to the Clavinova.

NOTE

If you do not use the [TO HOST] jack of the Clavinova, make sure you disconnect the cable from the jack. If the cable is left connected, the Clavinova may not function properly.

NOTE

will appear in the display if the host computer is not turned on, the connecting cable is not properly connected, the HOST SELECT switch is not in the proper position, or the MIDI driver or MIDI application is not active. In this situation, turn the power off to both the Clavinova and the computer, and check the cable connection and the position of the HOST SELECT switch. Once the connection and HOST SELECT switch position is veriﬁed, turn the power of the computer on ﬁrst, then the Clavinova, and check whether the MIDI driver and MIDI application function properly.

NOTE

When the [HOST SELECT] switch is set to “PC-1,” PC-2,” or “Mac,” you can use the [TO HOST] jack, but the MIDI connectors are disabled since no data transfer occurs via the MIDI connectors. On the other hand, when the [HOST SELECT] switch is set to “MIDI,” you can use the MIDI connectors, but not the [TO HOST] jack since no data is trans- ferred via the [TO HOST] jack.

Page 53

1. Connecting the serial port on the computer to the Clavinova’s TO HOST jack

Connect the computer’s serial port (RS-232C or RS-422) to the Clavinova’s TO HOST jack. With this connection, the Clavinova functions as a MIDI interface. Therefore, you do not need a special MIDI interface.

Connection

Use a special serial cable (page 53) to connect the computer’s serial port (RS-232C or RS-422) to the Clavinova’s TO HOST jack.

Clavinova

PC-1

PC-2

MIDI

Note for Windows users (regarding the MIDI driver)

To transfer data via the computer’s

Mac

TO HOST HOST SELECT

TO HOST

serial port and the Clavinova’s TO HOST jack, you need to install a speciﬁc MIDI driver (the Yamaha CBX driver for Windows). You can download this driver from the following XG Library on the Yamaha web site: http://www.yamaha-xg.com

modem portRS-232C (D-sub 9-pin) RS-232C (D-sub 25-pin)

Windows Windows Macintosh

Type of serial cables and connection pin assignments

Depending on the type of computer you connect, use one of the following serial cables.

ENGLISH

Windows (with a serial port of D-sub 9-pin)

8-pin mini DIN plug  D-sub 9-pin plug

(Yamaha CCJ-PC2 or equivalent)

mini DIN 8-pin

1 2 3 4 8 5

8 (CTS) 7 (RTS) 2 (RxD) 5 (GND)

3 (TxD)

Windows (with a serial port of D-sub 25-pin)

8-pin mini DIN plug  D-sub 25-pin plug

(Yamaha CCJ-PC1NF or equivalent)

mini DIN 8-pin

1 2 3 4 8 5

5 (CTS) 4 (RTS) 3 (RxD) 7 (GND)

2 (TxD)

D-sub 9-pin

D-sub 25-pin

Macintosh

System peripheral plug  8-pin plug

(Yamaha CCJ-MAC or equivalent)

mini DIN 8-pin

1 2 3 4 5 6 7 8

2 (HSK i) 1 (HSK O) 5 (RxD-) 4 (GND) 3 (TxD-) 8 (RxD+) 7 (GP-) 6 (TxD+)

mini DIN 8-pin

Pin assignment

The following diagram shows the pin assignments for each cable.

Pin numbers (view from front)

mini DIN 8-pin

D-sub 25-pin

D-sub 9-pin

CLP-130/120 Connections

Page 54

Clavinova HOST SELECT switch setting

Set the Clavinova HOST SELECT switch properly according to the type of connected computer.

• Macintosh: “Mac” (data transfer rate: 31,250bps, 1MHz clock)

• Windows: “PC-2” (data transfer rate: 38,400bps)

2. Using a MIDI interface and the Clavinova’s MIDI connectors

Connection

Use a MIDI interface device to connect a computer to the Clavinova using special MIDI cables.

ENGLISH

TIP

If your system does not work properly with the connections and settings listed above, your software may require different settings. Check your software operation manual and set the HOST SELECT switch to the proper data transfer rate. (Data transfer rate of “PC-1” is 31,250bps.)

Clavinova

MIDI

PC-1

PC-2

MIDI

THRU

MIDI OUT

OUT IN

(CLP-130)

MIDI IN

Mac

HOST SELECT

MIDI OUT

MIDI IN

MIDI interface

Windows Macintosh

Clavinova HOST SELECT switch setting

Set the Clavinova HOST SELECT switch to “MIDI.”

MIDI OUT

MIDI IN

MIDI interface

CLP-130/120 Connections

Page 55

3. Connecting the computer’s USB port to the Clavinova via a USB interface, such as the UX256, UX96, or UX16

Connect the computer’s USB port to the USB interface (such as the UX256, UX96, or UX16) using a USB cable. Install the driver (that came with the USB interface) on the computer, and connect the USB interface to the Clavinova using a serial cable or MIDI cables. For more information, refer to the instruction manual for the USB interface.

An example of connecting the USB interface to the Clavinova using a serial cable

PC-1

Mac

USB cable

TO HOST HOST SELECT

Standard Machintosh 8-pin system peripheral cable

computer

USB interface

MIN MAX

TEMPO

MASTER VOLUME

START

FUNCTION

STOP

MELLOW BRIGHT

DEMO METRONOME

FUNCTION

TEMPO

BRILLIANCE

An example of connecting the USB interface to the Clavinova using MIDI cables

MIDI

USB cable

computer

OUT IN

MIDI cables

TEMPO

OTHER VALUE

USER 1 USER 2

—

USER 3

NO+/YES PRESET

E.PIANO

GRAND

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

GRAND

VARIATION

PIANO 1

CHORD

PHONE

PIANO 2

ROOM HALL 1 HALL 2

JAZZ

WOOD

CHURCH

TRACK1TRACK2START

STAGE

ORGAN

BASS

STOP

REC

STRINGS

CHOIR GUITAR E.BASS SPLIT

VOICE

SONG

REVERBEFFECT TOUCH TRANSPOSE

HOST SELECT

Clavinova

CHORUS PHASER

HARD

TREMOLO

MEDIUM

DELAY

SOFT

MIDI

ENGLISH

POWER

USB interface

E.PIANO

E.PIANO2HARPSI-

E.CLAVI-

VIBRA-

GRAND

VARIATION

CHORD

PHONE

PIANO 1

MIN MAX

TEMPO

MASTER VOLUME

START

FUNCTION

STOP

MELLOW BRIGHT

DEMO METRONOME

TEMPO

FUNCTION

BRILLIANCE

PIANO 2

ROOM

OTHER VALUE

TEMPO

USER 1 USER 2

TRACK1TRACK2START /

NO+/YES PRESET

—

USER 3

SONG

CHORUS

HALL 1

PHASER

HARD

HALL 2

TREMOLO

MEDIUM

CHURCH

JAZZ

WOOD

STAGE

DELAY

SOFT

ORGAN

BASS

STOP

REC

STRINGS

CHOIR GUITAR E.BASS SPLIT

VOICE

REVERBEFFECT TOUCH TRANSPOSE

CLP-130/120 Connections

Clavinova

POWER

Page 56

CLP-130/120 Troubleshooting

ENGLISH

Troubleshooting

Options

BC-100 Bench

A comfortable bench styled to match your Yamaha Clavinova.

HPE-160 Stereo Headphones

High-performance lightweight dynamic headphones with extra-soft ear pads.

Problem Possible Cause and Solution

The Clavinova does not turn on. The Clavinova has not been plugged in properly. Securely insert the female plug into

the socket on the Clavinova, and the male plug into a proper AC outlet (page 11).

A click or pop is heard when the power is turned on or off.

This is normal when electrical current is being applied to the instrument.

Noise is heard from the speakers or headphones.

The noise may be due to interference caused by the use of a mobile phone in close proximity to the Clavinova. Turn off the mobile phone, or use it further away from the Clavinova.

The overall volume is low, or no sound is heard.

• The Master Volume is set too low; set it to an appropriate level using the [MASTER VOLUME] control.

• Make sure a pair of headphones is not connected to the headphones jack (when the SPEAKER switch is set to the “NORMAL” position). If the SPEAKER switch is set to the “OFF” position, set it to “NORMAL” or “ON” (page 12).

• Make sure that Local Control (page 46) is ON.

The speakers do not switch off when a pair of headphones is connected.

The SPEAKER switch may be switched “ON.” Set the SPEAKER switch to the “NORMAL” position (page 12).

The damper pedal has no effect, or the sound continuously sustains even when the damper pedal is not pressed.

The pedal cable/plug may not be properly connected. Make sure to securely insert the pedal plug into the proper jack (pages 57–62).

TIP

If appears on the display, an internal malfunction has occurred. In this case, contact your Yamaha dealer.

CLP-130/120 Troubleshooting/Options

Page 57

CLP-120: Keyboard Stand Assembly

CAUTION

• Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below.

• Assembly should be carried out by at least two persons.

• Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.

• Be sure to tighten up all screws upon completing assembly of each unit.

• To disassemble, reverse the assembly sequence given below.

Have a Phillips-head (+) screwdriver ready.

Attach the side panels to the pedal box.

Remove the following parts from the package.

ENGLISH

Assembly Parts

6 × 25 mm long screws ×4

6 × 16 mm short screws ×4

4 × 12 mm thin screws ×2 3

Side

panel

(left)

Main unit

Rear panel

20 mm tapping screws ×4

Cord holders × 2

(right)

Side

panel

Side panel

(left)

(1) Untie and straighten

out the bundled cord attached to the bottom of the pedal box. Don’t discard the vinyl tie, you’ll need it later in step 5.

Attach the rear panel.

Side panel

(right)

(2) Use the four 6×25 mm long

screws 1 to attach the pedal box. First attach one side panel, then attach the other side panel.

(2) Secure the top of the

rear panel to the side panel brackets using two 4×12 mm thin screws 3.

Pedal box

Bundled pedal cord inside

A headphone hanger is included in the CLP-120 package. You can attach a headphone hanger on the Clavinova to hang the headphones (page 12).

AC power cord

TIP

(1) Place the bot-

tom edges of the rear panel on the feet’s protruding edges, with the panel slightly angled as shown in the illustration. Then, align the top part of the panel with the side panels.

CLP-130/120

(3) Secure the bottom

of the rear panel to the pedal box using four 4×20 mm tapping screws 4.

CLP-120: Keyboard Stand Assembly

Page 58

3. Mount the main unit.

• Fingers can become pinched between the main

• Do not hold the keyboard in any position other

ENGLISH

CAUTION

unit and the rear or side panels, be extra careful so as not to drop the main unit.

than the position shown in the illustration.

Be sure to place your hands at least 10 cm from either end of the main unit when positioning it.

At least 10 cm

5. Connect the pedal cord.

(1) Insert the pedal cord plug to the

PEDAL

(3) Use a vinyl tie

to take up any slack in the pedal cord.

(2) Attach the cord holders to

the rear panel as shown, then clip the cord into the holders.

pedal connector from the front.

4. Fix the main unit.

(1) Center the main unit to pro-

duce equal clearance on the left and right sides.

(2) Use 6x16 mm short screws

2 to secure the main unit from the front.

6. Set the voltage selector and connect the

power cord.

Mac

-2 PC

MIDI

PC-1

127

220

110

240

Voltage Selector

Before connecting the AC power cord, check the setting of the voltage selector which is provided in some areas. To set the selector for 110V, 127V, 220V or 240V main voltages, use a “minus” screwdriver to rotate the selector dial so that the correct voltage for your region appears next to the pointer on the panel. The voltage selector is set at 240V when the unit is initially shipped. After the proper voltage has been selected, connect the AC power cord to the AC INLET and an AC wall outlet. A plug adaptor may be also provided in some areas to match the pin conﬁguration of the AC wall outlets in your area.

CLP-130/120 CLP-120: Keyboard Stand Assembly

WARNING

An improper voltage setting can cause serious damage to the Clavinova or result in improper operation.

Page 59

CLP-130/120 CLP-120: Keyboard Stand Assembly

ENGLISH

7. Set the adjuster.

After completing the assembly, please check the following.

When moving the instrument after assembly, always hold the bottom of the main unit.

CAUTION

Do not hold the key cover or top portion. Improper handling can result in damage to the instrument or personal injury.

• Are there any parts left over?

 Review the assembly procedure and correct any

errors.

• Is the Clavinova clear of doors and other movable ﬁxtures?

 Move the Clavinova to an appropriate location.

• Does the Clavinova make a rattling noise when you shake it?

 Tighten all screws.

• Does the pedal box rattle or give way when you step on the pedals?

 Tu rn the adjuster so that it is set ﬁrmly against

the ﬂoor.

• Are the pedal and power cords inserted securely into the sockets?

 Check the connection.

• If the main unit creaks or is otherwise unsteady when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

Rotate the adjuster until it comes in ﬁrm contact with the ﬂoor surface.

Key cover

Top portion

Page 60

ENGLISH

CLP-130: Keyboard Stand Assembly

CAUTION

• Be careful not to confuse parts, and be sure to install all parts in the correct direction. Please assemble in accordance with the sequence given below.

• Assembly should be carried out by at least two persons.

• Be sure to use the correct screw size, as indicated below. Use of incorrect screws can cause damage.

• Be sure to tighten up all screws upon completing assembly of each unit.

• To disassemble, reverse the assembly sequence given below.

Have a Phillips-head (+) screwdriver ready.

Attach the side panels to the pedal box.

Remove the following parts from the package.

Assembly Parts

6 × 25 mm long screws ×4

6 × 16 mm short screws ×4

4 × 12 mm thin screws ×2 3

Side

panel

(left)

Main unit

Rear panel

20 mm tapping screws ×4

Cord holders × 2

(right)

Side

panel

Side panel

(left)

(1) Untie and straighten

out the bundled cord attached to the bottom of the pedal box. Don’t discard the vinyl tie, you’ll need it later in step 5.

Attach the rear panel.

Side panel

(right)

(2) Use the four 6×25 mm long

screws 1 to attach the pedal box. First attach one side panel, then attach the other side panel.

(2) Secure the top of the

rear panel to the side panel brackets using two 4×12 mm thin screws 3.

Pedal box

AC power cord

TIP

Bundled pedal cord inside

A headphone hanger is included in the CLP-130 package. You can attach a headphone hanger on the Clavinova to hang the headphones (page 12).

CLP-130/120

CLP-130: Keyboard Stand Assembly

(1) Place the bot-

tom edges of the rear panel on the feet’s protruding edges, with the panel slightly angled as shown in the illustration. Then, align the top part of the panel with the side panels.

(3) Secure the bottom

of the rear panel to the pedal box using four 4×20 mm tapping screws 4.

Page 61

3. Mount the main unit.

CAUTION

• Fingers can become pinched between the main unit and the rear or side panels, be extra careful so as not to drop the main unit.

• Do not hold the keyboard in any position other than the position shown in the illustration.

Be sure to place your hands at least 10 cm from either end of the main unit when positioning it.

At least 10 cm

5. Connect the pedal cord.

(1) Insert the pedal cord plug to the

PEDAL

(3) Use a vinyl tie

to take up any slack in the pedal cord.

(2) Attach the cord holders to

the rear panel as shown, then clip the cord into the holders.

pedal connector from the front.

ENGLISH

4. Fix the main unit.

(1) Center the main unit to pro-

duce equal clearance on the left and right sides.

(2) Use 6x16 mm short screws

2 to secure the main unit from the front.

6. Set the voltage selector and connect the

power cord.

127

220

110

240

Voltage Selector

WARNING

An improper voltage setting can cause serious damage to the Clavinova or result in improper operation.

CLP-130/120 CLP-130: Keyboard Stand Assembly

Page 62

CLP-130/120 CLP-130: Keyboard Stand Assembly

ENGLISH

7. Set the adjuster.

After completing the assembly, please check the following.

When moving the instrument after assembly, always hold the bottom of the main unit.

CAUTION

Do not hold the key cover or top portion. Improper handling can result in damage to the instrument or personal injury.

• Are there any parts left over?

 Review the assembly procedure and correct any

errors.

• Is the Clavinova clear of doors and other mov-

able ﬁxtures?

 Move the Clavinova to an appropriate location.

• Does the Clavinova make a rattling noise when

you shake it?

 Tighten all screws.

• Does the pedal box rattle or give way when you

step on the pedals?

 Tu rn the adjuster so that it is set ﬁrmly against

the ﬂoor.

• Are the pedal and power cords inserted securely

into the sockets?

 Check the connection.

• If the main unit creaks or is otherwise unsteady

when you play on the keyboard, refer to the assembly diagrams and retighten all screws.

Rotate the adjuster until it comes in ﬁrm contact with the ﬂoor surface.

Key cover

Top portion

Page 63

Preset Voice List

CLP-130

Voice Name

GRANDPIANO 1

VARIATION

GRANDPIANO 2

VARIATION

E.PIANO 1

VARIATION

E.PIANO 2

VARIATION

HARPSICHORD

VARIATION

E. CLAVICHORD

VARIATION

VIBRAPHONE

VARIATION

CHURCH ORGAN

VARIATION

JAZZ ORGAN

VARIATION

STRINGS

VARIATION

CHOIR

VARIATION

Stereo

Sampling

Touch

Response

Dynamic

Sampling

Key-Off

Sampling

Recorded samples from a full concert grand piano. Also includes three levels of dynamic sampling, sustain samples, and key-off samples for exceptionally realistic acoustic grand piano sound. Perfect for classical compositions as well as any other style that requires acoustic piano.

Warm and mellow piano. Good for classical compositions.

Spacious and clear piano with bright reverb. Good for popular music.

Bright, spacious piano. Good for popular or rock music.

An electronic piano sound created by FM synthesis. Extremely “musical” response with varying timbre according to keyboard dynamics. Good for standard popular music.

A synth-generated type electronic piano sound often heard in popular music. Used in the DUAL mode it blends well with an acoustic piano voice.

The sound of an electric piano using hammer-struck metallic “tines”. Soft tone when played lightly, and an aggressive tone when played hard.

A slightly different electric piano sound often heard in rock and popular music.

The deﬁnitive instrument for baroque music. Since harpsichord uses plucked strings, there is no touch response. There is, however, a characteristic additional sound when the keys are released.

Mixes the same voice an octave higher for a more brilliant tone.

A hammer-struck keyboard instrument that utilizes an electric pickup that is often heard in funk and soul music. Its tone is noted for the unique sound produced when the keys are released.

Includes a unique preset effect.

Vibraphone played with relatively soft mallets. The tone becomes more metallic the harder you play.

Stereo-sampled, spacious, and realistic marimba.

This is a typical pipe organ sound (8 feet + 4 feet + 2 feet). Good for sacred music from the Baroque period.

This is the organ's full coupler sound often associated with Beach’s “Toccata and Fugue”.

The sound of a “tonewheel” type electric organ. Often heard in jazz and rock idioms.

Uses a rotary speaker effect with a different speed. The variations speed is faster. If the variation is selected while holding a chord, the speed of the effect will gradually change.

Stereo-sampled, large-scale strings ensemble with realistic reverb. Try combining this voice with piano in the DUAL mode.

Spacious strings ensemble with a slow attack. Try combining this voice with a piano or electric piano in the DUAL mode.

A big, spacious choir voice. Perfect for creating rich harmonies in slow pieces.

A choir voice with a slow attack. Try combining this voice with a piano or electric piano in the DUAL mode.

Voice Descriptions

ENGLISH

CLP-130/120 Preset Voice List

Page 64

GUITAR

VARIATION

WOOD BASS

VARIATION

E.BASS

VARIATION

ENGLISH

Voice Name

Stereo

Sampling

Touch

Response

Dynamic

Sampling

Key-Off

Sampling

Warm and natural-sounding nylon guitar. Enjoy the quiet ambience of nylon strings.

Bright, brilliant steel guitar. Suitable for popular music.

An upright bass played ﬁngerstyle. Ideal for jazz and Latin music.

Adds a cymbal voice to the bass sound. Ideal for walking bass lines in jazz tunes.

Electric bass for a wide range of music styles, jazz, rock, popular, and more.

A fretless bass good for styles such as jazz, fusion, etc.

Voice Descriptions

*1. Dynamic Sampling provides multiple velocity-switched samples to accurately simulate the timbral response of

an acoustic instrument.

*2. Contains a very subtle sample that is produced when the keys are released.

CLP-130/120 Preset Voice List

Page 65

CLP-120

Voice Name

GRANDPIANO 1

GRANDPIANO 2

E.PIANO 1

E.PIANO 2

HARPSICHORD 1

HARPSICHORD 2

VIBRAPHONE

CHURCH ORGAN 1

CHURCH ORGAN 2

JAZZ ORGAN

STRINGS 1

STRINGS 2

CHOIR

GUITAR

Stereo

Sampling

Touch

Response

Dynamic

Sampling

Key-Off

Sampling

Recorded samples from a full concert grand piano. Perfect for classical compositions as well as any other style that requires acoustic piano.

Spacious and clear piano with bright reverb. Good for popular music.

An electronic piano sound created by FM synthesis. Good for standard popular music.
