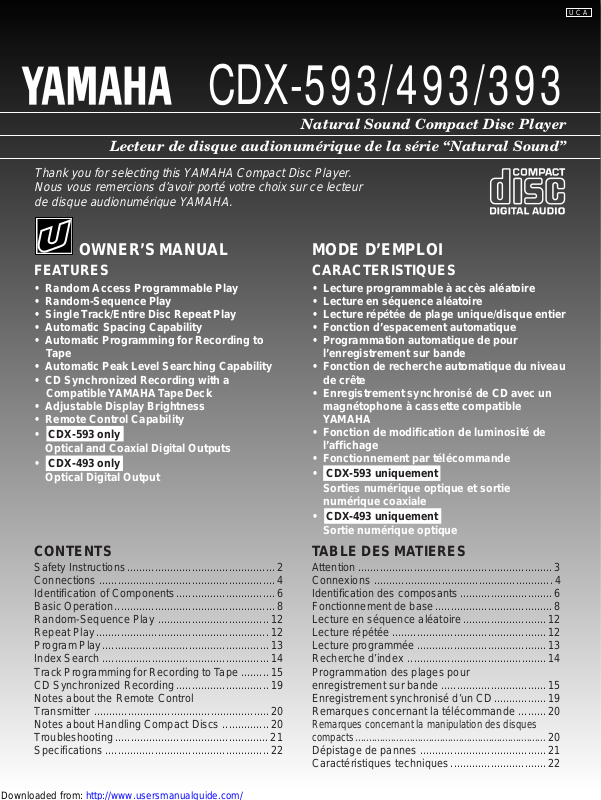

Yamaha Audio CDX-493 User Manual

CDX-5 9 3 /4 9 3 /3 9 3
Natural Sound Compact Disc Player
Lecteur de disque audionumérique de la série “Natural Sound”
Thank you for selecting this YAMAHA Compact Disc Player. Nous vous remercions d’avoir porté votre choix sur ce lecteur de disque audionumérique YAMAHA.
U C A
OWNER’S MANUAL
FEATURES
• Random Access Programmable Play
• Random-Sequence Play
• Single Track/Entire Disc Repeat Play
• Automatic Spacing Capability
• Automatic Programming for Recording to T ape
• Automatic Peak Level Searching Capability
• CD Synchronized Recording with a Compatible Y AMAHA T ape Deck
• Adjustable Display Brightness
• Remote Control Capability
CDX-593 only
• Optical and Coaxial Digital Outputs
CDX-493 only
• Optical Digital Output
MODE D’EMPLOI
CARACTERISTIQUES
• Lecture programmable à accès aléatoire
• Lecture en séquence aléatoire
• Lecture répétée de plage unique/disque entier
• Fonction d’espacement automatique
• Programmation automatique de pour l’enregistrement sur bande
• Fonction de recherche automatique du niveau de crête
• Enregistrement synchronisé de CD avec un magnétophone à cassette compatible YAMAHA
• Fonction de modification de luminosité de l’affichage
• Fonctionnement par télécommande
CDX-593 uniquement
• Sorties numérique optique et sortie
numérique coaxiale
CDX-493 uniquement
• Sortie numérique optique
CONTENTS
Safety Instructions................................................ 2
Connections ......................................................... 4
Identification of Components................................6
Basic Operation....................................................8
Random-Sequence Play ....................................12
Repeat Play........................................................ 12
Program Play......................................................13
Index Search ...................................................... 14
Track Programming for Recording to Tape ......... 15
CD Synchronized Recording..............................19
Notes about the Remote Control
Transmitter .........................................................20
Notes about Handling Compact Discs ...............20
Troubleshooting..................................................21
Specifications .....................................................22
TABLE DES MATIERES
Attention ...............................................................3
Connexions ..........................................................4
Identification des composants..............................6
Fonctionnement de base...................................... 8
Lecture en séquence aléatoire...........................12
Lecture répétée ..................................................12
Lecture programmée.......................................... 13
Recherche d’index .............................................14
Programmation des plages pour
enregistrement sur bande .................................. 15
Enregistrement synchronisé d’un CD.................19
Remarques concernant la télécommande .........20
Remarques concernant la manipulation des disques
compacts......................................................................
Dépistage de pannes ......................................... 21
Caractéristiques techniques...............................22
20
SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
• Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
1 Read Instructions – All the safety and operating
instructions should be read before the unit is operated.
2 Retain Instructions – The safety and operating instructions
should be retained for future reference.
3 Heed Warnings – All warnings on the unit and in the
operating instructions should be adhered to.
4 Follow Instructions – All operating and other instructions
should be followed.
5 Water and Moisture – The unit should not be used near
water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
6 Carts and Stands – The unit should be used only with a
cart or stand that is recommended by the manufacturer.
6A A unit and cart combination should be
moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.
7 Wall or Ceiling Mounting – The unit should
be mounted to a wall or ceiling only as recommended by the manufacturer.
8 Ventilation – The unit should be situated so that its location
or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
9 Heat – The unit should be situated away from heat
sources such as radiators, stoves, or other appliances that produce heat.
2
10 Power Sources – The unit should be connected to a power
supply only of the type described in the operating instructions or as marked on the unit.
11 Power-Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.
12 Cleaning – The unit should be cleaned only as
recommended by the manufacturer.
13 Nonuse Periods – The power cord of the unit should be
unplugged from the outlet when left unused for a long period of time.
14 Object and Liquid Entry – Care should be taken so that
objects do not fall into and liquids are not spilled into the inside of the unit.
15 Damage Requiring Service – The unit should be serviced
by qualified service personnel when:
A. The power-supply cord or the plug has been damaged;
or
B. Objects have fallen, or liquid has been spilled into the
unit; or
C. The unit has been exposed to rain; or D. The unit does not appear to operate normally or
exhibits a marked change in performance; or
E. The unit has been dropped, or the cabinet damaged.
16 Servicing – The user should not attempt to service the unit
beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.
17 Power Lines – An outdoor antenna should be located away
from power lines.
18 Grounding or Polarization – Precautions should be taken
so that the grounding or polarization is not defeated.
We W ant You Listening For A Lifetime
(for US customers only)
YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.
IMPORT ANT!
Please record the serial number of this unit in the space below.
Model: Serial No.:
The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.
CAUTION: READ THIS BEFORE OPERA TING YOUR UNIT
English
1 To ensure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2 Install your unit in a cool, dry, clean place – away from
windows, heat sources, vibration, dust, moisture, or cold. To avoid humming sounds, locate the unit away from other electrical appliances, motors, and transformers. To prevent fire or electrical shock, do not expose to rain and water.
3 Do not operate the unit upside-down. It may overheat,
possibly causing damage.
4 Never open the cabinet. If a foreign object drops into the
set, contact your dealer.
5 Do not use force on switches, knobs or cords. When
moving the set, first turn the unit off. Always disconnect the cords from the AC outlet or other equipment by pulling the plug itself; never pull on the cord.
6 Do not clean the unit with chemical solvents; this might
damage the finish. Use a clean, dry cloth.
WARNING
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
DANGER
Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
CAUTION (FOR CANADA MODEL)
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT.
FOR CANADIAN CUSTOMER
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE­CAUSING EQUIPMENT REGULA TIONS.
7 Be sure to read the “TROUBLESHOOTING” section on
common operating errors before concluding that your unit is faulty .
8 Do not place another component on top of this unit, as
damage or discoloration on the surface of the unit may result.
9 To prevent damage by lightning, disconnect the power
cord from the AC outlet during an electrical storm.
10 When disconnecting the power cord from the AC outlet,
grasp the plug; do not pull the cord.
11 V oltage selector (General model only)
The voltage selector (on the rear panel of this unit) must be correctly set to the voltage used locally before making any connection to the AC power supply.
As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
To avoid electrical shock, do not open the unit. Refer servicing to qualified personnel only.
DANGER: The use of optical instrument with this product will increase eye hazard.
Laser Diode Properties
• Material: GaAlAs
• Wavelength: 780 nm
• Emission Duration: continuous
• Laser Output: max. 44.6 µW*
* This output is the value measured at a distance of about
200 mm from the objective lens surface on the Optical Pick­up Block.
FCC INFORMATION (for US customers only)
1. IMPORT ANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Y amaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories and/ or another product use only high quality shielded cables. Cable/ s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.
Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Y amaha Electronics Corp., U.S.A. 6660 Orangethorpe A ve, Buena Park, CA 90620.
The above statements apply ONL Y to those products distributed by Yamaha Corporation of America or its subsidiaries.
3
CONNECTIONS
• Before making any connections, switch OFF the power to the unit and the amplifier or other components.
• Connections should be made to the correct input terminals of the amplifier or other components.
CDX-593
LINE OUT DIGITAL AUDIO OUT
1
OPTICAL COAXIAL
2
Optical fiber cable (not included)
1
Connection cord (included)
• If the placement of this unit creates interference (noise) in other equipment, such as a tuner, relocate this unit away from the affected equipment.
CDX-593
T o AC outlet
3
Connection cord (not included)
Amplifier
CDX-493
1
Connection cord (included)
LINE OUT
1
OPTICAL
C D D IG I T A L I N
DIGITAL
AUDIO
OUT
OPTICAL
2
Optical fiber cable (not included)
COAXIAL
CDX-493
T o AC outlet
Amplifier
C D D IG I T A L I N
4
OPTICAL
CDX-393
English
LINE OUT
1
T o AC outlet
1
Connection cord (included) Amplifier
C D
CDX-393
To connect this unit to your amplifier, choose one of the following procedures:
1 When the LINE OUT (analog) terminals of
this unit are used
• Be sure that the left (“L”) and right (“R”) LINE OUT terminals are connected to the corresponding (left and right) terminals of the amplifier or other component.
• Connect the “LINE OUT” terminals to the “CD” (or “AUX”) terminals of the amplifier. If the amplifier does not have such terminals, use the “T APE PB” terminals. For additional details concerning these connections, refer to the operation instructions for the amplifier being used.
• The LINE OUT terminals of this unit are numbered 1. When connecting this unit with a YAMAHA amplifier or receiver whose terminals on the rear panel are numbered as 1, 2, 3, etc., connect the LINE OUT terminals of this unit to the input terminals numbered 1 on the rear of the amplifier or receiver.
CDX-593 and CDX-493 only
2
When the DIGITAL OUT (OPTICAL) terminal of this unit is used
• Before using this terminal, remove the terminal’s cover.
• Make the connection from this terminal to the optical input terminal of an amplifier by using a commercially available optical fiber cable. * Use an optical fiber cable that conforms to EIAJ
standards. Other cables might not function correctly.
• Be sure to replace the terminal’s cover when this terminal is not being used, in order to protect the terminal from dust.
• The signal output level to an amplifier can be adjusted by using the OUTPUT LEVEL button.
• This terminal can also be connected to the optical input terminal of a digital audio tape deck (DAT) etc. to record CD onto a tape directly .
3
CDX-593 only
When the DIGITAL OUT (COAXIAL) terminal of this unit is used
• Make the connection from this terminal to the digital input terminal of an amplifier by using a connection cord.
• The signal output level to an amplifier can be adjusted by using the OUTPUT LEVEL button.
5
IDENTIFICATION OF COMPONENTS
( ) indicates the page number on which the control part is best described.
FRONT P ANEL
• The control functions on the main unit and on the remote control transmitter are virtually identical, with the exceptions below.
CDX-593, CDX-493
POWER switch (p. 8)
• functions of the PLAY button and the PAUSE button on the remote control transmitter.
• The SKIP/SEARCH button on the main unit has both the functions of the SKIP button and the SEARCH button on the remote control transmitter.
AUTO DISPLAY OFF indicator
CDX-593 only (p. 11)
(PLAY/PAUSE) button on the main unit has both the
SKIP/SEARCH button (p. 9,10)
Display panel
P O W E R
CDX-393
POWER switch (p. 8)
Disc Tray (p. 8)
A U TO
O P E N /C L O S E
+
101 2 3 4 5 6 7 8 9 0
D IS P LA Y O F F
Remote control sensor (p. 20)
Display panel
S K IP /S E A RC H
O U TP U T L EV E L
P H ON E S
PHONES jack (p. 1 1)
P O W E R
Disc Tray (p. 8)
Remote control sensor (p. 20)
6
O P E N /C L O S E
+
101 2 3 4 5 6 7 8 9 0
SKIP/SEARCH button (p. 9,10)
S K IP /S E A RC H
REMOTE CONTROL TRANSMITTER
T APE button (p. 15)
English
DIMMER button (p. 1 1)
TIME button (p. 10)
SYNCHRO button (p. 19)
PEAK button (p. 18)
SPACE button (p. 10)
Number buttons (p. 9)
REPEAT button (p. 12)
OUTPUT LEVEL button (p. 11)
CDX-593 and CDX-493 only
STOP button (p. 9)
S Y N C H R O
S P A C E T A P EP E A K
21
54 6 +I0
87 9 0
O U T P U T L E V E L
–+
S T O P P A U S E P L A Y
D IM M E R T I M E
3
R E P E A T R A N D O M
S E A R C H
S K IP
IN D E X
O P E N /
C L O S E
P R O GC L E A R
OPEN/CLOSE button (p. 8) CLEAR button (p. 14)
PROG (program) button (p. 13) INDEX button (p. 14)
RANDOM button (p. 12) SEARCH button (p. 10)
SKIP button (p. 9)
PLA Y button (p. 8)
PAUSE button (p. 9)
* The CDX-593 is used for illustration purposes in this manual. Any difference in the operation of other models is clearly indicated in
this instruction (for example, “CDX-593 only”). This manual describes how to operate this unit by using the remote control transmitter. To operate this unit from the front panel, use the corresponding buttons on the front panel.
7
21
S P A C E T A PEP EA K
S Y N C H R O
3
IN D E X
P R OGC LE A R
O P EN / C LO S E
87 9 0
54 6+I0
D IM M E R TI M E
R EP E A T R A N D O M
S E A RC H
S K IP
O U TP U T LE V E L
–+
S T O P PA U S E P LA Y
1 2 3 4 5 6 7 8 9 10 11 12
TOTAL
1
BASIC OPERA TION
2, 3
P O W E R
4
1 Turn the power on.
P O W E R
2 Load a disc.
O P E N /
C L O S E
Display information during disc play
Label side up
Disc tray
SINGLE
3 Close the disc tray.
O P E N /
C L O S E
4
P L A Y
Play will begin from the first track of the disc.
Notes
• After closing the disc tray by pressing the OPEN/CLOSE button, the display shows the total number of tracks and the total recorded time of the disc for a few seconds.
3 4 5 6 7 8 9 10 11 12
1 Shows the track number selected or being played. 2 Shows the time displays. (Refer to “Selecting time displays”
on page 10.)
3
CDX-593 and CDX-493
Shows the signal output level to an amplifier or the headphones, adjusted by using the OUTPUT LEVEL button.
4 Displays the CD track numbers (up to 20). After each track
8
is played, its corresponding number disappears so that remaining track numbers can be seen at a glance.
To turn off the power
Press the POWER switch again. * If you turn on the power again with a CD in the tray, you can
start playing the CD automatically .
• You can also close the disc tray by pressing the PLAY button (or
button on the front panel), a number button, the RANDOM button, or by pressing the front edge of the disc tray gently. If the tray is closed in any of these ways, play will begin automatically, however, the display will not show the total number of tracks and the total recorded time of the disc.
Loading...
+ 16 hidden pages
