CONCERT

VIBES

YV-3910/3710/3700/2700/2700G/1600A/520

Owner’s Manual

Make sure to read the PRECAUTIONS on page 1.

SPECIAL MESSAGE SECTION

This product utilizes an external power supply (adapter). DO
NOT connect this product to any power supply or adapter
other than one described in the manual, on the name plate, or
specifically recommended by Yamaha.

WARNING: Do not place this product in a position where
anyone could walk on, trip over, or roll anything over power
or connecting cords of any kind. The use of an extension
cord is not recommended! If you must use an extension cord,
the minimum wire size for a 25" cord (or less) is 18 AWG.
NOTE: The smaller the AWG number, the larger the current
handling capacity. For longer extension cords, consult a lo­cal electrician.

This Product should be used only with the components sup­plied or; a cart, rack, or stand that is recommended by
Yamaha. If a cart, etc., is used, please observe all safety
markings and instructions that accompany the accessory
product.

SPECIFICATIONS SUBJECT TO CHANGE: The infor­mation contained in this manual is believed to be correct at
the time of printing. However, Yamaha reserves the right to
change or modify any of the specifications without notice or
obligation to update existing units.

Disposal Notice: Should this Product become damaged be­yond repair, or for some reason its useful life is considered to
be at an end, please observe all local, state, and federal regu­lations that relate to the disposal of products that contain
lead, batteries, plastics, etc. If your dealer is unable to assist
you, Please contact Yamaha directly.

NAME PLATE LOCATION: The name Plate is located
on the player side of the product. The model number, serial
number, power requirements, etc., are located on this plate.
You should record the model number, serial number, and the
date of purchase in the spaces provided below and retain this
manual as a permanent record of your purchase.

NAME
PLATE

NOTICE: Service charges incurred due to lack of knowl­edge relating to how a function or effect works (when the
unit is operating as designed) are not covered by the
manufacturer’s warranty; and are therefore the owners re­sponsibility. Please study this manual carefully and consult
your dealer before requesting service.

ENVIRONMENTAL ISSUES: Yamaha strives to produce
products that are both user safe and environmentally
friendly. We sincerely believe that our products and the pro­duction methods used to produce them, meet these goals. In
keeping with both the letter and the spirit of the law, we want
you to be aware of the following:

PLEASE KEEP THIS MANUAL

Model

Serial No.

Purchase Date

PRECAUTIONS

Please read the following instructions carefully before using your vibes.

● Installation Location

Use or storage in the following locations may cause
damage, even when packaged.

• In direct sunlight, such as near a window, or in a
closed vehicle in daytime.

• Near heating devices or in other locations subject
to excessive heat.

• In excessively cold environment.

• In places with excessive humidity or dust.

• Locations subject to vibrations.

The driver and the controller, in particular, must be
protected from high humidity to avoid corrosion and
short circuit.

● Do Not Use Outdoors

Avoid using the instrument outdoors. Avoid exposure
to rain or moisture.

● Power Supply

Make sure to use the supplied AC adapter. Use of
different adapters may cause damage not covered by
the warranty.

● Handling

• Never place an object on or lean against the instru­ment, as this may cause damage to the tone bars
and frame parts or topple the instrument, which is
extremely dangerous.

• Do not use hard orchestra bell mallets or other hard
objects on your vibes. The resulting dents or scratches
in the tone bars could impair the sound.

• Rough handling of the controller and/or the driver
may cause damage to the internal circuitry.

• Never try to disassemble the controller or driver, as
this may result in severe damage.

● Moving and Transporting the Instrument

• Move the instrument carefully to avoid shocks. Be­fore moving the instrument, make sure that the AC
adapter is disconnected and the caster brakes are
released. Also make sure to lift the instrument slightly
when moving over rough surfaces.

• When the instrument must be transported to a differ­ent location make sure to fully disassemble it, taking
care to pack each component properly. Disassembly
steps are in the opposite order of assembly.

● When Not in Use

• Make sure to turn off the power switch and discon­nect the AC adapter from the outlet.

• Always engage the caster brakes.

● Maintenance

The tone bars should be polished from time to time
using a soft and dry cloth or silicone cloth. Stains that
cannot be removed with a dry cloth may be wiped off
using a small amount of ethyl alcohol. Never use
thinner or benzene or a wet cloth for cleaning pur­poses.

● Keep This Manual for Future Reference

After reading, make sure to keep the manual in a safe
place.

Assembly Cautions

• When assembling/disassembling the instru­ment, make sure to follow the procedure out­lined in this manual. Assembly in the wrong
order may impair the performance and func­tionality of the instrument or cause noise.

• Make sure to adjust the wire clip positions
after assembly. (YV-3910/3710/3700: P. 17)

• Height adjustment of the striking surface (YV­3910/3710/3700: P. 18, YV-2700/2700G/
1600A/520: P 25) should be performed by AT
LEAST 2 PERSONS.

• After final adjustment of the legs the fixing
screws must be tightened securely to prevent
loosening. Looseness may cause the instru­ment to shift during performance and can also
cause noise and other problems. Retighten
the screws from time to time.

1

NOMENCLATURE : YV-3910/3710/3700/2700/2700G/1600A/520

Natural Tone Bars

Frame End
(Large)

Rail No. 1

Resonators
(Natural Tone Side)

Leg (Large)

Pedal Stay

* The illustration shows model YV-3710

Resonators
(Accidental
Tone Side)

Pedal

Accidental Tone Bars

Slant Shaft

Caster

Controller

Fan Belt

Frame End
(Small)

Slide Leg

Driver

Leg (Small)

AC Adapter

■ Vibes Drive Unit

● Controller (Player Side)

q POWER Switch

Turns the power on and off.

w MOTOR SPEED Slider

Controls the fan rotation speed.

e LED Indicator

Lights when the power is turned on and flashes
while the fan is rotating.

r START/STOP Button

Starts and stops fan rotation.

t DC 12V IN Jack
y MOTOR OUT Terminal
u MOTOR IN Terminal
i 8P DIN Cable
o AC Adapter

2

● Controller (Right Side)

● Driver (Player Side)

CONFIRMATION OF PACKING CONTENTS : YV-3700

The shipping carton of your YV-3700 should contain the parts shown below.
Before assembling the instrument, confirm that all parts are included as listed.

* In the event that a part is missing, please contact the shop where the instrument was purchased.

q Natural Tone Bars

w Accidental Tone Bars

e Resonators (Natural Tone Side)

r Resonators (Accidental Tone Side)

i Rail (1) : Player Side

Name Plate

Posts (Larger

o Rail (2) : Player Side

!0 Rail (3) : Audience Side

!1 Rail (4) : Audience Side

YAMAHA Logo

!2 Leg (Large) !3 Leg (Small)

Rail Clamp

Rail Clamp

number than parts
!0 and !1)

Posts

Posts

t Sustain Damper

y Reinforcement Stay

u Pedal Stay

!4 AC Adapter !5 Synchro Belt

(Fan Belt): 2 pcs.

Vibes Drive Unit: YVM-300

!6 Driver

!7 Controller

!8 8P DIN Cable

3

CONFIRMATION OF PACKING CONTENTS : YV-3910/3710

The shipping carton of your YV-3910/3710 should contain the parts shown below.
Before assembling the instrument, confirm that all parts are included as listed.

* In the event that a part is missing, please contact the shop where the instrument was purchased.

q Natural Tone Bars

w Accidental Tone Bars

e Resonators (Natural Tone Side)

r Resonators (Accidental Tone Side)

u Rail (1) : Player Side

Name Plate

i Rail (2) : Player Side

Rail Clamp

o Rail (3) : Audience Side

!0 Rail (4) : Audience Side

YAMAHA Logo

!1 Leg (Large)

Posts (Larger
number than parts
o and !0)

Rail Clamp

!2 Leg (Small)

Posts

Posts

t Sustain Damper

y Pedal Stay

4

!3 AC Adapter !4 Synchro Belt

(Fan Belt): 2 pcs.

Vibes Drive Unit: YVM-300

!5 Driver

!6 Controller

!7 8P DIN Cable

CONFIRMATION OF PACKING CONTENTS : YV-3910/3710

■ Dividable Parts and Collapsible Parts (YV-3910/3710 only)

The YV-3910’s/YV-3710’s large parts are designed to either divide or collapse. When the instrument is
broken down, its compact size makes it easy to transport and storage requires a minimum amount of space.

● Rails

The rails fold in from the center.

● Pedal Stay

The pedal stay divides into left and right sections and the pedal itself.
Loosen the 2 wing nuts and remove the stays from the pedal attachment.

Loosen

● Sustain Damper

The sustain damper divides into 2 sections.
Loosen the bolt and separate left and right sections.

Loosen

● Resonators

Both resonators divide into two sections.
Loosen both bolts and separate left and right sections.

* When assembling the resonators, make sure that the

pin and notch are properly aligned.

Loosen

NotchPin

5

ASSEMBLY : YV-3910/3710/3700

For safety, assembly should be performed by at least 2 persons in a location with sufficient space.
We recommend to you to assemble the instrument on a soft rug or carpet.

z Connect the large and the small leg using the reinforcement stay and pedal

stay.

* Before proceeding, make sure that the slide leg fixing bolts of the large and small leg are securely

fastened.

Leg (Small)

The tip of each slide leg fixing
bolt must be tightly seated in
one of the slide leg notches.

Slide Leg

Slide Leg
Fixing Bolt

Slide Leg
Fixing Bolt

Leg (Large)

Slide Leg
Fixing Bolt

1-1 ● YV-3910/3710 : Place the large leg, small leg, pedal stay (and reinforcement stay : YV-3700)

so that after assembly each part will be positioned as illustrated.

Low Sound
Side

Leg (Large)

Slant Shaft

Audience Side

Leg (Small)

Slide Leg
Fixing Bolt

High Sound
Side

Pedal Stay

Player Side

Pedal

Align flat surfaces.
Flat surface should
face player side.

6

ASSEMBLY: YV-3910/3710/3700

1-2 ● YV-3910/3710 : Insert the pedal stay with its notch facing up into the lower joint of the large leg

as far as it will go (aligning the notch with the fixing bolt) and tighten the fixing
bolt securely.

* The hole next to the notch serves as a reference for the correct insertion

position.

1-3 ● YV-3910/3710 : Connect the other ends of the pedal stay with the small leg in the same way.

Leg
(Large)

Tighten

Pedal Stay

Notch

Fixing
Bolt

Leg (Large)

Reference Hole

Pedal Stay

Notch

1-4 ● YV-3910/3710 : Loosen the slant shaft bolt, extend the shaft and insert the shaft end into the

leg joint.
With the notch aligned with the fixing bolt (the same as in the pedal stay
assembly) tighten the fixing bolt securely.

1-5 ● YV-3910/3710 : Connect the other side slant shaft with the small leg in the same way.

Leg Joint

Notch

Slant Shaft Bolt

7

ASSEMBLY: YV-3910/3710/3700

1-1 ● YV-3700 : Place the large leg, small leg, pedal stay (and reinforcement stay : YV-

3700) so that after assembly each part will be positioned as illustrated.

Low Sound
Side

Player Side

Leg (Large)

Align flat surfaces.
Flat surface should
face player side.

Reinforcement Stay

Pedal

Audience Side

Leg (Small)

High Sound
Side

Pedal Stay

1-2 ● YV-3700 :

Insert the pedal stay with its notch fac­ing up into the lower joint of the large

Leg
(Large)

Tighten

leg as far as it will go (aligning the notch
with the fixing bolt) and tighten the fixing

Pedal Stay

bolt securely.
* The hole next to the notch serves as a

reference for the correct insertion po­sition.

1-3 ● YV-3700 :

In the same way, insert the reinforce­ment stay with its notch facing down

Fixing
Bolt

Notch

Reference Hole

into the upper joint of the large leg and
tighten the fixing bolt.

Leg (Large)

Pedal Stay

1-4 ● YV-3700 :

Connect the other ends of both stays
with the small leg in the same way.

Notch

8

ASSEMBLY: YV-3910/3710/3700

Insert the rails (1) through (4) into the legs.

x

2-1 First, insert rail (2).

* Do not insert the rail one side at a time, but at first alternately push in the left and

right sides little by little , after which the rail can be pushed down until it stops.

2-2 Next, securely insert the rails (3), (1) and (4), in this order.

Rail (1): With name plate. The name plate side facing the player.

Rail (2): With rail clamp and more posts than rails (3) and (4). The clamp side facing the player.

Rail (3): With rail clamp and less posts than rail (2). The clamp side facing the audience.

Rail (4): With YAMAHA logo. Logo side facing the audience.

Post

Rail Clamp

Low Sound
Side

Name Plate

Audience Side

High Sound
Side

Player Side

* The illustration shows model YV-3710

9

ASSEMBLY: YV-3910/3710/3700

c Attach the sustain damper.

3-1 z Turn the fixing bolt (damper arm axle) of the damper arm attachment counterclock-

wise until the axle has fully disappeared in the attachment hole.

x Align the damper arm hole with the damper arm axle.
c Turn the fixing bolt of the damper arm attachment clockwise to insert the damper

arm axle into the sustain damper arm.

Sustain Damper Arm

Damper Arm
Attachment

Sustain Damper

Sustain Damper Arm

Damper Arm
Attachment

1

Damper Arm Axle

Sustain Damper Arm

Fixing
Bolt

Damper Arm Axle

Turn fixing bolt
to retract the
axle.

2

Sustain Damper
Arm

3

Screw in to insert damper
arm axle

10

ASSEMBLY: YV-3910/3710/3700

3-2 Align the holes in both ends of the damper spring stopper with the protrusions of the

fittings on the bottom surfaces of rails (2) and (3) and insert.

● YV-3910/3710

Bottom View

Rail (2)

● YV-3700

Protrusion

Damper Spring
Stopper

OK

OK

Damper
Spring
Stopper

Bottom View

Damper
Spring
Stopper

Protrusion

Protrusion

Rail (2)

Protrusion

Damper Spring
Stopper

11

ASSEMBLY: YV-3910/3710/3700

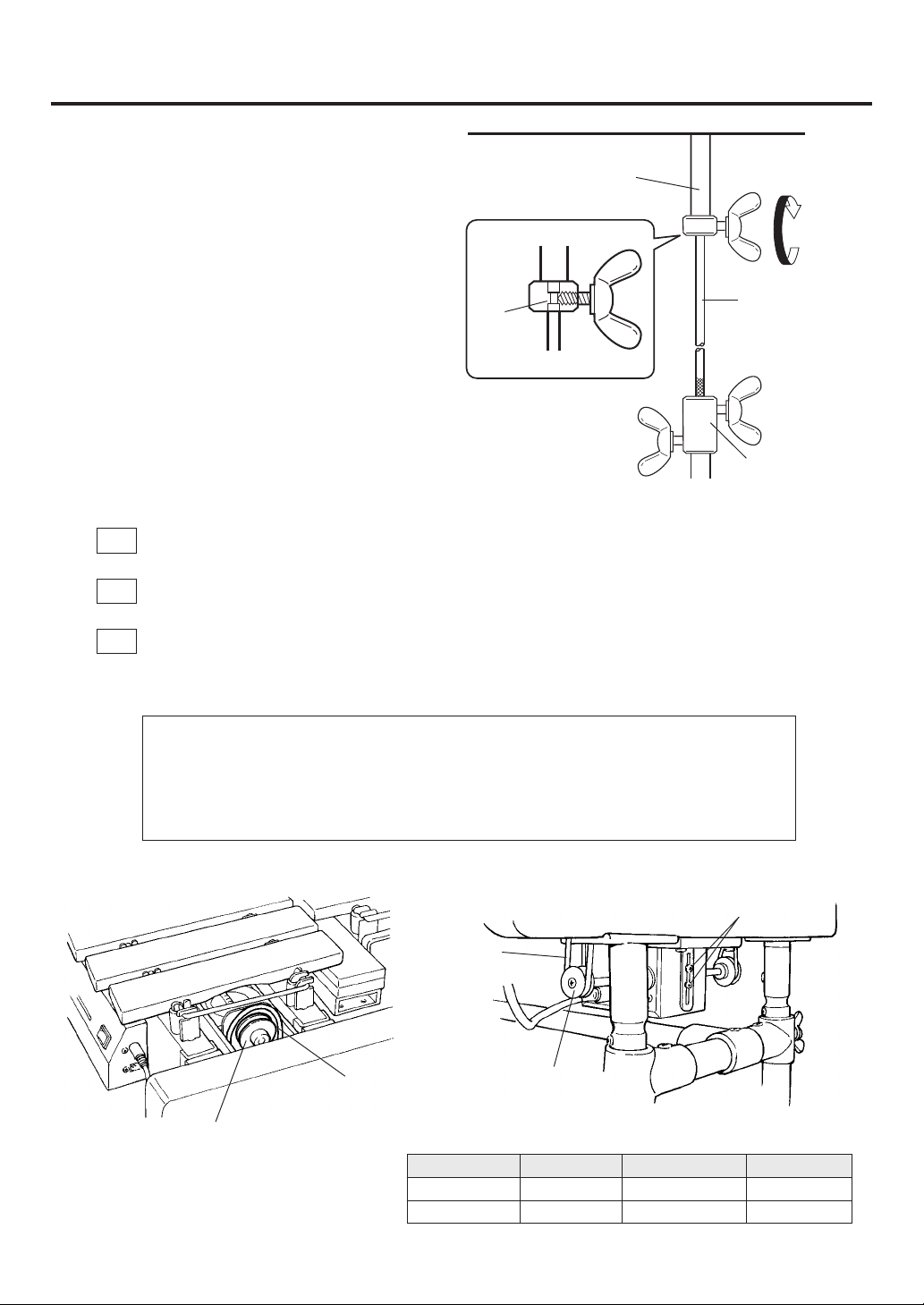

3-3 z Loosen the center rod fixing bolts to

extend the center rod.

x Connect the center rod with the fit-

ting of the rod connector by firmly
holding the center rod while turning
the rod connector.

c Tighten the rod connector until it

stops, and then secure with the lock
nut.

Rod Connector

x Turn
(screw on)

Lock Nut

c Secure

Center Rod

Knurled Part

z Loosen

z Loosen

Center Rod Fixing Bolt

v Attach the resonators.

4-1 Insert the resonators from underneath the frame and rest the high sound side and then the

low sound side onto the resonator holders (rubber).
* Make sure not to confuse the natural tone side and accidental tone side resonators.
* Take care not to bump the resonators against the legs etc.

Low Sound
Side

x

Accidental Tone
Side Resonators

To engage the low sound side, lift it over the

2

resonator holders and then insert it into the gap
between the two holders, as shown in the
illustration.

z

First, place the high sound side onto the corre-

1

sponding resonator holders.

High Sound
Side

Pedal Rod

Resonator
Holders

12

Resonator
Holders

ASSEMBLY: YV-3910/3710/3700

b Set the tone bars.

5-1 (Refer to the illustration of step 3-3 )

Raise the pedal until the knurled part is fully retracted, and fix the center rod by
tightening the center rod fixing bolt.

5-2 Engage the rail clamp on rail (2) and rail (3) with rail (1) and rail (4), respectively.

Rail Clamp

Rail (1)

Rail (3)

Rail (2)

Rail (4)

Rail Clamp

5-3 Hold the pedal depressed to keep the sustain damper lowered, and then carefully set

the tone bars.
Align each tone bar individually, and hook its string onto the corresponding post.
Confirm that all strings are secured to their posts, and then hook the two springs at the
low sound side into each other.

Springs

Low Sound Side High Sound Side

13

ASSEMBLY: YV-3910/3710/3700

n Attach the driver.

6-1 Loosen the fixing bolts at the bottom of rails (2) and (3) on the high sound side, and

slide both fittings in the direction of the low sound side.

6-2 Fully insert the driver mount into the support fitting.

6-1

Rail (2)

Slide the fittings.

Rail (3)

Fittings

Bottom View

Fixing Bolts

Motor Unit

Loosen the
fixing bolts.

6-2

Support Fitting

Insert mount
until it stops

Driver

Support Fitting

Pulley

14

6-3 Slide the fittings moved in step 6-1 back in the direction of the high sound side.

Engage the two side mounts on the driver securely with the fittings, and then tighten the
fixing bolts to fasten the driver.
* Set the driver so that the pulleys on either side are positioned directly below the fan

side pulleys.

Fitting

Tighten
fixing
bolts.

Bottom View

Fitting

Fixing Bolts

Fitting

ASSEMBLY: YV-3910/3710/3700

Attach the controller.

m

7-1 ● YV-3910/3710 : Loosen the fixing bolt, slide out the controller hanger and hang the

controller on the hanger. Return the controller hanger to its proper
position and tighten the fixing bolt.

● YV-3700 : There are two controller mounting pins on the high sound side of
rail (1). Align the two holes in the controller mounts with these pins
and hook the controller onto the pins one side at a time.

● YV-3700● YV-3910/3710

Fixing bolt

High Sound Side

Controller mounting pins

High Sound Side

Controller hunger

Controller

Controller

, Connect the driver with the controller.

8-1 Connect the MOTOR IN terminal of the driver with the MOTOR OUT terminal of the

controller using the supplied 8P DIN cable*.
To connect align the arrow mark (

Controller

Screw

Arrow Mark

8P DIN Cable

) on the plug with the screw next to the jack.

Driver

Screw

Arrow Mark

* In case the 8P DIN cable is misplaced, the following spare part may be ordered:

Part No. Part Name Specification

W5128092 8P DIN Cable L=220

15

ASSEMBLY: YV-3910/3710/3700

. Set the synchro belts (fan belts)*.

9-1 First, wrap the synchro belt around the driver pulley and then carefully slide it over the

fan side pulley.

* Note For Service Personnel

If the belt cannot be mounted because the distance between pulleys is too wide,
or the belt slips due to a too narrow pulley distance, loosen the two driver
positioning screws (see illustration below) to adjust the pulley distance (belt
tension). Tighten the screws securely after adjustment.

Synchro Belt
(Fan Belt)

Driver Side

Driver Positioning
Screws

Pulley

Fan Side

Synchro Belt (Fan Belt)

* Slide belt over the pulley.

Pulley

16

* In case the belt is misplaced or worn, the following spare part may be ordered:

Part No. Part Name Specification

W5128092 Synchro Belt 18OTN15-3.0

ADJUSTMENTS

⁄0

ASSEMBLY: YV-3910/3710/3700

10-1 Pedal Stroke Adjustment

Loosen the center rod fixing bolts to adjust the
protruding length of the center rod to the desired

9/16" ~ 13/16"

(1.5 ~ 2 cm)

Pedal

pedal stroke, and retighten the bolts. The recom­mended stroke (distance between pedal and floor)
is 9/16" to 13/16" (1.5 to 2 cm).

Floor

10-2 Wire Clip Adjustment

For shipment the wire clip is initially set at a low position for packing reasons. For
normal use this clip should be adjusted as follows: With the pedal released loosen the
fixing bolt of the wire clip, shift the clip up until distance A in the illustration below is
1/16" to 1/8" (1 to 3 mm), and tighten the wing bold in this position.
The clip also allows setting the instrument to "half sustain damper" (slight continuous
damper effect) or "open damper"* by changing its position accordingly.
* To set to "open damper" depress the damper pedal fully to keep the damper open,

and set the wire clip to the highest position to lock the damper.

10-3 Damper Spring Adjustment

The damper effect (its pressing force on the tone bars) and the pedal force can be
increased by turning the spring adjustment wheel counterclockwise.

Spring Adjustment
Wheel

WeakStrong

Center Rod Fixing Bolt

A

Wire Clip

Center Rod

Pedal Stroke Adjustment

17

ASSEMBLY: YV-3910/3710/3700

10-4 Tone Bar Height Adjustment

This adjustment should always be performed by at least 2 persons.

To adjust the height of the tone bars, first remove the synchro belt, driver, controller,
tone bars, and resonators in the reverse order of steps
loosen the center rod fixing bolts.
Loosen the slide leg fixing bolts on the high and low sound sides, while supporting the
frame ends by hand.
Lift the frame ends to the desired height and then securely tighten each fixing bolt,
aligning it with the corresponding notch of the slide leg. Bolt and notch are aligned
when the next higher notch is flush with the upper leg flange.

., ,, m, n, b, and v, and

Slide Leg

Align notch with
upper flange.

After assembly, confirm that each bolt and screw is tightened securely.

When a slide leg fixing bolt is tightened in between two notches,
there is a danger of the slide leg slipping. Always make sure
that the slide legs are held securely.

Do not touch the notched
part during height adjust­ment to avoid injury.

* The fourth notch from top

corresponds to the standard
height setting.

18

BEFORE PLAYING : YV-3910/3710/3700/2700/2700G/1600A/520

■ Power Supply

Prepare the supplied AC adapter.

* Make sure to use the supplied AC adapter. Use of different adapters may cause damage not

covered by the warranty.

z Connect the small plug of the AC adapter to the DC 12V IN jack on the controller.
x Plug the AC adapter into a power outlet.

Controller

AC Adapter

MOTOR OUT

DC 12V IN

DC 12V IN

AC

* Wrapping the AC adapter

cord once around one of
the legs will prevent
accidental disconnection of
the adapter plug.

■ PAUSE MEMORY FUNCTION SETTING (YV-3910/3710/3700 only)

The YV-3910, YV-3710 and YV-3700 are equipped with a PAUSE MEMORY FUNCTION which
stops the fan always in exactly the same position when it is turned off (no vibrato applied).
After connection to an AC outlet, set the PAUSE MEMORY to the desired fan stop position as
follows:

z Turn the controller power ON.
x Press the START/STOP button once to start the fan, and

then press the START/STOP button once again to stop
the fan.

c Remove the synchro belt by sliding it off the fan side

pulley, as shown in the illustration. Position the fan verti­cally (fan position with strongest resonator effect) and
remount the belt.
Perform this setting for both the natural and the acciden­tal tone side.

Synchro Belt

Fan Side Pulley

Slide belt

off.

Set the fan to a vertical
position.

Fan

Resonator

19

CONFIRMATION OF PACKING CONTENTS : YV-2700/2700G/1600A/520

The shipping carton of your YV-2700/2700G/1600A/520 should contain the parts shown below.
Before assembling the instrument, confirm that all parts are included as listed.

* In the event that a part is missing, please contact the shop where the instrument was purchased.

q Vibes Main Unit

w Leg (Large) e Leg (Small)

Slide Legs

Slide Legs

y Reinforcement Stay (YV-2700/2700G only)

u Pedal Stay

(YV-2700/2700G)

(YV-1600A/520)

i AC Adapter

o Round Belt

(Fan Belt): 2 pcs.

r Resonators (Natural Tone Side)

t Resonators (Accidental Tone Side)

20

Vibes Drive Unit: YVM-200/YVM-100

!0 Driver

* The driver of YV-520 is attached to q Main Unit.

!1 Controller

!2 8P DIN Cable

ASSEMBLY : YV-2700/2700G/1600A/520

For safety, assembly should be performed by at least 2 persons in a location with sufficient space.
We recommend to you to assemble the instrument on a soft rug or carpet to avoid scratches in the tone
bars.

1 Loosen the slide leg fixing bolts of the large and the small leg, and remove the four slide

legs.

Slide Legs

Slide Leg
Fixing Bolt

Leg (Large)

* The illustrations show model YV-2700/2700G

2 Place the main unit bottom side up on the floor.
3 Screw each slide leg into the screw hole at the bottom side of the main unit. (All four

slide legs are identical.)

Slide Legs

Slide Leg
Fixing Bolt

Leg (Small)

Tighten

Slide Leg
Fixing Bolt

21

ASSEMBLY : YV-2700/2700G/1600A/520

4 Place the large leg, small leg, pedal stay and reinforcement stay* so that after assem-

bly each part will be positioned as illustrated. (* YV-1600A/520 is not equipped with a
reinforcement stay)

Low Sound Side

Leg (Large)

Player Side

Reinforcement
Stay*

Pedal

5 Connect the large leg and small leg

with the pedal stay and the reinforce­ment stay.
Insert the pedal stay with its notch fac­ing up into the lower joint of the large
leg as far as it will go (aligning the
notch with the fixing bolt) and tighten
the fixing bolt securely.
* The hole next to the notch serves

as a reference for the correct inser­tion position.

6 In the same way, insert the reinforce-

ment stay with its notch facing down
into the upper joint of the large leg and
tighten the fixing bolt.

Leg
(Large)

Pedal Stay

Fixing
Bolt

Audience Side

Leg (Small)

High Sound
Side

Tighten

Pedal Stay

Notch

Pedal Stay

22

7 Connect the other ends of both stays

with the small leg in the same way.

Notch

Leg (Large)

ASSEMBLY : YV-2700/2700G/1600A/520

8 Connect the slide legs with the legs.

Align the legs from above so that the slide legs slide into the corresponding leg holes. Adjust
to the desired height and then securely tighten each slide leg fixing bolt, aligning it with the
corresponding notch of the slide leg. Fixing bolt and notch are aligned when the next lower
notch is flush with the upper leg flange.

High
Sound
Side

Align notch
with upper
flange.

Do not touch the notched
part during height adjust­ment to avoid injury.

* The fourth notch from the tone bar side

corresponds to the standard height
setting.

When a slide leg fixing bolt is tightened in between two notches,
there is a danger of the slide leg slipping. Always make sure
that the slide legs are held securely.

9 After fixing the legs, connect the pedal

with the sustain damper.

● For YV-2700/2700G:

z Loosen the center rod fixing bolts

to extend the center rod.

x Connect the center rod with the

fitting of the rod connector by
firmly holding the center rod while
turning the rod connector.

c Tighten the rod connector until it

stops, and then secure with the
lock nut.

Low
Sound
Side

Rod Connector

x Turn

(screw on)

Lock Nut

c Secure

Center Rod

Knurled Part

z Loosen

z Loosen

Center Rod Fixing Bolt

Pedal Rod

23

ASSEMBLY : YV-2700/2700G/1600A/520

● For YV-1600A/520
Loosen the center rod fixing bolts to
extend the center rod, and insert the
center rod into the fitting of the rod
connector. Align the groove in the
center rod with the tip of the fixing
bolt, and then securely tighten the
fixing bolt.

10 Stand up the vibes, and attach the resonators. (Refer to YV-3910/3710/3700 assembly

v on page 12.)

step

11 Mount the driver and the controller, and connect them using the supplied 8P DIN cable.

(Refer to YV-3910/3710/3700 assembly steps n through , on pages 14 and 15.)

12 Attach the round belt (fan belt)*.

Slip the round belt (fan belt) over the fan side pulley first, and then pull it over the flange of
the driver pulley.

Rod Connector

Tighten

Center Rod

Groove

Pedal Rod

* Note For Service Personnel

If the belt cannot be mounted because the distance between the pulleys is too wide,
or the belt slips due to a too narrow pulley distance, loosen the two driver positioning
screws (see illustration below) to adjust the pulley distance (belt tension). Tighten the
screws securely after adjustment.

Fan Side

Pulley

Round Belt
(Fan Belt)

Round Belt
(Fan Belt)

Pulley

* In case the belt is misplaced or worn, the following spare part may be ordered:

Model Part No. Part Name Specification

YV-2700/2700G W5 128041 Fan Belt 3ØL275

YV-1600A/520 W5 128070 Fan Belt 3ØL236

Driver Side

Driver Positioning
Screws

24

ASSEMBLY : YV-2700/2700G/1600A/520

13 Adjust the pedal stroke. (Refer to YV-3910/3710/3700 assembly step 10-1 on page 17.)

14 After assembly, confirm that each bolt and screw is tightened securely.

15 Height adjustment should always be performed by at least 2 persons.

To adjust the height of the tone bars, first remove the round belt (fan belt), driver, controller and tone
bars*, and loosen the center rod fixing bolts. (* To remove the tone bars, disengage the springs on the
low sound side, and then unhook the string from the post.)
Support both frame ends by hand (do not touch the metal parts shown in the illustration), and loosen
the slide leg fixing bolts.

Frame

Do not touch !

Lift the frame ends to the desired height and then securely tighten each slide leg fixing bolt, aligning
it with the corresponding notch of the slide leg. Bolt and notch are aligned when the next higher notch
is flush with the upper leg flange. (Refer to step

When a slide leg fixing bolt is tightened in between two
notches, there is a danger of the slide leg slipping.
Always make sure that the slide legs are held securely.

16 This completes the assembly of the instrument.

To play, connect the supplied AC adapter to the DC 12V IN jack of the controller. (Refer to YV-3700
assembly procedure, "Power Supply", on page 19.)

, on page 23.)

For height adjustment, make
sure to support the instrument
by the wooden frame. Do not
touch the metal parts.

25

■ SPECIFICATIONS/SCALE RANGE

● YV-3910

Range c–f3, 3-1/2 Octaves
Bars Aluminum Alloy/Glossy Gold Finish, graduating from 1-1/8" to 2-1/5" wide, 1/2" thick
Pitch A = 442 Hz
Drive Unit YVM-300 (Pause-Memory Controller), 25–150 rpm
Dimensions
Height Adjustment 86–94 cm (33-7/8" x 37")
Oversized Castors 4" high

(Length x Width)

164 x 79 cm (64-5/8" x 31-1/8")

● YV-3710/YV-3700

Range f–f3, 3 Octaves
Bars Aluminum Alloy/Glossy Gold Finish, graduating from 1-1/2" to 2-1/4" wide, 1/2" thick
Pitch A = 442 Hz
Drive Unit YVM-300 (Pause-Memory Controller), 25–150 rpm
Dimensions
Height Adjustment YV-3710: 86–94 cm (33-7/8" x 37")

Weight YV-3710: 60 kg (132.3 lbs)
Oversized Castors 4" high

(Length x Width)

143 x 82 cm (56-1/4" x 32-1/4")

YV-3700: 81–89 cm (31-7/8" x 35")
YV-3700: 58 kg (127.8 lbs)

● YV-2700 / YV-2700G

Range f–f3, 3 Octaves
Bars Aluminum Alloy, graduating from 1-1/2" to 2-1/4" wide, 1/2" thick

Pitch A = 442 Hz
Drive Unit YVM-200 (Pause Controller), 25–150 rpm
Dimensions
Height Adjustment 81–89 cm (31-7/8" x 35")
Weight 57 kg (125.6 lbs)
Oversized Castors 4" high

(Length x Width)

YV-2700: Silver Satin Finish YV-2700G: Glossy Gold Finish

143 x 82 cm (56-1/4" x 32-1/4")

● YV-1600A

Range f–f3, 3 Octaves
Bars Aluminum Alloy, 1-1/2" wide, 1/2" thick
Pitch A = 442 Hz
Drive Unit YVM-200 (Pause Controller), 25–150 rpm
Dimensions
Height Adjustment 80–88 cm (31-1/2" x 34-5/8")
Weight 38 kg (83.8 lbs)

(Length x Width)

124 x 74 cm (48-7/8" x 29-1/8")

● YV-520

Range f–f3, 3 Octaves
Bars Aluminum Alloy
Pitch A = 442 Hz
Drive Unit YVM-100 (Pause Controller), 25–150 rpm
Dimensions
Height Adjustment 79–87 cm (31" x 34-1/4")
Weight 31 kg (69 lbs)

(Length x Width)

106 x 68 cm (41-3/4" x 26-3/4")

■ SCALE RANGE

27 28 30 32 33 35 37 39 40 42 44 45 47 49 51 52 54 56 57 59 61 63 64 66 68 69 71 73 75 76 78 80 81 83 85 87 88

Middle C

Scale Range

2317350

* Specifications subject to change without notice.

Printed in Japan
