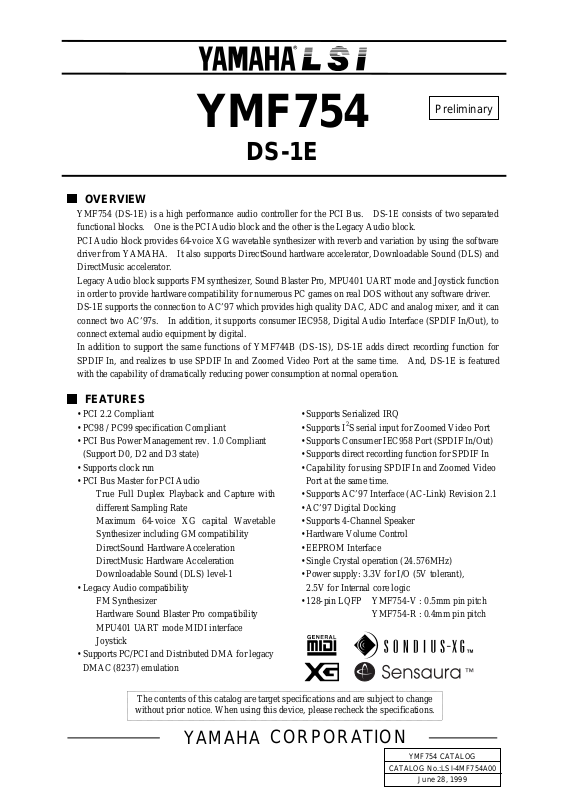

Yamaha YMF754 Datasheet

Preliminary

YMF754

DS-1E

OVERVIEW

YMF754 (DS-1E) is a high performance audio controller for the PCI Bus. DS-1E consists of two separated
functional blocks. One is the PCI Audio block and the other is the Legacy Audio block.
PCI Audio block provides 64-voice XG wavetable synthesizer with reverb and variation by using the software
driver from YAMAHA. It also supports DirectSound hardware accelerator, Downloadable Sound (DLS) and
DirectMusic accelerator.
Legacy Audio block supports FM synthesizer, Sound Blaster Pro, MPU401 UART mode and Joystick function
in order to provide hardware compatibility for numerous PC games on real DOS without any software driver.
DS-1E supports the connection to AC’97 which provides high quality DAC, ADC and analog mixer, and it can
connect two AC’97s. In addition, it supports consumer IEC958, Digital Audio Interface (SPDIF In/Out), to
connect external audio equipment by digital.
In addition to support the same functions of YMF744B (DS-1S), DS-1E adds direct recording function for
SPDIF In, and realizes to use SPDIF In and Zoomed Video Port at the same time. And, DS-1E is featured
with the capability of dramatically reducing power consumption at normal operation.

FEATURES

• PCI 2.2 Compliant

• PC98 / PC99 specification Compliant

• PCI Bus Power Management rev. 1.0 Compliant
(Support D0, D2 and D3 state)

• Supports clock run

• PCI Bus Master for PCI Audio

True Full Duplex Playback and Capture with
different Sampling Rate
Maximum 64-voice XG capital Wavetable
Synthesizer including GM compatibility
DirectSound Hardware Acceleration
DirectMusic Hardware Acceleration
Downloadable Sound (DLS) level-1

• Legacy Audio compatibility

FM Synthesizer
Hardware Sound Blaster Pro compatibility
MPU401 UART mode MIDI interface
Joystick

• Supports PC/PCI and Distributed DMA for legacy
DMAC (8237) emulation

• Supports Serialized IRQ

• Supports I

• Supports Consumer IEC958 Port (SPDIF In/Out)

• Supports direct recording function for SPDIF In

• Capability for using SPDIF In and Zoomed Video
Port at the same time.

• Supports AC’97 Interface (AC-Link) Revision 2.1

• AC’97 Digital Docking

• Supports 4-Channel Speaker

• Hardware Volume Control

• EEPROM Interface

• Single Crystal operation (24.576MHz)

• Power supply: 3.3V for I/O (5V tolerant),

2.5V for Internal core logic

• 128-pin LQFP YMF754-V : 0.5mm pin pitch

2

S serial input for Zoomed Video Port

YMF754-R : 0.4mm pin pitch

The contents of this catalog are target specifications and are subject to change

without prior notice. When using this device, please recheck the specifications.

YAMAHA

CORPORATION

CATALOG No.:LSI-4MF754A00

YMF754 CATALOG

December 18, 1998

June 28, 1999

YMF754

LOGOS

GENERAL MIDI logo is a trademark of Association of Musical Electronics Industry (AMEI),
and indicates GM system level 1 Compliant.

XG logo is a trademark of YAMAHA Corporation.

1. GM system level 1

GM system level 1 is a world standard format about MIDI synthesizer which provides voice arrangements
and MIDI functions.

2. XG

XG is a format about MIDI synthesizer that is proposed by YAMAHA, and keeps the upper compatibility of
GM system level 1. T he good points are the voice arrangements kept extensively, a large number of the
voices, modification of the voices, 3 kinds of effects, and so on.

3. SONDIUS-XG

Products bearing the SONDIUS-XG logo are licensed under patents of Stanford University and YAMAHA
Corporation as listed on <http://www.sondius-xg.com>. The SONDIUS-XG produces acoustic sound
outputs by running a virtual simulation of the actual acoustic instrument operatio n. Therefore , it provides
much more real-world acoustic sound outputs fundamentally different fr om the Wavetable sound generator
that simply processes the recorded acoustic sound sources only. T he SONDIUS-XG adds the technology
of virtual acoustic sound to the XG format.

4. Sensaura

Sensaura is a technology which provides 3D positional audio and moving effect by HRTF (Head Related
Transfer Function) with 2 speakers or headphone. This feature makes it possible to enjoy invariable and
unchangeable sound feelings in all-positional area covering as wide as 360 degrees.

SONDIUS-XG logo is a trademark that Stanford University in the United States and
YAMAHA Corporation hold jointly.

Sensaura logo is a trad emark of Central Research Laboratories Limited.

-2-

June 28, 1999

YMF754

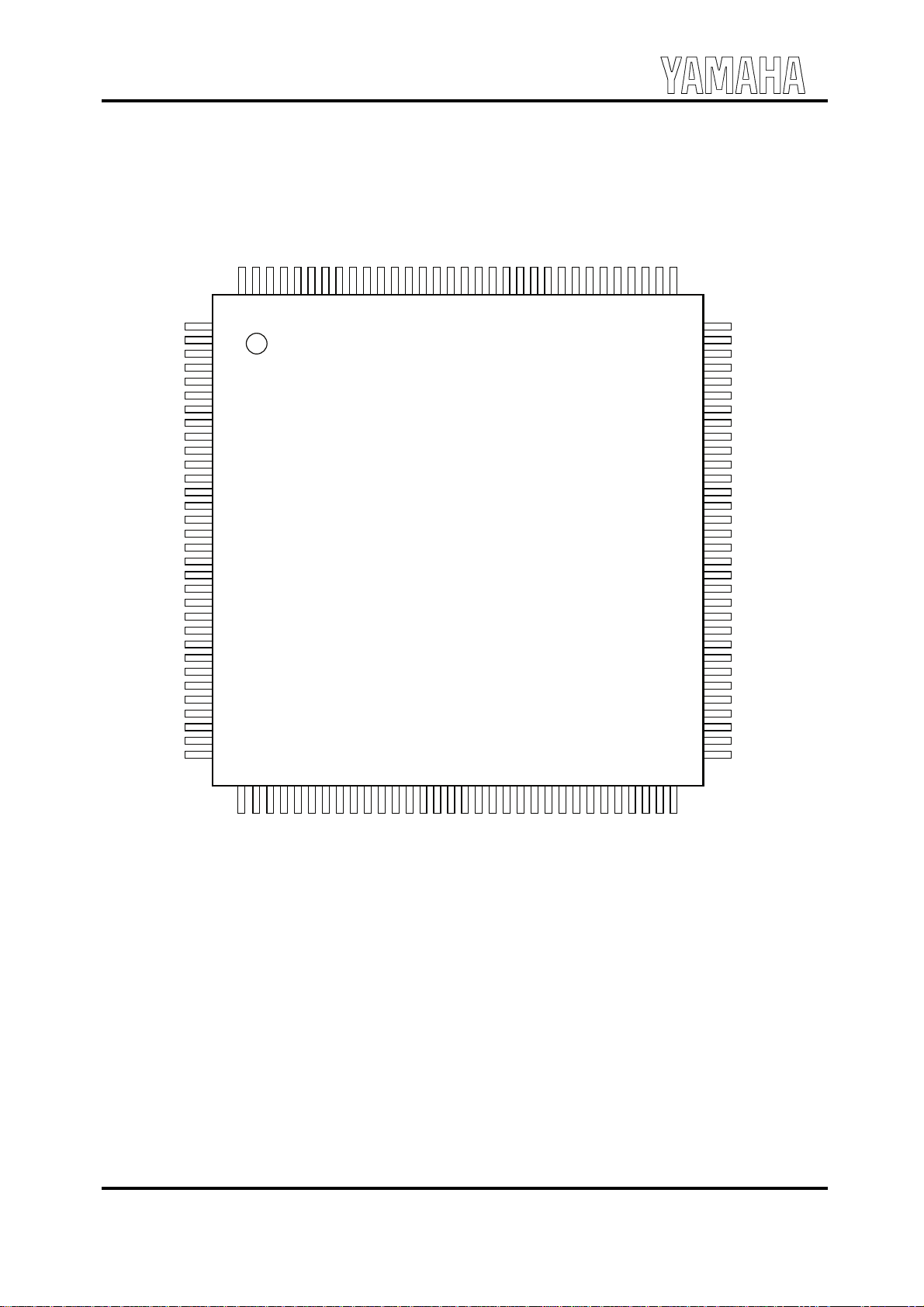

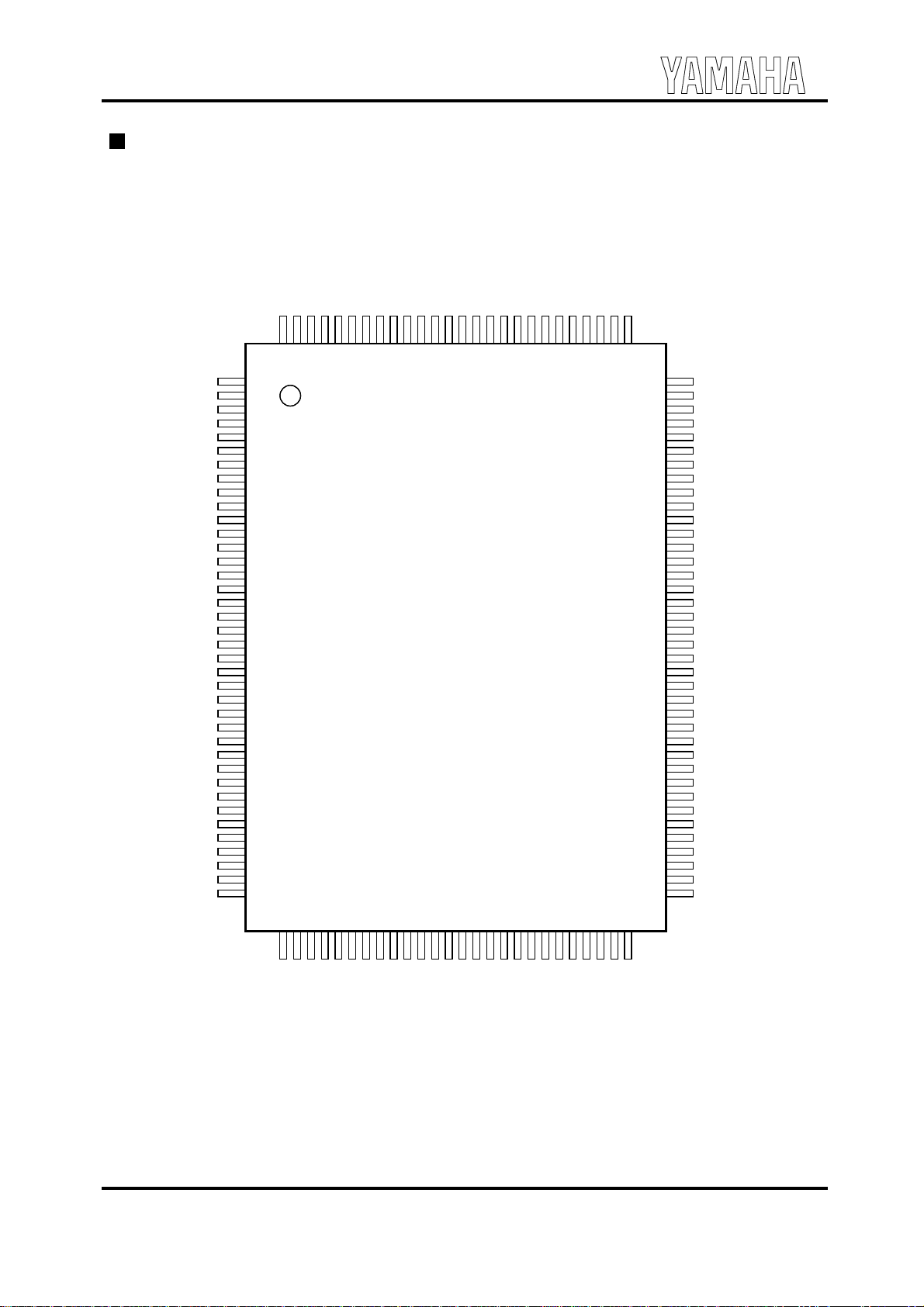

PIN CONFIGURATION

YMF754-V (0.5mm pin pitch)

AD26

PVDD2

AD25

AD24
CBE3#
IDSEL

AD23
PVSS4

AD22

AD21

AD20

AD19

AD18

AD17

AD16
CBE2#
PVSS3

FRAME#

IRDY#
TRDY#

DEVSEL#

PVDD1
STOP#
PERR#
SERR#

PAR
CBE1#
PVSS2

AD15
AD14
AD13
AD12
AD11
AD10

AD9

AD8
PVSS1
CBE0#

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

AD27

AD28

PVSS5

AD29

AD30

AD31

REQ#

128

39

127

40

126

41

125

42

124

43

123

44

122

45

GNT#

PCICLK

120

121

47

46

RST#

PVSS6

118

119

49

48

INTA#

PVDD3

RESERV0

115

116

117

52

51

50

GP7

RESERV1

CVDD2

112

113

114

55

54

53

GP6

111

56

GP5

110

57

GP4

109

58

GP3

108

59

GP2

107

60

GP1

RXD

TXD

GP0

103

104

105

106

102
101
100

99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

64

63

62

61

TEST#
VDD2
VSS2
VDD1
CMCLK
CSDO
CBCLK
CSDI0
CSYNC
CRST#
VDD0
VSS1
RESERV2
RESERV3
CSDI1
DOCKEN#
LVSS
XI24
XO24
LOOPF
LVDD
CVDD1
ZVBCLK
ZVLRCK
ZVSDI
SPDIFOUT
SPDIFIN
IRQ11
IRQ10
IRQ9
IRQ7
IRQ5
GPIO2
GPIO1
GPIO0
RESERV4
RESERV5
RESERV6

AD7

AD6

AD5

PVDD0

AD4

AD3

AD2

AD1

AD0

PVSS0

PCGNT#

SERIRQ#

128 Pin LQFP Top View

CVDD0

PCREQ#

CLKRUN#

-3-

ROMDI

ROMCS

RESERV11

RESERV12

ROMDO/VOLDW#

ROMSK/VOLUP#

RESERV9

RESERV8

RESERV7

RESERV10

VSS0

June 28, 1999

YMF754

YMF754-R (0.4mm pin pitch)

AD25

PVDD2

AD27

AD28

PVSS5

AD29

AD30

AD31

REQ#

GNT#

PCICLK

RST#

PVSS6

PVDD3

RESERV0

INTA#

CVDD2

GP7

RESERV1

GP6

GP5

GP4

AD26

GP3

GP2

GP1

GP0

TXD

RXD

TEST#

VDD2

VSS2

AD24
CBE3#
IDSEL

AD23
PVSS4

AD22

AD21

AD20

AD19

AD18

AD17

AD16
CBE2#
PVSS3

FRAME#

IRDY#
TRDY#

DEVSEL#

PVDD1
STOP#
PERR#
SERR#

PAR
CBE1#
PVSS2

AD15
AD14
AD13
AD12
AD11
AD10

AD9

127

126

124

123

122

120

121

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

102

125

128

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

33343536373839404142434445464748495051525354555657585960616263

103

101

999897

100

64

96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65

VDD1
CMCLK
CSDO
CBCLK
CSDI0
CSYNC
CRST#
VDD0
VSS1
RESERV2
RESERV3
CSDI1
DOCKEN#
LVSS
XI24
XO24
LOOPF
LVDD
CVDD1
ZVBCLK
ZVLRCK
ZVSDI
SPDIFOUT
SPDIFIN
IRQ11
IRQ10
IRQ9
IRQ7
IRQ5
GPIO2
GPIO1
GPIO0

AD8

PVSS1

AD7

AD6

CBE0#

AD5

PVDD0

AD4

AD3

AD2

AD1

AD0

PVSS0

PCGNT#

SERIRQ#

128 Pin LQFP Top View

CVDD0

PCREQ#

CLKRUN#

-4-

ROMDI

ROMCS

RESERV11

RESERV12

ROMDO/VOLDW#

ROMSK/VOLUP#

RESERV9

RESERV8

RESERV7

RESERV10

VSS0

RESERV5

RESERV6

RESERV4

June 28, 1999

YMF754

PIN DESCRIPTION

1. PCI Bus Interface (54-pin)

Name I/O Type Size Function

PCICLK I P - PCI Clock
RST# I P - Reset
AD[31:0] IO Ptr - Address / Data
C/BE[3:0]# IO Ptr - Command / Byte Enable
PAR IO Ptr - P arity
FRAME# IO Pstr - Frame
IRDY# IO Pstr - Initiator Ready
TRDY# IO Pstr - Target Ready
STOP# IO Pstr - Stop
IDSEL I P - ID Select
DEVSEL# IO Pstr - Device Select
REQ# O P - PCI Bus Master Request
GNT# I P - PCI Bus Master Grant
PCREQ# O Ptr - PC/PCI Request
PCGNT# I Ptr - PC/PCI Grant
PERR# IO Pstr - Parity Error
SERR# O Pod - System Error
INTA# O Pod - Interrupt signal output for PCI Bus
SERIRQ# IO Ptr - Serialized IRQ
CLKRUN# IO Ptr - Clock Run

2. AC’97 Interface (8-pin)

Name I/O Type Size Function

CRST# O T 6mA Reset signal for AC’97
CMCLK O C - Master Clock for AC’97 (24.576MHz)
CBCLK I T - AC-link: Bit Clock for AC’97 audio data
CSDO O T 6mA AC-link: AC’97 Serial audio output data
CSYNC O T 6mA AC-link: AC’9 7 Synchronized signal
CSDI0 I T - AC-link: AC’97 Serial audio input data (Primary)
CSDI1 I Tup - AC-link: AC’97 Serial audio input data (Secondary)
DOCKEN# I Tup - Secondary AC’97 Enable

June 28, 1999

-5-

YMF754

3. External Audio Interface (5-pin)

Name I/O Type Size Function

SPDIFOUT O T 2mA Digital Audio Interface output
SPDIFIN I Tup - Digital Audio Interface input
ZVBCLK I Tup - Zoomed Video Port Bit Clock
ZVLRCK I Tup - Zoomed Video Port L/R Clock
ZVSDI I Tup - Zoomed Video Port Serial Data

4. Legacy Device Interface (15-pin)

Name I/O Type Size Function

Interrupt 5 of Legacy Audio

IRQ5 O Ttr 6mA

IRQ7 O Ttr 6mA Interrupt 7 of Legacy Audio
IRQ9 O Ttr 6mA Interrupt 9 of Legacy Audio
IRQ10 O Ttr 6mA Interrupt 10 of Legacy Audio
IRQ11 O Ttr 6mA Interrupt 11 of Legacy Audio.
GP[3:0] I A - Joystick Port
GP[7:4] I Tup - Joystick Port
RXD I Tup - MIDI Data Receive
TXD O T 2mA MIDI Data Transfer

It is directly connected to the interrupt signal of
System I/O chip.

5. Miscellaneous (11-pin)

Name I/O Type Size Function

ROMCS O T 2mA Chip select for external EEPROM

ROMSK / VOLUP# IO Tup 2mA

ROMDO / VOLDW# IO Tup 2mA

ROMDI I Tup - Serial data input for external EEPROM
XI24 I C - 24.576 MHz Crystal
XO24 O C - 24.576 MHz Crystal
LOOPF I A - Capacitor for PLL

GPIO[2:0] IO Tup 6mA

TEST# I Tup - LSI Test pin (Do not connect externally.)

Serial clock for external EEPROM
or Hardware Volume (Up)
Serial data output for external EEPROM
or Hardware Volume (Down)

General purpose Input / Output
GPIO2 can use for a reset pin of Secondary AC’97.

June 28, 1999

-6-

YMF754

6. Power Supply (22-pin)

Name I/O Type Size Function

PVDD[3:0] - - - 3.3V Power supply for PCI Bus Interface
PVSS[6:0] - - - Ground for PCI Bus Interface
CVDD[2:0] - - - 2.5V Power supply for Core logic
VDD[2:0] - - - 3.3V Power supply
VSS[2:0] - - - Ground
LVDD - - - 2.5V Power supply for PLL Filter
LVSS - - - Ground for PLL Filter

7. Reserve Pin (13-pin)

Name I/O Type Size Function

RESERV[12:0] - - - Reserve pins (Do not connect externally.)

TYPE

T : TTL A : Analog Ptr : Tri-State PCI

Ttr : Tri-State TTL C : CMOS Pstr : Sustained Tri-Sate PCI

Tup : Pull up (Max. 300kohm) TTL P : PCI Pod : Open Drain PCI

-7-

June 28, 1999

YMF754

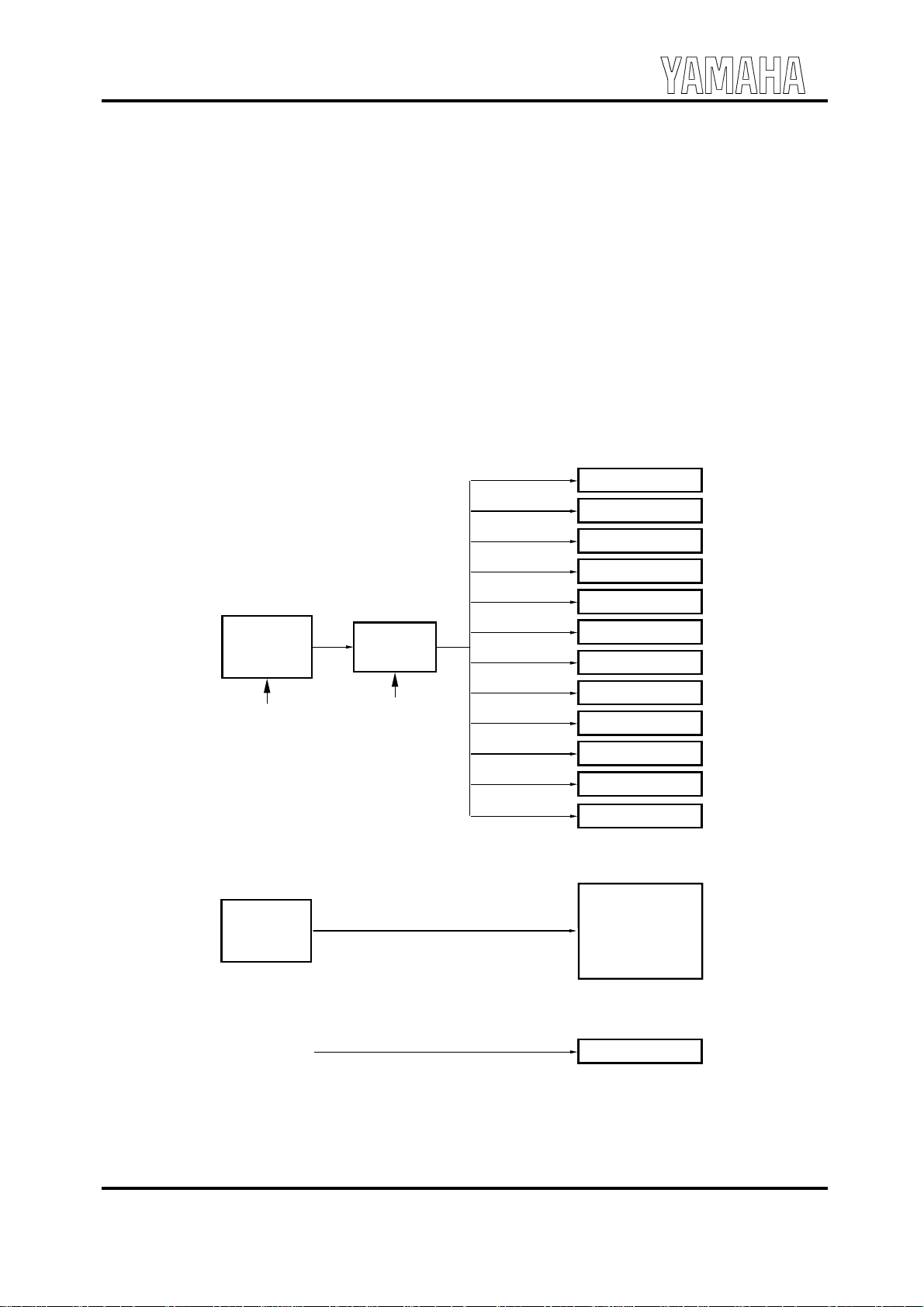

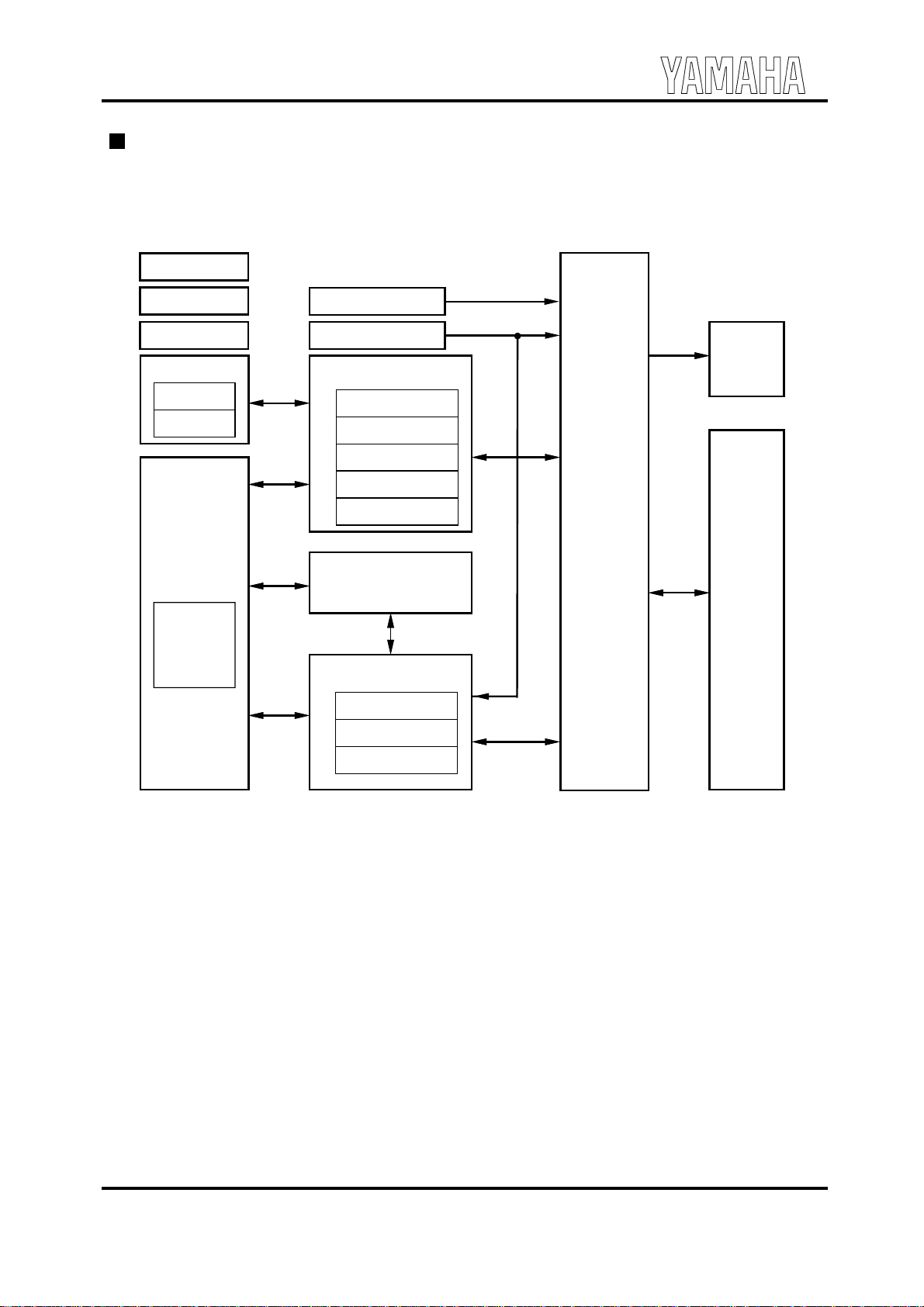

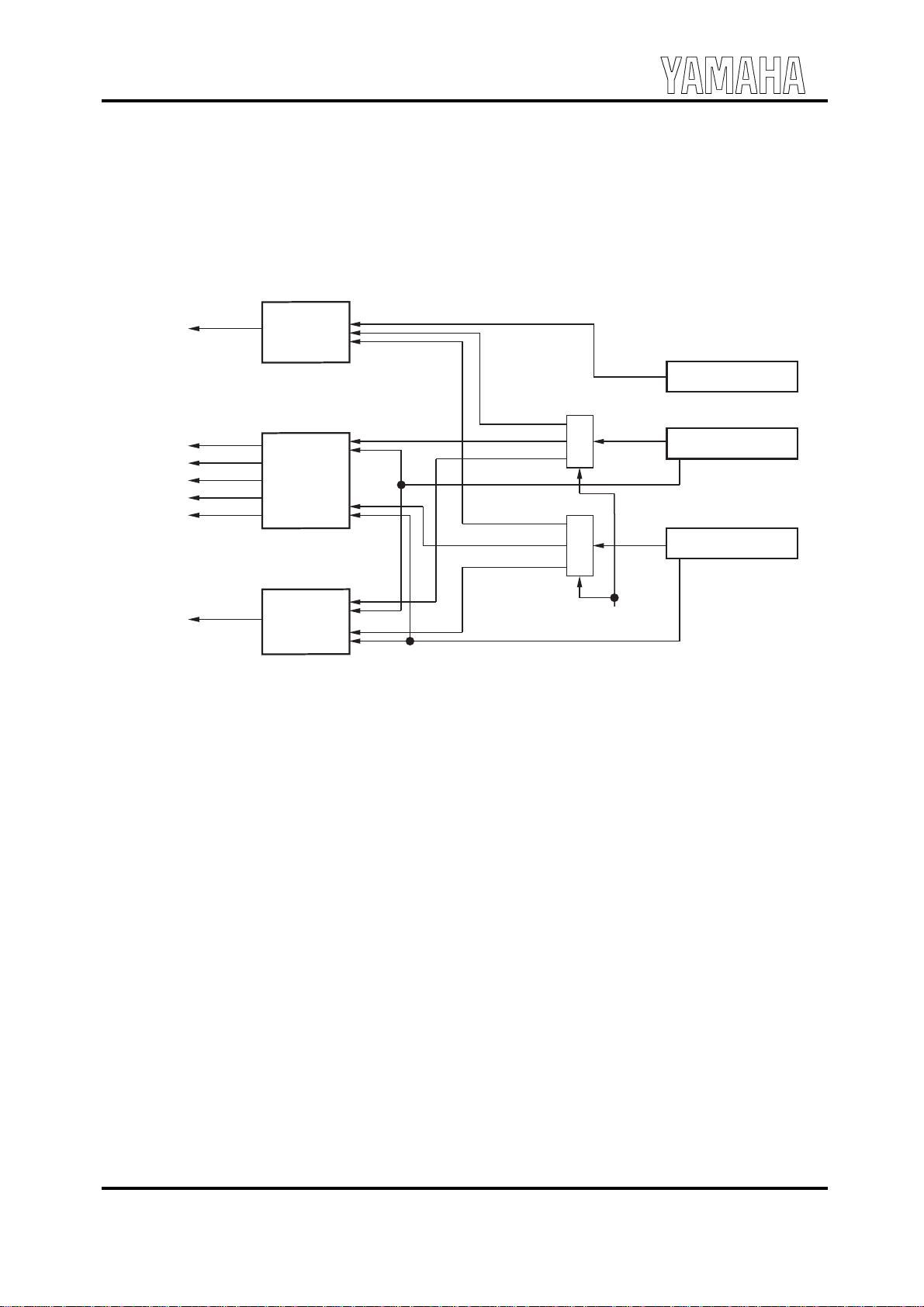

BLOCK DIAGRAM

EEPROM I/F

ZV Port GPIO

PCI Side Band

PC/PCI

S-IRQ

PCI

Interface

Audio

Function

Config

Register

SPDIF Input Clock Run

Legacy Audio

FM Synthesizer

SB Pro

D-DMA Engine

MPU401
Joystick

PCI Bus Master
DMA Controller

PCI Audio

XG Synthesizer
DirectSound Acc.
Wave In/Out

SPDIF
Output

Sampling

Rate

Converter

(SRC)

AC-link

Interface

-8-

June 28, 1999

YMF754

FUNCTION OVERVIEW

1. PCI INTERFACE

DS-1E supports the PCI bus interface and complies to PCI revision 2.2.

1-1. PCI Bus Command

DS-1E supports the following PCI Bus commands.

1-1-1. Target Device Mode

C/BE[3:0]# Command

0000Interrupt Acknowledge (not support)
0001Special Cycle (not support)
0010I/O Read
0011I/O Write
0100reserved
0101reserved
0110Memory Read
0111Memory Write
1000reserved
1001reserved
1010Configuration Read
1011Configuration Write
1100Memory Read Multiple (alias to memory read)
1101Dual Address Cycle (not support)
1110Memory Read Line (alias to memory read)

1111Memory Write and Invalidate (alias to memory write)
DS-1E does not assert DEVSEL# when accessed with commands that are indicated as (not supported) or
reserved.

1-1-2. Master Device Mode

C/BE[3:0]# Command

0110Memory Read

0111Memory Write

When DS-1E becomes a Master Device, it generates only memory write and read cycle commands.

-9-

June 28, 1999

YMF754

1-2. PCI Configuration Register

In addition to the Configuration Register defined by PCI Revision 2.2, DS-1E provides proprietary PCI
Configuration Registers in order to co ntrol legacy audio function, such as FM Synthesizer , Sound Blaster Pro,
MPU401 and Joystick. These additional registers are configured by BIOS or the configuration software
from YAMAHA Corporation.

The following shows the overview of the PCI Configuration Register.

Offset b[31..24] b[23..16] b[15..8] b[7..0]

00-03h Device ID Vendor ID

04-07h Status Command
08-0Bh Base Class Code Sub Class Code Programming IF Revision ID
0C-0Fh Reserved Header Type Latency Timer Reserved
10-13h PCI Audio Memory Base Addres s
14-17h Legacy Audio I/O Base Address (Dummy for SB, FM, MPU, D-DMA)
18-1Bh Legacy Audio I/O Base Address (Dummy for Joystick)
1C-2Bh Reserved
2C-2Fh Subsystem ID Subsystem Vendor ID
30-33h Reserved
34-37h Reserved Cap Pointer
38-3Bh Reserved
3C-3Fh Maximum Latency Minimum Grant Int errupt Pin Interrupt Line
40-43h Extended Legacy Audio Control Legacy Audio Control
44-47h Subsystem ID Write Subsys tem Vendor ID Write
48-4Bh DS-1E Power Control 1 DS-1E Control
4C-4Fh DS-1E Power Control 2 D-DMA Slave Configuration
50-53h Power Management Capabilities Next Item Pointer Capability ID
54-57h Reserved Power Management Control / Status
58-5Bh DS-1E Secondary AC’97 Power Control ACPI Mode
5C-5Fh Reserved
60-63h Sound Blaster Base Address FM Synthesizer Base Address
64-67h Joystick Base Address MPU401 Base Address
68-FFh Res erved

Reserved registers are hardwired to “0”. All data written to these registers are discarded. The values
read from these registers are all zero.
DS-1E can be accessed by using any bus width, 8-bit, 16-bit or 32-bit.

June 28, 1999

-10-

YMF754

00-01h: Vendor ID

Read Only
Default: 1073h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Vendor ID

b[15:0]........Vendor ID

This register contains the YAMAHA Vendor ID registered in Revision 2.2. This register is hardwired to
1073h.

02-03h: Device ID

Read Only
Default: 0012h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Device ID

b[15:0]........Device ID

This register contains the Device ID of DS-1E. This register is hardwired to 0012h.

04-05h: Command

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - SER - PER - - - BME MS IOS

b0................IOS: I/O Space

This bit is a dummy one that is capable of writing. This bit indicates for BIOS or OS that DS-1E
includes I/O devices.

b1................MS: Memory Space

This bit enables DS-1E to response to Memory Space Access.
“0”: DS-1E ignores Memory Space Access. (default)
“1”: DS-1E responds to Memory Space Access.

b2................BME: Bus Master Enable

This bit enables DS-1E to act as a master device on the PCI bus.
“0”: Do not set DS-1E to be the master device. (default)
“1”: Set DS-1E to be the master device.

-11-

June 28, 1999

YMF754

b6................PER: Parity Error Response

This bit enables DS-1E responses to Parity Error.
“0”: DS-1E ignores all parity errors. (default)
“1”: DS-1E performs error operation when DS-1E detects a parity error.

b8................SER: SERR# Enable

This bit enables DS-1E to drive SERR#.
“0”: Do not drive SERR#. (default)
“1”: Drives SERR# when DS-1E detects an Address Parity Error on normal target cycle or a Data Parity

Error on special cycle.

06-07h: Status

Read / Write Clear
Default: 0210h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

DPE SSE RMA RTA STA DEVT DPD - - - CAP - - - -

b4................CAP: Capability (Read Only)

This bit indicates that DS-1E supports the capability register. This bit is read only. When 58-59h :
ACPI Mode register, ACPI bit is “0”, the bit is “1”. When ACPI bit is “1”, the bit is “0”.

b8................DPD: Data Parity Error Detected

This bit indicates that DS-1E detects a Data Parity Error during a PCI master cycle.

b[10:9] ........DEVT: DEVSEL Timing (Read Only)

This bit indicates that the decoding speed of DS-1E is Medium.

b11..............STA: Signaled Target Abort

This bit indicates that DS-1E terminates a transaction with Target Abort during a target cycle.

b12..............RTA: Received Target Abort

This bit indicates that a transaction is terminated with Target Abort while DS-1E is in the master memory
cycle.

b13..............RMA: Received Master Abort

This bit indicates that a transaction is terminated with Master Abort while DS-1E is in the master memory
cycle.

b14..............SSE: Signaled System Error

This bit indicates that DS-1E asserts SERR#.

b15..............DPE: Detected Parity Error

This bit indicates that DS-1E detects Address Parity Error or Data Parity Error during a transaction.

-12-

June 28, 1999

YMF754

08h: Revision ID

Read Only
Default: 00h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Revision ID

b[7:0]..........Revision ID

This register conta i ns the revision number of DS-1E. This register is hardwired to 00h.

09h: Programming Interface

Read Only
Default: 00h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Programming Interf ace

b[7:0]..........Programming Interface

This register indicates the programming interface of DS-1E. This register is hardwired to 00h.

0Ah: Sub-class Code

Read Only
Default: 01h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Sub-class Code

b[7:0]..........Sub-class Code

This register indicates the sub-class of DS-1E. T his register is hardwired to 01h. DS-1E belongs to the
Audio Sub-class.

0Bh: Base Class Code

Read Only
Default: 04h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Base Class Code

b[7:0]..........Base Class Code

This register indicates the base class of DS-1E. This register is hardwired to 04h. DS-1E belongs to
the Multimedia Base Class.

June 28, 1999

-13-

YMF754

0Dh: Latency Timer

Read / Write
Default: 00h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Latency Timer

b[7:0]..........Latency Timer

When DS-1E becomes a Bus Master device, this register indicates the initial value of the Master Latency
Timer.

0Eh: Header Type

Read Only
Default: 00h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Header Type

b[7:0]..........Header Type

This register indicates the device type of DS-1E. This is hardwired to 00h.

10-13h: PCI Audio Memory Base Address

Read / Write
Default: 00000000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

MBA - - - - - - - - - - - - - - -

b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16

MBA (higher)

b[31:15]......MBA: Memory Base Address

This register indicates the physical Memory Base address of the PCI Audio registers in DS-1E. The base
address can be located anywhere in the 32-bit address space. Data in the DS-1E register is not
prefetchable.
Size of the register to be mapped into the memory space is 32,768 bytes.

-14-

June 28, 1999

YMF754

14-17h: Legacy Audio I/O Base Address (Dummy for SB, FM, MPU, D-DMA)

Read / Write
Default: 00000001h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

IOBASE0 - - - - - I/O

b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16

- - - - - - - - - - - - - - - -

b0................IO (Read Only)

This bit indicates that the base address is assigned to I/O. This bit is hardwired to “1”.

b[15:6]........IOBASE0

This register is used so that the OS may secure I/O resources for Sound Blaster Pro, FM Synthesizer,
MPU401 and D-DMA controller. Because this register is a dummy one, each for the I/O addresses of
the above blocks is assigned with the I/O addresses set to 4C-4Dh and 60-65h respectively by the software
driver.

18-1Bh: Legacy Audio I/O Base Address (Dummy for Joystick)

Read / Write
Default: 00000001h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

IOBASE1 - I/O

b31 b30 b29 b28 b27 b26 b25 b24 b23 b22 b21 b20 b19 b18 b17 b16

- - - - - - - - - - - - - - - -

b0................IO (Read Only)

This bit indicates that the base address is assigned to I/O. This bit is hardwired to “1”.

b[15:2]........IOBASE1

This register is used so that the OS may secure I/O resource for the joystick port. Because this register is
a dummy one, the joystick I/O address is assigned with the I/O address set to 66-67h by the software
driver.

-15-

June 28, 1999

YMF754

2C-2Dh: Subsystem Vendor ID

Read Only
Default: 1073h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Subsystem Vendor ID

b[15:0]........Subsystem Vendor ID

This register contains the Subsystem Vendor ID. In genera l, this ID is used to distinguish adapters or
systems made by different IHVs using the same chip by the same vendor. This register is read only. To
write the IHV’s Vendor ID, use 44-45h (Subsystem Vendor ID Write Register). IHVs must change this
ID to their Vendor ID in the BIOS POST routine.
In case of the system such as Sound Card which BIOS can not control, this ID can be changed by
connecting EEPROM externally. Then, Subsystem Vendor ID Write Register is invalid.
In case EEPROM is not externally, the default value is the YAMAHA's Vendor ID, 1073h.

2E-2Fh: Subsystem ID

Read Only
Default: 0012h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Subsystem ID

b[15:0]........Subsystem ID

This register contains the Subsystem ID. In ge neral, this ID is used to distinguish ad apters or systems
made by different IHVs using the same chip by the same vendor. This register is read only. To write
the IHV's Device ID, use 46-47h (Subsystem ID Write Register). IHVs must change this ID to their ID
in the BIOS POST routine.
In case of the system such as Sound Card which BIOS can not control, this ID can be changed by
connecting EEPROM externally. Then, Subsystem ID Write Register is invalid.
In case EEPROM is not externally, the default value is the YAMAHA's Device ID, 0012h.

34h: Capability Register Pointer

Read Only
Default: 50h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Capability Register Pointer

b[7:0]..........Capability Register Pointer

This register indicates the offset address of the Capabilities register in the PCI Configuration register
when 58-59h: ACPI Mode register, ACPI bit is “0”. DS-1E provides PCI Bus Power Management
registers as the capabilities. The Power Management registers are mapped to 50h - 55h in the PCI
Configuration register, and this register indicates “50h”.
When ACPI bit is “1”, this register indicates “00h”.

-16-

June 28, 1999

YMF754

3Ch: Interrupt Line

Read / Write
Default: 00h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Interrupt Line

b[7:0]..........Interrupt Line

This register indicates the interrupt channel that INTA# is assigned to.

3Dh: Interrupt Pin

Read Only
Default: 01h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Interrupt Pin

b[7:0]..........Interrupt Pin

DS-1E supports INTA# only. This register is hardwired to 01h.

3Eh: Minimum Grant

Read Only
Default: 05h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Minimum Grant

b[7:0]..........Minimum Grant

This register indicates the length of the burst period required by DS-1E.
This register is hardwired to 05h.

3Fh: Maximum Latency

Read Only
Default: 19h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Maximum Latency

b[7:0]..........Maximum Latency

This register indicates how often DS-1E generates the Bus Master Request.
This register is hardwired to 19h.

-17-

June 28, 1999

YMF754

40-41h: Legacy Audio Control

Read / Write
Default: 907Fh
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

LAD SIEN MPUIRQ SBIRQ SDMA I/O MIEN MEN JPEN FMEN SBEN

b0................SBEN: Sound Blaster Enable

This bit enables the mapping of the Sound Blaster Pro block in the I/O space specified by 62-63h: Sound
Blaster Base Address register, when LAD is set to “0”.
“0”: Disable the mapping of the SB block to the I/O space
“1”: Enable the mapping of the SB block to the I/O space (default)

b1................FMEN: FM Synthesizer Enable

This bit enables the mapping of the FM Synthesizer block in the I/O space specified by 60-61h: FM
Synthesizer Base Address register when LAD is set to “0”. FM Synthesizer registers can be accessed via
SB I/O space, while the SB block is enabled, even if FMEN is set to “0”.
“0”: Disable the mapping of the FM Synthesizer block to the FMIO space
“1”: Enable the mapping of the FM Synthesizer block to the FMIO space (default)
After setting FMEN to “1”, about 100 msec is necessary before accessing these I/O space.

b2................JPEN: Joystick Port Enable

This bit enables the mapping of the Joystick block in the I/O space specified by 66-67h: Joystick Base
Address register, when LAD is set to “0”.
“0”: Disable the mapping of the Joystick block
“1”: Enable the mapping of the Joystick block (default)

b3................MEN: MPU401 Enable

This bit enables the mapping of the MPU401 block in the I/O space specified by 64-65h: MPU401 Base
Address register, when LAD is set to “0”.
“0”: Disable the mapping of the MPU401 block
“1”: Enable the mapping of the MPU401 block (default)

b4................MIEN: MPU401 IRQ Enable

This bit enables the interrupt service of MPU401, when LAD is set to “0” and MEN is set to “1”.
MPU401 generates an interrupt signal when it receives any kind of MIDI data from the RXD pin.
“0”: The MPU401 block can not use the interrupt service.
“1”: The MPU401 block can use interrupt signals determined by the MPUIRQ bits. (default)

b5................I/O: I/O Address Aliasing Control

This bit selects the number of bits to decode for the I/O address of each block.
“0”: 16-bit address decode
“1”: 10-bit address decode (default)

-18-

June 28, 1999

YMF754

b[7:6]..........SDMA: Sound Blaster DMA-8 Channel Select

These bits select the DMA channel for the Sound Blaster Pro block.
“0”: DMA ch0
“1”: DMA ch1 (default)
“2”: reserved
“3”: DMA ch3

b[10:8]........SBIRQ: Sound Blaster IRQ Channel Select

These bits select the interrupt channel for the Sound Blaster Pro block.
“0”: IRQ5 (default)
“1”: IRQ7
“2”: IRQ9
“3”: IRQ10
“4”: IRQ11
“5” - “7”: reserved.

b[13:11]......MPUIRQ: MPU401 IRQ Channel Select

When MIEN is set to “1”, these bits select the interrupt channel for the MPU401 block.
“0”: IRQ5
“1”: IRQ7
“2”: IRQ9 (default)
“3”: IRQ10
“4”: IRQ11
“5” - “7”: reserved
Same interrupt channels can be assigned to SBIRQ and MPUIRQ.

b14..............SIEN: Serialized IRQ enable

DS-1E supports 3 types of interrupt protocols: PCI interrupt (INTA#), Legacy interrupt (IRQs) and
Serialized IRQ. The interrupt protocol is selected with IMOD and SIEN as follows.
The interrupt channels for IRQs and Serialized IRQ are determined by SBIRQ and MPUIRQ,. Only one
protocol can be used at once.
SIEN IMOD Interrupt protocol

0 0 Legacy interrupt (IRQs) (default)
0 1 PCI interrupt (INTA#)
1 0 Serialized IRQ
1 1 reserved

-19-

June 28, 1999

YMF754

b15..............LAD: Legacy Audio Disable

This bit disables the Legacy Audio block.
“0”: Enables the Legacy Audio block
“1”: Disables the Legacy Audio block (default)
When this bit is set to “1”, DS-1E does not respond to the I/O Target transaction for legacy I/O add r ess on
the PCI bus.

42-43h: Extended Legacy Audio Control

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

IMOD SBVER SMOD - - MAIM - - - - - - - -

b8................MAIM: MPU401 Acknowledge Interrupt Mask

This bit determine whether interrupt is asserted when the acknowledge, which is occurred by changing
MPU401 mode form default to UART, is returned.
“0”: Interrupt is asserted when the acknowledge is returned. (default)
“1”: Interrupt is masked when the acknowledge is returned.

b[12:11]......SMOD: SB DMA mode

These bits determine the protocol to achieve the DMAC(8237) function on the PCI bus.
“0”: PC/PCI (default)
“1”: reserved
“2”: Distributed DMA (D-DMA)
“3” reserved

b[14:13]......SBVER: SB Version Select

These bits set the version of the SB Pro DSP . The value set in these bits is returned by sending the E1h
DSP command.
“0”: ver 3.01 (default)
“1”: ver 2.01
“2”: ver 1.05
“3”: reserved

b15..............IMOD: Legacy IRQ mode

The legacy interrupt protocol is selected with IMOD and SIEN. Refer to the explanation of SIEN bit.

-20-

June 28, 1999

YMF754

44-45h: Subsystem Vendor ID Write

Read / Write
Default: 1073h
Access Bus Width: 16-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Subsystem Vendor ID Write

b[15:0]........Subsystem Vendor ID Write

This register sets the Subsystem Vendor ID that is read from 2C-2Dh (Subsystem Vendor ID register).
The default value is the YAMAHA Vendor ID, 1073h. IHVs must change this ID to their Vendor ID in
the BIOS POST routine.
In case EEPROM connects externally, this register is invalid, and do not reflect to Subsystem Vendor ID.

46-47h: Subsystem ID Write

Read / Write
Default: 0012h
Access Bus Width: 16-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Subsystem ID Write

b[15:0]........Subsystem ID Write

This register sets the Subsystem ID that is read from 2E-2Fh (Subsystem ID register).
The default value is the DS-1E Device ID, 0012h. IHVs must change this ID to their ID in the BIOS
POST routine.
In case EEPROM connects externally, this register is invalid, and do not reflect to Subsystem ID.

48-49h: DS-1E Control

Read / Write
Default: 0001h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - - - - - - ACLS WRST - CRST

b0................CRST: AC’97 Software Reset Signal Control

This bit controls the CRST# signal.
“0”: Inactive (CRST#=High)
“1”: Active (CRST#=Low) (default)

-21-

June 28, 1999

YMF754

b2................WRST: AC’97 Warm Reset

This bit places the AC’97 in warm reset condition when the BIT_CLK signal on the AC’97 remains in
inactive state. If this bit is set to “1”, it will automatically return to “0” after 1.3µ s time duration. This
bit is valid only while the ACLS bit is set to “0”. Except in this case, even if this bit is attempted to b e
set to “1”, no warm reset will be generated (write operation of “1” remains disabled).
“0”: Normal (default)
“1”: AC’97 Warm Reset

b3................ACLS: AC-Link Status (Read Only)

This bit indicates whether or not the AC-link is active. This bit is “1” when the AC-link remains in
active state (the BIT_CLK signal is active).
“0”: AC’97 Inactive (default)
“1”: AC’97 Active

4A-4Bh: DS-1E Power Control 1

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

PR7 PR6 PR5 PR4 PR3 PR2 PR1 PR0 - JSR - - - DPLL - DMC

b0................DMC: Disable Master Clock Oscillation

Setting this bit to “1” disables the oscillation of the Master Clock (24.576 MHz).
“0”: Normal (default)
“1”: Disable

b2................DPLL: Disable PLL Clock Oscillation

Setting this bit to “1” disables the oscillation of PLL.
“0”: Normal (default)
“1”: Disable

b6................JSR: Joystick Reset

This bit controls reset of the flip-flop circuit following the analog comparator stage on the joystick port.
The Initial value is set to “0” immediately after power on reset or hardware reset.
“0”: Normal (default)
“1”: Resets the flip-flop circuit following the analog comparator stage on the joystick port

b8................PR0: AC’97 Power Down Control 0

This bit controls the power state of the ADC and Input Mux in the Primary AC’97.
“0”: Normal (default)
“1”: Power down

-22-

June 28, 1999

YMF754

b9................PR1: AC’97 Power Down Control 1

This bit controls the power state of the DAC in the Primary AC’97.
“0”: Normal (default)
“1”: Power down

b10..............PR2: AC’97 Power Down Control 2

This bit controls the power state of the Analog Mixer (Vref still on) in the Primary AC’97. This po wer
state retains the Reference Voltage of the AC’97.
“0”: Normal (default)
“1”: Power down

b11..............PR3: AC’97 Power Down Control 3

This bit controls the power state of the Analog Mixer (Vref off) in the Primary AC’97. This power
state removes Reference Voltage of the AC’97.
“0”: Normal (default)
“1”: Power down

b12..............PR4: AC’97 Power Down Control 4

This bit controls the power state of the AC-link in the Primary AC’97.
“0”: Normal (default)
“1”: Power down

b13..............PR5: AC’97 Power Down Control 5

Setting this bit to “1” disables the internal clock of the Primary AC’97. In case the AC’97 is used with
DS-1E, the master clock is supplied from DS-1E. Therefore, when the clock is stopped completely, set
PR5 bits to “1” firstly, then the CMCD bit should be set to “1” after duration of 1ms or longer.
“0”: Normal (default)
“1”: Disable

b14..............PR6: AC’97 Power Down Control 6

This bit controls PR6 bit status of the power control register in the Primary AC’97.

b15..............PR7: AC’97 Power Down Control 7

This bit controls PR7 bit status of the power control register in the Primary AC’97.

Respective data set to b[15:8] are correspondingly set into the “Power down Ctrl/Stat” register in the Primary
AC’97 via the AC-Link. These are not set into the “Power down Ctrl/Stat” register in the Secondary AC’97.

-23-

June 28, 1999

YMF754

4C-4Dh: D-DMA Slave Configuration

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Base Address EA TS CE

b0................CE: Channel Enable

This bit enables the Distributed DMA function.
“0”: Disable Distributed DMA (default)
“1”: Enable Distributed DMA

b[2:1]..........TS: Transfer Size (Read Only)

These bits indicate the size of the DMA transfer. Since DS-1E supports only 8-bit DMA transfer, the bits
are hardwired to 00b.

b3................EA: Extended Address (Read Only)

DS-1E does not support extended address mode. This bit is hardwired to 0b.

b[15:4]........Base Address : D-DMA Slave Base Address

These bits indicate the D-DMA slave base address.

4E-4Fh: DS-1E Power Control 2

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - -

b0................CMCD: CODEC Master Clock Disable

Setting this bit to “1” disables the oscillation of the CMCLK. To stop a clock, when the CMCLK is
supplied to the AC’97, it is required that b13:PR5 bit of 4A-4Bh register is set to “1”. (If the Secondary
AC’97 is used, it is also necessary that b5:SPR5 bit of 5A-5Bh register is set to “1”.)
“0”: Normal (default)
“1”: Disable

b1................PSFM: Power Save FM Synthesizer

Setting this bit to “1” stops a clock supplied to the FM synthesizer block.
“0”: Normal (default)
“1”: Disable

PSHWV

PSIO PSACL PSDIR PSDIT PSZV PSSRC PSPCA PSJOY PSMPU PSSB PSFM CMCD

b2................PSSB: Power Save Sound Blaster

Setting this bit to “1” stops a clock supplied to the So und Blaster block.
“0”: Normal (default)
“1”: Disable

-24-

June 28, 1999

YMF754

b3................PSMPU: Power Save MPU401

Setting this bit to “1” stops a clock supplied to the MPU401 block.
“0”: Normal (default)
“1”: Disable

b4................PSJOY: Power Save Joystick

Setting this bit to “1” disables the comparator of the Joystick block.
“0”: Normal (default)
“1”: Disable

b5................PSPCA: Power Save PCI Audio

Setting this bit to “1” stops a clock supplied to the PCI Audio block.
“0”: Normal (default)
“1”: Disable

b6................PSSRC: Power Save SRC

Setting this bit to “1” stops a clock supplied to the SRC b lock.
“0”: Normal (default)
“1”: Disable

b7................PSZV: Power Save Zoomed Video port

Setting this bit to “1” stops a clock supplied to the Zoomed Video port block.
“0”: Normal (default)
“1”: Disable

b8................PSDIT: Power Save Digital Audio Interface Transmitter

Setting this bit to “1” stops a clock supplied to the DIT (SPDIF OUT) block.
“0”: Normal (default)
“1”: Disable

b9................PSDIR: Power Save Digital Audio Interface Receiver

Setting this bit to “1” stops a clock supplied to the DIR (SPDIF IN) block.
“0”: Normal (default)
“1”: Disable

b10..............PSACL: Power Save AC-Link

Setting this bit to “1” stops a clock supplied to the AC-Link block.
“0”: Normal (default)
“1”: Disable

-25-

June 28, 1999

YMF754

b11..............PSIO: Power Save I/O Pad

Setting this bit to “1” cuts the pull up resistor of the input pins except for the PCI interface and AC-Link.
The input signals keep the level before PSIO bit is set from “0” to “1”. In case the input level is only
“low”, the pull up resistor is cut.
“0”: Normal (default)
“1”: Cuts the pull up resistor

b12..............PSHWV: Power Save Hardware Volume

Setting this bit to “1” stops a clock supplied to the Hard ware Volume block.
“0”: Normal (default)
“1”: Disable

Master

Clock

(24.576MHz)

DMC

PCI

Clock

(33MHz)

PLL

DPLL

CMCD
PSFM

PSSB

PSMPU

PSJOY

PSPCA

PSSRC

PSZV

PSDIT

PSDIR

PSHWV

PSACL

AC97 Master Clock

FM Synthesizer

SB Pro

MPU401

Joystick

PCI Audio

SRC

ZVport

SPDIF OUT

SPDIF IN
H/W V ol.

AC-link

PCI I/F
PC/PCI
D-DMA

S-IRQ

EEPROM I/F

External Input

PSIO

Power Management Block

-26-

I/O Pad

June 28, 1999

YMF754

50h: Capability ID

Read Only
Default: 01h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Capability ID

b[7:0]..........Capability ID: Capability Identifier

This register indicates that the new capability register is for Power Management control. This register is
hardwired to 01h.

51h: Next Item Pointer

Read Only
Default: 00h
Access Bus Width: 8, 16, 32-bit

b7 b6 b5 b4 b3 b2 b1 b0

Next Item Pointer

b[7:0]..........Next Item Pointer

DS-1E does not provide other new capability besides Power Management. This register is hardwired to
00h.

52-53h: Power Management Capabilities

Read Only
Default: 0401h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - - - - D2S - - - - - - - Version

b[2:0]..........Version

These bits contain the revision number of the Power Management Interface Specification. They are
hardwired to 001b.

b10..............D2S: D2 Support

This bit indicates that DS-1E support “D2” of the power state. It is hardwired to “1”.

-27-

June 28, 1999

YMF754

54-55h: Power Management Control / Status

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - - - - - - - - PS

b[1:0]..........PS: Power State

These bits determine the power state of DS-1E. DS-1E supports the following power states:
“0”: D0
“1”: D1 (not supported)
“2”: D2
“3”: D3
When the power state is changed from D3
DS-1E transits to D0 Uninitialized state.
Though the power state o f this re gister is change d, the power consumption o f DS-1E is no t cha nged. To
support low power, Windows driver controls DS-1E Power Control 1 / DS-1E Power Control 2 / DS-1E
Control / DS-1E Secondary AC’97 Power Control registers.
DS-1E can support the power state of D0, D1, D2 and D3 with ACPI. In this case, set ACPI bit (58-59h:
ACPI Mode Register) to “1” to disable Capabilities of PCI Bus Po wer Management.

hot

to D0, DS-1E re sets the PCI Configuration r egister 00-3Fh.

hot

58-59h: ACPI Mode

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - - - - - - - - - ACPI

b0................ACPI: ACPI Mode Select

This bit select either PCI Bus Power Management or ACPI Mode for power management of DS-1E.
“0”: PCI Bus Power Management is used. CAP bit (06-07h: Status Register) and Capabilities P ointer

(34h) are enabled. (default)

“1”: ACPI Mode is used. CAP bit and Capa bilities Pointer are hardwired “0”, and disabled.

5A-5Bh: DS-1E Secondary AC’97 Power Control

Read / Write
Default: 0000h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - - SPR7 SPR6 SPR5 SPR4 SPR3 SPR2 SPR1 SPR0

b0................SPR0: Secondary AC’97 Power Down Control 0

This bit controls the power state of the ADC and Input Mux in the Secondary AC’97.
“0”: Normal (default)
“1”: Power down

-28-

June 28, 1999

YMF754

b1................SPR1: Secondary AC’97 Power Down Control 1

This bit controls the power state of the DAC in the Secondary AC’97.
“0”: Normal (default)
“1”: Power down

b2................SPR2: Secondary AC’97 Power Down Control 2

This bit controls the power state of the Analog Mixer (Vref still on) in the Secondary AC’97. This
power state retains the Reference Voltage of the AC’97.
“0”: Normal (default)
“1”: Power down

b3................SPR3: Secondary AC’97 Power Down Control 3

This bit controls the power state of the Analog Mixer (Vref off) in the Secondary AC’97. T his power
state removes Reference Voltage of the AC’97.
“0”: Normal (default)
“1”: Power down

b4................SPR4: Secondary AC’97 Power Down Control 4

This bit controls the power state of the AC-link in the Secondary AC’97.
“0”: Normal (default)
“1”: Power down

b5................SPR5: Secondary AC’97 Power Down Control 5

Setting this bit to “1” disables the internal clock of the Secondary AC’97. In case the AC’97 is used with
DS-1E, the master clock is supplied from DS-1E. Therefore, when the clock is stopped completely, set
SPR5 bits to “1” firstly, then the CMCD bit should be set to “1” after duration of 1ms or longer.
“0”: Normal (default)
“1”: Disable

b6................SPR6: Secondary AC’97 Power Down Control 6

This bit controls PR6 bit status of the power control register in the Secondary AC’97.

b7................SPR7: Secondary AC’97 Power Down Control 7

This bit controls PR7 bit status of the power control register in the Secondary AC’97.

Respective data set to b[7:0] are correspondingly set into the “Power down Ctrl/Stat” register in the
Secondary AC’97 via the AC-Link. These are not set into the “Power down Ctrl/Stat” register in the Primary
AC’97.

-29-

June 28, 1999

YMF754

60-61h: FM Synthesizer Base Address

Read / Write
Default: 0388h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

FM Synthesizer Base Address - -

b[15:2]........FM Synthesizer Base Address

This register sets the base address of the FM synthesizer. If b5:I/O bit of 40h register is set to “1”, b[9:2]
bits are decoded by ignoring b[15:10] bits.

62-63h: Sound Blaster Base Address

Read / Write
Default: 0220h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Sound Blaster Base Addres s - - - -

b[15:4]........Sound Blaster Base Address

This register sets the base address of the Sound Blaster. If b5:I/O bit of 40h register is set to “1”, b[9:4]
bits are decoded by ignoring b[15:10] bits.

64-65h: MPU401 Base Address

Read / Write
Default: 0330h
Access Bus Width: 8, 16, 32-bit

b15 b14 B13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

MPU401 Base Address -

b[15:1]........MPU401 Base Address

This register sets the base address of the MPU401. If b5:I/O bit of 40h register is set to “1”, b[9:1] bits are
decoded by ignoring b[15:10] bits.

66-67h: Joystick Base Address

Read / Write
Default: 0201h
Access Bus Width: 8, 16, 32-bit

b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Joystick Base Address

b[15:0]........Joystick Base Address

This register sets the base address of the Joystick. If b5:I/O bit of 40h register is set to “1”, b[9:0] bits are
decoded by ignoring b[15:10] bits.

June 28, 1999

-30-

YMF754

2. ISA Compatible Device

DS-1E contains the following functions to maintain the compatibility with the past ISA Sound Devices.
These devices are considered Legacy devices and the functions are referred to as Legacy Audio.
Legacy Audio is independent from PCI Audio and can be used simultaneously.
The configuration is set in the Legacy Audio Control Register in the PCI Configuration Register space.
Basically, these registers are configured by the BIOS.
Also, logical device IDs are assigned to the devices to support Plug and Play. Yamaha defines the following
logical IDs.
To control the device with the BIOS, the logical device IDs must be defined in the PnP BIOS extended ROM
space. The logical IDs are determined by how it is configured. IDs and configuration are as follows.

Logical Device ID

YMH0100 O O O
YMH0101 O
YMH0102 O
YMH0103 O

YMH010A O O

* The blocks pertain to the following.
FM: Points to the FM synthesizer mapped to AdLibBase (0x0388).
SB Pro: Points to the Voice Playback section only.

These devices are independent from each other, and can be Enabled/Disabled individually. However, both
AdLib and Sound Blaster must be disabled to disable the internal FM Synthesizer. Disabling just AdLib
only masks the access.

The driver by Yamaha supports logical device ID, YMH0100, YMH0102, YMH0103 and YMH010A.
For YMH0101, use the driver provided by Microsoft.

FM

(*)

Functions used (Block)

MPU401 SB Pro

(*)

Joystick

-31-

June 28, 1999

YMF754

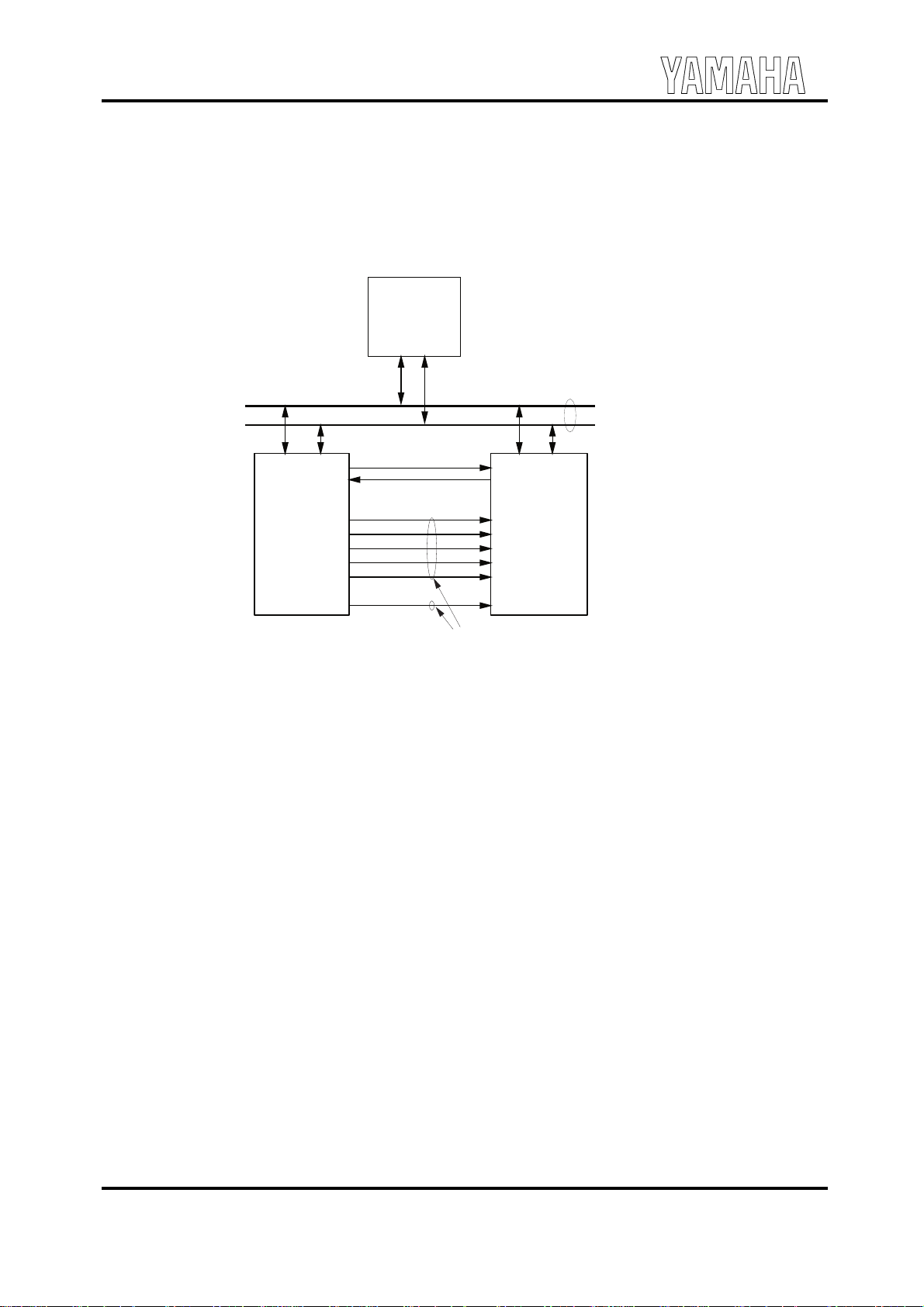

DS-1E supports PC/PCI and D-DMA protocols to emulate the DMA of SB Pro on the PCI. In addition, DS­1E supports the old type of interrupts used by ISA and the Serialized IRQ protocol.

The combination of PC/PCI and Serialized IRQ is recommended for DS-1E.
The system block diagram when using Intel chip set is shown below.

North

Brigde

(430TX/440BX)

DS-1E

PCREQ#
PCGNT#

IRQ5
IRQ7

IRQ9
IRQ10

IRQ11

SERIRQ#

PCI

South

Bridge

(PIIX4E)

Select either protocols

Address/Data
Control

The PCI-to-ISA bridge needs to support PC/PCI. IRQ is directly connected to the IRQ input pins on the
PCI-to-ISA bridge.

-32-

June 28, 1999

YMF754

2-1. FM Synthesizer Block

FM Synthesizer Block is register compatible with YMF289B. However, Power Management register
has been deleted because it is now controlled by the PCI Configuration Register.

The following shows the FMBase I/O map of FM Synthesizer.

FMBase (R) Status Register port
FMBase (W) Address port for Register Arra y 0
FMBase+1 (R/W) Data port
FMBase+2 (W) Address port for Register Array 1
FMBase+3 (R/W) Data port

The following shows the FM Synthesizer Blo ck registers.

2-1-1. Status Register

FM Synthesizer Status Register (RO):

AddressD7D6D5D4D3D2D1D0

xxh IRQ FT1 FT2 - - BUSY - BUSY

-33-

June 28, 1999

YMF754

2-1-2. FM Synthesizer Data Register

FM Synthesizer Data Register Array 0 (R/W):

AddressD7D6D5D4D3D2D1D0

00-01h LSI TEST

02h TIMER 1
03h TIMER 2
04h RST MT1 MT2 - - - ST2 ST1
08h-NTS------

(*1)

20-35h
40-55h
60-75h
80-95h

A0-A8h F-NUM (L)
B0-B8h - - KO N BLOCK F-NUM (H)

BDh DAM DVB RHY BD SD TOM TC HH

C0-C8h (*6) (*6) CHR CHL FB CNT

E0-F5h

AM VIB EGT KSR MULT

(*2)

(*3)

(*4)

(*5)

KSL TL

AR DR
SL RR

----- WS

FM Synthesizer Data Register Array 1 (R/W)

AddressD7D6D5D4D3D2D1D0

00-01h LSI TEST

04h - - CONNECTION SEL
05h - - - - - (*6) (*6) NE W

(*1)

20-35h
40-55h
60-75h
80-95h

A0-A8h F-NUM (L)
B0-B8h - - KO N BLOCK F-NUM (H)

C0-C8h (*6) (*6) CHR CHL FB CNT

E0-F5h

AM VIB EGT KSR MULT

(*2)

(*3)

(*4)

(*5)

KSL TL

AR DR
SL RR

----- WS

*1 : 26h, 27h, 2Eh and 2Fh do not exist.
*2 : 46h, 47h, 4Eh and 4Fh do not exist.
*3 : 66h, 67h, 6Eh and 6Fh do not exist.
*4 : 86h, 87h, 8Eh and 8Fh do not exist.
*5 : E6h, E7h, EEh and EFh do not exist.
*6 : The bits exist, but do not function.

-34-

June 28, 1999

YMF754

2-2. Sound Blaster Pro Block

Sound Blaster Pro block emulates the DSP commands of Sound Blaster and Sound Blaster Pro. Only
playback functions are supported (record functions are not supported). However, to maintain
compatibility for games, it is designed so that every DSP command receives a correct response.
The DMA transfer of this block uses PC/PCI or D-DMA protocol.

The following shows the SBBase I/O map of SB Pro.

SBBase (R) FM Synthesizer Status port
SBBase (W) FM Synthesizer Address port for Register Arr a y 0
SBBase+1h (R/W) FM Synthesizer Data register
SBBase+2h (W) FM Synthesizer Address port for Register Array 1
SBBase+3h (R/W) FM Synthesizer Data port
SBBase+4h (R/W) SB Mixer Address port
SBBase+5h (R/W) SB Mixer Data port
SBBase+6h (W) SB DSP Reset port
SBBase+8h (R) FM Synthesizer Status port
SBBase+8h (W) FM Synthesizer Address port for Register Array 0
SBBase+9h (R/W) FM Synthesizer Data port
SBBase+Ah (R) DSP Read Data port
SBBase+Ch (R) DSP Write-buffer status port
SBBase+Ch (W) DSP Write Command/Data port
SBBase+Eh (R) DSP Read-buffer status port

-35-

June 28, 1999

YMF754

2-2-1. DSP Command

The following shows the list of DSP Commands that are supported by the SB Pro engine. Both SB and
SB Pro commands are supported.

CMD Support Function

10h o 8bit direct mode single byte digitized sound output
14h o 8bit single-cycle DMA mode digitized sound output
16h 8bit to 2bit ADPCM single-cycle DMA mode digitized sound output
17h 8bit to 2bit ADPCM single-cycle DMA mode digitized sound output with ref. byte

1Ch o 8bit auto-init DMA mode digitized sound output

1Fh 8bit to 2bit ADPCM auto-init DMA mode digitized sound output with ref. byte
20h(*1) o 8bit direct mode single byte digitized sound input
24h(*1) o 8bit single-cycle DMA mode digitized sound input

2Ch(*1) o 8bit auto-init DMA mode digitized sound input

30h o Polling mode MIDI input

31h o Interrupt mode MIDI input

34h o UART polling mode MIDI I/O

35h o UART interrupt mode MIDI I/O
36h(*2) o UART polling mode MIDI I/O with time stamping
37h(*2) o UART interrupt mode MIDI I/O with time stamping

38h o MIDI output

40h o Set digitized sound transfer Time Constant

48h o Set DSP block transfer size

74h o 8bit to 4bit ADPCM single-cycle DMA mode digitized sound output

75h o 8bit to 4bit ADPCM single-cycle DMA mode digitized sound output with ref. byte

76h 8bit to 3bit ADPCM single-cycle DMA mode digitized sound output

77h 8bit to 3bit ADPCM single-cycle DMA mode digitized sound output with ref. byte

7Dh o 8bit to 4bit ADPCM auto-init DMA mode digitized sound output with ref. byte

7Fh 8bit to 3bit ADPCM auto-init DMA mode digitized sound output with ref. byte

80h o Pause DAC for a duration

90h o 8bit high-speed auto-init DMA mode digitized sound output

91h o 8bit high-speed single-cycle DMA mode digitized sound output
98h(*1) o 8bit high-speed auto-init DMA mode digitized sound input
99h(*1) o 8bit high-speed single-cycle DMA mode digitized sound input

A0h(*1) o Set input mode to mono
A8h(*1) o Set input mode to stereo

D0h o Pause 8bit DMA mode digitized sound I/O
D1h(*3) o Turn on speaker
D3h(*3) o Turn off speaker

D4h o Continue 8bit DMA mode digitized sound I/O

D8h o Get speaker status

DAh o Exit 8bit auto-init DMA mode digitized sound I/O

E1h o Get DSP version number

Note:
(*1) The SB Block responds correctly to the commands for recording and also executes the DMA transfer.

80h is always transferred.
(*2) Only output is supported for this command.
(*3) This command only changes Speaker Status (D8h).
Undocumented commands other than the ones listed above are also supported.

June 28, 1999

-36-

YMF754

2-2-2. Sound Blaster Pro Mixer

The following shows the register map of the Mixer section of Sound Blaster Pro.

Addressb7b6b5b4b3b2b1b0 Remark

00h Reset
04h Voi ce Volume L "1" Voice Volum e R "1"

0Ah - - - "1" - MIC Volume*
0Ch - ­0Eh - - Ofilter* "1" - - St. SW "1"

22h Master V ol ume L "1" Master Volume R "1"

26h MIDI Volume L "1" MIDI Volume R "1"

28h CD V o l ume L* " 1" CD Volume R* "1"
2Eh Line Volume L* "1" Line Volum e R* "1"
F0h SBPDA - - - SS SM SE SBPDR
F1h SCAN DATA
F2h Current FM Synthesizer Index
F3h - - - - - - - CFA
F4h FFEMP FFFUL - - - - - MPUS
F8h - - - - - - - SBI IRQ Status

Ifilter*

"1"

Input Source*

"1"

Suspend / Resume

SB Pro Mixer

The registers marked with * exist, but do not function.

DS-1E does not have the circuit that corresponds to the SB Mixer. Therefore, the volume settings on the
SB Mixer are converted to the DSP coefficients of DS-1E or to AC’97 register values.
The conversion for each case is described below.

(1) SB Mixer ® DSP

The volume of master, MIDI and Voice, are applied to this case.
When the SB register is set, a 14-bit coefficient value is determined from the following conversion table
and used as the DSP coefficient. The attenuation value of Master Volume, MIDI, and voice are summed
together to obtain the coefficient.
These volumes cannot be controlled from PCI Audio block.

-37-

June 28, 1999

YMF754

(1) Volume for MIDI

0

1

2

3

4

Master Vol. (22h)

5

6

7

MIDI Vol. (26h)

01234567

mute mute mute mute mute mute mute mute

0000h 0000h 0000h 0000h 0000h 0000h 0000h 0000h

mute -52dB -42dB -36dB -32dB -30dB -28dB -26dB

0000h 0029h 0082h 0103h 019Bh 0206h 028Ch 0335h

mute -42dB -32dB -26dB -22dB -20dB -18dB -16dB

0000h 0082h 019Bh 0335h 0515h 0666h 080Eh 0A24h

mute -36dB -26dB -20dB -16dB -14dB -12dB -10dB

0000h 0103h 0335h 0666h 0A24h 0CC5h 1013h 143Dh

mute -32dB -22dB -16dB -12dB -10dB -8dB -6dB

0000h 019Bh 0515h 0A24h 1013h 143Dh 197Ah 2013h

mute -30dB -20dB -14dB -10dB -8dB -6dB -4dB

0000h 0206h 0666h 0CC5h 143Dh 197Ah 2013h 2861h

mute -28dB -18dB -12dB -8dB -6dB -4dB -2dB

0000h 028Ch 080Eh 1013h 197Ah 2013h 2861h 32D6h

mute -26dB -16dB -10dB -6dB -4dB -2dB 0dB

0000h 0335h 0A24h 143Dh 2013h 2861h 32D6h 3FFFh

The default is Master = 4, MIDI = 4 (-12dB).

(2) Volume for Voice

01234567

0

1

2

3

4

Master Vol. (22h)

5

6

7

mute mute mute mute mute mute mute mute

0000h 0000h 0000h 0000h 0000h 0000h 0000h 0000h

mute -56dB -46dB -40dB -36dB -34dB -32dB -30dB

0000h 0019h 0052h 00A3h 0103h 0146h 019Bh 0206h

mute -46dB -36dB -30dB -26dB -24dB -22dB -20dB

0000h 0052h 0103h 0206h 0335h 0409h 0515h 0666Eh

mute -40dB -30dB -24dB -20dB -18dB -16dB -14dB

0000h 00A3h 0206h 0409h 0666h 080Eh 0A24h 0CC5h

mute -36dB -26dB -20dB -16dB -14dB -12dB -10dB

0000h 0103h 0335h 0666h 0A24h 0CC5h 1013h 143Dh

mute -34dB -24dB -18dB -14dB -12dB -10dB -8dB

0000h 0146h 0409h 080Eh 0CC5h 1013h 143Dh 197Ah

mute -32dB -22dB -16dB -12dB -10dB -8dB -6dB

0000h 019Bh 0515h 0A24h 1013h 143Dh 197Ah 2013h

mute -30dB -20dB -14dB -10dB -8dB -6dB -4dB

0000h 0206h 0666h 0CC5h 143Dh 187Ah 2013h 2861h

The default is Master = 4, Voice = 4 (-16dB).

Voice Vol. (04h)

(2) SB Mixer ® AC’97

The volume of CD, Line and MIC are applied to this case. AC’97 volume are not updated automatically
when these values are changed. T hus, the SB Mixer values need to be written to the AC’97 register with
the software.

June 28, 1999

-38-

YMF754

2-2-3. SB Suspend / Resume

The SB block can read the internal state as to support Suspend and Resume functions. The internal state
is made up of 268 flip flops. To read the state, these states are shifted in order and read 8 bits at a time
from the SCAN DATA register.
These registers are mapped to the SB Mixer space (see SB Mixer Register map). The registers have the
following functions.

F0h: Scan In/ Out Control

Read / Write
Default: 00h

b7 b6 b5 b4 b3 b2 b1 b0

SBPDA - - - SS SM SE SBPDR

b0................SBPDR: Sound Blaster Power Down Request

This bit stops the internal state of the Sound Blaster blo c k.
“0”: Normal (default)
“1”: Stop

b1................SE: Scan Enable

This bit Shifts the internal state by 1 bit. Setting a “1” followed by a “0” shifts the internal state.

b2................SM: Scan Mode

This bit sets whether to read or write the state.
“0”: Write (default)
“1”: Read

b3................SS: Scan Select

This bit gives permission to read or write the internal data to the SCAN DATA register.
“0”: Normal operation (Do not allow read or write). (default)
“1”: Allow read and write.

b7................SBPDA: Sound Blaster Power Down Acknowledgement

This bit indicates that the SB Block is ready to read or write to the internal state after setting SBPDR.
This bit is read only.
“0”: Read/Write not possible
“1”: Read/ Write possible

-39-

June 28, 1999

YMF754

F1h: Scan In/ Out Data

Read / Write
Default: 00h

b7 b6 b5 b4 b3 b2 b1 b0

SCAN DATA

b[7:0]..........SCAN DATA

This is the data port for reading and writing the internal state.

F2h: Current FM Synthesizer Index

Read Only
Default: 00h

b7 b6 b5 b4 b3 b2 b1 b0

Current FM Synthesizer Index

b[7:0]..........Current FM Synthesizer Index

This register indicates current index of the FM Synthesizer.

F3h: Current FM Synthesizer Array

Read Only
Default: 00h

b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - CFA

b0................CFA: Current FM Synthesizer Arary

This bit indicates that the FM Synthesizer array is being currently set to Array 0 or 1.
“0”: Array 0 (default)
“1”: Array 1

F4h: FM Synthesizer / MPU401 Status

Read Only
Default: 80h

b7 b6 b5 b4 b3 b2 b1 b0

FFEMP FFFUL - - - - - MPUS

b0................MPUS: MPU401 Status

This bit indicates current MPU401 status.
“0”: Default mode (Intelligent mode) (default)
“1”: UART mode

b6................FFFUL: FM Synthesizer FIFO Full

This bit indicates whether or not FIFO followed by the FM Synthesizer is full.
“0”: not Full (default)
“1”: Full

-40-

June 28, 1999

YMF754

b7................FFEMP: FM Synthesizer Empty

This bit indicates whether or not FIFO followed by the FM Synthesizer is empty.
“0”: not Empty
“1”: Empty (default)

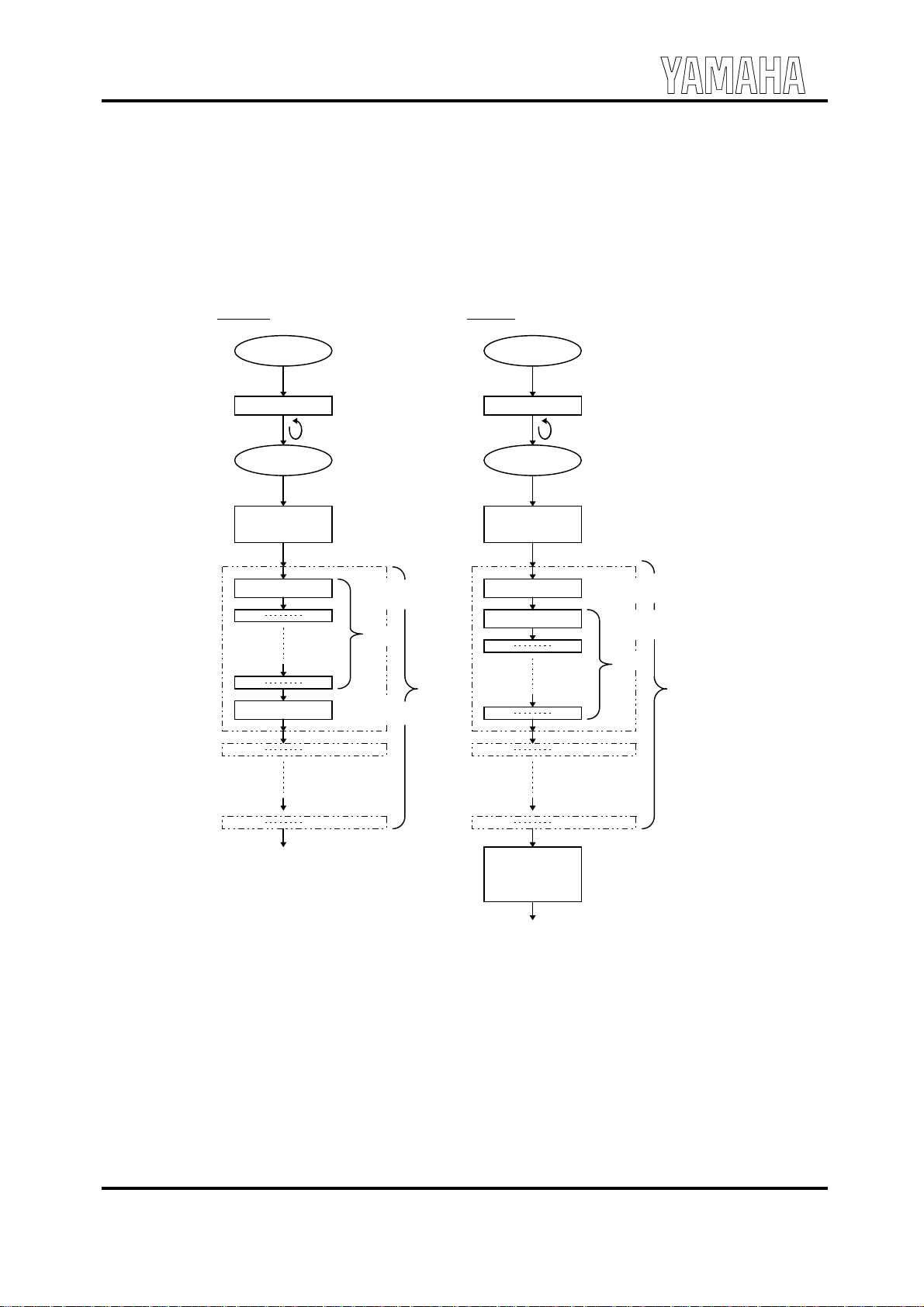

i) Scan Out

SBPDA=0

SBPDR=1

SBPDA=1

SE=1 -> 0

Scan Data (Read)

SM=1

SS=1

: not ready for scanning
internal state data

:

inhibit further DMA,

internal state shutdown

: ready for scanning
internal state data

: internal state read out
: reading internal state

: shifting internal state
scan data out 1-bit at a time

8 times

: internal state
scan data out

N times

ii) Scan In

SBPDA=0

SBPDR=1

SBPDA=1

Scan Data (Write)

SE=1 -> 0

SM=0

SS=1

: not ready for scanning
internal state data

: inhibit further DMA,
internal state shutdown

: ready for scanning
internal state data

:

internal state write in

: writing internal state

:

internal state

scan data in

shifting internal state

:

scan data in 1-bit at a time

8 times

N times

Suspend Preparation

SM=0

SS=0

SBPDR=0

Resume Completion

N = 34 byte (Total Scan Data = 268 bit (33 byte x 8 + 4 bit))

-41-

June 28, 1999

YMF754

2-2-4. SB IRQ Status

F8h: Interrupt Flag Register

Read Only
Default: 00h

b7 b6 b5 b4 b3 b2 b1 b0

- - - - - - - SBI

b0................SBI: SB Interrupt Flag

This bit indicates that the SB DSP occurs the interrupt. This bit is read only. Thus, read the SB DSP
read port to clearing the interrupt and this bit. Then, the value of the read port is invalid.

2-3. MPU401

MPU401 block is for transmitting and receiving MIDI data. It is compatible with UART mode of
“MPU401”. Full duplex operation is possible using the 16-byte FIFO for each direction, transmitting and
receiving.

The following shows the MPUBase I/O map for MPU401.

MPUBase (R/W) MIDI Data port

MPUBase + 1h (R) Status Register port

MPUBase + 1h (W) Command Register port

portD7D6D5D4D3D2D1D0

+0h Data
+1h (W) Command
+1h (R)/DSR/DRR------

-42-

June 28, 1999

YMF754

2-4. Joystick

Joystick Block is the port for connecting IBM compatible analog j oystick.

The following shows the JSBase I/O map for Joystick.

JSBase (R/W)

Port D7 D6 D5 D4 D3 D2 D1 D0

+0h JBB2 JBB1 JAB2 JAB1 JBCY JBCX JACY JACX

JACX... Joystick A, Coordinate X
JACY... Joystick A, Coordinate Y
JBCX... Joystick B, Coordinate X
JBCY... Joystick B, Coordinate Y
JAB1... Joystick A, Button 1
JAB2... Joystick A, Button 2
JBB1... Joystick B, Button 1
JBB2... Joystick B, Button 2

-43-

June 28, 1999

YMF754

g

3. DMA Emulation Protocol

The former synthesizer LSI for the ISA bus such as the Sound Blaster used the DMA controller (8237: ISA
DMAC) on the system to transfer the sound data from/to the host.
For DS-1E, however, ISA DMAC must be used to transfer the sound data to the Sound Blaster Pro Block of
the Legacy Audio Block.
Because signals to connect to the ISA DMAC are generally not available on the PCI bus, there are two ways
proposed from the industry to emulate the ISA DMAC on the PCI bus. One is PC/PCI and the other is D­DMA.
DS-1E supports both protocols for transferring SB Pro sound data on the PCI bus.

3-1. PC/PCI

DS-1E provides two signals, PCREQ# and PCGNT# to realize the PC/PCI. The format of the signals is
shown below. DS-1E asserts PCREQ# and sets PCREQ# to “HIGH” using the PCICLK corresponding to
the DMA channel it is going to use.

In addition, DS-1E determines whether the next PCI I/O cycle is its own from the channel information that is
encoded in PCGNT#.

PCGNT# is encoded as follows.

DS-1E supports only 8-bit DMA channels (DMA Channel 0-3). It also only supports Single DMA transfer.

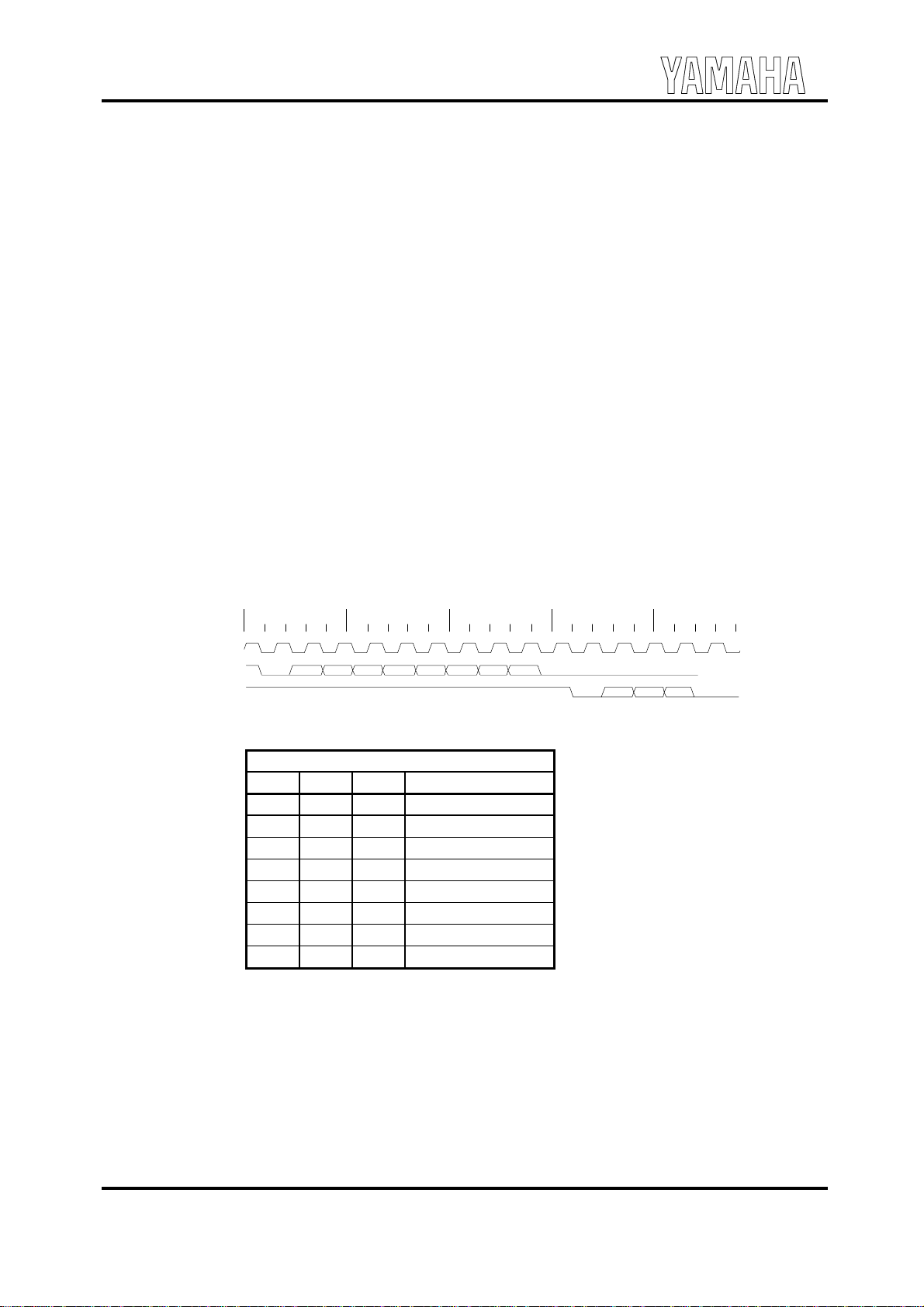

0ns 100ns 200ns 300ns 400ns

PCICLK

REQ#
GNT#

start CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

GNT# Encodin

bit2 bit1 bit0

000
001
010
011
100
101
110
111

GNT# Bits
DMA Channel 0

DMA Channel 1
DMA Channel 2
DMA Channel 3
Reserved
DMA Channel 5
DMA Channel 6
DMA Channel 7

start bit0 bit1 bit2

June 28, 1999

-44-

YMF754

3-2. D-DMA

DS-1E provides the following registers to support D-DMA. D-DMA Slave Configuration Register (4C­4Dh) of the PCI Configuration register is used to set the Base address of the Slave Address.

Slave Address R/W Register Name

Base + 0h W Base Address 0-7
Base + 0h R Current Address 0-7
Base + 1h W Base Address 8-15
Base + 1h R Current Address 8-15
Base + 2h W Base Address 16-23
Base + 2h R Current Address 16-23
Base + 3h W Base Address 24-31
Base + 3h R Current Address 24-31
Base + 4h W Base Wo rd Count 0-7
Base + 4h R Current Wor d Count 0-7
Base + 5h W Base Wo rd Count 8-15
Base + 5h R Current Wor d Count 8-15
Base + 6h W Base Word Count 16-23
Base + 6h R Current Word Count 16-23
Base + 7h N/A Reserved
Base + 8h W Command
Base + 8h R Status

Base + 9h W Request
Base + Ah N/A Reserved
Base + Bh W Mode
Base + Ch W Reserved
Base + Dh W Master Clear
Base + Eh N/A Reserved

Base + Fh R/W Multi-Channel Mask

These registers can be accessed by 8-bit or 16-bit bus width.
DS-1E supports 8-bit DMA transfer only.

-45-

June 28, 1999

YMF754

4. Interrupt Routing

DS-1E supports three types of interrupts, interrupt signal on the PCI bus (INTA#), interrupt signal on the ISA
bus (IRQ[5,7,9,10,11]), and Serialized IRQ.
The IRQs on DS-1E are routed as shown below.

INTA#

IRQ5
IRQ7

IRQ9
IRQ10
IRQ11

SERIRQ#

INTA

ISA IRQ

SERIRQ

SIEN=0, IMOD=1
SIEN=0, IMOD=0
SIEN=1, IMOD=0

SIEN=0, IMOD=1
SIEN=0, IMOD=0
SIEN=1, IMOD=0

SelectorSelector

Select Signal

SIEN, IMOD

Select Signal

IRQ

Sound Blaster Pro

SBIRQ[2:0]

IRQ

MPUIRQ[2:0]

PCI Audio

MPU401

PCI Audio can only use INTA#, but the Sound Blaster Pro and MPU401 blocks of the Legacy Audio Block
can use any of the three protocols.
The protocol can be switched using 40-43h (Legacy Audio Control Register) of the PCI Configuration
Register.

4-1. Serialized IRQ

Serialized IRQ is a method to encode IRQs of 15 channels into one signal.

DS-1E provides the SERIRQ# pin to support Serialized IRQ.
Only one channel out of the 5 channels, IRQ5, IRQ7, IRQ9, IRQ10, and IRQ11, can be encoded into the
IRQ/Data frame of Serialized IRQ.
The IRQ channel is selected using 40h-43h (Legacy Audio Control Register) of the PCI Configuration
Register.

June 28, 1999

-46-

YMF754

5. Hardware Volume Control

The hardware volume control determines the AC’97 master volume without using any software control using
the external circuit listed below.
Two pins, VOLUP# for increasing the volume and VOLDW# for decreasing the volume, are used.

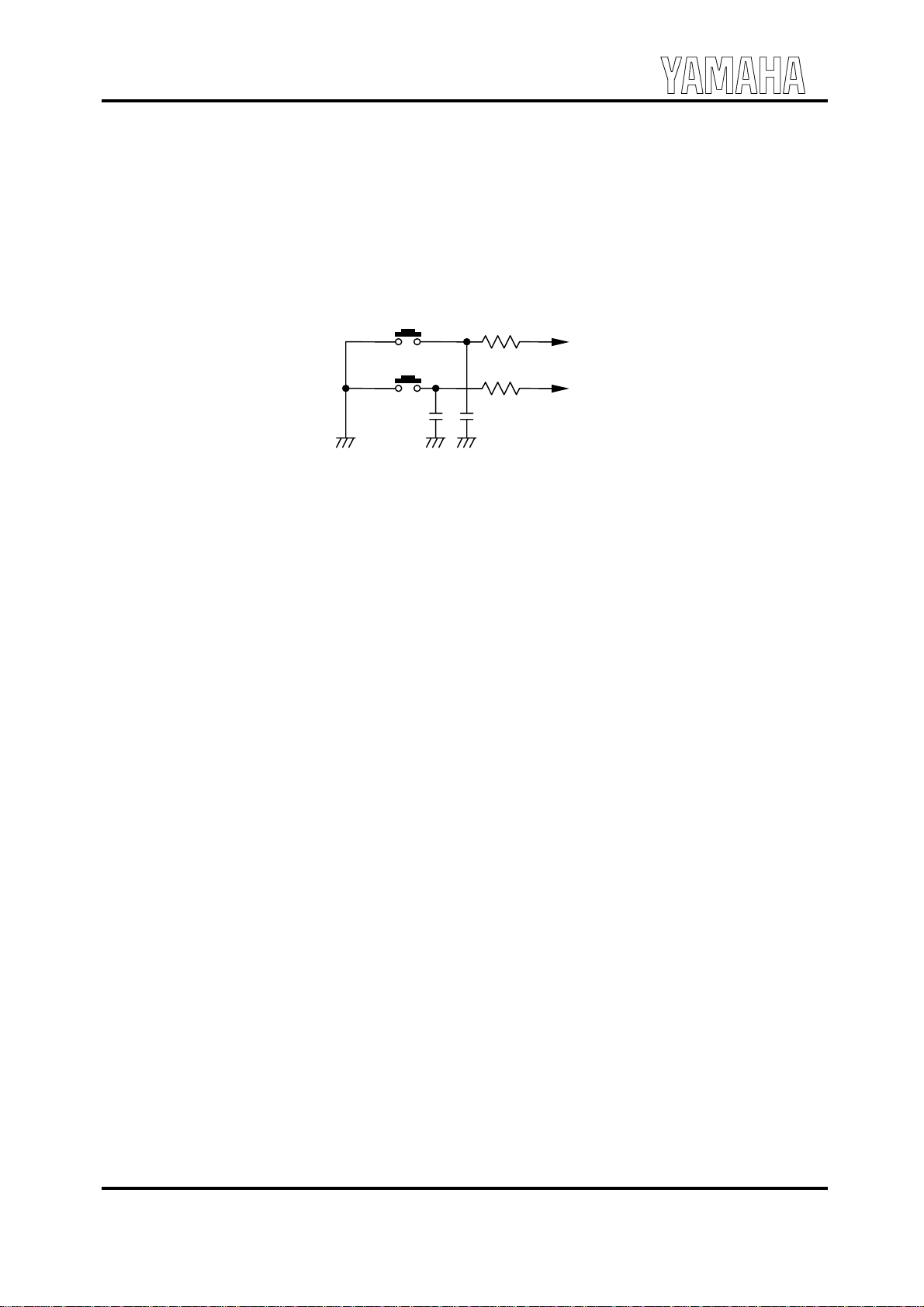

Push SW

Push SW

1000p 1000p

DS-1E provides a shadow register for the AC’97 master volume. When the software accesses the AC’97
master volume, it is always reflected in the shadow register.
Bringing the VOLUP# pin LOW level increments the left and right-channel shadow register by +1.5dB
respectively. If either one of channel shadow registers have been already set to maximum value (00000b),
the corresponding channel shadow register remains in the same value, and the other channel shadow register
will only be incremented. If both o f channel shadow registers have been already set to maximum values,
they remain in the same values.
Bringing the VOLDW# pin LOW level decrements the left and right-channel shadow register by -1.5dB
respectively. If either one of channel shadow registers have been already set to minimum value (11111b),
the corresponding channel shadow register remains in the same value, and the other channel shadow register
will only be decremented. If both of channel shadow registers have been already set to minimum values,
they remain in the same values.
The master volume for the AC’97 is updated automatically via the AC-Link by setting corresponding values
to the shadow registers.
When both of the VOLUP# and VOLDW# pins are at LOW level at the same time, the MUTE bit of the
shadow register is enabled to automatically set the MUTE bit of the AC’97 master volume via the AC-Link.
When either one of the VOLUP# or VOLDW# pins is at LOW level, mute condition of the AC’97 is
deactivated via the AC-Link. At this point of time, the master volume is set to the value before the mute.
When the AC-Link is busy (in case the register is controlled by the AC’97 Control Register), shadow register
values will be set to the AC’97 on the next frame. At this time, BUSY is set at the AC’97 control register.

1k

VOLUP#

1k

VOLDW#

When the master volume is changed or muted depending on the logic level transition status of the VOLUP#
and VOLDW# pins, an interrupt is generated at the host. The interrupt is used to notify the driver that the
master volume has been changed.

When the AC’97 is not connected or it is placed in power down mode, the shadow register values will remain
in the same even if the VOLDW# and VOLUP# pins are at LOW level.

June 28, 1999

-47-

YMF754

6. Digital Audio Interface

DS-1E supports each system of the SPDIF input/output port compliant with the IEC958 specification.

6-1. SPDIF IN

SPDIF input sampling frequency is 32.0kHz, 44.1kHz or 48.0kHz.
In DS-1E, sampling rate of the SPDIF signal incoming from the SPDIFIN pin is converted to 48.0kHz in the
frequency rate conversion stage in order to process all the signals at 48.0 kHz frequency. If input sampling
frequency is 48.0kHz, however, this is resampled at 96.0kHz, then decimated into 48.0kHz frequency.
DS-1E supports a direct recording function which records by input sampling rate of the SPDIFIN pin without
converting to 48kHz .
The input signal applied to the SPDIFIN pin can be also provided as outputs to the SPDIFOUT pin.

The SPDIF input is used to be selected between Zoomed Video Port on YMF744B (DS-1S). However, on
DS-1E, the both functions can be used at the same time.

6-2. SPDIF OUT

SPDIF output is selected from three types of data indicated below:
A : Dolby digital (AC-3) encoded data
B : Output data (to be provided to the DAC slot on the AC-link) after digital mixing
C : Input data applied to the SPDIFIN pin
When the above A and B data are supplied as outputs, output sampling frequency is fixed at 48 kHz, and
when the above C data is supplied as an output, output sampling frequency is dependent on the frequency
available from the SPDIFIN input pin.

Control and category codes of the channel status are provided as sampling rate converter, copyright
protection available and commercially available recorded software in accordance with the serial copy
management system. Such a code arrangement allows output data to be digitally copied only to the next
generation ones. When input signal to the SPDIFIN pin is provided as output, no modification is made for
the channel status, etc., and output data is code-dependent available from the SPDIFIN pin.

-48-

June 28, 1999

YMF754

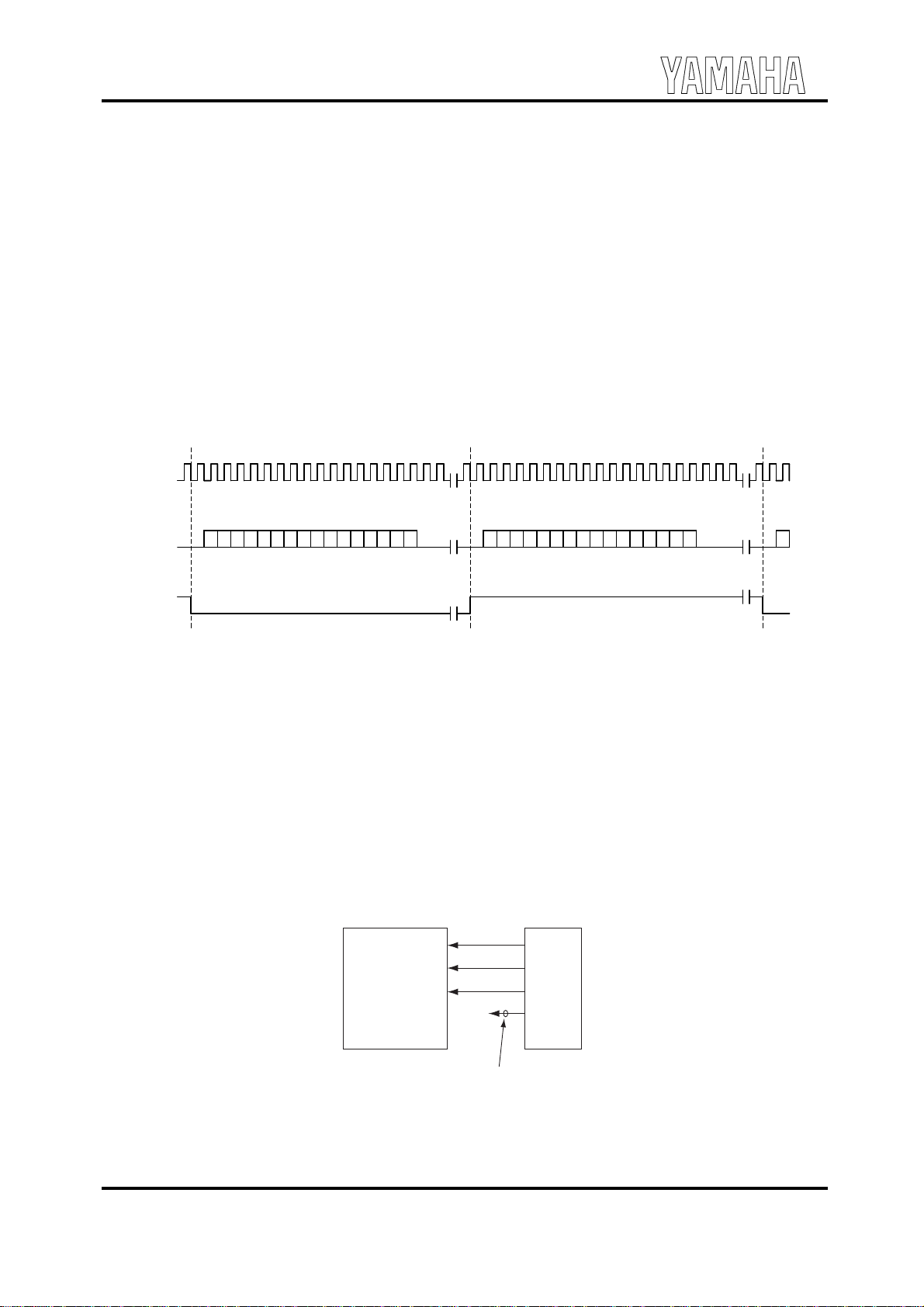

7. Zoomed Video Port

Zoomed Video Port is defined in the PC Card Standard (PCMCIA) applicable to the notebook PC or other
systems. This port is used to directly output video and/or audio signals onto the PCMCIA bus for D/A
conversion process, and connect them directly to the video and/or audio signal processing chips on the PC
system. Its major applications include MPEG decoder card and video capture card, etc.
Because the video and/or audio signals on the Zoomed Video Port have been output in synchronized
condition, DS-1E mixes it with the other audio signals, and outputs to AC’97 or SPDIF.
Audio signals to be transferred on the Zoomed Video Port include bit clock (SCLK), L/R clock (LRCK) and
serial data (DATA), and they are provided as outputs in the format defined below. This is generally called

2

I

S format.

SCLK

DATA

LRCK

In the Zoomed Video Port, synchronization with a master clock supplied from the bus is inherently required.
However, DS-1E can asynchronously process audio signal input via the Zoomed Video Port, eliminating the
need for master clock.
Sampling rate of the audio signals input via the Zoomed Video Port is resampled to 96.0kHz sampling
frequency at the stage followed by the SRC block, then converted to 48.0kHz sampling rate in the SRC block
stage. Sampling rates to be supported on the Zoomed Video Port include 22.05kHz, 32.0kHz, 44.1kHz and

48.0kHz.

Interface connection arrangement between the DS-1E and the Zoomed Video Port is as illustrated below.

1514131211109876543210 1514131211109876543210

LEFT Channel RIGHT Channel

DS-1E ZV Port

ZVBCLK
ZVLRCK

ZVSDI

SCLK
LRCK
DATA

MCLK

Open

The Zoomed Video Port is used to be selected between SPDIF input on YMF744B (DS-1S). However, on
DS-1E, the both functions can be used at the same time.

June 28, 1999

-49-

YMF754

8. Multiple AC’97 & Multi-Channel

DS-1E allows connection with up to two AC’97s, and plays back up to 4-channel PCM data. T herefore, the
following applications can be realized.

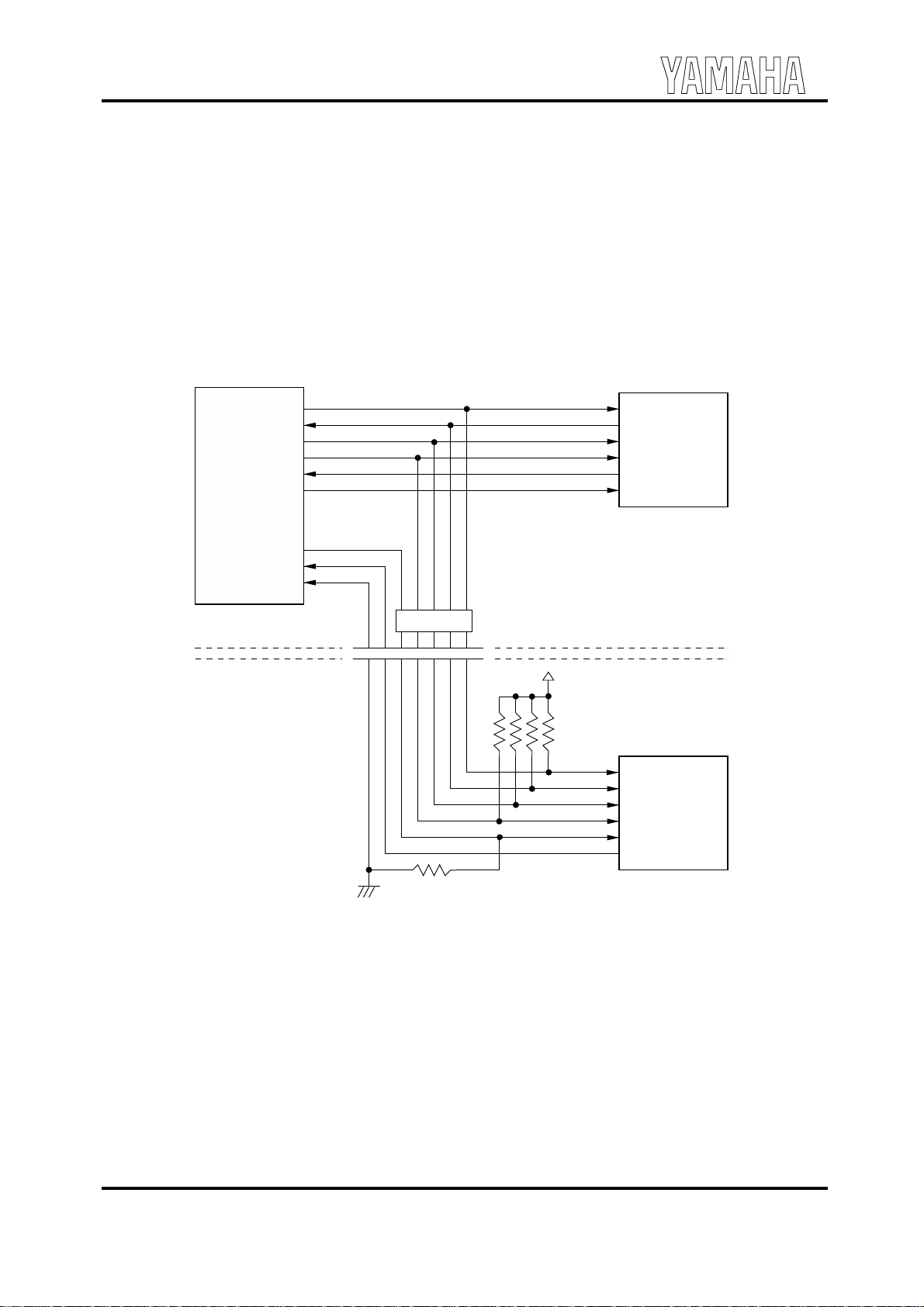

8-1. AC’97 Digital Docking

AC’97 digital docking can be realized by mounting the secondary AC’97 on the docking station side. Typical
example of digital docking connection between DS-1E and AC’97s is represented in the diagram below.

CMCLK XTL_IN
CBCLK
CSYNC

CSDO
CSDI0
RST#

DS-1E

BIT_CLK

SYNC

SDATA_OUT

SDATA_IN

RESET#

Primary AC'97

GPIO2
CSDI1
DOCKEN#

PC Side

Docking Station Side

Isolation Buffer

DVDD

XTL_IN

BIT_CLK

SYNC

SDATA_OUT

RESET#

SDATA_IN

Secondary AC'97

(AC'97 Rev2.1)

When digital docking interface is made with the main side (PC side) powered on, but docking station side
powered off, it may be not desirable for the secondary AC’97 that each output signal from the AC-Link is
applied to the secondary AC’97 that remains in powered off state. In order to avoid such a situation, it is
necessary to place an additional isolation buffer on the PC side (or docking station side).

8-2. 4-Channel Speaker System

4-channel speaker system can be realized by the connection of DS-1E with two 2-channel AC’97s as
described at “8-1. AC’97 Digital Docking” or using the AC’97 that includes 4-channel D/A converters.
Then, 4-channel PCM data can be played back at one time.

June 28, 1999

-50-

YMF754

ELECTRICAL CHARACTERISTICS

1. Absolute Maximum Ratings

Item Symbol Min. Max. Unit

Power Supply Voltage (PVDD, VDD) V
Power Supply Voltage (CVDD, LVDD) V
Input Voltage V
Operating Ambient Temperature T
Storage Temperature T
Note : PVSS=VSS=LVSS=0[V]

DD3

DD2

IN

OP

STG

2. Recommended Operating Conditions

Item Symbol Min. Typ. Max. Unit

Power Supply Voltage (PVDD, VDD) V
Power Supply Voltage (CVDD, LVDD) V
Operating Ambient Temperature T
Note : PVSS=VSS=LVSS=0[V]

DD3

DD2

OP

-0.3 4.6 V

-0.3 3.6 V

-0.3 5.75 V
070°C

-50 125 °C

3.00 3.30 3.60 V

2.30 2.50 2.70 V
02570°C

-51-

June 28, 1999

YMF754

3. DC Characteristics

Item Symbol Condition Min. Typ. Max. Unit

High Level Input Voltage 1 V
High Level Input Voltage 1 V
Low Level Input Voltage 1 V
High Level Input Voltage 2 V
Low Level Input Voltage 2 V
High Level Input Voltage 3 V
Low Level Input Voltage 3 V
High Level Input Voltage 4 V
Low Level Input Voltage 4 V
Input Leakage Current I
High Level Output Voltage 1 V
Low Level Output Voltage 1 V
High Level Output Voltage 2 V
Low Level Output Voltage 2 V
High Level Output Voltage 3 V
Low Level Output Voltage 3 V
High Level Output Voltage 4 V
Low Level Output Voltage 4 V
High Level Output Voltage 5 V
Low Level Output Voltage 5 V
Input Pin Capacitance C
Clock Pin Capacitance C
IDSEL Pin Capacitance C
Output Leakage Current I

-0.5 - 5.75 V

IN

*1 0.5V

IH1

*1 - - 0.3V

IL1

*2 0.7V

IH2

*2 - - 0.3V

IL2

*3 0.65V

IH3

*3 - - 0.35V

IL3

*4 2.0 - - V

IH4

*4 - - 0.8 V

IL4

0< VIN < V

IL

*5, I

OH1

*5, I

OL1

*6, I

OH2

*6, I

OL2

*7, I

OH3

*7, I

OL3

*8, I

OH4

*8, I

OL4

*9, I

OH5

*9, I

OL5

5 - 15 pF

IN

5 - 15 pF

CLK

5 - 15 pF

IDSEL

OL

DD5

= -0.5mA 0.9V

OH1

= 1.5mA - - 0.1V

OL1

= -100µA 0.8V

OH2

= 300µA - - 0.2V

OL2

= -2.0mA 0.9V

OH3

= 6.0mA - - 0.1V

OL3

= -0.5mA 2.4 - - V

OH4

= 1.5mA - - 0.4 V

OL4

= -1.5mA 2.4 - - V

OH5

= 4.5mA - - 0.4 V

OL5

DD3

DD3

DD3

-10 - 10 µA

DD3

DD3

DD3

-10 - 10 µA

--V

--V

--V

--V

--V

--V

DD3

DD3

DD3

DD3

DD3

Normal - 75 100 mA

Power Supply Current

Power Save (*10) - TBD TBD mA

Note : Top = 0~70°C, PVDD=3.3±0.3[V], VDD=3.3±0.3[V], CVDD=2.5±0.2[V], LVDD=2.5±0.2[V]

*1: Applicable to all PCI Iuput/Output pins and Iunput pins.
*2: Applicable to XI24 pin.
*3: Applicable to CBCLK, CSDI0 and CSDI1 pins.
*4: Applicable to ZVBCLK, ZVLRCK, ZVSDI, GP[7:4], RXD, VOLUP#, VOLDW#, GPIO[2:0], DOCKEN#,

ROMDI, SPDIFIN and TEST# pins.
*5: Applicable to all PCI Input/Output pins and output pins.
*6: Applicable to XO24 pin.
*7: Applicable to CRST#, CSYNC, CSDO and CMCLK pins.
*8: Applicable to SPDIFOUT, ROMSK, ROMDO, ROMCS, GPIO[2:0] and TXD pins.
*9: Applicable to IRQ5, IRQ7, IRQ9, IRQ10 and IRQ11 pins.
*10: All DS-1E Power Control bits are set to “1”.

DD3

V

V

V

V

V

V

-52-

June 28, 1999

YMF754

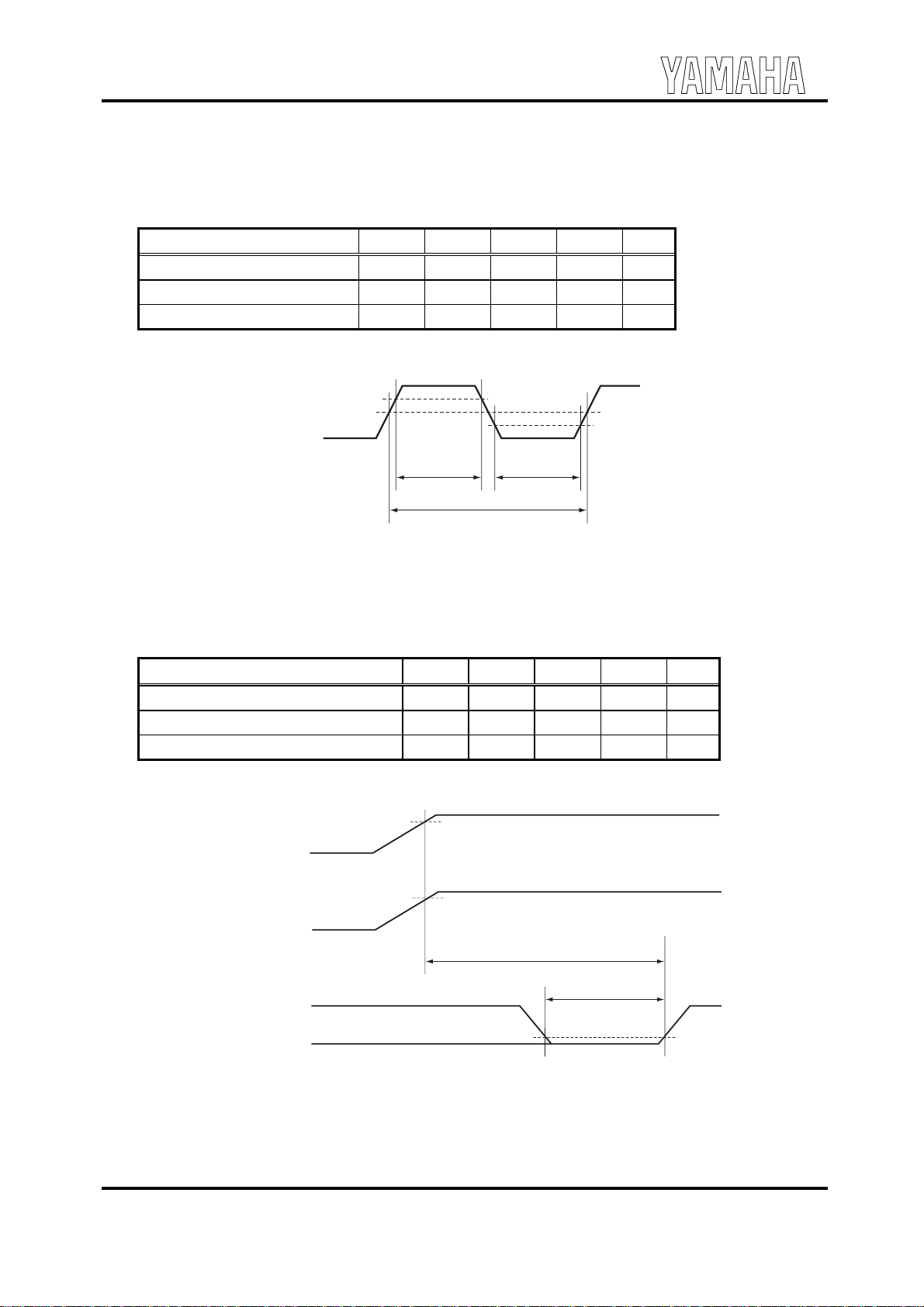

4. AC Characteristics

4-1. Master Clock (Fig.1)

Item Symbol Min. Typ. Max. Unit

XI24 Cycle Time t
XI24 High Time t
XI24 Low Time t

Note : Top = 0-70°C, PVDD=3.3±0.3 V, VDD=3.3±0.3 V, CVDD=2.5±0.2 V, LVDD=2.5±0.2 V

XICYC

XIHIGH

XILOW

XI24

- 40.69 - ns
13 - 24 ns
13 - 24 ns

2.3 V

t

XIHIGH

t

XICYC

t

XILOW

1.65 V

1.0 V

Fig.1: XI24 Master Clock timing

4-2. Reset (Fig.2)

Item Symbol Min. Typ. Max. Unit

Reset Active Time after Power Stable t
Power Stable to Reset Rising Edge t

RST

RSTOFF

1--ms

10 - - ms

Reset Slew Rate - 50 - - mV/ns

Note : Top = 0-70°C, PVDD=3.3±0.3 V, VDD=3.3±0.3 V, CVDD=2.5±0.2 V, LVDD=2.5±0.2 V, CL=50 pF

PVDD, VDD

CVDD, LVDD

RST#

3.0 V

2.3 V

Fig.2: PCI Reset timing

-53-

t

RSTOFF

t

RST

0.8 V

June 28, 1999

YMF754

)

)

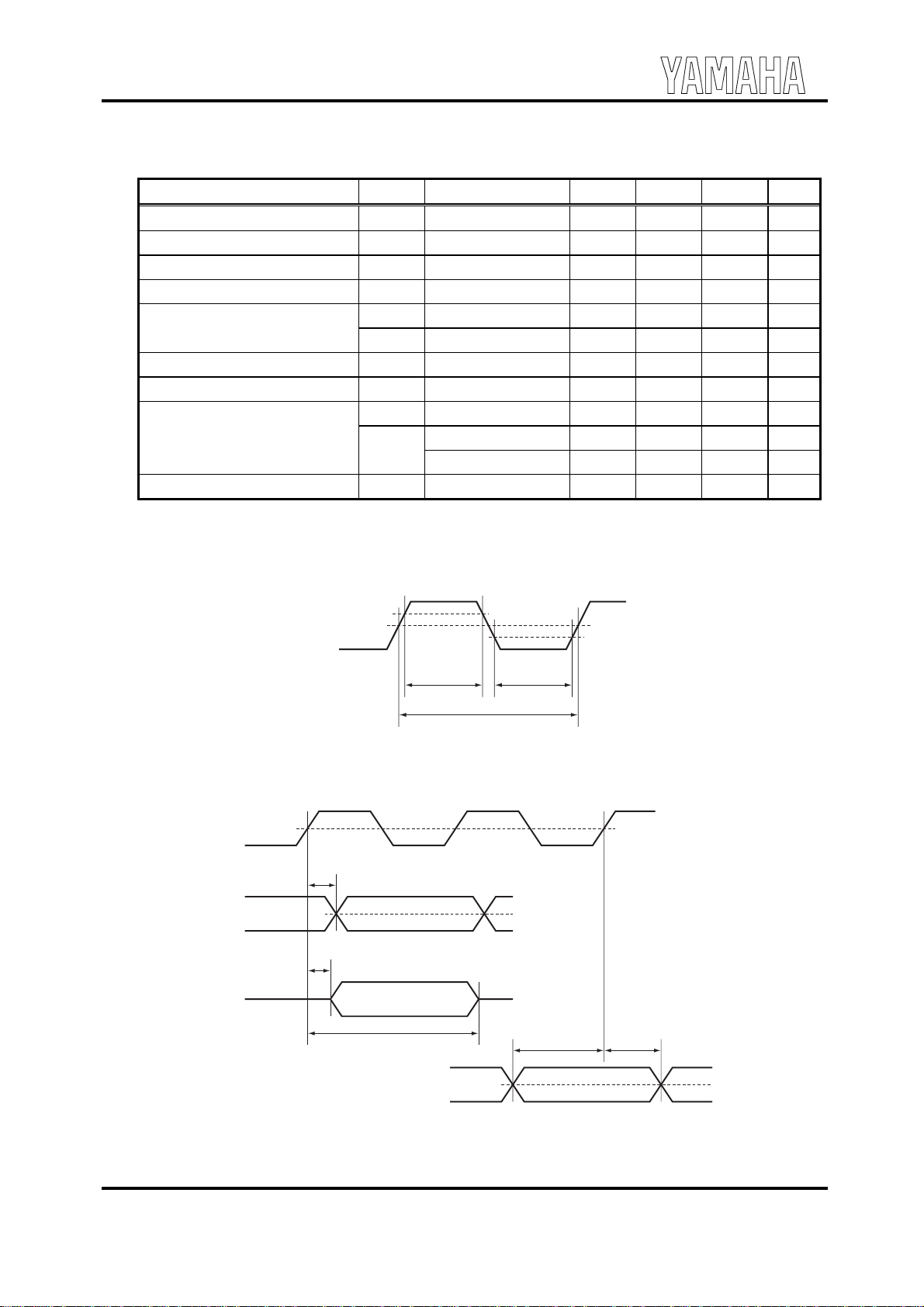

4-3. PCI Interface (Fig.3, 4)

Item Symbol Condition Min. Typ. Max. Unit

PCICLK Cycle Time t
PCICLK High Time t
PCICLK Lo w Time t

PCYC

PHIGH

PLOW

30 - - ns
11 - - ns
11 - - ns

PCICLK Slew Rate - 1 - 4 V/ns

t

PCICLK to Signal Valid Delay

Float to Active Delay t
Active to Float Delay t

PVAL

t

PVAL(PTP

PON

POFF

t

PSU

t

PSU(PTP

Input Hold Time for PCICLK t

Note : Top = 0-70°C, PVDD=3.3±0.3 V, VDD=3.3±0.3 V, CVDD=2.5±0.2 V, LVDD=2.5±0.2 V, CL=10 pF

*11: This characteristic is applicable to REQ# and PCREQ# signal.
*12: This characteristic is applicable to GNT# and PCGNT# signal.

PCICLK

(Bused signal) 2 - 11 ns
(Point to Point) 2 - 12 ns

2--ns

--28ns
(Bused signal) 7 - - ns
*11 (Point to Point) 10 - - nsInput Setup Time to PCICLK
*12 (Point to Point) 12 - - ns

PH

0.5 VDD3

0--ns

0.4 VDD3

0.3 VDD3

PCICLK

OUTPUT

Tri-State
OUTPUT

t

t

PHIGH

Fig.3: PCI Clock timing

t

PVAL

PON

t

POFF

INPUT

t

PCYC

t

PLOW

1.5 V

t

PSU

1.5 V

t

PH

1.5 V

Fig.4: PCI Bus Signals timing

June 28, 1999

-54-

YMF754

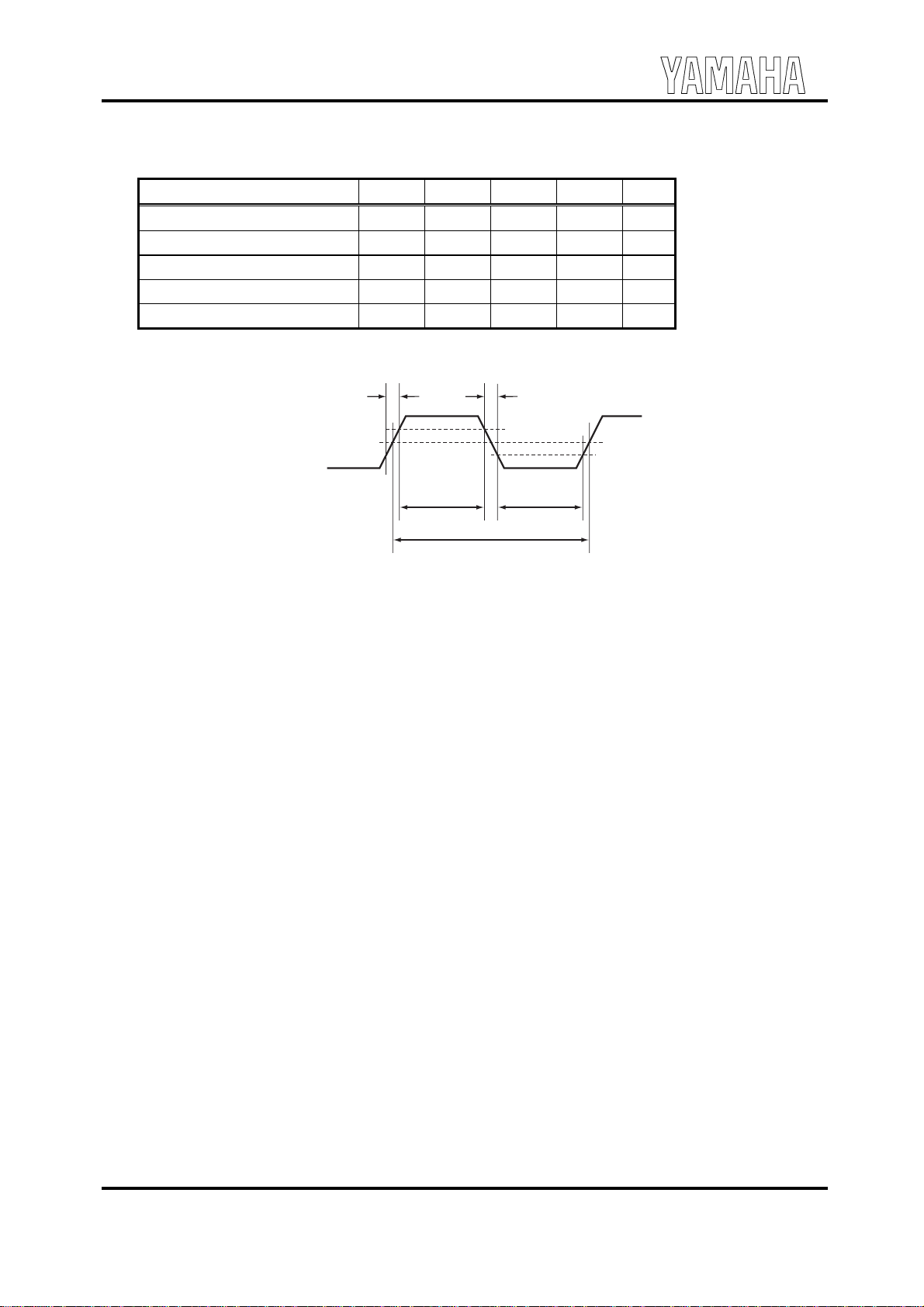

4-4. AC’97 Master Clock (Fig.5)

Item Symbol Min. Typ. Max. Unit

CMCLK Cycle Time t
CMCLK High Time t
CMCLK Low Time t
CMCLK Rising Time t
CMCLK Falling Time t

Note : Top = 0-70°C, PVDD=3.3±0.3 V, VDD=3.3±0.3 V, CVDD=2.5±0.2 V, LVDD=2.5±0.2 V, CL=50 pF

t

CMCYC

CMHIGH

CMLOW

CMR

CMF

CMR

CMCLK

- 40.69 - ns
8--ns
8-ns

-4.6-ns

-2.1-ns

t

CMF

0.8 V

t

CMHIGH

t

CMCYC

DD3

t

CMLOW

0.5 V

0.2 V

DD3

DD3

Fig.5: Master Clock timing for AC’97

-55-

June 28, 1999

YMF754

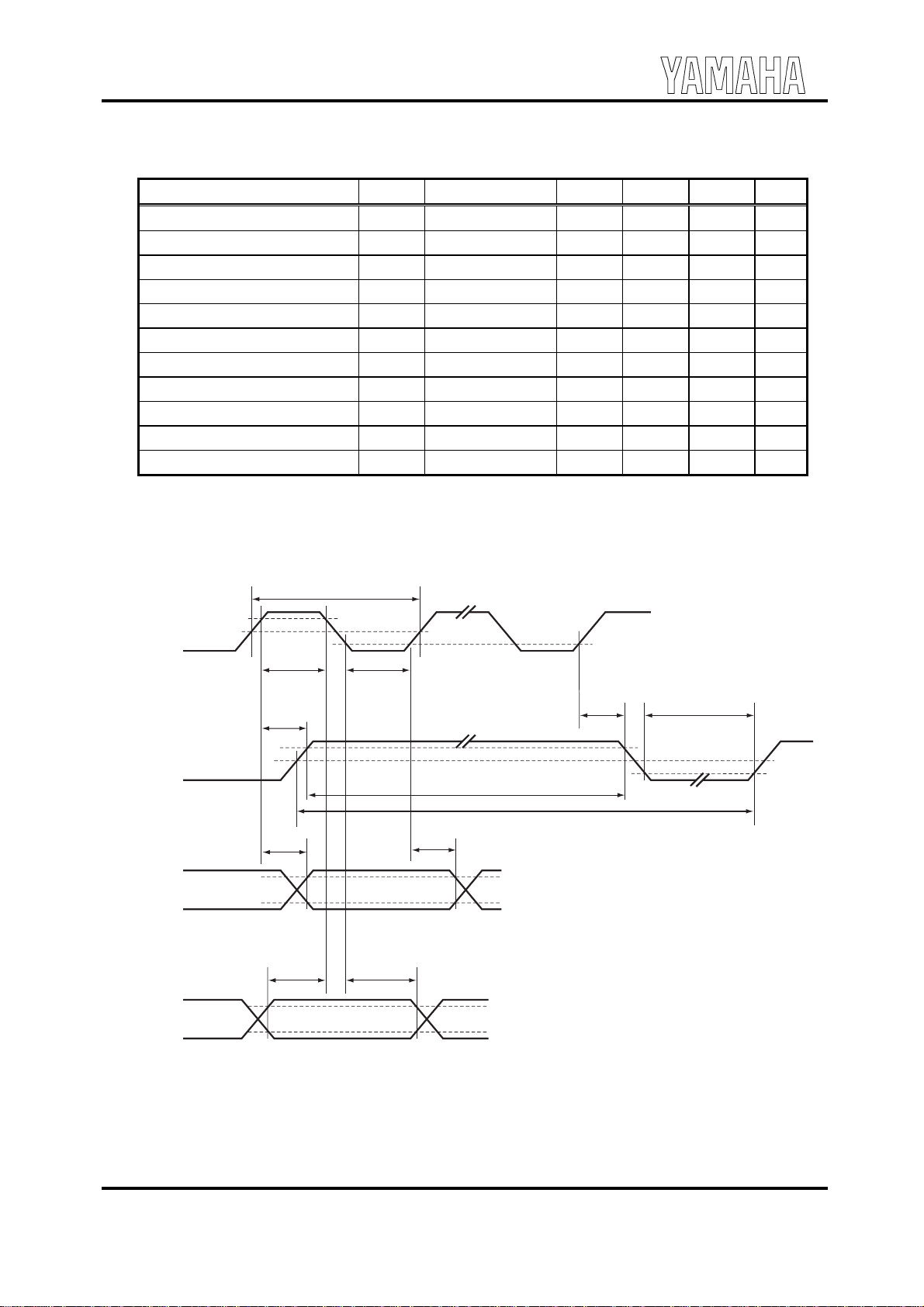

4-5. AC-link (Fig.6)

Item Symbol Condition Min. Typ. Max. Unit

CBCLK Cycle Time t
CBCLK High Time t
CBCLK Low Time t
CSYNC Cycle Time t
CSYNC High Time t

CSYHIGH

CSYNC Low Time t
CBCLK to Signal Valid Delay t
Output Hold Time for CBCLK t
Input Setup Time to CBCLK t
Input Hold Time for CBCLK t

CBICYC

CBIHIGH

CBILOW

CSYCYC

CSYLOW

CVAL

COH

CISU

CIH

*13 - - 20 ns
*13 0 - - ns
*14 15 - - ns
*14 5 - - ns

- 81.4 - ns
35 40.7 45 ns
35 40.7 45 ns

- 20.8 - µs

-1.3-µs

- 19.5 - µs

Warm Reset Width - 1.3 - µs

Note) Top = 0-70°C, PVDD=3.3±0.3 V, VDD=3.3±0.3 V, CVDD=2.5±0.2 V, LVDD=2.5±0.2 V, CL=50 pF

*13: This characteristic is applicable to CSYNC and CSDO signal.
*14: This characteristic is applicable to CSDI signal.

t

CBICYC

2.0 V

CBCLK

t

CVAL

t

CBIHIGH

t

CBILOW

1.5 V

t

0.8 V

COH

2.0 V

t

CSYLOW

SYNC

t

CSYHIGH

1.5 V

0.8 V

CSDO

CSDI

t

CVAL

t

CISU

t

CIH

Fig.6: AC-link timing

-56-

t

COH

2.0 V

0.8 V

2.0 V

0.8 V

t

CSYCYC

June 28, 1999

YMF754

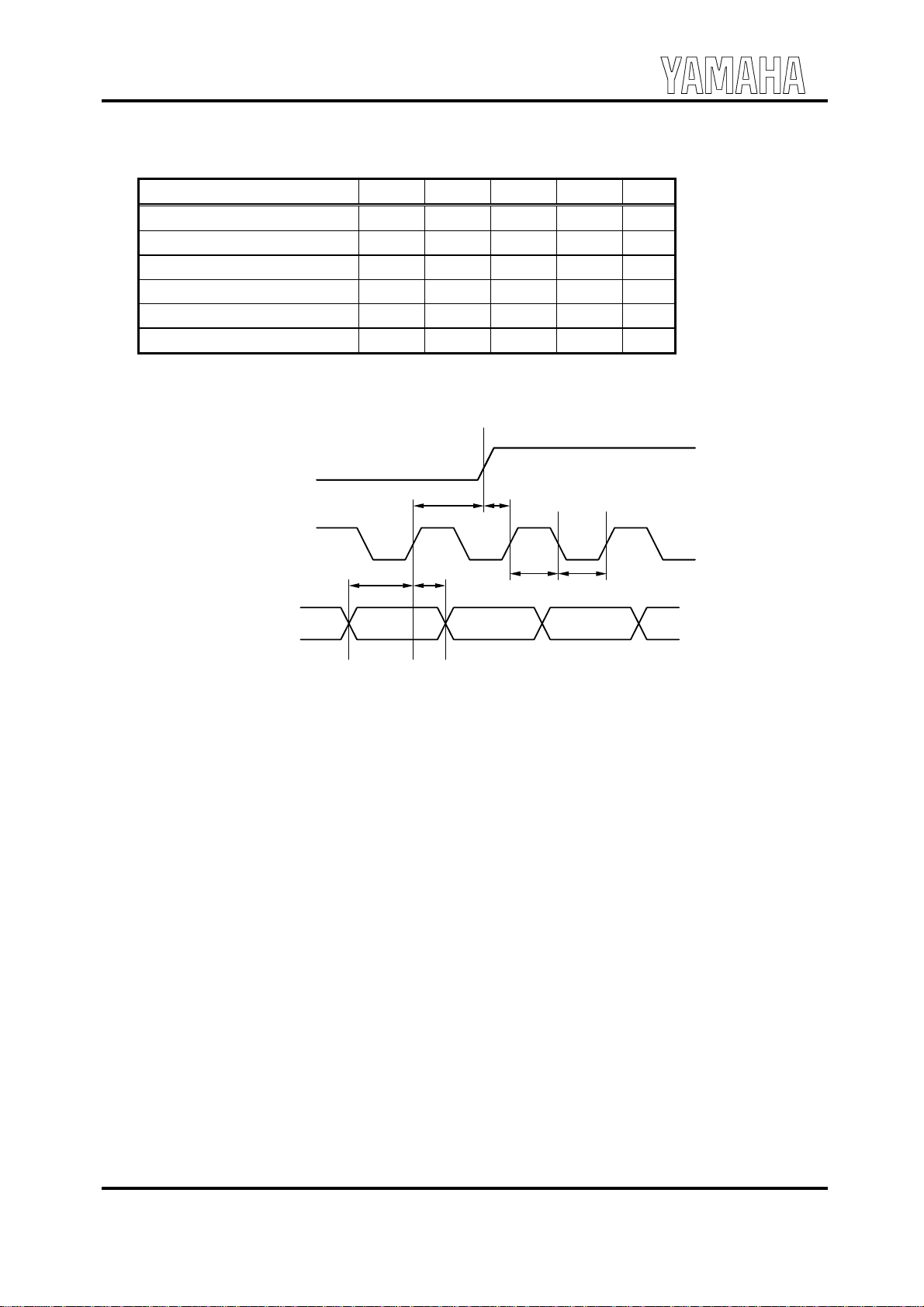

4-6. Zoomed Video Port (Fig.7)

Item Symbol Min. Typ. Max. Unit

ZVLRCK Delay Time t
ZVLRCK Setup Time t
ZVBCLK Low T ime t
ZVBCLK High Time t
ZVSDI Setup Time t
ZVSDI Hold Time t

Note : Top = 0-70°C, PVDD=3.3±0.3 V, VDD=3.3±0.3 V, CVDD=2.5±0.2 V, LVDD=2.5±0.2 V, CL=50 pF

ZVLRCK

ZVSCLK

ZVSDI

t

SDS

SLRD

SLRS

SCLKL

SCLKH

SDS

SDH

2--ns
32 - - ns
22 - - ns
22 - - ns
32 - - ns

2--ns

t

t

SLRD

t

SDH

SLRS

t

SCLKH

t

SCLKL

Fig.7: Zoomed Video Port timing

-57-

June 28, 1999

YMF754

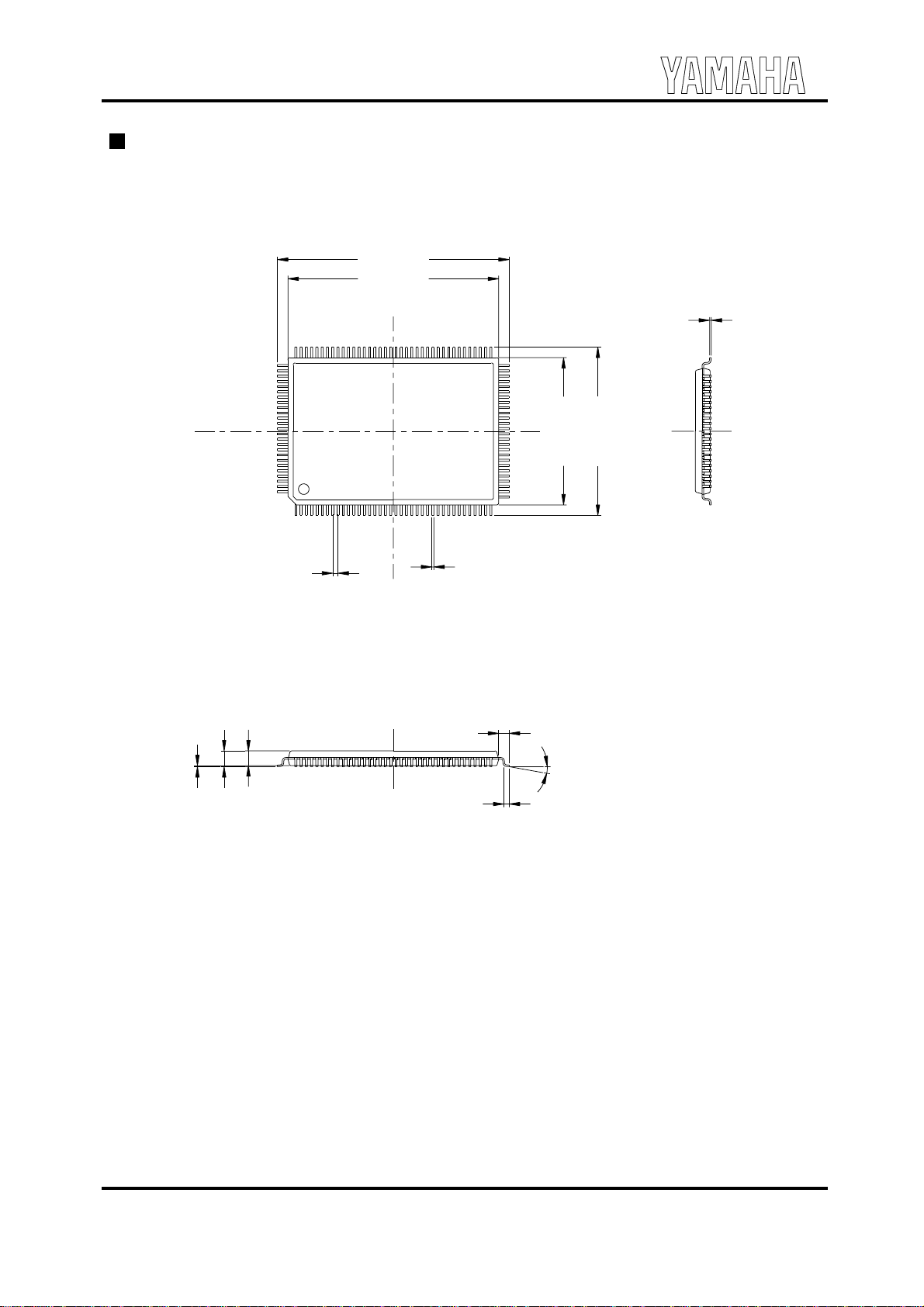

EXTERNAL DIMENSIONS

YMF754-V

102 65

22.00±0.40

20.00±0.30

0.15Typ. or 0.17Typ.

(LEAD THICKNESS)

1.70MAX.

0 Min. (STAND OFF)

103

128

138

P-0.50Typ.

1.40±0.20

0.20±0.10

64

14.00±0.30

39

(1.00)

0-15˚

0.50±0.30

16.00±0.40

Unit : mm

The shape of the molded corner may slightly different from the shape in this diagram.
The figure in the parenthesis ( ) should be used as a reference.
Plastic body dimensions do not include burr of resin.

UNIT : mm

Note : The LSIs for surface mount need especial consideration on storage and soldering conditions.

For detailed information, please contact your nearest agent of Yamaha.

June 28, 1999

-58-

YMF754

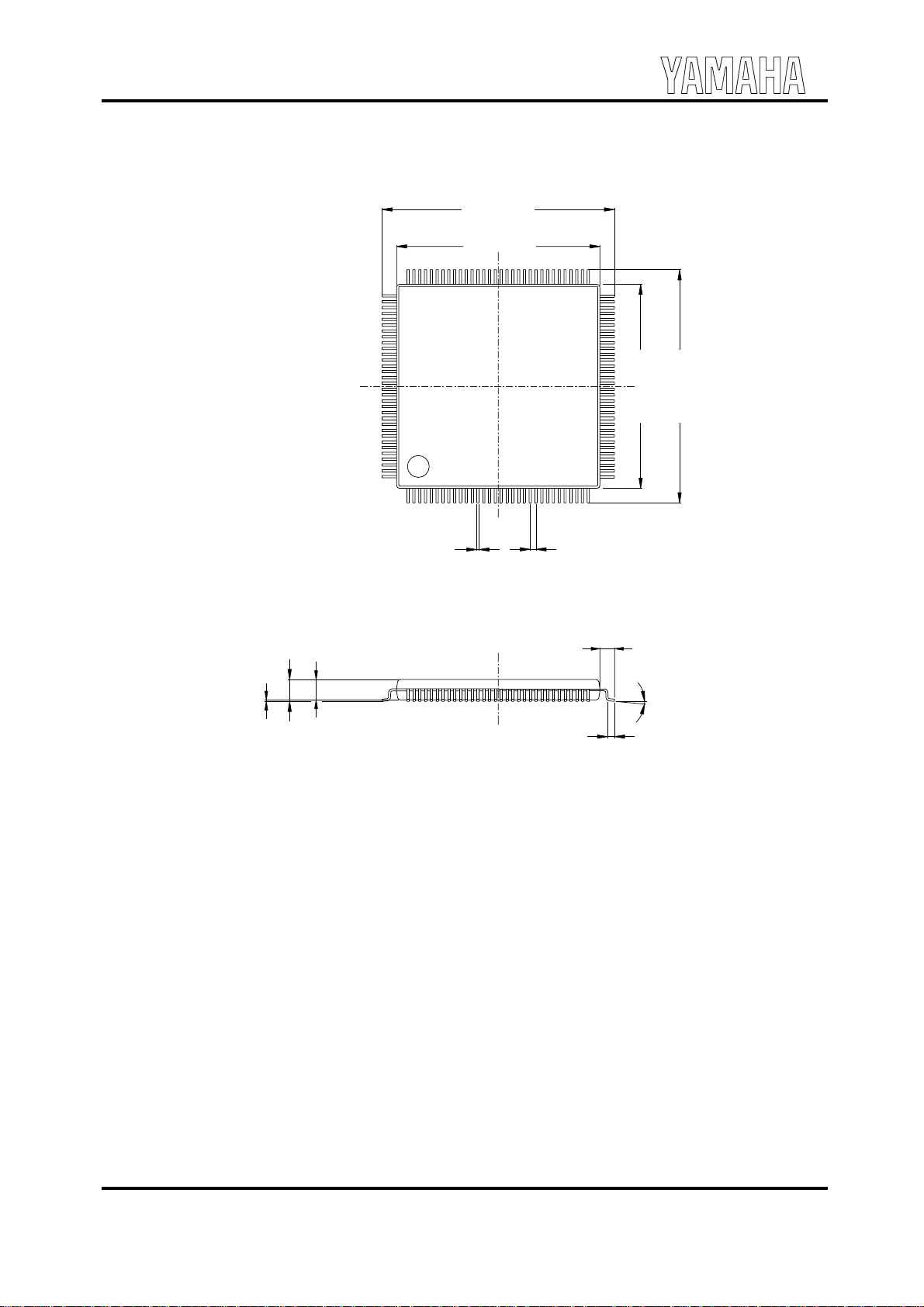

YMF754-R

16.00±0.40

14.00±0.30

96

65

97

128

132

0.16±0.10

1.70MAX.

1.40±0.20

0 Min. (STAND OFF)

LEAD THICKNESS : 0.125Typ. or 0.15Typ.

P-0.40Typ.

64

33

(1.0)

14.00±0.30

16.00±0.40

0-10˚

0.50±0.20

Unit : mm

The shape of the molded corner may slightly different from the shape in this diagram.
The figure in the parenthesis ( ) should be used as a reference.
Plastic body dimensions do not include burr of resin.

UNIT : mm

Note : The LSIs for surface mount need especial consideration on storage and soldering conditions.

For detailed information, please contact your nearest agent of Yamaha.

June 28, 1999

-59-

YMF754

y

g

q

q

jury

IMPORTANT NOTICE

1. Yamaha reserves the right to make changes to its Products and to this document without
notice. The information contained in this document has been carefull
believed to be reliable. However, Y amaha assumes no responsibilities for inaccuracies and
makes no commitment to update or to keep current the information contained in this
document.

checked and is

2. These Yamaha Products are desi
applications, and are not suitable for other uses, such as medical life support e
nuclear facilities, critical care e
lead to death, personal in

uipment or any other application the failure of which could

or environmental or property damage. Use of the Products in

ned only for commercial and normal industrial

uipment,

any such application is at the customer's sole risk and expense.

3. YAMAHA ASSUMES NO LIABILITY FOR INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES OR INJURY THAT MAY RESULT FROM MISAPPLICATION OR
IMPROPER USE OR OPERATION O F THE PRO DUCTS.

4. YAMAHA MAKES NO WARRANTY OR REPRESENTATION THAT THE PRODUCTS
ARE SUBJECT TO INTELLECTUAL PROPERTY LICENSE FROM YAMAHA OR
ANYTHIRD PARTY, AND YAMAHA MAKES NO WARRANTY OR REPRESENTATION
OF NON-INFRINGEMENT WITH RESPECT TO THE PRODUCTS. YAMAHA
SPECIFICALLY EXCLUDES ANY LIABILITY TO THE CUSTOMER OR ANY THIRD
PARTY ARISING FROM OR RELATED TO THE PRODUCTS' INFRINGEMENT OF ANY
THIRD PARTY'S INTELLECTUAL PROPERTY RIGHTS, INCLUDING THE PATENT,
COPYRIGHT, TRADEMARK OR TRADE SECRET RIGHTS OF ANY THIRD PARTY.

5. EXAMPLES OF USE DESCRIBED HEREIN ARE MERELY TO INDICATE THE
CHARACTERISTICS AND PERFORMANCE OF YAMAHA PRODUCTS. YAMAHA
ASSUMES NO RESPONSIBILITY FOR ANY INTELLECTUAL PROPERTY CLAIMS OR
OTHER PROBLEMS THAT MAY RESULT FROM APPLICATIONS BASED ON THE
EXAMPLES DESCRIBED HEREIN. YAMAHA MAKES NO WARRANTY W ITH RESPECT
TO THE PRODUCTS, EXPRESS OR IMPLIED, INCLUDI NG, BUT NOT LIMITED TO THE
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR USE AND
TITLE.

Note) The specifications of this product are subject to improvement change without prior notice.

AGENCY

Address inquires to :
Semi-conductor Sales Department

- Head Off ic e

- Tokyo Office

- Osaka Office

- U.S.A. Office

-60-

YAMAHA CORPORATION

203, MatsunokiJima, Toyooka-mura.
Iwata-gun, Shizuoka-ken, 438-0192
Tel. [phone] Fax. [phone]
2-17-11, Takanawa, Minato-ku, Tokyo, 108-8568
Tel. [phone] Fax. [phone]
1-13-17, Namba Naka, Naniwa-ku,
Osaka City, Osaka, 556-0011
Tel. [phone] Fax. [phone]
YAMAHA Syst em Technology.
100 Century Center Court, San Jose, CA 95112
Tel. [phone] Fax. [phone]

June 28, 1999
