Yamaha YMC-700, YMC-500 User Manual

Media Controller

YMC-700

U

YMC-500

OWNER’S MANUAL

Contents

CONTENTS

IMPORTANT

Before installing this unit, be sure to read the supplied
Quick Start Guide.

INTRODUCTION

Features ................................................................... 2

Notices ....................................................................... 3

Supplied accessories .................................................. 3

Controls and functions ........................................... 4

Front/side/top panel ................................................... 4

Remote control........................................................... 5

SETUP

Connections ............................................................. 6

Remote control connection .................................... 8

Placing speakers...................................................... 9

Initial Setup ........................................................... 10

Before starting the Initial Setup ............................... 10

Step 1: Auto Speaker Setup ..................................... 10

Step 2: TV Remote Control Setup ........................... 13

Step 3: Source Device Setup.................................... 14

BASIC OPERATION

General operation ................................................. 18

Screens and operation .............................................. 18

Basic playback operation......................................... 19

Regular pop up menu items ..................................... 19

Enjoying the contents on an external devices .... 20

Watching/listening to the source content................. 20

Using the remote control to operate external

devices from the playback screen ........................ 21

Using virtual remote control to operate external

devices ................................................................. 21

Listening to FM Radio ......................................... 22

Automatic station preset .......................................... 23

Recalling a preset station ......................................... 23

Frequency tuning ..................................................... 23

Editing the station preset list.................................... 23

Listening to music stored on your PC

(YMC-700 only) or USB device ....................... 24

Before enjoying the contents on your PC

(YMC-700 only) .................................................. 25

Playing music files................................................... 25

Repeat play and shuffle play.................................... 25

Viewing photos stored on your PC

(YMC-700 only) or USB device........................26

Viewing photos ........................................................ 27

Slide show................................................................ 27

Shuffle browsing...................................................... 27

Using the photos as a screen saver .......................... 27

Enjoying contents stored on your iPod ...............28

Listening to music contents ..................................... 29

Watching video contents ......................................... 29

Repeat play and shuffle play.................................... 29

Listening to Internet Radio

(YMC-700 only).................................................30

Listening to the Rhapsody

®

service

(YMC-700 only).................................................32

Useful functions....................................................... 33

Enjoying Bluetooth™ components ......................35

Pairing...................................................................... 35

ADVANCED OPERATION

Setup menu ............................................................36

Setup menu tree ....................................................... 36

Initial Setup.............................................................. 37

Speaker menu .......................................................... 37

Sound menu ............................................................. 38

Input menu ............................................................... 39

Network menu (YMC-700 only) ............................. 40

Rhapsody

Remote Control menu.............................................. 42

Option menu ............................................................ 43

Signal Information ................................................... 44

Update menu............................................................ 44

®

Information menu

(YMC-700 only).................................................. 41

ADDITIONAL INFORMATION

Troubleshooting.....................................................45

Glossary..................................................................51

Information on audio/video jacks and

cable plugs ........................................................... 53

Information on HDMI™.......................................... 54

Specifications .........................................................55

Quick reference .....................................................56

SETUPINTRODUCTION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION

ADDITIONAL

■ About this manual

• This manual describes how to operate this unit using a remote control. Most operations are also available using the buttons on the
top panel.

• y indicates a tip for your operation.

• Notes contain important information about safety and operating instructions.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc.
In case of differences between the manual and the product, the product has priority.

1 En

FEATURES

Features

Thank you for your purchasing a Yamaha neoHD. The neoHD can control all of your devices through a simplified remote
control unit and stylish/intuitive graphical user interface. Enjoy the Yamaha neoHD experience.

Stylish and Intuitive

Graphical User Interface

Variety of

Input Sources

Surround Sound

Video

Audio

Simplified

Remote Control

Easy and intuitive operation

◆ Sophisticated graphical user interface

◆ Power control of connected TV and audio/video components

◆ Physical and virtual remote control to control playback of

connected audio/video components

Audio features

◆ Decoding and mixing of multi-channel sources (up to

7.1-channel input and 5.1-channel output)

◆ Proprietary Yamaha technology for the creation of sound

fields (DSP Program)

◆ AIR SURROUND XTREME for 2.1-channel speaker layout

◆ Compressed Music Enhancer mode

◆ YPAO (Yamaha Parametric room Acoustic Optimizer)

technology for Auto Speaker Setup

◆ Adaptive Dynamic Range Controlling to improve listenability

at low volumes

HDMI™ (High-Definition Multimedia Interface)

◆ HDMI interface for standard, enhanced or high-definition

video as well as multi-channel digital audio based on HDMI
version 1.3a (HDMI is licensed by HDMI Licensing, LLC.)
– Automatic audio and video synchronization (lip sync)

information capability
– Deep Color video signal (30/36 bit) transmission capability
– “x.v.Color” video signal transmission capability
– High resolution video signal capability
– High definition digital audio format signal capability

◆ HDCP (High-bandwidth Digital Content Protection System)

licensed by Digital Content Protection, LLC.

◆ Analog to HDMI video up conversion

Power

Control

Power and

Playback

Control

Audio

and

Video

Digital audio decoders

◆ Dolby TrueHD, Dolby Digital Plus, Dolby Digital decoder

◆ DTS 96/24, DTS decoder

Radio tuner

◆ FM tuning capability, 40-station preset tuning

DOCK terminal

◆ DOCK terminal to connect a Yamaha iPod universal dock

(such as the YDS-11, sold separately) or Bluetooth wireless
audio receiver (such as the YBA-10, sold separately)

Network (YMC-700 only) and USB features

◆ NETWORK port and Wi-Fi to connect a PC or access Internet

Radio and Rhapsody

◆ DHCP automatic or manual network configuration

◆ USB port to connect a USB storage device (not including

USB hard disk drives)

®

via LAN

Notes

• This unit supports USB mass storage class devices (FAT 16
or FAT 32 format).

• This unit supports audio files in following format: WAV
(PCM format only), MP3, WMA, MPEG-4 AAC, and
FLAC.

• For FLAC, the unit only supports bit lengths of 16 bits.
Frequencies of up to 48 kHz are supported.

• This unit supports image files in the JPEG format.

2 En

Features

Notices

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic and the double-D symbol are trademarks of
Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS and DTS
Digital Surround are registered trademarks and the DTS logos,
Symbol and DTS 96/24 are trademarks of DTS, Inc. © 1996-2008
DTS, Inc. All Rights Reserved.

TM

iPod

“iPod” is a trademark of Apple Inc., registered in the U.S. and
other countries.

MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.

“HDMI”, the “HDMI” logo and “High-Definition Multimedia
Interface” are trademarks, or registered trademarks of HDMI
Licensing LLC.

x.v.Color™

“x.v.Color” is a trademark of Sony Corporation.

Supplied accessories

Check that you received all of the following accessories.

TV

POWER

POWER

MENUGUIDE

ENTER

EXIT

PREV.

CONTROL BACK

CH VOL

MUTEPAGE

Remote control

(☞ P. 5 )

YPAO Microphone

(YPAO Mic)

(☞ P. 11)

Power cable

(☞ P. 6 )

Battery

(AAA, LR03) ×2

(☞ P. 5 )

Indoor FM antenna

(☞ P. 7 )

INTRODUCTION

Rhapsody and the Rhapsody logo are registered trademarks of
RealNetworks, Inc.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi
Alliance.

Windows XP, Windows Vista, Windows Media Audio, Windows
Media Connect and Windows Media Player are either registered
trademarks or trademarks of Microsoft corporation in the United
States and/or other countries.

This product is manufactured under license from Allegro
Software Development Corporation. ©1996-2008 Allegro
Software Development Corporation. All rights reserved.

IR flasher (3 m) ×2

(☞ P. 8 )

Before installing this unit, be sure

to read the Quick Start Guide.

Quick Start Guide

(☞ P. 14)

IMPORTANT

3 En

CONTROLS AND FUNCTIONS

Front/side/top panel

Power indicator

Lights up when this unit is
turned on.

WIRELESS antenna

(YMC-700 only)

Controls and functions

CONTROL,
u / d / j / i,
ENTER,
BACK

These buttons work in the same way
as the corresponding buttons on the
remote control. (☞ P. 5)

POWER

ENTER

PREV.

CONTROL BACK

CH VOL

TV

POWER

MENUGUIDE

EXIT

YPAO Mic jack

Used for Auto Speaker
Setup. (☞ P. 10)

Within
6 m (20 ft.)

30°

30°

Remote control
sensor

Volume knob

Controls the volume level.

Turns on this unit or sets it to the standby mode.

Note

In the standby mode, this unit consumes a small amount of power
in order to receive infrared-signals from the remote control.

4 En

Remote control

2

Controls and functions

IMPORTANT

• To control TV and source components, you need to make remote control connections (☞ P. 8) and set the remote
control code (☞P. 13, 14).

• To control a TV or source component, aim the remote control at the remote control sensor of this unit.

Operating instructions for activities (☞P. 18-35)

POWER

Turns on this unit or sets it to the
standby mode. (☞P. 19, 43)

POWER

TV

POWER

TV POWER

Turns on the TV or sets it to the
standby mode individually while this
unit is turned on.

• MENU

• GUIDE

• EXIT

• PREV.

• CH u / d

These buttons work differently
depending on the currently
selected source component.
(☞ P. 21)

PAG E u / d

When the playback screen is
displayed

These buttons work differently
depending on the currently
selected source component.
(☞ P. 21)

When the virtual remote control
or contents list is displayed

These buttons scroll up/down the
virtual remote control or contents list.

ENTER

PREV.

CONTROL BACK

CH VOL

MUTEPAG E

MENUGUIDE

EXIT

j / i / u / d /ENTER

When the GUI screen or the
virtual remote control is
displayed

Move the highlight with

j / i / u / d and

select it with ENTER.

When the playback screen is
displayed

These buttons work differently
depending on the currently selected
source component. (☞P. 21)

BACK

Returns to the previous menu level.
Press and hold to return to the top

menu level.

CONTROL

Turns on or off the pop up menu and
virtual remote control.
Press and hold to return to the top

menu level.
Turns on this unit. (☞ P. 43)

MUTE

Mutes the audio output of this
unit.

VOL +/–

Controls the volume level of this unit.

INTRODUCTION

■ Installing batteries in the remote control

1

4

2

3

Batteries (supplied)

Make sure you insert the batteries as
indicated by the polarity markings
(+ and –).

Notes

• Do not use an old battery together with a new one.

• Do not use different types of batteries (for example, alkaline
and manganese) together.

• If the batteries run out, immediately remove them from the
remote control to prevent an explosion or acid leak.

• Dispose of the batteries according to the regional regulations.

• If a battery starts leaking, dispose of it immediately. Be careful
not to let leaking battery acid come into contact with your skin
or clothing. Before inserting new batteries, wipe the
compartment clean.

5 En

USB

FRONT SURROUND

SUB

WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT

OUT

IN

AC IN

1

2

1 2

3

3

R L

R

LR L

3

Make sure that this unit and
other components are
unplugged from the AC wall
outlets.

Remote control

Connect the supplied IR flashers to
the REMOTE CONTROL OUT 1 and 2 jacks.

y

You can attach the IR flashers to any of the
components used in conjunction with this
unit because the same signal is output from
the REMOTE CONTROL OUT 1, 2, and 3 jacks.
☞ P. 8

IR flashers

(supplied)

Power cable

Connections

USB storage device

Be sure to insert in the
proper direction.

You can connect
or disconnect USB
storage devices
while this unit is
turned on.

Supported devices

☞ P. 2

Wired network

Modem

WAN

LAN

Setup ☞ P. 25, 40

Use CAT-5 or higher
STP cable

YMC-700

PCRouter

only

Power cable

(supplied)

To A C

wall outlet

Speaker cables

Speakers and Subwoofer

Center

Speaker

Speaker layout ☞ P. 9

Front

Speakers

Surround
Speakers

Also refer to the supplied Quick Start Guide.

Caution

· Be sure to use speakers with 6 ohm or higher impedance.

· Do not let the bare speaker wires touch each other or do not let them touch any metal part of this unit.

This could damage this unit and/or speakers.

· Be sure to connect the left channel (L), right channel (R), “+” and “–” properly. If the connections are
faulty, this unit cannot reproduce the input sources accurately.

·

If speakers have color coded terminals, match the color. If not, connect the striped (grooved, etc.)

cable to the “+” terminals of this unit and your speaker and connect the plain cable to the “

6 En

Subwoofer
cable

Subwoofer

–

” terminals.

Connections

SURROUND

SUB

WOOFER

CENTER

KERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM

75

Ω

UNBAL.

DOCK

1

1

2

1

2

2

3

3

3

R L

R

L

TV

TV

HDMI IN

HDMI cable

Wireless network

Modem

WAN

Router

PC

Setup ☞ P. 25, 40

FM antenna

Indoor FM antenna (supplied)

If you experience poor
reception quality, install
an outdoor antenna.
Consult the nearest
authorized Yamaha dealer
or service center about
outdoor antennas.

YMC-700

only

SETUP

Audio/Video components iPod dock/Bluetooth receiver

Connect your audio/video components
to these jacks. Refer to the supplied
Quick Start Guide for connections.

Yamaha iPod universal

dock or Bluetooth wireless

audio receiver

Connect a Yamaha iPod
universal dock (such as
the YDS-11, sold separately)
or Bluetooth wireless
audio receiver (such as
the YBA-10, sold separately)
using its dedicated cable.

7 En

Remote control connections

T

E

You can control your TV and the components connected to this unit using the remote control of this unit by connecting
the IR flashers between this unit and the components, and by setting the IR codes. You can also turn on or off the TV and
the components in conjunction with the operation of this unit.

TV

Note

While this unit is turned on, this unit passes all remote control
codes (of the TV and source devices) input at the remote control
sensor to the TV and the devices via IR flashers.

About the remote control codes

Source device

■ Connections

TV

SENSOR

This unit equips built-in remote control codes for most
functions of many audio/video components. The
remote control codes can be “learned”, assigning them
to the remote control of this unit or to the virtual
remote control (☞P. 21). The unit transmits the proper
codes to the different devices through the IR flasher.

Peel off the wax paper
before attaching the flashers.

OUT

IN

1

USB

3

2

REMOTE CONTROL

Source device

SENSOR

AC IN

R

FRON

SP

To o t her

source devices

■ Settings

Make the following settings.

• The IR setting for your TV

Initial Setup ☞P. 10, Setup Menu ☞P. 4 2

• The IR settings for the components connected to this
unit
Initial Setup ☞P. 10, Setup Menu ☞P. 3 9

• Other settings
“Initial Screen” menu ☞P. 43

Connect the plugs of the supplied IR flashers to the
REMOTE CONTROL OUT 1 and 2 jacks, and attach the
flashers to the remote control sensors of your TV and the
components connected to this unit. The supplied IR flashers
have two flasher heads each. Both flasher heads function
equivalently. You can also connect a commercially available
flasher to the REMOTE CONTROL OUT 3 jack.

y

• You can connect the IR flashers to any of the REMOTE
CONTROL OUT 1, 2, and 3 jacks because the same signal is
output.

• Refer to the owner’s manual of the TV and source devices for the
position of the remote control sensor.

■ Operations

To control the TV and the components connected to this
unit, aim the remote control at the remote control sensor of
this unit.
Enjoying the contents on an external device ☞P. 20

About the REMOTE CONTROL IN jack

You can connect a commercially available IR receiver
to this jack to control this unit even if it is concealed.
Place the IR receiver within sight.

8 En

Placing speakers

The speaker layout below shows the speaker setting we recommend.

■ 5.1-channel speaker layout

FL

SL

SL

FL: Front left speaker
FR: Front right speaker
C: Center speaker
SR: Surround right speaker
SL: Surround left speaker
SW: Subwoofer

C

30˚

60˚

80˚

■ 2.1-channel speaker layout

FL

30˚ to 60˚

FR

FL

FR

SW

C

SETUP

SR

SR

SR

SL

FR

FL

FR

SW

FL: Front left speaker
FR: Front right speaker
SW: Subwoofer

You can enjoy 2.1-channel playback using two front
speakers and a subwoofer. Also, you can enjoy surround
playback using the AIR SURROUND XTREME function
of this unit (☞P. 38, 51).

For other speaker combinations

You can enjoy multi-channel sources by using a
speaker combination other than the 5.1-channel or

2.1-channel speaker combinations.

9 En

Initial Setup

Once all the connections are finished, optimize this unit for your watching/listening/playing environment by using the
“Initial Setup” menu.

Step 1: Auto Speaker Setup

Step 2: TV Remote Control Setup

Step 3: Source Device Setup

Before starting the Initial Setup

Make sure of the following check points.

❏ Speakers are connected appropriately.
❏ The IR flashers are correctly connected to this

unit and attached to the connected components.

❏ The connected subwoofer is turned on and the

volume level is set to about half way (or slightly
less).

❏ The crossover frequency control of the

connected subwoofer is set to the maximum.

VOLUME

MIN

MAX

Controls of a subwoofer (example)

❏ The room is sufficiently quiet.

CROSSOVER

HIGH CUT

MIN MAX

Step 1: Auto Speaker Setup

Auto Speaker Setup (YPAO) uses unique technology to
optimally calibrate the frequency response and level
according to the speaker configuration, characteristics,
and their distance.

1 Turn on the TV, then set the video input

source selector of the TV to “HDMI 1” (etc.).

Refer to the owner’s manual of the TV for details.

2 Turn on the connected source devices and

subwoofer.

3 Press POWER to turn on this unit.

The “neoHD” logo mark appears, followed by the
“Initial Setup” menu.

y

If the Initial Setup menu does not appear, check the
following check points:

– Is the video input source selector of the TV set correctly?
– Is the TV connected to this unit correctly?
– Is the TV turned on?
– Is this unit connected to the AC wall outlet?

Notes

• Be advised that it is normal for loud test tones to be output
during the Auto Speaker Setup procedure.

• To achieve the best results, make sure the room is as quiet as
possible while the Auto Speaker Setup procedure is in progress.
If there is too much ambient noise, the results may not be
satisfactory.

10 En

4

Select “Yes” to start the initial setup procedure.

TV

POWER

POWER

MENUGUIDE

ENTER

Use these buttons to operate during

EXIT

PREV.

CONTROL BACK

the Initial Setup procedure. ☞ P. 5

The following screen appears:

y

If you select “No”, the Initial Setup procedure will be
skipped. You can perform it in Setup menu later. (☞ P. 37)

5 Select “Yes” to enter the Auto Speaker Setup

menu.

Read the displayed message carefully.

Initial Setup

6 Connect the supplied YPAO Mic to the YPAO

MIC jack.

(Left side)

YPAO MIC

SETUP

Top

YPAO Mic

7 Place the YPAO Mic at your normal listening

position.

y

It is recommended that you use a tripod, the backrest of the sofa,
etc. to affix the YPAO Mic at the same height as your ears would
be when you are seated in your listening position. You can use the
attached screw of a tripod (etc.) to fix the YPAO Mic to the tripod
(etc.).

If you select “No”, the Auto Speaker Setup procedure
will be skipped. You can perform it later. (☞P. 37)

YPAO Mic

Continued

11 En

Initial Setup

Before proceeding to the next operation

Once you perform the next operation, this unit starts the Auto
Speaker Setup procedure in 10 seconds. During the Auto
Speaker Setup procedure, do not perform any operation on
this unit. For more accurate measurements, we recommend
that you get out of the room or move to a wall away from any
speakers in the meantime. It takes a few minutes.

8 Select “Start” to start the measurement.

This unit starts the count down for the measurement.

Loud test tones are output from each speaker during
the measurement. Once all items are measured, the
following screen appears:

Results (example)

If an error message (☞P. 50) appears

If a warning message (☞ P. 50) appears

Warning message (example)

If the warning message “SWFR LEVEL ERROR”
appears, the adjustments are made, but the adjustment
may not be optimal. Select “Next” to continue the
process.

9 Check the status of each speaker, then select

“Save” to proceed with the Initial Setup
process.

The speaker statuses are as follows:

Yes: Speaker is connected.
No: Speaker is not installed, or speaker cable

is disconnected.

Too Loud: Subwoofer (SWFR) only. The level of

the subwoofer is too high.

Too Low: Subwoofer (SWFR) only. The level of

the subwoofer is too low.
If you are not satisfied with the result, check the
speaker connections and/or subwoofer level, then
select “Retry”.

y

If you want to proceed with the Initial Setup process without
using the result of the measurements, select “Cancel”.

Error message (example)

• Solve the problem (☞ P. 50), then select “Retry” to

retry the measurement.

• Select “Cancel” to cancel the setup process.

12 En

10 Disconnect the YPAO Mic from this unit and

select “OK”.

The YPAO Mic is sensitive to heat. Keep it away
from direct sunlight.

Initial Setup

Step 2: TV Remote Control Setup

By making the TV remote control settings, this unit will
control the power of the TV in accordance with the power
of this unit.

1 Select “Yes” to start the TV Remote Control

Setup procedure.

If you select “No”, the TV Remote Control Setup
procedure will be skipped. You can perform it later.
(☞ P. 42)

3 Select the TV remote control code.

When multiple remote control codes are displayed,
select the first one. Registration confirmation
appears.

SETUP

Save: Confirm the displayed setting.
Tes t: Perform the function test.
Change Code: Select another code.
Learn Code: Jump to the TV Remote Code

Learning screen. (☞ P. 4 2 )
Select this if you want to program
the remote control code manually.

Cancel: Skip the TV remote control

settings. You can set them later.
(☞ P. 42)

4 Check the information, then select “Test”.

The “TV Remote Code Test” screen appears.

2 Select the brand of the TV connected to this

unit.

Press CH u / d to skip through the brand list
alphabetically.
Press PAG E u / d to scroll the list page by page.

5 Read the displayed information, then select

“Start” to start the function test.

The following test screen appears:

Note

This unit tries to turn off/on the TV for test purposes.

Continued

13 En

Initial Setup

pt

15 pt

9 pt

3 pt

3 pt

2 pt

1 pt

Device 1

Cable box

CB-528Time W

15

6 Check whether the TV turned on and off

correctly.

y

• To cancel the TV Remote Code Test procedure, press

BACK.

• If the TV turns off during the test and does not turn back
on after waiting over a minute, turn the TV on using the
TV’s remote control.

7 When the following message appears, select

“Yes” or “No - Try next code”.

Select “Yes” to finish the TV Remote Code Test
procedure or “No - Try next code” to check another
remote control code. When you select “No - Try next
code”, the test mode of the other code starts
immediately.

Step 3: Source Device Setup

y

Prepare the Connection Planning Chart of the Quick Setup
Guide in advance.

In these instructions, the examples assume that the
connections below are made.

A

Note

This unit does not contain all possible codes for
commercially available TVs. If this unit does not turn the
TV off/on with the codes provided for that brand, select
“Learn Code” to recall the TV Remote Code Learning
screen (☞ P. 42) and program the remote control code
manually.

8 Select “Save” to finish the TV remote control

code setting and proceed with the Initial
Setup process.

y

When you want to set the TV remote control code again,
select “Change Code”.

14 En

Initial Setup

Device 1

Cable box

CB-528Time W

2 pt

1 pt

pt

15

1 Select “Yes” to start the input source device

setting.

The “Source Device Setup” screen appears.

If you select “No”, the Source Device Setup
procedure will be skipped. You can perform it later.
(☞ P. 39)

2 Select the type of the device.

4 Check the confirmation screen, then select

“Yes”.

The device type, connection method, and names of
the input displayed in the Watch/Listen/Play source
menu screens (☞P. 18) are shown.

y

When you want to change the setting, select “Retry”.
If you want to discard the setting, select “Cancel”.

5 Select “Yes” to set the remote control code

of the device.

The “Source Device Setup - Remote Control” screen
appears.

SETUP

Cable TV

SAT - Satellite TV
DVD

y

You can change the name of input source displayed in the
source menu screen (☞ P. 18) to the desired one later
(☞ P. 40).

3 Select the terminal to which the source

component is connected.

HDMI 1 15 points

If you select “Game” in step 2, “Will you use this
device to Watch Movies?” appears. Select “Yes” or
“No” in accordance with the intended use.

If you select “DVD”, “Blu-ray”, or “Game” in step 2,
“Will you use this device to Listen to CD’s?” appears.
Select “Yes” or “No” in accordance with the intended
use.

If you select “Other” in step 2, you need to select the
type of the input source device. For example, select
“Cable TV”.

y

You can skip the remote control code settings and set them
later. (☞P. 40 )

6 Select the brand of the device.

Press CH u / d to skip through the brand list
alphabetically.
Press PAG E u / d to scroll the list page by page.

7 Select the remote control code.

When the selected brand has multiple remote control
codes, select the first one.

Continued

15 En

Initial Setup

8 Check the confirmation screen, then select

“Test”.

The following test screen appears:

The remote control code being tested

NEXT CODE

Virtual remote control

Function of the
selected button

9 Test some of the controls on the virtual

remote control which is displayed on the
screen to check whether the controls
function correctly.

u / d / j / i: Moves the highlight.
ENTER: Tests the function.

We recommend that you select some buttons besides
“ (Power On/Off)” to test the function.
If controls do not function properly, select “NEXT
CODE” at the left edge of the virtual remote control.
The remote control code switches and you can try the
next remote control code. (Example: from Yamaha1
to Yamaha2)

11 When you find a proper remote control code,

select “Save” to complete the registration.

y

• If you want to discard the setting and make a new setting,
select “Change Code”.

• If this unit does not control the device with any of the
codes provided for the brand, select “Learn Code” to recall
the Remote Code Learning screen (☞ P. 40) and program
the remote control code manually.

12 Select “Yes” to register another input source

device and repeat steps 2 to 11 until all
devices listed in the Quick Start Guide are
set.

13 Select “No” to complete the input source

device registration.

14 Select the first screen to be displayed when

you turn on this unit by pressing POWER or
CONTROL.

For example, you can set this unit to display the cable
box (STB) screen when you turn on this unit by
pressing CONTROL.

Note

If the brand has only one set of remote control codes,
“NEXT CODE” does not function.

10 When you find the remote control code

works (or not), press BACK on the remote
control to return to the confirmation screen.

16 En

15 Select “OK” to complete the Initial Setup

procedure.

Initial Setup

y

You can change the first screen to be displayed later.
(☞ P. 43)

SETUP

17 En

General operation

ge

ge

sc+

s

c

der

g

m

t

(

)

(

)

etc.

y

Select

Setup

]

36

source

]

u

con

menu]

s

]

OL

OL

OL

OL

CK

e

CK

CK

ge

y)

Screens and operation

To control playback and make settings, operate the GUI (graphical user interface) screen displayed on the TV using the
supplied remote control. In most cases, the screen changes as follows.

[Setup menu] ☞ P.

BA

NTR

[Pop up menu

Select an activit

BA

Reor

Now playin

NTR

Next page (Source

menu screen onl

Next pa

Example

Source screen

18 En

BA

Example

elect a sourc

DSP Progra

Audio Adjustmen

NTR

NTR

[Virtual remote control
for external
devices]☞

Di

elect the

Di

Pop up men

Example

i

[Pop up menu

Next pa

Next pa

Remote control operations for the GUI

Moves the highlight up

Selects the item

Moves the highlight right / Moves to the next menu
Moves the highlight left / Moves to the previous menu
Moves the highlight down

Displays the pop up menu or the virtual remote control /
Returns to the top menu (press and hold)

Returns to the previous menu / Returns to the top menu (press and hold)

ENTER

PREV.

CONTROL BACK

MENUGUIDE

EXIT

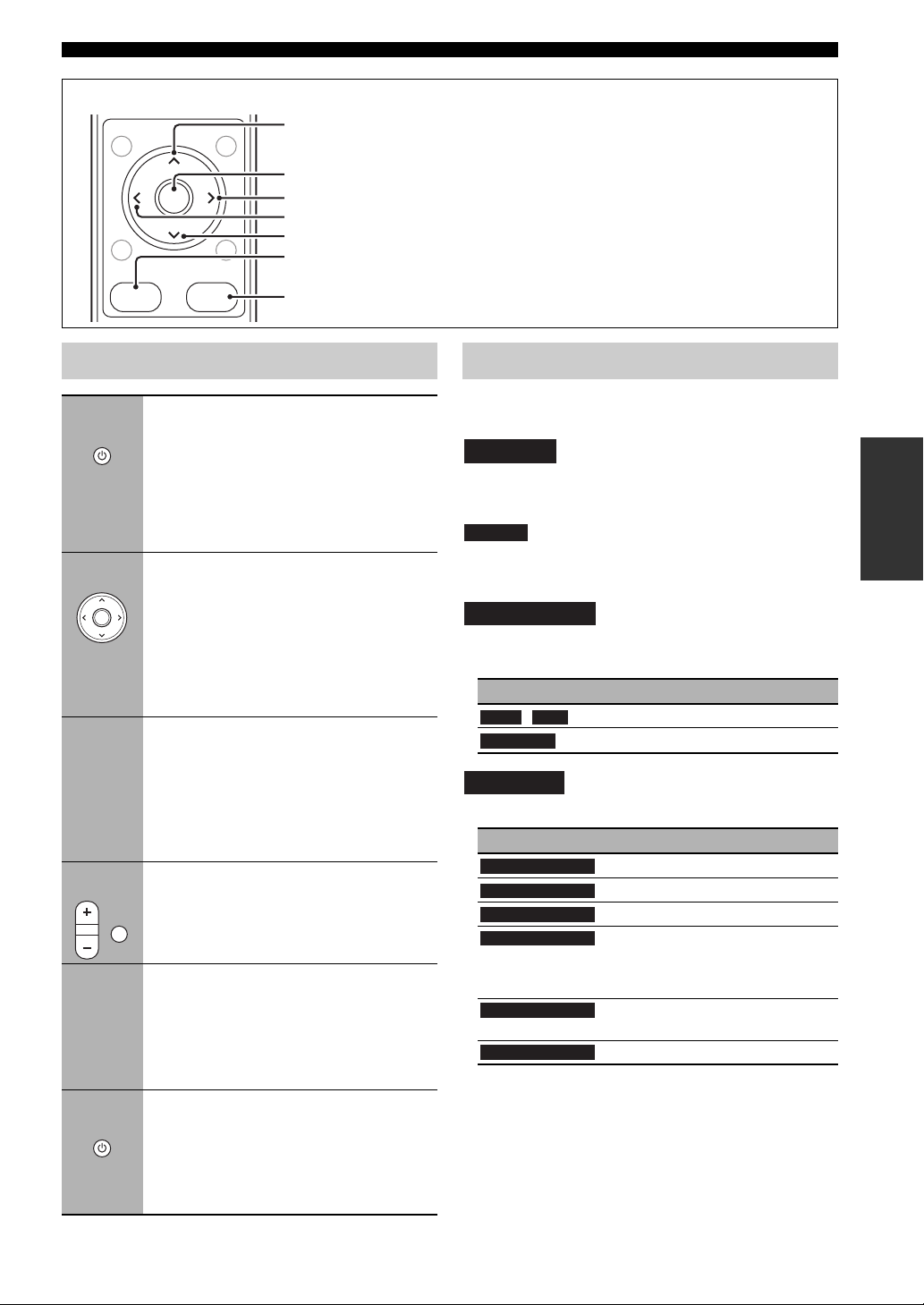

General operation

Basic playback operation

1

POWER

2

ENTER

3

4

VOL

5

6

POWER

Press POWER or CONTROL to turn
on this unit.

If you have finished the TV remote control setting
and an IR flasher is connected/attached correctly,
the TV turns on automatically. You can change
the behavior of the TV power control function.

Connection ☞
TV Power Control ☞

P. 8 ,

IR setting ☞

P. 4 2

Select an input source.

Select an input source using the GUI screen on
the TV. Refer to the previous page and the
instructions above. The source component turns
on automatically. You can change the behavior of
the power control function.

Connection ☞
Source Power Control ☞

P. 8 ,

IR settings ☞

P. 4 2

Start playback on the selected
component.

or

Select a program or file to play back.

You may need to make some settings before
beginning playback.
Playback instructions ☞P. 22-35

Adjust the volume level.
You can mute the sound by pressing MUTE.

MUTE

Make various settings using the pop
up menu.

Regular pop up menu items

☞

“Regular pop up menu items” on this page.

Pop up menu items provided for the different
sources ☞

P. 2 2 -3 5

Press POWER to turn off this unit.

If you have finished the remote control settings
for the TV and components connected to this
unit and IR flashers are connected/attached
correctly, those components turn off
automatically.

P. 4 2 ,

P. 4 0 ,

Regular pop up menu items

The following pop up menu items are available on the top menu,
the source menu, or the playback screen for all sources:

Now Playing

Select this menu to jump back to the playback screen of
the source that is currently being played.

Reorder

Select this menu to reorder the icons on the source menu
screen. Move the icon using u / d / j / i then press

Audio Adjustment

Select this menu to adjust the sound settings (bass/treble/
subwoofer level). Change the value using j / i.

Parameter Value

Treble / Bass

SWFR Level

DSP Program

–6 to +6

–20 to +20

Select this menu to select a DSP program.

DSP Program Feature

Movie

Entertainment

Live Music

Music Enhancer

All Channel Stereo

Off

For movie contents.

For TV programs, video games, etc.

For music contents.

For compression artifacts (such as the MP3
format). This program enhances your
listening experience by regenerating the
missing harmonics in a compression artifact.

To output stereo sound from all
speakers.

To enjoy unprocessed sound.

y

• You can select a DSP Program for each activity of each source
individually so that you can easily recall the input sources
together with your favorite DSP Program.

• The DSP program is turned
TrueHD and Dolby Digital Plus sources, as well as PCM
sources of over 96 kHz.

“

Off” when decoding Dolby

ENTER

.

OPERATION

BASIC

y

You can turn on/off the TV by pressing TV POWER.

19 En

Enjoying the contents on an external devices

y

y

]

source

aybac sc ee ]

m

t

9

9

p

con

]

]

ge

OL

OL

sc+

s

0

t

013

y

e

p

o

By connecting external components (players/recorders, STBs, game consoles, etc.) to this unit, you can enjoy the
contents played back on the components with rich surround sound. Also you can control the components with the remote
control of this unit by connecting/attaching the IR flashers and making the remote control code settings.

An example of selecting an activit

[Top menu]

Select an activit

Virtual remote control

☞ next pa

Displa

Setu

Audi

ubtitl

1

Di

Di

Angle

+100/1

En

elect the

Source menu

elect the

ired

NTR

Pop u

menu i

etc.

Watching/listening to the source content

1 Select the desired source on the source

menu screen.

The source device turns on automatically. You can
change this setting. ☞ P. 4 2

2 Start playing back the content or desired TV

program by using the supplied remote
control or the virtual remote control.

TV

ENTER

CONTROL

CH VOL

POWER

MENUGUIDE

EXIT

BACK

MUTEPAGE

POWER

PREV.

20 En

NTR

DSP progra

Audio adjustmen

[Pop up menu

P. 1

P. 1

☞ Next page

y

• When the virtual remote control is not displayed, you can
control the menu screen of the DVD, etc.

• If you do not use the IR flashers, control playback using
the remote controls of the individual component.

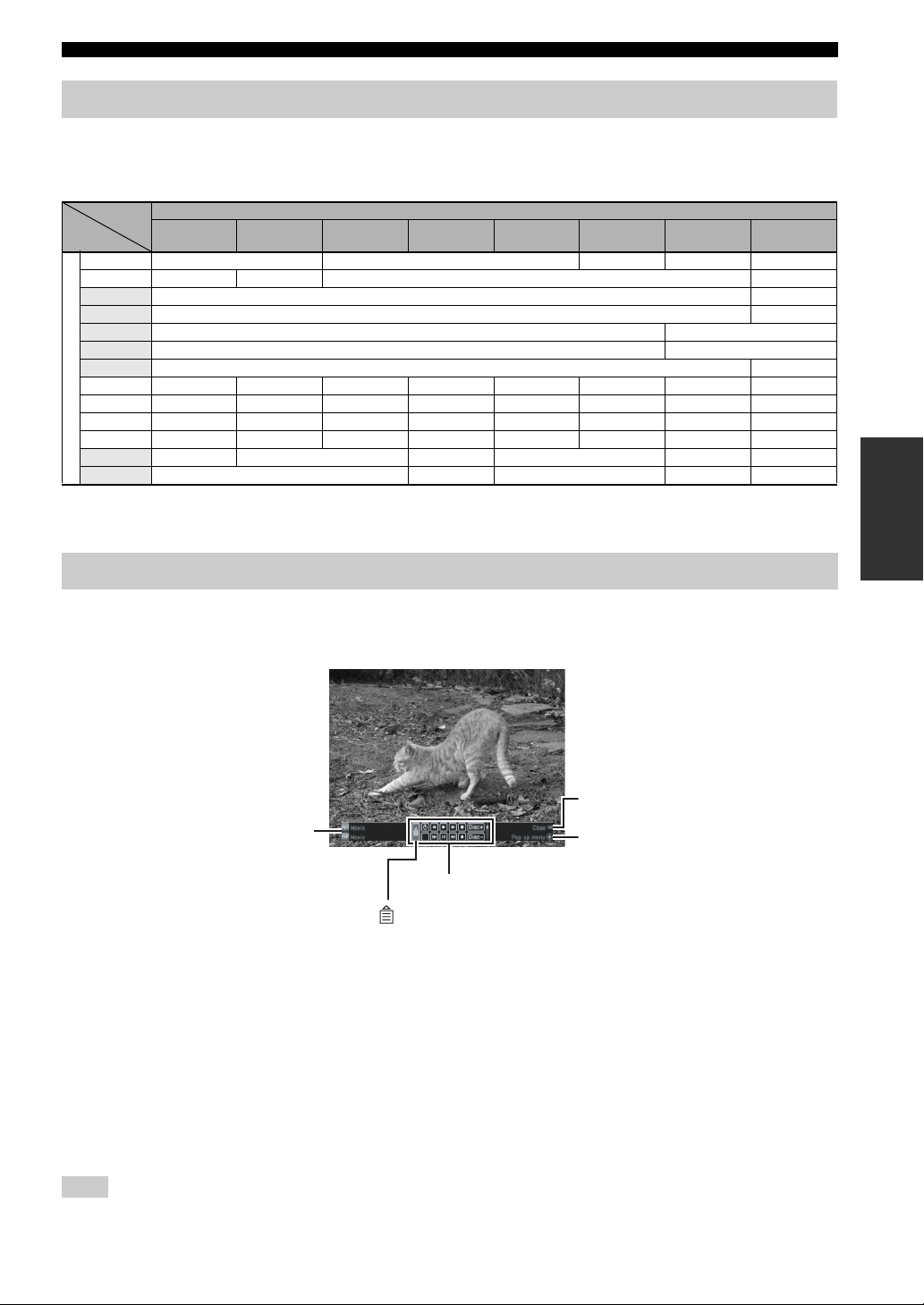

Enjoying the contents on an external devices

Using the remote control to operate external devices from the playback screen

While the playback screen is displayed, you can control the source component using the buttons shown below (☞step 2
of the previous page). Aim the remote control at the remote control sensor of this unit.
Make sure that you have finished the remote control settings for the component and an IR flasher is connected/attached correctly.

Type of component you set in the setup menu

Blu-ray DVD DVR

GUIDE Top Menu Guide ———
MENU Pop Up Menu Disc Menu Menu —

u Menu Up Stop
d Menu Down Pause
j Menu Left Skip Down
i Menu Right Skip Up

ENTER Menu Select Play
PREV.——Last ChannelLast Channel————
EXIT Return Return Exit Exit Back Exit — —
CH u Skip Up Skip Up Channel Up Channel Up Channel Up Preset Up — Skip Up
CH d Skip Down Skip Down Channel Down Channel Down Channel Down Preset Down — Skip Down

Button on the remote control

PAG E u Sub Menu Play Page Up Skip Up — Disc Up
PAG E d Pause Page Down Skip Down — Disc Down

• When the virtual remote control is displayed, the shaded buttons do not function as listed above, but control the virtual remote control.

• Some buttons may not work depending on the source device or the source contents.

Cable,

Satellite/DSS

Other Video
Component

Other Audio
Component

Apple TV CD

OPERATION

BASIC

Using virtual remote control to operate external devices

You can control the components connected to this unit using the virtual remote control. The function of each button is
displayed at the right bottom of the screen.
Make sure that you have finished the remote control settings for the component and an IR flasher is connected/attached correctly.

Control guide

Current input and
DSP Program

Virtual remote control

Select “ ” to open the pop up menu to control this unit.

Aim the remote control at the remote control sensor of this unit.
Press u / d / j / i and PAG E u / d to select a button, then press ENTER.

TV Favorite button (Fav)

This button is displayed when the type of the external component is “Cable”, “Satellite/DSS”, or “DVR”. You can
register your favorite TV stations and recall them easily. TV Favorite ☞ P. 4 2

Exclusive learning buttons (L1-L14)

Use these exclusive learning buttons (L1-L14) on the virtual remote control to recall the programmed function of the
other remote control. You can name the buttons freely. (☞ P. 40)

y

The displayed buttons vary depending on the type of the component being played back.

Function of the
selected button

Note

Some buttons may not work depending on the source device or the source contents.

21 En

Listening to FM Radio

en

]

o

]

]

]

m

t

9

9

t

ge

]

ese

st

eset*

eset

t

eset

een

g

OL

OL

CK

ge

e

]

ge

ge

ge

ge

der

You can receive FM radio stations with this unit. To listen to FM radio stations, refer to the GUI screen and perform the
operations explained on the next page. Connect the indoor FM antenna in advance.

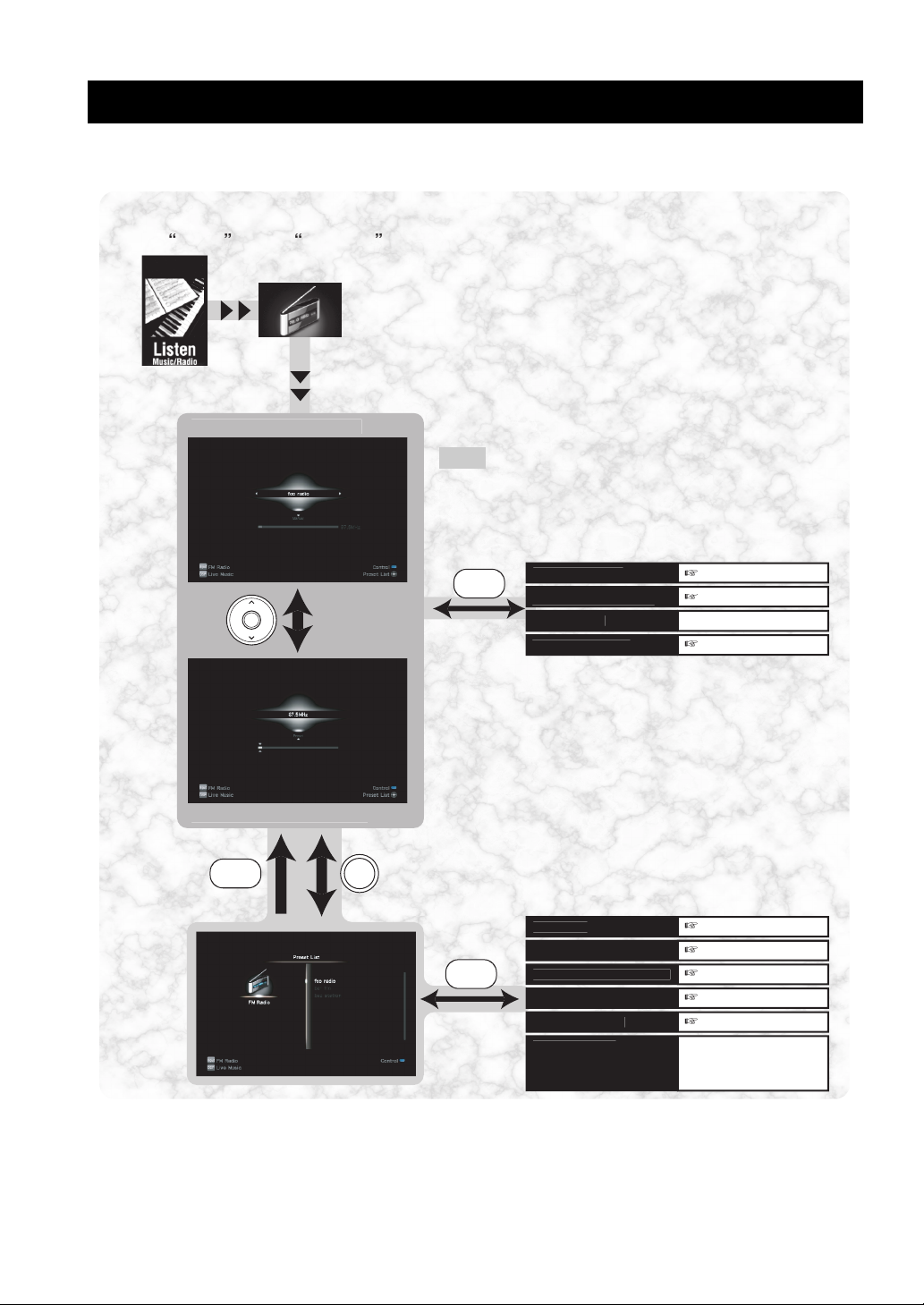

[Top menu]

elect

List

Source menu

elect

FM Radi

Preset search screen

Note

The preset search screen is only displayed when
at least 1 station has been preset.

[Pop up menu

NTR

DSP Progra

Audio Adjustmen

Pr

t Li

Add to Pr

* Displayed only on the manual search screen.

P. 1

P. 1

Jump to preset lis

Next pa

Manual search screen

BA

Preset list

NTR

[Pop up menu

Renam

Reor

Remove from Pr

Auto Prese

Add to Pr

Now Playin

Next pa

Next pa

Next pa

Next pa

Next pa

Jump to Preset search

reen or Manual

rch scr

22 En

Listening to FM Radio

Automatic station preset

This unit scans all FM frequencies and registers receivable
stations on the preset list. The registered stations can be
recalled easily.

Select “ ” from the pop up menu on

the preset list screen and select “ ” to start
automatic station presetting.

This unit starts to seek frequencies and register receivable
FM radio stations on the preset list.

y

• To stop the automatic station preset procedure, press BACK.

• You can preset up to 40 stations.

Note

When you perform automatic station presetting, any stations
which were previously registered are deleted from the preset list.

Auto Preset

Start

Recalling a preset station

■

Recalling a preset station from the preset
list

Select the desired station on the preset list.

Editing the station preset list

■ Renaming the station name on the
station preset list

1 On the preset list screen, select “ ”

from the pop up menu.

2 Enter the desired station name, then select

“”.

OK

■ Reordering the preset stations

1 On the preset list screen, select “ ”

from the pop up menu.

2 Move the selected station, then press

ENTER on the remote control.

■ Deleting a station from the station preset
list

1 On the preset list screen, select

“ ” from the pop up menu.

Remove from Preset

Rename

Reorder

OPERATION

BASIC

■ Recalling a preset station on the preset
search screen.

Press j/i to tune in to the previous/next preset
station.

Frequency tuning

On the manual search screen, tune into the desired station
as follows:

•

Press and hold i to search for a higher
frequency station.

•

Press and hold j to search for a lower frequency
station.

• Press i to repeatedly to tune in to a higher

frequency manually.

• Press j to repeatedly to tune in to a lower

frequency manually.

y

• When this unit is tuned in to a station, “TUNED” appears.

• If the station is not registered on the preset list, select

“ ” from the pop up menu.

Add to Preset

2 Select “ ” to remove the station.

Remove

23 En

Listening to music stored on your PC (YMC-700 only) or USB device

]

en

]

t

der

s

t

m

e

e

or

SP

m

e

e

]

esh

)

g

n

]

m

t

9

9

t

e

]

k

CK

OL

OL

r

]

Use this feature to enjoy the music contents stored on your PCs and USB storage devices.

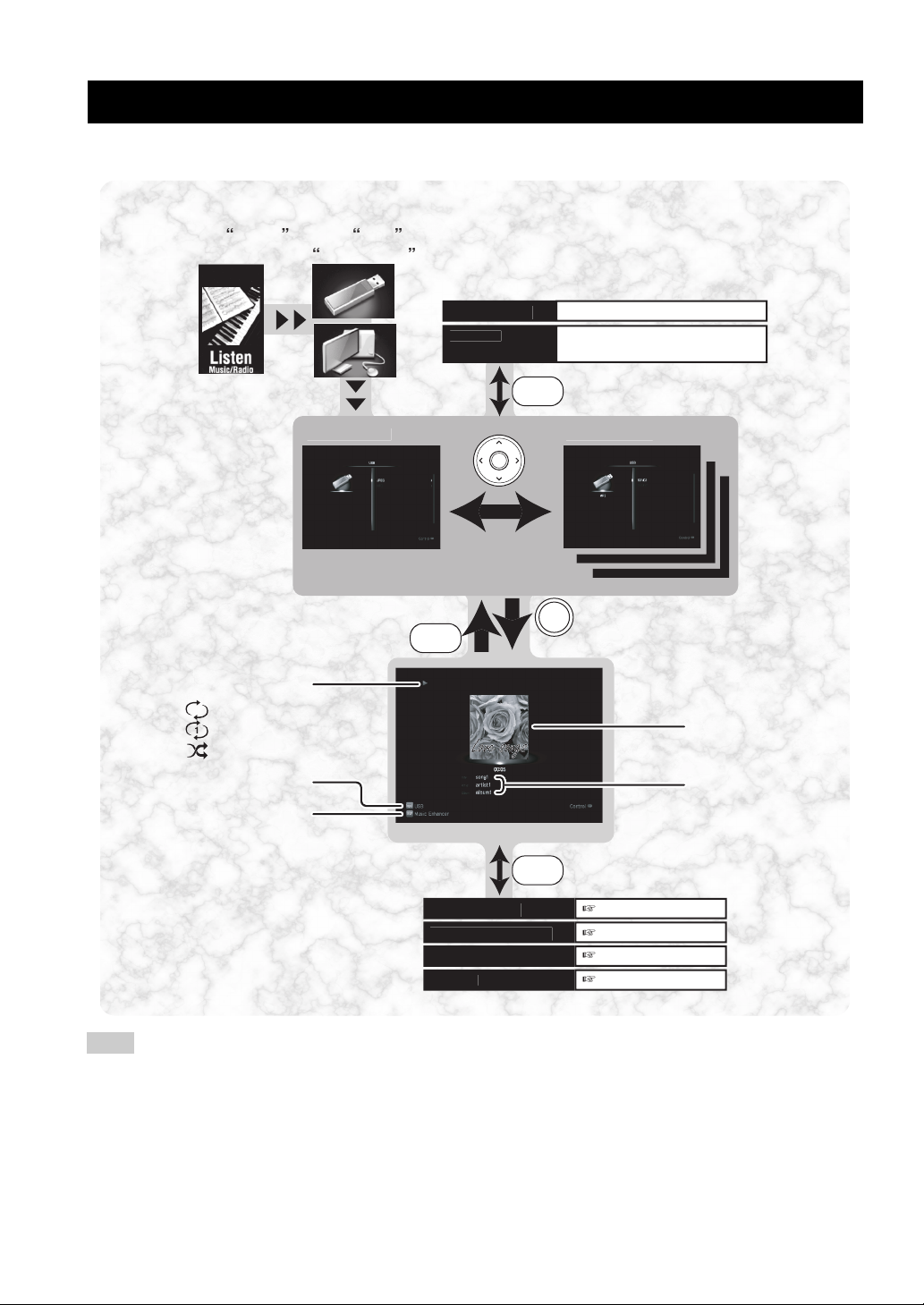

[Top menu

elect

List

Source menu

elect

r

Contents list screen

Root fol

If you press and hold PAG E u / d,
the list scrolls rapidly.

[Playback screen

Playback mod
indicat

Repeat all
Repeat on

huffl

PC Conten

[Pop up menu

ow Playin

Refr

elect folde

BA

Jump to playback scree

Refresh the server list.

Available at the server list screen

NTR

ub folder

Select a file to start playbac

over ar

Input nam

Title/Artist/Albu

elected D

progra

[Pop up menu

NTR

DSP Progra

Audio Adjustmen

Repea

huffl

P. 1

P. 1

Next page

Next page

Note

If any message appears, refer to “Troubleshooting”. (☞ P. 48)

24 En

Supported USB storage devices ☞P. 2
Network settings ☞ P. 4 0

Listening to music stored on your PC (YMC-700 only) or USB device

Playing music files

Note

Some audio files may not be playable or may be noisy when
played.

Notes on USB devices

• When you connect your USB storage device, there may be a
delay of about 10 seconds.

• Only the first partition is displayed on the GUI menu. You
cannot select files in other partitions.

• Up to 8 levels of folder hierarchy and 500 files and folders
per folder are recognized.

• Some devices may not work properly even if they meet the
requirements.

Before enjoying the contents on your PC (YMC-700 only)

With Windows Media Player 11, you can play back the
audio files on your PC. For details, refer to the attached
documents about Windows Media Player 11.

1 Install Windows Media Player 11 on your PC.

You can download the installer of Windows Media
Player 11 from the Microsoft website, or use the
upgrade function of the installed Microsoft Windows
Media Player.

1

Select a music file on the contents list screen.

2 Perform the playback operations by remote

control.

■ Operation on the playback screen

MENUGUIDE

Play/Stop

ENTER

PREV.

CONTROL BACK

EXIT

Note

Some audio files may not be playable or may be noisy when
played.

Skip forward

Skip backward

Back to the previous
screen

Repeat play and shuffle play

■ Repeat play

OPERATION

BASIC

2 Turn on your PC then allow media sharing.

Activate Windows Media Player 11 first.
Click the arrow below the “Library” tab, click “Media
check box”, then select the “Share my media” check
box in the “Media Sharing” dialog box.
Select “YMC-700” in the list of devices below the
“Share my media to” checkbox, and then click
“All ow ”.

YMC-700

Notes

• If the operating system (OS) of your PC is Windows Vista,
Windows Media Player 11 is pre-installed (except some
products).

• Some types of security software installed on your PC (anti-virus
software, firewall software, etc.) may block access of this unit
to your PC. In such cases, configure the security software
appropriately.

• You can connect this unit to up to 16 PC servers, and each
server must be connected to the same subnet as this unit.

Select “ ” from the pop up menu on the

Repeat

playback screen and select a repeat mode
option.

Choice Function

Off

Single

All

Cancel repeat playback.

Repeat a file.

Repeat a sequence of files.

■ Shuffle play

Select “ ” from the pop up menu on the
playback screen and select a shuffle mode option.

Shuffle

Choice Function

Off

On

Cancel shuffle playback.

Shuffle playback.

25 En

Viewing photos stored on your PC (YMC-700 only) or USB device

y

]

or

t

der

r

n

e

e

e

]

l

r

ge

ge

e

ge

ge

g

n

r

e

CK

OL

OL

]

esh

)

g

n

]

Use this feature to enjoy the photos stored on your PCs and USB storage devices.

[Top menu]

elect

Pla

Contents List] scree

Picture screen

Source menu

elect

PC Conten

[Pop up menu

Now Playin

Refr

Root fol

elect folde

If you press and hold PAG E u / d,
the list scrolls rapidly.

BA

Jump to playback scree

Refresh the server list.

Available at the server list screen

NTR

ub folde

elect a fil

Pictur

Input sourc

NTR

Control guid

[Pop up menu

lide Show Interva

et as Screen Save

huffl

tart Slide Show

Now Playin

Next pa

Next pa

Next pa

Next pa

Jump to playback scree

Note

If any message appears, refer to “Troubleshooting”. (☞ P. 48)

26 En

Supported USB storage devices ☞P. 2
Network settings ☞ P. 4 0

Viewing photos stored on your PC (YMC-700 only) or USB device

Shuffle browsing

Viewing photos

To view the photos stored on your PC, allow sharing on
the PC. ☞ “Before enjoying the contents on your PC
(YMC-700 only)” on P. 25.

1 Select a photo file on the contents list

screen.

2 Browse photos.

If any video or music source is being played back,
playback of the audio continues.

■ Operation on the picture screen

MENUGUIDE

Start a slide show

ENTER

PREV.

CONTROL BACK

EXIT

Next photo

Previous photo

Back to the contents
list

Photos are displayed at random. This setting is valid for
the slide show function.

Select “ ” from the pop up menu on the

Shuffle

picture screen and select a shuffle mode option.

Choice Function

Off

On

Invalidate shuffle browsing.

Shuffle browsing.

Using photos as a screen saver

You can set your favorite photos as a screen saver.
Screen saver ☞ p. 44

Display a photo, select “ ”
from the pop up menu on the picture screen, then

select “ ”.

Set

The photos in that folder are used for the screen saver.

y

You can test the screen saver by selecting “Preview” in the
“Screen Saver” menu (☞P. 4 4 ) .

Set as Screen Saver

OPERATION

BASIC

Slide show

The slide show function shows the photos in the folders
automatically. The slide show repeats itself.

Select “ ” from the pop up menu
on the picture screen to start a slide show.

To stop the slide show, press BACK.

y

You can start a slide show by pressing ENTER on the Picture
screen.

■ Setting the slide show interval time

Select “ ” from the pop up
menu on the playback screen and select the
interval time.

Note

Depending on the size of the photos and the playback status of
this unit, the actual interval may be longer than the specified one.

Start Slide Show

Slide Show Interval

2sec 3sec 5sec 10sec 20sec

27 En

Enjoying contents stored on your iPod

]

ch

en

]

od

y

s

t

y

]

t

e

e

or

SP

m

e

e

]

g

n

]

m

t

9

9

t

e

ge

ge

]

d

CK

OL

OL

m

Once you have stationed your iPod in a Yamaha iPod dock (such as the YDS-11, sold separately) connected to the DOCK
terminal of this unit (☞P. 7), you can enjoy the music or video contents stored on the iPod.

[Top menu

elect

Wat

r

List

Source menu

elect

iP

[Pop up menu

Now Playin

Jump to playback scree

Contents list screen

Root director

If you press and hold PA GE u / d, the list scrolls rapidly.

[Playback screen

Playback mod
indicat

Repeat all
Repeat on

huffl

Input nam

elected D

progra

BA

[Pop up menu

DSP Progra

Audio Adjustmen

Repea

huffl

elec

director

NTR

ub directorie

Select the file to be playe

Title/Artist/Albu

Note

NTR

When a movie is played back, source
information (Title/Artist/Album) is not
available.

P. 1

P. 1

Next pa

Next pa

over ar

Notes

• This unit is not compatible with photos stored on your iPod.

• This unit supports iPod touch, iPod (Click Wheel, including iPod classic), iPod nano and iPod mini.

• If any message appears, refer to “Troubleshooting”. (☞P. 4 9 )

• Some features may not be compatible depending on the model or the software version of your iPod.

• Some features may not be compatible depending on the model of your Yamaha iPod universal dock.

• Depending on the type of iPod to be connected, the area for cover art may be narrowed.

28 En

Enjoying contents stored on your iPod

Listening to music contents

1 Select a song on the contents list screen.

2 Perform the playback operations by remote

control.

MENUGUIDE

Play/Pause

ENTER

PREV.

CONTROL BACK

EXIT

Skip forward/Search
forward (press hold)

Skip backward/Search
backward (press hold)

Back to the song list

Watching video contents

1 Select a video file on the contents list screen.

2 Perform the playback operations by remote

control.

MENUGUIDE

Repeat play and shuffle play

The following functions are available upon playback of
music/video contents. The detailed functions may differ
depending on the connected iPod.

■ Repeat play

Select “ ” from the pop up menu on the
playback screen, then select a repeat mode
option.

■ Shuffle play

Select “ ” from the pop up menu on the
playback screen, then select a repeat mode
option.

Repeat

Choice Function

Off

One

All

Shuffle

Choice Function

Off

Songs

Albums

Cancel repeat playback.

Repeat a song.

Repeat a sequence of songs.

Cancel shuffle playback.

Play songs in random order.

Play albums in random order.

OPERATION

BASIC

ENTER

PREV.

CONTROL BACK

EXIT

Play/Pause

Skip forward/Search
forward (press hold)

Skip backward/Search
backward (press hold)

Back to the previous
screen

29 En

Listening to Internet Radio (YMC-700 only)

]

en

]

o

y

s

t

y

]

on

e

e

or

SP

m

]

ge

g

n

]

m

t

9

9

k

ge

]

k

CK

OL

OL

Use this feature to listen to Internet Radio stations. This unit uses the vTuner Internet Radio station database service
particularly customized for this unit, providing a database of over 2000 radio stations. You can store your favorite stations
with bookmarks.

[Top menu

elect

List

Contents list screen

Source menu

elect

Net Radi

[Pop up menu

Now Playin

Remove from Bookmark*

* Available under Bookmark directory

NTR

Jump to playback scree

Next pa

Root director

director

If you press and hold PAG E u / d, the list scrolls rapidly.

[Playback screen

A

Playback mod
indicat

Input nam

elected D

progra

[Pop up menu

DSP Progra

Audio Adjustmen

Add to Bookmar

ub directorie

elec

Select a station to start playbac

Internet Radio stati

NTR

P. 1

P. 1

Next pa

30 En

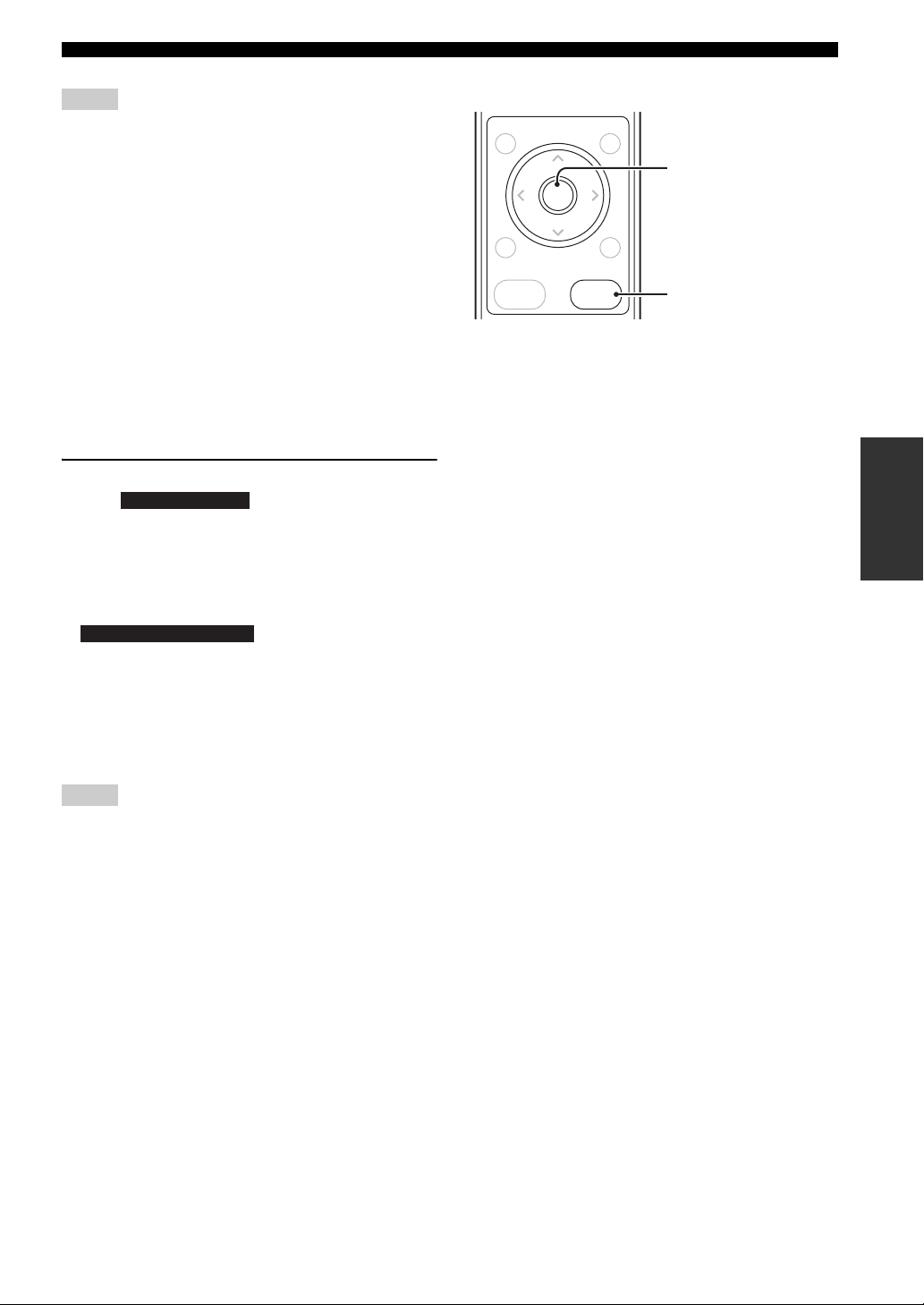

Listening to Internet Radio (YMC-700 only)

Notes

• To use this feature, you need a network connection.

Connection ☞ P. 6
Network setting ☞ P. 4 0

• A narrowband Internet connection (i.e. 56k modem ISDN) will
not provide satisfactory results. And a broadband connection is
strongly recommended (i.e. a cable modem, an xDSL modem,
etc.). For detailed information, consult with your ISP.

• Some security devices (such as firewalls) may block the access
of this unit to Internet Radio stations or to the Rhapsody
server. In such cases, configure the security settings
appropriately.

• If any message appears, refer to “Troubleshooting”. (☞ P. 4 8)

®

■ Storing your favorite Internet Radio

stations with bookmarks

Use this feature to select your favorite Internet Radio
stations quickly.

Select the desired Internet Radio station, then

select “ ” from the pop up menu.

The stored Internet Radio station is added to the
“Bookmarks” list in “Net Radio”.

y

• To remove the stored station from the “Bookmarks” list, select

• You can also register your favorite Internet Radio stations on

Add to Bookmark

the station under “Bookmarks”, then select

“ ” from the pop up menu.

Remove from Bookmark

this unit by accessing the website with the web browser on your
PC. To use this feature, you need the vTuner ID of this unit and
your e-mail address to create your personal account. Refer to
“Information” in the “Network” menu for the vTuner ID of this
unit (☞ P. 41). For details, refer to the help information on the
website. URL: http://yradio.vtuner.com/

■ Operation on the playback screen

MENUGUIDE

Play/Stop

ENTER

PREV.

CONTROL BACK

EXIT

Back to the previous
screen

OPERATION

BASIC

Notes

• This service may be discontinued without notice.

• Some Internet Radio stations may not be played.

31 En

Listening to the Rhapsody® service (YMC-700 only)

]

en

]

y

y

s

t

y

]

]

y

ge

y

ge

ge

ge

ge

y

ge

y

ge

g

n

)

m

9

9

t

ge

y

ge

e

ge

y

ge

]

k

CK

OL

OL

e

or

e

e

t

l

e

SP

m

Use this feature to listen to the Rhapsody® music service.

[Top menu

elect

List

Contents list screen

Root director

If you press and hold PAG E u / d, the list scrolls rapidly.

[Playback screen

Playback mod
indicat

Repeat all
Repeat on

huffl

Input nam

Source menu

elect

Rhapsod

BA

[Pop up menu] (Menu items vary depending on directory.

Now Playin

Pla

Remove from My Librar

Show Album Pa

Add Album to My Library Next pa

Add Track to My Librar

Add to My Librar

NTR

Jump to playback scree

Next pa

Next pa

Next pa

Next pa

Next pa

ub directorie

elec

director

Select a song to start playbac

over ar

Title/Artist/Album or Channe

elected D

progra

[Pop up menu

NTR

huffl

Add Album to My Librar

Add Track to My Librar

Next pa

Next pa

Next pa

DSP Progra

udio Adjustment P. 1

Repea

P. 1

Next pa

Note

If any message appears, refer to “Troubleshooting”. (☞ P. 48)

32 En

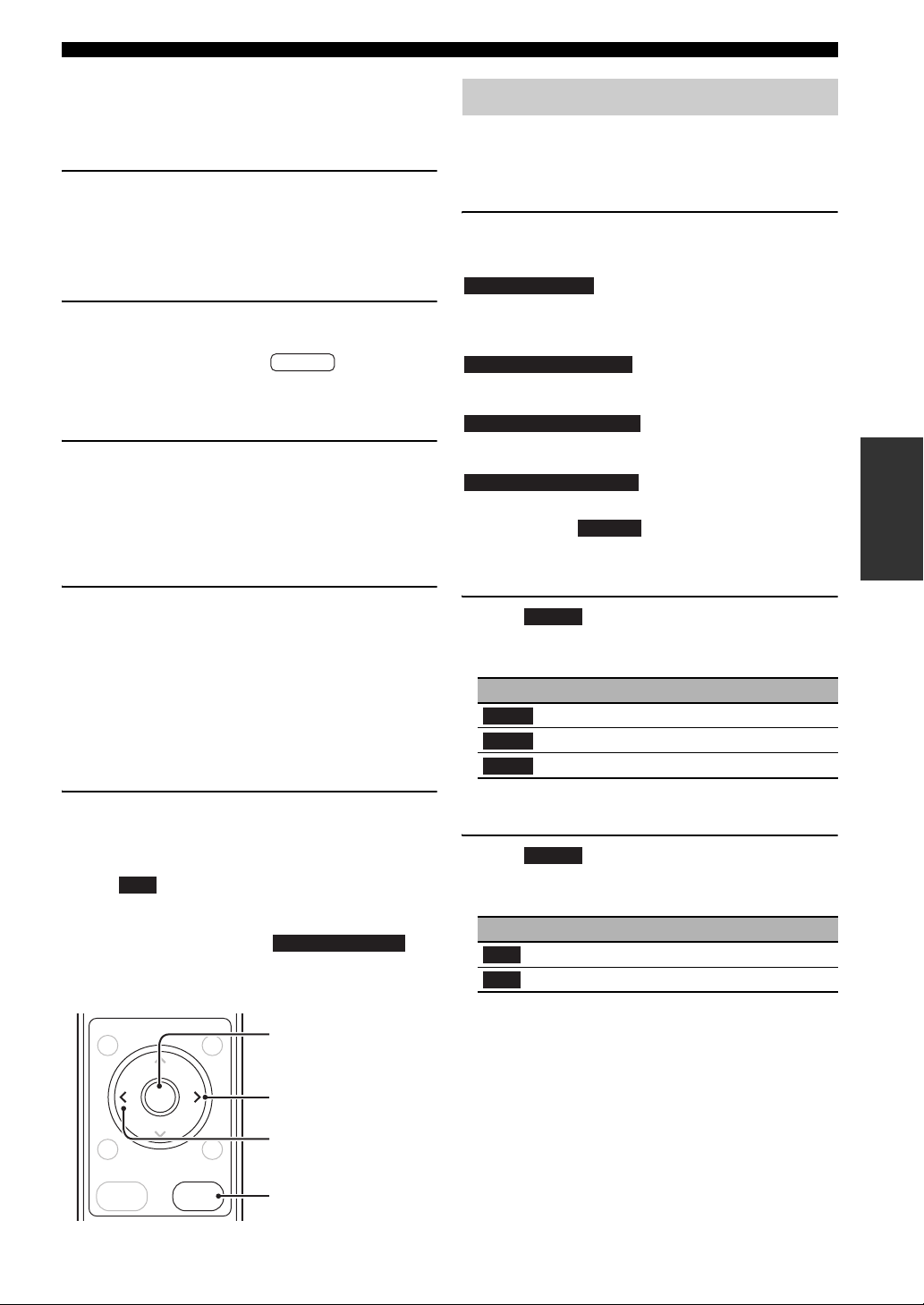

■ Account setup for Rhapsody

®

When you select “Rhapsody” for the first time, the
account setup screen appears. Follow the procedure below

®

to set up your account for the Rhapsody

1

Select “Sign In to your account” on the account

service.

setup screen.

y

If you select “Start Free 30-day trial”, you can try the
service for free for 30 days.

2 Enter your user name and password (up to 64

characters each) by using the displayed
keyboard, then select “ ”.

“Please wait...” appears, followed by the confirmation
screen.

3

Select “OK” to complete the Sign In procedure.

y

Use “Rhapsody Information” in “Setup” to check and edit the
account information of the Rhapsody

■ Playback

OK

®

service (☞ P. 4 1 ).

Listening to the Rhapsody® service (YMC-700 only)

Useful functions

■ Library

You can gather your favorite tracks and albums into a
library called “My Library”.

Use the following pop up menu items to edit “My
Library”:

Add to My Library

Add the currently selected track or album to “My
Library”.

Add Track to My Library

Add the currently selected track to “My Library”.

Add Album to My Library

Add the currently selected album to “My Library”.

Remove from My Library

Remove the currently selected track or album from “My
Library”. Select “ ” to remove it.

■ Repeat play

Remove

OPERATION

BASIC

1 Select “Rhapsody Music Guide”.

y

• Use “Rhapsody Channels” to browse the channels
provided by the Rhapsody

• Use “My Library” to register and access the desired
albums and songs easily.

• You can search contents by keyword. Select “Search”,
then “Artist”, “Album”, or “Track”. Enter the desired
keyword using the virtual keyboard, then select “OK”.

2

Browse the contents list to select the desired song.

The playback screen appears.

y

• Select “ ” from the pop up menu to play back the

• You can move to the album of the selected item in the list

Play

selected item directly.

directly. Select a song, then select “ ”
from the pop up menu.

■ Operations on the playback screen

MENUGUIDE

ENTER

®

service.

Show Album Page

Play/Pause (While

playing back a track)
Play/Stop (While playing
back a Rhapsody channel)

Skip forward

Select “ ” from the pop up menu on the

Repeat

playback screen and select a repeat mode
option.

Choice Function

Off

Single

All

Cancel repeat playback.

Repeat a song.

Repeat a sequence of songs.

■ Shuffle play

Select “ ” from the pop up menu on the
playback screen and select a shuffle mode
option.

Shuffle

Choice Function

Off

On

Cancel shuffle playback.

Shuffle playback.

PREV.

CONTROL BACK

EXIT

Skip backward

(Unavailable under
Rhapsody channel)

Back to the previous
screen

33 En

Listening to the Rhapsody® service (YMC-700 only)

Prohibition

It is strictly prohibited to modify, reproduce, reverse-engineer
or use this unit and/or built-in software for use other than
audiovisual purposes.

The Rhapsody® service is the power behind the
Rhapsody® Media Player (the Rhapsody® player software

®

that you can download to your computer). Rhapsody
service supplies the music, keeps My Library up to date,
provides you with Rhapsody® channels, the Playlist
Central online community, and manages your downloads.

®

Your software connects to Rhapsody

service through the

internet. Because your account information and

®

Rhapsody

content are on servers instead of any
individual computer, your music is infinitely portable.
Much of what you see in the Display area comes from

®

Rhapsody

service. What you can do with Rhapsody®
service depends on your subscription. You can use

®

Rhapsody

service for free, or get even more from a paid
membership. The Rhapsody® service also brings you
Rhapsody® Online, a streamlined, internet version of

®

Rhapsody

that you can access from almost anywhere.
Just sign in to your Rhapsody® account to start letting the
Rhapsody® service work for you.
For more information, http://www.rhapsody-free.com/.

34 En

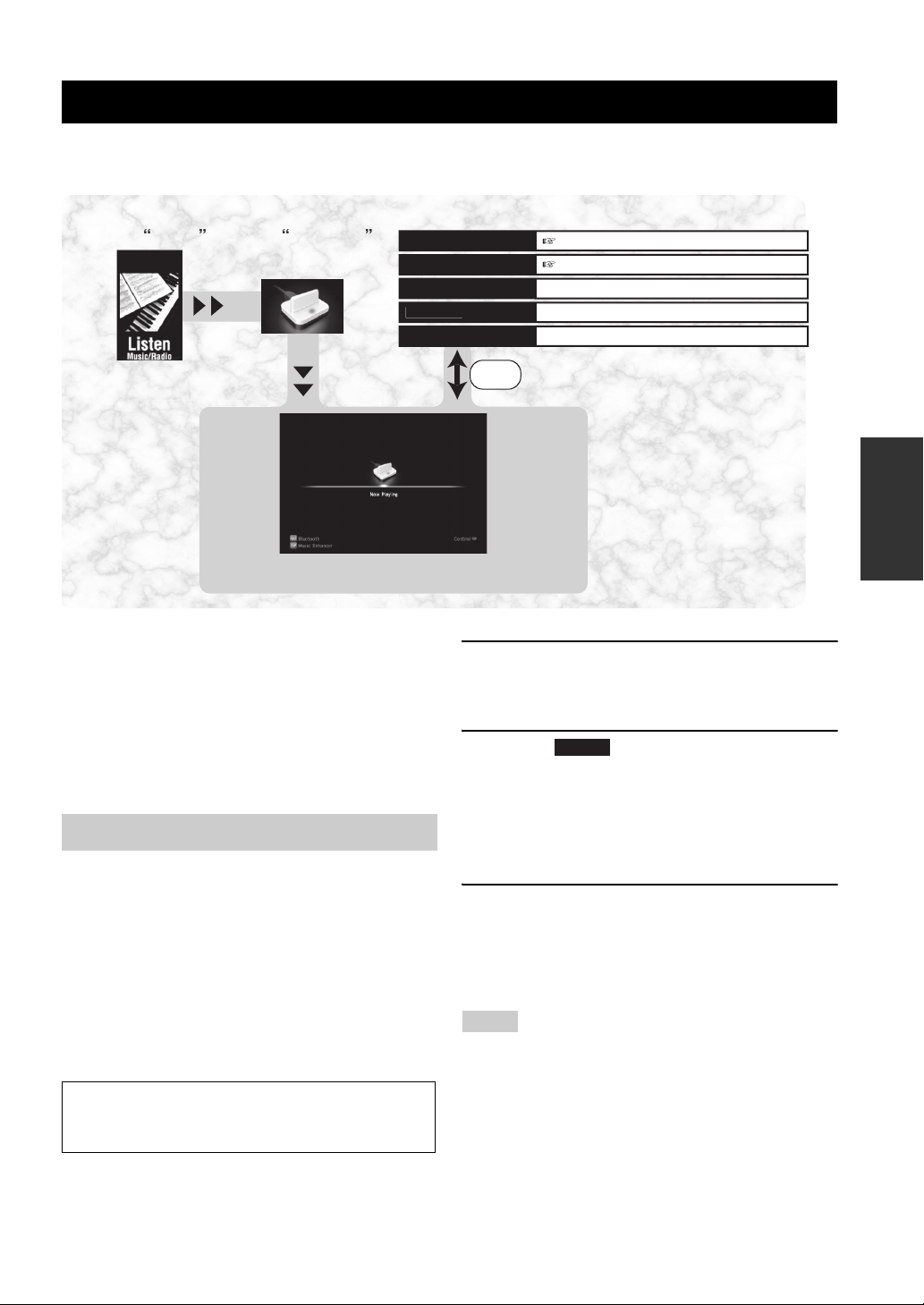

Enjoying Bluetooth™ components

en

]

h

.

m

9

9

g

t

t

w

sconnect

t

OL

]

Use this feature to enjoy the music contents stored on your Bluetooth component (such as a portable music player)
without wiring between this unit and the Bluetooth component.

[Top menu]

elect

List

Source menu

elect

Bluetoot

[Pop up menu

DSP Progra

Audio Adjustment P. 1

Pairin

onnec

Di

Start playback on your Bluetooth component

To use this feature, you need perform the following
operations in advance.

• Connecting a Yamaha Bluetooth receiver (☞ P. 7).

• Pairing the desired Bluetooth component (see below).

• Establishing the connection between the desired
Bluetooth component and the Bluetooth receiver.

y

This unit supports A2DP (Advanced Audio Distribution Profile)
Bluetooth profiles.

Pairing

Pairing must be performed when using a Bluetooth
component with the Bluetooth receiver connected to this
unit for the first time or if the pairing data has been
deleted. “Pairing” refers to the operation of registering a
Bluetooth component for Bluetooth communications.

y

• You only need to perform the pairing operation the first time.

• Pairing requires operations on this unit and on the other

component with which Bluetooth communications are to be
established. If necessary, refer to the other component’s
operating instructions.

To ensure security, a time limit of 8 minutes is set for the
pairing operation. You are recommended to read and fully
understand all the instructions before starting.

P. 1

ee belo

Search for the last connected Bluetooth componen

Disconnect the Bluetooth componen

NTR

1 Turn on your Bluetooth component, then set

the Bluetooth component to the pairing
mode.

2 Select “ ” from the pop up menu and

Pairing

check that the Bluetooth component detects
the Bluetooth receiver.

If the Bluetooth component detects the Bluetooth
receiver, “YBA-10 YAMAHA” (example) appears on
the Bluetooth device list.

3 Select the Bluetooth receiver on the

Bluetooth device list, then enter the pass key
“0000” on the Bluetooth component.

When the pairing procedure is successful, “Pairing
Completed” appears.

Notes

• If any message appears, refer to “Troubleshooting”. (☞ P. 5 0 )

• The Yamaha Bluetooth receiver can be paired with up to eight
Bluetooth components. When pairing is conducted successfully
with a ninth component and the pairing data is registered, the
pairing data for the least recently used other component is
cleared.

OPERATION

BASIC

35 En

Setup menu

Setup menu tree

You can change the settings of this unit with the Setup menu. Enter the Setup menu from the bottom right corner of the
top menu.

Initial Setup (P. 37)Setup
Speaker

Sound

Input

Network

Rhapsody
Information

Remote
Control

Option

Signal Information (P. 44)
Update

Auto Speaker Setup (P. 37)
Speaker Configuration

Speaker Level (P. 38)
Reset (P. 38)
Air Surround Xtreme (P. 38)
Adaptive DRC (P. 39)
Lipsync (P. 39)
Dynamic Range (P. 39)
HDMI Audio Out (P. 39)
Add New Input (P. 39)

User Input

Network Select (P. 40)
IP Address (P. 41)
Wireless LAN (P. 41)
MAC Address Filter (P. 41)
Information (P. 41)
Account Status (P. 41)
Sign In (P. 41)
Rhapsody Free Trial (P. 41)
Remove Account (P. 41)

TV Favorite
Source Power Control (P. 42)
TV Power Control (P. 42)
TV Remote Code (P. 42)
TV Remote Code Learning (P. 42)
Initial Screen - POWER Button (P. 43)
Initial Screen - CONTROL Button (P. 43)
GUI position (P. 43)
HDMI Standby Through (P. 43)
Network Standby (P. 44)
Screen Saver

Factory Reset (P. 44)

USB Update (P. 44)
Network Update (P. 44)
System Information (P. 44)

Front (P. 37)
Center (P. 37)
Surround (P. 37)
Bass Out (P. 38)
Crossover (P. 38)
Subwoofer Phase (P. 38)

Watch/Listen/Play

Remote Code (P. 40)
Remote Code Learning (P. 40)
Remove (P. 40)

Preset channels

Screen Saver (P. 44)
Waiting Time (P. 44)
Preview (P. 44)

Icon (P. 40)
Rename (P. 40)

Channel Number (P. 42)
Rename (P. 42)

36 En

Note

The shaded menu items are only applicable to YMC-700.

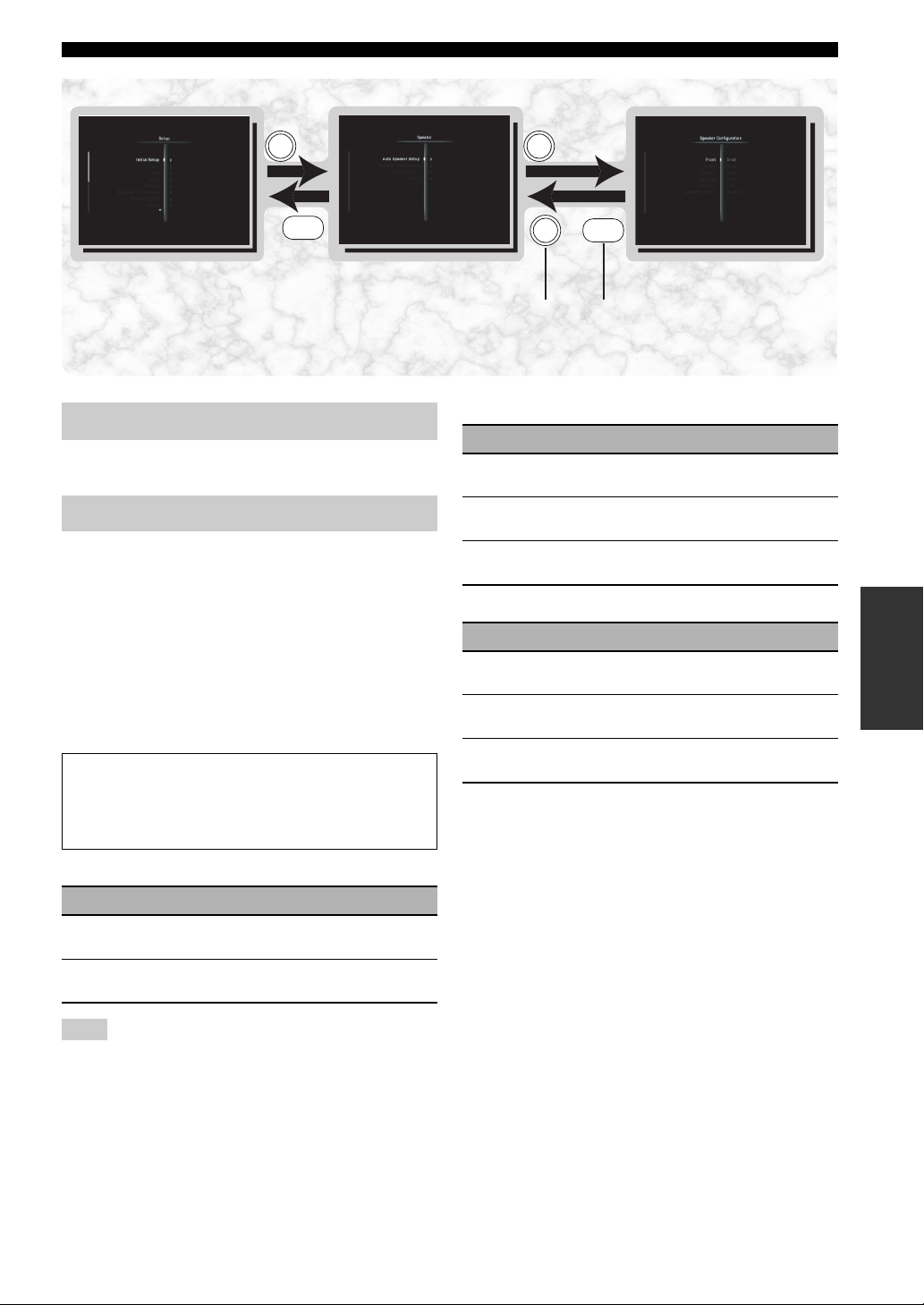

Setup menu

.

)

]

]

]

CK

CK

[Setup menu

ENTE

Sub menu

BA

Apply the change and return

Initial Setup

Initial Setup ☞ P. 1 0

Speaker menu

Almost all settings are optimized by the Initial Setup
procedure (☞ P. 10). If you change the speaker layout or
the speakers themselves after executing the Initial Setup
process, use this menu to re-optimize the sound. The
choices indicated in bold are selected by default.

■ Auto Speaker Setup

Select “Start” and follow steps 6 to 11 at “Step 1: Auto
Speaker Setup”. (☞ P. 10)

■ Speaker Configuration

Determining the speaker size

If the speaker’s woofer section is:

– 16 cm (6.5 in) or larger: large
– smaller than 16 cm (6.5 in): small

[Setting screen

ENTE

BA

Discard the change and return.
(Note that some changes are
applied immediately.

Center

Choice Descriptions

Large

Small

None

Select this setting when the center speaker is
large.

Select this setting when the center speaker is
small.

Select this setting when no center speaker is
being used.

Surround

Choice Descriptions

Large

Small

None

Select this setting when the surround
speakers are large.

Select this setting when the surround
speakers are small.

Select this setting when no surround
speakers are being used.

OPERATION

ADVANCED

Front

Choice Descriptions

Large

Small

Select this setting when the front speakers
are large.

Select this setting when the front speakers
are small.

Note

When “Bass Out” is set to “Front”, you can only select “Large”
for “Front”. If “Front” has been set to anything other than
“Large” before, this unit changes the value to “Large”
automatically.

37 En

Setup menu

Bass Out

Use this feature to select the speakers from which the LFE
(low-frequency effect) and the low-frequency signals will
be output.

Output of LFE signals

Subwoofer and speakers

Choice

Both

Subwoofer

Front

Subwoofers

Output Not output Not output

Output Not output Not output

Not output Output Not output

Front

speakers

Other

speakers

Output of low-frequency signals

Subwoofer and speakers

Choice

Both

Subwoofer

Front

*1 Output(s) the low-frequency signals of the front channels and

other speakers set to “Small”.

*2 Always output the low-frequency signals of the front

channels.

*3 Output the low-frequency signals if the speakers are set to

“Large”.

*4 Outputs the low-frequency signals of the speakers set to

“Small”.

Subwoofers

*1

*4

Not output *1 *3

Front

speakers

*2

*3 *3

Other

speakers

*3

Note

When “Front” is selected, you cannot adjust the subwoofer level
using the pop up menu.

Crossover

Use this feature to select the crossover frequency of
speakers that are set to “Small”. All frequencies below the
selected frequency are sent to the subwoofer or to the
speakers set to “Large”.
Choices: 40Hz, 60Hz, 80Hz, 100Hz, 120Hz, 160Hz,

200Hz

Subwoofer Phase

Use this feature to switch the phase of your subwoofer if
the bass sound is too weak or unclear.

Choice Functions

Normal

Reverse

Does not change the phase of your
subwoofer.

Sets the phase of the subwoofer to reverse.

■ Speaker Level

Use this feature to manually balance the speaker levels.
Control range: –20 to +20 (Test Tone: Off, On)
Initial setting: 0 (Test Tone: Off, SWFR: +6)
Control step: 1

Choice Adjusted speaker

Test Tone

FL

FR

C

SL

SR

SWFR

Turns the test tone output on or off.

Adjusts the front left speaker level.

Adjusts the front right speaker level.

Adjusts the center speaker level.

Adjusts the surround left speaker level.

Adjusts the surround right speaker level.

Adjusts the subwoofer level.

■ Reset

Use this menu to reset the speaker settings.

Choice Functions

Yes

No

Resets the speaker related settings.

Cancels resetting.

Sound menu

Use this menu to change the various sound settings.
The choices indicated in bold are selected by default.

■ Air Surround Xtreme

The AIR SURROUND XTREME technology enables you
to enjoy up to 7.1-channel sound (when multi-channel
PCM signals are input) without using surround speakers
by simulating sound from virtual speakers.

Choice Functions

On

Off

Notes

• When surround speakers are connected, “- - -” is displayed and
you cannot set the “Air Surround Xtreme” setting. The AIR
SURROUND XTREME function is not available in this case.

• When DSP Program is set to “Off” or “Music Enhancer”, the
AIR SURROUND XTREME function is deactivated.

• When “Air Surround Xtreme” is set to “Yes”, the connected
external sources output Dolby Digital or PCM signals instead of
Dolby TrueHD or Dolby Digital Plus signals. For details, refer
to the owner’s manual of the component.

Turns on the AIR SURROUND XTREME
function.

Turns off the AIR SURROUND XTREME
function.

38 En

Setup menu

■ Adaptive DRC (dynamic range control)

Use this feature to adjust the dynamic range in
conjunction with the volume level. It improves
listenability at low volume.

Choice Functions

Auto

Off

Adjusts the dynamic range automatically.

Does not adjust the dynamic range
automatically.

When “Adaptive DRC” is set to “Auto”, this unit controls
the dynamic range as follows:

– If the volume setting is low: the dynamic range is

narrow

– If the volume setting is high: the dynamic range is

wide

Output level

Auto

Off

Input level

Auto

Off

Output level

Input level

Volume: low Volume: high

y

You can also adjust the dynamic range of the bitstream signal
sources (Dolby Digital, Dolby Digital Plus, Dolby True HD and
DTS signal) by using the “Dynamic Range” menu.

■ Lipsync

Use this menu to adjust the audio and video
synchronization.

If the connected TV is compatible with the
automatic lip sync function

The Lipsync mode of this unit is set to “Auto”, and you
can fine-adjust the audio and video synchronization by
adjusting the offset value.
Control range: –240 through 0 to 240 ms (the range varies
depending on the result of automatic measurement)
Control step: 1 ms

If the connected TV is not compatible with the
automatic lip sync function

The Lipsync mode of this unit is set to “Manual”. Adjust
the delay of the sound output manually to synchronize the
sound with the picture.
Control range: 0 to 240 ms
Control step: 1 ms

■ Dynamic Range

Selects the dynamic range adjustment method for
reproducing bitstream signals (Dolby Digital, Dolby
Digital Plus, Dolby True HD and DTS signal).

Choice Functions

Min/Auto

Std

Max

(Min) Sets the dynamic range suitable for
low volume or a quiet environment, such as
at night, for bitstream signals (excluding
Dolby TrueHD signals).
(Auto) Adjusts the dynamic range for Dolby
TrueHD signals based on input signal
information.

Sets the standard dynamic range
recommended for regular home use.

Outputs sound without adjusting the
dynamic range of the input signals.

■ HDMI Audio Out

Use this menu to select whether to play back HDMI audio
signals on this unit or on the TV connected to this unit.

Choice Functions

Amp

TV

Outputs HDMI audio signals from the
speakers connected to this unit.

Outputs HDMI audio signals from the
speakers of the TV.

Notes

• If “HDMI Audio Out” is set to “TV”, the available audio signals
vary depending on the specifications of the connected TV.

• When “HDMI Audio Out” is set to “TV” and the audio signals
are output from the HDMI OUT jack, the speakers connected to
this unit output no sound.

• Even if “HDMI Audio Out” is set to “TV”, the sound signals of
some sources are not output from the HDMI OUT jack. In this
case, sound is output from the speakers connected to this unit.

Input menu

Use this menu to add new input sources or change the
input source settings you have made with the Initial Setup
procedure.
The choices indicated in bold are selected by default.

■ Add new input

When you connect new components to this unit or modify
the connections between this unit and other components,
use this menu to reflect the new connections. Follow steps
2 to 4 at “Step 3: Source Device Setup”. (☞ P. 15)

OPERATION

ADVANCED

39 En

Setup menu

■ User Input (“Cable”, “SAT”, “DVD”, etc.
— the name of an input source you have
added before)

Watch/Listen/Play

You can customize the icons under the activities displayed
on the source screen for each component. For example, if
you listen to a CD using the DVD player frequently, you
can add the “CD” icon under the “Listen” activity and
rename the icon to “CD/DVD-P”.
Selectable icons are as follows:

LiveTV, Movie, DVR, Game, Apple TV, CD, Other,
None (Select “None” when you want to delete the

assigned icon from the selected activity.)

You can rename icons with up to eight characters.

Remote Code

Use this menu to switch the remote control code for the
component. Follow steps 6 to 15 at “Step 3: Source Device
Setup”. (☞ P. 15)

Remote Code Learning

Use this menu to add/change remote control codes. See
below.

Remove

Use this menu to remove any component you have added.

y

If you change the connections between this unit and source
devices, first remove the input settings, then make new settings
using the “Add new input” menu (☞P. 3 9 ) .

■ Programming remote control codes from
other remote controls

You can program remote control codes from other remote
controls. Use the learning feature if you want to program
functions not included in the basic operations.

3 Select “Learn” and immediately press and

hold the button you want to program on the
remote control until “Code learning was
successful” appears.

If the target button is one of the L1 to L14 buttons,
you can rename the button. Select “Rename” and
rename the button.
If learning was unsuccessful, “Code learning failed”
appears. In this case, place the remote control near
the remote control sensor of this unit and select
“Retry”, or select “Cancel” to cancel the learning
process.

y

Aim the remote control of other devices at the remote
control sensor of this unit within the range of 10 cm to 2.5 m
(4 in. to 8 ft.).

4 To learn other codes, select “Learn next

code” and repeat steps 1 to 3 until you finish
“learning” all the desired code.

5 Select “Finished” and then “Yes” to exit the

learning process.

Notes

• If the other remote control uses infrared rays, this unit can learn
most of its function. However, you may not be able to program
some special signals or extremely long transmissions.

• This unit does not support the control interfaces for game
consoles.

Network menu (YMC-700 only)

Use this menu to adjust the network parameters.

1 Select the source device’s type.

If any remote control code has been set already, skip
this step.

2 Select a button on the remote control or the

virtual remote control.

You can program the functions of other remote
controls to the following buttons.

• GUIDE, MENU, PREV., EXIT, u / d / j / i,
ENTER, CH u / d, and PAG E u / d on the
remote control.

• Any of the virtual remote control buttons
(including buttons L1 to L14 (☞P. 22))

40 En

■ Network Select

Use this menu to select a connection method (wired or
wireless).

Choice Functions

Ethernet

WLAN

This unit connects to a wired network.

This unit connects to a wireless network.

Setup menu

■ IP Address

Use this menu to change the network parameters (IP
address, etc.) manually.

DHCP (DHCP setting)

Use this feature to select whether to allow this unit to
obtain the network parameters (IP address, subnet mask,
default gateway, primary DNS server and secondary DNS
server) from the DHCP server of the connected network.

Choice Descriptions

On

Off

Select this setting to allow this unit to obtain the
network parameters from the DHCP server of
the connected network.

Select this setting when you want to set the
network parameters manually.

IP Address (IP address)

Use this parameter to specify the IP address assigned to
this unit. This value must not be the same as the one used
for other devices in the target network.

Subnet Mask (Subnet mask)

Use this parameter to specify the subnet mask value
assigned to this unit.

Default Gateway (Default gateway)

Use this parameter to specify the IP address of the default
gateway.

DNS Server (P) (Primary DNS server),
DNS Server (S) (Secondary DNS server)

Use this parameter to specify the IP address of the primary
and secondary DNS (Domain Name System) servers.

y

If you have only one DNS address, enter the DNS address in “DNS
Server (P)”. If you have two or more DNS addresses, enter one of
them in “DNS Server (P)” and another in “DNS Server (S)”.

■ Wireless LAN

When you select this menu item, this unit automatically
begins to search for wireless networks. After searching is
completed, follow the steps below.

1 Select an access point, or select “Manual

Setup” and enter the ESSID (the name of the
wireless network named in the Wi-Fi
settings).

2 Select the security type and input the

security key for the network.

When you select “None” as the security type, you are not
required to input the security key.

3 Select “Yes” to confirm the setting.

■ MAC Address Filter

Use this feature to filter the access to this unit via LAN to
control this unit by the MAC address of the accessing PC.
Control range: 00 to FF for each field (Mac Address Filter:
On, Off)

Choice Functions

Mac Address Filter

MAC Address 1 - 10

Turns the MAC address filter function on
or off. When “On” is selected, this unit
accepts PCs whose MAC address is
registered.

The MAC addresses of network devices
which are allowed to connect to this unit.

■ Information

You can display the following network system
information:

• MAC Address assigned to this unit

• IP Address

• Subnet Mask

• Default Gateway

• DNS Server (P)

• DNS Server (S)

• Link Status of the network (No Link/10Base-T/
100Base-TX) and method of communication (Full
Duplex/Half Duplex)

• WLAN Signal Level

• vTuner ID

Rhapsody® Information menu (YMC-700 only)

Use this menu to check and change the account status of
your Rhapsody

■ Account Status

Shows the information regarding the account status.
If “NOT AVAILABLE” appears, check the network
settings.

■ Sign In

Enter your user name (up to 64 characters) and password
(up to 64 characters) provided by the Rhapsody
then select “OK”.

Note

If Sign In fails, an error message appears. In this case, perform
the Sign In procedure again.

■ Rhapsody Free Trial

A free 30-day trial of the Rhapsody® service is available.
When you select this menu, the URL at which the terms of
the trial service can be found appears. If you agree, select
“Yes” to activate the trial account.

■ Remove Account

Select this menu to remove your account.

®

account.

®

service,

OPERATION

ADVANCED

41 En

Setup menu

Remote Control menu

Use this menu to set up remote control settings.
The choices indicated in bold are selected by default.

■ TV Favorite

You can store up to 8 favorite TV channels and recall them by
selecting the corresponding buttons on the virtual remote
control.

y

The keys for the TV Favorite functions are displayed on the
virtual remote control when Cable, Satellite/DSS, or DVR is
selected as the type of the source device. Select “Fav” and the
station name you registered.

Channel Number

Enter the channel number of your favorite TV stations.
You can enter up to 8 characters (numbers and hyphen).

Rename

Use this menu to change the name of channels on the pop
up menu displayed when you select “Fav” on the virtual
remote control. (☞ P. 21)

■ Source Power Control

Use this menu to turn the Source Power Control function
of this unit on or off (standby). The Source Power Control
function controls the power of the components to which
IR flashers are attached. This function works as follows:

• When you select an input source, this unit turns on the
corresponding component.

• When you set this unit to the standby mode, this unit
turns off the connected components.

Choice Functions

Enable

Disable

Note

You need to attach the IR flashers to the components and
configure the remote control settings in advance.

The Source Power Control function is enabled.

The Source Power Control function is disabled.

■ TV Power Control

Use this menu to turn on or off the TV Power Control
function of this unit. The TV Power control function
controls the power of the TV to which the IR flasher is
attached. This function works as follows:

• When you turn on this unit, this unit turns on the TV.

• When you set this unit to the standby mode, this unit
turns off the TV.

Choice Functions

Enable The TV Power Control function is

enabled.

Disable The TV Power Control function is

disabled.

Note

You need to attach the IR flasher to the TV and configure the
remote control setting in advance.

■ TV Remote Code

Use this menu to change the remote control code of the
connected TV. Follow steps from 2 to 8 of “Step 2: TV
Remote Control Setup” (☞ P. 13).

■ TV Remote Code Learning

If the remote control code set with the “TV Remote Code”
menu does not function correctly, use the learning feature
to program the remote control code manually.

1 Select a button to learn.

TV POWER

Learn the code of the button for switching the TV’s
power on and off (standby) on the remote control
included with the TV to control the TV’s power using
TV POWER on the remote control included with this
unit. There is no need to learn the code here if the
code is properly set at “TV Remote Control Setup” in
the Initial Setup procedure.

TV On

If the remote control included with the TV has a
button exclusively for turning the TV’s power on,
learn its code.

TV Off

If the remote control included with the TV has a
button exclusively for turning the TV’s power off,
learn its code.

y

When the TV On and TV Off codes are learned, the TV’s
power can be accurately controlled from this unit.

42 En

2 Select “Learn” and immediately press the TV

power control button on the remote control
of the TV.

When learning was successful, “Code learning was
successful” appears.
If learning was unsuccessful, “Code learning failed”
appears. In this case, place the remote control near
the remote control sensor of this unit and select
“Retry”, or select “Cancel” to cancel the learning
process.

y

Aim the remote control of the TV at the remote control
sensor of this unit within the range of 10 cm to 2.5 m (4 in.
to 8 ft.).

3 Select “Finished” and then “Yes” to exit the

learning process.

Note

If the other remote control uses infrared rays, this unit can learn
most of its function. However, you may not be able to program
some special signals or extremely long transmissions.

Option menu

You can adjust the optional system settings.
The choices indicated in bold are selected by default.

■ Initial Screen - POWER Button

You can set the initial screen displayed when this unit is
turned on using POWER.

Choice Functions

Top M e nu

Last

Activities

The top menu is displayed when this unit is
turned on.

The playback screen of the audio source you
listened to the last time is displayed when
this unit is turned on.

The playback screen of the selected input
source is displayed when this unit is turned
on.
You cannot select FM Radio, Rhapsody, Net
Radio, PC Content, Bluetooth, or USB.

Setup menu

■ Initial Screen - CONTROL Button

You can set the initial screen displayed when this unit is
turned on using CONTROL on the remote control.

Note

You cannot use this feature with CONTROL on the top panel.

Choice Functions

Top Menu

Last

Activities

The top menu is displayed when this unit is
turned on.

The playback screen of the audio source you
listened to the last time is displayed when
this unit is turned on.

The playback screen of the selected input
source is displayed when this unit is turned
on.
You cannot select FM Radio, Rhapsody, Net
Radio, PC Content, Bluetooth, or USB.

■ GUI position

Use this feature to adjust the vertical and horizontal
position of the menu screen.
Control range: –5 (downward/left) to +5 (upward/right)

Button

u Up

d Down

i Right

j Left

Direction in which the GUI display moves

y

Press ENTER when the adjustment is finished.

■ HDMI Standby Through

Use this feature to decide whether or not to allow the
HDMI signals input to the HDMI IN jacks to pass through
this unit when this unit is in the standby mode.

Choice Functions

Off

HDMI 1 - 3

Disables the HDMI standby through feature.
HDMI signals do not pass through this unit
when this unit is in the standby mode.

HDMI signals pass through this unit (from the
corresponding HDMI IN jack) even when this
unit is in the standby mode.
When in the standby mode, the power indicator
is lit dimly.

OPERATION

ADVANCED

Note

When “HDMI Standby Through” is set to options other than
“Off”, the amount of power consumed in the standby mode
increases.

43 En

Setup menu

■ Network Standby (YMC-700 only)

Use this feature to select whether or not this unit will
accept commands via LAN network when it is in the
standby mode.

Choice Descriptions

Off

On

Does not accept operations via LAN network
when in the standby mode.

Accepts operations via LAN network when in
the standby mode.
When in the standby mode, the power indicator
is lit dimly.

Signal information

Use this to display audio and video signal information.
The displayed information is as follows:

Video information

Choice Functions

Signal Type

Resolution

Type of source video signal and video signal
output from the HDMI OUT jack.

Resolution of the input signal (analog or
HDMI) and the output signal (HDMI).

Note

When “Network Standby” is set to “On”, the amount of power
consumed in the standby mode increases.

■ Screen Saver

Screen saver

Select a type of screen saver.

Choice Functions

Off

Logos

Photos

Screen saver is not activated.

The Yamaha logo and neoHD logo are used
for the screen saver.

The selected photos (☞P. 27) are used for
the screen saver.

Waiting time

Use this menu to set the amount of time before the screen
saver is activated.
Control range: 1min to 10min
Initial setting: 5min
Control step: 1min
Press ENTER to set the value.

Preview

When you select this menu, preview is displayed. Press
BACK to return to the previous screen.

■ Factory Reset

Use this menu to reset the system to the factory defaults.

Notes

• This procedure completely resets all the parameters of this unit.

• When you execute the “factory reset” command, this unit turns
off then back on automatically.

Choice Functions

Ye s

No

Resets the system to the factory defaults.

Cancels resetting.

Audio information

Choice Functions

Decode Status

Decode Channel

Air Surround
Xtreme

Signal format.

Number of source channels in the input
signal.

State of the Air Surround Xtreme function.

Note

• “– – –” appears when this unit cannot display the corresponding
information.

• Even if you make settings to output bitstreams directly, some
players convert Dolby TrueHD or Dolby Digital Plus bitstreams
to Dolby Digital bitstreams.

Update menu

Use this menu to update the firmware of this unit. For
details on how to update the firmware, refer to the
information supplied with updates.

Choice Functions

USB Update

Network Update
(YMC-700 only)

System
Information

y

To start updating the firmware, select “USB Update” or “Network
Update”.

Note

• Do not use this feature unless you need to update the firmware.

• Be sure to read the information supplied with updates before
performing firmware updates.

• DO NOT unplug the power cord during updating.

Updates the firmware of this unit using the
USB memory.

Updates the firmware of this unit via the
network.

Displays the software version and system ID
of this unit.

44 En

TROUBLESHOOTING

Troubleshooting

Refer to the table below when this unit does not function properly. If the problem you are experiencing is not listed below
or if the instructions below do not help, turn off this unit, disconnect the power cable, and contact the nearest authorized
Yamaha dealer or service center.

■ General

Problem Cause Remedy

This unit fails to turn
on or enters the
standby mode soon
after the power is
turned on.

No sound. Incorrect input assignment settings. Use the Input menu and correct the assignment

No picture. Non-standard video signals are being

The sound suddenly
goes off.

Sound is heard from
the speaker on one
side only.

The power cable is not connected or the
plug is not completely inserted.

The protection circuitry has been
activated.

This unit has been exposed to a strong
external electric shock (such as lightning
or strong static electricity).

Incorrect input or output cable
connections.

No appropriate input source has been
selected.

Speaker connections are not secure. Secure the connections.

The volume is turned down or muted. Turn up the volume.

Signals this unit cannot reproduce are
being input from a source component,
such as a CD-ROM.

The “HDMI Audio Out” setting is set to
“TV”.

The number of connected HDMI
components is over the limit.

HDCP authentication failed because the
HDMI components connected to this unit
do not support the HDCP copy protection
standards.

input.

The number of connected HDMI
components is over the limit.

HDCP authentication failed because the
HDMI components connected to this unit
do not support the HDCP copy protection
standards.

The protection circuitry has been activated
because of a short circuit, etc.

Incorrect cable connections. Connect the cables properly. If the problem persists,

The speaker level settings are incorrect. Adjust the speaker level settings using the “Auto

Connect the power cable firmly.

Make sure that all speaker wire connections on this
unit and on all speakers are secure and that the wire
for each connection is not touching anything other
than its respective connection.

Turn off this unit, disconnect the power cable, plug it
back in after 30 seconds, then use it normally.

settings according to the actual connections.

Connect the cables properly. If the problem persists,
the cables may be defective.

Select an appropriate input source.

Play a source whose signals can be reproduced by this
unit.

Set the “HDMI Audio Out” setting to “Amp” to
output sounds from speakers connected to this unit.

Reduce the number of HDMI components connected
to the HDMI OUT jack.

Connect HDMI components that support the HDCP
copy protection standards.

Non-standard video signals may interfere the GUI
screen of this unit. In this case, switch the format of
the input signal or stop the signal.

Reduce the number of HDMI components connected
to the HDMI OUT jack.

Connect HDMI components that support the HDCP
copy protection standards.

Check that the speaker wires are not touching each
other, then turn this unit back on.

the cables may be defective.

Speaker Setup” menu.

See

page

—

—

—

39

6, Quick

Start Guide

19

6

19

—

39

—

—

—

—

—

—

6

37

INFORMATION

ADDITIONAL

45 En

Troubleshooting

Problem Cause Remedy

Only the center
speaker outputs
substantial sound.

No sound is heard
from the center
speaker.

No sound is heard
from the surround
speakers.

No sound is heard
from the subwoofer.

The audio input
sources cannot be
played in the desired
digital audio signal
format.

A humming sound is
heard.

This unit does not
operate properly.

There is noise
interference from
digital or radio
frequency equipment.

The picture is
disturbed.

This unit suddenly
enters the standby
mode.

When playing a monaural source with
certain sound field programs, the source
signal may be directed to the center
channel, and the front and surround
speakers only output effect sounds.

“Center” at “Speaker Configuration” is set
to “None”.

“Surround” at “Speaker Configuration” is
set to “None”.

“Off” or “Music Enhancer” is selected as
the DSP program and the source being
played back contains no surround sound.

A monaural source is being played back,
and a certain DSP Program is selected.

“Bass Out” in “Speaker Configuration” is
set to “Front”.

The source does not contain low­frequency signals.

The connected component is not set to
output the desired digital audio signals.

Incorrect cable connections. Connect the audio cables firmly. If the problem

The internal microcomputer has been
frozen by an external electric shock (such
as lightning or excessive static electricity)
or by a power supply with low voltage.

This unit is too close to the digital or high­frequency equipment.

The video source uses scrambled or
encoded signals to prevent dubbing.

The internal temperature is too high and
the overheat protection circuitry has been
activated.

Select another DSP Program.

Set “Center” to “Small” or “Large”.

Set “Surround” to “Small” or “Large”.

Select another DSP Program.

Select another DSP Program.

Set “Bass Out” to “Subwoofer” or “Both”.

Make an appropriate setting following the owner’s
manual of your component.

persists, the cables may be defective.

Disconnect the power cable from the AC wall outlet,
then plug it in again after about 30 seconds.

Move this unit further away from such equipment.

Wait about 1 hour for this unit to cool down, then turn
it back on.

See

page

19

37

37

19

19

38

—

—

—

—

—

46 En

■ FM Tuner

Troubleshooting

Problem Cause Remedy

FM stereo reception
is noisy.

There is distortion,
and clear reception
cannot be obtained
even with a good FM
antenna.

The desired station
cannot be tuned in
with the automatic
tuning method.

The characteristics of FM stereo
broadcasts may cause this problem when
the transmitter is too far away or the
antenna input is poor.

There is multi-path interference. Adjust the antenna position to eliminate multi-path

The signal is too weak. Use a high-quality directional FM antenna.

Check the antenna connections.

Try using a high-quality directional FM antenna.

Use the manual tuning method.

interference.

Use the manual tuning method.

■ Remote control

Problem Cause Remedy

The remote control
does not work or
does not function
properly.

Some buttons on the
virtual remote control
do not function.

The remote control
does not learn new
functions.

Wrong distance or angle. The remote control will function within a maximum

Direct sunlight or lighting (from an inverter
type fluorescent lamp, etc.) is striking the
remote control sensor of this unit.

The batteries are weak. Replace all the batteries.

The batteries do not last long. Using alkaline batteries is strongly recommended.

The remote control code is not correctly
set.

The IR flashers are not connected/attached
correctly.

Remote control codes are directly
transmitted to the remote control sensor of
the target device.

This unit and the remote control are too
far apart or too close together.

The batteries of the other remote control
are too weak.

There is noise interference from digital or
radio frequency equipment.

range of 6 m (20 ft) and no more than 30 degrees off­axis from the front panel.

Reposition this unit.

Set the remote control code correctly.

Try setting another code of the same manufacturer.

Connect/attach the IR flashers properly. Also refer to
the owner’s manual of the external components.

Conceal the remote control sensor of the target device
so that the remote control codes are received directly
from the remote control.

Place the remote control within the range of 10 cm to

2.5 m (4 in. to 8 ft.).

Replace all the batteries.

If a CRT display or equipment connected to a CRT
display is placed near this unit, move this unit away
from such equipment.

If metal objects are near this unit, move this unit away
from them.

See

page

7

—

23

—

—

23

See

page

4

—

5

—

40, 42

40, 42

8

—

—

—

—

—

INFORMATION

ADDITIONAL

47 En

Troubleshooting

■ USB, Network, and Rhapsody

Problem Cause Remedy

“Access Error” is
displayed even when
a USB device is
present.

The music files and
directories in the USB
device cannot be
viewed.

The PC server/
Internet Radio/
Rhapsody® does not
function properly.

The music on the PC
server cannot be
played back.

Internet Radio
stations cannot be
played.

Image files cannot be
displayed.

This unit has recognized the USB storage
device as an unauthorized device.

The music files and directories are placed
in locations other than the FAT area.

You are attempting to browse directory
hierarchies of over 8 levels or a directory
with more than 500 files.

The IP address is not set properly. Set the DHCP server function of the router to ON.

The network cable is not connected. Connect it properly.

The PC does not have Windows Media
Player 11 installed on it.

The music is recorded in a format that
cannot be played on this unit. This unit
cannot play music formats other than
WAV (PCM format only), MP3, WMA,
MPEG-4 AAC, or FLAC. Also note that it
cannot play certain music files even if
these are recorded in the WAV (PCM
format only), MP3, WMA, MPEG-4
AAC, or FLAC format.

The firewall of the network device is
activated. Internet Radio stations can only
be played when the signal pass through
the port designated by the individual radio
stations. The port number varies from
station to station.

Connection to the Internet is
disconnected.

The file format is other than JPEG.

Turn this unit off then on again.

Place music files and directories in the FAT area.

Modify the data structure on your USB device.

Alternately, perform manual configuration according
to the current operating environment.

Install Windows Media Player 11 on the PC.

Play music recorded in a format that this unit is
compatible with.

Check the firewall setting of the network device.

Check the configuration of the network device, then
contact the network connection provider.

Select JPEG image files. —

See

page

—

—

—

40

6

—

—

—

—

48 En

Troubleshooting

Status message Cause Remedy

Access error

USB Connected A USB storage device is properly

USB Disconnected The USB storage device is disconnected. Connect the USB storage device securely.

Access Denied The PC you are attempting to connect has

Unable to play This unit cannot play back the songs

License Unavailable You are attempting to play back expired

This unit cannot access your USB storage
device.

There is a problem with the signal path
from your USB storage device to this unit.

This unit cannot connect to the data server
due to network error, etc.

connected to this unit.

denied connection.

currently stored on your PC.

The network may be overloaded with
heavy traffic, and playback is interrupted.

digital rights management (DRM)
encrypted content.

Windows Media Player 11 does not
acquire the DRM license for the file.

Try another USB storage device.

Turn off this unit and reconnect your USB storage device to
the USB port of this unit.

Try resetting your USB storage device.

Check the network settings, then contact the network
connection provider.

Accept the YMC-700 on the “Media Sharing” screen
of Windows Media Player 11.

Make sure Windows Media Player 11 is installed on
your PC.

Check that the songs currently stored on your PC are
playable (MP3, WMA, MPEG-4 AAC, and WAV).

Store some other playable music files (MP3, WMA,
MPEG-4 AAC, and WAV) on your PC.

Try preparing a network exclusively for use with this
unit to separate it from general network traffic.

Select a file that is not protected by DRM.

Acquire the license to play back the file on Windows
Media Player 11.

See

page

—

—

—

—

6

25

—

—

—

—

—

—

■ iPod

Note

If there is a transmission error but no status message appears on the GUI screen, check the connection of your iPod.

Status message Cause Remedy

Loading... This unit is in the process of recognizing

Connect Error There is a problem with the signal path

Unknown iPod The iPod being used is not supported by

iPod Connected

iPod Disconnected Your iPod was removed from a Yamaha

the connection with your iPod.

This unit is in the process of acquiring
song lists from your iPod.

from your iPod to this unit.

this unit.

Your iPod is properly stationed in a Yamaha
iPod universal dock (such as the YDS-11,
sold separately) connected to the DOCK
terminal of this unit, and the connection
between your iPod and this unit is complete.

iPod universal dock (such as the YDS-11,
sold separately) connected to the DOCK
terminal of this unit.

Turn off this unit and reconnect the Yamaha iPod
universal dock to the DOCK terminal of this unit.

Try resetting your iPod.

This unit supports iPod touch, iPod (Click Wheel,
including iPod classic), iPod nano and iPod mini.

Station your iPod back in a Yamaha iPod universal
dock (such as the YDS-11, sold separately) connected
to the DOCK terminal of this unit.

See

page

7

—

—

7

INFORMATION

ADDITIONAL

49 En

Troubleshooting

■ Bluetooth

Status message Cause

Searching... The Bluetooth wireless audio receiver and the Bluetooth component are in the process of the pairing.

The Bluetooth wireless audio receiver and the Bluetooth component are in the process of establishing the
connection.

Pairing Completed The pairing is completed.

Pairing Canceled The pairing has been canceled.

Bluetooth Connected The connection between the Yamaha Bluetooth wireless audio receiver (such as the YBA-10, sold separately)

Bluetooth
Disconnected

No Bluetooth
Receiver

Bluetooth Receiver
Error

and the Bluetooth component is established.

The Bluetooth component is disconnected from the Yamaha Bluetooth wireless audio receiver (such as the
YBA-10, sold separately).

The Bluetooth wireless audio receiver (such as the YBA-10, sold separately) is not connected to this unit.

The Bluetooth wireless audio receiver has returned an error. Contact the nearest authorized Yamaha dealer or
service center.

■ Auto Speaker Setup

If an error or warning message appears, check the cause of the problem, then perform the Auto Speaker Setup procedure
again.

Error message Cause Remedy

E-1: NO FRONT SP Front L/R channel signals are not detected. Check the front L/R speaker connections. 6

E-2: NO SUR. SP No surround channel signals are detected. Check the surround L/R speaker

E-3: NOISY Background noise is too loud. Perform the Auto Speaker Setup in a quiet

E-4: NO MIC The YPAO Mic was unplugged during the

“Auto Speaker Setup” procedure.

E-5: NO SIGNAL The YPAO Mic does not detect test tones. Check the YPAO Mic setting. 11

E-6: USER CANCEL The “Auto Speaker Setup” procedure was

cancelled due to user activity.

E-7: INTERNAL ERROR An internal error occurred. Perform the Auto Speaker Setup procedure

connections.

environment.

Turn off noisy electric equipment like air
conditioners or move them away from the
YPAO Mic.

Connect the supplied YPAO Mic to the
YPAO Mic jack.

Check the speaker connections and
placement.

The YPAO Mic or YPAO Mic jack may be
defective. Contact the nearest Yamaha
dealer or service center.

Perform the Auto Speaker Setup procedure
again.

again.
If this error occurs repeatedly, contact a
qualified Yamaha service center.

See

page

6, 9

6

—

—

11

—

10

10

Warning message Cause Remedy

SWFR LEVEL ERROR The difference of volume level between

speakers and subwoofer is excessive.

Adjust the volume of the subwoofer to
compensate the status of “SWFR” on the
results display.

50 En

See

page

10

Glossary

GLOSSARY

■ AIR SURROUND XTREME

New Surround technology developed by Yamaha enables
surround with fewer speakers. In comparison to traditional front
surround technology, the AIR SURROUND XTREME provides a
natural surround sound field.

■ Audio and video synchronization
(lip sync)

Lip sync, an abbreviation for lip synchronization, is a technical
term that involves both a problem and a capability of maintaining
audio and video signals synchronized during post-production and
transmission. Whereas the audio and video latency requires
complex end-user adjustments, HDMI version 1.3 incorporates an
automatic audio and video syncing capability that allows devices
to perform this synchronization automatically and accurately
without user interaction.

■ Component video signal

With the component video signal system, the video signal is
separated into the Y signal for the luminance and the P
signals for the chrominance. Color can be reproduced more
faithfully with this system because each of these signals is
independent. The component signal is also called the “color
difference signal” because the luminance signal is subtracted
from the color signal.

B and PR

■ Composite video signal

With the composite video signal system, the video signal is
composed of three basic elements of a video picture: color,
brightness and synchronization data. A composite video jack on a
video component transmits these three elements combined.

■ Deep Color

Deep Color refers to the use of various color depths in displays,
up from the 24-bit depths in previous versions of the HDMI
specification. This extra bit depth allows HDTVs and other
displays go from millions of colors to billions of colors and
eliminate on-screen color banding for smooth tonal transitions
and subtle gradations between colors. The increased contrast ratio
can represent many times more shades of gray between black and
white. Also Deep Color increases the number of available colors
within the boundaries defined by the RGB or YCbCr color space.

■ Dolby Digital

Dolby Digital is a digital surround sound system that gives you
completely independent multi-channel audio. With 3 front
channels (front L/R and center), and 2 surround stereo channels,
Dolby Digital provides 5 full-range audio channels. With an
additional channel especially for bass effects, called LFE (Low
Frequency Effect), the system has a total of 5.1-channels (LFE is
counted as 0.1 channel). By using 2-channel stereo for the
surround speakers, more accurate moving sound effects and
surround sound environment are possible. The wide dynamic
range from maximum to minimum volume reproduced by the 5
full-range channels and the precise sound orientation generated
using digital sound processing provide listeners with
unprecedented excitement and realism. With this unit, any sound
environment from monaural up to a 5.1-channel configuration can
be freely selected for your enjoyment.

■ Dolby Digital Plus

Dolby Digital Plus is an advanced audio technology developed for
high-definition programming and media including HD broadcasts
and Blu-ray Disc. Selected as an optional audio standard for Blu­ray Disc, this technology delivers multichannel sound with
discrete channel output. Supporting bitrates up to 6.0 Mbps, Dolby
Digital Plus can carry up to 7.1 discreet audio channels
simultaneously. Supported by HDMI version 1.3 and designed for
the optical disc players and AV receivers/amplifiers of the future,
Dolby Digital Plus also remains fully compatible with the existing
multichannel audio systems that incorporate Dolby Digital.

■ Dolby TrueHD

Dolby TrueHD is an advanced lossless audio technology
developed for high-definition disc-based media including Blu-ray
Disc. Selected as an optional audio standard for Blu-ray Disc, this
technology delivers sound that is bit-for-bit identical to the studio
master, offering a high-definition home theater experience.
Supporting bitrates up to 18.0 Mbps, Dolby TrueHD can carry up
to 8 discrete channels of 24-bit/96 kHz audio simultaneously.
Supported by HDMI version 1.3 and designed for the optical disc
players and AV receivers/amplifiers of the future, Dolby TrueHD
also remains fully compatible with the existing multichannel audio
systems and retains the metadata capability of Dolby Digital,
allowing dialog normalization and dynamic range control.

■ DTS 96/24

DTS 96/24 offers an unprecedented level of audio quality for multi­channel sound on DVD video, and is fully backward-compatible with
all DTS decoders. “96” refers to a 96 kHz sampling rate compared to
the typical 48 kHz sampling rate. “24” refers to 24-bit word length.
DTS 96/24 offers sound quality transparent to the original 96/24
master, and 96/24 5.1-channel sound with full-quality full-motion
video for music programs and motion picture soundtracks on DVD
video.

■ DTS Digital Surround

DTS digital surround was developed to replace the analog
soundtracks of movies with a 6.1-channel digital sound track.
DTS, Inc. has developed a home theater system so that you can
enjoy the depth of sound and natural spatial representation of DTS
digital surround in your home. This system produces practically
distortion-free 6-channel sound (technically, front left and right,
center, surround left and right, and LFE 0.1 (subwoofer) channels
for a total of 5.1 channels). This unit incorporates a DTS-ES
decoder that enables 6.1-channel reproduction by adding the
surround back channel to the existing 5.1-channel format.

■ FLAC

FLAC (Free Lossless Audio Codec) is an audio compression
format.
FLAC uses lossless compression, allowing the signals to be
compressed with absolutely no loss of the original sound’s data.

INFORMATION

ADDITIONAL

51 En

Glossary

■ HDMI

HDMI (High-Definition Multimedia Interface) is the first
industry-supported, uncompressed, all-digital audio/video
interface. Providing an interface between any source (such as a
set-top box or AV receiver) and an audio/video monitor (such as a
digital television), HDMI supports standard, enhanced or high­definition video as well as multi-channel digital audio using a
single cable. HDMI transmits all ATSC HDTV standards and
supports 8-channel digital audio, with bandwidth to spare to
accommodate future enhancements and requirements.
When used in combination with HDCP (High-bandwidth Digital
Content Protection), HDMI provides a secure audio/video
interface that meets the security requirements of content
providers and system operators. For further information on
HDMI, visit the HDMI website at “http://www.hdmi.org/”.

■ LFE 0.1 channel

This channel reproduces low-frequency signals. The frequency
range of this channel is from 20 Hz to 120 Hz. This channel is
counted as 0.1 because it only enforces a low-frequency range
compared to the full-range reproduced by the other channels in
systems.

■ MP3

One of the audio compression methods used by MPEG. It
employs the irreversible compression method, which achieves a
high compression rate by thinning out the data of hardly audible
part to the human ears. It is said to be capable of compressing the
data quantity by about 1/11 (128 kbps) while maintaining a
similar audio quality to music CD.

■ MPEG-4 AAC

An MPEG-4 audio standard. As it allows compression of data at a
bit rate lower than that of MPEG-2 AAC, it is used among others
for mobile telephones, portable audio players and other low­capacity devices requiring high sound quality.
In addition to the above types of devices, MPEG-4 AAC is also
used to distribute contents on the Internet, and as such is
supported by computers, media servers and many other devices.

■ Sampling frequency and number of
quantized bits

When digitizing an analog audio signal, the number of times the
signal is sampled per second is called the sampling frequency,
while the degree of fineness when converting the sound level into a
numeric value is called the number of quantized bits. The range of
rates that can be played back is determined based on the sampling
rate, while the dynamic range representing the sound level
difference is determined by the number of quantized bits. In
principle, the higher the sampling frequency, the wider the range of
frequencies that can be played back, and the higher the number of
quantized bits, the more finely the sound level can be reproduced.

■ WAV

Windows standard audio file format, which defines the method of
recording the digital data obtained by converting audio signals. It
does not specify the compression (coding) method so a desired
compression method can be used with it. By default, it is
compatible with the PCM method (no compression) and some
compression methods including the ADPCM method.

■ WMA

An audio compression method developed by Microsoft
Corporation. It employs the irreversible compression method,
which achieves a high compression rate by thinning out the data
of hardly audible part to the human ears. It is said to be capable of
compressing the data quantity by about 1/22 (64 kbps) while
maintaining a similar audio quality to music CD.

■ “x.v.Color”

A color space standard supported by HDMI version 1.3. It is a
more extensive color space than sRGB, and allows the expression
of colors that could not be expressed before. While remaining
compatible with the color gamut of sRGB standards, “x.v.Color”
expands the color space and can thus produce more vivid, natural
images. It is particularly effective for still pictures and computer
graphics.

■ PCM (Linear PCM)

Linear PCM is a signal format under which an analog audio
signal is digitized, recorded and transmitted without using any
compression. The PCM system uses a technique for sampling the
size of the analog signal per very small unit of time. Standing for
“Pulse Code Modulation”, the analog signal is encoded as pulses
and then modulated for recording.

52 En

Glossary

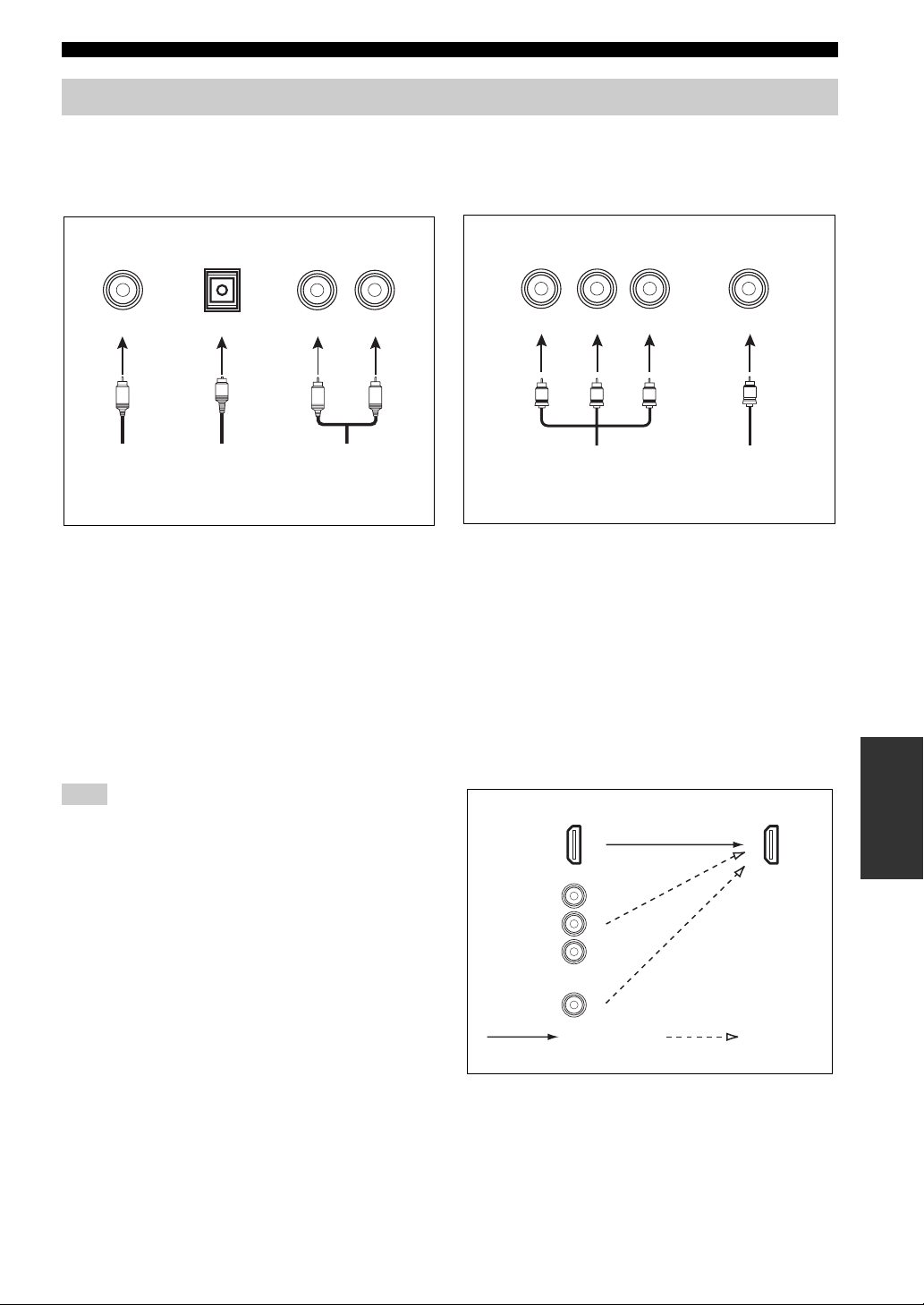

Information on audio/video jacks and cable plugs

This unit has three types of audio jacks, two types of video jacks and HDMI jacks. You can choose the connection
method depending on the component to be connected.

■ Audio jacks

AUDIO IN 1 AUDIO IN 2 AUDIO IN 3

(White)(Red)(Orange)

C

Coaxial

digital audio

cable plug

O

Optical

digital

audio cable

plug

R

Left and right
analog audio

cable plugs

AUDIO IN 1 (COAXIAL) jack

For digital audio signals transmitted via a coaxial digital
audio cable.

AUDIO IN 2 (OPTICAL) jack

For digital audio signals transmitted via an optical digital
audio cable.

AUDIO IN 3 jacks

For conventional analog audio signals transmitted via a
left and right analog audio cable. Connect the red plugs to
the right jacks, the white plugs to the left jacks.

L

■ Video jacks

VIDEO IN 1/2

Y

Component
video cable

plugs

PB

P

R

VIDEO IN 1/2 jacks

For component video signals, separated into the
luminance (Y) and chrominance (P
transmitted on separate wires of component video cables.

VIDEO IN 3 jack

For conventional composite video signals transmitted via
composite video cable.

y

This unit is equipped with a video up-conversion function as
shown below.

VIDEO IN 3

(Yellow)(Green) (Blue) (Red)

V

Composite

video cable

plug

B, PR) video signals

INFORMATION

ADDITIONAL

Note

You cannot use the AUDIO IN 3 jacks to input PCM, Dolby
Digital and DTS bitstreams.

HDMI

COMPONENT

VIDEO

VIDEO

Through

OutputInput

Video up­conversion

53 En

Glossary

Information on HDMI™

This unit has three HDMI input jacks and an HDMI output
jack for digital audio and video signal input/output.

■ HDMI jack and cable plug

HDMI

HDMI cable plug

y

• We recommend that you use a commercially available HDMI
cable shorter than 5 meters (16 feet) with the HDMI logo
printed on it.

• Use a conversion cable (HDMI jack
this unit to other DVI components.

• If you set “HDMI Standby Through” in “Option” to “HDMI 1”,
“HDMI 2” or “HDMI 3”, this unit allows the HDMI signals
input at the corresponding HDMI IN jack to pass through this
unit and be output from the HDMI OUT jack.

Notes

• Do not disconnect or connect the cable or turn off the power of
the HDMI component connected to the HDMI OUT jack of this
unit while data is being transferred. Doing so may disrupt
playback or cause noise.

• The HDMI OUT jack outputs the audio signals input at the
HDMI input jacks only.

• If you turn off the TV connected to the HDMI OUT jacks via a
DVI connection, the connection may fail.

↔ DVI-D jack) to connect

Notes

• When CPPM copy-protected DVD audio is played back, video
and audio signals may not be output, depending on the type of
DVD player being used.

• This unit is not compatible with non HDCP compliant HDMI or
DVI components.

• To decode bitstream audio signals on this unit, you may need to
change some settings on the source component.

Video signals

This unit is compatible with video signals of the following
resolutions:

– 480i/60 Hz
– 576i/50 Hz
– 480p/60 Hz
– 576p/50 Hz
– 720p/60 Hz, 50 Hz
– 1080i/60 Hz, 50 Hz
– 1080p/60 Hz, 50 Hz, 24Hz

Compatibility with Deep Color and x.v.Color
video signals

This unit accepts Deep Color (30 or 36-bit) and x.v.Color
video signals.

Note

If the TV is not compatible with Deep Color or x.v.Color video
signals, the video source may not be played back correctly.

■ HDMI signal compatibility with this unit

Audio signals

Audio signal

types

2ch Linear
PCM

Multi channel
Linear PCM

Bitstream Dolby Digital,

Bitstream (High
definition
audio)

y

Refer to the owner’s manual of the input source component and
set the component appropriately.

Audio signal

formats

2ch, 32-192 kHz,
16/20/24 bit

8ch, 32-192 kHz,
16/20/24 bit

DTS

Dolby TrueHD,
Dolby Digital Plus

Compatible

media

CD, DVD-Video,
DVD-Audio, etc.

DVD-Audio,
Blu-ray Disc,
HD DVD, etc.

DVD-Video,
Blu-ray Disc,
HD DVD

Blu-ray Disc,
HD DVD, etc.

54 En

Specifications

• Power Supply ........................................................ AC 120 V, 60 Hz

• Power Consumption

YMC-700 .............................................................................. 60 W

YMC-500 .............................................................................. 50 W

• Standby Power Consumption (Reference Data) ..................... 0.6 W

• Maximum Power Consumption

5 ch, 10% THD ................................................................... 170 W

• Dimensions (W x H x D) ...................................................................

YMC-700 ......... 298 x 93 x 332 mm (11-3/4” × 3-5/8” × 13-1/8”)

YMC-500 ......... 298 x 93 x 313 mm (11-3/4” × 3-5/8” × 12-3/8”)

• Weight ....................................................................... 3.6 kg (7.9 lbs)

* Specifications are subject to change without notice.

SPECIFICATIONS

COMPLIANCE INFORMATION STATEMENT (DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party: Yamaha Electronics Corporation, U.S.A.
Address: 6660 Orangethorpe Avenue

Buena Park, CA 90620

Telephone: [phone]

1-800-492-6242 (toll free)
Fax: [phone]
Type of Equipment: Media Controller
Model Name: YMC-700/YMC-500

• This device complies with Part 15 of the FCC Rules.

• Operation is subject to the following conditions:
– This device may not cause harmful interference.
– This device must accept any interference received including

interference that may cause undesired operation.
See the “Troubleshooting” section of this manual if interference
to radio reception is suspected.

We Want You Listening For A Lifetime

Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or
distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is
often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group
recommend you to avoid prolonged exposure from excessive volume levels.

55 En

INFORMATION

ADDITIONAL

QUICK REFERENCE

Watching TV programs

Quick reference

SetupActivity

Watching DVDs or

Blu-ray discs

Watching video contents

stored on your iPod

Listening to CDs

Listening to music

stored on your iPod

Listening to music

using Bluetooth

Listening to

FM radio stations

Listening to music

stored on USB

storage devices

Listening to

Rhapsody music

Listening to Internet radio

Listening to music

®

(YMC-700 only)

(YMC-700 only)

stored on PCs

(YMC-700 only)

Viewing photos

stored on PCs

(YMC-700 only)

Making basic

connections

(☞ Quick

Start Guide)

Setting up
the speakers,
input sources

and remote
control codes

☞

P. 10)

(

Connecting

an iPod dock

☞

P. 7)

(

Connecting

an iPod dock

☞

P. 7)

(

Connecting

a Bluetooth

receiver

☞

P. 7)

(

Connecting

an FM antenna

☞

P. 7)

(

Connecting

a USB storage

☞

P. 6)

device (

Connecting

to a router

☞

P. 7)

(

and

Setting up

the network

☞

P. 40)

(

Setting up

Your PC

☞

P. 25)

(

56 En

Playing back photos

stored on USB

storage devices

Playing games

Connecting

a USB storage

☞

P. 6)

device (

Controlling

playback

☞

P. 2 0)

(

Controlling

iPod

☞

P. 2 8)

(

Quick reference

Control playbackSelect input

Registering

your favorite

TV stations

☞

P. 4 2)

(

Customizing

the remote

control

☞

P. 40)

(

Controlling

playback

☞

P. 2 0)

(

Controlling

iPod

☞

P. 2 8)

(

Pairing (☞ P. 35)

and playback

on your

Bluetooth device

Tuning in to

a station

☞

P. 22)

(

Controlling

playback

☞

P. 2 4)

(

Searching

music

☞

P. 3 2)

(

Selecting a

station

☞

P. 3 0)

(

Controlling

playback

☞

P. 2 4)

(

Select DSP

Programs /

Adjusting the

☞

P. 1 9)

tone (

Presetting

stations

☞

P. 2 3)

(

Adding to the

library

☞

P. 33)

(

Adding to the

bookmark

☞

P. 3 1)

(

Customizing

the remote

control

☞

P. 40)

(

INFORMATION

ADDITIONAL

Viewing

photos

☞

P. 2 6)

(

Controlling

playback

☞

P. 2 0)

(

Select DSP

Programs /

Adjusting tone

☞

P. 19)

(

Using

photos as

a screen saver

☞

P. 2 7)

(

Customizing

the remote

control

☞

P. 40)

(

57 En

©

2009 All rights reserved.

Printed in China

WR17640

Read Me FirstRead Me FirstRead Me First

U

S

B

F

R

ON

T

S

U

R

R

OU

N

D

S

U

B

W

O

O

F

E

R

C

E

N

T

E

R

S

P

E

A

K

E

R

S

O

U

T

P

U

T

N

E

T

W

O

R

K

A

U

D

I

O

I

N

H

D

MI

O

U

T

H

D

MI

I

N

V

I

D

E

O

I

N

WI

R

E

L

E

S

S

A

N

T

E

N

N

A

F

M

7

5

W

U

N

B

A

L

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

R

L

R

L

U

S

B

F

R

ON

T

S

U

R

R

OU

N

D

S

U

B

W

O

O

F

E

R

C

E

N

T

E

R

R

E

MO

T

E

C

O

N

T

R

O

L

S

P

E

A

K

E

R

S

O

U

T

P

U

T

N

E

T

W

O

R

K

A

U

D

I

O

I

N

H

D

MI

O

U

T

H

D

MI

I

N

V

I

D

E

O

I

N

WI

R

E

L

E

S

S

A

N

T

E

N

N

A

F

M

7

5

W

U

N

B

A

L

.

D

O

C

K

OU

T

I

N

A

C

I

N

1

2

1

1

2

1

2

2

3

3

3

R

L

R

L

R

L

3

U

S

B

FRONT

S

URROUND

SU

B

W

OOF

ER

CE

NTE

R

R

E

MOTE

C

O

N

TRO

L

S

P

E

A

K

E

R

S

O

U

TP

U

T

N

E

TWO

R

K

A

U

D

I

O

I

N

H

D

MI

O

U

T

H

D

MI

I

N

V

I

D

E

O

I

N

W

I

R

E

LE

S

S

A

N

TE

N

N

A

F

M

75

W

U

N

B

A

L

.

D

O

C

K

OUT

I

N

A

C

I

N

1

2

1

1

2

1

2

2

3

3

3

R

L

R

L

R

L

3

USB

FRONT SURROUND

SUB

WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM

75

W

UNBAL.

DOCK

OUT

IN

AC IN

1

2

112

1

2

2

3

3

3

R L

R LR L

3

Device
name:

Brand:

Model No.:

Device
name:

Brand:

Model No.:

Device
name:

Brand:

Model No.:

Device
name:

Brand:

Model No.:

Device
name:

Brand:

Model No.:

Device
name:

Brand:

Model No.:

USB

FRONT SURROUND

SUB
WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM
75

W

UNBAL.

DOCK

AC IN

112

1

2

2

3

3

3

R L

R LRL

USB

FRONT SURROUND

SUB
WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM
75

W

UNBAL.

DOCK

AC IN

112

1

2

2

3

3

3

R L

R LRL

USB

FRONT SURROUND

SUB

WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM

75

W

UNBAL.

DOCK

AC IN

112

1

2

2

3

3

3

R L

R LRL

USB

FRONT SURROUND

SUB

WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM

75

W

UNBAL.

DOCK

AC IN

112

1

2

2

3

3

3

R L

R LRL

USB

FRONT SURROUND

SUB

WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM
75

W

UNBAL.

DOCK

AC IN

112

1

2

2

3

3

3

R L

R LRL

USB

FRONT SURROUND

SUB

WOOFER

CENTER

REMOTE CONTROL

SPEAKERS

OUTPUT

NETWORK

AUDIO IN

HDMI OUT HDMI IN

VIDEO IN

WIRELESS

ANTENNA

FM
75

W

UNBAL.

DOCK

AC IN

112

1

2

2

3

3

3

R L

R LRL

U

T

H

D

M

I

I

N

VI

D

EO

I

N

W

I

R

ELES

S

A

N

T

E

N

N

A

F

M

75

W

UNBAL

.

D

O

C

K

1

1

2

2

3

3

U

ND

SUB

W

O

O

F

ER

CE

NT

E

R

O

U

T

P

U

T

A

U

D

I

O

I

N

H

D

M

I

O

U

T

H

D

M

I

I

N

VI

D

EO

I

N

W

I

R

ELES

S

A

N

T

E

N

N

A

F

M

75

W

UNBAL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

U

ND

SUB

W

O

O

F

ER

CE

NT

E

R

O

U

T

P

U

T

A

U

D

I

O

I

N

H

D

M

I

O

U

T

H

D

M

I

I

N

VI

D

EO

I

N

W

I

R

ELES

S

A

N

T

E

N

N

A

F

M

75

W

UNBAL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

O

U

ND

SUB

W

O

O

F

ER

CE

NT

E

R

O

U

T

P

U

T

R

K

A

U

D

I

O

I

N

H

D

M

I

O

U

T

H

D

M

I

I

N

VI

D

EO

I

N

W

I

R

ELES

S

A

N

T

E

N

N

A

F

M

75

W

UNBAL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

O

U

ND

SUB

W

O

O

F

ER

CE

NT

E

R

O

U

T

P

U

T

R

K

A

U

D

I

O

I

N

H

D

M

I

O

U

T

H

D

M

I

I

N

VI

D

EO

I

N

W

I

R

ELES

S

A

N

T

E

N

N

A

F

M

75

W

UNBAL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

A

A

A

V

V

V

V

H

B Connection Diagrams

9

pt

8

pt

12

pt

11

pt

15

pt

14

pt

A

1

23

OUTIN

1

23

OUTIN

1

23

OUTIN

1

23

OUTIN

1

23

OUTIN

1

23

OUTIN

U

T

H

D

M

I

I

N

VI

D

EO

I

N

W

I

R

ELES

S

A

N

T

E

N

N

A

F

M

75

W

UNBAL

.

D

O

C

K

1

1

2

2

3

3

H

The source device you will use most frequently

15

pt

15

pt

15

pt

15

pt

15

pt

15

pt

Device name

Brand Model No.

Write down the
device you want
to connect

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 6

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 5

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 4

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 3

15 pt

14 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 2

15 pt

9 pt

3 pt

3 pt

2 pt

1 pt

Device 1

Use this chart to find the best possible connections.

A Connection Planning Chart

y

The numbers of pts are used in the Initial Setup procedure.

Total pt of the circled items

HDMI

Video

Audio

Standard

Standard

Better

Better

Better

Best

The source device you will use most frequently

15

pt

15

pt

15

pt

15

pt

15

pt

15

pt

Device name

Brand Model No.

Write down the
device you want
to connect

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 6

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 5

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 4

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 3

15 pt

14 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 2

15 pt

9 pt

3 pt

3 pt

2 pt

1 pt

Device 1

Use this chart to find the best possible connections.

A Connection Planning Chart

y

The numbers of pts are used in the Initial Setup procedure.

Total pt of the circled items

HDMI

Video

Audio

Standard

Standard

Better

Better

Better

Best

The source device you will use most frequently

15

pt

15

pt

15

pt

15

pt

15

pt

15

pt

Device name

Brand Model No.

Write down the
device you want
to connect

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 6

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 5

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 4

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 3

15 pt

14 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 2

15 pt

9 pt

3 pt

3 pt

2 pt

1 pt

Device 1

Use this chart to find the best possible connections.

A Connection Planning Chart

y

Total pt of the circled items

HDMI

Video

Audio

Standard

Standard

Better

Better

Better

Best

The source device you will use most frequently

15

pt

15

pt

15

pt

15

pt

15

pt

15

pt

Device name

Brand Model No.

Write down the
device you want
to connect

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 6

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 5

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 4

15 pt

14 pt

13 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 3

15 pt

14 pt

9 pt

6 pt

3 pt

3 pt

2 pt

1 pt

Device 2

15 pt

9 pt

3 pt

3 pt

2 pt

1 pt

Device 1

Use this chart to find the best possible connections.

A Connection Planning Chart

y

The numbers of pts are used in the Initial Setup procedure.

Total pt of the circled items

HDMI

Video

Audio

Standard

Standard

Better

Better

Better

Best

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

2

3

3

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

R

R

O

U

N

D

SUB

WO

O

F

ER

C

E

N

T

E

R

O

U

TPU

T

O

R

K

A

U

D

IO

IN

H

D

M

I O

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

1

2

2

3

3

3

R

L

L

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

2

3

3

U

T

H

D

M

I IN

VID

EO

IN

WIR

ELESS

A

N

TEN

N

A

F

M

7

5

W

UNB

AL

.

D

O

C

K

1

1

2

2

3

3

YMC-700/YMC-500 Quick Start Guide

Quick Start Guide

Use this guide to make sure all connections are properly done prior to powering the unit ON.

Items used for setup in this guide

Supplied items

& YMC-700/YMC-500 (this unit)
& Power cable
& Remote control

*Install the supplied batteries to the remote control in advance.

& IR flasher x2



Required items

& TV with an HDMI connection
& HDMI cable from this unit to TV
& Source devices (Cable box, DVD, etc.)
& HDMI and/or Audio/Video cables from source devices
& Speakers and speaker cables
& Subwoofer and subwoofer cable

For operation and installation details, refer to the owner’s
manual of each source device item.

On the “Connection Planning Chart A ”, write
down the source devices (except TV) that you will

1Start

connect in order of most frequently used (from

2

left to right) as follows.

Cable box Game Blu-ray

CB-528 No 666 Yamaha BD-S2900Play2Time W

View the output jacks available on each source
device and then fill in the check box.

Cable box Game Blu-ray

CB-528 No 666 Yamaha BD-S2900Play2Time W

A Connection Planning Chart

Use this chart to find the best possible connections.

The source device you will use most frequently

Device 1

Write down the
device you want
to connect

HDMI

Best

Video

Device name

Brand Model No.

15 pt

9 pt

Device 2

15 pt

14 pt

9 pt

Device 3

15 pt

14 pt

13 pt

9 pt

Device 4

15 pt

14 pt

13 pt

9 pt

Device 5

15 pt

14 pt

13 pt

9 pt

Device 6

15 pt

14 pt

13 pt

9 pt

Better

6 pt

3 pt

Standard

3 pt

6 pt

3 pt

6 pt

3 pt

6 pt

3 pt

6 pt

3 pt

3

Choose the best connections available for your
source device as follows:

• When there is a check mark on the HDMI jack, circle the top HDMI 1,
HDMI 2, or HDMI 3. If another previous device has already selected
an input, then select the next one available.

• If there are NO check marks in the any of the HDMI jacks, then make
sure to select a video jack with an audio jack.

Cable box Game Blu-ray

CB-528 No 666 Yamaha BD-S2900Play2Time W

Write down the total points (pt) of the circled
item(s).

Cable box Game

CB-528 No 666Play2Time W

+

15 11

Audio

Better

3 pt

3 pt

3 pt

3 pt

3 pt

3 pt

Using the points, write down the names of the
devices on the “Connection Diagrams B ”.

Better

2 pt

2 pt

2 pt

2 pt

2 pt

2 pt

54

Cable box

Time W

CB-528

Game

Play2

No 666

Standard

Total pt of the circled items

y

The numbers of pts are used in the Initial Setup procedure.

B Connection Diagrams

15

pt

REMOTE CONTROL

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM

75

W

1

UNBAL.

2

12

pt

REMOTE CONTROL

REMOTE CONTROL

1 pt

15

pt

: HDMI

H

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM
75

W

1

UNBAL.

2

1 pt

15

pt

2

ANTENNA

WIRELESS

DOCK

FM
75

W

1

UNBAL.

2

6

pt

9

1 pt

15

pt

pt

REMOTE CONTROL

OUTIN

1

USB

NETWORK

23

AC IN

FRONT SURROUND

SPEAKERS

3

112

HDMI OUT HDMI IN

AUDIO IN

VIDEO IN

3

R L

SUB

WOOFER

3

R LR L

OUTPUT

CENTER

1 pt

15

pt

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM
75

W

1

UNBAL.

2

3

1 pt

15

V

pt

pt

: VIDEO

OUTIN

1

USB

23

REMOTE CONTROL

AC IN

FRONT SURROUND

A

112

NETWORK

HDMI OUT HDMI IN

AUDIO IN

3

R L

SUB

WOOFER

3

R LR L

OUTPUT

CENTER

SPEAKERS

: AUDIO

2

3

VIDEO IN

WIRELESS

DOCK

1

2

1 pt

15

ANTENNA

FM
75

W

UNBAL.

pt

6

This unit

Source device

Refer to “Connection Diagrams B ” and then
connect the cables from the source devices to
this unit as indicated. See page 6 about further
connections (iPod dock, network, etc.)

Source device

Source device

7

Use an HDMI cable to connect this unit to your
TV’s HDMI input.

To TV

Connect the supplied IR flashers to the REMOTE
OUT jacks on the back of this unit, then attach

8

the IR flasher to the remote control sensor on the
front of the devices as follows. (☞ P. 8 for details)
This will allow this unit to control the attached
source devices.

MOTE

SOR

RE

EN

S

Source device

MOTE

SOR

RE

EN

S

Source device

This unit

TV

REM
SEN

O

TE

SOR

Source
device

Device
name:

14

Device
name:

pt

REMOTE CONTROL

AC IN

OUTIN

1

23

Brand:

Model No.:

USB

NETWORK

R LR L

FRONT SURROUND

SPEAKERS

Brand:

Model No.:

V

H

V

A

A

Device
name:

5

ANTENNA

FM

75

W

UNBAL.

pt

REMOTE CONTROL

AC IN

OUTIN

1

23

Brand:

Model No.:

USB

NETWORK

R LR L

FRONT SURROUND

SPEAKERS

2

3

112

HDMI OUT HDMI IN

AUDIO IN

VIDEO IN

3

R L

SUB

WOOFER

3

OUTPUT

CENTER

ANTENNA

WIRELESS

DOCK

FM

75

W

1

UNBAL.

2

Device
name:

11

2

3

112

HDMI OUT HDMI IN

AUDIO IN

VIDEO IN

3

R L

SUB

WOOFER

3

OUTPUT

CENTER

ANTENNA

WIRELESS

DOCK

FM

75

W

1

UNBAL.

2

pt

H

Device
name:

8

pt

V

REMOTE CONTROL

AC IN

OUTIN

1

23

Brand:

Model No.:

USB

NETWORK

R LR L

FRONT SURROUND

SPEAKERS

2

3

112

HDMI OUT HDMI IN

AUDIO IN

VIDEO IN

3

R L

SUB

WOOFER

OUTPUT

CENTER

WIRELESS

DOCK

1

2

3

REMOTE CONTROL

AC IN

OUTIN

1

23

Brand:

Model No.:

USB

NETWORK

R LR L

FRONT SURROUND

SPEAKERS

2

3

112

HDMI OUT HDMI IN

AUDIO IN

VIDEO IN

3

R L

SUB

WOOFER

OUTPUT

CENTER

WIRELESS

DOCK

1

2

3

V

Device
name:

Brand:

Model No.:

A

Device
name:

Brand:

Model No.:

A

Device
name:

Brand:

Model No.:

A

V

Device
name:

2

ANTENNA

FM

75

W

UNBAL.

pt

REMOTE CONTROL

AC IN

OUTIN

1

23

Brand:

Model No.:

USB

NETWORK

R LR L

FRONT SURROUND

SPEAKERS

2

3

112

HDMI OUT HDMI IN

AUDIO IN

VIDEO IN

3

R L

1

SUB

WOOFER

CENTER

2

3

OUTPUT

A

V

Device
name:

Brand:

Model No.:

A

ANTENNA

WIRELESS

DOCK

FM
75

W

UNBAL.

A

9

FL

y

C, SL, and SR speakers are used with 5.1-channel speaker layout.

U

Printed in China WR17650

Connect speakers to the SPEAKERS terminals. If speakers have color
coded terminals, match the colors. If the speakers are not color coded on
the terminals, then match + and –. (☞ P. 6 for details)

FR

SW

SL

SW

SR

SLSRFLFR

Subwoofer (SW)

C

C

10

• Connect the power cable to this unit and plug it
to a wall outlet.

13

pt

REMOTE CONTROL

REMOTE CONTROL

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM

75

W

1

UNBAL.

2

7

pt

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM
75

W

1

UNBAL.

2

10

pt

REMOTE CONTROL

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

AUDIO IN

SUB

OUTPUT

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM

75

W

1

UNBAL.

2

4

pt

REMOTE CONTROL

OUTIN

1

USB

NETWORK

23

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM

75

W

1

UNBAL.

2

1

pt

3

REMOTE CONTROL

OUTIN

1

USB

NETWORK

2

AC IN

R LR L

FRONT SURROUND

CENTER

SPEAKERS

112

WOOFER

SUB

OUTPUT

AUDIO IN

R L

HDMI OUT HDMI IN

3

3

2

3

VIDEO IN

ANTENNA

WIRELESS

DOCK

FM
75

W

1

UNBAL.

2

• Turn all connected devices ON including this

etup

tial S

Ini

e to n

com

Wel

he foll

hat t

t

irm

conf

ase

Ple

insta

een

b

you re

Are

lled

ady

before

3

Sou

3

IR

3

to co

Spea

pro

flas

ntin

rce

Yes

kers

hers

ue w

No

ow

ceed

Devi

eoH

in

ith

ing t

ces

D

g co

the in

!

m

o the

po

itial

nents

next

setu

have

step

p?



:

This unit Subwoofer Source device

unit, subwoofer and TV. Make sure to select the
appropriate HDMI input on the TV to display
neoHD “Initial Setup” screen.

• Follow the setup process of this unit by using
the “Initial Setup” on screen guide to complete
the basic configuration. (☞ P. 10)

Device
name:

Brand:

Model No.:

V

V

H

Device
name:

Brand:

Model No.:

A

Device
name:

Brand:

Model No.:

A

Device
name:

Brand:

Model No.:

V

A

Device
name:

Brand:

Model No.:

A

Use the following cables for connections.

HDMI cable Component

video cable

Composite
video cable

Coaxial digital
audio cable

Optical digital
audio cable

RCA stereo
cable

Begin the Initial Setup

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert you to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle
is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Note to CATV system installer:

This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions
contained in this manual, meets FCC requirements. Modifications
not expressly approved by Yamaha may void your authority,
granted by the FCC, to use the product.

2 IMPORTANT:

When connecting this product to accessories
and/or another product use only high quality shielded cables.
Cable/s supplied with this product MUST be used. Follow all
installation instructions. Failure to follow instructions could void
your FCC authorization to use this product in the USA.

3NOTE:

This product has been tested and found to comply with
the requirements listed in FCC Regulations, Part 15 for Class “B”
digital devices. Compliance with these requirements provides a
reasonable level of assurance that your use of this product in a
residential environment will not result in harmful interference with
other electronic devices.
This equipment generates/uses radio frequencies and, if not
installed and used according to the instructions found in the users
manual, may cause interference harmful to the operation of other
electronic devices.

The following information applies for YMC-700 only.

COMPLIANCE INFORMATION STATEMENT

This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation of this device.
See user manual instructions if interference to radio reception is suspected.

This equipment compiles with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding
extremities: hands, wrists, feet and ankles).

NOTICE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING

Change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

 Precautions

Read this before using this unit.

To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

1 Install this unit in a cool, dry, clean place away from direct

sunlight, heat sources, and sources of excessive vibration, dust,
moisture, and/or cold. (Do not use/keep this unit in a car etc.)

2 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

3 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with
high humidity (i.e. a room with a humidifier) to prevent
condensation inside this unit, which may cause an electrical
shock, fire, damage to this unit, and/or personal injury.

2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)
that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this product is
found to be the source of interference, which can be determined by
turning the unit “OFF” and “ON”, please try to eliminate the
problem by using one of the following measures:

Relocate either this product or the device that is being affected by
the interference.

Utilize power outlets that are on different branch (circuit breaker or
fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead, change the
lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type of
product. If you can not locate the appropriate retailer, please
contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe
Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by
Yamaha Corporation of America or its subsidiaries.

4 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

5 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The
cabinet should never be opened for any reason.

6 Be sure to read the “Troubleshooting” section regarding

common operating errors before concluding that the unit is
faulty.

Caution: Read this before operating your unit.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry, clean

place – away from direct sunlight, heat sources, vibration,
dust, moisture, and/or cold. Allow ventilation space of at least
10 cm on the top, 5 cm on the left and right, and 5 cm on the
back of this unit.

3 Locate this unit away from other electrical appliances, motors,

or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from

cold to hot, and do not locate this unit in an environment with
high humidity (i.e. a room with a humidifier) to prevent
condensation inside this unit, which may cause an electrical
shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign objects may fall onto

this unit and/or this unit may be exposed to liquid dripping or
splashing. On the top of this unit, do not place:
– Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid

may cause electrical shock to the user and/or damage to
this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain,

etc. in order not to obstruct heat radiation. If the temperature
inside this unit rises, it may cause fire, damage to this unit,
and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections

are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage.

9 Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this

unit with a higher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury. Yamaha
will not be held responsible for any damage resulting from use
of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cord and

outdoor antennas disconnected from a wall outlet or the unit
during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified

Yamaha service personnel when any service is needed. The
cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time

(i.e. vacation), disconnect the AC power plug from the wall
outlet.

16 Install this unit near the AC outlet and where the AC power

plug can be reached easily.

17 Be sure to read the “Troubleshooting” section on common

operating errors before concluding that this unit is faulty.

18 Before moving this unit, press to set this unit to the standby

mode, and disconnect the AC power plug from the AC wall
outlet.

19 The batteries shall not be exposed to excessive heat such as

sunshine, fire or like.

20 When replacing the batteries, be sure to use batteries of the

same type. Danger of explosion may happen if batteries are
incorrectly replaced.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.

As long as this unit is connected to the AC wall outlet,
it is not disconnected from the AC power source even
if you turn off this unit by . In this state, this unit is
designed to consume a very small quantity of power.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to
wide slot and fully insert.
This Class B digital apparatus complies with Canadian
ICES-003.

IMPORTANT

Please record the serial number of this unit in the space
below.
MODEL:
Serial No.:
The serial number is located on the bottom of the unit.
Retain this guide and Owner’s Manual in a safe place
for future reference.

 The label is located on the bottom of this unit.

Information about free software

This product uses the following free software.
For information (copyright, etc) about each software, read the original sentences stated below.

 About curl

COPYRIGHT AND PERMISSION NOTICE
Copyright (c) 1996 - 2007, Daniel Stenberg, <[e-mail]>.
All rights reserved.Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the

above copyright notice and this permission notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO

THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY
RIGHTS. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in
this Software without prior written authorization of the copyright holder.

Copyright (c) 1995, 1996, 1997, 1998, 1999 Kungliga Tekniska Högskolan (Royal Institute of Technology, Stockholm, Sweden).
Copyright (c) 2004 - 2007 Daniel Stenberg
All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/
or other materials provided with the distribution.

3. Neither the name of the Institute nor the names of its contributors may be used to endorse or promote products derived from this software without
specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE INSTITUTE AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE INSTITUTE OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

 About lwip

Copyright (c) 2001, 2002 Swedish Institute of Computer Science.

Copyright (c) 2001-2004 Leon Woestenberg <[e-mail]>
Copyright (c) 2001-2004 Axon Digital Design B.V., The Netherlands.

All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/
or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 2002 CITEL Technologies Ltd. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1.  Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2.  Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/

 or other materials provided with the distribution.

3. Neither the name of CITEL Technologies Ltd nor the names of its contributors may be used to endorse or promote products derived from this software

 without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY CITEL TECHNOLOGIES AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL CITEL TECHNOLOGIES OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 2003 by Marc Boucher, Services Informatiques (MBSI) inc.
Copyright (c) 1997, 1998 by Global Election Systems Inc. All rights reserved.
Copyright (c) 2001 by Cognizant Pty Ltd.

The authors hereby grant permission to use, copy, modify, distribute, and license this software and its documentation for any purpose, provided that existing
copyright notices are retained in all copies and that this notice and the following disclaimer are included verbatim in any distributions. No written agreement,
license, or royalty fee is required for any of the authorized uses.

THIS SOFTWARE IS PROVIDED BY THE CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 1993, 1994 The Australian National University. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms
and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by
the Australian National University. The name of the University may not be used to endorse or promote products derived from this software without specific
prior written permission.

THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Copyright (c) 1989 Carnegie Mellon University. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms
and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by
Carnegie Mellon University. The name of the University may not be used to endorse or promote products derived from this software without specific prior
written permission.

THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Copyright (c) 1991 Gregory M. Christy. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms
and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by
Gregory M. Christy. The name of the author may not be used to endorse or promote products derived from this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Copyright (c) 1995 Eric Rosenquist, Strata Software Limited. http://www.strataware.com/ All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms
and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by
Eric Rosenquist. The name of the author may not be used to endorse or promote products derived from this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Copyright (C) 1990, RSA Data Security, Inc. All rights reserved.

License to copy and use this software is granted provided that it is identified as the “RSA Data Security, Inc. MD5 Message-Digest Algorithm” in all
material mentioning or referencing this software or this function.
License is also granted to make and use derivative works provided that such works are identified as “derived from the RSA Data Security, Inc. MD5
Message-Digest Algorithm” in all material mentioning or referencing the derived work.
RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular
purpose. It is provided “AS IS” without express or implied warranty of any kind.
These notices must be retained in any copies of any part of this documentation and/or software.

Copyright (c) 1989 Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms
and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that the software was developed by
the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from this software without
specific prior written permission.

THIS SOFTWARE IS PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

 About OpenSSL

LICENSE ISSUES

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See
below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please
contact [e-mail].

OpenSSL License
Copyright (c) 1998-2007 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/
or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior
written permission. For written permission, please contact [e-mail].

5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the
OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment:
“This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson
([e-mail]).

Original SSLeay License

Copyright (C) 1995-1998 Eric Young ([e-mail])
All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]).
The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code
found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is
covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young
should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation
(online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/
or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
“This product includes cryptographic software written by Eric Young ([e-mail])”
The word ‘cryptographic’ can be left out if the rouines from the library being used are not cryptographic related :-).

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:
“This product includes software written by Tim Hudson ([e-mail])”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied
and put under another distribution licence [including the GNU Public Licence.]

 About FLAC codec library

Copyright (C) 2000,2001,2002,2003,2004 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/

or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software

without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

 About Vorbis library

Copyright (c) 2001, Xiphophorus

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/

or other materials provided with the distribution.

- Neither the name of the Xiphophorus nor the names of its contributors may be used to endorse or promote products derived from this software without

specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Notice for Windows Media DRM

The Certified For Windows Vista logo, Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Content providers are using the digital rights management technology for Windows Media contained in this device (WMDRM) to protect the integrity of
their content (Secure Content) so that their intellectual property, including copyright, in such content is not misappropriated.
This device uses WM-DRM software to play Secure Content (WM-DRM Software).
If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (Secure Content Owners) may request that
Microsoft revoke the WM-DRM Software s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM­DRM Software s ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you
download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation list
onto your device on behalf of Secure Content Owners.

If there should be color blotching or noise when used near a TV, move this unit away from the TV when using it.

Do not use this unit within 22 cm (9 inches) of persons with a heart pacemaker implant or defibrillator implant.

We, the manufacturer Yamaha hereby declare that the YMC-700 is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.

The user shall not reverse engineer, decompile, alter, translate or disassemble the software used in this unit, whether in part or in
whole. For corporate users, employees of the corporation itself as well as its business partners shall observe the contractual bans
stipulated within this clause. If the stipulations of this clause and this contract cannot be observed, the user shall immediately
discontinue using the software.

© 2009 Yamaha Corporation All rights reserved.
