• iPod/iPhone compatibility with optional YDS-12 Universal Dock as
well as iPod compatibility with optional YDS-11 Universal Dock
• Bluetooth (A2DP) compatibility with optional Yamaha Bluetooth®
Wireless Audio Receiver YBA-10
• 9 selectable subwoofer crossover frequencies
• Subwoofer phase select / Subwoofer out
• Initial Volume Setting and Maximum Volume Setting
• Audio Delay for adjusting Lip-Sync (0-240ms)
• Versatile digital audio input terminals (2 optical/2 coaxial)
• 40-station preset tuning / Auto preset tuning
• Auto power down function with variable time setting
• Preset remote unit
Surround Realism
• Upgraded CINEMA DSP with 17 DSP programs
• Compressed Music Enhancer
• Adaptive DRC (Dynamic Range Control) and Adaptive DSP level
• SILENT CINEMA and Virtual CINEMA DSP

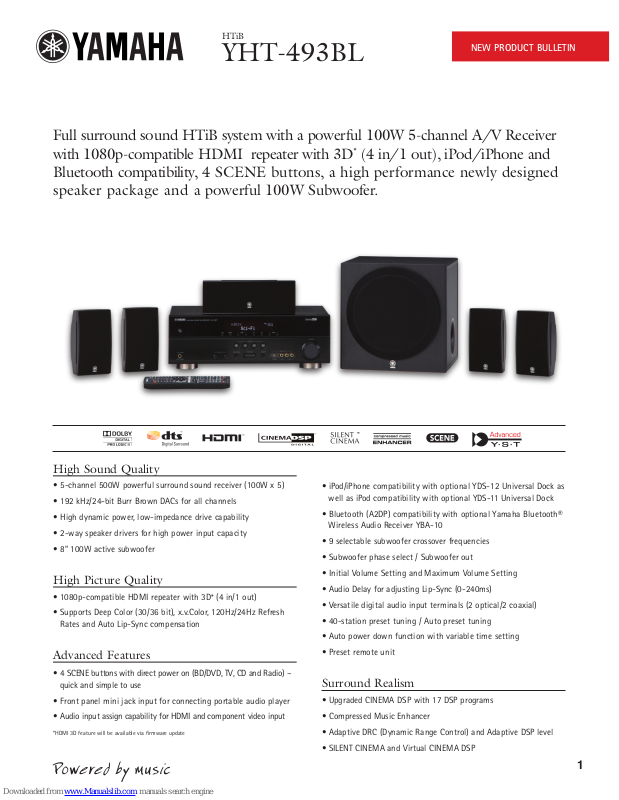

HTiB
YHT-493BL
NEW PRODUCT BULLETIN
Full surround sound HTiB system with a powerful 100W 5-channel A/V Receiver
with 1080p-compatible HDMI repeater with 3D*(4 in/1 out), iPod/iPhone and
Bluetooth compatibility, 4 SCENE buttons, a high performance newly designed
speaker package and a powerful 100W Subwoofer.
High Sound Quality
• 5-channel 500W powerful surround sound receiver (100W x 5)
• 192 kHz/24-bit Burr Brown DACs for all channels
• High dynamic power, low-impedance drive capability
• 2-way speaker drivers for high power input capacity
• 8” 100W active subwoofer
High Picture Quality
• 1080p-compatible HDMI repeater with 3D* (4 in/1 out)
• Supports Deep Color (30/36 bit), x.v.Color, 120Hz/24Hz Refresh
Rates and Auto Lip-Sync compensation
Advanced Features
• 4 SCENE buttons with direct power on (BD/DVD, TV, CD and Radio) –
quick and simple to use
• Front panel mini jack input for connecting portable audio player
• Audio input assign capability for HDMI and component video input
*HDMI 3D feature will be available via firmware update
1
• “Made for iPod” means that an electronic accessory has been designedto connectspecifically to iPod and has been certified by the developer to meet Apple performance standards. • “Works with iPhone”means that an electronic accessory has been designed to connect
specifically to iPhone and has been certifiedby the developerto meetApple performance standards. • Apple is not responsiblefor the operation of this device or its compliance with safetyand regulatory standards. • The Bluetooth® word mark and logos are registered
trademarksowned byBluetooth SIG, Inc. • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. • “DTS”and “DTS Digital Surround”are registered trademarks of DTS, Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarksor registered trademarks of HDMI Licensing LLC. • "x.v.Color" is a trademark.• CINEMADSP is a trademark of YamahaCorporation. • SILENT CINEMA is a trademark of YamahaCorporation. • Product designs and specifications are subject to change without notice.
YHT-493BL Main Specifications
A/V Receiver (RX-V367BL)
Minimum RMS Output Power (8 ohms, 1 kHz, 0.9% THD)
Front Channels 100 W +100 W
Center Channel 100 W
Surround Channels 100 W +100 W
Dynamic Power/Ch (Front Ch, 8/6/4/2 ohms) 110/130/160/180 W
Input Sensitivity Impedance (1 kHz, 100 W/6 ohms, CD) 200mV/47 k-ohms
O
utput Level/Impedance
Rec Out 200mV/1.2 k-ohms
Subwoofer 1 V/1.2 k-ohms
Frequency Response 10 Hz–100 kHz +0, -3 dB
Total Harmonic Distortion (1 kHz, 50 W/8 ohms) 0.06%
Signal-to-Noise Ratio (CD, 250 mV) 98 dB
Video Monitor Out Frequency Response
Component Video Signal
5 Hz-60 MHz±3 dB
Dimensions (W x H x D): 17-1/8” x 6” x 12-3/8”
Weight: 16.5 lbs
5.1-ch Speaker system (NS-AP1405BL):
System Frequency Response: 28 Hz - 50 kHz
Magnetic Shielding: No
Impedance: 6 ohms (except subwoofer)
5.1-ch Speaker system: (Continued)
Front Speakers: 2-way acoustic suspension
Drivers: 2-3/4” woofer and 1/2” tweeter
Input Power (Max/Nominal): 100 W / 24 W
Dimensions (W x H x D:) 3-5/8”x 6-5/8”x 4-1/8”
Weight 1.26 lbs/ea
Center Speaker: 2-way acoustic suspension
Drivers: 2-3/4” woofer and 1/2” tweeter
Input Power (Max/Nominal): 100 W / 30 W
Dimensions (W x H x D) 9-7/8”x 3-5/8”x 4-3/8”
Weight: 2.1 lbs
Surround Speakers: 2-way acoustic suspension
Drivers: 2-3/4” woofer and 1/2” tweeter
Input Power (Max/Nominal): 100 W / 24 W
Dimensions (W x H x D): 3-5/8”x 6-5/8”x 4-1/8”
Weight: 1.26 lbs/ea
Subwoofer (YST-SW012BL2)
Dynamic Power: 100W
Driver: 8" multi-range
Dimensions (W x H x D): 11-3/8”x 11-3/8”x 12-7/8”
Weight: 18.7 lbs
YDS-12 Universal Dock for iPod
The optional YDS-12 Universal Dock lets you connect your iPod or iPhone
t
o the receiver.
iPhone/iPod not included
Yamaha Bluetooth® Wireless Audio Receiver
T
he optional YBA-10 Bluetooth Wireless Audio Receiver docks
to the receiver and supports A2DP audio streaming, so users
can enjoy music wirelessly from Bluetooth-enabled mobile
phones, Windows PCs and Macs.
2
HTiB
YHT-493BL
NEW PRODUCT BULLETIN
Inputs
HDMI (Audio Input Assignable) 4
Radio Antenna (FM/AM) 1 / 1
Dock Terminal for Optional Dock Accessories 1
Optical Digital 2
Coaxial Digital 2
Analog Audio* 4
Component Video (Audio Input Assignable) 2
Composite Video 4
* Including front panel terminals.
Outputs
HDMI 1
Analog Audio 2
Component Video Monitor 1
Composite Monitor 1
Speaker (without subwoofer)* 5ch
Subwoofer 1
* Front speaker terminals are Banana-plug compatible.
