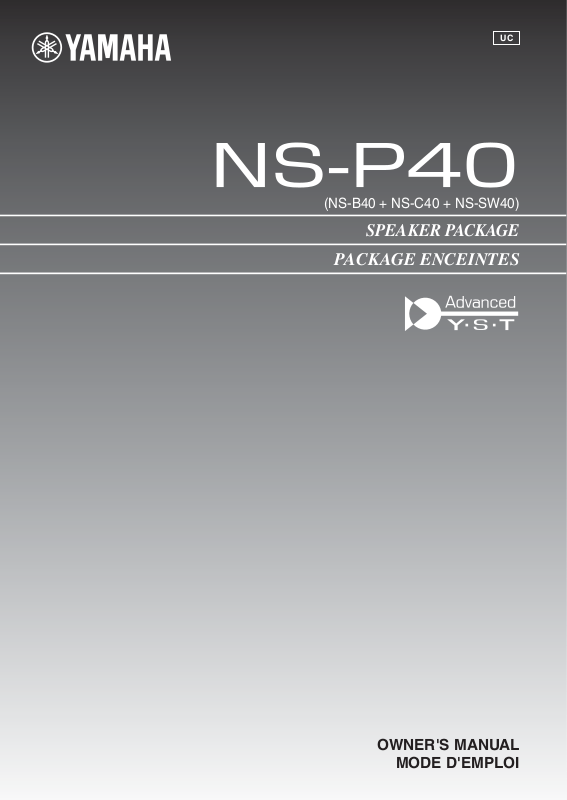

Page 1
UC
(NS-B40 + NS-C40 + NS-SW40)
SPEAKER PACKAGE
PACKAGE ENCEINTES
OWNER'S MANUAL
MODE D'EMPLOI
Page 2
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert you to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert you to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
IMPORTANT
Please record the serial number of this system in the
space below.
Model:
Serial No.:
The serial number is located on the rear of the main
unit.
Retain this Owner’s Manual in a safe place for future
reference.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete
outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is
used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
Information for Users on Collection and Disposal of Old Equipment
This symbol on the products, packaging, and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection
points, in accordance with your national legislation and the Directives 2002/96/EC.
By disposing of these products correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling.
For more information about collection and recycling of old products, please contact your local municipality, your
waste disposal service or the point of sale where you purchased the items.
[Information on Disposal in other Countries outside the European Union]
This symbol is only valid in the European Union. If you wish to discard these items, please contact your local
authorities or dealer and ask for the correct method of disposal.
i En
Page 3
FCC INFORMATION (for US customers)
1 IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements.
Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.
2 IMPORTANT : When connecting this product to accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to
follow instructions could void your FCC authorization to use this product in the USA.
3
NOTE : This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15
for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your
use of this product in a residential environment will not result in harmful interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in
the users manual, may cause interference harmful to the operation of other electronic devices.
Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product
is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to
eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute
this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., USA 6660
Orangethorpe AV., Buena Park, CA 90620.
The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.
We Want You Listening For A Lifetime
English
Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the
most out of your equipment by playing it at a safe level. One that lets the sound come through loud
and clear without annoying blaring or distortion – and, most importantly, without affecting your
sensitive hearing.
Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the
Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged
exposure from excessive volume levels.
Precautions
Please read the following operating precautions before use. Yamaha will not be held responsible for any damage and/or
injury caused by not following the cautions below.
1.
To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2. Install the speakers in a cool, dry, clean place – away
from windows, sources of heat, sources of excessive
vibration, dust, moisture or cold. Avoid sources of
electrical humming (e.g., transformers and motors). To
prevent fire or electric shock, do not expose the
speakers to rain or water.
3. To prevent the enclosure from warping or discoloring,
do not expose the speakers to direct sunlight or
excessive humidity.
4. Avoid installing the speakers where foreign objects may
fall onto them and/or where they may be exposed to
liquid dripping or splashing.
5.
Do not place the following objects on top of the speakers:
– Other components, as they might damage or discolor
the surface of the speakers.
– Burning objects (e.g., candles), as they might cause
fire, damage to the speakers or personal injury.
– Containers of liquid, as they might spill and cause
electric shock to the user or damage to the speakers.
6. Do not place the speakers where they are liable to be
knocked over or struck by falling objects. Stable
placement will also ensure better sound performance.
7. Placing the speakers on the same shelf or rack as the
turntable can result in feedback.
8. Any time you note distortion, reduce the volume control
on your amplifier to lower setting. Never allow your
amplifier to be driven into “clipping”. Otherwise, the
speakers may be damaged.
9. When using an amplifier with a rated output power
higher than the nominal input power of the speakers,
care should be taken not to exceed the maximum input
of the speakers.
10. Do not attempt to clean the speakers with chemical
solvents as this might damage the finish. Use a clean,
dry cloth.
11. Do not attempt to modify or fix the speakers. Contact
qualified Yamaha service personnel when service is
needed. The cabinet should never be opened for any
reason.
ii En
Page 4
Precautions
12. Be sure to read the “Troubleshooting” section regarding
common operating errors before concluding that the
speakers are faulty.
13. Secure placement or installation is the owner’s
responsibility. Yamaha is not liable for accidents
caused by improper placement or installation of
speakers.
For NS-SW40
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
1. Do not operate this unit upside down. It may overheat,
possibly causing damage.
2. Do not use excessive force on switches, controls or
connection wires. When moving this unit, first
disconnect the power plug and the wires connected to
other equipment. Never pull the wires themselves.
3. Never put a hand or a foreign object into the port
located on the right side of this unit. When moving this
unit, do not hold the port, as it might cause personal
injury and/or damage to this unit.
4. Since this unit has a built-in power amplifier, heat
radiates from the rear panel. Place the unit away from
walls, allowing at least 20 cm (8") of space above,
behind and on both sides of the unit to prevent fire or
damage. Furthermore, do not position the unit with the
rear panel facing down on the floor or other surfaces.
5.
When using a humidifier, be sure to avoid condensation
inside this unit by allowing enough space around the
unit and avoiding excess humidification. Condensation
might cause fire, damage to the unit, and/or electric
shock.
6. Do not cover the rear panel of this unit with a
newspaper, tablecloth, curtain, etc. to avoid obstructing
heat radiation. If the temperature inside the unit rises, it
may cause fire, damage to the unit, or personal injury.
7. Do not plug this unit into a wall outlet until all
connections are complete.
8. The voltage to be used must match that specified on the
rear panel. Using this unit with a voltage higher than
specified is dangerous and may cause fire, damage to
the unit, and/or personal injury. Yamaha is not
responsible for damage resulting from use of this unit
with a voltage other than specified.
9. Super-bass sound reproduced by this unit may cause a
turntable to generate audio feedback. In this case, move
the unit away from the turntable.
10. This unit may be damaged if certain sounds are
continuously output at high volume level. For example,
if 20 Hz–50 Hz sine waves from a test disc or bass
sounds from an electronic instrument, etc. are
continuously output, or if a turntable stylus touches the
surface of a disc, reduce the volume level to prevent the
unit from being damaged.
11. If you hear distorted noise (i.e., unnatural, intermittent
“rapping” or “hammering” sounds) from this unit,
reduce the volume level. Extremely loud movie
soundtrack low frequency, bass-heavy sounds, or
similarly loud popular music passages can damage this
unit.
12. Vibration generated by super-bass sound may distort
images on a TV. In this case, move the unit away from
the TV set.
13. When disconnecting the power cord from the wall
outlet, grasp the plug; do not pull the cord.
14. When you plan not to use this unit for a long period of
time (i.e. vacation, etc.), disconnect the AC power plug
from the wall outlet.
15. Install this unit near the wall outlet and where the AC
power plug can be reached easily.
• VOLTAGE SELECTOR
(For China, Asia and General models)
The voltage selector switch on the rear panel of this
unit must be set to your local main voltage BEFORE plugging this unit into the AC main supply.
Voltages are 110-120/220-240 V AC, 50/60 Hz.
This unit is not disconnected from the AC power
source as long as it is connected to the wall outlet, even
if this unit itself is turned off. In this state, this unit is
designed to consume a very small quantity of power.
For U.K. customers
If the socket outlets in the home are not suitable for the
plug supplied with this appliance, it should be cut off and
an appropriate 3 pin plug fitted. For details, refer to the
instructions described below.
Note: The plug severed from the mains lead must be
destroyed, as a plug with bared flexible cord is hazardous
if engaged in a live socket outlet.
SPECIAL INSTRUCTIONS FOR U.K. MODEL
IMPORTANT:
THE WIRES IN MAINS LEAD ARE COLOURED
IN ACCORDANCE WITH THE FOLLOWING
CODE:
Blue: NEUTRAL
Brown: LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows: The wire which is coloured
BLUE must be connected to the terminal which is
marked with the letter N or coloured BLACK. The
wire which is coloured BROWN must be connected
to the terminal which is marked with the letter L or
coloured RED. Make sure that neither wire is
connected to the earth terminal of a three pin plug.
For Canadian Customers
To prevent electric shock, match wide blade of plug
to wide slot and fully insert.
This Class B digital apparatus complies with
Canadian ICES-003.
iii En
Page 5
Contents
Package contents................................................1
Installing the speakers.......................................1
Installing the front, center, and surround
speakers ...........................................................2
Installing the subwoofer.......................................2
Wall-mounting the speakers................................2
Package contents
Make sure the package contains the following items.
Subwoofer
(NS-SW40) x1
English
Connecting the speakers .................................. 3
Connection diagram.............................................3
Connecting the power cables ..............................4
Using the Subwoofer ......................................... 4
Setting the subwoofer volume.............................4
Troubleshooting................................................. 5
Specifications...................................................... 6
Subwoofer cable
5 m (16 ft.) x1
Front and surround
speakers (NS-B40) x4
Non-skid pads: When
placing the speakers on
a flat surface, affix the
included non-skid pads
to the corners of the
speaker undersides, as
Non-skid pad
shown. The pads will
prevent the speaker
from moving around.
Installing the speakers
Before you connect the speakers, place each speaker in
its respective location. Speaker positioning is very
important as it affects the overall sound quality of the
system. Place the speakers in locations that will
optimize the sound quality at your listening position.
Refer to the illustration.
The position of the subwoofer is not as critical as the
position of the other speakers because sub-bass
sounds are not very directional. Refer to “Installing the
subwoofer” on page 2 for more information.
•
Front
left
Center speaker
(NS-C40) x1
Non-skid pads (24 pcs.) x1
(For the front, center and surround
speakers. Including 4 spare non-skid pads.)
Speaker cable 24.5 m (80 ft.) x1
(To be cut into 5 lengths for the
front, center, and surround
speakers. Take care to prevent
injury when preparing the cables.)
Front
right
Center
Subwoofer
Note
• Placing the speakers too close to a CRT-type TV
may impair the picture color or cause a buzzing
noise. In this case, move the speakers at least 20 cm
(8") away from the TV. This is not an issue with LCD
and plasma TVs.
Surround
left
Surround
right
1 En
Page 6
Installing the speakers
Installing the front, center, and surround speakers
Front speakers: Place the two front speakers on the
left and right sides of the TV facing directly forward.
Surround speakers: Place the left and right
surround speakers behind your listening position,
facing slightly inward.
The front and surround speakers can be placed on a
flat surface or wall- mounted.
See “Wall-mounting the speakers” for more
information.
Center speaker: Place the center speaker centrally
between the front speakers, facing directly forward.
Installing the subwoofer
Place the subwoofer on the outside of either the right
or the left front speaker, as shown in A and B.
AB
Wall-mounting the speakers
You can mount the speakers on the wall as follows.
1 Install screws into a solid wall or wall support
as shown below. Use 3.5 to 4 mm (1/8")
diameter self-tapping screws.
2 Hang each speaker by its keyhole slots onto
the protruding screws.
Note
• Make sure the shaft of the screw is seated in the
narrow part of the keyhole slot. Otherwise, the
speaker may fall.
Wall/wall
support
Minimum
20 mm (3/4")
6 mm
(1/4")
150 mm
(5-7/8")
NS-B40
NS-C40
C
Note: Standing waves
may make it difficult to
hear bass sounds here.
Subwoofer Front speaker
The placement shown in C is also possible, however, if
the subwoofer is placed directly facing a wall and your
listening position is in the center of the room, you may
not be able to obtain enough bass sound from the
subwoofer. This is because “standing waves” are
forming between the two parallel walls and cancelling
out the bass sounds. In this case, position the
subwoofer at an angle to the wall. It may be necessary
to break up parallel wall surfaces by placing
bookshelves, etc., along them.
War nin gs
• NS-B40 speaker weighs 0.59 kg (1.30 lbs.) and NSC40 speaker weighs 0.73 kg (1.61 lbs.). Do not
mount the speakers on thin plywood or on a wall
with a soft surface material. Otherwise, the screws
may pull out of the surface and the speakers may fall,
possibly damaging the speakers or causing personal
injury.
• Do not affix the speakers to a wall using nails,
adhesives, or unstable hardware. Long-term use and
vibration may cause the speakers to fall.
• To avoid accidents resulting from tripping over loose
speaker cables, affix the cables to the wall.
• Mount the speakers in a wall location that will be
unlikely to result in injury to an individual’s head.
2 En
Page 7
Connecting the speakers
Caution: Make sure the power cables for the subwoofer and your other AV components are disconnected from the
AC wall outlets before making any connections.
Connection diagram
Surround speakers
Right Left
Center speaker
SPEAKERS
FRONT
Amplifier
(
)
BD/DVD
OUT
HDMI
HDMI 2 HDMI 3
HDMI 1
DOCK
COMPONENT
VIDEO
P
R
P
R
P
B
P
B
Y
Y
MONITOR OUT
COMPONENT
VIDEO
VIDEO
COAXIAL
COAXIAL
OPTICAL
OPTICAL
(CD)
(
)
TV
AV 5
AV 3
AV 4
AV 2
AV 1
ANTENNA
HDMI 4
FM
GND
AM
75
SPEAKERS
FRONT
CENTER
SURROUND
MONITOR OUT
AV
AUDIO
SUBWOOFER
OUT
OUT
A
A
U
U
D
D
I
I
O
O
1
2
SUBWOOFER
SURROUND
CENTER
English
Subwoofer
To AC wall outlet
■ Preparing the speaker cables
Once you’ve positioned the speakers, you’ll need to cut
the 24.5-meter (80 ft.) speaker cable to make five
cables for connecting the two front speakers, center
speaker, and the two surround speakers.
1 Cut the included speaker cable to suitable
lengths for the front, center, and surround
speakers. You need five cables.
2 Remove about 10 mm (3/8") of insulation from
the end of each speaker cable.
Note: The
exact layout of
the speaker
terminals
depends on
your amplifier.
Right Left
Front speakers
3 Twist the bare wires tightly.
10 mm (3/8")
Good No Good
Notes
• Make the speaker cables as short as possible. Do not
bundle or roll up excess cable.
• Twist the bare wires tightly so the individual strands
are not splayed.
• Be careful not to injure yourself while preparing the
speaker cables.
3 En
Page 8
■ Operating the speaker terminals
3
1
Negative (–)
1
3
Positive (+)
2
Note: Make sure the
terminal is gripping
the bare wire, not
the insulation.
1 Press and hold the terminal tab.
2 Insert the bare wire.
3 Release the tab so that it closes s ecurely on the
bare wire, not the insulation.
4 Test the security of the connection by pulling
gently on the cable.
Notes
• Make sure the bare wires do not touch each other, as
this could damage the speaker or the amplifier.
• If the connections are faulty, you will hear no sound
from the speakers.
Using the Subwoofer
■ Connecting the speakers
Connect each speaker to the appropriate speaker
terminals on your amplifier by using the cables you
prepared earlier. See the “Connection diagram” on
page 3 for reference.
Make sure you connect the speakers with the correct
polarity—positive (+) terminals to positive (+)
terminals, and negative (–) terminals to negative (–)
terminals. If you get them crossed over, the sound will
be unnatural and lack bass.
In your AV receiver’s speaker size settings, specify
small (or “S”) for all of the NS-P40 speakers.
If you’re connecting the subwoofer to a Yamaha DSP
amplifier or AV receiver, connect to its SUBWOOFER
or LOW PASS output.
Connecting the power cables
Once you’ve completed all of the speaker and
subwoofer connections, plug the subwoofer, amplifier,
and your other AV components into suitable AC wall
outlets.
Rear panel
1 Power indicator
Lights up when the POWER switch is set to ON;
goes off when the POWER switch is set to OFF.
2 INPUT jack
Input jack for connecting the line-level subwoofer
output on your amplifier.
3 VOLUME control
Adjusts the volume of the subwoofer. Turn it
clockwise to increase the volume;
counterclockwise to decrease the volume.
4 POWER switch
Set this to ON to turn on the subwoofer. Set it to
OFF to turn off the subwoofer.
Setting the subwoofer volume
The very first time you use the subwoofer, you need to
set the volume balance between the subwoofer and the
front speakers as follows.
1 Turn on your other AV components.
2 Set the subwoofer’s VOLUME control to
minimum (0).
3 Set the subwoofer’s POWER switch to ON.
The power indicator on the rear panel lights up.
4 Play a audio source that contains low-
frequency bass sounds. Set the amplifier’s
volume control to a suitable level.
5 Turn the subwoofer’s VOLUME control up
gradually until you achieve a good balance
between the subwoofer and the other
speakers.
Notes
• Once the subwoofer volume has been set, you can
leave the subwoofer’s VOLUME control set as it is
and use your amplifier’s volume control to adjust the
volume of the entire system.
4 En
Page 9
• If you replace the front speakers (NS-B40) with
other speakers, you will need to re-adjust the
subwoofer’s volume.
Troubleshooting
If this product doesn’t work as expected, look for a possible cause below. If the issue you are experiencing is not
listed, or you cannot resolve it after reading through these instructions, disconnect the power cable and contact an
authorized Yamaha dealer or service center.
■ Front, surround speakers (NS-B40) and center speaker (NS-C40)
Issue Possible cause Remedy
There’s no sound. The speaker cables are not
connected properly.
The sound is very quiet. The speaker cables are not
connected properly.
■ Subwoofer (NS-SW40)
Issue Possible cause Remedy
The POWER switch is set
to ON but the subwoofer
doesn’t work.
There’s no sound. The VOLUME control is set to 0. Turn up the VOLUME control.
The subwoofer is too
quiet.
The power cable is not connected
properly.
The subwoofer cable is not
connected properly.
The source material doesn’t
contain much bass.
Bass sounds are being cancelled
out by standing waves.
Make sure the speaker cables are connected properly.
Make sure the speaker cables are connected properly:
L (left) to L, R (right) to R, “+” to “+” and “–” to “–”.
Set the POWER switch to OFF, then make sure the power
cable is connected properly.
Make sure the subwoofer cable is connected properly.
Try playing source material that contains more bass.
Reposition the subwoofer, or break up parallel wall surfaces
by placing bookshelves or other large objects along the wall.
English
5 En
Page 10
Specifications
■ Front, surround speakers (NS-B40) and
center speaker (NS-C40)
Typ e
NS-B40................................................... Full range bass reflex
NS-C40...................................Full range acoustic suspension
Driver ...................................................7 cm (2-3/4") cone type
Nominal input power ....................................................... 30 W
Maximum input power .................................................. 100 W
Impedance ............................................................................. 6 Ω
Frequency response
NS-B40.............................................. 50 Hz–25 kHz (–10 dB)
NS-C40.............................................. 70 Hz–25 kHz (–10 dB)
Sensitivity
NS-B40.........................................................83 dB/2.83 V, 1 m
NS-C40.........................................................84 dB/2.83 V, 1 m
Dimensions (W x H x D)
NS-B40........ 112 x 176 x 116 mm (4-3/8" x 6-7/8" x 4-5/8")
...........276 x 111 x 118 mm (10-7/8" x 4-3/8" x 4-5/8")
NS-C40
We ig h t
NS-B40......................................................... 0.59 kg (1.30 lbs.)
NS-C40......................................................... 0.73 kg (1.61 lbs.)
non magnetic shielding type
non magnetic shielding type
–45 kHz (–30 dB)
–45 kHz (–30 dB)
■ Subwoofer (NS-SW40)
Typ e ..............Advanced Yamaha Active Servo Technology II
Driver ............................................ 16 cm (6-1/2") cone woofer
Amp output power.............. 50 W (100 Hz, 5 Ω, 10% T.H.D)
Amp dynamic power .............................................. 100 W, 5 Ω
Input impedance
Frequency response ...........................................30 Hz–200 Hz
Input sensitivity............................INPUT (1P RCA pin jack):
Power supply
U.S.A. and Canada models.......................... AC 120 V, 60 Hz
Australia model.............................................AC 240 V, 50 Hz
U.K. and Europe models ..............................AC 230 V, 50 Hz
China, Asia, and
General models ........... AC 110–120/220–240 V, 50/60 Hz
Dimensions (W x H x D) .......................290 x 292 x 327 mm
We ig h t .............................................................. 8.0 kg (17.6 lbs.)
.................INPUT (1P RCA pin jack): 12 kΩ
non magnetic shielding type
50 mV (50 Hz, 50 W/5 Ω)
(11-3/8" x 11-1/2" x 12-7/8")
Specifications are subject to change without notice.
6 En
Page 11
Fiche technique
■ Enceintes avant, surround (NS-B40) et
enceinte centrale (NS-C40)
Typ e
NS-B40.............................Système bass reflex pleine gamme
blindage non magnétique
NS-C40...................... Suspension acoustique pleine gamme
blindage non magnétique
Haut-parleur .......................................... Type de cône de 7 cm
Puissance d’entrée nominale........................................... 30 W
Puissance d’entrée maximum ....................................... 100 W
Impédance ............................................................................. 6 Ω
Réponse en fréquences
NS-B40.............................................. 50 Hz–25 kHz (–10 dB)
–45 kHz (–30 dB)
NS-C40.............................................. 70 Hz–25 kHz (–10 dB)
–45 kHz (–30 dB)
Sensibilité
NS-B40.........................................................83 dB/2,83 V, 1 m
NS-C40.........................................................84 dB/2,83 V, 1 m
Dimensions (L x H x P)
NS-B40.....................................................112 x 176 x 116 mm
NS-C40.....................................................276 x 111 x 118 mm
Poids
NS-B40........................................................................... 0,59 kg
NS-C40........................................................................... 0,73 kg
■ Subwoofer (NS-SW40)
Typ e
..................Advanced
Haut-parleur ....................................... Grave à cône de 16 cm
Puissance de sortie de l’amplificateur........................... 50 W
Puissance dynamique de l’amplificateur............ 100 W, 5 Ω
Impédance d’entrée
Réponse en fréquences......................................30 Hz–200 Hz
Sensibilité d’entrée ................ INPUT (prise RCA, 1 broche):
Alimentation
Modèles pour les Etats-Unis
et le Canada ................................................CA 120 V, 60 Hz
Modèle pour l’Australie................................CA 240 V, 50 Hz
Modèles pour le Royaume-Uni
et l’Europe...................................................CA 230 V, 50 Hz
Modèles pour la Chine,
l’Asie et Universel........ CA 110–120/220–240 V, 50/60 Hz
Dimensions (L x H x P) ..........................290 x 292 x 327 mm
Poids ................................................................................... 8,0 kg
Ya m a h a
Active Servo Technology II
blindage non magnétique
(100 Hz, 5 Ω, 10% D.H.T)
.......INPUT (prise RCA, 1 broche): 12 kΩ
50 mV (50 Hz, 50 W/5 Ω)
Les caractéristiques techniques sont susceptibles d’être
modifiées sans préavis.
© 2011 Yamaha Corporation
6 Fr
Printed in Indonesia WY61960
