• Front panel mini jack input for connecting portable audio player
• 9 selectable subwoofer crossover frequencies
• Subwoofer phase select / Subwoofer out
• Initial Volume Setting and Maximum Volume Setting
• 40-station preset tuning / Auto preset tuning
• Speaker A or B selection
• Preset remote unit
Surround Realism
• CINEMA DSP with 8 DSP programs
• Compressed Music Enhancer
• Night Listening Enhancer (Cinema/Music) and SILENT CINEMA
• Audio Delay for adjusting Lip-Sync (0-160ms)
P100020323UC-YHT391BL@NPB
HTiB
YHT-391BL

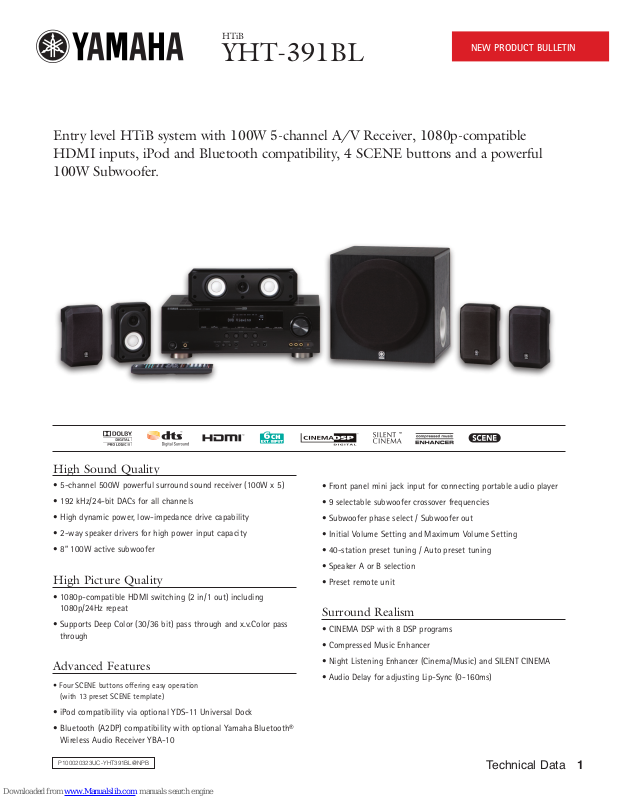

NEW PRODUCT BULLETIN
Entry level HTiB system with 100W 5-channel A/V Receiver, 1080p-compatible
HDMI inputs, iPod and Bluetooth compatibility, 4 SCENE buttons and a powerful
100W Subwoofer.
High Sound Quality
• 5-channel 500W powerful surround sound receiver (100W x 5)
• 192 kHz/24-bit DACs for all channels
• High dynamic power, low-impedance drive capability
• 2-way speaker drivers for high power input capacity
• 8” 100W active subwoofer
High Picture Quality
• 1080p-compatible HDMI switching (2 in/1 out) including
1080p/24Hz repeat
• Supports Deep Color (30/36 bit) pass through and x.v.Color pass
through
Advanced Features
• Four SCENE buttons offering easy operation
(with 13 preset SCENE template)
• iPod compatibility via optional YDS-11 Universal Dock
• Bluetooth (A2DP) compatibility with optional Yamaha Bluetooth®
Wireless Audio Receiver YBA-10
Technical Data 1
• iPod isa trademark of Apple Inc., registeredin the U.S. and other countries. • TheBluetooth® word markand logos are registered trademarks owned by Bluetooth SIG,Inc. • Dolby and the double-D symbolare registered trademarks of DolbyLaboratories. • “DTS” and “DTS
Digital Surround” areregistered trademarksof DTS, Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • "x.v.Color" is a trademark of Sony Corporation. • CINEMA DSP is a trademarkof
YamahaCorporation. • SILENTCINEMA is a trademark ofYamaha Corporation. • Productdesigns and specifications are subject to change without notice.
YHT-391BL Main Specifications
A/V Reciver (HTR-6230BL)
Minimum RMS Output Power (8 ohms, 1 kHz, 0.9% THD)
Front Channels 100 W +100 W
Center Channel 100 W
Surround Channels 100 W +100 W
Dynamic Power/Ch (Front Ch, 8/6/4/2 ohms) 110/130/160/180 W
Frequency Response 10 Hz–100 kHz +0, -3 dB
Total Harmonic Distortion (1 kHz, 50 W/8 ohms) 0.06%
Signal-to-Noise Ratio (CD, 250 mV) 100 dB
Monitor Out Frequency Response
Component Video Signal
5 Hz-60 MHz -3 dB
Dimensions (W x H x D): 17-1/8” x 5-15/16” x 12-1/2”
Weight: 17.6 lbs
5.1-ch Speaker system:
System Frequency Response: 28 Hz - 50 kHz
Magnetic Shielding: All speakers
Impedance: 6 ohms (except subwoofer)
5.1-ch Speaker system: (Continued)
Front Speakers: 2-way acoustic suspension
Drivers: 2-1/2” woofer and 1/2” tweeter
Input Power (Max/Nominal): 100 W / 30 W
Dimensions (W x H x D:) 4”x 6-3/8”x 4”
Weight 1.6 lbs/ea
Center Speaker: 2-way acoustic suspension
Drivers: Dual 2-1/2” woofer and 1/2” tweeter
Input Power (Max/Nominal): 100 W / 30 W
Dimensions (W x H x D) 11-7/8”x 4”x 4”
Weight: 2.6 lbs
Surround Speakers: 2-way acoustic suspension
Drivers: Dual 2-1/2” woofer and 1/2” tweeter
Input Power (Max/Nominal): 100 W / 30 W
Dimensions (W x H x D): 4”x 6-3/8”x 4”
Weight: 1.6 lbs/ea
Subwoofer (YST-SW012)
Dynamic Power: 100W
Driver: 8" multi-range
Dimensions (W x H x D): 11-13/32”x 11-13/32”x 12-29/32”
Weight: 18.7 lbs
YDS-11 Universal Dock for iPod
T
he optional YDS-11 Universal Dock lets you connect your iPod to the reciver.
You can listen to your iPod music via the reciver. You can also operate your
i
Pod via the reciver’s remote unit and charge your iPod.
Works with: iPod touch, iPod nano, iPod mini and iPod
(
Click Wheel)
iPod notincluded
Yamaha Bluetooth® Wireless Audio Receiver
T
he optional YBA-10 Bluetooth Wireless Audio Receiver docks
t
o the receiver and supports A2DP audio streaming, so users
c
an enjoy music wirelessly from Bluetooth-enabled mobile
phones, Windows PCs and Macs.
Technical Data 2
HTiB
YHT-391BL
NEW PRODUCT BULLETIN
Inputs
HDMI 2
Radio Antenna (FM/AM) 1 / 1
Dock Terminal for Optional Dock Accessories 1
Optical Digital (Fixed and Assignable) 2
Coaxial Digital (Fixed and Assignable) 1
Analog Audio* 6
Component Video (Fixed and Assignable) 3
Multi-Channel External Decoder 6ch
* Including front panel terminals.
Outputs
HDMI 1
Analog Audio 2
Component Video Monitor 1
Composite Monitor 1
Speaker (without subwoofer)* 5ch / 7 ter.
Subwoofer 1
* Banana-plug compatible.
