Digital Sound Projector™ Technology

TV monitor

TV monitor

Amp/Receiver

Conventional
Speaker

Delay Control
Digital Amplifiers

Speaker Array

Aiming of Sound Beam

Digital Sound Projector™ Technology

The YSP components apply sophisticated Digital
Sound Projector™ Technology to precisely control
the orientation of the sound by focusing it into
beams. The center channel sound is heard directly,
while sounds from other channels are heard after
reflecting off walls. The result is true multi-channel
surround sound that sounds
just like a multi-speaker
system — but without the
need for extra speakers!

Multiple channels are superimposed to create the sound. In a

5.1-channel configuration, the beam speakers together create the
sound of 5.1 superimposed channels.

Digital Amplifier Built-in

The YSP components have a powerful and efficient
digital amplifier built in. There is no need for you to

IntelliBeam Automated System Calibration

Sound is projected at the listener from five directions: straight ahead, reflected off one wall, and reflected off two walls (so it is heard from the rear).

purchase an additional amplifier or receiver, so the
system is compact and economical.

sound with the microphone
included with the YSP
components, IntelliBeam
automatically sets the best
beam angles and modes,
while optimizing the level and frequency response
of each beam. This makes initial setup both
extremely simple while acoustically perfect. Manual

Yamaha YSP (no need
additional amp/receiver) vs.
other system

setup is also possible.

Wide Variety of Beam Settings

My Surround mode provides surround sound

IntelliBeam Automated System Calibration

This Yamaha exclusive feature ensures optimum
multi-channel sound reproduction with accurate
image location. By monitoring and analyzing the

without reflecting the beams off the walls. It is
handy for rooms where for some reason the walls
can not be used well and delivers a good surround
effect when listeners are close to the unit.

My Beam setting focuses the sound at a

specific listening position, so even in noisy

Left: Each sound beam
is precisely directed.
Center: Total sound
beam effect is
optimized. Right:
Sound is monitored
and analyzed, after
which frequency
response and other
parameters are
optimized for the
room.

surroundings you can hear dialogue and other
sounds clearly. A sonic sensor allows you to select
My Beam with the remote control from almost any
angle. There are also five other selectable beam
settings: 5 Beam, 3 Beam, 3 Beam + Stereo,
2ch Stereo and 5ch Stereo that outputs stereo
sources from all of the 5-channel beams, providing
a more expansive sound field.

Wide Variety of Beam Settings

4

My Surround My Beam5-Beam 3-Beam + Stereo 2ch Stereo3 Beam 5ch Stereo

Digital Home Theater Technology

Pure Direct ON

DSD Signal

PCM Signal

Analog Signal

Pure Direct Block Diagram (RX-V3800BL and RX-V1800BL)

HDMI
Input

HDMI

Receiver

Digital
Input

DIR

Decoder

ADC RAM

DSP

RAM

DAC

Analog
Input

Output

DIR

(Low-Jitter PLL Circuit)

Output

VCXO Digital

Clock Circuit

PC LPF VCO PC LPF VCXO



Ch1

Stop:Tek 1.00GS/s

1

VCXO Circuit

1.00 V M 2.50ms 1.64VCh1

20.0X Horz2.0X VertCh1 Zoom:

657 Acqs

T

Ch1

Stop:Tek 1.00GS/s

1

Conventional Circuit

1.00 V M 2.50ms 1.64VCh1

20.0X Horz2.0X VertCh1 Zoom:

10994 Acqs

T

Input

HDMI

Output

HDMI

Component

S-Video

Composite

Through

Deinterlacing
480i 480p

480i Only

Upscaling
480i 480p, 1080i, 720p or 1080p
480p 1080i, 720p or 1080p

Component

S-Video

Composite

Analog Video

Digital Video

 High Sound Quality

Discover the Pleasure of HD Audio

New Yamaha receivers enable you
to enjoy the stunningly rich and
beautiful surround sound offered
by Blu-ray Disc players and
HD-DVD players. You can play
sources that use the two lossy formats Dolby
Digital Plus and DTS HD High Resolution, as well as
the higher quality lossless formats Dolby TrueHD
and DTS-HD Master Audio.

Digital ToP-ART and High Current Amplification

Yamaha’s Digital ToP-ART
concept combines the latest
and best technologies, parts
and circuit designs to
maximize sound quality. A
new interior layout completely isolates the digital,
analog and video sections and provides the shortest
possible signal routes. Top quality parts include
Burr-Brown 192kHz/24-bit DACs, a low-noise
discrete power supply and custom-made block
capacitors. High Current Amplification circuitry
achieves high current power with low impedance
for superior amplifier performance.

Pure Direct for Highest Sound Quality

Pure Direct is a special listening mode that causes
the signal to bypass all but the most basic audio
circuitry. It even turns off the display to prevent
any chance of electrical noise interference. You will
hear the purest possible sound from all sources
including USB and HDMI inputs.

HDMI 1.3a Compatibility

Compatibility with the latest
HDMI 1.3a specification means
you can enjoy incredibly clear images with
awesome color performance, as well as the purest
digital sound, via a single HDMI cable.

Low-Jitter PLL Circuitry

A low-jitter PLL circuit in the preamplifier stage
significantly reduces jitter from digital inputs for
enhanced sound processing. This is particularly
effective in improving the sound quality of digital
signals that are input via HDMI. The addition of a
VCXO digital clock circuit further reduces the
possibility of jitter distortion.

RX-Z11BL Low-Jitter PLL and VCXO Digital Clock Circuits

 High Picture Quality

1080p-Compatible HDMI
RX-V1800BL, RX-V861BL and RX-V661BL)

These receivers have the capability of repeating
1080p video signals from HDMI input to HDMI
output. Multiple inputs are provided, so the user can
switch among them.

HDMI Video Upconversion (RX-Z11BL, RX-V3800BL,
RX-V1800BL and RX-V861BL)

One way of ensuring the
highest video quality for your
home theater system is to use
the best possible video signal.
These components have a
function to upgrade the input
signal (composite to S-Video,
component or HDMI, S-Video to component or
HDMI and component to HDMI) to the one that your
monitor/TV can accept. This means that you simply
use the best possible cable between the receiver and
the monitor/TV, and then whatever the source is,
you are assured of getting the highest possible
quality.

Full HD 1080p Video Upscaling

The RX-Z11BL, RX-V3800BL and RX-V1800BL also
utilize scaler engine that can independently scale an
image horizontally and vertically to further improve
the picture quality on high resolution displays (to
1080i/720p or even 1080p with HDMI output).

RX-V3800BL and RX-V1800BL full video upconversion

(RX-Z11BL, RX-V3800BL,

RX-Z11BL Digital video
circuit board

Pure Direct delivers two-channel audio sources such as CD and
multi-channel audio sources including Super Audio CD and DVD­Audio at levels of sound quality that will satisfy even the most
dedicated music lovers. (Also compatible with HD audio bitstream
signals in RX-Z11BL, RX-V3800BL and RX-V1800BL)

RX-Z11BL High Quality Audio Parts

1 Volume IC JRC NJM1194 (left), Burr Brown audio DAC

(DSD1796, center) and Op amp LM4562 (right)

2 Schottky barrier diodes

Conventional circuit shows a wide range of jitter while the
RX-Z11BL preamplifier exhibits virtually no jitter.

12

3

5

3 High efficiency heat sink
4 Extra-large power transformer
5 Custom-made 27,000µF block capacitors
6 Large-size speaker terminals

Deep Color, xvYCC, Auto Lip-Sync and Refresh Rates

The HDMI 1.3a, provides the benefits of Deep Color
(30/36bit), the xvYCC color standard, Auto Lip-Sync
function that automatically adjusts the lag between
video and audio, and a double speed Refresh Rates
of 120Hz and 1080p/24Hz.

When you use the RX-Z11BL’s HDMI outputs to

transmit video signals, you enjoy spectacular color

4

performance. One reason is that HDMI 1.3a uses a
new color standard called xvYCC, which supports 1.8
times as many colors as
previous HDTV signals.
This expanded range of
colors means that HDTVs

6

can display images with
colors that are far more
natural and vivid than
ever before.

5

Digital Home Theater Technology

Compressed Music Enhancer On
Compressed Music Enhancer Off

Frequency (kHz)

dB

0

-100

-50

0

10

5101520

Zone 2

[140W x 2]

Zone 3

[50W x 2]

Zone 4

[50W x 2]

PL
PR
CT
FL-B
FR-B
FL-A
FR-A
SL
SR
SBL
SBR
RPL
RPR

7.2Ch

 Advanced Features

Custom Installation Compatibility

Yamaha has made it extremely convenient to set up a
multi-room custom installation. And given you the
ability to do it in a variety of ways. Now you can
have sound in various rooms of the house without
the need to purchase a lot of extra components.

• RX-Z11BL

The RX-Z11BL has extensive zone control capabilities,
which are too numerous to explain here. The most
important point is that the 11.2 channels can be
assigned in a wide variety of configurations to
Main/Zone 2/Zone 3/ Zone 4. The presence, rear
presence and EXTD (by surround back amp) speaker
terminals can be assigned to each zone. It provides
Intelligent Power Amplifier Assignability (surround
back amp assignment) and Independent Zone Amplifier
Assignment with 7.2-channel main zone playback.

Also important is that Zone 2 can accept
bitstream signals and also offers component video
output and upconversion of composite and S-Video
signals.

Some other convenient zone functions include: a
Party Mode that permits audio BGM and video BGV
play of the same input source in the main room and
other three zones with one-button operation, a Zone
OSD function that lets you browse information about
the songs or FM/AM/XM/HD radio broadcasts that are
playing, Zone Mono that provides compatibility with
one-speaker or three-speaker installation
environments, and a Preamplifier Mode that permits
the entire 11-channel amplifier to be allotted for
three-zone use (main zone powered by an external
amp).

• RX-V3800BL and RX-V1800BL

Convenient operation is assured thanks to control of
Main/Zone 2/Zone 3 power, FM/AM/XM tuning,
volume and input select on the front panel, along
with extensive information, Zone 2/3 tone and L/R
balance control for ceiling- or wall-mount speakers
and even a separate Zone Remote Unit. There is also
an RS-232C interface for a touch-panel controller.

• RX-V861BL, RX-V661BL and RX-V659BL

These receivers deliver audio output to Zone 2. Zone
2 power amplifier assignability and speaker terminals

RX-Z11BL Versatile Zone Control Example (5.2-Channel Main Zone + 3 Other Zone)

Main Zone

RX-Z11BLRear Panel
Speaker Terminals

mean that Zone 2 can be fully independent with its
own 2-channel power, while you still enjoy 5.1­channel sound in the main room.

These speakers can be active when Surround Back speakers in Main Zone are off.

Other Zone

music data utilized by the DSP circuit. It focuses on
the fact that the music elements that are lost when
the original music is digitally compressed are mainly
the harmonics. It combines High Frequency

YPAO Sound Optimization

Yamaha’s YPAO Sound Optimization system analyzes
the room acoustics and various system factors, then
makes adjustments to provide optimum sound
quality. It addition to the previous adjustments for

Expansion Processing, which improves the
unconstrained treble sound, with Low Frequency
Emphasis Processing, which supplements the deep
bass sound. These processes vividly revive the range,

presence, force and dynamism of compressed music.
speaker size, distance and wiring, plus equalization
and level, Advanced YPAO gives this useful function
even higher performance, with four new capabilities.
The first is measurement at
multiple locations for a
larger “sweet spot” at the
listening position, the
second is the use of
parametric equalization to
cancel the effects of
standing waves, the third is

Microphone base(RX-Z11BL)

speaker angle
measurements to optimize CINEMA DSP effects, and
the fourth is an Easy Starter feature.

We recommend using the Compressed Music Enhancer function

when listening to songs with a groove feeling and lively music such

as Rock, Soul, Disco and R

On-Screen Display

An on-screen GUI (Graphical User Interface) display

makes operating the receiver easy and intuitive. It is

compatible with iPod, Internet Radio, PC and USB

displays.

Compressed Music Enhancer

MP3, AAC and other music formats that use digital
compression cut out music data in the high and low
frequency ranges and eliminate small sounds during
high volume segments in order to decrease the size
of the data. The fact that data is missing is difficult

The display on some
receivers allows six
languages to be selected:
English, Spanish, French,
German, Russian and
Japanese.

to hear with portable players, but when listening
through speakers it is clearly apparent that part of
the musical nuance is lost. When
you listen to this music, you will
be dissatisfied with the inadequate brilliance of the
high range, and with the thin response in the mid­low range.

The Compressed Music Enhancer is an exclusive

Yamaha function that uses our proprietary DSP

YDS-10SL Universal Dock
for iPod

The optional YDS-10SL
Universal Dock lets you
connect your iPod to the
receiver.

iPod not included

technology to create harmonics from the remaining

&B.

HD Radio™ Tuner

The RX-Z11BL is equipped with an HD Radio™ tuner.
HD Radio, the only digital broadcast system in
America approved by the FCC, offers crystal-clear,
CD-quality sound via existing FM/AM bands. In
addition, it provides program-associated data and
the ability to tune to multiple programs at the same
dial position. The RX-Z11BL can display HD Radio
information on the front panel and on a monitor.

6

XM Satellite Radio Ready with XM HD Surround

All receivers have XM Satellite Radio tuning capability and
also can receive XM Satellite radio with XM HD Surround
powered by Neural Surround*, which also supports gaming
and movies with 7.1-channel sound. To receive XM
Satellite Radio, the XM Mini-Tuner and Home Dock
including home antenna are required (sold separately).

* The RX-Z11BL, RX-V3800BL and RX-V1800BL have
Neural-THX surround.

Digital Home Theater Technology

el

gh

p

ow

ow

gh

d.

F

sounds

e

p

C

l

p

.

el

gh

p

ow

ow

gh

l

p

.

l

gh

p

gh

l

,

.

cannot be heard is fairly large.

e

in the area where sounds cannot be heard.

DVD

Viewing

Disc

Listening

TV

Viewing

Radio

Listening

1 2 3 4

Dialogue Lift

Clear dialogue is important for movie enjoyment,
however, when using front and center speakers
positioned below the screen, dialogue may not be
heard with maximum clarity. The Dialogue Lift
function causes part of the front and center
channel sound to be output from the presence
speakers, so you hear the dialogue more clearly.

Before using Dialogue Lift Ideal dialogue position

Assignable Amplifiers for Bi-Amp Connection

Bi-amping assigns the amps used for the surround
back channels to work in conjunction with the
front speaker amps to provide separate high and
low frequency outputs to the front speakers. This
provides more power to the front speakers for
multi-channel or HiFi sound. Both high frequency
and low frequency sound quality is improved.

Adaptive DRC

Adaptive DRC (Dynamic Range Control) is a new
volume control technology that is effective for
low-volume listening, such as at night or with
headphones. It applies DRC processing to eliminate
the volume differences between loud commercials
and ordinary programming and to take into account
our ears’ loss of sensitivity as volume decreases.
The compensation is performed automatically, so all
dialogue is heard clearly even at low levels, and
there are no sudden loud bursts of sound.

Effect of Adaptive DRC

DRC OF
Ada

tive DR

mall

lik

whispers.

nds cannot be hear

Volume at Lower Lev

The volume is slightly lowered, so the

ut is smaller

maximum out
Hi

ut Level
ut

L

Input Leve

L

When DRC is off, whispered sounds are submerg

Adaptive DSP Level

Volume at Normal Lev

Large sounds can be output, so large
sounds are out

Hi

ut Level
ut

L

L

Volume at Considerably Lower Leve

When the volume has to be lowered more
the maximum output becomes much smaller

Hi

ut Level
t

Hi

ut as large sounds

Input Leve

Input Leve

f, the area where sounds

Hi

Hi

When volume is low, CINEMA DSP effects may be
difficult to hear. Adaptive DSP Level overcomes this
problem by evaluating the difference between the
volume level and a reference level, and adjusting
the DSP level to ensure optimum effectiveness, that
is, the best possible sound.

 System Memory:

Learn More About Improved Features

System Memory

You can use the System Memory function to easily
save and recall various combinations of system
settings. For example, if you have a particular “sound”
that you prefer with action movies, just save those
settings and then press that memory button whenever
you watch an action movie. The RX-Z11BL provides
ten System Memories for the main zone (audio,
speaker configuration, video, volume, input/HDMI out
and option. It also has four System for zones 2, 3 and
4 (input, volume and tone control). The RX-V3800BL
and RX-V1800BL also let you save up to six different
system settings. System Memory is an easy way to
ensure that you enjoy the best possible sound with
different sources and room conditions. It is especially
useful with high-end models that have a wide range
of customizable parameters.

SCENE Offers Greater Operating Ease

With most receivers, watching or listening to what
you want requires a number of steps. You have to
turn on the receiver, turn on another component like
a DVD player, select the source, select the surround
mode and then press play. But with Yamaha’s SCENE
feature all you need to do is press one button. Both
components turn on, the correct DSP setting is made,
and play begins.

The RX-V861BL,
RX-V661BL, RX-V461BL
and RX-V361BL have four
pre-programed SCENE
buttons that initiate a
series of actions. Their
default settings are DVD
Viewing, Disc Listening,
TV Viewing and Radio
Listening. However, if you
have different preferences

SCENE Templates

Model RX-V861BL/RX-V661BL RX-V461BL RX-V361BL

DVD DVD Movie Viewing DVD Movie Viewing DVD Movie Viewing

DVR DVR Viewing DVR Viewing DVR Viewing
DVD-Audio/

Super Audio CD/CD

CD CD Listening CD Listening CD Listening

TUNER/RADIO Radio Listening  Radio Listening  Radio Listening 

iPod iPod Listening iPod Listening
TV

GAME
LP Record LP Record Listening

Template Total 18 16 13

DVD Viewing  DVD Viewing  DVD Viewing 

DVD Live Viewing DVD Live Viewing DVD Live Viewing

Disc Hifi Listening Disc Hifi Listening
Music Disc Listening Music Disc Listening Music Disc Listening

Disc Listening  Disc Listening  Disc Listening 

CD Hifi Listening CD Hifi Listening

CD Music Listening CD Music Listening CD Music Listening

XM Listening XM Listening XM Listening

TV Viewing  TV Viewing  TV Viewing 

TV Sports Viewing TV Sports Viewing TV Sports Viewing
Action Game Playing
RPG Playing

RX-Z11BL System Memory buttons on remote unit

System Memory default
setting

System Memory rename
setting

Four System Memory settings for
each of the sub-zones

10 System Memory settings for
main zones

you can customize the SCENE buttons by selecting
from a variety of templates. For example, you can
choose iPod listening, TV sports viewing or action
game playing. The chart shows which templates are
available.

Operating a receiver has never been this quick

and simple!

Game Playing Game Playing

7

Digital Home Theater Technology

 Surround Realism

Going Beyond Ordinary Surround Sound

Yamaha’s DSP (Digital Sound Field Processing)
technology is effective for both music and movies. It
uses the most advanced LSIs and draws on the deep
understanding of sound and music that we have
accumulated through musical instrument
manufacturing, acoustic design, and our
relationships with artists all over the world. With
dialogue, music and effects ideally located in
separate sound fields, you will hear sound with
accurate placement, smooth movement, exceptional
clarity and richness, and startlingly realistic
presence. It will seem as if the walls of your room
have disappeared and you are in the middle of your
own immense theater!

Creating Sound Fields Based on Actual Data

Yamaha DSP uses a unique measurement technique
called Closely Located Four-Point Microphones and
powerful data storage capabilities to capture sound
field data from excellent acoustic venues such as
famous concert halls and jazz clubs around the
world. This real-world data forms the basis for the
sophisticated sound fields that are achieved through
Yamaha’s exclusive Digital Sound Field Processing.

• HiFi DSP Programs

Like Having a Perfect Seat at a Famous Venue

Based on data recorded in famous entertainment
venues around the world, these programs reproduce
the original sound field of the performance spaces in
your room. You have a choice of various sound
fields, such as Concert Hall that reproduces the rich
reverberations of the shoebox type concert halls in
Vienna, Jazz Club that conveys the energy of a live
club in New York, and Rock Concert that brings you
the exciting atmosphere of a rock venue in Los
Angeles.

• CINEMA DSP Programs

For Amazingly Realistic Sound from Movies and
Other Entertainment Choices

Yamaha’s DSP expertise eliminates the differences

Conventional

Quad-Field CINEMA DSP

7.1-Channel Systems

between the acoustic environments of movie
theaters and home theater rooms. You can enjoy
dynamic surround sound that is actually closer to
what the director intended than you hear in a
movie theater. Movie program choices include
Spectacle for movies with strong visual impact,
Sci-Fi for SFX movies, Adventure to emphasise the
sound of action movies, and General (Drama) for
romantic movies. There are also programs that let
you enjoy various types of entertainment such as
musicals, operas, sportscasts and games with
greatly increased dynamic presence. These
programs are effective with both multi-channel and
stereo sources.

• The Continuing Evolution of CINEMA DSP

CINEMA DSP 3D and CINEMA DSP HD

3

The RX-V3800BL features surround sound
processing with the enhanced capability of CINEMA
DSP 3D. By using two presence speakers in addition
to the four FL/FR and SL/SR speakers, the sound
field is given an extra vertical dimension. Pressing
the 3D DSP button provides a sound field that
expands both upward and downward. HiFi DSP
programs sound more natural, closer to the feeling
of actually being in a concert hall with a high
ceiling or a small live house where the sound seems

Surround Left
Sound Field

to bounce up from the floor. CINEMA DSP programs
have an added dimension of height that was
previously difficult to achieve, so sounds coming
from above have precise localization.

sound field processing refinement: CINEMA DSP HD
It utilizes four CINEMA DSP engines and permits
lossless decoding of 192kHz signals, while providing
3D processing that gives the sound field an extra
vertical dimension. In its full 11-channel
configuration setting it adds two presence and two
rear presence speakers, offering the enjoyment of a
completely new sound stage.

• SILENT CINEMA

Surround Sound through Your Headphones

Late at night when you do not want loud sound
from speakers, or at times when
you are bothered by surrounding
noise, you can still appreciate
the full benefits of home
theater thanks to SILENT
CINEMA. It delivers the
dynamic sound of 5.1-channel
surround through your headphones. Naturally, you
can select from the diverse range of surround
programs suited to the movie or music.

Presence (Front Line) Sound Field

Dialogue MusicEffect

Surround Right

Surround Back
Sound Field

Sound Field

The RX-Z11BL introduces Yamaha’s latest digital

3

.

Closely Located Four Point Microphone (left top), measurement
scenes (left bottom) and result (imaginary sound source
distribution of sound field data, right)

8

CINEMA DSP 3D (with imaginary sound source distribution)

CINEMA DSP HD

3

(with imaginary sound source distribution)

Network Multimedia Technology

Internet

Radio

Internet

iPod USB

MusicCAST

PC

Router

Internet Radio

PC

iPod

USB

MusicCAST

Don't limit your choices!

With a Network Receiver you can connect a wide range
of multimedia entertainment sources.

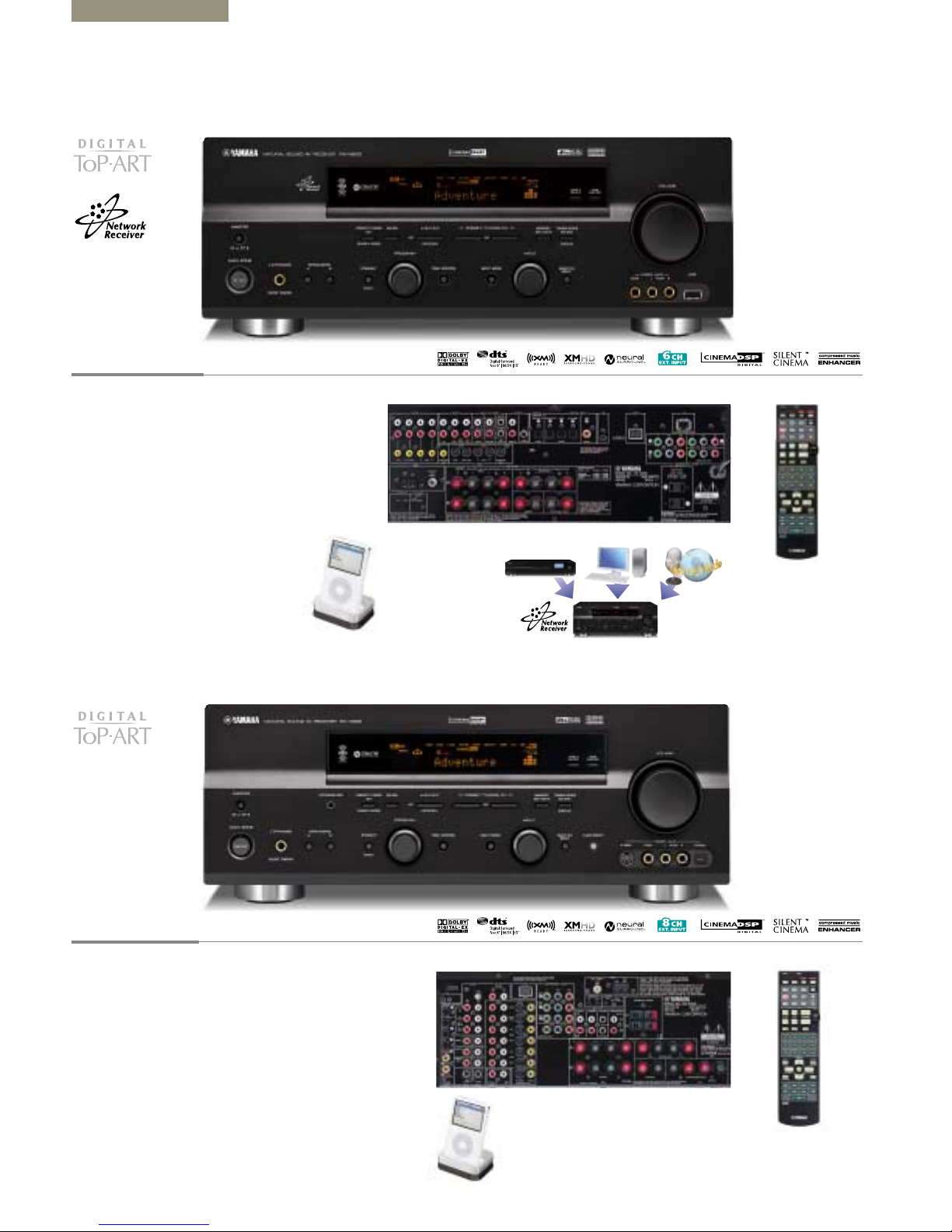

RX-Z11BL

Digital Home Theater Receiver

RX-V3800BL

Digital Home Theater Receiver

RX-N600BL

Digital Home Theater Receiver

Enjoy Internet Radio.

A major benefit of Internet Radio is that it lets you hear all types of music from around
the world. By connecting a Network Receiver to the Internet, you can browse a list of
more than 2,000 Internet Radio stations, plus a list of podcasts. Just select a station
with the remote unit and start enjoying the wide variety of Internet Radio choices.

• Bookmarks: Select your bookmarks directly from a list.

• Locations: Select Internet Radio stations and podcasts

according to their locations (countries).

• Genres: Select Internet Radio stations and podcasts by
music genre.

• New Stations: Select Internet Radio stations from
stations that have recently begun to broadcast.

• Popular Stations: Select Internet Radio stations from
the most popular stations.

• Podcasts: Select podcasts by location (country) or genre.

Use Your PC as a Music Server.

Why listen to your playlists through PC speakers or
a MP3 Player when you can enjoy them with much
better quality from your home audio system?
Connect a Network Receiver to your home network
and browse and play music files stored on your PC.
In fact, it can handle files stored on four PCs, so
the whole family can enjoy their own music.

Hook Up Your iPod with the

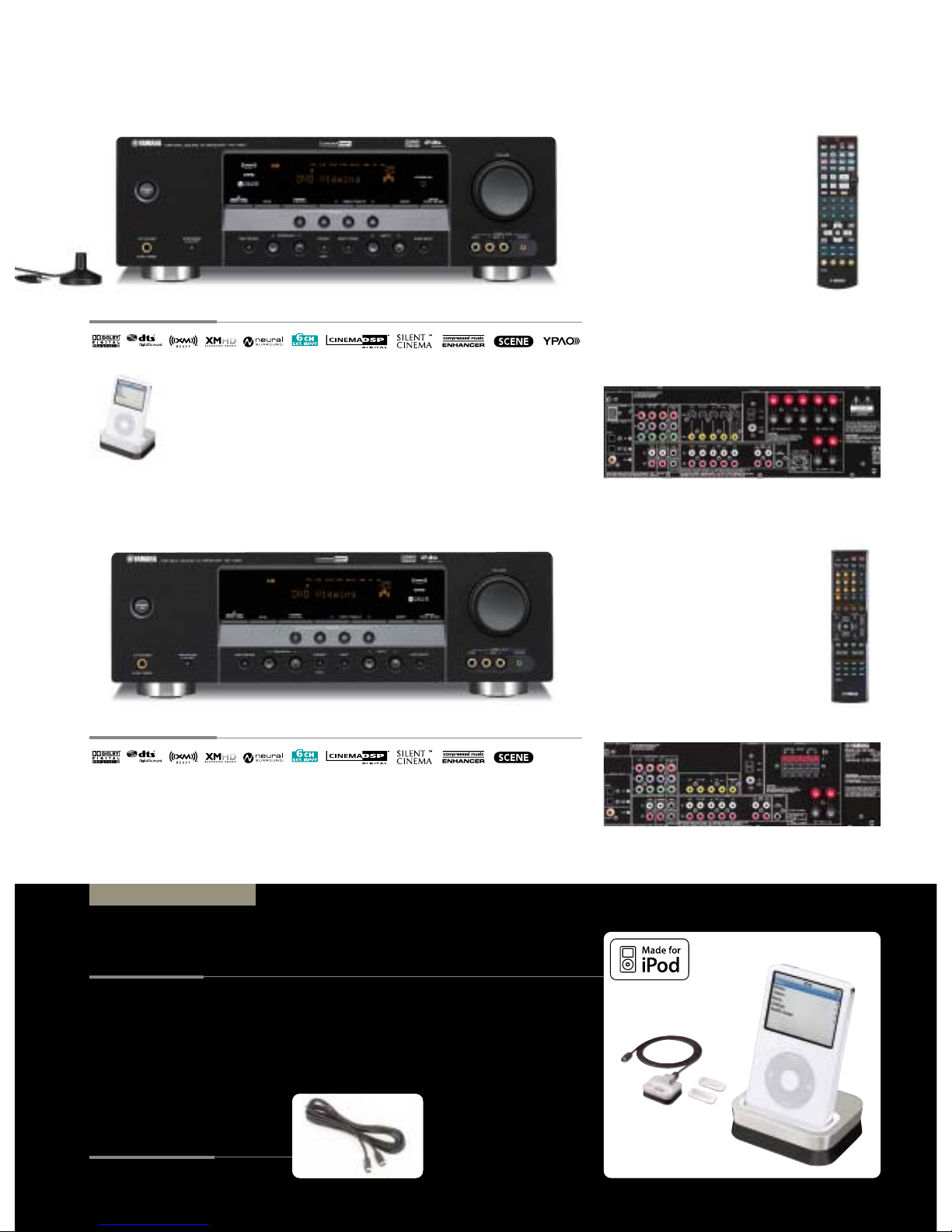

Optional Universal Dock YDS-10SL.

With Yamaha’s YDS-10SL Universal Dock (sold
separately), you can enjoy your iPod music with easy
operation from the receiver’s
remote unit and browse the
menus on the on-screen display.
You can even watch iPod video
images and photos on a TV.

Connect a USB MP3 Player.

The Network Receiver has a USB terminal on its
front panel. Just insert a USB MP3 Player, USB
memory or storage device such as HDD into the
terminal and start enjoying all your music files.

Interface with MusicCAST.

MusicCAST is Yamaha's interactive music network system that provides
easy access to a huge music library throughout the home. The Network
Receiver interfaces seamlessly with the MCX-2000 Server, so
it becomes one of the MusicCAST's Clients. You enjoy
maximum sound quality and more
convenient operation.

(See page 42/43).

9

Digital Sound Projector™

10

A brand new style of home theater.

Providing true multi-channel surround sound from a single unit, the Digital Sound Projector™ is
nothing short of a stylistic revolution in home theater design. No speakers, no cables, just one
elegant unit on a rack or mounted on a wall. Surround sound has never been this easy.

YSP-4000BL

Digital Sound Projector

• Digital amplifier built-in (120W
total power: 2W x 40 + 20W x 2)

• HDMI Interface (2 in/1 out:
1080p/24Hz, 50Hz and 60Hz
compatible)

• Analog video to HDMI digital
video upconversion

• Deinterlacing and upscaling
through HDMI output (480i to
1080i/720p)

• IntelliBeam Automated System
Calibration

• XM ready with XM HD Surround
powered by Neural Surround

• iPod compatibility via optional
Yamaha YDS-10SL

• Compressed Music Enhancer

• FM tuner built-in

• Front panel mini jack input for

portable audio player connection

• Wide variety of Beam Modes
(5 Beam, 3 Beam + Stereo,
3 Beam, 2ch Stereo/5ch Stereo,
My Beam and My Surround)

• 7 CINEMA DSP programs

• Multi-language on-screen display

(English, Spanish, French, German,
Italian, Dutch and Russian)

• Custom installation with IR pass
through, remote in and RS-232C
interface

Digital Sound Projector™

The YSP-4000BL/SL connection panel offers HDMI (2 in/1 out) interface, 2 optical, 2 coaxial digital and 2 analog
audio inputs, 2 component video inputs and 1 output, IR in, RS-232C interface, IR pass through out, subwoofer
output, XM Connect-and-Play terminal, dock terminal for YDS-10SL, system connector for subwoofer, FM
antenna terminal and terminal for detachable AC inlet cable.

Optional YDS-10SL
Universal Dock for iPod

• Dimension (W x H x D):
3-1/8" x 1-5/16" x 2-3/4"
iPod not included.

Silver finish available.
Model number: YSP-4000SL

SPM-K30:
Optional wall hanging bracket for YSP-4000BL/SL

YSP-1100SL

Digital Sound Projector

• Digital amplifier built-in (120W total
power: 2W x 40 + 20W x 2)

• IntelliBeam Automated System
Calibration

• Wide variety of Beam Modes
(5 Beam, 3 Beam + Stereo, 3 Beam,
2ch Stereo and My Beam)

• 7 CINEMA DSP programs

• Night Listening mode and TV Volume

Equal mode

• Turn On Volume presets volume level
at power on

• Multi-language on-screen display
(English, Spanish, French and
German)

• TruBass for more dynamic bass sound

• Custom installation with IR pass

through, remote in and RS-232C
interface

The YSP-1100SL connection panel offers 2 optical, 1 coaxial digital and 2 analog audio inputs,
3 composite video inputs and 1 composite video output, 2 component video inputs and 1 component
video output, subwoofer output, IR in, RS-232C and terminal for the IntelliBeam optimizing
microphone and IR out terminal on other connection panel.

SPM-K1:
Optional wall hanging bracket for YSP-1100SL

11

Digital Sound Projector™

YSP-3000BL

Digital Sound Projector

• Digital amplifier built-in (82W total power:
2W x 21 + 20W x 2)

• HDMI Interface (2 in/1 out: 1080p/24Hz, 50Hz and
60Hz compatible)

• IntelliBeam Automated System Calibration

• XM ready with XM HD Surround powered by Neural

Surround

• iPod compatibility via optional Yamaha YDS-10SL

• FM tuner built-in

• Front panel mini jack input for portable audio player

connection

• Wide variety of Beam Modes (5 Beam, 3 Beam +
Stereo, 3 Beam, 2ch Stereo/5ch Stereo, My Beam and
My Surround)

• 3 CINEMA DSP programs

• Multi-language on-screen display (English, Spanish,

French, German, Italian, Dutch and Russian)

• Compressed Music Enhancer

The YSP-3000BL/SL connection panel offers HDMI (2 in/1 out)
interface, 2 optical/2 coaxial digital and 2 analog inputs, video
out for on-screen display, subwoofer output, IR in, XM
Connect-and-Play terminal, dock terminal for YDS-10SL and FM
antenna terminal.

Optional YDS-10SL
Universal Dock for iPod

• Dimension (W x H x D):
3-1/8" x 1-5/16" x 2-3/4"
iPod not included.

Silver finish available.
Model number: YSP-3000SL

SPM-K30:
Optional wall hanging bracket for
YSP-3000BL/SL

YSP-900BL

Digital Sound Projector

• Digital amplifier built-in (82W total power:
2W x 21 + 20W x 2)

• IntelliBeam Automated System Calibration

• Wide variety of Beam Modes (5 Beam, 3 Beam +

Stereo, 3 Beam, 2ch Stereo and My Beam)

• Night Listening mode and TV Volume Equal mode

12

• 3 CINEMA DSP Programs

• Turn On Volume presets volume level at power on

• Multi-language on-screen display (English,

Spanish, French and German)

• TruBass for more dynamic bass sound

The YSP-900BL connection panel offer 2 optical/1 coaxial
digital and 2 analog inputs, subwoofer output. video out for
on-screen display and system connector for subwoofer.

SPM-K30:
Optional wall hanging bracket for YSP-900BL

The YAS-70BL rear panel offers optical and coaxial
digital audio inputs, analog audio input, dock
terminal for YDS-10SL, FM antenna terminal and
system terminal for connecting center unit.

• Yamaha exclusive Air Surround technology

• 5.1-channel sound from Air Surround unit and subwoofer with
built-in amplifiers

• iPod compatibility via optional YDS-10SL

• Four CINEMA DSP programs (Movie/Music/Sports/Game)

• Night Listening mode

• FM tuner built-in

• Center system can be wall mounted or placed on a shelf or rack

• Total 310W (35W x 6 channels + 100W subwoofer) output power

• 6 full-range drivers in center system

• 6-1/2” 100W Advanced YST technology

• Front firing active design

• One-touch subwoofer
connection

YAS-70BL

Front Surround System

YST-FSW100PN

Advanced YST II and FD-Bass
Slim Design Subwoofer

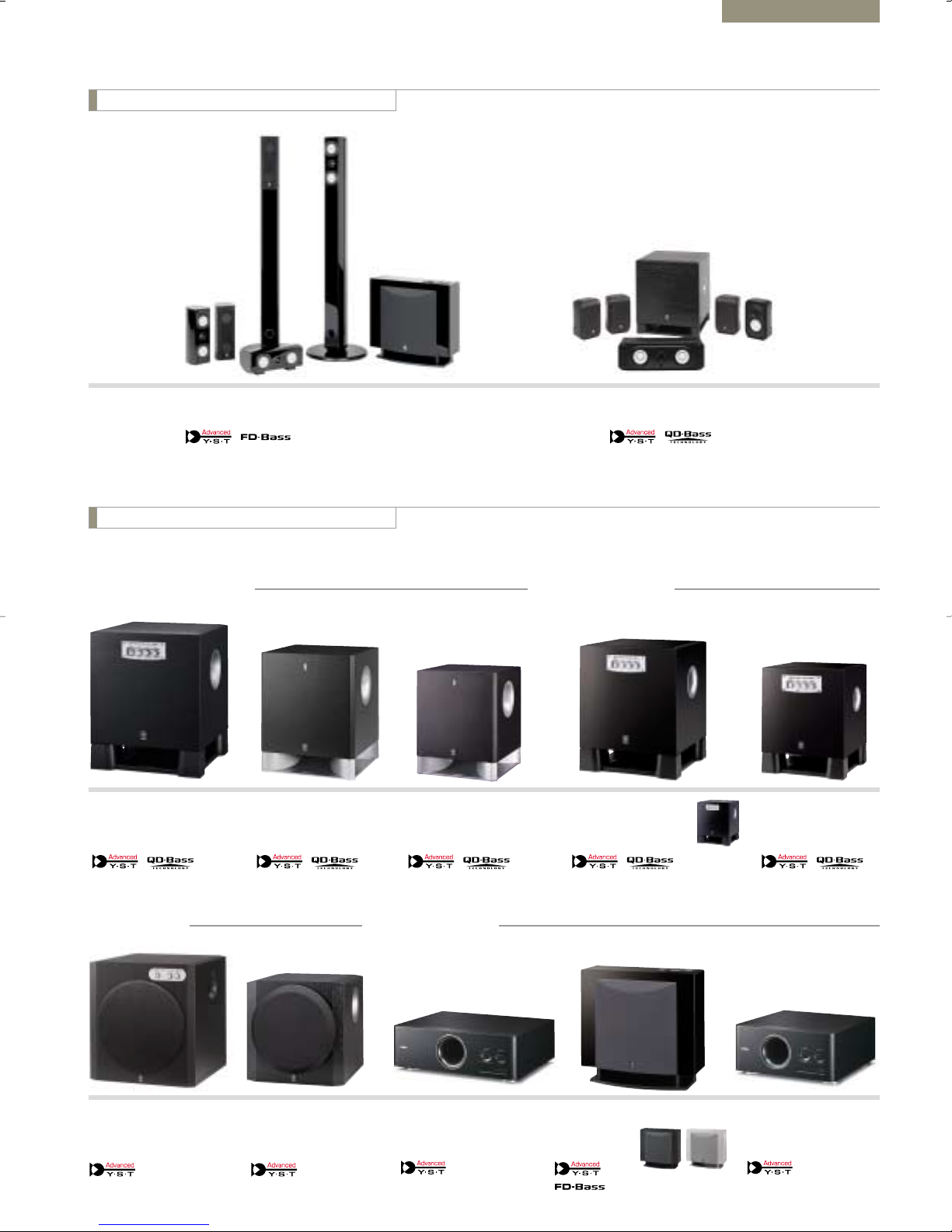

Recommended Usages with Subwoofers

YST-FSW150BL

Advanced YST II and Down-Firing
Rack Mountable Subwoofer

YST-FSW050BL

Advanced YST II and Down-Firing
Rack Mountable Subwoofer

YST-FSW100BL and YST-FSW100SL
also available.

Optional YDS-10SL
Universal Dock for iPod

iPod not included.

13

Piano Finish

Digital Home Theater Components

14

Yamaha takes AV receiver evolution to a new peak with an
enormous range of exciting capabilities.

Yamaha’s main goal for the RX-Z11BL was to achieve the highest possible sound quality
through lossless reproduction via HDMI signal transmission. We began with no preconceived
notions, designing everything purely for the purpose of creating a new amplifier standard
for the HD audio era. We focused especially on the fact that not only analog and digital
signal transmission by coaxial or optical routes, but also transmission by the HDMI route
will be a priority in the future.

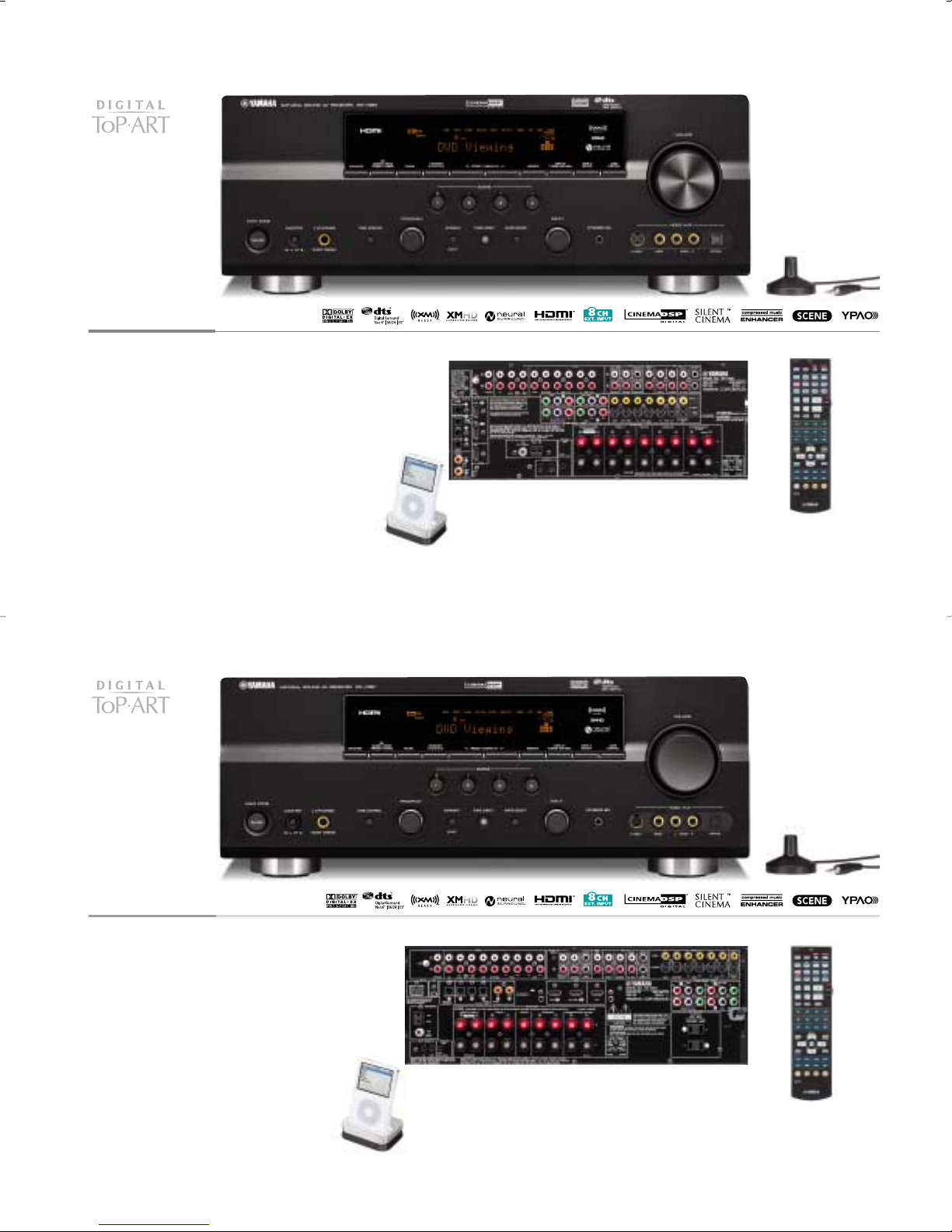

Digital Home Theater Receiver

RX-Z11BL

11.2-Channel Digital Home Theater Receiver

• Discrete 11-channel amplifier configuration
delivering a total of 1,180W (140W x 7 + 50W x 4)

• HD Audio format signals capability: Dolby Digital
Plus, Dolby Digital TrueHD, DTS-HD High
Resolution and DTS-HD Master Audio

• Latest HDMI 1.3a (5 in/2 out) with Deep Color
(30/36 bit), xvYCC color space, Refresh Rates of
120Hz and 1080p/24Hz and Auto Lip-Sync
compensation

• Analog and HDMI Video Upscaling to Full HD
1080p and downscaling to 480p

• Support for digital connection to Blu-ray Disc and
HD DVD players

• Network Receiver functions

• New CINEMA DSP HD

• THX Ultra2 Plus with 7 THX programs

• New Pure Direct for lossless audio formats also

• iPod compatibility via optional Yamaha YDS-10SL

• USB flash drive/music player (MP3/WMA/WAV)

compatibility

3

with 33 DSP programs

• XM ready with XM HD
Surround powered by
Neural-THX Surround
decoder

• HD Radio™ digital
broadcast reception

• Advanced YPAO Auto
Setup including Multiple Points measurement and
Specialized Parametric Equalizer for standing wave
reduction

• GUI on-screen display (6 languages: English,
Spanish, French, German, Russian and Japanese)

• Improved Compressed Music Enhancer with
Straight Enhancer mode

• 10 System Memories for Main Zone and 4 System
Memories for each Zone

• Versatile Zone Control (Zone 2/3/4) with
Preamplifier mode, Party mode, Zone Mono, etc.

Oil-Damped Hidden Control Panel

Optional YDS-10SL
Universal Dock for iPod

• Dimension (W x H x D):
3-1/8" x 1-5/16" x 2-3/4"
iPod not included.

Direct-access (macro-command,
learning and preset capable)
remote unit with shock sensor
illuminated buttons (right) and
simplified remote unit (left)

15

RX-V3800BL

7.1-Channel Digital Home Theater Receiver

16

Digital Home Theater Receivers

Oil-Damped Hidden Control Panel

Direct-access (macro-command,
learning and preset capable)
remote unit with illuminated
buttons (right) and dedicated zone
remote unit (left)

Direct-access (macro-command,
learning and preset capable) remote
unit with luminescent buttons,
and dedicated zone remote unit

• 7-channel 980W powerful surround
sound (140W x 7)

• HD Audio format signals capability:
Dolby Digital Plus, Dolby Digital
TrueHD, DTS-HD High Resolution and
DTS-HD Master Audio

• Latest HDMI 1.3a (4 in/1 out) with
Deep Color (30/36 bit), Refresh Rates
of 120Hz and 1080p/24Hz and Auto
Lip-Sync compensation

• Analog Video Upscaling to Full HD
1080p

• Support for digital connection to
Blu-ray Disc and HD DVD players

• Network Receiver functions

• New CINEMA DSP 3D with 22 DSP
programs

• Pure Direct for higher fidelity sound
reproduction

• iPod compatibility via optional
Yamaha YDS-10SL

• USB flash drive/music player
(MP3/WMA/WAV) compatibility

• XM ready with XM HD Surround
powered by Neural-THX Surround
decoder

• YPAO Short-Cut Setup

• GUI on-screen display (6 languages:
English, Spanish, French, German,
Russian and Japanese)

• Improved Compressed Music Enhancer
with Straight Enhancer mode

• System Memory buttons on remote unit

• Superior multi-zone control with Zone
2 Video Out

• 7-channel 910W powerful surround
sound (130W x 7)

• HD Audio format signals capability:
Dolby Digital Plus, Dolby Digital
TrueHD, DTS-HD High Resolution and
DTS-HD Master Audio

• Latest HDMI 1.3a (4 in/1 out) with
Deep Color (30/36 bit), Refresh Rates
of 120Hz and 1080p/24Hz and Auto
Lip-Sync compensation

• Analog Video Upscaling to Full HD
1080p

• Support for digital connection to
Blu-ray Disc and HD DVD players

• Fine-Tuned CINEMA DSP with 22 DSP
programs

• Pure Direct for higher fidelity sound
reproduction

• iPod compatibility via optional Yamaha
YDS-10SL

• XM ready with XM HD Surround
powered by Neural-THX Surround
decoder

• YPAO Short-Cut Setup

• On-screen display

• Improved Compressed Music Enhancer
with Straight Enhancer mode

• System Memory buttons on remote unit

• Superior multi-zone control with
Zone 2/Zone 3

Optional YDS-10SL Universal Dock for iPod

• Dimension (W x H x D): 3-1/8" x 1-5/16" x 2-3/4"
iPod not included.

Optional YDS-10SL Universal Dock for iPod

• iPod not included.

Oil-Damped Hidden Control Panel

RX-V1800BL

7.1-Channel Digital Home Theater Receiver

RX-V861BL

7.1-Channel Digital Home Theater Receiver

• 7-channel 735W powerful surround
sound (105W x 7)

• 1080p-compatible HDMI (2 in/1 out)

• Full analog video upconversion to

HDMI with TBC

• Deinterlacing and upscaling through
HDMI output (480i to 1080i/720p)

• 4 SCENE buttons make operation
much easier

• Quad-Field CINEMA DSP with 17
DSP programs

• Digital ToP-ART with the finest parts
used throughout

• Pure Direct for higher fidelity sound
reproduction

• iPod compatibility via optional
Yamaha YDS-10SL

• Improved YPAO sound optimization

• XM Ready with XM HD Surround

• On-screen display

• Assignable

amplifiers for bi­amp connection

• Superior multi-zone
control
compatibility

Optional YDS-10SL
Universal Dock for iPod

• iPod not included.

Luminescent preset remote unit
with illuminated input indicators

RX-V661BL

7.1-Channel Digital Home Theater Receiver

• 7-channel 630W powerful
surround sound (90W x 7)

• 1080p-compatible HDMI
(2 in/1 out)

• 4 SCENE buttons make
operation much easier

• Quad-Field CINEMA DSP with
17 DSP programs

• Digital ToP-ART with the finest
parts used throughout

• Pure Direct for higher fidelity
sound reproduction

• iPod compatibility via optional
Yamaha YDS-10SL

• Improved YPAO sound

optimization

• XM Ready with XM HD
Surround

• Full analog video upconversion

• On-screen display

• Compressed Music Enhancer

• Assignable amplifiers for

bi-amp connection

• Superior multi­zone control
compatibility

Optional YDS-10SL
Universal Dock for iPod

• iPod not included.

Luminescent preset remote unit
with illuminated input indicators

17

18

Luminescent preset remote unit
with illuminated input indicators

• 7-channel 700W powerful surround sound (100W x 7)

• Quad-Field CINEMA DSP with 14 DSP programs

• Digital ToP-ART with the finest parts used throughout

• Pure Direct for higher fidelity sound reproduction

• iPod compatibility via optional Yamaha YDS-10SL

• XM ready with XM HD Surround

• On-screen display

• Compressed Music Enhancer

• Component video upconversion

• 3 HDTV compatible component video inputs

• Superior multi-zone control compatibility

• Luminescent preset remote unit with illuminated input indicators

RX-N600BL

6.1-Channel Digital Home Theater Receiver

RX-V659BL

7.1-Channel Digital Home Theater Receiver

Digital Home Theater Receivers

Optional YDS-10SL
Universal Dock for iPod

• iPod not included.

RX-N600BL

Luminescent preset remote unit
with illuminated input indicators

• 6-channel 570W powerful surround sound (95W x 6)

• Network Receiver functions (Internet Radio, PC music files, USB
portable audio players and flash drives, MusicCAST)

• Quad-Field CINEMA DSP with 14 DSP programs

• Digital ToP-ART with the finest parts used throughout

• Direct Stereo for high quality 2-channel sound reproduction

• iPod compatibility via optional Yamaha YDS-10SL

• USB flash drive/music player (MP3/WMA/WAV) compatibility

• XM Ready with XM HD Surround

• On-screen display

• Compressed Music Enhancer

• Component video upconversion

• Superior multi-zone control compatibility

Optional YDS-10SL
Universal Dock for iPod

• Dimension (W x H x D):
3-1/8" x 1-5/16" x 2-3/4"
iPod not included.

Internet Radio

Yamaha
MusicCAST Server

PC Server

YDS-10SL

Universal Dock for iPod

YDS-CBL15

15' Replacement Cable

The optional YDS-10SL Universal Dock lets you connect your iPod to the receiver. You can listen to
your iPod music and watch iPod images and movies on your monitor via the receiver. You can also
operate your iPod via the receiver’s remote unit with the On-Screen Display and charge your iPod.

Works with: • iPod nano • iPod mini • iPod (Click Wheel) • Dimension (W x H x D): 3-1/8" x 1-5/16" x 2-3/4"

Optional Universal Dock for iPod

iPod not included.

19

Preset remote unit

• 5-channel 500W powerful surround sound
(100W x 5)

• 4 SCENE buttons make operation much easier

• 8 DSP programs

• XM Ready with XM HD Surround

• Compressed Music Enhancer

• Night Listening Enhancer (Cinema/Music) and
SILENT CINEMA

• Front panel mini jack input for portable player
connection

• Audio delay for adjusting lip-sync

• 192kHz/24-bit DACs for all channels

• 3 HDTV compatible component video inputs

Luminescent preset
remote unit with
illuminated input
indicators

• 5-channel 500W powerful surround
sound (100W x 5)

• 4 SCENE buttons make operation much
easier

• 8 DSP programs

• Direct Stereo for high quality 2-channel
sound reproduction

• iPod compatibility via optional Yamaha
YDS-10SL

• YPAO sound optimization

• XM Ready with XM HD Surround

• On-screen display

• Compressed Music Enhancer

• Front panel mini jack input for portable
player connection

• 3 HDTV compatible component video
inputs

RX-V461BL 5.1-Channel Digital Home Theater Receiver

RX-V361BL 5.1-Channel Digital Home Theater Receiver

Optional YDS-10SL
Universal Dock for iPod

• iPod not included.

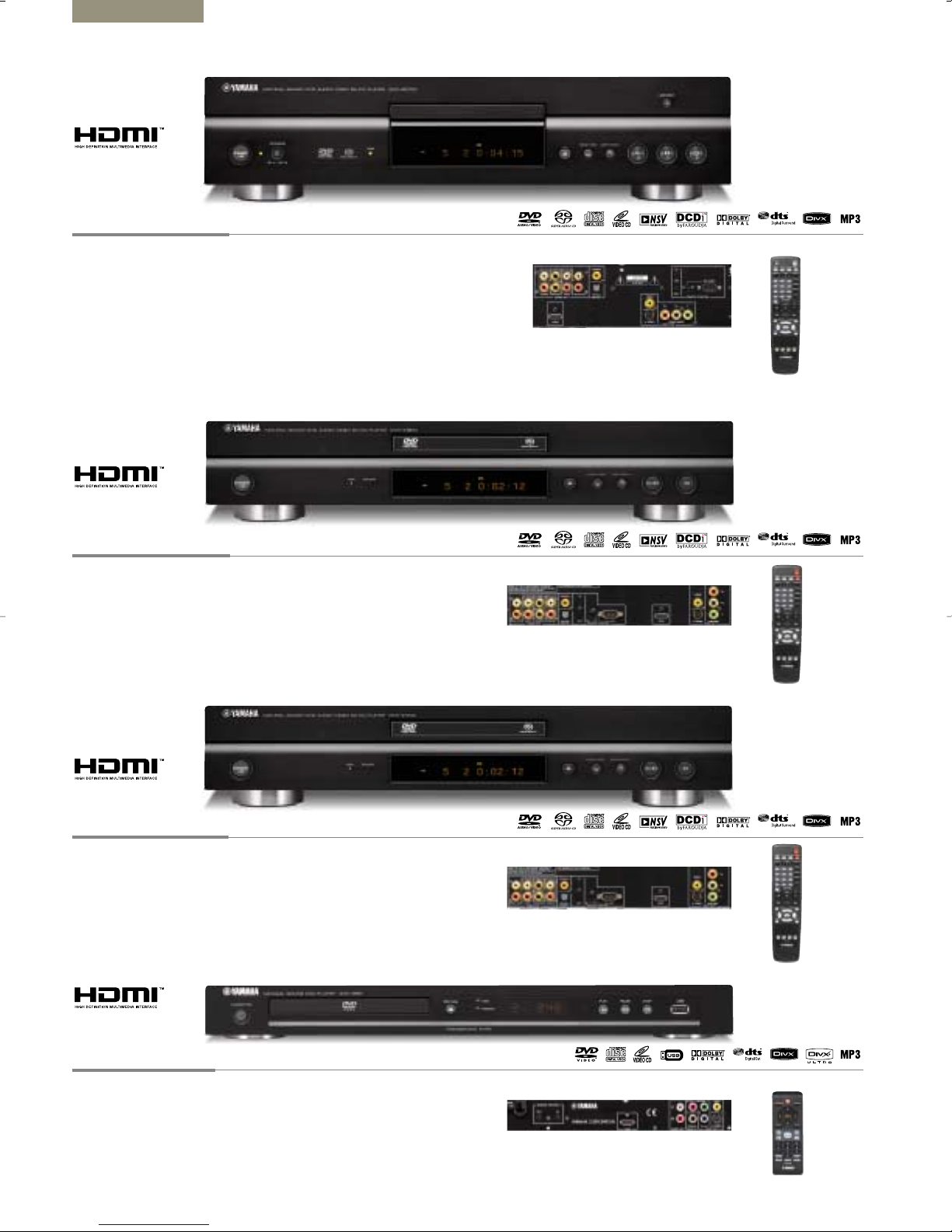

DVD Players / Changers

1080p

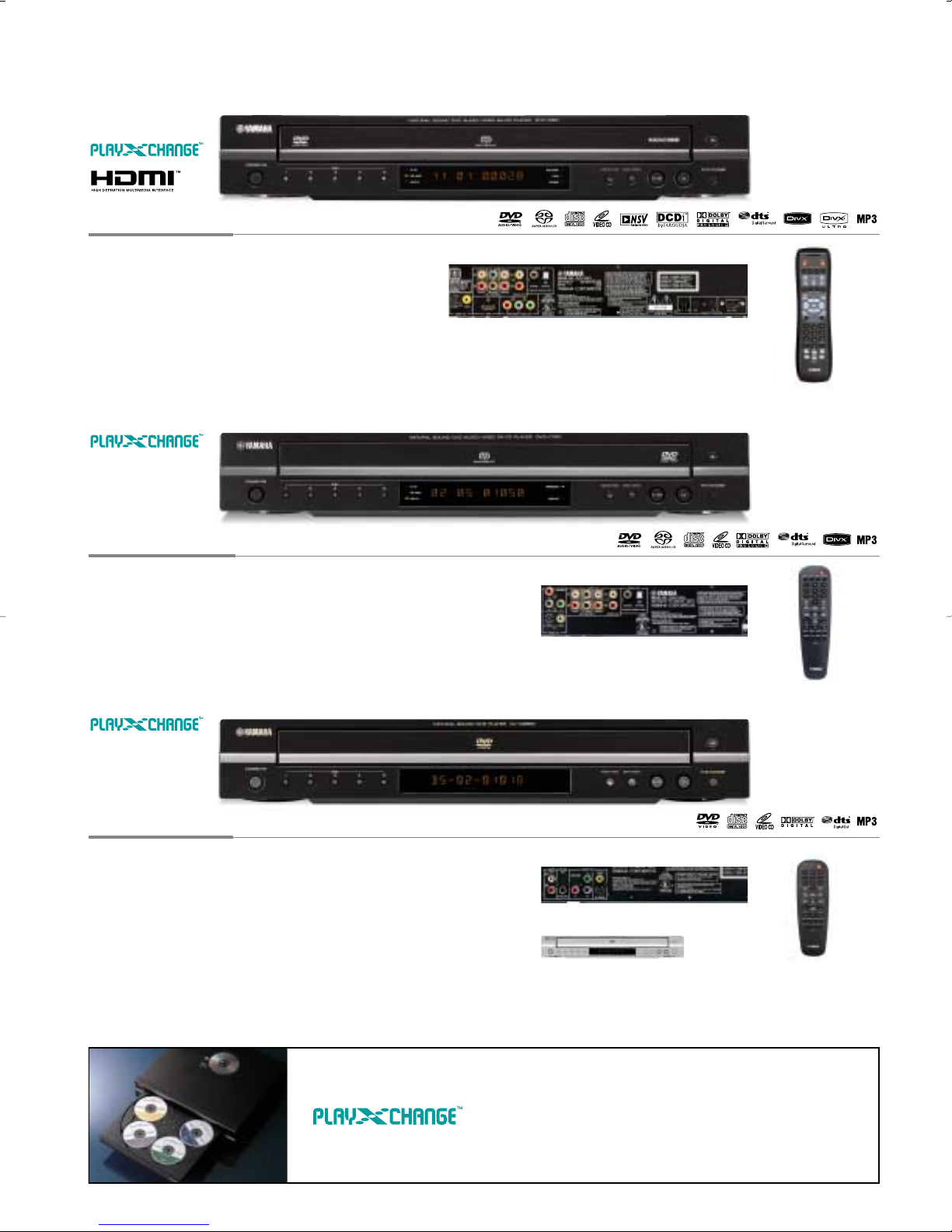

DVD-S2700BL

DVD-Audio/Video and Super Audio CD Player

• HDMI output including 1080p video out

• DVD-Audio and Super Audio CD playback

• High rigidity, high vibration damping mechanism

• Large transformer exclusively for audio section

• Top class 192kHz/24-bit audio DACs (2 channels x 4)

• Audio Direct mode

• Noise Shaped Video™

• Faroudja DCDi™ processing

1080p

• High performance 216MHz/12-bit video DAC

• Progressive Scan

• MP3, JPEG, DivX® and WMA playback

• RS-232C interface for a touch-panel
controller

• Wide screen mode selection

• On-screen display with GUI

• Gold-plated terminals for all pin jacks

• 3-step dimmer modes

• Picture CD playback

• Multiple repeat play

Luxurious
design with
illuminated
remote unit

DVD-S1800BL

DVD-Audio/Video and Super Audio CD Player

• HDMI output including 1080p video out

• DVD-Audio and Super Audio CD playback

• Burr-Brown 192kHz/24-bit audio DACs
(2 channels x 4)

• Audio Direct mode

• Noise Shaped Video™

1080p

DVD-S1700BL

DVD-Audio/Video and Super Audio CD Player

• HDMI output including 1080p video out

• DVD-Audio and Super Audio CD playback

• Audio Direct mode

• Noise Shaped Video™

• Faroudja DCDi™ processing

• Progressive Scan (NTSC/PAL)

• Faroudja DCDi™ processing

• Progressive Scan (NTSC/PAL)

• 216MHz/12-bit video DAC

• Numerous video picture modes

• MP3, JPEG, DivX® and WMA data disc on
CD/DVD playback

• 216MHz/12-bit video DAC

• 192kHz/24-bit audio DAC

• Numerous video picture modes

• MP3, JPEG, DivX® and WMA playback

• Bass Management

• RS-232C interface for a touch-panel controller

• Bass Management

• RS-232C interface for a touch-panel controller

• Wide screen mode selection

• Wide screen mode selection

DVD-S661BL

HDMI DVD Player

• HDMI interface

• USB port for direct playback of
MP3/WMA/DivX®/JPEG from USB devices

• High-Definition JPEG picture playback

• Progressive Scan (NTSC/PAL)

• Official DivX® Ultra Certified product

20

• Plays all versions of DivX® video (including
DivX® 6) with enhanced playback of DivX®
media files and the DivX® Media Format

• MP3/JPEG simultaneous playback for slide show

• MP3, JPEG, DivX® and WMA data disc on
CD/DVD playback

• Easy operation with GUI

• Two widescreen mode selection for HDMI

• Perfect match for Yamaha AV receivers

1080p

DVD-C961BL

DVD-Audio/Video and Super Audio CD 5-Disc Carousel Changer

• 1080p-compatible HDMI video output

• Super Audio CD PCM signal transmission via HDMI

• DVD-Audio/Video and Super Audio CD playback

• 216MHz/12-bit video DAC with Noise Shaped
Video™ and Faroudja DCDi™ progressive scanning

• 192kHz/24-bit audio DAC

• Audio Direct mode

DVD-C750BL

DVD-Audio/Video and Super Audio CD 5-Disc Carousel Changer

• DVD-Audio/Video and Super Audio CD playback

• Video Picture mode

• Progressive Scan (NTSC/PAL)

• CD upsampling

• Yamaha patented “PlayXchange”

• 108MHz/12-bit video DAC for high picture quality

• CD upsampling

• Yamaha patented
PlayXchange

• New design GUI
on-screen display

• Official DivX® Ultra Certified product

• RS-232C interface

• 192kHz/24-bit audio DAC for high sound quality

• Versatile format and disc compatibility

• On-screen display

• MP3, JPEG, DivX® and WMA playback with
navigation display

• Picture CD playback

• MP3, JPEG, DivX and WMA playback with
navigation display

• JPEG/MP3 simultaneous playback for slide show

• JPEG/MP3 simultaneous playback for slide show

• NTSC/PAL conversion

DV-C6860BL

5-Disc Carousel DVD Changer

• Progressive Scan (NTSC/PAL)

• Video Picture mode

• CD upsampling

• 108MHz/12-bit video DAC

• 192kHz/24-bit audio DAC

• Yamaha patented “PlayXchange”

• Versatile format and disc compatibility

• On-screen display with GUI

• MP3 and JPEG playback

• Picture CD (JPEG) playback

• JPEG/MP3 simultaneous playback for

• CD Text display

• 3-step dimmer

• Screen saver

• Resume (5-disc memory) play

slide show

Silver finish available. Model number: DV-C6860SL

Enjoy Uninterrupted Music

These changer are 5-disc carousel type, giving you the benefits of extended
playing time and direct selection from any of five discs. And with PlayXchange,
you can change up to four discs while the fifth continues to play. You don’t have
to interrupt the music to change a disc and you’re not limited to change only one
disc at a time. What’s more, when you press the open/close button, the tray
opens all the way, allowing you to change all discs at once.

21

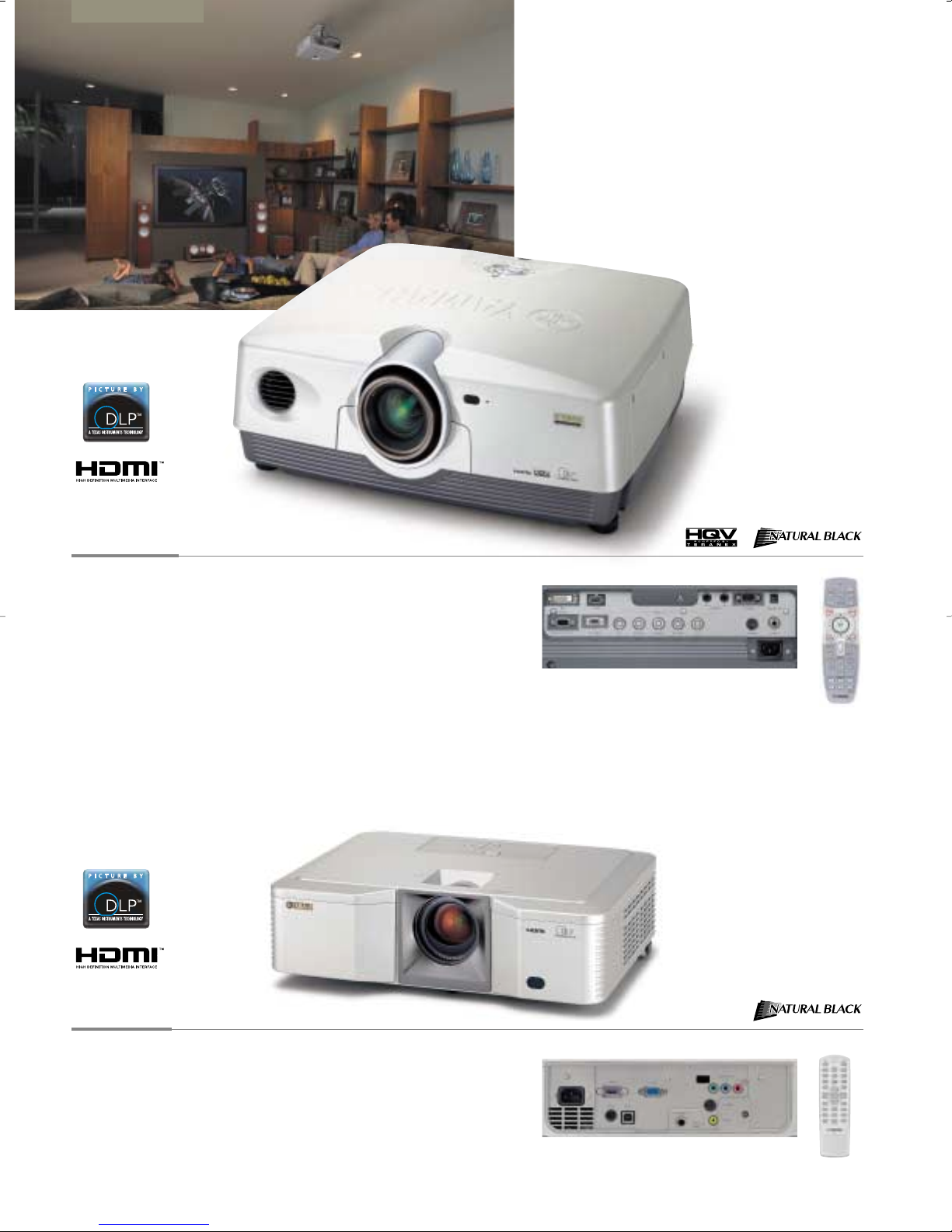

Digital Cinema Projectors

Movies have never looked better in the home than
they do on these extraordinary cinema projectors.
HDTV and other TV broadcasts will also look superb.
Take your choice for the finest in home theater
viewing, as well as superior control, convenience
and versatility.

DPX-1300

Digital Cinema Projector

• Yamaha Natural Black concept

• Full HD 10-bit processing

• HQV™ (Hollywood Quality Video) technology

• Yamaha exclusive overshoot suppressor

• 5,000:1 contrast ratio

• 720p DarkChip3™ DMD™ device

• High resolution lens (F=2.7 to 5.0)

• Natural color adjustment system

• 7-segment color wheel

• Motorized iris control for higher contrast

• Horizontal and vertical keystone correction

• Lamp power selector

• Versatile interfaces with HDMI and DVI

• 28dB quiet operation

• Motorized vertical lens shift ±50%

<Accessories>

• PJL-427: Optional lamp cartridge

• PMT-L31: Optional installation brackets for
low ceiling

• PMT-H35: Optional installation brackets for
high ceiling

DPX-830

Digital Cinema Projector

• Yamaha Natural Black

• 4,000:1 contrast ratio

• 0.65” WXGA (1,280 x 768 pixels) DLP™ device
and imaging driver

• Full 10-bit processing

• BrilliantColor™ technology

• Motorized iris control

• Image customization

• Low light leakage

22

• 26dB quiet operation

• Custom installation facilities

• HDMI compatibility
<Accessories>

• PMT-H75: Optional installation brackets for high

• PMT-L71: Optional installation brackets for low

• PJL-725: Optional lamp cartridge

ceiling (Lens center: 570–870mm)

ceiling (Lens center: 190mm)

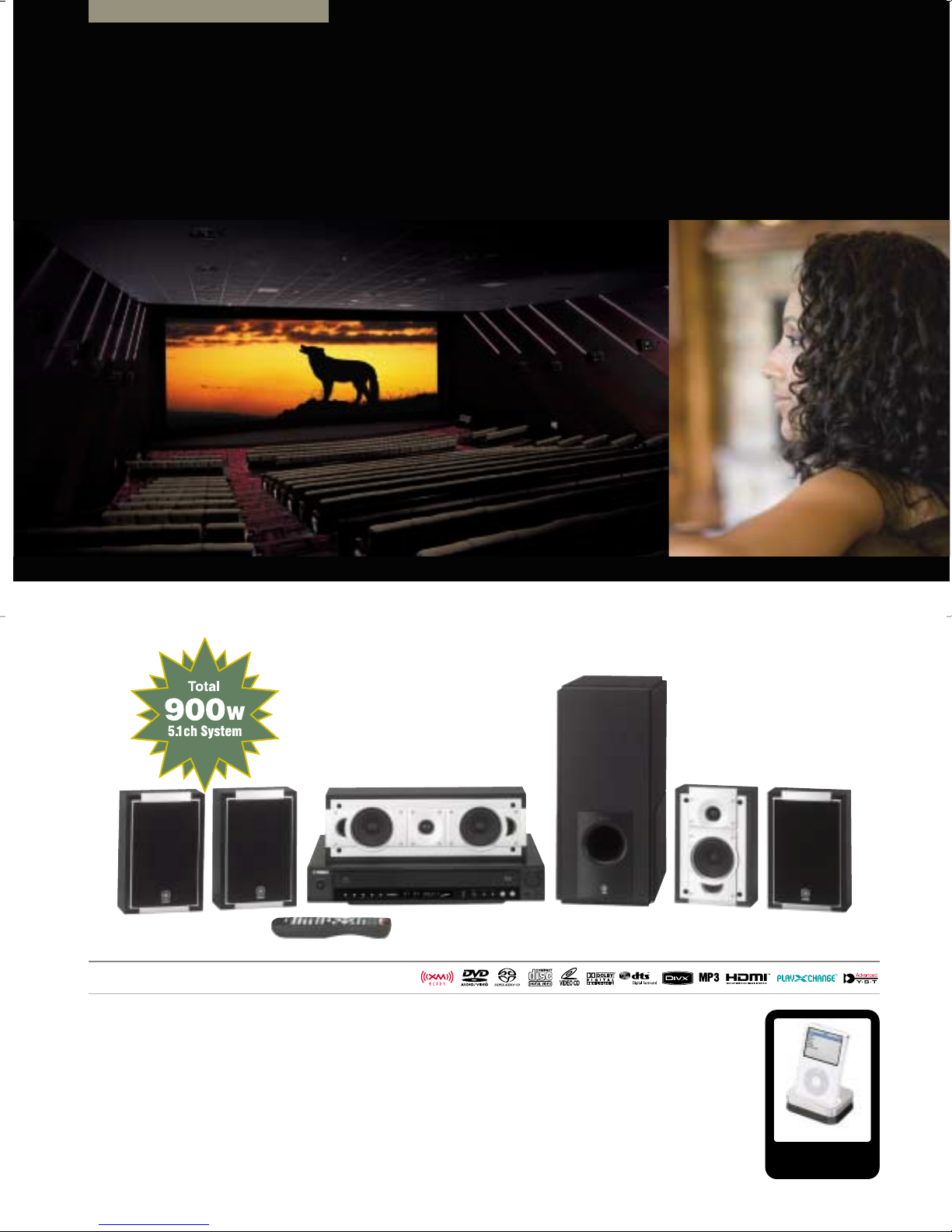

HTiB (Home Theater in a Box)

Everything you need for super sound in smartly styled component groupings.

If you love movies, you want a good quality home theater system. Yamaha understands your situation, and came up
with a terrific solution — the systems (HTiB) shown here. You get excellent performance, matched components, and
no hassle. Start watching the movies you love — right away.

DVX-C770BLDigital Home Theater 5.1-Channel Package

Total home theater system including
high quality 5-disc DVD changer and
powerful receiver featuring XM ready
plus iPod compatibility.

 iPod compatibility via optional

YDS-10SL

 HDMI output with 1080i/720p

upscaling

 XM Satellite Radio ready
 Total 900W surround sound
 Mini jack input for portable

audio devices

 DVD-Audio and Super Audio CD

playback

 On-screen display with English,

Spanish and French

 Flat design speakers to match with

flat panel TV/monitors

 Magnetically shielded speakers

(Front and center speakers)

 Removable grille cloth

iPod not included.

Optional YDS-10SL
Universal Dock for iPod

23

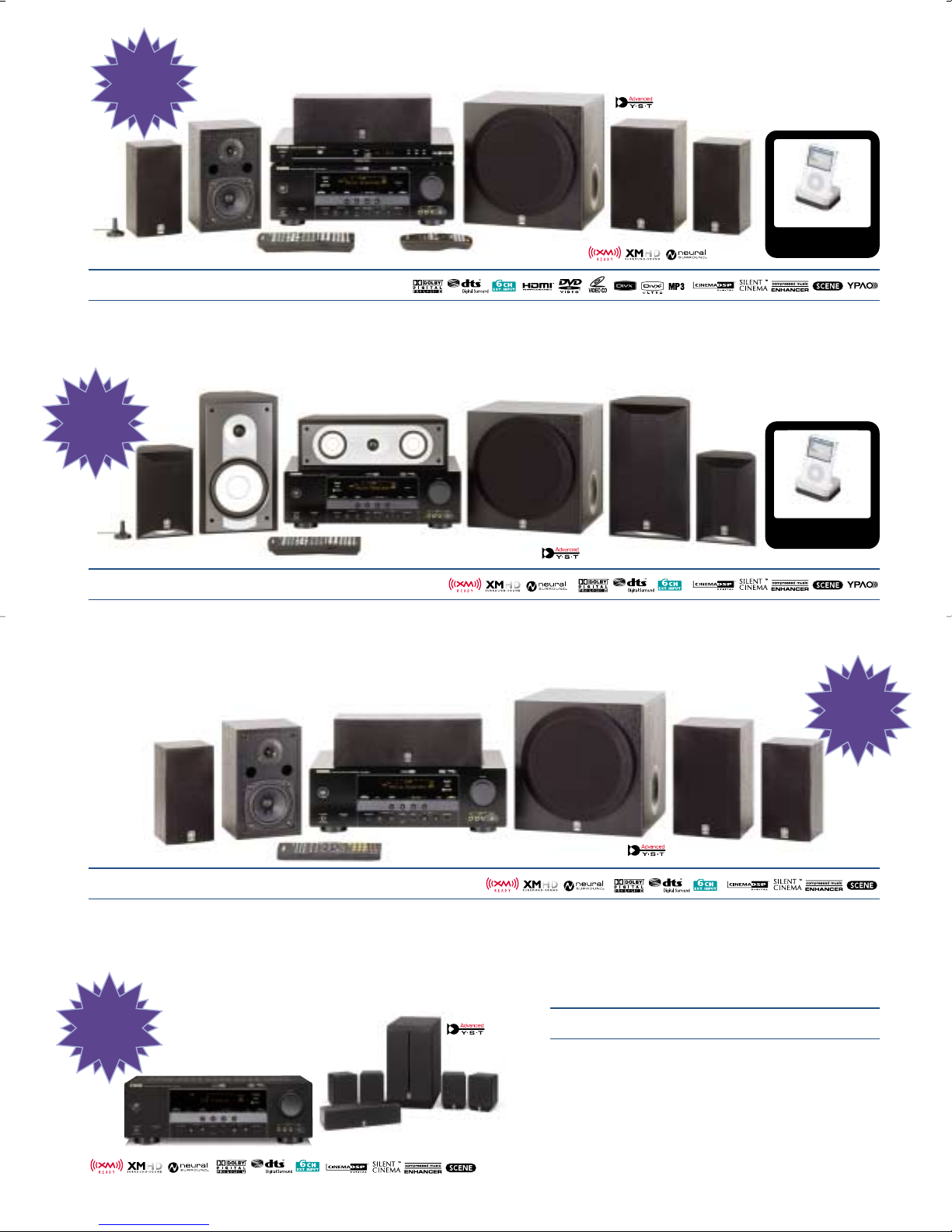

HTiB (Home Theater in a Box)

5.1ch System

Total

630

W

5.1ch System

Total

630

W

An all-in-one package of components designed to match in terms of both performance and appearance is highly appealing. Especially when they
sound and look as good as the packages on the following pages. From full-size to compact, these systems are styled for all types of rooms. And best
of all, whichever one you choose, you get fine Yamaha quality sound and a wide array of extremely useful features.

iPod not included.

Optional YDS-10SL
Universal Dock for iPod

• Dimension (W x H x D):
3-1/8" x 1-5/16" x 2-3/4"

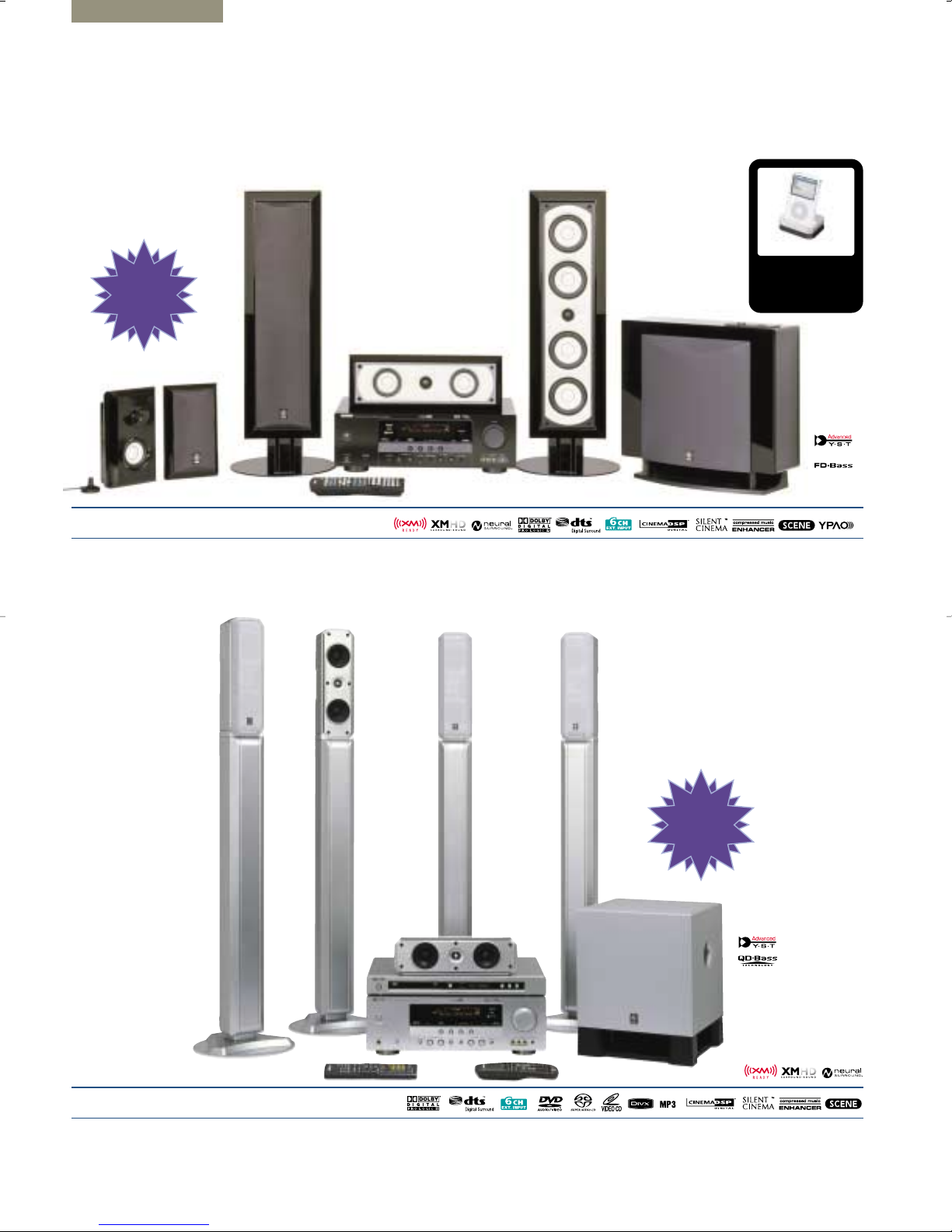

YHT-780BL Digital Home Theater 5.1-Channel Package

 4 SCENE buttons offering easier operation
 XM Ready with XM HD Surround
 iPod compatibility via optional Yamaha YDS-10SL
 iPod song titles displayed on front panel and OSD
 YPAO sound optimization

 On-screen display
 Front panel mini jack
 Elegant looking piano finish speaker systems
 High-grade aluminum front speaker stands
 Direct Stereo

 192kHz/24-bit DACs for all channels
 6-1/2” subwoofer with Advanced YST II and FD-Bass
 Subwoofer’s “Half Pipe” port
 8 DSP programs: 3 HiFi DSP and 5 CINEMA DSP
 Compressed Music Enhancer

YHT-685SL Digital Home Theater 5.1-Channel Package

 4 SCENE buttons offering easier operation
 XM Ready with XM HD Surround

 Front panel mini jack for portable player connection
 9 selectable subwoofer crossover frequencies /

24

Subwoofer phase select

 MP3, JPEG, DivX® and WMA playback (DVD player)
 DVD-Audio/Super Audio CD playback (DVD player)
 192kHz/24-bit DACs for all channels

 8 DSP programs: 3 HiFi DSP and 5 CINEMA DSP
 Compressed Music Enhancer
 Night Listening Enhancer and SILENT CINEMA
 Audio Delay

5.1ch System

Total

600

W

YHT-680BLDigital Home Theater 5.1-Channel Package

5.1ch System

Total

600

W

5.1ch System

Total

600

W

5.1ch System

Total

600

W

 4 SCENE buttons offering easier operation
 XM Ready with XM HD Surround
 iPod compatibility via optional Yamaha YDS-10SL
 iPod song titles display

 YPAO sound optimization
 Front panel mini jack
 MP3, JPEG, DivX® and WMA playback (DVD player)
 Direct Stereo

YHT-580BLDigital Home Theater 5.1-Channel Package

 4 SCENE buttons offering easier operation
 XM Ready with XM HD Surround
 iPod compatibility via optional Yamaha YDS-10SL
 iPod song titles displayed on front panel and OSD

 YPAO sound optimization
 On-screen display
 Front panel mini jack
 Direct Stereo

iPod not included.

Optional YDS-10SL
Universal Dock for iPod

 192kHz/24-bit DACs for all channels
 HDMI 1080i/720p upscaling DVD player
 8 DSP programs: 3 HiFi DSP and 5 CINEMA DSP
 Compressed Music Enhancer

iPod not included.

Optional YDS-10SL
Universal Dock for iPod

 192kHz/24-bit DACs for all channels
 8" 100W front firing active subwoofer
 8 DSP programs: 3 HiFi DSP and 5 CINEMA DSP
 Compressed Music Enhancer

YHT-380BLDigital Home Theater 5.1-Channel Package

 4 SCENE buttons offering easier operation
 XM Ready with XM HD Surround
 Front panel mini jack
 9 selectable subwoofer crossover frequencies /

Subwoofer phase select

 Initial Volume and Maximum Volume
 8" 100W active subwoofer
 192kHz/24-bit DACs for all channels

 8 DSP programs: 3 HiFi DSP and 5 CINEMA DSP
 Compressed Music Enhancer
 Night Listening Enhancer and SILENT CINEMA
 Audio Delay for adjusting lip-sync

YHT-280BLDigital Home Theater 5.1-Channel Package

 4 SCENE buttons
 XM Ready with XM HD

Surround

 Front panel mini jack
 Initial Volume and Maximum

Volume

 192kHz/24-bit DACs for all ch
 2-way speaker drivers for high

power input capacity

 6-1/2”100W Advanced YST

subwoofer

 8 DSP programs: 3 HiFi DSP

and 5 CINEMA DSP programs

 Compressed Music Enhancer
 Night Listening Enhancer and

SILENT CINEMA

25

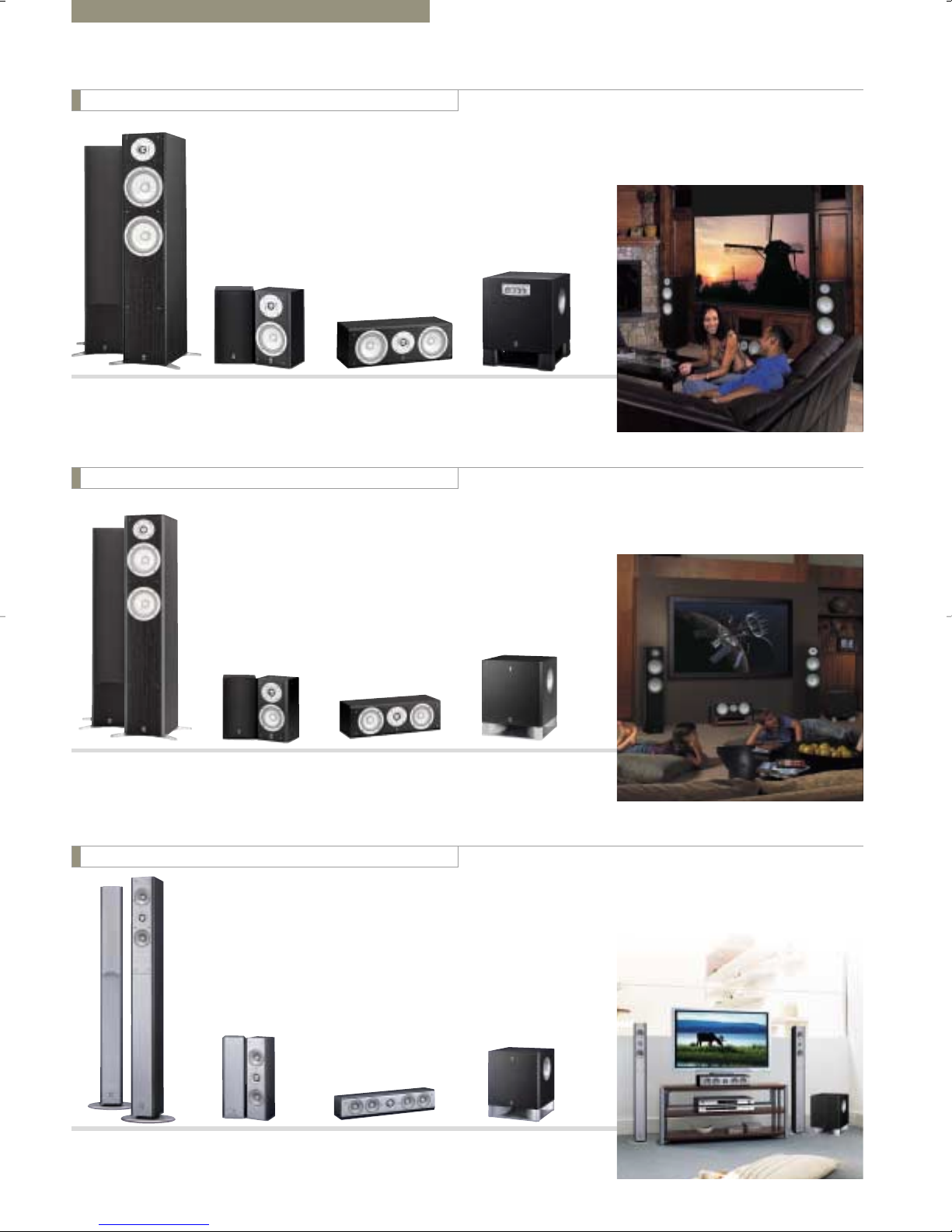

Digital Home Theater Speakers / Subwoofers

525 A-PMD Series

NS-525F

3-Way Bass-Reflex Tower
Speaker System

325 A-PMD Series

Digital Home Theater Speaker Systems

NS-M525

2-Way Bass-Reflex
Speaker System

Digital Home Theater Speaker Systems

NS-C525

2-Way Bass-Reflex
Center Speaker System

Designed for Natural Sound reproduction in the tradition of fine-quality
Yamaha speakers. Featuring Advanced PMD cones with aluminum diecast
baskets, DC-Diaphragm™ tweeters and innovative cabinet technology.

The YST-SW515 is designed to
acoustically match the speakers
in the 525 A-PMD Series.

YST-SW515

Advanced YST II and
QD-Bass Subwoofer

High performance home theater speakers designed for Natural Sound reproduction
with Advanced PMD cones, DC-Diaphragm™ tweeters, innovative cabinet
technologies and luxurious wood finish.

NS-325F

2-Way Bass-Reflex Tower
Speaker System

225 PMD Series

NS-M325

2-Way Acoustic
Suspension Speaker System

Digital Home Theater Speaker Systems

NS-C325

2-Way Acoustic Suspension
Center Speaker System

The YST-SW325 is designed to
acoustically match the speakers
in the 325 A-PMD Series.

YST-SW325

Advanced YST II and
QD-Bass Subwoofer

These slim, high-performance speaker systems are exactly what today’s home theater
enthusiasts are looking for. Their luxurious open pore finish is matched by powerful,
accurate sound reproduction from PMD cone woofers and aluminum-magnesium
dome tweeters with DC-Diaphram™ (integrated diaphragm and voice coil).

The YST-SW225 is designed to
acoustically match the speakers
in the 225 PMD Series.

NS-225F

2-Way Bass-Reflex
Speaker System

26

NS-M225

2-Way Acoustic
Suspension Speaker System

NS-C225

2-Way Acoustic Suspension
Center Speaker System

YST-SW225

Advanced YST II and
QD-Bass Subwoofer

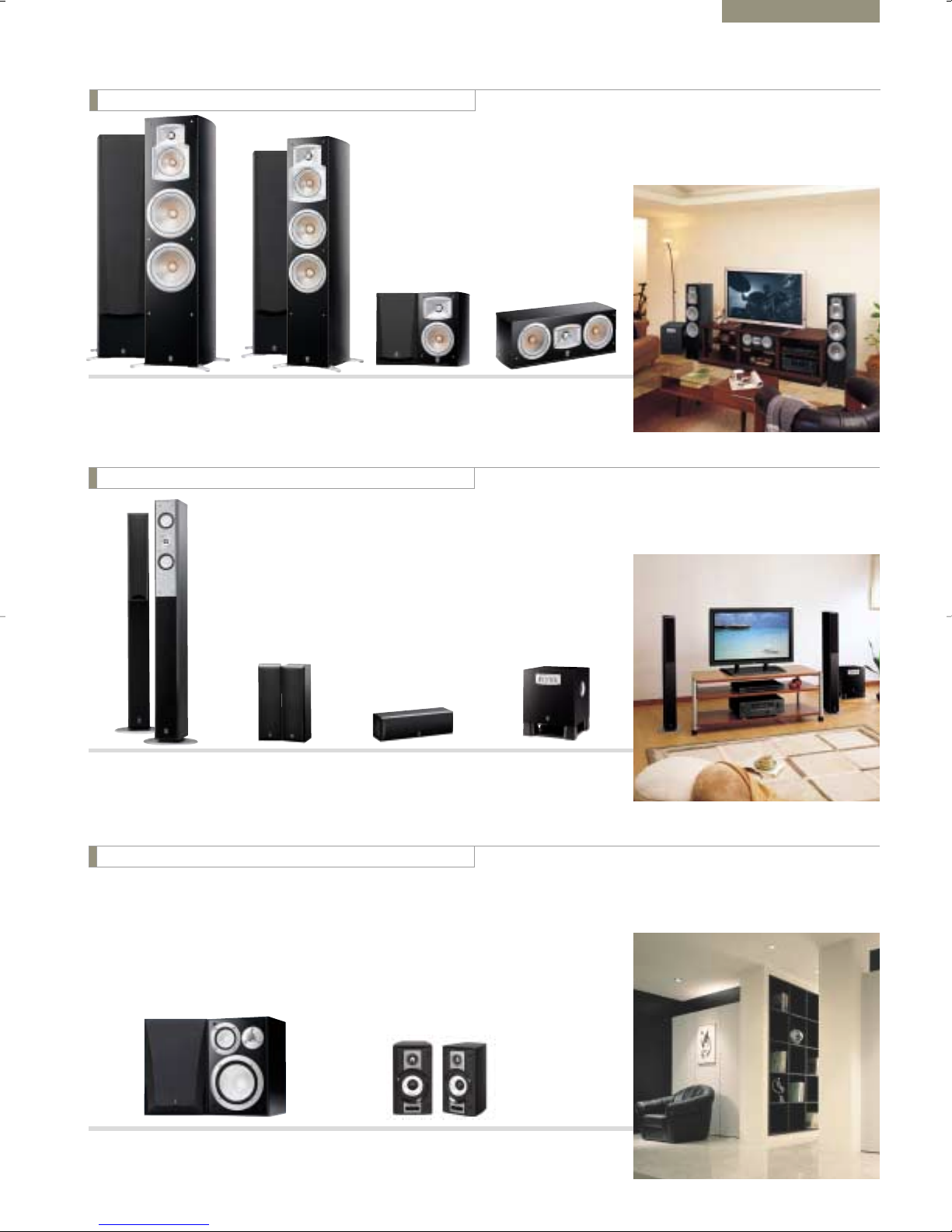

Digital Home Theater Speakers

EF Series

NS-777

3-Way, 4-Speaker Bass­Reflex Speaker System

Digital Home Theater Speaker Systems

Piano Finish 125 Series

NS-555

3-Way, 4-Speaker Bass­Reflex Speaker System

Digital Home Theater Speaker Systems

NS-333

2-Way Acoustic Suspension
Speaker System

The EF (Elliptical Form) Series feature Waveguide horns, PMD cone woofers and
highest quality internal Monster Cable wiring for total enjoyment of digital movie
sound and music sources, plus elegant Yamaha traditional piano finish cabinets.

NS-C444

2-Way Acoustic Suspension
Center Channel Speaker System

High performance speakers with slim design and high-gloss piano finish for true
home theater elegance.

NS-125FPN

2-Way Bass-Reflex
Speaker System

NS-M125PN

2-Way Bass-Reflex
Speaker System

Bookshelf Speaker Systems

NS-C125PN

2-Way Bass-Reflex
Center Speaker System

The YST-SW215PN is designed to
acoustically match the speakers
in the Piano Finish 125 Series.

YST-SW215PN

Advanced YST and
QD-Bass Subwoofer with
Piano Finish

To meet varied system requirements, Yamaha has developed a variety of speakers.
Your Yamaha dealer can recommend the ideal speakers to bring out the full
potential of your home theater system and stereo system.

NS-6490

3-Way Acoustic Suspension Speaker
System (High Gloss Piano Finish)

NS-AM380SBL

2-Way Bass Reflex Bookshelf Speaker

27

Digital Home Theater Speakers

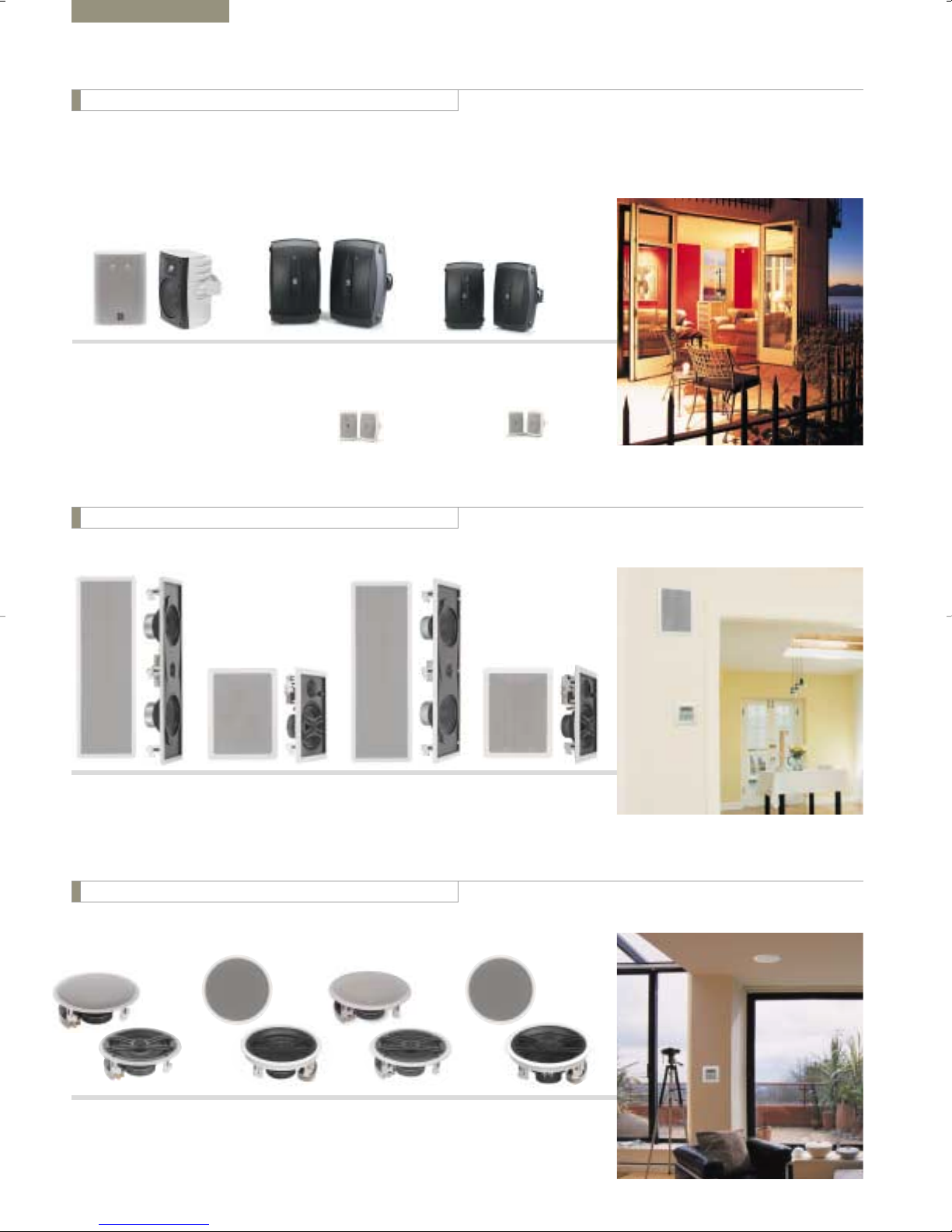

All-Weather Speakers

NS-AW570WH

All-Weather Speaker System
with 6-1/2” Woofer and Dual
Tweeter (Wall Mountable and
Paintable)

In-Wall Speaker Systems

NS-AW350

All-Weather Speaker System
(Black finish)
(White finish available.
Model number:
NS-AW350W)

The all-weather NS-AW570WH, NS-AW350 and NS-AW150 let you enjoy your music
outside. A powerful woofer and dual tweeters ensure a wide listening range. They
are easy to mount almost anywhere and the NS-AW570WHcan be painted using
aerosol paint to match your home’s exterior.

NS-AW150

All-Weather Speaker System
(Black finish)
(White finish available.
Model number:
NS-AW150W)

Easy-to-install, in-wall speaker systems deliver high quality Natural Sound to
enhance the home theater experience with an unobtrusive design.

NS-IW960

2-Way In-Wall Speaker System

NS-IW660

3-Way In-Wall Speaker System

In-Ceiling Speaker Systems

NS-IW560C

2-Way In-Ceiling
Speaker System

28

NS-IW480CWH

3-Way In-Ceiling
Speaker System

NS-IW760

2-Way In-Wall Speaker System

NS-IW360C

2-Way In-Ceiling
Speaker System

NS-IW470WH

3-Way In-Wall Speaker System

Yamaha in-ceiling speaker systems bring you superior sound quality
with easy installation.

NS-IW280CWH

3-Way In-Ceiling
Speaker System

Subwoofers

Speaker Packages

NS-SP7800PN

Home Theater 5.1-Channel Speaker Package

Subwoofers

Big Bass in Any Space

Piano Finish

Here’s a quick way to great home theater enjoyment — buy all your speakers in one package.
You get speakers that are perfectly matched for design and acoustics, at a very reasonable price!

NS-SP1600

Home Theater 5.1-Channel Speaker Package

A subwoofer will not only give you brawny bass power, it will improved the overall sound of your
system. Yamaha gives you a choice of models in three series, including two in the Slim Design Series
that will fit on a shelf or audio rack.

Advanced YST II and QD-Bass Subwoofers Piano Finish Subwoofers

YST-SW515

Advanced YST IIand QD-Bass
Subwoofer

Front Firing Subwoofers Slim Design Subwoofers

YST-SW325

Advanced YST II and QD-Bass
Subwoofer

YST-SW225

Advanced YST II and QD-Bass
Subwoofer

YST-SW315PN

Advanced YST and QD-Bass
Subwoofer

Piano Finish

Black finish
also available

YST-SW215PN

Advanced YST and QD-Bass
Subwoofer

YST-RSW300BL

Advanced YST II and
Front Firing Subwoofer

YST-SW216BL

Advanced YST II and
Front Firing Subwoofer

YST-FSW150BL

Advanced YST II and Down-Firing
Rack Mountable Subwoofer

YST-FSW100PN

Advanced YST II and
FD-Bass Subwoofer

YST-FSW100BL and
YST-FSW100SL also available.

YST-FSW050BL

Advanced YST II and Down-Firing
Rack Mountable Subwoofer

29

Desktop Audio

30

Yamaha Desktop Audio fits your mobile lifestyle.

Now that “mobile audio” is more than just a slogan and has become a way of life, Yamaha offers a number of
products that give you both easy mobility and enhanced sound quality. From a Desktop Audio for both Bluetooth®
and non-Bluetooth compatible devices, you can be sure of having great sounds accompany you all day long.

31

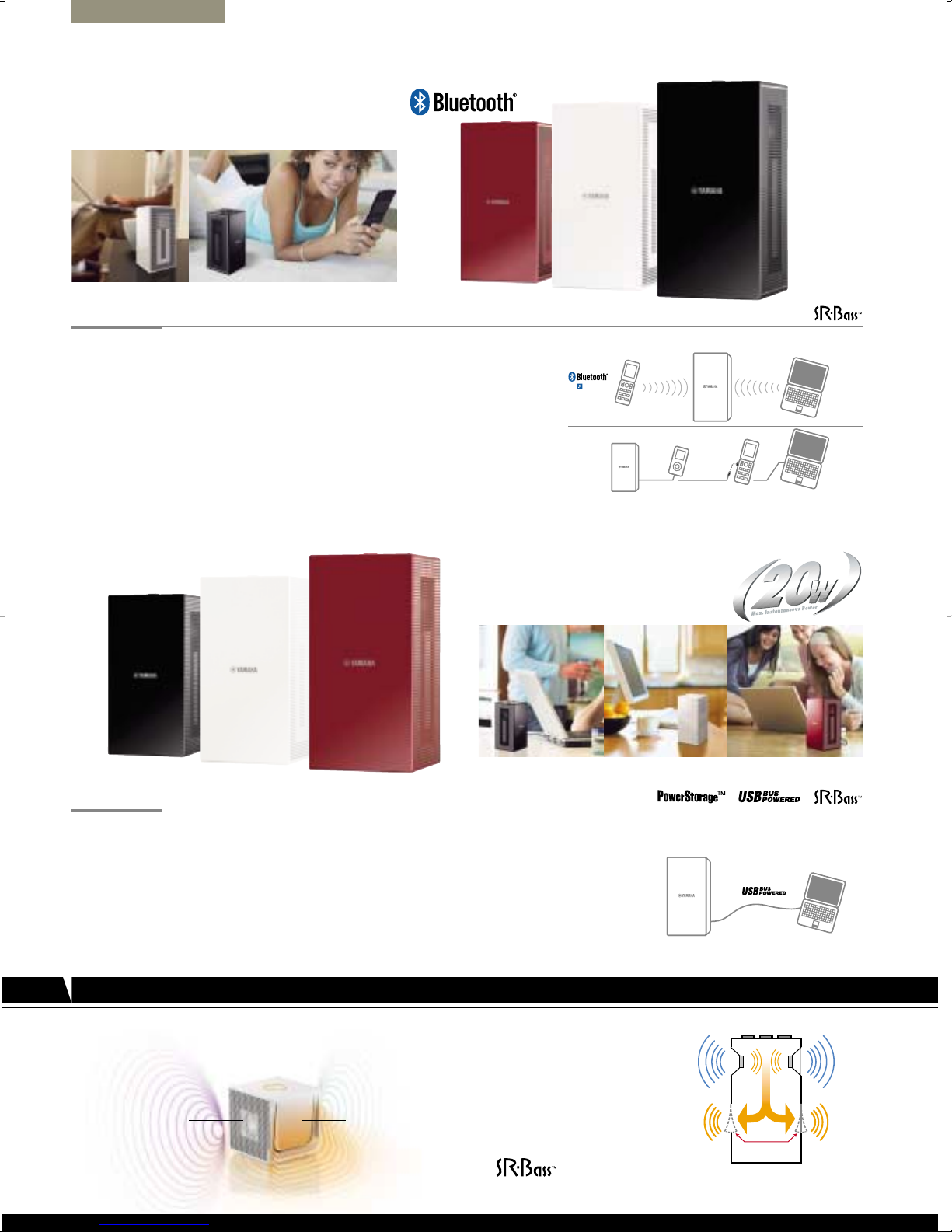

Desktop Audio

NX-B02

NX-B02

Runs on
AC Adaptor
or batteries

Runs on
AC Adaptor
or batteries

Cellphone

with Bluetooth

>

<Wired>

Music-Capable
Cellphone

PC

with Bluetooth

Portable
Player

PCPC

Stereo Mini Cable

NX-U02

USB Cable

(Accessory)

PC

LR

Great Sound from PCs, PDAs and Mobile
Phones via Wireless Bluetooth® Link

NX-B02 NX-B02BL (Black), NX-B02WH (White), NX-B02RE (Red)

Bluetooth® Wireless Stereo Speaker

The Convenience of Bluetooth Wireless Technology

The NX-B02 is a convenient way to enjoy enhanced
sound quality and power from a variety of music
sources. Built-in Bluetooth wireless technology
allows use with Bluetooth-compatible PCs, PDAs and
mobile phones up to a distance of 5 meters.

Connect Portable Audio Players

A 3.5mm stereo mini jack is provided, for
easy connection of non-Bluetooth portable
audio players (MP3 players). This greatly
expands listening possibilities and lets
people use their favorite audio player.

Red

White

<Wireless

Quick USB Connection to
a PC, Powerful Sound

Black

Music-Capable

Black

White

Red

NX-U02 NX-U02BL (Black), NX-U02WH (White), NX-U02RE (Red)

USB Powered Stereo Speaker

Changes the world of PC sound!

With the spread of on-line music and video services,
huge music collections can be created on PCs. While
this lets you easily enjoy audio and music from your
PC, the fact is that there are very few products
capable of enveloping you in your favorite music with
good quality sound. The NX-U02 changes that, making

Desktop Audio Technology

SR-Bass™ (Swing Radiator Bass™) technology

32

Titanium speaker unit

it convenient to play PC audio and music with powerful sound
simply by connecting a single USB cable.

Connection makes it easy to use

Power is supplied to the speaker from the PC through the USB
connection, so you do not need an AC adaptor or battery. You
can use it anywhere near your PC without troublesome wiring.

SR-Bass (Swing Radiator) Speaker

The SR-Bass design uses a "Swing
Radiator" diaphragm that moves by the
vibration of the main diaphragm and

SR-Bass driver

efficiently increase bass energy.
This produces larger sound pressure levels
for deeper and stronger bass sound.

Twin SR-Bass (Swing Radiator Bass™)
(NX-B02and NX-U02)

Peak Required Power
Unused Power

= Stored Power

Max. Instantaneous Power: 20W

Maximum Power
Supplied by USB (2.5W)

Music Level

time

PowerStorage™ Circuit Conventional USB Speaker

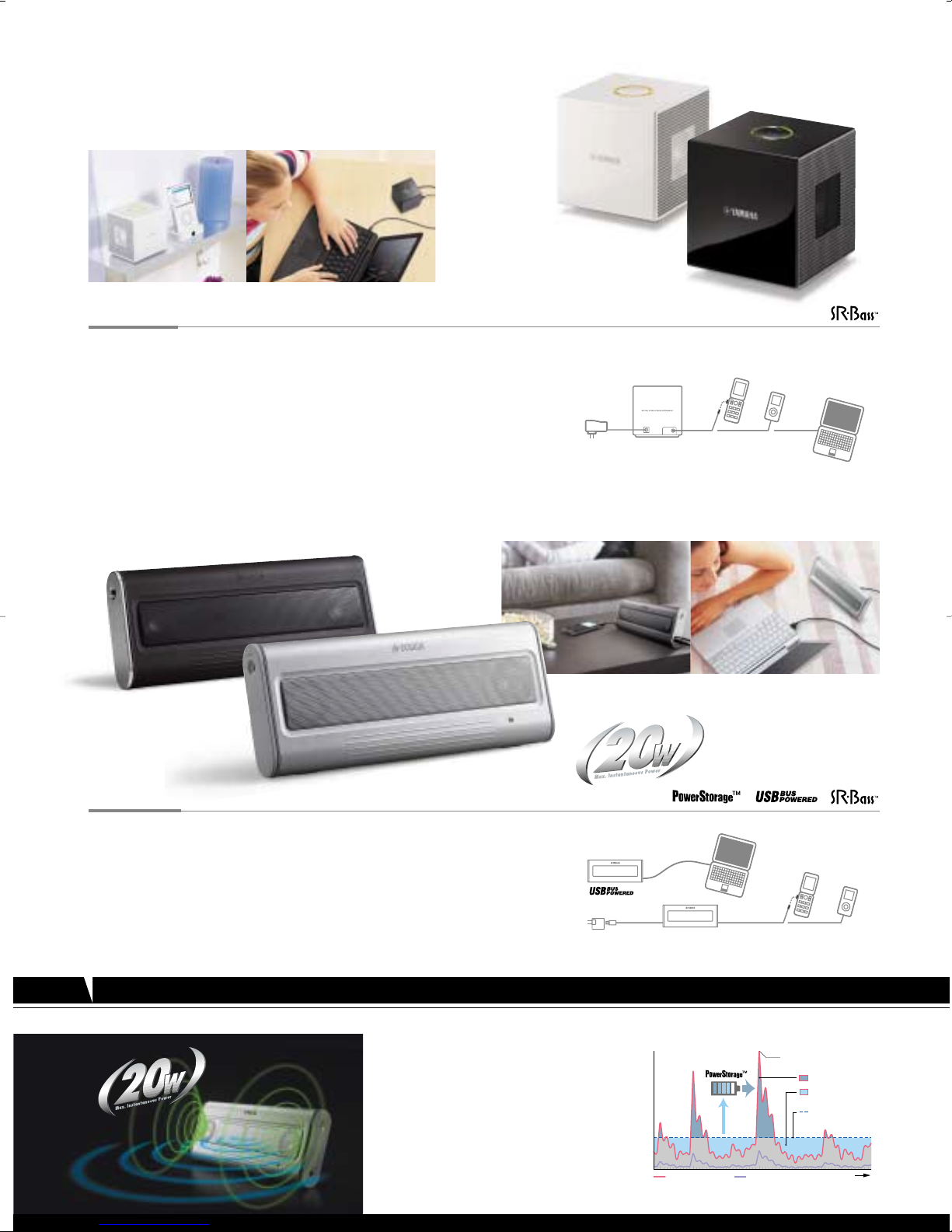

Improves Portable Audio Sound

NX-A01 NX-A01BL (Black), NX-A01WH (White)

One-Box Cubic Stereo Speaker

High Sound Quality the Yamaha Way

Yamaha’s new SR-Bass technology maximizes internal
energy to produce bass that is deeper and more
powerful than you would think possible from a
compact speaker. The NX-A01 also benefits from
Yamaha’s long tradition of excellence in speaker design.
The speaker unit is a 1-1/8” titanium cone capable of
skillfully reproducing the entire frequency range.

Greater Music Enjoyment from iPod
and Other Portable Devices

MP3 players are everywhere these
days, not only outside but in the home
too. The super-convenient NX-A01 lets
you take off the headphones and fill a
room with big, high quality, bass-rich
sound.

White

NX-A01

AC Adaptor

(Accessory)

Black

Music-Capable Cellphone

Stereo Mini Cable

(Accessory)

Portable Player

PC

Black

NX-U10 NX-U10SL (Silver), NX-U10BL (Black)

USB Powered Stereo Speaker

Quick, easy, flexible

Just connect the NX-U10 to your
computer via a USB cable. No power cord
is necessary. It also works from an AC
outlet or four AAA batteries. And it has a
stereo mini jack, so you can enjoy better
sound from your iPod, game console, etc.

Desktop Audio Technology

More power and more bass for much more music enjoyment

Instead of the 0.5W x 2 that other speakers can provide from
the 5V USB power, the NX-U10 outputs 20W (10W x 2) — 20
times as much! It also features SR-Bass for surprisingly deep,
rich bass. If you download songs, now you can start really
enjoying them — from up close or far away. The easy portability
and big sound make it great for business presentations, too.

Great Flexibility and Quick Connection

Silver

NX-U10

USB / AC Adaptor

(Accessory)

Yamaha’s Unique PowerStorage™ Circuit

If music varies in loudness or includes rests, its signal
level is not constant. The power used to play music is
an average of about 1/8 of the amount that is supplied.
The remaining 7/8 of the power is unused and wasted.
The PowerStorage Circuit stores this unused electric
power and supplies only enough to match the music
level. This high efficiency power storage circuit can
achieve 20W output even with the small quantity of
power supplied via USB.

USB Cable

(Accessory)

NX-U10

Also runs on batteries

PC

Music-Capable Cellphone

Stereo Mini Cable

(Accessory)

Portable Player

33

Natural Sound HiFi Components

Putting you in the same room as the musicians.

As a company involved in many facets of music creation and reproduction, Yamaha
has a serious commitment to making components that are truly “high fidelity.” This
year we have an especially impressive array of models: a new high-end stereo
amplifier and CD player, Soavo series speakers, PianoCraft and other HiFi components.
Hear the full potential of your music — Yamaha HiFi.

34

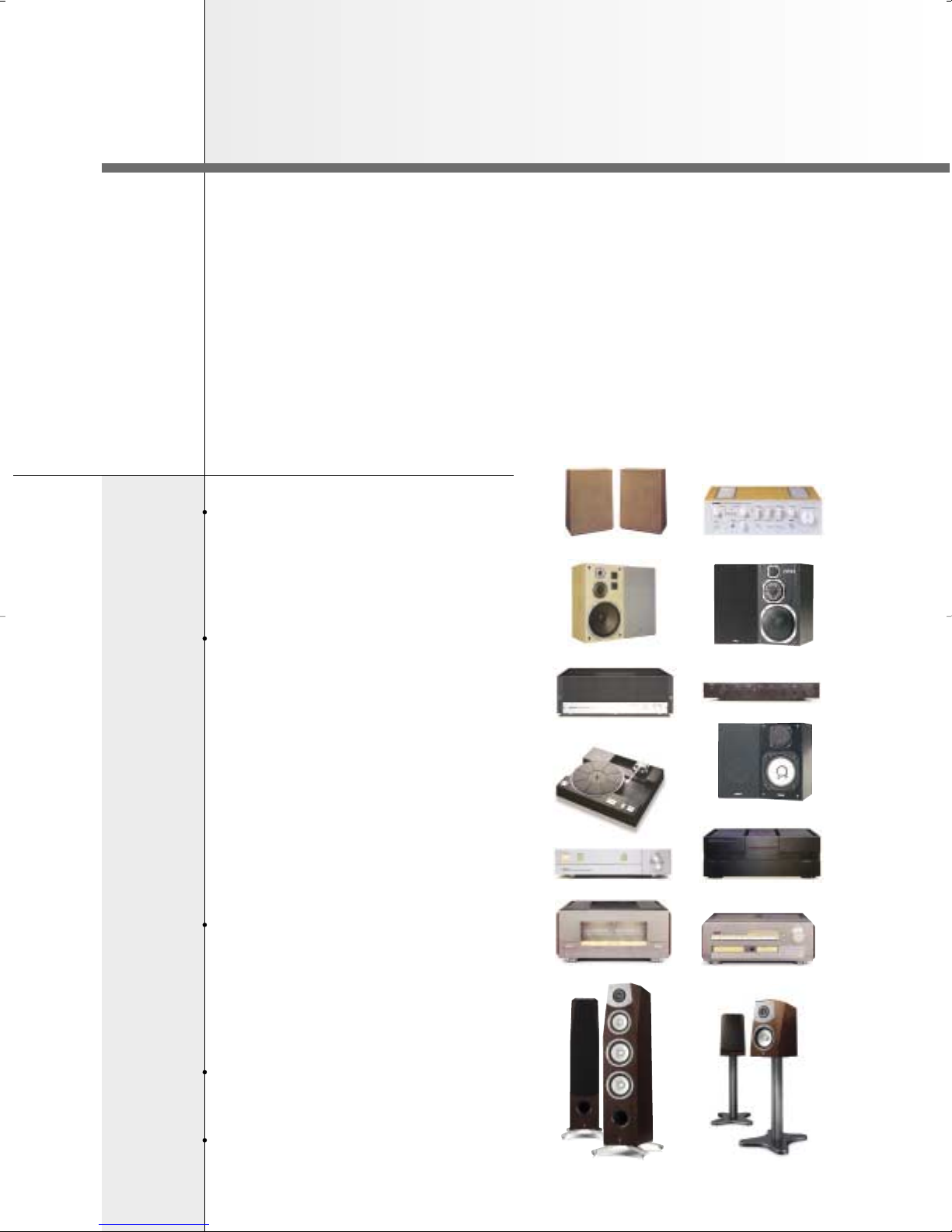

HiFi Began with Yamaha

Yamaha’s involvement with and passion for music goes back more than a century, to when we built our first
reed organ in 1887. Now we are the world’s leading producer of pianos and other musical instruments, and
are involved with music in many other ways as well. We manufacture professional recording equipment, we
design concert halls and we assist artists at concerts with set up and sound tuning.

This knowledge and experience benefits our production of audio components in many ways. We
introduced our first HiFi (High Fidelity) turntable in 1954, becoming the first company to actually use the
term “HiFi.” Thereafter we were one of the first to offer mass-produced, high quality audio equipment,
and introduced many legendary stereo components.

We hope you enjoy the genuine HiFi experience of Yamaha Natural Sound.

Excellence in Audio Achievement

1920-

1960s

1970s

1980s

First HiFi System introduced in 1920
We introduced numerous HiFi components

(turntables, FM/AM tuners, integrated amplifiers,
preamplifiers, power amplifiers and speakers) in
1955 ~ 1965.

Natural Sound Speaker Series introduced in 1967

NS-20 Monitor Speaker
CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set
the standard for integrated amplifiers.

NS-690 Monitor Speaker
NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi enthusiasts.

B-1 Power Amplifier

An innovative power amp that used FETs in all stages.

C-2 Control Amplifier

Received top prize at the Milan International Music and HiFi
Show

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors in the world.

A-1 Integrated Amplifier
PX-2 Turntable

Yamaha’s first straight arm turntable.

B-6 Power Amplifier

Pyramid-shaped power amplifier.

GT-2000/L Turntable
First CD Player (CD-1) introduced in 1983

B-2x Power Amplifier
MX-10000 Power Amplifier andCX-10000

Control Amplifier

Redefined the capabilities of separate components.

NS-20

NS-690

B-1

PX-2

A-1

MX-10000

CA-1000

NS-1000M

C-2

NS-10M

B-2x

CX-10000

1990s

2000s

AX-1 Integrated Amplifier
GT-CD1 CD Player
MX-1 Power Amplifier and CX-1 Preamplifier

Soavo-1 and Soavo-2 Natural Sound Speaker

Systems

Soavo-1 Soavo-2

35

Natural Sound HiFi Components

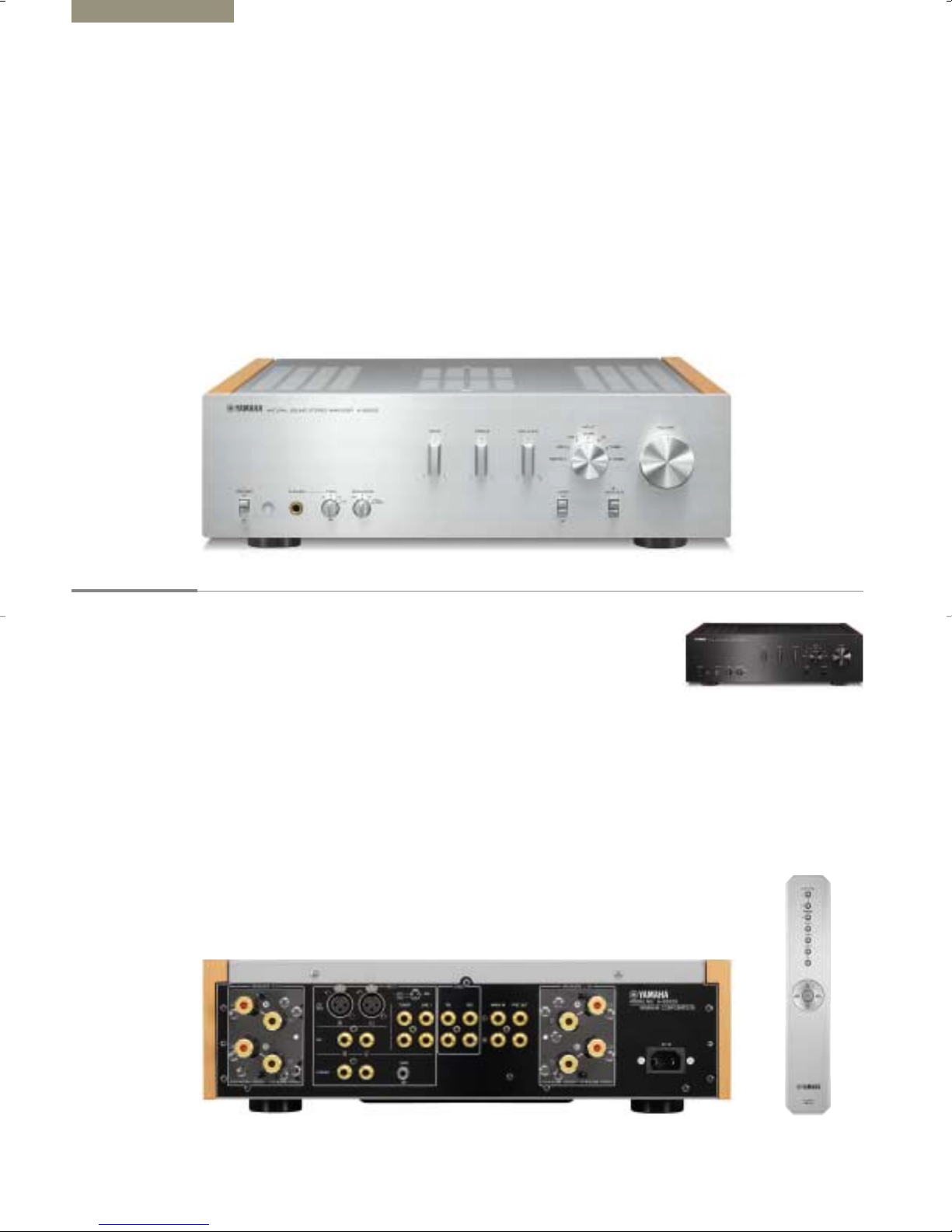

Yamaha Introduces a New, Superior Approach to Analog Amplifier Design.

A-S2000SL

Natural Sound Stereo Amplifier

More than forty years have passed since
the introduction and widespread
adoption of full transistor HiFi audio
amps during the 1960s. In the 1970s,
high performance, high output PNP­NPN transistors made possible the pure
complementary configured power amps
that are now the main type of high
quality audio amps.

In recent years, however, digital
amps have become popular for their
high conversion efficiency and superior
uniformity of operating precision, as
well as for their lower weight, size and
heat production as compared to analog
amps. Which leads to the question,
which direction will audiophile-level
amps take in the future? Generally, two

possibilities are considered: continuing
to improve the traditional pure
complementary configuration analog
amps or working to achieve higher
sound quality from digital amps.

But Yamaha has selected a third
approach. This is an entirely new
floating and balanced power amp that,
by using power transistors with the
same polarity that are not
complementary, achieves complete
symmetry of pullable operation at the
output stage and permits full balanced
transmission (amplification) from the
input jack to just before the speaker
jack — a capability that has long been
the dream of audiophiles.

• Full-Stage Balanced Signal
Transmission

• Floating Balanced Power Amp

• Fully Balanced Control Amp

• Parallel Volume and Tone Controls

• Four Large Capacity Power Supplies

for Power Amp

• Shunt Type Local Regulators for
Preamplifier

• Symmetrical Construction

• Specially Designed Feet

• Headphone Amp for Low

Impedance Drive

• Discrete Phono Amp

Black finish available. Model number: A-S2000BL

36

Remote unit

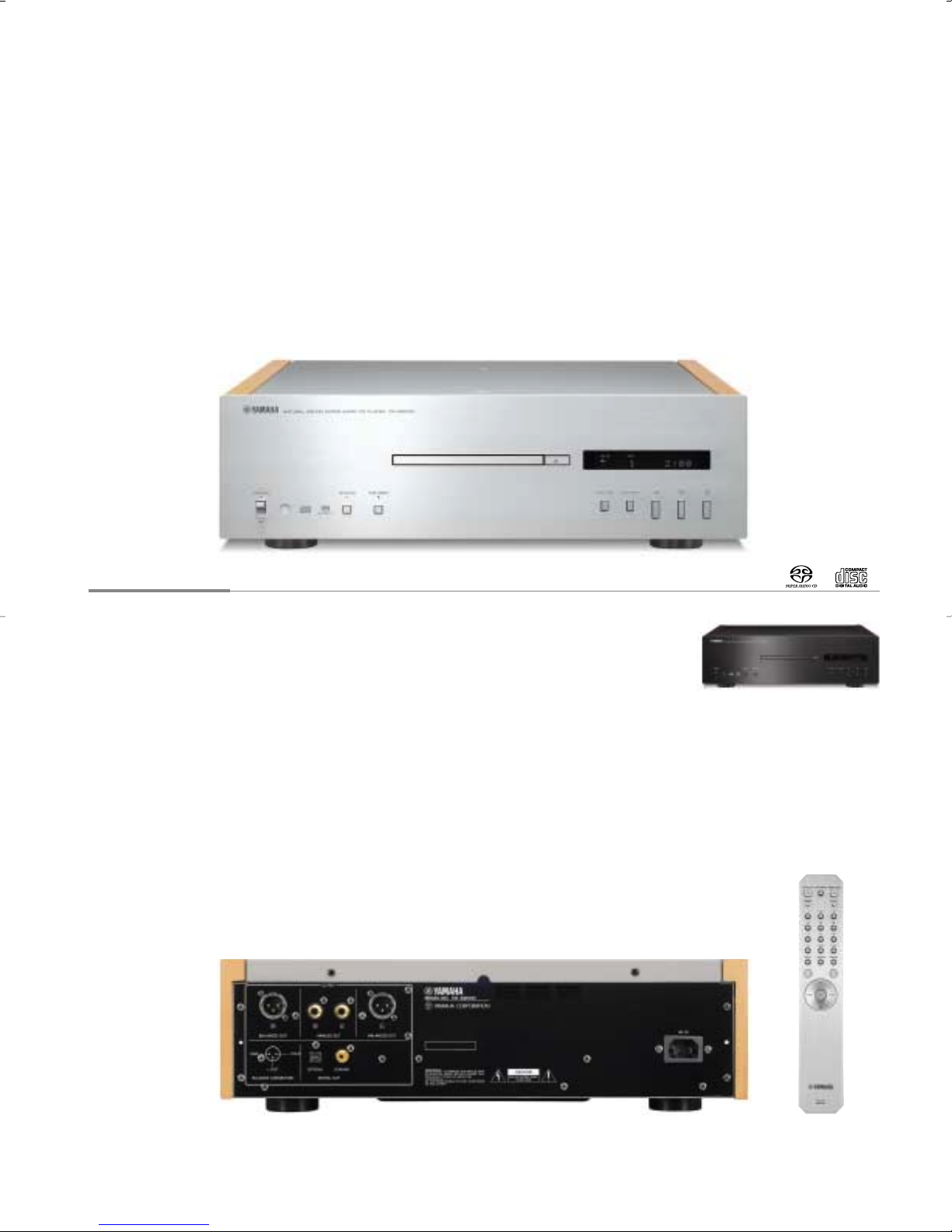

Yamaha Creates an Ultra High Quality CD Player for True Music Enthusiasts.

CD-S2000SL

Natural Sound Super Audio CD Player

In the quarter century since the CD
medium appeared, it has become
widely popular for its combination
of excellent quality and
convenience. CDs can now be
played on DVD players as well, but
for the highest reproduction quality,
a dedicated CD player should be
used. Yamaha recognised the need
for a CD player that would allow
audiophiles to enjoy their music
exactly as it was recorded, with
absolutely nothing added or lost.

In order to realize ideally

balanced signal transmission when

this player is connected to the
A-S2000 integrated amp, the
D/A converter uses a differential
motion mode to achieve
balanced transmission of all
stages after it. Music fans can
realize the audiophiles’ dream of
fully balanced signal
transmission from DAC output
to just before the speaker jack
by pairing this machine with the
A-S2000.

• Full-Stage Balanced Signal

Transmission achieves the
ultimate in CD reproduction

• Full-Stage Balanced Signal

Transmission beginning with
the DAC

• Silent Loader and High

Precision CD Drive

• Independent Power Supplies

with Digital and Analog
Completely

• Pure Direct

• Symmetrical Construction

• Specially Designed Feet

Black finish available. Model number: CD-S2000BL

Remote unit

37

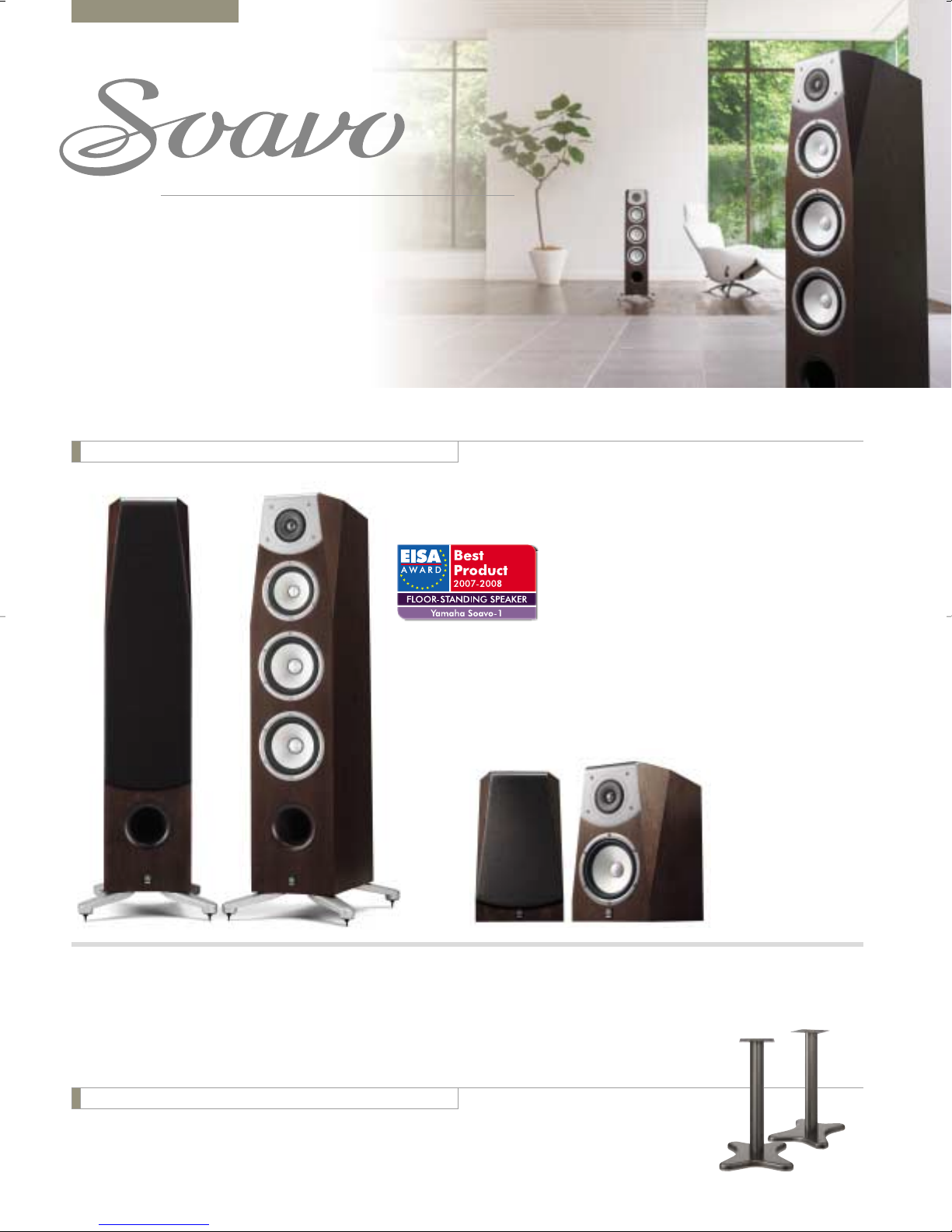

Soavo

Natural Sound Speaker Systems

The natural sound of Soavo. Music as it should be heard.

At Yamaha, we love, understand and respect music. We’re sure that you love music, too,
and that when you listen to it, you want it to sound as natural as possible. We believe
that “natural sound” is the original sound of music instruments, and of the human voice,
so they should be reproduced with nothing added or taken away. Giving you this
beautiful music experience is the reason we created the Soavo series. Listen to Soavo,
and discover how truly natural music from a speaker can be.

Soavo Series

Natural Sound Speaker Systems

The Soavo-1 has been honored with an
EISA Award for Floor-Standing Speaker
Best Product 2007-2008.
The prestigious EISA Awards are
chosen by media representatives from
18 European countries.

Soavo-1

3-Way Bass-Reflex Floor-Standing Speaker System

Soavo-1DB (Dark brown birch)
Soavo-1BR (Brown birch)
Soavo-1BH (Natural birch)
Soavo-1BL (Black birch)

SPS-900

38

Optional Speaker Stands for Soavo-2

Soavo-2

2-Way Bass-Reflex Bookshelf Speaker System

Soavo-2DB (Dark brown birch)
Soavo-2BR (Brown birch)
Soavo-2BH (Natural birch)
Soavo-2BL (Black birch)

Optional Speaker Stands for Soavo-2

• 14-3/16” x 16-5/16” (base), 23-3/4” (height),

SPS-900

14.3 lbs./unit

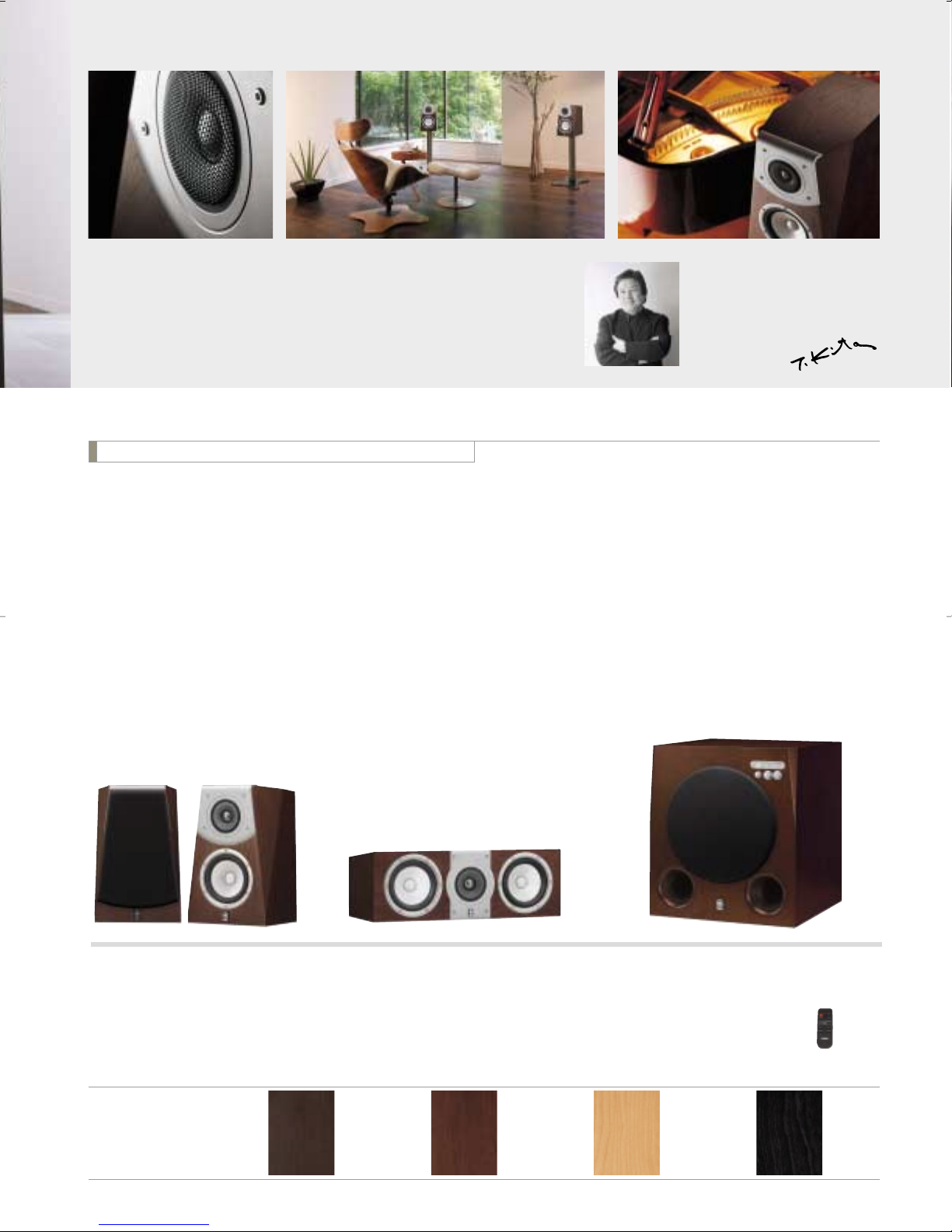

Beautiful design that compliments the beautiful music.

Since you are interested in the Soavo speakers, you undoubtedly enjoy the finest music in your
home. Naturally, you want your entire decor to be beautiful also. To ensure that the Soavo
speakers are visually as well as aurally beautiful, Yamaha commissioned the world-famous
designer Toshiyuki Kita to create uniquely attractive speakers that will enhance the
atmosphere of any interior.

Toshiyuki Kita

Working in both Japan and Milan, Toshiyuki Kita has
designed many successful products for German, Italian
and Japanese manufacturers. His designs are in the
permanent collections of museums all over the world,
including the Museum of Modern Art in New York and
the Centre Georges Pompidou in Paris.
He also designs traditional
Japanese crafts.

Soavo-900 Series

The Soavo-900M Surround Speaker and Soavo-900C Center Speaker
feature sound tuning that perfectly complements the other Soavo
speakers. They allow you to enjoy multi-channel sources in an ideal
surround sound environment.

Natural Sound Speaker Systems

The Soavo-900SW Subwoofer meets the challenge of providing an ideal
balance between tight sounds (with crisp, fast attack) and deep sounds (with
a spacious feeling). Designed for extremely accurate music reproduction, the
Soavo-900SW proudly takes its place in Yamaha’s Soavo Series.

Soavo-900M

2-Way Bass-Reflex Speaker System

Soavo-900MDB (Dark brown birch)
Soavo-900MBR (Brown birch)
Soavo-900MBH (Natural birch)
Soavo-900MBL (Black birch)

The Soavo-1, Soavo-2, Soavo-900M,
Soavo-900C and Soavo-900SW are offered
with dark brown birch, brown birch, natural
birch, or black birch finish.

•Soavo colors vary depending on area.

Soavo-900C

2-Way Bass-Reflex Speaker System

Soavo-900CDB (Dark brown birch)
Soavo-900CBR (Brown birch)
Soavo-900CBH (Natural birch)
Soavo-900CBL (Black birch)

Dark brown birch Brown birch Natural birch Black birch

Soavo-900SW

Advanced YST II and Front Firing Subwoofer

Soavo-900SWDB (Dark brown birch)
Soavo-900SWBR (Brown birch)
Soavo-900SWBH (Natural birch)
Soavo-900SWBL (Black birch)

Full function
remote unit

39

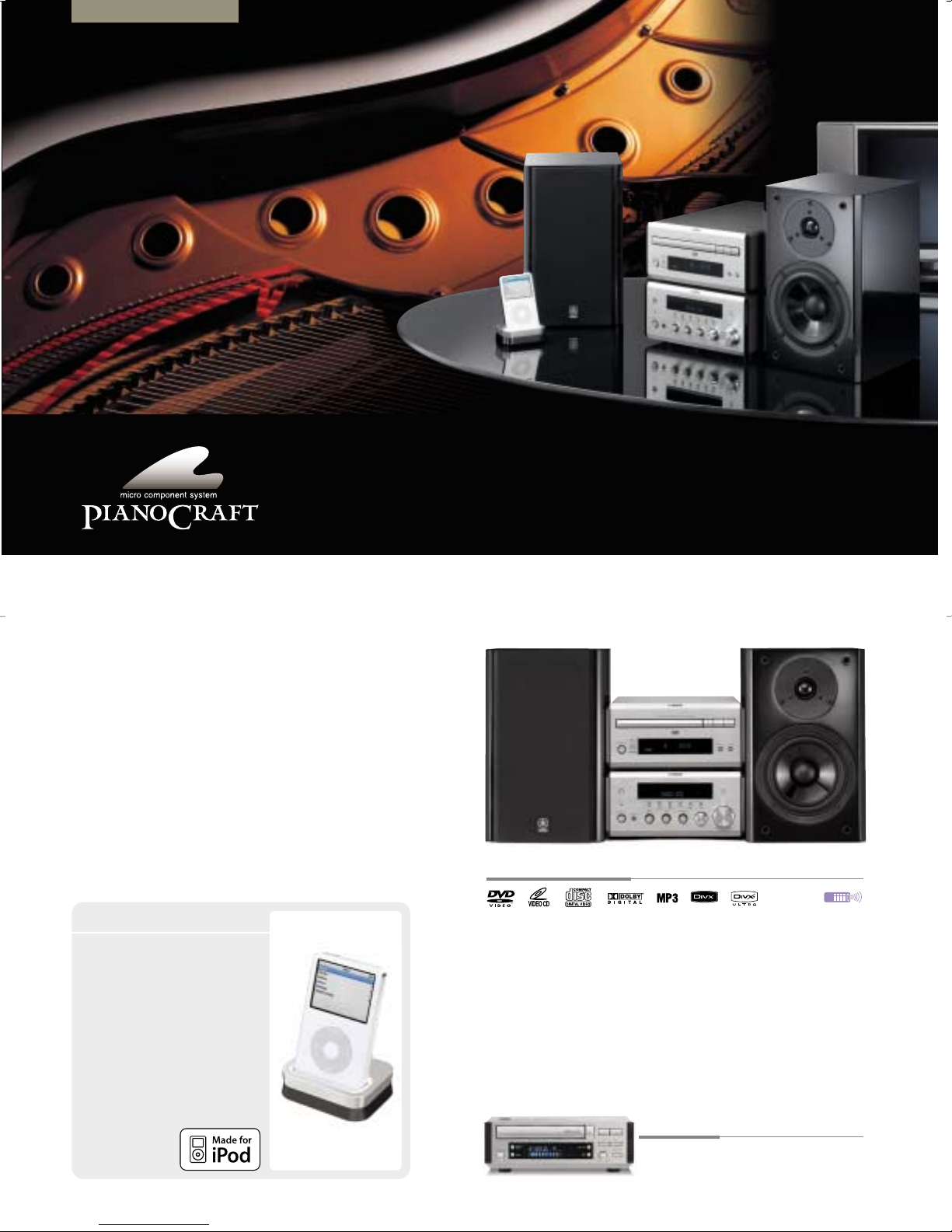

PianoCraft

MusicCAST

PianoCraft: Natur al sound enjoyment from a high performance , elegant system.

A lot of fine craftsmanship goes into Yamaha’s world-renowned pianos, and that same dedication to
sound and design excellence is behind the creation of the award-winning PianoCraft, which includes two
speakers and the capability of adding a subwoofer.

Superior Design and Parts

In addition to high sound quality design that takes advantage of
Yamaha’s legendary audio technologies such as 60W/ch discrete
configuration power amps and speakers made of finely tuned cabinets
and equipped with carefully selected units. This system also includes a
high picture quality CD/DVD player.

It has a discrete construction that precisely places each carefully
selected part without dependency on IC chips. The amplifier uses all
analog circuits, including the volume section.

While it includes high sound quality measures scrupulously designed
in every detail: a large power supply transformer, high sound quality
parts groups (including new capacitors), a high stiffness body with an
octagonal section that is resistant to resonance, and a thick heat sink.

Universal Dock for iPod

YDS-10SL

The optional Yamaha YDS-10SL

Universal Dock lets you connect an

iPod to the MCR-E810SL to hear all

your iPod music through the system.

You can also operate the iPod via the

MCR-E810SL’s remote unit with the

aid of the receiver’s display. What’s

more, the Universal Dock will even

charge up your iPod while it’s

connected.

Works with:

iPod nano, iPod

mini and iPod

(Click Wheel)

40

iPod not included.

MCR-E810SL Micro Component System

[Receiver: RX-E810]

• High output power: 60W/ch with
discrete amplification

• Pure Direct

• iPod compatibility via optional

YDS-10SL

• Linear Damping and high dynamic
power

• 40-station FM/AM preset tuning

• Subwoofer out

[CD/DVD Player: DVD-E810]

• Official DivX® Ultra Certified product

• Progressive Scan

• Easy operation with GUI

• Versatile format and disc compatibility:

DVD-Video, Video CD, Audio CD, MP3,
JPEG, DivX® and WMA

[Speaker System: NX-E800]

• New speaker cabinet with innovative
cross-bracing

• 2-way bass-reflex speaker system

KX-E100

Optional Auto-Reverse Cassette Deck

• Music search • 4-digit tape counter • 12-segment peak
level meter • 8-9/16” x 3-7/16” x 11-7/16” (W x H x D); 6.6 lbs.

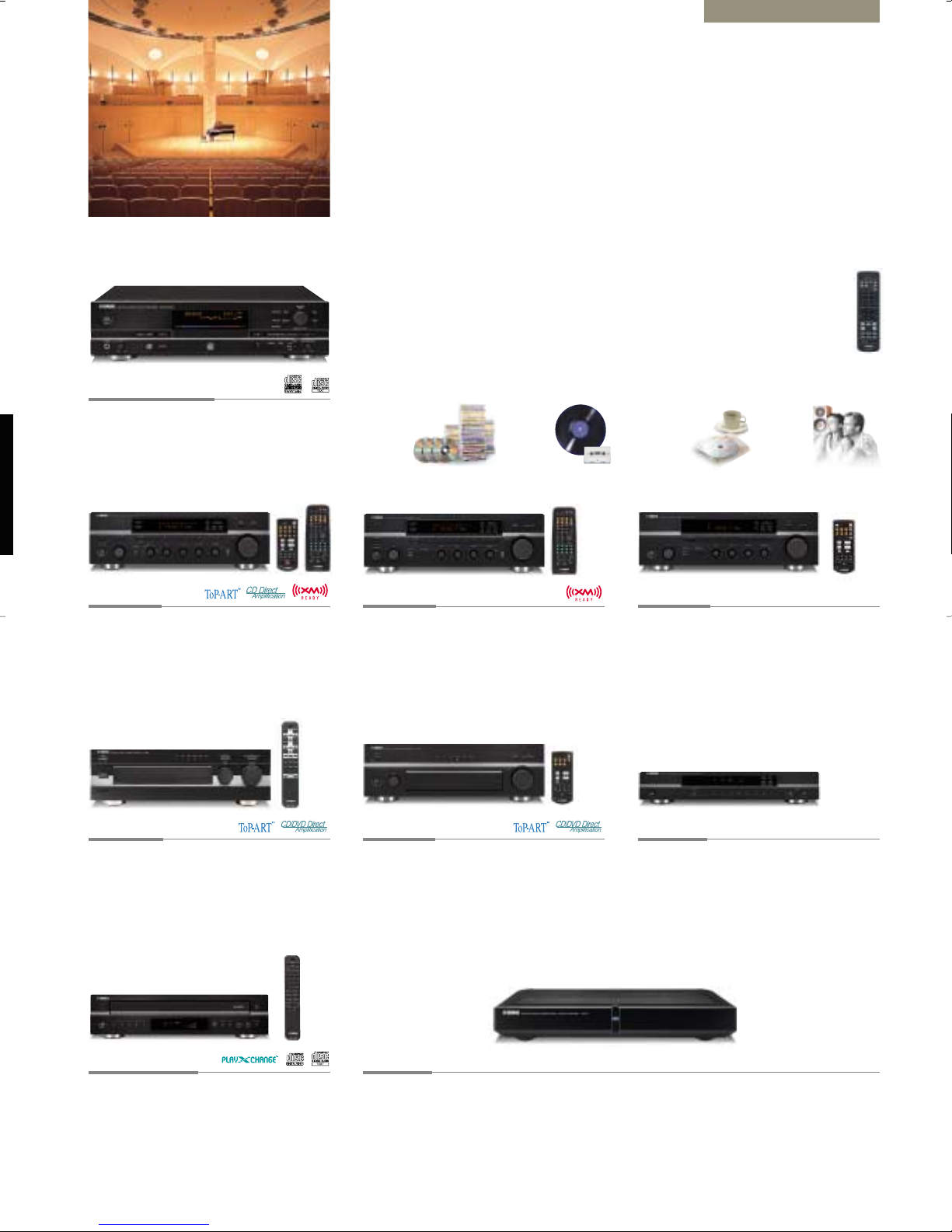

Natural Sound HiFi Components

Well, not actually. But if you close your eyes, you might well imagine that they
are right there with you. Assemble a system from the components on the next
page, according to your listening preferences. Then let the pure, natural sound
of Yamaha audio components bring your music to life as you have never heard
it before in your own home.

CDR-HD1500

HDD + CD-R/RW Digital Audio Recorder

RX-797

FM/AM Receiver

• 100W x 2

• ToP-ART

• CD Direct Amplification

• XM Satellite Radio ready

• Multi-zone control

capability with
dedicated Zone 2
remote unit

• Preset remote unit for
Main Zone

• Continuous variable
loudness control

• Rec Out/Zone 2 selector

• Subwoofer out

Versatile, high capacity digital recording. Ideal for a variety of uses including as a high quality jukebox.

• Linear PCM 16-bit/44kHz recording
(no compression)

• 24-bit DAC/ADC

• Audio Master Quality Recording

mode (CD-R only)

• CD—HDD—CD recording maintains
full digital quality

Hard disk holds 300 hours of
music

Rip 300 hours of music onto the
hard disk at 10x normal
speed. Highest digital
quality because
signal is not
compressed.

Record other sources, too

Record LPs, tapes, radio
and other sources — then
burn them onto
CD-Rs for
long-term
storage.

RX-497

FM/AM Receiver

• 75W x 2

• Pure Direct

• XM Satellite Radio ready

• Zone 2 out

• Multi-zone control

capability

• Preset remote unit

• Linear Damping

• High dynamic power,

low-impedance drive
capability

• Subwoofer out

• Tape monitor switch

• 200 GB hard disk drive capacity

• Easy, extensive editing possible before

recording CDs

• 179 minutes and 59 seconds
continuous external source recording

• High-speed ripping and High-speed rec

• Jog dial for fast track access

Making your own CDs is easy
and fast

When your perfectly edited
music is ready to be recorded
from the hard disk,
transfer it at 8x normal
speed to a CD-R or
at 4x to a CD-RW.

RX-397

FM/AM Receiver

• 50W x 2

• Pure Direct

• Super Audio CD and

DVD-Audio ready

• Linear Damping

• High dynamic power,

low-impedance drive
capability

• On-screen display

• Synchronized rec mode

• Timer rec

• Title input via RS-232C

interface

• Time search

• Copyright protection

Instant access to your music

Create up to 999 “Albums,” each
with as many as 99 songs, on the
HD. The Jog
dial makes
accessing
tracks ultra­fast and easy.

• Continuously variable
loudness control

• Speaker A, B or A+B
Selection

• Tape monitor switch

AX-596

Integrated Stereo Amplifier

• 100W x 2

• ToP-ART

• CD/DVD Direct

Amplification with
Switch

• Super Audio-CD and
DVD-Audio ready

• Linear Damping and
high dynamic power

• Rec out selector

• Continuously variable

loudness control

• Gold-plated input
terminals (all terminals)

CDC-697BL

CD Changer

• Yamaha patented PlayXchange

• CD-R/RW playback

• RS-232C interface

• Intelligent Digital Servo

• 40-track programable play

AX-497

Integrated Stereo Amplifier

• 85W x 2

• ToP-ART

• CD/DVD Direct

Amplification with
Switch

• Super Audio-CD and
DVD-Audio ready

• Linear Damping and
high dynamic power

• Rec out selector

• Continuously variable

loudness control

• Speaker A, B or A+B
Selection

MX-D1 Stereo Digital Power Amplifier

• Yamaha original power engine
chipset: modulator LSI and power
MOS-FET Drive LSIs

• Constant gain PLL modulator circuit

• Cross feedback loop circuit

• Advanced analog feedback circuit

• Active power control system

• High-speed protection circuits

• PWM digital drive high-efficiency power

supply

• 500W x 2 output power with ultra-low
(0.002%) distortion

• 4-layer epoxy resin coated PC board
containing fiberglass with
highest performance parts

• Gigantic WBT input and speaker terminals

TX-497

FM/AM Tuner

• 40-station random access preset tuning

• Auto preset tuning

• Absolute Linear Phase IF Amplifier circuitry

• Discrete SEPP amplifier circuit

• Output filter (large effect on

sound quality): custom-made
double core, low-impedance
toroidal coil and
extra-large custom-made
block electrolytic capacitors

• Yamaha piano-finish

41

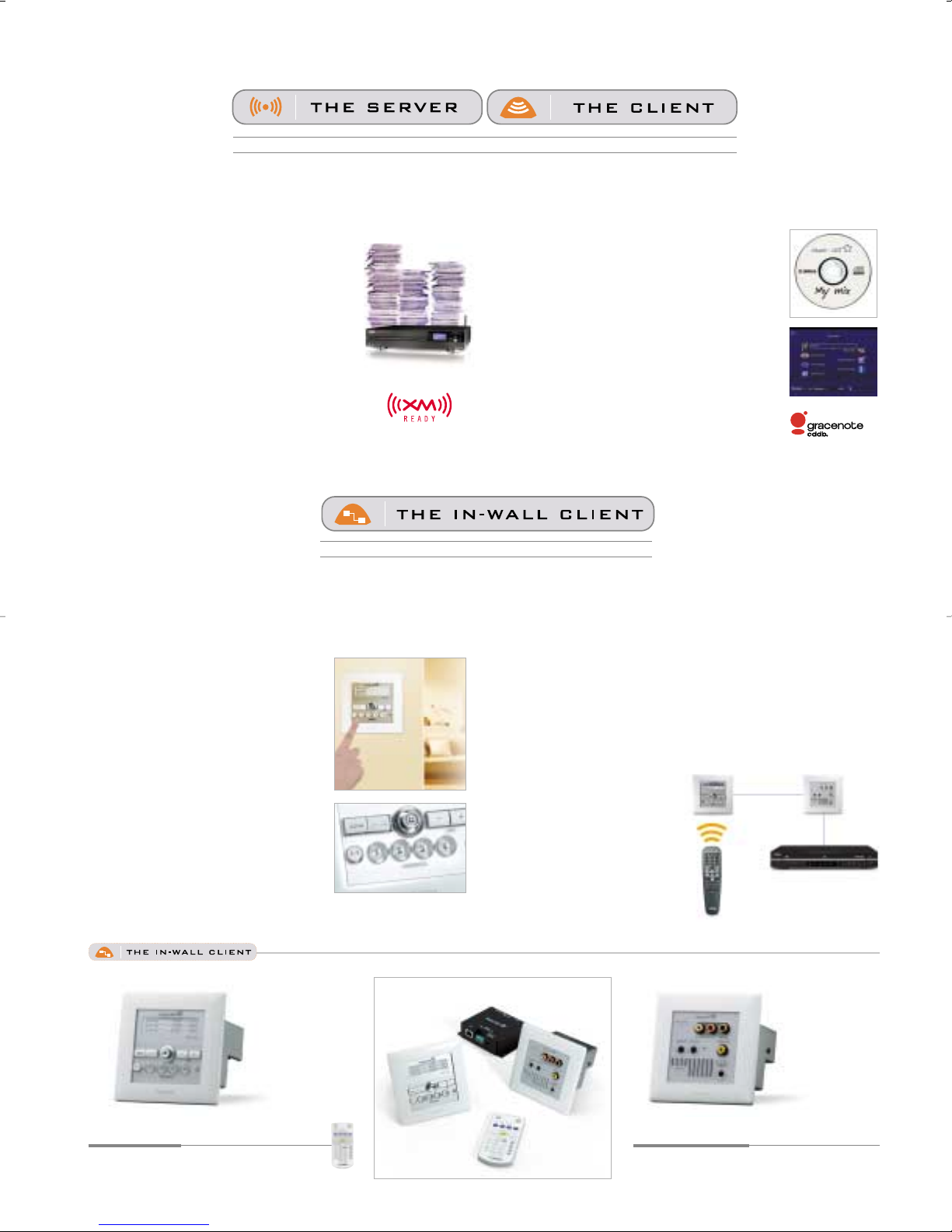

MusicCAST

Interactive Home Music Network System

Give everyone in the family instant access to
their favorite music in their own room — or anywhere else in the house!

A multi-room home entertainment system that you can easily set up yourself. MusicCAST will store your entire family’s favorite
music on a high-capacity hard disk and let each person select and listen to their own music in any of 16 different locations.

In addition to the normal portable Clients, MusicCAST is now also available with In-Wall Clients for custom installation. With

outstanding convenience and extensive capabilities, this system takes family music enjoyment to a whole new level.

THE IN-WALL CLIENT

MCX-C15
MCX-CA15S

THE SERVER

MCX-2000

THE CLIENT

MCX-A10

The MusicCAST server stores and broadcasts music content
wirelessly to any location within your home.

MCX-2000 Digital Audio Server

• Dimensions (W x H x D): 17-1/8” x 3-3/4” x
16-1/16” • Weight: 14.5 lbs.

42

Clients are used to
retrieve music content
stored on the
MusicCAST server, for
instant access to music
in any location within
your home.

MCX-A10 Digital Audio Terminal

• Dimensions (W x H x D): 8-1/4” x 8-1/4” x 3-3/8”

• Weight: 6.6 lbs.

High sound quality exclusive MusicCAST speaker system.

MCX-SP10

• Dimensions (W x H x D): 8-1/4” x 8-1/4” x 3-1/8”

• Weight: 2.6 lbs.

Optional Speaker System

MCX-2000 MCX-A10 / MCX-SP10

Wireless, multi-room, multi-selectable music library.

 PC content playback: The MCX-2000 broadens

music enjoyment throughout your home with the ability
to play back music files from a PC. Edit library items
using the PC web browser. Also, there are tentative
plans to offer Digital Living Network Alliance (DLNA)
compatibility.

* Requires Windows® PC running Windows XP®.

 Simply wireless: You can enjoy and control music in

as many as 16 locations: one Server and 15 Clients
(5 wireless plus 10 wired).

 Store 3000 CDs of music: A huge amount of music

is at your fingertips. The hard disk stores up to 3,000
CDs of music in MP3 format.

The MusicCAST client system, MCX-C15 and MCX-CA15S,

offers extensive features and flexibility.

 In-wall installation: Great control within

reach, yet out of the way...bring home the
convenience of this intelligently integrated in-wall
mountable MusicCAST Client into your living
environment. With variety of installation
configuration available, now every room is fully
customizable to enjoy the benefits the MusicCAST
music distribution system can provide.

 Favorites selection: The four Favorites buttons

allow direct playback of various sources. Each can
be assigned the following functions: playlist,
analog or digital inputs from Server, tuner presets,
local Aux input from MCX-CA15S. Favorite
selections can be made even when the MCX-C15
is in sleep mode.

 User friendly: The Server has a GUI with on-screen

menus and the Clients have large panel displays.

 Radio choicies: FM tuner, Internet Radio

compatibility and XM Satellite Radio.

 Create your own CDs: You can even make your

own CDs from playlists of songs you have selected.

 Automatic retrieval of music information: Various

information about songs, such as artist name, album
name, song list and music genre can be retrieved
automatically from the Internet (Gracenote® Music
Recognition Service) or, if not connected to the
Internet, from an internal database.

Music recognition technology and related data are provided by
Gracenote®.

MCX-C15 / MCX-CA15S

 IR flasher support: The MCX-C15 supports limited

IR transmission functions for custom installation. IR
signals from the MCX-C15 can be transmitted to the
MCX-CA15S or the I/O Box, and can drive an IR
flasher for remote control of other components. The
function works on only 38kHz modulation frequency.

* IR flasher units are not available from Yamaha.

 Yamaha AV link: The MCX-C15

can generate extended IR
commands to control a Yamaha AV
amplifier / receiver, if more power is
desired. The following functions can
be controlled via the MCX-C15
remote control: volume, input
selection, sleep and standby modes.

In-wall mountable,
network ready Clients add
versatility to the
MusicCAST system with
great new features such as
Favorite Function buttons,
IR Flasher Support and
Yamaha AV Link.

MCX-C15 Distributed Audio Controller

• Dimensions (W x H x D): 4-1/2” x 4-1/2” x 4-1/8”

MCX-C15P Package

In/Out Box

Remote
Control Unit

This multipurpose in­wall amplifier is
perfectly matched to
the MCX-C15 Client. It
provides high quality
power to speakers, as
well as subwoofer and
video OSD outputs.

MCX-CA15S Distributed Audio Amplifier

• Dimensions (W x H x D): 4-1/2” x 4-1/2” x 4-1/8”

43

Specifications

44

Specifications

 Surround Programs

RX-Z11BL
40 Surround (33 DSP) Programs
Compatible Decoding Formats

HiFi DSP Programs

CLASSICAL1

CLASSICAL2

LIVE/CLUB Cellar Club

STEREO 11 Channel Stereo

HiFi DSP Subtotal 20

CINEMA DSP Programs

MOVIE

ENTERTAINMENT Pavilion

CINEMA DSP Subtotal 13

THX Programs

THX Ultra2 Music

THX Subtotal 7

Dolby Digital
Dolby Digital EX
Dolby Digital Plus
Dolby Digital TrueHD
DTS Digital Surround
DTS-ES Matrix 6.1
DTS-ES Discrete 6.1
DTS 96/24
DTS-HD High Resolution Audio
DTS-HD Master Audio
Dolby Pro Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game
Dolby Pro Logic IIx Music
Dolby Pro Logic IIx Movie
Dolby Pro Logic IIx Game
DTS Neo:6 Music
DTS Neo:6 Cinema
Neural-THX
Circle Surround II Music
Circle Surround II Cinema

Hall in Munich A
Hall in Munich B
Hall in Frankfurt
Hall in Stuttgart
Hall in Vienna
Hall in Amsterdam
Hall in USA A
Hall in USA B
Chamber
Church in Tokyo
Church in Freiburg
Church in Royaumont
Village Gate
Village Vanguard
The Bottom Line

The Roxy Theatre
Warehouse Loft
Arena

Standard
Spectacle
Sci-Fi
Adventure
Drama
Mono Movie
Sports
Music Video
Recital/Opera

Disco
Action Game
Roleplaying Game

Surround EX
Ultra2 Cinema
Cinema

Music
Ultra2 Games
Games

RX-V3800BL / RX-V1800BL
22 DSP Programs
Compatible Decoding Formats

HiFi DSP Programs

CLASSICAL Hall in Amsterdam

LIVE/CLUB Cellar Club

STEREO 7 Channel Stereo

HiFi DSP Subtotal 11

CINEMA DSP Programs

MOVIE

ENTERTAINMENT Roleplaying Game

CINEMA DSP Subtotal 11

Program Total 22

Dolby Digital
Dolby Digital EX
Dolby Digital Plus
Dolby Digital TrueHD
DTS Digital Surround
DTS-ES Matrix 6.1
DTS-ES Discrete 6.1
DTS 96/24
DTS-HD High Resolution Audio
DTS-HD Master Audio
Dolby Pro Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game
Dolby Pro Logic IIx Music
Dolby Pro Logic IIx Movie
Dolby Pro Logic IIx Game
DTS Neo:6 Music
DTS Neo:6 Cinema
Neural-THX

Hall in Munich
Hall in Vienna

Church in Freiburg
Chamber
Village Vanguard
Warehouse Loft

The Roxy Theatre
The Bottom Line

Standard
Spectacle
Sci-Fi
Adventure
Drama
Mono Movie
Sports
Action Game

Music Video
Recital/Opera

RX-V861BL / RX-V661BL
17 DSP Programs
Compatible Decoding Formats

HiFi DSP Programs

CLASSICAL Hall in Vienna

LIVE/CLUB The Roxy Theatre

STEREO 7 Channel Stereo

HiFi DSP Subtotal 7

CINEMA DSP Programs

MOVIE

ENTERTAINMENT

CINEMA DSP Subtotal 10

Program Total 17

RX-V461BL / RX-V361BL
8 DSP Programs
Compatible Decoding Formats

HiFi DSP Programs

MUSIC
STEREO 5 Channel Stereo

HiFi DSP Subtotal 3

CINEMA DSP Programs

ENTERTAINMENT TV Sports

MOVIE

CINEMA DSP Subtotal 5

Program Total 8

Dolby Digital
Dolby Digital EX
DTS Digital Surround
DTS-ES Matrix 6.1
DTS-ES Discrete 6.1
DTS 96/24
Dolby Pro-Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game
Dolby Pro Logic IIx Music
Dolby Pro Logic IIx Movie
Dolby Pro Logic IIx Game
DTS Neo:6 Music
DTS Neo:6 Cinema

Hall in Munich

Chamber
Cellar Club

The Bottom Line

Standard
Spectacle
Sci-Fi
Adventure
Drama
Mono Movie
Sports
Action Game
Roleplaying Game
Music Video

Dolby Digital
DTS Digital Surround
Dolby Pro Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game

Hall
Jazz

Game

Pop/Rock
Movie Spacious
Movie Dramatic

RX-N600BL / RX-V659BL
14 DSP Programs
Compatible Decoding Formats

HiFi DSP Programs

MUSIC The Bottom Line

ENTERTAINMENT Disco
STEREO 6 Channel Stereo

HiFi DSP Subtotal 5

CINEMA DSP Programs

MUSIC Pop/Rock

ENTERTAINMENT Mono Movie

MOVIE THEATER

STANDARD Enhanced

CINEMA DSP Subtotal 9

Program Total 14

Dolby Digital
Dolby Digital EX
DTS Digital Surround
DTS-ES Matrix 6.1
DTS-ES Discrete 6.1
DTS 96/24
Dolby Pro Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game
Dolby Pro Logic IIx Music
Dolby Pro Logic IIx Movie
Dolby Pro Logic IIx Game
DTS Neo:6 Music
DTS Neo:6 Cinema

Hall in Vienna

The Roxy Theatre

TV Sports

Game
Spectacle
Sci-Fi
Adventure
General

Standard

Spectacle

Sci-Fi

Adventure

Program Total 40

Sports

45

Specifications

 Digital Home Theater Receiver Comparison

Channels 11.2-channel 7.1-channel 7.1-channel 7.1-channel 6.1-channel 7.1-channel 7.1-channel 5.1-channel 5.1-channel
RMS Power (8 ohms, 20Hz-20kHz) [THD]

Advanced Features

Network Receiver Functions  
iPod Compatibility via YDS-10SL 
USB Interface  (2 ports) 
Front Panel Mini Jack Input 
System Memory 
SCENE (SCENE Templates)  (18)  (18)  (16)  (13)
FM/AM Tuner 
HD Radio Compatibility 
XM Ready with XM HD Surround 
YPAO Sound Optimization  (Advanced)  
Dialogue Lift  
Compressed Music Enhancer 
Night Listening Enhancer 
Adaptive DRC (Dynamic Range Control) 
Initial Volume and Maximum Volume Setting
Audio Delay for Adjusting Lip-Sync  (0-240 ms)  (0-240 ms)  (0-240 ms)  (0-160 ms)  (0-160 ms)  (0-160 ms)  (0-160 ms)  (0-160 ms)  (0-160 ms)
On-Screen Display 
Remote Control Unit

High Sound Quality

Digital ToP-ART / High Current Amplification 
192kHz/24-Bit DACs for All Channels  (Burr-Brown)  (Burr-Brown)  (Burr-Brown)  (Burr-Brown)  (Burr-Brown)  (Burr-Brown)  (Burr-Brown) 
Dolby TrueHD, Dolby Digital Plus 
DTS-HD Master Audio 
Dolby Digital EX Dolby Digital Dolby Digital
DTS-ES Discrete 6.1, DTS 96/24 
Pure Direct  (New Concept)  (incl. HD Audio)  (incl. HD Audio)  (incl. Bitstream) Direct Stereo  (incl. Bitstream)  (incl. Bitstream) Direct Stereo
Current Feedback Amplifier Circuit 
Linear Damping 
Bi-Amp Assignability  
Phono Input  

High Picture Quality

1080p-Compatible HDMI  
Deep Color (30/36 Bit) 
xvYCC Color Space 
120Hz and 24Hz Refresh Rates 
Auto Lip-Sync Compensation 
Analog to HDMI Upscaling  (up to 1080p)  (up to 1080p)  (up to 1080p) 
HDMI to HDMI Upscaling  (up to 1080p)
Analog or HDMI to HDMI Downscaling 
HDMI Deinterlacing (480i to 480p) (Also 1080i to 1080p)
Full Analog Video Upconversion to HDMI  (with TBC)  (with TBC)  (with TBC)  (with TBC)
Component Video Upconversion 

Surround Realism

DSP Program
THX Ultra2 Plus Surround Programs  (7)
Adaptive DSP Level 
SILENT CINEMA / Virtual CINEMA DSP 

Extensive Connection / Multi-Zone Control

HDMI Inputs/Outputs 5 / 2 4 / 1 4 / 1 2 / 1 2 / 1
Audio Digital Inputs (Optical / Coaxial) 9 (5 / 4) 8 (5 / 3) 8 (5 / 3) 6 (4 / 2) 4 (3 / 1) 6 (4 / 2) 6 (4 / 2) 3 (2 / 1) 3 (2 / 1)
Component Video Inputs / Output 4 / 2 3 / 1 3 / 1 3 / 1 3 / 1 3 / 1 3 / 1 3 / 1 3 / 1
S-Video Inputs / Outputs 6 / 3 6 / 3 6 / 3 5 / 3 3 / 2 5 / 3 5 / 3 3 / 2
Front Panel Video Aux Terminals
Preout Terminals
RS-232C Interface 
Zone 2 Video Outputs
Zone 2 Audio Output 
Zone 3 Audio Output  (Also Zone 4) 
Zone Control via Remote Unit 
Zone Tone Controls 
+12V Trigger Outputs  (x 2)  (x 2)  (x 2) 
Remote (IR) Inputs  (x 2)  (x 2) 
Multi-Channel External Input 8ch 8ch 8ch 8ch 6ch 8ch 8ch 6ch 6ch
Sub Remote Control Unit Simplified Remote Zone Remote Zone Remote
Rec Out/Zone 2 Selector 

Specifications

Dynamic Power/Channel (8/6/4/2 ohms)
Damping Factor (8 ohms, 20 Hz–20 kHz) 150 150 150 120 120 120 120
Total Harmonic Distortion (20 Hz–20 kHz, CD)

Signal-to-Noise Ratio (CD, 250 mV) 100 dB 100 dB 100 dB 100 dB 100 dB 100 dB 100 dB 100 dB 100 dB
Dimensions (W x H x D)
Weight 75 lbs. 38.4 lbs. 37.5 lbs. 28.9 lbs. 25.8 lbs. 25.6 lbs. 27.1 lbs. 17.9 lbs. 17.6 lbs.

RX-Z11BL RX-V3800BL RX-V1800BL RX-V861BL RX-N600BL RX-V661BL RX-V659BL RX-V461BL RX-V361BL

140W x 7+50W x 4 [0.04%]

(10 Main +4 Each Zone)

(Neural-THX Surround)(Neural-THX Surround)(Neural-THX Surround)

(with Straight Enhancer)(with Straight Enhancer)(with Straight Enhancer)

140W x 7 [0.04%] 130W x 7 [0.04%] 105W x 7 [0.06%] 95W x 6 [0.06%] 90W x 7 [0.06%] 100W x 7 [0.06%] 100W x 5 [6 ohms] 100W x 5 [6 ohms]

 (6 Main)  (6 Main)





  

with GUI (6 lang.)with GUI (6 lang.)

Macro/Learning/Preset Macro/Learning/Preset Macro/Learning/Preset



Preset Preset Preset Preset Preset Preset

DTS Digital Surround DTS Digital Surround

(up to 1080i/720p)

(1080i/720p to 480p)



33 (with CINEMA DSP HD

HDMI/Optical/S-Video/USB
F/C/Sr/Sb/Fp/Rp/Sw(x2)

Component/Composite

(Incl. Coaxial Out)

3

) 22 (with CINEMA DSP 3D)

(Zone 2/3/4)

22 17 14 17 14 8 8

S-Video/Optical/USB

S-Video/Optical S-Video/Optical USB S-Video/Optical S-Video/Optical Mini jack Mini jack

F/C/Sr/Sb/Sw F/C/Sr/Sb/Sw F/C/Sr/Sb/Sw Sw F/C/Sr/Sb/Sw F/C/Sr/Sb/Sw Sw Sw





 (Zone 2/3)  (Zone 2/3)

185/230/290/385 W 170/205/265/345 W 160/195/255/335 W 140/175/205/250 W 130/165/195/240 W 120/155/190/235 W 135/170/220/245 W —/105/135/165 W —/105/135/165 W

0.02% 0.04% 0.04% 0.06% 0.06% 0.06% 0.06% 0.06% 0.06%

1

”

1

”

9

”171

”

3

”

1

”171

”

3

”

1

”171

”

3

”

9

”171

”

3

”

1

”171

”

3

”

1

”171

”

3

”

9

”171

”

15

”

1

”171

”

15

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

/

17

8

x 8

4

x 19

16

8

x 6

4

x 17

4

8

x 6

4

x 17

4

8

x 6

4

x 16

16

8

x 6

4

x 15

2

8

x 6

4

x 15

2

8

x 6

4

x 16

16

/

8

x 5

16

x 12

2

”

/

/

8

x 5

16

x 12

1

”

/

2

46

 Digital Sound Projector™

Beam Drivers 1-5/8" x 40 (3 Array) 1-5/8” x 40 (3 Array) 1-5/8” x 21 (2 Array) 1-5/8” x 21 (2 Array)
Woofers 4-5/16" x 2 4" x 2 4" x 2 4" x 2

Digital Amplifier
IntelliBeam 

iPod Compatibility via YDS-10SL  
On-Screen Display Languages En/Fr/Ge/Sp/It/Du/Ru En/Fr/Ge/Sp En/Fr/Ge/Sp/It/Du/Ru En/Fr/Ge/Sp

Beam Mode

CINEMA DSP Music Concert Hall / Jazz Club / Music Video Concert Hall / Jazz Club / Music Video 

HDMI Interface 2 In/1 Out (1080p) 2 In/1 Out (1080p)
Analog to HDMI Upscaling  (Up to 1080i/720p)
FM Tuner Built-in  
XM Ready with XM HD Surround  
Front Panel Mini Jack Input  
Compressed Music Enhancer  
SRS TruBass Deep / Mid / Off Deep / Mid / Off On / Off On / Off
Optional Wall Hanging Bracket SPM-K30 SPM-K1 SPM-K30 SPM-K30
Dimensions (W x H x D) 40-9/16” x 7-13/16” x 5-11/16” 40-9/16” x 7-5/8” x 4-5/8” 31-1/2" x 6-1/8" x 7" 31-1/2" x 7" x 4-1/2"
Weight 35.3 lbs. 28.7 lbs. 25.3 lbs. 19.8 lbs.

5 Beam 
Stereo + 3 Beam 
3 Beam 
Stereo / 5ch Stereo  /  / —  /  / —
My Beam 
My Surround  
Movie Sci-Fi / Spectacle / Adventure Sci-Fi / Spectacle / Adventure 

Sports 

YSP-4000BL / YSP-4000SL YSP-1100SL YSP-3000BL / YSP-3000SL YSP-900BL

120W 120W 82W 82W

(2W x 40 + 20W x 2) (2W x 40 + 20W x 2) (2W x 21 + 20W x 2) (2W x 21 + 20W x 2)

 Front Surround System

Yamaha Air Surround System

YAS-70BL

Output Power 310W (35W x 6 + 100W Subwoofer)
Drivers 2" x 6 (Center Unit) + 6-1/2" (Subwoofer)
iPod Compatibility via YDS-10SL 
CINEMA DSP 4 programs (Movie / Music / Sports / Game)
FM Tuner Built-in 
Digital Audio Inputs 1 optical / 1 coaxial
Advanced YST 

Center System

Frequency Response 100 Hz-25 Hz
Dimensions (W x H x D) 36-5/8" x 3-15/16" x 4-1/16"
Weight 9.9 lbs.

Subwoofer

Frequency Response 30-200 Hz
Dimensions (W x H x D) 11-1/16" x 19-1/2" x 13-3/8"
Weight 33.1 lbs.

YAS-70BL

 DVD Players

Super Audio CD, DVD-Audio Playback 
HDMI Interface  (1080p compatible)  (1080p compatible)  (1080p compatible)  (1080i/720p compatible)
MP3, JPEG, DivX and WMA Playback  (DivX Ultra)
USB Port 
Audio Direct Mode 
CD Upsampling 
Video DAC 216 MHz/12-bit 216 MHz/12-bit 216 MHz/12-bit 108 MHz/12-bit
Audio DACs 192kHz/24-bit (2ch x 4) Burr Brown 192kHz/24-Bit (2ch x 4) 192kHz/24-bit 192kHz/24-bit
Signal-to-Noise Ratio (1kHz) 120 dB 115 dB 115 dB 105 dB
Dynamic Range (1kHz) 106 dB 105 dB 105 dB 97 dB
Harmonic Distortion + Noise (1kHz) 0.001% 0.002% 0.002% 0.0035%
Dimensions (W x H x D) 17-1/8” x 4-3/16” x 12-1/8" 17-1/8” x 3-7/16” x 11-3/16” 17-1/8” x 3-7/16” x 11-3/16” 17-1/8” x 2” x 12-3/16”
Weight 13.9 lbs. 7.3 lbs. 7.3 lbs. 5.7 lbs.

DVD-S2700BL DVD-S1800BL DVD-S1700BL DVD-S661BL

 DVD Changers

Super Audio CD, DVD-Audio Playback 
HDMI Interface  (1080p compatible)
MP3, JPEG, DivX and WMA Playback  (DivX Ultra)  MP3 and JPEG
Audio Direct Mode 
CD Upsampling 
Yamaha Patented “PlayXchange” 
Video DAC 216 MHz/12-bit 108 MHz/12-bit 108 MHz/12-bit
Audio DACs 192kHz/24-bit 192kHz/24-bit 192kHz/24-bit
Signal-to-Noise Ratio (1kHz) 105 dB 105 dB 115 dB
Dynamic Range (1kHz) 100 dB 95 dB 100 dB
Harmonic Distortion + Noise (1kHz) 0.0035% 0.0035% 0.0035%
Dimensions (W x H x D)
Weight 12.1 lbs. 12.1 lbs. 12.1 lbs.

DVD-C961BL DVD-C750BL DV-C6860BL

17-1/8" x 2-15/16" x 16-3/4" 17-1/8" x 2-15/16" x 16-3/4" 17-1/8" x 2-15/16" x 16-3/4"

47

Specifications

 Digital Video Projectors

Panel 0.8 inch DMD™ 720p DarkChip3™ x1 0.65 inch DMD™ x 1

Resolution 1,280 x 720 pixels 1,280 x 768 pixels

Brightness 800 ANSI lumens (maximum) 1,000 ANSI lumens (maximum)

Contrast Ratio 5,000:1 (maximum) 4,000:1 (maximum)

Projection Distance 3 – 4.8 m (100” 16: 9 screen) 3.6 – 4.4 m (100” 16:9 screen)

Lamp 270 W 200 W

Acceptable Input (YPbPr) 480i, 576i, 480p, 576p, 720p (50/60 Hz), 1080i (50/60 Hz) 480i, 576i, 480p, 576p, 720p (50/60 Hz), 1080i (50/60 Hz)

Color Format NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M and PAL-N NTSC, PAL, SECAM, NTSC4.43, PAL60, PAL-M and PAL-N

Power Consumption 395 W (standby: 0.1 W) 280 W (standby: 8 W)

Dimensions (W x H x D) 19-1/2” x 7-9/16” x 18-5/16” 14-3/16” x 4” x 11-7/16”

Weight 30.9 lbs. 8.6 lbs.

DPX-1300 DPX-830

 HTiB (Home Theater in a Box)

HTiB (Home Theater in a Box) DVX-C770BL YHT-780BL YHT-685SL YHT-680BL YHT-580BL YHT-380BL YHT-280BL

Total System Power 900 W 630W 630W 600W 600W 600W 600W

Receiver

Output Power (8 ohms, 1kHz) 150W x 5 100W x 5 100W x 5 100W x 5 100W x 5 100W x 5 100W x 5

SCENE (SCENE Templates)  (16)  (13)  (16)  (16)  (13)  (13)

iPod Compatibility  

iPod Song Titles Display OSD Panel/OSD Panel/OSD Panel/OSD

Front Panel Mini Jack Input  

YPAO Sound Optimization 

XM Satellite Radio Ready   

XM HD Surround  

On-Screen Display  

Compressed Music Enhancer  

Direct Stereo 

Audio Delay 0–200ms 0–160ms 0–160ms 0–160ms 0–160ms 0–160ms 0–160ms

Component Video Inputs / Output 0 / 1 3 / 1 3 / 1 3 / 1 3 / 1 3 / 1 3 / 1

192kHz/24-Bit DACs  (All channels)  (All channels)  (All channels)  (All channels)  (All channels)  (All channels)  (All channels)

Night Listening Enhancer  (Night mode)  (Cinema/Music)  (Cinema/Music)  (Cinema/Music)  (Cinema/Music)  (Cinema/Music)  (Cinema/Music)

Digital Inputs (Optical/Coaxial) 3 (2 / 1) 3 (2 / 1) 3 (2 / 1) 3 (2 / 1) 3 (2 / 1) 3 (2 / 1)

Surround Programs 8 8 8 8 8 8 8

DVD Player

Super Audio CD, DVD-Audio Playback 

Yamaha Patented “PlayXchange” 

Progressive Scan 
MP3, JPEG, DivX and WMA Playback 

HDMI Interface  (1080i/720p)  (1080i/720p)

Speakers

System Frequency Response 30 Hz—35 kHz 30 Hz—40 kHz 28 Hz—50 kHz 28 Hz—35 kHz 28 Hz—35 kHz 28 Hz—35 kHz 30 Hz—25 kHz

Satellite Speakers

Center Speaker

(Front Speakers)

Driver Size (Surround Speakers)

(Center Speaker)

Subwoofer

Output Power 150 W 130 W 130W 100W 100W 100W 100W

Driver Size 6-1/2" 6-1/2" 8" 8" 8" 8" 6-1/2"

Driver Position Front firing FD-Bass QD-Bass Front firing Front firing Front firing Front firing

2-way 2-way 2-way 2-way 2-way 2-way Full-range

bass reflex acoustic suspension acoustic suspension bass reflex bass reflex bass reflex acoustic suspension

2-way 2-way 2-way 2-way 2-way 2-way Full-range

bass reflex acoustic suspension acoustic suspension bass reflex bass reflex bass reflex acoustic suspension

3-1/2” woofer + 4" woofer + 2-1/2" woofer + 4" woofer + 6-1/2" woofer + 4" woofer + 3-1/4" woofer +

3/4” tweeter 3/4" tweeter 1/2" tweeter 1/2" tweeter 3/4" tweeter 1/2" tweeter 3/4" tweeter

3” woofer + 3" woofer + 2-1/2" woofer +

1/2" tweeter 1/2" tweeter 1/2" tweeter 1/2" tweeter 3/4" tweeter

Dual 3” woofer + 3" woofer + 2-1/2" woofer + 3" woofer + 3" woofer + 3" woofers +

3/4” tweeter 3/4" tweeter 1/2" tweeter 1/2" tweeter 3/4" tweeter 1/2" tweeter

3" full-range

3" woofer +

3" full-range

3-1/4" woofer +

2" full-range

 Desktop Audio Speakers

NX-B02BL/NX-B02WH/NX-B02RE NX-U02BL/NX-U02WH/NX-U02RE

Output Power 5 W x 2 (maximum) 10 W x 2 (max instantaneous) 4 W x 2 (maximum) 10 W x 2 (max instantaneous)
Speaker Unit Dual 1-3/4” full-range titanium cone Dual 1-3/4" full-range titanium cone Dual
Input Terminals Bluetooth, Stereo mini jack USB port Stereo mini jack USB port, Stereo mini jack
Frequency Response 90 Hz–20 kHz 90 Hz–20 kHz 90 Hz–20 kHz 90 Hz–20 kHz

OS
Power Supply AC or AA x 4 batteries USB Bus Power AC USB Bus Power, AC or AAA x 4 batteries

Dimensions (W x H x D) 3-5/16” x 6-11/16” x 3-5/16” 3-5/16” x 6-11/16” x 3-5/16” 3-5/16” x 3-1/2” x 3-5/16” 9-3/4” x 3-15/16” x 1-5/16”
Weight 1.3 lbs. 1.3 lbs. 0.7 lbs. 1.1 lbs.

48

NX-A01BL/NX-A01WH NX-U10BL/NX-U10SL

1-1/8”

full-range titanium cone Dual

Windows Vista, XP, 2000, ME, 98SE Windows Vista, XP, 2000, ME, 98SE

Mac OS 9.1 or later, OS X 10.0 or later Mac OS 9.1 or later, OS X 10.0 or later

1-1/2”

full-range titanium cone

 Digital Home Theater Speakers

525 A-PMD Series NS-525F NS-M525 NS-C525

Woofers
Midrange Driver 6-1/2” Advanced PMD cone

Tweeter 1-1/8” aluminum dome 1-1/8” aluminum dome 1-1/8” aluminum dome
Frequency Response 35 Hz–50 kHz 60 Hz–50 kHz 57 Hz–50 kHz
Nominal Input Power 45 W 30 W 45 W
Maximum Input Power 200 W 120 W 200 W
Sensitivity 89 dB/2.83 V/1 m 89 dB/2.83 V/1 m 89 dB/2.83 V/1 m
Crossover Frequencies 500 Hz/3.8 kHz 3 kHz 5 kHz
Impedance 6 ohms 6 ohms 6 ohms
Dimensions (W x H x D)
Weight 50.1 lbs./unit 9.9 lbs./unit 16.3 lbs.

325 A-PMD Series NS-325F NS-M325 NS-C325

Woofers
Tweeter 1-1/8” aluminum dome 1-1/8” aluminum dome 1-1/8” aluminum dome

Frequency Response 40 Hz–50 kHz 65 Hz–50 kHz 60 Hz–50 kHz
Nominal Input Power 50 W 30 W 50 W
Maximum Input Power 200 W 120 W 200 W
Sensitivity 88 dB/2.83 V/1 m 86 dB/2.83 V/1 m 88 dB/2.83 V/1 m
Crossover Frequency 2.5 kHz 2.5 kHz 2.5 kHz
Impedance 6 ohms 6 ohms 6 ohms
Dimensions (W x H x D) 7-1/16” x 38-3/16” x 11-1/8” 5-7/8” x 10-13/16” x 6-7/8” 16-15/16” x 5-1/2” x 8”
Weight 35.3 lbs./unit 8.4 lbs./unit 11.9 lbs.

225 PMD Series NS-225F NS-M225 NS-C225

Woofers Dual 3-1/8” PMD cone Dual 3-1/8” PMD cone Quad 1-1/2” PMD cone
Tweeter
Frequency Response 60 Hz–50 kHz 65 Hz–50 kHz 65 Hz–50 kHz

Nominal Input Power 40 W 40 W 40 W
Maximum Input Power 120 W 120 W 120 W
Sensitivity 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m
Crossover Frequency 3 kHz 3 kHz 3 kHz
Impedance 6 ohms 6 ohms 6 ohms
Dimensions (W x H x D)
Weight 17 lbs./unit 5.3 lbs./unit 6.2 lbs.

125 Series NS-125FPN NS-M125PN NS-C125PN

Woofers Dual 3-1/8” white cone Dual 3-1/8” white cone Dual 3-1/8” white cone
Tweeter 7/8” balanced-dome 7/8” balanced-dome 7/8” balanced-dome
Frequency Response 60 Hz–35 kHz 70 Hz–35 kHz 70 Hz–35 kHz
Nominal Input Power 40 W 40 W 40 W
Maximum Input Power 120 W 120 W 120 W
Sensitivity 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m 86 dB/2.83 V/1 m
Crossover Frequency 6 kHz 6 kHz 6 kHz
Impedance 6 ohms 6 ohms 6 ohms
Dimensions (W x H x D)
Weight 15.9 lbs./unit 4.4 lbs./unit 4.4 lbs.

All Weather Speakers NS-AW570WH

Woofer 6-1/2" cone 6-1/2" high compliance 5" high compliance
Tweeter Dual 1" PEI dome 1” PEI dome 1/2” PEI dome
Magnetic Shielding 
Input Power (Max/Nominal) 120 W/40 W 130 W/40 W 120 W/35 W
Frequency Response 60 Hz—30 kHz 55 Hz-40 kHz 80 Hz-40 kHz
Sensitivity 87 dB/2.83 V/1 m 87 dB/2.83 V/1 m 85 dB/2.83 V/1 m
Impedance 6 ohms 6 ohms 6 ohms
Dimensions (W x H x D) 7-7/16” x 10-1/4” x 6-25/32” 7-1/8” x 13-1/2” x 8-3/16” 5-3/16” x 10” x 6”
Weight 5.1 lbs./unit 6.4 lbs./unit 3.7 lbs./unit

6-1/2” Advanced 5” Advanced Dual 4” Advanced

PMD cone PMD cone PMD cone

7-7/8” x 39-3/8” x 14-3/16” 6-15/16” x 12-11/16” x 7-9/16” 19-11/16” x 6-11/16” x 9-5/16”

Dual 5” Advanced 4” Advanced Dual 4” Advanced

PMD cone PMD cone PMD cone

1-1/8” aluminum- 1-1/8” aluminum- 1-1/8” aluminum­magnesium dome magnesium dome magnesium dome

9-5/16” x 41-5/16” x 9-5/16” 4-3/16” x 14-3/16” x 5-1/4” 17-5/16” x 3-11/16” x 5-1/4”

9-5/16” x 41-5/16” x 9-5/16”

4-1/8” x 13-3/8” x 5-1/4” 13-3/8” x 4-1/8” x 5-5/16”

NS-AW350/NS-AW350W NS-AW150/NS-AW150W

EF Series NS-777 NS-555

Woofers Dual 8” PMD cone Dual 6-1/2” PMD cone
Midrange Driver

Tweeter
Frequency Response 30 Hz–35 kHz 35 Hz–35 kHz

Nominal Input Power 100 W 100 W
Maximum Input Power 250 W 250 W
Sensitivity 89 dB/2.83 V/1 m 88 dB/2.83 V/1 m
Crossover Frequencies 1 kHz/4 kHz 1 kHz/4 kHz
Impedance 6 ohms 6 ohms
Dimensions (W x H x D)
Weight 53.7 lbs./unit 44.1 lbs./unit

EF Series NS-333 NS-C444

Woofers 5” PMD cone Dual 5” PMD cone
Tweeter
Frequency Response 60 Hz–35 kHz 55 Hz–35 kHz

Nominal Input Power 60 W 100 W
Maximum Input Power 150 W 250 W
Sensitivity 87 dB/2.83 V/1 m 89 dB/2.83 V/1 m
Crossover Frequency 3 kHz 3 kHz
Impedance 6 ohms 6 ohms
Dimensions (W x H x D)
Weight 53.7 lbs./unit 44.1 lbs./unit

Bookshelf Speaker Systems NS-6490 NS-AM380SBL

Woofer 8” long-throw cone 5” PP cone
Midrange Driver 4” cone
Tweeter 7/8” balanced-dome 3/4” titanium dome
Input Power (Max/Nominal) 140 W/70 W 120 W/40W
Frequency Response 45 Hz–23 kHz 70Hz - 30kHz
Sensitivity 90 dB/2.83 V/1 m 83 dB/2.83 V/1 m
Impedance 8 ohms 6 ohms
Dimensions (W x H x D)
Weight 13.2 lbs./unit 7.1 lbs./unit

Speaker Packages NS-SP7800PN NS-SP1600

System Frequency Response 30 Hz–35 kHz 30 Hz–50 kHz

Front Speakers

Drivers

Surround Speakers

Drivers

Center Speaker

Drivers
Subwoofer 6-1/2” driver 6-1/2” driver

Dynamic Power 130 W 100 W

5” cone with 5” cone with

Waveguide horn Waveguide horn

1” aluminum dome 1” aluminum dome

with Waveguide horn with Waveguide horn

10-7/8” x 43-5/16” x 15-3/8” 8-3/4” x 38-9/16” x 13-9/16”

1” aluminum dome 1” aluminum dome

with Waveguide horn with Waveguide horn

7-7/8” x 12-5/8” x8-3/8” 20-1/4” x 7-1/2” x 8-3/8”

10-1/2” x 16-13/16” x 13-1/4” 6-5/16” x 11-1/16” x 6-11/16

2-way 2-way acoustic

bass reflex suspension

Dual 2-1/4” woofers, 2-1/2” cone woofer,

3/4” silk dome tweeter 1/2” dome tweeter

2-way acoustic 2-way acoustic

suspension suspension

Dual 2-1/4” woofers, 2-1/2” cone woofer,

3/4” silk dome tweeter 1/2” dome tweeter

2-way acoustic 2-way acoustic

suspension suspension

Dual 2-1/4” woofers, Dual 2-1/2” cone woofers,

3/4” silk dome tweeter 1/2” dome tweeter

”

In-Wall Speakers NS-IW960 NS-IW660 NS-IW760 NS-IW470WH

Woofers Dual 6-1/2” Kevlar cone 6-1/2” Kevlar cone Dual 6-1/2” cone 6-1/2" cone
Midrange Driver 1-5/8” aluminum dome 2" cone
Tweeters 1” titanium dome 1” titanium dome 1” silk dome 1" silk dome
Input Power (Max/Nominal) 150 W/50 W 150 W/50 W 130 W/40 W 120 W/40 W
Frequency Response 50 Hz–28 kHz 50 Hz–28 kHz 50 Hz–24 kHz 55 Hz—28 kHz
Sensitivity 88 dB/2.83 V/1 m 88 dB/2.83 V/1 m 88 dB/2.83 V/1 m 87 dB/2.83 V/1 m
Impedance 8 ohms 8 ohms 6 ohms 6 ohms
Dimensions (W x H x D) 7-1/16” x 23-7/16” x 3-3/4” 8-29/32” x 11-15/16” x 3-13/16” 7-1/16” x 23-7/16” x 3” 8-29/32" x 11-15/16" x 3-13/16"
Mounting Depth 3-5/32” 3-1/16” 2-3/4” 3-1/16"
Weight 6.2 lbs./unit 4.4 lbs./unit 5.1 lbs./unit 4.2 lbs./unit

49

Specifications

 Digital Home Theater Speakers

In-Ceiling Speakers NS-IW560C NS-IW480CWH NS-IW360C NS-IW280CWH

Woofers 8” Kevlar cone 8” PP mica filled cone 8” cone 6-1/2” PP mica filled cone

Tweeters 1” titanium dome Dual 3/4” dome 1” silk dome Dual 3/4” dome

Input Power (Max/Nominal) 150 W/50 W 120 W/35 W 120 W/35 W 100 W/30 W

Frequency Response 45 Hz–28 kHz 50 Hz - 28 kHz 45 Hz–24 kHz 65 Hz – 28 kHz

Sensitivity 88 dB/2.83 V/1 m 86 dB/2.83 V/1 m 88 dB/2.83 V/1 m 85 dB/2.83 V/1 m

Impedance 8 ohms 8 ohms 6 ohms 8 ohms

Dimensions (W x H x D) 10-9/32” x 4-13/32” 10-9/32” x 4-23/32” 10-1/4” x 4” 10-9/32” x 5-1/16”

Mounting Depth 3-23/32” 4-13/32” 3-23/52” 4-13/16”

Weight 4.5 lbs./unit 4.6 lbs./unit 4.3 lbs./unit 3.3 lbs./unit

 Subwoofers

Advanced YST II and QD-Bass Subwoofers YST-SW515 YST-SW325 YST-SW225

Drivers 10” cone 8” cone 8” cone

Dynamic Power 270 W 170 W 150 W

Frequency Response 20–160 Hz 25–180 Hz 28–200 Hz

Advanced YST Advanced YST II Advanced YST II Advanced YST II

QD-Bass Technology 

High-Efficiency Power Amplifier 

Linear Port 

BASS (Bass Action Selector System) 

Dimensions (W x H x D) 13-3/4” x 16-15/16” x 15-1/16” 12-3/8” x 14-15/16” x 14-3/4” 11-7/16” x 14-3/16” x 12-11/16”

Weight 41.9 lbs. 28.7 lbs. 25.3 lbs.

Piano Finish Subwoofers YST-SW315PN/YST-SW315 YST-SW215PN

Drivers 10” cone 8” cone

Dynamic Power 270W 150W

Frequency Response 20–160 Hz 28–200 Hz

Advanced YST 

QD-Bass Technology 

Dimensions (W x H x D) 13-3/4” x 16-15/16” x 15-1/16” 11-7/16” x 14-3/16” x 12-11/16”

Weight 41.9 lbs. 25.3 lbs.

Front Firing Subwoofers YST-RSW300BL YST-SW216BL

Drivers 10”cone 10” cone

Dynamic Power 270 W 100 W

Frequency Response 20–160 Hz 25–180 Hz

Advanced YST Advanced YST II Advanced YST II

Front Firing 

Linear Port 

Dimensions (W x H x D) 14-5/8” x 15-3/4” x 16-7/16” 13-3/8” x 13-3/8” x 15-3/16”

Weight 44.1 lbs. 28.7 lbs.

Slim Design Subwoofers YST-FSW150BL YST-FSW100PN/YST-FSW100BL/YST-FSW100SL YST-FSW050BL

Drivers 6-1/2” cone 6-1/2” cone 6-1/2” cone

Dynamic Power 130 W 130 W 100 W

Frequency Response 30–160 Hz 30–200 Hz 35–160 Hz

Advanced YST Advanced YST II Advanced YST II Advanced YST II

FD-Bass Technology 

Down Firing  

Linear Port  Half Pipe Port 

Rack Mountable  

Dimensions (W x H x D) 17-1/8” x 5-15/16” x 13-3/4” 15-3/4” x 14-3/4” x 6-3/16” 13-3/4” x 6-7/16” x 13-3/4”

Weight 20.7 lbs. 19.8 lbs. 18.7 lbs.

 PianoCraft  MusicCAST

Receiver RX-E810 Receiver

MCR-E810SL

Output Power/Channel 60 W x 2 (4 ohms, 1 kHz, 0.7% THD)
Linear Damping [Damping Factor ]  (60: 6 ohms, 20 Hz-20 kHz)
Dynamic Power/Channel 60/75/100 W (6/4/2 ohms)
Dimensions (W x H x D); Weight 8-7/16” x 4-1/4” x 14-5/16”; 12.6 lbs.

CD / DVD Player DVD-E810 CD/DVD Player

Harmonic Distortion + Noise 0.0035%
Signal-to-Noise Ratio 105 dB
Dynamic Range 97 dB
Dimensions (W x H x D); Weight 8-7/16” x 4-1/4” x 13”; 5.1 lbs.

Speaker System NX-E800 Speaker System

Drivers 13cm cone woofer and 2.5cm dome tweeter
Input Power (Max/Nominal) 110 W/60 W
Frequency Response 55 Hz–28 kHz
Dimensions (W x H x D); Weight 7-5/16” x 11-13/16” x 8-3/4”; 9.5 lbs.

MusicCAST Server MCX-2000

Wireless Capability  (Built-in 802.11 network protocol)
CD Burner  (Built-in CD/RW drive)
Ripping Speed (CD to HDD) 20x (normal speed)
Recording Speed (HDD to CD) 4x (CD-R/RW media)
HDD Size 160GB HDD (upgradable)
XM Satellite Radio Ready  (100 presets)
Built-in FM Tuner  (100 presets)
Dimensions (W x H x D) 17-1/8“ x 3-3/4” x 16-1/16”
Weight 14.5 lbs.

50

 Soavo Series

Soavo Series Soavo-1 Soavo-2 Soavo-900M Soavo-900C

Woofers Dual 6-1/2” Advanced PMD cone 6-1/2” Advanced PMD cone 6-1/2” Advanced PMD cone Dual 6-1/2” Advanced PMD cone
Midrange Driver 5” Advacned PMD cone
Tweeter 1-1/8” aluminum dome 1-1/8” aluminum dome 1-1/8” aluminum dome 1-1/8” aluminum dome
Frequency Response 35 Hz–50 kHz 45 Hz–50 kHz 56 Hz–50 kHz 56 Hz–50 kHz
Nominal Input Power 50 W 30 W 30 W 40 W
Maximum Input Power 200 W 120 W 120 W 200 W
Sensitivity 89 dB/2.83 V/1 m 88 dB/2.83 V/1 m 87 dB/2.83 V/1 m 89 dB/2.83 V/1 m
Crossover Frequencies 500 Hz/5 kHz 3 kHz 3 kHz 3 kHz
Impedance 6 ohms 6 ohms 6 ohms 6 ohms
Dimensions (W x H x D) 13-3/4” x 41-3/8” x 19-3/16” 8-11/16” x 14-15/16” x 13-7/8” 8-11/16” x 13-3/4” x 9-5/16” 19-11/16” x 6-11/16” x 10-11/16”
Weight 59.5 lbs./unit 21.4 lbs./unit 13.2 lbs./unit 19 lbs.

Driver 10” F.B.P. cone
Dynamic Power 600 W
Frequency Response 18–160 Hz
Advanced YST II 
High-Efficiency Power Amplifier 
Linear Port Twin
BASS (Bass Action Selector System) 3 modes
Dimensions (W x H x D) 16-1/8” x 18” x 18-3/16”
Weight 70.5 lbs.

Soavo-900SW

 Natural Sound HiFi Components

Natural Sound Stereo Amplifier A-S2000SL/A-S2000BL

Output Power (4 ohms, 20 Hz-20 kHz, 0.02% THD) 150 W + 150 W
Total Harmonic Distortion (8 ohms, 20 Hz-20 kHz) 0.015%
Dynamic Power (8/6/4/2 ohms) 105/135/190/220 W
Frequency Response 5 Hz-100 kHz (+0 dB/-3 dB)
Linear Damping [Damping Factor] 160
Input Sensitivity (CD, etc.) 150mV/47k ohms
RIAA Equalization Deviation 20 Hz-20 kHz ±0.5 dB
Signal-to-Noise Ratio (CD, etc.) 98 dB (S: 150 mV)
Dimensions (W x H x D) 17-1/8” x 5-3/8” x 18-5/16”
Weight 50 lbs.

FM/AM Receivers RX-797 RX-497 RX-397

ToP-ART 
RMS Output Power (8 ohms, 20 Hz-20 kHz) 100W + 100W (0.019% THD) 75W + 75W (0.04% THD) 50W + 50W (0.04% THD)
XM Satellite Radio Ready 
Pure Direct 
Switchable CD Direct Amplification 
Linear Damping Factor (Speaker A) 240 (8 ohms, 20 Hz–20 kHz) 150 (8 ohms, 20 Hz–20 kHz) 150 (8 ohms, 20 Hz–20 kHz)
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) 0.012% 0.02% 0.02%
Zone 2 Output  (Audio and Video)  (Audio)
Zone Remote Unit 
Dimensions (W x H x D) 17-1/8” x 5-15/16” x 15-5/16” 17-1/8” x 5-15/16” x 12-1/8” 17-1/8” x 5-3/4” x 12-15/16”
Weight 24 lbs. 19.3 lbs. 16.3 lbs.

Natural Sound Super Audio CD Player CD-S2000SL/CD-S2000BL

Frequency Response

Harmonic Distortion
Signal-to-Noise Ratio (CD/Super Audio CD) 116 dB
Dynamic Range
Output Level (CD/Super Audio CD) 2 ± 0.3 V (1 kHz, 0 dB)

Dimensions (W x H x D) 17-1/8” x 5-3/8” x 17-5/16”
Weight 33 lbs.

(CD) 2 Hz—20 kHz
(Super Audio CD) 2 Hz—50 kHz (-3 dB)
(CD) 0.002% (1 kHz)
(Super Audio CD) 0.0017% (1 kHz)

(CD) 100 dB
(Super Audio CD) 110 dB

Stereo Integrated Amplifiers AX-596 AX-497

ToP-ART 
RMS Output Power (8 ohms, 20 Hz-20 kHz) 100W + 100W (0.015% THD) 85W + 85W (0.019% THD)
Pure Direct 
Switchable CD/DVD Direct Amplification 
Linear Damping Factor (Speaker A) 320 (8 ohms, 20 Hz–20 kHz) 240 (8 ohms, 20 Hz–20 kHz)
THD (CD to Sp Out, 20 Hz-20 K Hz) 0.008% 0.009%
Dimensions (W x H x D) 17-1/8” x 5-15/16” x 15-3/8” 17-1/8” x 5-15/16” x 15-3/8”
Weight 23.4 lbs. 20.1 lbs.

HDD + CD-R/RW Digital Audio Recorders

Built-in HDD  (200GB HDD)
Audio Master Quality Recording 
Ripping Speed (CD to HDD) 10x Normal Speed
Recording Speed (HDD to CD) 8x to CD-R, 4x to CD-RW
Supported Formats Analog Audio, CDs, CD-R/CD-RW, PCM
On-Screen Display 
Dimensions (W x H x D) 17-1/8” x 4-9/16” x 16-5/16”
Weight 18.1 lbs.

FM/AM Tuner TX-497

Direct PLL IF Count Synthesizer Tuning 
Absolute Liner Phase IF Amplifier Circuitry 
FM Frequency Response 30 Hz-13 kHz ±0.5dB
FM Signal-to-Noise Ratio 82 dB (mono), 76 dB (stereo)
Dimensions (W x H x D) 17-1/8” x 3-3/8” x 10-11/16”
Weight 7.1 lbs.

CDR-HD1500

Stereo Digital Power Amplifier MX-D1

Min. RMS Output Power (8/6/4 ohms, 1 kHz) 500 W x 2 [0.1% THD]
Dynamic Power/Channel (8/6/4/2 ohms) 700/850/1,000/1,000 W
Frequency Response 1 Hz-100 kHz ±3 dB
Total Harmonic Distortion (1 kHz, 10 W/8 ohms) 0.002% (20 kHz LPF)
Signal-to-Noise Ratio 120 dB (20 kHz LPF)
Residual Noise (IHF-A-Network, 20 kHz LPF) 63 µV
Dimensions (W x H x D) 17-1/8” x 2-15/16” x 17-3/16”
Weight 22.9 lbs.

CD Changer CDC-697BL

Signal-to-Noise Ratio 106 dB
Dynamic Range 96 dB
Frequency Response 2 Hz–20 kHz ±0.5 dB
Harmonic Distortion + Noise 0.003%
Dimensions (W x H x D) 17-1/8” x 4-9/16” x 15-7/8”
Weight 12.1 lbs.

51

Natural Sound Speaker System

• Visit us at our website: www.soavo.com

Soavo-1 Honored by EISA.

The prestigious EISA (European Imaging and Sound
Association) Awards are chosen by media
representatives from 18 European countries.

The Soavo-1 has been named European Floor-Standing Speaker 2007­2008 by EISA. Noting that it has “an extremely elegant and stylish look,”
the EISA jury was impressed by the Soavo-1’s cabinet fashioned from
high quality materials, carved reflex port, aluminum tweeter support and
its exclusive Advanced-PMD metal diaphragms. In conclusion, they
praised the speaker’s “extremely high level of performance and an
authentically ‘Natural Sound’ in the Yamaha tradition.”

Yamaha’s unique technology for the creation of sound fields is capable of powerfully reproducing the three-dimensional environment that movie sound engineers aim
to convey, in any audio format from monaural to the latest multi-channel digital surround. It is compatible with DVD and all other A/V sources.
Yamaha CINEMA DSP technology has received a patent in the U.S. (Patent No. 5,261,005).

SILENT CINEMA is a trademark of Yamaha Corporation.
PlayXchange is a registered trademark in the U.S. Yamaha has received a patent for PlayXchange technology in the U.S. (Patent No. 5,115,419).

• "Digital Sound Projector" and the " " logo are trademarks of 1 Ltd.

• Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

• DTS is a registered trademark and the DTS logos, Symbols, DTS-HD and DTS-HD Master Audio are
trademark of DTS, Inc.

• The XM Satellite Radio service is only available in the 48 contiguous United States
(not available in Alaska and Hawaii) and Canada.

• XM name, XM Ready and related logos are registered trademarks of XM Satellite Radio, Inc.

• Neural Surround is a trademark owned by Neural Audio Corporation, THX is a trademark of THX Ltd.

• HD Radio™ technology manufactured under license from iBiquity Digital Corporation.

• HQV and Hollywood Quality Video are trademarks of Silicon Optix, Inc.

• iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.

• Windows Media is a registered trademark of Microsoft Corporation.

• THX, the THX logo and Ultra2 Plus are trademarks of THX Ltd.

For details please contact:

• Burr-Brown products are trademarks of Texas Instruments, Inc.

• "DCDi " is a trademark of Faroudja, a division of Genesis Microchip, Inc.

• NSV is a trademark of Analog Devices, Inc.

•

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments, Inc.

• Powered by ABT™ is a trademark of Anchor Bay Technologies Inc.

• DivX, DivX Ultra Certified, associated logos are trademarks of DivX, Inc. and are used under license.

• EUPHONY is a trademark of DiMAGIC Co., Ltd.

• The Gracenote logo, logotype, and CDDB are registered trademarks of Gracenote Music Recognition Service.

• Circle Surround II, Dialog Clarity, TruBass, SRS and symbol are trademarks of SRS Labs, Inc.

• Theater photos: UNITED CINEMAS "Toshimaen."

• Screen images are simulated.

• Product designs and specifications are subject to change without notice.

Yamaha Electronics Corporation
USA, P.O. Box 6660 Buena Park, CA 90622

Visit us at our website: http://www.yamaha.com/yec

YAMAHA CORPORATION

P.O.Box1,Hamamatsu,Japan

UEN 10709 U Printed in Japan
