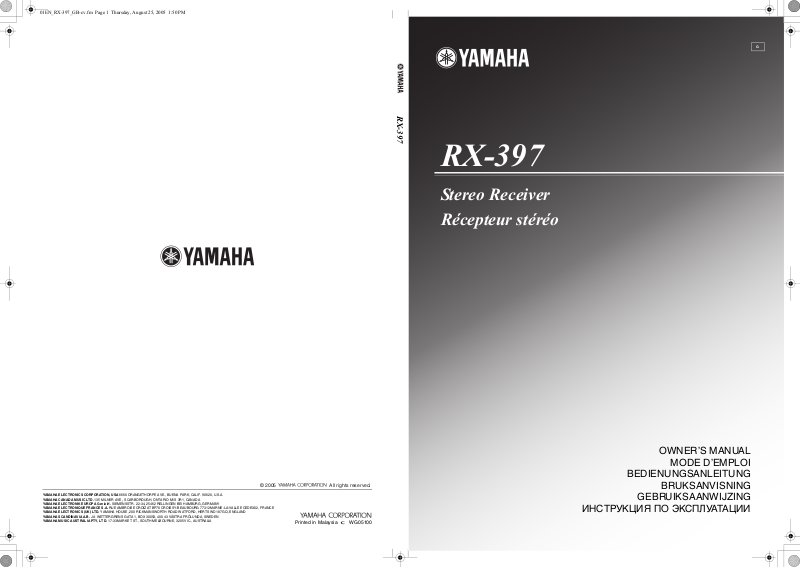

Yamaha RX-397 User Manual [ru, de, fr, en]
RX-397
Stereo Receiver
Récepteur stéréo
G
OWNER’S MANUAL
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
GEBRUIKSAANWIJZING
ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
1 To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2 Install this sound system in a well ventilated, cool, dry, clean
place – away from direct sunlight, heat sources, vibration,
dust, moisture, and/or cold. Allow ventilation space of at least
30 cm on the top, 20 cm on the left and right, and 20 cm on
the back of this unit.
3 Locate this unit away from other electrical appliances, motors,
or transformers to avoid humming sounds.
4 Do not expose this unit to sudden temperature changes from
cold to hot, and do not locate this unit in an environment with
high humidity (i.e. a room with a humidifier) to prevent
condensation inside this unit, which may cause an electrical
shock, fire, damage to this unit, and/or personal injury.
5 Avoid installing this unit where foreign objects may fall onto
this unit and/or this unit may be exposed to liquid dripping or
splashing. On the top of this unit, do not place:
– Other components, as they may cause damage and/or
discoloration on the surface of this unit.
– Burning objects (i.e. candles), as they may cause fire,
damage to this unit, and/or personal injury.
– Containers with liquid in them, as they may fall and liquid
may cause electrical shock to the user and/or damage to
this unit.
6 Do not cover this unit with a newspaper, tablecloth, curtain,
etc. in order not to obstruct heat radiation. If the temperature
inside this unit rises, it may cause fire, damage to this unit,
and/or personal injury.
7 Do not plug in this unit to a wall outlet until all connections
are complete.
8 Do not operate this unit upside-down. It may overheat,
possibly causing damage.
9 Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cable from the wall outlet,
grasp the plug; do not pull the cable.
11 Do not clean this unit with chemical solvents; this might
damage the finish. Use a clean, dry cloth.
12 Only voltage specified on this unit must be used. Using this
unit with a higher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury.
YAMAHA will not be held responsible for any damage
resulting from use of this unit with a voltage other than
specified.
13 To prevent damage by lightning, keep the power cord and
outdoor antennas disconnected from a wall outlet or the unit
during a lightning storm.
14 Do not attempt to modify or fix this unit. Contact qualified
YAMAHA service personnel when any service is needed. The
cabinet should never be opened for any reasons.
15 When not planning to use this unit for long periods of time
(i.e. vacation), disconnect the AC power plug from the wall
outlet.
16 Install this unit near the AC outlet and where the AC power
plug can be reached easily.
17 Be sure to read the “TROUBLESHOOTING” section on
common operating errors before concluding that this unit is
faulty.
18 Before moving this unit, press STANDBY/ON to set this unit
to the standby mode, and disconnect the AC power plug from
the wall outlet.
19 VOLTAGE SELECTOR (Asia and General models only)
The VOLTAGE SELECTOR on the rear panel of this unit
must be set for your local main voltage BEFORE plugging
into the AC main supply. Voltages are:
General model .............AC 110/120/220/230–240 V, 50/60 Hz
Asia model ................................ AC 220/230–240 V, 50/60 Hz
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
This unit is not disconnected from the AC power
source as long as it is connected to the wall outlet, even
if this unit itself is turned off by STANDBY/ON. This
state is called the standby mode. In this state, this unit
is designed to consume a very small quantity of power.
i
INTRODUCTION
FEATURES............................................................. 2
SUPPLIED ACCESSORIES ................................. 2
CONTROLS AND FUNCTIONS ......................... 3
Front panel ................................................................. 3
Front panel display .................................................... 5
Rear panel .................................................................. 6
Remote control........................................................... 7
Installing batteries in the remote control ................... 8
Using the remote control ........................................... 8
PREPARATION
CONNECTIONS .................................................... 9
Connecting speakers ................................................ 10
Connecting the AM and FM antennas ..................... 11
Connecting the power supply cord .......................... 13
Turning on and off this unit ..................................... 14
OPERATION
PLAYING AND RECORDING .......................... 15
Playing a source....................................................... 15
Adjusting the tonal quality....................................... 16
Recording a source .................................................. 17
Using the sleep timer ............................................... 18
Muting the sound output .......................................... 19
FM/AM TUNING ................................................. 20
Automatic tuning ..................................................... 20
Manual tuning.......................................................... 21
Automatic preset tuning........................................... 21
Manual preset tuning ............................................... 23
Selecting preset stations........................................... 24
Exchanging preset stations ...................................... 24
RADIO DATA SYSTEM (EUROPE MODEL
ONLY) ............................................................... 25
Receiving Radio Data System stations .................... 25
Changing the Radio Data System mode .................. 25
PTY SEEK function ................................................ 26
EON function........................................................... 27
ADVANCED SETUP ........................................... 28
Changing the ADVANCED SETUP menu
parameters ........................................................... 28
CONTENTS
PREPARATIONINTRODUCTION
OPERATION
INFORMATION
ADDITIONAL
ADDITIONAL INFORMATION
TROUBLESHOOTING....................................... 30
SPECIFICATIONS .............................................. 33
English
1
FEATURES
FEATURES
Built-in 2-channel power amplifier
◆ Minimum RMS output power
50 W + 50 W (8 Ω), 0.04% THD, 20 Hz to 20 kHz
◆ Highly dynamic power, low impedance drive
capability
Sophisticated AM/FM tuner
Other features
◆ PURE DIRECT button used to reproduce the purest
source sound
◆ Continuously variable loudness control
◆ Sleep timer
◆ Remote control capability
◆ 40-station random access preset tuning
◆ Automatic preset tuning
◆ Preset station exchanging capability
◆ Radio Data System tuning capability
(Europe model only)
• y indicates a tip for your operation.
• Some operations can be performed by using either the buttons on the front panel of this unit or those on the remote control. In case the
button names differ between this unit and the remote control, the names of the buttons on the remote control are given in parentheses.
• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In
case of differences between the manual and the product, the product has priority.
SUPPLIED ACCESSORIES
Please check that you received all of the following parts.
Remote control
PRESET
A/B/C/D/E
u
d
DEVICE
A/B
s
MODE STARTPTY SEEK
VOLUME
a
POWER
STANDBY
SPEAKERS
A
B
+
–
MUTE
DISPLAY
REC
DISC
EON
TAPECD
SLEEP
CD/DVD PHONO TUNER
MD TAPE AUX
wef
DIR ApDIR B
b
FREQ/TEXT
AMP
Batteries (x2)
(AAA, R03, UM-4)
Indoor FM antenna
(U.S.A., Canada and
General models)
AM loop antenna
Indoor FM antenna
(Europe and Australia
models)
2
Front panel
12
20
60
26
40
16
-dB
CONTROLS AND FUNCTIONS
CONTROLS AND FUNCTIONS
INTRODUCTION
2154783096
STANDBY
/ON
A/B/C/D/E
INPUT
PHONES
12345678
BA
BASS
101
22
3
3
44
55
+
–
SPEAKERS
DCBEFGHIJ
1 STANDBY/ON
Turns on this unit or sets it to the standby mode.
See page 14 for details.
Note
In the standby mode, this unit consumes a small amount of power
to receive infrared signals from the remote control.
2 Remote control sensor
Receives infrared signals from the remote control.
3 Front panel display
Shows information about the operational status of this
unit.
4 EDIT
Exchanges the assignment of two preset stations with each
other when TUNER is selected as the input source (see
page 24).
5 FM/AM
Switches the reception band between AM and FM when
TUNER is selected as the input source (see page 20).
6 TUNING l / h
Selects the tuning frequency when TUNER is selected as
the input source (see page 20).
7 TUNING MODE
Switches the tuning mode between automatic (the AUTO
indicator turns on as a result) and manual (the AUTO
indicator turns off as a result) when TUNER is selected as
the input source.
l
TUNING
h
MEMORY
TUNING MODE
MAN'L/AUTO FM
AUTO/MAN'L
DISPLAY
LOUDNESS
FLAT
1
–
30dB
210
9
3
48
57
6
VOLUME
TAPE MONITORPURE DIRECT
16
20
12
26
40
60
∞
8
4
2
0
-dB
TREBLE
101
22
3
3
44
55
+
–
FM/AM
EDIT
BALANCE
101
22
3
3
44
55
R
L
(U.S.A. and Canada models)
8 MEMORY
Stores a station in the system memory (see page 23).
Sets this unit to the automatic preset tuning mode (see
page 21).
9 PURE DIRECT and indicator
Allows you to listen to a source in the purest possible
sound. The indicator above it lights up when this function
is turned on (see page 16).
0 TAPE MO NITOR
Allows you to listen to the sound played back on the tape
deck connected to the TAPE terminals on the rear panel of
this unit.
When the 3-head tape deck is used for recording, you can
also monitor the sound being recorded.
The TAPE MON indicator lights up in the front panel
display when you press TAPE MONITOR (see page 17).
Notes
• When TAPE MON indicator lights up, you cannot select any
input source.
• To listen to the source selected with the INPUT selector, press
TAPE MONITOR again so that the TAPE MON indicator turns
off.
• When TAPE (tape deck) is selected with the INPUT selector,
this function will not turn on even if TAPE MONITOR is
pressed.
A
English
3
CONTROLS AND FUNCTIONS
A VOLUME
Increases or decreases the sound output level.
Note
This does not affect the OUT (REC) level.
B INPUT selector
Selects the input source you want to listen to.
C A/B/C/D/E
Selects the preset station group (A to E) when TUNER is
selected as the input source (see page 22).
D PHONES jack
Outputs audio for private listening with your headphones.
Note
Press SPEAKERS A and B so that the SP A/B indicators turn off
before you connect your headphones to the PHONES jack.
E SPEAKERS A/B
Turns on or off the speaker set connected to the
SPEAKERS A and/or SPEAKERS B terminals on the rear
panel each time the corresponding button is pressed (see
page 15).
F BASS
Increases or decreases the low frequency response. The 0
position produces a flat response (see page 16).
G TREBLE
Increases or decreases the high frequency response. The 0
position produces a flat response (see page 16).
H BALANCE
Adjusts the sound output balance of the left and right
speakers to compensate for sound imbalances caused by
speaker locations or listening room conditions (see page
16).
I LOUDNESS
Retains a full tonal range at any volume level to
compensate for the human ears’ loss of sensitivity to high
and low-frequency ranges at a low volume level (see page
16).
J Preset station number buttons
(1 to 8)
Selects the preset station number (1 to 8) directly when
TUNER is selected as the input source (see page 24).
4
Front panel display
09
CONTROLS AND FUNCTIONS
1 3 4 6 7 85
2
SP
A B
TAPE
MON
MEMORY AUTO
1 SP (SPEAKERS) A/B indicators
Light up according to the set of speakers selected.
Both indicators light up when both sets of speakers are
selected.
2 TAPE MON (MONITOR) indicator
Lights up while the TAPE monitor function is turned on.
3 MEMORY indicator
Flashes for approximately 5 seconds after MEMORY on
the front panel is pressed. While the MEMORY indicator
is flashing, store the displayed station in the system
memory by using A/B/C/D/E and one of the preset station
number buttons on the front panel.
4 AUTO indicator
Lights up when this unit is in the automatic tuning mode.
5 TUNED indicator
Lights up when this unit is tuned into a station.
6 STEREO indicator
Lights up when this unit is receiving a strong signal for an
FM stereo broadcast while the AUTO indicator is lit.
TUNED STEREO
SLEEP
MUTE
HOLDPTY
EON
PTY
PS
RT
CT
7 SLEEP indicator
Lights up when the sleep timer is turned on.
8 MUTE indicator
Flashes while the MUTE function is turned on.
9 Multi-information display
Shows information when adjusting or changing settings.
■ Europe model only
0 Radio Data System indicators
The box-shaped indicator beside the name of each Radio
Data System mode lights up when the corresponding
Radio Data System mode is selected.
PTY HOLD indicator
Lights up while searching for stations in the PTY
SEEK mode.
EON indicator
Lights up when the Radio Data System station that
offers the EON data service is being received.
INTRODUCTION
English
5
CONTROLS AND FUNCTIONS
Rear panel
12 3
(U.S.A. and Canada models)
UNBAL.
75Ω
GND
AM
ANT
FM
ANT
AUDIO GND
PHONO
CD/DVD
AUDIOTUNER
AUX
IN
(PLAY)
MD
OUT
(REC)
IN
(PLAY)
TAPE
OUT
(REC)
IN
REMOTE
OUT
1 Antenna terminals
Connect FM and AM antennas.
See page 11 for connections information.
2 AUDIO jacks
Connect audio components.
See page 9 for connection information.
3 REMOTE jacks
These jacks are used to input/output remote control
signals.
See page 13 for connection information.
AC OUTLETS
SWITCHED
SPEAKERS
CLASS 2 WIRING
A
B
IMPEDANCE SELECTOR
SET BEFORE POWER ON
SELECTEUR D'IMPEDANCE
A OR B: 4ΩMIN. /SPEAKER
A + B: 8ΩMIN. /SPEAKER
A OR B: 8ΩMIN. /SPEAKER
6745
4 PHONO jacks and GND terminal
Connect a turntable.
See page 9 for connection information.
5 SPEAKERS terminals
Connect speakers.
See page 10 for connection information.
6 IMPEDANCE SELECTOR switch
Switches the impedance setting.
See page 10 for details.
7 AC OUTLET(S) (SWITCHED)
Use to supply power to your other audio components.
See page 13 for details.
■ Asia and General models only
VOLTAGE SELECTOR
See page 13 for details.
6
Remote control
CONTROLS AND FUNCTIONS
This section describes the function of each button on the
remote control used to control this unit or other
components made by YAMAHA. The functions of the
buttons used to control your other audio components are
the same as those of the corresponding buttons on those
components. Refer to those components’ instruction
manuals for details.
1
SLEEP
2
CD/DVD PHONO TUNER
POWER
8
STANDBY
9
3
MD TAPE AUX
SPEAKERS
A
0
B
4
5
6
7
A/B/C/D/E
w
DIR A
b
FREQ/TEXT
AMP
u
PRESET
d
A/B
e
s
MODE STARTPTY SEEK
DEVICE
p
+
VOLUME
–
MUTE
f
DIR B
a
A
B
DISPLAY
REC
DISC
EON
TAPECD
C
1 Infrared signal transmitter
Sends infrared signals.
2 SLEEP
Sets the sleep timer.
3 Input selector buttons
Select the desired input source.
4 PRESET u / d
Selects the preset station number (1 to 8) when TUNER is
selected as the input source.
5 A/B/C/D/E
Selects the preset station group (A to E) when TUNER is
selected as the input source.
6 Radio Data System/CD player/Cassette tape
deck control buttons
Controls Radio Data System features, YAMAHA CD
players or YAMAHA cassette tape deck.
Note
The Radio Data System features (FREQ/TEXT, PTY SEEK
MODE and PTY SEEK START) are only applicable to the
Europe model and are operational only when TUNER is selected
as the input source and the AMP/DEVICE switch is slid to the
AMP position.
7 AMP/DEVICE switch
Switches the function of the control buttons numbered 6
between controlling this unit and controlling YAMAHA
CD players or YAMAHA cassette tape deck.
8 POWER
Turns on this unit.
9 STANDBY
Sets this unit to the standby mode.
Note
In the standby mode, this unit consumes a small amount of power
to receive infrared signals from the remote control.
0 SPEAKERS A/B
Turns on or off the set of speakers connected to the
SPEAKERS A and/or SPEAKERS B terminals on the rear
panel of this unit when the corresponding button is
pressed each time.
A VOLUME +/–
Increases or decreases the sound output level.
Notes
• This does not affect the OUT (REC) level.
• When you press VOLUME +/– to control the sound output
level of this unit, VOLUME on the front panel rotates.
B MUTE
Mutes the sound output. Press again to restore the sound
output to the previous volume level (see page 19).
C CD/TAPE switch
Switches the function of the control buttons numbered 6
between controlling YAMAHA CD players and
controlling YAMAHA cassette tape deck when the
AMP/DEVICE switch is slid to the DEVICE position.
INTRODUCTION
English
7
CONTROLS AND FUNCTIONS
Installing batteries in the remote control
■ Notes on batteries
• Change all of the batteries if the operation range of the remote control decreases.
• Use AAA, R03, UM-4 batteries for the remote control.
• Make sure that the polarities are correct. See the illustration inside the battery compartment of each remote control.
• Remove the batteries if the remote control is not used for an extended period of time.
• Do not use old batteries together with new ones.
• Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these
different types of batteries may have the same shape and color.
• We strongly recommend using alkaline batteries.
• If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with
clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Do not throw away batteries with general house waste; dispose of them correctly in accordance with your local regulations.
1
3
1 Open the battery compartment cover.
2 Insert the supplied batteries in each remote
control according to the polarity markings (+
2
and –) on the inside of the battery
compartment.
3 Close the cover back.
Using the remote control
The remote control transmit a directional infrared beam.
Be sure to aim the remote control directly at the remote control sensor on the front panel of this unit.
■ Handling the remote control
• The area between the remote control and this unit must be clear
of large obstacles.
• Do not spill water or other liquids on the remote control.
• Do not drop the remote control.
• Do not leave or store the remote control in the following types
of conditions:
Approximately 6 m (19.7 ft)
30 30
– places of high humidity, such as near a bath
– places of high temperature, such as near a heater or a stove
– places of extremely low temperatures
– dusty places
• Do not expose the remote control sensor to strong lighting, in
particular, an inverter type fluorescent lamp; otherwise, the
remote control may not work properly. If necessary, position
this unit away from direct lighting.
8
CONNECTIONS
CONNECTIONS
CAUTION
• Do not connect this unit or other components to the main power until all connections between components are complete.
• Do not let the bare speaker wires touch each other or do not let them touch any metal part of this unit. This could damage this unit and/
or the speakers.
• All connections must be correct: L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. If the connections are faulty, no sound will be
heard from the speakers, and if the polarity of the speaker connections is incorrect, the sound will be unnatural and lack bass. Also,
refer to the owner’s manual for each of your components.
• Use the RCA type pin plug cables for audio components except speakers.
y
• The PHONO jacks are designed to connect a turntable with an MM or high-output MC cartridge. If you have a turntable with a lowoutput MC cartridge, use an in-line boosting transformer or an MC-head amplifier when connecting your turntable to the PHONO
jacks.
• Connect your turntable to the GND terminal to reduce noise in the signal. However, you may hear less noise without the connection to
the GND terminal for some record players.
PREPARATION
MP3 player, etc.
Audio out
GND
ANT
75Ω
UNBAL.
ANT
AUDIO GND
PHONO
AM
FM
CD/DVD player,
etc.
Audio out
LRLR
AUDIOTUNER
CD/DVD
AUX
IN
(PLAY)
MD
OUT
(REC)
IN
(PLAY)
TAPE
OUT
(REC)
MD recorder,
etc.
Audio in
Audio out
LR LR
REMOTE
IN OUT
Speakers A
––+
+
A
B
SPEAKERS
R L
Audio out
Turntable
R
R
L
L
GND
Audio in
Audio out
+ – – +
Speakers B
English
Tape deck, etc.
9
CONNECTIONS
Connecting speakers
Be sure to connect the left channel (L), right channel (R), “+” (red) and “–” (black) properly.
CAUTION
Before connecting the speakers, make sure that the power of this unit is off.
■ Connecting the banana plug
1 Remove approximately 10 mm (3/8 in) of
insulation from the end of each speaker
cable and twist the exposed wires of the
cable together to prevent short circuits.
10 mm (3/8 in)
2 Unscrew the knob.
Red: positive (+)
Black: negative (–)
(U.S.A., Canada, Australia and General
models only)
First, tighten the knob and then insert the banana plug into
the end of the corresponding terminal.
Banana plug
Notes
• One or two speaker sets can be connected to this unit. If you use
only one speaker set, connect it to either the SPEAKERS A or B
terminals.
• Use speakers with the specified impedance shown on the rear
panel of this unit.
3 Insert one bare wire into the hole in the side
of each terminal.
Red: positive (+)
Black: negative (–)
4 Tighten the knob to secure the wire.
Red: positive (+)
Black: negative (–)
■ IMPEDANCE SELECTOR switch
CAUTION
Do not slide the IMPEDANCE SELECTOR switch while the
power of this unit is turned on, as doing so may damage the unit.
Select the switch position (left or right) according to the
impedance of the speakers in your system.
Switch
position
If you use one set (A or B), the impedance of
each speaker must be 8
Right
If you use two sets (A and B), the impedance
of each speaker must be 16
If you use one set (A or B), the impedance of
each speaker must be 4
Left
If you use two sets (A and B), the impedance
of each speaker must be 8
Notes
• The Canada model cannot use two separate speaker sets (A and
B) simultaneously when the IMPEDANCE SELECTOR switch
is slid to the right position.
• If this unit fails to turn on, the IMPEDANCE SELECTOR
switch may not be fully slid to either position. If this is the case,
slide the switch all the way to either position when the power
supply to this unit is completely cut off.
Impedance level
Ω or higher.
Ω or higher.
Ω or higher.
Ω or higher.
10
CONNECTIONS
Connecting the AM and FM antennas
Both AM and FM indoor antennas are included with this unit. In general, these antennas should provide sufficient signal
strength. Connect each antenna correctly to the designated terminals.
AM loop antenna
(included)
Outdoor AM antenna
Use a 5 to 10 m of vinylcovered wire extended
outdoors from a window.
75Ω
UNBAL.
TUNER
GND
AM
ANT
FM
ANT
AUDIO GND
Indoor FM antenna
(included)
Outdoor FM antenna
PREPARATION
Ground (GND terminal)
For maximum safety and
minimum interference, connect
the antenna GND terminal to a
good earth ground. A good earth
ground is a metal stake driven into
moist earth.
Notes
• A properly installed outdoor antenna provides clearer reception than an indoor one. If you experience poor reception quality, an
outdoor antenna may improve the quality. Consult your nearest authorized YAMAHA dealer or service center about outdoor antennas.
• If you connect an outdoor FM antenna to this unit, do not connect the indoor FM antenna to this unit.
• To minimize interference from automobile ignition, locate the antenna as far from heavy traffic as possible.
• Keep the feeder cable or coaxial cable as short as possible. Do not bundle or roll up excess cable.
• The antenna should be placed at least 2 meters from reinforced concrete walls or metal structures.
English
11
CONNECTIONS
■ Connecting the AM loop antenna
1 Set up the AM loop antenna.
2 Press and hold the tab.
5 Repeat steps 2 to 4 to insert the AM loop
antenna lead wires into the GND terminal.
6 Orient the AM loop antenna for the best
reception.
Notes
• The AM loop antenna should be placed away from this unit.
• A properly installed outdoor antenna provides clearer reception
than an indoor one. If you experience poor reception quality, an
outdoor antenna may improve the quality. It is recommended
that you should connect a 5 to 10 m of vinyl-covered wire to the
AM ANT terminal and extend it outdoors from a window.
Consult your nearest authorized YAMAHA dealer or service
center about outdoor antennas.
• The AM loop antenna should always be connected, even if an
outdoor AM antenna is connected to this unit.
3 Insert the AM loop antenna lead wires into
the AM ANT terminal.
4 Release the tab.
12
CONNECTIONS
Connecting the power supply cord
Plug the power supply cord into the AC wall outlet after
all other connections are complete.
REMOTE jacks
VOLTAGE SELECTOR
REMOTE
IN OUT
VOLTAGE
SELECTOR
SPEAKERS
CLASS 2 WIRING
A
B
(General model)
■ REMOTE jacks
Some YAMAHA models are able to connect directly to the
REMOTE jack on the rear panel of this unit. If you own these
products, you may not need to use an infrared emitter. Up to six
YAMAHA components can be connected as shown below.
AC power supply cord
AC OUTLETS
SWITCHED
IMPEDANCE SELECTOR
SET BEFORE POWER ON
A OR B: 4ΩMIN. /SPEAKER
A + B: 8ΩMIN. /SPEAKER
A OR B: 8ΩMIN. /SPEAKER
A + B:16ΩMIN. /SPEAKER
AC OUTLET(S)
Memory back-up
The memory back-up circuit prevents the stored data
from being lost. However, the stored data will be lost if
the power cord is disconnected from the AC wall outlet
for more than one week.
■ AC OUTLET(S) (SWITCHED)
Australia model ......................................................1 outlet
Other models ....................................................... 2 outlets
Use these outlets to connect the power supply cords from
your other components to this unit. The AC OUTLET(S)
supplies power to any connected components whenever
the power of this unit is turned on. For information on the
maximum power (total power consumption of
components), see “SPECIFICATIONS” on page 33.
■ VOLTAGE SELECTOR
(Asia and General models only)
VOLTAGE SELECTOR on the rear panel of this unit must
be set for your local main voltage BEFORE plugging the
power supply cord into the AC wall outlet.
Voltages are as follows:
Asia model ......................... AC 220/230–240 V, 50/60 Hz
General model...... AC 110/120/220/230–240 V, 50/60 Hz
PREPARATION
REMOTE
Infrared signal
receiver
REMOTE
IN
This unit
IN
YAMAHA
component
REMOTE
OUT
IN
REMOTE
OUTOUT
YAMAHA
component
English
13
CONNECTIONS
12
20
60
26
40
16
-dB
Turning on and off this unit
When all connections are complete, turn on the power of
this unit.
1
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
SPEAKERS
PHONES
101
22
BA
3
44
55
–
SLEEP
CD/DVD PHONO TUNER
MD TAPE AU X
3
+
TREBLE
101
22
3
44
55
+
–
POWER
STANDBY
SPEAKERS
3
A
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
1
B
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
1 Press STANDBY/ON on the front panel (or
POWER on the remote control) to turn on this
unit.
STANDBY
/ON
or
Front panel Remote control
Press STANDBY/ON on the front panel (or
STANDBY on the remote control) to set this unit to
the standby mode.
POWER
14
PLAYING AND RECORDING
12
20
60
26
40
16
-dB
12
20
60
26
40
16
-dB
PLAYING AND RECORDING
CAUTION
Extreme caution should be exercised when you play back CDs encoded in DTS.
If you play back a CD encoded in DTS on a DTS-incompatible CD player, you will only hear some unwanted noise that may damage
your speakers. Check whether your CD player supports CDs encoded in DTS. Also, check the sound output level of your CD player
before you play back a CD encoded in DTS.
Playing a source
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
STANDBY
/ON
5
A/B/C/D/E
INPUT
SPEAKERS
PHONES
1 2
1
12345678
BASS
TREBLE
101
101
22
22
BA
3
3
44
44
55
+
–
SLEEP
CD/DVD PHONO TUNER
MD TAPE AUX
u
PRESET
d
A/B/C/D/E
55
–
VOLUME
3
+
POWER
STANDBY
SPEAKERS
A
B
+
–
MUTE
3
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
2
4
1 Rotate the INPUT selector on the front panel
(or press one of the input selector buttons on
the remote control) to select the desired
input source.
INPUT
or
Front panel Remote control
Note
You cannot select any input source while the TAPE MON
indicator lights up in the front panel display.
SLEEP
CD/DVD PHONO TUNER
MD TAPE AUX
TAPE MONI TORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
4
POWER
STANDBY
SPEAKERS
A
B
2 Press SPEAKERS A and/or SPEAKERS B on
the front panel or on the remote control to
select speakers A and/or speakers B.
SPEAKERS
BA
Front panel
or
SPEAKERS
A
B
Remote control
Notes
• Both SPEAKERS A and B can be selected.
• Make sure that the IMPEDANCE SELECTOR switch is
correctly set (see page 10).
3 Play the source.
4 Rotate VOLUME on the front panel (or press
VOLUME +/– on the remote control) to adjust
the sound output level.
16
20
VOLUME
26
40
60
Front panel
12
8
4
2
0
∞
-dB
or
+
VOLU ME
–
Remote control
5 Press STANDBY/ON on the front panel again
(or press STANDBY on the remote control) to
finish using this unit and set it to the standby
mode.
STANDBY
/ON
or
STANDBY
OPERATION
Front panel
Remote control
English
15
PLAYING AND RECORDING
12
20
60
26
40
16
-dB
Adjusting the tonal quality
■ Adjusting the BALANCE control
Adjusts the sound output balance of the left and right
speakers to compensate for sound imbalance caused by
speaker locations or listening room conditions.
BALANCE
101
22
3
3
44
55
R
L
■ Using the PURE DIRECT button
Routes input signals from your audio sources so that the
input signals bypass the BASS, TREBLE, BALANCE and
LOUDNESS controls, thus eliminating any alterations to
the audio signals and creating the purest possible sound.
PURE DIRECT
■ Adjusting the LOUDNESS control
Retains a full tonal range at any volume level, thus
compensating for the human ears’ loss of sensitivity to
high and low-frequency ranges at a low volume level.
CAUTION
If the PURE DIRECT button is turned on with the LOUDNESS
control set at a certain level, the input signals bypass the
LOUDNESS control, resulting in a sudden increase in the sound
output level. To prevent your ears or the speakers from being
undesirably damaged, be sure to press the PURE DIRECT button
AFTER lowering the sound output level or AFTER checking that
the LOUDNESS control is properly set.
1 Rotate the LOUDNESS control on the front
panel to the FLAT position.
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
■ Adjusting the BASS and TREBLE
controls
Adjust the high and low frequency response.
BASS
Increases or decreases the low frequency response.
TREBLE
Increases or decreases the high frequency response.
BASS
101
22
3
3
44
55
+
–
TREBLE
101
22
3
3
44
55
+
–
2 Rotate VOLUME on the front panel (or press
VOLUME +/– on the remote control) to set the
sound output level to the loudest listening
level that you would listen to.
16
20
VOLUME
26
40
60
Front panel
12
8
4
or
2
∞
0
-dB
+
VOLU ME
–
Remote control
3 Rotate the LOUDNESS control until the
desired volume is obtained.
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
16
PLAYING AND RECORDING
12
20
60
26
40
16
-dB
12
20
60
26
40
16
-dB
Recording a source
Notes
• The VOLUME, BASS, TREBLE, BALANCE and
LOUDNESS controls and the PURE DIRECT buttons have no
effect on the source being recorded.
• Check the copyright laws in your country to record from
records, CDs, radio, etc. Recording copyright-protected
material may infringe on copyright laws.
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
SPEAKERS
BA
101
22
3
44
55
–
PHONES
3
+
TREBLE
101
22
3
3
44
55
+
–
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
2
1 Play the selected source to record from.
2 Rotate the INPUT selector on the front panel
to select the source you want to record from.
INPUT
or
Front panel Remote control
SLEEP
CD/DVD PHONO TUNER
MD TAPE AUX
TAPE MONPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
3
POWER
STANDBY
SPEAKERS
A
B
3 Rotate VOLUME on the front panel (or press
VOLUME +/– on the remote control) to adjust
the sound output level of the selected source
to record from.
16
20
VOLUME
26
40
60
Front panel
12
8
or
4
2
0
∞
-dB
+
VOLUME
–
Remote control
4 Begin recording on the MD recorder, the tape
deck or the VCR connected to this unit.
y
If the 3-head tape deck is used for recording, you can monitor the
sound of recording by pressing TAPE MONITOR.
OPERATION
Note
You cannot select any input source while the TAPE MON
indicator lights up in the front panel display.
English
17
PLAYING AND RECORDING
Using the sleep timer
Use this feature to automatically set this unit to the
standby mode after a certain amount of time. The sleep
timer is useful when you are going to sleep while this unit
is playing or recording a source. The sleep timer also
automatically turns off any external components
connected to the AC OUTLET(S).
POWER
SLEEP
3
CD/DVD PHONO TUNER
1
Note
The sleep timer can only be set with the remote control.
1 Press one of the input selector buttons on
the remote control to select an input source.
SLEEP
CD/DVD PHONO TUNER
MD TAPE AUX
u
PRESET
d
A/B/C/D/E
MD TAPE AUX
VOLUME
STANDBY
SPEAKERS
A
B
+
–
MUTE
POWER
STANDBY
SPEAKERS
A
B
4 Press SLEEP repeatedly so that SLEEP OFF
appears in the front panel display.
SLEEP
After a few seconds, SLEEP OFF disappears from the
front panel display, and the SLEEP indicator turns
off.
y
The sleep timer setting can also be canceled by pressing
STANDBY on the remote control (or STANDBY/ON on the front
panel) to set this unit to the standby mode.
2 Start playback on the selected input source.
3 Press SLEEP repeatedly to set the amount of
time before this unit is set to the standby
mode.
Each time you press SLEEP, the front panel display
changes as shown below.
SLEEP
SLEEP 120 min SLEEP 90 min
SLEEP 60 minSLEEP 30 minSLEEP OFF
The SLEEP indicator flashes while switching the
amount of time for the sleep timer.
SLEEP
18
Muting the sound output
1 Press MUTE on the remote control to mute
the sound output.
The MUTE indicator flashes in the front panel
display.
MUTE
MUTE
2 Press MUTE on the remote control again to
resume the sound output.
The MUTE indicator disappears from the front panel
display.
MUTE
PLAYING AND RECORDING
OPERATION
19
English
FM/AM TUNING
12
20
60
26
40
16
-dB
FM/AM TUNING
There are 2 tuning methods; automatic and manual. Select either method according to your preference and the strength of
station signals.
Automatic tuning
Automatic tuning is effective when station signals are
strong and there is no interference.
2 4 3
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
TREBLE
BASS
SPEAKERS
101
22
3
3
44
55
+
–
101
22
3
3
44
55
+
–
BA
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
1
1 Rotate the INPUT selector (or press TUNER
on the remote control) to select TUNER as
the input source.
INPUT
or
Front panel Remote control
TUNER
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
4 Press TUNING l / h once to begin
automatic tuning.
Press h to tune into a higher frequency.
Press l to tune into a lower frequency.
l
TUNING
h
Notes
• When you tune into a station, the frequency of the received
station is shown in the front panel display.
• To search for another station, press TUNING l / h once more.
• If the tuning search does not stop at the desired station because
the station signals are weak, try using the manual tuning
method.
2 Press FM/AM on the front panel to select the
reception band (FM or AM).
FM or AM appears in the front panel display.
FM/AM
3 Press TUNING MODE on the front panel so
that the AUTO indicator lights up in the front
panel display.
TUNING MODE
AUTO/MAN'L
AUTO
Lights up
20
FM/AM TUNING
12
20
60
26
40
16
-dB
12
20
60
26
40
16
-dB
Manual tuning
Manual tuning is effective when station signals are weak.
2 4 3
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
TREBLE
BASS
SPEAKERS
101
22
3
3
44
55
+
–
101
22
3
3
44
55
+
–
BA
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
1
1 Rotate the INPUT selector (or press TUNER
on the remote control) to select TUNER as
the input source.
INPUT
or
Front panel
TUNER
Remote control
2 Press FM/AM on the front panel to select the
reception band (FM or AM).
FM or AM appears in the front panel display.
FM/AM
3 Press TUNING MODE on the front panel so
that the AUTO indicator disappears from the
front panel display.
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
Automatic preset tuning
You can use the automatic preset tuning method to
automatically store FM stations. This function enables this
unit to automatically tune into FM stations with strong
signals and store up to 40 (8 stations in each of the 5
groups, A1 to E8) of those received stations in order. You
can then easily recall any preset stations by selecting the
preset station numbers where they are stored.
Notes
• Any station data stored under a preset station number is cleared
when you store a new station under that preset station number.
• If the number of received stations does not reach 40 (E8),
automatic preset tuning automatically stops once searching all
available stations are tuned into and stored.
• Only FM stations with sufficient signal strength are stored
automatically by automatic preset tuning. If the station you
want to store is weak in signal strength, try using the manual
preset tuning method.
l
TUNING hFM/AM
EDIT
MEMORY
MAN'L/AUTO FM
LOUDNESS
FLAT
1
210
3
48
57
6
TUNER
4
TUNING MODE
AUTO/MAN'L
–
30dB
9
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
213
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
PHONES
101
SPEAKERS
22
BA
3
44
55
–
3
+
TREBLE
101
22
3
3
44
55
+
–
BALANCE
101
22
3
3
44
55
R
L
1 Rotate the INPUT selector (or press TUNER
on the remote control) to select TUNER.
INPUT
or
OPERATION
TUNING MODE
AUTO/MAN'L
AUTO
Disappears
4 Press TUNING l / h to manually tune into
the desired station.
Hold down the button to continue tuning search.
l
TUNING
h
Notes
• When you tune into a station, the frequency of the received
station is shown in the front panel display.
• If you tune into an FM station, it is automatically received in the
monaural mode to increase signal quality.
Front panel Remote control
English
21
FM/AM TUNING
2 Press FM/AM on the front panel to select FM
as the reception band.
FM appears in the front panel display.
FM/AM
3 Press and hold MEMORY on the front panel
for more than 3 seconds.
The preset station group and the MEMORY and
AUTO indicators flash in the front panel display.
MEMORY
MAN'L/AUTO FM
4 Press TUNING l / h once to begin
automatic preset tuning.
Press h to tune into higher frequencies.
Press l to tune into lower frequencies.
When automatic preset tuning is complete, the
frequency of the last preset station is shown in the
front panel display.
l
TUNING
h
■ Customized automatic preset tuning
You can specify a preset station group and a preset station
number from which this unit stores the FM stations
received by automatic preset tuning.
1 Press and hold MEMORY on the front panel
for more than 3 seconds.
MEMORY
MAN'L/AUTO FM
2 Press A/B/C/D/E and then press one of the
preset station number buttons on the front
panel to select the preset station group and
the preset station number where the first
received station will be stored.
For example, if you select C5, the first received
station is automatically programmed to C5 and the
next received stations are sequentially programmed
to C6, C7, etc.
A/B/C/D/E
Notes
• If TUNING l / h is not pressed within approximately 5
seconds while the MEMORY and AUTO indicators are
flashing, automatic preset tuning automatically begins from the
currently displayed frequency and proceeds toward higher
frequencies.
• Received stations are sequentially programmed to 8 stations in
each preset station group (A1 to A8). If 8 stations are all
programmed in a preset station group, another 8 stations are
sequentially programmed in the next preset station group.
12345678
3 Press TUNING l / h on the front panel to
begin automatic preset tuning.
Press h to tune into higher frequencies.
Press l to tune into lower frequencies.
When automatic preset tuning is complete, the
frequency of the last preset station is shown in the
front panel display.
l
TUNING
h
Note
Automatic preset tuning stops when the received stations have all
been stored up to E8.
22
FM/AM TUNING
12
20
60
26
40
16
-dB
Manual preset tuning
You can also manually store up to 40 stations (8 stations in
each of the 5 groups, A1 to E8). You can then easily recall
any preset stations by selecting the preset station numbers
where they are stored.
2,5
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
PHONES
101
SPEAKERS
22
BA
3
44
55
–
3
3
+
TREBLE
101
22
3
3
44
55
+
–
4
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
1 Repeat steps 1 to 4 in “Automatic tuning” or
in “Manual tuning” to tune into a station.
When you tune into a station, the frequency of the
received station is shown in the front panel display.
2 Press MEMORY on the front panel.
The MEMORY indicator flashes in the front panel
display for approximately 5 seconds.
MEMORY
MAN'L/AUTO FM
MEMORY
Flashes
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
4 Press one of the preset station number
buttons on the front panel to select a preset
station number (1 to 8) where you want to
store the station.
12345678
Note
This operation must be done within 5 seconds while the
MEMORY indicator is flashing in the front panel display.
Otherwise, the manual preset tuning process is automatically
canceled.
5 Press MEMORY on the front panel to store
the station.
6 Repeat steps 1 to 5 to store other stations.
Notes
• Any station data stored under a preset station number is cleared
when you store a new station under that preset station number.
• The reception mode (stereo or monaural) is stored along with
the station frequency.
OPERATION
3 Press A/B/C/D/E on the front panel
repeatedly to select a preset station group (A
to E).
The selected preset station group is shown in the front
panel display.
A/B/C/D/E
English
23
FM/AM TUNING
12
20
60
26
40
16
-dB
12
20
60
26
40
16
-dB
Selecting preset stations
You can tune into the desired station simply by selecting
the preset station number where it is stored.
l TUNING
hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
SPEAKERS
BA
101
22
3
44
55
–
PHONES
1
3
+
TREBLE
101
22
3
3
44
55
+
–
2
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
1 Press A/B/C/D/E on the front panel
repeatedly (or on the remote control) to
select a preset station group (A to E).
The selected preset station group is shown in the front
panel display.
A/B/C/D/E
Front panel
or
A/B/C/D/E
Remote control
2 Press one of the preset station number
buttons on the front panel (or
PRESET u / d on the remote control) to
select a preset station number (1 to 8).
The preset station number appears in the front panel
display along with the reception band and the
frequency.
12345678
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
Exchanging preset stations
You can exchange the assignment of two preset stations
with each other. The following procedure describes an
example where a preset station E1 is exchanged with
another preset station A5.
2,4
l TUNING
hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
PHONES
101
SPEAKERS
22
BA
3
44
55
–
3
+
TREBLE
101
22
3
3
44
55
+
–
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
1 Repeat steps 1 and 2 in “Selecting preset
stations” to select a preset station E1.
2 Press EDIT on the front panel.
E1 and the MEMORY indicator flash in the front
panel display.
EDIT
MEMORY
Flashes
3 Repeat steps 1 and 2 in “Selecting preset
stations” to select another preset station A5.
A5 and the MEMORY indicator flash in the front
panel display.
MEMORY
Flashes
TAPE MONITORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
24
Front panel
or
u
PRESET
d
Remote control
4 Press EDIT on the front panel again.
E1-A5 appears in the front panel display, indicating
that the two preset station assignments have been
exchanged.
EDIT
RADIO DATA SYSTEM (EUROPE MODEL ONLY)
RADIO DATA SYSTEM (EUROPE MODEL ONLY)
Receiving Radio Data System stations
Radio Data System is a data transmission system used by FM
stations in many countries. The Radio Data System function is
carried out among the network stations.
This unit can receive various Radio Data System data such as PS
(Program Service name), PTY (Program Type), RT (Radio Text),
CT (Clock Time), EON (Enhanced Other Networks) when
receiving Radio Data System broadcasting stations.
■ PS (Program Service name) mode
The name of the Radio Data System station being received
is displayed.
■ PTY (Program Type) mode
There are 15 program types to classify Radio Data System
stations.
NEWS News
AFFAIRS Current affairs
INFO General information
SPORT Sports
EDUCATE Education
DRAMA Drama
CULTURE Culture
SCIENCE Science
VARIED Light entertainment
POP M Pops
ROCK M Rock
M.O.R. M Middle-of-the-road music
(easy-listening)
LIGHT M Light classics
CLASSICS Serious classics
OTHER M Other music
Changing the Radio Data System mode
Four modes are available for displaying Radio Data
System data. The PS, PTY, RT and/or CT indicators that
correspond to the Radio Data System data services offered
by the station light up in the front panel display.
y
When performing this operation, first slide the AMP/DEVICE
switch to the AMP position.
1 Press TUNER on the remote control to set
this unit to tuner mode.
TUNER
2 Press FREQ/TEXT repeatedly on the remote
control to display the various Radio Data
System data offered by the transmitting
station.
DIR A
b
FREQ/TEXT
Remote control
PS
PTY
RT
CT
Frequency display
OPERATION
■ RT (Radio Text) mode
Information about the program (such as the title of the
song or name of the singer) on the Radio Data System
station being received is displayed using a maximum of 64
alphanumeric characters, including the umlaut symbol. If
other characters are used for RT data, they are displayed
with an underbar (_).
■ CT (Clock Time) mode
The current time is displayed and updated every minute.
If the data are accidentally cut off, “CT WAIT” may appear.
■ EON (Enhanced Other Networks)
See “EON function” on page 27.
English
25
RADIO DATA SYSTEM (EUROPE MODEL ONLY)
Notes
• Do not press FREQ/TEXT until a Radio Data System indicator
lights up in the front panel display. You cannot change the mode
if you press the button prior to this. This is because this unit has
not finished receiving all of the Radio Data System data from
the station.
• Radio Data System data not offered by the station cannot be
selected.
• This unit cannot utilize the Radio Data System data source if
the signal received is not strong enough. In particular, the RT
mode requires a large amount of data, so it is possible that the
RT mode may not be displayed even if other Radio Data System
modes (PS, PTY, etc.) are displayed.
• Radio Data System data may not be received under poor
reception conditions. In such cases, press TUNING MODE
(AUTO/MAN’L MONO) so that the AUTO indicator
disappears from the front panel display. Although this will
change the reception mode to manual, Radio Data System data
may be displayed when you change the display to Radio Data
System mode.
• If the signal strength is weakened by external interference
during the reception of a Radio Data System station, the Radio
Data System data service may be cut off suddenly and
“...WAIT” will appear in the front panel display.
PTY SEEK function
If you select the desired program type, this unit
automatically searches all preset Radio Data System
stations that are broadcasting a program of the required
type.
POWER
SLEEP
STANDBY
CD/DVD PHONO TUNER
SPEAKERS
MD TAPE AUX
A
B
u
+
PRESET
d
A/B/C/D/E
A/B
wef
DIR ApDIR B
s
b
FREQ/TEXT
MODE STARTPTY SEEK
DEVICE
AMP
VOLUME
a
–
MUTE
DISPLAY
REC
DISC
EON
3
TAPECD
2
1
y
When performing this operation, first slide the AMP/DEVICE
switch to the AMP position.
1 Press PTY SEEK MODE on the remote
control to set this unit in the PTY SEEK
mode.
The program type of the station being received or
“NEWS” flashes in the front panel display.
To exit from the PTY SEEK mode, press PTY SEEK
MODE again.
26
MODE PTY SEEK
Remote control
Flashes
RADIO DATA SYSTEM (EUROPE MODEL ONLY)
2 Press PRESET u / d on the remote control
to select the desired program type.
The selected program type appears in the front panel
display.
u
PRESET
d
POP M
3 Press PTY SEEK START on the remote
control to begin searching all preset Radio
Data System stations.
The selected program type flashes and the PTY
HOLD indicator lights up in the front panel display
while searching for stations.
To cancel searching, press PTY SEEK START again.
STARTPTY SEEK
Remote control
• The unit stops searching when it finds a station
broadcasting the selected type of program.
• If the found station is not the one you desire, press
PTY SEEK START again. This unit resumes
searching for another station broadcasting the same
type of program.
PTY HOLD
Lights up
EON function
This function uses the EON data service on the Radio
Data System station network. If you select the desired
program type (NEWS, INFO, AFFAIRS or SPORT), this
unit automatically searches for all preset Radio Data
System stations that are scheduled to broadcast the
selected type of program and switches from the station
currently being received to the new station when the
broadcast starts.
A/B
DISPLAY
wef
REC
DIR ApDIR B
DISC
s
a
b
FREQ/TEXT
AMP
y
When performing this operation, first slide the AMP/DEVICE
switch to the AMP position.
Note
This function can only be used when a Radio Data System station
that offers the EON data service is being received. When such a
station is being received, the EON indicator lights up in the front
panel display.
1 Check that the EON indicator is lit in the front
panel display.
If the EON indicator is not lit up, tune into another
Radio Data System station so that the EON indicator
lights up.
DEVICE
MODE STARTPTY SEEK
EON
2
TAPECD
OPERATION
2 Press EON repeatedly on the remote control
to select the desired program type (NEWS,
INFO, AFFAIRS or SPORT).
The selected program type name appears in the front
panel display.
REC
DISC
EON
Remote control
• If a preset Radio Data System station type starts
broadcasting the selected type of program, the unit
automatically switches from the program being
received to that program. (The EON indicator
flashes.)
• When broadcasting of the selected program ends,
the unit returns to the previous station (or another
program on the same station).
■ To cancel this function
Press EON repeatedly until no program type name is
shown in the front panel display.
27
English
ADVANCED SETUP
12
20
60
26
40
16
-dB
ADVANCED SETUP
■ ADVANCED SETUP menu parameters
Change the initial settings (indicated in bold under each
parameter) to reflect the needs of your listening
environment.
Factory presets PRESET
Use to reset all parameters to the factory presets.
Choices: CANCEL, RESET
• Select CANCEL if you do not want the parameters of
this unit to be initialized when you reset the factory
presets.
• Select RESET if you want all of the parameters of this
unit to be initialized when you reset the factory presets.
Changing the ADVANCED SETUP menu parameters
The ADVANCED SETUP menu is displayed in the front
panel display.
y
• During the ADVANCED SETUP procedure, audio output is
muted.
• During the ADVANCED SETUP procedure, only
STANDBY/ON, A/B/C/D/E and the preset station number
buttons (1 and 2) on the front panel are operational.
Notes
• This setting does not affect the parameters in the ADVANCED
SETUP menu.
• The resetting process starts next time you turn on the power of
this unit.
Tune r TU
(Asia and General models only)
Use to switch the frequency step selection according to the
frequency spacing in your area.
Choices: AM10/FM100, AM9/FM50
• North, Central and South America:
AM10/FM100 (kHz)
• Other areas: AM9/FM50 (kHz)
l
TUNING hFM/AM
EDIT
MEMORY
TUNING MODE
MAN'L/AUTO FM
A/B/C/D/E
INPUT
STANDBY
/ON
12345678
BASS
101
SPEAKERS
PHONES
BA
22
3
44
55
–
3
+
TREBLE
101
22
3
44
55
+
–
3
BALANCE
101
22
3
3
44
55
R
L
AUTO/MAN'L
LOUDNESS
FLAT
1
–
30dB
210
3
9
48
57
6
TAPE MONI TORPURE DIRECT
16
20
12
VOLUME
26
8
40
4
2
60
0
∞
-dB
2,41,2,5 3
1 Press STANDBY/ON on the front panel to set
this unit to the standby mode.
STANDBY
/ON
2 Press and hold A/B/C/D/E on the front panel
and then press STANDBY/ON.
This unit is turned on, and the ADVANCED SETUP
menu appears in the front panel display.
A/B/C/D/E
While holding down,
press
STANDBY
/ON
28
Loading...
