YAMAHA RS300S User Manual [nl]

Receiver

OWNER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

We Want You Listening For A Lifetime

Yamaha and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often undetectable until it is too late, Yamaha and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

i En

FCC INFORMATION (for US customers)

1 IMPORTANT NOTICE: DO NOT MODIFY THIS

UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2 IMPORTANT:

accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3 NOTE: This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

When connecting this product to

IMPORTANT SAFETY INSTRUCTIONS

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/ reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., USA 6660 Orangethorpe Ave., Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

ii En

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1 To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2 Install this sound system in a well ventilated, cool, dry,

clean place - away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum clearances around this unit. Top: 30 cm (11-3/4 in) Rear: 20 cm (7-7/8 in) Sides: 20 cm (7-7/8 in)

3 Locate this unit away from other electrical appliances,

motors, or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes

from cold to hot, and do not locate this unit in an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign object may fall

onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:

– Other components, as they may cause damage and/or

discoloration on the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire,

damage to this unit, and/or personal injury.

– Containers with liquid in them, as they may fall and

liquid may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth,

curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all

connections are complete.

8 Do not operate this unit upside-down. It may overheat,

possibly causing damage. 9 Do not use force on switches, knobs and/or cords. 10 When disconnecting the power cable from the wall outlet,

grasp the plug; do not pull the cable. 11 Do not clean this unit with chemical solvents; this might

damage the finish. Use a clean, dry cloth. 12 Only voltage specified on this unit must be used. Using

this unit with a higher voltage than specified is dangerous

and may cause fire, damage to this unit, and/or personal

injury. Yamaha will not be held responsible for any

damage resulting from use of this unit with a voltage

other than specified. 13 To prevent damage by lightning, keep the power cable

and outdoor antennas disconnected from a wall outlet or

this unit during a lightning storm. 14 Do not attempt to modify or fix this unit. Contact

qualified Yamaha service personnel when any service is

needed. The cabinet should never be opened for any

reasons. 15 When not planning to use this unit for long periods of

time (i.e. vacation), disconnect the AC power plug from

the wall outlet. 16 Be sure to read the “TROUBLESHOOTING” section on

common operating errors before concluding that this unit

is faulty.

17 Before moving this unit, press A to turn off this unit, and

then disconnect the AC power plug from the wall outlet.

18 Condensation will form when the surrounding

temperature changes suddenly. Disconnect the power cable from the outlet, then leave this unit alone.

19 When using this unit for a long time, this unit may

become warm. Turn the power off, then leave this unit alone for cooling.

20 Install this unit near the AC outlet and where the AC

power plug can be reached easily.

21 The batteries shall not be exposed to excessive heat such

as sunshine, fire or the like.

22 Excessive sound pressure from earphones and

headphones can cause hearing loss.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by A or set it to the standby mode by A button on the remote control. In this state, this unit is designed to consume a very small quantity of power.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

iii En

CONTENTS

INTRODUCTION

USEFUL FEATURES ............................................ 2

SUPPLIED ACCESSORIES ................................. 3

CONTROLS AND FUNCTIONS ......................... 4

Front panel ................................................................. 4

Front panel display .................................................... 6

Rear panel .................................................................. 7

Remote control........................................................... 8

Using the remote control ........................................... 9

PREPARATION

CONNECTIONS .................................................. 10

Connecting speakers and source components..........10

Connecting the FM and AM antennas ..................... 12

Connecting an infrared signal receiver or

Yamaha component to the

REMOTE IN/OUT jacks ..................................... 13

Connecting power cable .......................................... 13

BASIC OPERATION

PLAYING AND RECORDING .......................... 14

Playing a source....................................................... 14

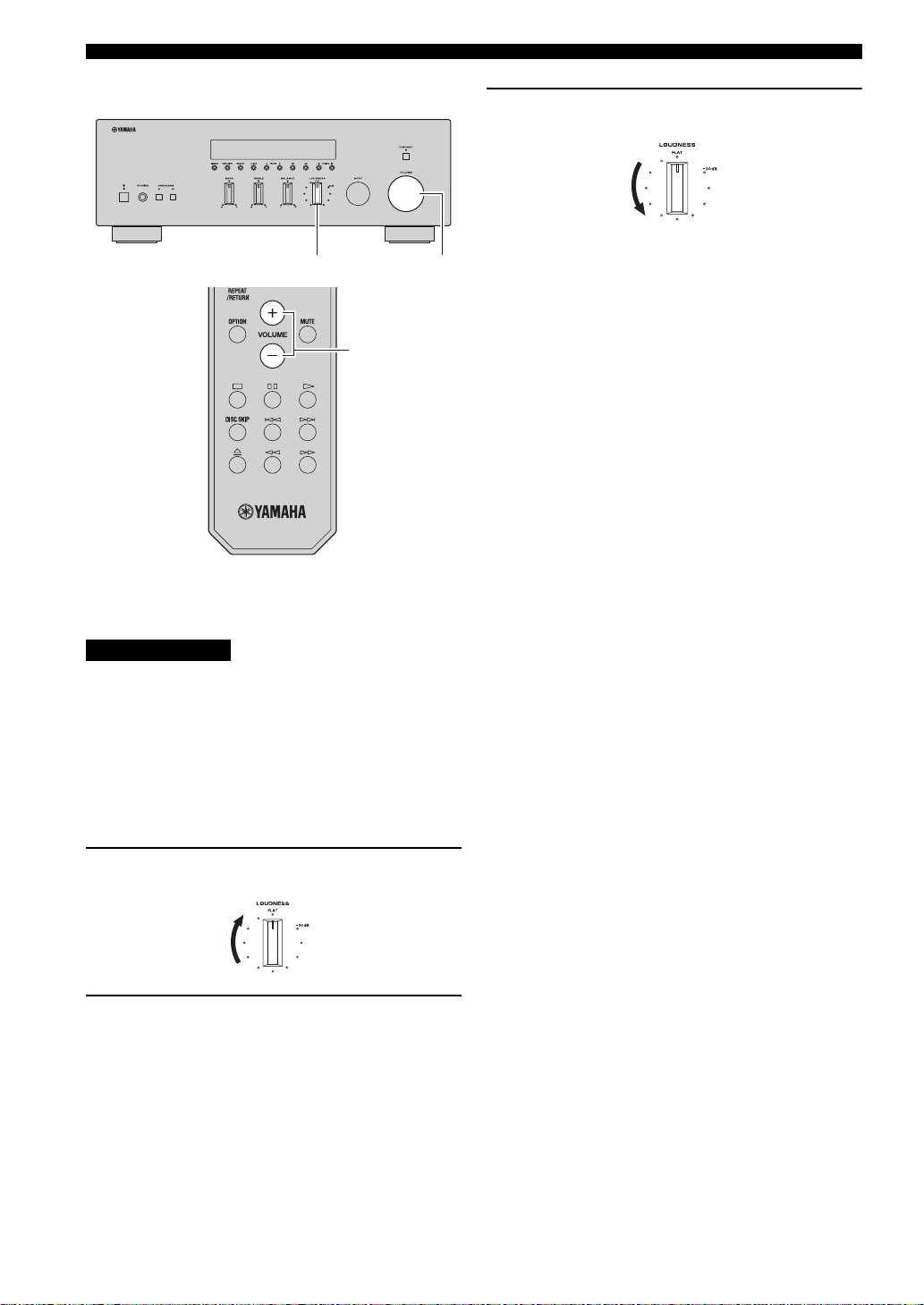

Adjusting the tonal quality....................................... 15

Recording a source .................................................. 17

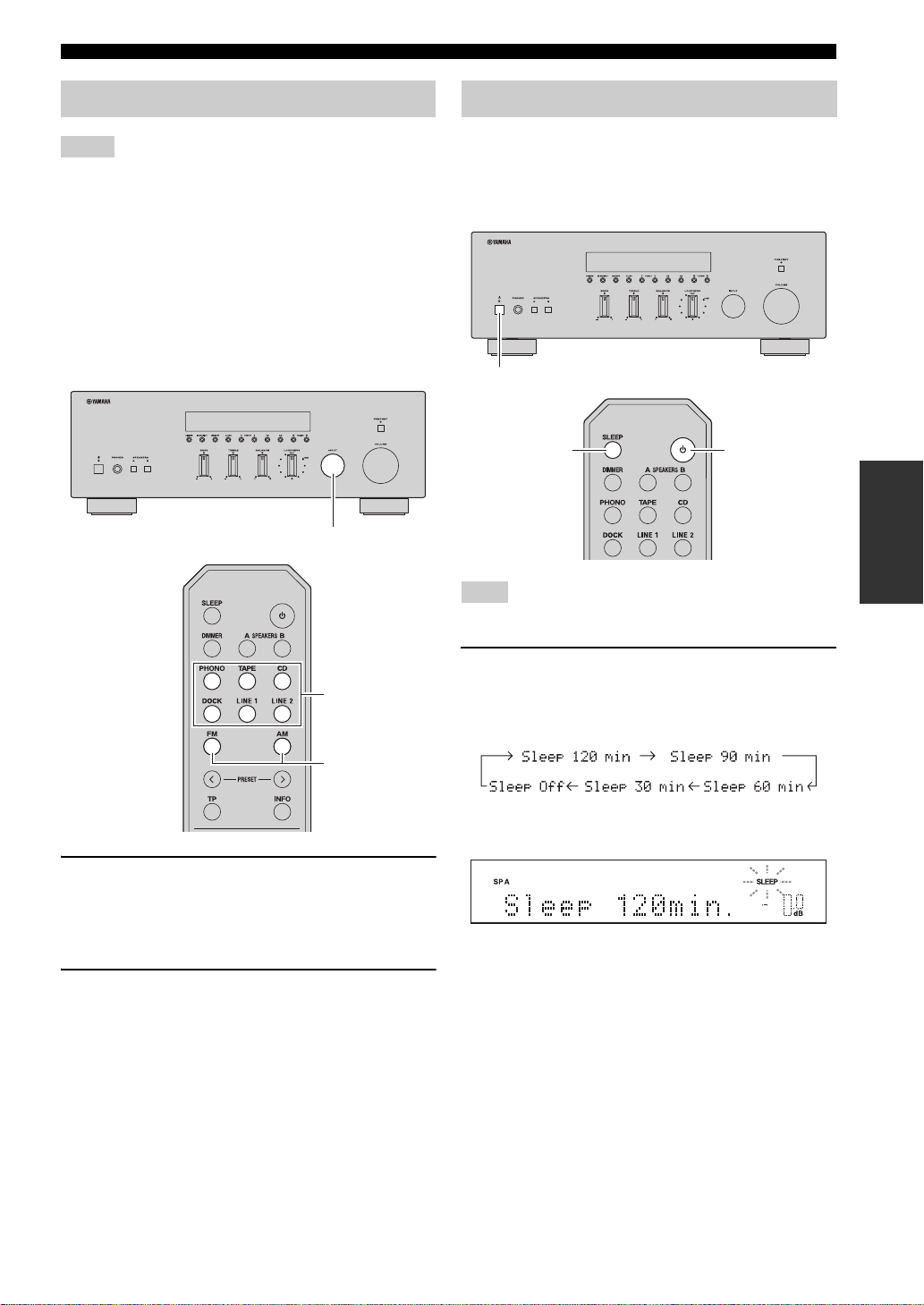

Using the sleep timer ............................................... 17

FM/AM TUNING ................................................. 18

Automatic tuning ..................................................... 18

Manual tuning .......................................................... 19

Automatic station preset (FM stations only) ........... 20

Manual station preset ............................................... 21

Recalling a preset station ......................................... 22

Clearing a preset station........................................... 22

Clearing all preset stations....................................... 23

PLAYING BACK TUNES

FROM YOUR iPhone/iPod/

Bluetooth™ COMPONENT ............................ 24

Using a Universal Dock for iPod ............................. 25

Using a Wireless System for iPod ........................... 26

Using a Bluetooth Wireless Audio Receiver........... 27

ADVANCED OPERATION

SETTING THE OPTION MENU

FOR EACH INPUT SOURCE......................... 29

Option menu items................................................... 29

ADVANCED SETUP ............................................31

Changing the ADVANCED SETUP

menu parameters.................................................. 31

ADDITIONAL INFORMATION

TROUBLESHOOTING ....................................... 32

SPECIFICATIONS ............................................... 37

PREPARATIONINTRODUCTION

OPERATION

BASIC

OPERATION

ADVANCED

INFORMATION

ADDITIONAL

1 En

USEFUL FEATURES

This unit allows you to:

USEFUL FEATURES

Improve sound quality by using the Pure Direct function

Play back music from your iPhone/iPod* or Bluetooth component

Listen to FM and AM radio stations

Boost bass sounds by connecting a subwoofer

Use this unit’s remote control to operate a Yamaha CD player

Save power by using the automatic power down function

Control this unit and a Yamaha component via the REMOTE IN/OUT jacks

Optional Yamaha product required

iPhone, iPod

iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Bluetooth™

Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement.

• y indicates a tip for your operation.

• Some operations can be performed by using either the buttons on the front panel of this unit or those on the remote controls. In case

the button names differ between this unit and the remote controls, the names of the buttons on the remote controls are given in parentheses.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In

case of differences between the manual and the product, the product has priority.

➡

p. 15

p. 24

p. 18

p. 10

p. 8

p. 31

p. 13

2 En

SUPPLIED ACCESSORIES

Please check that you received all of the following parts.

Remote control

Indoor FM antenna

AM loop antenna Batteries (x2)

(U.S.A. model)

INTRODUCTION

Indoor FM antenna

(Australia model)

(AA, R6, UM-3)

■ Notes on remote control and batteries

• Do not spill water or other liquids on the remote control.

• Do not drop the remote control.

• Do not leave or store the remote control in the following conditions: – places of high humidity, such as near a bath – places of high temperatures, such as near a heater or stove – places of extremely low temperatures – dusty places

• Use AA, R6, UM-3 batteries for the remote control.

• Insert batteries according to the polarity markings (+ and -).

• Change all batteries if you notice the operation range of the remote control narrows.

• If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid leak.

• If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked material. If the leaked material comes into contact with your skin or gets into your eyes or mouth, rinse it away immediately and consult a doctor. Clean the battery compartment thoroughly before installing new batteries.

• Do not use old batteries together with new ones. This may shorten the life of the new batteries or cause old batteries to leak.

• Do not use different types of batteries (such as alkaline and manganese batteries) together. Batteries that look the same may have a different specification.

• Before inserting new batteries, wipe the battery compartment clean.

• Dispose of batteries according to your regional regulations.

3 En

CONTROLS AND FUNCTIONS

Front panel

CONTROLS AND FUNCTIONS

1 A (power)

Turns on and off the power of this unit (see page 14). On position: Pushed inward Off position: Released outward

Note

This unit consumes a small amount of power even when turned off or when in standby mode.

2 Power indicator

Lights up as follows: Brightly lit: Power is on Dimly lit: Standby mode Off: Power is off

Note

If an iPhone/iPod is charged while this unit is in standby mode, the power indicator lights up brightly.

3 SPEAKERS A/B

Turns on or off the speaker set connected to the SPEAKERS A and/or SPEAKERS B terminals on the rear panel each time the corresponding button is pressed (see page 14).

4 DIMMER

Changes the brightness level of the front panel display. Choose brightness from 3 levels by pressing this button repeatedly.

This setting is retained even if you turn off this unit.

5 FM MODE/INFO

Changes the FM radio wave reception mode (stereo or monaural) when TUNER is selected as the input source (see page 19). Changes the playback information displayed about the song playing on the iPhone/iPod when DOCK is selected as the input source (see page 25).

Note

Playback information can only be displayed for an iPhone/iPod that is connected using a Universal Dock for iPod.

6 MEMORY

Stores the current FM/AM station as a preset when TUNER is selected as the input source (see page 21).

7 CLEAR

Clears the current FM/AM preset station when TUNER is selected as the input source (see page 22).

8 Front panel display

Shows information about the operational status of this unit.

9 PRESET j / i

Selects a preset FM/AM station when TUNER is selected as the input source (see page 22).

0 FM, AM

Sets the FM/AM tuner band to FM or AM when TUNER is selected as the input source (see page 18).

4 En

A TUNING jj / ii

Selects the tuning frequency when TUNER is selected as the input source (see page 18).

B Remote control sensor

Receives infrared signals from the remote control.

C PURE DIRECT and indicator

Allows you to listen to a source in the purest possible sound (see page 15). The indicator above it lights up and the front panel display turns off when this function is turned on.

D PHONES jack

Outputs audio to your headphones for private listening.

Note

Press SPEAKER A/B so that the SP A/B indicators turn off before you connect your headphones to the PHONES jack.

E BASS control

Increases or decreases the low frequency response. The center position produces a flat response (see page 15).

F TREBLE control

Increases or decreases the high frequency response. The center position produces a flat response (see page 15).

G BALANCE control

Adjusts the sound output balance of the left and right speakers to compensate for sound imbalances caused by speaker locations or listening room conditions (see page

15).

CONTROLS AND FUNCTIONS

INTRODUCTION

H LOUDNESS control

Retains a full tonal range at any volume level to compensate for the human ears’ loss of sensitivity to high and low-frequency ranges at a low volume level (see page

16).

I INPUT selector

Selects the input source you want to listen to.

J VOLUME control

Increases or decreases the sound output level.

Note

This does not affect the output level of the REC jacks.

5 En

CONTROLS AND FUNCTIONS

Front panel display

1 SP (SPEAKERS) A/B indicators

Light up according to the set of speakers selected. Both indicators light up when both sets of speakers are selected.

2 Input source indicators

Light up brightly to indicate the input source that is currently selected.

3 PRESET indicator

Lights up when you recall a preset radio station. Blinks while the automatic station preset feature is scanning for FM stations to register as presets.

4 MEMORY indicator

Lights up or blinks when an FM/AM station is being stored as a preset.

5 TUNED indicator

Lights up when this unit is tuned in to an FM or AM station.

6 STEREO indicator

Lights up when this unit is receiving a strong signal for an FM stereo broadcast.

7 SLEEP indicator

Lights up when the sleep timer is turned on.

8 MUTE indicator

Blinks while the MUTE function is turned on.

9 P indicator

Lights up when a preset number is selected. Blinks while you are registering a preset radio station.

0 Multi-information display

Shows information when adjusting or changing settings.

A Volume indicator

Displays the current volume level.

6 En

Rear panel

CONTROLS AND FUNCTIONS

INTRODUCTION

1 REMOTE IN/OUT jacks

Used to send and receive remote control signals (see page

13).

2 GND terminal

Used to connect a turntable (see page 10).

3 TAPE jacks

Used to connect a tape deck (see page 10).

4 Antenna terminals

Used to connect FM and AM antennas (see page 12).

5 DOCK jack

Used to connect an optional Yamaha Universal Dock for iPod (such as the YDS-12), Wireless System for iPod (YID-W10), or Bluetooth Wireless Audio Receiver (YBA-10) (see page 24).

6 Power cable

For connecting this unit to an AC wall outlet (see page

13).

7 PHONO jacks

Used to connect a turntable (see page 10).

8 CD jacks

Used to connect a CD player (see page 10).

9 LINE 1-2 jacks

Used to connect audio components (see page 10).

A POWER MANAGEMENT switch

Used to enable or disable the automatic power down function. When this function is enabled, this unit automatically enters standby mode if it is not operated for a certain amount of time (3 settings are available; see page

31).

B SPEAKERS terminals

Used to connect speakers (see page 10).

C IMPEDANCE SELECTOR switch

Used to select the impedance setting (see page 11).

0 SUBWOOFER OUT jack

Used to connect a subwoofer with built-in amplifier (see page 10).

7 En

CONTROLS AND FUNCTIONS

Remote control

This section describes the function of each button on the remote control used to control this unit or a Yamaha CD player.

3 DIMMER

Changes the brightness level of the front panel display. Choose brightness from 3 levels by pressing this button repeatedly.

This setting is retained even if you turn off this unit.

4 SLEEP

Sets the sleep timer (see page 17).

5 Input selector buttons

Select the input source you want to listen to.

• The input source names correspond to the names of the connection jacks on the rear panel.

• To select TUNER as the input source using the remote control, press FM or AM.

6 OPTION

Turns the OPTION menu on and off (see page 29).

7 SPEAKERS A/B

Turns on and off the set of speakers connected to the SPEAKERS A and/or SPEAKERS B terminals on the rear panel of this unit when the corresponding button is pressed.

8 MUTE

Mutes the sound output. Press again to restore the sound output to the previous volume level.

9 VOLUME +/–

Increases or decreases the sound output level.

■ Common controls

The following buttons can be used no matter which input source is selected.

1 Infrared signal transmitter

Sends infrared signals.

2 A (power)

Turns this unit on, or sets it to standby mode.

Note

This button functions only when the A (power) button on the front panel is in the on position.

8 En

Note

This does not affect the output level of the REC jacks.

0 RETURN

Returns to the previous menu or ends the menu display when using the Option menu (see page 29).

A B / C / D / E / ENTER

Selects and confirms items in the Option menu (see page

29).

B TP

This button can be used for the Europe model only.

CONTROLS AND FUNCTIONS

■ FM/AM controls

The following buttons can be used when TUNER is selected as the input source.

C PRESET j / i

Selects a preset FM/AM station when TUNER is selected as the input source (see page 22).

D FM, AM

Selects TUNER as the input source and sets the FM/AM tuner band to FM or AM (see page 18).

■ iPod controls

The following buttons can be used when DOCK is selected as the input source for listening to an iPhone/ iPod. For more information, see page 24.

0 REPEAT

A MENU/ Ee / b / a / ENTER

E INFO

F SHUFFLE

G B

H C

■ Yamaha CD player controls

The following buttons can be used to control a Yamaha CD player when CD is selected as the input source.

I Yamaha CD player control buttons

• s Stops playback

• e Pauses playback

• p Starts playback

• DISC SKIP Skips to the next disc in a CD changer

• b Skips backward

• a Skips forward

• Ejects the disc

• w Rewinds playback

• f Fast-forwards playback

Note

Even when using a Yamaha CD player, certain components and features may not be available. Refer to your component’s owner’s manual for more information.

INTRODUCTION

Using the remote control

■ Installing batteries ■ Operation range

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the front panel of this unit during operation.

AA, R6, UM-3 batteries

Approximately 6 m (20 ft)

Remote control

9 En

+ 29 hidden pages
