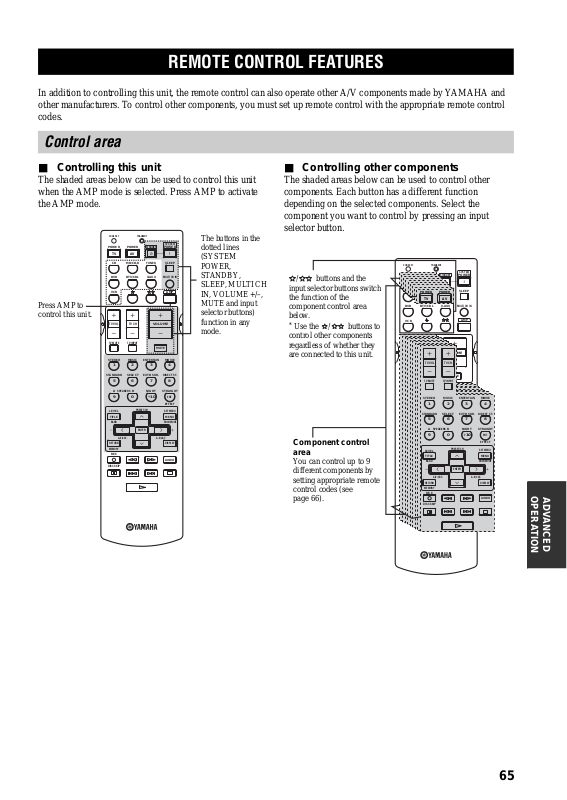

REMOTE CONTROL FEATURES

In addition to controlling this unit, the remote control can also operate other A/V components made by YAMAHA and other manufacturers. To control other components, you must set up remote control with the appropriate remote control codes.

Control area

■ Controlling this unit

The shaded areas below can be used to control this unit when the AMP mode is selected. Press AMP to activate the AMP mode.

Press AMP to control this unit.

POWERPOWER

AVTV

CD MD/CD-R

DTV/CBL

VCR

TV VOL TV CH

TV MUTE TV INPUT

MUSICSTEREO

STANDARD

SELECT

SPEAKERS

LEVEL

BAND

A-E/CAT. A-E/CAT.

MEMORY

REC

DISC SKIP

TRANSMITCODE SET

PRESET/CH

ENTER

STANDBY

TUNER

V-AUXDVD

ENTERTAIN

EXTD SUR.

NIGHT

VOLUME

MUTE

SYSTEM

POWER

SLEEP

MULTI CH IN

AMP

MOVIE

DIRECT ST.

STRAIGHT

ENT.

EFFECT

SET MENU

MENUTITLE

SRCH MODE

DISPLAYRETURN

AUDIO

The buttons in the dotted lines (SYSTEM POWER, STANDBY, SLEEP, MULTI CH IN, VOLUME +/–, MUTE and input selector buttons) function in any mode.

4321

81070965

■ Controlling other components

The shaded areas below can be used to control other components. Each button has a different function depending on the selected components. Select the component you want to control by pressing an input selector button.

TRANSMITCODE SET

SYSTEM

STANDBY

/ buttons and the input selector butto ns switch the function of the component control area below.

Use the / buttons to control other components regardless of whether they are connected to this unit.

Component control area

You can control up to 9 different components by setting appropriate remote control codes (see page 66).

CD MD/CD-R

DTV/CBL

VCR

TV VOL TV CH

TV MUTE TV INPUT

MUSICSTEREO

STANDARD

SELECT

STANDARD

SPEAKERS

LEVEL

BAND FAVOR.

LEVEL

CATEGORY CATEGORY

ALL CH

REC

MEMORY

DISC SKIP

TUNER

POWERPOWER

AVTV

V-AUXDVD

MULTI CH IN

VOLUME

MUTE

ENTERTAIN

MUSICSTEREO

DIRECT ST.

EXTD SUR.

SELECT

STRAIGHT

NIGHT

SPEAKERS

PRESET/CH

ENTER

BAND

ENTER

A-E/CAT. A-E/CAT.

REC

POWER

SLEEP

AMP

MOVIE

4321

ENTERTAIN

81070965

EXTD SUR.

ENT.

NIGHT

EFFECT

SET MENU

MENUTITLE

A/B/C/D/E

DISPLAYRETURN

AUDIO

MOVIE

DIRECT ST.

STRAIGHT

ENT.

EFFECT

SET MENU

MENUTITLE

SRCH MODE

DISPLAYRETURN

AUDIO

4321

81070965

OPERATION

ADVANCED

REMOTE CONTROL FEATURES

CD MD/CD-R

TUNER

V-AUXDVD

AMP

VCR

DTV/CBL

MULTI CH IN

SLEEP

STRAIGHT

MOVIE

ENTERTAIN

MUSICSTEREO

4321

ENT.

DIRECT ST.

EXTD SUR.

STANDARD

SELECT

NIGHT

SPEAKERS

EFFECT

Setting remote control codes

You can control other components by setting the appropriate remote control codes. Codes can be set up for each input area. For a complete list of available remote control codes, refer to “LIST OF REMOTE CONTROL CODES” at the end of this manual.

The following table shows the default component (Library: component category) and the remote control code for each area.

Remote Control Code Default Settings

Input

area

Library

(component

category)

Manufacturer

CD CD YAMAHA 0005

MD/CD-R MD YAMAHA 0024

TUNER TUNER YAMAHA

DVD DVD YAMAHA 0098

DTV/CBL – – –

V-AUX – – –

VCR – – –

DVR YAMAHA 0208

–––

Default

YAMAHA

code

0023

0033

1 Press an input selector button or / to

select the component you want to set up.

2 Press CODE SET using a ballpoint pen or

similar object.

The TRANSMIT indicator on the remote control blinks twice.

CODE SET

TRANSMIT

3 Press the numeric buttons (0 to 9) to enter

the four-digit remote control code for the component to be used.

Refer to “LIST OF REMOTE CONTROL CODES” at the end of this manual.

U.K. and Europe models

Other models

Notes

You may not be able to operate your YAMAHA component even if a YAMAHA remote control code is initially set as listed above. In this case, try to set other YAMAHA remote control code(s).

The TRANSMIT indicator on the remote control blinks twice, and the remote control code for the selected component is set.

Notes

• If the manufacturer of your component has more than one code, try each of them until you find the correct one.

• If you wait for more than 30 seconds during step 3, the setup process is canceled. If this happens, start over from step 2.

Controlling other components

TRANSMITCODE SET

STANDBY

SYSTEM

POWER

CD MD/CD-R

TUNER

V-AUXDV D

AMP

POWERPOWER

MUTE

VOLUME

MOVIE

ENTERTAIN

MUSICSTEREO

4321

TV MUTE TV INPUT

TV VOL TV CH

AVTV

VCR

DTV/CBL

MULTI CH IN

SLEEP

MENUTITLE

SET MENU

LEVEL

DISPLAYRETURN

BAND

SRCH MODE

MEMORY

A-E/CAT. A-E/CAT.

ENTER

PRESET/CH

REC

AUDIO

DISC SKIP

STRAIGHT

MOVIE

ENTERTAIN

MUSICSTEREO

4321

81070965

ENT.

DIRECT ST.

EXTD SUR.

STANDARD

SELECT

NIGHT

SPEAKERS

EFFECT

Once you set the appropriate remote control codes, you can use this remote to control your other components. Note that some buttons may not correctly operate the selected component. Use the input selector buttons to select the component you want to operate. The remote control automatically switches to the appropriate control mode for that component.

1 2

REMOTE CONTROL FEATURES

9 0

DVD player VCR

1 AV POWER 2 TV POWER 3 TV CH +

TV CH – TV channel down *2 TV channel down *2 TV channel down TV channel down *2 TV channel down *2 TV channel down *2

4 TV VOL +

TV VOL – TV volume down *2 TV volume down *2 TV volume down TV volume down *2 TV volume down *2 TV volume down *2

5 TV MUTE 6 TV INPUT 7 1-9, 0, +10 8 TITLE 9 PRESET/CH u

PRESET/CH d Down VCR channel down Preset down (1-8) j Left Preset down (A-E) i Right Preset up (A-E)

ENTER Enter

0 RETURN A REC/

DISC SKIP

p Play Play VCR play *3 Play Play w Search backward Search backward f Search forward Search forward VCR search forward *3 Search forward Search forward

AUDIO Audio

e Pause Pause VCR pause *3 Pause Pause b Skip backward Skip backward Skip backward a Skip forward Skip forward Skip forward s Stop Stop VCR stop *3 Stop Stop

B ENT. C MENU D DISPLAY

This button functions only when the original remote control of the component has a POWER button.

These buttons can operate your TV without switching the input if the remote control code is set in DTV/CBL or . When the remote control code for your TV is set up in both the DTV/CBL and areas, priority is given to the signal in the DTV/CBL area.

These buttons can operate your VCR without switching the input to VCR if the remote control code is set in VCR.

The U.K. model is not equipped with the tuner reception function.

Power *1 Power *1 VCR power *3 Power *1 Power *1 Power *1 TV power *2 TV power *2 TV power TV power *2 TV power *2 TV power *2 TV channel up *2 TV channel up *2 TV channel up TV channel up *2 TV channel up *2 TV channel up *2

TV volume up *2 TV volume up *2 TV volume up TV volume up *2 TV volume up *2 TV volume up *2

TV mute *2 TV mute *2 TV mute TV mute *2 TV mute *2 TV mute *2 TV input *2 TV input *2 TV input TV input *2 TV input *2 TV input *2 Numeric buttons Numeric buttons Numeric buttons Numeric buttons Numeric buttons Preset stations (1-8) Title Up VCR channel up Preset up (1-8)

Return

Disc skip (player) Rec VCR rec *3 Disc skip Rec (MD)

Title/Index Enter Enter Index Index Menu Display Display Display Display

Digital TV/ Cable TV

VCR search backward *3

CD player MD/CD recorder

Search backward Search backward

Tuner

OPERATION

ADVANCED
