Page 1
WARNING
READ THIS MANUAL CAREFULLY!
It contains important safety information.
OWNER’S MANUAL
YFM70RSPX
This A
This ATV should not be ridden by anyone under 16 years of age.
LIT-11626-21-12
1S3-28199-15
Page 2
EBU17091
Page 3
EBU17170
INTRODUCTION
EBU17270
Congratulations on your purchase of the Yamaha YFM70RSPX. This ATV represents the result of many
years of Yamaha experience in the production of fine sporting, touring, and pace-setting racing machines.
With the purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability
that have made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special techniques and skills necessary to ride the ATV.
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:
●
READ THIS MANUAL TOGETHER WITH TIPS FOR THE ATV RIDER CAREFULLY AND COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDERSTAND ALL INSTRUCTIONS.
●
PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.
●
NEVER OPERATE AN ATV WITHOUT PROPER TRAINING OR INSTRUCTION. FREE TRAINING IS
AVAILABLE TO ANYONE WHO BUYS A NEW ATV. CALL 1-800-887-2887 FOR MORE INFORMATION.
●
THIS ATV, AND ANY OTHER ATV OVER 90 cc, SHOULD NOT BE RIDDEN BY ANYONE UNDER 16
YEARS OF AGE.
It also includes basic maintenance and inspection proce-
Page 4
EBU17330
WARNING
CAUTION:
NOTE:
IMPORTANT MANUAL INFORMATION
EBU17341
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS INJURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
* Product and specifications are subject to change without notice.
Failure to follow WARNING instructions could result in se
vere injury
or death to the ATV operator, a bystander, or a person inspecting or
repairing the ATV.
A CAUTION indicates special precautions that must be taken to avoid
damage to the ATV.
A NOTE provides key information to make procedures easier or clearer.
Page 5
EBU17350
IMPORTANT NOTICE
EBU17360
Welcome to the Yamaha world of motor sports!
This ATV is designed and manufactured for OFF-ROAD use only. It is illegal and unsafe to operate this ATV
on any public street, road or highway.
This ATV complies with all applicable OFF-ROAD noise level and spark arrester laws and regulations in
effect at the time of manufacture.
Please check your local riding laws and regulations before operating this ATV.
EBU17381
YFM70RSPX
OWNER’S MANUAL
AFFIX DEALER
LABEL HERE
©2007 by Yamaha Motor Corporation, U.S.A.
1st edition, May 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in Japan.
P/N LIT-11626-21-12
Page 6
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
EBU17420
TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1

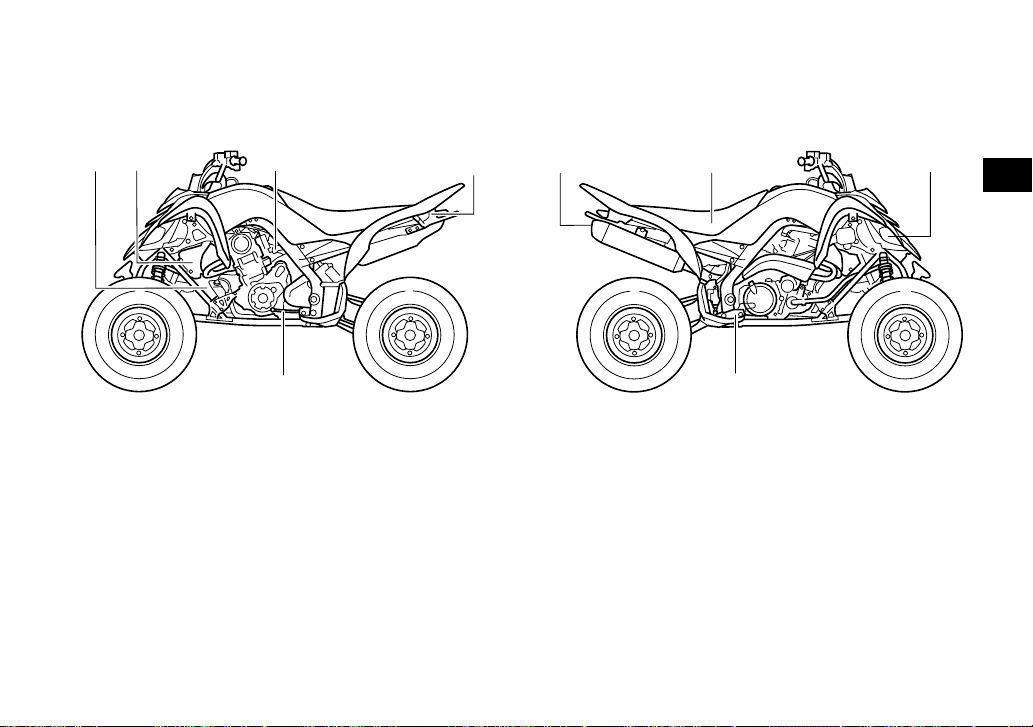

Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS ..................................................4-1
Main switch ............................................... 4-1
Indicator lights and warning lights ............. 4-2
Handlebar switches ................................... 4-3
Throttle lever ............................................. 4-4
Speed limiter ............................................. 4-5
Clutch lever ................................................ 4-6
Brake lever ................................................. 4-6
Brake pedal ................................................ 4-7
Parking brake lever .................................... 4-7
Shift pedal .................................................. 4-8
Reverse knob “REV” .................................. 4-9
Fuel tank cap ............................................. 4-9
Fuel .......................................................... 4-10
Seat ......................................................... 4-11
Adjusting the front shock absorber
assemblies .............................................4-12
Adjusting the rear shock absorber
assembly ................................................4-17
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ............................. 5-1
Fuel ............................................................ 5-4
Engine oil ................................................... 5-4
Coolant ...................................................... 5-4
Front and rear brakes ................................ 5-5
Throttle lever .............................................. 5-5
Drive chain ................................................. 5-6
Tires ........................................................... 5-6
Measuring the tire pressure ....................... 5-7
Tire wear limit ............................................ 5-8
Chassis fasteners ...................................... 5-9
Instruments, lights and switches ................ 5-9
OPERATION...................................................6-1
Page 7
Starting the engine .................................... 6-1
Operating the reverse knob and driving in
reverse .................................................... 6-2
Shifting ...................................................... 6-3
Engine break-in ......................................... 6-5
Parking ...................................................... 6-6
Parking on a slope .................................... 6-7
Accessories and loading ........................... 6-7
RIDING YOUR ATV ......................................7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ...........................................7-2
BE CAREFUL WHERE YOU RIDE.......... 7-11
TURNING YOUR ATV ............................. 7-17
CLIMBING UPHILL .................................. 7-18
RIDING DOWNHILL................................. 7-22
CROSSING A SLOPE.............................. 7-23
CROSSING THROUGH SHALLOW
WATER ..................................................7-24
RIDING OVER ROUGH TERRAIN .......... 7-26
SLIDING AND SKIDDING........................ 7-27
WHAT TO DO IF... ................................... 7-28
WHAT TO DO... ....................................... 7-28
PERIODIC MAINTENANCE AND MINOR
REPAIR.......................................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system ..........................8-3
General maintenance and lubrication
chart .........................................................8-4

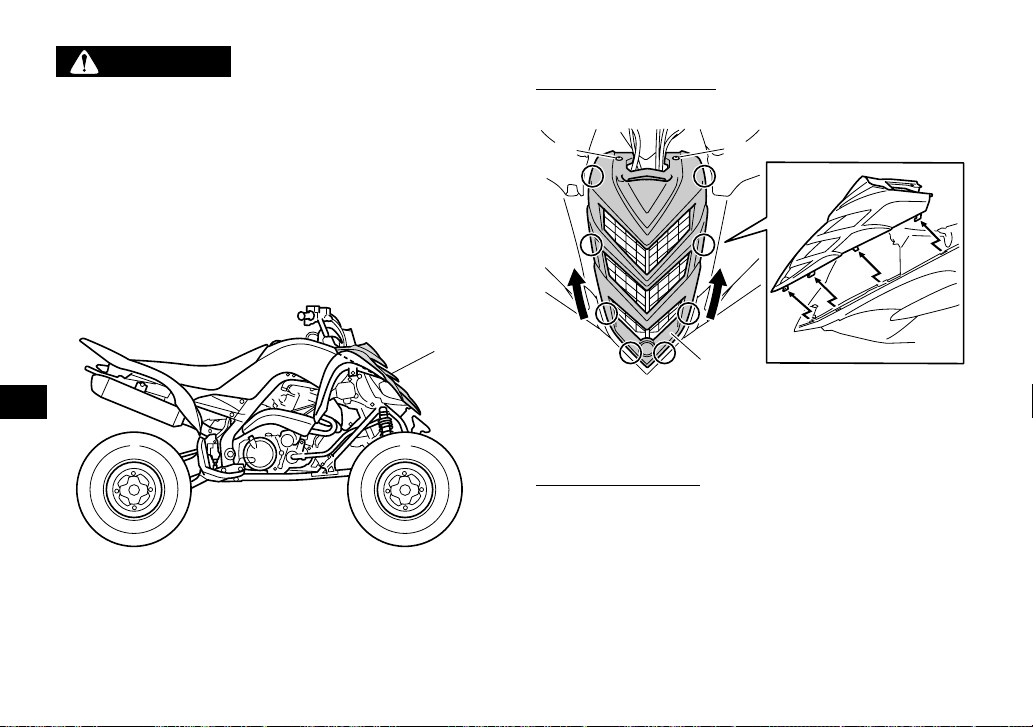

Removing and installing the panel ............. 8-7
Checking the spark plug ............................ 8-7

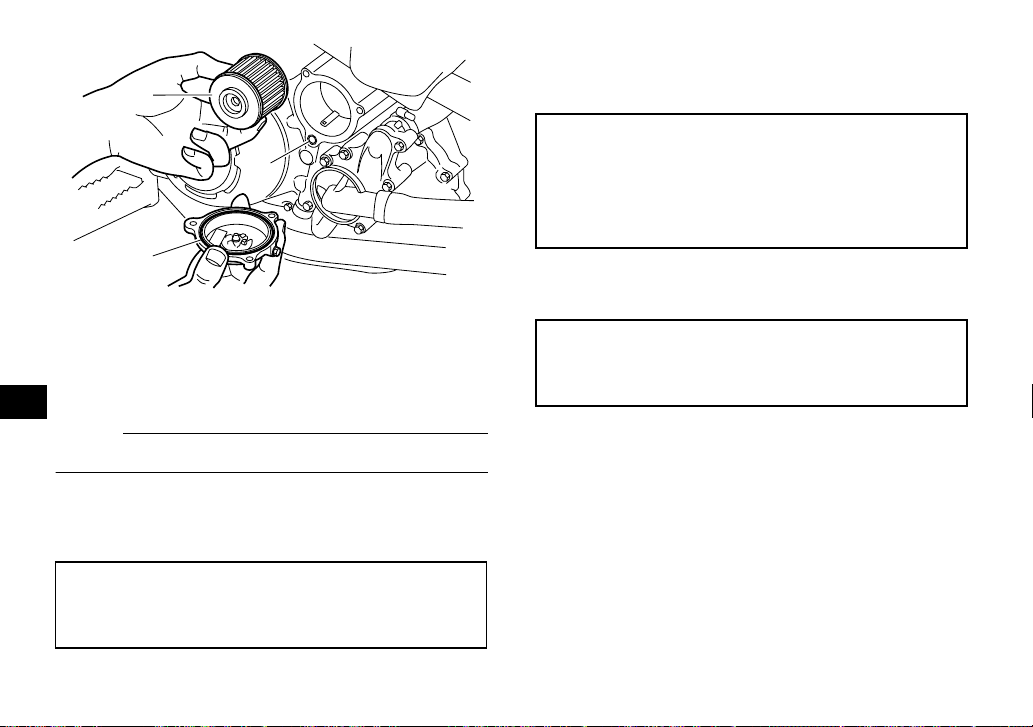

Engine oil and oil filter element .................. 8-9
Coolant .................................................... 8-14
Cleaning the air filter element .................. 8-18
Cleaning the spark arrester ..................... 8-22
Adjusting the engine idling speed ............ 8-23
Adjusting the throttle cable free play ........ 8-24
Valve clearance ....................................... 8-25
Checking the front and rear brake
pads .......................................................8-25
Checking the brake fluid level .................. 8-26
Changing the brake fluid .......................... 8-28
Checking the front brake lever free
play ........................................................8-28
Checking the brake pedal position ........... 8-29
Adjusting the parking brake free play ...... 8-30
Brake light switches ................................. 8-31
Adjusting the clutch lever free play .......... 8-32
Drive chain slack ...................................... 8-33
Lubricating the drive chain ....................... 8-35
Checking and lubricating the cables ........ 8-36
Checking and lubricating the brake and
clutch levers ...........................................8-36
Page 8
Checking and lubricating the brake and
shift pedals ............................................ 8-37
Checking the wheel hub bearings ........... 8-37
Lubricating the swingarm pivots .............. 8-37
Lubricating the upper and lower arm
pivots ..................................................... 8-38
Battery ..................................................... 8-39
Replacing a fuse ..................................... 8-41
Replacing a headlight bulb ...................... 8-43
Adjusting a headlight beam ..................... 8-45
Tail/brake light ......................................... 8-46
Removing a wheel ................................... 8-46
Installing a wheel ..................................... 8-46
Troubleshooting ...................................... 8-48
Troubleshooting charts ............................ 8-49
CLEANING AND STORAGE.......................... 9-1
Cleaning .................................................... 9-1
Storage ...................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1
Identification numbers ............................. 11-1
Noise regulation ...................................... 11-3
Maintenance record ................................ 11-4
YAMAHA MOTOR CORPORATION,
U.S.A. ATV LIMITED WARRANTY ....... 11-5
YAMAHA EXTENDED SERVICE
(Y.E.S.) ..................................................11-7
Page 9
EBU17430
SAFETY INFORMATION
SAFETY INFORMATION
EBU26661
AN ATV IS NOT A TOY AND CAN BE HAZARDOUS TO OPERATE.
An ATV handles differently from other vehicles, including motorcycles and cars. A collision or rollover can occur quickly, even during routine
maneuvers such as turning and riding on hills or
over obstacles, if you fail to take proper precautions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:
Read this manual and all labels carefully and fol-
●
low the operating procedures described.
Never operate an ATV without proper training or
●
instruction.
should receive training from a certified instructor. Contact an authorized ATV dealer or call 1800-887-2887 to find out about the training
courses nearest you.
Always follow the age recommendation:
●
Take a Training Course.
Beginners
– A child under 16 years old should never operate an ATV with engine size greater than 90 cc.
Never allow a child under age 16 to operate an
●
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
Never carry a passenger on an ATV.
●
Always avoid operating an ATV on any paved
●
surfaces, including sidewalks, driveways, parking lots and streets.
Never operate an ATV on any public street, road
●
or highway, even a dirt or gravel one.
Never operate an ATV without wearing an ap-
●
proved motorcycle helmet that fits properly. You
should also wear eye protection (goggles or face
shield), gloves, boots, a long-sleeved shirt or a
jacket, and long pants.
Never consume alcohol or drugs before or while
●
operating this ATV.
Never operate at speeds too fast for your skills
●
or the riding conditions. Always go at a speed
1
2
3
4
5
6
7
8
9
10
11
1-1
Page 10
10
11
that is proper for the terrain, visibility, operating
conditions, and your experience.
1
●
Never attempt wheelies, jumps, or other stunts.
●
Always inspect your ATV each time you use it to
2
make sure it is in safe operating condition. Always follow the inspection and maintenance
3
procedures and schedules described in this
manual.
4
●
Always keep both hands on the handlebars and
both feet on the footboards of the ATV during
5
operation.
●
Always go slowly and be extra careful when op-
6
erating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating the
7
ATV.
●
Never operate on excessively rough, slippery or
8
loose terrain until you have learned and prac-
9
ticed the skills necessary to control the ATV on
such terrain. Always be especially cautious on
these kinds of terrain.
●
Always follow proper procedures for turning as
described in this manual. Practice turning at low
speeds before attempting to turn at faster
speeds and never turn at excessive speeds.
●
Never operate the ATV on hills too steep for the
ATV or for your abilities. Practice on smaller hills
before attempting larger hills.
●
Always follow proper procedures for climbing
hills as described in this manual. Check the terrain carefully before you start up any hill. Never
climb hills with excessively slippery or loose surfaces. Shift your weight forward. Never open the
throttle suddenly or make sudden gear changes.
Never go over the top of a hill at high speed.
●
Always follow proper procedures for going down
hills and for braking on hills as described in this
manual. Check the terrain carefully before you
start down any hill. Shift your weight backward.
Never go down a hill at high speed. Avoid going
down a hill at an angle that would cause the vehicle to lean sharply to one side. Go straight
down the hill where possible.
●
Always follow proper procedures for crossing
the side of a hill as described in this manual.
Avoid hills with excessively slippery or loose surfaces. Shift your weight to the uphill side of the
ATV. Never attempt to turn the ATV around on
any hill until you have mastered the turning technique described in this manual on level ground.
Avoid crossing the side of a steep hill if possible.
●
Always use proper procedures if you stall or roll
backwards when climbing a hill. To avoid stall-
1-2
Page 11
ing, use the proper gear and maintain a steady
speed when climbing a hill. If you stall or roll
backwards, follow the special procedure for
braking described in this manual. Dismount on
the uphill side or to a side if pointed straight uphill. Turn the ATV around and remount, following
the procedure described in this manual.
●
Always check for obstacles before operating in a
new area.
●
Never attempt to operate over large obstacles,
such as large rocks or fallen trees. Always follow
proper procedures when operating over obstacles as described in this manual.
●
Always be careful when skidding or sliding.
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain. On extremely slippery surfaces, such as
ice, go slowly and be very cautious in order to reduce the chance of skidding or sliding out of control.
●
Never operate an ATV in fast flowing water or in
water deeper than that recommended in this
manual. Remember that wet brakes may have
reduced stopping ability. Test your brakes after
leaving water. If necessary, apply them several
times to let friction dry out the linings.
●
Always be sure there are no obstacles or people
behind you when you operate in reverse. When
it is safe to proceed in reverse, go slowly.
●
Always use the size and type of tires specified in
this manual.
●
Always maintain proper tire pressure as described in this manual.
●
Never modify an ATV through improper installation or use of accessories.
●
Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed and
securely attached. Reduce speed and follow instructions in this manual for carrying cargo or
pulling a trailer. Allow greater distance for braking.
FOR MORE INFORMATION ABOUT ATV SAFETY,
call the Consumer Products Safety Commission at 1-800-638-2772, or the ATV Distributor’s
Safety Hotline at 1-800-852-5344.
1
2
3
4
5
6
7
8
9
10
11
1-3
Page 12
EWB02320
WARNING
1
POTENTIAL HAZARD
Improper handling of gasoline.
2
WHAT CAN HAPPEN
Gasoline can catch fire and you could be
3
burned.
HOW TO AVOID THE HAZARD
4
Always turn off the engine when refueling.
Do not refuel right after the engine has been
5
running and is still very hot.
Do not spill gasoline on the engine or ex-
6
haust pipe/muffler when refueling.
Never refuel while smoking, or in the vicinity
7
of sparks, open flames, or other sources of
8
ignition such as the pilot lights of water heaters and clothes dryers.
9
When transporting the ATV in another vehicle, be sure it is kept upright. Otherwise, fuel
10
may leak out of the fuel tank.
WHAT CAN HAPPEN
11
Gasoline is poisonous and can cause injuries.
HOW TO AVOID THE HAZARD
If you should swallow some gasoline or inhale a lot of gasoline vapor, or get some gasoline in your eyes, seek medical help
immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills
on your clothing, change your clothes.
EWB00030
WARNING
POTENTIAL HAZARD
Starting or running the engine in a closed area.
WHAT CAN HAPPEN
Exhaust fumes are poisonous and may
cause loss of consciousness and death within a short time.
HOW TO AVOID THE HAZARD
Always operate your ATV in an area with adequate ventilation.
1-4
Page 13
EBU17660
LOCATION OF THE WARNING AND SPECIFICATION LABELS
1
3
1
4
2
5
2
3
4
5
6
7
8
9
10
11
5
2-1
Page 14
EBU17670
1
Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
2
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a replacement label from your Yamaha dealer.
3
4
5
6
7
8
9
10
11
2-2
Page 15
1
WARNING
2
Improper ATV use can result in SEVERE
INJURY or DEATH.
WARNING
1
2
UNDER
16
Operating this ATV if you are under
the age of 16 increases your chance
of severe injury or death.
NEVER operate this ATV if you are
under age 16.
5FE-21697-01
2-3
ALWAYS USE
AN APPROVED ON PUBLIC PASSENGERS WITH DRUGS
HELMET AND ROADS
PROTECTIVE
GEAR
NEVER
without proper training or instruction.
at speeds too fast for your skills or
the conditions.
on public roads-a collision can occur
with another vehicle.
with a passenger-passengers affect balance
and steering and increase risk
of losing control.
ALWAYS :
use proper riding techniques to avoid
vehicle overturns on hills and rough terrain
and it turns.
avoid paved surfaces-pavement may
seriously affect handling and control.
LOCATE AND READ OWNER'S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
(For replacement manual, call 1-800-532-1558)
NEVER USE
operate :
NEVER CARRY NEVER USE
OR ALCOHOL
5FE-21568-01
3
4
5
6
7
8
9
10
11
Page 16
1
2
34
3
4
5
6
7
8
9
WARNING
NEVER ride as a
passenger.
Passengers can cause
a loss of control,
resulting in SEVERE
INJURY or DEATH.
5FE-2151H-01
IMPROPER TIRE PRESSURE OR OVERLOADING CAN
CAUSE LOSS OF CONTROL.
LOSS OF CONTROL CAN RESULT IN SEVERE
INJURY OR DEATH.
OPERATING TIRE PRESSURE: Set with tires cold
Recommended
Minimum
Never set tire pressure below minimum.
It could cause the tire to dislodge from the rim.
LOADING
Maximum Vehicle Load
Includes weight of operator, cargo and accessories.
WARNING
:
FRONT: 27.5
REAR
:
FRONT: 24.5
REAR
kPa,
:
27.5
kPa,
kPa,
:
24.5
kPa,
:
100kg,
5LP-21696-00
{
0.275
{
0.275
{
0.245
{
0.245
(220 lbs).
kgf/cm
kgf/cm
kgf/cm
kgf/cm
2
}
2
}
2
}
2
}
4.0 psi
4.0 psi
3.5 psi
3.5 psi
10
11
5
This unit contains high pressure nitrogen gas.
Mishandling can cause explosion.
Read owner's manual for instructions.
Do not incinerate, puncture or open.
2-4
WARNING
4AA-22259-80
Page 17
EBU17680
EBU17690
Left view
2
1
1. Engine oil tank
2. Coolant reservoir
3. Idle adjusting screw
4. Tail/brake light
5. Shift pedal
DESCRIPTION
EBU17700
Right view
3
4
1
5
1. Spark arrester
2. Seat
3. Headlight
4. Brake pedal
2
3
4
1
2
3
4
5
6
7
8
9
10
11
3-1
Page 18
EBU17712
Controls and instruments
1
2
1
2
3
4
5
6
7
8
1. Clutch lever
2. Parking brake lever
9
3. Main switch
4. Brake lever
10
5. Throttle lever
6. Reverse knob
11
7. Fuel tank cap
8. Handlebar switches
from the figures shown in this manual.
3
4
5678
NOTE:
The ATV you have purchased may differ slightly
3-2
Page 19
EBU17720
INSTRUMENT AND CONTROL FUNCTIONS
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
EBU17760
Main switch
The positions of the main switch are as follows:
OFF ON
1
2
1
3
4
5
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be removed.
6
7
1. Main switch
8
9
10
11
4-1
Page 20
EBU26692
Indicator lights and warning lights
1
2
3
4
5
6
7
1. Neutral indicator light “N”
2. Reverse indicator light “R”
8
3. Coolant temperature warning light “”
4. Engine trouble warning light “”
9
5. Fuel level warning light “”
10
EBU17830
Reverse indicator light “”
11
This indicator light comes on when the transmission is in the reverse position.
EBU17860
Neutral indicator light “”
This indicator light comes on when the transmis-
5
4
2
3
1
sion is in the neutral position.
EBU26700
Coolant temperature warning light “”
This warning light comes on when the engine overheats. When this occurs during operation, stop the
engine as soon as it is safe to do so and allow it to
cool down for about 10 minutes.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, and then go off, have a
Yamaha dealer check the electrical circuit.
ECB00010
CAUTION:
●
The engine may overheat if the ATV is overloaded. In this case, reduce the load to specification.
●
Start the engine after making sure that the
warning light is out. Continuous use while
the warning light is on may cause damage to
the engine.
EBU26710
Fuel level warning light “”
This warning light comes on when the fuel level
drops below approximately 2.6 L (0.69 US gal)
(0.57 Imp.gal). When this occurs, refuel as soon as
4-2
Page 21
possible.
The electrical circuit of the warning light can be
checked by setting the engine stop switch to
“RUN” and turning the key to “ON”. If the warning
light does not come on, and then go off, have a
Yamaha dealer check the electrical circuit.
EBU26720
Engine trouble warning light “”
This warning light comes on or flashes when an
electrical circuit monitoring the engine is defective.
When this occurs, have a Yamaha dealer check
the self-diagnosis system.
The electrical circuit of the warning light can be
checked by turning the key to “ON”. If the warning
light does not come on, then go off, have a Yamaha dealer check the electrical circuit.
EBU18061
Handlebar switches
1
2
1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
3. Start switch “START”
1
2
3
4
5
3
6
7
8
EBU18070
Engine stop switch “ENG. STOP”
Set this switch to “RUN” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “OFF”.
4-3
9
10
11
Page 22
EBU18090
Start switch “START”
Push this switch to crank the engine with the start-
1
er.
ECB00050
2
CAUTION:
3
See the starting instructions on page 6-1 prior
to starting the engine.
4
EBU18140
5
Light switch “LIGHTS”
Set this switch to “LO” to turn on the low beams
6
and the taillight. Set the switch to “HI” to turn on the
high beams and the taillight. Set the switch to
7
“OFF” to turn off all the lights.
ECB00040
8
CAUTION:
Do not use the headlights with the engine
9
turned off for an extended period of time, otherwise the battery may discharge to the point
10
that the starter motor will not operate properly.
If this should happen, remove the battery and
11
recharge it.
EBU18270
Throttle lever
Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is springloaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
1. Throttle lever
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EWB00200
WARNING
POTENTIAL HAZARD
Malfunction of throttle.
4-4
Page 23
WHAT CAN HAPPEN
The throttle could be hard to operate, making
it difficult to speed up or slow down when
you need to. This could cause an accident.
HOW TO AVOID THE HAZARD
Check the operation of the throttle lever before you start the engine. If it does not work
smoothly, check for the cause. Correct the
problem before riding the ATV. Consult a
Yamaha dealer if you can’t find or solve the
problem yourself.
EBU18311
Speed limiter
Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power available and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To decrease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
3. Tighten the locknut.
(a)
(b)
1
2
3
4
5
6
7
8
9
10
11
4-5
Page 24
EWB00190
WARNING
1
POTENTIAL HAZARD
Improper adjustment of the speed limiter and
2
throttle.
WHAT CAN HAPPEN
3
The throttle cable could be damaged. Improper throttle operation could result. You
4
could lose control, have an accident or be injured.
5
HOW TO AVOID THE HAZARD
Do not turn the adjusting screw out more
6
than 12 mm (0.47 in). Always make sure the
throttle lever free play is adjusted to 2.0–4.0
7
mm (0.08–0.16 in). (See page 8-24.)
8
EBU18382
Clutch lever
9
The clutch lever is located on the left handlebar
10
and the ignition circuit cut-off system is incorporated in the clutch lever holder. To disengage the
11
clutch, pull the clutch lever toward the handlebar
grip. To engage the clutch, release the clutch lever.
The clutch lever should be pulled rapidly and released slowly for smooth clutch operation. (See
page 6-1 for a description of the ignition circuit cut-
off system.)
1. Clutch lever
EBU18411
Brake lever
The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.
4-6
Page 25
1
2
3
4
1. Brake lever
2. Locknut
3. Brake lever position adjusting bolt
4. Distance between brake lever and handlebar grip
EBU18432
Brake pedal
The brake pedal is located on the right side of the
ATV. To apply the rear brake, push down on the
brake pedal.
1
1. Brake pedal
EBU18510
Parking brake lever
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. To apply
the parking brake, move the parking brake lever in
direction (a). To release the parking brake, move
the parking brake lever in direction (b).
4-7
5
6
7
8
9
10
11
Page 26
1
2
3
4
5
6
1. Parking brake lever (locked position)
7
8
9
10
11
1. Parking brake lever (unlocked position)
EWB00170
WARNING
POTENTIAL HAZARD
Improper use of the parking brake.
WHAT CAN HAPPEN
The ATV could start moving unexpectedly if
the parking brake is not applied before starting the engine. This could cause loss of control or a collision.
The brake could overheat if you ride the ATV
without releasing the parking brake. You
could lose braking performance which could
cause an accident. You could also wear out
the brakes prematurely.
HOW TO AVOID THE HAZARD
Always set the parking brake before starting
the engine.
Always be sure you have released the parking brake before you begin to ride.
EBU18540
Shift pedal
This ATV is equipped with a constant-mesh 5speed forward and 1-speed reverse transmission.
The shift pedal is located on the left side of the engine and is used in combination with the clutch
4-8
Page 27
when shifting.
1
1
2
3
4
5
1
1. Shift pedal
EBU18641
Reverse knob “REV”
The reverse knob is used to shift into reverse. See
the “Operating the reverse knob and driving in reverse” section on page 6-2 before operating this
ATV in reverse.
1. Reverse knob “REV”
EBU18720
Fuel tank cap

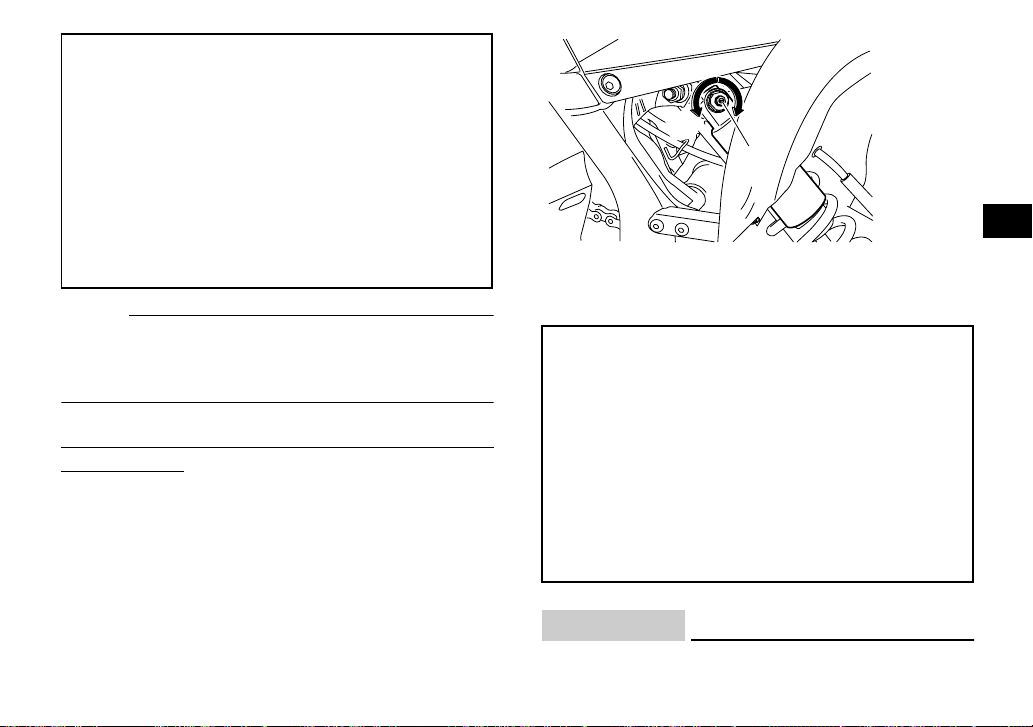

Remove the fuel tank cap by turning it counterclockwise.
4-9
6
7
8
9
10
11
Page 28
1
2
2
1
1
3
4
5
6
1. Fuel tank cap
7
EBU18730
Fuel
8
Make sure that there is sufficient fuel in the tank.
Fill the fuel tank to the bottom of the filler tube as
9
shown.
10
11
1. Filler tube
2. Fuel level
Recommended fuel:
UNLEADED GASOLINE ONLY
Fuel tank capacity:
11.0 L (2.91 US gal) (2.42 Imp.gal)
Fuel reserve amount:
2.6 L (0.69 US gal) (0.57 Imp.gal)
ECB00070
CAUTION:
Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
4-10
Page 29
rings, as well as to the exhaust system.
Your Yamaha engine has been designed to use
regular unleaded gasoline with a pump octane
number [(R+M)/2] of 86 or higher, or a research octane number of 91 or higher. If knocking or pinging
occurs, use a different brand of gasoline or premium unleaded fuel. Unleaded fuel will give you longer spark plug life and reduced maintenance cost.
Gasohol
There are two types of gasohol: gasohol containing ethanol and that containing methanol. Gasohol
containing ethanol can be used if the ethanol content does not exceed 10%. Gasohol containing
methanol is not recommended by Yamaha because it can cause damage to the fuel system or
ATV performance problems.
EWB00270
WARNING
POTENTIAL HAZARD
Improper care when refueling.
WHAT CAN HAPPEN
Fuel can spill, which can cause a fire and severe injury.
Fuel expands when it heats up. If the fuel
tank is overfilled, fuel could spill out due to
heat from the engine or the sun.
HOW TO AVOID THE HAZARD
Do not overfill the fuel tank. Be careful not to
spill fuel, especially on the engine or exhaust
pipe. Wipe up any spilled fuel immediately.
Be sure the fuel tank cap is closed securely.
Do not refuel right after the engine has been
running and is still very hot.
EBU18890
Seat
To remove the seat
Insert your hand between the rear of the seat and
the rear fender, pull the seat lock lever upward and
pull up the seat at the rear.
1
2
3
4
5
6
7
8
9
10
11
4-11
Page 30
1
1
2
3
4
5
6
1. Seat lock lever
7
To install the seat
Insert the projections on the front of the seat into
8
the seat holders and push down on the seat at the
rear.
9
NOTE:
10
Make sure that the seat is securely fitted.
11
1
2
1. Projection
2. Seat holder
EBU27892
Adjusting the front shock absorber assemblies
These shock absorber assemblies are equipped
with a spring preload adjusting nut, a rebound
damping force adjusting screw, with a compression damping force adjusting bolt (for fast compression damping), and a compression damping
force adjusting screw (for slow compression damping).
4-12
Page 31
EWB00360
WARNING
POTENTIAL HAZARD
These shock absorber assemblies contain
highly pressurized nitrogen gas.
WHAT CAN HAPPEN
The shock absorber assemblies could explode, causing injury or property damage.
Cylinder damage could also result in poor
handling which could cause an accident.
HOW TO AVOID THE HAZARD
●
Do not tamper with or attempt to open the
cylinder assemblies.
●
Do not subject the shock absorber assemblies to an open flame or other high heat.
●
Do not deform or damage the cylinders in
any way.
●
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take
the shock absorber assembly to a Yamaha
dealer for any service.
Spring preload
1. Loosen the locknut.
2. Turn the adjusting nut in direction (a) to increase the spring preload and thereby harden
the suspension, and in direction (b) to decrease the spring preload and thereby soften
the suspension.
(a)
1. Spring preload adjusting nut
2. Locknut
3. Special wrench
NOTE:
●
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
●
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
4-13
(b)
1
2
1
3
2
3
4
5
6
7
8
9
10
11
Page 32
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).
1
Spring preload setting:
2
3
Minimum (hard):
Distance A = 246.5 mm (9.7 in)
Standard:
4
Distance A = 255 mm (10.0 in)
Maximum (soft):
5
Distance A = 261.5 mm (10.3 in)
3. Tighten the locknut to the specified torque.
Tightening torque:
Locknut:
30 Nm (3.0 m·kgf, 22 ft·lbf)
ECB00080
CAUTION:
Always tighten the locknut against the adjusting nut, and then tighten it to the specified
torque.
6
7
8
9
10
11
1. Distance A
Rebound damping force
Turn the adjusting screw in direction (a) to increase
the rebound damping force and thereby harden
the damping, and in direction (b) to decrease the
1
rebound damping force and thereby soften the
damping.
4-14
Page 33
Compression damping force
(b)
(a)
1
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned in di-
rection (a)
Compression damping force (for fast compression
damping)
1. To increase the compression damping force
and thereby harden the compression damping, turn the adjusting bolt in direction (a). To
decrease the compression damping force and
thereby soften the compression damping, turn
the adjusting bolt in direction (b).
(a)
(b)
1
1
2
1. Compression damping force adjusting bolt (for fast compression damping)
2. Position indicator marks
1
2
3
4
5
6
7
8
9
10
11
4-15
Page 34
Compression damping setting (for fast compression damping):
1
2
Minimum (soft):
Adjusting bolt 3 turn(s) out from the fully
turned in position
3
Standard:
Adjusting bolt 1 1/4 turn(s) out from the ful-
4
ly turned in position
Maximum (hard):
5
6
Adjusting bolt fully turned in
NOTE:
Make sure that the position indicator marks are
7
aligned when the shock absorber assembly is set
to the standard setting.
8
Compression damping force (for slow compres-
9
sion damping)
1. To increase the compression damping force
10
and thereby harden the compression damp-
11
ing, turn the adjusting screw in direction (a).
To decrease the compression damping force
and thereby soften the compression damping,
turn the adjusting screw in direction (b).
(a)
(b)
1
1. Compression damping force adjusting screw (for slow
compression damping)
Compression damping setting (for slow compression damping):
Minimum (soft):
20 click(s) in direction (b)*
Standard:
9 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned in di-
rection (a)
ECB00090
CAUTION:
Never turn an adjusting mechanism beyond
4-16
Page 35
the minimum and maximum settings.
NOTE:
Although the total number of clicks of a damping
force adjusting mechanism may not exactly match
the above specifications due to small differences in
production, the actual number of clicks always represents the entire adjusting range. To obtain a precise adjustment, it would be advisable to check the
number of clicks of each damping force adjusting
mechanism and to modify the specifications as
necessary.
EWB00370
WARNING
POTENTIAL HAZARD
Suspension components become hot during
operation.
WHAT CAN HAPPEN
You could be burned.
HOW TO AVOID THE HAZARD
Never touch the compression damping force
adjusting screw, rebound damping force adjusting screw or oil reservoir with your bare
hand or skin until suspension components
have cooled.
EWB00350
WARNING
POTENTIAL HAZARD
Improper shock absorber assembly adjustment.
WHAT CAN HAPPEN
Uneven adjustment can cause poor handling
and loss of stability, which could lead to an
accident.
HOW TO AVOID THE HAZARD
Always adjust the shock absorber assemblies on the left and right side to the same
setting.
EBU27950
Adjusting the rear shock absorber assembly
This shock absorber assembly is equipped with a
spring preload adjusting nut, a rebound damping
force adjusting screw, with a compression damping force adjusting bolt (for fast compression
damping), and a compression damping force adjusting screw (for slow compression damping).
1
2
3
4
5
6
7
8
9
10
11
4-17
Page 36
EWB00380
WARNING
1
POTENTIAL HAZARD
This shock absorber assembly contains
2
highly pressurized nitrogen gas.
WHAT CAN HAPPEN
3
The shock absorber assembly could explode, causing injury or property damage.
4
Cylinder damage could also result in poor
handling which could cause an accident.
5
HOW TO AVOID THE HAZARD
●
6
7
8
9
10
11
Do not tamper with or attempt to open the
cylinder assembly.
●
Do not subject the shock absorber assembly to an open flame or other high heat.
●
Do not deform or damage the cylinder in
any way.
●
Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take
the shock absorber assembly to a Yamaha
dealer for any service.
Spring preload
1. Loosen the locknut.
2. Turn the adjusting nut in direction (a) to increase the spring preload and thereby harden
the suspension, and in direction (b) to decrease the spring preload and thereby soften
the suspension.
2
3
1. Spring preload adjusting nut
2. Locknut
3. Special wrench
NOTE:
●
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
●
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
4-18
1
(b)
(a)
Page 37
adjusting nut, distance A is changed by 1.5 mm
(0.06 in).
Spring preload setting:
Minimum (hard):
Distance A = 228 mm (8.98 in)
Standard:
Distance A = 233 mm (9.17 in)
Maximum (soft):
Distance A = 243 mm (9.57 in)
3. Tighten the locknut to the specified torque.
Tightening torque:
Locknut:
42 Nm (4.2 m·kgf, 30 ft·lbf)
ECB00080
CAUTION:
Always tighten the locknut against the adjusting nut, and then tighten it to the specified
torque.
1
2
3
4
5
1. Distance A
Rebound damping force
6
Turn the adjusting screw in direction (a) to increase
7
the rebound damping force and thereby harden
1
the damping, and in direction (b) to decrease the
rebound damping force and thereby soften the
damping.
4-19
8
9
10
11
Page 38
damping)
1. To increase the compression damping force
1
and thereby harden the compression damping, turn the adjusting bolt in direction (a). To
2
3
(a)(b)
decrease the compression damping force and
thereby soften the compression damping, turn
the adjusting bolt in direction (b).
4
5
1. Rebound damping force adjusting screw
6
Rebound damping setting:
7
1
Minimum (soft):
8
20 click(s) in direction (b)*
Standard:
9
12 click(s) in direction (b)*
Maximum (hard):
10
3 click(s) in direction (b)*
* With the adjusting screw fully turned in di-
11
rection (a)
Compression damping force
Compression damping force (for fast compression
(b)
2
(a)
1
1
1. Compression damping force adjusting bolt (for fast compression damping)
2. Position indicator marks
4-20
Page 39
Compression damping setting (for fast compression damping):
Minimum (soft):
Adjusting bolt 4 turn(s) out from the fully
turned in position
Standard:
Adjusting bolt 2 turn(s) out from the fully
turned in position
Maximum (hard):
Adjusting bolt fully turned in
NOTE:
Make sure that the position indicator marks are
aligned when the shock absorber assembly is set
to the standard setting.
Compression damping force (for slow compression damping)
1. To increase the compression damping force
and thereby harden the compression damping, turn the adjusting screw in direction (a).
To decrease the compression damping force
and thereby soften the compression damping,
turn the adjusting screw in direction (b).
(b)
(a)
1
1. Compression damping force adjusting screw (for slow
compression damping)
Compression damping setting (for slow compression damping):
Minimum (soft):
20 click(s) in direction (b)*
Standard:
11 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned in di-
rection (a)
ECB00090
CAUTION:
Never turn an adjusting mechanism beyond
4-21
1
2
3
4
5
6
7
8
9
10
11
Page 40
the minimum and maximum settings.
1
NOTE:
Although the total number of clicks of a damping
2
force adjusting mechanism may not exactly match
the above specifications due to small differences in
3
production, the actual number of clicks always represents the entire adjusting range. To obtain a pre-
4
cise adjustment, it would be advisable to check the
number of clicks of each damping force adjusting
5
mechanism and to modify the specifications as
necessary.
6
EWB00370
7
POTENTIAL HAZARD
8
Suspension components become hot during
operation.
9
WARNING
WHAT CAN HAPPEN
You could be burned.
10
HOW TO AVOID THE HAZARD
Never touch the compression damping force
11
adjusting screw, rebound damping force adjusting screw or oil reservoir with your bare
hand or skin until suspension components
have cooled.
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
4-22
Page 41
EBU19200
PRE-OPERATION CHECKS
EBU19212
Pre-operation check list
Before operating this ATV, be sure to check the items listed in the following table.
EWB00470
WARNING
POTENTIAL HAZARD
Failure to inspect the ATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
Increases the possibility of an accident or equipment damage.
HOW TO AVOID THE HAZARD
Always inspect your ATV each time you use it to make sure it is in safe operating condition.
Always follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
1
2
3
4
5
6
7
8
NOTE:
The maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the periodic
maintenance charts on page 8-3 to determine which service should be performed by a Yamaha dealer.
5-1
9
10
11
Page 42
1
2
3
4
5
6
7
8
9
10
11
ITEM ROUTINE PAGE
Fuel
Engine oil
Coolant
Front brake
Rear brake
Clutch
Throttle lever
Control cables
Drive chain
Check fuel level in fuel tank, and add recommended fuel if neces-
●
sary.
Check fuel line for leakage. Correct if necessary.
●
Check oil level in engine, and add recommended oil to specified
●
level if necessary.
Check ATV for oil leakage. Correct if necessary.
●
Check coolant level in reservoir, and add recommended coolant to
●
specified level if necessary.
Check cooling system for leakage. Correct if necessary.
●
Check operation. If soft or spongy, have Yamaha dealer bleed
●
4-10, 5-4
5-4, 8-9
5-4, 8-14
hydraulic system.
Check brake pads for wear, and replace if necessary.
●
Check brake fluid level in reservoir, and add recommended brake
●
5-5, 8-25, 8-26, 8-28
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.
●
Check operation. If soft or spongy, have Yamaha dealer bleed
●
hydraulic system.
Check brake pads for wear, and replace if necessary.
●
Check brake fluid level in reservoir, and add recommended brake
●
5-5, 8-25, 8-26, 8-29
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.
●
Check operation, and correct if necessary.
●
Lubricate cable if necessary.
●
Check lever free play, and adjust if necessary.
●
Make sure that operation is smooth. Lubricate cable and lever hous-
●
ing if necessary.
Check cable free play, and adjust if necessary.
●
Make sure that operation is smooth. Lubricate if necessary. 8-36
●
Check chain slack, and adjust if necessary.
●
Check chain condition. Lubricate if necessary.
●
5-5, 8-24
5-6, 8-33, 8-35
8-32
5-2
Page 43
ITEM ROUTINE PAGE
Wheels and tires
Brake and shift pedals
Brake and clutch levers
Chassis fasteners
Instruments, lights and
switches
Check wheel condition, and replace if damaged.
●
Check tire condition and tread depth. Replace if necessary.
●
Check air pressure. Correct if necessary.
●
Make sure that operation is smooth. Lubricate pedal pivoting points
●
5-6, 5-7, 5-8
if necessary.
Make sure that operation is smooth. Lubricate lever pivoting points
●
if necessary.
Make sure that all nuts, bolts and screws are properly tightened. 5-9
●
●
Check operation, and correct if necessary. 5-9
8-37
8-36
1
2
3
4
5
6
7
8
9
10
11
5-3
Page 44
EBU19530
Fuel
1
Make sure that there is sufficient fuel in the tank.
(See page 4-10.)
EWB00500
2
WARNING
3
POTENTIAL HAZARD
Improper care when refueling.
4
WHAT CAN HAPPEN
Fuel can spill, which can cause a fire and se-
5
vere injury.
Fuel expands when it heats up. If the fuel
6
tank is overfilled, fuel could spill out due to
heat from the engine or the sun.
7
HOW TO AVOID THE HAZARD
Do not overfill the fuel tank. Be careful not to
8
spill fuel, especially on the engine or exhaust
pipe. Wipe up any spilled fuel immediately.
9
Be sure the fuel tank cap is closed securely.
10
Do not refuel right after the engine has been
running and is still very hot.
11
EBU19560
Engine oil
Make sure that the engine oil is at the specified level. Add oil as necessary. (See page 8-9.)
EBU19620
Coolant
Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-14.)
NOTE:
The coolant level must be checked on a cold engine since the level varies with engine temperature.
EWB00490
WARNING
POTENTIAL HAZARD
Removing the radiator cap when the engine
and radiator are still hot.
WHAT CAN HAPPEN
You could be burned by hot fluid and steam
blown out under pressure.
HOW TO AVOID THE HAZARD
Wait for the engine to cool before removing
the radiator cap. Always use a thick rag over
the cap. Allow any remaining pressure to escape before completely removing the cap.
5-4
Page 45
EBU19700
Front and rear brakes
Brake lever and brake pedal
●
Check that there is no free play in the brake lever. If there is free play, have a Yamaha dealer
check the brake system.
●
Check for correct brake pedal height. (See
page 8-29.) If the pedal height is incorrect, have
a Yamaha dealer adjust it.
●
Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-26.)
Recommended brake fluid:
DOT 4
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leakage, have a Yamaha dealer check the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-25.)
EWB00540
WARNING
POTENTIAL HAZARD
Riding with improperly operating brakes.
WHAT CAN HAPPEN
You could lose braking ability, which could
lead to an accident.
HOW TO AVOID THE HAZARD
Always check the brakes at the start of every
ride. Do not ride the ATV if you find any problem with the brakes. If a problem cannot be
corrected by the adjustment procedures provided in this manual, have a Yamaha dealer
check for the cause.
EBU19761
Throttle lever
Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
5-5
1
2
3
4
5
6
7
8
9
10
11
Page 46
necessary.
EBU19770
1
Drive chain
Check the condition of the drive chain and check
2
the drive chain slack. Lubricate and adjust the
3
drive chain as necessary. (See page 8-33.)
EBU19781
4
Tires
EWB00561
5
WARNING
6
POTENTIAL HAZARD
Operating this ATV with improper tires, or
7
with improper or uneven tire pressure.
WHAT CAN HAPPEN
8
Use of improper tires on this ATV, or operation of this ATV with improper or uneven tire
9
pressure, may cause loss of control, increasing your risk of accident.
10
11
HOW TO AVOID THE HAZARD
●
The tires listed below have been approved
by Yamaha Motor Co., Ltd. for this model.
Other tire combinations are not recommended.
Front:
Manufacturer/model:
DUNLOP/KT341 Radial
Size:
AT21 x 7-10
Type:
Tubeless
Rear:
Manufacturer/model:
DUNLOP/KT345 Radial
Size:
AT20 x 10-9
Type:
Tubeless
5-6
Page 47
●
The tires should be set to the recommended pressure:
Recommended tire pressure:
Front:
27.5 kPa (4.0 psi) (0.275 kgf/cm2)
Rear:
27.5 kPa (4.0 psi) (0.275 kgf/cm2)
●
Check and adjust tire pressures when
the tires are cold.
●
Tire pressures must be equal on both
sides.
●
Tire pressure below the minimum specified could cause the tire to dislodge from
the rim under severe riding conditions.
Minimum tire pressure:
Front:
24.5 kPa (3.5 psi) (0.245 kgf/cm2)
Rear:
24.5 kPa (3.5 psi) (0.245 kgf/cm2)
●
Use no more than the following pressures
when seating the tire beads.
●
Maximum tire seating pressure:
Front:
250 kPa (36 psi) (2.5 kgf/cm2)
Rear:
250 kPa (36 psi) (2.5 kgf/cm2)
Higher pressures and fast inflation may
cause a tire to burst. Inflate the tires very
slowly and carefully.
EBU19820
Measuring the tire pressure
Use the low-pressure tire gauge.
NOTE:
The low-pressure tire gauge is included as standard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect.
1
2
3
4
5
6
7
8
9
10
11
5-7
Page 48
1
2
3
4
5
6
1. Low-pressure tire gauge
7
Set the tire pressure when the tires are cold. Set
the tire pressures to the following specifications:
8
9
10
11
Recommended pressure:
Front
27.5 kPa (4.0 psi) (0.275 kgf/cm2)
Rear
27.5 kPa (4.0 psi) (0.275 kgf/cm2)
Minimum:
Front
24.5 kPa (3.5 psi) (0.245 kgf/cm2)
Rear
24.5 kPa (3.5 psi) (0.245 kgf/cm2)
Maximum:
Front
30.5 kPa (4.4 psi) (0.305 kgf/cm2)
Rear
30.5 kPa (4.4 psi) (0.305 kgf/cm2)
EBU19830
Tire wear limit
Replace the tire when the tire groove decreases to
3 mm (0.12 in).
5-8
Page 49
1
2
3
4
5
1. Tire wear limit
EBU19840
Chassis fasteners
Make sure that all nuts, bolts and screws are properly tightened.
EBU19850
Instruments, lights and switches
Check that all instruments, lights and switches are
working properly. Correct if necessary.
6
7
8
9
10
11
5-9
Page 50
EBU19870
1
EWB00010
2
WARNING
Indicates a potential hazard that could result in
3
serious injury or death.
EBU19890
4
EWB00610
5
WARNING
6
POTENTIAL HAZARD
Operating ATV without being familiar with all
7
controls.
WHAT CAN HAPPEN
8
Loss of control, which could cause an accident or injury.
9
HOW TO AVOID THE HAZARD
Read the Owner’s Manual carefully. If there is
10
a control or function you do not understand,
ask your Yamaha dealer.
11
OPERATION
EBU26740
Starting the engine
EWB00620
WARNING
POTENTIAL HAZARD
Frozen control cables in cold weather.
WHAT CAN HAPPEN
You could be unable to control the ATV,
which could lead to an accident or collision.
HOW TO AVOID THE HAZARD
When riding in cold weather, always make
sure all control cables work smoothly before
you begin riding.
ECB00150
CAUTION:
See the “Engine break-in” section on page 6-5
prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the main switch to “ON” and the engine
stop switch to “RUN”.
ECB00770
CAUTION:
The fuel level warning light and engine trouble
6-1
Page 51
warning light should come on, then go off. If a
warning light does not go off, see page 4-2 for
the corresponding warning light circuit check.
3. Shift the transmission into neutral. The neutral
indicator light should come on, if it does not
come on, have a Yamaha dealer check the
electrical circuit.
NOTE:
This model is equipped with an ignition circuit cutoff system. The engine can be started under the
following conditions.
●
The transmission is in neutral.
●
The clutch is disengaged with the transmission
in gear. However, it is recommended to shift into
neutral before starting the engine.
4. Completely close the throttle lever and start
the engine by pushing the start switch.
NOTE:
If the engine fails to start, release the start switch,
then push it again. Pause a few seconds before
the next attempt. Each cranking should be as short
as possible to preserve battery energy. Do not
crank the engine more than 10 seconds on each
attempt.
5. Continue warming up the engine until it idles
smoothly.
ECB00160
CAUTION:
For maximum engine life, always warm the engine up before starting off. Never accelerate
hard when the engine is cold!
NOTE:
The engine is warm when it responds normally to
the throttle.
EBU20490
Operating the reverse knob and driving in reverse
ECB00170
CAUTION:
Before shifting, stop the ATV, otherwise the
transmission may be damaged.
1. Bring the ATV to a complete stop, apply the
clutch lever, and then shift the transmission
into first gear.
2. While applying the brake pedal, turn the reverse knob clockwise with your right hand.
3. Apply the clutch lever and shift the transmis-
1
2
3
4
5
6
7
8
9
10
11
6-2
Page 52
sion into reverse by pressing down on the shift
pedal, and then release the reverse knob.
1
2
1
3
4
5
6
2
7
1. Reverse knob “REV”
2. Shift pedal
8
9
NOTE:
When in reverse, the reverse indicator light should
10
come on. If the indicator light does not come on,
have a Yamaha dealer check the electrical circuit.
11
4. Check behind you for people or obstacles,
and then release the brake pedal.
5. Open the throttle lever gradually and release
the clutch lever slowly. Continue to watch to
the rear while backing.
EWB00660
WARNING
POTENTIAL HAZARD
Improperly operating in reverse.
WHAT CAN HAPPEN
You could hit an obstacle or even a person
behind you, resulting in serious injury.
HOW TO AVOID THE HAZARD
When you shift into reverse, make sure there
are no people or obstacles behind you. When
it is safe to proceed, go slowly.
EBU20530
Shifting
This ATV has a 5-speed forward and 1-speed reverse transmission. The transmission allows you
to control the amount of power you have available
at a given speed or for starting, accelerating, climbing hills, etc.
To shift into neutral, return the throttle lever to the
closed position, apply the clutch, and then repeatedly depress the shift pedal until it stops.
When it stops, it will be in first gear. Raise the pedal
slightly to reach the neutral position.
6-3
Page 53
5
4
3
2
N
1
2
R
3
1. Shift pedal
2. Neutral position
3. Reverse position
EBU20560
1
To start out and accelerate
1. Release the throttle lever.
ECB00200
CAUTION:
Always close the throttle before shifting gears,
otherwise damage to the engine and drive train
may result.
time, release the clutch lever slowly.
5. Once the ATV has attained adequate speed,
release the throttle, and at the same time,
quickly pull in the clutch lever.
6. Shift the transmission into second gear.
(Make sure not to shift the transmission into
neutral)
7. Open the throttle part way and gradually release the clutch lever.
8. Follow the same procedure when shifting to
the next higher gear.
EWB00680
WARNING
POTENTIAL HAZARD
Opening the throttle abruptly or releasing the
clutch lever too quickly.
WHAT CAN HAPPEN
The ATV could wheelie. This would increase
the chance of an accident, including overturn.
HOW TO AVOID THE HAZARD
Open the throttle gradually.
Release the clutch lever gradually.
1
2
3
4
5
6
7
8
9
10
11
2. Pull the clutch lever to disengage the clutch.
3. Shift into first gear.
4. Open the throttle gradually and at the same
EBU20640
To decelerate
When slowing down or stopping, release the throt-
6-4
Page 54
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
1
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
2
can cause the tires to lose traction, reducing control and increasing the possibility of an accident.
3
EWB00650
4
POTENTIAL HAZARD
Engaging a lower gear when the engine
5
WARNING
speed is too high.
WHAT CAN HAPPEN
6
The wheels could stop rotating and lose traction. This could cause loss of control, an ac-
7
cident and injury. It could also cause engine
8
or drive train damage.
HOW TO AVOID THE HAZARD
9
Make sure the engine has sufficiently slowed
before shifting to a lower gear.
10
ECB00180
11
CAUTION:
Even with the transmission in the neutral po-
●
sition, do not coast for long periods of time
with the engine off, and do not tow the ATV
for long distances. The transmission is properly lubricated only when the engine is run-
ning. Inadequate lubrication may damage
the transmission.
●
Always use the clutch when changing gears.
The engine, transmission and drive train are
not designed to withstand the shock of
forced shifting and can be damaged by shifting without using the clutch.
EBU20672
Engine break-in
NOTE:
●
For ATVs equipped with an odometer or an hour
meter, follow the figures given in km (mi) or the
figures given in hours.
●
For ATVs not equipped with an odometer or
hour meter, follow the figures given in hours.
There is never a more important period in the life of
your engine than the first 320 km (200 mi) or 20
hours of riding. For this reason, you should read
the following material carefully.
Since the engine is brand new, do not put an excessive load on it for the first 320 km (200 mi) or 20
hours. The various parts in the engine wear and
polish themselves to the correct operating clearances. During this period, prolonged full-throttle
6-5
Page 55
operation or any condition that might result in engine overheating must be avoided.
0–160 km (0–100 mi) or 0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
1
2
3
160–320 km (100–200 mi) or 10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine through the gears freely, but do not use
full throttle at any time.
320 km (200 mi) or 20 hours and beyond
The ATV can now be operated normally.
ECB00220
CAUTION:
If any engine trouble should occur during the
engine break-in period, immediately have a
Yamaha dealer check the ATV.
EBU26760
Parking
When parking the ATV, stop the engine, shift into
first gear, and then apply the parking brake.
1. Locked position
6-6
4
5
6
7
8
9
10
11
Page 56
EBU20870
Parking on a slope
EWB00800
1
WARNING
2
POTENTIAL HAZARD
Parking on a hill or other incline.
3
WHAT CAN HAPPEN
The ATV could roll out of control, increasing
4
the chance of an accident.
HOW TO AVOID THE HAZARD
5
Avoid parking on hills or other inclines. If you
must park on an incline, place the ATV trans-
6
versely across the incline, apply the parking
brake, stop the engine, shift into first gear,
7
and then block the front and rear wheels with
rocks or other objects.
8
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
9
1. Bring the ATV to a stop by applying the front
10
brake.
11
2. With the front and rear brake applied, pull the
clutch lever, shift into the neutral position, release the clutch lever, and then apply the
parking brake.
3. Stop the engine by setting the engine stop
switch to “OFF”.
4. With the front and rear brakes applied, pull the
clutch lever, shift into first gear, and then release the clutch lever, brake lever and brake
pedal.
NOTE:
Make sure that the neutral indicator light goes off.
5. Turn the key to “OFF”.
EBU20910
Accessories and loading
EBU20920
Accessories
Accessories can affect the handling and control of
your ATV. Keep the following in mind when consid-
6-7
Page 57
ering an accessory or operating an ATV which has
accessories.
●
Choose only accessories designed for your
ATV. Your Yamaha dealer has a variety of genuine Yamaha accessories. Other accessories
may also be available on the market. However,
it is not possible for Yamaha to test all nonYamaha accessories, nor control over their quality or suitability. Choose a genuine Yamaha accessory, or one that is equivalent in design and
quality.
●
Accessories should be rigidly and securely
mounted. An accessory which can shift position
or come off while you are riding could affect your
ability to control the ATV.
●
Do not mount an accessory where it could interfere with your ability to control the ATV. Examples include (but are not limited to) a heavy or
bulky object attached to the handlebars which
could make steering difficult, an accessory that
limits your ability to move around on the seat, or
one that limits your view.
●
Use extra caution when riding an ATV with accessories. The ATV may handle differently than
it does without accessories.
EBU20930
Loading
As originally equipped, this ATV is not designed to
carry cargo or tow a trailer. If you choose to add accessories so that you can carry cargo or tow a trailer, you must use common sense and good
judgment as the stability and handling of an ATV
can be changed. When adding accessories, keep
the following points in mind:
●
Never exceed the weight limits shown. An overloaded ATV can be unstable.
MAXIMUM LOADING LIMIT
ATV loading limit (total weight of rider, cargo,
accessories, and tongue):
100.0 kg (220 lb)
●
If you are carrying cargo and towing a trailer, include the tongue weight in the maximum ATV
load limit.
●
Load cargo on the carriers as close to the center
of the ATV as possible. Put cargo at the rear of
the front carrier, at the front of the rear carrier,
and center it.
●
Tie down cargo securely to the carriers. Make
sure cargo in the trailer cannot move around. A
shifting load can cause an accident.
1
2
3
4
5
6
7
8
9
10
11
6-8
Page 58
●
Make sure the load does not interfere with controls or your ability to see where you are going.
1
●
Ride more slowly than you would without a load.
The more weight you carry, the slower you
2
should go. Although conditions vary, it is good
practice not to exceed 2nd gear whenever you
3
are carrying heavier loads or when towing a trailer.
4
●
Allow more braking distance. A heavier ATV
takes longer to stop.
5
●
Avoid making sharp turns unless at very slow
speeds.
6
●
Avoid hills and rough terrain. Choose terrain
carefully. Added weight affects the stability and
7
handling of the ATV.
EWB00750
8
WARNING
9
POTENTIAL HAZARD
Overloading this ATV or carrying or towing
10
cargo improperly.
WHAT CAN HAPPEN
11
Could cause changes in ATV handling which
could lead to an accident.
HOW TO AVOID THE HAZARD
Never exceed the stated load capacity for
this ATV.
Cargo should be properly distributed and securely attached.
Reduce speed when carrying cargo or pulling a trailer. Allow greater distance for braking.
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
6-9
Page 59
EBU21131
RIDING YOUR ATV
1
2
3
4
5
6
7
8
9
10
11
7-1
Page 60
EWB00010
WARNING
1
Indicates a potential hazard that could result in
serious injury or death.
2
EBU21591
3
4
GETTING TO KNOW YOUR ATV
This ATV is intended for recreational use by expe-
5
rienced operators only. Even if you are an experienced operator of all other all terrain ATVs or
6
motorcycles, riding the ATV requires special skills
acquired through practice. Take your time to fully
7
learn techniques before attempting more difficult
maneuvers.
8
Riding your new ATV can be a very enjoyable activity, providing you with hours of pleasure. But it is
9
essential to familiarize yourself with the operation
of the ATV to achieve the skill necessary to enjoy
10
riding safely. Before you begin to ride, be sure you
have read this Owner’s Manual completely and un-
11
derstand the operation of the controls. Pay particular attention to the safety information on pages
1-1–1-4. Please also read all caution and warning
labels on your ATV.
RIDE WITH CARE AND GOOD JUDGEMENT
Get training if you are inexperienced.
Beginners should get training from a certified instructor.
Become familiar with this ATV at slow speeds first,
even if you are an experienced operator. Do not attempt to operate at maximum performance until
you are totally familiar with the ATV’s handling and
performance characteristics.
EWB01280
WARNING
POTENTIAL HAZARD
Operating this ATV without proper instruction.
WHAT CAN HAPPEN
The risk of an accident is greatly increased if
the operator does not know how to operate
the ATV properly in different situations and
on different types of terrain.
7-2
Page 61
HOW TO AVOID THE HAZARD
Beginning and inexperienced operators
should complete the certified training course
offered by Yamaha. They should then regularly practice the skills learned in the course
and the operating techniques described in
this Owner’s Manual. For more information
about the training course, contact an authorized ATV dealer or call 1-800-887-2887.
Riding your ATV requires skills acquired
through practice over a period of time.
Take the time to learn the basic techniques well
before attempting more difficult maneuvers.
HOW TO AVOID THE HAZARD
A child under 16 should never operate an
ATV with engine size greater than 90 cc.
1
2
3
4
5
6
7
Not recommended for children under 16 years
of age.
EWB00901
WARNING
POTENTIAL HAZARD
Failure to follow the age recommendations
for this ATV.
WHAT CAN HAPPEN
Use by children of ATVs that are not recommended for their age can lead to severe injury or death of the child.
8
9
10
11
7-3
Page 62
This ATV is designed to carry operator only –
passengers prohibited.
EWB00910
1
WARNING
2
POTENTIAL HAZARD
Carrying a passenger on this ATV.
3
WHAT CAN HAPPEN
Greatly reduces your ability to balance and
4
control this ATV. Could cause an accident,
resulting in harm to you and/or your passen-
5
ger.
HOW TO AVOID THE HAZARD
6
Never carry a passenger. The long seat is to
allow the operator to shift position as needed
7
during operation. It is not for carrying pas-
8
sengers.
9
10
11
Apparel
EWB00920
WARNING
POTENTIAL HAZARD
Operating this ATV without wearing an approved motorcycle helmet, eye protection
and protective clothing.
7-4
Page 63
WHAT CAN HAPPEN
Operating without an approved motorcycle
helmet increases your chances of a severe
head injury or death in the event of an accident.
Operating without eye protection can result
in an accident and increases your chances of
a severe injury in the event of an accident.
Operating without protective clothing increases your chances of severe injury in the
event of an accident.
HOW TO AVOID THE HAZARD
Always wear an approved motorcycle helmet
that fits properly.
You should also wear:
●
eye protection (goggles or face shield)
●
gloves
●
boots
●
long-sleeved shirt or jacket
●
long pants
1. Protective clothing
2. Goggles
3. Gloves
4. Boots
5. Helmet
Do not operate after consuming alcohol or
drugs.
The operator’s performance capability is reduced
by the influence of alcohol or drugs.
1
2
3
4
5
6
7
8
9
10
11
7-5
Page 64
1
2
3
4
5
EWB00930
6
POTENTIAL HAZARD
7
WARNING
Operating this ATV after consuming alcohol
or drugs.
8
WHAT CAN HAPPEN
9
Could seriously affect your judgment.
Could cause you to react more slowly.
10
Could affect your balance and perception.
Could result in an accident.
11
HOW TO AVOID THE HAZARD
Never consume alcohol or drugs before or
while driving this ATV.
Pre-operation checks
Always perform the pre-operation checks listed on
page 5-1 before riding for proper care of the ATV
and to ensure safety.
EWB00940
WARNING
POTENTIAL HAZARD
Failure to inspect the ATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
Increases the possibility of an accident or
equipment damage.
HOW TO AVOID THE HAZARD
Always inspect your ATV each time you use
it to make sure the ATV is in safe operating
condition.
Always follow the inspection and maintenance procedures and schedules described
in the Owner’s Manual.
EWB00950
WARNING
POTENTIAL HAZARD
Operating this ATV with improper tires, or
with improper or uneven tire pressure.
7-6
Page 65
WHAT CAN HAPPEN
Use of improper tires on this ATV, or operation of this ATV with improper or uneven tire
pressure, may cause loss of control, increasing your risk of an accident.
HOW TO AVOID THE HAZARD
Always use the size and type tires specified
in the Owner’s Manual for this ATV on page
5-6.
Always maintain proper tire pressure as described in the Owner’s Manual on page 5-7.
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
HOW TO AVOID THE HAZARD
Always go at a speed that is proper for the
terrain, visibility and operating conditions,
and your experience.
Speed limiter
For riders less experienced with this model, the
throttle lever housing is equipped with a speed limiter. The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and decreases the maximum speed of the ATV. Turning
in the adjusting screw decreases top speed, and
turning it out increases top speed. (See page 4-5.)
1
2
3
4
5
6
7
8
Do not operate at speeds too fast for your
skills or the conditions.
EWB00960
WARNING
POTENTIAL HAZARD
Operating this ATV at speeds too fast for
your skills or the conditions.
WHAT CAN HAPPEN
Increases your chances of losing control of
the ATV, which can result in an accident.
9
10
11
7-7
Page 66
1
2
3
4
5
6
1. Locknut
2. Adjusting screw
7
Loading and accessories
8
As originally equipped, this ATV is not designed to
carry cargo or tow a trailer. If you choose to add ac-
9
cessories so that you can carry cargo or tow a trailer, you must use common sense and good
10
judgment.
Use extra caution when riding the ATV with addi-
11
tional loads, such as accessories or cargo. The
ATV’s handling may be adversely affected. Reduce your speed when adding additional loads.
MAXIMUM LOADING LIMIT
ATV loading limit (total weight of cargo, rider,
accessories, and tongue):
100.0 kg (220 lb)
EWB00970
WARNING
POTENTIAL HAZARD
Overloading this ATV or carrying or towing
cargo improperly.
WHAT CAN HAPPEN
Could cause changes in ATV handling which
could lead to an accident.
HOW TO AVOID THE HAZARD
Never exceed the stated load capacity for
this ATV.
Cargo should be properly distributed and securely attached.
Reduce speed when carrying cargo or pulling a trailer. Allow greater distance for braking.
Always follow the instructions in your Owner’s Manual for carrying cargo or pulling a
trailer.
7-8
Page 67
During operation
Always keep your feet on the footboards during operation, otherwise they may contact the rear
wheels.
WHAT CAN HAPPEN
Removing even one hand or foot can reduce
your ability to control the ATV or could cause
you to lose your balance and fall off of the
ATV. If you remove a foot from a footboard,
your foot or leg may come into contact with
the rear wheels, which could injure you or
cause an accident.
HOW TO AVOID THE HAZARD
Always keep both hands on the handlebars
and both feet on the footboards of your ATV
during operation.
1
2
3
4
5
6
EWB00980
WARNING
POTENTIAL HAZARD
Removing hands from handlebars or feet
from footboards during operation.
Avoid wheelies and jumping. You may lose control
of the ATV or overturn.
EWB00990
WARNING
POTENTIAL HAZARD
Attempting wheelies, jumps, and other
stunts.
WHAT CAN HAPPEN
Increases the chance of an accident, including an overturn.
HOW TO AVOID THE HAZARD
Never attempt stunts, such as wheelies or
jumps. Don’t try to show off.
7-9
7
8
9
10
11
Page 68
1
2
3
4
5
6
Modifications
7
EWB01000
8
WARNING
POTENTIAL HAZARD
Operating this ATV with improper modifica-
9
tions.
WHAT CAN HAPPEN
10
Improper installation of accessories or mod-
11
ification of this ATV may cause changes in
handling which in some situations could lead
to an accident.
HOW TO AVOID THE HAZARD
Never modify this ATV through improper installation or use of accessories. All parts and
accessories added to this ATV should be
genuine Yamaha or equivalent components
designed for use on this ATV and should be
installed and used according to instructions.
If you have questions, consult an authorized
ATV dealer.
Exhaust system
The exhaust system on the ATV is very hot during
and following operation. To prevent burns, avoid
touching the exhaust system. Park the ATV in a
place where pedestrians or children are not likely
to touch it.
EWB01010
WARNING
POTENTIAL HAZARD
Hot exhaust system.
WHAT CAN HAPPEN
Dry grass or brush or other combustible material accumulated around the engine area
could catch fire.
Someone touching the exhaust system during or after operation could be burned.
7-10
Page 69
HOW TO AVOID THE HAZARD
Do not operate, idle, or park the ATV in dry
grass or other dry ground cover.
Keep the engine area free of dry grass,
brush, or other combustible material.
Do not touch the hot exhaust system.
Do not park the ATV in a place where others
might be likely to touch it.
EWB01020
WARNING
POTENTIAL HAZARD
Operating this ATV on paved surfaces.
WHAT CAN HAPPEN
ATVs are designed for off-road use only.
Paved surfaces may seriously affect handling and control of the ATV, and may cause
the ATV to go out of control.
HOW TO AVOID THE HAZARD
Always avoid paved surfaces, including sidewalks, driveways, parking lots and streets.
1
2
3
4
5
6
7
8
9
10
BE CAREFUL WHERE YOU RIDE
This ATV is designed for off-road use only. Riding
on paved surfaces can cause loss of control.
11
7-11
Page 70
1
2
3
4
5
6
7
8
Do not ride on any public road, street, or highway.
9
Riding on public roads can result in collisions with
other vehicles.
10
EWB01030
11
WARNING
POTENTIAL HAZARD
Operating this ATV on public streets, roads
or highways.
WHAT CAN HAPPEN
You can collide with another vehicle.
HOW TO AVOID THE HAZARD
Never operate this ATV on any public street,
road or highway, even a dirt or gravel one. In
many states it is illegal to operate ATVs on
public streets, roads and highways.
Know the terrain where you ride. Ride cautiously in
unfamiliar areas. Stay alert for
roots
in the terrain, and
holes, rocks, or
other hidden hazards
which may cause the ATV to upset.
7-12
Page 71
EWB01040
WARNING
POTENTIAL HAZARD
Failure to use extra care when operating this
ATV on unfamiliar terrain.
WHAT CAN HAPPEN
You can come upon hidden rocks, bumps, or
holes, without enough time to react. Could
result in the ATV overturning or going out of
control.
HOW TO AVOID THE HAZARD
Go slowly and be extra careful when operating on unfamiliar terrain. Always be alert to
changing terrain conditions when operating
the ATV.
1
2
3
4
5
6
7
8
9
10
11
7-13
Page 72
EWB01050
WARNING
1
POTENTIAL HAZARD
Failure to use extra care when operating on
2
excessively rough, slippery or loose terrain.
WHAT CAN HAPPEN
3
Could cause loss of traction or ATV control,
which could result in an accident, including
4
an overturn.
HOW TO AVOID THE HAZARD
5
Do not operate on excessively rough, slippery or loose terrain until you have learned
6
and practiced the skills necessary to control
the ATV on such terrain. Always be especial-
7
ly cautious on these kinds of terrain.
8
9
10
11
When riding in an area where you might not easily
be seen, such as desert terrain, mount a caution
flag on the ATV. DO NOT use the flag pole bracket
as a trailer hitch.
7-14
Page 73
mission.
1
2
3
4
5
EWB01060
WARNING
POTENTIAL HAZARD
Operating in areas where you might not be
seen by other off-road vehicles.
WHAT CAN HAPPEN
You could be in a collision. You could be injured.
HOW TO AVOID THE HAZARD
Always mount a caution flag on the ATV to
make you more visible. Watch carefully for
other vehicles.
Do not ride in areas posted “no trespassing”.
Do not ride on private property without getting per-
Select a large, flat area off-road to become familiar
with your ATV. Make sure that this area is free of
obstacles and other riders. You should practice
control of the throttle, brakes, shifting procedures,
and turning techniques in this area before trying
more difficult terrain. Always avoid riding on paved
surfaces: the ATV is designed for off-road use
only, and handling maneuvers are more difficult to
perform on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. As you
get on the ATV, be sure not to accidentally move
the shift pedal. Remember that the engine and exhaust pipe will be hot when riding and afterwards;
7-15
6
7
8
9
10
11
Page 74
do not allow skin or clothing to come in contact with
these components.
1
With the engine idling, pull the clutch lever to disengage the clutch and shift into 1st gear, and then
2
release the parking brake. Open the throttle gradually, and at the same time, release the clutch le-
3
ver slowly. Once the ATV has attained adequate
speed, release the throttle lever and at the same
4
time, quickly pull in the clutch lever and shift into
2nd gear. Open the throttle part way and gradually
5
release the clutch. Use this same procedure as
you move into the higher gears. Be sure to coordi-
6
nate the use of the throttle and shift pedal properly.
If the throttle is applied too abruptly or if the throttle
7
is not released during shifting, or if the shift pedal
is not released before applying the throttle, the
8
front wheels may lift off the ground, resulting in a
9
loss of directional control. Avoid higher speeds until you are thoroughly familiar with the operation of
10
your ATV.
EWB01240
11
WARNING
POTENTIAL HAZARD
Opening the throttle abruptly or releasing the
clutch lever too quickly.
WHAT CAN HAPPEN
The ATV could wheelie. This would increase
the chance of an accident, including overturn.
HOW TO AVOID THE HAZARD
Open the throttle gradually. Release the
clutch lever gradually.
ECB00230
CAUTION:
Do not shift gears without releasing the throttle. Damage to the engine or drive train may occur.
When slowing down or stopping, release the throttle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that
the engine has sufficiently slowed before engaging
a lower gear. Improper use of the brakes or shifting
can cause the tires to lose traction, reducing control and increasing the possibility of an accident.
EWB01070
WARNING
POTENTIAL HAZARD
Engaging a lower gear when the engine
speed is too high.
7-16
Page 75
WHAT CAN HAPPEN
The wheels could stop rotating. This could
cause loss of control, an accident and injury.
It could also cause engine or drive train damage.
HOW TO AVOID THE HAZARD
Make sure the engine has sufficiently slowed
before shifting to a lower gear.
TURNING YOUR ATV
To achieve maximum traction while riding off-road,
the two rear wheels are mounted solidly on one
axle and turn together at the same speed. Therefore, unless the wheel on the inside of the turn is allowed to slip or lose some traction, the ATV will
resist turning. A special turning technique must be
used to allow the ATV to make turns quickly and
easily. It is essential that this skill be learned first at
low speed.
EWB01220
WARNING
POTENTIAL HAZARD
Turning improperly.
WHAT CAN HAPPEN
The ATV could go out of control, causing a
collision or overturn.
HOW TO AVOID THE HAZARD
Always follow proper procedures for turning
as described in this Owner’s Manual. Practice turning at low speeds before attempting
to turn at faster speeds. Do not turn at
speeds too fast for your skills or the conditions.
As you approach a curve, slow down and begin to
turn the handlebars in the desired direction. As you
do so, put your weight on the footboard to the outside of the turn (opposite your desired direction)
and lean your upper body into the turn. Use the
throttle to maintain an even speed through the
turn. This maneuver will let the wheel on the inside
of the turn slip slightly, allowing the ATV to make
the turn properly.
1
2
3
4
5
6
7
8
9
10
11
7-17
Page 76
be able to perform it at higher speeds or in tighter
curves.
1
Improper riding procedures such as abrupt throttle
changes, excessive braking, incorrect body move-
2
3
4
5
6
ments, or too much speed for the sharpness of the
turn may cause the ATV to tip. If the ATV begins to
tip over to the outside while negotiating a turn, lean
more to the inside. It may also be necessary to
gradually let off on the throttle and steer to the outside of the turn to avoid tipping over.
Remember: Avoid higher speeds until you are
thoroughly familiar with the operation of your ATV.
7
1. Lean towards inside of turn.
8
2. Support your weight on the outer footrest.
9
This procedure should be practiced at slow speed
many times in a large off-road area with no obsta-
10
cles. If an incorrect technique is used, your ATV
may continue to go straight. If the ATV doesn’t
11
turn, come to a stop and then practice the procedure again. If the riding surface is slippery or loose,
it may help to position more of your weight over the
front wheels by moving forward on the seat.
Once you have learned this technique, you should
CLIMBING UPHILL
Use proper riding techniques to avoid ATV overturns on hills. Be sure that you can maneuver your
ATV well on flat ground before attempting any incline and then practice riding first on gentle slopes.
Try more difficult climbs only after you have developed your skill. In all cases avoid inclines with slippery or loose surfaces, or obstacles that might
cause you to lose control.
EWB01090
WARNING
POTENTIAL HAZARD
Operating on excessively steep hills.
7-18
Page 77
WHAT CAN HAPPEN
The ATV can overturn more easily on extremely steep hills than on level surfaces or
small hills.
HOW TO AVOID THE HAZARD
Never operate the ATV on hills too steep for
the ATV or for your abilities. Practice on
smaller hills before attempting large hills.
It is important when climbing a hill to make sure
that your weight is transferred forward on the ATV.
This can be accomplished by leaning forward and,
on steeper inclines, standing on the footboards
and leaning forward over the handlebars.
EWB01100
WARNING
POTENTIAL HAZARD
Climbing hills improperly.
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
to overturn.
HOW TO AVOID THE HAZARD
Always follow proper procedures for climbing hills as described in this Owner’s Manual.
Always check the terrain carefully before you
start up any hill.
Never climb hills with excessively slippery or
loose surfaces.
Shift your weight forward.
Never open the throttle suddenly or make
sudden gear changes. The ATV could flip
over backwards.
Never go over the top of any hill at high
speed. An obstacle, a sharp drop, or another
vehicle or person could be on the other side
of the hill.
1
2
3
4
5
6
7
8
9
10
11
7-19
Page 78
1
2
3
4
5
6
7
8
If you are climbing a hill and you find that you have
not properly judged your ability to make it to the
9
top, you should turn the ATV around while you still
have forward motion (provided you have the room
10
to do so) and go down the hill.
EWB01190
11
WARNING
POTENTIAL HAZARD
Improperly crossing hills or turning on hills.
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
to overturn.
HOW TO AVOID THE HAZARD
Never attempt to turn the ATV around on any
hill until you have mastered the turning technique as described in the Owner’s Manual on
level ground. Be very careful when turning
on any hill.
Avoid crossing the side of a steep hill if possible.
When crossing the side of a hill:
Always follow proper procedures as described in the Owner’s Manual.
Avoid hills with excessively slippery or loose
surfaces.
Shift your weight to the uphill side of the
ATV.
7-20
Page 79
If your ATV has stalled or stopped and you believe
you can continue up the hill, restart carefully to
make sure you do not lift the front wheels which
could cause you to lose control. If you are unable
to continue up the hill, dismount the ATV on the uphill side. Physically turn the ATV around and then
descend the hill.
If you start to roll backwards, DO NOT apply the
rear brake to stop or try to put the ATV in gear. The
ATV could easily tip over backwards. Instead, apply the front brake gradually, or dismount the ATV
immediately on the uphill side.
EWB01251
WARNING
POTENTIAL HAZARD
Stalling, rolling backwards or improperly dismounting while climbing a hill.
WHAT CAN HAPPEN
Could result in the ATV overturning.
HOW TO AVOID THE HAZARD
Use the proper gear and maintain a steady
speed when climbing a hill.
If you lose all forward speed:
●
Keep weight uphill.
●
Apply the brakes.
●
Lock the parking brake after you are
stopped.
If you begin rolling backwards:
●
Keep weight uphill.
●
Never apply the rear brake while rolling
backwards. Apply the front brake.
●
When fully stopped, apply the rear brake
as well, and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and remount, following the procedure described in
the Owner’s Manual.
7-21
1
2
3
4
5
6
7
8
9
10
11
Page 80
1
2
3
4
5
6
7
8
RIDING DOWNHILL
When riding your ATV downhill, shift your weight
9
as far to the rear and uphill side of the ATV as possible. Move back on the seat and sit with your arms
10
straight. Choose a low gear which will allow the engine compression to do most of the braking for
11
you. Improper braking may cause a loss of traction.
Use caution while descending a hill with loose or
slippery surfaces. Braking ability and traction may
be adversely affected by these surfaces. Improper
braking may also cause a loss of traction.
Whenever possible, ride your ATV straight downhill. Avoid sharp angles which could allow the ATV
to tip or roll over. Carefully choose your path and
ride no faster than you will be able to react to obstacles which may appear.
EWB01130
WARNING
POTENTIAL HAZARD
Going down a hill improperly.
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
to overturn.
7-22
Page 81
HOW TO AVOID THE HAZARD
Always follow proper procedures for going
down hills as described in this Owner’s Manual.
Note: a special technique is required when
braking as you go down a hill.
Always check the terrain carefully before you
start down any hill.
Shift your weight backward.
Never go down a hill at high speed.
Avoid going down a hill at an angle that
would cause the ATV to lean sharply to one
side. Go straight down the hill where possible.
1
2
3
4
5
6
7
8
CROSSING A SLOPE
Traversing a sloping surface on your ATV requires
you to properly position your weight to maintain
proper balance. Be sure that you have learned the
basic riding skills on flat ground before attempting
to cross a sloping surface. Avoid slopes with slippery surfaces or rough terrain that may upset your
balance.
As you travel across a slope, lean your body in the
uphill direction. It may be necessary to correct the
7-23
9
10
11
Page 82
steering when riding on loose surfaces by pointing
the front wheels slightly uphill. When riding on
1
slopes, be sure not to make sharp turns either up
or down hill.
2
If your ATV does begin to tip over, gradually steer
in the downhill direction if there are no obstacles in
3
your path. As you regain proper balance, gradually
steer again in the direction you wish to travel.
4
EWB01141
5
WARNING
POTENTIAL HAZARD
Improperly crossing hills or turning on hills.
6
WHAT CAN HAPPEN
Could cause loss of control or cause the ATV
7
to overturn.
8
HOW TO AVOID THE HAZARD
Never attempt to turn the ATV around on any
9
hill until you have mastered the turning technique as described in the Owner’s Manual on
10
level ground. Be very careful when turning
on any hill. Avoid crossing the side of a steep
11
hill if possible.
When crossing the side of a hill:
Always follow proper procedures as described in the Owner’s Manual.
Avoid hills with excessively slippery or loose
surfaces.
Shift your weight to the uphill side of the
ATV.
CROSSING THROUGH SHALLOW WATER
The ATV can be used to cross slow moving, shal-
7-24
Page 83
low water of up to a maximum of 35 cm (14 in) in
depth. Before entering the water, choose your path
carefully. Enter where there is no sharp drop off,
and avoid rocks or other obstacles which may be
slippery or upset the ATV. Drive slowly and carefully.
EWB01150
WARNING
POTENTIAL HAZARD
Operating this ATV through deep or fast
flowing water.
WHAT CAN HAPPEN
Tires may float, causing loss of traction and
loss of control, which could lead to an accident.
HOW TO AVOID THE HAZARD
Never operate this ATV in fast flowing water
or in water deeper than that specified in your
Owner’s Manual.
Remember that wet brakes may have reduced stopping ability. Test your brakes after leaving water. If necessary, apply them
several times to let friction dry out the linings.
Test your brakes after leaving the water. Do not
continue to ride your ATV without verifying that you
have regained proper braking ability.
1
2
3
4
5
6
7
8
9
10
11
7-25
Page 84
1
2
3
4
5
6
7
ECB00240
8
CAUTION:
After riding your ATV in water, be sure to drain
9
the trapped water by removing the check hose
at the bottom of the air filter case. Wash the
10
ATV in fresh water if it has been operated in
salt water or muddy conditions.
11
1
1. Air filter case check hose
RIDING OVER ROUGH TERRAIN
Riding over rough terrain should be done with caution. Look out for obstacles which could cause
damage to the ATV or could lead to an upset or accident. Be sure to keep your feet firmly mounted on
the footboards at all times. Avoid jumping the ATV
as loss of control and damage to the ATV may result.
EWB01160
WARNING
POTENTIAL HAZARD
Improperly operating over obstacles.
7-26
Page 85
WHAT CAN HAPPEN
Could cause loss of control or a collision.
Could cause the ATV to overturn.
HOW TO AVOID THE HAZARD
Before operating in a new area, check for obstacles.
Never attempt to ride over large obstacles,
such as large rocks or fallen trees. When you
go over obstacles, always follow proper procedures as described in the Owner’s Manual.
1
2
3
4
5
SLIDING AND SKIDDING
Care should be used when riding on loose or slippery surfaces since the ATV may slide. If unexpected and uncorrected, sliding could lead to an
accident.
To reduce the tendency for the front wheels to slide
in loose or slippery conditions, positioning your
weight over the front wheels will sometimes help.
If the rear wheels of your ATV start to slide sideways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the slide.
7-27
6
7
8
9
10
11
Page 86
HOW TO AVOID THE HAZARD
1
2
3
4
Learn to safely control skidding or sliding by
practicing at low speeds and on level,
smooth terrain.
On extremely slippery surfaces, such as ice,
go slowly and be very cautious in order to reduce the chance of skidding or sliding out of
control.
5
6
With practice, over a period of time, skill at controlled sliding can be developed. The terrain
7
should be chosen carefully before attempting such
maneuvers, since both stability and control are re-
8
duced. Bear in mind that sliding maneuvers should
always be avoided on extremely slippery surfaces
9
such as ice, since all control may be lost.
EWB01170
10
POTENTIAL HAZARD
11
WARNING
Skidding or sliding improperly.
WHAT CAN HAPPEN
You may lose control of this ATV. You may
also regain traction unexpectedly, which
may cause the ATV to overturn.
WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding techniques completely.
WHAT TO DO...
●
If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-17.)
●
If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If necessary, gradually let off the throttle and/or steer
to the outside of the turn. (See page 7-17.)
●
If your ATV starts to slide sideways:
7-28
Page 87
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is not
recommended until you have corrected the
slide. (See page 7-27.)
●
If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
THE REAR BRAKE – the ATV may tip over on
top of you. Dismount the ATV on the uphill side.
(See page 7-18.)
●
If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned towards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-18.)
●
If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let water drain from the ATV and CHECK YOUR
BRAKES FOR PROPER OPERATION when
you come out of the water. Do not continue to
ride your ATV until you have regained adequate
braking ability. (See page 7-24.)
EWB00010
WARNING
Indicates a potential hazard that could result in
serious injury or death.
1
2
3
4
5
6
7
8
9
10
11
7-29
Page 88
EBU21647
PERIODIC MAINTENANCE AND MINOR REPAIR
1
EBU21660
2
Safety is an obligation of the owner. Periodic inspection, adjustment and lubrication will keep your
3
ATV in the safest and best operating condition
possible. The most important points of inspection,
4
adjustment, and lubrication are explained on the
5
following pages.
The intervals given in the periodic maintenance
6
and lubrication chart should be considered as a
general guide under normal riding conditions.
7
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
8
INDIVIDUAL USE, THE MAINTENANCE INTERVALS MAY NEED TO BE SHORTENED.
9
EWB01820
10
POTENTIAL HAZARD
Servicing an engine while it is running.
11
WHAT CAN HAPPEN
Moving parts can catch clothing or parts of
the body, causing injury.
Electrical components can cause shocks or
start fires.
WARNING
HOW TO AVOID THE HAZARD
Turn off the engine when performing maintenance unless otherwise specified. Have a
Yamaha dealer perform the service if you are
not familiar with maintenance work.
EBU27100
Owner’s manual and tool kit
Be sure to put this owner’s manual in the plastic
bag and to always carry it as well as the owner’s
tool kit and the low-pressure tire gauge in their respective compartments under the seat.
8-1
Page 89
1
1
2
3
2
1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gauge
The service information included in this manual
and the tools provided in the owner’s tool kit are intended to assist you in the performance of preventive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
NOTE:
If you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
EWB01830
WARNING
POTENTIAL HAZARD
Operating this ATV with improper modifications.
WHAT CAN HAPPEN
Improper installation of accessories or modification of this ATV may cause changes in
handling which in some situations could lead
to an accident.
HOW TO AVOID THE HAZARD
Never modify this ATV through improper installation or use of accessories. All parts and
accessories added to this ATV should be
genuine Yamaha or equivalent components
designed for use on this ATV and should be
installed and used according to instructions.
If you have questions, consult an authorized
Yamaha ATV dealer.
1
2
3
4
5
6
7
8
9
10
11
8-2
Page 90
EBU21742
Periodic maintenance chart for the emission control system
1
NOTE:
●
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
2
●
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
3
intervals should be followed.
4
●
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.
5
6
NO. ITEM
7
8
1
*
9
2 Spark plug
10
3
*
4
11
*
5
*
6
*
7 Spark arrester
Fuel line
Valves
Fuel injection
Crankcase breather
system
Exhaust system
CHECK OR MAINTENANCE
JOB
●
Check fuel hoses for cracks or other damage, and
Whichever comes
first
replace if necessary.
●
Check condition and clean, regap, or replace if
necessary.
●
Check valve clearance and adjust if necessary.
●
Check and adjust engine idle speed.
●
Check breather hose for cracks or other damage,
and replace if necessary.
●
Check for leakage and replace gasket(s) if necessary.
●
Check for looseness and tighten all screw clamps
and joints if necessary.
●
Clean.
8-3
month 1 3 6 6 12
km
(mi)
hours 20 80 160 160 320
INITIAL EVERY
320
(200)
1300
(800)
2500
(1600)
2500
(1600)
5000
(3200)
√√√
√√√√√
√ √√√
√√√√√
√√√
√√√
√√√
Page 91
EBU21864
General maintenance and lubrication chart
NO. ITEM
1 Air filter element
2
*
Clutch
3
*
Front brake
4
*
Rear brake
5
*
Brake hoses
6
*
Parking brake
7
*
Wheels
8
*
Tires
9
*
Wheel hub bearings
CHECK OR MAINTENANCE
JOB
●
Clean and replace if necessary.
●
Check operation and adjust if necessary.
●
Check operation and correct if necessary.
●
Check fluid level and ATV for fluid leakage, and
correct if necessary.
●
Replace brake pads. Whenever worn to the limit
●
Check operation and correct if necessary.
●
Check fluid level and ATV for fluid leakage, and
correct if necessary.
●
Replace brake pads. Whenever worn to the limit
●
Check for cracks or other damage, and replace if
necessary.
●
Replace. Every 4 years
●
Check operation and adjust if necessary.
●
Check runout and for damage, and replace if necessary.
●
Check tread depth and for damage, and replace if
necessary.
●
Check air pressure and balance, and correct if
necessary.
Check for looseness or damage, and replace if
●
necessary.
Whichev-
er comes
8-4
first
INITIAL EVERY
month 136612
km
(mi)
320
(200)
1300
(800)
2500
(1600)
2500
(1600)
5000
(3200)
hours 20 80 160 160 320
Every 20–40 hours (more often in wet or
dusty areas)
√ √√√
√√√√√
√√√√√
√√√√
√√√√√
√ √√√
√ √√√
√ √√√
1
2
3
4
5
6
7
8
9
10
11
Page 92
1
NO. ITEM
2
3
10
*
Upper and lower
arm pivots
4
11 Drive chain
5
12
*
6
7
Chassis fasteners
Shock absorber
13
*
assemblies
Rear suspension
8
relay arm and con-
14
*
necting arm pivoting points
9
15
*
Steering shaft
16
*
10
11
Steering system
17 Engine oil
Engine oil filter ele-
18
ment
19 Cooling system
INITIAL EVERY
CHECK OR MAINTENANCE
JOB
Whichever comes
first
month 1 3 6 6 12
km
(mi)
320
(200)
1300
(800)
2500
(1600)
hours 20 80 160 160 320
●
Lubricate with lithium-soap-based grease.
●
Check chain slack and adjust if necessary.
●
Check rear wheel alignment and correct if necesssary.
●
Clean and lubricate.
●
Make sure that all nuts, bolts, and screws are
properly tightened.
●
Check operation and correct if necessary.
●
Check for oil leakage and replace if necessary.
●
Check operation and correct if necessary.
●
Lubricate with lithium-soap-based grease.
●
Lubricate with lithium-soap-based grease.
●
Check operation and repair or replace if damaged.
●
Check toe-in and adjust if necessary.
●
Change.
●
Check ATV for oil leakage, and correct if neces-
√√√√√
√√√√√
√√√√
√√√√√
√ √√√
√√√
√√√
√√√
sary.
●
Replace.
Check coolant level and ATV for coolant leakage,
●
and correct if necessary.
Replace coolant. Every 2 years
●
√√√
√√√√√
2500
(1600)
5000
(3200)
8-5
Page 93
NO. ITEM
Moving parts and
20
*
cables
Throttle lever hous-
21
*
ing and cable
Front and rear brake
22
*
switches
23
*
Lights and switches
EBU23070
CHECK OR MAINTENANCE
JOB
●
Lubricate.
●
Check operation and correct if necessary.
●
Check throttle cable free play and adjust if neces-
Whichev-
er comes
first
month 136612
sary.
●
Lubricate throttle lever housing and cable.
●
Check operation and correct if necessary.
●
Check operation and correct if necessary.
●
Adjust headlight beams.
INITIAL EVERY
km
(mi)
320
(200)
1300
(800)
2500
(1600)
2500
(1600)
5000
(3200)
hours 20 80 160 160 320
√√√√
√√√√√
√√√√√
√√√√√
1
2
3
4
5
6
7
8
NOTE:
●
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
●
Hydraulic brake service
●
Regularly check and, if necessary, correct the brake fluid level.
●
Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.
●
Replace the brake hoses every four years and if cracked or damaged.
8-6
9
10
11
Page 94
EWB00010
WARNING
1
Indicates a potential hazard that could result in
serious injury or death.
2
EBU23080
3
Removing and installing the panel
The panel shown needs to be removed to perform
4
some of the maintenance jobs described in this
chapter. Refer to this section each time the panel
5
needs to be removed and installed.
6
EBU23100
Panel A
To remove the panel
Remove the bolts, and then take the panel off.
2
2
7
8
9
10
11
1. Panel A
1
1
1. Panel A
2. Bolt
To install the panel
Place the panel in the original position and install
the bolts.
EBU23211
Checking the spark plug
The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
8-7
Page 95
plug should be removed and checked in accordance with the periodic maintenance and lubrication chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
1
1
1
2
3
4
5
1. Spark plug cap
2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
1. Spark plug wrench
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medium-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:
If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. Instead, have a Yamaha dealer check the ATV.
2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
8-8
6
7
8
9
10
11
Page 96
replace it if necessary.
Specified spark plug:
1
NGK/CR8E
2
To install the spark plug
3
1. Measure the spark plug gap with a wire thick-
4
5
6
7
8
9
10
11
ness gauge and, if necessary, adjust the gap
to specification.
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
1. Spark plug gap
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.
Tightening torque:
Spark plug:
12.5 Nm (1.25 m·kgf, 9.1 ft·lbf)
NOTE:
If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque as
soon as possible.
4. Install the spark plug cap.
EBU26782
Engine oil and oil filter element
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element replaced at the intervals specified in the periodic maintenance and lubrication
chart.
2. Clean the surface of the spark plug gasket
8-9
Page 97
To check the engine oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up until the engine oil
has reached a normal temperature of 60 °C
(141 °F), let it continue to idle for ten seconds
or more, and then turn the engine off.
NOTE:
To achieve the proper engine oil temperature for
an accurate oil level reading, the engine must have
first completely cooled down, and then warmed up
again for several minutes to normal operating temperature.
3. Remove the engine oil tank filler cap, wipe the
dipstick off with a clean rag.
4. Insert the dipstick in the filler hole (without
screwing it in), and then remove it again to
check the oil level.
2
2
3
4
5
1
1. Engine oil tank
2. Engine oil filler cap
3. Dipstick
4. Maximum level mark
5. Minimum level mark
NOTE:
The engine oil should be between the minimum
and maximum level marks.
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recommended type through the engine oil tank filler
hole to raise it to the correct level.
1
2
3
4
5
6
7
8
9
10
11
8-10
Page 98
NOTE:
When adding oil, be careful not to overfill the en-
1
gine oil tank; the oil level rises faster starting from
the half-level-portion on the dipstick.
2
6. Insert the dipstick into the engine oil tank filler
3
hole, and then tighten the engine oil tank filler
cap.
ECB00360
4
CAUTION:
5
Make sure that the engine oil tank filler cap is
securely tightened, otherwise oil may seep out
6
when the engine is running.
7
To change the engine oil (with or without oil
filter element replacement)
8
1. Place the ATV on a level surface.
9
2. Start the engine, warm it up for several min-
10
11
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap and the crankcase engine oil drain bolt.
1
1. Crankcase engine oil filler cap
1
1. Crankcase engine oil drain bolt
8-11
Page 99
5. Remove the engine oil tank filler cap and the
engine oil tank drain bolt.
1
2
1
2
3
4
5
1
1. Engine oil tank drain bolt
6. Check the washers for damage, and replace if
necessary.
NOTE:
Skip steps 7–10 if the oil filter element is not being
replaced.
7. Remove the oil filter element cover by removing the bolts, and then remove the oil filter element.
1. Oil filter element cover
2. Bolt
8. Check the O-rings for damage, and replace
them if necessary.
8-12
6
7
8
9
10
11
Page 100
11. Install the crankcase engine oil drain bolt and
the engine oil tank drain bolt, and then tighten
1
2
3
1
2
them to the specified torques.
Tightening torques:
Crankcase engine oil drain bolt:
23 Nm (2.3 m·kgf, 16.6 ft·lbf)
Engine oil tank drain bolt:
4
19 Nm (1.9 m·kgf, 13.7 ft·lbf)
5
6
1. Oil filter element
2. O-ring
7
9. Install a new oil filter element and the O-rings.
8
2
NOTE:
9
Make sure that the O-rings are properly seated.
10. Install the oil filter element cover by installing
10
the bolts, and then tighten them to the speci-
11
fied torque.
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
12. Install the engine oil filler cap, and then tighten
it to the specified torque.
Tightening torque:
Engine oil filler cap:
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
13. Pour only 1.3 L (1.37 US qt, 1.16 Imp.qt) of the
specified amount of the recommended engine
oil through the engine oil tank filler hole, and
then install and tighten the oil tank filler cap.
14. Start the engine, rev it several times, and then
turn it off.
15. Remove the engine oil tank filler cap, and then
gradually fill the oil tank with the remaining oil
quantity while regularly checking the oil level
on the dipstick.
