Yamaha PY-MIDI-GPI Users Guide

INTERFACE CARD / CARTE INTERFACE
TARJETA INTERFAZ / CARTÃO DE INTERFACE
КАРТА ИНТЕРФЕЙСА /

槡ꪫ⶯ / ☮ꪫ⶯

핳󼻌핯킟󼰐싗

/ インターフェースカード

PY-MIDI-GPI

Owner’s Manual

Benutzerhandbuch

Mode d’emploi

Manual de instrucciones

Manual do Proprietário

Manuale di istruzioni

Руководство пользователя

✳榫陱伺░

✳榫鐁伺傴

캧풤켟좀켗

取扱説明書

EN

DE

FR

ES

PT

IT

RU

ZH-TW

KO

JA

ZH-CN

EnglishDeutschFrançaisEspañolPortuguêsItalianoРусский甏⛮╈乄竵냉╈乄뭨펯日本語

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that may cause
undesired operation.

(529-M01 FCC declaration 02)

COMPLIANCE INFORMATION STATEMENT

(Supplierʼs declaration of conformity procedure)

Responsible Party: Yamaha Corporation of America

Address: 6600 Orangethorpe Avenue, Buena Park, CA. 90620, U.S.A.

Telephone: [phone]

Type of Equipment: Interface Card

Model Name: PY-MIDI-GPI

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received, including interference that
may cause undesired operation.

(529-M02 FCC sdoc YCA 02)

CAN ICES-3 (B)/NMB-3(B)

(530-M02 ICES class B 01)

2 PY-MIDI-GPI Owner’s Manual

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets
FCC requirements. Modifications not expressly approved by Yamaha may void your
authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use

only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow
all installation instructions. Failure to follow instructions could void your FCC authorization to
use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in

FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements
provides a reasonable level of assurance that your use of this product in a residential
environment will not result in harmful interference with other electronic devices. This
equipment generates/uses radio frequencies and, if not installed and used according to the
instructions found in the users manual, may cause interference harmful to the operation of
other electronic devices. Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this product is found to be the source of
interference, which can be determined by turning the unit “OFF” and “ON”, please try to
eliminate the problem by using one of the following measures:

- Relocate either this product or the device that is being affected by the interference.

- Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install

AC line filter/s.

- In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-

in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local
retailer authorized to distribute this type of product. If you cannot locate the appropriate
retailer, please contact Yamaha Corporation of America, 6600 Orangethorpe Avenue, Buena
Park, CA 90620, U.S.A.

The above statements apply ONLY to those products distributed by Yamaha Corporation of
America or its subsidiaries.

(529-M04 FCC class B YCA 02)

PY-MIDI-GPI Owner’s Manual 3

Contents

PRECAUTIONS .............................................................................. 5

Introduction ................................................................................... 8

Intended User........................................................................................ 8

Intended Usage..................................................................................... 8

Firmware Updates................................................................................. 8

Accessories........................................................................................... 8

Part Names & Functions............................................................... 9

Specifications.............................................................................. 76

General Specifications ........................................................................ 76

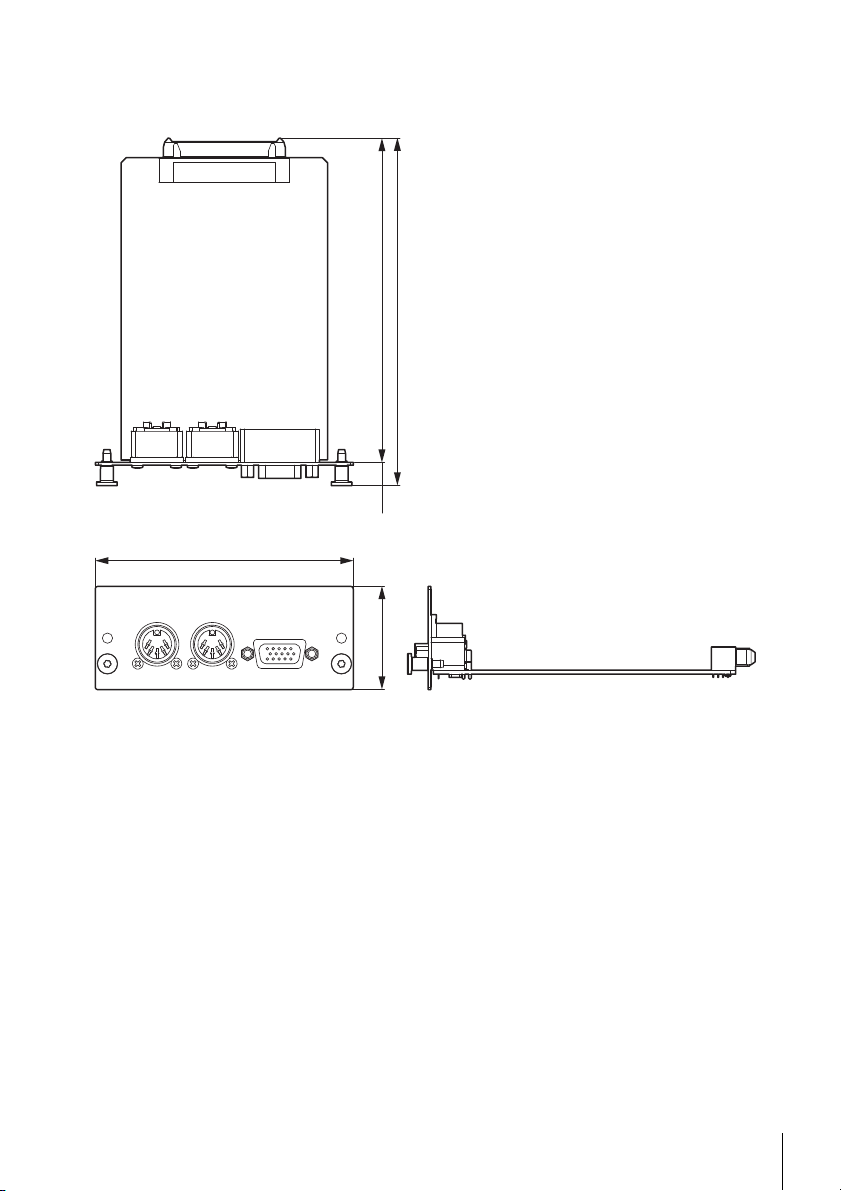

Dimensions ......................................................................................... 77

• When inserting or removing this card, refer to the owner’s manual supplied with the
host device for instructions and safety information.

• To find out whether the host device supports this card, refer to the owner’s manual
for the device or visit the following Yamaha Pro Audio website.
https://www.yamahaproaudio.com/

4 PY-MIDI-GPI Owner’s Manual

PACARD_en_3

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even
death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions
include, but are not limited to, the following:

• Before installing the card in a device, check to make sure that the device is compatible with the card. Also, do
not install the card in any Yamaha products not specified by Yamaha for use with the card to prevent electrical
shock, fire, or damage to the product(s).

• Do not attempt to disassemble or modify the card. Do not apply excessive force to card connectors or other card
components. Doing so may cause electrical shock, fire, or damage to the product(s).

• Be sure to turn off the host device and disconnect the power cable of the host device before installing the card
and connecting/disconnecting the cables to prevent electrical shock, undesired noise, or damage to the
product(s).

• Be sure to turn off the host device and all peripheral devices connected to the host device before installation,
and unplug all related cables to prevent electrical shock, undesired noise, or damage to the product(s).

• Do not place any burning items or open flames near the product. Doing so may cause a fire.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or
others, or damage to the device or other property. These precautions include, but are not limited to,
the following:

• Be sure to properly ground the host device to prevent electrical shock, fire, or damage to the product(s).

• Do not touch the metallic leads (pins) of the circuit board when handling the card. Doing so may cause hand
cuts.

• Be sure to wear a pair of heavy gloves during installation to prevent scratching or cutting your hands on sharp
edges.

• Do not place the product in a location where it may come into contact with corrosive gases or salt air. Doing so
may cause damage to the product(s).

Yamaha cannot be held responsible for damage caused by improper use or modifications to the product, or
data that is lost or destroyed.

PY-MIDI-GPI Owner’s Manual 5

NOTICE

To avoid the possibility of malfunction/damage to the product, damage to data, or damage to other
property, follow the notices below.

Handling and maintenance

• Do not use the product in the vicinity of a TV, radio, or other electric products. Otherwise, the product, TV, or
radio may generate noise.

• Do not expose the product to excessive dust or vibration, or extreme cold or heat, in order to prevent the
possibility of panel disfiguration, unstable operation, or damage to the internal components.

• Do not install in locations where temperature changes are severe. Otherwise, condensation may form on the
inside or the surface of the product, causing it to break.

• If there is reason to believe that condensation might have occurred, leave the product for several hours without
turning on the power until the condensation has completely dried out, in order to prevent possible damage.

• Do not place vinyl, plastic or rubber objects on the product, since this might cause alteration or discoloration of
the panel.

• Clean the product with a dry and soft cloth. Do not wipe product surfaces with sodium hypochlorite, alcohol,
benzene, paint thinners, cleaning fluids, or a chemical-impregnated wiping cloth, which could cause
discoloration or change surface characteristics.

• Drain all static electricity from your clothing and body before handling this product. Static electricity can damage
this product. Touch an exposed metal part of the host device or other grounded object beforehand.

• Do not touch exposed connectors and metal parts to minimize the possibility of inferior connections.

• Do not drop this product or subject it to physical shock as this can result in breakage and/or malfunction.

• Do not drop screws or other small parts inside the card. If power is applied while screws or similar metal objects
are loose inside the unit the card may malfunction or be damaged. If you cannot retrieve dropped objects
yourself, refer the problem to qualified Yamaha service personnel.

• Do not remove the screws attached to this product. Otherwise, damage or component failure might occur.

6 PY-MIDI-GPI Owner’s Manual

Information

About this manual

• The illustrations as shown in this manual are for instructional purposes only.

• The company names and product names in this manual are the trademarks or registered trademarks of their
respective companies.

• Software may be revised and updated without prior notice.

About disposal

• This product contains recyclable components.
When disposing of this product, please contact the appropriate local authorities.

Information for users on collection and disposal of old equipment:

This symbol on the products, packaging, and/or accompanying documents means that
used electrical and electronic products should not be mixed with general household
waste.
For proper treatment, recovery and recycling of old products, please take them to
applicable collection points, in accordance with your national legislation.

By disposing of these products correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could
otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your
local municipality, your waste disposal service or the point of sale where you purchased
the items.

For business users in the European Union:

If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.

Information on Disposal in other Countries outside the European Union:

This symbol is only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.

PY-MIDI-GPI Owner’s Manual 7

(58-M02 WEEE en 01)

Introduction

Thank you for purchasing the Yamaha PY-MIDI-GPI.
To take full advantage of the product’s functionality, please read this manual before you
begin using the product. Afterwards, please keep the manual in a safe place.

Intended User

This product is designed for individuals with skills in operating the host device in which this
product is intended to be installed.

Intended Usage

You can install this product in a host device to expand its I/O ports.

Firmware Updates

You can update the firmware of this product to improve its operation, add functions, and
correct possible malfunctions.

Information on updating the firmware can be found on the following website.
https://www.yamahaproaudio.com/

For information on updating the firmware and setting up the host unit, please refer to the
firmware update guide available on the website.

Accessories

Owner’s Manual (this document)

Yamaha Eco-Label

Yamaha Eco-Label is a mark that certifies products of high environmental
performance. This product has been downsized by 36% relative to our
conventional model, Mini-YGDAI card.

8 PY-MIDI-GPI Owner’s Manual

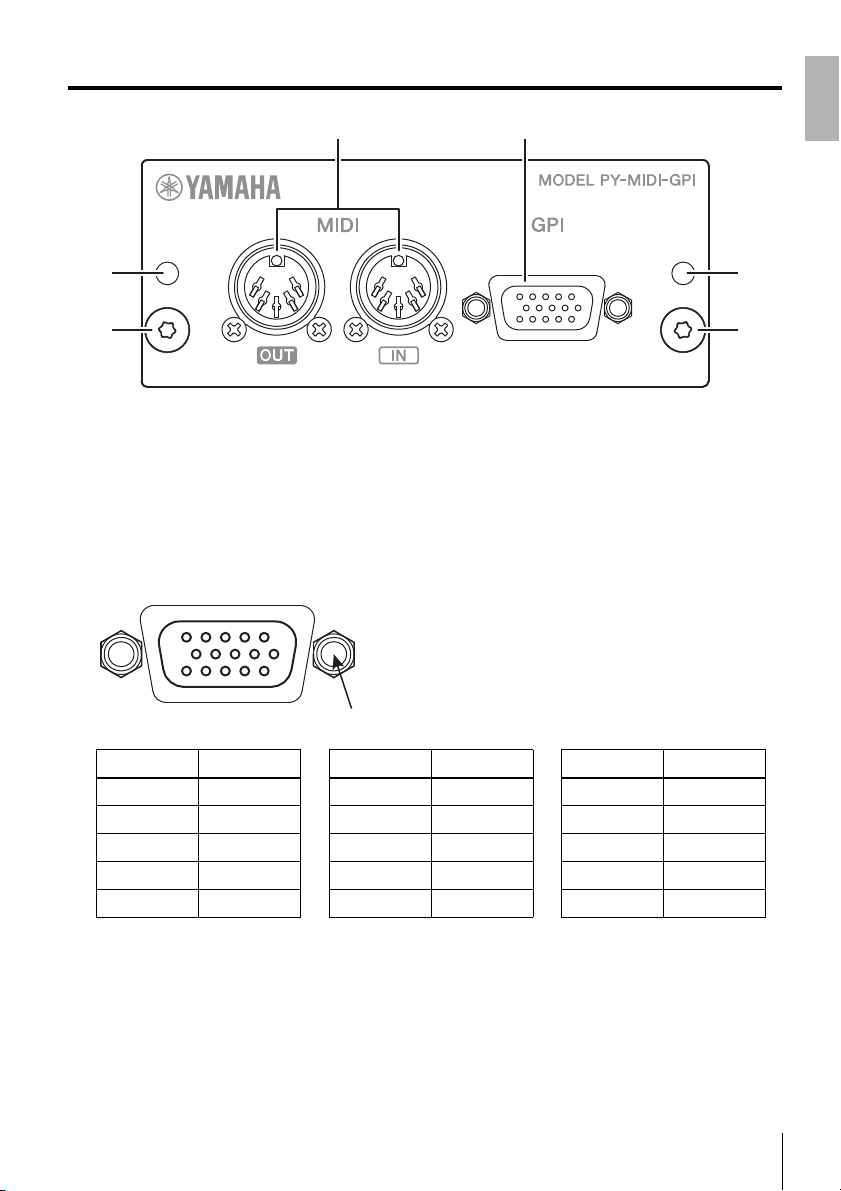

Part Names & Functions

1 2

3

4

3

4

15

10

15 11

6

No.4-40 UNC

1 [MIDI OUT]/[MIDI IN]

These DIN connectors are used to transmit and receive MIDI signals.

2 [GPI]

This is a D-sub, 3-line, 15-hole chassis connector used to transmit and receive (5-in/5­out) GPI signals.

The pin assignment of this connector is as follows:

3 Screw holes

4 Handles

Pin No. Signal Pin No. Signal Pin No. Signal

1 GPO1 6 GPO2 11 GPO4

2 +5V 7 GPO3 12 GPO5

3 GND 8 +5V 13 GND

4 GPI1 9 GND 14 GPI4

5 GPI2 10 GPI3 15 GPI5

Affix this product to the host device using these screw holes. Use the screws that came
with the host device to affix the product. If the product is not properly affixed, component
failure or malfunction may occur.

To remove the PY card from the host device, pull the card toward you while holding these
handles.

PY-MIDI-GPI Owner’s Manual 9

Specifications/Spécifications

General Specifications

Temperature Range

Conditions Min. Typ. Max. Unit

Operating Temperature Range 0 – 40 °C

Storage Temperature Range −20 – 60 °C

Control I/O Characteristics

Terminal Format Connector

MIDI

*1

GPI

*1 Input pin

CH 1-5: TTL (input voltage 0-5 V)

Output pin

CH 1-5: Open-drain (max. supply voltage 12 V, max. sink current/pin 75 mA)

Power supply pin

5 V±5%, max. output current 200 mA

Dimensions (W × H × D) and Net Weight:

100 mm × 40 mm × 135 mm, 0.1 kg

IN MIDI DIN 5 pin

OUT MIDI DIN 5 pin

– D-sub 15-hole chassis (3 lines)

76 PY-MIDI-GPI Owner’s Manual

Dimensions

126

135

(9)

100

40

Unit: mm

Approximate Munsell value of exterior color: N2.25

PY-MIDI-GPI Owner’s Manual 77

* The contents of this manual apply to the latest specifications as of the publishing date. To

obtain the latest manual, access the Yamaha website then download the manual file.

* Der Inhalt dieser Bedienungsanleitung gilt für die neuesten technischen Daten zum

Zeitpunkt der Veröffentlichung. Um die neueste Version der Anleitung zu erhalten, rufen
Sie die Website von Yamaha auf und laden Sie dann die Datei mit der
Bedienungsanleitung herunter.

* Le contenu de ce mode d’emploi s’applique aux dernières caractéristiques techniques

connues à la date de publication du manuel. Pour obtenir la version la plus récente du
manuel, accédez au site Web de Yamaha puis téléchargez le fichier du manuel concerné.

* El contenido de este manual se aplica a las últimas especificaciones según la fecha de

publicación. Para obtener el último manual, acceda al sitio web de Yamaha y descargue
el archivo del manual.

* O conteúdo deste manual se aplica às especificações mais recentes a partir da data de

publicação. Para obter o manual mais recente, acesse o site da Yamaha e faça o
download do arquivo do manual.

* Il contenuto del presente manuale si applica alle ultime specifiche tecniche a partire dalla

data di pubblicazione. Per ottenere la versione più recente del manuale, accedere al sito
Web Yamaha e scaricare il file corrispondente.

* В содержании данного руководства приведены последние на момент публикации

технические характеристики. Для получения последней версии руководства
посетите веб-сайт корпорации Yamaha и загрузите файл с руководством.

* 본 설명서의 내용은 발행일 현재 최신 사양을 기준으로 하고 있습니다 . 최신 설명서를

가져오려면 Yamaha 웹사이트에 접속 후 해당 설명서 파일을 다운로드받으십시오 .

* 本書は、発行時点での最新仕様で説明しています。最新版は、ヤマハウェブサイトからダ

ウンロードできます。

78 PY-MIDI-GPI Owner’s Manual

The 3-Clause BSD License

Copyright (c) 2016, Freescale Semiconductor, Inc.
Copyright (c) 2016-2019 NXP
All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of

conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of

conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.

3. Neither the name of the University nor the names of its contributors may be used to

endorse or promote products derived from this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND
ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

PY-MIDI-GPI Owner’s Manual 79

ADDRESS LIST

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario,
M1S 3R1, Canada
Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA
90620, U.S.A.
Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México, S.A. de C.V.

Av. Insurgentes Sur 1647 Piso 9, Col. San José
Insurgentes, Delegación Benito Juárez, CDMX,
C.P. 03900, México
Tel: [phone]

BRAZIL

Yamaha Musical do Brasil Ltda.

Praça Professor José Lannes, 40-Cjs 21 e 22,
Brooklin Paulista Novo CEP 04571-100 – São
Paulo – SP, Brazil
Tel: [phone]

ARGENTINA

Yamaha Music Latin America, S.A.,
Sucursal Argentina

Olga Cossettini 1553, Piso 4 Norte,
Madero Este-C1107CEK,
Buenos Aires, Argentina
Tel: [phone]

PANAMA AND OTHER LATIN
AMERICAN/CARIBBEAN REGIONS

Yamaha Music Latin America, S.A.

Edif. Torre Banco General, Piso 7, Urbanización
Marbella, Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, República de Panamá
Tel: [phone]

EUROPE

THE UNITED KINGDOM/IRELAND

Yamaha Music Europe GmbH (UK)

Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, U.K.
Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: [phone]

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Europe GmbH, Branch
Switzerland in Thalwil

Seestrasse 18a, 8800 Thalwil, Switzerland
Tel: [phone]

AUSTRIA/BULGARIA/
CZECH REPUBLIC/HUNGARY/
ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH
Branch Austria

Schleiergasse 20, 1100 Wien, Austria
Tel: [phone]

POLAND

Yamaha Music Europe
Sp.z o.o. Oddział w Polsce

ul. Młynarska 48, 01-171 Warszawa, Poland
Tel: [phone]

MA LTA

Olimpus Music Ltd.

Valletta Road, Mosta MST9010, Malta
Tel: [phone]

NETHERLANDS/BELGIUM/
LUXEMBOURG

Yamaha Music Europe Branch Benelux

Wattbaan 1 3439ML Nieuwegein, The Netherlands
Tel: [phone]

FRANCE

Yamaha Music Europe

7 rue Ambroise Croizat, Zone d'activités de Pariest,
77183 Croissy-Beaubourg, France
Tel: [phone]

ITALY

Yamaha Music Europe GmbH, Branch Italy

Via Tinelli N.67/69 20855 Gerno di Lesmo (MB),
Italy
Tel: [phone]

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica, Sucursal
en España

Ctra. de la Coruña km. 17,200, 28231
Las Rozas de Madrid, Spain
Tel: [phone]

GREECE

Philippos Nakas S.A. The Music House

19th klm. Leof. Lavriou 190 02 Peania – Attiki,
Greece
Tel: [phone]

SWEDEN/FINLAND/ICELAND

Yamaha Music Europe GmbH Germany Filial
Scandinavia

JA Wettergrensgata 1, 400 43 Göteborg, Sweden
Tel: [phone]

DENMARK

Yamaha Music Denmark,
Fillial of Yamaha Music Europe GmbH, Tyskland

Generatorvej 8C, ST. TH. , 2860 Søborg, Denmark
Tel: [phone]

NORWAY

Yamaha Music Europe GmbH Germany ­Norwegian Branch

c/o Box 30053, 400 43 Göteborg, Sweden
Tel: [phone]

82 PY-MIDI-GPI Owner’s Manual

CYPRUS

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: [phone]

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, entrance 7, bld. 7, Kievskaya street,
Moscow, 121059, Russia
Tel: [phone]

OTHER EUROPEAN REGIONS

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: [phone]

AFRICA

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: [phone]

MIDDLE EAST

TURKEY

Ertekin Electronik tlc. ve san. as

Kagithane Ofis ParkBaglar Cad.
No: 14 D/6 Kagithane 34406
ISTANBUL / TÜRKIYE
Tel: [phone]

OTHER REGIONS

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: [phone]

ASIA

MAINLAND CHINA

Yamaha Music & Electronics (China) Co.,Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China
Tel: [phone]

INDIA

Yamaha Music India Private Limited

P-401, JMD Megapolis, Sector-48, Sohna Road,
Gurugram-122018, Haryana, India
Tel: [phone]

INDONESIA

PT Yamaha Musik Indonesia Distributor

Yamaha Music Center Bldg. Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

11F, Prudential Tower, 298, Gangnam-daero,
Gangnam-gu, Seoul, 06253, Korea
Tel: [phone]

MALAYSIA

Yamaha Music (Malaysia) Sdn. Bhd.

No.8, Jalan Perbandaran, Kelana Jaya, 47301
Petaling Jaya, Selangor, Malaysia
Tel: [phone]

SINGAPORE

Yamaha Music (Asia) Private Limited

Block 202 Hougang Street 21, #02-00,
Singapore 530202, Singapore
Tel: [phone]

TAI WAN

Yamaha Music & Electronics Taiwan Co.,Ltd.

2F., No.1, Yuandong Rd., Banqiao Dist.,
New Taipei City 22063, Taiwan
Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

3, 4, 15, 16th Fl., Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: [phone]

VIETNAM

Yamaha Music Vietnam Company Limited

15th Floor, Nam A Bank Tower, 201-203 Cach Mang
Thang Tam St., Ward 4, Dist.3,
Ho Chi Minh City, Vietnam
Tel: [phone]

OTHER ASIAN REGIONS

http://asia.yamaha.com/

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 80 Market Street, South Melbourne,
VIC 3205, Australia
Tel: [phone]

REGIONS AND TRUST TERRITORIES
IN PACIFIC OCEAN

http://asia.yamaha.com/

Head Office/Manufacturer: Yamaha Corporation

10-1, Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, Japan

Importer (European Union): Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Importer (United Kingdom): Yamaha Music Europe GmbH (UK)

Sherbourne Drive, Tilbrook, Milton Keynes, MK7 8BL, United Kingdom

PA5 9

PY-MIDI-GPI Owner’s Manual 83

雅马哈乐器音响（中国）投资有限公司

上海市静安区新闸路 1818 号云和大厦 2 楼
客户服务热线：4000517700
公司网址：https://www.yamaha.com.cn

© 2023 Yamaha Corporation

Published 02/2023

2023年2月发行

IPEM-A0

Yamaha Pro Audio global website

https://www.yamahaproaudio.com/

Yamaha Downloads

https://download.yamaha.com/

VGA3910

〒430-8650静岡県浜松市中区中沢町10-1
