YAMAHA NU1 User Manual

Hybrid Piano

NU1

ENGLISHDEUTSCH

FRANÇAIS

ESPAÑOL

Owner’s Manual
Bedienungsanleitung
Mode d'emploi
Manual de instrucciones

Before using this instrument, be sure to read
“PRECAUTIONS” on pages 6 – 7.

Achten Sie darauf, vor Einsatz dieses Instruments die
„VORSICHTSMASSNAHMEN“ auf Seiten 6-7 durchzulesen.

Avant d'utiliser cet instrument, lisez attentivement la section
« PRÉCAUTIONS D'USAGE » aux pages 6-7.

Antes de utilizar el instrumento, lea la sección
“PRECAUCIONES”, en las páginas 6-7.

EN

DE

FR

ES

SPECIAL MESSAGE SECTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

PRODUCT SAFETY MARKINGS: Yamaha electronic
products may have either labels similar to the graphics
shown below or molded/stamped facsimiles of these
graphics on the enclosure. The explanation of these graph­ics appears on this page. Please observe all cautions indi­cated on this page and those indicated in the safety
instruction section.

See bottom of Keyboard enclosure for graphic symbol
markings.

The exclamation point within the equi­lateral triangle is intended to alert the
user to the presence of important operat­ing and maintenance (servicing) instruc­tions in the literature accompanying the
product.

The lightning flash with arrowhead
symbol, within the equilateral triangle,
is intended to alert the user to the pres­ence of uninsulated “dangerous volt­age” within the product’s enclosure that
may be of sufficient magnitude to con­stitute a risk of electrical shock.

IMPORTANT NOTICE: All Yamaha electronic products
are tested and approved by an independent safety testing
laboratory in order that you may be sure that when it is
properly installed and used in its normal and customary
manner, all foreseeable risks have been eliminated. DO
NOT modify this unit or commission others to do so unless
specifically authorized by Yamaha. Product performance
and/or safety standards may be diminished. Claims filed
under the expressed warranty may be denied if the unit is/
has been modified. Implied warranties may also be
affected.

ENVIRONMENTAL ISSUES: Yamaha strives to pro­duce products that are both user safe and environmentally
friendly. We sincerely believe that our products and the
production methods used to produce them, meet these
goals. In keeping with both the letter and the spirit of the
law, we want you to be aware of the following:

Battery Notice: This product MAY contain a small non­rechargeable battery which (if applicable) is soldered in
place. The average life span of this type of battery is
approximately five years. When replacement becomes nec­essary, contact a qualified service representative to per­form the replacement.

Warni ng: Do not attempt to recharge, disassemble, or
incinerate this type of battery. Keep all batteries away from
children. Dispose of used batteries promptly and as regu­lated by applicable laws. Note: In some areas, the servicer
is required by law to return the defective parts. However,
you do have the option of having the servicer dispose of
these parts for you.

Disposal Notice: Should this product become damaged
beyond repair, or for some reason its useful life is consid­ered to be at an end, please observe all local, state, and fed­eral regulations that relate to the disposal of products that
contain lead, batteries, plastics, etc.

NOTICE: Service charges incurred due to lack of knowl­edge relating to how a function or effect works (when the
unit is operating as designed) are not covered by the manu­facturer’s warranty, and are therefore the owners responsi­bility. Please study this manual carefully and consult your
dealer before requesting service.

NAME PLATE LOCATION: The graphic below indi­cates the location of the name plate. The model number,
serial number, power requirements, etc., are located on this
plate. You should record the model number, serial number,
and the date of purchase in the spaces provided below and
retain this manual as a permanent record of your purchase.

SPECIFICATIONS SUBJECT TO CHANGE: The
information contained in this manual is believed to be cor­rect at the time of printing. However, Yamaha reserves the
right to change or modify any of the specifications without
notice or obligation to update existing units.

92-469-

q (bottom)

2 NU1 Owner’s Manual

Model

Serial No.

Purchase Date

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience recepta­cles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart,

stand, tripod, bracket, or
table specified by the man­ufacturer, or sold with the
apparatus. When a cart is
used, use caution when
moving the cart/apparatus
combination to avoid injury
from tip-over.

13 Unplug this apparatus during lightning storms or

when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Ser-

vicing is required when the apparatus has been dam­aged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate nor­mally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions
contained in this manual, meets FCC requirements. Modifica­tions not expressly approved by Yamaha may void your
authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories

and/or another product use only high quality shielded cables.
Cable/s supplied with this product MUST be used. Follow all
installation instructions. Failure to follow instructions could
void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15 for
Class “B” digital devices. Compliance with these requirements
provides a reasonable level of assurance that your use of this
product in a residential environment will not result in harmful
interference with other electronic devices. This equipment
generates/uses radio frequencies and, if not installed and
used according to the instructions found in the users manual,
may cause interference harmful to the operation of other elec­tronic devices. Compliance with FCC regulations does not

guarantee that interference will not occur in all installations. If
this product is found to be the source of interference, which
can be determined by turning the unit “OFF” and “ON”, please
try to eliminate the problem by using one of the following mea­sures:

Relocate either this product or the device that is being
affected by the interference.

Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory
results, please contact the local retailer authorized to distrib­ute this type of product. If you can not locate the appropriate
retailer, please contact Yamaha Corporation of America, Elec­tronic Service Division, 6600 Orangethorpe Ave, Buena Park,
CA90620

The above statements apply ONLY to those products distrib­uted by Yamaha Corporation of America or its subsidiaries.

(UL60065_03)

* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA. (class B)

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Type of Equipment : Hybrid Piano

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including

See user manual instructions if interference to radio reception is
suspected.

* This applies only to products distributed by

YAMAHA CORPORATION OF AMERICA.

Address : 6600 Orangethorpe Ave., Buena Park,

Telephone : [phone]

Model Name : NU1

interference that may cause undesired operation.

Calif. 90620

(FCC DoC)

NU1 Owner’s Manual 3

Thank you for choosing the Yamaha Hybrid Piano.

In order to make the most of the performance potential and features of the instrument,

please read the manuals thoroughly,

and keep them in a handy place for later reference.

This instrument, which combines the priceless value of an acoustic piano and versatile digital tech-

nology that provides exceptional flexibility to performers, is a true hybrid piano.

Main Features

Authentic acoustic piano touch with special upright piano action

Featuring a specially designed mechanism in which the keyboard action and the hammer workings real­istically reproduce those of an acoustic piano, this instrument provides a realistic touch response that is
extraordinarily similar to an upright piano.

CFX Sampling technology

Sophisticated sampling using the latest technology was used to capture the luxurious sounds of
Yamaha’s flagship CFX, a full-sized concert grand piano. The powerful bass and bright, penetrating
midrange sound of the original CFX are reproduced faithfully, and give a particularly natural and well­balanced overall piano sound.

Best Condition without Tuning

Unlike acoustic pianos, this instrument does not need to be tuned. It always stays perfectly in tune even
after long-time use.

Flexible Volume Control

This instrument gives you full control over the instrument volume, letting you adjust the level just as
desired. Also, you can play or listen in total privacy through one or two pairs of headphones.

Audio Playing and Recording from a USB Flash Memory

Audio files (.wav) saved to a USB flash memory can be played back on the instrument. Moreover, since
you can record your performance as audio data to a USB flash memory device, it is possible to listen to
your performance on portable music players, with the data transferred by computer.

4 NU1 Owner’s Manual

Table of Contents

PRECAUTIONS ....................................................... 6

Introduction

Getting started playing your new Hybrid Piano

Panel Controls and Terminals .................................... 8

Playing the Keyboard .................................................. 9

Using the Pedals .....................................................11

Using Headphones (Optional).................................12

I.A. Control (Intelligent Acoustic Control).................12

Advanced Functions

This section explains how to make detailed settings for the
instrument’s various functions.

Basic Operations and More ...................................... 13

Selecting a Voice.....................................................13

Listening to the Voice Demo Songs........................13

Using the Metronome..............................................14

Changing the Touch Sensitivity...............................15

Adding Variations to the Sound (Reverb)................15

Transposing the Pitch in semitones ........................16

Fine tuning the Pitch................................................16

Setting the Scale Tuning .........................................17

Playing Back Songs .................................................. 18

Songs compatible with this instrument....................18

Playing back Songs.................................................19

Recording Your Performance ................................... 21

Using USB Flash Memory ......................................... 23

Connecting USB flash memory ...............................23

Formatting USB flash memory ................................24

Copying User Songs in the instrument to a USB

flash memory...........................................................24

Deleting a Song file .................................................25

Backup data and Initializing ..................................... 26

Backup data in internal memory..............................26

Initializing the Backup data......................................26

Connections ...............................................................27

About MIDI .................................................................. 29

Example for MIDI connection..................................29

Local Control on/off.................................................29

Appendix

This section includes a list of display messages, Quick
Operation Guide and other information.

Message List .............................................................. 30

Troubleshooting......................................................... 31

Maintenance ...............................................................32

Specifications............................................................. 33

Index............................................................................ 34

Quick Operation Guide * ...........................................35

* This is a quick reference for operation of the functions assigned to the buttons

and keyboard.

Accessories

Owner’s Manual
“50 greats for the Piano” (Music Book)
AC Power Cord
Felt Key Cover
Felt Strips x 3
Bench*
My Yamaha Product User Registration**

* Included or optional depending on locale.

** The PRODUCT ID on the sheet will be needed when you fill out

the User Registration form

Online Materials

In addition to this manual, the following instructional materials are available.

MIDI Reference

This contains the MIDI Data Format, the MIDI Implementation chart and detailed explanations about the MIDI settings of
the instrument.

MIDI Basics (only in English, French, German and Spanish)

If you want to know more about MIDI and how to use it, refer to this introductory book.

Computer-related Operations

Includes instructions on connecting this instrument to a computer, and operations related to transferring song data.

To obtain these manuals, access the Yamaha Manual Library, enter “NU1” or “MIDI Basics” to the Model Name box, then click
[SEARCH].

Yamaha Manual Library

http://www.yamaha.co.jp/manual/

NU1 Owner’s Manual 5

PRECAUTIONS

Power supply/Power cord

Do not open

Water warning

Fire warning

If you notice any abnormality

Power supply/Power cord

Assembly

Location

Connections

Handling caution

Using the bench (If included)

PLEASE READ CAREFULLY BEFORE PROCEEDING

Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short­circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

• Do not place the power cord near heat sources such as heaters or radiators. Also,
do not excessively bend or otherwise damage the cord, or place heavy objects on
it.

• Only use the voltage specified as correct for the instrument. The required voltage
is printed on the name plate of the instrument.

• Use only the supplied power cord/plug.

• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.

• This instrument contains no user-serviceable parts. Do not open the instrument
or attempt to disassemble or modify the internal components in any way. If it
should appear to be malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.

• Do not expose the instrument to rain, use it near water or in damp or wet conditions,
place on it any containers (such as vases, bottles or glasses) containing liquids
which might spill into any openings. If any liquid such as water seeps into the
instrument, turn off the power immediately and unplug the power cord from the AC
outlet. Then have the instrument inspected by qualified Yamaha service personnel.

• Never insert or remove an electric plug with wet hands.

• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.

• When one of the following problems occur, immediately turn off the power switch
and disconnect the electric plug from the outlet. Then have the device inspected
by Yamaha service personnel.

• The power cord or plug becomes frayed or damaged.

• It emits unusual smells or smoke.

• Some object has been dropped into the instrument.

• There is a sudden loss of sound during use of the instrument.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the
instrument or other property. These precautions include, but are not limited to, the following:

• Do not connect the instrument to an electrical outlet using a multiple-connector. Doing
so can result in lower sound quality, or possibly cause overheating in the outlet.

• When removing the electric plug from the instrument or an outlet, always hold the
plug itself and not the cord. Pulling by the cord can damage it.

• Remove the electric plug from the outlet when the instrument is not to be used for
extended periods of time, or during electrical storms.

• Read carefully the attached documentation explaining the assembly process.
Failure to assemble the instrument in the proper sequence might result in damage
to the instrument or even injury.

• Do not place the instrument in an unstable position where it might accidentally fall over.

• When transporting or moving the instrument, always use two or more people.
Attempting to lift the instrument by yourself may damage your back, result in
other injury, or cause damage to the instrument itself.

• Before moving the instrument, remove all connected cables, to prevent damage to
the cables or injury to anyone who might trip over them.

• When setting up the product, make sure that the AC outlet you are using is easily
accessible. If some trouble or malfunction occurs, immediately turn off the power
switch and disconnect the plug from the outlet. Even when the power switch is
turned off, electricity is still flowing to the product at the minimum level. When
you are not using the product for a long time, make sure to unplug the power cord
from the wall AC outlet.

• Though the wooden parts of this instrument have been designed and produced
with care concerning the environment and human health, in some rare instances
customers may sense an unusual odor or develop irritation in the eyes, due to the
coating material and adhesive.
To avoid this, we recommend that you observe the following:

1. Specially ventilate the room for several days after unpacking and installing this

instrument, since it has been packed in airtight conditions in order to maintain
quality during transportation.

2. If the room housing the instrument is small, continue to ventilate it normally,

either daily or periodically.

3. If you have left the instrument in a closed room for a long time under high

temperature, ventilate the room, then lower the temperature if possible, before
using the instrument.

6 NU1 Owner’s Manual

• Before connecting the instrument to other electronic components, turn off the
power for all components. Before turning the power on or off for all components,
set all volume levels to minimum.

• Be sure to set the volumes of all components at their minimum levels and
gradually raise the volume controls while playing the instrument to set the desired
listening level.

• Do not insert a finger or hand in any gaps on the fallboard or instrument. Also
take care that the fallboard does not pinch your finger.

• Never insert or drop paper, metallic, or other objects into the gaps on the
fallboard, panel or keyboard. This could cause physical injury to you or others,
damage to the instrument or other property, or operational failure.

• Do not rest your weight on, or place heavy objects on the instrument, and do not
use excessive force on the buttons, switches or connectors.

• Do not use the instrument/device or headphones for a long period of time at a
high or uncomfortable volume level, since this can cause permanent hearing loss.
If you experience any hearing loss or ringing in the ears, consult a physician.

• Do not place the bench in an unstable position where it might accidentally fall over.

• Do not play carelessly with or stand on the bench. Using it as a tool or stepladder
or for any other purpose might result in accident or injury.

• Only one person should sit on the bench at a time, in order to prevent the
possibility of accident or injury.

• If the bench screws become loose due to extensive long-term use, tighten them
periodically using the included tool.

• Ke ep special watch over any small children so that they don’t fall off the rear of the
bench. Since the bench does not have a backrest, unsupervised use may result in
accident or injury.

DMI-5 1/2

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

Do not hold here.

Do not
hold here.

Rear handgrip

Rear
handgrip

Always turn the power off when the instrument is not in use.

NOTICE

To avoid the possibility of malfunction/damage to the product, damage to data, or damage to other property, follow the notices below.

 Handling and Maintenance

• Do not use the instrument in the vicinity of a TV, radio, stereo equipment, mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio
may generate noise.

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day)
to prevent the possibility of panel disfiguration, damage to the internal components or unstable operation. (Verified operating temperature range: 5° –
40°C, or 41° – 104°F.)

• Do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.

• Bumping the surface of the instrument with metal, porcelain, or other hard objects can cause the finish to crack or peel. Use caution.

• Gently remove dust and dirt with a soft cloth. Do not wipe too hard since small particles of dirt can scratch the instrument's finish.

• During extreme changes in temperature or humidity, condensation may occur and water may collect on the surface of the instrument. If water is left, the
wooden parts may absorb the water and be damaged. Make sure to wipe any water off immediately with a soft cloth.

 Saving data

• To protect against data loss through media damage, we recommend that you save your important data onto two USB flash memories.

Information

 About copyrights

• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your personal
use.

• This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to use
others' copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical scores and
sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any violation of
copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.

 About functions/data bundled with the instrument

• Some of the preset songs have been edited for length or arrangement, and may not be exactly the same as the original.

 About this manual

• The illustrations and displays as shown in this manual are for instructional purposes only, and may appear somewhat different from those on your
instrument.

• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.

Transporting / Installing

If you move to another location, transport the instrument
horizontally. Do not subject the instrument to excessive
vibration or shock.

CAUTION

When moving the instrument, always hold the bottom of
the keyboard unit and the handgrips of the rear side. Be
sure not to hold the headphone jack box. Improper han­dling can result in damage to the instrument or personal
injury.

Place the instrument away from the wall by at least 10
cm to optimize and enhance the sound effect. If you find
the instrument shaky or unstable after installing, insert
the included felt strips. For details, refer to the
instructions supplied with the felt strips.

DMI-5 2/2

NU1 Owner’s Manual 7

Music Rest (pages 9 and 10)

Fallboard
(pages 9 and 10)

Rear surface

[AC IN] jack
(page 9)

Power switch
(page 10)

Pedals (page 11)

Control panel
(see below)

Front surface

Te r mi n a ls
(page 27)

[MASTER VOLUME]
control (page 10)

[USB TO DEVICE]
terminal (page 23)
[PHONES] jacks
(page 12)

Adjuster
(should be rotated until it comes in
firm contact with the floor surface)

q

w

e

r

t

y

uo

i

d.01

Song number

5

Parameter value

Introduction

Panel Controls and Terminals

Overview

Control Panel

Display

Indicates various values such as Song number and Parameter value. Note that the display turns dark after the value is
set.

This display also indicates various messages with the three characters. For details, refer to page 30.

8 NU1 Owner’s Manual

q Display................................................................See below.

w [DEMO/SONG] button............................................. page 13

e [REVERB] button .................................................... page 15

r [METRONOME] button ........................................... page 14

t [PIANO/VOICE] button............................................ page 13

y [FUNCTION] button ............................. pages 16, 17 and 29

u [RECORD] button ................................................... page 22

i [+]/[-] button

o [PLAY/STOP] button...................................pages 19 and 22

Playing the Keyboard

AC IN

AC IN connector

The shape of the plug differs
depending on your locale.

CAUTION

Be careful to avoid catch­ing your fingers between
the fallboard and the
instrument.

1 Set up the power supply.

1-1 On the bottom surface (page 8), insert the power cord plug into the [AC IN] connector.

WARNI NG

Make sure your instrument is rated for the AC voltage supplied in the area in which it is to be used. (The voltage
rating appears on the name plate on the bottom panel). Connecting the unit to an inappropriate AC supply can
seriously damage the internal circuitry and may even pose a shock hazard!

1-2 Insert the plug on the other end of the power cord to a standard AC outlet.

WARNI NG

• Use only the AC power cord supplied with the instrument. If the supplied
power cord is lost or damaged and needs to be replaced, contact your Yamaha
dealer. The use of an inappropriate replacement can pose a fire and shock haz­ard!

• The type of AC power cord provided with the instrument may be different
depending on the country in which the instrument was purchased. (In some
areas a plug adaptor may be provided to match the pin configuration of the AC
wall outlets in your area.) Do NOT modify the plug provided with the instru­ment. If the plug does not fit the outlet, have a proper outlet installed by a qual­ified electrician.

2 With both hands, hold the hand grip, then lift and

open the fallboard.

CAUTION

• Hold the fallboard with both hands when opening or closing it. Do not
release it until it is fully opened or closed. Be careful to avoid catching
fingers (yours or others, especially children’s) between the fallboard
and the unit.

3 Fold down the top of the fallboard, then open the

music rest and put the score on it.

NU1 Owner’s Manual 9

Playing the Keyboard

Powe r switch

The lamp lights up.

MAX

USB TO

MIN

MASTER VOLUME

The level increases. The level decreases.

CAUTION

Be careful to avoid catching your fingers
between the fallboard and the instrument.

4 On the right of the keyboard, press the [ ] switch to turn on the power.

The lamp located as shown below lights up, the display (page 8) indicates “
ment starts up.

MASTER VOLUME

MAXMIN

NOTICE

Do not press any keys until the instrument has completely started up (approx. four seconds after turning on the switch).
Doing so may cause some keys to not sound normally.

” for a while, then the instru-

nU1

5 Play the keyboard.

To adjust the volume:

Use the [MASTER VOLUME] control (page 8) located at the front left, just below the keyboard.

CAUTION

Avoid using this instrument at a high volume level for a long period of time, to prevent hearing damage.

6 Press the [ ] switch again to turn off the power.

The power lamp turns off.

CAUTION

A small amount of electrical current remains even after the power switch is turned off. If you plan not to use the instrument
for a long period of time, be sure to unplug the instrument from the AC outlet.

7 Close the music rest.

If you omit this operation and close the fallboard, the music
rest will hit the keyboard and may result in damage.

8 With both hands, open the folded top of the

fallboard, and close it gently.

10 NU1 Owner’s Manual

Playing the Keyboard

If you press and hold the
damper pedal here, all the
notes shown will be sus­tained.

E6

A#5

If you press and hold the soste­nuto pedal here, only the notes
held at this timing will be sus­tained.

Using the Pedals

The instrument has three pedals that produce a range of expressive effects similar to those produced by the pedals on
an acoustic piano.

Damper Pedal (Right)

Pressing this pedal will sustain notes longer. Releasing this pedal immediately stops
(damps) any sustained notes. A “half-pedal” function of this pedal creates partial sus­tain effects, depending on how far down you press the pedal.

 Half-pedal function

This function allows the sustain length to vary depending on how far the pedal is
pressed. The farther you press the pedal, the more the sound sustains. For example, if
you press the damper pedal and all notes you are playing sound a bit murky and loud
with too much sustain, you can release the pedal half way to subdue the sustain (murk­iness).

 To set the Half Pedal Point:

While holding down [PIANO/VOICE], press one of the A#5–E6 keys. This operation
sets the degree to which pressing the damper pedal applies the half-pedal effect. The
smaller the value, the shallower the half-pedal point. The larger the value, the deeper
the half-pedal point.

Setting range: -2 (A#5) – 0 (C6) – 4 (E6)
Default Setting: 0

GP Responsive Damper Pedal

This special pedal has been designed to provide enhanced tactile response and, when
pressed, is much closer in feel to the pedal of an actual grand piano. It makes it easier
to physically experience the half-pedal point and more easily apply the half-pedal
effect than other pedals.

Sostenuto Pedal (Center)

Pressing this pedal while holding the notes will sustain the pressed notes (as if the
damper pedal had been pressed), but all subsequently played notes will not be sus­tained. This makes it possible to sustain a chord, for example, while the other notes are
played “staccato.”

Soft Pedal (Left)

Pressing this pedal will reduce the volume and slightly change the timbre of the notes.
The notes played before this pedal is pressed are not affected.

NU1 Owner’s Manual 11

Playing the Keyboard

MAX

PHONES USB TO DEVICE

MIN

MASTER VOLUME

Standard stereo phone
plug

Using Headphones (Optional)

Since this instrument is equipped with two [PHONES]
jacks, you can connect two sets of standard stereo head­phones. If you are using only one set of headphones,
insert a plug into either jack, shutting off the speakers.

CAUTION

Avoid listening to the instrument at a high volume level
through headphones for a long period of time, to prevent
hearing damage.

I.A. Control (Intelligent Acoustic Control)

This function automatically adjusts and controls the sound quality according to the overall volume of the instrument.
Even when the volume is low, it permits both low sounds and high sounds to be clearly heard. Note that the I.A. Con­trol is effective only from the sound output of the instrument speakers.

 To turn on/off the I.A. Control:

While holding down [FUNCTION], press the C0 key repeatedly (as necessary).

Default setting: On

 To adjust the I.A. Control Depth:

While holding down [FUNCTION], press one of the keys between A0–D#1.

D#1 (3)

Setting range: -3 (A0) – 0 (C1) – 3 (D#1)
Default setting: 0 (C1)

C0 C1

(0)A0(-3)

The higher the value, the more clearly that low and high sounds are heard at lower volume levels.

12 NU1 Owner’s Manual

Advanced Functions

Basic Operations and More

Selecting a Voice

 To select the Grand Piano 1 Voice:

Simply press [PIANO/VOICE].

 To select a different Voice:

While holding down [PIANO/VOICE], press [+] or [-].

Voi c e Lis t

Display Voice name Descriptions

Grand Piano 1

1

Grand Piano 2

2

E.Piano 1 Created by FM synthesis. Good for popular music.

3

E.Piano 2

4

Harpsichord

5

Recorded samples from a full concert grand piano. Perfect for clas­sical compositions as well as any other style that requires acoustic
piano.

Spacious and clear piano with bright reverb. Good for popular
music

Simulates the sound of hammer-struck metallic “tines.” Soft tone
when played lightly, and an aggressive tone when played hard.

The definitive instrument for baroque music. Since the strings of an
actual harpsichord are plucked, there is no touch response.

Listening to the Voice Demo Songs

Demo Songs effectively demonstrate each of this instrument’s Voices.

1 Select the Voice for the Demo Song that you want to listen to.
2 Press [DEMO/SONG].

The Demo Song for the Voice selected in Step 1 starts.

To change the Demo Song during playback:

Press [+] or [-].

To adjust the playback tempo:

While holding down [METRONOME], press TEMPO [+] or [-].

3 Press [DEMO/SONG] again to stop playback.

Demo Song List

Display Voice Name Title Composer

Grand Piano 1 Prélude, Suite bergamasque C. A. Debussy

d.01

Grand Piano 2 — —

d.02

E.Piano 1 — —

d.03

E.Piano 2 — —

d.04

Harpsichord

d.05

The

d.01

and

Songs are re-arranged excerpts from the original compositions.

d.05

The other Demo Songs are Yamaha’s original pieces (©2012 Yamaha Corporation).

Concerto a cembalo obbligato, 2 violini,

viola e continuo No.7, BWV.1058

J. S. Bach

NOTE

You can play the keyboard along with the
demo song.

NOTE

No MIDI data will be output during Voice
Demo playback.

NU1 Owner’s Manual 13

Basic Operations and More

120.

The beat lamp flashes
at the current tempo

Beat

C1 (1) G2 (20)D2 (15)

The volume level increases as you press higher keys

max.min.

Using the Metronome

The metronome feature is convenient for practicing with an accurate tempo.

1 Press [METRONOME] to start the metronome.

While the metronome sounds, a dot at the right side of the LED display and the
lamp of the metronome button flash on and off to the tempo.

2 Press [METRONOME] again to stop the metronome.

Adjusting the Tempo

During the operation described below, you can check the tempo value shown on the
display.

 To increase or decrease the value by 1:

While holding down [METRONOME], press [+] (or C#5 key) or [-] (or B4 key). Dur­ing playback, simply press [+] or [-].

 To increase or decrease the value by 10:

While holding down [METRONOME], press the D5 or A#4 key.

Setting range: 5 to 500 beats per minute
Default setting: 120

NOTE

The metronome tempo is restored to the
default setting when the power is turned off.

 To reset the value to the default (120):

While holding down [METRONOME], press the C5 key or press [+] and [-] simulta­neously. During playback, press both [+] and [-] simultaneously.

A#4C#5

C5 D5B4

Selecting the Beat

While holding down [METRONOME], press one of the C3–F3
keys. The selected value is shown on the display while both
controls are held.

C3 F3

Display Key Beat Display Key Beat

0

2

3

C3 0 (no downbeat)

C#3 2

D3 3

4

5

6

D#34

E3 5
F3 6

0

Only the first beat is accented with a bell sound when set to a value other than 0.

Adjusting the Metronome volume

While holding down [METRONOME], press one of the C1–G2 keys to set the vol­ume. The specified value is shown on the display while both controls are held.

Default setting: 0 (No downbeat)

NOTE

The Beat of the metronome is restored to
the default setting when the power is turned
off.

Setting range: 1–20
Default setting: 15

NOTE

The metronome volume setting is retained
even when the power is turned off.

14 NU1 Owner’s Manual

Changing the Touch Sensitivity

Lights up when REVERB is on.

You can specify the Touch Sensitivity (how the sound responds to the way you play the keys).

While holding down [PIANO/VOICE], press one of the A6–C7 keys. The selected
Touch Sensitivity is shown on the display while both controls are held.

A6 C7

Basic Operations and More

Display Key Touch Sensitivity Descriptions

OFF

1

2

3

A6 Fixed

A#6 Soft

B6 Medium This is the standard piano touch response.

C7 Hard

The volume level does not change at all regardless of
whether you play the keyboard soft or hard.

The volume level does not change much when you play the
keyboard soft or hard.

The volume level changes very widely from pianissimo to
fortissimo to facilitate dynamic and dramatic expression. You
have to hit the keys hard to produce a loud sound.

Adding Variations to the Sound (Reverb)

The Reverb effect reproduces the realistic acoustic ambience of grand piano.

To turn on or off the Reverb:

Press [REVERB] repeatedly (as necessary).

Default setting: 2 (Medium)

NOTE

The touch type is restored to the default
setting when the power is turned off.

NOTE

This setting does not change the weight of
the keyboard, but only the response.

To adjust the Reverb Depth:

While holding down [REVERB], press [+] or [-]. The current value is shown on the
display while both controls are held.

To restore the default value (2), press [+] and [-] simultaneously while holding
[REVERB].

Setting range: 1–20
Default setting: 2

NOTE

The Reverb Depth is restored to the default
setting when the power is turned off.

NOTE

Holding [REVERB] shows the Reverb Depth
value on the display.

NU1 Owner’s Manual 15

Basic Operations and More

C3

F#3F#2

0-1

-2 +1 +3-4

-3-5 +2+4 +5

-6 +6

Transpose up.

Transpose down.

Normal pitch

Example: 442Hz

Transposing the Pitch in semitones

You can shift the pitch of the entire keyboard up or down in semitones to facilitate playing in difficult key signatures
and match the pitch of the keyboard to the range of a singer or other instruments. For example, if “+5” is selected,
playing the key C produces a pitch of F, letting you play a song of F major as though it were in C major.

 To transpose the pitch down:

While holding down [FUNCTION], press a key between F#2 (-6) and B2 (-1).

 To transpose the pitch up:

While holding down [FUNCTION], press a key between C#3 (+1) and F#3 (+6).

 To restore the original pitch:

While holding down [FUNCTION], press the C3 key.

The specified value is shown on the display.

Default setting: 0 (Normal pitch)
Setting range: -6 – 6

NOTE

The Transpose value is restored to the
default setting when the power is turned off.

Fine tuning the Pitch

You can fine-tune the pitch of the entire instrument. This function is useful when you play this instrument along with
other instruments or recorded music.

During the operation described below, you can check the Pitch
value shown on the display.

 To tune up (in roughly 0.2Hz steps):

While holding down [FUNCTION], press [+]. Holding down
both buttons shows the current pitch setting (Hz).

 To tune down (in roughly 0.2Hz steps):

While holding down [FUNCTION], press [-]. Holding down both buttons shows the
current pitch setting (Hz).

 To restore standard pitch:

While holding down [FUNCTION], press [+] and [-] simultaneously. Holding down
all three buttons shows the current pitch setting (Hz).

16 NU1 Owner’s Manual

42.0

NOTE

The tuning value is retained even when the
power is turned off.

Hz (Hertz):

This unit of measurement refers to the fre­quency of a sound and represents the num­ber of times a sound wave vibrates in a
second.

Setting range: 414.8–466.8Hz (=A3)
Default setting: 440.0Hz (=A3)

Basic Operations and More

C5

F#5

B4C4

F~ G A_

Example:

F#

(Followed by a high bar if sharp)

GAb

(Followed by a low bar if flat)

Setting the Scale Tuning

You can select various scales for the instrument. Equal Temperament is the most common contemporary piano tuning
scale. However, history has known numerous other scales, many of which serve as the basis for certain genres of
music. This feature lets you experience the tunings of these genres.

Selecting a Scale

While holding down [FUNCTION], press one of the C5–F#5 keys. Holding down
both controls shows the current value on the display.

Display Key Scale Description

C5 Equal

1

C#5 Pure Major These tunings preserve the pure mathematical intervals of

2

D5 Pure Minor

3

D#5 Pythagorean

4

E5 Mean-Tone

5

F5 Werckmeister

6

F#5 Kirnberger

7

The pitch range of each octave is divided equally into twelve
parts, with each half-step evenly spaced in pitch. This is the
most commonly used tuning in music today.

each scale, especially for triad chords (root, third, fifth). You can
hear this best in actual vocal harmonies — such as choirs and
a cappella singing.

This scale was devised by the famous Greek philosopher and
is created from a series of perfect fifths, which are collapsed
into a single octave. The 3rd in this tuning are slightly unstable,
but the 4th and 5th are beautiful and suitable for some leads.

This scale was created as an improvement on the Pythagorean
scale, by making the major third interval more “in tune.” It was
especially popular from the 16th century to the 18th century.
Handel, among others, used this scale.

This composite scale combines the Werckmeister and Kirn­berger systems, which were themselves improvements on the
mean-tone and Pythagorean scales. The main feature of this
scale is that each key has its own unique character. The scale
was used extensively during the time of Bach and Beethoven,
and even now it is often used when performing period music on
the harpsichord.

Default setting: 1 (Equal)

NOTE

The scale is restored to the default setting
when the power is turned off.

Selecting the Base Note

While holding down [FUNCTION], press one of the C4–B4 keys. Holding down both
controls shows the current value on the display.

Key Base Note Key Base Note Key Base Note Key Base Note

C4 C D#4Eb F#4F# A4 A

C#4 C# E4 E G4 G A#4 Bb

D4 D F4 F G#4Ab B4 B

Default setting: C

NOTE

The base note is restored to the default set­ting when the power is turned off.

NU1 Owner’s Manual 17

Playing Back Songs

This instrument can play back Songs contained in internal memory or USB memory connected to the [USB TO
DEVICE] terminal. There are two kinds of Songs that can be played back: MIDI Songs and Audio Songs.

MIDI Songs and Audio Songs

A MIDI Song contains data of your keyboard performance (such as which keys you played and how hard you played
them), and is not a recording of the actual sound itself. The performance information refers to which keys are played,
at what timing, and at what strength—just as in a musical score. Based on the recorded performance information, the
tone generator (of the digital piano, etc.) outputs the corresponding sound. A MIDI Song uses a small amount of data
capacity in comparison to audio recording.
An Audio Song is a recording of the performed sound itself. This data is recorded in the same way as that used in
recording cassette tapes, or with voice recorders, etc. This data can be played with a portable music player, etc.,
allowing you to easily let other people hear your performance.

Songs compatible with this instrument

Song Category List

Song Category Display Descriptions

Voice Demo Song (MIDI
Song)

Preset Song (MIDI
Song)

Audio Song in USB flash
memory *

MIDI Song in USB flash
memory *

MIDI Song in this instru­ment

* Shown only when USB flash memory is connected.

d.01–d.05

P.01–P.50

A.00–A.99

C.00–C.99

S.00–S.99

F.00–F.99

U.01–U.10

L.00–L.99

Each Song effectively demonstrates each of this instrument’s
Voi ce s.

50 Piano Preset Songs in the instrument. These correspond
to the scores in the book “50 greats for the Piano,” included
for your convenience and enjoyment.

User Songs which have been recorded with this instrument
(page 24)

External Songs, commercially available or which have been
recorded on a computer, etc.

User Songs which have been recorded with this instrument
(page 24)

External Songs, commercially available or which have been
recorded on a computer, etc.

User Songs which have been recorded to the instrument
(page 21)

External Songs (commercially available or which have been
recorded on a computer, etc.) transferred from a computer to
this instrument.

Song data formats that can be played
 SMF (Standard MIDI File) Formats 0 and 1

One of the most common and widely compatible MIDI formats used for storing
sequence data. MIDI Songs recorded in this instrument are saved as SMF Format 0.

 WAV format (.wav)

Audio file format commonly used by computers. This instrument can play 44.1kHz/
16bit stereo WAV files. Audio Songs recorded on this instrument are saved in this for­mat.

User Songs and External Songs

Songs recorded by this instrument are
called “User Songs” while Songs created in
other ways or on other instruments are
called “External Songs.” In USB flash
memory, Songs in the USER FILES folder
are handled as User Songs while Songs in
a location other than the USER FILES folder
are handled as External Songs. When you
record a Song to USB flash memory, a
USER FILES folder is created automatically
and the resulting User Song will be saved
in this folder.

18 NU1 Owner’s Manual

Playing Back Songs

MIDI Song

Current measure
number

Audio Song

Playing time

Indicates minutes. In
case of 10 minutes or
more, only the lowest
digit is shown.

Indicates
seconds.

The higher the key, the greater the volume.

max. min.

Playing back Songs

To play back a Song on a USB flash memory:

Read “Connecting USB flash memory” (page 23), then connect the USB flash memory to the [USB TO DEVICE] ter­minal, and follow the instructions below.

While holding down [DEMO/SONG], press [+] or [-] until the

1

desired Song Category appears on the display.

For details about the Song Categories, refer to page 18.

2 Press [+] or [-] to select a Song.

 When a specific Song number (such as

selected:

Only the selected Song will be played back.

 When “*

*

........ Plays back the Songs of this type continuously in random order.

.rd

*

........ Plays back all the Songs of this type continuously in sequential order.

.AL

The asterisk (*) indicates “

.rd

” or “*

” is selected:

.AL

,”“A,”“S,” or “U” designations in the display.

P

For details, refer to page 18.

P.01

and

U.01

3 Press [PLAY/STOP] to start playback.

During playback, the current measure number (in the case of MIDI Songs) or
playing time (in the case of Audio Songs) is shown on the display.

1. 2. 0.01. 0.02.

) is

NOTE

Song indications such as “
“

” may not appear immediately

C.00

depending on the amount of the folders in
the USB flash memory.

NOTE

The metronome can be used during play­back. It will automatically stop when play­back is stopped.

NOTE

When playing back MIDI Songs containing
Voices that are incompatible with this
instrument such as XG and GM Songs, the
Voices may not sound as intended on the
original. In addition, Song data of the MIDI
channels 3 – 16 cannot be played back
because this instrument can recognize only
the MIDI channels 1 and 2. This is why you
should only play back Songs which have
data of only MIDI channels 1 – 2, to which
the piano performance is assigned.

F.00

” and

You can play the keyboard along with Song playback. You can also change the
Voice for your keyboard performance.

Adjusting the tempo (only for MIDI Songs)

While holding down [METRONOME], press [+] or [-] to adjust the tempo. To
reset the tempo to default, press [+] and [-] simultaneously while holding down
[METRONOME]. For details, refer to page 14.

Adjusting the volume (only for Audio Songs)

The volume level of this instrument may be markedly different from that of a
commercially available Audio Song or one recorded on another device. To adjust
the volume of the Audio Song, hold down [DEMO/SONG] and press one of the
C1–G2 keys.

Rewind/Fast forward

During playback, press [-] or [+] to move back or forth through the measures.

Returning to the Song Top

During playback, press [-] and [+] simultaneously to jump to the top of the Song.

C1 (1) G2 (20)A1 (10)

Setting range: 1 – 20
Default setting: 16

NU1 Owner’s Manual 19

Playing Back Songs

A#-1A-1

B-1A-1

4 Press [PLAY/STOP] again to stop playback.

If a specific Song number is selected in Step 2, playback stops automatically by
reaching the end of the Song.

Setting the Character Code

If the Song cannot be called up, you may need to select the appropriate Character
Code from the following two settings.

 International

For playing back Songs with names using western European characters (including
umlaut or diacritic marks). To select this, turn on the power while holding down the
A-1 and A#-1 keys.

 Japanese

For playing back Songs with names using Japanese characters. To select this, turn on
the power while holding down the A-1 and B-1 keys.

Setting range: JA (Japanese) / Int (Interna-

tional)

Default setting: Int

20 NU1 Owner’s Manual

Recording Your Performance

When Song contains data: When Song does not contain data:

Only the left-most dot lights up.

Three dots light up.

This instrument allows you to record your performance by using one of the following two methods. The recorded
performance can be played back as a User Song.

 MIDI recording

With this method, your keyboard performances are recorded and saved to the instrument or USB flash memory as a
MIDI Song (via the SMF format 0). Up to 10 Songs can be recorded to the instrument. although more can be
recorded to USB flash memory (see below).

 Audio recording

With this method, your keyboard performances are recorded then saved to USB flash memory as an Audio Song in
stereo WAV format of normal CD-quality resolution. The saved Audio Song can be transmitted to then played on por­table music players. The recordable time differs depending on the capacity of the USB flash memory.

When is USB flash memory necessary?

MIDI Songs can be saved to internal memory of this instrument or to USB flash memory, while Audio Songs can only
be saved to the USB flash memory.
As necessary, prepare a USB flash memory referring to “Connecting USB flash memory” (page 23), then follow the
instructions below.

1 Connect a USB flash memory to the [USB TO DEVICE] terminal.
2 Select the Recording method.

 To make a MIDI Recording:

While holding down [DEMO/SONG], press [+] or [-] until “U.**” (for saving
data to the instrument) or “

**” (for saving data to the USB flash memory) is

S.

shown on the display.

 To make an Audio Recording:

While holding down [DEMO/SONG], press [+] or [-] until “

**” (for saving

A.

data to the USB flash memory) is shown on the display.

3 Press [+] or [-] to select a Song number.

•

U.01–U.10

•

S.00–S.99

•

A.00–A.99

 When the selected Song contains already-recorded data:

You can confirm it by checking the display.

......User Song in this instrument (MIDI Song)

......User Song in USB flash memory (MIDI Song)

......User Song in USB flash memory (Audio Song)

U.01U.0.1.

NOTICE

When the selected Song contains data, keep in mind that recording new data will erase
the existing data.

4 Select a Voice (page 13) and other parameters such as Beat

(page 14) and Reverb (page 15) for recording.

NOTE

Record mode cannot be called up in the fol­lowing situations.

• During Song playback (page 18)

• During File operations (page 23)

When skipping Steps 1 to 4 with an
unrecordable Song selected:

Pressing [RECORD] selects the lowest
numbered Song (of those containing no
data) as the Recording target.

• If “

**” is selected, pressing [RECORD]

C.

selects “

**” (Audio Song in the USB

A.

flash memory).

• If “

**,” “L.**,” “P.**,” or “d.**” is

F.

selected, pressing [RECORD] selects
“

**” (MIDI Song in internal memory).

U.

If there is no empty User Song, “
will be as the Recording target.

Using the Metronome

You can use the metronome while record­ing, although the metronome sound will not
be recorded.

U.0.1.

”

NU1 Owner’s Manual 21

Recording Your Performance

FlashesLights up

Measure number

Indicates minutes. In
case of 10 minutes
or more, only the
lowest digit is
shown.

Indicates seconds.

Elapsed time

5 Press [RECORD] to engage the Record mode.

The [RECORD] lamp lights up, and the [PLAY/STOP] lamp flashes according to
the current tempo.

To exit from the Record mode, press [RECORD] again.

6 Start recording.

 With MIDI Recording:

Play a note on the keyboard or press [PLAY/STOP] to start recording. While
recording, the current measure number is shown on the display.

1. 2.

 With Audio Recording:

Press [PLAY/STOP] to start recording. While recording, the elapsed time is
shown on the display.

0.01. 0.02.

If memory space is running low:

An “

” message will appear in the dis-

EnP

play after pressing [RECORD]. You can
start recording, but the memory may
become full during recording. We recom­mend that you first remove any unneces­sary files (page 25) to ensure sufficient
memory capacity.

NOTE

With audio recording, the sound input from
the AUX IN jack is also recorded.

7 Press [RECORD] or [PLAY/STOP] to stop recording.

Dashes appear on the display in succession, indicating that the recorded data is
being saved. After the data is saved, an “

” message appears for three sec-

End

onds followed by the Song number, indicating that the Record mode is disen­gaged.

NOTICE

While dashes appear in the display in succession, never turn off the power or disconnect
the USB flash memory. Doing so may delete all Song data in the instrument, including
external Songs (page 18).

8 Press [PLAY/STOP] to hear the recorded Song.

To stop playback, press [PLAY/STOP] again.

Deleting a Song file

If you want to delete the recorded Song, refer to page 25.

22 NU1 Owner’s Manual

Using USB Flash Memory

MAX

PHONES USB TO DEVICE

MIN

MASTER VOLUME

This instrument features several functions which handle the Song files, as listed below.

 Formatting USB flash memory


Copying a User MIDI file from the instrument to USB flash memory

 Deleting Song file from the instrument or from USB flash memory

Connecting USB flash memory

Precautions when using the [USB TO
DEVICE] terminal

This instrument features a built-in [USB TO DEVICE]
terminal. When connecting a USB flash memory to the
terminal, be sure to handle the USB flash memory with
care. Follow the important precautions below.

NOTE

For more information about the handling of USB flash memory, refer to the owner’s
manual of the USB flash memory.

 Compatible USB flash memories

The instrument does not necessarily support all com­mercially available USB flash memories. Yamaha can­not guarantee operation of USB flash memories that
you purchase. Before purchasing a USB flash memory
for use with this instrument, please visit the following
web page:
http://download.yamaha.com/

NOTE

Other USB devices such as a computer keyboard or mouse cannot be used.

 Connecting USB flash memory

When connecting a USB flash memory to the [USB TO
DEVICE] terminal, make sure that the connector on the
device is appropriate and that it is connected in the
proper direction.

NOTICE

• When connecting a USB cable, make sure it is less than
3 meters.

• Though the instrument supports the USB 1.1 standard,
you can connect and use a USB 2.0 storage device with
the instrument. However, note that the transfer speed is
that of USB 1.1.

Using USB Flash Memory

By connecting the instrument to USB flash memory,
you can save data you’ve created to the connected USB
flash memory, as well as read data from it.

 Number of USB flash memories which

can be used

Only one USB flash memory can be connected to the
[USB TO DEVICE] terminal.

 Formatting USB flash memory

When accessing USB flash memory, a message may
appear prompting you to format the device/media. If
so, execute the Format operation (page 24).

NOTICE

The format operation overwrites any previously existing
data. Make sure that the media you are formatting does
not contain important data.

 To protect your data (write-protect)

To prevent important data from being inadvertently
erased, apply the write-protect provided with the USB
flash memory. If you are saving data to the USB flash
memory, make sure to disable write-protect.



Connecting/removing USB flash memory

Before removing the USB flash memory from the
[USB TO DEVICE] terminal, make sure that the instru­ment is not accessing data (such as in the Save, Copy
and Delete operations).

NOTICE

Avoid frequently connecting/disconnecting the USB
flash memory too often. Doing so may result in the oper­ation of the instrument “freezing” or hanging up. While
the instrument is accessing data (such as during Save,
Copy, Delete, Load and Format operations) or is mount­ing the USB flash memory (shortly after the connection),
do NOT unplug the USB connector. Doing so may cor­rupt the data on either or both devices.

NOTE

File mode cannot be called up in the fol­lowing situations.

• During Song playback/pause (page 18)

• Record mode (page 21)

NU1 Owner’s Manual 23

Using USB Flash Memory

Song number

(Example: “S.00”)

Formatting USB flash memory

NOTICE

Executing the Format operation will delete all data in the USB flash memory. Before formatting, save important data to a com­puter or another storage device.

1 Connect the USB flash memory to the [USB TO DEVICE] terminal.
2 While holding [FUNCTION] and [PLAY/STOP], press [RECORD].

“

” appears on the display for a while, then “

For

” appears. If you wish to

n Y

cancel this operation, press [-] at this timing.

3 Press [+] to execute the Format operation.

NOTE

When you execute a Song Recording (page

22), Copy (below) or Delete (page 25)
operation, a “
the display, indicating that the USB flash
memory has not been formatted yet. In this
case, execute the Format operation by pro­ceeding from Step 2 as described at left.

” prompt may appear in

UnF

Dashes appear in succession on the display, indicating that Formatting is in pro­cess. When the operation is completed, “

NOTICE

While dashes appear in succession on the display, never turn off the power or discon­nect the USB flash memory.

” appears on the display.

End

Copying User Songs in the instrument to a USB flash memory

You can copy the User Song in the instrument to the USB flash memory. The copied Song is saved as SMF format 0 to
the “USER FILES” folder in the USB flash memory, and the file is automatically named as “USERSONG**.MID”
(**: numerals).

1 Connect the USB flash memory to the [USB TO DEVICE] terminal.
2 For the Copy source, select a User Song in this instrument.

For detailed instructions, refer to page 18.

3 While holding [FUNCTION], press [PLAY/STOP].

On the display, “
“

”) appears as Copy destination.

S.00

” appears for a while then the Song number (for example

SAu

SAu S.00

To cancel the Copy operation before it begins, press any button other than
[PLAY/STOP] here.

NOTE

If any Song other than one of the User
Songs is selected in Step 2, “
appears in Step 3. In this case, return back
to Step 2.

NOTE

When there is insufficient free memory
capacity in the USB flash memory, the cop­ied Song cannot be saved. To ensure suffi­cient memory, try erasing unnecessary files
(page 25).

E01

”

4 Press [PLAY/STOP] to execute the Copy operation.

Dashes appears in succession on the display, indicating that the Copy operation is
in process. When the Copy is completed, “

NOTICE

When dashes appear in the display in succession, never turn off the power or discon­nect the USB flash memory.

24 NU1 Owner’s Manual

” appears on the display.

End

Deleting a Song file

A User Song can be deleted.

Using USB Flash Memory

1 If necessary, connect the USB flash memory to the [USB TO

DEVICE] terminal.

2 Select the Song to be deleted.

For details on how to select a Song file, refer to page 19.

3 While holding down [FUNCTION], press [RECORD].

“

” appears on the display for a while, then “

dEL

you wish to cancel this operation, press [-].

” appears on the display. If

n Y

4 Press [+] to execute the Delete operation.

Dashes appear in succession on the display, indicating that the Delete is being
executed. When the operation is completed, “

NOTICE

While dashes appear in succession on the display, never turn off the power or discon­nect the USB flash memory.

” appears on the display.

End

NOTE

Song Playback is not available after execut­ing Step 3. Make sure to confirm the to-be­deleted Song before executing Step 3.

NOTE

The operation here does not apply to Songs
transferred from the computer to this
instrument’s internal memory. If you want to
delete such a Song, use a computer.

NU1 Owner’s Manual 25

Backup data and Initializing

Backup data in internal memory

The following data, referred to as Backup data, as well as User Song data and External Song data will be maintained
even if the power is turned off.

• Character Code ........................................page 20

• Tuning......................................................page 16

• I.A. Control on/off ..................................page 12

• I.A. Control Depth...................................page 12

• Half Pedal point.......................................page 11

• Metronome volume .................................page 14

• Audio Song volume.................................page 19

• AUX IN Noise Gate on/off......................page 28

Initializing the Backup data

While holding down the C7 key, turn on the power. “

” appears on the display, then the Backup data (with the

CLr

exception of “Character Code”) will be initialized. Note that User Songs and External Songs are not erased.

C7

NOTICE

Do not turn off the power to this instrument while it is initializing the data in its internal
memory (while “

” is displayed).

CLr

NOTE

If this instrument somehow becomes dis­abled or malfunctions, turn off the power to
the instrument, then perform the initializa­tion procedure.

26 NU1 Owner’s Manual

Connections

USB TO DEVICE

eq w r t

Refer to the “Panel Controls and Terminals” on page 8 for information on the location of the
connectors.

(Left side of the front sur­face below the keyboard)

AUX OUT

OUTPUT

AUX IN

AUX IN

Audio cable

Audio cable

Stereo phone
plug (standard)

Phone plug
(standard)

Phone plug

(standard)

Phone plug

(standard)

Instrument

Keyboard or another audio

equipment

CAUTION

Before connecting the instrument to other electronic components, turn off the power to all the components. Before turning
the power on or off to all components, set all volume levels to minimum (0). Otherwise, electrical shock or damage to the
components may result.

Terminals

q USB [TO HOST] terminal

By connecting a computer to this terminal, you can transfer Song data between
the instrument and the computer via MIDI, and take advantage of sophisticated
computer music software. For details, refer to the “Computer-related Operations”
document.

w MIDI IN / OUT terminal

These terminals allow you to connect this instrument to another MIDI instrument.
For details, refer to “About MIDI” on page 29.

e AUX IN [L/L+R] [R] jack

By connecting the stereo cables to these jacks, the sound of another audio equip­ment can be reproduced via the speakers of this instrument.

CAUTION

When the AUX IN jacks are connected to an external device, first turn on the power to the
external device, then to the instrument. Reverse this order when you turn the power off.

NOTE

Use an AB type USB cable of less than 3
meters. USB 3.0 cables cannot be used.

NOTE

Use only the AUX IN [L/L+R] jack for con­nection with a mono device.

NU1 Owner’s Manual 27

Connections

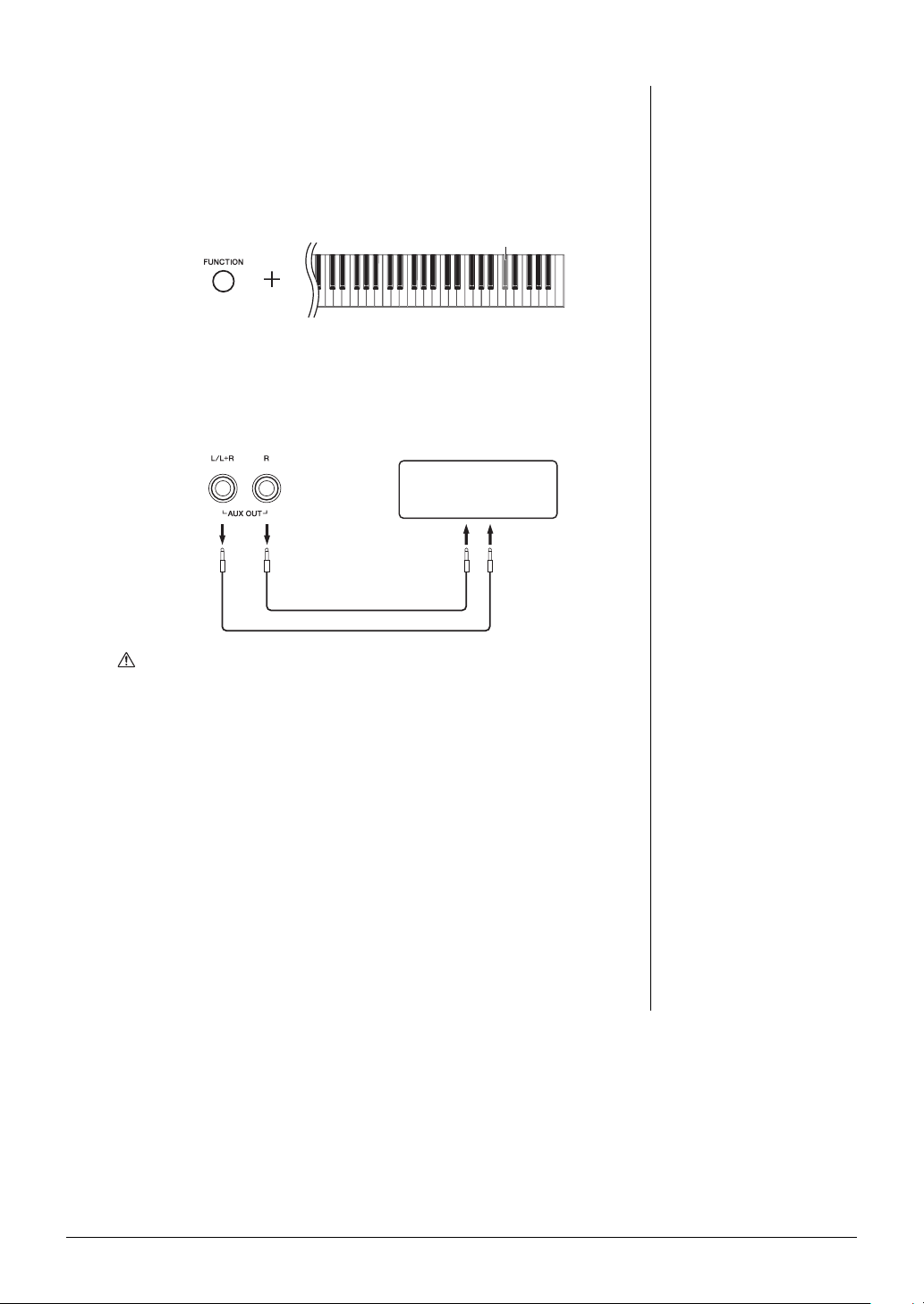

C#6

AUX INAUX OUT

Audio cable

Phone plug
(standard)

Phone plug

(standard)

Instrument

Powered speaker

 Minimizing noise of the input sound via Noise Gate

By default, this instrument cuts unwanted noise from the input sound. However,
this may result in wanted sounds also being cut, such as the soft decay sound of
the piano. To avoid this, set the Noise Gate to off via the following operation.

While holding down [FUNCTION], press the C#6 key repeatedly to toggle Noise
Gate on and off as needed.

r AUX OUT [L/L+R] [R] jacks

These jacks let you connect the instrument to external powered speaker systems,
for playing in larger venues at higher volumes.

Default setting: ON

NOTE

Use audio cables and adaptor plugs with no
resistance.

NOTE

Use only the AUX OUT [L/L+R] jacks for
connection with a mono device.

CAUTION

When the AUX OUT jacks are connected to an external device, first turn on the power to
the instrument, then to the external device. Reverse this order when you turn the power
off. Also, before turning the power on or off to all components, set all volume levels to
minimum (0).

NOTICE

When the AUX OUT jacks are connected to an external device, never connect the [AUX
IN] jacks to the output jacks of the external device. Doing so could result in feedback
(oscillation) that may damage both the devices.

t [USB TO DEVICE] terminal

This terminal allows connection to USB flash memory. Refer to “Connecting
USB flash memory” on page 23 for more information.

28 NU1 Owner’s Manual

About MIDI

Receives MIDI data. Transmits MIDI data.

MIDI OUT MIDI IN

Performance data

NU1

MIDI tone generator

MIDI IN MIDI OUT

Song data

NU1

Sequencer

C6

Default setting: ON

MIDI (Musical Instrument Digital Interface) is a global format standard
for performance data transmission and reception between electronic musi­cal instruments. Connecting musical instruments that support MIDI via
MIDI cables enables you to transfer performance and setting data
between multiple musical instruments. Using MIDI, you can also achieve
more advanced performances than using just a single musical instrument.

NOTE

You need a dedicated MIDI cable (optional) to make a MIDI con­nection.

NOTE

The handled MIDI messages differ depending on the MIDI
instrument. It means that some MIDI messages transmitted from
this instrument may not be recognized by the separate MIDI
instrument. This is why you should check the MIDI Implementa­tion Chart of each MIDI instrument. The MIDI Implementation
Chart of this instrument is described in the MIDI Reference.

NOTE

During Song playback, data of only MIDI channels 3 – 16 will be
output via MIDI.

Example for MIDI connection

Example 1:

The connection below allows you to play the sounds of an external MIDI tone generator from the keyboard of this
instrument.

Set the MIDI Receive Channel of the external MIDI tone generator to “1,” since the MIDI Transmit Channel of this
instrument is set to “1.”

Example 2:

The connection below allows you to play the sounds of this instrument by playing back a Song on an external
sequencer.

The MIDI Receive Channels of this instrument can only be set to 1 and 2. This is why the data for the piano part
should be assigned to MIDI Channels 1 and 2 of the Song.

Local Control on/off

Normally, playing the keyboard will control the internal tone generator. This situation is called “Local Control ON.”
If you want to use the keyboard only for controlling an external MIDI instrument, turn off Local Control. With this
setting, this instrument will produce no sound even if you play the keyboard.

 To turn the Local Control ON or OFF:

While holding down [FUNCTION], press the C6 key repeatedly (as necessary).

NU1 Owner’s Manual 29

Appendix

Message List

Message Descriptions

CLr

con

E01

E02

E03

E04

EE1

EEE

End

EnP

FUL

n Y

Pro

UnF

Uoc

UU1

UU2

* When an operation (such as saving or data transfer) is in process, the display shows a sequence of flashing dashes.
* Press any button to exit from these message displays.

Initializing to the default settings.
Displayed when Musicsoft Downloader is started on a computer connected to the instrument. When

this message appears, you cannot operate the instrument.
Displayed when the character code (page 20) is not appropriate for the file name of the Song which

you are selecting. Switch the character code.
Displayed when the data format is not compatible with this instrument, or the data has some other

problems. This Song cannot be selected.
Displayed when no USB flash memory can be found, or a problem has occurred in the USB flash

memory. Disconnect and connect the device again, then execute the operation. If this message
appears repeatedly even when there aren't any other likely problems, the USB flash memory may be
damaged.

Indicates that the USB flash memory is protected.
Displayed when the memory of the USB flash memory becomes full, or the number of files and fold-

ers exceeds the system limit.
Displayed when conversion to audio, Audio Song playback or recording has failed. If you are using a

USB flash memory to which data has already been stored or deleted a number of times, first make
sure that the device does not contain important data, then format it (page 24) and connect to the
instrument again.

A malfunction has occurred in the instrument. Contact your nearest Yamaha dealer or authorized dis­tributor.

A malfunction has occurred in the instrument. Contact your nearest Yamaha dealer or authorized dis­tributor.

Displayed when the current operation is completed.
The memory of the instrument or the USB flash memory is running out. We recommend that you

remove any unnecessary files (page 25) to ensure sufficient memory capacity before start recording.
Since the memory of the instrument or the USB flash memory is insufficient, the operation could not

be completed. If this message appears during recording, the performance data may not be recorded
properly.

Confirms whether each operation is executed or not.
Displayed when you try to overwrite or delete a protected Song or read-only file. Use a read-only file

after cancelling the read-only setting.
Displayed when an unformatted USB flash memory is connected. First make sure that the device

does not contain important data, then format it (page 24).
Communication with the USB flash memory has been shut down because of overcurrent to the USB

flash memory. Disconnect the USB flash memory from the [USB TO DEVICE] terminal, then turn on
the power of the instrument again.

Communication with the USB flash memory has failed. Remove the USB flash memory and make the
connection again. If the message appears even when the USB flash memory is connected properly,
the USB flash memory may be damaged.

This USB flash memory is not supported on this instrument, or too many USB flash memories may
have been connected. Refer to “Connecting USB flash memory” (page 23) for information on the USB
flash memory connection.

30 NU1 Owner’s Manual

Troubleshooting

Problem Possible Cause and Solution

The instrument does not turn
on.

Noise is heard from the
speakers or headphones.

A click or pop is heard when
the power is turned on or off.

The overall volume is low, or
no sound is heard.

The pitch and/or tone of the
Piano Voices in certain
ranges do not sound right.

Sound is not heard on a par­ticular key.

Sound input to the AUX IN
jacks is interrupted.

The USB flash memory has
hung up (stopped).

Mechanical noise is heard
during performance.

When playing the same key
repeatedly and quickly or
playing a trill continuously for
a long time, a sound louder
than expected (considering
your playing strength) might
very occasionally occur.

* The message list (page 30) is also provided for your reference.

The instrument has not been plugged in properly. Securely insert the female plug into
the socket on the instrument, and the male plug into a proper AC outlet (page 9).

The noise may be due to interference caused by the use of a mobile phone in close
proximity to the instrument. Turn off the mobile phone, or use it further away from the
instrument.

Electrical current is being applied to the instrument. This is normal.

• The Volume is set too low: set it to an appropriate level using the [MASTER VOL­UME] control (page 10).

• Make sure a pair of headphones is not connected to the headphones jack (page 12).

• Make sure that Local Control (page 29) is on.

The Piano Voices attempt to precisely simulate actual piano sounds. However, as a
result of sampling algorithms, overtones in some ranges may sound exaggerated, pro­ducing a somewhat different pitch or tone. This is normal, and no cause for concern.

Keyboard may not function normally if the key was pressed when the power was
turned on. Turn off the power and turn it again to reset the function. Do not touch any
keys when turning the power on (page 10).

The output volume of the external device connected to this instrument is too low, result­ing in the sound being cut off via the Noise Gate after it is input to this instrument.

• Increase the output volume of the external device. The volume level reproduced via
this instrument’s speakers can be adjusted by using the [MASTER VOLUME] control.

• Set the Noise Gate to off (page 28).

• Disconnect the USB flash memory and connect it to the instrument again.

• The USB flash memory is not compatible with the instrument. Only use the USB
flash memory whose compatibility has been confirmed by Yamaha (page 23).

The keyboard mechanism of this instrument simulates the keyboard mechanism of an
actual piano. Mechanical noise is also heard on a piano.

This might be caused by the mechanical structure of the keys and the action; this is
normal, but only very seldom occurs.

NU1 Owner’s Manual 31

Maintenance

To keep your instrument in optimum condition, we recommend that you periodically follow the maintenance points
below.

 Instrument and Bench Maintenance

When cleaning the instrument, use a soft, dry or slightly damp cloth.

NOTICE

Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.

Gently remove dust and dirt with a soft cloth. Do not wipe too hard since small particles of dirt can scratch the instru­ment's finish.To keep the surface polished, apply commercially available piano polisher to a soft cloth and wipe the
instrument’s surface with it. Then, polish it with a separate cloth. Before using any piano polisher, make sure to read
the instructions for proper usage.

 Keyboard Maintenance

After wiping off the dirt with a slightly moistened soft cloth, wipe again with a dry cloth. For stubborn stains on the
white keys, use a piano cleaner (sold separately). When using such a cleaner, be careful not to allow the cleaner to
touch the black keys. After use, make sure to wipe with a dry cloth to remove any remaining piano cleaner.

 Bench Height Adjustment

The bench height can be adjusted by rotating the handle. Rotating clockwise heightens the bench. (The handle is
firmly fastened prior to shipment.)

 Pedal Cleaning

As with an acoustic piano, pedals may become tarnished over years of use.
When this occurs, polish the pedal with a compound designed for piano pedals. Before using the compound, make
sure to read the instructions for proper usage.

 Tu ni ng

Unlike an acoustic piano, this instrument does not need to be tuned by an expert (although the pitch can be user­adjusted to match other instruments). This is because the pitch of digital instruments is always maintained perfectly.
However, if you feel there is something abnormal concerning the keyboard touch, contact your Yamaha dealer.

32 NU1 Owner’s Manual

Specifications

Width 1,501mm (59-1/8")

Size/Weight

Control Interface

Cabinet

Tone Generation/
Voi ce s

Effects Type Reverb Yes

Recording/
Playback (MIDI
Songs)

Recording/
Playback (Audio
Songs)

Functions Overall Controls

Storage

Connectivity Connectors

Amplifiers and
Speakers

Accessories Included Accessories

* Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or

modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in
every locale, please check with your Yamaha dealer.

Dimensions

Weight 109kg (240Ibs., 5oz)

Keyboard

Peda l

Display Type 7-Segment LED
Panel Language English
Fallboard Yes
Music Rest Yes
Tone Generation Tone Generation Technology CFX Sampling

Piano Tone Gen­eration Effects

Polyphony Number of Polyphony (Max.) 256
Preset Number of Voices 5

Recording

Playback Data Capacity (max.) approx. 550KB/Song
Preset Number of Preset Songs 50 Preset Songs, 5 Voice Demo Songs

Data Format

Length of Recording/Playback (max.) 80 minutes/song

Data Format .wav (44.1 kHz sample rate, 16 bit resolution, stereo)

Internal Memory approx. 1.5MB (recording capacity + external Songs)
External Device USB flash memory (optional)

Amplifiers (40W + 40W) x 2
Speakers (16cm + 1.9cm) x 2

Height 1,024mm (40-5/16")
Depth 463mm (18-1/4")

Number of Keys 88 (A-1–C7)
White keys Acrylic resin
Black keys Phoenolic resin
Touch Sensitivity Fixed/Soft/Medium/Hard
Number of Pedals 3
Half Pedal Yes
Functions Damper (with half-pedal effect), Sostenuto, Soft
GP Responsive Damper Pedal Yes

Sustain Samples Yes
Key-off Samples Yes
String Resonance Yes

Number of Songs 10
Number of Tracks 1
Data Capacity (max.) approx. 1.5 MB (approx. 550KB/Song)

Recording SMF (Format 0)
Playback SMF (Format 0, Format 1), ESEQ

Metronome Yes
Te mp o Yes
Transpose Yes
Tuning Yes
Scale Type 7
Intelligent Acoustic Control Yes

MIDI IN/OUT
Headphones PHONES x 2
AUX IN [L/L+R] [R]
AUX OUT [L/L+R] [R]
USB TO DEVICE Yes
USB TO HOST Yes

Owner’s Manual, AC Power Cord, Felt Key Cover,
Bench (included or optional depending on locale),

My Yamaha Product User Registration, Felt Strips x 3,

50 greats for the Piano (Music Book)

Optional Accessories

Headphones HPE-160

NU1 Owner’s Manual 33

Index

A

Accessories ...................................5

Audio recording .........................21

Audio Song .................................18

AUX IN .......................................27

AUX OUT ..................................28

B

Backup ........................................26

Beat .............................................14

C

Character Code ...........................20

Computer-related Operations ......5

Copy ............................................24

D

Delete ..........................................25

Demo Song List .........................13

Display ..........................................8

E

Equal ...........................................17

External Song .............................18

F

Fast forward ................................19

Format (USB flash memory) ....24

G

GP Responsive Damper Pedal ..11

H

Half Pedal Point .........................11

Half-pedal ...................................11

Headphone ..................................12

Hz (Hertz) ...................................16

L

Local Control on/off ..................29

M

Maintenance ...............................32

Master Volume ...........................10

Mean-Tone ..................................17

Message List ...............................30

Metronome .................................14

MIDI ......................................27, 29

MIDI Basics .................................5

MIDI recording ..........................21

MIDI Reference ...........................5

MIDI Song ..................................18

Music Rest ....................................9

N

Noise Gate ..................................28

O

Optional Accessories .................33

P

Pedal ............................................11

Pitch ............................................16

Playback

all

.........................................19

Audio Songs .......................18

Demo Song .........................13

MIDI Songs ........................18

random ................................19

Power ............................................9

PRECAUTIONS ..........................6

Pure Major ..................................17

Pure Minor ..................................17

Pythagorean ................................17

Q

Quick Operation Guide .............35

S

Scale ........................................... 17

Song ............................................ 18

Song Category ........................... 18

Specifications ............................ 33

T

Temp o ................................... 13–14

Touch Sensitivity ....................... 15

Transpose ................................... 16

Troubleshooting ........................ 31

Tuning ........................................ 16

U

USB Flash Memory .................. 23

USB TO DEVICE ............... 23, 28

USB TO HOST ......................... 27

User Song .................................. 18

V

Vo i c e ........................................... 13

Voice Demo Song ...................... 13

Voi ce Li s t ................................... 13

Vo l u m e

Master Volume

Metronome Volume .......... 14

.................. 10

W

Werckmeister ............................. 17

I

I.A. Control
(Intelligent Acoustic Control)

Initializing ...................................26

...12

K

Kirnberger ...................................17

34 NU1 Owner’s Manual

R

Recording ....................................21

Reverb .........................................15

Rewind ........................................19

32-1 0 +2 +4 OFF

⁄3

1+1-2 +3

On/

OFF

On/

OFF

, Scale (page 17)

. Local Control on/off (page 29)

⁄0 AUX IN Noise Gate ON/OFF (page 28)

⁄1 Audio Song Volume (page 19)

⁄2 Half Pedal Point (page 11)

⁄3 Touch Sensitivity (page 15)

+1

-10

De-

fault

-1

F# G# A#D#C#

EFGAB-5 -3 -1

CD 13 5 6

⁄2

While holding down the button on the control panel, press one of the corresponding keys shown below

to select songs, or set parameters.

z Metronome Volume (page 14)

x Metronome Time Signature (page 14)

c Metronome/Song Tempo (page 14)

v I.A. Control ON/OFF (page 12)

Quick Operation Guide

6530

xc

z

MIN MAX

24

19

14 16

11

79

24

2018 +10

171513

1286

10

531

b I.A. Control Depth (page 12)

n Transpose (page 16)

m Base Note (page 17)

+6+3+1 2 4 7

nm,.⁄0vb

0+2+4+5

-2-4-6

2018

19

171513

14 16

1286

11

⁄1

+3+1-2

On/

0+2-3 -1

OFF

MIN MAX

10

79

531

24

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not
be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your
national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or
the point of sale where you purchased the items.

[For business users in the European Union]

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask
for the correct method of disposal.

Verbraucherinformation zur Sammlung und Entsorgung alter Elektrogeräte

Befindet sich dieses Symbol auf den Produkten, der Verpackung und/oder beiliegenden Unterlagen, so sollten benutzte elektrische Geräte
nicht mit dem normalen Haushaltsabfall entsorgt werden.
In Übereinstimmung mit Ihren nationalen Bestimmungen und den Richtlinien 2002/96/EC bringen Sie alte Geräte bitte zur fachgerechten
Entsorgung, Wiederaufbereitung und Wiederverwendung zu den entsprechenden Sammelstellen.

Durch die fachgerechte Entsorgung der Elektrogeräte helfen Sie, wertvolle Ressourcen zu schützen, und verhindern mögliche negative
Auswirkungen auf die menschliche Gesundheit und die Umwelt, die andernfalls durch unsachgerechte Müllentsorgung auftreten könnten.

Für weitere Informationen zum Sammeln und Wiederaufbereiten alter Elektrogeräte kontaktieren Sie bitte Ihre örtliche Stadt- oder
Gemeindeverwaltung, Ihren Abfallentsorgungsdienst oder die Verkaufsstelle der Artikel.

[Information für geschäftliche Anwender in der Europäischen Union]

Wenn Sie Elektrogeräte ausrangieren möchten, kontaktieren Sie bitte Ihren Händler oder Zulieferer für weitere Informationen.

[Entsorgungsinformation für Länder außerhalb der Europäischen Union]

Dieses Symbol gilt nur innerhalb der Europäischen Union. Wenn Sie solche Artikel ausrangieren möchten, kontaktieren Sie bitte Ihre
örtlichen Behörden oder Ihren Händler und fragen Sie nach der sachgerechten Entsorgungsmethode.

(weee_eu_en)

(weee_eu_de)

Information concernant la Collecte et le Traitement des déchets d’équipements électriques et électroniques.

Le symbole sur les produits, l'emballage et/ou les documents joints signifie que les produits électriques ou électroniques usagés ne
doivent pas être mélangés avec les déchets domestiques habituels.
Pour un traitement, une récupération et un recyclage appropriés des déchets d’équipements électriques et électroniques, veuillez les
déposer aux points de collecte prévus à cet effet, conformément à la réglementation nationale et aux Directives 2002/96/EC.

En vous débarrassant correctement des déchets d’équipements électriques et électroniques, vous contribuerez à la sauvegarde de
précieuses ressources et à la prévention de potentiels effets négatifs sur la santé humaine qui pourraient advenir lors d'un traitement
inapproprié des déchets.

Pour plus d'informations à propos de la collecte et du recyclage des déchets d’équipements électriques et électroniques, veuillez contacter
votre municipalité, votre service de traitement des déchets ou le point de vente où vous avez acheté les produits.

[Pour les professionnels dans l'Union Européenne]

Si vous souhaitez vous débarrasser des déchets d’équipements électriques et électroniques veuillez contacter votre vendeur ou
fournisseur pour plus d'informations.

[Information sur le traitement dans d'autres pays en dehors de l'Union Européenne]

Ce symbole est seulement valable dans l'Union Européenne. Si vous souhaitez vous débarrasser de déchets d’équipements électriques et
électroniques, veuillez contacter les autorités locales ou votre fournisseur et demander la méthode de traitement appropriée.

Información para Usuarios sobre Recolección y Disposición de Equipamiento Viejo

Este símbolo en los productos, embalaje, y/o documentación que se acompañe significa que los productos electrónicos y eléctricos
usados no deben ser mezclados con desechos hogareños corrientes.
Para el tratamiento, recuperación y reciclado apropiado de los productos viejos, por favor llévelos a puntos de recolección aplicables, de
acuerdo a su legislación nacional y las directivas 2002/96/EC.

Al disponer de estos productos correctamente, ayudará a ahorrar recursos valiosos y a prevenir cualquier potencial efecto negativo sobre
la salud humana y el medio ambiente, el cual podría surgir de un inapropiado manejo de los desechos.

Para mayor información sobre recolección y reciclado de productos viejos, por favor contacte a su municipio local, su servicio de gestión
de residuos o el punto de venta en el cual usted adquirió los artículos.

[Para usuarios de negocios en la Unión Europea]

Si usted desea deshacerse de equipamiento eléctrico y electrónico, por favor contacte a su vendedor o proveedor para mayor información.

[Información sobre la Disposición en otros países fuera de la Unión Europea]

Este símbolo sólo es válido en la Unión Europea. Si desea deshacerse de estos artículos, por favor contacte a sus autoridades locales y
pregunte por el método correcto de disposición.

(weee_eu_fr)

(weee_eu_es)

36 NU1 Owner’s Manual

The name plate of this product may be found on the bottom of
the unit. The serial number of this product may be found on or
near the name plate. You should note this serial number in the
space provided below and retain this manual as a permanent
record of your purchase to aid identification in the event of
theft.

Model No.

Das Typenschild dieses Produkts befindet sich an der
Unterseite des Geräts. Die Seriennummer dieses Produkts
befindet sich auf dem Typenschild oder in der Nähe davon. Sie
sollten diese Seriennummer an der unten vorgesehenen Stelle
eintragen und dieses Handbuch als dauerhaften Beleg für
Ihren Kauf aufbewahren, um im Fall eines Diebstahls die
Identifikation zu erleichtern.

Modell Nr.

Serial No.

(bottom_en)

La plaque signalétique de ce produit se trouve dans le bas de
l'unité. Le numéro de série de ce produit se trouve sur ou près
de la plaque signalétique. Notez-le dans l'espace fourni ci­dessous et conservez ce manuel en tant que preuve
permanente de votre achat afin de faciliter l'identification du
produit en cas de vol.

N° de modèle

N° de série

(bottom_fr)

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

IMPORTANT. The wires in this mains lead are coloured in
accordance with the following code:

As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured makings identifying the
terminals in your plug proceed as follows:

The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.

Making sure that neither core is connected to the earth terminal
of the three pin plug.

BLUE : NEUTRAL

BROWN : LIVE

(2 wires)

Seriennr.

(bottom_de)

La placa de identificación de este producto se encuentra en la
parte inferior de la unidad. El número de serie de este
producto se encuentra en la placa de identificación o cerca de
ella. Debe anotar dicho número en el espacio proporcionado a
continuación y conservar este manual como comprobante
permanente de su compra para facilitar la identificación en
caso de robo.

N° do modelo

Nº de serie

(bottom_es)

NU1 Owner’s Manual 37

For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.

Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha
ou au distributeur le plus proche de vous figurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.

Para detalles sobre productos, contacte su tienda Yamaha más
cercana o el distribuidor autorizado que se lista debajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México S.A. de C.V.

Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: [phone]

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: [phone]

ARGENTINA

Yamaha Music Latin America, S.A.
Sucursal de Argentina

Olga Cossettini 1553, Piso 4 Norte
Madero Este-C1107CEK
Buenos Aires, Argentina
Tel: [phone]

PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: [phone]

EUROPE

THE UNITED KINGDOM/IRELAND

Yamaha Music Europe GmbH (UK)

Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Europe GmbH
Branch Switzerland in Zürich

Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: [phone]

AUSTRI A

Yamaha Music Europe GmbH Branch Austria

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

CZECH REPUBLIC/HUNGARY/
ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH
Branch Austria (Central Eastern Europe Office)

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

POLAND/LITHUANIA/LATVIA/ESTONIA

Yamaha Music Europe GmbH
Branch Sp.z o.o. Oddzial w Polsce

ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: [phone]

BULGARIA

Dinacord Bulgaria LTD.

Bul.Iskarsko Schose 7 Targowski Zentar Ewropa
1528 Sofia, Bulgaria
Tel: [phone]

M ALTA

Olimpus Music Ltd.

The Emporium, Level 3, St. Louis Street Msida
MSD06
Tel: [phone]

DMI2

THE NETHERLANDS/
BELGIUM/LUXEMBOURG

Yamaha Music Europe Branch Benelux

Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: [phone]

FRANCE

Yamaha Music Europe

7 rue Ambroise Croizat, Zone d'activités Pariest,
77183 Croissy-Beaubourg, France
Tel: [phone]

ITALY

Yamaha Music Europe GmbH, Branch Italy

Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: [phone]

SPAIN/PORTUGAL

Yamaha Music Europe GmbH Ibérica, Sucursal
en España

Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: [phone]

GREECE

Philippos Nakas S.A. The Music House

147 Skiathou Street, 112-55 Athens, Greece
Tel: [phone]

SWEDEN

Yamaha Music Europe GmbH Germany filial
Scandinavia

J. A. Wettergrens Gata 1, Box 30053
S-400 43 Göteborg, Sweden
Tel: [phone]

DENMARK

Yamaha Music Europe GmbH, Tyskland – filial
Denmark

Generatorvej 6A, DK-2730 Herlev, Denmark
Tel: [phone]

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,
SF-00101 Helsinki, Finland
Tel: [phone]

NORWAY

Yamaha Music Europe GmbH Germany ­Norwegian Branch

Grini Næringspark 1, N-1345 Østerås, Norway
Tel: [phone]

ICELAND

Skifan HF

Skeifan 17 P.O. Box 8120, IS-128 Reykjavik, Iceland
Tel: [phone]

RUSSIA

Yamaha Music (Russia)

Room 37, bld. 7, Kievskaya street, Moscow,
121059, Russia
Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

AFRICA

Yamaha Corporation,
Asia-Pacific Sales & Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE
