Yamaha 5RU2819913, LIT116262134, YP400X user guide

OWNER’S MANUAL

YP400X

LIT-11626-21-34 5RU-28199-13

EAU10041

INTRODUCTION

EAU10090

Congratulations on your purchase of the Yamaha YP400X. This model is the result of Yamaha’s vast experience in the pro­duction of fine sporting, touring, and pacesetting racing machines. It represents the high degree of craftsmanship and reli­ability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic maintenance of this scooter. If you have
any questions concerning the operation or maintenance of your scooter, please consult a Yamaha dealer.
The design and manufacture of this Yamaha scooter fully comply with the emissions standards for clean air applicable at the
date of manufacture. Yamaha has met these standards without reducing the performance or economy of operation of the
scooter. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the rec­ommended maintenance schedules and operating instructions contained within this manual.

IMPORTANT MANUAL INFORMATION

Particularly important information is distinguished in this manual by the following notations:

The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!

EAU35821

WARNING

CAUTION:

NOTE:

Failure to follow WARNING instructions could result in severe injury or death to the
scooter operator, a bystander, or a person inspecting or repairing the scooter.

A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.

A NOTE provides key information to make procedures easier or clearer.

NOTE:

●

This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is sub­sequently sold.

●

Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your scooter and
this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.

EWA12580

WARNING

PLEASE READ THIS MANUAL AND THE “YOU AND YOUR MOTORCYCLE: RIDING TIPS” BOOKLET CAREFULLY
AND COMPLETELY BEFORE OPERATING THIS SCOOTER. DO NOT ATTEMPT TO OPERATE THIS SCOOTER UN­TIL YOU HAVE ATTAINED ADEQUATE KNOWLEDGE OF ITS CONTROLS AND OPERATING FEATURES AND UNTIL
YOU HAVE BEEN TRAINED IN SAFE AND PROPER RIDING TECHNIQUES. REGULAR INSPECTIONS AND CARE­FUL MAINTENANCE, ALONG WITH GOOD RIDING SKILLS, WILL ENSURE THAT YOU SAFELY ENJOY THE CAPA­BILITIES AND THE RELIABILITY OF THIS SCOOTER.

*Product and specifications are subject to change without notice.

IMPORTANT MANUAL INFORMATION

AFFIX DEALER

LABEL HERE

YP400X

OWNER’S MANUAL

©2007 by Yamaha Motor Corporation, U.S.A.

1st edition, April 2007

All rights reserved.

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Corporation, U.S.A.

is expressly prohibited.

Printed in Japan.

P/N LIT-11626-21-34

EAU10192

TABLE OF CONTENTS

SAFETY INFORMATION

Further safe-riding points .................1-4

Location of important labels .............1-6

DESCRIPTION

Left view ...........................................2-1

Right view .........................................2-2

Controls and instruments..................2-3

INSTRUMENT AND CONTROL
FUNCTIONS

Main switch/steering lock .................3-1

Indicator and warning lights .............3-2

Speedometer ...................................3-2

Tachometer .....................................3-3

Multi-function display .......................3-3

Handlebar switches .........................3-7

Front brake lever .............................3-8

Rear brake lever ..............................3-8

Rear brake lock lever .......................3-8

Fuel tank cap ...................................3-9

Fuel ................................................3-10

Catalytic converter .........................3-11

Seats .............................................3-11

Adjusting the rider seat ..................3-13

Storage compartments ..................3-13

Adjusting the shock absorber

assemblies .................................3-15

Sidestand .......................................3-16

Ignition circuit cut-off system .........3-16

...................................2-1

........................................3-1

...................1-1

PRE-OPERATION CHECKS

Pre-operation check list ................... 4-2

OPERATION AND IMPORTANT
RIDING POINTS

Starting the engine ..........................5-1

Starting off ....................................... 5-2

Acceleration and deceleration ......... 5-2

Braking ............................................ 5-2

Engine break-in ...............................5-3

Parking ............................................ 5-4

PERIODIC MAINTENANCE AND
MINOR REPAIR

PERIODIC MAINTENANCE ............ 6-1

Owner’s tool kit ................................ 6-2

Periodic maintenance chart for the

emission control system .............. 6-3

General maintenance and lubrication

chart ............................................. 6-4

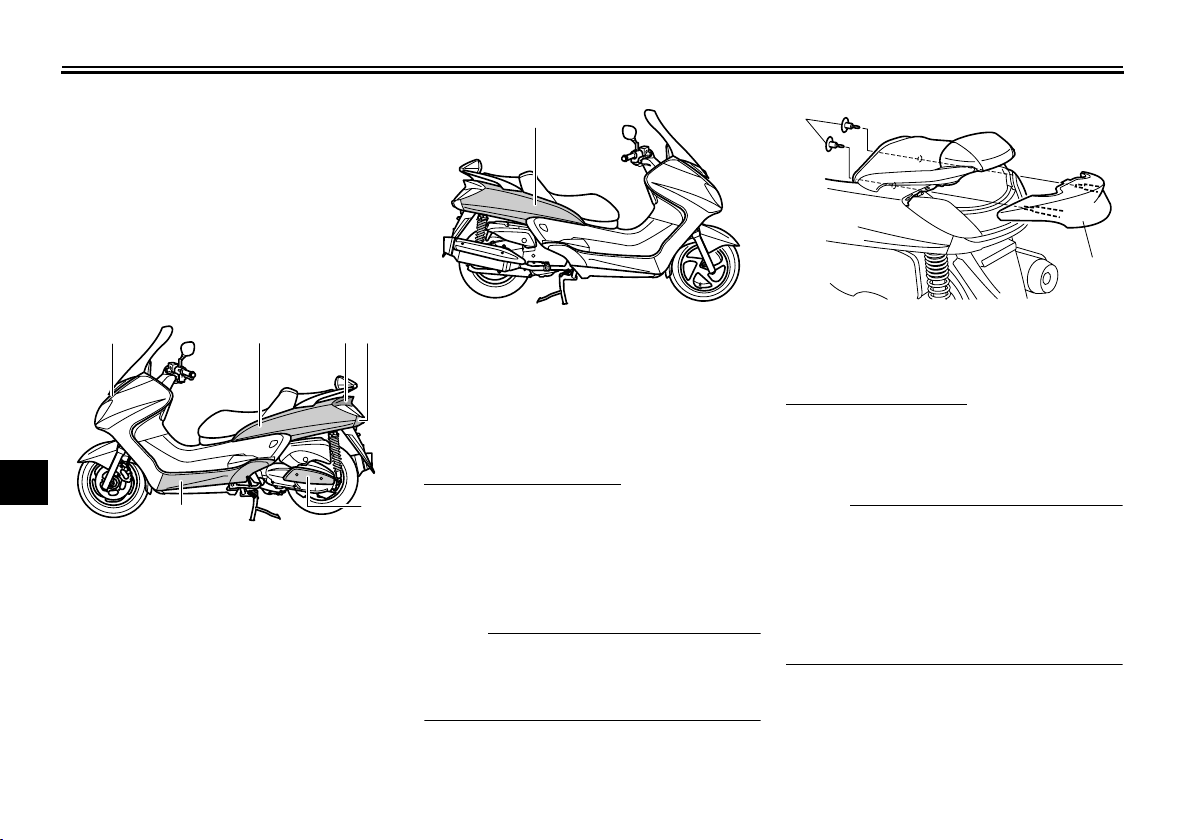

Removing and installing cowlings

and panels ...................................6-8

Checking the spark plug ................ 6-12

Canister ......................................... 6-14

Engine oil and oil filter element .....6-14

Final transmission oil ..................... 6-17

Coolant .......................................... 6-18

Air filter elements and check hoses

and V-belt case air filter

element ...................................... 6-20

.................................. 5-1

.................................. 6-1

.............. 4-1

Checking the throttle cable free

play ............................................ 6-23

Valve clearance ............................ 6-23

Tires .............................................. 6-23

Cast wheels .................................. 6-25

Accessories and replacement

parts ........................................... 6-26

Front and rear brake lever free

play ............................................ 6-26

Adjusting the rear brake lock lever

cable .......................................... 6-27

Checking the front and rear brake

pads ........................................... 6-28

Checking the brake fluid level ....... 6-28

Changing the brake fluid ............... 6-29

Checking and lubricating the

cables ........................................ 6-30

Checking and lubricating the throttle

grip and cable ............................ 6-30

Lubricating the front and rear brake

levers ......................................... 6-30

Checking and lubricating the

centerstand and sidestand ........ 6-31

Checking the front fork .................. 6-31

Checking the steering ................... 6-32

Checking the wheel bearings ........ 6-33

Battery ........................................... 6-33

Replacing the fuses ...................... 6-34

Replacing a headlight bulb ........... 6-36

Tail/brake light ............................... 6-36

Replacing a front turn signal light

bulb ............................................6-36

Replacing a rear turn signal light

bulb ............................................6-37

Replacing the license plate light

bulb ............................................6-38

Troubleshooting .............................6-39

Troubleshooting charts ..................6-40

TABLE OF CONTENTS

SCOOTER CARE AND STORAGE

Matte color caution ..........................7-1

Care .................................................7-1

Storage ............................................7-3

SPECIFICATIONS

CONSUMER INFORMATION

Identification numbers .....................9-1

Reporting safety defects .................. 9-3

Scooter noise regulation .................. 9-4

Maintenance record ......................... 9-5

YAMAHA MOTOR CORPORATION,

U.S.A. STREET AND ENDURO

MOTORCYCLE LIMITED

WARRANTY .................................9-7

YAMAHA EXTENDED SERVICE

(Y.E.S.) ........................................9-9

..............................8-1

..............9-1

....7-1

SAFETY INFORMATION

SCOOTERS ARE SINGLE TRACK
VEHICLES. THEIR SAFE USE AND
OPERATION ARE DEPENDENT

1

UPON THE USE OF PROPER
RIDING TECHNIQUES AS WELL AS
THE EXPERTISE OF THE OPERA­TOR. EVERY OPERATOR SHOULD
KNOW THE FOLLOWING REQUIRE­MENTS BEFORE RIDING THIS
SCOOTER.
HE OR SHE SHOULD:

●

OBTAIN THOROUGH INSTRUC-

TIONS FROM A COMPETENT

SOURCE ON ALL ASPECTS OF

SCOOTER OPERATION.

●

OBSERVE THE WARNINGS

AND MAINTENANCE REQUIRE-

MENTS IN THE OWNER’S MAN-

UAL.

●

OBTAIN QUALIFIED TRAINING

IN SAFE AND PROPER RIDING

TECHNIQUES.

●

OBTAIN PROFESSIONAL TECH-

NICAL SERVICE AS INDICATED

BY THE OWNER’S MANUAL

AND/OR WHEN MADE NECES-

SARY BY MECHANICAL CONDI-

EAU10261

TIONS.

Safe riding

●

Always make pre-operation
checks. Careful checks may help
prevent an accident.

●

This scooter is designed to carry
the operator and passenger.

●

The failure of motorists to detect
and recognize scooters in traffic is
the predominating cause of auto­mobile/scooter accidents. Many
accidents have been caused by an
automobile driver who did not see
the scooter. Making yourself con­spicuous appears to be very effec­tive in reducing the chance of this
type of accident.

●

Therefore:

●

Wear a brightly colored jacket.

●

Use extra caution when ap­proaching and passing through
intersections, since intersec­tions are the most likely places
for scooter accidents to occur.

●

Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.

1-1

●

Many accidents involve inexperi­enced operators. In fact, many op­erators who have been involved in
accidents do not even have a cur­rent driver’s license.

●

Make sure that you are qualified
and that you only lend your
scooter to other qualified opera­tors.

●

Know your skills and limits.
Staying within your limits may
help you to avoid an accident.

●

We recommend that you prac­tice riding your scooter where
there is no traffic until you have
become thoroughly familiar with
the scooter and all of its con­trols.

●

Many accidents have been caused
by error of the scooter operator. A
typical error made by the operator
is veering wide on a turn due to
EXCESSIVE SPEED or undercor­nering (insufficient lean angle for
the speed).

●

Always obey the speed limit and
never travel faster than warrant­ed by road and traffic conditions.

●

Always signal before turning or
changing lanes. Make sure that
other motorists can see you.

●

The posture of the operator and
passenger is important for proper
control.

●

The operator should keep both
hands on the handlebar and
both feet on the footboard during
operation to maintain control of
the scooter.

●

The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.

●

Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.

●

Never ride under the influence of
alcohol or other drugs.

●

This scooter is designed for
on-road use only. It is not suitable
for off-road use.

Protective apparel

The majority of fatalities from scooter
accidents are the result of head inju-

ries. The use of a safety helmet is the
single most critical factor in the preven­tion or reduction of head injuries.

●

Always wear an approved helmet.

●

Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision which could delay seeing
a hazard.

●

The use of a jacket, substantial
shoes, trousers, gloves, etc., is ef­fective in preventing or reducing
abrasions or lacerations.

●

Never wear loose-fitting clothes,
otherwise they could catch on the
control levers or wheels and cause
injury or an accident.

●

Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec­tive clothing that covers your legs,
ankles, and feet.

●

Passengers should also observe
the above precautions.

Modifications

Modifications made to this scooter not

SAFETY INFORMATION

approved by Yamaha, or the removal of
original equipment, may render the
scooter unsafe for use and may cause
severe personal injury. Modifications
may also make your scooter illegal to
use.

Loading and accessories

Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso­ries to your scooter. Use extra care
when riding a scooter that has added
cargo or accessories. Here are some
general guidelines to follow if loading
cargo or adding accessories to your
scooter:

Loading
The total weight of the operator, pas­senger, accessories and cargo must
not exceed the maximum load limit.

Maximum load:

196 kg (432 lb)

1

1-2

SAFETY INFORMATION

When loading within this weight limit,
keep the following in mind:

●

Cargo and accessory weight

should be kept as low and close to

1

the scooter as possible. Make sure

to distribute the weight as evenly

as possible on both sides of the

scooter to minimize imbalance or

instability.

●

Shifting weights can create a sud-

den imbalance. Make sure that ac-

cessories and cargo are securely

attached to the scooter before

riding. Check accessory mounts

and cargo restraints frequently.

●

Never attach any large or heavy

items to the handlebar, front fork,

or front fender. Such items can

create unstable handling or a slow

steering response.

Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot test
all other accessories that may be avail­able, you must personally be responsi­ble for the proper selection, installation

and use of non-Yamaha accessories.
Use extreme caution when selecting
and installing any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load­ing” when mounting accessories.

●

Never install accessories or carry
cargo that would impair the perfor­mance of your scooter. Carefully
inspect the accessory before using
it to make sure that it does not in
any way reduce ground clearance
or cornering clearance, limit sus­pension travel, steering travel or
control operation, or obscure lights
or reflectors.

●

Accessories fitted to the handle­bar or the front fork area can
create instability due to improper
weight distribution or aerody­namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.

●

Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic

effects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.

●

Certain accessories can dis­place the operator from his or
her normal riding position. This
improper position limits the free­dom of movement of the opera­tor and may limit control ability,
therefore, such accessories are
not recommended.

●

Use caution when adding electri­cal accessories. If electrical acces­sories exceed the capacity of the
scooter’s electrical system an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.

Gasoline and exhaust gas

●

GASOLINE IS HIGHLY FLAMMA­BLE:

●

Always turn the engine off when
refueling.

1-3

SAFETY INFORMATION

●

Take care not to spill any gaso­line on the engine or exhaust
system when refueling.

●

Never refuel while smoking or in
the vicinity of an open flame.

●

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi­sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade­quate ventilation.

●

Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:

●

The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes­trians or children are not likely to
touch these hot areas.

●

Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.

●

Do not park the scooter near a
flammable source (e.g., a kero-

sene heater, or near an open
flame), otherwise it could catch
fire.

●

If you should swallow any gaso­line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate­ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.

1-4

Further safe-riding points

●

Be sure to signal clearly when
making turns.

●

Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.

●

Slow down as you approach a cor­ner or turn. Once you have com­pleted a turn, accelerate slowly.

●

Be careful when passing parked
cars. A driver might not see you
and open a door in your path.

●

Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be­come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up­right, otherwise it could slide out
from under you.

●

The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.

●

Always wear a helmet, gloves,
trousers (tapered around the cuff

EAU10371

1

SAFETY INFORMATION

and ankle so they do not flap), and

a bright colored jacket.

●

Do not carry too much luggage on

the scooter. An overloaded scoot-

1

er is unstable.

1-5

Location of important labels

Please read the following important labels carefully before operating this vehicle.

SAFETY INFORMATION

EAU10381

1

2

3

1

6

4

5

1-6

7

SAFETY INFORMATION

1

1

Cleaning with alkaline or acid cleaner,
gasoline

neutral detergent.

Use

CAUTION

or

solvent will damage windshield.

3JJ—2835Y—A0

4

2

WARNING

BEFORE YOU OPERATE THIS VEHICLE, READ
THE OWNER’S MANUAL AND ALL LABELS.

ALWAYS WEAR AN APPROVED MOTORCYCLE
HELMET, eye protection, and protective clothing.

3

5GK-2118K-00

5

WARNING

Improper loading can cause loss of control.
Read owner’s manual for proper loading.

5RU-21668-00

3JJ—28446—A1

LOAD LIMIT

2 kg {4 lbs}

5RU-24877-A0

6

LOAD LIMIT

5 kg {11 lbs}

3LD-24877-A0

1-7

SAFETY INFORMATION

7

1

5RU-21686-00

1-8

DESCRIPTION

Left view

EAU10410

1

1

2

3

4

5

6

7

8

1. Headlight (page 6-36)

2. Fuel tank cap (page 3-9)

9

3. Rear storage compartment (page 3-13)

4. V-belt case air filter element (page 6-20)

5. Owner’s tool kit (page 6-2)

6. Fuses (page 6-34)

7. Battery (page 6-33)

8. Shock absorber assembly spring preload adjusting ring (page 3-15)

2 3

11 9

9. Air filter element (left) (page 6-20)

10. Engine oil filter element (page 6-14)

11. Sidestand (page 3-16, 6-31)

4

10

5

67

8

2-1

Right view

DESCRIPTION

EAU10420

2

1

7 68

1. Grab bar (page 5-2)

2. Passenger seat (page 3-11)

3. Rider seat (page 3-11)

4. Coolant reservoir (page 6-18)

5. Radiator

6. Centerstand (page 6-31)

7. Air filter element (right) (page 6-20)

8. Shock absorber assembly spring preload adjusting ring (page 3-15)

3

4

2

3

4

5

6

7

5

8

9

2-2

DESCRIPTION

Controls and instruments

EAU10430

1

2

3

4

5

6

7

8

1. Rear brake lever (page 3-8)

2. Left handlebar switches (page 3-7)

9

3. Rear brake lock lever (page 3-8)

4. Speedometer (page 3-2)

5. Multi-function display (page 3-3)

6. Tachometer (page 3-3)

7. Right handlebar switches (page 3-7)

8. Front brake lever (page 3-8)

1345678

2

9101112

9. Throttle grip (page 6-23)

10. Front storage compartment B (page 3-13)

11. Main switch/steering lock (page 3-1)

12. Front storage compartment A (page 3-13)

2-3

INSTRUMENT AND CONTROL FUNCTIONS

EAU10460

Main switch/steering lock

The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.

EAU36070

ON

All electrical circuits are supplied with
power; the meter lighting, taillight, li­cense plate light and position lights
come on, and the engine can be start­ed. The key cannot be removed.

NOTE:

The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the

sidestand is moved down.

EAU10660

OFF

All electrical systems are off. The key
can be removed.

EAU10680

LOCK

The steering is locked, and all electrical
systems are off. The key can be re­moved.
To lock the steering

1. Turn the handlebars all the way to
the left.

2. Push the key in from the “OFF” po­sition, and then turn it to “LOCK”
while still pushing it.

3. Remove the key.

To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.

EWA10060

WARNING

Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in

3-1

loss of control or an accident. Make
sure that the vehicle is stopped be­fore turning the key to “OFF” or
“LOCK”.

2

3

4

5

6

7

8

9

INSTRUMENT AND CONTROL FUNCTIONS

1

Indicator and warning lights

123

1

2

3

4

1. Turn signal indicator lights “” and “”

2. High beam indicator light “”

5

3. Engine trouble warning light “”

6

Turn signal indicator lights “” and
“”

7

The corresponding indicator light flash­es when the turn signal switch is

8

pushed to the left or right.

9

High beam indicator light “”

This indicator light comes on when the
high beam of the headlight is switched
on.

EAU11003

EAU11030

EAU11080

EAU11480

Engine trouble warning light “”

This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno­sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.

EAU11601

Speedometer

1. Speedometer

The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir­cuit.

3-2

INSTRUMENT AND CONTROL FUNCTIONS

12

3

4

EAU11872

Tachometer

1

1. Tachometer

2. Tachometer red zone

The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta­chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri­cal circuit.

CAUTION:

Do not operate the engine in the ta­chometer red zone.
Red zone: 8250 r/min and above

ECA10031

EAU36105

Multi-function display

EWA12311

WARNING

Be sure to stop the vehicle before
making any setting changes to the

2

multi-function display.

1

2
3

4

5

6

1. Clock/ambient temperature display

2. Coolant temperature meter

3. Fuel meter

4. Odometer/tripmeters

5. “SELECT” button

6. “RESET” button

1. V-belt replacement indicator “V-BELT”

2. Fuel level warning indicator “”

3. Coolant temperature warning indicator
“”

4. Oil change indicator “OIL”

The multi-function display is equipped
with the following:

●

a fuel meter

●

a coolant temperature meter

●

an odometer (which shows the to­tal distance traveled)

●

two tripmeters (which show the
distance traveled since they were
last set to zero)

●

a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning indi-

2

3

4

5

6

7

8

9

3-3

INSTRUMENT AND CONTROL FUNCTIONS

cator started flashing)

●

a self-diagnosis device

●

a clock

●

an ambient temperature display

1

●

an oil change indicator

●

a V-belt replacement indicator

NOTE:

2

Be sure to turn the key to “ON” be-

●

3

4

fore using the “SELECT” and “RE­SET” buttons.
When the key is turned to “ON”, all

●

of the display segments of the
multi-function display will appear

5

one after the other and then disap­pear, in order to test the electrical

6

7

circuit.

Odometer and tripmeter modes

Pushing the “SELECT” button switches
the display between the odometer

8

mode “ODO” and the tripmeter modes
“TRIP” in the following order:

ODO → TRIP (top) → TRIP (bottom)

9

ODO
When approximately 2.8 L (0.74 US
gal) (0.62 Imp.gal) of fuel remains in the
fuel tank, the bottom segment of the
fuel meter and fuel level warning indica-

tor will start flashing, and the display will
automatically change to the fuel re­serve tripmeter mode “TRIP F” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis­play between the various tripmeter and
odometer modes in the following order:
TRIP F → TRIP (top) → TRIP (bottom)

→

ODO → TRIP F

1

1. Fuel reserve tripmeter

To reset a tripmeter, select it by push­ing the “SELECT” button until “TRIP” or

→

“TRIP F” begins flashing (“TRIP” or
“TRIP F” will only flash for five sec-

onds). While “TRIP” or “TRIP F” is
flashing, push the “RESET” button for
at least one second. If you do not reset

3-4

the fuel reserve tripmeter manually, it
will reset itself automatically and the
display will return to the prior mode af­ter refueling and traveling 5 km (3 mi).

NOTE:

The display cannot be changed back to
“TRIP F” after pushing the “RESET”
button.

Fuel meter

With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn­ing indicator and the bottom segment
will flash. Refuel as soon as possible.

Coolant temperature meter

With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang­es in the weather and engine load. If
the top segment and coolant tempera­ture warning indicator flash, stop the

INSTRUMENT AND CONTROL FUNCTIONS

vehicle and let the engine cool. (See
page 6-40.)

ECA10020

CAUTION:

Do not operate the engine if it is
overheated.

Oil change indicator “OIL”

This indicator flashes at the initial
1000 km (600 mi), then at 5000 km
(3000 mi) and every 5000 km (3000
mi) thereafter to indicate that the en­gine oil should be changed.
After changing the engine oil, reset the
oil change indicator. (See page 6-14.)
If the engine oil is changed before the
oil change indicator comes on (i.e. be­fore the periodic oil change interval has

been reached), the indicator must be
reset after the oil change for the next
periodic oil change to be indicated at
the correct time. (See page 6-14.)
The electrical circuit of the indicator can
be checked according to the following
procedure.

1. Set the engine stop switch to “”
and turn the key to “ON”.

2. Check that the indicator comes on
for a few seconds and then goes
off.

3. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.

NOTE:

The oil change indicator may flash
when the engine is revved with the
scooter on the centerstand, but this
does not indicate a malfunction.

V-belt replacement indicator
“V-BELT”

This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
The electrical circuit of the indicator can
be checked according to the following

3-5

procedure.

1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.

2. If the indicator does not come on,
have a Yamaha dealer check the
electrical circuit.

Self-diagnosis device

This model is equipped with a self-diag­nosis device for various electrical cir­cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num­ber, and then have a Yamaha dealer
check the vehicle.

2

3

4

5

6

7

8

9

INSTRUMENT AND CONTROL FUNCTIONS

1

2

1

3

1. Error code display

4

CAUTION:

If the multi-function display indi-

5

cates an error code, the vehicle
should be checked as soon as pos-

6

sible in order to avoid engine dam­age.

7

Clock mode

8

To set the clock:

1. Push the “SELECT” button and

9

“RESET” button together for at
least two seconds.

2. When the hour digits start flashing,
push the “RESET” button to set the
hours.

3. Push the “SELECT” button, and

ECA11790

the minute digits will start flashing.

4. Push the “RESET” button to set
the minutes.

5. Push the “SELECT” button and
then release it to start the clock.
Pushing the “SELECT” button for
at least two seconds switches the
clock display to the ambient tem­perature display.

Ambient temperature display

This display shows the ambient tem­perature from –10 °C (14 °F) to 50 °C
(122 °F) in 1 °C or 1 °F increments. The
temperature displayed may vary from
the ambient temperature. Pushing the
“SELECT” button for at least two sec­onds switches the ambient temperature
display to the clock display.

NOTE:

If the ambient temperature falls be-

●

low –10 °C (14 °F), a lower tem­perature than –10 °C (14 °F) will
not be displayed.
If the ambient temperature climbs

●

above 50 °C (122 °F), a higher
temperature than 50 °C (122 °F)

will not be displayed.

●

The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h (12.5 mi/h)) or when
stopped at traffic signals, railroad
crossings, etc.

3-6

INSTRUMENT AND CONTROL FUNCTIONS

Handlebar switches

Left

1

2
3

1. Dimmer switch “ / ”

2. Turn signal switch “ / ”

3. Horn switch “”

EAU12347

Right

1

2

1. Engine stop switch “ / ”

2. Start switch “”

EAU12400

Dimmer switch “ / ”

Set this switch to “” for the high
beam and to “” for the low beam.

EAU12460

Turn signal switch “ / ”

To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re­turned to the center position.

EAU12500

Horn switch “”

Press this switch to sound the horn.

EAU12660

Engine stop switch “ / ”

Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen­cy, such as when the vehicle overturns
or when the throttle cable is stuck.

EAU12720

Start switch “”

With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.

ECA10050

CAUTION:

See page 5-1 for starting instruc­tions prior to starting the engine.

2

3

4

5

6

7

8

9

3-7

INSTRUMENT AND CONTROL FUNCTIONS

1

Front brake lever

1

2

3

4

1. Front brake lever

The front brake lever is located on the

5

right handlebar grip. To apply the front
brake, pull this lever toward the handle-

6

bar grip.

7

8

9

1

EAU12900

EAU12950

Rear brake lever

1

1. Rear brake lever

The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle­bar grip.

EAU12962

Rear brake lock lever

1. Rear brake lock lever

This vehicle is equipped with a rear
brake lock lever to prevent the rear
wheel from moving while stopped at
traffic signals, railroad crossings, etc.

To lock the rear wheel

Push the rear brake lock lever to the left
until it snaps into place.

To unlock the rear wheel

Push the rear brake lock lever back to
the original position.

NOTE:

Be sure to check that the rear

●

wheel does not move when the

3-8

INSTRUMENT AND CONTROL FUNCTIONS

1

1

rear brake lock lever is applied.

●

To provide secure locking of the
rear wheel, apply the rear brake le­ver first before moving the rear
brake lock lever to the left.

EWA12361

WARNING

Never move the rear brake lock lever
to the left while the vehicle is mov­ing, otherwise loss of control or an
accident may result. Make sure that
the vehicle is stopped before mov­ing the rear brake lock lever to the
left.

Fuel tank cap

To open the fuel tank cap

1. Open the lid by sliding the lever
forward, and then pull the lever up.

1

2

1. Lid

2. Opening lever

2. Insert the key into the lock and turn
it clockwise. The lock will be re­leased and the fuel tank cap can
be removed.

EAU13162

1. Fuel tank cap

To install the fuel tank cap

1. Align the match marks, insert the
fuel tank cap into the tank opening,
and then push down on the cap.

1. Match marks

2

3

4

5

6

7

8

9

2. Turn the key counterclockwise to
the original position, and then re-

3-9

INSTRUMENT AND CONTROL FUNCTIONS

move it.

3. Close the lid.

WARNING

Be sure that the fuel tank cap is

1

properly installed and locked before
riding the scooter.

2

3

4

5

6

7

8

9

EWA11120

EAU13211

Fuel

1

2

1. Fuel tank filler tube

2. Fuel level

Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.

WARNING

Do not overfill the fuel tank, oth-

●

erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-

●

gine.

CAUTION:

Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since

EWA10880

ECA10070

fuel may deteriorate painted surfac­es or plastic parts.

EAU36080

Recommended fuel

UNLEADED GASOLINE ONLY

Fuel tank capacity:

14.0 L (3.70 US gal) (3.08 Imp.gal)

ECA11400

CAUTION:

Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.

Your Yamaha engine has been de­signed to use regular unleaded gaso­line with a pump octane number
[(R+M)/2] of 86 or higher, or a research
octane number of 91 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand or premi­um unleaded fuel. Use of unleaded fuel
will extend spark plug life and reduce
maintenance costs.

3-10

INSTRUMENT AND CONTROL FUNCTIONS

2

1

Gasohol

There are two types of gasohol: gaso­hol containing ethanol and that contain­ing methanol. Gasohol containing
ethanol can be used if the ethanol con­tent does not exceed 10%. Gasohol
containing methanol is not recom­mended by Yamaha because it can
cause damage to the fuel system or ve­hicle performance problems.

EAU13431

Catalytic converter

This model is equipped with a catalytic
converter in the exhaust system.

WARNING

The exhaust system is hot after op­eration. Make sure that the exhaust
system has cooled down before do­ing any maintenance work.

CAUTION:

The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.

●

The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-

●

sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idle

●

too long.

EWA10860

ECA10700

Seats

1. Rider seat

2. Passenger seat

Rider seat

To open the rider seat

1. Place the scooter on the center­stand.

2. Insert the key into the main switch,
and then turn it counterclockwise.

EAU34140

2

3

4

5

6

7

8

9

3-11

INSTRUMENT AND CONTROL FUNCTIONS

1

2

2

1

1

2

3

1. Open.

4

NOTE:

Do not push inward when turning the

5

key.

3. Fold the rider seat up.

6

7

8

9

1

To close the rider seat

1. Fold the rider seat down, and then
push it down to lock it in place.

2. Remove the key from the main
switch if the scooter will be left un­attended.

NOTE:

Make sure that the rider seat is properly
secured before riding.

Passenger seat

To remove the passenger seat

1. Open the rider seat.

2. Remove the bolt, and then pull the
passenger seat forward.

1

2

To install the passenger seat

1. Insert the projections on the pas­senger seat into the holders as
shown, place the passenger seat
in the original position, and then in­stall the bolt.

1. Passenger seat

2. Seat holder

2. Close the rider seat.

NOTE:

Make sure that the passenger seat is
properly secured before riding.

1. Rider seat

1. Passenger seat

2. Bolt

3-12

INSTRUMENT AND CONTROL FUNCTIONS

2

3

1

EAU34150

Adjusting the rider seat

1

1. Rider seat

The rider seat can be adjusted as fol­lows to change the riding position.

1. Open the rider seat. (See
page 3-11.)

2. Remove the bolts.

11

1. Bolt

3. Slide the rider seat forward or
backward to the desired position.

4. Install bolts and securely tighten
them.

5. Close the rider seat.

EAU14492

Storage compartments

Front storage compartment A

To open the storage compartment
when it is locked, insert the key in the
lock, turn it counterclockwise, and then
grasp the lock while pushing the button
in.
To open the storage compartment
when it is unlocked, simply grasp the
lock while pushing the button in.

1. Open.

2. Button

3. Lid

To lock the storage compartment, push
the lid into the original position, insert
the key in the lock, turn it clockwise,

2

3

4

5

6

7

8

9

3-13

INSTRUMENT AND CONTROL FUNCTIONS

1

and then remove it.

1

1

2

3

1. Lock.

4

2. Lid

Front storage compartment B

5

2

To open the storage compartment,
slide the lever up, and then pull on the

6

lever.

7

8

9

1

2

1. Storage compartment opening lever

2. Lid

To close the storage compartment,
push the lid into the original position.

EWA11160

WARNING

Do not store heavy items in this
compartment.

Rear storage compartment

Two helmets can be stored in the stor­age compartment under the seats.
(See page 3-11.)

1. Rider seat

ECA10080

CAUTION:

Keep the following points in mind
when using the storage compart­ment.

Since the storage compartment

●

accumulates heat when ex­posed to the sun, do not store
anything susceptible to heat in­side it.
To avoid humidity from spread-

●

ing through the storage com­partment, wrap wet articles in a
plastic bag before storing them
in the compartment.
Since the storage compartment

●

may get wet while the scooter is

3-14

INSTRUMENT AND CONTROL FUNCTIONS

being washed, wrap any articles
stored in the compartment in a
plastic bag.

●

Do not keep anything valuable
or breakable in the storage com­partment.

ECA11100

CAUTION:

Do not leave the rider seat open for
an extended period of time, other­wise the light may cause the battery
to discharge.

EWA11170

WARNING

Do not exceed the following loading
limits:

●

Front storage compartment A:
2 kg (4 lb)

●

Rear storage compartment: 5 kg
(11 lb)

●

Maximum load for the vehicle:
196 kg (432 lb)

EAU14890

Adjusting the shock absorber assemblies

5

(a)

4
3

2
1

3

ECA10100

EWA10210

2

1

(b)

1. Spring preload adjusting ring

2. Position indicator

3. Spring preload adjusting tool

Each shock absorber assembly is
equipped with a spring preload adjust­ing ring.

CAUTION:

Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.

WARNING

Always adjust both shock absorber
assemblies equally, otherwise poor

handling and loss of stability may
result.

Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab­sorber assembly in direction (a). To de­crease the spring preload and thereby
soften the suspension, turn the adjust­ing ring on each shock absorber as­sembly in direction (b).

NOTE:

●

Align the appropriate notch in the
adjusting ring with the position in­dicator on the shock absorber.

●

Use the spring preload adjusting
tool included in the owner’s tool kit
to make this adjustment.

Spring preload setting:

Minimum (soft):

1

Standard:

2

Maximum (hard):

5

2

3

4

5

6

7

8

9

3-15

INSTRUMENT AND CONTROL FUNCTIONS

Sidestand

The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the

1

vehicle upright.

NOTE:

2

The built-in sidestand switch is part of
the ignition circuit cut-off system, which

3

cuts the ignition in certain situations.
(See further down for an explanation of

4

the ignition circuit cut-off system.)

5

6

7

8

9

WARNING

The vehicle must not be ridden with
the sidestand down, or if the side­stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon­sibility of raising the sidestand be­fore starting off. Therefore, check
this system regularly as described
below and have a Yamaha dealer re-

EAU15301

EWA10240

pair it if it does not function proper­ly.

EAU15372

Ignition circuit cut-off system

The ignition circuit cut-off system (com­prising the sidestand switch and brake
light switches) has the following func­tions.

●

It prevents starting when the side­stand is up, but neither brake is ap­plied.

●

It prevents starting when either
brake is applied, but the sidestand
is still down.

●

It cuts the running engine when the

sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.

WARNING

If a malfunction is noted, have a
Yamaha dealer check the system be­fore riding.

EWA10250

3-16

INSTRUMENT AND CONTROL FUNCTIONS

With the engine turned off:

1. Move the sidestand down.

2. Make sure that the engine stop switch is turned on.

3. Turn the key on.

4. Keep the front or rear brake applied.

5. Push the start switch.

Does the engine start?

NO YES

With the engine still off:

6. Move the sidestand up.

7. Keep the front or rear brake applied.

8. Push the start switch.

Does the engine start?

YES NO

With the engine still running:

9. Move the sidestand down.

Does the engine stall?

YES NO

The system is OK. The scooter can be ridden.

NOTE:

This check is most reliable if performed with
a warmed-up engine.

The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.

The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.

The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.

2

3

4

5

6

7

8

9

3-17

PRE-OPERATION CHECKS

The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-

1

tion, to check the following points before each ride.

NOTE:

2

Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very short
time; and the added safety it assures is more than worth the time involved.

3

4

5

6

7

8

WARNING

If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the vehicle.

EAU15593

EWA11150

9

4-1

Pre-operation check list

ITEM CHECKS PAGE

Fuel

Engine oil

Final transmission oil

Coolant

Front brake

Rear brake

Throttle grip

PRE-OPERATION CHECKS

●

Check fuel level in fuel tank.

●

Refuel if necessary.

●

Check fuel line for leakage.

●

Check oil level in engine.

●

If necessary, add recommended oil to specified level.

●

Check vehicle for oil leakage.

●

Check vehicle for oil leakage. 6-17

●

Check coolant level in reservoir.
If necessary, add recommended coolant to specified level.

●

Check cooling system for leakage.

●

Check operation.

●

If soft or spongy, have Yamaha dealer bleed hydraulic system.

●

●

Check brake pads for wear.
Replace if necessary.

●

Check fluid level in reservoir.

●

If necessary, add recommended brake fluid to specified level.

●

Check hydraulic system for leakage.

●

Check operation.

●

If soft or spongy, have Yamaha dealer bleed hydraulic system.

●

Check brake pads for wear.

●

Replace if necessary.

●

Check fluid level in reservoir.

●

If necessary, add recommended brake fluid to specified level.

●

Check hydraulic system for leakage.

●

Make sure that operation is smooth.

●

Check cable free play.

●

If necessary, have Yamaha dealer adjust cable free play and lubricate cable

●

and grip housing.

6-26, 6-28

6-26, 6-28

6-23, 6-30

3-10

6-14

6-18

EAU15605

2

3

4

5

6

7

8

9

4-2

PRE-OPERATION CHECKS

ITEM CHECKS PAGE

●

Check for damage.

●

Wheels and tires

1

Brake levers

2

Centerstand, sidestand

Chassis fasteners

3

Instruments, lights, signals
and switches

4

Sidestand switch

5

6

7

8

Check tire condition and tread depth.

●

Check air pressure.

●

Correct if necessary.

●

Make sure that operation is smooth.

●

Lubricate lever pivoting points if necessary.

●

Make sure that operation is smooth.

●

Lubricate pivots if necessary.

●

Make sure that all nuts, bolts and screws are properly tightened.

●

Tighten if necessary.
Check operation.

●

Correct if necessary.

●

Check operation of ignition circuit cut-off system.

●

If system is defective, have Yamaha dealer check vehicle.

●

6-23, 6-25

6-30

6-31

—

—

3-16

9

4-3

OPERATION AND IMPORTANT RIDING POINTS

WARNING

●

Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re­garding any control or function
that you do not thoroughly un­derstand.
Never start the engine or oper-

●

ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con­sciousness and death within a
short time. Always make sure
that there is adequate ventila­tion.
For safety, always start the en-

●

gine with the centerstand down.

EAU15980

EWA10870

EAU34460

Starting the engine

ECA10250

CAUTION:

See page 5-3 for engine break-in in­structions prior to operating the ve­hicle for the first time.

In order for the ignition circuit cut-off
system to enable starting, the side­stand must be up.

WARNING

Before starting the engine,

●

check the function of the igni­tion circuit cut-off system ac­cording to the procedure
described on page 3-16.
Never ride with the sidestand

●

down.

1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.

2. Close the throttle completely.

3. Start the engine by pushing the
start switch while applying the front
or rear brake.

NOTE:

If the engine does not start, release the

5-1

EWA10290

start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre­serve the battery. Do not crank the en­gine more than 10 seconds on any one
attempt.

ECA11040

CAUTION:

For maximum engine life, never ac­celerate hard when the engine is
cold!

2

3

4

5

6

7

8

9

OPERATION AND IMPORTANT RIDING POINTS

Starting off

NOTE:

Before starting off, allow the engine to

1

warm up.

1. While pulling the rear brake lever

2

3

4

5

6

7

8

9

with your left hand and holding the
grab bar with your right hand, push
the scooter off the centerstand.

1

1. Grab bar

2. Sit astride the seat, and then ad­just the rear view mirrors.

3. Switch the turn signal on.

4. Check for oncoming traffic, and
then slowly turn the throttle grip (on
the right) in order to take off.

5. Switch the turn signal off.

EAU16760

EAU16780

Acceleration and deceleration

(b)

(a)

The speed can be adjusted by opening
and closing the throttle. To increase the
speed, turn the throttle grip in direction
(a). To reduce the speed, turn the throt­tle grip in direction (b).

EAU16792

Braking

1. Close the throttle completely.

2. Apply both front and rear brakes
simultaneously while gradually in­creasing the pressure.

Front

5-2

OPERATION AND IMPORTANT RIDING POINTS

Rear

WARNING

Avoid braking hard or suddenly

●

(especially when leaning over to
one side), otherwise the scooter
may skid or overturn.
Railroad crossings, streetcar

●

rails, iron plates on road con­struction sites, and manhole
covers become extremely slip­pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau­tion.

●

Keep in mind that braking on a
wet road is much more difficult.

●

Ride slowly down a hill, as brak­ing downhill can be very diffi-

EWA10300

cult.

EAU16841

Engine break-in

There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow­ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt­tle operation or any condition that might
result in engine overheating must be
avoided.

EAU34320

0–1000 km (0–600 mi)

Avoid prolonged operation above 4000
r/min.

1000–1600 km (600–1000 mi)

Avoid prolonged operation above 6000
r/min.

ECA12930

CAUTION:

After 1000 km (600 mi) of operation,
be sure to replace the engine oil, fi-

2

3

4

5

6

7

8

9

5-3

OPERATION AND IMPORTANT RIDING POINTS

nal transmission oil and the oil filter
element.

1600 km (1000 mi) and beyond

The vehicle can now be operated nor-

1

mally.

CAUTION:

2

●

Keep the engine speed out of

3

the tachometer red zone.

●

If any engine trouble should oc­cur during the engine break-in

4

period, immediately have a
Yamaha dealer check the vehi-

5

cle.

6

7

8

9

ECA10310

EAU17212

Parking

When parking, stop the engine, and
then remove the key from the main
switch.

WARNING

●

Since the engine and exhaust
system can become very hot,
park in a place where pedestri­ans or children are not likely to
touch them.
Do not park on a slope or on soft

●

ground, otherwise the vehicle
may overturn.

CAUTION:

Never park in an area where there
are fire hazards such as grass or
other flammable materials.

EWA10310

ECA10380

5-4

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU17271

Safety is an obligation of the owner. Pe­riodic inspection, adjustment and lubri­cation will keep your vehicle in the
safest and most efficient condition pos­sible. The most important points of
scooter inspection, adjustment, and lu­brication are explained on the following
pages.
Maintenance, replacement, or repair of
the emission control devices and sys­tems may be performed by any repair
establishment or individual that is certi­fied (if applicable).

EWA10320

WARNING

If you are not familiar with mainte­nance work, have a Yamaha dealer
do it for you.

EWA10330

WARNING

This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty, mud­dy or wet conditions, the air filter el­ement should be cleaned or
replaced more frequently, otherwise

rapid engine wear may result. Con­sult a Yamaha dealer for proper
maintenance intervals.

EAU17301

PERIODIC MAINTENANCE

PROPER PERIODIC MAINTENANCE
OF YOUR VEHICLE IS IMPORTANT
IN ORDER TO ENJOY LONG, PLEA­SURABLE SERVICE. ESPECIALLY
IMPORTANT ARE THE MAINTE­NANCE SERVICES RELATED TO
EMISSIONS CONTROL. THESE
CONTROLS NOT ONLY FUNCTION
TO ENSURE CLEANER AIR, BUT
ARE ALSO VITAL TO PROPER EN­GINE OPERATION AND MAXIMUM
PERFORMANCE. IN THE FOLLOW­ING PERIODIC MAINTENANCE
CHARTS, THE SERVICES RELATED
TO EMISSIONS CONTROL ARE
GROUPED SEPARATELY. THESE
SERVICES REQUIRE SPECIALIZED
DATA, KNOWLEDGE, AND EQUIP­MENT. YAMAHA DEALERS ARE
TRAINED AND EQUIPPED TO PER­FORM THESE PARTICULAR SER­VICES.

2

3

4

5

6

7

8

9

6-1

PERIODIC MAINTENANCE AND MINOR REPAIR

Owner’s tool kit

1

2

3

4

5

6

7

8

9

1

1. Storage compartment mat

2. Owner’s tool kit

The owner’s tool kit is located inside the
rear storage compartment. (See
page 3-13.)
Pull up the storage compartment mat,
and then remove the owner’s tool kit.
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How­ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.

EAU17501

NOTE:

If you do not have the tools or experi­ence required for a particular job, have
a Yamaha dealer perform it for you.

EWA10350

WARNING

Modifications not approved by
Yamaha may cause loss of perfor-

2

mance and render the vehicle un­safe for use. Consult a Yamaha
dealer before attempting any chang­es.

6-2

PERIODIC MAINTENANCE AND MINOR REPAIR

Periodic maintenance chart for the emission control system

INITIAL ODOMETER READINGS

No. ITEM ROUTINE

600 mi

(1000 km)

or

1 month

●

Check fuel and vacuum hoses

1*

2

Fuel line

Spark plug

for cracks or damage.

●

Replace if necessary.

●

Check condition.
Adjust gap and clean.

●

Replace every 10000 mi (16000

●

km) or 18 months.
Check and adjust valve clear-

3*

Valve clearance

Crankcase breather

4*

system

5*

Fuel injection

Evaporative emis-

6*

sion control system

7*

Air induction system

●

ance when engine is cold.
Check breather hose for cracks

●

or damage.
Replace if necessary.

●

Check engine idle speed.

●

Check control system for dam-

●

age.
Replace if necessary.

●

Check the air cut-off valve, reed

●

valve, and hose for damage.
Replace any damaged parts.

●

√√√√√√

* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.

4000 mi

(7000 km)

or

6 months

8000 mi

(13000 km)

or

12 months

√√√√√

√√

Every 26600 mi (42000 km)

√√√√√

12000 mi

(19000 km)

or

18 months

Replace.

√

√

EAU17600

16000 mi

(25000 km)

or

24 months

20000 mi

(31000 km)

or

30 months

√√

2

3

4

5

6

7

8

9

6-3

PERIODIC MAINTENANCE AND MINOR REPAIR

General maintenance and lubrication chart

INITIAL ODOMETER READINGS

No. ITEM ROUTINE

1

2

1

Air filter elements
V-belt case air filter

2

3*

element

Front brake

3

4

●

Replace. Every 12000 mi (19000 km)

●

Clean.

●

Check operation, fluid level, and
for fluid leakage.
Replace brake pads if neces-

●

sary.

●

5

4*

Rear brake

6

5*

Brake hoses

7

6

Rear brake lock

7*

8

9

Wheels

8*

Tires

9*

Wheel bearings

Check operation, fluid level, and
for fluid leakage.
Replace brake pads if neces-

●

sary.
Check for cracks or damage.

●

Replace. Every 4 years

●

Check operation.

●

Adjust.

●

Check runout and for damage.

●

Replace if necessary.

●

Check tread depth and for dam-

●

age.
Replace if necessary.

●

Check air pressure.

●

Correct if necessary.

●

Check bearings for smooth

●

operation.
Replace if necessary.

●

600 mi

(1000 km)

or

1 month

√√√√√√

√√√√√√

√√√√√√

4000 mi

(7000 km)

6 months

EAU32185

or

8000 mi

(13000 km)

or

12 months

12000 mi

(19000 km)

or

18 months

16000 mi

(25000 km)

or

24 months

20000 mi

(31000 km)

or

30 months

√√√√√

√√√√√

√√√√√

√√√√√

√√√√√

6-4

PERIODIC MAINTENANCE AND MINOR REPAIR

No. ITEM ROUTINE

●

Check bearing assemblies for

10

*

Steering bearings

11

*

Chassis fasteners

Front brake lever

12

pivot shaft
Rear brake lever

13

pivot shaft

Centerstand and

14

sidestand pivots

*

Sidestand switch

15

*

Front fork

16

Shock absorber

*

17

assemblies

Engine oil

18

looseness.

●

Moderately repack with lith­ium-soap-based grease.

●

Check all chassis fitting and fas­teners.
Correct if necessary.

●

Apply silicone grease lightly.

●

Apply silicone grease lightly.

●

Check operation.

●

Apply lithium-soap-based

●

grease (all-purpose grease)
lightly.

Check operation and replace if

●

necessary.
Check operation and for oil leak-

●

age.
Replace if necessary.

●

Check operation and for oil leak-

●

age.
Replace if necessary.

●

Change. (See pages 3-3 and

●

6-14.)
Check oil level and vehicle for oil

●

leakage.

INITIAL ODOMETER READINGS

600 mi

(1000 km)

or

1 month

4000 mi

(7000 km)

or

6 months

8000 mi

(13000 km)

or

12 months

12000 mi

(19000 km)

or

18 months

16000 mi

(25000 km)

or

24 months

20000 mi

(31000 km)

or

30 months

√√√√√√

Every 12000 mi (19000 km)

√√√√√

√√√√√

√√√√√

√√√√√

√√√√√√

√√√√√

√√√√√

√

When the oil change indicator flashes (every 3125 mi (5000 km))

Every 3125 mi (5000 km)

2

3

4

5

6

7

8

9

6-5

PERIODIC MAINTENANCE AND MINOR REPAIR

INITIAL ODOMETER READINGS

No. ITEM ROUTINE

600 mi

(1000 km)

or

1

Engine oil filter ele-

19

2

ment

20

*

Cooling system

3

Final transmission

21

4

5

6

oil

*

V-belt

22

Front and rear brake

*

23

switches

Throttle grip hous-

*

24

ing and cable

●

Replace.

●

Check coolant level and vehicle
for coolant leakage.

●

Change. Every 3 years

●

Check vehicle for oil leakage.
Change.

●

Replace. When the V-belt replacement indicator flashes (every 12500 mi (20000 km)).

●

Check operation.

●

Check operation and free play.

●

●

Adjust the throttle cable free
play if necessary.
Lubricate the throttle grip hous-

●

1 month

√

√√√

√√√√√√

ing and cable.

7

8

Lights, signals and

*

25

switches

* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.

Check operation.

●

Adjust headlight beam.

●

√√√√√√

NOTE:

From 24000 mi (37000 km) or 36 months, repeat the maintenance intervals starting from 8000 mi (13000 km) or 12 months.

9

4000 mi

(7000 km)

or

6 months

8000 mi

(13000 km)

or

12 months

12000 mi

(19000 km)

or

18 months

16000 mi

(25000 km)

or

24 months

Every 12500 mi (20000 km)

√√√√√

√√√√√

20000 mi

(31000 km)

or

30 months

6-6

PERIODIC MAINTENANCE AND MINOR REPAIR

NOTE:

The air filters and V-belt filter need more frequent service if you are riding in unusually wet or dusty areas.

●

Hydraulic brake service

●

After disassembling the brake master cylinders and calipers, always change the fluid. Regularly check the brake fluid

●

levels and fill the reservoirs as required.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake

●

fluid.
Replace the brake hoses every four years and if cracked or damaged.

●

EAU36370

2

3

4

5

6

7

8

6-7

9

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2

EAU18712

Removing and installing cowlings and panels

The cowlings and panels shown need

1

to be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time

2

a cowling or panel needs to be re­moved and installed.

3

1

4

5

6

6

7

1. Panel A

2. Cowling C

8

3. Cowling A

4. Cowling B

9

5. Panel B

6. Cowling E

2 3 4

1. Cowling D

Cowling A

To remove the cowling

5

1. Open the rider seat. (See
page 3-11.)

2. Remove the quick fasteners in the
rear storage compartment, and
then pull the cowling off as shown.

NOTE:

The quick fastener is removed by push­ing the center pin in with a screwdriver,
and then pulling the fastener out.

1

1. Quick fastener

2. Cowling A

EAU34282

To install the cowling

1. Place the cowling in the original
position, and then install the quick
fasteners.

NOTE:

To install the quick fastener, push the
center pin out so that it will protrude
from the fastener head, insert the fas­tener into the cowling, and then push
the protruding pin in until it is flush with
the fastener head.

2. Close the rider seat.

6-8

PERIODIC MAINTENANCE AND MINOR REPAIR

1

1

1

Cowling B

To remove the cowling

1. Remove the screws.

1. Cowling B

2. Screw

2. Remove the cowling as shown.

1. Cowling B

To install the cowling
Place the cowling in the original posi­tion, and then install the screws.

Cowlings C and D

To remove one of the cowlings

1

2

1. Remove cowlings A and B.

2. Remove the passenger seat. (See
page 3-11.)

3. Remove the grab bar by removing
the grab bar bolts and collars.

1

1

2

1

2

2

1. Screw access cover

5. Remove the screws, and then pull
the cowling off.

3

1

2

3

4

5

6

7

2

8

1. Grab bar bolt

1

2. Collar

3. Grab bar

4. Remove the screw access cover
by pulling it off.

1. Screw

To install the cowling

1. Place the cowling in the original
position, and then install the
screws.

9

6-9

PERIODIC MAINTENANCE AND MINOR REPAIR

1

1

1

1

2

3

2. Install the screw access cover by

4

placing it in its original position.

3. Install the grab bar by installing the
collars and grab bar bolts.

5

Tightening torque:

6

7

Grab bar bolt:

23 Nm (2.3 m·kgf, 16.6 ft·lbf)

4. Install the passenger seat.

5. Install cowlings A and B.

8

Cowling E

9

To remove the cowling

1. Pull up the left floorboard mats as
shown.

1

1. Left floorboard mat

2. Remove the cowling screws.

1

1. Screw

3. Pull the cowling down slightly, and
then pull it outward as shown.

6-10

1. Cowling E

To install the cowling

1. Insert the projections on the cowl­ing into the slots as shown, and
then install the screws.

1. Projection

2. Place the left floorboard mats in
the original position.

PERIODIC MAINTENANCE AND MINOR REPAIR

2

1

1

2

Panel A

To remove the panel

1. Remove the bolts.

1

1. Bolt

2. Panel A

2. Pull the panel out as shown.

2

EAU34290

To install the panel
Place the panel in the original position,
and then install the bolts.

Panel B

To remove the panel
Remove the screws, and then pull the
panel outward.

1. Panel B

2. Screw

To install the panel
Place the panel in the original position,
and then install the screws.

1. Screw

2. Panel B

2

3

4

5

6

7

8

9

6-11

PERIODIC MAINTENANCE AND MINOR REPAIR

1

EAU34172

Checking the spark plug

The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any

1

spark plug to slowly erode, the spark
plug should be removed and checked

2

in accordance with the periodic mainte­nance and lubrication chart. In addition,

3

the condition of the spark plug can re­veal the condition of the engine.

4

To remove the spark plug

1. Open the rider seat. (See

5

6

7

8

9

page 3-11.)

2. Pull up the storage compartment
mat, and then remove the spark
plug cover by removing the
screws.

2

3

1. Storage compartment mat

2. Spark plug cover

3. Screw

3. Remove the spark plug cap.

1

1. Spark plug cap

4. Remove the spark plug as shown,
with the spark plug wrench includ­ed in the owner’s tool kit.

1

1. Spark plug wrench

To check the spark plug

1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).

NOTE:

If the spark plug shows a distinctly dif­ferent color, the engine could be oper­ating improperly. Do not attempt to
diagnose such problems yourself. In­stead, have a Yamaha dealer check
the vehicle.

2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if

6-12

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2

necessary.

Specified spark plug:

NGK/CR7E

To install the spark plug

1. Measure the spark plug gap with a
wire thickness gauge and, if nec­essary, adjust the gap to specifica­tion.

1

1. Spark plug gap

Spark plug gap:

0.7–0.8 mm (0.028–0.031 in)

2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.

3. Install the spark plug with the
spark plug wrench, and then tight­en it to the specified torque.

Tightening torque:

Spark plug:

12.5 Nm (1.25 m·kgf, 9 ft·lbf)

NOTE:

If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci­fied torque as soon as possible.

4. Install the spark plug cap.

NOTE:

Make sure the spark plug wire is fas­tened in the clamp as shown.

1. Spark plug cap

2. Spark plug wire clamp

5. Install the spark plug cover by in­stalling the screws.

6. Place the storage compartment
mat in the original position.

7. Close the rider seat.

2

3

4

5

6

7

8

9

6-13

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2
3

1

Canister

1

2

3

4

This model is equipped with a canister
to prevent the discharging of fuel vapor
into the atmosphere. Before operating

5

this vehicle, make sure to check the fol­lowing:

6

●

Check each hose connection.

●

7

8

9

Check each hose and canister for
cracks or damage. Replace if
damaged.

●

Make sure that the canister breath­er is not blocked, and if necessary,
clean it.

EAU36110

EAU34182

Engine oil and oil filter element

The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele­ment replaced at the intervals specified
in the periodic maintenance and lubri­cation chart and when the oil change in­dicator comes on.

To check the engine oil level

1. Place the vehicle on the center­stand.

NOTE:

Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in a
false reading.

2. Start the engine, warm it up for
several minutes, and then turn it
off.

3. Wait a few minutes until the oil set­tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.

6-14

NOTE:

The engine oil should be between the
minimum and maximum level marks.

1. Engine oil filler cap

2. Maximum level mark

3. Minimum level mark

4. If the engine oil is below the mini­mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.

5. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.

To change the engine oil (with or

2

1

without oil filter element replace­ment)

1. Start the engine, warm it up for
several minutes, and then turn it
off.

2. Place an oil pan under the engine
to collect the used oil.

3. Remove the engine oil filler cap
and the engine oil drain bolt to
drain the oil from the crankcase.

1

PERIODIC MAINTENANCE AND MINOR REPAIR

2

1

1. Engine oil drain bolt

2. Washer

NOTE:

Skip steps 5–7 if the oil filter element is
not being replaced.

5. Remove the oil filter element cover
by removing the bolts.

1. Bolt

2. Oil filter element cover

6. Remove and replace the oil filter
element and O-rings.

2

3

4

5

6

7

1. Engine oil drain bolt

4. Check the washer for damage and
replace it if necessary.

8

9

6-15

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2

4

3

1

2

3

1. Oil filter element cover

2. O-ring

4

3. Compression spring

4. Oil filter element

5

CAUTION:

6

When removing the oil filter element
cover, the compression spring will
fall out. Take care not to lose the

7

compression spring.

7. Install the compression spring and

8

oil filter element cover by installing

9

the bolts, then tightening them to
the specified torque.

ECA12910

Tightening torque:

Oil filter element cover bolt:

10 Nm (1.0 m·kgf, 7.2 ft·lbf)

NOTE:

Make sure that the O-rings are properly
seated.

8. Install the washer and the engine
oil drain bolt, and then tighten the
drain bolt to the specified torque.

Tightening torque:

Engine oil drain bolt:

20 Nm (2.0 m·kgf, 14.5 ft·lbf)

NOTE:

Make sure that the washer is properly
seated.

9. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.

Recommended engine oil:

See page 8-1.

Oil quantity:

Without oil filter element replace­ment:

1.50 L (1.59 US qt) (1.32 Imp.qt)

With oil filter element replacement:

1.70 L (1.80 US qt) (1.50 Imp.qt)

NOTE:

Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys­tem have cooled down.

ECA11670

CAUTION:

●

Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

●

Be sure no foreign material en­ters the crankcase.

10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im­mediately turn the engine off and
check for the cause.

6-16

PERIODIC MAINTENANCE AND MINOR REPAIR

11. Reset the oil change indicator ac­cording to the following procedure.

To reset the oil change indicator

1. Turn the key to “ON”.

2. Hold the “OIL CHANGE” button
pushed for two to eight seconds.

1

1. “OIL CHANGE” button

3. Release the “OIL CHANGE” but­ton, and the oil change indicator
will go off.

NOTE:

If the engine oil is changed before the
oil change indicator comes on (i.e. be­fore the periodic oil change interval has
been reached), the indicator must be
reset after the oil change for the next
periodic oil change to be indicated at

the correct time. To reset the oil change
indicator before the periodic oil change
interval has been reached, follow the
above procedure, but note that the indi­cator will come on for 1.4 seconds after
releasing the “OIL CHANGE” button,
otherwise repeat the procedure.

EAU20061

Final transmission oil

The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis­sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.

1. Start the engine, warm up the final
transmission oil by riding the
scooter for several minutes, and
then stop the engine.

2. Place the scooter on the center­stand.

3. Place an oil pan under the final
transmission case to collect the
used oil.

4. Remove the oil filler cap and drain
bolt to drain the oil from the final
transmission case.

2

3

4

5

6

7

8

9

6-17

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2

2

3

1. Final transmission oil filler cap

2. Final transmission oil drain bolt

4

5. Install the final transmission oil

5

drain bolt, and then tighten it to the
specified torque.

6

7

Tightening torque:

Final transmission oil drain bolt:

20 Nm (2.0 m·kgf, 14.5 ft·lbf)

6. Add the specified amount of the

8

recommended final transmission
oil, and then install and tighten the

9

oil filler cap.

Recommended final transmission
oil:

See page 8-1.

Oil quantity:

0.25 L (0.26 US qt) (0.22 Imp.qt)

EWA11310

1

WARNING

●

Make sure that no foreign mate­rial enters the final transmission
case.

●

Make sure that no oil gets on the
tire or wheel.

Coolant

The coolant level should be checked
before each ride. In addition, the cool­ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.

7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.

To check the coolant level

1. Place the vehicle on a level sur-

EAU20070

EAU34192

face and hold it in an upright posi­tion.

NOTE:

The coolant level must be checked

●

on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-

●

tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.

2. Pull up the right floorboard mat as
shown.

6-18

PERIODIC MAINTENANCE AND MINOR REPAIR

1

1. Right floorboard mat

3. Remove the coolant reservoir cov­er by removing the screw.

2

1

1. Screw

2. Coolant reservoir cover

4. Check the coolant level in the cool­ant reservoir.

NOTE:

The coolant should be between the
minimum and maximum level marks.

5. If the coolant is at or below the
minimum level mark, open the
coolant reservoir cap, add coolant
to the maximum level mark, and
then close the coolant reservoir
cap.

2

1

3

1. Minimum level mark

2. Maximum level mark

3. Coolant reservoir cap

Coolant reservoir capacity (up to the
maximum level mark):

0.32 L (0.34 US qt) (0.28 Imp.qt)

ECA10471

CAUTION:

If coolant is not available, use

●

distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead

●

of coolant, replace it with cool­ant as soon as possible, other­wise the cooling system will not
be protected against frost and
corrosion.
If water has been added to the

●

coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness of
the coolant will be reduced.

EWA10380

WARNING

Never attempt to remove the radiator
cap when the engine is hot.

6. Install the coolant reservoir cover
by installing the screw.

7. Place the right floorboard mat in
the original position.

2

3

4

5

6

7

8

9

6-19

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2

1

1

3

3

1

1

2

3

1

2

3

4

5

6

NOTE:

The radiator fan is automatically

●

switched on or off according to the
coolant temperature in the radia­tor.
If the engine overheats, see page

●

6-40 for further instructions.

EAU34204

Air filter elements and check hoses and V-belt case air filter element

The air filter elements and the V-belt
case air filter element should be ser­viced at the intervals specified in the
periodic maintenance and lubrication
chart. Service all air filter elements
more frequently if you are riding in un­usually wet or dusty areas.

Replacing the air filter elements

1. Place the scooter on the center­stand.

NOTE:

Left

1. Screw

2. Air filter case cover

3. Rubber cap

Right

Continue as follows for each air filter el-

7

ement.

2. Remove the air filter case cover by

8

9

removing the rubber cap and
screws.

1. Screw

2. Air filter case cover

3. Rubber cap

3. Pull the air filter element out.

6-20

PERIODIC MAINTENANCE AND MINOR REPAIR

1

1

Left

1. Air filter element

Right

1

1. Air filter element

4. Insert a new air filter element into
the air filter case.

5. Install the air filter case cover by in­stalling the screws.

6. Install the rubber cap.

ECA12922

Left

CAUTION:

Make sure that each filter ele-

●

1

ment is properly seated in its
case.
Always replace both air filter el-

●

ements at the same time, other-

2

wise poor engine performance
or damage to the engine may re­sult.
The engine should never be op-

●

erated without the filter ele­ments installed, otherwise the
piston(s) and/or cylinder(s) may

1. Air filter check hose

Right

3

4

5

become excessively worn.

6

To clean the air filter check hoses

1. Check the hose at the bottom of

7

both air filter cases for accumulat­ed dirt or water.

1. Air filter check hose

8

9

2. If dirt or water is visible, remove
the hose, clean it, and then install
it.

6-21

PERIODIC MAINTENANCE AND MINOR REPAIR

Cleaning the V-belt case air filter el­ement

1. Remove cowling E. (See
page 6-8.)

1

2. Remove panel B. (See page 6-8.)

3. Remove the left air filter case cov-

2

er.

4. Remove the V-belt air filter case
cover by removing the screws.

3

1

4

2

5

1

6

1

7

1. Screw

2. V-belt air filter case cover

8

5. Remove the V-belt case air filter

9

element by removing the screws.

1

2

1. Screw

2. V-belt case air filter element

6. Lightly tap the V-belt case air filter
element to remove most of the
dust and dirt, and then blow out the
dirt with compressed air as shown.

necessary.

8. Install the V-belt case air filter ele­ment by installing the screws.

9. Install the V-belt air filter case cov­er by installing the screws.

1

CAUTION:

Make sure that the V-belt filter ele­ment is properly seated in its case.

10. Install the left air filter case cover.

11. Install the panel.

12. Install the cowling.

ECA12940

7. Check the V-belt case air filter ele­ment for damage and replace it if

6-22

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU21382

Checking the throttle cable
free play

1

1. Throttle cable free play

The throttle cable free play should mea­sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces­sary, have a Yamaha dealer adjust it.

EAU21401

Valve clearance

The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.

EAU21861

Tires

To maximize the performance, durabil­ity, and safe operation of your scooter,
note the following points regarding the
specified tires.

Tire air pressure

The tire air pressure should be checked
and, if necessary, adjusted before each
ride.

WARNING

The tire air pressure must be

●

checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-

●

justed in accordance with the
riding speed and with the total
weight of rider, passenger, car­go, and accessories approved
for this model.

EWA10500

2

3

4

5

6

7

8

9

6-23

PERIODIC MAINTENANCE AND MINOR REPAIR

Tire air pressure (measured on cold
tires):

0–90 kg (0–198 lb):

1

2

3

4

5

6

Front:

200 kPa (29 psi) (2.00 kgf/cm2)

Rear:

250 kPa (36 psi) (2.50 kgf/cm2)

90–196 kg (198–432 lb):

Front:

200 kPa (29 psi) (2.00 kgf/cm

Rear:

250 kPa (36 psi) (2.50 kgf/cm2)

Maximum load*:

196 kg (432 lb)

* Total weight of rider, passenger, car-

go and accessories

WARNING

Proper loading of your vehicle is im­portant for several characteristics of

7

your vehicle, such as handling,
braking, performance and safety. Do

8

not carry loosely packed items that
can shift. Securely pack your heavi­est items close to the center of the

9

vehicle, and distribute the weight
evenly from side to side. Properly
adjust the suspension for your load,
and check the condition and pres­sure of your tires. NEVER OVER-

2

)

EWA10510

LOAD YOUR VEHICLE. Make sure
that the total weight of the cargo, rid­er, passenger, and accessories
(cowling, saddlebags, etc. if ap­proved for this model) does not ex­ceed the maximum load of the
vehicle. Operation of an overloaded
vehicle could cause tire damage, an
accident, or even injury.

Tire inspection

2

1

1. Tire sidewall

2. Tire tread depth

3. Tire wear indicator

The tires must be checked before each
ride. If a tire tread shows crosswise
lines (minimum tread depth), if the tire
has a nail or glass fragments in it, or if

6-24

3

the sidewall is cracked, have a Yamaha
dealer replace the tire immediately.

Minimum tire tread depth (front and
rear):

1.0 mm (0.04 in)

NOTE:

The tire tread depth limits may differ
from country to country. Always comply
with the local regulations.

Tire information

This scooter is equipped with cast
wheels and tubeless tires with valves.

EWA10590

WARNING

Operating the scooter with exces­sively worn tires decrease riding
stability and can lead to loss of con­trol. Have excessively worn tires re­placed by a Yamaha dealer
immediately. Brakes, tires, and relat­ed wheel parts replacement should
be left to a Yamaha Service Techni­cian.

Front tire:

1

2

Size:

120/80-14M/C 58S

Manufacturer/model:

IRC/MB67
DUNLOP/D305FL

Rear tire:

Size:

150/70-13M/C 64S

Manufacturer/model:

IRC/MB67
DUNLOP/D305L

WARNING

It is dangerous to ride with a

●

worn-out tire. When a tire tread
begins to show crosswise lines,
have a Yamaha dealer replace
the tire immediately.
The replacement of all wheel-

●

and brake-related parts, includ­ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl­edge and experience.

EWA10580

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU21992

Cast wheels

To maximize the performance, durabil­ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.

●

The wheel rims should be checked
for cracks, bends, warpage or
damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.

●

The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han­dling characteristics, and a short­ened tire life.

●

Ride at moderate speeds after
changing a tire since the tire sur­face must first be “broken in” for it
to develop its optimal characteris­tics.

●

After repairing or replacing the rear
tire, tighten the valve stem nut and
locknut to the specified torques.

6-25

1. Valve stem nut

2. Valve stem locknut

Tightening torques:

Valve stem nut:

1.5 Nm (0.2 m·kgf, 1.1 ft·lbf)

Valve stem locknut:

3.0 Nm (0.3 m·kgf, 2.2 ft·lbf)

2

3

4

5

6

7

8

9

PERIODIC MAINTENANCE AND MINOR REPAIR

Accessories and replacement parts

1

2

3

4

5

6

7

8

9

WARNING

This vehicle is not designed to pull a
trailer or to be attached to a sidecar.
The accessories or replacement
parts you choose for your vehicle
should be designed specifically for
this model, and they must be se­curely mounted to maintain the in­herent stability of the original
design. Genuine Yamaha Parts and
Accessories are designed and test­ed to be compatible with your vehi­cle. Please consider Genuine
Yamaha Parts and Accessories be­fore making a purchase. Use of
non-Yamaha-approved accessories
or replacement parts may cause
loss of handling stability and riding
safety. Since Yamaha cannot con­trol the quality of accessories or
parts manufactured by other compa­nies, Yamaha cannot be held liable
for any consequences caused by
the use of items which have not

EAU22011

EWA10621

been approved by Yamaha.

EAU33453

Front and rear brake lever free play

Front

Rear

There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the

6-26

PERIODIC MAINTENANCE AND MINOR REPAIR

brake system.

EWA14211

WARNING

A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be­fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re­sult in loss of control and an acci­dent.

EAU33473

Adjusting the rear brake lock lever cable

2

1

(b)

(a)

1. Adjusting nut

2. Rear brake lock lever cable length

Rear brake lock lever cable adjustment
may be required if the rear brake lock
lever does not hold properly. When the
rear brake lock lever is not in use, the
rear brake lock lever cable length
should measure 45 mm to 47 mm (1.77
in to 1.85 in) at the rear brake caliper.
Periodically check the rear brake lock
lever cable length and, if necessary,
adjust it as follows.
To increase the rear brake lock lever
cable length, turn the adjusting nut at
the rear brake caliper in direction (a).

To decrease the rear brake lock lever
cable length, turn the adjusting nut in
direction (b).

EWA10650

WARNING

If proper adjustment cannot be ob­tained as described, have a Yamaha
dealer make this adjustment.

2

3

4

5

6

7

8

9

6-27

PERIODIC MAINTENANCE AND MINOR REPAIR

1

1

Checking the front and rear brake pads

The front and rear brake pads must be

1

checked for wear at the intervals spec­ified in the periodic maintenance and
lubrication chart.

2

Front brake pads

3

4

5

6

1

7

1. Wear indicator groove

8

Each front brake pad is provided with a
wear indicator groove, which allows

9

you to check the brake pad wear with­out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear

EAU22390

EAU22420

indicator groove has almost disap­peared, have a Yamaha dealer replace
the brake pads as a set.

EAU34210

Rear brake pads

Have a Yamaha dealer check each
rear brake pad for damage and mea­sure the lining thickness and if neces­sary, replace them as a set.

EAU22580

Checking the brake fluid level

Front brake

1. Minimum level mark

Rear brake

1. Minimum level mark

Insufficient brake fluid may allow air to

6-28

PERIODIC MAINTENANCE AND MINOR REPAIR

enter the brake system, possibly caus­ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:

●

When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.

●

Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor­mance.

Recommended brake fluid:

DOT 4

●

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.

●

Be careful that water does not en­ter the brake fluid reservoir when

refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.

●

Brake fluid may deteriorate paint­ed surfaces or plastic parts. Al­ways clean up spilled fluid
immediately.

●

As the brake pads wear, it is nor­mal for the brake fluid level to grad­ually go down. However, if the
brake fluid level goes down sud­denly, have a Yamaha dealer
check the cause.

EAU22730

Changing the brake fluid

Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte­nance and lubrication chart. In addition,
have the oil seals of the master cylin­ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.

●

Oil seals: Replace every two
years.

●

Brake hoses: Replace every four
years.

2

3

4

5

6

7

8

9

6-29

PERIODIC MAINTENANCE AND MINOR REPAIR

Checking and lubricating the cables

The operation of all control cables and

1

the condition of the cables should be
checked before each ride, and the ca­bles and cable ends should be lubricat-

2

ed if necessary. If a cable is damaged
or does not move smoothly, have a

3

Yamaha dealer check or replace it.

4

5

6

7

8

9

Recommended lubricant:

Yamaha Chain and Cable Lube or
engine oil SAE 10W-30

WARNING

Damage to the outer housing of ca­bles may result in internal rusting
and cause interference with cable
movement. Replace damaged ca­bles as soon as possible to prevent
unsafe conditions.

EAU23091

EWA10710

EAU23111

Checking and lubricating the throttle grip and cable

The operation of the throttle grip should
be checked before each ride. In addi­tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.

EAU23172

Lubricating the front and rear brake levers

The pivoting points of the front and rear
brake levers must be lubricated at the
intervals specified in the periodic main­tenance and lubrication chart.

Recommended lubricant:

Silicone grease

6-30

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU23211

Checking and lubricating the centerstand and sidestand

The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and met­al-to-metal contact surfaces should be
lubricated if necessary.

EWA10740

WARNING

If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re­pair it.

Recommended lubricant:

Lithium-soap-based grease (all-pur­pose grease)

EAU23271

Checking the front fork

The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main­tenance and lubrication chart.

To check the condition

EWA10750

WARNING

Securely support the vehicle so that
there is no danger of it falling over.

Check the inner tubes for scratches,
damage and excessive oil leakage.

To check the operation

1. Place the vehicle on a level sur­face and hold it in an upright posi­tion.

2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.

2

3

4

5

6

7

8

9

6-31

PERIODIC MAINTENANCE AND MINOR REPAIR

Checking the steering

Worn or loose steering bearings may
cause danger. Therefore, the operation

1

2

3

CAUTION:

4

If any damage is found or the front
fork does not operate smoothly,

5

have a Yamaha dealer check or re­pair it.

6

7

8

ECA10590

of the steering must be checked as fol­lows at the intervals specified in the pe­riodic maintenance and lubrication
chart.

1. Place a stand under the engine to
raise the front wheel off the
ground.

WARNING

Securely support the vehicle so that
there is no danger of it falling over.

2. Hold the lower ends of the front
fork legs and try to move them for­ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.

EAU23280

EWA10750

9

6-32

PERIODIC MAINTENANCE AND MINOR REPAIR

EAU23290

Checking the wheel bearings

The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica­tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.

EAU34221

Battery

1

1. Battery

The battery is located behind cowling
A. (See page 6-8.)
This model is equipped with a
sealed-type (MF) battery, which does
not require any maintenance. There is
no need to check the electrolyte or to
add distilled water.

WARNING

Electrolyte is poisonous and

●

dangerous since it contains sul­furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al­ways shield your eyes when

EWA10760

working near batteries. In case
of contact, administer the fol­lowing FIRST AID.

●

EXTERNAL: Flush with plenty
of water.

●

INTERNAL: Drink large quan­tities of water or milk and im­mediately call a physician.

●

EYES: Flush with water for 15
minutes and seek prompt
medical attention.

●

Batteries produce explosive hy­drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro­vide sufficient ventilation when
charging it in an enclosed
space.

●

KEEP THIS AND ALL BATTER­IES OUT OF THE REACH OF
CHILDREN.

To charge the battery

Have a Yamaha dealer charge the bat­tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional

2

3

4

5

6

7

8

9

6-33

PERIODIC MAINTENANCE AND MINOR REPAIR

electrical accessories.

To store the battery

1. If the vehicle will not be used for

1

more than one month, remove the
battery, fully charge it, and then

2

place it in a cool, dry place.

2. If the battery will be stored for more
than two months, check it at least

3

once a month and fully charge it if
necessary.

3. Fully charge the battery before in-

4

stallation.

4. After installation, make sure that

5

the battery leads are properly con­nected to the battery terminals.

6

CAUTION:

Always keep the battery

●

7

charged. Storing a discharged

8

9

battery can cause permanent
battery damage.
To charge a sealed-type (MF)

●

battery, a special (constant-volt­age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-

ECA10630

er, have a Yamaha dealer
charge your battery.

6-34

EAU34232

Replacing the fuses

The main fuse and the fuse box, which
contains the fuses for the individual cir­cuits, are located behind cowling A.
(See page 6-8.)
If a fuse is blown, replace it as follows.

1. Turn the key to “OFF” and turn off
the electrical circuit in question.

2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.

NOTE:

If the main fuse is blown, remove the
grab bar to access the main fuse. After
replacing the main fuse, install the grab
bar. (See page 6-8.)

2

1. Spare main fuse

2. Main fuse

1. Fuse box

2. Taillight fuse

PERIODIC MAINTENANCE AND MINOR REPAIR

Specified fuses:

1

7

2
3

1

4
5
6

1. Ignition fuse

2. Signaling system fuse

3. Headlight fuse

4. Radiator fan fuse

5. Backup fuse (for odometer and clock)

6. Fuel injection system fuse

7. Spare fuse

1

2

Main fuse:

40.0 A

Ignition fuse:

10.0 A

Signaling system fuse:

10.0 A

Headlight fuse:

20.0 A

Taillight fuse:

10.0 A

Radiator fan fuse:

10.0 A

Fuel injection system fuse:

10.0 A

Backup fuse:

10.0 A

ECA10640

CAUTION:

Do not use a fuse of a higher amper­age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.

3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.

4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

2

3

4

5

6

7

8

9

6-35

PERIODIC MAINTENANCE AND MINOR REPAIR

1

2

Replacing a headlight bulb

This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, have a Yamaha dealer replace it

1

and, if necessary, adjust the headlight
beam.

2

3

4

5

6

7

8

9

EAU34240

Tail/brake light

This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.

EAU24180

EAU36122

Replacing a front turn signal
light bulb

1. Place the scooter on the center­stand.

2. Remove panel A. (See page 6-8.)

3. Remove the windshield by remov­ing the screws.

1. Screw

2. Windshield

4. Remove the front turn signal light
unit by removing the screws.

6-36

PERIODIC MAINTENANCE AND MINOR REPAIR

1

1

2

1. Screw

2. Front turn signal light unit

5. Remove the socket (together with
the bulb) by turning it counter­clockwise.

1

clockwise.

7. Insert a new bulb into the socket,
push it in, and then turn it clock­wise until it stops.

8. Install the socket (together with the
bulb) by turning it clockwise.

9. Place the turn signal light unit in
the original position, and then in­stall the screws.

10. Install the windshield by installing
the screws.

11. Install panel A.

EAU34260

Replacing a rear turn signal light bulb

1. Place the scooter on the center­stand.

2. Remove cowling C for replacing
the left turn signal light bulb or
cowling D for replacing the right
turn signal light bulb. (See
page 6-8.)

3. Remove the socket (together with
the turn signal light bulb) by turning
it counterclockwise.

1. Turn signal light bulb socket

2

3

4

5

6

7

8

9

1. Turn signal light bulb socket

6. Remove the defective bulb by
pushing it in and turning it counter-

4. Remove the defective bulb by
pushing it in and turning it counter­clockwise.

5. Insert a new bulb into the socket,

6-37

PERIODIC MAINTENANCE AND MINOR REPAIR

1

push it in, and then turn it clock­wise until it stops.

6. Install the socket (together with the
bulb) by turning it clockwise.

1

7. Install the cowling removed.

2

3

4

5

6

7

8

9

EAU34270

Replacing the license plate light bulb

1. Remove cowling B. (See
page 6-8.)

2. Remove the license plate light cov­er and license plate light lens by
removing the screws.

1

2

3

1. License plate light lens

2. License plate light cover

3. Screw

3. Remove the defective bulb by
pushing it in and turning it counter­clockwise.

1. Bulb

4. Insert a new bulb into the socket,
push it in, and then turn it clock­wise until it stops.

5. Install the license plate light lens
and license plate light cover by in­stalling the screws.

6. Install the cowling.

6-38

EAU25880

Troubleshooting

Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur dur­ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your­self. However, should your scooter re­quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop­erly.
Use only genuine Yamaha replace­ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi­or, have a shorter service life and can
lead to expensive repair bills.

PERIODIC MAINTENANCE AND MINOR REPAIR

2

3

4

5

6

7

8

9

6-39

PERIODIC MAINTENANCE AND MINOR REPAIR

Troubleshooting charts

Starting problems or poor engine
performance

1

2

3

4

5

6

7

8

9

WARNING

Keep away open flames and do not smoke while checking or working on the fuel system.

1. Fuel

Check the fuel level in

There is enough fuel.

the fuel tank.

There is no fuel.

Check the compression.

Supply fuel.

The engine does not start.
Check the compression.

2. Compression

Operate the electric starter.

3. Ignition

Remove the spark plug
and check the electrodes.

4. Battery

Operate the electric starter.

There is compression.

There is no compression.

Wet

Dry

The engine turns over
quickly.

The engine turns over
slowly.

Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.

Have a Yamaha dealer check the vehicle.

Check the ignition.

Have a Yamaha dealer
check the vehicle.

The battery is good.

Check the battery lead connections,
and charge the battery if necessary.

Operate the electric starter.

The engine does not start.
Check the battery.

The engine does not start.
Have a Yamaha dealer
check the vehicle.

EAU42700

EWA10840

6-40

PERIODIC MAINTENANCE AND MINOR REPAIR

Engine overheating

EWAT1040

WARNING

●

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

●

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de­tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap
while turning it counterclockwise, and then remove the cap.

Wait until the
engine has cooled.

Check the coolant level in the
reservoir and radiator.

The coolant level is low.
Check the cooling system
for leakage.

The coolant level
is OK.

There is
leakage.

There is
no leakage.

Start the engine. If the engine overheats again, have a

Yamaha dealer check

Have a Yamaha dealer check

and repair the cooling system.

Add coolant. (See NOTE.)

and repair the cooling system.

NOTE:

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.

2

3

4

5

6

7

8

9

6-41

SCOOTER CARE AND STORAGE

Matte color caution

CAUTION:

Some models are equipped with

1

matte colored finished parts. Be
sure to consult a Yamaha dealer for

2

advice on what products to use be­fore cleaning the vehicle. Using a

3

brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage

4

their surface. Wax also should not
be applied to any matte colored fin-

5

ished parts.

6

7

8

9

EAU37833

ECA15192

EAU26091

Care

While the open design of a scooter re­veals the attractiveness of the technol­ogy, it also makes it more vulnerable.
Rust and corrosion can develop even if
high-quality components are used. A
rusty exhaust pipe may go unnoticed
on a car, however, it detracts from the
overall appearance of a scooter. Fre­quent and proper care does not only
comply with the terms of the warranty,
but it will also keep your scooter looking
good, extend its life and optimize its
performance.

Before cleaning

1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.

2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in­stalled.

3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-

7-1

ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and de­greaser off with water.

Cleaning

CAUTION:

Avoid using strong acidic wheel

●

cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af­fected area any longer than in­structed. Also, thoroughly rinse
the area off with water, immedi­ately dry it, and then apply a cor­rosion protection spray.
Improper cleaning can damage

●

plastic parts such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc. Use
only a soft, clean cloth or
sponge with mild detergent and
water to clean plastic.
Do not use any harsh chemical

●

products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive

ECA10781

SCOOTER CARE AND STORAGE

cleaning products, solvent or
thinner, fuel (gasoline), rust re­movers or inhibitors, brake flu­id, antifreeze or electrolyte.

●

Do not use high-pressure wash­ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar­eas: seals (of wheel and swing­arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

●

For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com­pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid­den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.

After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.

After riding in the rain, near the sea or
on salt-sprayed roads
Since sea salt or salt sprayed on the
roads during winter are extremely cor­rosive in combination with water, carry
out the following steps after each ride in
the rain, near the sea or on
salt-sprayed roads.

NOTE:

Salt sprayed on roads in the winter may
remain well into spring.

1. Clean the scooter with cold water
and a mild detergent after the en­gine has cooled down.

ECA10790

CAUTION:

Do not use warm water since it in­creases the corrosive action of the

7-2

salt.

2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.

After cleaning

1. Dry the scooter with a chamois or
an absorbing cloth.

2. Use a chrome polish to shine
chrome, aluminum and stain­less-steel parts, including the ex­haust system. (Even the thermally
induced discoloring of stain­less-steel exhaust systems can be
removed through polishing.)

3. To prevent corrosion, it is recom­mended to apply a corrosion pro­tection spray on all metal,
including chrome- and nickel-plat­ed, surfaces.

4. Use spray oil as a universal clean­er to remove any remaining dirt.

5. Touch up minor paint damage
caused by stones, etc.

6. Wax all painted surfaces.

7. Let the scooter dry completely be­fore storing or covering it.

2

3

4

5

6

7

8

9

SCOOTER CARE AND STORAGE

WARNING

●

Make sure that there is no oil or
wax on the brakes or tires. If

1

necessary, clean the brake
discs and brake linings with a

2

regular brake disc cleaner or ac­etone, and wash the tires with

3

4

warm water and a mild deter­gent.
Before operating the scooter

●

test its braking performance
and cornering behavior.

5

CAUTION:

Apply spray oil and wax spar-

●

6

ingly and make sure to wipe off

7

any excess.
Never apply oil or wax to any

●

rubber and plastic parts, but

8

treat them with a suitable care
product.
Avoid using abrasive polishing

●

9

compounds as they will wear
away the paint.

NOTE:

Consult a Yamaha dealer for advice on

EWA10940

ECA10800

what products to use.

EAU36560

Storage

Short-term

Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover.

CAUTION:

Storing the scooter in a poorly

●

ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.
To prevent corrosion, avoid

●

damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi­cals are stored.

Long-term

Before storing your scooter for several
months:

1. Follow all the instructions in the
“Care” section of this chapter.

2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the

ECA10820

7-3

SCOOTER CARE AND STORAGE

fuel from deteriorating.

3. Perform the following steps to pro­tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap

and spark plug.

b. Pour a teaspoonful of engine oil

into the spark plug bore.

c. Install the spark plug cap onto

the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark­ing during the next step.)

d. Turn the engine over several

times with the starter. (This will
coat the cylinder wall with oil.)

e. Remove the spark plug cap

from the spark plug, and then
install the spark plug and the
spark plug cap.

EWA10950

WARNING

To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.

pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.

5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna­tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.

6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.

7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex­cessively cold or warm place
[less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more in­formation on storing the battery,
see page 6-33.

NOTE:

Make any necessary repairs before
storing the scooter.

2

3

4

5

6

7

8

9

4. Lubricate all control cables and the

7-4

SPECIFICATIONS

Dimensions:

1

2

3

4

5

Weight:

6

Engine:

7

8

9

Overall length:

2230 mm (87.8 in)

Overall width:

780 mm (30.7 in)

Overall height:

1380 mm (54.3 in)

Seat height:

760 mm (29.9 in)

Wheelbase:

1565 mm (61.6 in)

Ground clearance:

120 mm (4.72 in)

Minimum turning radius:

2600 mm (102.4 in)

With oil and fuel:

212.0 kg (467 lb)

Engine type:

Liquid cooled 4-stroke, DOHC

Cylinder arrangement:

Forward-inclined single cylinder

Displacement:

395.0 cm

Bore × stroke:

83.0 × 73.0 mm (3.27 × 2.87 in)

Compression ratio:

10.60 :1

Starting system:

Electric starter

3

EAU2633K

Lubrication system:

Wet sump

Engine oil:

Type:

YAMALUBE 4, SAE10W30 or SAE20W40

0°

10° 30° 50° 70° 90°

YAMALUBE 4 (10W30)

or SAE 10W30

YAMALUBE 4 (20W40)
or SAE 20W40

–20°

–10° 0° 10° 20° 30°

Recommended engine oil grade:

API service SG type or higher, JASO stan­dard MA

110°

40°

130°F

50°C

Engine oil quantity:

Without oil filter element replacement:

1.50 L (1.59 US qt) (1.32 Imp.qt)

With oil filter element replacement:

1.70 L (1.80 US qt) (1.50 Imp.qt)

Final transmission oil:

Type:

YAMALUBE 4 (10W30) or SAE10W30 type
SE motor oil

Quantity:

0.25 L (0.26 US qt) (0.22 Imp.qt)

Cooling system:

Coolant reservoir capacity (up to the maxi­mum level mark):

0.32 L (0.34 US qt) (0.28 Imp.qt)

Radiator capacity (including all routes):

1.57 L (1.66 US qt) (1.38 Imp.qt)

Air filter:

Air filter element:

Oil-coated paper element

Fuel:

Recommended fuel:

Unleaded gasoline only

Fuel tank capacity:

14.0 L (3.70 US gal) (3.08 Imp.gal)

Fuel injection:

Throttle body:

Manufacturer:

AISAN

Spark plug (s):

Manufacturer/model:

NGK/CR7E

Spark plug gap:

0.7–0.8 mm (0.028–0.031 in)

Clutch:

Clutch type:

Dry, centrifugal automatic

Transmission:

Primary reduction system:

Helical gear

Primary reduction ratio:

31/14 (2.214)

Secondary reduction system:

Helical gear

Secondary reduction ratio:

42/16 (2.625)

Transmission type:

V-belt automatic

Operation:

Centrifugal automatic type

8-1

SPECIFICATIONS

Chassis:

Frame type:

Aluminum die-cast and steel tube back­bone

Caster angle:

27.00 °

Trail:

100.0 mm (3.94 in)

Front tire:

Type:

Tubeless

Size:

120/80-14M/C 58S

Manufacturer/model:

IRC/MB67

Manufacturer/model:

DUNLOP/D305FL

Rear tire:

Type:

Tubeless

Size:

150/70-13M/C 64S

Manufacturer/model:

IRC/MB67

Manufacturer/model:

DUNLOP/D305L

Loading:

Maximum load:

196 kg (432 lb)

* (Total weight of rider, passenger, cargo

and accessories)

Tire air pressure (measured on cold
tires):

Loading condition:

0–90 kg (0–198 lb)

Front:

200 kPa (29 psi) (2.00 kgf/cm2)

Rear:

250 kPa (36 psi) (2.50 kgf/cm2)

Loading condition:

90–196 kg (198–432 lb)

Front:

200 kPa (29 psi) (2.00 kgf/cm2)

Rear:

250 kPa (36 psi) (2.50 kgf/cm

2

)

Front wheel:

Wheel type:

Cast wheel

Rim size:

14 x MT3.00

Rear wheel:

Wheel type:

Cast wheel

Rim size:

13 x MT4.00

Front brake:

Type:

Single disc brake

Operation:

Right hand operation

Recommended fluid:

DOT 4

Rear brake:

Type:

Single disc brake

Operation:

Left hand operation

Recommended fluid:

DOT 4

Front suspension:

Type:

Telescopic fork

Spring/shock absorber type:

Coil spring/oil damper

Wheel travel:

120.0 mm (4.72 in)

Rear suspension:

Type:

Unit swing

Spring/shock absorber type:

Coil spring/oil damper

Wheel travel:

104.0 mm (4.09 in)

Electrical system:

Ignition system:

Transistorized coil ignition (digital)

Charging system:

AC magneto

Battery:

Model:

GT9B-4

Voltage, capacity:

12 V, 8.0 Ah

2

3

4

5

6

7

8

9

8-2

SPECIFICATIONS

Headlight:

Bulb type:

Halogen bulb

Bulb voltage, wattage × quantity:

1

2

3

4

5

6

7

8

9

Headlight:

12 V, 60 W/55.0 W × 2

Tail/brake light:

LED

Front turn signal/position light:

12 V, 21 W/5.0 W × 2

Rear turn signal light:

12 V, 21.0 W × 2

License plate light:

12 V, 5.0 W × 1

Meter lighting:

12 V, 2.0 W × 3

High beam indicator light:

12 V, 1.4 W × 1

Turn signal indicator light:

12 V, 1.4 W × 2

Engine trouble warning light:

12 V, 1.4 W × 1

Fuses:

Main fuse:

40.0 A

Headlight fuse:

20.0 A

Taillight fuse:

10.0 A

Signaling system fuse:

10.0 A

Ignition fuse:

10.0 A

Radiator fan fuse:

10.0 A

Fuel injection system fuse:

10.0 A

Backup fuse:

10.0 A

8-3

CONSUMER INFORMATION

1

EAU26351

Identification numbers

Record the key identification number,
vehicle identification number and mod­el label information in the spaces pro­vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi­cle is stolen.
KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION
NUMBER:

MODEL LABEL INFORMATION:

EAU26381

Key identification number

1

1. Key identification number

The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.

EAU26410

Vehicle identification number

1. Vehicle identification number

The vehicle identification number is
stamped into the frame.

NOTE:

The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.

2

3

4

5

6

7

8

9

9-1

CONSUMER INFORMATION

EAU26500

Model label

1

1

2

3

4

1. Model label

The model label is affixed to the inside

5

of the rear storage compartment. (See
page 3-13.) Record the information on

6

this label in the space provided. This in­formation will be needed when ordering
spare parts from a Yamaha dealer.

7

8

9

9-2

CONSUMER INFORMATION

EAU26551

Reporting safety defects

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Yamaha Motor Corporation,
U.S.A. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group
of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems
between you, your dealer, or Yamaha Motor Corporation, U.S.A.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also obtain
other information about motor vehicle safety from http://www.safercar.gov.

2

3

4

5

6

7

8

9-3

9

CONSUMER INFORMATION

Scooter noise regulation

TAMPERING WITH NOISE CONTROL SYSTEM PROHIBITED:

Federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person other
than for purposes of maintenance, repair, or replacement of any device or element of design incorporated into any new ve-

1

hicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use or (2) the use of
the vehicle after such device or element of design has been removed or rendered inoperative by any person.

2

“AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE THE ACTS LISTED BELOW.”
These acts include tampering with the following systems; i.e., modification, removal, etc.

3

4

5

6

7

8

Exhaust system

●

Muffler

●

Exhaust pipe

●

Silencer

Intake system

Air cleaner case

●

Air cleaner element

●

●

Intake duct

EAU26580

9

9-4

CONSUMER INFORMATION

EAU26632

Maintenance record

Copies of work orders and/or receipts for parts purchased and installed on your vehicle will be required to document that
maintenance has been completed in accordance with the emissions warranty. The chart below is printed only as a reminder
that maintenance work is required. It is not acceptable proof of maintenance work.

Maintenance

interval

600 mi

(1000 km) or

1 month
4000 mi

(7000 km) or

6 months

8000 mi

(13000 km) or

12 months

12000 mi

(19000 km) or

18 months

16000 mi

(25000 km) or

24 months

20000 mi

(31000 km) or

30 months

24000 mi

(37000 km) or

36 months

28000 mi

(43000 km) or

42 months

Date of

service

Mileage

Servicing dealer

name and address

Remarks

2

3

4

5

6

7

8

9

9-5

CONSUMER INFORMATION

Maintenance

interval

32000 mi

(49000 km) or

1

2

3

48 months

36000 mi

(55000 km) or

54 months

40000 mi

(61000 km) or

60 months

Date of

service

Mileage

Servicing dealer

name and address

Remarks

4

5

6

7

8

9

9-6

CONSUMER INFORMATION

YAMAHA MOTOR CORPORATION, U.S.A. STREET AND ENDURO MOTORCYCLE LIMITED WARRANTY

Yamaha Motor Corporation, U.S.A. hereby warrants that
new Yamaha motorcycles will be free from defects in
material and workmanship for the period of time stated
herein, subject to certain stated limitations.

THE PERIOD OF WARRANTY for Yamaha motorcycles
originally equipped with headlight, stoplight, and turn
signals shall be one (1) year from the date of purchase,
with no mileage limitation.

MODELS EXCLUDED FROM WARRANTY include
those used for non-Yamaha-authorized renting, leasing
or other commercial purposes, and TZ models.

DURING THE PERIOD OF WARRANTY, any authorized
Yamaha motorcycle dealer will, free of charge, repair or
replace any part adjudged defective by Yamaha due to
faulty workmanship or material from the factory. Parts used
in warranty repairs will be warranted for the balance of the
product’s warranty period. All parts replaced under
warranty become property of Yamaha Motor Corporation,
U.S.A.

GENERAL EXCLUSIONS from this warranty shall
include any failures caused by:

Competition or racing use.

a)

Installation of parts or accessories that are not

b)

qualitatively equivalent to genuine Yamaha parts.
Abnormal strain, neglect, or abuse.

c)

Lack of proper maintenance.

d)

Accident or collision damage.

e)

Modification to original parts.

f)

SPECIFIC EXCLUSIONS from this warranty shall
include parts replaced due to normal wear or routine
maintenance.

THE CUSTOMER’S RESPONSIBILITY under this
warranty shall be to:

1.

Operate and maintain the motorcycle as specified in
the appropriate Owner’s Manual, and

2.

Give notice to an authorized Yamaha motorcycle
dealer of any and all apparent defects within ten (10)
days after discovery, and make the machine available
at that time for inspection and repairs at such dealer’s
place of business.

WARRANTY TRANSFER: To transfer the warranty from
the original purchaser to any subsequent purchaser, it is
imperative that the machine be inspected and registered
for warranty by an authorized Yamaha motorcycle dealer.
In order for this warranty to remain in effect, this
inspection and registration must take place within ten
(10) days after transfer. An inspection and registration fee
will be charged for this service.

EMISSION CONTROL SYSTEM WARRANTY:

Yamaha Motor Corporation, U.S.A. also warrants to the
ultimate purchaser and each subsequent purchaser of
each Yamaha motorcycle covered by this warranty with a
displacement of 50cc or greater, that the vehicle is
designed, built, and equipped so as to conform at the
time of sale with all U.S. emissions standards applicable
at the time of manufacture and that it is free from defects
in materials and workmanship which would cause it not
to meet these standards within the period listed
immediately below. Failures other than those resulting
from defects in material or workmanship, which arise
solely as a result of owner abuse and/or lack of proper
maintenance, are not covered by this warranty.

Engine
Displacement

Under 50cc

50cc to 169cc

170cc to 279cc

280cc and over

YAMAHA MOTOR CORPORATION, U.S.A. MAKES NO
OTHER WARRANTY OF ANY KIND, EXPRESSED OR
IMPLIED. ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE WHICH EXCEED THE
OBLIGATIONS AND TIME LIMITS STATED IN THIS
WARRANTY ARE HEREBY DISCLAIMED BY YAMAHA
MOTOR CORPORATION, U.S.A. AND EXCLUDED
FROM THIS WARRANTY.

SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU. ALSO
EXCLUDED FROM THIS WARRANTY ARE ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES
INCLUDING LOSS OF USE. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.

or five years, whichever occurs first

or five years whichever occurs first

or five years, whichever occurs first

or five years, whichever occurs first

YAMAHA MOTOR CORPORATION, U.S.A.

6,000 km (3,750 miles)

12,000 km (7,465 miles)

18,000 km (11,185 miles)

30,000 km (18,641 miles)

Cypress, California 90630

P.O. Box 6555

EAU26663

Period

2

3

4

5

6

7

8

9

9-7

CONSUMER INFORMATION

WARRANTY QUESTIONS AND ANSWERS

Q.

What costs are my responsibility during the warranty period?

A.

The customer’s responsibility includes all costs of normal maintenance services,
non-warranty repairs, accident and collision damages, and oil, oil filters, air filters,
spark plugs, and brake shoes.

1

Q.

What are some examples of “abnormal” strain, neglect, or abuse?

A.

These terms are general and overlap each other in areas. Specific examples
include: Running the machine out of oil, sustained high rpm, full-throttle, operating

2

3

4

5

6

7

8

9

the machine with a broken or damaged part which causes another part to fail,
damage or failure due to improper or careless transportation and/or tie-down. If
you have any specific questions on operation or maintenance, please contact your
dealer for advice.

Q.

Does the warranty cover incidental costs such as towing or transportation due to
a failure?

A.

No. The warranty is limited to repair of the machine itself.

Q.

May I perform any or all of the recommended maintenance shown in the Owner’s
Manual instead of having the dealer do them?

A.

Yes, if you are a qualified mechanic and follow the procedures specified in the
Owner’s and Service Manual. We do recommend, however, that items requiring
special tools or equipment be done by a Yamaha motorcycle dealer.

Q.

Will the warranty be void or cancelled if I do not operate or maintain my new
motorcycle exactly as specified in the Owner’s Manual?

A.

No. The warranty on a new motorcycle cannot be “voided” or “cancelled.” However,

if a particular failure is caused by operation or maintenance other than as
described in the Owner’s Manual, that failure may not be covered under
warranty.

Q.

What responsibility does my dealer have under this warranty?

A.

Each Yamaha motorcycle dealer is expected to:

1.

Completely set up every new machine before sale.

2.

Explain the operation, maintenance, and warranty requirements to your
satisfaction at the time of sale, and upon your request at any later date.

3.

Each Yamaha motorcycle dealer is held responsible for his setup, service and
warranty repair work.

Q.

Is the warranty transferable to second owners?

A.

Yes. The remainder of the existing warranty can be transferred upon request. The
unit has to be inspected and re-registered by an authorized Yamaha motorcycle
dealer for the policy to remain effective.

If your machine requires warranty service, you must take it to any authorized Yamaha
motorcycle dealer within the continental United States. Be sure to bring your warranty
registration card or other valid proof of the original date of purchase. If a question or
problem arises regarding the warranty, first contact the owner of the dealership. Since
all warranty matters are handled at the dealer level, this person is in the best position to
help you. IF you are still not satisfied and require additional assistance, please write to:

When contacting Yamaha Motor Corporation, U.S.A., don’t forget to include any
important information such as names, addresses, model, V.I.N. (frame number),
dates, and receipts.

The federal government requires each manufacturer of a motor vehicle to maintain a
complete, up-to-date list of all first purchasers against the possibility of a safety­related defect and recall. This list is compiled from the purchase registrations sent to
Yamaha Motor Corporation, U.S.A. by the selling dealer at the time of your purchase.

If you should move after you have purchased your new motorcycle, please advise us
of your new address by sending a postcard listing your motorcycle model name, V.I.N.
(frame number), dealer number (or dealer’s name) as it is shown on your warranty
card, your name and new mailing address. Mail to:

This will ensure that Yamaha Motor Corporation, U.S.A. has an up-to-date registration
record in accordance with federal law.

CUSTOMER SERVICE

YAMAHA MOTOR CORPORATION, U.S.A.

CUSTOMER RELATIONS DEPARTMENT

YAMAHA MOTOR CORPORATION, U.S.A.

P.O. Box 6555

Cypress, California 90630

CHANGE OF ADDRESS

P.O. Box 6555

Cypress, California 90630

Attention: Warranty Department

9-8

YAMAHA EXTENDED SERVICE (Y.E.S.)

CONSUMER INFORMATION

EAU26750

Keep your Yamaha protected even after your warranty
expires with genuine Yamaha Extended Service (Y.E.S.).

Y.E.S. is designed and administered by Yamaha Motor
Corporation to provide maximum owner satisfaction. You
get uninterrupted factory-backed coverage for extra
peace of mind.

Y.E.S. is flexible. You choose the plan that’s right for
