Yamaha E25B, E30H User Manual

E25B’12 (69PC) E30H’12 (60BC) 25B’12 (69RC) 30H’12 (69SC)

1L69R-200S1

()

E25B/E30H

25B/30H

PARTS CATALOGUE

1st edition, October 2011

Any reprinting or unauthorized use

without the written permission of

Yamaha Motor Co., Ltd.

is expressly prohibited.

Printed in Japan.

E25B/E30H

25B/30H

CATALOGO DE REPUESTOS

1ª edición, octubre 2011

Toda reproducción o uso no autorizado

sin el consentimiento escrito de

Yamaha Motor Co., Ltd.

quedan expresamente prohibidos

Impreso en Japón.

FOREWORD

This Parts Catalogue is related to the parts for the model(s) on the cover page. When you are ordering replacement parts, please refer to this Parts Catalogue and quote both part numbers and part names correctly.

1. Modifications or additions which have been made after the issue of the Parts Catalogue will be announced in the Parts News. It is advisable that you make the necessary corrections to the Parts Catalogue according to the Parts News.

2. Abbreviations The following abbreviations are used in this Parts Catalogue.

“UR” Use specified parts number. “UN” Use as many as needed. “AP” Alternate Parts “LM” Locally Made (Parts need to be ordered locally) “F#” Frame No. (Applicable machine No.) “O/S” Over Size

3. The number of components for assembly

• Parts, which are to be supplied in an assembly, are listed with a dot (.) in front of the part name as shown below.

• The numeral appearing to the right of each component part indicates the quantity of parts for each assembly unit.

PART NO. DESCRIPTION Q’TY REMARKS

2F5–83310–60 FRONT FLASHER LIGHT ASSY 2

115–83311–60 .BULB (6V–18W) 1

4. Applicable colours of graphics are represented in the “REMARKS” as shown below.

PART NO. DESCRIPTION Q’TY REMARKS

2N4–24110–00–X5 FUEL TANK COMP. 2 MXR

3J1–24240–10 .GRAPHIC, FUEL TANK 1 FOR MXR

5. Note that the illustrations for reference in finding parts numbers are not to be used for assembling. When assembling, please use the applicable service manual.

6. The asterisk (*) before a reference number indicates modified items after the first edition.

7. Applicable Serial No.

Engine Serial No.

8. Applicable Engine Starting Serial No.

Model Serial No. Model Serial No.

E25B 61RK-1048683 25B 61RK-1048683

E30H 61TK-1059754 30H 61TK-1059754

9. Applicable Colour Code

Abbreviation Colour Name Colour Code

DBNM2 DARK BLUISH GRAY METALLIC 2 004D

10. Quantity Column Information

Column No. Name Of Q’ty Column Applicable Model

1 MH E25BMH,E30HMH,25BMH,30HMH

2WH 30HWH

3 W 25BW,30HW

4 WC 25BWC,30HWC

PROLOGO

Este catálogo de repuestos corresponde a las piezas para el o los modelos que figuran en la página de portada. Al formular el pedido de repuestos, se ruega citar este catálogo y especificar correctamente el número y el nombre de las piezas.

1. Las modificaciones y agregados que se hayan realizado después de la edición de este Catálogo de Repuestos, serán anunciados en las Informaciones de Recambios. Es recomendable que se hagan las correcciones necesarias en el Catálogo de Repuestos de acuerdo con las Informaciones de Recambios.

2. Abreviaciones En este. Catálogo de Repuestos se emplean las siguientes abreviaciones.

“UR” Usar el número de partes especificado “UN” Usar la cantidad necesaria “AP” Piezas sustitutivas “LM” Fabricación local (Hay que pedir los repuestos en las cercanías) “F#” Nº de bastidor (Nº aplicable a la máquina) “O/S” Sobredimensionado

3. La cantidad de componentes para el montaje

• Los componentes, suministrados como conjunto, se describen con un punto (.) que precede al nombre del parte como se indica a continuación.

• La numeración que aparece a la derecha de cada descripción indica la cantidad de partes por cada unidad de conjunto.

CODIGO Nº DESCRIPCION CANT. OBSERVACIONES

2F5–83310–60 ENSAMBLAJE DE LA LUZ 2

115–83311–60 .BOMBILLA (6V–18W) 1

6. EL asterisco (*) antes del número de referencia indica los elementos modificados después de la primera edición.

7. Números de serie

Nº de Serie del motor

8. Números de serie del motor

Modelo Nº de serie Modelo Nº de serie

E25B 61RK-1048683 25B 61RK-1048683

E30H 61TK-1059754 30H 61TK-1059754

9. Códigos de color aplicables

4. Los colores de los componentes se indican como sigue en la columna de “OBSERVACIONES”.

CODIGO Nº DESCRIPCION CANT. OBSERVACIONES

2N4–24110–00–X5 COMP. DEL TANQUE 2 MXR

3J1–24240–10 .GRAFICO, DEL TANQUE 1 PARA MXR

5. Debe tenerse en cuenta que las ilustraciones sirven como guia para la búsqueda de los números de partes y no deben usarse para el montaje. Durante el montaje, se recomienda usar el manual de taller correspondiente.

Abreviatura Nombre de color Código de color

DBNM2 DARK BLUISH GRAY METALLIC 2 004D

10. Informacion para la columna de cantidades

Columna Nº

1 MH E25BMH,E30HMH,25BMH,30HMH

2WH 30HWH

3 W 25BW,30HW

4 WC 25BWC,30HWC

Nombre de la columna de

cantidades

Modelo aplicable

TOP COWLING .....................................................................1

CYLINDER & CRANKCASE .................................................2

CRANKSHAFT & PISTON ....................................................4

INTAKE .................................................................................5

CARBURETOR .....................................................................6

FUEL .....................................................................................7

STARTER ..............................................................................9

GENERATOR ........................................................................ 11

ELECTRICAL 1 .....................................................................12

ELECTRICAL 2 .....................................................................14

ELECTRICAL 3 .....................................................................15

ELECTRICAL 4 .....................................................................17

STARTING MOTOR .............................................................. 19

BOTTOM COWLING ............................................................. 20

STEERING ............................................................................21

CONTROL 1 ..........................................................................22

CONTROL 2 ..........................................................................24

REMO CON ATTACHMENT .................................................25

BRACKET 1 ..........................................................................26

BRACKET 2 ..........................................................................28

UPPER CASING ...................................................................31

LOWER CASING & DRIVE 1 ................................................33

LOWER CASING & DRIVE 2 ................................................37

FUEL TANK ...........................................................................38

STEERING GUIDE ................................................................39

REMOTE CONTROL BOX ....................................................40

REMOTE CONTROL ASSY ..................................................41

OPTIONAL PARTS ...............................................................44

REPAIR KIT 1 .......................................................................46

REPAIR KIT 2 .......................................................................47

INDEX

NUMERICAL INDEX .............................................................49

CONTENTS

SOPORTE SUPERIOR ......................................................... 1

CYLINDRO & CARTER .........................................................2

CIGUENAL & PISTON ..........................................................4

ADMISION .............................................................................5

CARBURADOR .....................................................................6

COMBUSTIBLE ..................................................................... 7

ARRANQUE ..........................................................................9

GENERADOR ....................................................................... 11

EQUIPO ELECTRICO 1 ........................................................12

EQUIPO ELECTRICO 2 ........................................................14

EQUIPO ELECTRICO 3 ........................................................15

EQUIPO ELECTRICO 4 ........................................................17

MOTOR DE ARRANQUE ......................................................19

CUBIERTA INFERIOR ..........................................................20

DIRECCION ..........................................................................21

CONTROL 1 ..........................................................................22

CONTROL 2 ..........................................................................24

CONJUNTO ADITAMENTO ..................................................25

SOPORTE 1 ..........................................................................26

SOPORTE 2 ..........................................................................28

FUNDA SUPERIOR .............................................................. 31

IMPULSOR E INFERIOR 1 ................................................... 33

IMPULSOR E INFERIOR 2 ................................................... 37

DEPOSITO DE COMBUSTIBLE ...........................................38

DIRECCIONGUIAR ...............................................................39

CONTROL REMOTO COMPLETO .......................................40

CONTROL REMOTO COMPL .............................................. 41

PARTES OPCIONALES ........................................................ 44

ESTUCHE REPARATION 1 ..................................................46

ESTUCHE REPARATION 2 ..................................................47

INDICE

INDICE NUMERICO ..............................................................49

CONTENIDO

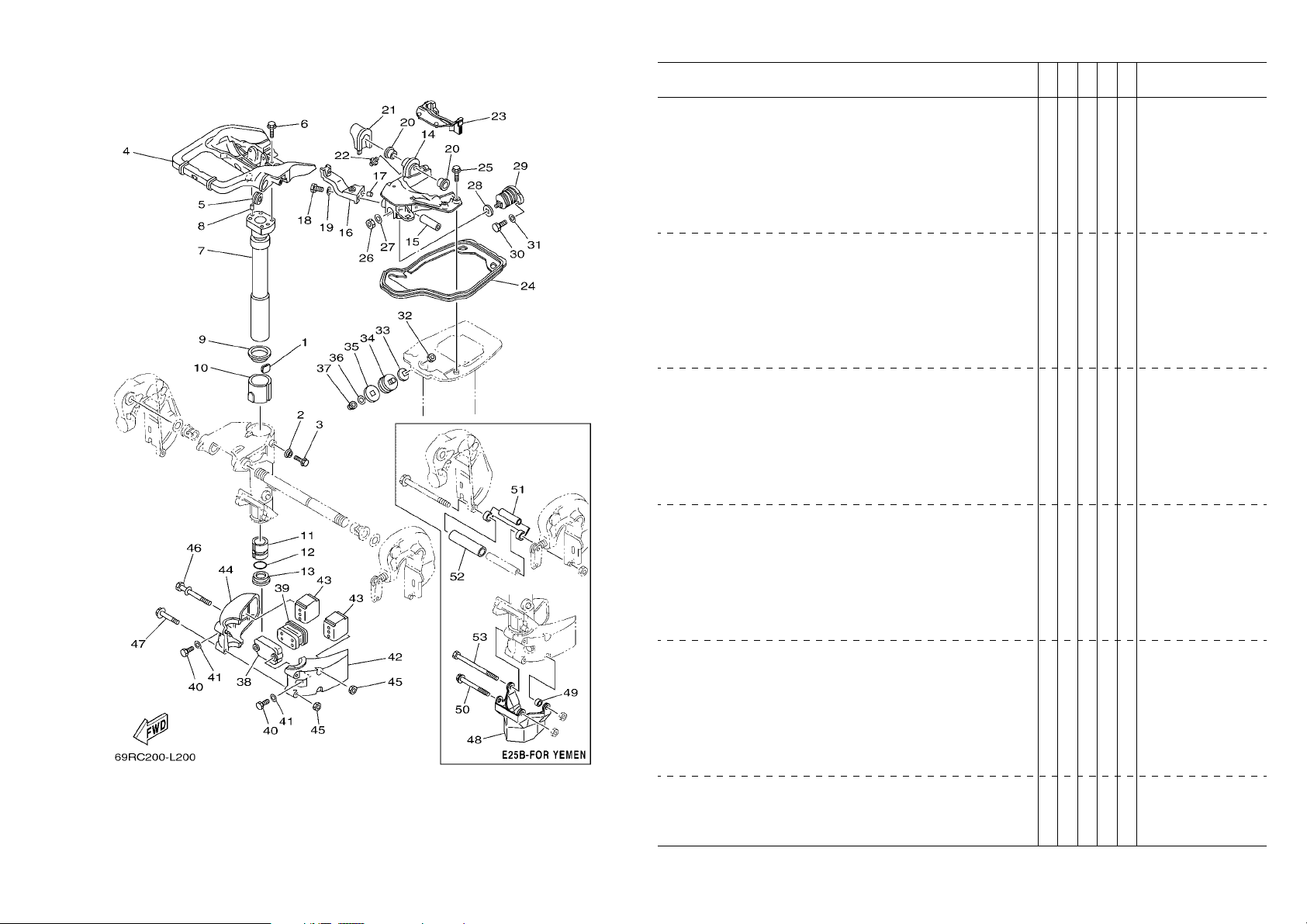

FIG. 1 TOP COWLING SOPORTE SUPERIOR

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

PART N O. CODIGO Nº

69R–42610–00

69S–42610–00

69P–42610–00

60B–42610–00

6G0–42615–00

689–42647–00

90266–04M01

6G0–42651–02

90266–04M00

69P–42613–00–4D

90179–06M24

90480–14M14

61N–42628–00

61R–W0070–40

61N–W0070–40

6L2–42678–40

61T–42678–40

6L2–42678–40

61T–42678–40

6E0–44191–11

61R–42681–00

DESCRIPTION DESCRIPCION

TOP COWLING ASSY SOPORTE SUPERIOR COMPL.

.SEAL .SELLO

.HOLDER, CLAMP BAND .MORDAZA DE ABRAZADERA

.RIVET .REMACHE

.HOOK .GANCHO

.RIVET .REMACHE

.MOLDING, AIR DUCT .MOLDURA CONDUCTO AIRE

.NUT .TUERCA

.GROMMET .TAPON

.SEAL .SELLO DE GOMA

.GRAPHIC SET .JUEGO DE EMBLEMA

.GRAPHIC, REAR .CALCAMONIA TRASERA

.INDICATOR, SHIFT .INDICADOR DE CAMBIOS

.MARK, COWLING .MARCA DE CUBIERTA

MHWHW

1 1 1 25B

1111 30H

1E25B

1E30H

1111

3333

1111

2222

1111

4444

1111

1 1 1 1 25B,30H

1E25B,E30H

1 1 1 E25B,25B

1111 E30H,30H

1 1 1 E25B,25B

1111 E30H,30H

1111

REMARKS OBSERVACIONES

WC

25B

30H

E25B

E30H

25B,30H

E25B,E30H

E25B,25B

E30H,30H

E25B,25B

E30H,30H

1

FIG. 2 CYLINDER & CRANKCASE CYLINDRO & CARTER

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

PART N O. CODIGO Nº

69P–W0090–00–1S

69S–W0090–00–1S

69P–15100–00

90119–08009

90119–08M65

93606–12019

689–15396–01–CA

93102–25008

93101–16001

93210–58M21

97095–06022

92995–06600

6J8–11325–00

6H3–11327–00–94

6H3–11328–00

97013–06016

92903–06600

689–11325–00

90151–06M02

61N–11111–01–1S

61T–11111–01–1S

676–11372–00

61N–11181–A2

61N–11191–01–1S

61T–11193–A1

90119–06MA2

90119–08015

DESCRIPTION DESCRIPCION

CRANK CYLINDER ASSY BLOQUE MOTOR COMPLETO

CRANKCASE ASSY CARTER COMPLETO

BOLT, WITH WASHER TORNILLO CON ARANDELA

PIN, DOWEL PASADOR DE CLAVIJA

HOUSING, OIL SEAL CAJA DE SELLO DE ACEITE

OIL SEAL SELLO ACEITE

O-RING ANILLO O

BOLT PERNO

WASHER ARANDELA

ANODE ANODO

COVER, ANODE CUBIERTA DE ANODO

GROMMET, ANODE TAPON

BOLT PERNO

WASHER, PLATE RONDANA SENCILLA

ANODE ANODO

SCREW, COUNTERSUNK TORNILLO EMBUTIDO

HEAD, CYLINDER 1 CULATA CILINDRO 1

.NIPPLE, HOSE .NIPLE DE MANGUERA

GASKET, CYLINDER HEAD 1 JUNTA, DE CULATA 1

COVER, CYLINDER HEAD 1 TAPA CULATA DE CILINDRO 1

GASKET, HEAD COVER 1 EMPAQUE

BOLT, WITH WASHER TORNILLO CON ARANDELA

MHWHW

1 1 1 E25B,25B

1111 E30H,30H

1111

2222

8888

2222

1111

2222

1111

1 1 1 E25B,25B

1111 E30H,30H

1111

2222

11 11 11 11

REMARKS OBSERVACIONES

WC

E25B,25B

E30H,30H

E25B,25B

E30H,30H

2

FIG. 2 CYLINDER & CRANKCASE CYLINDRO & CARTER

REF. NO.

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

PART N O. CODIGO Nº

6E5–12411–02

6E5–12412–00

90201–21567

655–12413–01–1S

655–12414–A1

90119–06MA2

6K8–41121–00–1S

6K8–41122–A1

61N–41123–01–1S

676–11372–00

90445–10M41

6K8–41124–A1

90119–06MA3

90119–06MA4

90119–06MA0

90201–50306

689–45113–A1

94702–00217

94702–00160

94702–00271

94702–00247

DESCRIPTION DESCRIPCION

THERMOSTAT TERMOSTAT

.SEAL, THERMOSTAT .SELLO TERMOSTATO

WASHER, PLATE ARANDELA PLANA

COVER, THERMOSTAT CUBIERTA TERMOSTATO

GASKET, COVER EMPAQUE

BOLT, WITH WASHER TORNILLO CON ARANDELA

INNER COVER,EXHAUST CUBIERTA INTERIOR DE ESCAPE

GASKET, EXHAUST INNER COVER EMPAQUE

OUTER COVER, EXHAUST CUBOERTA EXTERIOR DE ESCAPE

.NIPPLE, HOSE .NIPLE DE MANGUERA

HOSE (L105) TUBO (L105)

GASKET, EXHAUST OUTER COVER EMPAQUE

BOLT, WITH WASHER TORNILLO CON ARANDELA

WASHER, PLATE ARANDELA PLANA

GASKET, UPPER CASING EMPAQUE

PLUG, SPARK (NGK B7HS-10) BUJIA (NGK B7HS-10)

PLUG, SPARK (NGK B8HS-10) BUJIA (NGK B8HS-10)

PLUG, SPARK (NGK BR7HS-10) BUJIA (NGK BR7HS-10)

PLUG, SPARK (NGK BR8HS-10) BUJIA (NGK BR8HS-10)

MHWHW

1111

3333

1111

11 11 11 11

3333

1111

2 2 2 E25B,25B

2222 E30H,30H

2 E25B-FOR CAR

2 2 2 30H-FOR CAR,CHN

REMARKS OBSERVACIONES

WC

E25B,25B

E30H,30H

E25B-FOR CAR

30H-FOR CAR,CHN

3

FIG. 3 CRANKSHAFT & PISTON CIGUENAL & PISTON

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

PART N O. CODIGO Nº

69P–11400–00

69P–11412–00

61N–11422–00

61N–11432–00

61N–11442–00

93399–99951

93102–32M07

93210–46M16

93306–305U3

61N–11515–00

93440–62057

689–11651–00

689–11681–01

93310–62406

90209–24M03

90387–32002

93390–00009

61N–11631–00–95

61N–11635–00

61N–11636–00

61N–11603–00

61N–11604–00

61N–11605–00

689–11633–00

93602–20M02

688–11634–00

90201–20M27

DESCRIPTION DESCRIPCION

CRANKSHAFT ASSY CIGUENAL COMPLETO

.CRANK 1 .MANIVELA 1

.CRANK 2 .MANIVELA 2

.CRANK 3 .MANIVELA 3

.CRANK 4 .MANIVELA 4

.BEARING .COJINETE

..OIL SEAL ..SELLO ACEITE

.O-RING .ANILLO O

.BEARING .COJINETE

.SEAL, LABYRINTH 1 .SELLO LABERINTO 1

.CIRCLIP .SEGURO

.ROD, CONNECTING .BIELA

.PIN, CRANK 1 .PASADOR MANIVELA 1

.BEARING .COJINETE DE RODILLOS

.WASHER .ARANDELA DE SEPARACION

.COLLAR .ESPACIADOR

.BEARING .COJINETE DE RODILLOS

PISTON (STD) PISTON (NORMA)

PISTON (0.25MM O/S) PISTON (0.25MM O/S)

PISTON (0.50MM O/S) PISTON (0.50MM O/S)

PISTON RING SET (STD) JUEGO DE ANILLOS (NORMA)

PISTON RING SET (0.25MM O/S) JUEGO DE ANILLOS (0.25MM O/S)

PISTON RING SET (0.50MM O/S) JUEGO DE ANILLOS (0.50MM O/S)

PIN, PISTON PASADOR, PISTON

PIN, DOWEL PASADOR DE CLAVIJA

CLIP, PISTON PIN PRESILLA, BULON DE PISTON

WASHER, PLATE ARANDELA PLANA

MHWHW

1111

2222

4444

1111

2222

2222 AP

2222

2222 AP

2222

68 68 68 68

4444

REMARKS OBSERVACIONES

WC

AP

4

FIG. 4 INTAKE ADMISION

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

PART N O. CODIGO Nº

61N–13610–00

689–13610–01

689–W0004–00

648–13621–A1

61N–13641–01–1S

648–13645–A0

97013–06025

92903–06600

97513–06535

97013–06050

92903–06600

61N–14198–00

61N–14440–00

93210–40659

90119–06M94

90387–06M26

682–41271–01

689–41273–00

6J8–41274–00

689–41252–01

61N–41256–00

661–41262–02

91690–40048

90465–06M88

6AH–81994–40

6AG–81996–00

DESCRIPTION DESCRIPCION

REED VALVE ASSY VALVULA DE LAMINAS COMPLETA

.REED SET .JUEGO DE VALVULAS DE LENGUETA

GASKET, VALVE SEAT JUNTA, DE VALV.DE EMPAQUE

MANIFOLD, INTAKE 1 CONECTOR DE ADMISSION 1

GASKET, MANIFOLD 1 EMPAQUE

BOLT PERNO

WASHER, PLATE RONDANA SENCILLA

BOLT, WITH WASHER PERNO CON ARANDELA

BOLT PERNO

WASHER, PLATE RONDANA SENCILLA

GASKET EMPAQUE

SILENCER ASSY, INTAKE SILENCIADOR COMPL DE ADMISION

O-RING ANILLO O

BOLT, WITH WASHER TORNILLO CON ARANDELA

COLLAR ESPACIADOR

KNOB, CHOKE PERILLA AHOGADOR

GROMMET TAPON PROTECTOR

GROMMET 2 TAPON 2

LEVER, CHOKE 1 PALANCA AHOGADOR 1

ROD, CHOKE 1 VARILLA DE AHOGADOR

JOINT, CHOKE LEVER CONECTOR DE AHOGADOR

PIN, SPRING PASADOR DE RESORTE

CLAMP BRIDA

LABEL, SAFETY ETIQUETA DE SEGURIDAD

MARK MARCA

REMARKS

MHWHW

1 1 1 E25B,25B

1111 E30H,30H

1111

2222

7

666

111

1111

2222

1111

11

OBSERVACIONES

WC

E25B,25B

E30H,30H

5

FIG. 5 CARBURETOR CARBURADOR

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

PART N O. CODIGO Nº

69P–14301–00

69S–14301–00

61N–14381–00

61N–14392–00

6E5–14386–01

6L2–14385–00

97980–04110

6L2–14157–00

6L2–14399–00

61N–14341–00

61T–14341–00

61N–14343–65

6L2–14342–34

50M–14355–00

664–14321–01

97980–04112

677–14383–01

6L2–14398–00

98980–04006

646–14212–01

61N–14323–00

6L2–14384–00

61N–14212–00

97890–05006

62Y–14597–00

DESCRIPTION DESCRIPCION

CARBURETOR ASSY 1 CARBURADOR COMPLETO 1

.BODY, FLOAT CHAMBER .CUERPO DE CAMARA DE BOIA

.VALVE, NEEDLE .VALVULA DE AGUJA

.PIN, FLOAT .PASADOR DE BOIA

.FLOAT .BOIA

.SCREW, WITH WASHER .TORNILLO, CON ARANDELA

.COVER, MIXING .CUBIERTA DE MEZCLA

.GASKET .EMPAQUE

.NOZZLE, MAIN .BOQUILLA PRINCIPAL

.JET, MAIN (#130) .INYECTOR PRINCIPAL (#130)

.JET, PILOT (# 68) .ESPREA DE PILOTO (# 68)

.PLUG .TAPON

.SCREW, THROTTLE .TORNILLO DE OBTURADOR

.SCREW, WITH WASHER .TORNILLO, CON ARANDELA

.SCREW, DRAIN .TORNILLO DE DRENAJE

.GASKET .EMPAQUE

.SCREW, BIND .TORNILLO DE LIGAR

.SPRING, PILOT ADJUSTING .RESORTE DE AJUSTE DE PILOTO

.SCREW, AIR ADJUSTING .TORNILLO DE AJUSTE DE AIRE

.GASKET, FLOAT CHAMBER .EMPAQUE DE CAMARA DE BOIA

.SPRING, PILOT ADJUSTING .RESORTE DE AJUSTE DE PILOTO

.SCREW, PAN HEAD .TORNILLO

.WASHER .ARANDELA

REMARKS

MHWHW

1 1 1 E25B,25B

1111 E30H,30H

1111

2222

1111

1 1 1 FOR 69P-14301-00

1 1 1 1 FOR 69S-14301-00

1111

4444

1111

2222

1111

OBSERVACIONES

WC

E25B,25B

E30H,30H

FOR 69P-14301-00

FOR 69S-14301-00

6

FIG. 6 FUEL COMBUSTIBLE

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

6G1–24304–02

61N–24329–00

97095–06020

92995–06600

90445–09M75

90467–08004

61N–24560–00

61N–24563–00

61N–24521–00

93210–32738

95380–08600

61N–24566–01

97013–06014

689–24311–00

90467–08004

692–24410–00

6A0–24413–00

692–24411–00

648–24434–01

95380–03600

663–24411–00

648–24435–02

98503–05028

92990–05100

6A0–24421–01

6A0–14325–00

6A0–24412–02

DESCRIPTION DESCRIPCION

FUEL PIPE JOINT COMP. 1 CONECTOR MANGUERA COMBUST.1

SEAL SELLO

BOLT PERNO

WASHER ARANDELA

HOSE (L370) TUBO (L370)

CLIP PRESILLA

FILTER ASSY FILTRO COMPLETO

.ELEMENT, FILTER .ELEMENTO DEL FILTRO

.CUP, FILTER .COPA DE FILTRO

.O-RING .ANILLO O

NUT TUERCA

BRACKET, FILTER SOPORTE DEL FILTRO

BOLT PERNO

PIPE, FUEL 1 TUBO DE COMBUSTIBLE 1

CLIP PRESILLA

FUEL PUMP ASSY BOMBA DE COMBUSTIBLE COMPLETA

.BODY 2 .CUERPO 2

.DIAPHRAGM .DIAFRAGMA

.GASKET, BODY .EMPAQUE

.NUT .TUERCA

.DIAPHRAGM .DIAFRAGMA

.GASKET, BODY 2 .EMPAQUE

.SCREW, PAN HEAD .TORNILLO DE CABEZA DE CONO ACH

.WASHER, SPRING .ARANDELA PLANA

.VALVE, CHECK .VALVULA DE RETENCION

.SCREW, PAN HEAD .TORNILLO CABEZA REDONDA

.BODY 1 .CUERPO 1

MHWHW

1111

2222

1111

2222

1111

2222

1111

3333

2222

1111

WC

REMARKS OBSERVACIONES

7

FIG. 6 FUEL COMBUSTIBLE

REF. NO.

28

29

30

31

32

33

PART N O. CODIGO Nº

650–24431–A0

97095–06040

92995–06600

6A1–24311–00

90467–08004

656–W2810–02

DESCRIPTION DESCRIPCION

GASKET, FUEL PUMP 1 EMPAQUE BOMBA COMBUST 1

BOLT PERNO

WASHER ARANDELA

PIPE, FUEL 1 TUBO DE COMBUSTIBLE 1

CLIP PRESILLA

TOOL KIT JUEGO DE HERRAMIENTAS

MHWHW

1111

2222

1111

2222

1111

WC

REMARKS OBSERVACIONES

8

FIG. 7 STARTER ARRANQUE

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

61N–W1571–10

61N–15711–10

6G0–15714–01

6F5–15741–01

6F5–15713–01

61N–15715–00

61N–15734–00

6F5–15716–01

6G0–15754–00

97013–08030

6F5–15726–01

95303–08700

*

689–15755–01

6F5–15764–00

6F5–15739–00

6F5–15779–02

69S–15758–00

61N–15762–00

97095–06016

92995–06600

6A0–15789–00

97095–06035

92995–06600

99530–10014

97095–06035

92995–06600

DESCRIPTION DESCRIPCION

STARTER ASSY ARRANQUE COMPLETO

.CASE, STARTER .CAJA DE ARRANQUE

.DRUM, SHEAVE .TAMBOR ROLDANA

.PAWL, DRIVE .TRINQUETE DE TRACCION

.SPRING, STARTER .RESORTE DE ARRANQUE

.SPRING, FRICTION .RESORTE PLACA DE TRACCION

.SPRING, RETURN .RESORTE DE RETORNO

.PLATE, DRIVE .PLACA DE TRACCION

.BUSH 2 .BUJE 2

.BOLT .PERNO

.WASHER, FLAT .ARANDELA PLANA

.NUT .TUERCA

.WIRE (L:1900MM) .CABLE (L:1900MM)

.HANDLE, STARTER .MANIJA DE ARRANQUE

.COLLAR 1 .COLLAR 1

.WASHER, THRUST .ARANDELA DE EMPUJE AXIAL

.COVER .CUBIERTA

GUIDE, ROPE GUIA DE CUERDA

SEAL, RUBBER 2 SELLO DE GOMA 2

BOLT PERNO

WASHER ARANDELA

DAMPER AMORTIGUADOR

BOLT PERNO

WASHER ARANDELA

PIN, DOWEL PASADOR, DE ESPIGA

BOLT PERNO

WASHER ARANDELA

REMARKS

MHWHW

1111

1111 *1

1111

2222

1111

2222

OBSERVACIONES

WC

*1

9

FIG. 7 STARTER ARRANQUE

REF. NO.

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

PART N O. CODIGO Nº

95380–06600

6H7–15771–01–94

90119–06MA3

656–15772–00–94

61T–15772–01–94

90119–06MA3

90119–06MA4

90119–06025

6F5–15723–01

90105–08M10

61T–15770–00

656–15748–00

90501–10227

69P–15774–00

97095–06010

69P–15746–00

689–15747–70

90119–06M23

90387–06013

90206–05005

92903–05600

91490–16010

6AH–81995–40

DESCRIPTION DESCRIPCION

NUT, HEXAGON TUERCA

STAY 1 SOPORTE 1

BOLT, WITH WASHER TORNILLO CON ARANDELA

STAY 2 SOPORTE 2

BOLT, WITH WASHER TORNILLO CON ARANDELA

PULLEY, STARTER POLEA DE ARRANQUE

BOLT, FLANGE TORNILLO

CABLE COMP., STARTER STOP CABLECOMPL DE SEGURO ARRANQUE

PLUNGER, STARTER STOP EMBOLO SEGURO DE ARRANQUE

SPRING, COMPRESSION RESORTE DE COMPRESION

STAY 4 SOPORTE 4

BOLT PERNO

ARM BRAZO

LINK ESLABON

BOLT, WITH WASHER TORNILLO CON ARANDELA

COLLAR ESPACIADOR

WASHER, WAVE ARANDELA ONDULADA

WASHER, PLATE RONDANA SENCILLA

PIN. COTTER CHAVETA

LABEL, WARNING ETIQUETA DE PRECAUCION

MHWHW

2

1111

2222

1

2

1111

3333

1111

2222

3333

2222

1111

WC

111

222

REMARKS OBSERVACIONES

10

FIG. 8 GENERATOR GENERADOR

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

PART N O. CODIGO Nº

61N–85550–10

61T–85550–10

69P–85560–00

69P–85541–09

61N–81313–09

61N–85543–09

61N–85543–19

6E9–81328–70

97802–04006

6E9–85516–70

69P–85561–00

97607–04112

97607–06125

61N–85537–00

90280–05015

90179–16M05

90201–16M44

676–41611–00

676–41613–00

97980–05212

689–41612–01

97880–06010

DESCRIPTION DESCRIPCION

ROTOR ASSY ROTOR COMPLETO

BASE ASSY CONJUNTO BASE

.COIL, CHARGE .BOBINA DE CARGA

.COIL, LIGHTING 1 .BOBINA DE ILUMINACION 1

.COIL, PULSER .BOBINA DE PULSACION

.CLAMP .GRAMPA

.SCREW, PAN HEAD .TORNILLO

.GROMMET .ESPACIADOR

.BASE, MAGNETO .BASE DE MAGNETO

.SCREW,WITH WASHER .TORNILLO CAB CON PLANA C/ARAN

.COVER .CUBIERTA

KEY, WOODRUFF CUNA WOODRUFF

NUT TUERCA

WASHER, PLATE ARANDELA PLANA

RETAINER, MAGNETO BASE RETENEDOR BASE MAGNETO

PLATE, BASE FRICTION PLACA DE BASE DE FRICCION

SCREW, WITH WASHER TORNILLO, CON ARANDELA

RETAINER, MAGNETO BASE RETENEDOR BASE MAGNETO

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

MHWHW

1

1111

2222

1111

4444

1111

4444

1111

4444

WC

111

REMARKS OBSERVACIONES

11

FIG. 9 ELECTRICAL 1 EQUIPO ELECTRICO 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

PART N O. CODIGO Nº

61N–41615–00

61N–44194–01

61T–44194–01

97095–06010

92995–06600

61N–85542–00–94

61N–82317–00

90387–06119

90119–06M95

90201–06M30

61N–82519–01

97090–06012

92990–06100

61N–85540–13

97095–06020

92995–06600

97090–06012

92990–06100

6H3–81922–00

90465–13M11

61N–85570–00

6H5–85570–00

97095–06020

92995–06600

97090–06012

92990–06100

61N–85570–10

DESCRIPTION DESCRIPCION

STOPPER, MAGNETO BASE RETENEDOR, BASE MAGNETO

CAP TA PA

BOLT PERNO

WASHER ARANDELA

BRACKET SOPORTE

DAMPER, IGNITION COIL AMORTIGUADOR BOBINA ENCENDIDO

COLLAR ESPACIADOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

WASHER, PLATE ARANDELA PLANA

WIRE, EARTH LEAD CABLE CONDUCTOR A TIERRA

BOLT PERNO

WASHER, SPRING ARANDELA PLANA

C.D.I. UNIT ASSY UNIDAD C.D.I. COMPLETA

BOLT PERNO

WASHER ARANDELA

BOLT PERNO

WASHER, SPRING ARANDELA PLANA

GROMMET TAPON PROTECTOR

CLAMP BRIDA

IGNITION COIL ASSY BOBINA DE IGNICION COMPLETO

BOLT PERNO

WASHER ARANDELA

BOLT PERNO

WASHER, SPRING ARANDELA PLANA

IGNITION COIL ASSY BOBINA DE IGNICION COMPLETO

MHWHW

1111

1 1 1 E25B,25B

1111 E30H,30H

2222

1111

4444

2222

1111

2222

1111

1 30H-FOR CAR

1111

REMARKS OBSERVACIONES

WC

E25B,25B

E30H,30H

30H-FOR CAR

12

FIG. 9 ELECTRICAL 1 EQUIPO ELECTRICO 1

REF. NO.

25

26

27

28

29

PART N O. CODIGO Nº

61N–85570–00

90480–25161

97095–06020

92995–06600

663–82370–01

66T–82370–00

6G1–82370–21

DESCRIPTION DESCRIPCION

IGNITION COIL ASSY BOBINA DE IGNICION COMPLETO

GROMMET TAPON

BOLT PERNO

WASHER ARANDELA

PLUG CAP ASSY TAPON DE BUJIA COMPLT

MHWHW

1 30H-FOR CAR

2222

1111

2 2 2 2 25B,30H

2E25B,E30H

2 E25B,30H-FOR CAR

REMARKS OBSERVACIONES

WC

30H-FOR CAR

25B,30H

E25B,E30H

E25B,30H-FOR CAR

13

FIG. 10 ELECTRICAL 2 EQUIPO ELECTRICO 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

PART N O. CODIGO Nº

90480–17M08

689–81971–00

6G1–81941–10

6G1–81952–00

61T–81945–01

689–82531–02

664–81970–62

97880–05025

92990–05600

97090–06012

92990–06100

682–82150–10

663–82151–00

689–82540–01

90446–10M02

689–81870–00

689–82105–13

689–82594–00

682–42525–00

90161–06M00

DESCRIPTION DESCRIPCION

GROMMET TAPON

WIRE, LEAD CABLE CONDUCTOR

STARTER RELAY ASSY RELE DE ARRANQUE

HOLDER, RELAY SOSTEN DE RELE

PLATE, SWITCH FITTING PLACA ACCESORIA DE INTERRUP.

WIRE, LEAD CABLE CONDUCTOR

RECTIFIER ASSY RECTIFICADOR COMPLETO

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

WASHER, PLATE ARANDELA PLANA

BOLT PERNO

WASHER, SPRING ARANDELA PLANA

FUSE HOLDER ASSY PORTA-FUSIBLES COMPLETO

.FUSE (12V-20A) .FUSIBLE (12V-20A)

NEUTRAL SWITCH ASSY INTERRUPTOR NEUTRAL COMPL

HOSE TUBO RESEIRADERO

STARTING SWITCH ASSY INTERRUPTOR DE ARRANQUE COMPL.

WIRE HARNESS ARNES DE CABLES

CLAMP GRAMPA

PLATE, FRICTION PLACA DE FRICCION

SCREW, TAPPING TORNILLO DE CABEZA PLANA

MHWHW

3

1

REMARKS OBSERVACIONES

WC

14

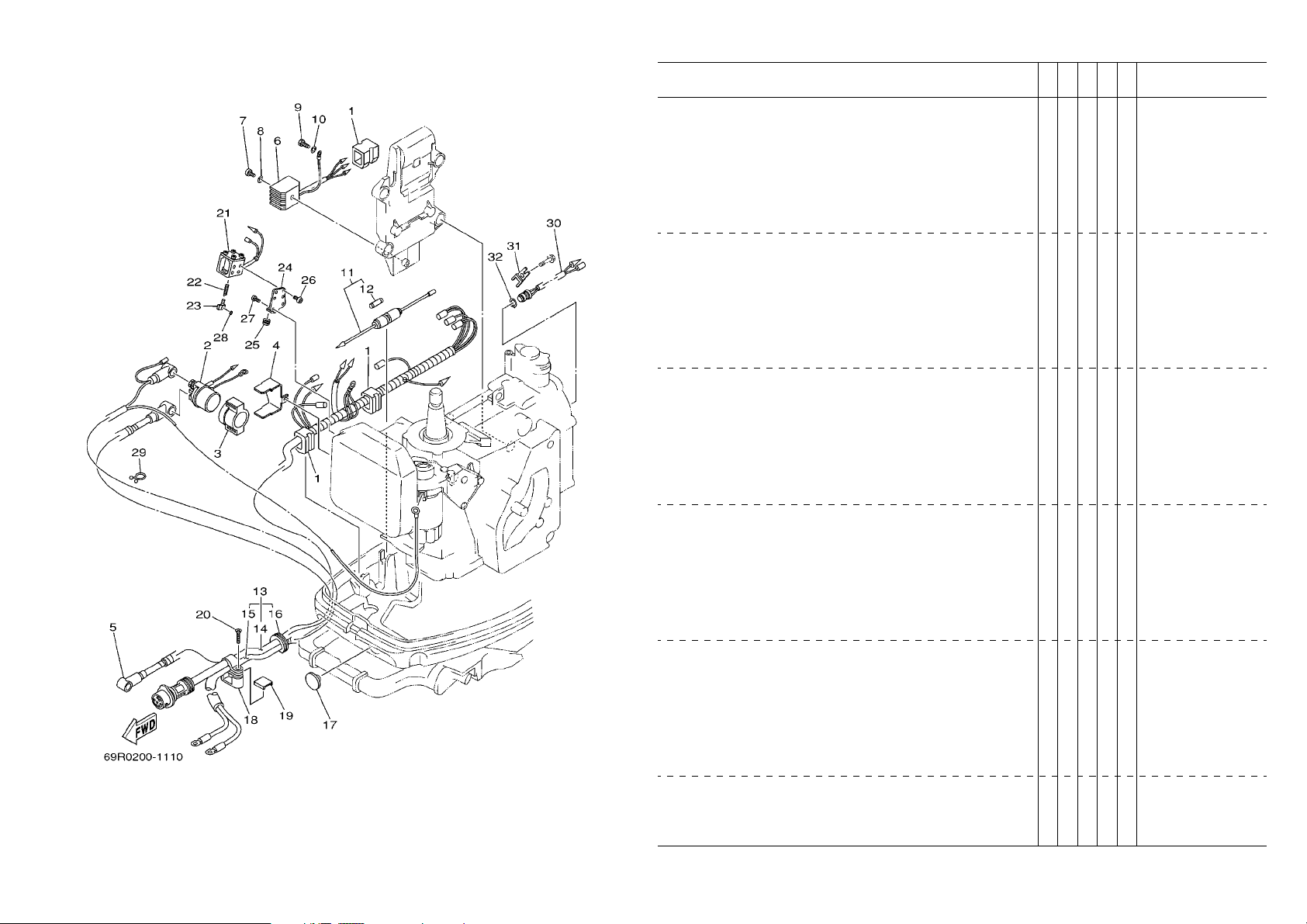

FIG. 11 ELECTRICAL 3 EQUIPO ELECTRICO 3

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

90480–17M08

6G1–81941–10

6G1–81952–00

61T–81945–01

689–82531–02

664–81970–62

97880–05025

92990–05600

97090–06012

92990–06100

682–82150–10

663–82151–00

61T–82580–00

61T–82590–00

689–82105–13

689–42724–50

90480–17165

689–82594–10

682–42525–00

90161–06M00

61T–86111–00

682–86116–00

682–86117–00

61T–86112–00

90480–10155

98503–04006

97880–05012

DESCRIPTION DESCRIPCION

GROMMET TAPON

STARTER RELAY ASSY RELE DE ARRANQUE

HOLDER, RELAY SOSTEN DE RELE

PLATE, SWITCH FITTING PLACA ACCESORIA DE INTERRUP.

WIRE, LEAD CABLE CONDUCTOR

RECTIFIER ASSY RECTIFICADOR COMPLETO

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

WASHER, PLATE ARANDELA PLANA

BOLT PERNO

WASHER, SPRING ARANDELA PLANA

FUSE HOLDER ASSY PORTA-FUSIBLES COMPLETO

.FUSE (12V-20A) .FUSIBLE (12V-20A)

WIRE HARNESS ASSY 2 CONJUNTO DE CABLES 2

.WIRE HARNESS ASSY .CONJUNTO DE CABLES

.WIRE HARNESS .ARNES DE CABLES

.GROMMET .TAPON

GROMMET TAPON

CLAMP GRAMPA

PLATE, FRICTION PLACA DE FRICCION

SCREW, TAPPING TORNILLO DE CABEZA PLANA

COIL, SOLENOID CONJUNTO BOBINA SOLENOIDE

WIRE, PULL ALAMBRE-JALADOR

HOOK, WIRE PULL GANCHO JALADOR DE ALAMBRE

STAY, SOLENOID SOPORTE SOLENOIDE

GROMMET TAPON

SCREW, PAN HEAD TORNILLO DE CABEZA DE CONO ACH

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

MHWHW

3

1

4

2

REMARKS OBSERVACIONES

WC

15

FIG. 11 ELECTRICAL 3 EQUIPO ELECTRICO 3

REF. NO.

28

29

30

31

32

PART N O. CODIGO Nº

93210–03261

90465–18147

61T–82560–00

61T–82588–00

99009–17500

DESCRIPTION DESCRIPCION

O-RING ANILLO O

CLAMP BRIDA

THERMO SWITCH ASSY INTER. DE TERMO

PLATE PLACA

CIRCLIP PRESILLA REDONDA

MHWHW

1

REMARKS OBSERVACIONES

WC

16

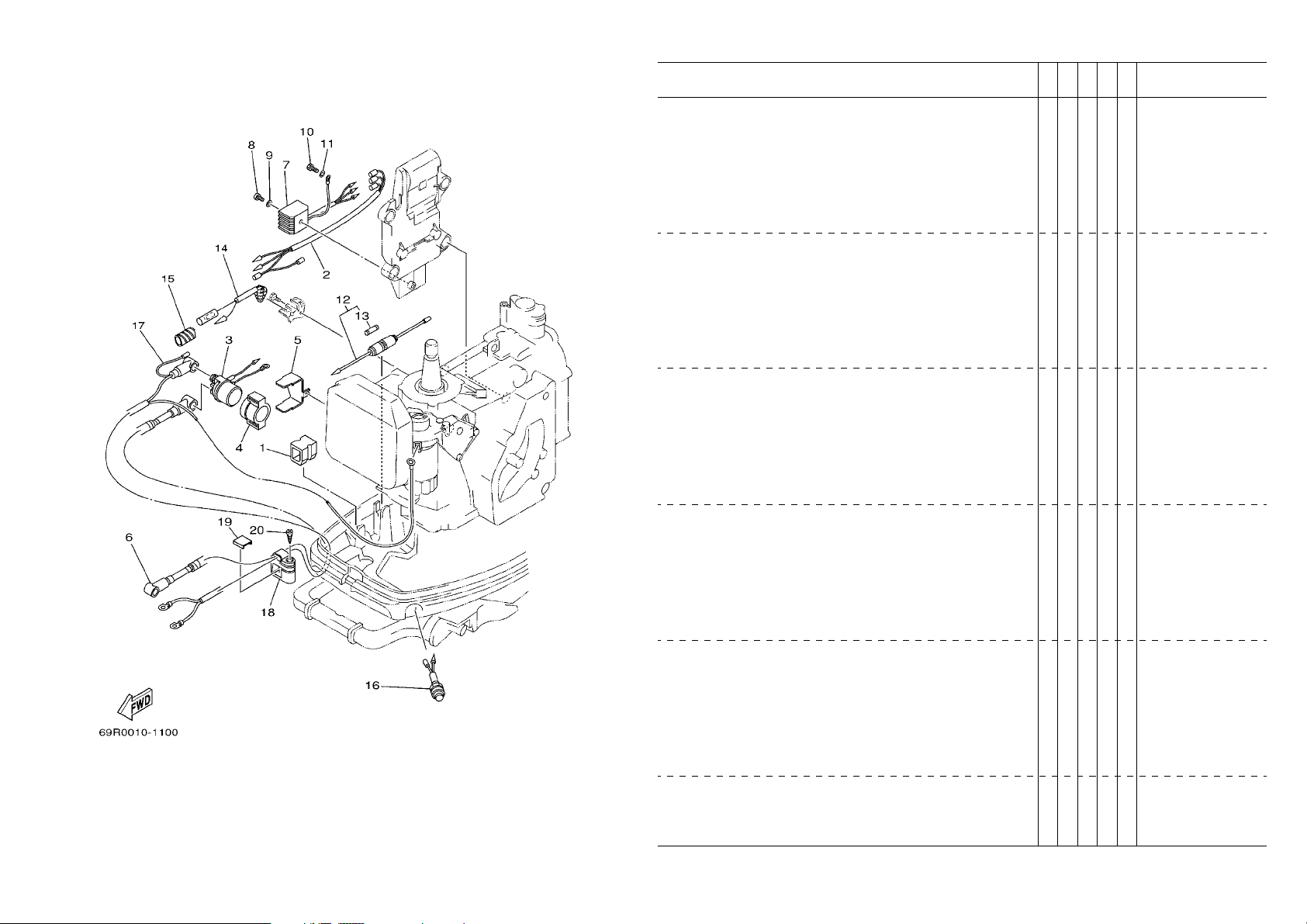

FIG. 12 ELECTRICAL 4 EQUIPO ELECTRICO 4

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

90480–17M08

6G1–81941–10

6G1–81952–00

61T–81945–01

689–82531–02

664–81970–62

97880–05025

92990–05600

97090–06012

92990–06100

682–82150–10

663–82151–00

61T–82580–00

61T–82590–00

689–82105–13

689–42724–50

90480–17165

689–82594–10

682–42525–00

90161–06M00

61T–86111–00

682–86116–00

682–86117–00

61T–86112–00

90480–10155

98503–04006

97880–05012

DESCRIPTION DESCRIPCION

GROMMET TAPON

STARTER RELAY ASSY RELE DE ARRANQUE

HOLDER, RELAY SOSTEN DE RELE

PLATE, SWITCH FITTING PLACA ACCESORIA DE INTERRUP.

WIRE, LEAD CABLE CONDUCTOR

RECTIFIER ASSY RECTIFICADOR COMPLETO

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

WASHER, PLATE ARANDELA PLANA

BOLT PERNO

WASHER, SPRING ARANDELA PLANA

FUSE HOLDER ASSY PORTA-FUSIBLES COMPLETO

.FUSE (12V-20A) .FUSIBLE (12V-20A)

WIRE HARNESS ASSY 2 CONJUNTO DE CABLES 2

.WIRE HARNESS ASSY .CONJUNTO DE CABLES

.WIRE HARNESS .ARNES DE CABLES

.GROMMET .TAPON

GROMMET TAPON

CLAMP GRAMPA

PLATE, FRICTION PLACA DE FRICCION

SCREW, TAPPING TORNILLO DE CABEZA PLANA

COIL, SOLENOID CONJUNTO BOBINA SOLENOIDE

WIRE, PULL ALAMBRE-JALADOR

HOOK, WIRE PULL GANCHO JALADOR DE ALAMBRE

STAY, SOLENOID SOPORTE SOLENOIDE

GROMMET TAPON

SCREW, PAN HEAD TORNILLO DE CABEZA DE CONO ACH

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

MHWHW

REMARKS OBSERVACIONES

WC

3

1

4

2

17

FIG. 12 ELECTRICAL 4 EQUIPO ELECTRICO 4

REF. NO.

28

29

30

31

32

33

34

PART N O. CODIGO Nº

93210–03261

90465–18147

689–82540–01

90446–10M02

61T–82560–00

61T–82588–00

99009–17500

DESCRIPTION DESCRIPCION

O-RING ANILLO O

CLAMP BRIDA

NEUTRAL SWITCH ASSY INTERRUPTOR NEUTRAL COMPL

HOSE TUBO RESEIRADERO

THERMO SWITCH ASSY INTER. DE TERMO

PLATE PLACA

CIRCLIP PRESILLA REDONDA

MHWHW

REMARKS OBSERVACIONES

WC

1

18

FIG. 13 STARTING MOTOR MOTOR DE ARRANQUE

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

PART N O. CODIGO Nº

689–81800–13

689–81857–11

689–81807–12

689–81830–11

689–81831–00

689–81847–11

689–81809–11

689–81850–12

689–81810–11

689–81840–11

689–81812–11

689–81811–11

689–81813–10

689–81820–11

689–81826–10

97013–08030

92903–08600

97013–08012

92903–08600

DESCRIPTION DESCRIPCION

STARTING MOTOR ASSY MOTOR DE ARRANQUE COMPLETO

.PINION STOPPER SET .JUEGO TAPON PINON

.GEAR ASSY, STARTING MOTOR .PINON CONJUNTO

.FRONT BRACKET ASSY .SOPORTE DELANTERO COMPLETO

..METAL, FRONT ..METAL, DELANTERO

.O-RING .ANILLO GOMA

.WASHER KIT .JUEGO DE ARANDELA

.ARMATURE ASSY .INDUCIDO COMPLETO

.STATOR ASSY .ESTATOR COMPLETO

.BRUSH HOLDER ASSY .SOSTEN DE ESCOBILLA COMPLETO

..BRUSH 2 ..ESCOBILLA 2

..BRUSH 1 ..ESCOBILLA 1

..SPRING, BRUSH ..RESORTE DE ESCOBILLA

.REAR BRACKET ASSY .CUBIERTA TRASERA COMPL

.BOLT .PERNO

BOLT PERNO

WASHER, PLATE RONDANA SENCILLA

BOLT PERNO

WASHER, PLATE RONDANA SENCILLA

MHWHW

111

222

111

222

111

222

111

REMARKS OBSERVACIONES

WC

19

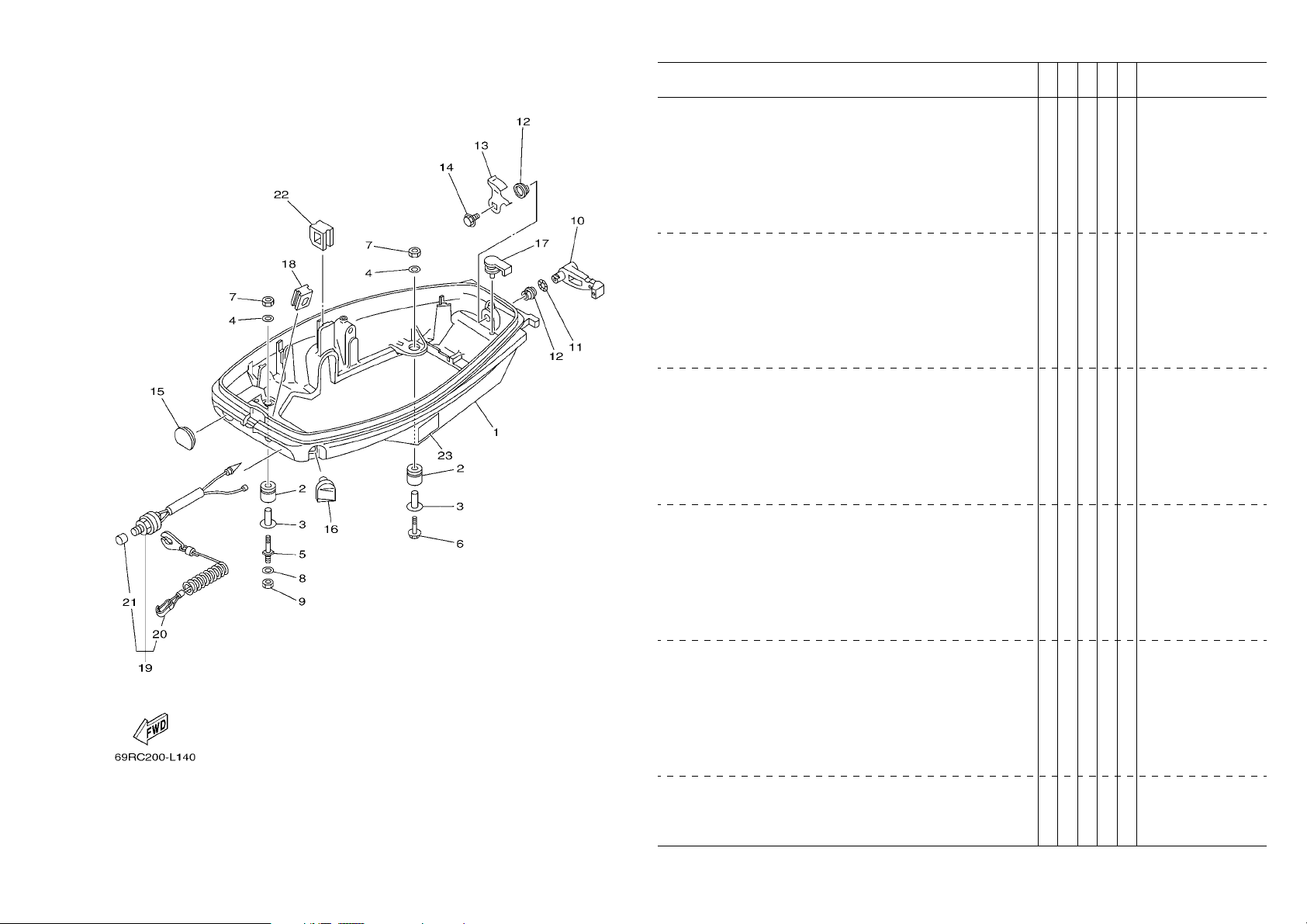

FIG. 14 BOTTOM COWLING CUBIERTA INFERIOR

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

PART N O. CODIGO Nº

689–42711–04–4D

90480–15M06

90387–08M25

90201–08M87

6G0–42796–00

97585–08540

95380–08700

92990–08600

95380–08700

689–42815–00

90206–12052

90386–12069

689–42816–00

90119–06M73

682–42724–00

61T–42724–40

689–42725–01

647–42523–00

61N–26326–00

676–42724–40

6E9–82575–02

682–82556–00

689–8257Y–00

90480–17M08

6AH–42794–40

DESCRIPTION DESCRIPCION

COWLING, BOTTOM 1 CUBIERTA INFERIOR 1

GROMMET TAPON

COLLAR ESPACIADOR

WASHER, PLATE ARANDELA PLANA

BOLT 1 TORNILLO

BOLT, WITH WASHER PERNO CON ARANDELA

NUT TUERCA

WASHER, PLATE ARANDELA PLANA

NUT TUERCA

LEVER, CLAMP PALANCA ABRAZADERA

WASHER, WAVE ARANDELA ONDULADA

BUSH BUJE

LEVER, CLAMP PALANCA ABRAZADERA

BOLT, WITH WASHER TORNILLO CON ARANDELA

GROMMET TAPON

SPACER, FRICTION ESPACIADOR DE FRICCION

GROMMET TAPON PROTECTOR

GROMMET TAPON

ENGINE STOP SWITCH ASSY INTERRUPTOR DE PARADA COMPL

.LANYARD, STOP SWITCH .CORDON DE INTERRUPTOR PARADA

.CAP .TAPA

GROMMET TAPON

LABEL, WARNING (GENERAL) ETIQUETA DE PRECAUCION

MHWHW

1111

4444

2222

4444

2222

1111

2222

1111

1

111

1111

11 1

11

1

1111

REMARKS OBSERVACIONES

WC

1

20

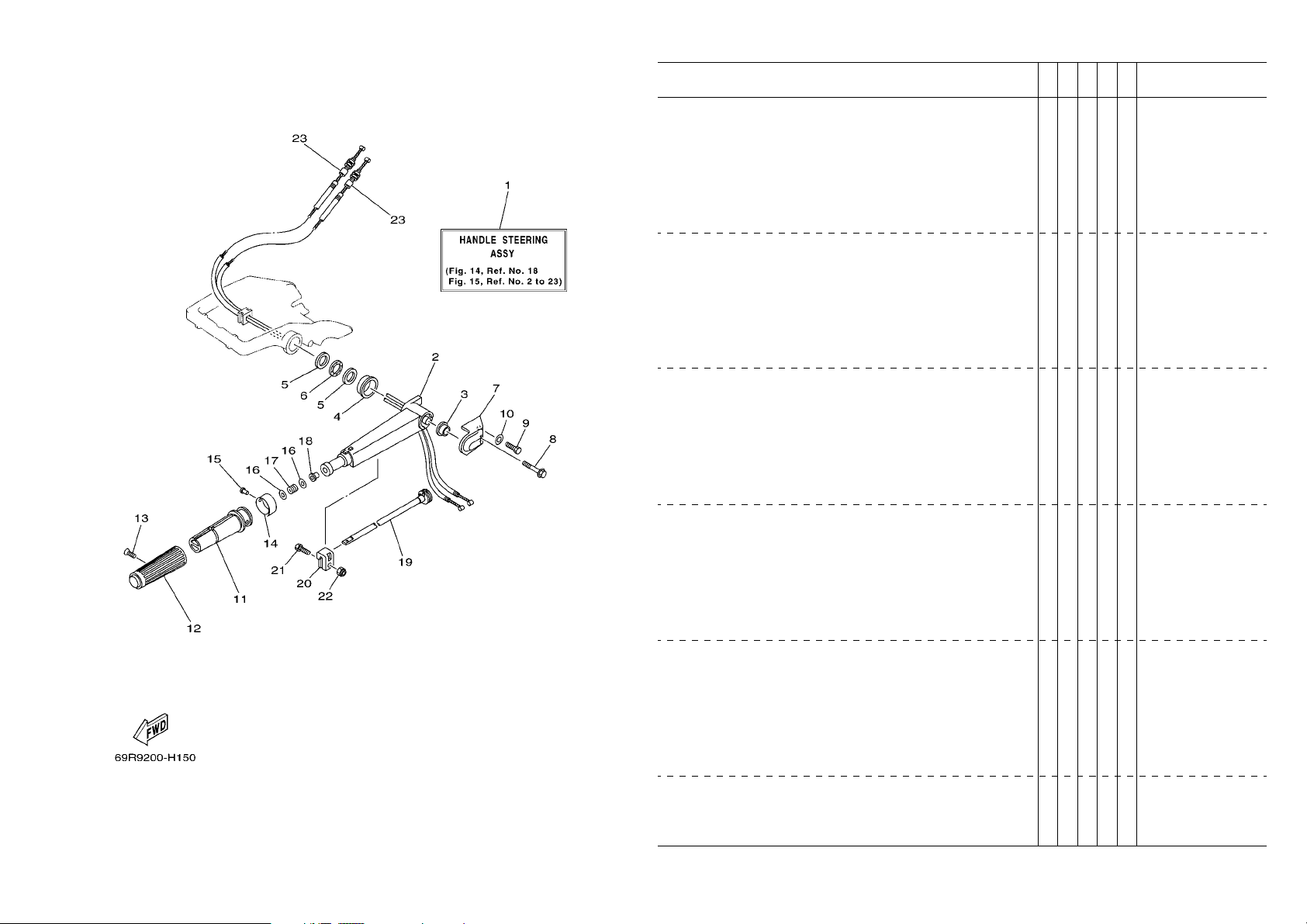

FIG. 15 STEERING DIRECCION

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

PART N O. CODIGO Nº

69P–W0084–00–4D

689–42111–01–4D

90387–13003

90387–33001

90201–28013

90206–28001

69P–42112–00–4D

97595–06550

97095–06020

92995–06600

664–42119–00

6F6–42177–A0

90152–05011

6G1–42137–10

90269–02M09

90201–10M02

90501–23215

90386–08032

689–42138–00

656–42126–01

97095–06020

90185–06062

61N–26311–01

DESCRIPTION DESCRIPCION

HANDLE STEERING ASSY CONJUNTO DE MANIJA

HANDLE, STEERING MANIJA DE DIRECCION

COLLAR ESPACIADOR

WASHER, PLATE ARANDELA PLANA

WASHER, WAVE ARANDELA ONDULADA

HANDLE, STEERING MANIJA DE DIRRECION

BOLT, WITH WASHER PERNO CON ARANDELA

BOLT PERNO

WASHER ARANDELA

GRIP, STEERING HANDLE MANGO, MANIJA DE DIRRECCION

RUBBER, HANDLE HULE DE MANIJA

SCREW, COUNTERSUNK TORNILLO EMBUTIDO

INDICATOR, THROTTLE INDICADOR ACELERADOR

RIVET REMACHE

WASHER, PLATE ARANDELA PLANA

SPRING, COMPRESSION RESORTE DE COMPRESION

BUSH BUJE

LEVER, THROTTLE PLANCA DE ACELERACION

FRICTION, STEERING HANDLE GRIP FRICCION DE MANGO DIRECCION

BOLT PERNO

NUT, SELF-LOCKING TUERCA AUTOBLOCANTE

CABLE, THROTTLE 1 CABLE DE ACELERADOR 1

MHWHW

11 1

22 2

11 1

22 2

11 1

22 2

WC

REMARKS OBSERVACIONES

21

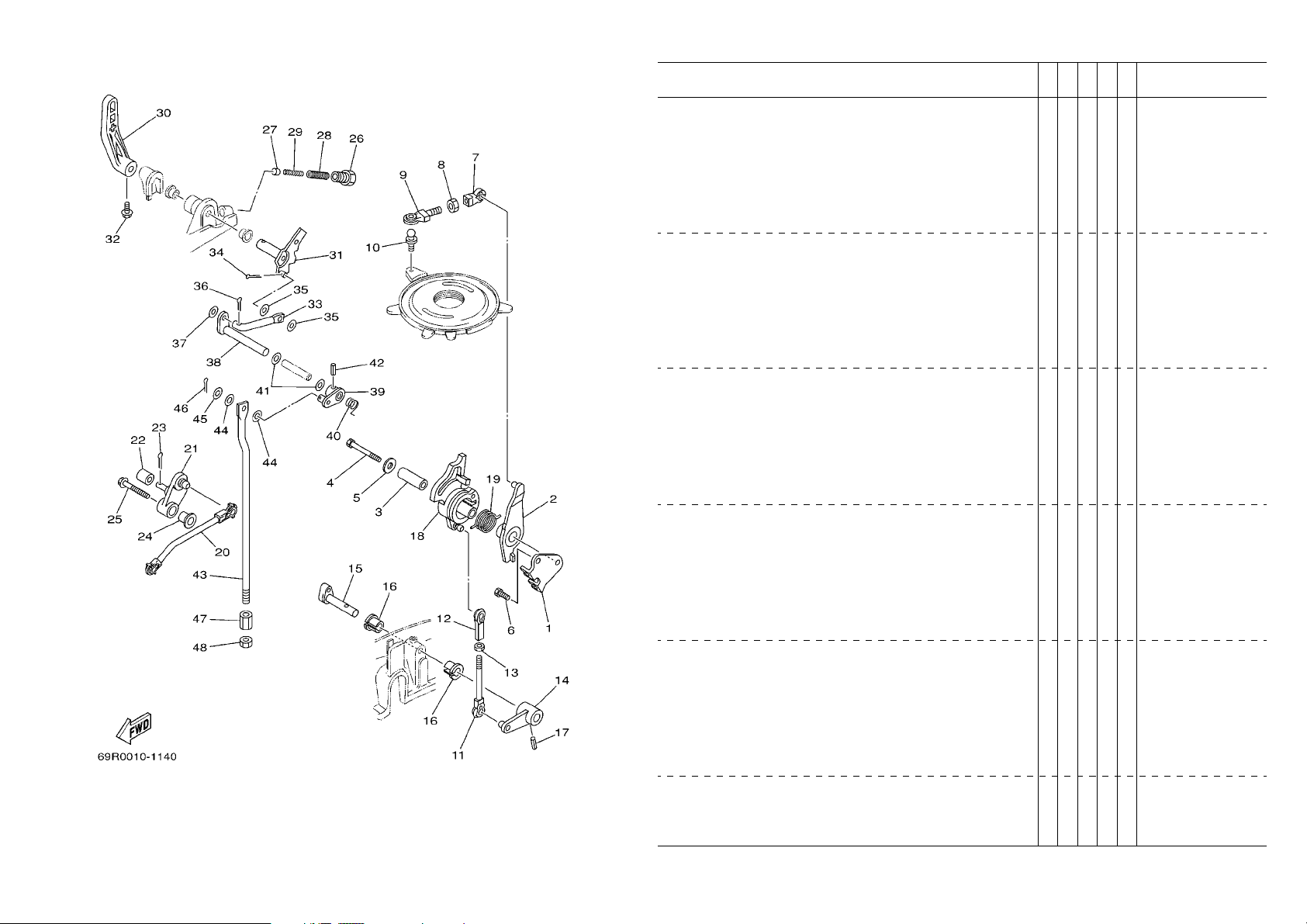

FIG. 16 CONTROL 1 CONTROL 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69P–14497–00

69P–41631–00

90387–06M59

97095–06045

90201–06416

97095–06012

662–41237–01

95380–05700

679–41241–01

663–85518–00

682–41238–01

682–41237–00

95380–05600

69S–42157–00

656–42153–00–94

90386–10009

91690–40018

69P–41213–00

69P–42167–00

69P–41241–00

69P–42154–00

62Y–42171–00

91490–16010

90387–06M60

90119–06M17

664–42715–00

664–44167–01

DESCRIPTION DESCRIPCION

STAY, THROTTLE WIRE SOPORTE VALVULA DE OBTURACION

LEVER, MAGNETO CONTROL PALANCA DE CONTROL DE MAGNETO

COLLAR ESPACIADOR

BOLT PERNO

WASHER, PLATE ARANDELA PLANA

BOLT PERNO

JOINT, LINK CONECTOR

NUT TUERCA

ROD, LINK VAR IL LA

JOINT, BALL CONECTOR

JOINT, LINK CONECTOR

NUT TUERCA

LEVER, THROTTLE PALANCA DE ACELERADOR

SHAFT, THROTTLE CONTROL EJE CONTROL DEL ACELERADOR

BUSH BUJE

PIN, SPRING PASADOR DE RESORTE

CAM, ACCEL. LEVA ACELERADOR

SPRING 1 RESORTE 1

ROD, LINK VAR IL LA

LEVER, THROTTLE CONTROL PALANCA CONTROL ACELERADOR

BUSHING BUJE

PIN. COTTER CHAVETA

COLLAR ESPACIADOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

BUSHING BUJE

PLUNGER, SHIFT CAM EMBOLO DE CAMBIO

MHWHW

1111

2222

1111

WC

REMARKS OBSERVACIONES

22

FIG. 16 CONTROL 1 CONTROL 1

REF. NO.

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

PART N O. CODIGO Nº

90501–14M07

90501–09M08

689–44111–01–4D

664–44113–01

90105–06M07

664–44142–00

91490–16010

90202–06007

91490–12010

92990–05600

689–44121–01

689–44125–00

90508–14M13

90202–10024

91690–40016

69S–44143–00

90202–06007

92990–05600

91490–20010

61N–44146–00

95380–06600

DESCRIPTION DESCRIPCION

SPRING, COMPRESSION RESORTE DE COMPRESION

HANDLE, GEAR SHIFT MANIJA DE CAMBIO DE MARCHAS

CAM PLATE, HANDLE PLACA DE LA LEVA DEL MANGO

BOLT, FLANGE TORNILLO

JOINT CONECTOR

PIN. COTTER CHAVETA

WASHER, PLATE ARANDELA DE PLANA

PIN. COTTER CHAVETA

WASHER, PLATE ARANDELA PLANA

LEVER, SHIFT ROD PALANCA VARILLA CAMBIOS

SPRING, TORSION RESORTE DE TORSION

WASHER, PLATE ARANDELA DE PLANA

PIN, SPRING PASADOR DE RESORTE

ROD, SHIFT VARILLA DE CAMBIO

WASHER, PLATE ARANDELA DE PLANA

WASHER, PLATE ARANDELA PLANA

PIN. COTTER CHAVETA

CONNECTOR, SHIFT ROD CONECTOR VARILLA DE CAMBIO

NUT, HEXAGON TUERCA

MHWHW

1111

2222

1111

2222

1111

2222

1111

WC

REMARKS OBSERVACIONES

23

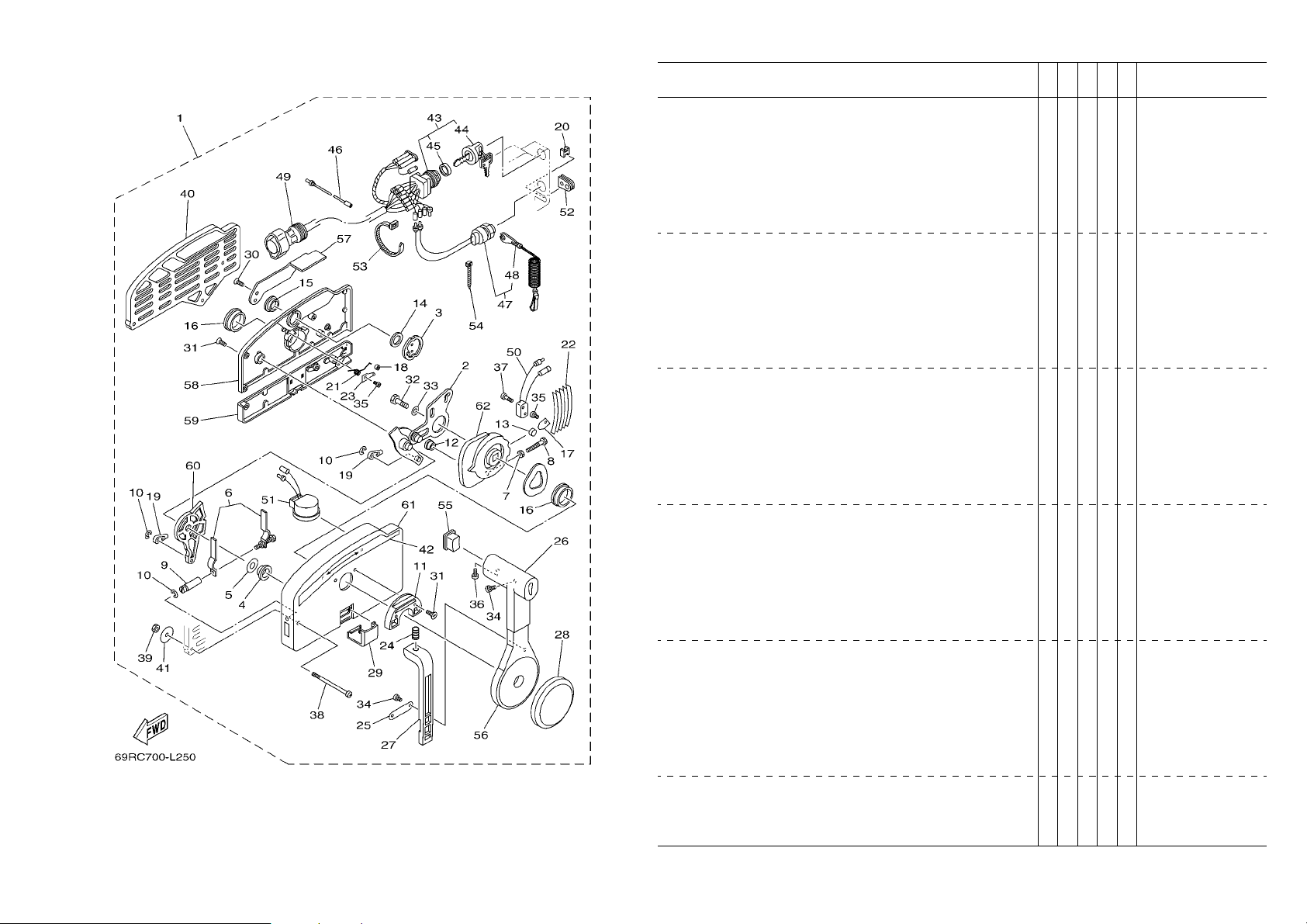

FIG. 17 CONTROL 2 CONTROL 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

PART N O. CODIGO Nº

689–48511–01

97075–10040

92990–10600

90185–10051

648–48534–50–4D

97095–06012

92995–06600

689–48532–50

97095–06016

92995–06600

689–48531–50

97095–06016

92995–06600

648–48340–50

617–48361–91

617–48346–90

91690–30012

90501–10264

92990–08600

648–48330–50

617–48331–91

648–48346–50

91690–30012

90501–10071

92990–08600

DESCRIPTION DESCRIPCION

HOOK, STEERING GANCHO DIRECCION

BOLT PERNO

WASHER, PLATE ARANDELA PLANA

NUT, SELF-LOCKING TUERCA AUTOBLOCANTE

THROTTLE LEVER, CONTROL PALANCA DE CONTROL DE ACELERAC

BOLT PERNO

WASHER ARANDELA

BRACKET, REMOTE CONTROL 2 SOPORTE DE CONTROL REMOTO

BOLT PERNO

WASHER ARANDELA

BRACKET, REMOTE CONTROL 1 SOPORTE DE CONTROL REMOTO

BOLT PERNO

WASHER ARANDELA

CABLE END ASSY TERMINAL DE CABLE COMPL.

.HOOK, CABLE .GANCHO CABLE

.CABLE END, REMOTE CONTROL .TERMINAL CABLE DE CONTROL REMO

.PIN, SPRING .PASADOR DE RESORTE

.SPRING, COMPRESSION .RESORTE DE COMPRESION

.WASHER, PLATE .ARANDELA PLANA

CABLE END ASSY TERMINAL DE CABLE COMPL.

.HOOK, CABLE .GANCHO CABLE

.CABLE END, REMOTE CONTROL .TERMINAL CABLE DE CONTROL REMO

.PIN, SPRING .PASADOR DE RESORTE

.SPRING, COMPRESSION .RESORTE DE COMPRESION

.WASHER, PLATE .ARANDELA PLANA

MHWHW

WC

1 1

11

REMARKS OBSERVACIONES

24

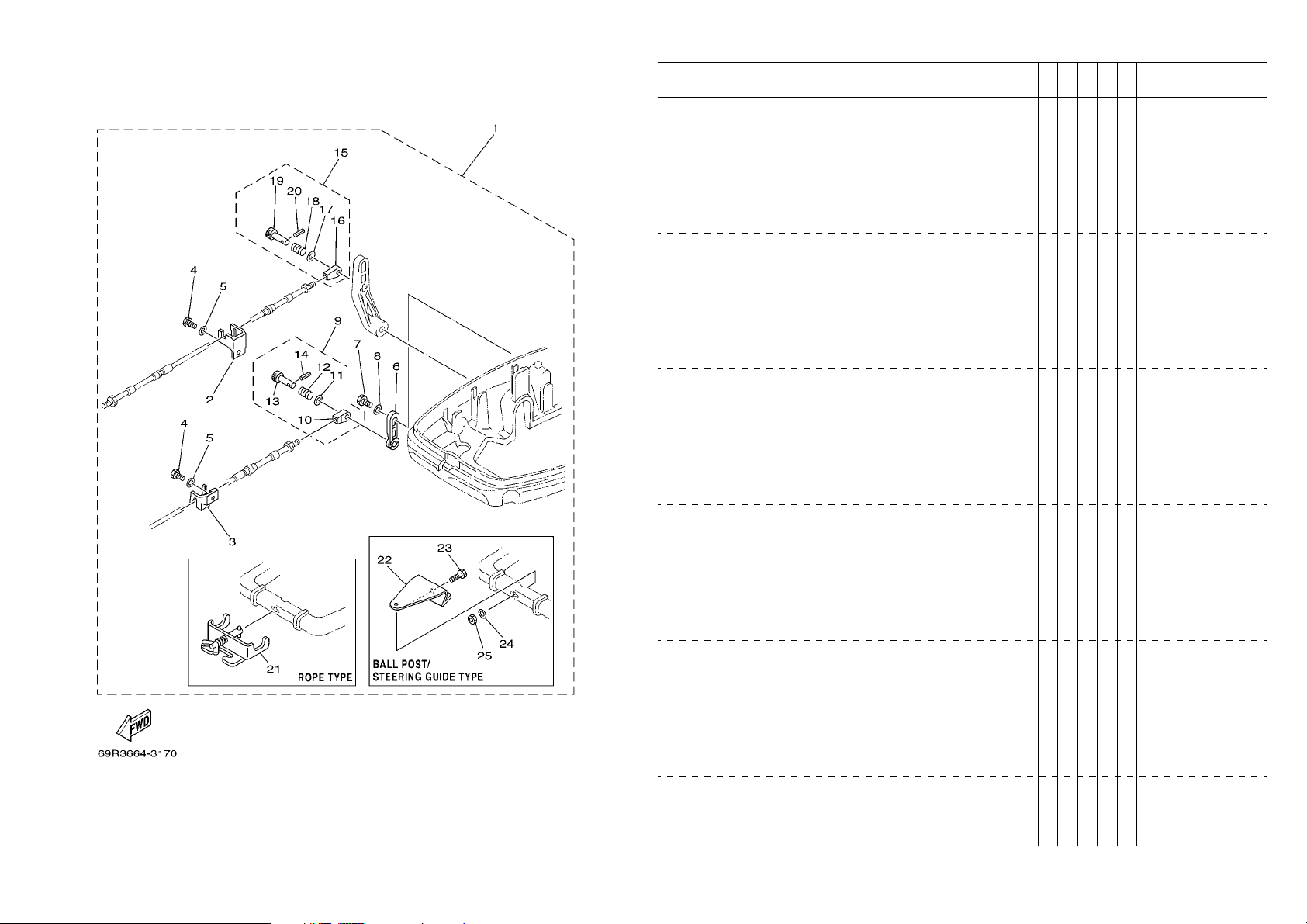

FIG. 18 REMO CON ATTACHMENT CONJUNTO ADITAMENTO

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

PART N O. CODIGO Nº

689–48501–01–4D

689–48501–21–4D

689–48531–50

689–48532–50

97095–06016

92995–06600

648–48534–50–4D

97095–06012

92995–06600

648–48340–50

617–48346–90

92990–08600

90501–10264

617–48361–91

91690–30012

648–48330–50

648–48346–50

92990–08600

90501–10071

617–48331–91

91690–30012

700–48510–12

689–48511–01

97075–10040

92990–10600

90185–10051

DESCRIPTION DESCRIPCION

REMOTE CONT. ATTACHMENT ASSY. CONJUNTO ADITAMENTO

.BRACKET, REMOTE CONTROL 1 .SOPORTE DE CONTROL REMOTO

.BRACKET, REMOTE CONTROL 2 .SOPORTE DE CONTROL REMOTO

.BOLT .PERNO

.WASHER .ARANDELA

.THROTTLE LEVER, CONTROL .PALANCA DE CONTROL DE ACELERAC

.BOLT .PERNO

.WASHER .ARANDELA

.CABLE END ASSY .TERMINAL DE CABLE COMPL.

..CABLE END, REMOTE CONTROL ..TERMINAL CABLE DE CONTROL REMO

..WASHER, PLATE ..ARANDELA PLANA

..SPRING, COMPRESSION ..RESORTE DE COMPRESION

..HOOK, CABLE ..GANCHO CABLE

..PIN, SPRING ..PASADOR DE RESORTE

.CABLE END ASSY .TERMINAL DE CABLE COMPL.

..CABLE END, REMOTE CONTROL ..TERMINAL CABLE DE CONTROL REMO

..WASHER, PLATE ..ARANDELA PLANA

..SPRING, COMPRESSION ..RESORTE DE COMPRESION

..HOOK, CABLE ..GANCHO CABLE

..PIN, SPRING ..PASADOR DE RESORTE

.STEERING HOOK ASSY .GANCHO DE DIRECCION COMPL

.HOOK, STEERING .GANCHO DIRECCION

.BOLT .PERNO

.WASHER, PLATE .ARANDELA PLANA

.NUT, SELF-LOCKING .TUERCA AUTOBLOCANTE

MHWHW

1 1 1 AP ROPE TYPE

1 1 1 AP

11 1

22 2

11 1

1 1 1 ROPE TYPE

1 1 1

11 1

WC

REMARKS OBSERVACIONES

AP ROPE TYPE

AP

ROPE TYPE

25

FIG. 19 BRACKET 1 SOPORTE 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

PART N O. CODIGO Nº

689–43111–03–4D

689–43112–02–4D

6E0–43118–01

663–43118–01–4D

90243–04M01

90243–04007

90149–14030

6G0–43116–00

648–43114–01

6F5–43114–00

90109–06M12

6J8–43131–01

6G5–43145–01

90185–22043

90201–22M03

90386–22M67

6J8–43113–01

689–43191–00

689–43192–01

91690–30016

93700–06M03

689–43160–00

689–43165–00

91690–30008

90502–10M07

90101–08339

90387–08M03

DESCRIPTION DESCRIPCION

BRACKET, CLAMP 1 SOPORTE DE LA ABRAZADERA 1

BRACKET, CLAMP 2 SOPORTE DE LA ABRAZADERA 2

HANDLE, TRANSOM CLAMP MANIJA DE LA ABRAZADERA DEL ES

PIN PASADOR

SCREW TORNILLO DE REGLAJE

SCREW, TRANSOM CLAMP TORNILLO DE ABRAZADERA

PAD, TRANSOM CLAMP ARANDELA DE ABRAZADERA

BOLT PERNO

BOLT, CLAMP BRACKET TORNILLO DE ABRAZADERA DEL SOP

CAP, CLAMP BRACKET TA PA

NUT, SELF-LOCKING TUERCA AUTOBLOCANTE

WASHER, PLATE ARANDELA PLANA

BUSH BUJE

PLATE, CLAMP BRACKET PLACA ABRAZADERA SOPORTE

SHAFT, STOPPER EJE DE TOPE

KNOB, STOPPER PERILLA DE TOPE

PIN, SPRING PASADOR DE RESORTE

NIPPLE, GREASE BOQUILLA DE ENGRASAR

TILT ROD ASSY VARILLA DE BASCULACION COMPL.

.PLATE, TILT LOCK .PLACA DE TOPE, VARILLA SEGURID

.PIN, SPRING .PASADOR DE RESORTE

SPRING, CONICAL RESORTE CONICO

BOLT TORNILLO

COLLAR ESPACIADOR

REMARKS

MHWHW

1111

2 2 2 2 25B,30H

2E25B,E30H

2 2 2 2 25B,30H

2E25B,E30H

2 2 2 2 25B,30H

2E25B,E30H

2 2 2 2 25B,30H

2E25B,E30H

1111

2222

1111

OBSERVACIONES

WC

25B,30H

E25B,E30H

25B,30H

E25B,E30H

25B,30H

E25B,E30H

25B,30H

E25B,E30H

26

FIG. 19 BRACKET 1 SOPORTE 1

REF. NO.

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

PART N O. CODIGO Nº

92990–08600

95380–08600

689–43311–03–4D

93700–06M03

689–43631–00

689–43633–00

689–43643–00

689–43616–00

648–43642–00

90249–06M22

648–43617–00

99080–05600

689–43614–01

648–43615–00

90240–05047

91490–16010

90506–30M27

689–43681–01

682–43318–01

90109–06M18

90506–16M17

91690–40035

DESCRIPTION DESCRIPCION

WASHER, PLATE ARANDELA PLANA

NUT TUERCA

BRACKET, SWIVEL 1 SOPORTE GIRATORIO 1

NIPPLE, GREASE BOQUILLA DE ENGRASAR

LEVER, TILT PALANCA DE INCLINACION

COVER, TILT LEVER CUBIERTA PALANCA DE INCLINACI

SPRING RESORTE

ROD, TILT LOCK VARILLA SEGURO DE INCLINACION

LEVER, TILT 1 PALANCA DE INCLINACION1

PIN PASADOR

ROD, TILT LOCK VARILLA SEGURO DE INCLINACION

CIRCLIP PRESILLA REDONDA

PLATE, TILT LOCK PLACA DE SEGURO DE INCLINACION

PIN, CLEVIS PASADOR CON HOYO

PIN. COTTER CHAVETA

SPRING, TENSION RESORTE DE TENSION

LEVER, SHALLOW WATER DRIVE 1 PALANCA 1

COVER CUBIERTA

BOLT PERNO

SPRING, TENSION RESORTE DE TENSION

PIN, SPRING PASADOR DE RESORTE

REMARKS

MHWHW

1111

3333

1111

1111 EXCEPT 30HW-RUS

2222 EXCEPT 30HW-RUS

OBSERVACIONES

WC

EXCEPT 30HW-RUS

27

FIG. 20 BRACKET 2 SOPORTE 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

648–42528–00

689–43373–01

90105–06M18

69P–42511–00–4D

90480–29045

90105–06M07

689–42521–00–94

93608–12063

90209–47016

90386–47M22

90386–38090

93210–37160

90386–38022

69P–44518–00–CA

90387–10M39

648–44519–00

93606–12019

97095–06018

92995–06600

90381–12M01

689–42718–00

93700–06M03

69P–42717–00

69P–42716–00

90105–06M08

90170–10M42

92990–10200

DESCRIPTION DESCRIPCION

PLATE, FRICTION PIEZA DE FRICCION

SEAL, DAMPER SELLO DE GOMA

BOLT, FLANGE TORNILLO

BRACKET, STEERING SOPORTE DE DIRECCION

GROMMET TAPON

BOLT, FLANGE TORNILLO

SHAFT, STEERING PIVOT EJE PIVOTE DE DIRECCION

PIN, DOWEL PASADOR DE CLAVIJA

WASHER ARANDELA DE SEPARACION

BUSH BUJE

O-RING ANILLO O

BUSH BUJE

BRACKET COMP. SOPORTE

COLLAR ESPACIADOR

BRACKET SOPORTE

PIN, DOWEL PASADOR DE CLAVIJA

BOLT PERNO

WASHER ARANDELA

BUSH, SOLID BUJE SOLIDO

RUBBER, SEAL 3 GOMA

NIPPLE, GREASE BOQUILLA DE ENGRASAR

RUBBER, SEAL 2 GOMA

RUBBER, SEAL 1 SELLO DE GOMA 1

BOLT, FLANGE TORNILLO

NUT TUERCA

WASHER, PLAIN ARANDELA PLANA

MHWHW

1111

11 1

4444

1111

2222

1111

2222

1111

4444

1111

WC

REMARKS OBSERVACIONES

28

FIG. 20 BRACKET 2 SOPORTE 2

REF. NO.

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

PART N O. CODIGO Nº

648–44591–A0

689–44516–00

97095–06020

92995–06600

90170–10M42

648–44591–A0

664–44514–00–94

664–44591–A0

92990–10200

90176–10M01

689–44553–00

689–44557–00

97075–08025

92995–08600

689–44551–01–4D

689–44555–00

689–44552–01–4D

95380–08600

90119–08M03

97595–08565

69P–45151–00–4D

90387–08019

90119–08061

69P–43625–00

90445–22002

DESCRIPTION DESCRIPCION

GASKET EMPAQUE, AMORTIGUADOR

MOUNT DAMPER, UPPER FRONT AMORTIGUADOR DE HULE FRENTE SU

BOLT PERNO

WASHER ARANDELA

NUT TUERCA

GASKET EMPAQUE, AMORTIGUADOR

MOUNT DAMPER, UPPER SIDE AMORTIGUADOR LADO SUPERIOR

GASKET EMPAQUE, AMORTIGUADOR

WASHER, PLAIN ARANDELA PLANA

NUT, CROWN TUERCA CORONA

COVER, LOWER MOUNT CUBIERTA,AMORTIGUADOR INFERIOR

MOUNT DAMPER, LOWER FRONT AMORTIGUADOR DE HULE FRENTE IN

BOLT PERNO

WASHER ARANDELA

HOUSING, LOWER MOUNT RUBBER 1 CAJA AMORTIGUADOR INFERIOR HU

MOUNT DAMPER, LOWER SIDE AMORTIGUADOR DE HULE LADO INFE

HOUSING, LOWER MOUNT RUBBER 2 CAJA AMORTIGUADOR INFERIOR HU

NUT TUERCA

BOLT, WITH WASHER TORNILLO CON ARANDELA

BOLT, WITH WASHER PERNO CON ARANDELA

COVER, UPPER CASING CUBIERTA FUNDA SUPERIOR

COLLAR ESPACIADOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

PLATE, TILT ROCK 4 PLACA DE SEGURO DE INCLINACION

HOSE (L82) MANGUERA (L82)

REMARKS

MHWHW

1111

2222

1111

2222

1111

2222

1111

4444

2222

1 E25B-FOR YEM

2222

1 E25B-FOR YEM

OBSERVACIONES

WC

E25B-FOR YEM

29

FIG. 20 BRACKET 2 SOPORTE 2

REF. NO.

53

PART N O. CODIGO Nº

97095–08110

DESCRIPTION DESCRIPCION

BOLT PERNO

REMARKS

MHWHW

1 E25B-FOR YEM

OBSERVACIONES

WC

E25B-FOR YEM

30

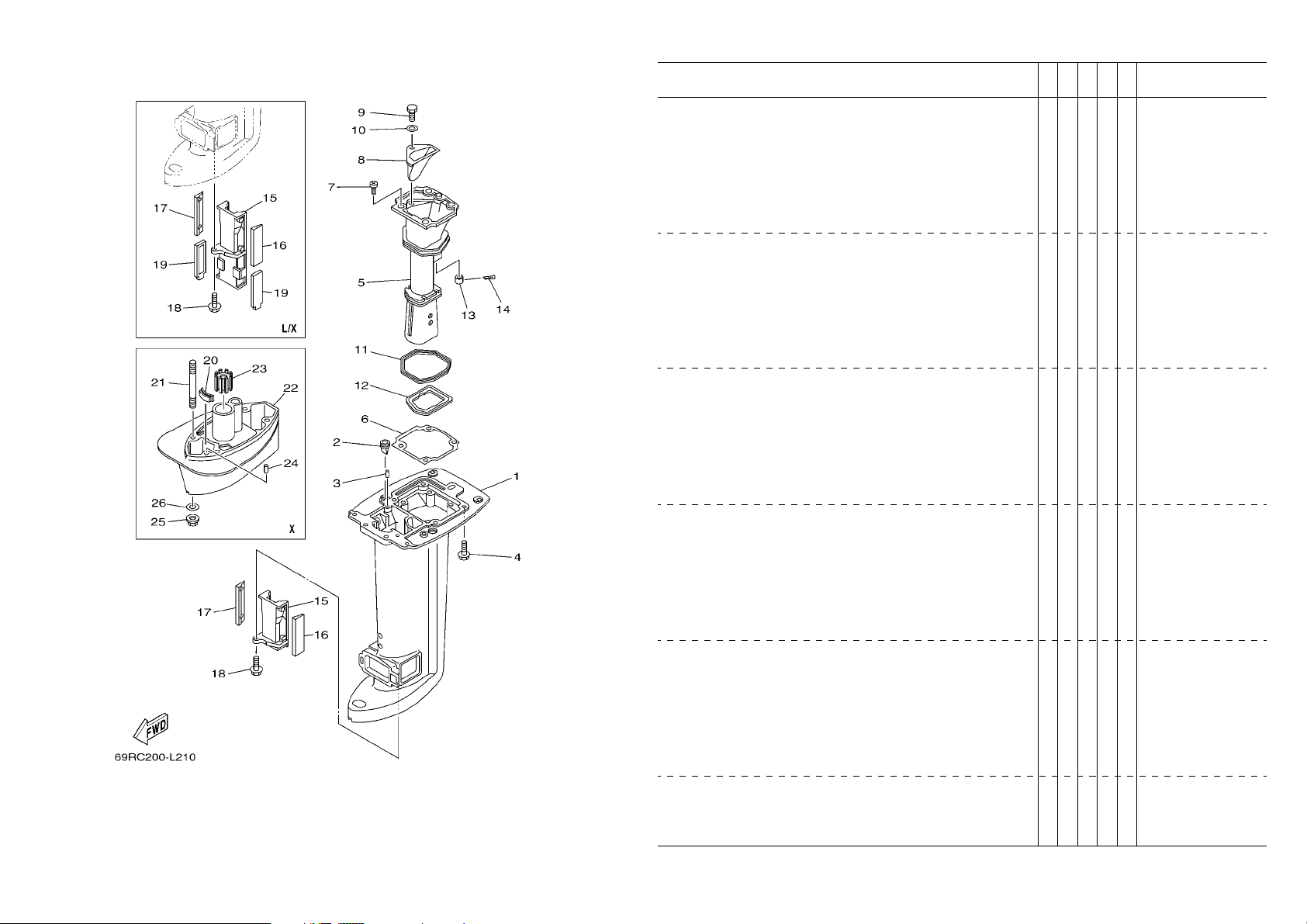

FIG. 21 UPPER CASING FUNDA SUPERIOR

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

PART N O. CODIGO Nº

69P–45111–00–4D

69P–45111–10–4D

65W–42717–00

93606–12019

97575–08530

69P–41131–01–CA

69P–41131–11–CA

69P–41134–A0

97880–06016

69P–41137–00–CA

97095–08020

92995–08600

69P–41138–00

69P–41139–00

6A8–41135–00

91490–30025

69P–47467–00–CA

69P–47467–10–CA

69P–45127–00

69P–45128–00

90119–06024

69P–45159–00

61N–45375–00

90116–10M33

61N–45211–31–4D

689–45318–00

93606–11M24

DESCRIPTION DESCRIPCION

CASING, UPPER CAJA SUPERIOR

RUBBER, SEAL 2 GOMA

PIN, DOWEL PASADOR DE CLAVIJA

BOLT, WITH WASHER PERNO CON ARANDELA

MANIFOLD, EXT. 1 TUBO MULTIPLE DE ESCAPE

GASKET, EXHAUST MANIFOLD EMPAQUE

SCREW, PAN HEAD TORNILLO DE CABEZA CON PLANA

GUIDE, EXHAUST GUIA DE ESCAPE

BOLT PERNO

WASHER ARANDELA

SEAL, EXT. 1 SELLO, ESCAPE 1

SEAL, EXT. 2 SELLO, ESCAPE 2

GASKET, EXHAUST MANIFOLD EMPAQUE

PIN. COTTER CHAVETA

PLATE, GUIDE PLACA DE GUIA

SEAL SELLO DE GOMA

SEAL 2 SELLO DE GOMA 2

BOLT, WITH WASHER TORNILLO CON ARANDELA

DAMPER SELLO DE GOMA

DAMPER, SEAL GOMA DE SELLO

BOLT, STUD ESPARRAGO

EXTENSION EXTENSION

BUSHING, DRIVE SHAFT BUJE, EJE DE MANDO

PIN, DOWEL PASADOR DE CLAVIJA

MHWHW

1 1 S(16.7")

1 1 1 L(21.6"),X(25.0")

2222

6666

1111 FOR STD

111

1111

4444

1111

1 1 S(16.7")

1 1 1 L(21.6"),X(25.0")

1111

2 2 2 L(21.6"),X(25.0")

1 X(25.0")

4 X(25.0")

1 X(25.0")

2 X(25.0")

REMARKS OBSERVACIONES

WC

S(16.7")

L(21.6"),X(25.0")

FOR STD

S(16.7")

L(21.6"),X(25.0")

X(25.0")

31

FIG. 21 UPPER CASING FUNDA SUPERIOR

REF. NO.

25

26

PART N O. CODIGO Nº

90179–10M03

92995–10600

DESCRIPTION DESCRIPCION

NUT TUERCA

WASHER ARANDELA

MHWHW

4 X(25.0")

REMARKS OBSERVACIONES

WC

X(25.0")

32

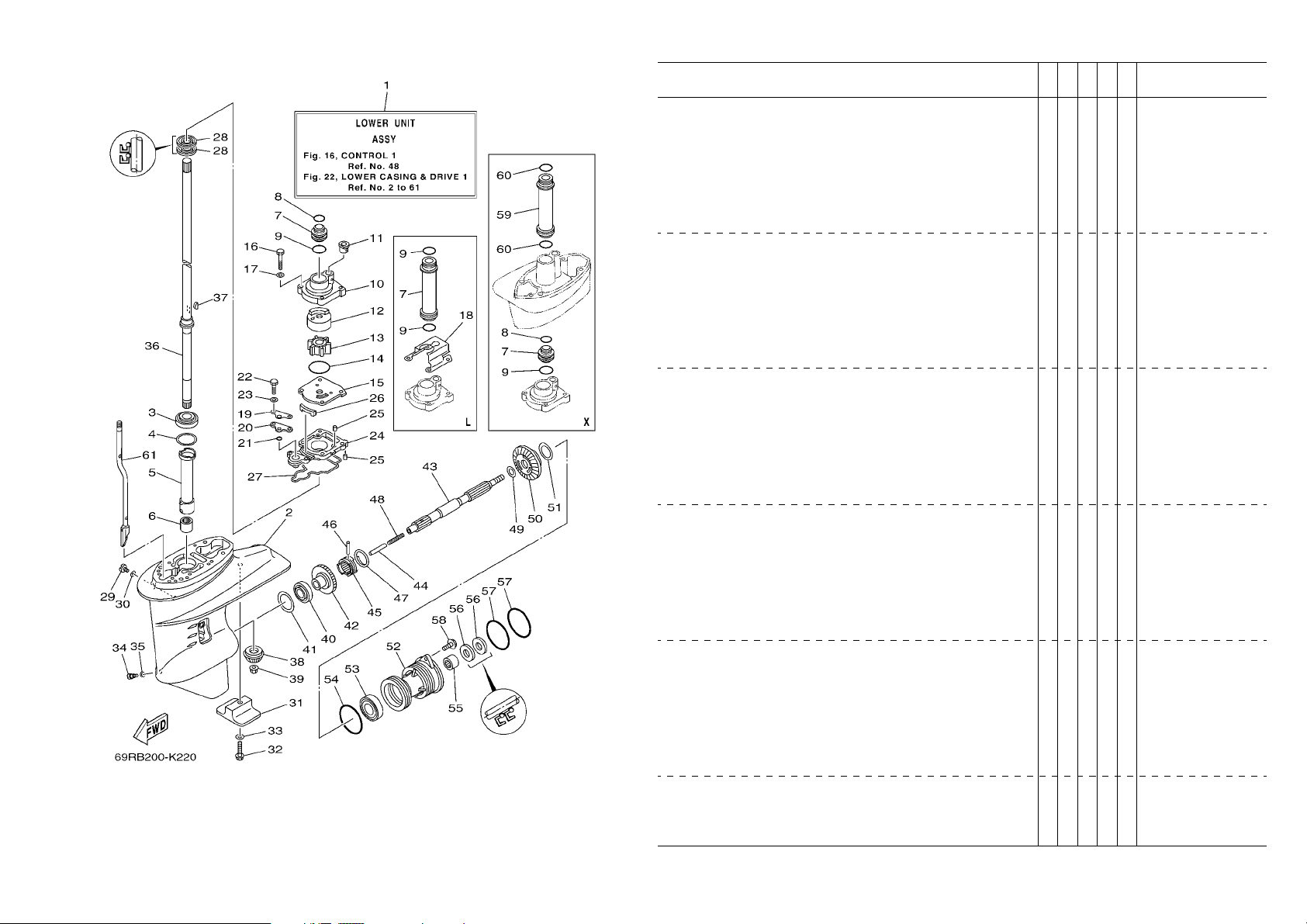

FIG. 22 LOWER CASING & DRIVE 1 IMPULSOR E INFERIOR 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

PART N O. CODIGO Nº

69P–45300–01–4D

69P–45300–11–4D

69P–45300–31–4D

61N–45311–02–4D

93332–000W5

61N–45587–00

61N–45587–10

61N–45587–20

61N–45587–30

61N–45587–40

61N–45587–50

61N–45587–60

61N–45587–70

61N–45536–00

93315–220V7

61N–44362–00

61N–44362–10

93210–22164

93210–26130

69P–44311–01

6L2–44367–00

69P–44322–00

69P–44322–40

6H4–44352–02

93210–45161

61N–44323–00

DESCRIPTION DESCRIPCION

LOWER UNIT ASSY CONJUNTO UNIDAD INFERIOR

CASING, LOWER FUNDA INFERIOR

BEARING COJINETE

SHIM (T:0.7MM) LAINA (T:0.7MM)

SHIM (T:1.0MM) LAINA (T:1.0MM)

SHIM (T:1.1MM) LAINA (T:1.1MM)

SHIM (T:1.2MM) LAINA (T:1.2MM)

SHIM (T:1.3MM) LAINA (T:1.3MM)

SHIM (T:1.4MM) LAINA (T:1.4MM)

SHIM (T:1.5MM) LAINA (T:1.5MM)

SHIM (T:1.6MM) LAINA (T:1.6MM)

SLEEVE, DRIVE SHAFT CAMISA EJE DE MANDO

BEARING COJINETE DE RODILLOS

TUBE, WATER 2 TUBO DE AGUA 2

O-RING ANILLO O

HOUSING, WATER PUMP CAJA BOMBA DE AGUA

DAMPER, WATER SEAL 3 GOMA DEL SELLO DE AGUA 3

INSERT, CARTRIDGE CARTUCHO

IMPELLER IMPULSOR

O-RING ANILLO O

OUTER PLATE, CARTRIDGE PLACA EXTERIOR DEL CARTUCHO

MHWHW

1 1 S(16.7")

1 1 1 L(21.6")

1 X(25.0")

1111

1111 UR

1111

1 1 S(16.7"),X(25.0")

1 1 1 L(21.6")

1 1 S(16.7"),X(25.0")

2 2 2 L(21.6")

1111

111 FOR STD

1 1 1 1 FOR CHROMATE

1111

111 FOR STD

REMARKS OBSERVACIONES

WC

S(16.7")

L(21.6")

X(25.0")

UR

S(16.7"),X(25.0")

L(21.6")

S(16.7"),X(25.0")

L(21.6")

FOR STD

FOR CHROMATE

FOR STD

33

FIG. 22 LOWER CASING & DRIVE 1 IMPULSOR E INFERIOR 1

REF. NO.

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

PART N O. CODIGO Nº

61N–44323–40

97095–06040

92995–06600

65W–44328–11

61N–44176–00

61N–45321–00

93210–06ME6

97095–06025

92995–06600

61N–45331–00–CA

93604–10M03

61N–45127–00

61N–45315–00

93101–22067

90340–08002

90430–08020

61N–45251–01

95895–06035

92990–06300

688–45341–10

90430–08020

61N–45510–00

61N–45510–10

61N–45510–30

90280–03M03

61N–45551–00

90179–10M14

DESCRIPTION DESCRIPCION

OUTER PLATE, CARTRIDGE PLACA EXTERIOR DEL CARTUCHO

BOLT PERNO

WASHER ARANDELA

PLATE PLACA

BRACKET SOPORTE

PLATE PLACA

O-RING ANILLO O

BOLT PERNO

WASHER ARANDELA

HOUSING, BEARING CAJA DE COJINETE

PIN, DOWEL PASADOR DE CLAVIJA

SEAL SELLO DE GOMA

PACKING, LOWER CASING EMPAQUE

OIL SEAL SELLO ACEITE

PLUG, STRAIGHT SCREW TORNILLO, DE DRENAJE

GASKET JUNTA

ANODE CATODE

BOLT, FLANGE TORNILLO DE REBORDE

WASHER, INTERNAL TOOTH ARANDELA PLANA

PLUG, DRAIN TAPON, DREN

GASKET JUNTA

DRIVE SHAFT ASSY EJE DE MANDO COMPL.

KEY, WOODRUFF CUNA WOODRUFF

PINION (13T) PINON (13T)

NUT TUERCA

MHWHW

1 1 1 1 FOR CHROMATE

4444

1 1 1 L(21.6")

1111

2222

1111

3333

1111

2222

1111

1 1 S(16.7")

1 1 1 L(21.6")

1 X(25.0")

1111

REMARKS OBSERVACIONES

WC

FOR CHROMATE

L(21.6")

S(16.7")

L(21.6")

X(25.0")

34

FIG. 22 LOWER CASING & DRIVE 1 IMPULSOR E INFERIOR 1

REF. NO.

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

PART N O. CODIGO Nº

93332–00005

6L2–45567–00

6L2–45567–10

6L2–45567–20

6L2–45567–30

6L2–45567–40

61N–45560–10

65W–45611–00

648–45635–00

664–45631–02

90250–05010

648–45633–00

90501–10065

90201–20417

61N–45571–00

6L2–45577–00

6L2–45577–10

6L2–45577–20

6L2–45577–30

61N–45361–01–4D

93306–00612

93210–64ME7

93315–22004

93101–20M07

93210–65M50

97575–06520

61N–44362–10

DESCRIPTION DESCRIPCION

BEARING COJINETE

SHIM (T:1.0MM) LAINA(T:1.0MM)

SHIM (T:1.1MM) LAINA(T:1.1MM)

SHIM (T:1.2MM) LAINA(T:1.2MM)

SHIM (T:1.3MM) LAINA(T:1.3MM)

SHIM (T:1.4MM) LAINA(T:1.4MM)

GEAR 1 (27T) ENGRANAJE 1 (27T)

SHAFT, PROPELLER EJE PROPUSOR

PLUNGER, SHIFT EMBOLO DE CAMBIO

CLUTCH, DOG EMBRAGUE DE GARRA

PIN, STRAIGHT PASADOR CILINDRICO

RING, CROSS PIN ANILLO DE PASADOR

SPRING, COMPRESSION RESORTE DE COMPRESION

WASHER, PLATE ARANDELA PLANA

GEAR 2 (27T) ENGRANAJE 2 (27T)

SHIM (T:1.0MM) LAINA(T:1.0MM)

SHIM (T:1.1MM) LAINA(T:1.1MM)

SHIM (T:1.2MM) LAINA(T:1.2MM)

SHIM (T:1.3MM) LAINA(T:1.3MM)

CAP, LOWER CASING FUNDA INFERIOR

BEARING COJINETE

O-RING ANILLO O

BEARING COJINETE DE RODILLOS

OIL SEAL SELLO ACEITE

O-RING ANILLO O

BOLT, WITH WASHER PERNO CON ARANDELA

TUBE, WATER 2 TUBO DE AGUA 2

MHWHW

1111

1111 UR

1111

1111 UR

1111

2222

1 X(25.0")

REMARKS OBSERVACIONES

WC

UR

X(25.0")

35

FIG. 22 LOWER CASING & DRIVE 1 IMPULSOR E INFERIOR 1

REF. NO.

60

61

PART N O. CODIGO Nº

93210–26130

61N–44150–00

61N–44150–10

61N–44150–30

DESCRIPTION DESCRIPCION

O-RING ANILLO O

SHIFT CAM ASSY CONJUNTO EJE LEVA COMPL.

MHWHW

2 X(25.0")

1 1 S(16.7")

1 1 1 L(21.6")

1 X(25.0")

REMARKS OBSERVACIONES

WC

X(25.0")

S(16.7")

L(21.6")

X(25.0")

36

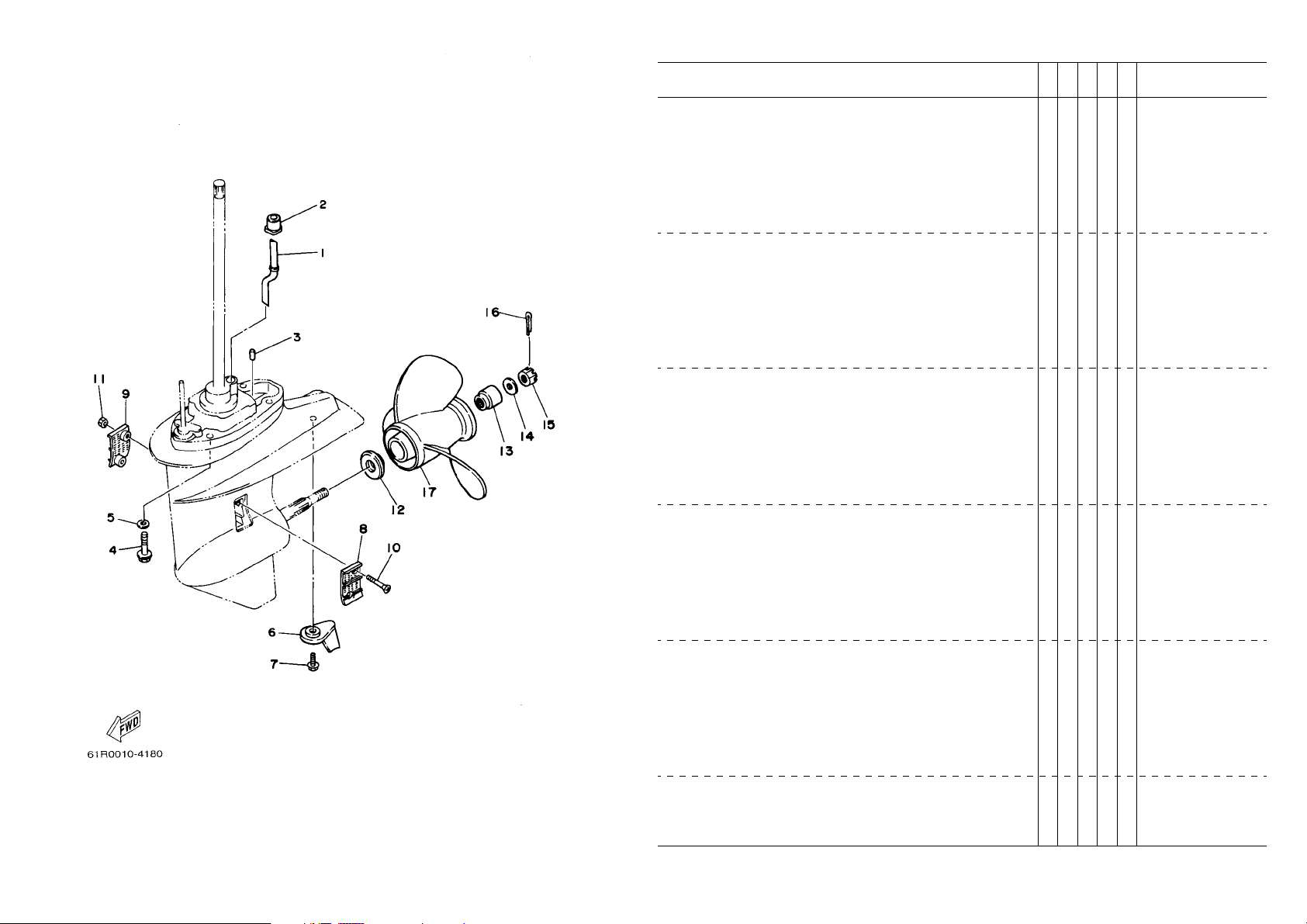

FIG. 23 LOWER CASING & DRIVE 2 IMPULSOR E INFERIOR 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

PART N O. CODIGO Nº

61N–44361–00

61N–44361–10

61N–44361–30

689–44366–00

93606–11M24

90105–10M12

92995–10600

61N–45371–00

90119–06M48

6L2–45214–00

6L2–45215–00

90151–05M05

90185–05002

6L2–45987–01

689–45997–00

92990–14200

90171–14013

91490–30022

664–45941–01

664–45943–01

664–45945–00

664–45947–01

664–45949–02

664–45952–00

664–45954–01

62C–45941–00

DESCRIPTION DESCRIPCION

TUBE, WATER 1 TUBO DE AGUA 1

DAMPER, WATER SEAL 2 GOMA DEL SELLO DE AGUA 2

PIN, DOWEL PASADOR DE CLAVIJA

BOLT, FLANGE TORNILLO

WASHER ARANDELA

TAB-TRIM QUILLA ESTABILIZADOR

BOLT, WITH WASHER TORNILLO CON ARANDELA

COVER, WATER INLET 1 CUBIERTA ENTRADA AGUA 1

COVER, WATER INLET 2 CUBIERTA ENTRADA AGUA 2

SCREW, COUNTERSUNK TORNILLO EMBUTIDO

NUT, NYLON TUERCA AUTOBLOCANTE

SPACER 1 ESPACIADOR 1

SPACER 2 ESPACIADOR 2

WASHER, PLAIN ARANDELA PLANA

NUT, CASTLE TUERCA ENTALLADA

PIN. COTTER CHAVETA

PROPELLER (3X9-7/8"X9"-F) PROPELA (3X9-7/8"X9"-F)

PROPELLER (3X9-7/8"X8"-F) PROPELA (3X9-7/8"X8"-F)

PROPELLER (3X9-7/8"X10-1/2"-F) PROPELA (3X9-7/8"X10-1/2"-F)

PROPELLER (3X9-7/8"X11-1/4"-F) PROPELA (3X9-7/8"X11-1/4"-F)

PROPELLER (3X9-7/8"X13"-F) PROPELA (3X9-7/8"X13"-F)

PROPELLER (3X9-7/8"X14"-F) PROPELA (3X9-7/8"X14"-F)

PROPELLER (3X9-7/8"X12"-F) PROPELA (3X9-7/8"X12"-F)

PROPELLER (3X9-7/8"X10"-F) PROPELA (3X9-7/8"X10"-F)

MHWHW

1 1 S(16.7")

1 1 1 L(21.6")

1 X(25.0")

1111

2222

4 4 4 4 S(16.7"),L(21.6")

1111

2222

1111

1111 UR

REMARKS OBSERVACIONES

WC

S(16.7")

L(21.6")

X(25.0")

S(16.7"),L(21.6")

UR

37

FIG. 24 FUEL TANK DEPOSITO DE COMBUSTIBLE

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

PART N O. CODIGO Nº

6YJ–24201–00

6YJ–24610–01

6YJ–24260–00

90157–05M19

6Y1–24329–00

6Y1–24268–00

6YJ–24167–00

61J–24306–04

90445–11M06

61J–24360–00

90445–11M05

650–24351–51

6G1–24305–05

93210–08287

6Y1–24305–06

93210–08287

DESCRIPTION DESCRIPCION

FUEL TANK ASSY (24L) TANQUE DEL COMBUSTIBLE (24L)

.CAP ASSY .TAPA COMPLETA

.FUEL METER ASSY .MEDIDOR DE COMBUSTIBLE COMPL.

.SCREW, PAN HEAD .TORNILLO CABEZA CONICA PLANA

.SEAL .SELLO

.GASKET, FUEL METER .EMPAQ MEDIDOR DE COMBUSTIBLE

.STRAINER .COLADOR

FUEL PIPE COMP. 1 TUBO COMBUST. COMPL 1

.HOSE (L2050) .MANGUERA (L2050)

.PRIMER PUMP ASSY .SOPORTE BOMBA

.HOSE (L850) .MANGUERA (L850)

.BAND 1 .ABRAZADERA 1

.FUEL PIPE JOINT COMP. 2 .CONECTOR MANGUERA COMBUST. 2

..O-RING ..ANILLO O

.FUEL PIPE JOINT COMP. 2 .CONECTOR MANGUERA COMBUST. 2

..O-RING ..ANILLO O

MHWHW

1111 AP

1111

4444

1111

1111 AP

1111

4444

1111

WC

REMARKS OBSERVACIONES

AP

38

FIG. 25 STEERING GUIDE DIRECCIONGUIAR

REF. NO.

1

2

3

4

5

6

7

8

9

10

PART N O. CODIGO Nº

689–61350–02

689–61351–01

90201–10M20

90185–09M01

90170–09M03

90387–10M42

6E5–61355–00

90201–10M63

6E5–43145–01

93210–16275

DESCRIPTION DESCRIPCION

STEERING GUIDE ATTACHMENT KIT ESTUCHE ADITAMENTO GUIA DE TIM

.ROD, STEERING LINK .VARILLA ESLABON DIRECCION

.WASHER, PLATE .ARANDELA PLANA

.NUT, SELF-LOCKING .TUERCA AUTOBLOCANTE

.NUT .TUERCA

.COLLAR .ESPACIADOR

.BOLT .TORNILLO

.WASHER, PLATE .ARANDELA PLANA

.CAP, CLAMP BRACKET .TAPA

.O-RING .ANILLO O

MHWHW

REMARKS OBSERVACIONES

WC

1 1 AP FOR CHN,RUS

11

22

11

AP FOR CHN,RUS

39

FIG. 26 REMOTE CONTROL BOX CONTROL REMOTO COMPLETO

REF. NO.

1

2

PART N O. CODIGO Nº

703–48230–17

701–48320–20

701–48320–50

DESCRIPTION DESCRIPCION

REMOTE CONTROL ASSY (7P) CONTROL REMOTO COMPL. (7P)

CABLE, REMOTE CONTROL L=13F CABLE CONTROL REMOTO L=13F

CABLE, REMOTE CONTROL L=15F CABLE CONTROL REMOTO L=15F

REMARKS

MHWHW

1 1 AP WITHOUT PT/T SW.

22 UR

OBSERVACIONES

WC

AP WITHOUT PT/T SW.

UR

40

FIG. 27 REMOTE CONTROL ASSY CONTROL REMOTO COMPL

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

703–48230–17

703–48261–11

703–48153–00

703–48235–00

703–48268–00

703–48264–00

95380–05600

97380–05025

703–48265–00

93430–06024

703–48245–00

703–48252–00

701–48248–00

703–48198–00

703–48243–00

703–48236–00

703–48189–00

703–48234–00

703–48345–01

703–48358–00

703–48244–00

703–48238–00

703–48246–00

703–48227–00

703–48226–00

703–48222–00

703–48223–00

DESCRIPTION DESCRIPCION

REMOTE CONTROL ASSY (7P) CONTROL REMOTO COMPL. (7P)

.ARM, THROTTLE .BRAZO ACELERADOR

.SHAFT, FREE ACCEL. .EJE

.BUSHING .BUJE

.SPACER .ESPACIADOR 3

.FRICTION, THROTTLE .FRICCION DE ACELERADOR

.NUT .TUERCA

.BOLT .TORNILLO HEXAGONAL

.SHAFT, FRICTION .EJE FRICCION

.CIRCLIP .SEGURO

.PLATE, LOCK .PLACA CERRADURA

.ROLLER, CAM .RODILLO LEVA

.ROLLER, FREE ACCEL. .RODILLO ACELERADOR LIBRE

.WASHER, WAVE .RONDANA ONDULADA 3

.BUSHING .BUJE 3

.BUSHING 1 .BUJE

.RETAINER .RETENEDOR

.ROLLER, DETENT .RODILLO

.CABLE END, REMOTE CONTROL 2 .TERMINAL CABLE DE CONTROL REMO

.ANCHOR, CABLE .ABRAZADERA CABLE

.SPRING, FREE ACCEL. .RESORTE ACELERADOR LIBRE

.SPRING, DETENT .RESORTE

.SPACER .ESPACIADOR

.SPRING, NEUTRAL LOCK .RESORTE DE SEGURO

.PLATE, STOPPER .PLACA RETEN

.GRIP, CONTROL LEVER .MANGO DE PALANCA CONTROL

.LOCK, NEUTRAL .CERRADURA NEUTRO

MHWHW

WC

1 1 AP WITHOUT PT/T SW.

11

33

11

22

11

22

11

55

11

11 SINGLE

11

REMARKS OBSERVACIONES

AP WITHOUT PT/T SW.

SINGLE

41

FIG. 27 REMOTE CONTROL ASSY CONTROL REMOTO COMPL

REF. NO.

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

PART N O. CODIGO Nº

703–48225–00

703–48219–00

703–48281–00

703–48282–00

97380–08030

92990–08600

98580–04010

98580–04006

98580–05010

98580–03015

703–48291–10

95380–06600

703–48293–10

701–48287–00

703–48215–00

703–82510–33

703–82577–00

6K1–82532–00

703–82531–00

688–82575–01

682–82556–00

688–82586–21

703–82540–00

703–83383–11

703–48284–00

703–82591–00

703–82592–00

DESCRIPTION DESCRIPCION

.COVER .CUBIERTA

.COVER, LEAD .CUBIERTA

.SCREW .TORNILLO 1

.SCREW .TORNILLO 2

.BOLT .TORNILLO HEXAGONAL

.WASHER, PLATE .ARANDELA PLANA

.SCREW, PAN HEAD .TORNILLO DE CABEZA CRUZADA

.SCREW (M6) .TORNILLO (M6)

.NUT, HEXAGON .TUERCA

.SPACER, REMOTE CONTROL .ESPACIADOR

.WASHER .ARANDELA

.GRAPHIC .CALCOMANIA 1

.MAIN SWITCH ASSY .CONJUNTO DE LLAVE IGNICION

..CAP, KEY ..TAPA

..CAP ..TAPA

.WIRE, LEAD (L70) .CABLE CONDUCTOR (L70)

.ENGINE STOP SWITCH ASSY .INTERRUPTOR DE PARADA COMPL

..LANYARD, STOP SWITCH ..CORDON DE INTERRUPTOR PARADA

.EXTENSION, WIRE HARNESS (4.9M) .EXTENSION, ARNES DE CABLES (4.

.NEUTRAL SWITCH ASSY .INTERRUPTOR NEUTRAL COMPL

.BUZZER .ZUMBADOR

.GROMMET .TAPON

.BAND .BANDA

MHWHW

WC

11

22

77

11

33

22

11

22

33

11 SINGLE

33

11

11 (7P)

11

REMARKS OBSERVACIONES

SINGLE

(7P)

42

FIG. 27 REMOTE CONTROL ASSY CONTROL REMOTO COMPL

REF. NO.

55

56

57

58

59

60

61

62

PART N O. CODIGO Nº

703–48224–00

703–48221–00

703–48152–00

703–48212–00

703–48213–00

703–48271–00

703–48211–02

703–48232–00

DESCRIPTION DESCRIPCION

.COVER, CONTROL LEVER .CUBIERTA DE PALANCA CONTROL

.LEVER, CONTROL .PALANCA CONTROL

.KNOB, FREE ACCEL. .PERILLA

.BACK PLATE 1 .PLACA TRASERA 1

.BACK PLATE 2 .PLACA TRASERA 2

.ARM, SHIFT .BRAZO CAMBIADOR

.HOUSING,1 .CAJA

.GEAR .ENGRANAJE 1

MHWHW

WC

1 1 WITHOUT PT/T SW.

11

REMARKS OBSERVACIONES

WITHOUT PT/T SW.

43

FIG. 28 OPTIONAL PARTS PARTES OPCIONALES

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69S–83790–01

69S–83793–00

69W–83354–00

90446–06M90

69S–12466–00–94

69S–14227–00

69S–14237–00

97880–04012

92990–04600

69S–14291–00

69S–14292–00

67F–81930–00

69W–85546–00

97095–06016

92995–06600

90387–06263

90480–10M23

90201–06M62

97095–06045

92995–06600

69S–8251S–00

97095–06016

92995–06600

95380–06600

92990–06600

6E0–83627–01

69S–81971–00

DESCRIPTION DESCRIPCION

HEATER ASSY CALENTADOR

.HEATER COMP. .CALENTADOR COMPLETO

.WIRE, EARTH LEAD 1 .CABLE CONDUCTOR A TIERRA

.HOSE (L120) .TUBO (L120)

.EXCHANGER, HEAT .CAMBIADOR DE CALOR

.WASHER .EMPAQUE

.GASKET .EMPAQUE

.SCREW, PAN HEAD .TORNILLO DE CABEZA CON PLANA

.WASHER, PLATE .ARANDELA PLANA

.BRACKET 1 .SOPORTE 1

.BRACKET 2 .SOPORTE 2

.CONTROL UNIT ASSY .UNIDAD DE CONTROL COMPLETA

.BAND .BANDA

.BOLT .PERNO

.WASHER .ARANDELA

.COLLAR .ESPACIADOR

.GROMMET .TAPON

.WASHER, PLATE .ARANDELA PLANA

.BOLT .PERNO

.WASHER .ARANDELA

.SWITCH COMP. .INTERRUPTOR

.BOLT .PERNO

.WASHER .ARANDELA

.NUT, HEXAGON .TUERCA

.WASHER, PLATE .ARANDELA PLANA

.LABEL, CAUTION 7 .ETIQUETA DE PRECAUCION 7

.WIRE, LEAD .CABLE CONDUCTOR

MHWHW

1 1 1 1 AP 25B,30H

2222

1111

2222

1111

2222

1111

2222

1111

REMARKS OBSERVACIONES

WC

AP 25B,30H

44

FIG. 28 OPTIONAL PARTS PARTES OPCIONALES

REF. NO.

28

PART N O. CODIGO Nº

90465–13M97

DESCRIPTION DESCRIPCION

.CLAMP .BRIDA

MHWHW

8888

REMARKS OBSERVACIONES

WC

45

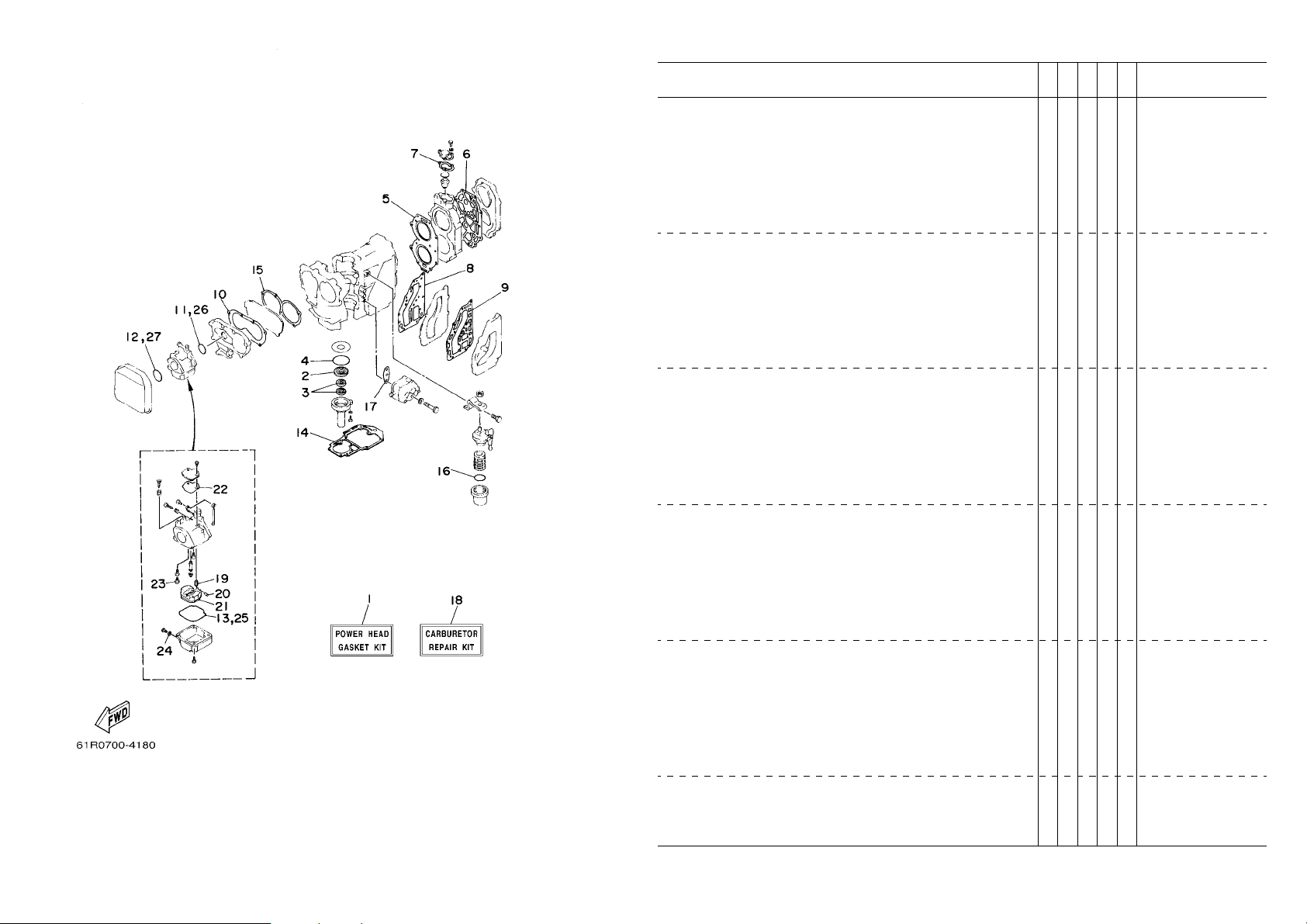

FIG. 29 REPAIR KIT 1 ESTUCHE REPARATION 1

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69P–W0001–00

93102–25008

93101–16001

93210–58M21

61N–11181–A2

61T–11193–A1

655–12414–A1

6K8–41122–A1

6K8–41124–A1

648–13645–A0

61N–14198–00

93210–40659

6L2–14384–00

689–45113–A1

648–13621–A1

93210–32738

650–24431–A0

61N–W0093–00

61N–14392–00

6E5–14386–01

6L2–14385–00

6L2–14399–00

50M–14355–00

6L2–14398–00

6L2–14384–00

61N–14198–00

93210–40659

DESCRIPTION DESCRIPCION

POWER HEAD GASKET KIT JUEGO DE EMPAQUE DE MOTOR

.OIL SEAL .SELLO ACEITE

.O-RING .ANILLO O

.GASKET, CYLINDER HEAD 1 .JUNTA, DE CULATA 1

.GASKET, HEAD COVER 1 .EMPAQUE

.GASKET, COVER .EMPAQUE

.GASKET, EXHAUST INNER COVER .EMPAQUE

.GASKET, EXHAUST OUTER COVER .EMPAQUE

.GASKET, MANIFOLD 1 .EMPAQUE

.GASKET .EMPAQUE

.O-RING .ANILLO O

.GASKET, FLOAT CHAMBER .EMPAQUE DE CAMARA DE BOIA

.GASKET, UPPER CASING .EMPAQUE

.GASKET, VALVE SEAT .JUNTA, DE VALV.DE EMPAQUE

.O-RING .ANILLO O

.GASKET, FUEL PUMP 1 .EMPAQUE BOMBA COMBUST 1

CARBURETOR REPAIR KIT KIT REPARACION CARBURADOR

.VALVE, NEEDLE .VALVULA DE AGUJA

.PIN, FLOAT .PASADOR DE BOIA

.FLOAT .BOIA

.GASKET .EMPAQUE

.PLUG .TAPON

.GASKET .EMPAQUE

.GASKET, FLOAT CHAMBER .EMPAQUE DE CAMARA DE BOIA

.GASKET .EMPAQUE

.O-RING .ANILLO O

MHWHW

1111

2222

1111

WC

REMARKS OBSERVACIONES

46

FIG. 30 REPAIR KIT 2 ESTUCHE REPARATION 2

REF. NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

PART N O. CODIGO Nº

69P–W0001–20

689–45113–A1

69P–41134–A0

6A8–41135–00

689–44366–00

93210–26130

6L2–44367–00

93210–45161

93210–06ME6

61N–45315–00

61N–45127–00

93101–22067

90430–08020

93210–64ME7

93101–20M07

93210–65M50

93210–22164

69P–41138–00

69P–41139–00

69P–W0078–00

69P–44311–01

6L2–44367–00

69P–44322–00

6H4–44352–02

93210–45161

61N–44323–00

97095–06040

DESCRIPTION DESCRIPCION

LOWER UNIT GASKET KIT JUEGO DE EMPAQUE UNIDAD INFER.

.GASKET, UPPER CASING .EMPAQUE

.GASKET, EXHAUST MANIFOLD .EMPAQUE

.DAMPER, WATER SEAL 2 .GOMA DEL SELLO DE AGUA 2

.O-RING .ANILLO O

.DAMPER, WATER SEAL 3 .GOMA DEL SELLO DE AGUA 3

.O-RING .ANILLO O

.PACKING, LOWER CASING .EMPAQUE

.SEAL .SELLO DE GOMA

.OIL SEAL .SELLO ACEITE

.GASKET .JUNTA

.O-RING .ANILLO O

.OIL SEAL .SELLO ACEITE

.O-RING .ANILLO O

.SEAL, EXT. 1 .SELLO, ESCAPE 1

.SEAL, EXT. 2 .SELLO, ESCAPE 2

WATER PUMP REPAIR KIT ESTUCHE REPARACION BOMBA AGUA

.HOUSING, WATER PUMP .CAJA BOMBA DE AGUA

.DAMPER, WATER SEAL 3 .GOMA DEL SELLO DE AGUA 3

.INSERT, CARTRIDGE .CARTUCHO

.IMPELLER .IMPULSOR

.O-RING .ANILLO O

.OUTER PLATE, CARTRIDGE .PLACA EXTERIOR DEL CARTUCHO

.BOLT .PERNO

MHWHW

1111

3333 UN

1111

2222

1111

2222

1 1 1 1 S(16.7"),X(25.0")

1111

4444

WC

REMARKS OBSERVACIONES

UN

S(16.7"),X(25.0")

47

FIG. 30 REPAIR KIT 2 ESTUCHE REPARATION 2

REF. NO.

28

29

30

31

32

PART N O. CODIGO Nº

92995–06600

90280–03M03

69P–W0078–0A

69P–44322–40

61N–44323–40

DESCRIPTION DESCRIPCION

.WASHER .ARANDELA

.KEY, WOODRUFF .CUNA WOODRUFF

CHROME PUMP KIT ESTUCHE REPARACION BOMBA AGUA

.INSERT, CARTRIDGE .CARTUCHO

.OUTER PLATE, CARTRIDGE .PLACA EXTERIOR DEL CARTUCHO

MHWHW

4444

1111

WC

REMARKS OBSERVACIONES

48

PA RT NO. CODIGO Nº

61N–11111–01–1S 61T–11111–01–1S 61N–11181–A2

61N–11191–01–1S 61T–11193–A1

689–11325–00 6J8–11325–00 6H3–11327–00–94 6H3–11328–00 676–11372–00

69P–11400–00 69P–11412–00 61N–11422–00 61N–11432–00 61N–11442–00 61N–11515–00 61N–11603–00 61N–11604–00 61N–11605–00 61N–11631–00–95 689–11633–00 688–11634–00 61N–11635–00 61N–11636–00 689–11651–00 689–11681–01 6E5–12411–02 6E5–12412–00 655–12413–01–1S 655–12414–A1

69S–12466–00–94 61N–13610–00 689–13610–01 648–13621–A1

61N–13641–01–1S 648–13645–A0

6L2–14157–00 61N–14198–00

61N–14212–00 646–14212–01

REF.

NO.

2–19 2–19 2–21

29 – 5

2–22 2–23

29 – 6

2–17 2–12 2–13 2–14 2–20 2–35 3– 1 3– 2 3– 3 3– 4 3– 5 3–10 3–19 3–19 3–19 3–18 3–20 3–22 3–18 3–18 3–12 3–13 2–26 2–27 2–29

2–30 29 – 7 28 – 5

4– 1

4– 3 29 – 15

4– 4

4– 5 29 – 10

5– 7

4–11 29 – 11 29 – 26

5–21

5–18

PA RT NO. CODIGO Nº

69S–14227–00 69S–14237–00 69S–14291–00 69S–14292–00 69P–14301–00 69S–14301–00 664–14321–01 61N–14323–00 6A0–14325–00 61N–14341–00 61T–14341–00 6L2–14342–34 61N–14343–65 50M–14355–00

61N–14381–00 677–14383–01 6L2–14384–00

6L2–14385–00

6E5–14386–01

61N–14392–00

6L2–14398–00

6L2–14399–00

61N–14440–00 69P–14497–00 62Y–14597–00 69P–15100–00 689–15396–01–CA 61N–15711–10 6F5–15713–01 6G0–15714–01 61N–15715–00 6F5–15716–01 6F5–15723–01 6F5–15726–01 61N–15734–00 6F5–15739–00 6F5–15741–01 69P–15746–00 689–15747–70 656–15748–00

REF.

NO.

28 – 6 28 – 7 28 – 10 28 – 11

5– 1 5– 1 5–13 5–19 6–26 5– 9 5– 9 5–11 5–10 5–12

29 – 23

5– 2 5–15

5–20 29 – 13 29 – 25

5– 5 29 – 21

5– 4 29 – 20

5– 3 29 – 19

5–16 29 – 24

5– 8 29 – 22

4–12 16 – 1

5–23

2– 2

2– 6

7– 2

7– 5

7– 3

7– 6

7– 8

7–34

7–11

7– 7

7–16

7– 4

7–41

7–42

7–37

PA RT NO . CODIGO Nº

6G0–15754–00 689–15755–01 69S–15758–00 61N–15762–00 6F5–15764–00 61T–15770–00 6H7–15771–01–94 656–15772–00–94 61T–15772–01–94 69P–15774–00 6F5–15779–02 6A0–15789–00 6YJ–24167–00 6YJ–24201–00 6YJ–24260–00 6Y1–24268–00 6G1–24304–02 6G1–24305–05 6Y1–24305–06 61J–24306–04 689–24311–00 6A1–24311–00 61N–24329–00 6Y1–24329–00 650–24351–51 61J–24360–00 692–24410–00 663–24411–00 692–24411–00 6A0–24412–02 6A0–24413–00 6A0–24421–01 650–24431–A0

648–24434–01 648–24435–02 61N–24521–00 61N–24560–00 61N–24563–00 61N–24566–01 6YJ–24610–01 61N–26311–01 61N–26326–00 6K8–41121–00–1S 6K8–41122–A1

61N–41123–01–1S 6K8–41124–A1

NUMERICAL INDEX INDICE NUMERICO

REF.

NO.

7– 9 7–14 7–18 7–19 7–15 7–36 7–29 7–31 7–31 7–39 7–17

7–22 24 – 7 24 – 1 24 – 3 24 – 6

6– 1 24 – 13 24 – 15 24 – 8

6–14

6–31

6– 2 24 – 5 24 – 12 24 – 10

6–16

6–21

6–18

6–27

6–17

6–25

6–28 29 – 17

6–19

6–22

6– 9

6– 7

6– 8

6–12 24 – 2 15 – 23 14 – 18

2–32

2–33 29 – 8

2–34

2–37

PA RT NO . CODIGO Nº

6K8–41124–A1 69P–41131–01–CA 69P–41131–11–CA 69P–41134–A0

6A8–41135–00

69P–41137–00–CA 69P–41138–00

69P–41139–00

69P–41213–00 682–41237–00 662–41237–01 682–41238–01 69P–41241–00 679–41241–01 689–41252–01 61N–41256–00 661–41262–02 682–41271–01 689–41273–00 6J8–41274–00 676–41611–00 689–41612–01 676–41613–00 61N–41615–00 69P–41631–00 689–42111–01–4D 69P–42112–00–4D 664–42119–00 656–42126–01 6G1–42137–10 689–42138–00 656–42153–00–94 69P–42154–00 69S–42157–00 69P–42167–00 62Y–42171–00 6F6–42177–A0 69P–42511–00–4D 689–42521–00–94 647–42523–00 682–42525–00

648–42528–00

REF.

NO.

29 – 9 21 – 5 21 – 5 21 – 6 30 – 3 21 – 13 30 – 4 21 – 8 21 – 11 30 – 18 21 – 12 30 – 19 16 – 18 16 – 12 16 – 7 16 – 11 16 – 20 16 – 9

4–19 4–20 4–21 4–16 4–17 4–18 8–17 8–20 8–18

9– 1 16 – 2 15 – 2 15 – 7 15 – 11 15 – 20 15 – 14 15 – 19 16 – 15 16 – 21 16 – 14 16 – 19 16 – 22 15 – 12 20 – 4 20 – 7 14 – 17 10 – 19 11 – 19 12 – 19 20 – 1

PA RT NO . CODIGO Nº

60B–42610–00 69P–42610–00 69R–42610–00 69S–42610–00 69P–42613–00–4D 6G0–42615–00 61N–42628–00 689–42647–00 6G0–42651–02 61T–42678–40

6L2–42678–40

61R–42681–00

689–42711–04–4D 664–42715–00 69P–42716–00 65W–42717–00 69P–42717–00 689–42718–00 682–42724–00 61T–42724–40 676–42724–40 689–42724–50

689–42725–01 6AH–42794–40 6G0–42796–00 689–42815–00 689–42816–00 689–43111–03–4D 689–43112–02–4D 6J8–43113–01 6F5–43114–00 648–43114–01 6G0–43116–00 6E0–43118–01 663–43118–01–4D 6J8–43131–01 6E5–43145–01 6G5–43145–01 689–43160–00 689–43165–00 689–43191–00 689–43192–01 689–43311–03–4D 682–43318–01

REF.

NO.

1– 1 1– 1 1– 1 1– 1 1– 7 1– 2 1–10 1– 3 1– 5 1–12 1–13 1–12 1–13 1–15

1–16 14 – 1 16 – 26 20 – 24 21 – 2 20 – 23 20 – 21 14 – 15 14 – 15 14 – 18 11 – 16 12 – 16 14 – 16 14 – 23 14 – 5 14 – 10 14 – 13 19 – 1 19 – 2 19 – 13 19 – 6 19 – 6 19 – 5 19 – 3 19 – 3 19 – 8 25 – 9 19 – 9 19 – 18 19 – 19 19 – 14 19 – 15 19 – 26 19 – 42

PART NO. CODIGO Nº

689–43373–01 689–43614–01 648–43615–00 689–43616–00 648–43617–00 69P–43625–00 689–43631–00 689–43633–00 648–43642–00 689–43643–00 689–43681–01 689–44111–01–4D 664–44113–01 689–44121–01 689–44125–00 664–44142–00 69S–44143–00 61N–44146–00 61N–44150–00 61N–44150–10 61N–44150–30 664–44167–01 61N–44176–00 6E0–44191–11 61N–44194–01 61T–44194–01 69P–44311–01

69P–44322–00

69P–44322–40

61N–44323–00

61N–44323–40

65W–44328–11 6H4–44352–02

61N–44361–00 61N–44361–10 61N–44361–30 61N–44362–00 61N–44362–10

689–44366–00

6L2–44367–00

REF.

NO.

20 – 2 19 – 36 19 – 37 19 – 31 19 – 34 20 – 51 19 – 28 19 – 29 19 – 32 19 – 30 19 – 41 16 – 30 16 – 31 16 – 38 16 – 39 16 – 33 16 – 43 16 – 47 22 – 61 22 – 61 22 – 61 16 – 27 22 – 19

1–14 9– 2

9– 2 22 – 10 30 – 21 22 – 12 30 – 23 22 – 12 30 – 31 22 – 15 30 – 26 22 – 15 30 – 32 22 – 18 22 – 13 30 – 24 23 – 1 23 – 1 23 – 1 22 – 7 22 – 7 22 – 59 23 – 2 30 – 5 22 – 11

49

PA RT NO. CODIGO Nº

6L2–44367–00

664–44514–00–94 689–44516–00 69P–44518–00–CA 648–44519–00 689–44551–01–4D 689–44552–01–4D 689–44553–00 689–44555–00 689–44557–00 648–44591–A0

664–44591–A0 69P–45111–00–4D 69P–45111–10–4D 689–45113–A1

61N–45127–00

69P–45127–00 69P–45128–00 69P–45151–00–4D 69P–45159–00 61N–45211–31–4D 6L2–45214–00 6L2–45215–00 61N–45251–01 69P–45300–01–4D 69P–45300–11–4D 69P–45300–31–4D 61N–45311–02–4D 61N–45315–00

689–45318–00 61N–45321–00 61N–45331–00–CA 688–45341–10 61N–45361–01–4D 61N–45371–00 61N–45375–00 61N–45510–00 61N–45510–10 61N–45510–30 61N–45536–00 61N–45551–00 61N–45560–10

REF.

NO.

30 – 7 30 – 22 20 – 34 20 – 29 20 – 14 20 – 16 20 – 42 20 – 44 20 – 38 20 – 43 20 – 39 20 – 28 20 – 33 20 – 35 21 – 1 21 – 1

2–42 29 – 14 30 – 2 22 – 26 30 – 11 21 – 16 21 – 17 20 – 48 21 – 19 21 – 22 23 – 8 23 – 9 22 – 31 22 – 1 22 – 1 22 – 1 22 – 2 22 – 27 30 – 10 21 – 23 22 – 20 22 – 24 22 – 34 22 – 52 23 – 6 21 – 20 22 – 36 22 – 36 22 – 36 22 – 5 22 – 38 22 – 42

PA RT NO. CODIGO Nº

6L2–45567–00 6L2–45567–10 6L2–45567–20 6L2–45567–30 6L2–45567–40 61N–45571–00 6L2–45577–00 6L2–45577–10 6L2–45577–20 6L2–45577–30 61N–45587–00 61N–45587–10 61N–45587–20 61N–45587–30 61N–45587–40 61N–45587–50 61N–45587–60 61N–45587–70 65W–45611–00 664–45631–02 648–45633–00 648–45635–00 62C–45941–00 664–45941–01 664–45943–01 664–45945–00 664–45947–01 664–45949–02 664–45952–00 664–45954–01 6L2–45987–01 689–45997–00 69P–47467–00–CA 69P–47467–10–CA 703–48152–00 703–48153–00 703–48189–00 703–48198–00 703–48211–02 703–48212–00 703–48213–00 703–48215–00 703–48219–00 703–48221–00 703–48222–00 703–48223–00 703–48224–00 703–48225–00

REF.

NO.

22 – 41 22 – 41 22 – 41 22 – 41 22 – 41 22 – 50 22 – 51 22 – 51 22 – 51 22 – 51 22 – 4 22 – 4 22 – 4 22 – 4 22 – 4 22 – 4 22 – 4 22 – 4 22 – 43 22 – 45 22 – 47 22 – 44 23 – 17 23 – 17 23 – 17 23 – 17 23 – 17 23 – 17 23 – 17 23 – 17 23 – 12 23 – 13 21 – 15 21 – 15 27 – 57 27 – 3 27 – 17 27 – 14 27 – 61 27 – 58 27 – 59 27 – 42 27 – 29 27 – 56 27 – 26 27 – 27 27 – 55 27 – 28

PA RT NO . CODIGO Nº

703–48226–00 703–48227–00 703–48230–17

703–48232–00 703–48234–00 703–48235–00 703–48236–00 703–48238–00 703–48243–00 703–48244–00 703–48245–00 703–48246–00 701–48248–00 703–48252–00 703–48261–11 703–48264–00 703–48265–00 703–48268–00 703–48271–00 703–48281–00 703–48282–00 703–48284–00 701–48287–00 703–48291–10 703–48293–10 701–48320–20 701–48320–50 648–48330–50

617–48331–91

648–48340–50

703–48345–01 648–48346–50

617–48346–90

703–48358–00 617–48361–91

689–48501–01–4D 689–48501–21–4D 700–48510–12 689–48511–01

689–48531–50

NUMERICAL INDEX INDICE NUMERICO

REF.

NO.

27 – 25 27 – 24 26 – 1 27 – 1 27 – 62 27 – 18 27 – 4 27 – 16 27 – 22 27 – 15 27 – 21 27 – 11 27 – 23 27 – 13 27 – 12 27 – 2 27 – 6 27 – 9 27 – 5 27 – 60 27 – 30 27 – 31 27 – 52 27 – 41 27 – 38 27 – 40 26 – 2 26 – 2 17 – 20 18 – 15 17 – 21 18 – 19 17 – 14 18 – 9 27 – 19 17 – 22 18 – 16 17 – 16 18 – 10 27 – 20 17 – 15 18 – 13 18 – 1 18 – 1 18 – 21 17 – 1 18 – 22 17 – 11

PA RT NO . CODIGO Nº

689–48531–50 689–48532–50

648–48534–50–4D

689–61350–02 689–61351–01 6E5–61355–00 61N–81313–09 6E9–81328–70 689–81800–13 689–81807–12 689–81809–11 689–81810–11 689–81811–11 689–81812–11 689–81813–10 689–81820–11 689–81826–10 689–81830–11 689–81831–00 689–81840–11 689–81847–11 689–81850–12 689–81857–11 689–81870–00 6H3–81922–00 67F–81930–00 6G1–81941–10

61T–81945–01

6G1–81952–00

664–81970–62

689–81971–00 69S–81971–00 6AH–81994–40 6AH–81995–40 6AG–81996–00 689–82105–13

REF.

NO.

18 – 2 17 – 8 18 – 3 17 – 5 18 – 6 25 – 1 25 – 2 25 – 7

8– 4

8– 7 13 – 1 13 – 3 13 – 7 13 – 9 13 – 12 13 – 11 13 – 13 13 – 14 13 – 15 13 – 4 13 – 5 13 – 10 13 – 6 13 – 8 13 – 2 10 – 16

9–18 28 – 12 10 – 3 11 – 2 12 – 2 10 – 5 11 – 4 12 – 4 10 – 4 11 – 3 12 – 3 10 – 7 11 – 6 12 – 6 10 – 2 28 – 27

4–24

7–48

4–25 10 – 17 11 – 15 12 – 15

PA RT NO . CODIGO Nº

682–82150–10

663–82151–00

61N–82317–00 66T–82370–00 663–82370–01 6G1–82370–21 703–82510–33 61N–82519–01 69S–8251S–00 703–82531–00 689–82531–02

6K1–82532–00 703–82540–00 689–82540–01

682–82556–00

61T–82560–00

688–82575–01 6E9–82575–02 703–82577–00 689–8257Y–00 61T–82580–00

688–82586–21 61T–82588–00

61T–82590–00

703–82591–00 703–82592–00 689–82594–00 689–82594–10

69W–83354–00 703–83383–11 6E0–83627–01 69S–83790–01 69S–83793–00 6E9–85516–70 663–85518–00

REF.

NO.

10 – 12 11 – 11 12 – 11 10 – 13 11 – 12 12 – 12

9– 6 9–29 9–29 9–29

27 – 43

9–10 28 – 21 27 – 46 10 – 6 11 – 5 12 – 5 27 – 45 27 – 50 10 – 14 12 – 30 14 – 20 27 – 48 11 – 30 12 – 32 27 – 47 14 – 19 27 – 44 14 – 21 11 – 13 12 – 13 27 – 49 11 – 31 12 – 33 11 – 14 12 – 14 27 – 53 27 – 54 10 – 18 11 – 18 12 – 18 28 – 3 27 – 51 28 – 26 28 – 1 28 – 2

8– 9 16 – 10

PART NO. CODIGO Nº

61N–85537–00 61N–85540–13 69P–85541–09 61N–85542–00–94 61N–85543–09 61N–85543–19 69W–85546–00 61N–85550–10 61T–85550–10 69P–85560–00 69P–85561–00 61N–85570–00

6H5–85570–00 61N–85570–10 61T–86111–00

61T–86112–00

682–86116–00

682–86117–00

69P–W0001–00 69P–W0001–20 689–W0004–00 61N–W0070–40 61R–W0070–40 69P–W0078–00 69P–W0078–0A 69P–W0084–00–4D 69P–W0090–00–1S 69S–W0090–00–1S 61N–W0093–00 61N–W1571–10 656–W2810–02 90101–08339 90105–06M07

90105–06M08 90105–06M18 90105–08M10 90105–10M12 90109–06M12 90109–06M18 90116–10M33 90119–06024 90119–06025

REF.

NO.

8–13 9–13 8– 3 9– 5 8– 5 8– 6

28 – 13

8– 1 8– 1 8– 2 8–10 9–20 9–25 9–20

9–25 11 – 21 12 – 21 11 – 24 12 – 24 11 – 22 12 – 22 11 – 23 12 – 23 29 – 1 30 – 1

4– 2

1–11

1–11 30 – 20 30 – 30 15 – 1

2– 1

2– 1 29 – 18

7– 1

6–33 19 – 22 16 – 32 20 – 6 20 – 25 20 – 3

7–35 23 – 4 19 – 7 19 – 43 21 – 21 21 – 18

7–33

50

PA RT NO. CODIGO Nº

90119–06M17 90119–06M23 90119–06M48 90119–06M73 90119–06M94 90119–06M95 90119–06MA0 90119–06MA2

90119–06MA3

90119–06MA4

90119–08009 90119–08015 90119–08061 90119–08M03

90119–08M65 90149–14030 90151–05M05 90151–06M02 90152–05011 90157–05M19 90161–06M00

90170–09M03 90170–10M42

90171–14013 90176–10M01 90179–06M24 90179–10M03 90179–10M14 90179–16M05 90185–05002 90185–06062 90185–09M01 90185–10051

90185–22043 90201–06416 90201–06M30 90201–06M62 90201–08M87 90201–10M02

REF.

NO.

16 – 25

7–43 23 – 7 14 – 14

4–14

9– 8

2–40

2–24

2–31

2–38

7–30

7–32

2–39

7–32

2– 3

2–25 20 – 50 20 – 46 20 – 46

2– 4 19 – 5 23 – 10

2–18 15 – 13 24 – 4 10 – 20 11 – 20 12 – 20 25 – 5 20 – 26 20 – 32 23 – 15 20 – 37

1– 8 21 – 25 22 – 39

8–15 23 – 11 15 – 22 25 – 4 17 – 4 18 – 25 19 – 10 16 – 5

9– 9 28 – 18 14 – 4 15 – 16

PA RT NO. CODIGO Nº

90201–10M20 90201–10M63 90201–16M44 90201–20417 90201–20M27 90201–21567 90201–22M03 90201–28013 90201–50306 90202–06007

90202–10024 90206–05005 90206–12052 90206–28001 90209–24M03 90209–47016 90240–05047 90243–04007 90243–04M01 90249–06M22 90250–05010 90266–04M00 90266–04M01 90269–02M09 90280–03M03

90280–05015 90340–08002 90381–12M01 90386–08032 90386–10009 90386–12069 90386–22M67 90386–38022 90386–38090 90386–47M22 90387–06013 90387–06119 90387–06263 90387–06M26 90387–06M59 90387–06M60 90387–08019 90387–08M03 90387–08M25 90387–10M39 90387–10M42

REF.

NO.

25 – 3 25 – 8

8–16

22 – 49

3–23

2–28 19 – 11 15 – 5

2–41 16 – 35 16 – 44 16 – 41

7–45 14 – 11 15 – 6

3–15 20 – 9 19 – 38 19 – 4 19 – 4 19 – 33 22 – 46

1– 6

1– 4 15 – 15 22 – 37 30 – 29

8–14 22 – 29 20 – 20 15 – 18 16 – 16 14 – 12 19 – 12 20 – 13 20 – 11 20 – 10

7–44

9– 7 28 – 16

4–15 16 – 3 16 – 24 20 – 49 19 – 23 14 – 3 20 – 15 25 – 6

PA RT NO . CODIGO Nº

90387–13003 90387–32002 90387–33001 90430–08020

90445–09M75 90445–10M41 90445–11M05 90445–11M06 90445–22002 90446–06M90 90446–10M02

90465–06M88 90465–13M11 90465–13M97 90465–18147

90467–08004

90480–10155

90480–10M23 90480–14M14 90480–15M06 90480–17165

90480–17M08

90480–25161 90480–29045 90501–09M08 90501–10065 90501–10071

90501–10227 90501–10264

90501–14M07 90501–23215 90502–10M07 90506–16M17 90506–30M27 90508–14M13

NUMERICAL INDEX INDICE NUMERICO

REF.

NO.

15 – 3

3–16 15 – 4 22 – 30 22 – 35 30 – 13

6– 5

2–36 24 – 11 24 – 9 20 – 52 28 – 4 10 – 15 12 – 31

4–23

9–19 28 – 28 11 – 29 12 – 29

6– 6

6–15

6–32 11 – 25 12 – 25 28 – 17

1– 9 14 – 2 11 – 17 12 – 17 10 – 1 11 – 1 12 – 1 14 – 22

9–26 20 – 5 16 – 29 22 – 48 17 – 24 18 – 18

7–38 17 – 18 18 – 12 16 – 28 15 – 17 19 – 21 19 – 44 19 – 40 16 – 40

PA RT NO . CODIGO Nº

91490–12010 91490–16010

91490–20010 91490–30022 91490–30025 91690–30008 91690–30012

91690–30016 91690–40016 91690–40018 91690–40035 91690–40048 92903–05600 92903–06600

92903–08600

92990–04600 92990–05100 92990–05600

92990–06100

92990–06300 92990–06600 92990–08600

92990–10200

REF.

NO.

16 – 36

7–47 16 – 23 16 – 34 19 – 39 16 – 46 23 – 16 21 – 14 19 – 20 17 – 17 17 – 23 18 – 14 18 – 20 19 – 16 16 – 42 16 – 17 19 – 45

4–22

7–46

2–16

4– 7

4–10 13 – 17 13 – 19 28 – 9

6–24 10 – 9 11 – 8 12 – 8 16 – 37 16 – 45

9–12

9–17

9–24 10 – 11 11 – 10 12 – 10 22 – 33 28 – 25 14 – 8 17 – 19 17 – 25 18 – 11 18 – 17 19 – 24 27 – 33 20 – 27 20 – 36

PA RT NO . CODIGO Nº

92990–10600

92990–14200 92995–06600

92995–08600

92995–10600

93101–16001

93101–20M07

93101–22067

93102–25008

93102–32M07 93210–03261

93210–06ME6

93210–08287

93210–16275 93210–22164

REF.

NO.

17 – 3 18 – 24 23 – 14

2–11 6– 4 6–30 7–21 7–24 7–27 9– 4 9–15 9–22

9–28 15 – 10 17 – 7 17 – 10 17 – 13 18 – 5 18 – 8 20 – 19 20 – 31 22 – 17 22 – 23 28 – 15 28 – 20 28 – 23 30 – 28 20 – 41 21 – 10 21 – 26 23 – 5

2– 8 29 – 3 22 – 56 30 – 15 22 – 28 30 – 12

2– 7 29 – 2

3– 7 11 – 28 12 – 28 22 – 21 30 – 9 24 – 14 24 – 16 25 – 10 22 – 8

PART NO. CODIGO Nº

93210–22164 93210–26130

93210–32738

93210–37160 93210–40659

93210–45161

93210–46M16 93210–58M21

93210–64ME7

93210–65M50

93306–00612 93306–305U3 93310–62406 93315–22004 93315–220V7 93332–00005 93332–000W5 93390–00009 93399–99951 93430–06024 93440–62057 93602–20M02 93604–10M03 93606–11M24

93606–12019

93608–12063 93700–06M03

94702–00160 94702–00217 94702–00247 94702–00271 95303–08700

REF.

NO.

30 – 17 22 – 9 22 – 9 22 – 60 30 – 6

6–10 29 – 16 20 – 12

4–13 29 – 12 29 – 27 22 – 14 30 – 8 30 – 25

3– 8

2– 9 29 – 4 22 – 54 30 – 14 22 – 57 30 – 16 22 – 53

3– 9

3–14 22 – 55 22 – 6 22 – 40 22 – 3

3–17

3– 6 27 – 10

3–11

3–21 22 – 25 21 – 24 23 – 3

2– 5 20 – 17 21 – 3 20 – 8 19 – 17 19 – 27 20 – 22

2–43

7–12

51

PA RT NO. CODIGO Nº

95380–03600 95380–05600

95380–05700 95380–06600

95380–08600

95380–08700

95895–06035 97013–06014 97013–06016 97013–06025 97013–06050 97013–08012 97013–08030

97075–08025 97075–10040

97090–06012

97095–06010

97095–06012

97095–06016

97095–06018 97095–06020

REF.

NO.

6–20 16 – 13 27 – 7 16 – 8

7–28

7–28 16 – 48 27 – 39 28 – 24

6–11 19 – 25 20 – 45 14 – 7 14 – 9 22 – 32

6–13

2–15

4– 6

4– 9 13 – 18

7–10 13 – 16 20 – 40 17 – 2 18 – 23

9–11

9–16

9–23 10 – 10 11 – 9 12 – 9

7–40

9– 3 16 – 6 17 – 6 18 – 7

7–20 17 – 9 17 – 12 18 – 4 28 – 14 28 – 22 20 – 18

6– 3

9–14

9–21

9–27 15 – 9

PA RT NO. CODIGO Nº

97095–06020

97095–06022 97095–06025 97095–06035

97095–06040

97095–06045

97095–08020 97095–08110 97380–05025 97380–08030 97513–06535

97575–06520 97575–08530 97585–08540 97595–06550 97595–08565

97607–04112 97607–06125 97802–04006 97880–04012 97880–05012

97880–05025

97880–06010 97880–06016 97890–05006 97980–04110 97980–04112 97980–05212 98503–04006

98503–05028 98580–03015 98580–04006 98580–04010 98580–05010 98980–04006 99009–17500

REF.

NO.

15 – 21 20 – 30

2–10

22 – 22

7–23 7–26

6–29 22 – 16 30 – 27 16 – 4 28 – 19 21 – 9 20 – 53 27 – 8 27 – 32

4– 8

4– 8 22 – 58 21 – 4 14 – 6 15 – 8 20 – 47 20 – 47

8–11

8–12

8– 8 28 – 8 11 – 27 12 – 27 10 – 8 11 – 7 12 – 7

8–21 21 – 7

5–22

5– 6

5–14

8–19 11 – 26 12 – 26

6–23 27 – 37 27 – 35 27 – 34 27 – 36

5–17 11 – 32 12 – 34

PA RT NO . CODIGO Nº

99080–05600 99530–10014

NUMERICAL INDEX INDICE NUMERICO

REF.

NO.

19 – 35

7–25

PA RT NO . CODIGO Nº

REF.

NO.

PA RT NO . CODIGO Nº

REF.

NO.

PART NO. CODIGO Nº

REF.

NO.

52

Yamaha E25B, E30H User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
