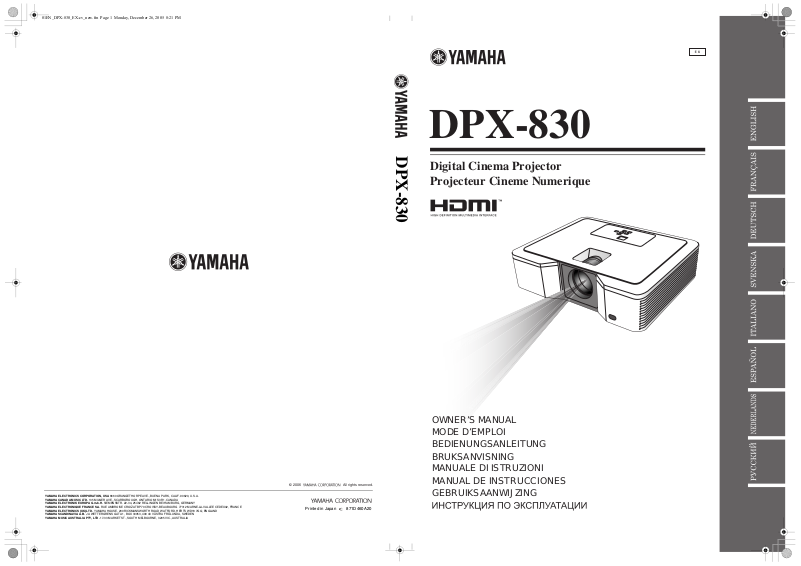

Yamaha DPX-830 User Manual

DPX-830

Digital Cinema Projector Projecteur Cineme Numerique

OWNER’S MANUAL

MODE D’EMPLOI BEDIENUNGSANLEITUNG BRUKSANVISNING MANUALE DI ISTRUZIONI MANUAL DE INSTRUCCIONES GEBRUIKSAANWIJZING

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

• Explanation of Graphical Symbols The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

For Canadian customers

To prevent electric shock, match wide blade of plug to wide slot and fully insert. This Class B digital apparatus complies with Canadian ICES-

003.

IMPORTANT!

Please record the serial number of this unit in the space below. Model:

Serial No.: The serial number is located on the bottom of the unit.

Retain this Owner’s Manual in a safe place for future reference.

Please read all these instructions regarding your projector and retain them for future reference. Follow all warnings and instructions marked on the projector.

1 Read instructions: All the safety and operating instructions

should be read before the appliance is operated.

2 Retain instructions: The safety and operating instructions

should be retained for future reference.

3 Warnings: All warnings on the appliance and in the operating

instructions should be adhered to.

4 Instructions: All operating instructions must be followed. 5 Cleaning: Unplug this projector from the wall outlet before

cleaning it. Do not use liquid aerosol cleaners.

6 Attachments and equipment: Never add any attachments

and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

7 Water and moisture: Do not use this projector near water or

in contact with water.

8 Accessories: Do not place this projector on

an unstable cart, stand, tripod, bracket or table. Use only with a cart, stand, tripod bracket, or table recommended by the manufacturer or sold with the projector. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

9 Ventilation: Slots and openings in the cabinet are provided for

ventilation, ensuring reliable operation of the projector and to protect it from overheating. Do not block these openings or allow them to be blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ventilation and that the manufacturer's instructions have been adhered to.

10 Power sources: This projector should be operated only from

the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your appliance dealer or local power company.

11 Power-cable protection: Power-supply cables should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and points where they exit from the appliance.

12 Overloading: Do not overload wall outlets and extension

cords as this can result in a fire or electric shock.

13 Objects and liquids: Never push objects of any kind through

openings of this projector as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

14 Servicing: Do not attempt to service this projector yourself.

Refer all servicing to qualified service personnel.

15 Damage requiring service: Unplug this projector from the

wall outlet and refer servicing to qualified service personnel under the following conditions:

(a) If the power-supply cable or plug is damaged. (b)If liquid has been spilled, or objects have fallen into the

projector.

the operating instructions. Adjust only those controls that are covered by the operating instructions. An improper adjustment of other controls may result in damage and may often require extensive work by a qualified technician to

restore the projector to its normal operation. (d)If the projector has been exposed to rain or water. (e) If the projector has been dropped or the cabinet has been

damaged. (f) If the projector exhibits a distinct change in performance -

this indicates a need for service.

16 Replacement parts: When replacement parts are required,

be sure that the service technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

17 Safety check: Upon completion of any service or repair to

this projector, ask the service technician to perform safety checks determining that the projector is in a safe operating condition.

18 Connection cable: Use the supplied RS-232C and RGB

cables with this equipment to keep interference within the limits of an FCC/EN55022 Class B device.

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party: Yamaha Electronics Corporation

Address: 6660 Orangethorpe Avenue

Buena Park, CA90620

Telephone: 714-522-9105

Fax: 714-670-0108

Type of Equipment: Projector

Model Name: DPX-830

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation. See the owner’s manual instructions if interference to radio reception is suspected.

FCC INFORMATION (for US customers only)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

Caution: Read this before operating this unit.

Warning

• This unit must be grounded

• Do not use this projector in a computer room

This projector is not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANIS/NFPA 75.

• Unplug immediately if there is something wrong with your projector

Do not operate if smoke, strange noise or odor comes out of the projector. It might cause fire or electric shock. If this happens, unplug immediately and contact your dealer.

• Never remove the cabinet

This projector contains high voltage circuitry. An inadvertent contact may result in an electric shock. Except as specifically explained in the owner's manual, do not attempt to service this product yourself. Contact your dealer when you want to fix, adjust or inspect the projector.

• Do not modify this projector

It can lead to fire or electric shock.

• Do not continue using this projector if you drop or break it

Unplug the projector and contact your dealer for inspection. It may lead to fire if you continue using it.

• Do not face the projector lens towards the sun

It can lead to fire.

• Use correct voltage

If you use incorrect voltage, it can lead to fire.

• Do not place the projector on uneven or unstable surfaces

Place the projector on a leveled and stable surface only.

• Do not look into the lens when it is operating

It may cause serious eye injury.

• Do not turn off the main power abruptly or unplug the projector during operation

It can lead to lamp breakage, fire, electric shock or other trouble. Always wait for the fan to turn off before turning the main power off.

• Avoid all contact with the air exhaust vents and bottom plate

The air exhaust vents and bottom plate heat up during operation and may cause personal injury or damage to other equipment. Do not touch them, place other equipment in front of the air exhaust vents, or set the projector on a desk which is easily affected by heat.

• Do not look into the air exhaust vent when the projector is operating

Heat, dust, etc. may blow out of it and cause injury to your eyes.

• Do not block the air intake and exhaust vents

If they are blocked, heat may be generated inside the projector, causing deterioration in the projector quality and/or fire.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power.

Place of installation

For safety reasons, refrain from setting the projector at any place subjected to high temperature and high humidity. Maintain an operating temperature, humidity and setting as specified below:

• Operating temperature: between 41°F (5°C) and 95°F (35°C).

• Operating humidity: between 30% and 90%

• Never put any heat-producing device under the projector. The projector may overheat.

• Do not install the projector near any equipment that produces a strong magnetic field. Also refrain from installing near the projector any cable carrying a large current.

• Do not install the projector in a place that is unstable or subject to vibration; otherwise, it may fall and cause serious injury and/or damage to the unit.

• Do not stand the projector on its side; otherwise, it may fall and cause serious injury and/or damage to the unit.

• Do not tilt the projector more than 10° right/left or 15° forward/backward; otherwise, it may cause a lamp explosion.

• Do not place the projector near an air conditioning unit or heater to avoid hot air to the vents of the projector.

• Avoid installing this unit where foreign object may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:

– Other components, as they may cause damage and/or discoloration on

the surface of this unit.

– Burning objects (i.e. candles), as they may cause fire, damage to this

unit, and/or personal injury.

– Containers with liquid in them, as they may fall and liquid may cause

electrical shock to the user and/or damage to this unit.

European compliance notice

This video projector complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” as amended by Directive 92/31/EEC and 93/68/EEC, and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC.

For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3-pin plug fitted. For details, refer to the instructions described below.

Note

• The plug severed from the mains lead must be destroyed, as a plug with a bared flexible cord is hazardous if engaged in a live socket outlet.

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

GREEN-AND-YELLOW: EARTH BLUE: NEUTRAL BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter “E” or the safety earth symbol or coloured GREEN or GREEN-AND-YELLOW. The wire which is coloured BLUE must be connected to the terminal marked with the letter “N” or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal marked with the letter “L” or coloured RED.

iii

Table of contents

1 Getting started 2

Inappropriate places for installation .....................2

Accessory check ..................................................3

Inserting the batteries into the remote control......4

2 Controls and functions 5

Projector overview ...............................................5

Remote control overview .....................................6

Using the picture quality adjusting buttons .....6

3 Using the remote control 7

Operational range ................................................7

Reception angle ...................................................7

4 Installation 8

Setting up the screen ...........................................8

Mounting the projector on the table .....................8

Adjusting the projection angle ..............................8

Mounting the projector on the ceiling ...................9

Screen size and projection distance ..................10

5 Connections 11

Basic home theater system connection .............11

Connecting to a video player, etc.......................12

Connecting to a DVD player or

HDTV decoder ...................................................12

HDMI or DVI connections ..................................13

D-SUB connections............................................13

Connecting to a computer ..................................14

TRIGGER terminal.............................................15

Plugging in the power cable...............................15

6 Projection 16

Viewing video images ........................................16

KEYSTONE adjustment................................17

IRIS button ....................................................17

Examples of the aspect ratio.........................18

Setting the aspect ratio .................................18

Viewing computer images..................................19

AUTO / AUTO SYNC buttons .......................20

Connecting to a notebook computer.............20

7Menu 21

Menu overview...................................................21

How to set the menus ...................................22

Menu settings.....................................................23

8 Adjusting video images 27

Selecting the gamma mode (GAMMA) ............. 27

Customizing the gamma mode (GAMMA) ........ 27

Adjusting brightness (CONTRAST and

BRIGHTNESS).................................................. 27

CONTRAST ................................................. 27

BRIGHTNESS.............................................. 27

Selecting the color temperature

(COLOR TEMP.) ............................................... 28

Customizing the color temperature

(COLOR TEMP.) ............................................... 28

About color temperature .............................. 28

Adjusting color (SATURATION and HUE) ........ 29

SATURATION.............................................. 29

HUE ............................................................. 29

Sharpening or softening images

(SHARPNESS).................................................. 29

LPF (Progressive filter) ..................................... 29

9 MEMORY function 30

Saving memory settings.................................... 30

10 Adjusting computer images 31

Adjusting computer images............................... 31

Simple method to adjust the image

position......................................................... 31

11 Replacing the lamp 32

Interval of lamp replacement............................. 32

Replacing the lamp ........................................... 33

Maintenance...................................................... 33

12 Attaching a lens filter and cap 34

Attaching a commercially available lens filter.... 34

Attaching the lens cap....................................... 34

13 Troubleshooting 35

Troubleshooting ................................................ 35

14 Indicators 38

Normal conditions ............................................. 38

Abnormal conditions.......................................... 38

15 Specifications 39

Projector specifications ..................................... 39

Dimension drawings.......................................... 41

Getting started1

◆ Inappropriate places for installation

If this unit is not correctly installed in an appropriate place, it may cause fire or failure, or damage the unit itself. Carefully choose the place to install this unit by avoiding the places listed below.

1. Places where the temperature and humidity vary greatly

• Do not install this unit in a place where the temperature and humidity become extremely high or the temperature becomes extremely low.

• This unit must be used within a temperature range of 41°F (5°C) to 95°F (35°C).

• This unit must be used within a humidity range of 30% to 90%

2. Places without adequate ventilation

• Install this unit with at least 30 cm (1 feet) of ventilation space on the top, right and left, and back.

• Do not cover the ventilation slots of this unit. Covering the slots will obstruct heat dissipation.

• Install this unit on the firm surface.

• Do not cover this unit with a tablecloth, etc.

• Make sure there is nothing to get sucked into the ventilation slots so that the temperature of this unit does not become too high.

• If you are going to install the unit in a rack, be sure to leave space for ventilation to prevent exhaust overheating the unit.

3. Places where it gets dusty

• If the filter is blocked with dust, the temperature of this unit may become too high.

4. Places with too much vibration or impact

• Vibration and impact can damage parts of this unit.

5. Places where this unit gets exposed to water or high humidity

• If this unit is exposed to water of high humidity, it may cause a fire or electrical shock.

6. Unstable places

• If this unit is installed on an unstable or an inclined tabletop, it may fall and cause damage to the unit or personal injury.

7. In close proximity to a radio or stereo

• The unit may interfere with reception if placed in close proximity to a radio or television receiver.

8. Uneven surfaces

• Slanting the projector more than 10° right and left or 15° front and rear may cause problems (such as the lamp exploding).

Warning

• To ensure vivid, high contrast images, make sure that no light other than the projector light falls directly on the screen.

*DLP

, DMDTM, DarkChip2TM, and DarkChip3TM are registered

trademarks of the Texas Instruments corporation of America.

* HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademark of HDMI Licensing LLC.

◆ Accessory check

The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package.

■ Cables ■ Power supply parts

mini D-SUB

15-pin

mini D-SUB

D-SUB 9-pin

8-pin

(For US)

15-pin

RGB cable for PC

(WF76940)

RS-232C cable

(WF76930)

• Used for adjustment by service person.

■ Remote control parts ■ Others

AUTO

ASPECT

NORMAL

STA

ASPECT

HDMI

-S U

MEMORY

CON

GAM

RDP-81

KEYSTN

BRIGHT

SHAR

SETTING

C.TEMP

IRIS

Remote control R03 (Size-AAA) battery (two) Lens cap Owner’s manual

SQUEEZ

HIDE

COMP.

INPUT

S. ZO

-V ID

(For Europe)

Power cable

DPX-830

Digital Cinema Projector Projecteur Cineme Numerique

OWNER’S MANUAL

MODE D’EMPLOI BEDIENUNGSANLEITUNG BRUKSANVISNING MANUALE DI ISTRUZIONI MANUAL DE INSTRUCCIONES GEBRUIKSAANWIJZING

Important

• The supplied power cables are to be used exclusively for this product. Never use them for other products.

• The power cables for use in the U.S. and Europe are included with this projector. Use the appropriate one for your country.

• The provided power cable for the U.S. is rated at 120 V. Never connect this cable to any outlet or power supply using other voltages or frequencies than rated. If you use a power supply using other voltage than rated, prepare an appropriate power cable separately.

◆ Inserting the batteries into the remote control

1. Remove the rear lid of the remote control.

Caution

• Using the wrong type of battery may cause an explosion.

• Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.

• Dispose of used batteries according to your local regulations.

• Batteries may explode if misused. Do not recharge, disassemble, or dispose of in fire.

• Be sure to handle the battery according to the instructions.

• Load the battery with its positive (+) and negative (–) sides correctly oriented as indicated on the remote control.

• Keep batteries out of reach of children and pets.

• Remove the batteries, if the remote control is not used for a long time.

• Do not combine a new battery with an old one.

• If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact with your eyes, rinse them with water and then consult your doctor.

2. Check the polarity markings (+, –) of the batteries, and set them correctly, inserting their (–) side first.

• If the battery is inserted from the (+) side first, inserting the (–)

side becomes difficult because the coil spring end hits on the battery side. If the battery is forced to insert in this way, the outer label of the battery may get ripped and cause a shortcircuit and heating.

3. Attach the rear lid.

Important

• Use two size-AAA batteries (R03).

• Replace the two batteries with new ones when the remote

control is slow to operate.

Controls and functions2

◆ Projector overview

Top view

Side view

Control panel

DIGITAL CINEMA PROJECTOR DPX-830

6 7

AUTO SYNC

Bottom view

10 11

1. FOCUS ring

2. ZOOM ring

3. Control panel

4. Air intake vent

5. Remote control sensor (Front)

6. Air intake vent

7. Air exhaust vent

8. Adjustment foot (Front)

9. Lamp cover (see page 33)

10. Adjustment feet (Rear)

11. Foot adjustment buttons (Left/Right)

12. Air intake vent

1. STANDBY/ON, button

2. AUTO SYNC, button

3. D-SUB/HDMI, button

4. MENU button

5. STATUS indicator

6. POWER indicator

7. KEYSTONE, ENTER button

8. VIDEO/S/COMP., button

9. button

Important

• While the menu is on the screen, the KEYSTONE button

functions as the ENTER button and the D-SUB/HDMI, VIDEO/S/COMP., and AUTO SYNC buttons function as

the , , and buttons respectively.

Rear panel

AC IN

6 8 9

23145

COMPONENT

HDMI

SERIAL

D-SUB

USB

TRIGGER

B/CBPR/CR

S-VIDEO

VIDEO

71011

1. AC IN

2. HDMI input terminal

3. D-SUB input terminal

4. Remote control sensor (Rear)

5. COMPONENT input terminals

6. Air exhaust vent

7. SERIAL terminal

• Used for adjustment by service person.

8. USB terminal

• Used for adjustment by service person.

9. TRIGGER terminal

• Used for the optional electric screen.

10. S-VIDEO input terminal

11. VIDEO input terminal

◆ Remote control overview

POWER

STANDBYON

2 3

4 5 6

8 9

NORMAL

D-SUB

CONT.

GAMMA

ASPECT

SQUEEZ

COMP. VIDEOHDMI

INPUT

ENTER

MEMORY

231

BRIGHT

SHARP

SETTING

HIDEAUTO

S. ZOOM

S-VIDEO

KEYSTN

C.TEMP

IRIS

11 12 14 16 18

13 15 17

1. IR signal transmitter

2. ON ( I ) button

3. AUTO button

4. NORMAL button

5. HDMI button

6. D-SUB button

7. Cursor buttons ( / / / )

8. MENU button

9. MEMORY buttons

10. The picture quality adjusting buttons*

* See the below for the picture quality adjusting buttons.

11. STANDBY ( ) button

12. HIDE button

13. ASPECT button

14. S. ZOOM (Smart zoom) button

15. SQUEEZ (Squeeze) button

16. VIDEO button

17. COMP. (Component) button

18. S-VIDEO button

19. ENTER button

20. KEYSTN (Keystone) button

21. IRIS button

Important

(see page 17)

•

RDP-81

When you press a button on the remote control, the buttons on the remote control will light up. Wait approximately 6 seconds after releasing the button for the lights to turn off.

Using the picture quality adjusting buttons

When you press either of the picture quality adjusting buttons, the message for adjusting the picture quality appears. Adjust the picture quality by pressing the and buttons. The picture quality adjustment can be made alternatively in the IMAGE menu (see page 23).

CONT. (CONTRAST) ..................................... Adjusts the contrast of the projected image.

GAMMA.......................................................... Selects one of the preset gamma modes.

BRIGHT (BRIGHTNESS) .............................. Adjusts the brightness of the projected image.

SHARP (SHARPNESS) .................................. Adjusts the sharpness of the projected image.

C. TEMP (COLOR TEMPERATURE) ........... Selects one of the preset color temperatures.

Using the remote control3

◆ Operational range

Front panel Rear panel

30˚30˚

POWER

STANDBYON

ASPECT ASPECT

HIDEAUTO

SQUEEZ

S. ZOOM

NORMAL

COMP. VIDEOHDMI

INPUT

S-VIDEO

D-SUB

ENTER

KEYSTN

MEMORY

231

BRIGHT

C.TEMP

CONT.

SHARP

IRIS

GAMMA

SETTING

RDP-81

Operate the remote control within a distance of 10 m from the projector, pointing the light beam at the remote control sensor (front

AC IN

or rear) of the projector.

Distance to sensor Angle to sensor

10 m

(approximate value)

30˚30˚

POWER

STANDBYON

ASPECT ASPECT

HIDEAUTO

SQUEEZ

S. ZOOM

NORMAL

COMP. VIDEOHDMI

INPUT

S-VIDEO

D-SUB

ENTER

KEYSTN

MEMORY

231

BRIGHT

C.TEMP

CONT.

SHARP

IRIS

GAMMA

SETTING

RDP-81

Caution

• Keep the remote control sensor out of direct sunlight or fluorescent lamp light.

• Keep the remote control sensor at least 2 m away from fluorescent lamps. Otherwise, the remote control may malfunction.

30° left and right

(approximate value)

• If there is an inverter-operated fluorescent lamp near the remote control, the remote control operation may become unstable. On this occasion, stick a commercially available protection sticker on one of the sensors that is closer to the fluorescent lamp.

DBY

N A ST

R E W

HIDEAUTO O P

PECT

S. Z

AS N O

SPE A

V E E

SQU

S-VIDEO

COM

ORMA

HDM

EYSTN

P EM T

MOR

ENU

IRIS

BRIG

SHAR

E S

AMM

RDP-81

◆ Reception angle

Vertical directions

20˚ 10˚

Vertical directions (ceiling mount)

When operating the remote control, keep the distance from the remote control to the projector via the screen within about 5 m. The operable range of the remote control, however, depends on the characteristics of the screen.

20˚ 10˚

2020˚

4 Installation

◆ Setting up the screen

Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector as shown below.

Important

• Before setting up the screen, be sure to set SCREEN ASPECT in the SETUP menu to either 16:9 or 4:3.

• Install the screen and projector so that the projector’s lens is placed at the horizontal position of the screen center.

• Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen makes the projected images whitish and hard to view.

◆ Mounting the projector on the table

Determine the distance from the screen to the projector according to the size of the images to be projected (see page 10).

Screen

Height of the

projected image

A=B

STANDBY/ON

POWER STATUS

AUTO SYNC

ENTER

DIGITAL CINEMA PROJECTOR DPX-830

Projected distance

• Do not place this projector on a carpet or blanket because the intake vent on the bottom surface will be blocked and the inside of the projector will overheat, causing a breakdown or fire.

• Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake vent, causing the projector to display “Over Temperature” and then stop projecting images. If this happens, clear the area around the exhaust vent.

◆ Adjusting the projection angle

This projector is provided with three feet for adjusting the projection angle on the bottom surface. Adjust the projection angle depending on the position of the projector. For the best projection, project images on a flat screen installed at 90 degrees to the floor. If necessary, tilt the projector using the adjustment feet on the bottom of the projector.

1. Tilt the projector upwards to the appropriate angle.

Screen

2. Press the foot adjustment buttons next to the adjustment feet (rear), and the adjustment feet will come out.

3. Release the buttons to lock the adjustment feet (rear) to that position.

4. Rotate the adjustment feet (rear) for fine adjustment.

• If necessary, rotate the adjustment foot (front) for fine

adjustment.

Adjustment feet (rear)

After using the projector

Put the adjustment feet (rear) back into the projector by pressing the foot adjustment buttons.

When projected images are distorted to a trapezoid

When the screen and the projector are not placed perpendicularly to each other, projected images become trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments, adjust keystone (see page 17).

◆ Mounting the projector on the ceiling

To view images projected by the ceiling mounted projector from the front:

When the projector is installed on the ceiling, the special ceiling mount bracket, which is commercially available, is required. Be sure to ask a certified installation specialist for installation of the projector. Contact your dealer for details.

• Yamaha assumes no responsibilities for any damage caused by use of other manufacturer’s ceiling bracket and by inadequate installation conditions even within the warranty period.

• When installing the projector on the ceiling, set LOCATION in the SETUP menu to FRONT/CEILING.

• Ask your installation specialist to provide a breaker. When you do not use the projector, be sure to shut down the main power by the breaker.

• When the projector is installed on the ceiling, projected images may appear darker than those projected when the projector is installed on the floor.

• Do not install the projector where the exhaust vents are exposed to air emitted by an air conditioning. Such installation may cause a breakdown.

• Do not install the projector near a fire alarm because it emits hot air from its exhaust vents.

Optional part

Ceiling mount bracket PMT-L71 (low ceilings)

PMT-H75 (high ceilings)

To view images projected on a translucent screen from behind:

Be sure to ask a certified installation specialist for installation of the projector. Contact your dealer for details.

• To view images projected from behind the screen, set LOCATION in the SETUP menu to REAR/TABLE.

◆ Screen size and projection distance

Refer to the following diagram to determine the screen size.

When the aspect ratio of the screen is 16:9

Screen size

Width of the projected image

Screen size 16:9 Projected distance (L)

Diagonal Height A Width B Min. Max.

Height of the

projected image

Center of the lens

Projected distance (L)

inch cm inch cm inch cm inch m inch m inch cm

40 102 20 50 35 89 56 1.4 68 1.7 6.6 17 60 152 29 75 52 133 85 2.2 103 2.6 9.9 25

80 203 39 100 70 177 114 2.9 139 3.5 13.2 33 100 254 49 125 87 221 143 3.6 174 4.4 16.5 42 150 381 74 187 131 332 216 5.5 262 6.6 24.7 63 200 508 98 249 174 443 289 7.3 349 8.9 32.9 84 250 635 123 311 218 553 362 9.2 – – 41.2 105 275 699 135 342 240 609 398 10.1 – – 45.3 115

• The above figures are approximate and may be slightly different from the actual measurements.

When the aspect ratio of the screen is 4:3

When the aspect ratio of the screen is 4:3, the positional relation between the projected image and the screen is as shown below. Refer to the following table for installation.

When the aspect ratio of the image is 4:3

Screen size

Height of the

projected image

Center of the lens

Width of the projected image

Projected distance (L)

Diagonal Height A Width B Min. Max.

inch cm inch cm inch cm inch m inch m inch cm

40 102 24 61 32 81 65 1.6 79 2.0 6.8 17 60 152 36 91 48 122 98 2.5 119 3.0 10.2 26

80 203 48 122 64 163 132 3.3 159 4.0 13.6 35 100 254 60 152 80 203 165 4.2 200 5.1 17.0 43 150 381 90 229 120 305 248 6.3 300 7.6 25.5 65 200 508 120 305 160 406 332 8.4 – – 34.0 86 250 635 150 381 200 508 – – – – 42.5 108 275 699 165 419 220 559 – – – – 46.8 119

• The above figures are approximate and may be slightly different from the actual measurements.

Screen size 4:3 Project distance (L)

When the aspect ratio of the image is 16:9

Screen size

Height of the screen

Height of the

projected image

Width of the projected image

Screen size 4:3 Size of the projected image 16:9 Project distance (L)

Diagonal Height C Width B Height A Blank space (D) Min. Max.

inch cm inch cm inch cm inch cm inch cm inch m inch m inch cm

40 102 24 61 32 81 18.0 46 3.0 8 51 1.3 63 1.6 6.0 15 60 152 36 91 48 122 27.0 69 4.5 11 78 2.0 95 2.4 9.1 23

80 203 48 122 64 163 36.0 91 6.0 15 105 2.7 127 3.2 12.1 31 100 254 60 152 80 203 45.0 114 7.5 19 132 3.3 159 4.0 15.1 38 150 381 90 229 120 305 67.4 171 11.3 29 198 5.0 240 6.1 22.7 58 200 508 120 305 160 406 89.9 228 15.0 38 265 6.7 320 8.1 30.2 77 250 635 150 381 200 508 112.4 286 18.8 48 332 8.4 401 10.2 37.8 96 300 762 180 457 240 610 134.9 343 22.6 57 398 10.1 – – 45.3 115

• The above figures are approximate and may be slightly different from the actual measurements.

Center of the lens

Projected distance (L)

+ 32 hidden pages
