Yamaha CS2x User Manual

FORMANT SHAPING / FM SYNTHESIS TONE GENERATOR

Formant Shaping Synthesis:The Evolution of FM

New synthesis technology — FS Synthesis (Formant shaping / FM synthesis) — creates sound with characteristics and flexibility similar to the human voice for extraordinary sonic depth and expressive control.

Upward compatible with voices from the

“classic” FM synthesizers and tone genera-

tors, such as the Yamaha DX and TX series.

Formant Sequences — “Fseqs” — produce other-worldly vocal phrases, rhythm loops, and more.

Assignable control knobs for extended real-time sonic control as well as easy programming.

A huge selection of 1408 preset voices, including the best from the original DX and TX series.

Block Diagram

Specifications

Tone Generation System Tone Generators Formant Shaping / FM Synthesis

DEMO Songs 15 Number of Voices Performance

Components Performance

Controls POWER Switch

Display LCD (Backlit)

Terminals Front panel Phones

Dimensions 480(W) x 235(D) x 44(H) mm Weight 2.6Kg Power Consumption USA 120V (60Hz) 12.0 Watts

Included Accessories Owner's Manual x 1, Data List x 1, AC Power Cord x 1

Descriptions and photographs in this brochure are for information purposes only, and specifications are subject to change without notice.

Multi-Timbres 4 Parts (16 MIDI Channel Multi-Timbre) Polyphony 32 notes (DVA)

Preset 384 (128 x 3 banks), Internal 128

Voice

Preset 1408 (128 x 11 banks), Internal 128 / 64 (Internal Fseq)

Fseq (Formant Sequence)

Preset 90, Internal 6 (max)

4 Parts (4 Voices), Fseq (Formant Sequence), Voice Controller (Source / Destination Assignable Matrix) Effects

Reverb 16 types, Variation 28 types, Insertion 40 types, Equalizer

Voice

16 Operators (Voiced x 8, Unvoiced x 8), 88 Algorithms, LFO1, LFO2, Dynamic Filter, Pitch EG

Main Volume x 1 Sound Control Knob x 4 Mode x 6 (PLAY, EDIT [PERFORM], EDIT [EFFECT], EDIT [VOICE], UTIL, SEARCH) Data x 9 (MUTE/SOLO, ENTER, EXIT, PART / , CURSOR / , VALUE / ) Knob Select x 2 (ATTACK, RELEASE, FORMANT, FM / KN1-4 )

LED Mode x 6 Green, Knob Select x 2 Red

Rear panel Output L(MONO), R

Europe 240V (50Hz) 12.0 Watts

(Absolute / Relative)

Individual Out L, R MIDI IN/OUT/THRU

SPECIAL MESSAGE SECTION

This product utilizes batteries or an external power supply (adapter). DO NOT connect this product to any power supply or adapter other than one described in the manual, on the name plate, or specifically recommended by Yamaha.

WARNING:

Do not place this product in a position where anyone could walk on, trip over ,or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! IF you must use an extension cord, the minimum wire size for a 25' cord (or less ) is 18 AWG. NOTE: The smaller the AWG number ,the larger the current handling capacity. For longer extension cords, consult a local electrician.

This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. IMPORTANT: The louder the sound, the shorter the time period before damage occurs.

Some Yamaha products may have benches and / or accessory mounting fixtures that are either supplied with the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that benches are stable and any optional fixtures (where applicable) are well secured BEFORE using. Benches supplied by Yamaha are designed for seating only. No other uses are recommended.

NOTICE:

Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer’s warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

This product may also use "household" type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged.

When installing batteries, do not mix batteries with new, or with batteries of a different type. Batteries MUST be installed correctly. Mismatches or incorrect installation may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Model

Serial No.

92-BP

Purchase Date

PLEASE KEEP THIS MANUAL

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep these precautions in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

• Do not open the instrument or attempt to disassemble the internal parts or modify them in any way. The instrument contains no user-serviceable parts. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.

• Do not expose the instrument to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.

• If the AC adaptor cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the instrument, or if any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the adaptor plug from the outlet, and have the instrument inspected by qualified Yamaha service personnel.

CAUTION

• Use the specified adaptor (PA-3B or equivalent recommended by Yamaha) only. Using the wrong adaptor can result in damage to the instrument or overheating.

• Before cleaning the instrument, always remove the electric plug from the outlet. Never insert or remove an electric plug with wet hands.

• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the instrument or other property. These precautions include, but are not limited to, the following:

• Do not place the AC adaptor cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.

• When removing the electric plug from the instrument or an outlet, always hold the plug itself and not the cord.

• Do not connect the instrument to an electrical outlet using a multipleconnector. Doing so can result in lower sound quality, or possibly cause overheating in the outlet.

• Unplug the AC power adaptor when not using the instrument, or during electrical storms.

• Before connecting the instrument to other electronic components, turn off the power for all components. Before turning the power on or off for all components, set all volume levels to minimum.

• Do not expose the instrument to excessive dust or vibrations, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day) to prevent the possibility of panel disfiguration or damage to the internal components.

• Do not use the instrument near other electrical products such as televisions, radios, or speakers, since this might cause interference which can affect proper operation of the other products.

• Do not place the instrument in an unstable position where it might accidentally fall over.

• Before moving the instrument, remove all connected adaptor and other cables.

• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths. Also, do not place vinyl, plastic or rubber objects on the instrument, since this might discolor the panel or keyboard.

• Do not rest your weight on, or place heavy objects on the instrument, and do not use excessive force on the buttons, switches or connectors.

• Use only the stand/rack specified for the instrument. When attaching the stand or rack, use the provided screws only. Failure to do so could cause damage to the internal components or result in the instrument falling over.

• Do not operate the instrument for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

■REPLACING THE BACKUP BATTERY

• This instrument contains a non rechargeable internal backup battery which permits internal data to remain stored even when the power is off. When the backup battery needs replacing, the message “Battery Low” will display in the LCD. When this happens, immediately back up your data (using an external device such as the floppy disk-based Yamaha MIDI Data Filer MDF3), then have qualified Yamaha service personnel replace the backup battery.

• Do not attempt to replace the backup battery yourself, in order to prevent the possible serious hazards. Always have qualified Yamaha service personnel replace the backup battery.

• Never place the backup battery in a location that a child can reach, since a child might accidentally swallow the battery. If this should happen, consult a physician immediately.

■SAVING USER DATA

• Save all data to an external device such as the Yamaha MIDI Data Filer MDF3, in order to help prevent the loss of important data due to a malfunction or user operating error.

Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.

(3)-3

Always turn the power off when the instrument is not in use.

About This Manual

Congratulations on your purchase of the CS2x Control Synthesizer! And thank you for choosing Yamaha.

The CS2x introduces a completely new dimension to the enormously popular CS1x, providing more great sounds, additional SOUND CONTROL knobs for broader real-time sound sculpting capabilities, plus other handy features which provide for greater overall operational convenience and performance flexibility.

This owner’s manual is your personal “hands on” guide to getting the most from your CS2x — so be sure to keep it in a safe and accessible place for quick and easy reference whenever you may need it! It is divided into the following sections:

Getting Started

This section includes everything you need to get to know the CS2x inside and out. It is divided into four parts: Welcome To The World Of CS2x Control Synthesis, Setting Up The CS2x, Getting To Know The CS2x, CS2x Quick Tour.

Feature Reference

This section provides descriptions of CS2x features and explanations of operations. It is in essence a dictionary which you can refer to any time you need to know the specifics about any given feature. It is organized into the following sections: Performance Mode, Multi Play Mode, Utility Mode, Store Mode and Factory Settings.

Appendix

This section provides information related to the digital effects, MIDI, error messages, troubleshooting and more.

A separate CS2x Control Synthesizer “Data List” book provides tables, lists and other information related to Preset Performances, normal and drum voices, MIDI Data Format and more.

Naming Conventions

For maximum ease of understanding, two basic conventions are used throughout this manual regarding the names of CS2x features, as follows:

• The names of specific buttons located on the panel are placed inside brackets, e.g. [ARPEGGIO] button, [PERFORMANCE] button, [USER] button, etc.

Getting Started .................................... 6

Welcome To The World Of CS2x Control Synthesis .......... 6

Main Features.......................................................................... 7

Top Panel ................................................................................ 8

Rear Panel.............................................................................. 10

Setting Up The CS2x........................................................ 11

Basic Connections ................................................................ 11

Powering Up! ........................................................................ 14

Playing The Demo Songs ...................................................... 14

Getting To Know The CS2x .............................................. 15

CS2x Tone Generation .......................................................... 15

Normal Voices And Drum Voices .......................................... 18

Layers .................................................................................... 18

Knob Parameters .................................................................... 19

Panel Edit Parameters ............................................................ 20

Operating Modes .................................................................. 21

CS2x Quick Tour.............................................................. 23

Performance Mode ................................................................ 23

Performance Selection .................................................... 23

Performance Mode Select ........................................ 23

Performance Bank Select .......................................... 23

Performance Number Select .................................... 23

Performance Play ............................................................ 25

Octave Shift Function .............................................. 25

PITCH And MODULATION Wheels ........................ 25

Scenes And SCENE CONTROL Function .................. 25

Performance Editing And Store........................................ 26

SOUND CONTROL Knobs ...................................... 26

The Arpeggiator ........................................................ 27

Panel Edit Matrix ...................................................... 29

User Performance Store ............................................ 30

Multi Play Mode.................................................................... 31

Sequencer Setup ...................................................... 31

Multi Play Mode Select ............................................ 31

Part Assign ................................................................ 32

Part Parameter Edit .................................................... 32

XG Operation .................................................... 33

Multi Play In Performance Mode .......................................... 33

Using The CS2x With XGworks ...................................... 34

• The names of other panel features and terminals are printed in all-caps just as they appear on the panel, e.g. PITCH wheel, TO HOST terminal, EFFECT REV SEND parameter, etc.

The illustrations and LCD screens as shown in this owner's manual are for instructional purposes only, and may be different from the ones on your instrument.

The company names and product names in this owner's manual are the trademarks or registered trademarks of their respective companies.

Feature Reference .............................. 40

Performance Mode.......................................................... 40

Common Edit 1 .................................................................... 43

Common Edit 2 .................................................................... 45

Layer Edit 1............................................................................ 47

Layer Edit 2............................................................................ 50

Layer Edit 3............................................................................ 52

Layer Edit 4............................................................................ 54

Multi Play Mode.............................................................. 57

Utility Mode .................................................................... 61

Store Mode...................................................................... 66

Factory Settings .............................................................. 69

Appendix ............................................ 70

Digital Effects .................................................................. 70

About MIDI .................................................................... 72

Specifications .................................................................. 76

Troubleshooting .............................................................. 77

Error Messages ................................................................ 78

Index .............................................................................. 79

Getting Started

CONTROL

SYNTHESIZER

Getting Started

Welcome To The World Of CS2x Control Synthesis

Whether you’re a beginner and the CS2x is your very first professional synth, or you’re a seasoned professional making a living entertaining the masses — or whether you style yourself as anything in between — you’re sure to find the CS2x to be one of the finest electronic musical instruments you’ll ever own. It’s certainly one of the most

fun.

It can be said that the CS2x is a sort of “hands on” interactivity, broad dimensions of sound, an Arpeggiator, and a wealth of real-time control features — and unites it with the best of modern digital — such as stable pitch, a full 64 notes of polyphony, one-touch setting reconfigurations, a generous 16 MB of Wave ROM plus lots of storage memory, comprehensive MIDI features, and much, much more.

Another great thing about the CS2x is that there are no pages and pages of hard-to-get-at hidden functions. Literally everything you need is laid out right before your eyes. And simply a press of a button — or twist of a knob — away. Since all complicated concepts and frustration factors are eliminated right from the start, the CS2x is quick and easy to learn to operate.

And if you should ever need to use the CS2x as a multitimbral tone generator, you’ll find it the ideal MIDI system component since it’s designed to accommodate XG and General MIDI System Level 1 (GM) formats with ease. It also lets you set up your own configuration of multiple timbres using a unique “4-Layer plus 12-Part” system that lets you keep your Performance timbre intact. There’s even a stereo mini plug input which lets you “mix” the stereo or mono audio signals of an external component such as a sampler or submixer with the CS2x’s audio output.

All things considered, the CS2x is sweet and simple — but incredibly powerful. Capable of holding its own in literally any music situation, it’s an exciting world of modern music that you’ll be proud to be a part of.

analog-style digital synth

. It takes the best of traditional analog — such as simplicity of use, natural

GM System Level 1

“GM System Level 1” is a standard specification that defines the arrangement of voices in a tone generator and its MIDI functionality, ensuring that data can be played back with substantially the same sounds on any GM-compatible tone generator, regardless of its manufacturer or model. Tone generators and song data that meet the “GM System Level 1” bear this GM logo.

“XG” is a tone generator format that expands the voice arrangement of the “GM System Level 1” specification to meet the everincreasing demands of today’s computer peripheral environment, providing richer expressive power while maintaining upward compatibility of data. “XG” greatly expands “GM System Level 1” by defining the ways in which voices are expanded or edited and the structure and type of effects. When commercially available song data bearing the XG logo is played back on a tone generator which bears the XG logo, you will enjoy a full musical experience that includes unlimited expansion voices and effect functions.

Getting Started

Main Features

The CS2x is designed for maximum real-time control during performance. This makes it the ideal choice for Dance DJs, Rhythm And Rhyme MCs, Drum & Bass and Techno musicians — and anyone else whose music thrives on a cutting edge synth sound. It’s also an ideal multitimbral “module” fit for any type of MIDI system. Following is a list of the CS2x’s main features.

● 16 MB Wave ROM With AWM2 Voices

AWM2 (Advanced Wave Memory 2) voices are comprised of actual digital recordings, or samples, of real musical instrument and other sounds. Voices available for use include 586 normal voices and 20 drum voices (kits) for GM and XG format applications in Multi Play mode, plus much more.

● 256 Preset And 256 User Performances

A “Performance” is a complete configuration of a in sophisticated keyboard and velocity splits) plus digital effects selections, Arpeggiator and many other parameter settings. Performance mode — the chief operating mode for real-time play — has 256 great-sounding Preset Performances plus 256 User Performances for storing your own.

● 8 Real-time Sound Control Knobs And “Scenes”

The SOUND CONTROL knobs give you direct access to key parameters of the currently selected Performance as you play. Each Performance has two Scene memories, each of which provides instant recall of specific SOUND CONTROL knob positions. You can use the MODULATION wheel or a connected Foot Controller to “morph” between the sound of each Scene during performance.

Layer

(up to 4 voices either stacked or playing

● Arpeggiator With 40 Patterns

The Arpeggiator lets you select from 40 types of arpeggiated chord patterns and 10 timing subdivisions. Included are Up, Down and Up/Down patterns across one or more octaves, plus various special patterns including Techno, House, Random, Echo&Pan and more. All Arpeggiator settings are stored as part of each Performance. The Arpeggiator’s tempo can be controlled by an external MIDI clock, and the Arpeggiator data can be output via MIDI.

● 3 Programmable Digital Effects Units

The three independent DSP digital effects units — Reverb (12 types), Chorus (14 types) and Variation (62 types) — can all be used simultaneously.

● Easy Connection To And Use With A Computer

A built-in TO HOST terminal plus HOST SELECT switch permits direct connection to an IBM PC/AT or Apple Macintosh computer without the need for any peripheral interface hardware. Multi Play mode allows for multitimbral play of up to 16 different Parts (across 16 MIDI channels, when using an external sequencer) with 64 notes of available polyphony.

Getting Started

Top Panel

VOLUME

ATTACK

MW FC

SCENE

PITCH

MODULATION

FOOT

PHONES

L/MONO

DECAY

CUTOFFCUTOFF LPFHPF

OUTPUT

RELEASE DATAASSIGN

RESONANCE

STANDBY

DC IN

VOLUME

CONTROLLER

ARPEGGIO

–

PART LAYER

PRESET

–

ASSIGN 2

–

SWITCH

HOLD

PROGRAM

SHIFT

OCTAVE

USER

INPUT TO HOST

HOST SELECT

PERFORMANCE

PRESET USER ARPEGGIATOR

IN OUT

THRU

MIDI

CONTROL SYNTHESIZER

VWX

STORE

MULTI

UTILITY

PQR STU

MNO

JKL

GHI

DEF

ABC

QUICK PC

PERFORMANCE

SPACE

ENTER

–

YES

STORE

ARPEGGIATOR

PERFORM

TEMPO

LEVEL

SUB

TYPE

P BEND RANGE

NOTE SFT

ATK TIME

BANK

DEMO

MULTI

UTILITY

MASTER

TUNE

REV

DIVIDE

TYPE

FMOD

PMOD

CUTOFF

NOTE

TUNE

DETUNE

LIMIT

HIGH

LOW

AEG

DCY

REL

AMOD PMOD

SUS

TIME

LEVEL

FEG

REL

DCY

SUS

INIT

TIME

LEVEL

REV

VOLUME

PROGRAM

PAN

SEND

SYSTEM

KBD

VEL

TRANS

FIX

CURVE

PERFORM

EFFECT

NAME

CHO

VARI

TYPE

PARAM

DATA

TYPE

CUTOFF

VARI EF

VEL LIMIT HIGH

FMOD

ATK

LEVEL

TIME

EFFECT

VARI

CHO

SEND

MIDI

DEVICE

RCVCHTRANS

COMMON

PORTA

ASSIGN1

PARAM

SWITCH

TIME

ASSIGN

DATAPARAMDEPTHOFFSET

LFO

SPEED

PHASE

WAVE

INIT

LAYER

PEG

DCY

REL

TIME

LEVEL POLY

FILTER

REZ

MONO

CUTOFF

ASSIGN

CTRL

BULK

LOCAL

UTILITY

DUMP

1 VOLUME knob

This knob controls the CS2x’s overall audio volume level output from the PHONES and OUTPUT jacks. Turn it between left-most (minimum) and right-most (maximum) positions to set the proper listening level whether using headphones or amplified speakers.

2 SOUND CONTROL knobs

The eight SOUND CONTROL knobs are used for real-time control and edit of various tone generator parameters. Turning a knob to the left or right will offset its specified parameter values accordingly (left for negative values, right for positive values). Each knob has a detented center stop position which represents the original value of the parameter. (page 19.)

3 [SCENE] buttons

Each of the CS2x’s 512 Performances has two “Scene” memories in which are stored the specific positions of the eight SOUND CONTROL knobs, giving you the capability of slight or even radical sound reshaping at the press of a [SCENE] button. Simultaneously pressing both [SCENE] buttons activates the SCENE CONTROL function, which lets you use the MODULATION wheel or a connected Foot Controller to “sound morph” between the two Scenes. (page 25.)

4 [ARPEGGIO] button

Pressing this button turns the Arpeggiator on and off. When the Arpeggiator is on, you can create automatic arpeggiated chords as you play. You can designate arpeggio type, tempo and timing subdivision using the panel edit functions. An ARPEGGIATOR SPLIT function lets you split the keyboard at C3 so the chords you play to the left of the split point will create arpeggiated chords and everything from the split point and above will play as normal. An ARPEGGIATOR HOLD function will cause arpeggiated chords to continue playing even after you release the keys. (page 27.)

5 [SHIFT] button

This button has three functions. (1) Holding [SHIFT] and pressing OCTAVE [-]/[+] transposes the octave of a Performance or voice up or down (page 25). (2) Holding [SHIFT] and pressing [ARPEGGIO] turns the ARPEGGIATOR HOLD function on and off (page 27). (3) Holding [SHIFT] and pressing ARPEGGIATOR TYPE [UP/DOWN] (in Performance Edit mode when the Arpeggiator Type screen is displayed) turns the ARPEGGIATOR SPLIT function on and off (page 27).

6 PART/LAYER/OCTAVE [-]/[+]

buttons

These two buttons have three functions. (1) In Performance mode you can use them to select one of the four Layer voices (page 29). (2) In Multi Play mode you can use them to select one of the 16 Parts (page 32). (3) When used in conjunction with the [SHIFT] button you can use them to transpose the octave of the Performance or voice up or down (page 25).

7 [PRESET] and [USER]

Performance buttons

Pressing one of these buttons lets you access a Preset or User Performance bank in Performance Play mode. Each time you press [PRESET] or [USER] toggles between P1 and P2 or U1 and U2 banks, respectively. Each bank contains 128 Performances, making a total of 512 available. (page 23.)

8 PROGRAM [-]/[+] buttons

Each time you press one of these buttons lets you step up ([+]) or down ([-]) through each consecutive Performance (in Performance mode) or voice (in Multi Play mode). Holding either switch lets you continuously “scroll” through the list of programs.

9 LCD

The backlit LCD screen displays various types of information to indicate the current operating status of the CS2x, depending on which mode or particular function is selected.

Getting Started

) NUMERIC KEYPAD

The NUMERIC KEYPAD is used in conjunction with the [ENTER/YES] and [-/NO/QUICK PC] buttons and has several functions. In Performance mode or Multi Play mode you can use it to select a specific Performance or voice program number (page 24) as well as for selecting a program number when the QUICK PROGRAM CHANGE function is active (page

41). In Edit mode you can use it to input positive or negative numeric data values (page 42) or to select characters when naming a User Performance (page 45).

! [-/NO/QUICK PC] button

This button has three functions. (1) As a [-] button you can use it to enter negative data values in Edit mode (page 42). (2) As a [NO] button you can use it to cancel a store operation if you change your mind (page 66). (3) As a [QUICK PC] button you can use it to activate the QUICK PROGRAM CHANGE function (page 41).

@ [ENTER/YES] button

This button is used as an [ENTER] button in conjunction with the NUMERIC KEYPAD in order to enter a specific program number in Play mode (page 24) or data value in Edit mode (page 42). It is used as a [YES] button to confirm store operations (page 66).

# EDIT PARAMETER ROTARY

switch

In Performance mode this six-position switch lets you select one of the two COMMON or four LAYER menus of parameters (page 41). In Multi Play mode only the bottom menu of parameters are available, regardless of the current position of the switch (page 57).

$ Parameter Value [UP/DOWN]

buttons

Used for accessing and editing specific panel parameters and settings, each of these ten buttons corresponds to a parameter name printed on the panel above or below a given [UP/DOWN] button. Press it once to enter Edit mode and display the parameter screen in the LCD. Press the [▲] area to increase and the [▼] area to decrease values. Holding down either area will continuously scroll through available settings. In Performance Edit mode, the position of the EDIT PARAMETER ROTARY switch determines which COMMON or LAYER parameter is available for each button. In Multi Part Edit mode, only the parameters printed directly above the buttons are available. In Utility mode, only the parameters printed directly below the buttons are available.

^ [MULTI] button

Pressing this button activates Multi Play mode, which lets you select and play any of the 586 XG voices, as well as designate up to 16 Parts for multitimbral play (when using an external sequencer). Parameters which can be edited in Multi Play Edit mode are printed in a row directly above the Parameter Value [UP/DOWN] buttons. (page 31.)

DEMO function

Pressing [PERFORMANCE] and [MULTI] simultaneously activates the factory-programmed demonstration songs (page 14).

& [UTILITY] button

Pressing this button activates Utility mode, which lets you access those “system” parameters that affect the CS2x as a whole, including MASTER TUNE, MIDI TRANSMIT and RECEIVE CHANNEL numbers, keyboard LOCAL on/off setting, etc., as printed directly below each Parameter Value [UP/DOWN] button (page 61).

* [STORE] button

This button is used when performing User Performance, Scene and Multi Store operations (page 66).

( PITCH wheel

This controller lets you bend the pitch up or down as you play. It is springloaded to automatically return to center position when you let go of it. In Performance mode you can determine the extent of pitch change using the PITCH BEND RANGE edit function (page 45).

º MODULATION wheel

This controller lets you apply or set a designated amount of vibrato or tremolo as you play. You can also set it to affect filter cutoff, filter modulation, and pitch modulation (page 46) as well as other controllable parameters (page 64). When the SCENE CONTROL function is active it can be used to “morph” the sound in real-time between the two Scenes.

¡ Keyboard

The 61-key touch-sensitive keyboard features Initial Touch (velocity) control.

% [PERFORMANCE] button

Pressing this button activates Performance mode, which lets you select any of the Preset or User Performances, use the SOUND CONTROL knobs and SCENE functions, as well as activate the Arpeggiator and COMMON and LAYER edit parameters. Press [PERFORMANCE] to enter Performance mode from another mode, or to exit Edit mode and redisplay the Performance Program Select screen after performing a panel edit operation. (page 23.)

Getting Started

Rear Panel

THRU

MIDI

HOST SELECT

2 PC-1

PC-

INOUT

MIDI Mac

TO HOST

INPUT

1 MIDI terminals

The MIDI terminals let you connect external MIDI devices such as a sampler, drum machine, sequencer, or computer using MIDI cables. MIDI IN is for input of MIDI note and other performance-related data, as well as bulk data dumps from another CS2x or MIDI data storage device. MIDI OUT is for output of MIDI note and other performance-related data, as well as for bulk data dumps to another CS2x or MIDI data storage device. MIDI THRU is for “daisy chain” connection of multiple MIDI instruments, as the MIDI data received at MIDI IN is passed along unaffected to MIDI THRU. (NOTE: Set HOST SELECT to “MIDI” when using the MIDI terminals.)

2 HOST SELECT switch

This switch lets you designate the type of host computer, either PC1, PC2, Mac, or MIDI (page 13). (NOTE: When a host computer is not connected, set HOST SELECT to “MIDI” for normal MIDI transmission and reception.)

3 TO HOST terminal

This terminal lets you connect the CS2x directly to a host computer which does not have a MIDI interface (page 13).

ASSIGNABLE

FOOT

SWITCH

FOOT

CONTROLLER

FOOT

VOLUME

STANDBY

OUTPUT

L/MONO

PHONES

6 FOOT CONTROLLER jack

By connecting an optional Yamaha FC7 or FC9 foot controller to this jack you can control filter modulation, filter cutoff, and the Variation effect (page 12), as well as the Control Change Number (page 64). You can also use it for “sound morphing” between Scenes when the SCENE CONTROL function is active (page 25).

7 FOOT VOLUME jack

By connecting an optional Yamaha FC7 or FC9 foot controller to this jack you can regulate overall volume by foot.

8 STANDBY/ON switch

This switch is for turning the power of the CS2x on and off (page 14).

9 DC IN terminal

This terminal is for connection of the supplied Yamaha PA-3B Power Adaptor. (CAUTION: Do not attempt to use an AC adaptor other than the Yamaha PA-3B or equivalent, since the use of an incompatible adaptor may cause irreparable damage to the CS2x, and may even pose a serious shock hazard.)

4 INPUT jack

This jack lets you connect an external audio source (such as a sampler, CD player, etc.) directly to the CS2x using either a stereo or mono mini plug. The incoming audio signals are combined and output at the CS2x's OUTPUT terminals, thus eliminating the need for an external mixer. To

) OUTPUT jacks

The stereo OUTPUT jacks let you connect the CS2x to an external stereo amplifier/speaker system. When using a mono system, use the L/MONO jack. (page 11.)

control the relative balance of the signals, use the external device's output volume control and the CS2x's panel edit PERFORM LEVEL parameter (Performance mode; page 44) or VOLUME parameter (Multi Play mode, page 59).

! PHONES jack

This jack lets you connect a set of stereo headphones for private listening (page 11).

5 FOOTSWITCH jack

By connecting an optional Yamaha FC4 or FC5 footswitch to this jack you can control hold on/off, portamento on/off and other parameters, determined by the ASSIGN CTRL NO (Assign Control Change Number) setting in Utility mode (page 64).

Setting Up The CS2x

CONTROL

SYNTHESIZER

1. STANDBY

3. To electrical outlet

2. DC IN

PHONES

L/MONO

OUTPUT

FOOT VOLUME

FOOT

CONTROLLER

FOOT SWITCH

ASSIGNABLE

INPUT

TO HOST

HOST SELECT PC-

2PC-1

MIDI Mac

INOUT

MIDI

THRU

STANDBY

Amp

MIXER

CS2x

Speaker Speaker

Headphones

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 L R

L R INPUT

R OUTPUT

R OUTPUTPHONES

CONTROL SYNTHESIZER

Getting Started12Getting Started

This section steps you through the basic connections required for integrating the CS2x into everything from a simple amplification system to a full-blown MIDI music studio. Also included is information about turning on the power and listening to the preprogrammed “Demo” songs.

Basic Connections

There are many ways to incorporate the CS2x into a simple or expanded music system. Below are a few examples to get you started.

Power Adaptor

The CS2x comes equipped with a Yamaha PA-3B AC adaptor which supplies DC power to the instrument.

1. Make sure the STANBY/ON switch is in the STANDBY (off) position.

2. Connect the PA-3B’s DC plug to the CS2x’s DC IN jack.

3. Connect the adaptor’s AC plug to the nearest electrical outlet.

The CS2x By Itself

At the simplest level, all you need to do to monitor the CS2x is connect a pair of stereo headphones to the PHONES jack located on the rear panel.

Or you could connect a pair of amplified speakers (i.e. speakers with their own built-in amps, like those used with a personal computer) using two audio cables plugged into the CS2x’s left and right OUTPUT jacks and each amplified speaker’s input jack. (For mono use, connect one end of a single audio cable to the CS2x’s L/MONO jack.)

Or if you want to integrate the CS2x into a larger system with other instruments and additional audio processing capabilities, connect it to a mixer, amplifier and stereo monitor system as shown below.

Do not attempt to use an AC adaptor other than the PA-3B. Use of an incompatible adaptor may result in irreparable damage to the CS2x, and could even pose a serious shock hazard.

Be sure to disconnect the power adaptor from the electrical outlet when the CS2x is not in use.

In order to avoid possible damage to the speakers or other connected electronic equipment, before switching on the power of any component, make sure the CS2x’s volume level and the volume levels of the connected equipment are set to minimum.

Connecting A Foot

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

VEL

CURVE

VEL FIX

SYSTEM

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

CTRL

BULK

DUMP

LOCAL

MIDI

DEVICE

RCV

TRANS

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

PHONES

L/MONO

OUTPUT

FOOT

VOLUME

FOOT

CONTROLLER

FOOT

SWITCH

ASSIGNABLE

INPUT

TO HOST

HOST SELECT

PC-

2 PC-1

MIDI Mac

INOUT

MIDI

THRU

STANDBY

FC7 or FC9

TONE GENERATOR

TG500

Tone Generator

Sequencer

(QY700)

OUT THRUMIDI IN

CS2x

MIDI OUT IN

MIDI IN

HOST SELECT

PC-2 PC-1

MIDI Mac

CONTROL SYNTHESIZER

Controller

Connecting External MIDI Components

In addition to the on-board SOUND CONTROL knobs and other real-time controllers, you can connect an optional Yamaha FC7 or FC9 foot controller to the CS2x’s FOOT CONTROLLER jack and assign one of many available parameters to be controlled by foot.

1. Connect the FC7 or FC9 cable to the CS2x’s FOOT CONTROLLER jack.

2. Press the [UTILITY] button to enter Utility mode.

3. Press the ASSIGN CTRL NO [UP/DOWN] button once.

There are many different types of MIDI components available which you could connect directly to the CS2x using MIDI cables to take advantage of the CS2x’s multitimbral features and greatly expand your music production capabilities. Following is an example of how to connect an external sequencer and additional tone generator to build up a comprehensive music production system.

1. Set the CS2x’s rear panel HOST SELECT switch to MIDI.

2. Connect a MIDI cable from the CS2x’s MIDI OUT terminal to the sequencer’s MIDI IN terminal. Connect another MIDI cable from the CS2x’s MIDI IN terminal to the sequencer’s MIDI OUT terminal.

4. Move the foot controller pedal to display “FC” in the LCD.

5. Use the ASSIGN CTRL NO [UP/DOWN] button to select the Control Change Number and Name of the parameter that you want to control.

For information about available Control Change Numbers and Names, see page 65.

You can also connect an FC7 or FC9 foot controller to the CS2x’s FOOT VOLUME jack and assign a parameter to it in the same way as described above.

3. Connect a MIDI cable from the CS2x’s MIDI THRU terminal to the tone generator’s MIDI IN terminal

In this monster system, the CS2x is the “master keyboard controller” used for music note and control data input into the QY700’s MIDI channel tracks. The QY700 sends the recorded data directly to the CS2x’s Parts, and — via the MIDI THRU terminal — to the external tone generator’s Parts.

When recording Parts to an external sequencer, you need to turn the keyboard Local setting to OFF (page 63). For details about assigning CS2x MIDI transmit and receive channels, see page 63. For details about assigning MIDI channels and other settings for the external devices, consult the owner’s manual of each.

Getting Started

Connecting A MIDI Data

TO HOST

Connecting Cable

HOST SELECT

PC-2 PC-1

MIDI Mac

Computer

CS2x

CONTROL SYNTHESIZER

MDR SEO JOB UTIL

MIDI

MMDDFF2

MIDI DATA FILTER

CURSOR

- FILE DATA +

REC PAUSE START/STOP

TEMPO

MDF3 etc.

MIDI IN

MIDI OUT

MIDI IN

HOST SELECT

PC-2 PC-1

MIDI Mac

CS2x

CONTROL SYNTHESIZER

Storage Device

By connecting a MIDI data storage device such as the Yamaha MDF3 MIDI Data Filer to the CS2x you can save a single User Performance or all the User Performances and Utility parameters to floppy disk using MIDI data “Bulk Dump” operations.

This lets you build up complete libraries of Performance and other data, which you can easily load back into the CS2x. (You can also play compatible song data on the CS2x directly from the MDF3 itself, without the need for a sequencer.)

The HOST SELECT switch must be set to MIDI. For details about CS2x Bulk Dump operations, see page 64. (Also refer to the owner’s manual of the MIDI data storage device for instructions about sending and receiving data.)

Direct Connection To Macintosh

If you have an Apple Macintosh not equipped with an external MIDI interface, perform the following operation:

1. Set the HOST SELECT switch to Mac.

2. Connect the cable from the CS2x’s TO HOST terminal to the Macintosh’s Modem or Printer port.

3. Turn on the power of the host computer, then the CS2x.

4. Launch the music software application, and set up the software options for operation with the CS2x.

You may have to set the Apple MIDI Driver setting as follows: MIDI Interface Type (Clock) →1MHz. Other settings may also be required. Refer to the owner’s manual of your particular music software for more information.

Direct Connection To IBM PC and Clones

If you have an IBM PC/AT or compatible computer not equipped with an external MIDI interface, perform the following operation:

1. Set the HOST SELECT switch to PC-2.

2. Connect the cable from the CS2x’s TO HOST terminal to one of the computer’s serial ports, COM 1 or COM 2.

Connecting A Computer

Using the CS2x with a computer permits the widest variety of options for getting the most from the CS2x’s multitimbral music production capabilities based on the particular music sequencer software application you use.

With its built-in host computer interface (TO HOST terminal) the CS2x is designed for direct connection to an Apple Macintosh, IBM PC/AT or NEC PC-9800 Series computer — without the need for a special MIDI interface between the computer and the CS2x. (If your computer already has a MIDI interface installed, you may prefer to use it.)

Depending on the computer or interface used, you will need to use the appropriate MIDI/computer connecting cable (see following) as well as set the HOST SELECT switch to either PC-1 (NEC PC-9800 Series), PC-2 (IBM PC and clones), Mac (Macintosh), or MIDI (standard MIDI interface).

3. Turn on the power of the host computer, then the CS2x.

4. Launch the music software application, and set up the software options for operation with the CS2x.

For more information, refer to the owner’s manual of your particular music software.

MIDI/Computer Connecting Cables

MIDI Standard MIDI cable, maximum length 15 meters.

Mac Apple Macintosh Peripheral cable (M0197), maximum

length 2 meters.

PC-1 8-pin MINI DIN to D-SUB 25-pin cable, maximum length

1.8 meters. (If your PC-1 type computer has a 9-pin serial port, use the PC-2 type cable.)

PC-2 8-pin MINI DIN to D-SUB 9-pin cable, maximum length

1.8 meters.

Getting Started

Powering Up!

PERFORMANCE MULTI

DEMO

STORE UTILITY

Playing The Demo

Now that you’ve made all your audio and MIDI connections properly, you’re ready to switch on the power and get down to the business of enjoying the CS2x in all its glory! Here’s the basic procedure:

1. Turn the CS2x VOLUME knob to its minimum position.

2. Press the STANBY/ON switch, located on the rear panel. After a brief greeting message appears in the LCD, the CS2x will be ready to play.

3. Gradually turn the VOLUME knob to the right while playing the keyboard until you achieve a comfortable listening level.

In order to avoid possible damage to the speakers or other connected electronic equipment, always switch on the power of the CS2x before switching on the power of the amplified speakers or mixer and amplifier. Likewise, always switch off the power of the CS2x after switching off the power of the amplified speakers or mixer and amplifier.

Even when the switch is in the “STANDBY” position, electricity is still flowing to the instrument at a minimum level. When not using the CS2x for an extended period of time, be sure to unplug the AC power adaptor from the wall AC outlet.

Songs

Before you get carried away exploring the many Performances and other great features of the CS2x, you may want to listen to the preprogrammed demonstration songs.

The demonstration songs provide dynamic and stunning examples of just how powerful the CS2x really is. To play the DEMO, perform the following operation:

1. Hold the [PERFORMANCE] button, then press [MULTI].

2. The word “DEMO” will appear in the LCD, and after a brief moment the first demonstration song will begin, and will be immediately followed by the next, and the next, and so on.

3. To stop the Demo at any time, simply press a mode button such as [PERFORMANCE].

When the Demo mode is engaged, you can select a particular Demo song by pressing a number on the NUMERIC KEYPAD.

Getting Started

Getting To Know The CS2x

CONTROL

SYNTHESIZER

CS2x Tone Generation

The CS2x Control Synthesizer — and the way it creates its myriad sounds — is a natural evolution of the various types of popular synthesizers that have come before it over the past several decades.

It all started with the popular analog “voltage controlled” synthesizers used on the hit recordings of the 1960s and ‘70s. Although they were far from perfect — suffering from lack of storage, unstable tuning and limited polyphony — they had knobs that were pretty easy to use and even to this day are known as the “vintage” synths now sought after by the world’s top dance music artists.

Then came the digital breakthroughs of the early 1980s — personified by Yamaha’s DX7 which dispensed with knobs altogether and introduced the world to practical polyphonic synthesis. With its voice storage, MIDI and other capabilities it literally redefined what a synthesizer was all about, although to many it was a bit difficult to program.

Next came digital sampling — a field in which Yamaha has also been at the forefront with its technology — which nothing less than revolutionized popular music itself and is still immensely popular to this day.

Advanced Wave Memory

(AWM)

Generating Sounds Electronically

For the sake of the uninitiated, let’s take a look at some basic facts regarding the nature of sounds and how they are generated electronically. There are three basic elements which make up any type of sound, whether acoustically oriented or electronically generated, as follows:

PITCH, or how low or high a sound is; TONE, or what a sound’s overall timbre, or quality is like; AMPLITUDE, or how loud a sound’s volume level is.

In the simplest terms, acoustic musical instruments are specifically designed and painstakingly built to produce precise sound characteristics over a determined range when played. This is why a violin always sounds like a violin, a piano always sounds like a piano, and a flute always sounds like a flute. A musician’s playing techniques are also extremely important.

For example, a violinist will “scrape” the bow across the string at a certain intensity to generate violin sound waves at a certain volume level (amplitude) and produce low or high notes based on fingering positions (pitch). The vibrating strings and resonating wood, as well as the playing style and techniques of the musician, will determine the overall quality of the violin’s timbre (tone).

Now comes the CS2x with its convenient digital features plus knobs and other analog-style functions. Combining the best of both analog and digital worlds, the CS2x is truly a unique — and completely modern — electronic instrument that’s as easy to understand and operate as it is fun and intuitive to play.

What this means in practical terms is that the CS2x provides you with hundreds of great sampled sounds, or “voices” built right in, the detailed characteristics of which you can manipulate in realtime as you play using the eight SOUND CONTROL knobs and other handy controllers. These and many other parameter editing functions let you quickly and easily customize as many sound setups that you may need for a tune, and then store them in “Performance” and “Scene” memories for instant recall at the touch of a button!

Getting Started

Oscillators, Filters, Amplifiers And Envelope Generators

AmplifierFilterOscillator

Controls Volume Characteristics Over TimeControls Pitch Characteristics Over Time Controls Tone Characteristics Over Time

Amplitude Envelope Generator

Pitch Envelope Generator Filter Envelope Generator

Synthesizers rely on three distinct electronic components to imitate or “synthesize” the soundwaves of musical instrument voices as well as create entirely new sounds. In traditional analog synthesis the fundamental source sound pitch is generated by an is created by a

filter

, and its volume is determined by an

amplifier

oscillator

, its tone

Another key component is known as the

envelope generator

(EG). An envelope generator determines how the pitch, filter or amplifier behaves over time to create greater dynamics. The EG affects specific sound levels over time through “ADSR” stages, or Attack (initial fade-in time), Decay (the time it takes to reach the Sustain level), Sustain (the specified level while a key is held) and Release (the time it takes for the level to reach zero after releasing the key).

OSCILLATOR

Frequencies generate the pitch of specific notes

A4 = 880Hz

1 octave

* **

A3 = 440Hz

* **

A2 = 220Hz

The oscillator generates sound wave vibrations at controllable speeds, or

(“cycles per second”) to create pitch. A frequency

cycle

is the time it takes for a sound wave to go from its zero position (represented by the dotted line in the illustration) to its point of maximum peak (top), back past zero to its maximum trough (bottom), and finally back to zero. Frequencies are measured in “Hertz” (Hz), where one cycle per second is equal to one Hz. Synthesizer oscillators usually offer a range of frequencies between 20 Hz and 20kHz to generate pitch, which is the range of the “audio spectrum” that most human beings can hear. They also usually offer various types of sound waveforms with specific shapes and sound characteristics, such as sine,

frequencies

sawtooth, square, pulse and other waves. Oscillators in the CS2x, unlike traditional

1 cycle per second = 1 Hz

* Doubling the frequency increases pitch by one octave ** Halving the frequency decreases pitch by one octave

analog synthesizers, consist of complete AWM2-type sampled “waveforms” with stable tuning. You can use the PEG (Pitch Envelope Generator) parameters to directly control the critical pitch characteristics over time.

Musical instrument sounds are made up of the basic tone that we clearly distinguish

FILTER

The number of harmonics can be increased and decreased

Harmonics

Basic tone

More harmonics creates a brighter tone

Less harmonics creates a darker tone

with our ears plus additional harmonics, or overtones which exist at each octave above the basic tone, but that we cannot distinctly hear. The filter provides control over these harmonics. By manipulating the filter’s cutoff frequency (which determines where to delete, or cut off the overtones) and resonance settings, you can thus determine the tone. With the CS2x, you can use the FEG (Filter Envelope Generator) parameters to directly control the critical tone characteristics over time, as well as control cutoff, resonance and other parameters to shape the tone.

An amplifier controls the volume of the tone. The CS2x has an AEG (Amplitude

AMPLIFIER

A tone’s volume level can be controlled over time

Lower volume level

Higher volume level

Envelope Generator) which lets you control various volume characteristics over time.

Getting Started

How The CS2x Generates Sound

AMPLIFIERS EFFECTSFILTERS

AWM2 WAVEFORM

CONTROLLER

OSCILLATORS

AWM2 VOICE

LFO

VOLUME

LEVEL

TIME

ATTACK TIME

( ATK TIME )

DECAY TIME ( DCY TIME )

SUSTAIN LEVEL ( SUS LEVEL )

RELEASE TIME

( REl TIME )

KEY ON

KEY OFF

LEVEL

ATTACK LEVEL

( ATK LEVEL )

RELEASE LEVEL

( REL LEVEL )

TIME

BASIC KEY PLAYED

INITIAL LEVEL ( INIT LEVEL )

ATTACK TIME ( ATK TIME )

DECAY TIME ( DCY TIME )

RELEASE TIME

( REL TIME )

PITCH

KEY ON

KEY OFF

RELEASE TIME

( REL TIME )

CUT OFF FREQUENCY

TIME

LEVEL

ATTACK TIME ( ATK TIME )

DECAY TIME

( DCY TIME )

KEY ON

KEY OFF

SUSTAIN LEVEL (SUS LEVEL)

3 4

The diagram and accompanying information below explains the CS2x’s tone generation architecture and the key components which go into making up an AWM2 voice, as well as the types of controls and parameters which you can apply to the voice.

1 AWM2 Waveform The fundamental source of the CS2x’s sound is the sampled AWM2 waveform. There are hundreds preprogrammed in ROM which are used by the Performances.

SUS LEVEL (Sustain Level) sets the Sustain Level; the cutoff frequency will be maintained at this level for as long as the key is held. REL TIME (Release Time) determines the

time it takes for the cutoff frequency to 2 AWM2 VOICE The AWM2 waveform combines with the oscillator, filter and amplifier

reach the level preset for each voice after

the key has been released. to make up a CS2x voice.

● AEG The Amplitude Envelope Generator

● PEG The Pitch Envelope Generator controls

how the pitch changes over time. INIT LEVEL (Initial Level) sets the initial pitch level when a key is played. ATK TIME (Attack Time) determines the time required for a sound to reach its Attack Level after a note is played. ATK LEVEL (Attack Level) sets the initially targeted level after a note is played. DCY TIME (Decay Time) determines the time required for a sound to reach its basic pitch from the Attack Level while the key is held. REL TIME (Release Time) determines the time it takes for the basic pitch to reach the Release Level after the key has been released. REL LEVEL (Release Level) sets the final targeted level after the key is released.

● FEG The Filter Envelope Generator controls

how the timbre changes over time. ATK TIME (Attack Time) determines the time required for a sound to reach its maximum cutoff frequency level when a note is played. DCY TIME (Decay Time) determines the time required for a sound to reach its Sustain Level from the maximum level while the key is held.

controls how the volume changes over time.

ATK TIME (Attack Time) determines the time

required for a sound to reach its maximum

volume level when a note is played.

DCY TIME (Decay Time) determines the

time required for a sound to reach its

Sustain Level from the maximum volume

level while the key is held.

SUS LEVEL (Sustain Level) sets the Sustain

Level; the volume will be maintained at this

level for as long as the key is held.

REL TIME (Release Time) determines the

time it takes for a sound to sustain after the

key has been released.

3 LFO The Low Frequency Oscillator generates low frequency signals which can be used to modulate the PEG, FEG and AEG.

● PMOD The LFO can apply Pitch

Modulation to the PEG to create vibrato

effects.

● FMOD The LFO can apply Filter Modulation

to the FEG to create wah-wah types of

effects.

● AMOD The LFO can apply Amplitude

Modulation to the AEG to create tremolo effects.

4 CONTROLLER You can use several types of controllers to manipulate various parameters in realtime.

● MW Use the Modulation Wheel to control

PMOD, FMOD, and Filter Cutoff.

● FC Use the Foot Controller to control

FMOD, Filter Cutoff, and Variation Effect.

● SOUND CONTROL KNOBS The eight

sound SOUND CONTROL knobs let you control AEG Attack, Decay and Release Times, HPF and LPF Cutoffs, LPF Resonance, and more (page 19). The ASSIGN 1/DATA and ASSIGN 2 knobs can be specified to control one of many types of available parameters (see the lists on pages 47 and

65).

5 EFFECTS Available effects which can be applied to a voice depend on whether the CS2x is in Performance mode or Multi Play mode.

Getting Started

Normal Voices And Drum Voices

As explained in the previous section, an AWM2 waveform is the fundamental source of a CS2x “voice”, which also consists of oscillator, filter and amplifier settings.

The CS2x has two types of voices in memory which are preset at the factory: typical pitched musical instrument voice such as piano, strings, brass, etc. A drum voice is an entire drum kit which has various bass, snare, toms, hi-hat, cymbals and other acoustic or electronic percussion and effects sounds that are “mapped” to specific keys on the keyboard.

normal

voices and

drum

voices. A normal voice is a

Layers

Although the individual AWM2 voices sound great in their own right, the CS2x lets you use up to four of them at the same time to create a these to sound simultaneously — to build up an incredibly rich sonic tapestry — or you can “map” specific Layer voices to various note and velocity zones across the keyboard to create amazingly complex sound textures that behave in a variety of ways depending on which notes you play or how hard you strike the keys.

Layer

in Performance mode. You can designate all of

The best way to find out just how exceptional Layers can be is to step through the 256 Preset Performances programmed at the factory. As you do so, you might find it helpful to take a look at the separate “Data List” book’s Preset Performance list which contains information about how may Layer voices are used and other chief settings for each Performance.

In Performance mode there are a considerable number of COMMON and LAYER parameters available that you can control or edit which affect all Layers equally or individual Layer voices, respectively (see following).

For more information, see pages 41 and 58. Also see the separate “Data List” book for voices available for use in Performances.

Getting Started

FREQUENCY

VOLUME

CUTOFF FREQUENCY

RESONANCE

FREQUENCY

VOLUME

CUTOFF FREQUENCY

FREQUENCIES CUT

FREQUENCIES PASSED

FREQUENCY

VOLUME

CUTOFF FREQUENCY

FREQUENCIES

CUT

FREQUENCIES PASSED

Key On Key Off

ATK TIME REL TIMEDCY TIME

SUS LEVEL

TIME

VOLUME

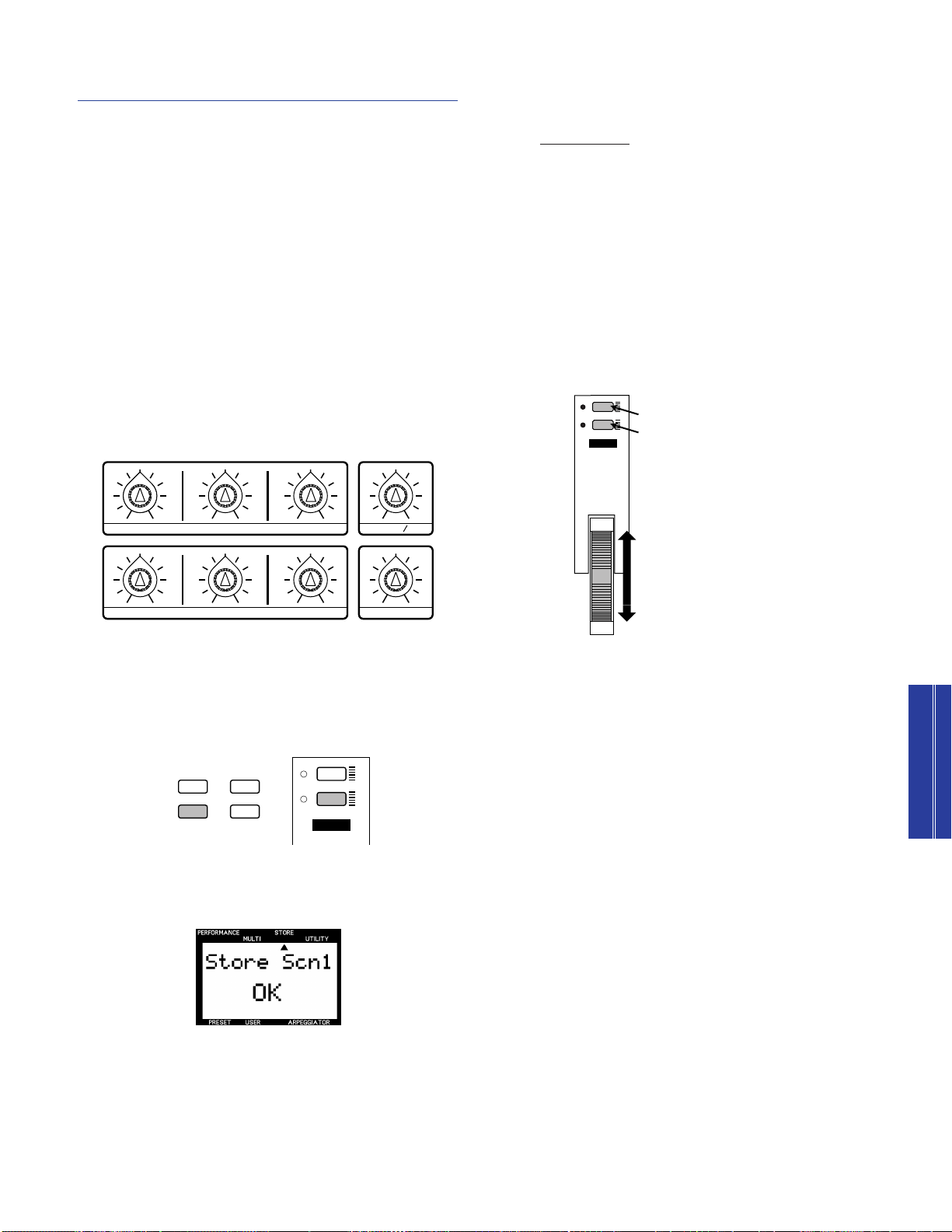

Knob Parameters

ATTACK

DECAY

RELEASE DATAASSIGN

ASSIGN 2

RESONANCE

CUTOFFCUTOFF LPFHPF

Knob 1

[ATTACK]

Knob 2

[DECAY]

Knob 3

[RELEASE]

Knob 4

[ASSIGN 1/DATA]

Knob 5

[HPF CUTOFF]

Knob 6

[LPF CUTOFF]

Knob 7

[RESONANCE]

Knob 8

[ASSIGN 2]

111

555 666 777 888

22 333 4442

The eight SOUND CONTROL knobs give you direct access to a variety of important parameters of the Performance. Turning any SOUND CONTROL knob to the left or right will offset its parameter values accordingly (based on knob positions: left for negative values, right for positive values). Each SOUND CONTROL knob has a center detent, or stop position which represents the original value of the parameter.

Attack, Decay & Release Knobs

These knobs let you control the initial Amplitude Envelope Generator characteristics of the timbre.

HPF Cutoff, LPF Cutoff & Resonance Knobs

These knobs let you control the filter settings which determine the sound quality of the timbre.

7 [RESONANCE] (Knob 7)

This knob determines the amount of filter resonance or emphasis of the cutoff frequency of the low pass filter. Turn it left to produce a relatively flat response, or right to add overtones and make the sound more resonant. (page 55.)

5 [HPF CUTOFF] (Knob 5)

This knob determines the cutoff frequency of the high pass filter. The cutoff is the frequency point below which other frequencies are deleted, or filtered out. Turn it left to lower the cutoff point and fatten the sound, or right to raise it and thin out the sound.

1 [ATTACK] (Knob 1)

This knob controls the initial AEG attack time of the voice. Turn it left for a faster attack time, or right for a slower attack. (page 50.)

8 [ASSIGN 2] (Knob 8)

This knob can be used to control any one of many parameters which you can assign to it — including Volume, Note Shift, Pan, Chorus Send, and others. (page 49.)

2 [DECAY] (Knob 2)

This knob controls the AEG decay time of the voice. Turn it left for a shorter decay time, or right for a longer decay. (page 50.)

6 [LPF CUTOFF] (Knob 6)

Edit Mark

This knob determines the cutoff frequency of the

3 [RELEASE] (Knob 3)

This knob controls the AEG release time of the voice. Turn it left for a shorter release time, or right for a longer release time. (page 51.)

4 [ASSIGN 1/DATA] (Knob 4)

This knob has two functions. As an ASSIGN 1 knob, you can assign one of many parameters — including Performance Volume, Arpeggiator Tempo or Type, Portamento Time, and others — to control by turning it (page 47). As a DATA entry knob, you can use it to quickly change the edit value of the currently selected edit

low pass filter. The cutoff is the frequency point above which other frequencies are deleted, or filtered out. Turn it left to lower the cutoff point and make the sound darker, or right to raise it and make the sound brighter. (page 55.)

In Performance mode, an edit mark will appear in the LCD between the Performance bank and number to indicate that the original Performance has been edited.

parameter.

Panel Edit

Edit Parameter Rotary Switch

Parameter Value [UP/DOWN] Buttons

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

VEL

CURVE

VEL FIX

SYSTEM

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

CTRL

BULK DUMP

LOCAL

MIDI

DEVICE

RCV CH

TRANS

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

Getting Started21Getting Started

Parameters

There are numerous parameters available in the panel edit matrix of menus. In Performance mode, all you have to do is set the EDIT PARAMETER ROTARY switch to the menu you want, then press the [UP/DOWN] button directly below the name of the parameter you want to edit. In Multi Play or Utility modes, the position of the EDIT PARAMETER ROTARY switch doesn’t matter because there is only one menu of parameters available for each.

Simply pressing any [UP/DOWN] button once will activate Edit mode and display the name of the corresponding parameter in the LCD screen, along with the current setting. There are three ways to change the parameter value setting:

Following is a description of the types of parameters available for editing:

COMMON Available in Performance mode only, the COMMON parameters in the Common Edit 1 and 2 menus apply to the entire currently selected Performance. Except for the PORTA SWITCH setting, it doesn’t matter which Layer is currently selected, since common parameters apply to all Layer voices equally. Changes to COMMON parameter settings will remain in effect as long as the current Performance is selected, but will be lost if you select a different Performance before performing a Performance store operation. (page 43.)

LAYER Available in Performance mode only, the LAYER parameters in the Layer Edit 1, 2, 3 and 4 menus affect only the currently selected Layer of the currently selected Performance. Changes to LAYER parameter settings will remain in effect as long as the current Performance is selected, but will be lost if you select a different Performance before executing a Performance store operation. (page 47.)

MULTI Available in Multi Play mode only, the MULTI parameters include voice, effect, and others which apply to the currently selected Part. There is memory space for a single set of MULTI parameter settings. Changes to the MULTI parameter settings will remain in effect as long as you remain in Multi mode, but will be lost if you switch into Performance mode before performing a Multi store operation. (page 58.)

1. Press or hold the [▲] area of the [UP/DOWN] button to increase values, or the [▼] area to decrease values.

2. Enter the number of the value you want using the NUMERIC KEYPAD, followed by [ENTER] (for negative values, press [–] before entering the number).

3. Turn the ASSING 1/DATA knob left or right to change the values when the knob is designated as a DATA ENTRY function.

UTILITY Available in Utility mode only, the UTILITY parameters

consist of system, MIDI and type of data assignment (for the SOUND CONTROL knobs) which affect the CS2x as a whole. These settings will remain in effect regardless of whether you switch to Performance or Multi Play mode. (page 61.)

Operating Modes

II: 128 PerformanceI: 128 Performance

Preset Bank

(256 Performance)

II: 128 PerformanceI: 128 Performance

User Bank

(256 Performance)

Performance

Layer 4

VOICE

Layer 3

VOICE

Layer 2

VOICE

Layer 1

VOICE

COMMON EDIT

REAL TIME EDIT with

THE SOUND CONTROL KNOBS

STORE IN USER BANK

SAVE AS SCENE 1 or 2

PERFORMANCE

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

MW FMOD

CUTOFF

REV TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

LAYER EDIT

ATTACK

DECAY

RELEASE DATAASSIGN

ASSIGN 2

RESONANCE

CUTOFFCUT OFF LPFHPF

SCENE

MW FC

The CS2x has two main operating modes — Performance mode and Multi Play mode — both of which give you a range of options for real-time play as well as multitimbral Part play using an external MIDI sequencer for song production. There are also Utility and Store modes.

Performance Modes

Performance mode — accessed by pressing the [PERFORMANCE] button — actually consists of Performance Play and Performance Edit modes. The diagram below provides an overview of the overall structure of key Performance mode components.

Performance Edit Mode

Performance Edit mode is activated when you change a setting for any of the parameters available in the panel edit menus using the Parameter Value [UP/DOWN] buttons — which may affect all Layer voices equally (COMMON menus) or only the currently selected Layer voice (LAYER menus).

Adjustments you make using the SOUND CONTROL knobs or [UP/DOWN] buttons will parameter data values which are preset for each voice. An edit mark, or reversed type letter “E”, will appear in the LCD to indicate that a parameter has been changed. When you’re satisfied with the sound of the Performance, simply store it in any of the 256 User Performance memories using the Performance Store operation (page 66), before selecting a different Performance.

For more information about Performance mode, see page 40.

Song Production In Performance Mode

Although Performance mode is primarily used for real-time playing, you can also use it for multitimbral operation in order to take advantage of Arpeggiator, Scene and other Performance mode-oriented functions not available in Multi Play mode. In such a case, one of the instrument “Parts” would be comprised of the Layer voices for the selected Performance. (For more information, see page 33.)

offset

(add to or subtract from) the

Performance

is comprised of up to four “Layers”, or AWM2 voices sounding at the same time — either playing simultaneously across the length of the keyboard, or playing independently according to specified key and velocity range settings — plus a variety of other settings which determine the behavior of the Arpeggiator, digital effects selection, characteristics of envelope generators, and much more.

Performance Play Mode

In Performance Play mode you can select from 512 Performances — 128 of which are available in each of the two Preset Performance banks and 128 of which are available in each of the two User Performance banks — and begin playing the keyboard. As you play you can select one of two available Performance timbre variations by pressing a SCENE switch, or fade between (“morph”) the sounds of each Scene in real-time by pressing both [SCENE] buttons simultaneously (SCENE CONTROL function) then using the MODULATION wheel or a connected Foot Controller to precisely determine the relative volumes of each Scene timbre in relation to each other.

Multi Play Mode

Part 1 ~ 16

BANK PROGRAM VOLUME PAN EFFECT FILTER (LPF) POLY/MONO

PART SELECT

STORE 1 ~ 9

Getting Started23Getting Started

Utility Mode

Multi Play mode — accessed by pressing the [MULTI] button — is primarily used for multitimbral song production and playback of up to 16 individual instrument “Parts” when an external MIDI sequencer is connected to the CS2x. The diagram below lists the available parameters for each Part.

Although you can adjust various parameters in the Multi Part Edit menu to customize the selected voice, note that Scene, Arpeggiator and other Performance mode-oriented functions are not available.

Utility mode lets you modify System, MIDI and controller assignment parameters which affect both Performance and Multi Play mode. For more information, see page 61.

Store Mode

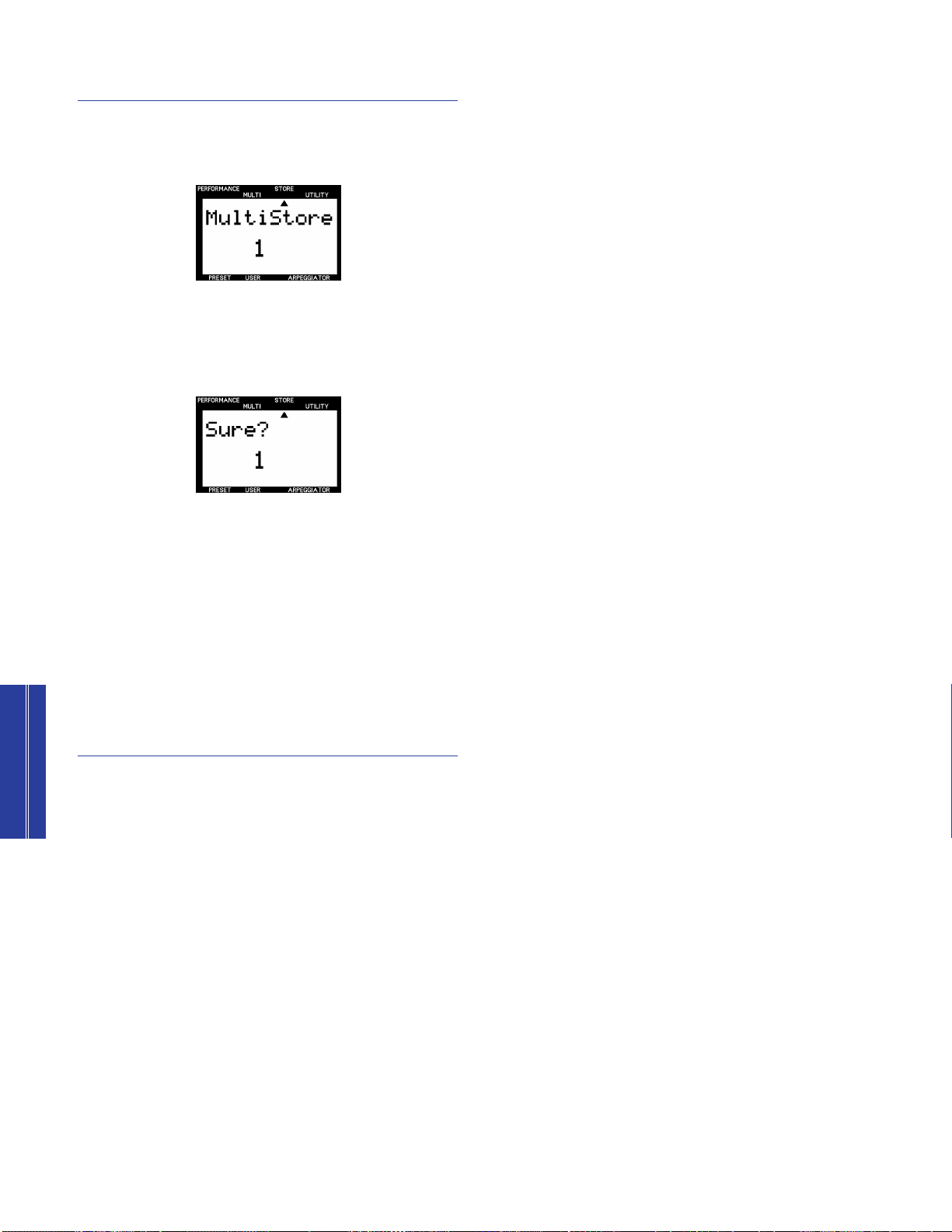

Store mode lets you store your own User Performances as well as Scenes and a Multi setup. For more information, see page 66.

When the edited Multi setup is just the way you want it, simply perform a Multi Store operation before switching into Performance mode (page 68).

With the GM format MIDI channel 10 is reserved for drum voices, which means you can select PART 10 to play the drums.

For more information about Multi Play mode, see page 57. For information about GM and XG, see page 33.

PERFORMANCE MULTI

DEMO

STORE UTILITY

Performance nameCategory

Bank

P I (P1) : Preset Bank 1 P II (P2) : Preset Bank 2 U I (U1) : User Bank 1 U II (U2) : User Bank 2

Performance (Program) number

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

Subsequent PerformancePrevious Performance

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

CS2x Quick Tour

CONTROL

SYNTHESIZER

This section provides you with a quick guided tour through all the fundamental CS2x operations in Performance mode, such as use of real-time control, Scene, Arpeggiator, panel edit and Performance Store functions. It also provides information about Multi Play mode and multitimbral operation, including Multi Play in Performance mode.

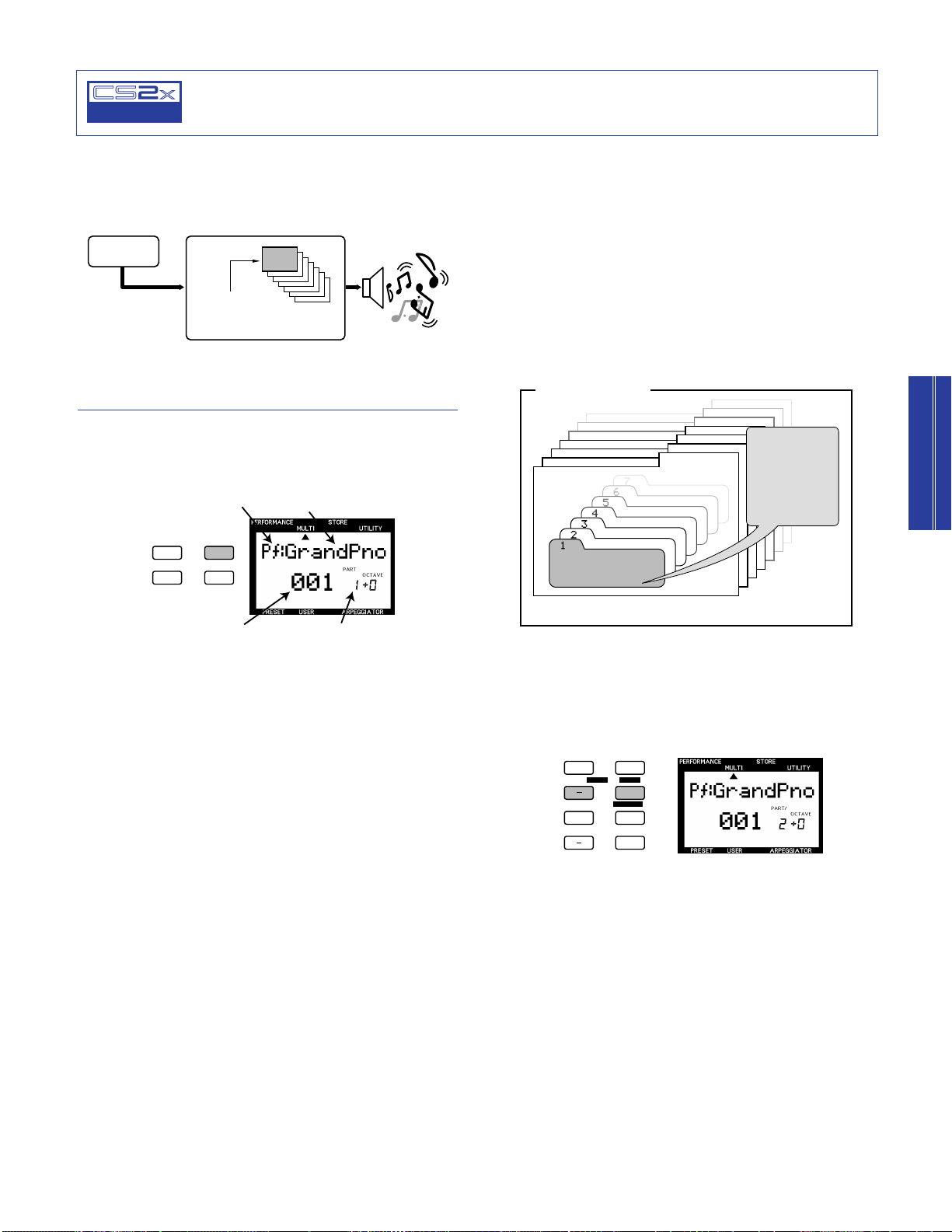

Performance Mode

In Performance mode you can select from 256 Preset and 256 User Performances, use the SOUND CONTROL knobs to modify certain parameters as you play, select Scenes and use the SCENE CONTROL function for Scene morphing, and edit the values and settings of specific COMMON and LAYER parameters.

Performance Selection

Following are the basic procedures for selecting CS2x Performances.

Performance Mode Select

To enter Performance mode, simply press the [PERFORMANCE] button.

The basic Performance select screen will display in the LCD, with information about Preset or User bank selection, Performance name, program number (1 ~ 128) and category code, and more.

Performance Bank Select

Individual Performances are stored in any one of four available banks. There are two Preset banks with 128 Performances each and two User banks with 128 Performances each.

To select one of the Preset banks, press [PRESET] once or more.

To select one of the User banks, press [USER] once or more.

Each time you press [PRESET] or [USER] toggles between P1/P2 or U1/U2 banks, respectively. The currently selected bank will display accordingly in the LCD screen.

Performance Number Select

There are two ways to select one of the 128 program numbers in each Preset or User Performance bank — by using the PROGRAM buttons or the NUMERIC KEYPAD.

■ PROGRAM Button Method

One way to select a Performance in the currently selected bank is as follows:

Press the PROGRAM [+] or [-] button once or more until you reach the number of the one you want (between 1 and 128).

If you hold down the PROGRAM [+] or [-] button you can continuously scroll up or down through the list.

Getting Started

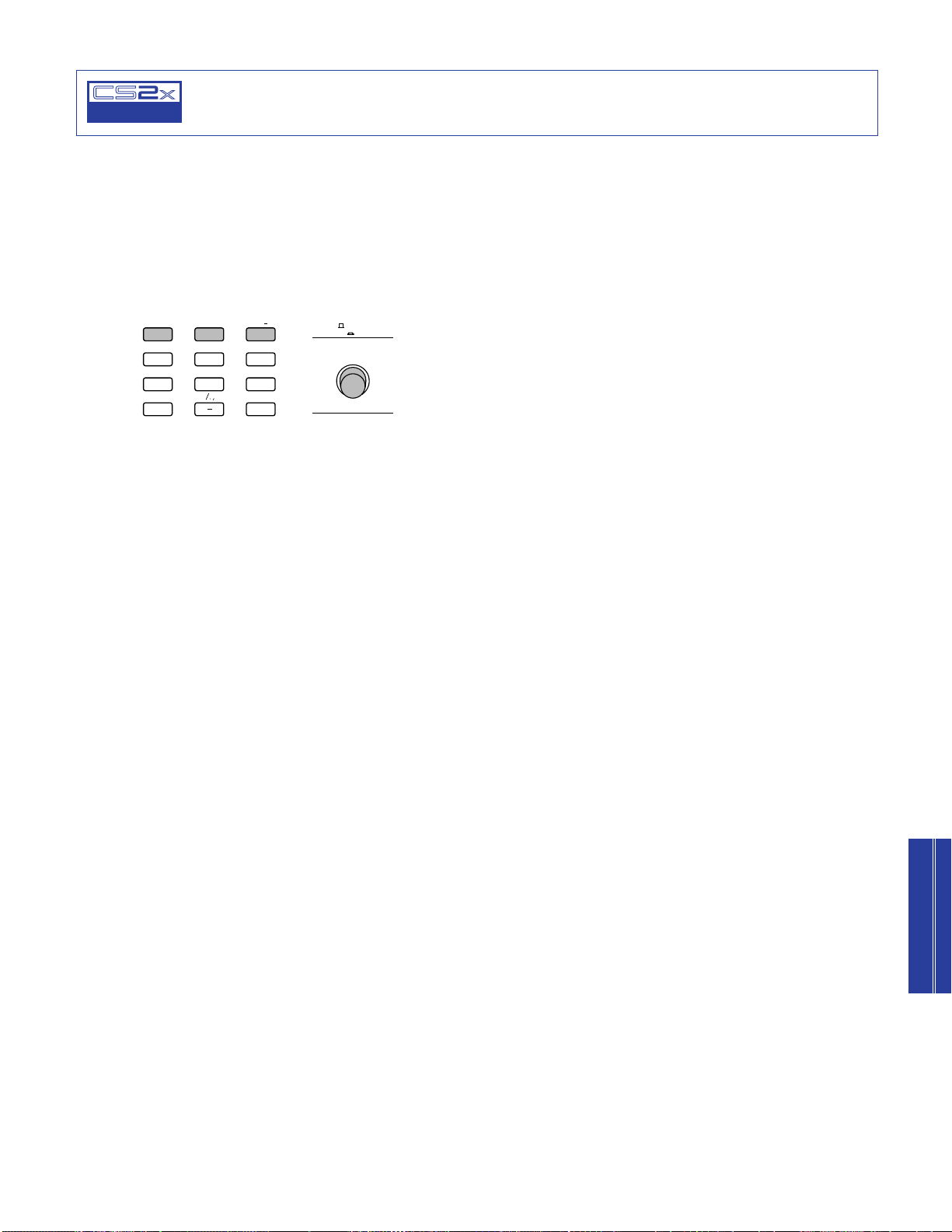

■ NUMERIC KEYPAD Entry Method

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

Press the buttons for the desired Performance number

NO. LCD Category Name

0 -- Not specified 1 Pf Piano 2 Cp Chromatic Percussion 3 Or Organ 4 Gt Guitar 5 Ba Bass 6 St Strings/Orchestral 7 En Ensemble 8 Br Brass

9 Rd Reed 10 Pi Pipe 11 Ld Synth Lead 12 Pd Synth Pad 13 Fx Synth SFX 14 Et Ethnic 15 Pc Percussive 16 Se Sound Effect 17 Dr Drums 18 Sc Synth Comping 19 Vo Vocal 20 Co Combination 21 Wv Material Wave 22 Sq Sequence

Another way to select a Performance number in the currently selected bank is by using the NUMERIC KEYPAD. This is especially handy if you know the precise number of the Performance you want. Here’s how:

1. Enter the specific number (1 ~ 128). The number will begin flashing in the LCD.

2. Press [ENTER]. This selects the Performance, so the number will stop flashing and remain displayed.

Category Codes

Each Performance (or voice in Multi Play mode) has a “Category” code assigned to it which helps you organize your Performances and voices by type for easier visual access. The following list describes each available Category.

There’s another way to quickly select a specific Performance program number within a group of 10 Performances — by using the Quick Program Change function (page 41).

For details about assigning Category codes to User Performances, see page 45.

Getting Started

Performance Play

PITCH

Bends the

pitch up

Bends the

pitch down

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

Indicates transposition of two octaves up

Transposes the octave up while holding [SHIFT]

MW/FC

SCENE

Applies maximum modulation

Applies no modulation

MODULATION

After selecting a performance, you’re ready to start playing the CS2x! As you do, you’ll want to try out the various control and other features available in Performance mode. Let’s continue with our step-by-step tour.

Octave Shift Function

The CS2x’s Octave Shift function is an easy way to transpose the octave of the Performance up or down by a maximum ±3 octaves. Here’s how:

1. To transpose the octave up, hold [SHIFT] and press OCTAVE [+] once or more.

2. To transpose the octave down, hold [SHIFT] and press OCTAVE [-] once or more.

The transpose value will also be reflected in the Utility mode’s KEYBOARD TRANSPOSE function. Note that since the maximum is ±3 octaves, when you raise or lower the keyboard transposition in semitones the full three octaves cannot be achieved by the Octave Shift function.

PITCH And MODULATION Wheels

As you play, you can use the PITCH wheel to bend the pitch up and down, and the MODULATION wheel to apply varying degrees of modulation to the tone.

■ Using The MODULATION Wheel

By rolling the MODULATION wheel forward and back you can apply as much modulation to the tone as you want. The type of modulation which can be applied is determined by the three MW parameter settings in the panel edit matrix (page 46).

You can also use the MODULATION wheel for controlling volume, pan and others (page 64), as well as for SCENE CONTROL, or morphing (page 26).

Scenes And SCENE CONTROL Function

Each Preset and User Performance has two Scene memories which are in essence “snapshots” of SOUND CONTROL knob positions (page 26). This gives you two additional sound textures available at the touch of a button! What’s more, you can activate the SCENE CONTROL function which lets you “morph” the sound of one Scene into the sound of the other.

■ Scene Selection

To select Scene 1, press the [SCENE 1] button.

To select Scene 2, press the [SCENE 2] button.

■ Using The PITCH Wheel

By rolling the PITCH wheel forward and back you can bend the pitch of the tone by the amount as determined by the P BEND RANGE parameter setting in the panel edit matrix (page 45).

A red LED will light beside the currently selected Scene. To deselect the Scene, press the [SCENE] button again.

Getting Started

■ SCENE CONTROL Function

Maximum = Scene 2 only

Minimum = Scene 1 only

MODULATION

Halfway = Equal level of

Scene 1 and Scene 2

ATTACK

DECAY

RELEASE DATAASSIGN

ASSIGN 2

RESONANCE

CUTOFFCUTOFF LPFHPF

1. Press both [SCENE] buttons simultaneously.

The red LED to the left of both [SCENE] buttons will light to indicate the SCENE CONTROL function is active.

2. Roll the MODULATION wheel forward and back to adjust the relative levels of each Scene.

Performance Editing And Store

As a

control synthesizer

which are readily available as you play, including SOUND CONTROL knobs for direct tone modification, an Arpeggiator with a wide selection of arpeggiated chord types and timing resolutions, and many more. The next three steps on our tour are actually Performance Edit functions and as such will cause the edit mark (“E”) to appear in the LCD.

SOUND CONTROL Knobs

The SOUND CONTROL knobs give you direct access to eight different parameters. All you have to do is turn them left and right to either slightly or radically alter the tone. They’re so much fun, you can literally get lost for hours at a time just tweaking the filters and resonance settings alone — so go ahead and try them all out!

the CS2x features easy editing functions

As shown in the illustration above, the position of the MODULATION wheel determines the relative levels of each Scene, with minimum controller position playing Scene 1 and maximum position playing Scene 2. Any position between the two extremes (between a range of 0 ~ 127) will play a blend of both Scenes accordingly.

You can also use a connected Foot Controller for SCENE CONTROL (pages 12 and 64).

■ Creating And Storing Scenes

You can easily create your own Scenes with the SOUND CONTROL knobs and store them in a Performance — either temporarily in the Scene buffer for the currently selected Preset or User Performance, or permanently in a User Performance. For details, see page 67.

The center stop position represents the original parameter settings as stored in the selected Performance, so it only takes a glance at the various knob positions to know where you stand. And don’t forget, if you come up with a tone you like, you can store it in one of the two Scene memories for instant recall (page 67).

A description of the default function assigned to each SOUND CONTROL knob (printed on the panel below each knob) is provided on page 19. You can also assign whatever parameters you like to each knob using the panel edit matrix (page 64).

When a Scene is selected or the SCENE CONTROL function is active, turning the SOUND CONTROL knobs will have no affect on the tone.

Getting Started

The Arpeggiator

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

The Arpeggiator is another function that you can get carried away with for hours on end! You’ve probably noticed by now that some Performances use the Arpeggiator as part of their makeup to generate arpeggiated chords automatically as you play. What’s more, the Arpeggiator data can be output as MIDI messages via the MIDI OUT terminal and recorded by a connected music sequencer.

Just

how

they play depends on the TYPE, TEMPO, SUBDIVIDE

and SPLIT settings available in the Common Edit 1 menu (page

43) plus the number of notes you play on the keyboard.

(Performances with fast attacks tend to provide the best results.)

The Arpeggiator functions are not available in Multi Play mode.

■ Arpeggiator Hold

The handy ARPEGGIATOR HOLD function lets you play a chord to start the automatic arpeggio, then take your hands away from the keyboard and have the arpeggios continue in a loop without stopping. When you play another chord the arpeggio will change accordingly.

1. Hold [SHIFT] and press [ARPEGGIO]. The “ARPEGGIATOR” indicator in the LCD will start blinking.

2. Play a chord and take your hand away. Then play other chords in the same way to get a feel for the right timing required.

To stop the arpeggiated chords, press [ARPEGGIO]. To turn off the ARPEGGIATOR HOLD function but leave the Arpeggiator on, hold a chord and press [ARPEGGIO] twice.

■ Arpeggiator On/Off

1. Press [ARPEGGIO]. An indicator will appear in the lower right area of the LCD above the word “ARPEGGIATOR”.

2. Play a series of chords and variate the number of notes (odd and even) to hear how differently the arpeggiated chords sound.

To turn off the Arpeggiator, press [ARPEGGIO] again.

■ Arpeggiator Split

The ARPEGGIATOR SPLIT function greatly increases the realtime performance capability of the CS2x. When ARPEGGIATOR SPLIT is activated, any chord you play to the left of the split point (B2 and below) will produce an arpeggiated chord, while chords you play to the right of the split point will play normally.

1. Press [ARPEGGIO] to activate the Arpeggiator function.

2. Set the EDIT PARAMETER ROTARY switch to the Common Edit 1 menu.

3. Hold [SHIFT] and press the left-most Parameter Value [UP/DOWN] button (ARPEGGIATOR TYPE parameter).

4. Pressing [UP] will turn on the ARPEGGIATOR SPLIT function.

A reversed type letter “S” will display in the LCD next to the TYPE name to indicate the ARPEGGIATOR SPLIT function is on. To turn it off, hold [SHIFT] and press [DOWN].

For more information, see page 44.

Getting Started

■ Arpeggiator Parameter Settings

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI

TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

BANK

PROGRAM

ATK TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL

TIME

REL

TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL

LIMIT

HIGH

LIMIT HIGH

LIMIT LOW

LIMIT

LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

The main Arpeggiator parameters include TYPE, TEMPO and SUBDIVIDE. TYPE determines the arpeggio characteristics (up, down, up and down, random, etc.). TEMPO of course controls the speed of the arpeggiated chords. SUBDIVIDE determines the arpeggio timing resolution (eighths, sixteenths, dotted notes, etc.).

1. Activate the ARPEGGIATOR HOLD function and play a chord.

2. Set the EDIT PARAMETER ROTARY switch to the Common Edit 1 menu.

3. Press the TYPE [UP/DOWN] button and try out each available setting. Also press SUBDIVIDE [UP/DOWN] to hear how each of these settings affect each TYPE setting.

For more information, see Arpeggio Pattern Length, following, and page 43. Also see the Arpeggiator Type List, page 43.

Arpeggio Pattern Length

The length of a CS2x arpeggio pattern is determined by three factors which work together simultaneously: TYPE and SUBDIVIDE settings, and the total number of notes you play for an arpeggiated chord.

For example, say you play an arpeggiated pattern with a fournote chord, such as a C major triad with an octave in the root. If SUBDIVIDE is set to “1/8”, the Arpeggiator breaks down the chord into eighths, and then arpeggiates it based on the TYPE setting. If TYPE is set to “UpOct2” the arpeggio will climb over two octaves, and will repeat after four beats. Then, if you change SUBDIVIDE to “1/16”, the arpeggio will repeat after two beats. Furthermore, if you then change TYPE to “UpOct1”, the arpeggio will repeat after only one beat.

Because the number of notes you play in the chord has a direct relationship on the pattern length based on SUBDIVIDE resolution, sometimes unwanted syncopations may be generated. As a general rule, you can avoid this by choosing an even number of chord notes for even-numbered SUBDIVIDE resolutions (1/4, 1/8, 1/16 and 1/32) and an odd number of notes (e.g. three-note or five-note chords) with odd-numbered resolutions (1/6, 1/12, 1/24).

However, this doesn’t apply for dotted note rhythms (3/8, 3/16 and 3/32). These resolutions are particularly interesting for oddnumbered beats (e.g. 3/8 or 6/8), so you will need to play chords with an even number of notes to correctly play back these threepart rhythms.

As an example, set TYPE to “UpOct2” and SUBDIVIDE to “3/8” resolution. Playing a triad will place the root note on the first beat in the fourth bar, generating irregular cycles. A four-note chord, however, generates symmetrical 4-bar cycles. The root note will be repeated after the first cycle on bar 3, after the second cycle on bar 5 and after the third cycle on bar 7, and so on, always landing on the first beat.

In the case of the special Arpeggiator types (16-40), you will notice that these aren’t particularly effective with triplet rhythms. Best results are achieved with a 4/4 beat and a SUBDIVIDE resolution of “1/16”, “1/8” or “1/32”.

Getting Started

Panel Edit Matrix

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

Indicates currently selected Layer

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

SYSTEM

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

MIDI

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL

TIME

REL

TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL

LIMIT

HIGH

LIMIT HIGH

LIMIT LOW

LIMIT

LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

Although the features we’ve explained so far no doubt provide you with a wealth of tone control and great music making options, we’ve really only just begun to scratch the surface of the CS2x’s power!

The panel edit matrix gives you six menus of Performance Edit parameters with virtually limitless options for tone control and customized User Performance creation using the EDIT PARAMETER ROTARY switch in conjunction with the ten parameter [UP/DOWN] buttons.

Each parameter is explained and available settings are listed in the Reference section (starting on page 39). Reading through it — along with just rolling up your sleeves and trying each one out one-by-one — will end up making you a veritable CS2x expert!

For the sake of giving you a well-rounded tour right now without getting in too deep, however, why not try experimenting with a few basic COMMON and LAYER edit menus to help you get comfortable dealing with collective and individual Performance Layers.

■ COMMON Parameters

Each CS2x Performance is made up of anywhere between one and four Layer voices. Changes you make to parameter settings in the two COMMON menus will affect all Layer voices equally.

Try out the many different effects.

1. Set the EDIT PARAMETER ROTARY switch to the Common Edit 1 menu.

3. Use the VARI TYPE [UP/DOWN] button to try out the different Variation effect types. Use the VARI PARAM [UP/DOWN] button to select available Variation effect parameters. Use the VARI DATA [UP/DOWN] button to select specific parameter data value settings.

You can set the amount of Reverb and Chorus for each Layer using the EFFECT REV SEND and CHO SEND parameters, respectively, located in the Layer Edit 4 menu. When EFFECT VARI SEND is set to “on”, however, Reverb and Chorus send levels are applied equally to all Layers.

For more information about effects, see page 70. Also see the separate “Data List” book.

Customize the parameter of the ASSIGN 1/DATA knob.

1. Set the EDIT PARAMETER ROTARY switch to the Common Edit 2 menu.

2. Use the ASSIGN1 PARAM [UP/DOWN] button to determine which parameter will be affected by the ASSIGN 1/DATA knob.

There are 30 choices in all. You could, for example, use it to control Arpeggiator tempo, or left and right panning of the sound, the overall pitch and much more.

2. Use the REV TYPE [UP/DOWN] button to try out the different Reverb effect types. Use the CHO TYPE [UP/DOWN] button to try out the different Chorus effect types.

For a list of available parameters, see page 65.

■ LAYER Parameters

There are four menus of LAYER parameters which affect only the currently selected Layer when you edit them. (Note that although the PORTA SWITCH parameter is located in the Common Edit 2 menu, it is in fact a Layer parameter and therefore can be set for each individual Layer voice.)

Select a Layer.

Press the PART/LAYER [-] and [+] buttons to select a desired Layer.

Getting Started

Change the Layer voice.

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

SYSTEM

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY TIME

FEG

AEG

TUNE

NOTE

SFT

DETUNE

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

This is a quick and effective way to easily create an entirely new Performance!

1. Select a desired Layer.

2. Set the EDIT PARAMETER ROTARY switch to the Layer Edit 4 menu and press the BANK [UP/DOWN] button to select an available bank.

3. Press the PROGRAM [UP/DOWN] button to select an available voice.

To set the level of each Layer, simply repeat the process. When the VOLUME screen is displayed, simply selecting a Layer will reveal its level setting.

User Performance Store

Now that we’re at the end of the Performance mode tour, it’s highly likely that you created something along the way that’s worth storing as a User Performance for recall later. In order to execute a Performance Store operation, the Performance Name screen must be displayed in the LCD.

To assign a new voice to each Layer, simply repeat the process. When the BANK or PROGRAM screen is displayed, simply selecting a Layer will reveal which bank or voice is currently selected.

For a list of available voices for Performance Layers, see the separate “Data List” book.

Adjust the relative volume levels of each Layer.

This is a quick and easy way to reshape a Performance which uses two or more Layers.

1. Select a desired Layer.

2. Set the EDIT PARAMETER ROTARY switch to the Layer Edit 4 menu and press the VOLUME [UP/DOWN] button to adjust the level.

1. Press the [STORE] button. The Performance Store screen will display.

2. Press [USER] to select a User Performance bank (U1 or U2).

3. Use the NUMERIC KEYPAD to select the program number (1 ~ 128) in which you want to store the User Performance. The number will flash in the screen.

4. Press [ENTER].

A “Sure?” prompt will appear in the LCD. Press [YES] to store the Performance. Press [NO] to abort the operation.

Getting Started

Multi Play Mode

PERFORMANCE MULTI

DEMO

STORE UTILITY

Part Number

Voice Name

Sequencer Setup

If you’re using a stand-alone hardware-based sequencer, connect it to the CS2x’s MIDI terminals using MIDI cables. If a computer, connect it to the TO HOST terminal using the appropriate cable. (For details about connections, see page 12.)

Refer to the owner’s manual for your sequencer regarding information about setting it up for multitimbral recording and play.

The following steps are related to setting up the CS2x for multitimbral recording and play.

Multi Play Mode Select

Simply pressing the [MULTI] button will enter Multi Play mode.

Take a look at the LCD and see which Part is selected (1 ~ 16). Note that if you play the keyboard the voice you’ll be playing will be that of the selected Part. You can use the NUMERIC KEYPAD (0 ~ 9) and [ENTER] as well as the PROGRAM [-]/[+] buttons to select any of the basic 128 GM normal voices.

A new CS2x or one that has had the factory settings recalled (page 69) will be set at PART 1 = “#001-Grand Piano”.

In all, you can store up to nine CS2x Multi setups. Each might act as a template for an easy start to your most frequently used music composing, studio recording or live performance situations (page

67).

For the sake of the Quick Tour, we’ll explain the basic Multi Play mode setup operations, then give you a brief presentation of putting it all to practical use with a computer based music sequencer, Yamaha’s XGworks.

For more information, see pages 32 and 57. Also see the separate “Data List” book.

Getting Started

Part Assign

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

Number of currently selected Part

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

Part Parameter Edit

You can assign any of the 586 XG normal voices (including the 128 GM voices) or 20 drum voices to each of the 16 Parts.

1. Use the PART/LAYER [-] and [+] buttons to select a desired Part, as displayed in the LCD.

2. Use the BANK [UP/DOWN] button to select a desired voice bank.

3. Use the PROGRAM [UP/DOWN] button to select a desired voice.

In Multi Play mode there is only one menu of edit parameters available, as printed directly above each [UP/DOWN] button. The position of the EDIT PARAMETER ROTARY switch is irrelevant.

1. Select a desired Part.

2. Use the [UP/DOWN] button directly below the name of the parameter which you want to edit to change the available settings.

Repeat the procedure to edit each individual Part.

For details about each Multi edit parameter and available settings, see page 58.

For details about storing a User Multi, see page 68.

For a list of available banks and voices, see the separate “Data List” book.

XG Operation

Getting Started

XG represents the current state-of-the-art in multitimbral MIDI technology. In the early days of MIDI, it was very difficult to take music data created using one particular sequencer and play it back on another because the instruments assigned to the different parts were different for each maker and even individual composer. This meant that when different musicians came together with their varied MIDI instruments and music data, it required literally hours and hours of painstaking MIDI channel and other reassignment and checking operations before the music session could even begin! Thankfully those nightmare days are long gone.

General MIDI System Level 1 (GM) was created in order to standardize the voice assignments for 128 normal voices plus drums, so that songs created in the GM

format would play back exactly as the composer intended regardless of the tone generator manufacturer — as long as the device supported the GM standard as marked with the GM logo. These days virtually all electronic musical instruments and software-based music and game products support the GM standard.

GM is not without its limitations, however, which is why Yamaha created the XG format which maintains full compatibility with the basic MIDI and GM standards, while at the same time significantly increasing the range of expressiveness possible through much greater control over voice modifications and effects, plus provides for many more normal and drum voices to be available for use.

Multi Play In Performance Mode

While Multi Play mode is ideal for recording and playback of 16part compositions using the XG voices, you can also use Performance mode for multitimbral play (using an external music sequencer) in order to enjoy the full benefits of the broader dimension of sound possible by the Preset or User Performances, plus Scene switching, arpeggiated chords and all of the SOUND CONTROL knobs.

To demonstrate how you can get the biggest benefits from the CS2x’s multitimbral capabilities, we show you how to put its MIDI parameter control features into practical use by describing a few basic operations when using the CS2x with a computer and Yamaha’s XGworks music sequencer application, a truly professional level MIDI music sequencer which features everything you’d expect from the world’s most popular music software applications, plus the added benefit of greater ease of access to and control over XG commands. It even accommodates and lets you create songs in all popular formats, including as digital audio data such as WAV files.

When the CS2x is used for Multi Play in Performance mode, the Performance part is programmed as Part 1, and the 12 available voice parts are programmed in Parts 5 ~ 16. Which voice is used for each of the 12 Parts is determined by MIDI bank select, program change and other messages recorded as data in the sequencer tracks. (For more information, see pages 35 and 56.)

Many of the new XG voices are

variations of basic GM voices which are

stored in additional banks. Each bank is

associated with a specific type of

variation, so that voices are easy to locate. When using an external sequencer to control the CS2x, additional banks are selected by the appropriate Bank Select LSB (Least Significant Bit) and MSB (Most Significant Bit) values.

The XG format also supports a full SFX bank of extension effects, which are selected by a Bank Select MSB value of 40H and LSB 0H.

What’s more, the XG format also offers high level effects support, enabling control of effects types, circuit operation, plus internal parameter settings for both basic and elaborate effects. This means you can freely control the parameters of the CS2x’s 12 Reverb, 14 Chorus and 62 Variation types of effects independently using an external sequencer.

The CS2x also features another play mode — TG300B mode — which lets you play back commercially available MIDI files in this format.

For more information about MIDI and MIDI related parameters, see page 72. Also see the separate “Data List” book.

Getting Started

Using The CS2x With

Parameter Section

Each MIDI Transmit Channel

XGworks

The XGworks Music Sequencer software application is a powerful all-in-one “DTM” Desktop Music composing, editing and mixing system for Windows95. XGworks is especially suited for the CS2x.

When you start up XGworks, you’ll be greeted by an Application Window from which you can access a variety of tools for recording and precise editing of your music.

In XGworks the Track View Window is the central point for song creation. There are many other tools you can used to construct your composition.

• The Piano Roll Window and the Drum Window let you edit MIDI notes graphically.

• The Staff Window displays the notes like sheet music.

• The List Window and the Master Track Window show the data for each MIDI event.

• The Mixer Window gives you the capability to control many different functions in realtime while playing back your song.

• The XG Editor Window lets you edit the parameters for the CS2x.

1. Set the CS2x MIDI Performance receive channels.

Using Utility mode, set the CS2x MIDI Receive Channel for the Performance (Part 1 = “A”), as well as Parts 5 ~ 16 (page 63), as the situation merits.

To select the Layer (“A”) or Part (“5 ~ 16”) which you want to assign a MIDI channel to, use the PART/LAYER [-]/[+] buttons.

If the Performance and another Part are set to the same MIDI receive channel number, then both timbres will play simultaneously. Keep this in mind as you set up your Parts, so that none will unintentionally play the wrong Part data.

When using the CS2x as the MIDI master keyboard device for MIDI data input, you determine which channel the CS2x is transmitting on using the Utility mode TRANS CH parameter (page 63).

Every window has many functions which make operation intuitive and precise, while boosting your productivity and even having more fun!

XGworks operations may appear different depending on the version of XGworks and your computer conditions.

2. Set the MIDI transmit channel for each Part track in XGworks.

The Track View Window lets you confirm the MIDI channels for each CS2x Part using the “Ch.” column.

Tr ack V iew Window

Getting Started

3. Decide the voice for each Part.

Track 5 Track 6 Track 7

•

• Track 10

•

Piano Bass Strings

•

• Drums

•

Piano voice Bass voice Strings voice

•

• Drums voice

•

Ch5 Ch6 Ch7

•

• Ch10

•

Ch5 Ch6 Ch7

•

• Ch10

•

XGworks XG/GM Tone Generator

Pan Control Volume Fader

XGworks lets you use MIDI program change messages (page 75) to call up the CS2x’s voices. There are many ways to do so. Take a look at the Track View Window.

Based on the MIDI standard, each voice has its own bank number and program number. Setting the appropriate bank select and program change values will call up a specific CS2x voice. You can set these in XGworks, with intuitive ease. You can assign a voice to each Part (5 ~ 16).

Set the volume and panning for each Part.

You can control the CS2x’s volume and panning for each Part using control change messages (page 72) to change the values of each, over a range of 0 ~ 127. From XGworks you can also change these manually using the Mixer Window. This sends the changes you make to volume fader and pan settings for each individual MIDI channel as control change messages to each corresponding CS2x Part.

In the parameter section of the Track View Window you can open the Voice List. Like the CS2x, the voices are arranged in categories. As shown, you can easily locate and select a voice by choosing the basic category in column 1, which lists the types of voice categories available column 2. Choosing a type will list the available individual voices in column 3, available for selection.

Creating The Setup Data

You can set up the basic part parameters on the CS2x. You can use the List Window to set up each track’s bank select and program change data (for voices) at the top of the song as well as control change data (for volume, panning, effects, etc.) throughout the song so that the sequence software will play everything back just as you want.

When you select a voice from the Voice List, that track’s MIDI transmit channel transmits the bank number/program number (bank select/program change) to the same MIDI receive channel as set by the CS2x.

In order to ensure automatic setup of all voice and other parameter settings, you can insert the proper bank select/program change and other messages at the top of the song, before the music data starts playing. With XGworks this is all done with ease using the List Window.

For more information, see the owner’s manual for XGworks.

You can program Performance data at the beginning of or throughout a song so that an original Performance is automatically selected for playback. This means that even if the particular User Performance is not stored in the CS2x, the appropriate data will be transmitted before the song data begins

For details, see page 72.

so that your song plays exactly as you recorded it.

The voice changes when the CS2x receives the corresponding bank select/program change messages. When you use this method, you can select not only each Part’s voice but a Performance. The XGworks List Window makes this especially convenient. Since there are extra “material” voices available for use in Performance mode, you can assign any of these to Parts 5 ~ 16. For more information, see the separate “Data List” book.

It requires setting up the sequencer for a Bulk Dump request to receive the desired User Performance data. Following is an explanation of how to do so using the real-time recording function of XGworks as an example, where track 1 is used for programming the User Performance data.

Getting Started

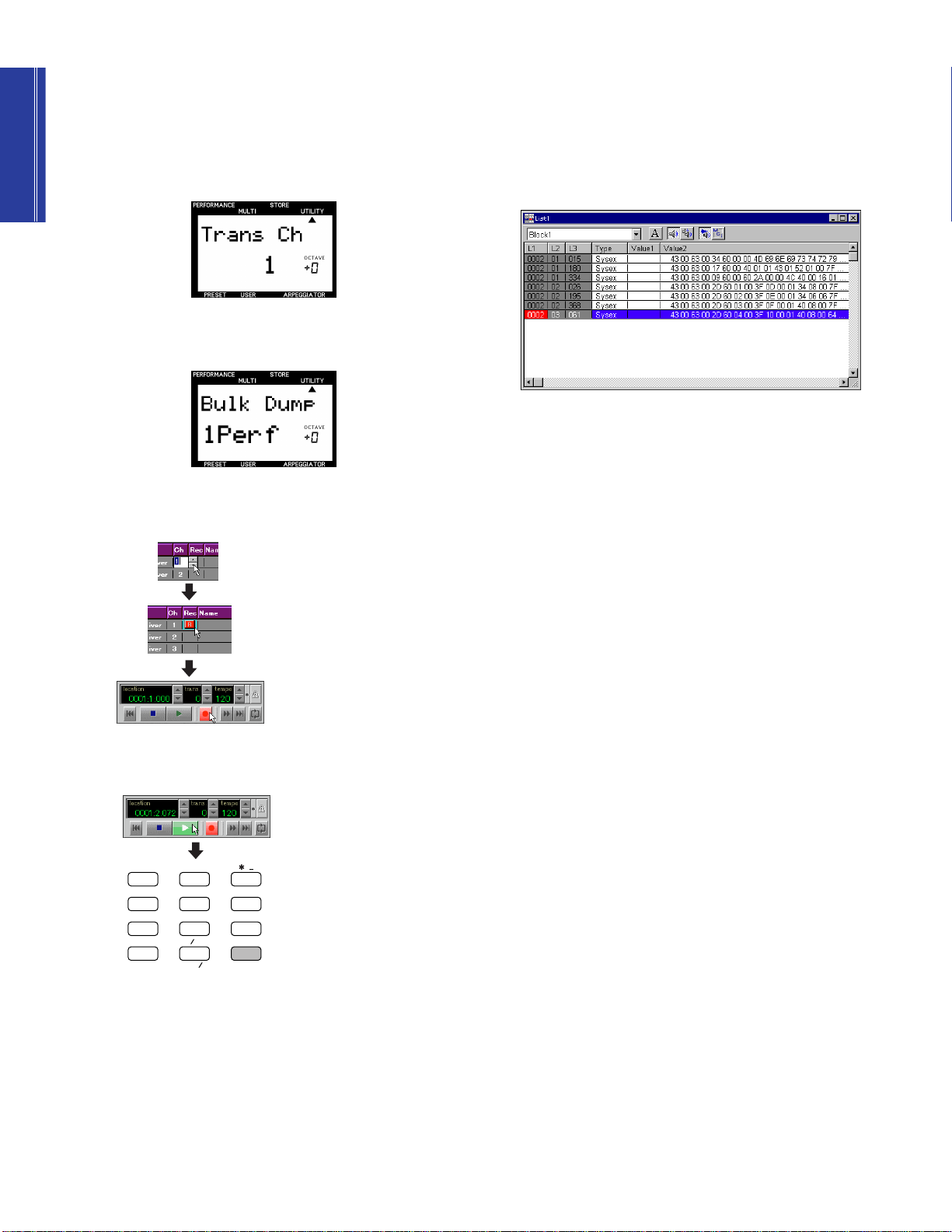

Transmitting Performance Data

VWX

MNO

PQR STU

JKL

SPACE

YES

ENTER

GHI

QUICK PC

DEF

ABC

–

Press the Play button to activate recording

Bulk transmit start

Confirm the channel

Select the track for recording

Press the Record button to activate recording Standby

1. In Performance mode, select the CS2x Performance you want to transmit.

2. In Utility mode (TRANS CH parameter), set the MIDI channel over which you want the CS2x to transmit the data, such as channel 1.

3. In Utility mode (BULK DUMP parameter), select the “1P erf” setting.

4. In XGworks, confirm that track 1 is set to channel 1 and prepare for real-time recording.

6. When Performance data transmission is finished, stop the XGworks recording. Use the List Window to confirm the data received by XGworks. You can see that the MIDI data format (BULK DUMP “3-6-4-2”, as shown in the separate “Data List” book) hexadecimal messages have been programmed.

List Window

In the Track View Window you can use the Scissors and Eraser tools to delete data for measures that don’t need data.

For information about saving, see the owner’s manual for XGworks.

When you play a song with XGworks that has the received data, the appropriate CS2x Performance is selected automatically and played precisely as you recorded it.

5. After starting recording with XGworks, press the CS2x’s [ENTER] button to transmit the Performance data.

Depending on system exclusive data programmed at the top of the song, you can have the sequencer automatically select Performance mode, using the system exclusive message as shown below. This way you can prevent an error caused by transmitting the Performance bulk data when the CS2x is in Multi Play mode.

F0 43 1n 63 50 00 06 03 F7 (hexadecimal)

n = Device Number

These settings aren’t limited for use with XGworks only, but will work with other sequencers as well. Refer to the owner’s manual of the particular sequencer for related information.

Getting Started

Simply Dynamite: Yamaha MIDI Magic

Yamaha has a full line-up of professional MIDI instruments from which you could choose in order to build up a MIDI music system that’s perfect for your own individual needs. Two in particular are especially suited for use with the CS2x, as follows:

• QY700 Music Sequencer Ideal for professionals and novices

alike, the QY700 is a full MIDI production center in its own right complete with easy-to-use MIDI instrument and drum part composing through a built-in database of musical style phrases and “groove templates”, 32 “linear” tracks and 16 “pattern” tracks, a full XG multitimbral tone generator including three digital multi-effects units, plus wide-ranging editing and on-board mixing features.

• RM1x Sequence Remixer Ideal for dance DJs, the RM1x

features the same basic sequencing and editing functions of the QY700 — along with hundreds of voices, 960 Preset patterns and 800 User patterns — plus real-time performance controls including a 16-key “microkeyboard” for easy switching of patterns and 8 CONTROL knobs for dynamic control of the sound on each track. There’s also an arpeggiator, SMF compatibility, and much more.

Feature Reference

II: 128 PerformanceI: 128 Performance

Preset Bank

(256 Performance)

II: 128 PerformanceI: 128 Performance

User Bank

(256 Performance)

PERFORMANCE MULTI

DEMO

STORE UTILITY

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

Feature Reference

Following is a description of each function in the various modes along with available parameter settings.

Performance Mode

Feature Reference

Performance Mode

In Performance mode you can choose from 256 Preset and 256 User Performances. A Performance consists of up to four “Layer” voices playing simultaneously. You can easily edit each Layer within a Performance so that each sounds and behaves uniquely. The many available edit parameters give you the flexibility to create a vast variety of Performance timbres.

Entering Performance Mode

Press [PERFORMANCE]. A [▲] mark will appear in the LCD below the word “PERFORMANCE” to indicate that Performance mode is active.

To select the bank you want, press [PRESET] or [USER]. A [▼] mark will appear in the LCD above the word “PRESET” or “USER” to indicate which is selected.

PRESET

USER

Performance Play Mode

● Selecting A Bank

There are four banks available: two Preset banks (P1/P2) and two User banks (U1/U2). Each bank contains 128 Performances.

Each time you press [PRESET] or [USER] toggles between P1/P2 and U1/U2 banks, respectively. The currently selected bank will be indicated in the LCD to the left of the Performance number.

● Selecting A Performance

1. Use the NUMERIC KEYPAD (0 ~ 9) to select the Performance number you want.

For more information about the factory Performances, see the Performance Lists in the separate “Data List” book.

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

VEL

CURVE

VEL

FIX

SYSTEM

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

CTRL

BULK DUMP

LOCAL

MIDI

DEVICE

RCV

TRANS

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL

LIMIT

HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

II: 128 PerformanceI: 128 Performance

Preset Bank

(256 Performance)

II: 128 PerformanceI: 128 Performance

User Bank

(256 Performance)

Performance

Layer 4

VOICE

Layer 3

VOICE

Layer 2

VOICE

Layer 1

VOICE

COMMON EDIT

REAL TIME EDIT with

THE SOUND CONTROL KNOBS

STORE IN USER BANK

SAVE AS SCENE 1 or 2

PERFORMANCE

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV TYPE

CHO

TYPE

VARI TYPE

VARI PARAM

PERFORM NAME

VARI DATA

ASSIGN1 PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL

TIME

REL

TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT

HIGH

LIMIT

LOW

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

LAYER EDIT

ATTACK

DECAY

RELEASE DATAASSIGN

ASSIGN 2

RESONANCE

CUTOFFCUTOFF LPFHPF

SCENE

MW FC

2. Press [ENTER] to confirm the number (1 ~ 128). The

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

Performance Name

Common Edit 1

This menu includes parameters which are common to all Layers in a Performance.

■ ARPEGGIATOR

The Arpeggiator automatically creates arpeggiated chords based on the chords and notes you play on the keyboard. There are three Arpeggiator parameters: TYPE, TEMPO and SUBDIVIDE.

Press the [ARPEGGIO] button to turn the Arpeggiator on. A [▼] mark will appear in the LCD above the word “ARPEGGIATOR” to indicate the Arpeggiator is on.

To turn the Arpeggiator off, press [ARPEGGIO] again.

Reverb Type Chorus Type

Variation Parameter

Variation Type

Variation Data

The letter "P" (Parameter) or "d" (Data) displays to distinguish between the Variation Parameter and Variation Data screens.

ARPEGGIATOR HOLD

The ARPEGGIATOR HOLD function lets you play a chord to start the automatic arpeggio then take your hand off the keyboard and have the arpeggiated chord play continuously in a loop. Play another chord and the automatic arpeggios will change accordingly. Here’s how to activate the ARPEGGIATOR HOLD function:

1. Hold [SHIFT] and press [ARPEGGIO]. The Arpeggiator [▼] mark in

the LCD will start blinking to indicate the function is active.

Performance Mode

Feature Reference

2. Play a series of chords or notes.

3. To stop the arpeggiated chords, press [ARPEGGIO] again.

■ EFFECT

There are five effect parameters: REV TYPE (Reverb Type), CHO TYPE (Chorus Type), VARI TYPE (Variation Type), VARI PARAM (Variation Parameter) and VARI DATA (Variation Data). For information about the three digital effects units, see page 70.

ARPEGGIATOR SPLIT

If you hold [SHIFT] and press the TYPE Parameter Value [UP] button when the TYPE parameter is displayed in the LCD, the ARPEGGIATOR SPLIT function will be enabled. A reversed type letter “S” will appear to the right of the TYPE name to indicate the function is active. The ARPEGGIATOR SPLIT function divides the keyboard at C3 (indicated by the [▼] mark printed above the keyboard) and lets you play the arpeggiated chords on the lower half of the keyboard (below C3) and play normal chords and notes on the upper half (C3 and above). To cancel the function, hold [SHIFT] and press the TYPE Parameter Value [DOWN] button.

TEMPO: Sets the tempo of the Arpeggiator in beats per minute or to be controlled by an external MIDI clock.

Settings: ARP Tempo: MIDI, 40 ~ 240 (beats per minute)

If you want to synchronize the tempo of the Arpeggiator with the

tempo of an external MIDI device, set the TEMPO parameter to MIDI.

SUBDIVIDE: Determines the basic note timing resolution settings of the Arpeggiator.

Settings: ARP Subdiv: 3/8= q . , 1/4= q , 3/16= e. , 1/6= , 1/8= e , 3/32= x. ,

1/12= , 1/16= x , 1/24= , 1/32= r

Arpeggiator data can be output as MIDI messages.

The Arpeggiator data is normally output as MIDI messages from the MIDI OUT terminal. You can cancel MIDI data output by holding the [ARPEGGIO] button when switching on the power.

■ PERFORM LEVEL (Performance Level)

This determines the volume level of the Performance.

Settings: Perf Level: 0 ~ 127

REV TYPE (Reverb Type): Determines the type of Reverb

effect. You can choose from 12 types. (See the Effect Type List in the separate “Data List” book.)

CHO TYPE (Chorus Type): Determines the type of Chorus effect. You can choose from 14 types. (See the Effect Type List in the separate “Data List” book.)

VARI TYPE (Variation Type): Determines the type of Variation effect. You can choose from 62 types. (See the Effect Type List in the separate “Data List” book.)

VARI PARAM (Variation Parameter): Determines the Variation effect parameters. Available parameters depend on the VARI TYPE setting.

If VARI TYPE is set to “Effect Off”, those Layers with VARI SEND set to “on” (page 55) will not sound. When you don’t want to apply the Variation Effect to the Layers, set VARI TYPE to “Thru”.

The Variation effect works as an Insertion effect in Performance mode. (For more information, see page 70.)

For more information about each Variation effect parameter, see the Effect Parameter List in the separate “Data List” book.

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND

RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO TYPE

VARI

TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL

TIME

REL

TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT

HIGH

LIMIT

LOW

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

VEL

CURVE

VEL

FIX

SYSTEM

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI

TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

CTRL

BULK DUMP

LOCAL

MIDI

DEVICE

RCV

TRANS

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL

LIMIT

HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

VARI DATA (Variation Data): Sets the data (value) of the

NO. LCD Category Name

0 -- Not specified 1 Pf Piano 2 Cp Chromatic Percussion 3 Or Organ 4 Gt Guitar 5 Ba Bass 6 St Strings/Orchestral 7 En Ensemble 8 Br Brass

Variation effect parameter selected in VARI PARAM. For more information about each Variation effect data settings, see the Effect Data Assign Table in the separate “Data List” book.

When VARI TYPE is set to “Effect Off”, VARI PARAM and VARI DATA will be disabled.

The effect Depth and other parameters can be controlled using the ASSIGN 1/DATA knob or a Foot Controller. For details, see page 64.

For more information about the effects, see page 70.

■ PERFORM NAME (Performance Name)

This lets you select the Category and name the User Performances using up to eight letters, numbers, and other characters.

1. Use the Parameter Value [UP/DOWN] button to move the cursor to the position at which you want to enter a character.

2. Move the cursor left-most if necessary (the word “Category” will appear instead of the Performance name) and use the NUMERIC KEYPAD (0 ~ 9) to select the Category.

3. Move the cursor one position to the right (the current cursor position will start blinking) and use the NUMERIC KEYPAD (as printed above the 0 ~ 9 keys) and [-]/[ENTER] to select the first letter, then right one position more and select the second letter, etc., until you finish naming your Performance.

Performance Mode

Feature Reference

Settings:

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ‘ a b c d e f g h i j k l m n o p q r s t u v w x y z 0 1 2 3 4 5 6 7 8 9 - / . , * & _ (space)

Common Edit 2

This menu includes controller parameters which are common to all Layers in a Performance except for PORTA SWITCH (Portamento Switch), which is a Layer function.

■ P BEND RANGE (Pitch Bend Range)

This sets the Pitch Bend range in semitones. The pitch can be bent up or down within the range set here by moving the PITCH wheel.

Settings: PB Range: -24 ~ +24 semitones

Filter Modulation Cutoff

Variation Effect

■ MW (Modulation Wheel)

Pitch Modulation Filter Modulation

Cutoff

This sets the control parameters of the MODULATION wheel. There are three parameters: PMOD (Pitch Modulation), FMOD (Filter Modulation) and CUTOFF (Cutoff). The parameters set here can be controlled with the

■ FC (Foot Control)

This sets the parameters controlled by a Foot Controller connected to the FOOT CONTROLLER jack on the rear panel. There are three parameters: FMOD (Filter

Modulation), CUTOFF, and VARI EF (Variation Effect). MODULATION wheel to add vibrato or wah-wah type effects to the sound.

Performance Mode

Feature Reference

FMOD (Filter Modulation): Sets the Low Pass Filter

modulation depth created by the LFO (Low Frequency PMOD (Pitch Modulation): Sets the pitch modulation depth created by the LFO (Low Frequency Oscillator). The value set here will determine the range of the pitch modulation controlled by the MODULATION wheel. Moving the MODULATION wheel forward will increase the depth of the pitch modulation, while moving it back will decrease the depth.

FMOD (Filter Modulation): Sets the Low Pass Filter modulation depth created by the LFO (Low Frequency Oscillator). The value set here will determine the range of the filter modulation controlled by the MODULATION wheel. Moving the MODULATION wheel forward will increase the depth of the filter modulation, while moving it back will decrease the depth.

Oscillator). The value set here will determine the range of

the filter modulation controlled by the Foot Controller.

Pressing the Foot Controller towards maximum position will

increase the depth of the filter modulation.

CUTOFF: Sets the range of the Low Pass Filter cutoff

frequency points above which other frequencies are cut off.

The value set here will determine the range of the cutoff

frequency points controlled by the Foot Controller. Pressing

the Foot Controller towards maximum position will raise the

cutoff frequency point (and make the voice brighter).

VARI EF (Variation Effect): Determines the Variation effect

range set by the COMMON EFFECT parameters (page 44)

controlled by the Foot Controller.

CUTOFF: Sets the range of the Low Pass Filter cutoff frequency points above which the other frequencies are cut off. The value set here will determine the range of the cutoff frequency points when using the MODULATION wheel. Moving the MODULATION wheel forward will raise the cutoff frequency point (and make the tone brighter), while moving it back will lower the cutoff point (and make the tone darker).

Settings: MW PMod: 0 ~ 127

MW Fmod: 0 ~ 127 MW Cutoff: -64 ~ +63

For details about which parameters the Foot Controller can control, see the Effect Parameter List in the separate “Data List” book.

Settings:

FC FMod: 0~127

FC Cutoff: -64 ~ +63

FC Vari EF: -64 ~ +63

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

SYSTEM

P BEND

RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

ASSIGN

MIDI

BANK

PROGRAM

ATK TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

LIMIT

LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

NO. LCD

0 off 1 PerfLevel (Performance Level) (page 44) 2 ArpgTempo (Arpeggiator Tempo) (page 44) 3 ArpgType (Arpeggiator Type) (page 43) 4 ArpgSubdiv (Arpeggiator Subdivide) (page 44) 5 MWCutoff (MW Cutoff) (page 46) 6 MWPModDpth (MW Pitch Modulation Depth) (page 46) 7 MWFModDpth (MW Filter Modulation Depth) (page 46) 8 PBRange (Pitch Bend Range) (page 45)

9 FCCutoff (FC Cutoff) (page 46) 10 FCFModDpth (FC Filter Modulation Depth) (page 46) 11 FCVariDpth (FC Variation Depth) (page 46) 12 PortaTime (Portamento Time) (page 47) 13 *FEGDcyTime (FEG Decay Time) (page 53) 14 *AEGDcyTime (AEG Decay Time) (page 50)

15 *ChoToRev (Chorus Send To Reverb) 16 *VariCntrl (Variation Control) 17 *RevChoSend (Reverb And Chorus Send) 18 *ChorusSend (Chorus Send) (page 55) 19 *ReverbSend (Reverb Send) (page 55) 20 *Pan (page 54) 21 *LFOSpeed (LFO Speed) (page 51) 22 *LFOPMod (Vibrato Depth) (page 51) 23 *VibDelay (Vibrato Delay) 24 *LFOAMod (LFO Amplitude Modulation Depth) (page 51) 25 *LFOFMod (LFO Filter Modulation Depth) (page 51) 26 *FEGAtkTime (FEG Attack Time) (page 53) 27 *FEGSusLvl (FEG Sustain Level) (page 53) 28 *FEGVelSens (FEG Level Velocity Sensitivity) 29 *Pitch (Oscillator Pitch)

■ PORTA (Portamento)

Switch Time

This determines the Portamento settings for the Layer voices. Portamento continuously changes the pitch from one note to the next, thus letting you glide the pitch from note to note. There are two parameters, SWITCH and TIME. SWITCH values can be set for each individual Layer, and TIME values apply to all Layers equally.

SWITCH: Turns the Portamento on or off (for each Layer).

TIME: Sets the time it takes for the pitch to reach the next

note played (for all Layers).

Settings: Porta SW: on, off

Porta Tm: 0 ~ 127

■ ASSIGN1 PARAM (ASSIGN1 Parameter)

This determines which parameter will be controlled by the ASSIGN 1/DATA knob. You can choose from 29 types of available parameters. (The default parameter assigned to the ASSIGN 1/DATA knob depends on the Performance selected.)

Settings:

(For details about each parameter, see the Reference pages as listed in the table below.)

Performance Mode

Feature Reference

Parameters marked with an asterisk (*) affect all Layer voices equally in a Performance. Although you cannot directly edit them from the LCD, you can assign them to the ASSIGN 1/DATA knob.

You can also select each parameter by inputting the corresponding number using the NUMERIC KEYPAD (0 ~ 9) and [ENTER].

Layer Edit 1

The functions in this menu are mainly related to the keyboard. The parameters can be set for each individual Layer in a Performance.

VELOCITY (Playing Strength)

VOLUME

0 30 100 127

Limit Low Limit High

Offset Depth

■ TUNE

C1 C2 C3 C4 C5

36 48 60 72 84

CS2x Keyboard

Note Name Note Number

LIMIT LOW is set to C2 and

LIMIT HIGH is set to C4.

Range of notes that can be played.

• • • G8

• • • 127

C-2 • • •

0 • • •

Limit Low Limit High

Note Shift Detune

This sets the tuning of the selected Layer. There are two parameters: NOTE SFT (Note Shift) and DETUNE.

■ VEL (Velocity)

This determines the velocity settings for each Layer voice. There are four parameters: LIMIT LOW, LIMIT HIGH, OFFSET and DEPTH.

Performance Mode

Feature Reference

NOTE SFT (Note Shift): Raises or lowers the pitch of the voice in semitones.

Settings: Note Shift: -24 ~ +24 (semitones)

DETUNE: Raises or lowers the pitch of the voice in fine

increments or decrements of 0.1 Hz each.

Settings: Detune: -12.8 Hz ~ +12.7 Hz

LIMIT LOW: Determines the lowest velocity value that will

be detected when the keyboard is played. No sound will be

■ NOTE

This sets the range of notes that each individual Layer voice will play. There are two parameters: LIMIT LOW and LIMIT HIGH.

produced if the keyboard is played with a velocity value weaker than the one set here.

LIMIT HIGH: Determines the highest velocity value that will be detected when the keyboard is played. No sound will be produced if the keyboard is played with a velocity value stronger than the one set here.

LIMIT LOW: Determines the low note limit, or the lowest note that will be played by the voice.

LIMIT HIGH: Determines the high note limit, or the highest note that will be played by the voice.

Settings: Nt Limit L: C-2 ~ G8

Nt Limit H: C-2 ~ G8

You cannot set the LIMIT LOW note above the LIMIT HIGH note,

or the LIMIT HIGH note below the LIMIT LOW note.

When LIMIT LOW is set to “30” and LIMIT HIGH is set to “100” the velocity range that can be played is limited as shown in the above graph.

Settings: Vel Lmt L: 1 ~ 127

Vel Lmt H: 1 ~ 127

You cannot set the LIMIT LOW velocity above the LIMIT HIGH

velocity, or the LIMIT HIGH velocity below the LIMIT LOW velocity.

Parameter Type

Layer

Assignment Number

Sensitivity

▲ ▼

Parameter type of assignment number 1

↓ ↑

Sensitivity of assignment number 1

↓ ↑

Parameter type of assignment number 2

↓ ↑

Sensitivity of assignment number 2

↓ ↑

Parameter type of assignment number 3

↓ ↑

Sensitivity of assignment number 3

↓ ↑

Parameter type of assignment number 4

↓ ↑

Sensitivity of assignment number 4 ↓ ↑

OFFSET: Sets the offset value of the velocity. The value set

VELOCITY DEPTH GRAPH (When OFFSET=64)

OFFSET=63

VOLUME

DEPTH=96, OFFSET=64

DEPTH=64 OFFSET=63

DEPTH=32 OFFSET=63

DEPTH=0, OFFSET=63

VELOCITY RECEIVED

VELOCITY OFFSET GRAPH ( When DEPTH = 64)

VELOCITY RECEIVED

OFFSET=–64

DEPTH=64

VELOCITY LEVEL RECEIVED

BY TONE GENERATOR

(OFFSET=63)

(OFFSET=0)

OFFSET=-64

OFFSET=0 DEPTH=64

OFFSET=63

DEPTH=64

VELOCITY=127

VELOCITY=1

Range determined by offset

here will be added to or subtracted from the actual velocity value.

■ ASSIGN2

This sets the control parameter and knob sensitivity of the ASSIGN 2 knob. You can assign up to four parameters from 29 types. You can also set the sensitivity (control range of the knob) for each parameter. (The default parameter assigned to the ASSIGN 2 knob depends on the Performance selected.)

Settings: Vel Offset: -64 ~ +63

DEPTH: Sets the depth of the velocity. The larger the value,

the more sensitive the velocity will be, and playing the keyboard will produce louder sounds.

1. Select the Layer.

Press LAYER [-]/[+] to select the Layer to which you want to assign a parameter.

2. Select the item (parameter type or sensitivity) you want to edit and the assignment number which you want to assign the parameter to.

Press PARAM [UP] to select the item (parameter type or sensitivity) you want to edit, and the assignment number. Each time you press PARAM [UP] the arrow cursor will move as shown in the following table.

Each time you press PARAM [DOWN] the arrow cursor will move in the opposite direction.

Performance Mode

Feature Reference

Settings: Vel Depth: 0 ~ 127

3. Move the cursor to the Parameter Type area in the LCD and press DATA [UP/DOWN] to select the parameter type.

Settings:

The parameters listed in the following table can be assigned to assignment number 1 ~ 4. For details about each parameter, see the Reference pages as listed in the table.

When voices are not assigned to the Layers (BANK=”off”),

Parameter type and sensitivity will not display.

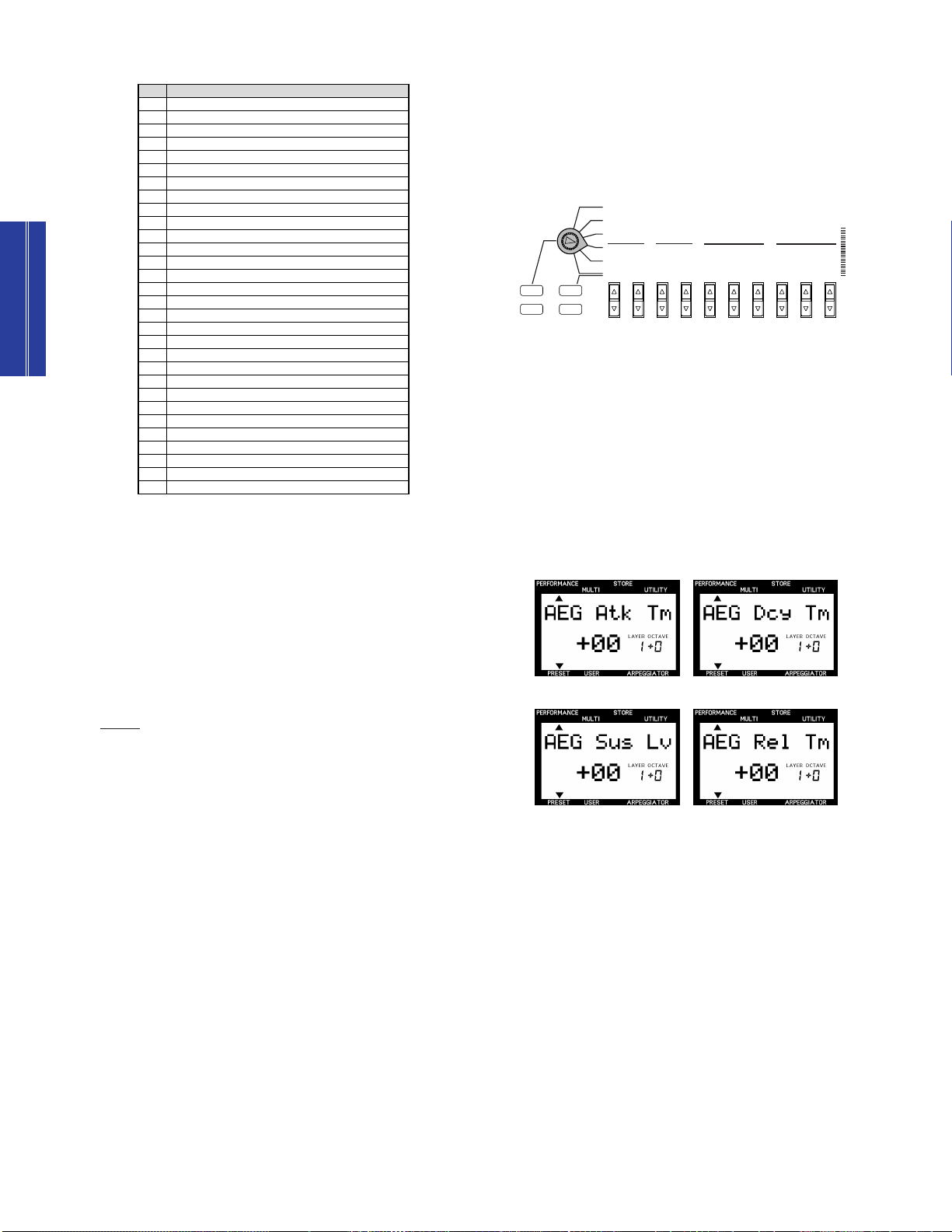

Layer Edit 2

Attack Time Decay Time

Sustain Level Release Time

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND

RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT LOW

LIMIT

LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

NO. LCD

0 off 1 Volume (page 54) 2 NoteShift (page 48) 3 Detune (page 48) 4 Pan (page 54) 5 ChorusSend (page 55) 6 ReverbSend (page 55) 7 *Pitch (Oscillator Pitch) 8 VelSnsDpth (Velocity Sensitivity Depth) (page 49)

9 VelSnsOfst (Velocity Sensitivity Offset) (page 49) 10 Cutoff (Filter Cuttoff Frequency) (page 55) 11 Resonance (page 55) 12 AEGAtkTime (AEG Attack Time) (page 50) 13 AEGDcyTime (AEG Decay Time) (page 50) 14 AEGSusLvl (AEG Sustain Level) (page 50) 15 AEGRelTime (AEG Release Time) (page 51) 16 LFOSpeed (LFO Speed) (page 51) 17 LFOAMod (LFO Amplitude Modulation Depth) (page 51) 18 LFOPMod (LFO Pitch Modulation Depth) (page 51) 19 LFOFMod (LFO Filter Modulation Depth) (page 51) 20 FEGAtkTime (FEG Attack Time) (page 53) 21 FEGDcyTime (FEG Decay Time) (page 53) 22 FEGSusLvl (FEG Sustain Level) (page 53) 23 FEGRelTime (FEG Release Time) (page 53) 24 PEGInitLvl (PEG Initial Level) (page 53) 25 PEGAtkTime (PEG Attack Time) (page 53) 26 PEGAtkLvl (PEG Attack Level) (page 53) 27 PEGDcyTime (PEG Decay Time) (page 53) 28 PEGRelTime (PEG Release Time) (page 53) 29 PEGRelLvl (PEG Release Level) (page 53)

The functions in this menu include AEG (Amplitude Envelope Generator) and LFO (Low Frequency Oscillator) parameters, which are essential for creating each Layer voice. The parameters can be set for each individual Layer in a Performance.

Performance Mode

Feature Reference

■ AEG (Amplitude Envelope Generator)

This sets the parameters for the Amplitude Envelope Generator. The AEG lets you shape how the volume level of each Layer voice changes over time, from when a key is struck, then released, and how the sound decays. There are four parameters: ATK TIME (Attack Time), DCY TIME (Decay Time), SUS LEVEL (Sustain Level) and REL TIME (Release Time).

Each musical instrument has a unique envelope curve which plays

Although parameters marked with an asterisk (*) cannot be modified, you can assign them to the ASSIGN 2 knob.

an important role in determining its sound characteristics. The AEG simulates the change of the volume envelope curve over time.

You can also select each parameter by inputting the corresponding number using the NUMERIC KEYPAD (0 ~ 9) and [ENTER].

4. Press PARAM [UP/DOWN] to move the arrow cursor to the Sensitivity area in the LCD.

5. Press DATA [UP/DOWN] to set the knob sensitivity.

Settings:

Parameters can be set between -32 and +32 for assignment numbers 1 through 4.

As an example, say you have selected the Volume parameter and set

the knob sensitivity to the positive value “+32”. The volume is “0” when the knob is turned counter-clockwise to the far left, and “127” when the knob is turned clockwise to the far right. If the knob sensitivity is set to the negative value “-32” the volume is “127” when the knob is turned to the far left and “0” when the knob is turned to the far right. If the sensitivity value is low, the control range of the knob will be narrowed and limited.

6. Repeat the above steps to set a different Parameter Type and knob Sensitivity value to each of the four assignment numbers.

When the PARAM screen is displayed, you can select the Parameter Type or change the knob Sensitivity using the ASSIGN 1/DATA knob or the NUMERIC KEYPAD (0 ~ 9) and [ENTER].

Depending on the voice selected, changing certain parameters may not produce a noticeable effect.

ATK TIME (Attack Time): Determines the time required for a sound to reach its maximum volume level when a note is played.

DCY TIME (Decay Time): Determines the time required for a sound to reach its Sustain Level from a maximum volume level while the key is held.

SUS LEVEL (Sustain Level): Sets the Sustain Level. The volume will be maintained at this level for as long as the key is held.

TIME

SLOW

FAST

TIME

Saw (Sawtooth)

Tri (Triangle)

S&HTr (Sample & Hold = random)

*S&HTr = Adds random changes to the pitch. (NOTE: Triangle waves will be applied for the AMOD and FMOD. Triangle wave is applied even if you select S&HTr for PMOD, when controlling the PMOD with the Modulation Wheel.)

ELEM (Element)

*Default settings of each element depending on the selected voice.

TIME

REL TIME (Release Time): Determines the time it takes for a

Amplitude Modulation Pitch Modulation

Filter Modulation Wave

Speed Phase Init

Key On Key Off

ATK TIME REL TIMEDCY TIME

SUS LEVEL

TIME

VOLUME

sound to sustain after the key is released.

Settings: AEG Atk Tm: -63 ~ +63

AEG Dcy Tm: -63 ~ +63 AEG Sus Lv: -64 ~ +63 AEG Rel Tm: -63 ~ +63

■ LFO (Low Frequency Oscillator)

This sets the parameters for the Low Frequency Oscillator for each Layer voice. The LFO is an oscillator that generates low frequency signals (below hearing range) which are used to modulate certain aspects of the sound such as pitch, volume or filter level. There are six parameters: AMOD (Amplitude Modulation), PMOD (Pitch Modulation), FMOD (Filter Modulation), WAVE, SPEED and PHASE INIT (Phase Initialize).

PMOD (Pitch Modulation): Adds a cyclical change to the pitch by applying LFO frequency modulations to create a vibrato effect. Higher values widen the range of the pitch change.

FMOD (Filter Modulation): Adds a cyclical change to the Low Pass Filter cutoff frequency by applying LFO frequency modulations to create wah-wah type effects. Higher values widen the range of cutoff frequency change.

WAVE: Selects the LFO frequency signal used for modulation. You can select from the following types:

Performance Mode

Feature Reference

AMOD (Amplitude Modulation): Adds a cyclical change to the volume level by applying LFO frequency modulations to create a tremolo effect. Higher values widen the range of the volume change.

SPEED: Sets the speed of the LFO frequency modulation. Higher values increase the speed.

Attack Time Decay Time

Sustain Level Release Time

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI

TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY

TIME

DCY

TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL

TIME

REL TIME

AMOD PMOD

INIT

LEVEL

ATK

TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL TIME

REL

LEVEL

PHASE

INIT

POLY

MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT

HIGH

LIMIT

LOW

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

PHASE INIT (Phase Initialize): Determines if the phase of

Free: The wave starts at the phase position where a note is played.

TIME

KEY ON

–

TIME

–

Retr (Retrigger): The wave starts at +/-0 phase position.

Phase when keyboard is played

KEY ON

Elem (Element): The wave starts from the default phase position (Free or Retr) for each element of the voices.

the LFO frequency modulation wave is reset or not each time a note is played. There are three types: Free, Retr (Retrigger) and Elem (Element).

Layer Edit 3

The functions in this menu include FEG (Filter Envelope Generator) and PEG (Pitch Envelope Generator) parameters, which are essential for creating each Layer voice. The parameters can be set for each individual Layer in a Performance.

Performance Mode

Feature Reference

■ FEG (Filter Envelope Generator)

This sets the parameters for the Filter Envelope Generator. The FEG lets you shape how the tone, or timbre, of each Layer voice changes over time, from when a key is hit, then released, and how the sound decays. There are four parameters: ATK TIME (Attack Time), DCY TIME (Decay Time), SUS LEVEL (Sustain Level) and REL TIME (Release Time). These parameters affect Low Pass Filter (LPF) only.

Settings: LFO AMod: -31 ~ +31

LFO PMod: -63 ~ +63 LFO FMod: -15 ~ +15 LFO Wave: Saw, Tri , S&HTr, Elem LFO Speed: -63 ~ +63 Phase Init: Free, Retr, Elem

Depending on the voice selected, changing certain parameters may not produce a noticeable effect.

Key On

PITCH

INIT LEVEL

ATK LEVEL

REL LEVEL

Key Off

ATK TIME REL TIME

DCY TIME

TIME

LEVEL

Basic Pitch

Initial Level Attack Time

Attack Level Decay Time

Release Time Release Level

ATK TIME (Attack Time): Determines the time required for a

Key On

CUTOFF FREQUENCY

Key Off

ATK TIME REL TIME

DCY TIME

TIME

LEVEL

SUS LEVEL

sound to reach its maximum cutoff frequency level when a note is played.

DCY TIME (Decay Time): Determines the time required for a sound to reach its Sustain Level from a maximum level while the key is held.

SUS LEVEL (Sustain Level): Sets the Sustain Level. The cutoff frequency will be maintained at this level for as long as the key is held.

REL TIME (Release Time): Determines the time it takes for the cutoff frequency to reach the level preset for each voice after the key has been released.

Settings: FEG Atk Tm: -63 ~ +63

FEG Dcy Tm: -63 ~ +63 FEG Sus Lv: -64 ~ +63 FEG Rel Tm: -63 ~ +63

■ PEG (Pitch Envelope Generator)

This sets the parameters for the Pitch Envelope Generator. The PEG lets you shape how the pitch of each Layer voice changes over time, from when a key is struck, then released, and how the sound decays. There are six parameters: INIT LEVEL (Initial Level), ATK TIME (Attack Time), ATK LEVEL (Attack Level), DCY TIME (Decay Time), REL TIME (Release Time) and REL LEVEL (Release Level).

Since the PEG simulates the change of the pitch envelope curve over time, you can create everything from SFX type effects to the subtle pitch changes of a wind instrument.

Performance Mode

Feature Reference

INIT LEVEL (Initial Level): Sets the initial pitch level when a key is played.

ATK TIME (Attack Time): Determines the time required for a sound to reach its Attack Level after a note is played.

ATK LEVEL (Attack Level): Sets the initially targeted level after a note is played.

DCY TIME (Decay Time): Determines the time required for a sound to reach its basic pitch from the Attack Level while the key is held.

REL TIME (Release Time): Determines the time it takes for the basic pitch to reach the Release Level after the key has been released.

REL LEVEL (Release Level): Sets the last targeted level after the key is released.

Depending on the voice selected, changing certain parameters may not produce a noticeable effect.

Settings: PEG Init: -64 ~ +63

PEG Atk Tm: -63 ~ +63 PEG Atk Lv: -64 ~ +63 PEG Dcy Tm: -63 ~ +63 PEG Rel Tm: -63 ~ +63 PEG Rel Lv: -64 ~ +63

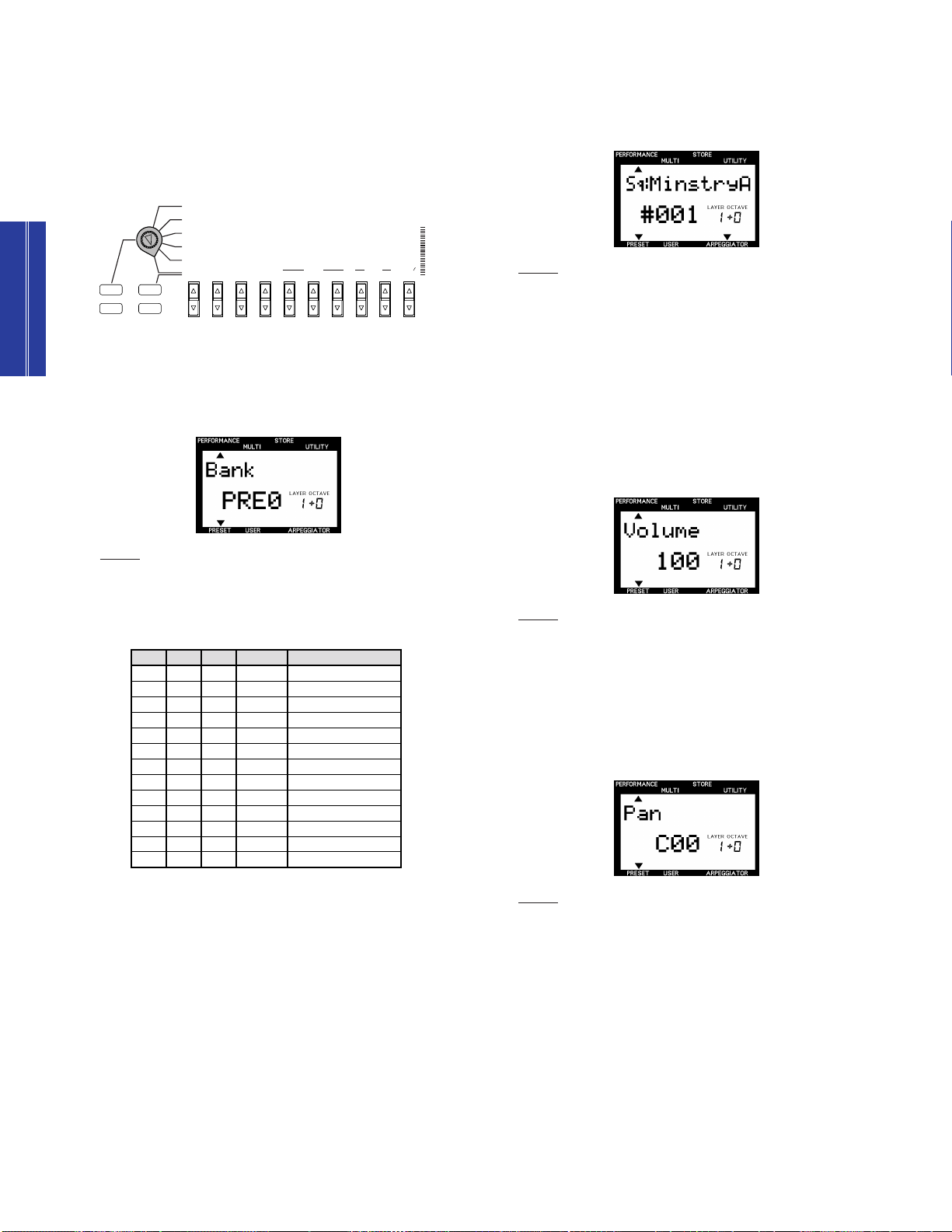

Layer Edit 4

MSB LSB Bank LCD Remarks

0 0 0 XG000 XG 0 1 1 XG001

↓ ↓ ↓ ↓ ↓

0 101 101 XG101 64 0 102 SFX ↓ 63 0 103 PRE0 for Performance 63 1 104 PRE1

↓ ↓ ↓ ↓ ↓

63 7 110 PRE7 6363820111

123

PRE8

↓ ↓ ↓ ↓

PRE20

- - 999 off

Bank Conversion Table for Voices Used in Performances

↓ ↓ ↓

for Performance

↓

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL

TIME

REL

TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL LIMIT HIGH

LIMIT HIGH

LIMIT

LOW

LIMIT

LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

The functions in this menu include parameters which determine voice assignment, volume and panning settings

■ PROGRAM

This lets you select a voice, or program, from the currently

selected BANK. for each Layer, plus effect levels, filter settings and more. The parameters can be set for each individual Layer in a Performance.

Performance Mode

Feature Reference

Settings:

(Name): #001 ~ #128

Note that the Program numbers available are 1 ~ 128 and the MIDI

Program Change numbers range from 0 ~ 127. To match the MIDI

■ BANK

This lets you select an XG or a PRE Bank of available voices which can be assigned to the individual Layers (also see PROGRAM, below).

Program Change number when switching programs using an external MIDI device, subtract a value of “1” from the CS2x Program number you want the MIDI message to select.

For more information about Banks and Programs (voices), see the Voice Lists in the separate “Data List” book.

■ VOLUME

This sets the volume level of each individual Layer.

Settings: Bank: off, XG000, 001, 003, 006, 008, 012, 014, 016 ~ 020, 024 ~ 028, 032

~ 043, 045, 064 ~ 073, 096 ~ 101, SFX, PRE0 ~ 20 (“PRE” banks are for Performances only)

A bank can be selected directly by inputting the corresponding BANK number using the NUMERIC KEYPAD (0 ~ 9) and [ENTER].

For more information about Banks and Programs (voices), see the Voice List in the separate “Data List” book.

Settings:

Volume: 0 ~ 127

■ PAN

This sets the panning position (the left or right placement in

the stereo spectrum) of each individual Layer. Since different

pan positions can be set for each Layer, you can create a

sophisticated stereo image (for stereo output) for the

Performance.

Settings:

Pan: Random, L63 (far left position) ~ L01, C00 (center position), R01 ~ R63

(far right position)

When set to “Random”, the pan position of each Layer will

alternate between left and right as you play the Performance.

Some of the voices are preset and have a fixed panning of “left” in the lower register and “right” in the higher register. In such a case you cannot modify the pan setting.

FREQUENCY

VOLUME

CUTOFF FREQUENCY

RESONANCE

FREQUENCY

VOLUME

CUTOFF FREQUENCY

FREQUENCIES CUT

FREQUENCIES PASSED

Cutoff Resonance

■ EFFECT

Reverb Send Chorus Send

Variation Send

This determines the Reverb and Chorus effect levels of each Layer as well as the Variation effect configuration. There are three parameters: REV SEND (Reverb Send level), CHO SEND (Chorus Send level) and VARI SEND (Variation Send on/off).

■ FILTER

This sets the filter parameters for each Layer. There are two

parameters: CUTOFF and REZ (Resonance). These

parameters affect Low Pass Filter (LPF) only.

Generally filters change the timbre by passing signals within a specific frequency bandwidth and cutting others. The CS2x features two types of filters. A Low Pass Filter (LPF) passes signals below the specified frequency point (the “cutoff frequency”) and cuts off the signals above it. A High Pass Filter (HPF) passes the signals above the cutoff frequency and cuts off the signals below it. The HPF can be controlled by SOUND CONTROL Knob 5 (page 19).

Depending on the voice selected, changing certain parameters may not produce a noticeable effect.

Performance Mode

Feature Reference

REV SEND (Reverb Send): Determines the send level of the Reverb effect.

CHO SEND (Chorus Send): Determines the send level of the Chorus effect.

VARI SEND (Variation Send): Enables or disables the output of the Variation effect.

Settings: Rev Send: 0 ~ 127

Cho Send: 0 ~ 127 Var Send: off, on

The value of some Layers may forcibly be changed when using the

Variation effect.

For more information about the digital effects, see page 70.

CUTOFF: Determines the cutoff frequency of the filter, or

the frequency point above which other frequencies are cut

off or filtered out. Higher settings result in brighter tones and

lower settings result in darker tones.

REZ (Resonance): Sets the amount of filter resonance or

emphasis around the cutoff frequency. Higher settings

produce a higher resonant peak, while lower settings

produce a relatively flat response.

Settings:

Cutoff: -64 ~ +63

Resonance: -64 ~ +63

Performance

Layer 1

Layer 2

Layer 3

Layer 4

Ch. 1

Multi

Part 5

Part 6

Part 7

Ch. 5 Ch. 6 Ch. 7

Part 14

Part 15

Part 16

Ch. 14 Ch. 15 Ch. 16

MIDI Receive Channels set at the factory

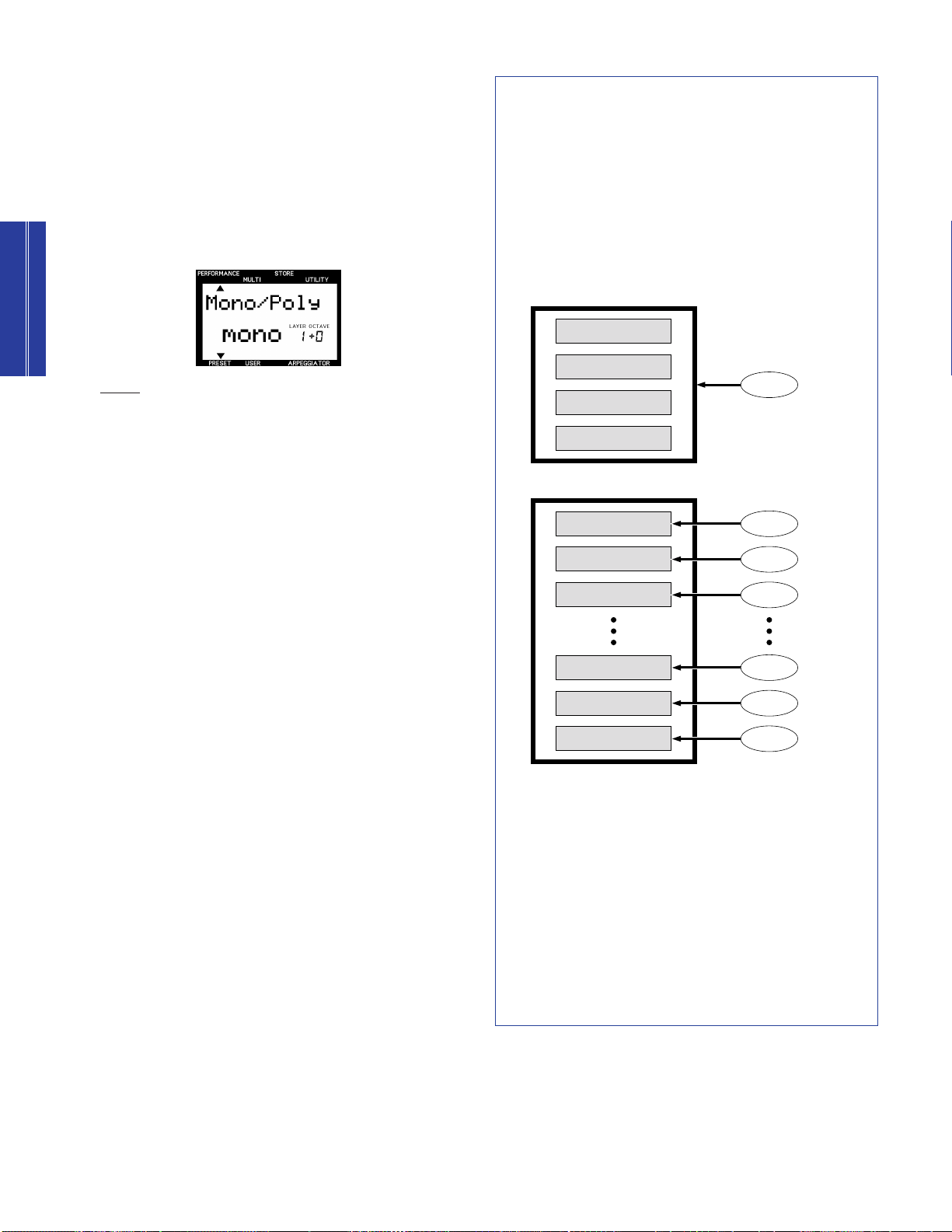

■ POLY/MONO

This determines whether the voice in each Layer is played monophonically (only one note at a time) or polyphonically (up to a maximum 64 notes at a time).

Generally Polyphonic mode is selected to generate multiple sounds at one time. There are cases, however, where it is more effective to select Monophonic mode, such as when

Performance Mode

Feature Reference

using a bass sound, brass sound, or an analog synthesizer lead sound.

Settings: Mono/Poly: mono, poly

You can play up to 64 notes at a time. However, the number of

notes may be reduced or truncated if you use voices which consist of two Layers and/or play a rather complicated song which uses too many notes.

Multi Play In Performance Mode

• In Performance mode you can use the Performance as one instrument Part plus 12 additional Parts for multitimbral play using an external MIDI sequencer. The Layer (using between 1 and 4 voices) makes up Part 1 and the additional 12 Parts available correspond to Parts 5 ~ 16.

Though the receive channels are set at the factory as shown in the following diagram, you can change the receive channels using the Utility mode’s MIDI RCV CH (Receive Channel) parameter.

• If a channel is selected for both the Performance and one of the Multi Parts, the two will be played simultaneously, producing two sounds at once. Check the settings for the receive channels when you play the Performance and get an extra unintentional sound besides the Performance Layer.

• In Performance mode, you cannot modify the Multi settings on the panel except for the receive channel setting. Use an external MIDI device such as sequencer to modify the Multi settings.

• You can play only one Performance at a time. It is not possible to use the Performances as Parts for the Multi or to configure the Layers using the Performances.

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

Part 1 ~ 16

BANK PROGRAM VOLUME PAN EFFECT FILTER (LPF) POLY/MONO

PART SELECT

STORE 1 ~ 9

PERFORMANCE MULTI

DEMO

STORE UTILITY

Part Number

Voice Name

Multi Play Mode

In Multi Play mode you can play up to 16 Parts using an external MIDI sequencer. This mode is mainly used when the CS2x is used as an XG tone generator or as a music data input device in a computer music system. You can use any XG voice from the 586 normal voices and 20 drum voices. When recording to or playing back from an external sequencer you can use the Multi Part Edit function to set the volume and effects for each Part.

● Multi Part Edit Mode

In Multi Part Edit mode you can assign a voice to each Part and set volume, pan, effect and other parameters for each Part. These settings are temporary until you store them by performing a Multi Store operation (page 68). Therefore, entering Performance mode without storing the Multi will clear any settings you make.

Entering Multi Play Mode

Press [MULTI] to enter Multi Play mode. A [▲] mark will

appear below the word “MULTI” in the LCD to indicate Multi Play mode is engaged.

Multi Play Mode

Feature Reference

Playing the keyboard will play the voice of the currently selected Part as displayed in the LCD (1 ~ 16). The Category name for the selected voice will be shown next to the voice name.

You can select a voice from the 128 available normal voices in the XG000 (GM) Bank using the PROGRAM [-]/[+] buttons or the NUMERIC KEYPAD (0 ~ 9) and [ENTER]. Other normal voices plus drum voices are available in Multi Part Edit mode (see below).

When you enter Multi Play mode from Performance mode, the CS2x automatically resets the internal tone generator to XG ON (001 Grand Piano) status.

Editing Procedure

1. Select a Part.

Press PART [-]/[+] to select the Part you want to edit.

MSB LSB Bank LCD

0 0 0 XG000 0 1 1 XG001

↓ ↓ ↓ ↓

0 101 101 XG101

64 0 102 SFX 126 0 126 SFXKIT 127 0 127 DRUM

Off

- -

999

Bank Conversion Table for The Multi

2. Select the parameter.

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

P BEND RANGE

TYPE

ARPEGGIATOR

TEMPO

PMOD

SUB

DIVIDE

PERFORM

LEVEL

FMOD

CUTOFF

REV

TYPE

CHO

TYPE

VARI

TYPE

VARI

PARAM

PERFORM

NAME

VARI DATA

ASSIGN1

PARAM

PORTA

SWITCH

TIME

EFFECT

VARI

CUTOFF

FMOD

COMMON

BANK

PROGRAM

ATK

TIME

ATK

TIME

DCY TIME

FEG

AEG

SUS

LEVEL

SUS

LEVEL

VOLUME

PAN

REL TIME

AMOD PMOD

INIT

LEVEL

ATK TIME

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

ATK

LEVEL

FMOD

LFO

PEG

DCY

TIME

WAVE

FILTER

CUTOFF

REZ

SPEED

REL

TIME

REL

LEVEL

PHASE

INIT

POLY MONO

ASSIGN

DATAPARAMDEPTHOFFSET

VEL

LIMIT

HIGH

LIMIT HIGH

LIMIT LOW

NOTE

TUNE

NOTE

SFT

DETUNE

LAYER

Press the Parameter Value [UP/DOWN] button corresponding to the parameter you want to edit once to select the parameter and engage Multi Part Edit mode. The name of the parameter and current settings will display in the LCD.

● Description of Each Edit

Function

■ BANK

This lets you select a Bank of available voices which can be assigned to each Part (also see PROGRAM, below). Various normal voice banks containing up to 128 normal voices, plus a bank with different drum voices (kits), as well as SFX banks are available to choose from.

3. Set the value.

Press [UP/DOWN] again to set the value. Holding

Multi Play Mode

Feature Reference

[UP/DOWN] scrolls through the settings. The [UP] button increases the value and the [DOWN] button decreases the value.

You can also use the NUMERIC KEYPAD (0 ~ 9) and [ENTER] or the ASSIGN 1/DATA knob to change the data value.

As you press other Parameter Value [UP/DOWN] buttons, the corresponding parameters will appear in the LCD. Set all other parameters to your preference.

Settings: Bank: off, XG000, 001, 003, 006, 008, 012, 014, 016~020, 024 ~ 028,

032~043, 045, 064 ~ 073, 096~101, SFX, SFXKT (SFX Kit), DRUM

In Multi Play mode all settings are available via the ASSIGN 1/DATA

knob, but only certain ones are available when using the BANK [UP/DOWN] button.

4. Store the Multi.

When you have finished all editing operations, store the Multi. For details about how, see page 68.

To exit from Multi Part Edit mode, press the [MULTI] button again or the PROGRAM [-]/[+] button once, which will display the Voice Name screen. The display will return to the voice name screen. You can enter Performance mode directly from Multi mode by pressing the [PERFORMANCE] button.

A bank can be selected directly by inputting the corresponding BANK number with the NUMERIC KEYPAD (0 ~ 9) and [ENTER].

For more information about Banks and Programs (voices), see the XG Voice List in the separate “Data List” book.

■ PROGRAM

This lets you select a voice, or program, from the currently selected BANK (see above).

■ VOLUME

This sets the volume of the selected Part. Different volume levels can be set for each Part.

Settings: (Name): 1 ~ 128 (depending on selected Bank)

Note that the Program numbers available are 1 ~ 128 and the MIDI Program Change numbers range from 0 ~ 127. To match the MIDI Program Change number when switching programs using an external MIDI device, subtract a value of “1” from the CS2x Program number you want the MIDI message to select.

For more information about Banks and Programs (voices), see the XG Voice List in the separate “Data List” book.

You can also change the Program number with a single press of a number (0 ~ 9) of the NUMERIC KEYPAD by using the Quick Program Change function, just as in Performance mode (page 41).

Normal Voices And Drum Voices

The available voices are divided into two groups: normal voices and drum voices. In Multi Play mode you can select and play both “normal” and “drum” voices for the selected Part.

A normal voice is a pitched voice which can be played on a musical scale from low to high, such as a piano or trumpet. In Multi Play mode there are 586 XG normal voices.

A drum voice is a complete set of drum and other percussion sounds, with each sound having a fixed pitch. Each sound is assigned to a specific MIDI Note number which also corresponds to a key on a MIDI keyboard. In Multi Play mode there are 20 XG drum voices. For a list of the drum and percussion sound assignments to each key, see the XG Drum Voice List in the separate “Data List” book.

TG300B Mode

There are actually two tone generator modes: XG mode and TG300B mode. Normally the CS2x plays in XG mode. However, it automatically recognizes which mode to select based on incoming MIDI data, i.e. through MIDI System Exclusive messages that can be programmed into music data using an external MIDI sequencer.

In TG300B mode the CS2x will play multitimbral music data created for TG300B-compatible tone generators. TG300B mode also provides compatibility with the General MIDI System Level 1 format.

In TG300B mode the CS2x can:

• Play up to 16 Parts.

• Choose from 614 normal voices and 10 drum voices.

Settings: Volume: 0 ~ 127

■ PAN

This sets the panning position (the left or right placement in the stereo spectrum) for each Part. Different pan positions can be set for each Part (for stereo output).

Settings: Pan: Random, L63 (far left position) ~ L01, C00 (center position), R01 ~ R63

(far right position)

When set to “Random”, the panning of each Part will alternate

between left and right when a voice is played.

Some of the voices are preset and fixed to a panning of “left” in the lower register and “right” in the higher register. In such a case you cannot modify the pan setting.

■ EFFECT

This sets the effect send (output) level for each Part. There are three parameters: REV SEND (Reverb Send level), CHO SEND (Chorus Send level) and VARI SEND (Variation Send). You can change the effect send level for each effect in realtime when playing back XG song data containing effect settings using an external MIDI device.

When you press [MULTI] to enter Multi Play mode (reset to XG ON) each effect will be reset to the default settings: Hall 1 (Reverb), Chorus 1 (Chorus) and Delay L,C,R (Variation). In this case, the Reverb send level is set to 64, and the Chorus and Variation send levels are set to 0.

Depending on the XG song data being played, the effect types and their parameters used in the song may differ.

Multi Play Mode

Feature Reference

Note that the Performance Edit mode EFFECT TYPE parameters and their settings have no relation to the effect settings here.

CUTOFF: Determines the cutoff frequency of the filter, or

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

BANK

PROGRAM VOLUME

PAN

REV

SEND

EFFECT

CHO

SEND

VARI

SEND

FILTER

CUTOFF

REZ

POLY MONO

Cutoff Resonance

Reverb Send Chorus Send

Variation Send

the frequency point above which other frequencies are cut off or filtered out. Higher settings result in brighter sounds and lower settings result in darker sounds.

REZ (Resonance): Sets the amount of filter resonance or emphasis around the cutoff frequency. Higher settings produce a higher resonant peak, while lower settings produce a relatively flat response.

Settings: Cutoff: -64 ~ +63

Resonance: -64 ~ +63

■ POLY/MONO

This determines whether the voice in each Layer is played REV SEND (Reverb Send): Determines the send level of the Reverb effect.

Multi Play Mode

Feature Reference

CHO SEND (Chorus Send): Determines the send level of the Chorus effect.

monophonically (only one note at a time) or polyphonically

(up to 64 notes at a time).

Generally, Polyphonic mode is selected to generate multiple

sounds at one time. There are cases, however,where it is

more effective to select Monophonic mode, such as when VARI SEND (Variation Send): Enables or disables the output of the Variation effect.

Settings: Rev Send: 0 ~ 127

Cho Send: 0 ~ 127 Var Send: off, on (or 0 ~ 127*)

using a bass sound, brass sound, or an analog synthesizer

sound.

*The Variation send parameters are “off” or “on” when the Variation

effect is used as the Insertion effect. They are 0 ~ 127 when used as the System effect. Normally, the Variation effect works as an Insertion Effect when not receiving parameter change messages to switch to System Effect from an external MIDI sequencer. For more information about Insertion and System effects, see page 70.

■ FILTER

This sets the filter parameters for each Part. There are two parameters: CUTOFF and REZ (resonance). These parameters affect the Low Pass Filter (LPF) only.

Generally filters change the timbre by passing signals within a specific frequency bandwidth and cutting others. Multi Play mode features a Low Pass Filter (LPF) which passes signals below the specified frequency point (the “cutoff frequency”) and cuts off the signals above it.

Depending on the voice selected, changing certain parameters may not produce a noticeable effect.

Settings:

Mono/Poly: mono, poly (also “---” for SFXKT and DRUM)

You can play up to 64 notes at a time. However, the number of

notes may be reduced or truncated if you use multiple Parts in a rather complicated song which uses too many notes.

Using Multi Play Mode

• Multi Play mode is especially designed for using the CS2x as a multitimbral tone generator for an external MIDI sequencer, and all Part assignment and other settings can be controlled by MIDI messages as stored in the music data in the sequencer. To keep from losing any BANK, PROGRAM, VOLUME, PAN, EFFECT, FILTER, POLY/MONO assignments and settings you make in Multi Play Edit mode, however, you must perform a Multi Store operation (page 68) before switching to Performance mode.

• The Arpeggiator and Scene functions are not available in Multi Play Mode. They can only be used with the Performances in Performance mode.

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

BANK

PROGRAM

PERFORMANCE

MULTI

DEMO

STORE

UTILITY

MASTER

TUNE

KBD

TRANS

BANK

PROGRAM

PERFORMANCE MULTI

DEMO

STORE UTILITY

Parameter Name

SYSTEM SETTINGS

MASTER TUNE

KBD TRANS VEL CURVE

VEL FIX

MIDI SETTINGS

TRANS CH

RCV CH

DEVICE NO

LOCAL

BULK DUMP

CS2x CS2x

MIDI

ASSIGN CONTROL

CHANGER NUMBER

Utility Mode

In Utility mode you can set the CS2x system, MIDI and special assignment parameters.

You can also use the NUMERIC KEYPAD (0 ~ 9) and [ENTER] or the ASSIGN 1/DATA knob to change the data value.

Entering Utility Mode

Press [UTILITY] to enter Utility mode. A [▲] mark will appear

below the word “UTILITY” in the LCD to indicate Utility mode is engaged.

As you press other Parameter Value [UP/DOWN] buttons, the corresponding parameters will appear in the LCD. Set all other parameters to your preference.

To exit Utility mode press [PERFORMANCE] or [MULTI] to return to Performance or Multi Play mode, respectively.

When you enter Utility mode the LCD will display the screen previously selected when you last exited Utility mode. The first time you press the [UTILITY] button after turning the power on, however, the LCD will display the SYSTEM MASTER TUNE screen.

● Procedure

1. Select the parameter.

Press the Parameter Value [UP/DOWN] button corresponding to the parameter you want to edit once to select the parameter. The name of the parameter and current setting will display in the LCD.

It is not necessary to store changes made in the Utility mode as the

CS2x will remember any changes you make.

● Description of Each Utility

Function

SYSTEM

This determines the tuning and other keyboard-related settings for the CS2x tone generator. There are four parameters: MASTER TUNE, KBD TRANS (Keyboard Transpose), VEL CURVE (Velocity Curve) and VEL FIX (Velocity Fix).

■ MASTER TUNE

This tunes the CS2x’s tone generator. The basic pitch is 440 Hz at note A3. Master tuning can be adjusted in 1 cent increments and decrements.

Feature Reference

Utility Mode

2. Set the value.

Press [UP/DOWN] again to set the value. Holding the Parameter Value [UP/DOWN] button changes the value continuously. Holding [UP/DOWN] scrolls through the settings. The [UP] button increases the value and the [DOWN] button decreases the value.

Settings MasterTune: -102 to 0 (A3=440 Hz) to +102

A value of 100 cents is equal to one semitone.

KEYBOARD PLAYING STRENGTH

VOLUME

KEYBOARD PLAYING STRENGTH

VOLUME

KEYBOARD PLAYING STRENGTH

VOLUME

■ KBD TRANS (Keyboard Transpose)

KEYBOARD PLAYING STRENGTH

VOLUME

KEYBOARD PLAYING STRENGTH

VOLUME

KEYBOARD PLAYING STRENGTH

VOLUME

This lets you transpose the keyboard pitch in semitones. The transpose value will also be reflected in the OCTAVE display in the LCD.

Settings Kbd Trans: -36 to 0 (standard pitch) to +36

Since the Keyboard Transpose setting is related to the OCTAVE SHIFT function, the setting will automatically change based on the OCTAVE SHIFT setting.

easy: This curve is also designed to increase the volume level with a softer playing style. However, the volume level is stable in all registers since the velocity curve in the mid range is close to Normal.

wide: A softer playing style lowers the volume level and a stronger playing style increases the volume level. As a result, you feel a wider dynamic range.

■ VEL CURVE (Velocity Curve)

The velocity curve set here determines the way the CS2x’s tone generator responds to playing velocity when the VEL FIX parameter (see below) is set to “off”. There are six types of curves available.

norm (Normal): The velocity is in proportion to the strength (how hard you play the keyboard).

Feature Reference

hard: A stronger playing style increases the volume level. This is suitable for people with a strong key touch.

Utility Mode

soft1: A softer playing style increases the volume level. This is suitable for people with a soft key touch.

soft2: A softer playing style increases the volume level. Compared to Soft1, this is closer to Normal.

Settings Vel Curve: norm, soft1, soft2, easy, wide, hard

■ VEL FIX (Velocity Fix)

This “fixes” the velocity of the CS2x keyboard to a specific value. This is used when you want to play the sound at a fixed velocity regardless of keyboard touch.

Settings Vel Fix: off, 1 ~ 127

Set VEL FIX to “off” to enable the velocity curve selected in VEL

CURVE (see above).

EXTERNAL MIDI DEVICE

MIDI OUT

MIDI IN

MIDI IN MIDI OUT

LOCAL OFF

TONE

GENERATOR

KEYBOARD

MIDI

The MIDI parameters determine key aspects of how the CS2x exchanges data with an external MIDI device. There are five parameters: TRANS CH (Transmit Channel), RCV CH (Receive Channel), DEVICE NO (Device Number), LOCAL and BULK DUMP.

■ TRANS CH (Transmit Channel)

This sets the MIDI transmit channel over which the CS2x will send MIDI data to an external MIDI device such as a sequencer.

Settings Trans Ch: 1 ~ 16

You can use the CS2x to send data to an external MIDI device such

as a music sequencer. For details, see page 12.

■ RCV CH (Receive Channel)

In Performance mode, this sets the MIDI receive channel for controlling the CS2x by an external device such as a MIDI sequencer or computer music software application.

In Multi Play mode, the CS2x resets the internal tone generator to XG ON (001 Grand Piano) status and automatically receives the external data.

■ DEVICE NO (Device Number)

This sets the MIDI device number. When transmitting or receiving system exclusive messages such as bulk dump or parameter change messages with an external MIDI device, you must set the CS2x and the external device to the same device number.

Settings Device No.: 1 ~ 16, all, off

■ LOCAL

This determines whether the CS2x’s keyboard is connected to the internal tone generator. For normal play, LOCAL should be set to “on”. When using the CS2x as a master keyboard controller for sending note and other data to a MIDI music sequencer, LOCAL should be set to “off”. When LOCAL is set to “off”, the keyboard is disconnected from the tone generator, the CS2x’s internal tone generator will not respond to the keyboard (no sound will be produced) when you play, but the keyboard still transmits MIDI messages from the MIDI OUT terminal. At the same time, the CS2x’s internal tone generator will respond to incoming MIDI data received at the MIDI IN terminal from an external device.

Feature Reference

Utility Mode

Settings Perf Rch: LAYER A (“All” Performance Layer voices) = Channel 1 ~ 16, PART

5~16 = Channel 1 ~ 16, off

In Performance mode, the receive channels can be set for receiving

MIDI note and other data to play the Performance Layer plus 12 Parts (Part 5 ~ 16) as set up for the Multi (see Multi Play mode). However, you cannot use the Insertion effect for Parts 5 ~ 16 (see Digital Effects, page 70).

To select the Layer (“A”) or Part (“5 ~ 16”) which you want to assign a MIDI channel to, use the PART/LAYER [-]/[+] buttons.

Settings Local: on, off

Scene

SCENE 1 or 2 buttons (only for the Scene Control)

Controller LCD

Modulation Wheel MW Sound Control Knob 1 (ATTACK) Knob1 Sound Control Knob 2 (DECAY) Knob2 Sound Control Knob 3 (RELEASE) Knob3 Sound Control Knob 4 (ASSIGN 1/DATA) Knob4 Sound Control Knob 5 (HPF CUTOFF) Sound Control Knob 6 (LPF CUTOFF) Sound Control Knob 7 (RESONANCE)

Knob5

Sound Control Knob 8 (ASSIGN 2)

Knob6 Knob7

Knob8 Footswitch connected to the FOOTSWITCH jack on the rear panel FS Foot Controller connected to the FOOT CONTROLLER jack on the rear panel

FC Foot Volume pedal connected to the FOOT VOLUME jack on the rear panel

Control Change Number Name

Controller

■ BULK DUMP

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

This function is used for sending CS2x Performance data in bulk to another CS2x or to a MIDI data storage devices such as the Yamaha MIDI Data Filer MDF3. This is convenient for backing up, saving or managing your important

■ ASSIGN CTRL NO (Assign Control Number)

This lets you assign Control Change Numbers to controllers such as the MODULATION wheel and SOUND CONTROL knobs. This is mainly used to control external MIDI devices connected to the CS2x via MIDI cables.

Performance data.

Settings Bulk Dump: 1Perf, All

To enable transmission, first connect the MIDI devices using MIDI

cables. (For details about setting up each device, see the respective owner’s manuals for the external MIDI devices.) Also, you must match the device number of the CS2x with the device number of the external MIDI device (see DEVICE NO, above).

Bulk Dump Send

1. Select the type of data you want to “dump” to the external device using the BULK DUMP [UP/DOWN] button.

1Perf: Sends the Preset or User Performance data currently selected in

Performance mode.

Feature Reference

Utility Mode

All: Sends all of the User Performance data as well as the System data settings.

The main function of the SOUND CONTROL knobs will not be changed.

You can designate whether the MODULATION wheel or the Foot Controller is used for Scene Control (page 26).

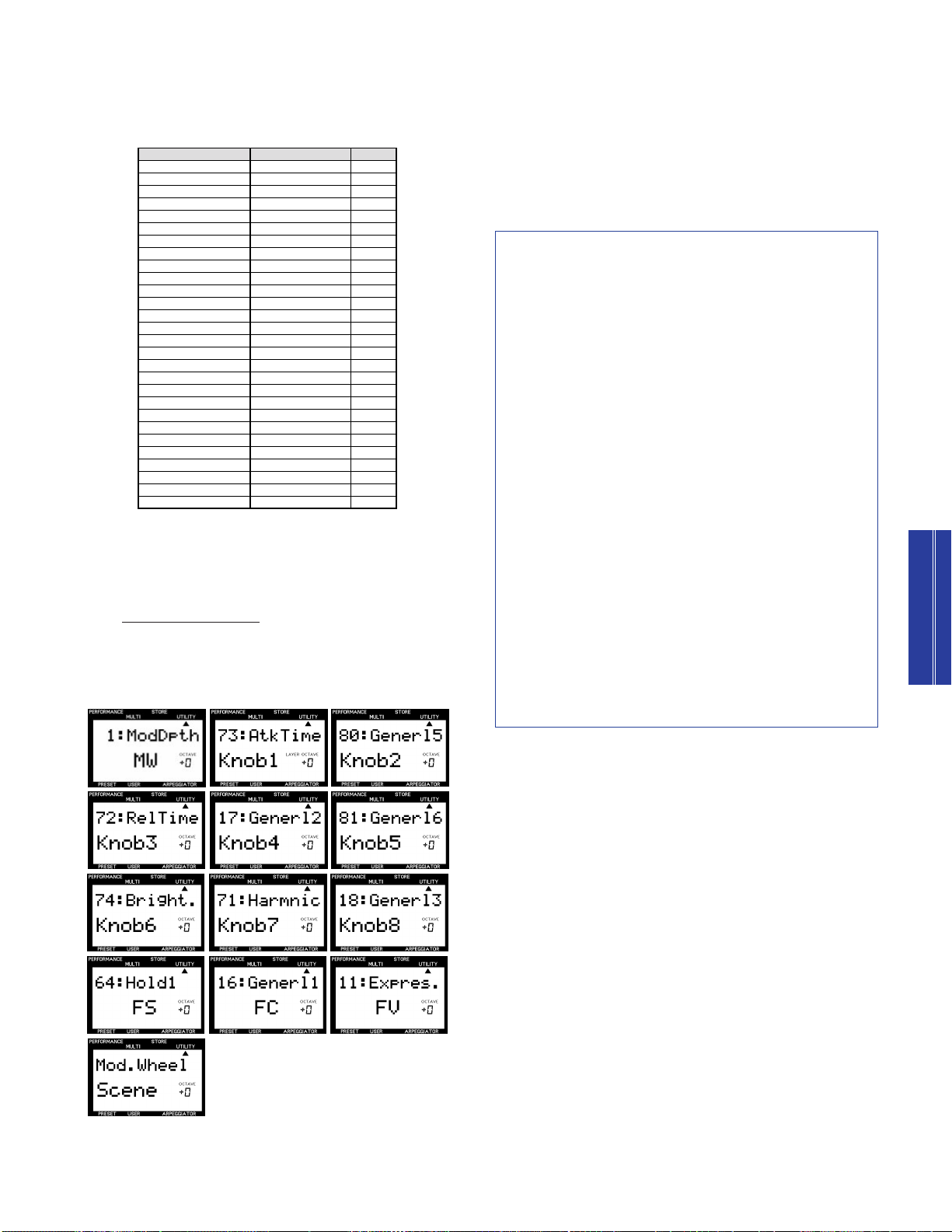

The table below lists which controller the LCD abbreviations correspond to.

The CS2x does not transmit Multi data in bulk.

2. Press [ENTER] to execute the bulk dump operation. The word “End” will appear in the LCD when the operation is completed, and the LCD will return to the original display.

Bulk Dump Receive

The CS2x can receive Performance data from an external device, to load it back into the CS2x in bulk. The CS2x stands ready to receive the data when a Bulk Dump operation is executed by the external MIDI device. The data that can be received will differ depending on the mode. (For details about MIDI data format information, see the separate “Data List” book.) You must match the device number of the CS2x with the device number of the external MIDI device (see DEVICE NO, above.)

The CS2x can also receive CS1x bulk data. Depending on

wave and other data, the sound might be somewhat different.

In the Scene Control settings, you can choose from Mod. Wheel (MODULATION wheel) or FootCtrl (FOOT CONTROLLER) to determine the controller for Scene morphing.

The table below lists the Control Change Numbers and

Control Change Number Name LCD

1 Modulation Depth ModDpth 5 Portament Time PortaTm 6 Data Entry MSB DataMSB

7 Main Volume MainVol 10 Panpot Panpot 11 Expression Expres. 16 General purpose1 Generl1 17 General purpose2 Generl2 18 General purpose3 Generl3 19 General purpose4 Generl4 38 Data Entry LSB DataLSB 64 Hold 1(Damper/Sustain) Hold1 65 Portament Switch PortaSW 66 Sostenute Sostnut 67 Soft Pedal Soft 71 Harmonic Contents Harmonic 72 Release Time RelTime 73 Attack Time AtkTime 74 Brightness Bright. 80 General Purpose 5 Generl5 81 General Purpose 6 Generl6 82 General Purpose 7 Generl7 83 General Purpose 8 Generl8 84 Portament Control PortaCt 91 Reverb Depth Reverb 93 Chorus Depth Chorus 94 Variation Depth Vari

Others ------- -------

Assignable Control Change Numbers and Names

Names that can be assigned to the various controllers.

General Purpose: With the CS2x, General Purpose 1 is for FC, 2 is for Knob 4 (ASSIGN 1/DATA), 3 is for Knob 8 (ASSIGN 2), 4 is for no setting, 5 is for Knob 2 (DECAY), 6 is for Knob 5 (HPF CUTOFF) and 7 and 8 are for no setting.

Assigning The Controllers

1. Move the panel controller (i.e. a SOUND CONTROL knob or the MODULATION wheel) to which the Control Change Number is to be assigned. The parameters for the controller will appear in the LCD.

Press a [SCENE] button to display the Scene Control parameters.

2. Press ASSIGN CTRL NO [UP/DOWN] button to select the Control Change Number and Name.

3. Repeat steps 1 and 2 to assign the Control Change Numbers and Names to each controller.

This function is especially convenient for controlling an external MIDI device with the CS2x (see page 72).

About The SOUND CONTROL Knobs

Changes made by the SOUND CONTROL knobs can be output as MIDI messages via the MIDI OUT terminal as assigned using the ASSIGN CTRL NO function.

The default assignments for the SOUND CONTROL knobs as set at the factory are as follows: Knob 1 73: Attack Time Knob 2 80: General Purpose 5 Knob 3 72: Release Time Knob 4 17: General Purpose 2 Knob 5 81: General Purpose 6 Knob 6 74: Brightness Knob 7 71: Harmonic Content Knob 8 18: General Purpose 3

• When the CS2x receives the data assigned to each SOUND CONTROL knob from an external MIDI device, the parameter printed on the panel for the knob will be affected. For example, when the message for Brightness (74) is received from an external device, the Attack Time will be affected when the Brightness (74) is assigned to Knob 1 and the Attack Time (73) is assigned to Knob 3.

• Both the data assigned to the Knob using the ASSIGN CTRL NO function and parameter data as printed on the panel for the Knob are sent to the internal tone generator when turning the Knob. For example, when you turn Knob 1, both Brightness (74) and Attack Time will be affected when Brightness (74) is assigned to Knob 1.

Feature Reference

Utility Mode

ARPEGGIO

HOLD SHIFT

OCTAVE

PART/LAYER/

PRESET USER

PROGRAM

PERFORMANCE MULTI

DEMO

STORE UTILITY

Store Mode

Preset Performance

8 Knob Position 1/2 Scene 1/2

Scene 1

Performance

Store

Bank I : 1~128

Bank II : 1~128

User Performance

Bank I : 1~128

Bank II : 1~128

Edited Performance Store Destination Store

Store

Memory

Performance (Preset I/II, User I/II)

PERFORMANCE STORE

Setting Part Parameter

Multi Set 1~9

MULTI STORE

SCENE STORE

Part 1 Part 16

In Store mode you can store edited Performances, Scenes or the Multi in the CS2x’s internal memory.

To enter Store mode, you must first be in Performance or Multi Play mode. You cannot enter Store mode from Utility mode.

Storing A Performance

1. After editing a performance, press the [STORE] button to

enter Store mode. A [▲] mark will appear below the word

“STORE” in the LCD to indicate Store mode is engaged.

4. Press [ENTER]. The word “Sure?” will appear in the LCD.

To rename the Performance, use the PERFORM NAME parameter in Performance Edit mode (page 45).

Feature Reference

Store Mode

2. Press [USER] to select the User Performance bank in which you want to store the Performance.

3. Select the User Performance number in which you want to store the Performance using the NUMERIC KEYPAD (0 ~ 9) and [ENTER], the PROGRAM [-]/[+] buttons, or the ASSIGN 1/DATA knob.

If you write over an existing User Performance, the data previously stored there will be lost. To be safe, always store your important data to an external device such as the Yamaha MIDI Data Filer MDF3.

To confirm the sound, simply play the keyboard.

5. Press [YES] to execute the store operation. After the data is stored the LCD will return to the Performance Play mode screen .

If you don’t want to store the Performance, press [NO] to cancel the store operation.

Pressing the [PERFORMANCE] button will exit Store mode.

When storing a Performance, the position of each SOUND CONTROL knob will also be stored. Therefore, when selecting the stored User Performance in Performance Play mode, the CS2x will produce the sound affected by each SOUND CONTROL knob position at that time. (Turning the knob will restore the sound with the current SOUND CONTROL knob positions.)

MW/FC

SCENE

MODULATION

SCENE 2 SCENE 1

Changes relative levels between SCENE 1 and SCENE 2

Storing A Scene

PERFORMANCE MULTI

DEMO

STORE UTILITY

MW/FC

SCENE

ATTACK

DECAY

RELEASE DATAASSIGN

ASSIGN 2

RESONANCE

CUTOFFCUTOFF LPFHPF

There are two Scene memories in each Performance. The Scene Store function is used to assign a Scene, or the position of the eight SOUND CONTROL knobs, to either [SCENE 1] or [SCENE 2] of the currently selected Performance. This is convenient for live performances or recording sessions, since it lets you access a particular setting simply by pressing a [SCENE] button.

Two Scenes can be stored in each Performance.

3. To permanently store the Scenes to the currently selected Performance, execute the Performance Store operation.

Selecting Scenes

First select the Performance to which you have stored Scenes. Then press [SCENE 1] or [SCENE 2] to select the desired Scene. The LED by the selected button will light to indicate that you have activated the Scene settings.

Each SOUND CONTROL knob will be disabled when a Scene is selected, and you will not be able to change the parameters using the knobs.

Storing a Scene to the edit buffer will only remain in effect as long as the current Performance is selected. To store the Scene data permanently in the selected Performance you must execute the Performance Store operation (see above). Otherwise, you will lose the Scene settings if you select another Performance or enter Multi Play mode. Also, before executing the Performance Store operation, be sure to turn all the SOUND CONTROL knobs to their center positions.

1. Set each SOUND CONTROL knob to the position of your preference.

2. To store the current SOUND CONTROL knob settings to the Scene 1 temporary buffer memory, hold [STORE] and press [SCENE 1]. To store another set of SOUND CONTROL knob settings to the Scene 2 temporary buffer memory, hold [STORE] and press [SCENE 2].

When the SCENE CONTROL function is activated by pressing both [SCENE] buttons simultaneously (both LEDs will be lit), you can use the MODULATION wheel or a connected Foot Controller to “morph” between the sound of each Scene in real-time. The minimum position of the controller is Scene 1, and the maximum position is Scene 2. For details about determining which controller is assigned to the SCENE CONTROL function, see page 64.

Feature Reference

Store Mode

The “OK” message will appear in the LCD when the Scene is stored to the temporary buffer memory.

Storing The Multi

1. After editing the Part settings, press the [STORE] button to enter Store mode. The word “MultiStore” will appear in the LCD.

2. Use the NUMERIC KEYPAD (1 ~ 9) to select one of the nine available User Multi memory locations.

3. Press [ENTER]. The word “Sure?” will appear in the LCD.

4. Press [YES] to execute the store operation. After the data is stored the LCD will return to the Multi Play mode screen.

If you don’t want to store the Multi, press [NO] to cancel the store operation.

Pressing the [MULTI] button will exit Store mode.

When storing the Multi, only the Multi Edit menu parameter settings for each Part will be stored, and the position of each SOUND

Feature Reference

CONTROL knob will not.

Store Mode

Recalling A Stored Multi

In Multi Play mode, hold [MULTI] and use the NUMERIC KEYPAD (1 ~ 9) to select one of the nine User Multis.

You can press 0 in the NUMERIC KEYPAD to select XG mode = ON.

VWX

YZ'

MNO

PQR

STU

DEF

GHI

JKL

NO/

QUICK PC

YES

ABC

SPACE

ENTER

STANDBY

Factory Settings

You can reset all of the settings in the CS2x (Performance, Scene, System and MIDI settings) to the original factory (initial) default settings.

Executing this function will replace all of your existing data. As such, always store your important data to an external device such as the Yamaha MIDI Data Filer MDF3 beforehand.

Turn the power of the CS2x off. Then, while holding the 7, 8, and 9 keys on the NUMERIC KEYPAD, turn the power back on.

Feature Reference

Factory Setting

APPENDIX

Digital Effects

The CS2x features three independent digital effects units, Reverb, Chorus and Variation, which can be applied to the voices in a variety of ways to provide a wide range of sound processing capabilities. In Performance mode you can choose the Reverb, Chorus and Variation effect types, as well as set additional parameters for the Variation effect. In Multi Play mode, system exclusive (MIDI) data programmed in a song sequence (of an external sequencer or computer) can change the various CS2x effect parameters at specific points in the song to greatly enhance the sound and impact of the playback.

■ Type 1: Reverb

Reverb recreates the sounds of various environments by adding room ambiance through delays or reflections. There are 12 Reverb types to choose from. (See the Effect Type List in the separate “Data List” book.)

■ Type 2: Chorus

Chorus creates a variety of rich, spacious-sounding effects which are especially dramatic in stereo. There are 14 Chorus effect types, including Chorus and Flanger. (See the Effect Type List in the separate “Data List” book.)

■ Type 3: Variation

Variation is a special section of various effects including Reverb and Chorus, plus many others not found in the other sections, such as Distortion, Wah, and Auto Pan. There are 62 Variation effect types. (See the Effect Type List in the separate “Data List” book.)

System and Insertion Effects

The CS2x effects sections can be designated as either System or Insertion effects. Reverb and Chorus are always System effects, which means they can be applied to any or all Parts. The Variation effect can also be a System effect, or it can be designated as an Insertion effect, which means it can be dedicated to a specific Part. Basically, CS2x System and Insertion effects work the same way as in a sound mixer, as shown in the diagram at right. For example, System effects can be applied to musical instruments (i.e. Parts) which are connected to the various mixer channels; the amount of each System effect is determined by channel “send” and system “return” level controls. An Insertion effect can be connected (“inserted”) into the signal flow of a specific channel in order to process the sound of that instrument (i.e. Layer/Part) only. With the CS2x, in Performance mode the Insertion effect (Variation) can be applied to one or more of the four Layers, while in Multi Play mode it can only be applied to a single Part. The System and Insertion effect configurations can be controlled in detail by XG song data (signified by the XG mark) when the CS2x is in Multi Play mode.

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

100

LEVEL

SYSTEM EFFECT

Reverb Effect

Chorus Effect

Insertion Effect Insertion Effect

Variation Effect

14 1512 L116 L3L2

Multi Play Mode

Part 1-16

Performance Mode

Layer 1-4

Can be used as either System

or Insertion effect.

Performance Mode

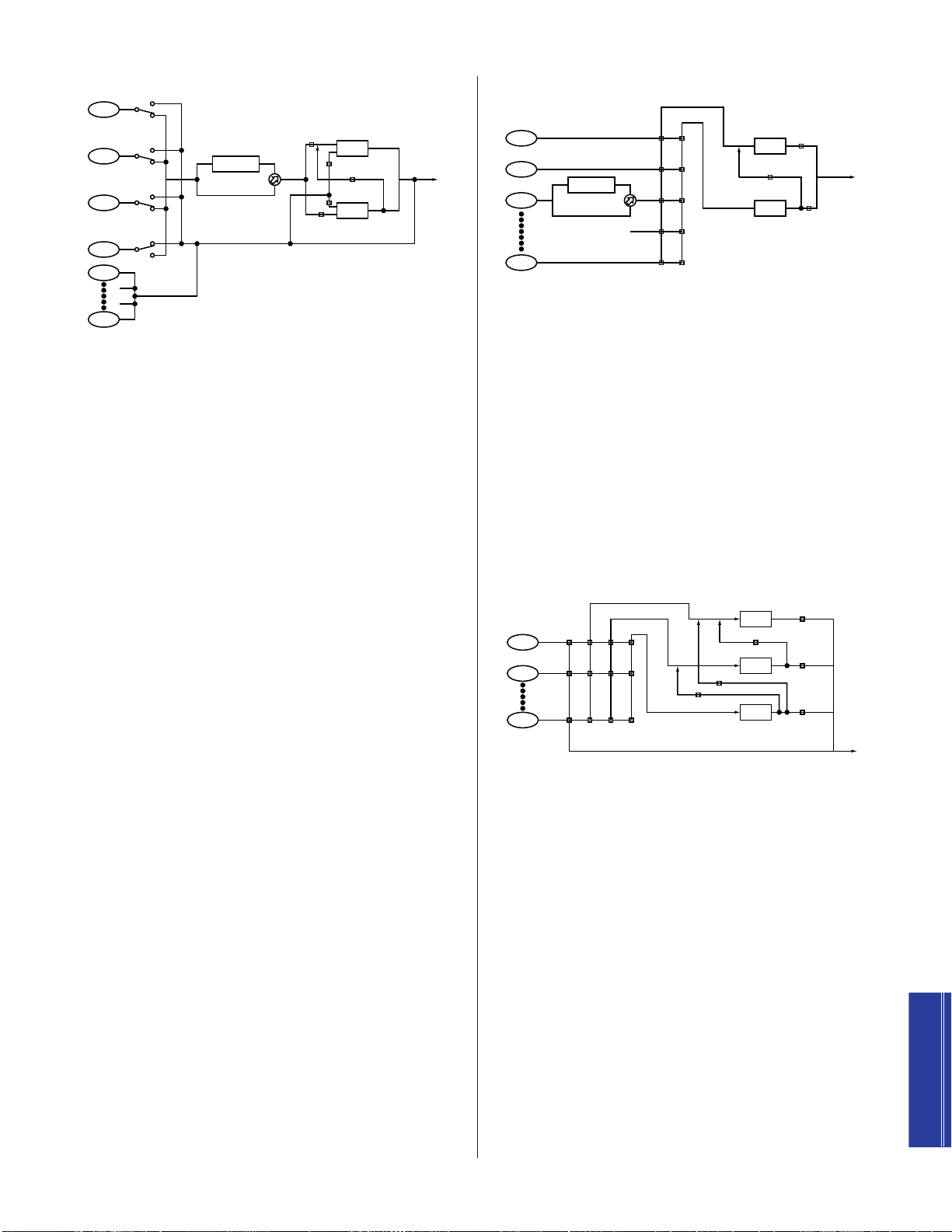

The diagram below shows the signal flow of the three effects when the CS2x is in Performance mode. In this case the Variation effect is fixed as the Insertion effect. The Variation Send On/Off switch 1 determines which Layers the Variation effect is applied to. The Performance Layer Edit 4 menu EFFECT VARI SEND parameter turns the Variation effect ON/OFF for each Layer (page 55). The Variation effect wet/dry balance 2 determines the ratio of effected (wet) signal to original (dry) signal. The resulting Variation effect signal is then sent to the Reverb effect via the Reverb send control 3, and to the Chorus effect via the Chorus send control 4; the Send Chorus To Reverb signal 5 can be controlled by the ASSIGN 1 knob. The Performance Layer Edit 4 menu EFFECT REV SEND 6 and CHO SEND 7 parameters determine the respective Reverb and Chorus send levels applied to each Layer (page 55). Layers which are switched off 1, as well as Parts 5~16, can still have System Reverb and Chorus effects applied to them.

Appendix

PERFORMANCE

Layer 1

Layer 2

Layer 3

off

Layer 4

Part 5

MULTI

•XG effect set to Insertion

•Part 3 VARI SEND set to ON

(for each layer/part)

Rev Send

Rev

Cho Send

Rev Send Knobl (Cho to Rev)

Cho Send

Cho

(for each layer/part)

Out

Vari

wet/dry

Part 1

Part 2

Part 3

Part 16

Vari

wet/dry

Cho SendRev Send

2 3

Rev

Send Cho to Rev

Cho

Rev Return Level

Cho Return Level

Out

Part 16

Reverb and Chorus send levels for Layers with the Variation Send On/Off switch set to ON are determined by the highest numbered Layer. For example, if Layers 1, 2 and 3 are switched on, then the Reverb and Chorus send level for Layer 3 will determine the amount of effect applied to each Layer.

In Performance mode effect send levels for Parts 5~16 (as well as Layers 1~4) can be controlled by an external MIDI sequencer. The Variation effect cannot be applied to Parts 5~16.

Multi Play Mode

The diagram below shows the signal flow of the three effects when the CS2x is in Multi Play mode and the Variation effect is designated as an Insertion effect.

In Multi Play mode the various effect settings can be controlled by MIDI system exclusive Parameter Change messages (received from an external sequencer or computer). The illustrations at right show the Reverb, Chorus and Variation send parameters which can be controlled from the CS2x panel. For details about the others, refer to each page number as listed in the following explanation.

When the CS2x is in Multi Play mode, the Variation Effect is automatically reset as an Insertion Effect. If you want to set the Variation Effect as a System Effect, you need to send a parameter change message to the CS2x from an external MIDI sequencer.

The Variation (Insertion) effect can be applied to any one of the 16 Parts at a time, designated by switching the Multi Edit EFFECT VARI SEND parameter to ON (page 60). The ratio of Variation effect (wet) signal to original (dry) signal is determined by the wet/dry balance 1, which in turn controls the amount of Variation effect signal applied to the Part (page 60). Although only one Part at a time can have the Variation effect applied to it, all Parts, including the Part with Variation effect, can have Reverb and Chorus applied, determined by the Reverb send 2 and Chorus send 3 level settings (between 0~127) of the Multi Edit EFFECT REV SEND and CHO SEND parameters, respectively (page 60). Reverb return 4 and Chorus return 5 levels can also be controlled to determine the amount of each effect applied. The Send Chorus to Reverb 6 level from the Chorus effect to the Reverb effect can also be controlled in a series, if you assign it to the ASSIGN 1 knob (page 47); in this case, the Chorus return % level should be set to “0”.

The diagram below shows the signal flow of the three effects when the CS2x is in Multi Play mode and the Variation effect is designated as a System effect. Each of the 16 Parts has a Dry send 1 level which controls the amount of original signal for each Part (page 60). Reverb send 2, Chorus send 3, and Variation send 4 levels control the amount of effect applied to each Part, determined by the Multi Edit EFFECT REV SEND, CHO SEND and VARI SEND parameters (between 0~127), respectively (page 60). Reverb return 5, Chorus return 6 and Variation return 7 levels can also be controlled to determine the amount of each effect applied (page

60). The Send Chorus to Reverb 8 level is sent from the Chorus effect to the Reverb effect (page 60). The Send Variation to Reverb 9 and Send Variation to Chorus ) levels are sent from the Variation effect to the Reverb and Chorus effects, respectively (page 60). These three parameters let you make series and parallel effect configurations which provide enormous sound enhancement flexibility.

•XG effect set to System

Dry Send

Part 1

Part 2

Part 16

Rev Send Cho Send Vari Send

2 3 4

Vari Send, Cho Send, Rev Send = 0~127

If you select Effect Off in the Variation Type menu, the Layers which have the VARI SEND function set to ON will not sound. When you don’t want to use the Variation Effect on the Layers, set the VARI TYPE to Thru.

Rev

Cho to Rev

Vari to Cho

)

Vari to Rev

Cho

Vari

Rev Return Level

Cho Return

Vari Return

Out

Appendix

About MIDI

MIDI is an acronym that stands for Musical Instrument Digital Interface, which allows electronic musical instruments to communicate with each other, by sending and receiving compatible Note, Control Change, Program Change and various other types of MIDI data, or messages. The CS2x can control a MIDI device by transmitting note related data and various types of controller data. The CS2x can be controlled by the incoming MIDI messages which automatically determine tone generator mode, select MIDI channels, voices and effects, change parameter values, and of course play the voices specified for the various Parts.

Many MIDI messages are expressed in hexadecimal or binary numbers. Hexadecimal numbers may include the letter “H” as a suffix. The letter “n” indicates a certain whole number. The chart below lists the corresponding decimal number for each hexadecimal/binary number.

Decimal Hexadecimal Binary

00 1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62

Appendix

0000 0000

0000 0001

0000 0010

0000 0011

0000 0100

0000 0101

0000 0110

0000 0111

0000 1000

0000 1001

0000 1010

0000 1011

0000 1100

0000 1101

0000 1110

0000 1111

0001 0000

0001 0001

0001 0010

0001 0011

0001 0100

0001 0101

0001 0110

0001 0111

0001 1000

0001 1001

0001 1010

0001 1011

0001 1100

0001 1101

0001 1110

0001 1111

0010 0000

0010 0001

0010 0010

0010 0011

0010 0100

0010 0101

0010 0110

0010 0111

0010 1000

0010 1001

0010 1010

0010 1011

0010 1100

0010 1101

0010 1110

0010 1111

0011 0000

0011 0001

0011 0010

0011 0011

0011 0100

0011 0101

0011 0110

0011 0111

0011 1000

0011 1001

0011 1010

0011 1011

0011 1100

0011 1101

0011 1110

0011 1111

Decimal Hexadecimal Binary

40 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127

0100 0000

0100 0001

0100 0010

0100 0011

0100 0100

0100 0101

0100 0110

0100 0111

0100 1000

0100 1001

0100 1010

0100 1011

0100 1100

0100 1101

0100 1110

0100 1111

0101 0000

0101 0001

0101 0010

0101 0011

0101 0100

0101 0101

0101 0110

0101 0111

0101 1000

0101 1001

0101 1010

0101 1011

0101 1100

0101 1101

0101 1110

0101 1111

0110 0000

0110 0001

0110 0010

0110 0011

0110 0100

0110 0101

0110 0110

0110 0111

0110 1000

0110 1001

0110 1010

0110 1011

0110 1100

0110 1101

0110 1110

0110 1111

0111 0000

0111 0001

0111 0010

0111 0011

0111 0100

0111 0101

0111 0110

0111 0111

0111 1000

0111 1001

0111 1010

0111 1011

0111 1100

0111 1101

0111 1110

0111 1111

MIDI Messages Transmitted/Received by the CS2x

MIDI messages can be divided into two groups: Channel messages and System messages. Below is an explanation of the various types of MIDI messages which the CS2x can receive/transmit.

1. CHANNEL MESSAGES

Channel messages are the data related to the performance on the keyboard for the specific channel.

1.1 Note On/Note Off (Key On/Key Off)

Messages which are generated when the keyboard is played. Reception note range = C-2 (0) - G8 (127), C3 = 60 Velocity range = 1 - 127 (Only the Note On velocity is received) Note On: Generated when a key is pressed. Note Off: Generated when a key is released. Each message includes a specific note number which corresponds to the key which is pressed, plus a velocity value based on how hard the key is struck.

1.2 Control Change

Control Change messages let you select a voice bank, control volume, panning, modulation, portamento time, brightness and various other controller parameters, through specific Control Change numbers which correspond to each of the various parameters.

1.2.1 Bank Select MSB (Control #000) Bank Select LSB (Control #032)

Messages which select variation voice bank numbers by combining and sending the MSB and LSB from an external device. MSB and LSB functions differently depending on the tone generator mode. In XG mode, MSB numbers select voice type (Normal Voice or Drum Voice), and LSB numbers select voice banks. In TG300B mode, LSB is fixed, and MSB numbers select voice banks. (For more information about Banks and Programs, see Voice List in the “Data List” book.) A new bank selection will not become effective until the next Program Change message is received.

1.2.2 Modulation (Control #001)

Messages which control vibrato depth using the Modulation Wheel. Setting the value to 127 produces maximum vibrato and 0 results in vibrato off.

1.2.3 Portamento Time (Control #005)

Messages which control the duration of portamento, or a continuous pitch glide between successively played notes. When the parameter 1.2.10 Portamento Switch is set to on, the value set here can adjust the speed of pitch change. Setting the value to 127 produces maximum portamento time and 0 results in minimum portamento time.

1.2.4 Data Entry MSB (Control #006) Data Entry LSB (Control #038)

Messages which set the value for the parameter specified by

1.2.23RPN MSB/LSB and 1.2.22 NRPN MSB/LSB.

Parameter value is determined by combining MSB and LSB.

1.2.5 Main Volume (Control #007)

Messages which control the volume of each Part. Setting the value to 127 produces maximum volume and 0 results in volume off. The messages 007 (Main Volume) or 011 (Expression) will be transmitted using an optional controller connected to the FOOT VOLUME jack on the rear panel if an appropriate setting is selected in the Assign Control Number section in Utility mode.

1.2.8 General Purpose 1, 2, 3, 4, 5, 6, 7, 8 (Control #016, 017, 018, 019, 080, 081, 082, 083)

Control #016 are messages which are transmitted by operating the connected Foot Controller, used to control specific parameter such as voice parameters and Variation effect parameters. Control #017 and Control #018 are messages which are transmitted by operating the ASSIGN1 and ASSIGN2 knobs, respectively. Control #080 and #081 are transmitted by operating the DECAY and HPF Cutoff Knobs, respectively. Control #019, #082 and #083 are undefined.

1.2.9 Hold1 (Control #064)

Messages which control sustain on/off. Setting the value between 64 - 127 turns the sustain on, between 0

- 63 turns the sustain off.

1.2.10 Portamento Switch (Control #065)

Messages which control portamento on/off. Setting the value between 64 -127 turns the portamento on, between 0 - 63 turns the portamento off.

1.2.11 Sostenuto (Control #066)

Messages which control sostenuto on/off. Holding specific notes and then pressing and holding the sostenuto pedal will sustain those notes as you play subsequent notes, until the pedal is released. Setting the value between 64 -127 turns the sostenuto on, between 0 - 63 turns the sostenuto off.

1.2.6 Pan (Control #010)

Messages which control the stereo panning position of each Part (for stereo output). Setting the value to 127 positions the sound to the far right and 0 positions the sound to the far left.

1.2.7 Expression (Control #011)

Messages which control intonation expression of each Part during performance. Setting the value to 127 produces maximum volume and 0 results in volume off. The messages 007 (Main Volume) or 011 (Expression) will be transmitted using an optional controller connected to the FOOT VOLUME jack on the rear panel if an appropriate setting is selected in the Assign Control Number section in Utility mode.

1.2.12 Soft Pedal (Control #067)

Messages which control soft pedal on/off. Notes played while holding the soft pedal will be dampened. Setting the value between 64 -127 turns the soft pedal on, between 0 - 63 turns the soft pedal off.

1.2.13 Harmonic Content (Control #071)

Messages which adjust the filter resonance set for each voice. The value set here is an offset value which will be added to or subtracted from the voice data. Higher values will result in a more characteristic, resonant sound. Depending on the voice, the effective range may be narrower than the range available for adjustment.

1.2.14 Release Time (Control #072)

Messages which adjust the EG release time set for each voice. The value set here is an offset value which will be added to or subtracted from the voice data.

1.2.15 Attack Time (Control #073)

Messages which adjust the EG attack time set for each voice. The value set here is an offset value which will be added to or subtracted from the voice data.

1.2.16 Brightness (Control #074)

Messages which adjust the filter cutoff frequency set for each voice. The value set here is an offset value which will be added to or subtracted from the voice data. Lower values will result in a softer sound. Depending on the voice, the effective range may be narrower than the range available for adjustment.

Appendix

1.2.17 Portamento Control (Control #084)

Messages which apply a portamento between the currentlysounding note and the subsequent note. Portamento Control is transmitted specifying the note-on key of the currently-sounding note. Specify a Portamento Source Key number between 0 - 127. When a Portamento Control message is received, the currently sounding pitch will change with a Portamento Time of 0 to the next note-on key on the same channel. For example, the following settings would apply a portamento from note C3 to C4.

90H 3CH 7FH C3 Note on B0H 54H 3CH Source key number set to C3 90H 48H 7FH C4 Note on (When C4 is on, C3 is raised by a

portamento to C4.)

1.2.18 Effect1 Depth (Reverb Send Level) (Control #091)

Messages which adjust the send level for the Reverb effect.

1.2.19 Effect3 Depth (Chorus Send Level) (Control #093)

Messages which adjust the send level for the Chorus effect.

NRPN MSB NRPN LSB

01H 08H 01H 09H 01H 0AH 01H 20H 01H 21H 01H 24H 01H 30H 01H 31H 01H 34H 01H 35H 01H 63H 01H 64H 01H 66H 14H rr 15H rr 16H rr 17H rr 18H rr

19H rr 1AH rr 1CH rr 1DH rr 1EH rr

1FH rr

24H rr

30H rr

31H rr

34H rr

35H rr

PARAMETER

Vibrato Rate Vibrato Depth Vibrato Delay Low Pass Filter Cutoff Frequency Low Pass Filter Resonance High Pass Filter Cutoff Frequency EQ Bass Gain EQ Treble Gain EQ Bass Frequency EQ Treble Frequency EG Attack Time EG Decay Time EG Release Time Drum Low Pass Filter Cutoff Frequency Drum Low Pass Filter Resonance Drum EG Attack Rate Drum EG Decay Rate Drum Instrument Pitch Coarse Drum Instrument Pitch Fine Drum Instrument Level Drum Instrument Panpot Drum Instrument Reverb Send Level Drum Instrument Chorus Send Level Drum Instrument Variation Send Level Drum High Pass Filter Cutoff Frequency Drum EQ Bass Gain Drum EQ Treble Gain Drum EQ Bass Frequency Drum EQ Treble Frequency

*rr=Note number for each drum voice instrument.

1.2.20 Effect4 Depth

(Variation Effect Send Level)

(Control #094)

Messages which adjust the send level for the Variation effect. If Variation effect uses System effect, this message sets the send level for the Variation effect. If it uses Insertion effect, this setting is invalid.

1.2.23 RPN (Registered Parameter Number) LSB (Control #100)

RPN (Registered Parameter Number) MSB (Control #101)

Messages which offset, or add or subtract values from a Part’s pitch bend sensitivity, tuning, or other parameter settings. First send the RPN MSB and RPN LSB to specify the parameter

1.2.21 Data Increment (Control #096) Decrement (Control #097) for RPN

Messages which increase or decrease the MSB value of pitch bend sensitivity, fine tune, or coarse tune in steps of 1. You are required to assign one of those parameters using the RPN in the external device in advance. The data byte is ignored.

which is to be controlled. Then use 1.2.21 Data Increment/Decrement to set the value of the specified parameter. Note that once the RPN has been set for a channel, subsequent data entry will be recognized as the same RPN’s value change. Therefore after you use the RPN, you should set a Null (7FH, 7FH) value to avoid an unexpected result. The following RPN numbers can be received.

When the maximum value or minimum value is reached, the value will not be incremented or decremented further. (Incrementing the fine tune will not cause the coarse tune to be incremented.)

1.2.22 NRPN

(Non-Registered Parameter Number)

LSB (Control #098) NRPN (Non-Registered Parameter Number) MSB (Control #099)

Messages which adjust a voice’s vibrato, filter, EG, drum setup or other parameter settings. First send the NRPN MSB and NRPN LSB to specify the parameter which is to be controlled. Then use 1.2.4 Data Entry to set the value of the specified parameter. Note that once the NRPN has been set for a channel, subsequent

RPN MSB RPN LSB PARAMETER

00H 00H Pitch Bend Sensitivity 00H 01H Fine Tune 00H 02H Coarse Tune

7FH 7FH Null

1.2.24 Channel Mode Messages

The following Channel Mode Messages can be received.

2nd BYTE 3rd BYTE MESSAGE

120 0 All Sounds Off 121 0 Reset All Controllers 123 0 All Notes Off 126 0 ~ 16 Mono 127 0 Poly

data entry will be recognized as the same NRPN’s value change. Therefore, after you use the NRPN, you should set a Null (7FH, 7FH) value to avoid an unexpected result. The following NRPN numbers can be received.

1.2.24.1 All Sounds Off (Control #120)

Clears all sounds currently sounding on the specified channel. However, the status of channel messages such as Note On and Hold On is maintained.

Appendix

1.2.24.2 Reset All Controllers (Control #121)

The values of the following controllers will be reset to the defaults.

CONTROLLER VALUE

Pitch Bend Change 0 (center) Aftertouch 0 (off) Modulation 0 (off) Foot Controller 0 (min) Expression 127 (max) Hold1 0 (off) Portamento 0 (off)* Sostenuto 0 (off) Soft Pedal 0 (off) Portamento Control Cancels the Portamento source key number RPN Number not specified; internal data will not change NRPN

Number not specified; internal data will not change

* In Performance mode, 1 (on).

1.2.24.3 All Notes Off (Control #123)

Clears all notes currently on for the specified channel. However, if Hold1 or Sostenuto is on, notes will continue sounding until these are turned off.

1.2.24.4 Mono (Control #126)

Performs the same function as when an All Sounds Off message is received, and if the 3rd byte (mono number) is in the range of 0 - 16, sets the corresponding channel to Mono Mode (Mode 4 : m = 1).

1.2.24.5 Poly (Control #127)

Performs the same function as when an All Sounds Off message is received, and sets the corresponding channel to Poly Mode (Mode 3).

1.3 Program Change

Messages which determine which voice to select for each Part. With a combination of Bank Select, you can select not only basic voice numbers, but also variation voice bank numbers.

1.4 Channel Aftertouch

Messages which let you control the sounds by the pressure you apply to the keys after the initial striking of the keys, over the entire channel.

1.5 Polyphonic Key Pressure

Messages which let you control the sounds by the pressure you apply to the keys after the initial striking of the keys, for each individual key.

1.6 Pitch Bend

Pitch Bend messages are continuous controller messages that allow the pitch of designated notes to be raised or lowered by a specified amount over a specified duration.

2. SYSTEM MESSAGES

System messages are the data related to the overall system of the device.

2.1 System Exclusive Messages

System Exclusive messages control various functions of the CS2x, including master volume and master tuning, tone generator mode, effect type and various other parameters.

2.1.1 General MIDI Mode On

When General MIDI mode on is received, the tone generator mode will be changed to XG mode. When this happens, the CS2x will receive the MIDI messages which are compatible with GM System Level 1, and consequently will not receive NRPN and Bank Select messages. Since approximately 50ms is required to execute this message, be sure to leave an appropriate interval before the subsequent message. F0 7E 7F 09 01 F7 (Hexadecimal)

2.1.2 Master Volume

When received, the Volume MSB will be effective for the System Parameter. F0 7F 7F 04 01 ll mm F7 (Hexadecimal) * mm(MSB) = appropriate volume value, ll(LSB) = ignored

2.1.3 XG System On

When this data is received, the CS2x will switch to XG mode and all the parameters will be initialized accordingly, and XGcompatible messages such as NRPN and Bank Select messages can be received. Since approximately 50ms is required to execute this message, be sure to leave an appropriate interval before the subsequent message. F0 43 1n 4C 00 00 7E 00 F7 (Hexadecimal) *n = device number TG300B Reset F0 41 1n 42 12 40 00 7F 00 41 F7 (Hexadecimal) *n = device number

2.1.4 Performance Mode On

F0 43 1n 63 50 00 06 03 F7 (Hexadecimal) *n = device number

2.2 Active Sensing

Once FE (Active Sensing) has been received, if no MIDI data is subsequently received for longer than an interval of approximately 300msec, the CS2x will perform the same function as when All Sounds Off, All Notes Off, and Reset All Controllers messages are received, and will then return to a status in which FE is not monitored. Refer to the MIDI Data Format in the “Data List” book for more information on the various messages.

Appendix

Specifications

KEYBOARD 61 keys with Initial Touch

TONE GENERATOR AWM2 (Wave ROM 16MB)

POLYPHONY 64 notes

MULTI TIMBRE 16 (DVA)

PERFORMANCE 256 Presets, 256 Users

VOICE Normal Voices Total 779

XG 586

TG300B 614

Voices For Performances

Drum Voices Total 30

XG 20

TG300B 10

ARPEGGIATOR 40

EFFECT Reverb 12

Chorus 14

Variation 62

CONTROLS STANDBY/ON, VOLUME, PITCH, MODULATION, Sound Control Knobs 8, SCENE 1/2,

Numeric Keypad, ENTER, Mode Select (PERFORMANCE, MULTI, STORE, UTILITY), ARPEGGIATOR, SHIFT/OCTAVE, PART/LAYER +/-, PRESET, USER, PROGRAM +/-, Edit Parameter Rotary Switch, Parameter Value Up/Down buttons 10

DISPLAY LCD (Back Lit)

TERMINALS PHONES (Stereo Phone), OUTPUT (Phone): L[MONO]/R, DC IN, FOOT VOLUME,

FOOT CONTROLLER, FOOTSWITCH, INPUT, TO HOST, HOST SELECT, MIDI IN/OUT/THRU

POWER SUPPLY AC adaptor PA-3B*

DIMENSIONS 976(W) x 285(D) x 103(H)mm (38-3/8” x 11-1/4” x 4-1/16”)

WEIGHT 5.7kg (12 lbs., 9 oz.)

ACCESSORIES Yamaha AC Adaptor PA-3B*

Owner’s Manual, Data List

Specifications and descriptions in this owner’s manual are for information purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

* Power supply recommendation may vary from country to country. Please check with your nearest Yamaha dealer

for further details.

Appendix

Troubleshooting

The following table provides troubleshooting hints and page references for some common problems. Most problems may be simply the result of incorrect settings. Before calling for professional service, refer to the troubleshooting advice below to see if you can find and correct the cause of the problem.

No sound.

● Is the volume set appropriately? (page 8)

● When the Foot Controller is connected to the FOOT VOLUME jack, is the Foot Volume pressed

down? (page 10)

● Are the volume settings for each Layer/Part appropriate? (page 54, 59)

● Are the effect settings appropriate? (page 44, 70)

● Is the Bank set to off? (page 54, 58)

● Is the receive channel set to off? (page 63)

● Is the audio equipment connected appropriately? (page 11)

● Is Local set to off? (page 63)

● If you are playing back song data using an external device, are the volume related settings for

the song appropriate?

● Are the Note Limit settings and/or Velocity Limit settings appropriate? (page 48)

No Arpeggiator sound.

● Are the settings for the Velocity Limit appropriate? Set Velocity Limit Low to “0” and Velocity

Limit Hi to “127”. (page 48)

Distorted sounds.

● Are the effect settings appropriate? (page 44, 55, 59, 70)

● Is the volume level set too loud?

Small sounds.

● Is the MIDI volume or MIDI expression set too low?

Wrong pitch.

● Are the tuning-related parameters set to “0”? Check the Note Shift setting (page 48), Detune

setting (page 48), Master Tuning (page 61) and Keyboard Transpose setting (page 62).

Sound is choppy and interrupted.

● The maximum polyphony of 64 notes (the number of notes that can be played simultaneously)

has been exceeded. (page 56, 60)

Sound Control Knobs do not work.

● Is a Scene key turned on? (page 25)

Only one note sounds at a time.

● Is the play mode set to MONO? (page 56, 60)

Cannot enter Store mode.

● Is Performance mode or Multi Play mode selected? (page 40, 57)

Appendix

Error Messages

The following messages may appear during operation, indicating problems or incorrect operation. Follow the instructions in the explanations below to remedy the problem.

Battery Low

The memory-backup battery is low; memory cannot be backed up. Store the necessary data to a MIDI data storage device such as Yamaha MIDI Data Filer MDF3, and have the battery changed by your local Yamaha dealer or any other authorized Yamaha service personnel.

Device No.=off Error

Cannot send MIDI bulk data since the Device Number is set to off.

Device Number Error

Cannot receive MIDI bulk data, due to improper Device Number setting. Match the device numbers for both the CS2x and the external device.

TG-B Mode Error

When TG300B mode is accidentally selected by receiving a TG300B reset message from an external device, you cannot perform edit operations. Press PERFORMANCE or MULTI button to exit the TG300B mode.

Receiving

Displays when the CS2x receives the bulk data with the compatible format. Continue normal operation.

Rx Mode Error

Displays when receiving Performance bulk data in Multi Play mode or XG effect bulk in Performance mode.

Appendix

Index

[-/NO/QUICK PC] button..........................................9

About MIDI ............................................................72

AEG (Amplitude Envelope Generator) ..................50

Arpeggiator ......................................................27, 43

[ARPEGGIO] button ................................................8

ASSIGN CTRL NO (Assign Control Number)........64

ASSIGN1 PARAM (ASSIGN1 Parameter) ............47

ASSIGN2................................................................49

BANK......................................................................54

BULK DUMP..........................................................64

Category Codes ....................................................24

Common Edit 1 ......................................................43

Common Edit 2 ......................................................45

DC IN terminal........................................................10

DEMO function ........................................................9

Demo Songs ..........................................................14

DEVICE NO (Device Number) ..............................63

Drum Voices ....................................................18, 59

EDIT PARAMETER ROTARYswitch ......................9

Edit Parameters ....................................................20

EFFECT ....................................................44, 55, 59

Effects ....................................................................70

[ENTER/YES] button................................................9

Error Messages......................................................78

Factory Settings ....................................................69

FC (Foot Control) ..................................................46

FEG (Filter Envelope Generator) ..........................52

FILTER ............................................................55, 60

Foot Controller ......................................................12

FOOT CONTROLLER jack ....................................10

FOOT VOLUME jack..............................................10

FOOTSWITCH jack................................................10

General MIDI..........................................................33

HOST SELECT switch ..........................................10

INPUT jack ............................................................10

KBD TRANS (Keyboard Transpose)......................62

Keyboard ..................................................................9

LAYER....................................................................29

Layer Edit 1 ............................................................47

Layer Edit 2 ............................................................50

Layer Edit 3 ............................................................52

Layer Edit 4 ............................................................54

Layers ....................................................................18

LCD..........................................................................8

LFO (Low Frequency Oscillator)............................51

LOCAL....................................................................63

Main Features..........................................................7

MASTER TUNE ....................................................61

MIDI........................................................................63

MIDI terminals........................................................10

MODULATION wheel ........................................9, 25

[MULTI] button..........................................................9

Mult Store ..............................................................68

Multi Part Edit ........................................................57

Multi Play In Performance Mode......................33, 56

Multi Play Mode ........................................22, 31, 57

MW (Modulation Wheel) ........................................46

Normal Voices..................................................18, 59

NOTE ....................................................................48

NUMERIC KEYPAD ..........................................9, 24

Octave Shift Function ............................................25

OUTPUT jacks ......................................................10

P BEND RANGE....................................................45

PAN..................................................................54, 59

Parameter Value [UP/DOWN] buttons ....................9

Part Assign ............................................................32

PART/LAYER/OCTAVE [-]/[+] buttons......................8

PEG (Pitch Envelope Generator) ..........................53

PERFORM LEVEL ................................................44

PERFORM NAME..................................................45

[PERFORMANCE] button........................................9

Performance Edit Mode ..................................21, 41

Performance Mode ..........................................23, 40

Performance Modes ..............................................21

Performance Play Mode ..................................21, 40

Performance Store ................................................30

PHONES jack ........................................................10

PITCH wheel ......................................................9, 25

POLY/MONO....................................................56, 60

PORTA(Portamento) ............................................47

[PRESET] button......................................................8

PROGRAM ......................................................54, 59

PROGRAM [-]/[+] buttons ........................................8

Quick Program Change..........................................41

Quick Tour ..............................................................23

RCV CH (Receive Channel) ..................................63

[SCENE] buttons......................................................8

SCENE CONTROL Function ..........................25, 26

Scene Store ..........................................................67

Scenes ..................................................................25

[SHIFT] button..........................................................8

SOUND CONTROL knobs ....................8, 19, 26, 65

STANDBY/ON switch ............................................10

[STORE] button........................................................9

Store Mode ......................................................22, 66

SYSTEM ................................................................61

TG300B Mode........................................................59

TO HOST terminal ................................................10

TRANS CH (Transmit Channel) ............................63

TUNE......................................................................48

[USER] button..........................................................8

[UTILITY] button ......................................................9

Utility Mode ......................................................22, 61

VEL (Velocity) ........................................................48

VEL CURVE (Velocity Curve) ................................62

VEL FIX (Velocity Fix)............................................62

VOLUME..........................................................54, 59

XG Operation ........................................................33

XGworks ................................................................34

Appendix

MEMO

For details of products, please contact your nearest Yamaha or the authorized distributor listed below.

Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha ou au distributeur le plus proche de vous figurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen Bestimmungsländern erhältlich.

Para detalles sobre productos, contacte su tienda Yamaha más cercana o el distribuidor autorizado que se lista debajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough,Ontario, M1S 3R1, Canada Tel:416-298-1311

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620, U.S.A. Tel:714-522-9011

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de Mexico S.A. De C.V., Departamento de ventas

Javier Rojo Gomez No.1149, Col. Gpe Del Moral, Deleg. Iztapalapa,09300 Mexico, D.F. Tel:686-00-33

BRAZIL

Yamaha Musical do Brasil LTDA.

Av. Rebouças 2636,São Paulo, Brasil Tel:011-853-1377

ARGENTINA

Yamaha Music Argentina S.A.

Viamonte 1145 Piso2-B 1053, Buenos Aires, Argentina Tel:1-371-7021

PANAMA AND OTHER LATIN AMERICAN COUNTRIES/ CARIBBEAN COUNTRIES

Yamaha de Panama S.A.

Torre Banco General,Piso 7, Urbanización Marbella, Calle 47 y Aquilino de la Guardia, Ciudad de Panamá, Panamá Tel:507-269-5311

EUROPE

THE UNITED KINGDOM

Yamaha-Kemble Music (U.K.) Ltd.

Sherbourne Drive,Tilbrook, Milton Keynes, MK7 8BL, England Tel:01908-366700

IRELAND

Danfay Ltd.

61D,Sallynoggin Road, Dun Laoghaire, Co.Dublin Tel:01-2859177

GERMANY/SWITZERLAND

Yamaha Europa GmbH.

Siemensstraße 22-34, 25462 Rellingen, F.R. of Germany Tel:04101-3030

AUSTRIA

Yamaha Music Austria

Schleiergasse 20,A-1100 Wien Austria Tel:01-60203900

THE NETHERLANDS

Yamaha Music Nederland

Kanaalweg 18G,3526KL, Utrecht,The Netherlands Tel:030-2828411

BELGIUM

Yamaha Music Belgium

Keiberg Imperiastraat 8, 1930 Zaventem, Belgium Tel:02-7258220

FRANCE

Yamaha Musique France, Division Professionnelle

BP 70-77312 Marne-la-Vallée Cedex 2, France Tel:01-64-61-4000

SY18

ITALY

Yamaha Musica Italia S.P.A., Combo Division

Viale Italia 88, 20020 Lainate (Milano), Italy Tel:02-935-771

SPAIN/PORTUGAL

Yamaha-Hazen Electronica Musical, S.A.

Jorge Juan 30,28001, Madrid, Spain Tel:91-577-7270

GREECE

Philippe Nakas S.A.

Navarinou Street 13, P.Code 10680, Athens, Greece Tel:01-364-7111

SWEDEN

Yamaha Scandinavia AB

J.A.Wettergrens Gata 1 Box 30053 S-400 43 Göteborg, Sweden Tel:031 89 34 00

DENMARK

YS Copenhagen Liaison Office

Generatorvej 8B DK-2730 Herlev, Denmark Tel:44 92 49 00

FINLAND

Warner Music Finland OY/Fazer Music

Aleksanterinkatu 11, P.O. Box 260 SF-00101 Helsinki, Finland Tel:0435 011

NORWAY

Norsk filial av Yamaha Scandinavia AB

Grini Næringspark 1 N-1345 Østerås, Norway Tel:67 16 77 70

ICELAND

Skifan HF

Skeifan 17 P.O.Box 8120 IS-128 Reykjavik, Iceland Tel:525 5000

OTHER EUROPEAN COUNTRIES

Yamaha Europa GmbH.

Siemensstraße 22-34, 25462 Rellingen, F.R. of Germany Tel:04101-3030

AFRICA

Yamaha Corporation, International Marketing Division

Nakazawa-cho 10-1,Hamamatsu, Japan 430-8650 Tel:053-460-2312

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Europa GmbH.

Siemensstraße 22-34, 25462 Rellingen, F.R. of Germany Tel:04101-3030

OTHER COUNTRIES

Yamaha Corporation, International Marketing Division

Nakazawa-cho 10-1,Hamamatsu, Japan 430-8650 Tel:053-460-2312

HEAD OFFICE Yamaha Corporation, Electronic Musical Instrument Division

ASIA

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road, Tsimshatsui, Kowloon, Hong Kong Tel:2737-7688

INDONESIA

PT. Yamaha Music Indonesia (Distributor) PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend.Gatot Subroto Kav. 4,Jakarta 12930, Indonesia Tel:21-520-2577

KOREA

Cosmos Corporation

#131-31, Neung-Dong, Sungdong-Ku, Seoul Korea Tel:02-466-0021~5

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya, Petaling Jaya,Selangor, Malaysia Tel:3-703-0900

PHILIPPINES

Yupangco Music Corporation

339 Gil J.Puyat Avenue, P.O. Box 885 MCPO, Makati, Metro Manila, Philippines Tel:819-7551

SINGAPORE

Yamaha Music Asia Pte., Ltd.

Blk 202 Hougang, Street 21 #02-01, Singapore 530202 Tel:747-4374

TAIWAN

Yamaha KHS Music Co., Ltd.

10F, 150, Tun-Hwa Northroad, Taipei,Taiwan, R.O.C. Tel:02-2713-8999

THAILAND

Siam Music Yamaha Co., Ltd.

121/60-61 RS Tower 17th Floor, Ratchadaphisek RD.,Dindaeng, Bangkok 10320,Thailand Tel:02-641-2951

THE PEOPLE’S REPUBLIC OF CHINA AND OTHER ASIAN COUNTRIES

Yamaha Corporation, International Marketing Division

Nakazawa-cho 10-1,Hamamatsu, Japan 430-8650 Tel:053-460-2317

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

17-33 Market Street, South Melbourne,Vic. 3205, Australia Tel:3-699-2388

NEW ZEALAND

Music Houses of N.Z. Ltd.

146/148 Captain Springs Road,Te Papapa,Auckland, New Zealand Tel:9-634-0099

COUNTRIES AND TRUST TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation, International Marketing Division

Nakazawa-cho 10-1,Hamamatsu, Japan 430-8650 Tel:053-460-23170

Nakazawa-cho 10-1,Hamamatsu, Japan 430-8650 Tel:053-460-2445

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE:DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly

approved by Yamaha may void your authority, granted by the FCC, to use the product.

product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

2. IMPORTANT: When connecting this product to accessories and/or

another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the

requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this

* The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

ADVARSEL!

Lithiumbatteri—Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandoren.

VARNING

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enlight fabrikantens instruktion.

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.

NEDERLAND / THE NETHERLANDS

• Dit apparaat bevat een lithium batterij voor geheugen back-up.

• This apparatus contains a lithium battery for memory back-up.

• Raadpleeg uw leverancier over de verwijdering van de batterij op het moment dat u het apparaat ann het einde van de levensduur afdankt of de volgende Yamaha Service Afdeiing:

Yamaha Music Nederland Service Afdeiing Kanaalweg 18-G, 3526 KL UTRECHT Tel. 030-2828425

• For the removal of the battery at the moment of the disposal at the end of the service life please consult your retailer or Yamaha Service Center as follows:

Yamaha Music Nederland Service Center Address : Kanaalweg 18-G, 3526 KL UTRECHT Tel : 030-2828425

• Gooi de batterij niet weg, maar lever hem in als KCA.

• Do not throw away the battery. Instead, hand it in as small chemical waste.

SAMPLING UNIT

Cutting-edge groove machine unites sampling, sequencing, effects and mixing. A unique tool for recording artists, DJs, dance music producers, and all others who need to create and perform dynamic sample-based sequences.

Specifications

SEQUENCER

Memory Resolution Tempo Recording Mode Tracks Songs Sync Modes

TONE GENERATOR

Type Polyphony Data formats Signal Processing

Sampling Wave Memory Multi-Effector

DATA STORAGE

Internal FDD

Specifications and appearance are subject to change without notice.

32,000 notes (no backup) 1 / 480

40.0 to 299.9 Realtime 42 (10 x 4 banks, plus AUDIO IN and MASTER) 20 MTC, MIDI

AWM2 Max 64 notes 16-bit linear, 8-bit linear Stereo Sampling 16-bit A/D, 18-bit D/A 4MB standard (expandable to 68MB) Three units, configurable. (Also operates on analog input)

2HD/2DD, for songs and sampling data

Optional support for external SCSI disk

USER INTERFACE

Display Controls

CONNECTORS

OPTIONS

Wave Memory SCSI Board Input/Output

SIZE, WEIGHT

Size (W x D x H) Weight

Custom VFD (16 characters and 4-color segments) 12 track pads (8 velocity-sensitive pads) 12 realtime control knobs Assignable ribbon controller

Line Out : L/MONO, R (1/4" phone) Line In / Mic In : 1/4" phone Stereo Headphones : 1/4" phone MIDI : IN, OUT AC Inlet

72-pin SIMM (4, 8, 16, or 32 MB) x 2 ASIB1 (Same board supported by the EX series) AEIB1 board; provides assignable outputs and digital I/O (Same board supported by the A3000)

363 x 310 x 115 mm 6 kg (13.2 lb)

An Inspired Sequence Remix Workstation

for Performance & Production

An extensive arsenal of 700 outstanding danceoriented sounds.

An awesome assortment of 50 preset styles, 960 patterns and 7,726 phrases.

8 assignable real-time control knobs, a large LCD display panel with 4 display knobs and a large multifunction keyboard.

Each “style” has up to 16 “sections” which can be switched in real time during playback via the RM1x keyboard.

In-depth sequence editing functions make it possible to create and refine complex patterns and musical textures with extraordinary precision.

Edit and refine the RM1x voices to create sounds that most ideally suit your own music.

A sophisticated multi-effect system can be used to add anything from subtle ambience to wild variations.

Realtime “Play Effects” including harmonize with unison and octave functions, beat stretch, clock shift, gate time, and velocity offset.

Built-in floppy disk drive for convenient, low cost data storage and retrieval.

Full MIDI compatibility.

Specifications

Sequencer

MEMORY CAPACITY 110,000 notes TIMING RESOLUTION 1/480 quarter-note POLYPHONY Maximum 64 simultaneous notes TEMPO 25.0-300.0 RECORDING METHODS Realtime (Replace, Overdub, Punch-in), Step, Grid Step SEQUENCER TRACKS 16 tracks TRACKS PER PATTERN 16 tracks PRESET PATTERNS 960 (60 styles x 16 sections) USER PATTERNS 800 (50 styles x 16 sections) PRESET PHRASES 7,726 USER PHRASES PER STYLE PATTERN CHAINS 20 songs SONGS 20 songs EDIT Song edit, Phrase edit JOBS 36 pattern jobs, 8 pattern chain jobs, 28 song jobs SPLIT Split song, Split pattern GROOVES Grid Grooves (Note Offset, Clock Shift, Gatetime Offset, Velocity Offset) PLAY EFFECTS Play Effects (Beat Stretch, Clock Shift, Gatetime, Velocity Offset)

MIDI DELAY MIDI Delay edit, Feedback edit ARPEGGIOS Type (Up, Down, Alternate 1, Alternate 2, Random), Sort, Hold, Octave

SEQUENCE FORMATS RM1x format, SMF (Format 0)

Tone Generator

TONE GENERATION AWM2 POLYPHONY Maximum 32 simultaneous notes MULTI-TIMBRAL Maximum 16 timbres (last-note priority with element reserve, DVA) PRESET VOICES 654 normal voices, 46 drum-kit voices(excl. GM normal voices and GM

EFFECTS 11 Reverb types, 11 Chorus types, 43 Variations DIGITAL LOW BOOST ±24dB/50Hz-2.0kHz

256

Harmonize (Unison, Octave, Harmonize 1, Harmonize 2)

Range

drum-kit voices)

V300660 0106MWAP12.2-02B0

Yamaha CS2x User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This Manual

CONTENTS

Getting Started

Welcome To The World Of CS2x Control Synthesis

Main Features

Top Panel

Rear Panel

Setting Up The CS2x

Basic Connections

Powering Up!

Getting To Know The CS2x

CS2x Tone Generation

Normal Voices And Drum Voices

Layers

Knob Parameters

Operating Modes

CS2x Quick Tour

Performance Mode

Performance Selection

Performance Mode Select

Performance Bank Select

Performance Number Select

Performance Play

Octave Shift Function

PITCH And MODULATION Wheels

Scenes And SCENE CONTROL Function

Performance Editing And Store

SOUND CONTROL Knobs

The Arpeggiator

Panel Edit Matrix

User Performance Store

Multi Play Mode

Sequencer Setup

Multi Play Mode Select

Part Assign

Part Parameter Edit

XG Operation

Multi Play In Performance Mode

Feature Reference

Performance Mode

Common Edit 1

Common Edit 2

Layer Edit 1

Layer Edit 2

Layer Edit 3

Layer Edit 4

Multi Play Mode

Utility Mode

Store Mode

Factory Settings

APPENDIX

Digital Effects

About MIDI

Specifications

Troubleshooting

Error Messages

Index
