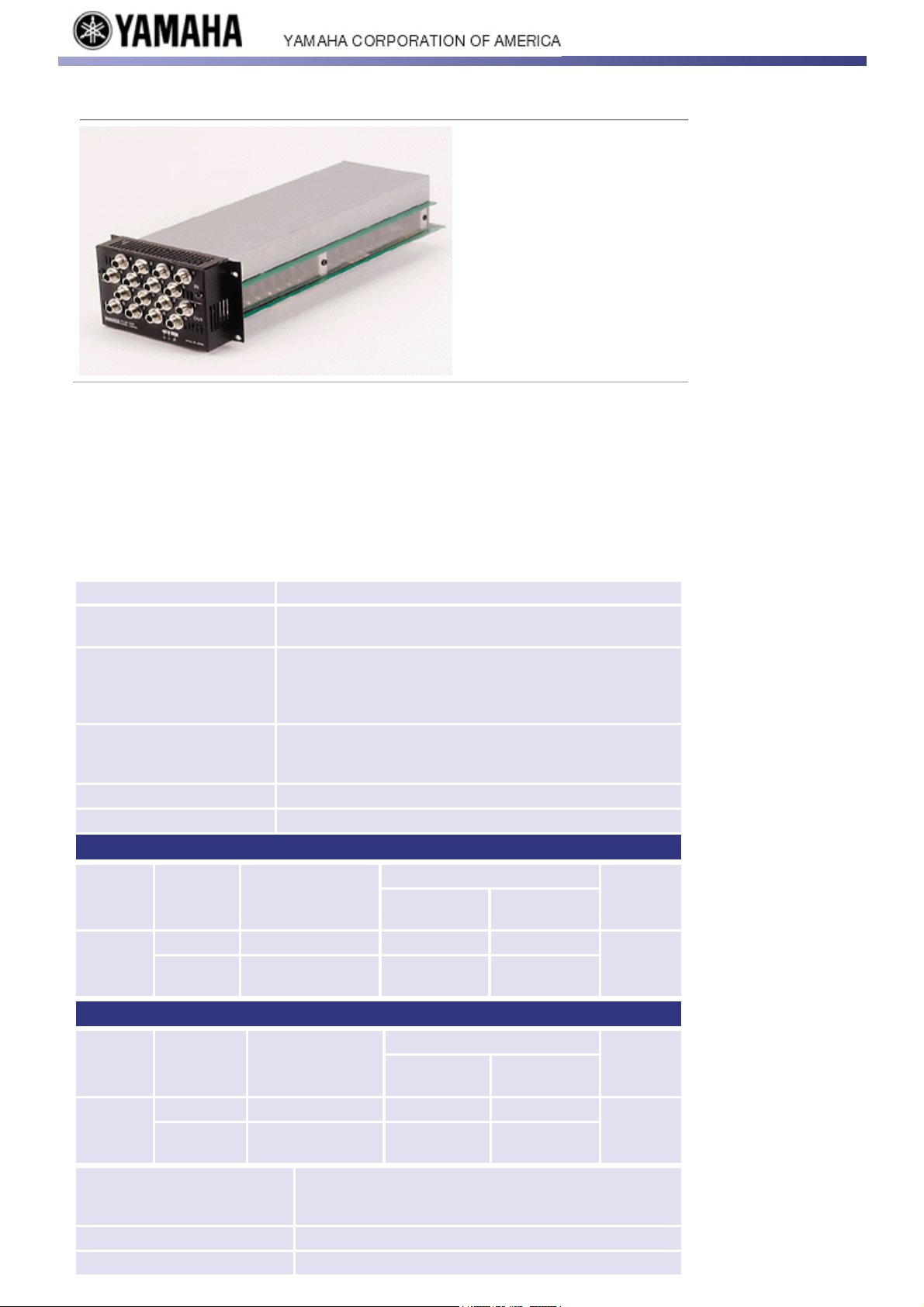

CD8AD
Interface Card for the 02R
CD8AD
CD8AD interface cards are used to connect Yamaha digital products to analog
devices such as analog multi-track recorders or synthesizers.
Connector
TRS Phone x 16
Specifications:
Sampling Frequency: 32 kHz -6% ~ 48 kHz+6%
Total Harmonic Distortion: less than 0.05% (each channel) @ +4 dB, 1 kHz
less than 0.02% (each channel) @ +23 dB, 1 kHz
Dynamic Range:
(@ Gain sw itch +4 dB)
110 dB type DA Converter (each channel)
@ Fs=48kHz, Gain sw itch = +4 dB
105dB type AD Converter (each channel)
@ Fs = 48 kHz, Gain sw itch = +4 dB
Hum and Noise: less than -88 dB DA Converter (each channel)
@ Fs = 48 kHz
@ Gain sw itch = +4 dB
A/D Conversion: 20 bits linear / 64 times oversampling (each channel)
D/A Conversion: 20 bits linear / 8 times oversampling (each channel)
Analog Input
Input
Terminals
Actual load
impe dance
For us e w ith
nom inal
Input level
Connector
Nom inal
Max. before
Clip
8 channels
10 k Ω 600 Ω +4 dB (1.23 V) +24 dB (12.3 V)
Phone jacks
(TRS)
10 k Ω 600 Ω
-10 dBV (316
mV )
+10 dBV (3.16
V)
Analog Output
Output
Terminals
Actual
source
impe dance
For us e w ith
nom inal
Output leve l
Connector
Nom inal
Max. before
Clip
8 channels
150 Ω 10 k Ω +4 dB (1.23 V) +24 dB (12.3 V)
Phone jacks
(TRS)
150 Ω 10 k Ω
-10 dBV (316
mV )
+10 dBV (3.16
V)
Frequency Response: +1 dB, -3dB, 20Hz ~ 20 kHz (each channel)
@ +4 dB into 10 k ohms
@Gain sw itch = +4 dB
Dimensions (W X H X D) 132 mm x 78.3 mm x 349.9 mm
Weight: 1.15 kg
