OWNER’S MANUAL
Read this manual carefully before operating this
outboard motor.
4C
6GP-28199-74-E0
Page 2
Read this manual carefully before operating this outboard motor. Keep this manual onboard in a waterproof bag when boating. This manual should stay with the outboard motor if it is sold.
Page 3
TIP:
TIP:
EMU25108
To the owner
Thank you for selecting a Yamaha outboard motor. This Owner’s Manual contains infor­mation needed for proper operation, mainte­nance and care. A thorough understanding of these simple instructions will help you obtain maximum enjoyment from your new Yamaha. If you have any question about the operation or maintenance of your outboard motor, please consult a Yamaha dealer. In this Owner’s Manual particularly important information is distinguished in the following ways.
: This is the safety alert symbol. It is used to alert you to potential personal injury haz­ards. Obey all safety messages that follow this symbol to avoid possible injury or death.
EWM00782
A WARNING indicates a hazardous situa­tion which, if not avoided, could result in death or serious injury.
ECM00702
A NOTICE indicates special precautions that must be taken to avoid damage to the outboard motor or other property.
between your machine and this manual. If there is any question concerning this manual, please consult your Yamaha dealer. To ensure long product life, Yamaha recom­mends that you use the product and perform the specified periodic inspections and main­tenance by correctly following the instruc­tions in the owner’s manual. Any damage resulting from neglect of these instructions is not covered by warranty. Some countries have laws or regulations re­stricting users from taking the product out of the country where it was purchased, and it may be impossible to register the product in the destination country. Additionally, the war­ranty may not apply in certain regions. When planning to take the product to another coun­try, consult the dealer where the product was purchased for further information. If the product was purchased used, please consult your closest dealer for customer re­registration, and to be eligible for the speci­fied services.
The 4CMH and the standard accessories are used as a base for the explanations and illus­trations in this manual. Therefore some items may not apply to every model.
EMU25123
A TIP provides key information to make pro­cedures easier or clearer.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most current prod­uct information available at the time of print­ing, there may be minor discrepancies
OWNER’S MANUAL
4C
©2020 by Yamaha Motor Co., Ltd.
1st Edition, November 2019
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan
Page 4

Table of contents

Safety information ............................. 1
Outboard motor safety.................... 1
Propeller............................................. 1
Rotating parts..................................... 1
Hot parts ............................................ 1
Electric shock..................................... 1
Engine shut-off cord (lanyard)............ 1
Gasoline ............................................. 1
Gasoline exposure and spills ............. 1
Carbon monoxide .............................. 2
Modifications...................................... 2
Boating safety ................................. 2
Alcohol and drugs.............................. 2
Personal flotation devices (PFDs) ...... 2
People in the water ............................ 2
Passengers......................................... 2
Overloading........................................ 2
Avoid collisions .................................. 3
Collisions with floating or submerged
objects ............................................ 3
Weather.............................................. 3
Passenger training ............................. 4
Boating safety publications................ 4
Laws and regulations......................... 4
General information .......................... 5
Identification numbers record ......... 5

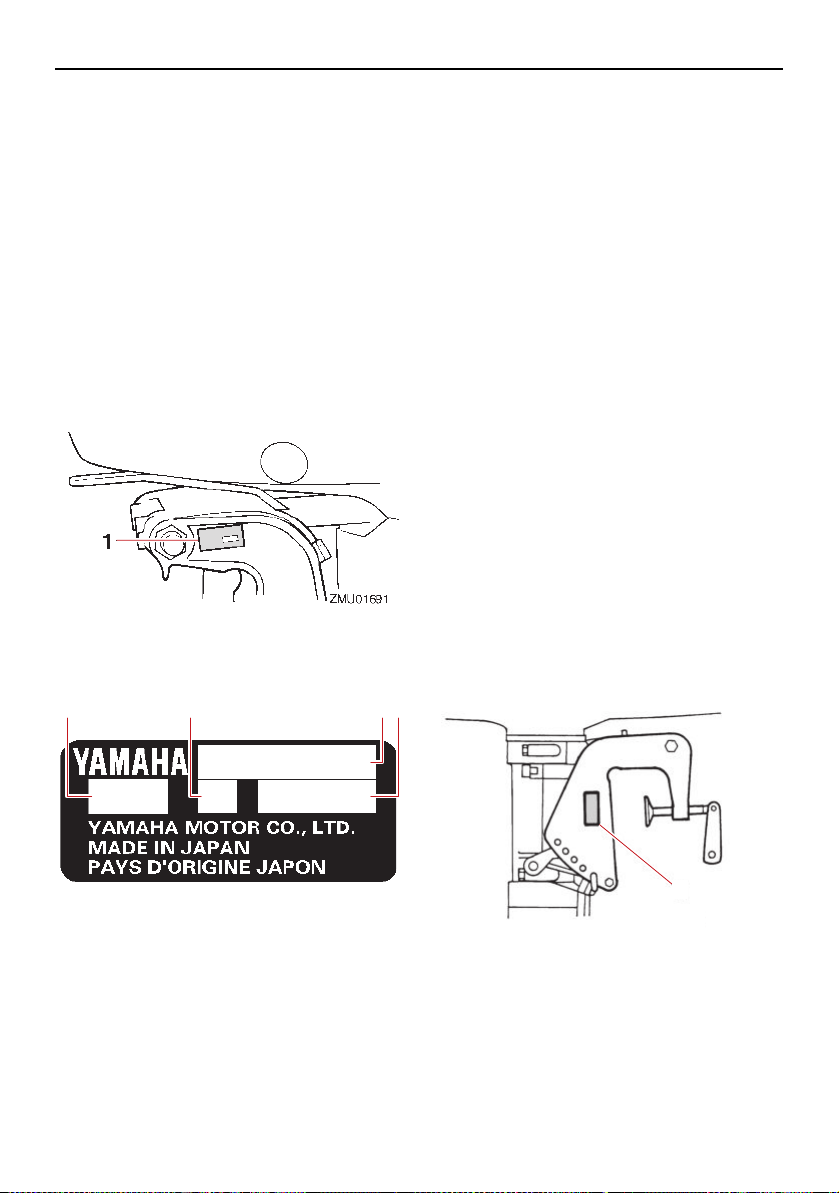

Outboard motor serial number........... 5
EC Declaration of Conformity
(DoC) ............................................ 5
CE Marking ..................................... 5
Read manuals and labels ................ 7

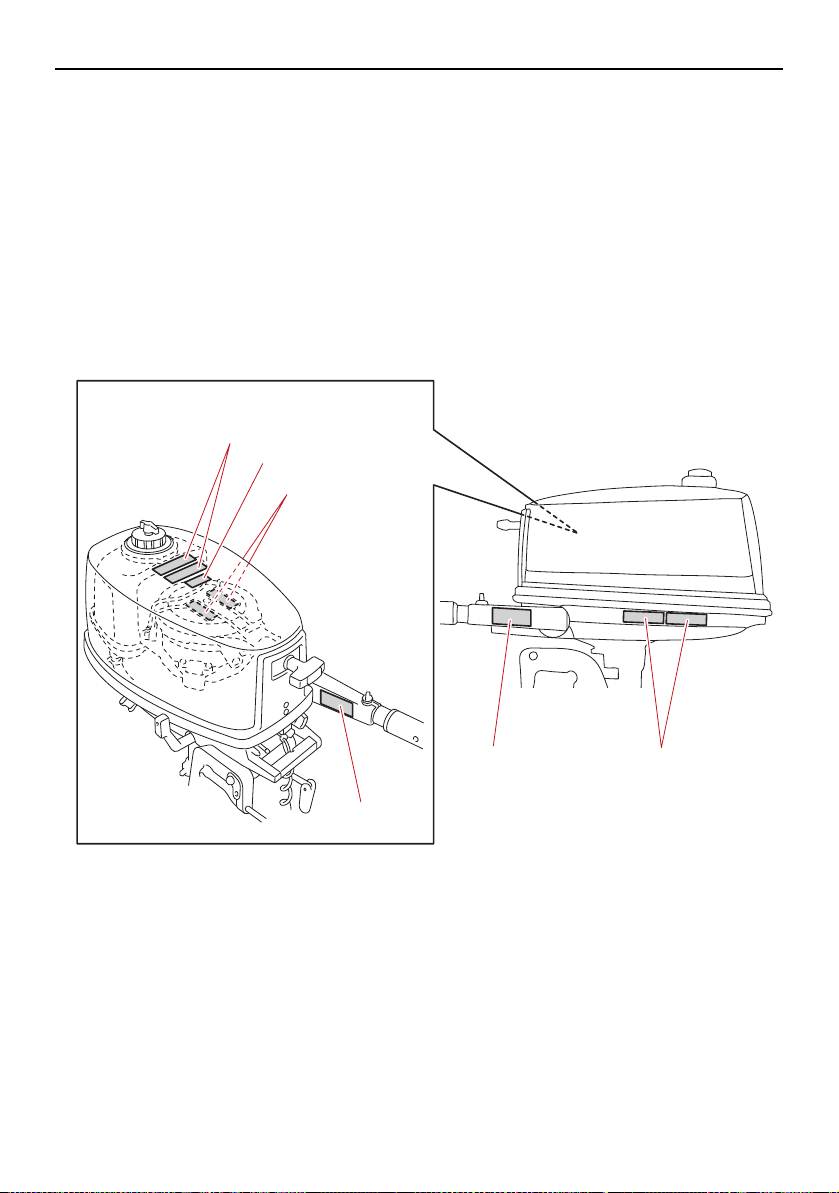

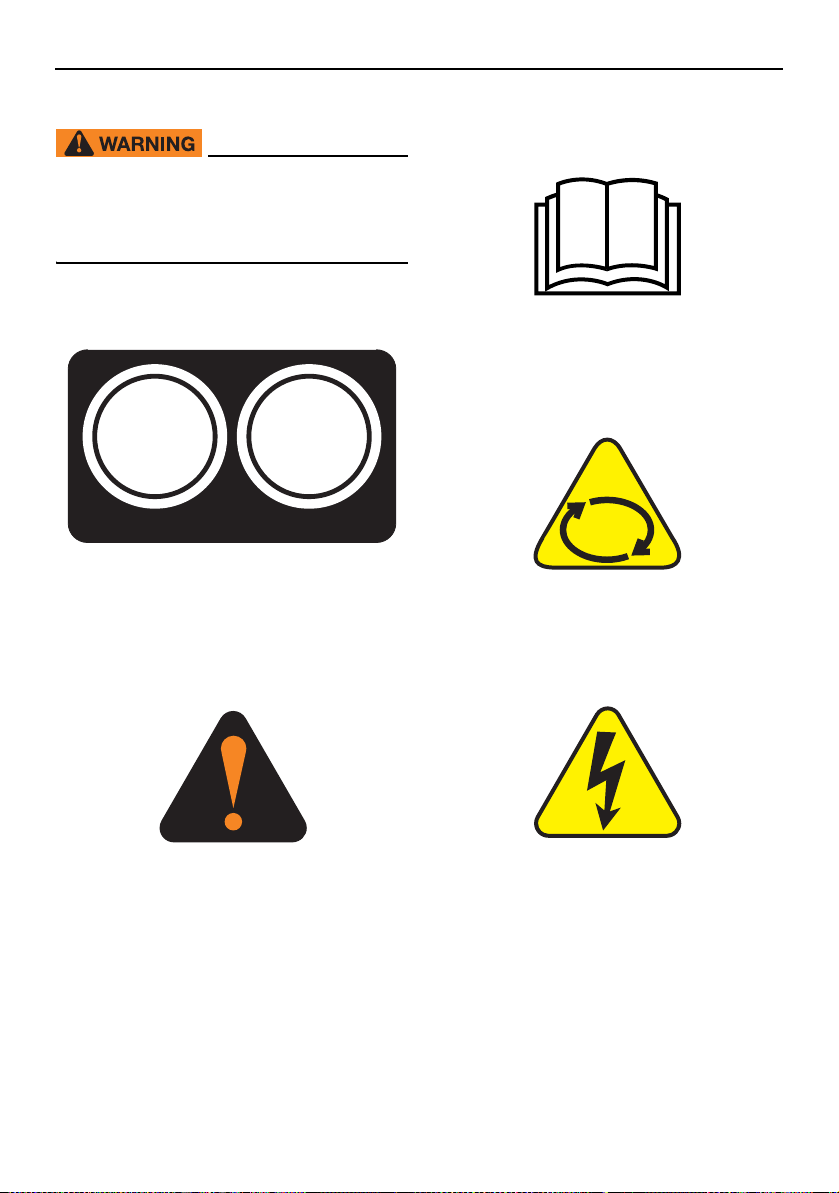

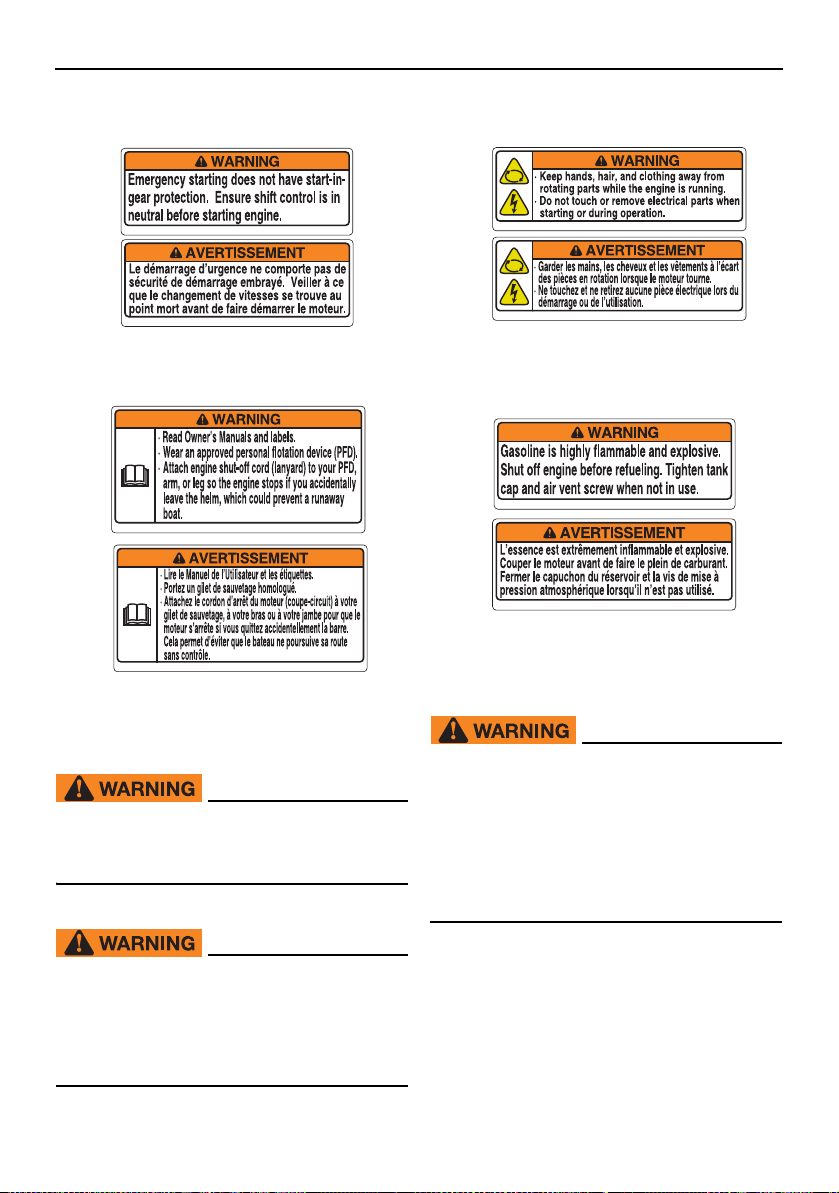

Warning labels ................................... 7
Specifications and requirements... 10
Specifications................................ 10
Installation requirements............... 11
Boat horsepower rating.................... 11

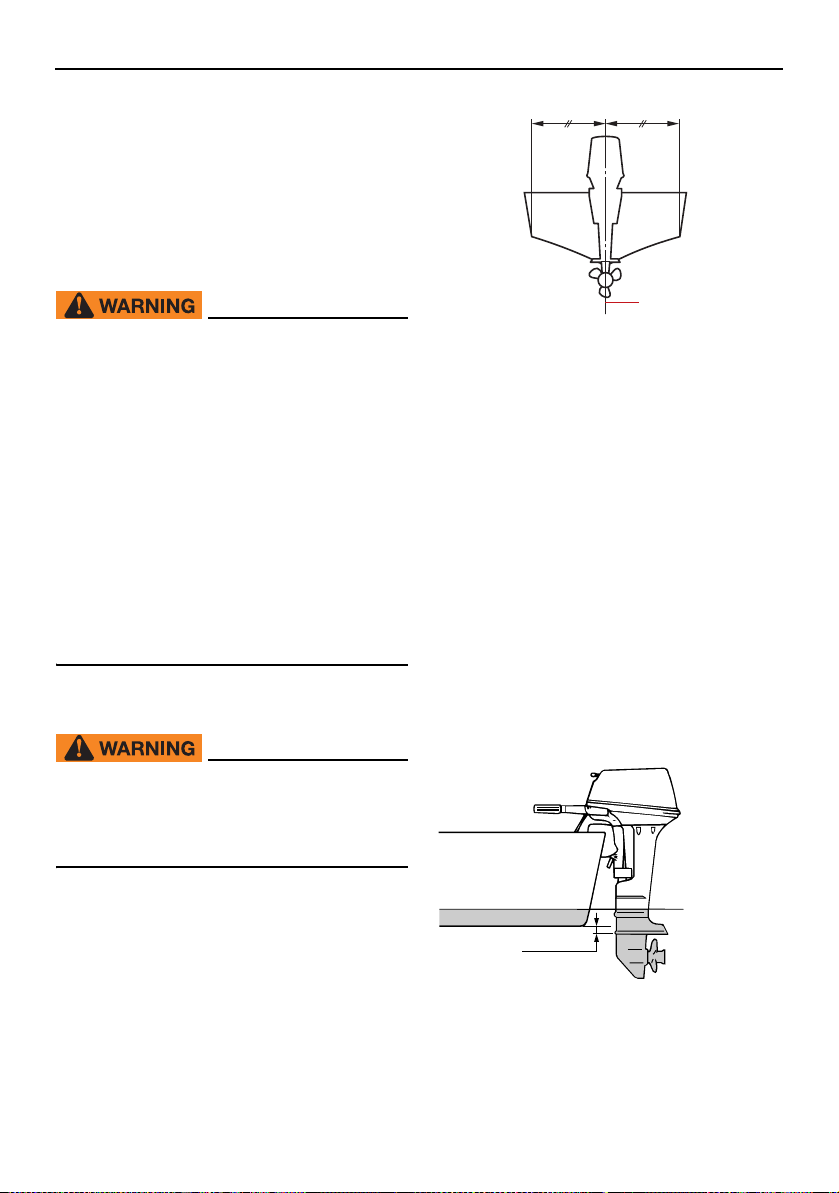

Mounting outboard motor................ 11
Battery requirements..................... 11
To use the battery ............................ 11

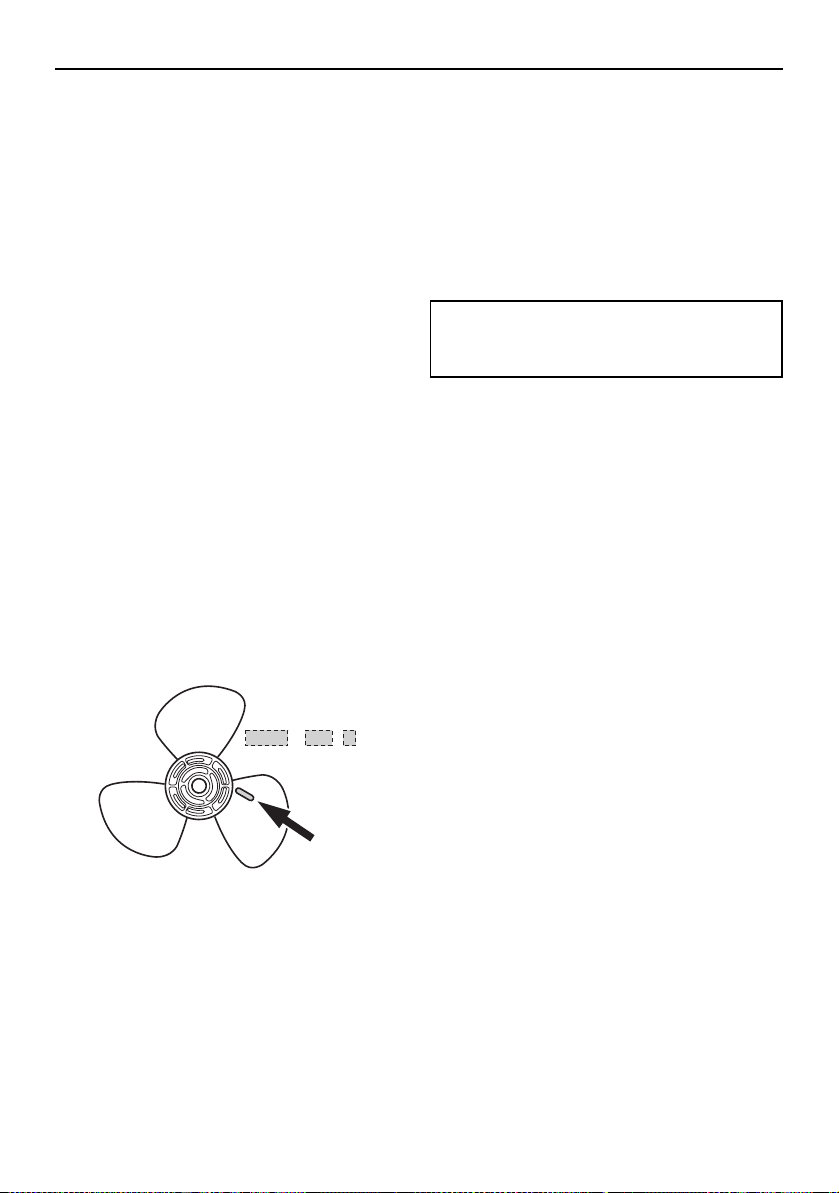

Propeller selection ........................ 11
Start-in-gear protection ............... 12
Engine oil requirements ................ 12
Why Yamalube ................................. 12
Fuel requirements ......................... 13
Gasoline ........................................... 13
Muddy or acidic water .................. 13
Anti-fouling paint .......................... 14
Outboard motor disposal
requirements.............................. 14
Emergency equipment.................. 14
Components .................................... 15

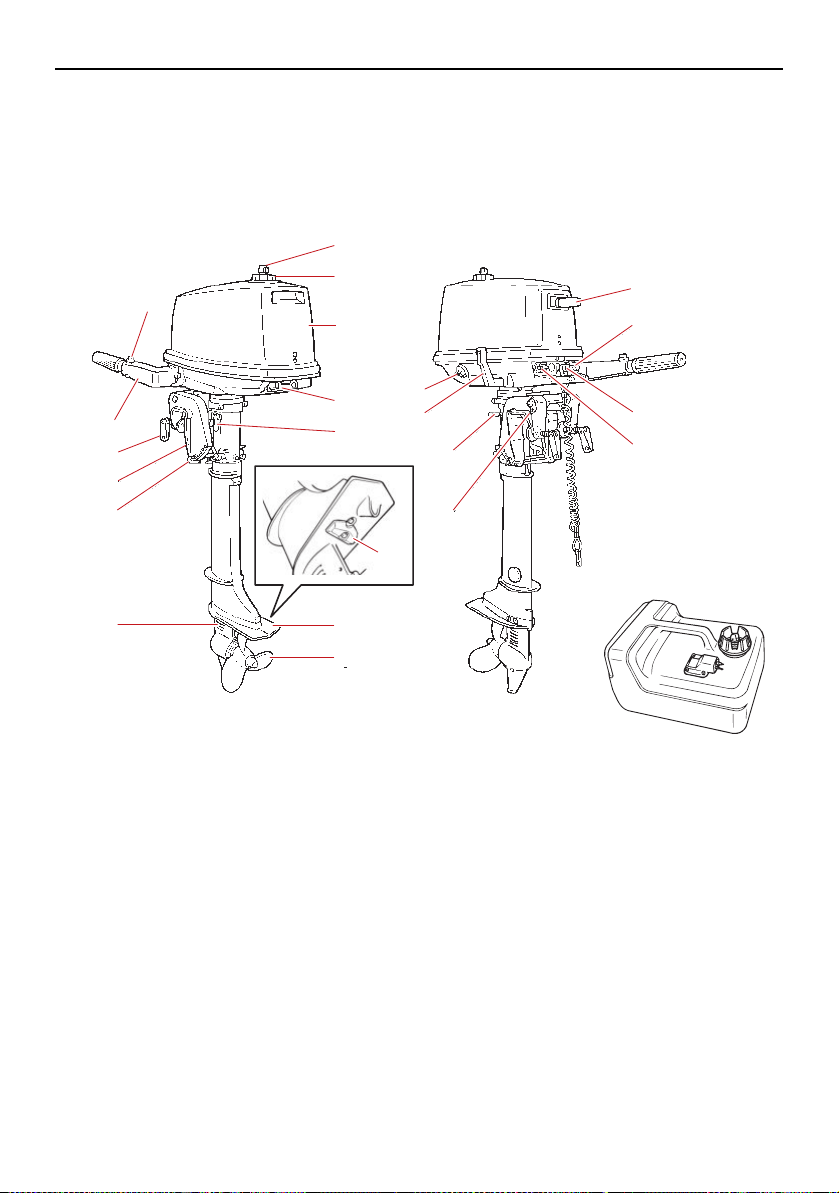

Components diagram ................... 15
Fuel tank........................................... 15
Fuel tank........................................... 16
Fuel joint........................................... 16
Fuel tank cap.................................... 16
Air vent screw................................... 16
Fuel cock.......................................... 16
Open................................................. 17
Tiller handle ..................................... 17
Gear shift lever ................................ 17

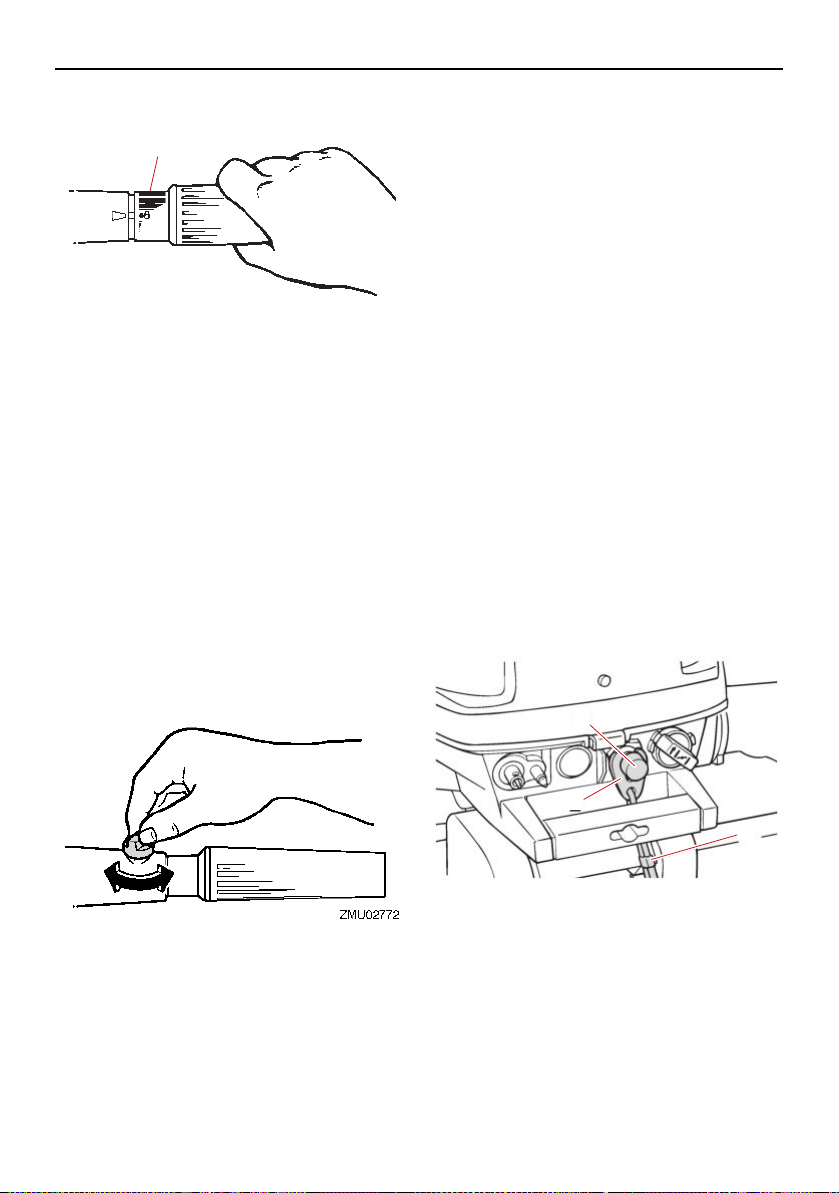

Throttle grip ..................................... 17
Throttle indicator ............................. 17
Throttle friction adjuster ................... 18
Engine shut-off cord (lanyard) and
clip ................................................ 18
Engine stop button .......................... 18
Choke knob ...................................... 19
Manual starter handle....................... 19
Steering friction adjuster .................. 19
Trim rod (tilt pin) ............................... 19
Tilt support bar................................. 20

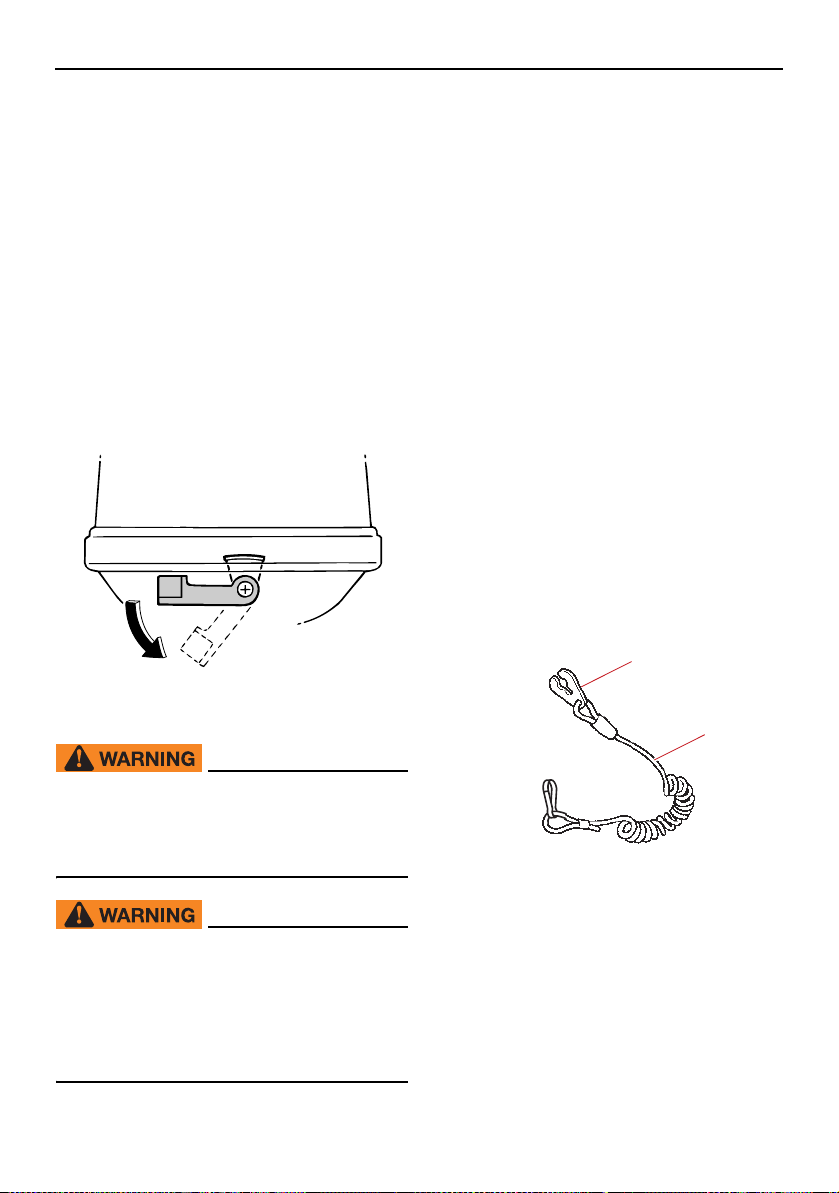

Cowling lock lever ............................ 20
Installation ....................................... 21
Installation..................................... 21
Mounting the outboard motor .......... 21
Clamping the outboard motor.......... 22
Page 5
Table of contents
Operation ......................................... 24
First-time operation....................... 24
Breaking in engine............................ 24
Getting to know your boat ............... 24
Checks before starting engine ...... 24
Fuel level .......................................... 25
Remove the top cowling .................. 25
Fuel system...................................... 25
Controls............................................ 25
Engine shut-off cord (lanyard).......... 25
Oil ..................................................... 25
Engine .............................................. 25
Install top cowling ............................ 26
Filling fuel and engine oil............... 26

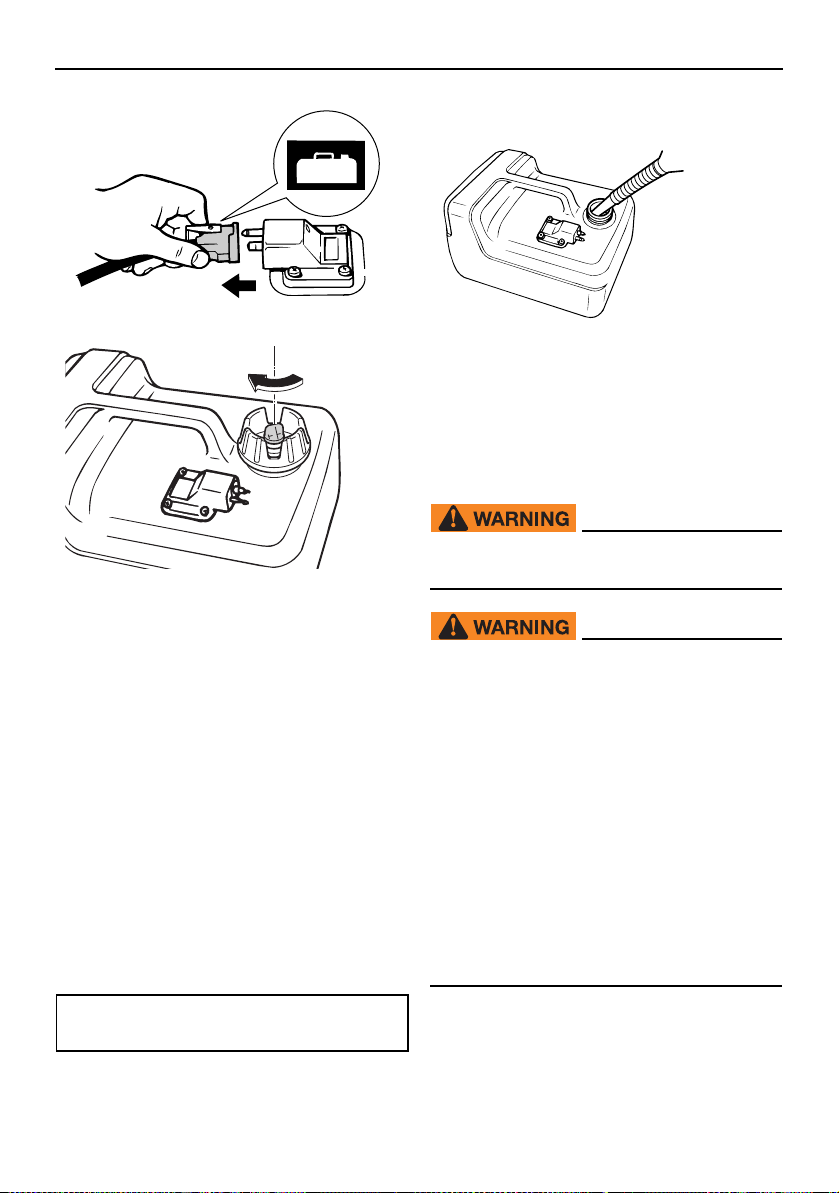

Filling fuel for portable tank.............. 26
Filling fuel for built-in tank................ 27

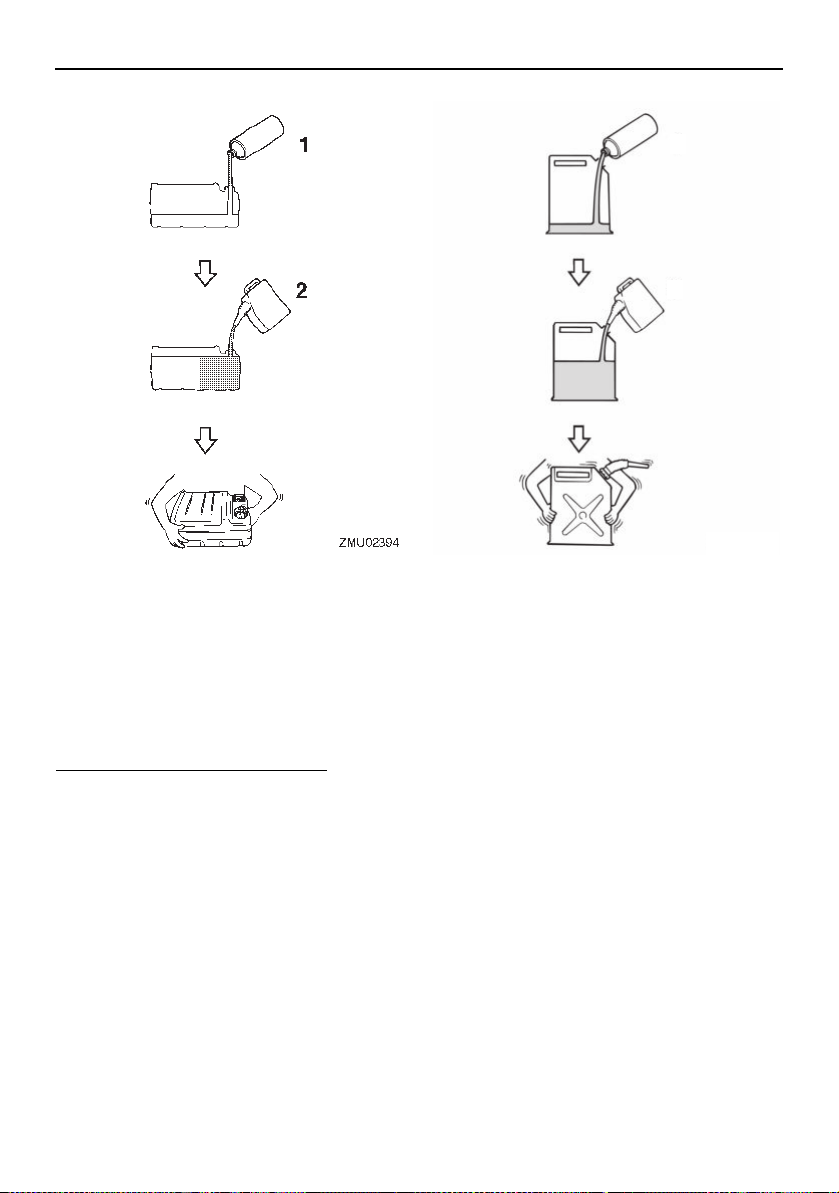

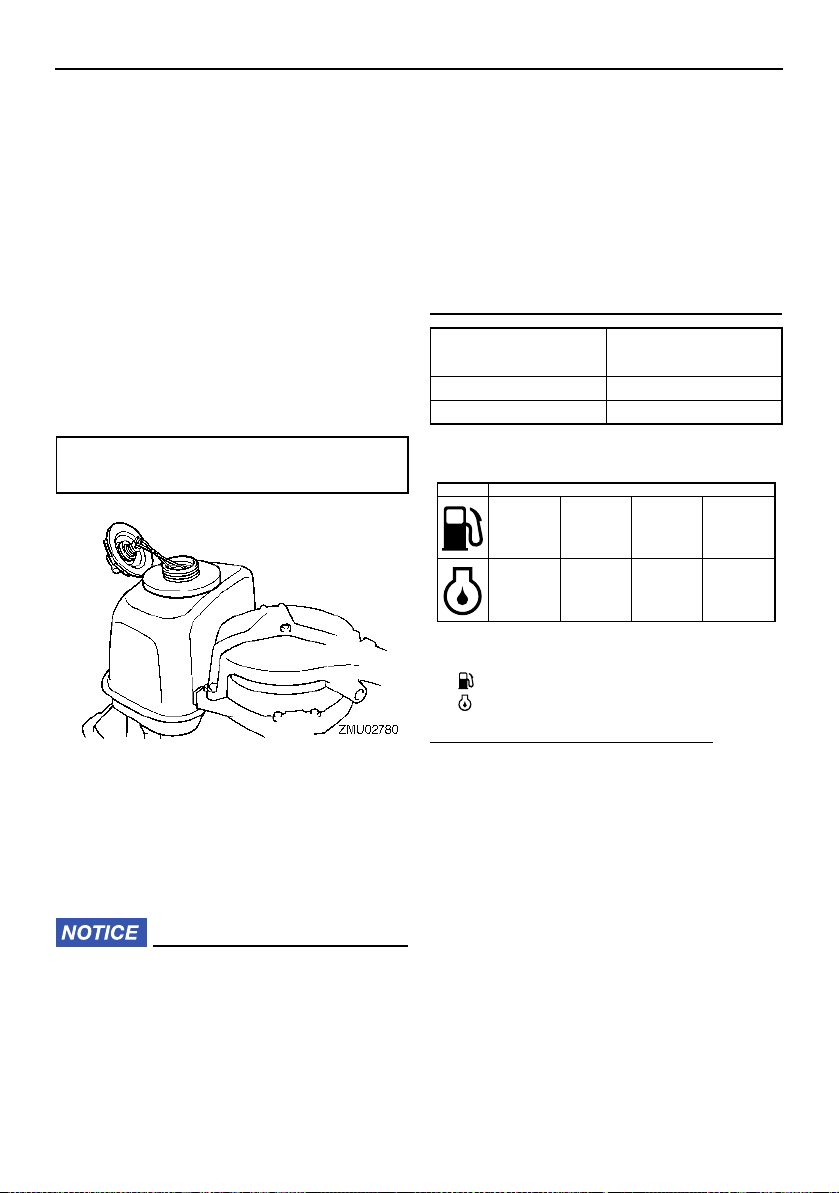

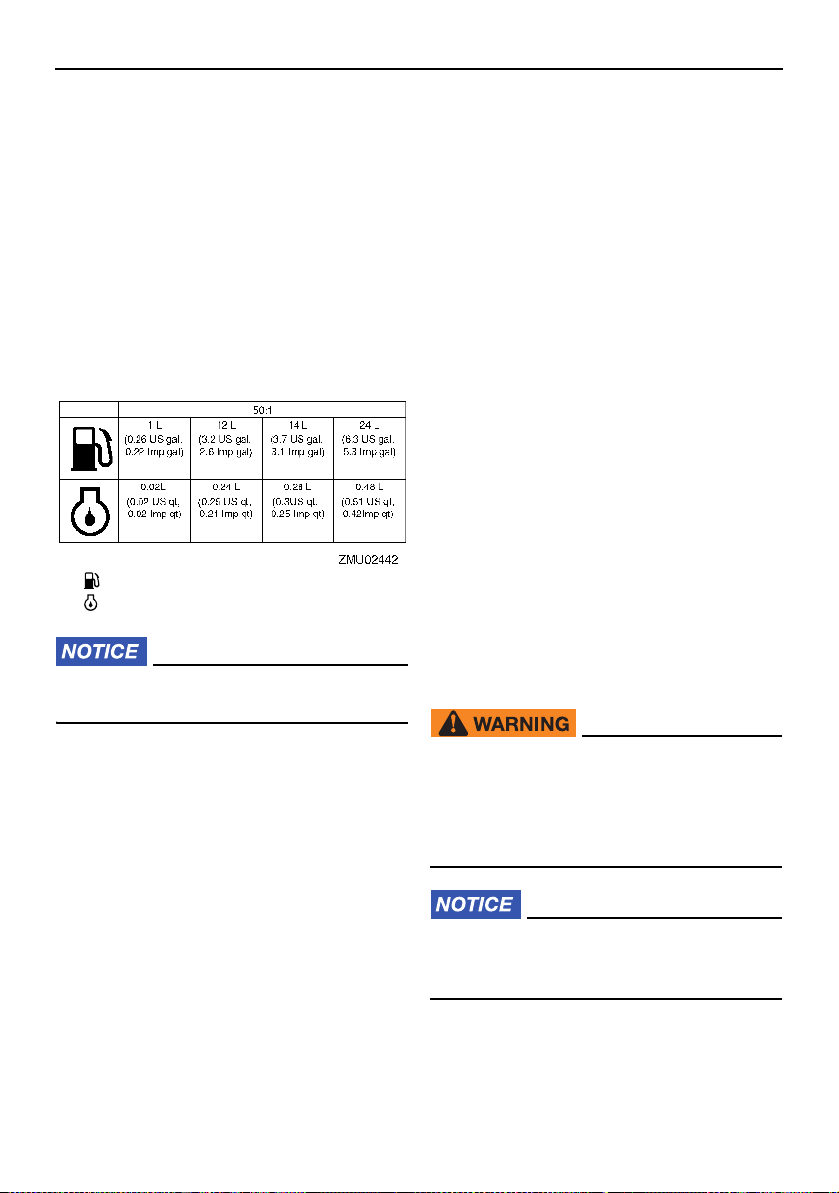

Gasoline and oil mixing (100:1) ........ 28
Operating engine........................... 30

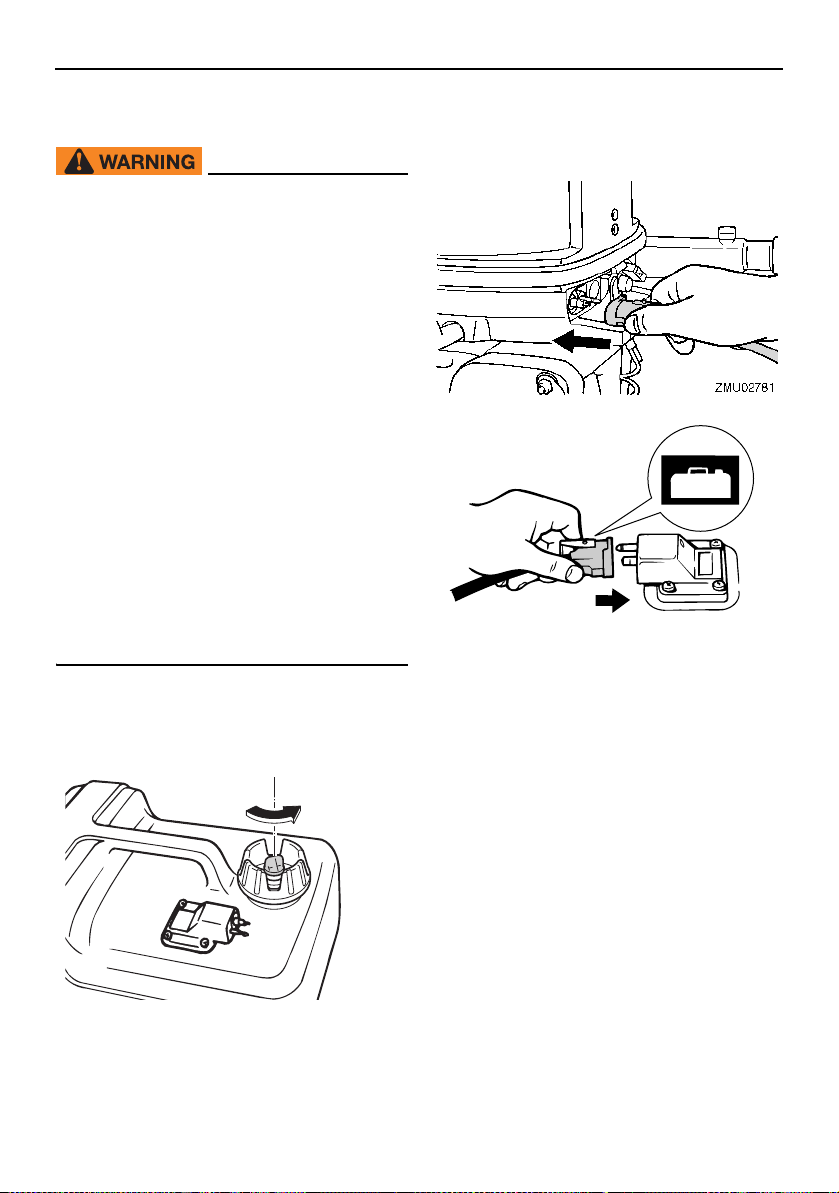

Sending fuel (portable tank) ............. 30
Sending fuel ..................................... 31

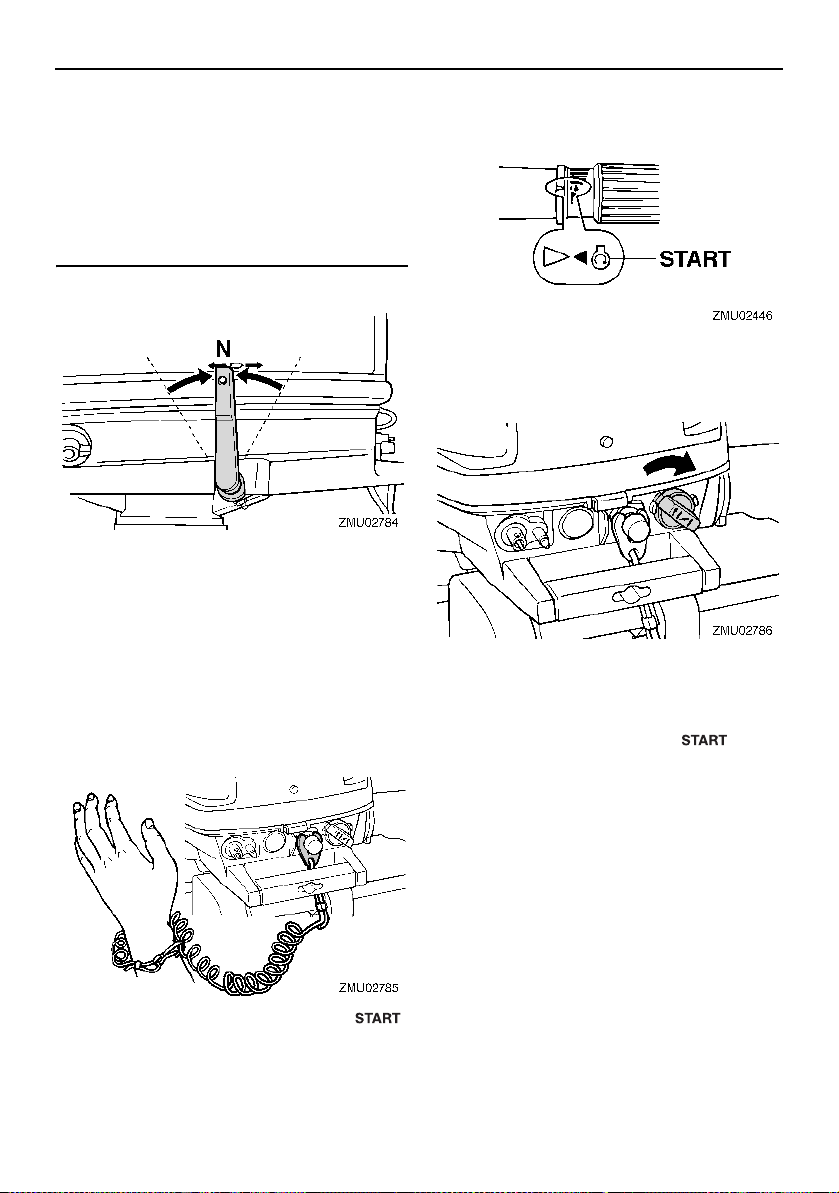

Starting engine................................. 31

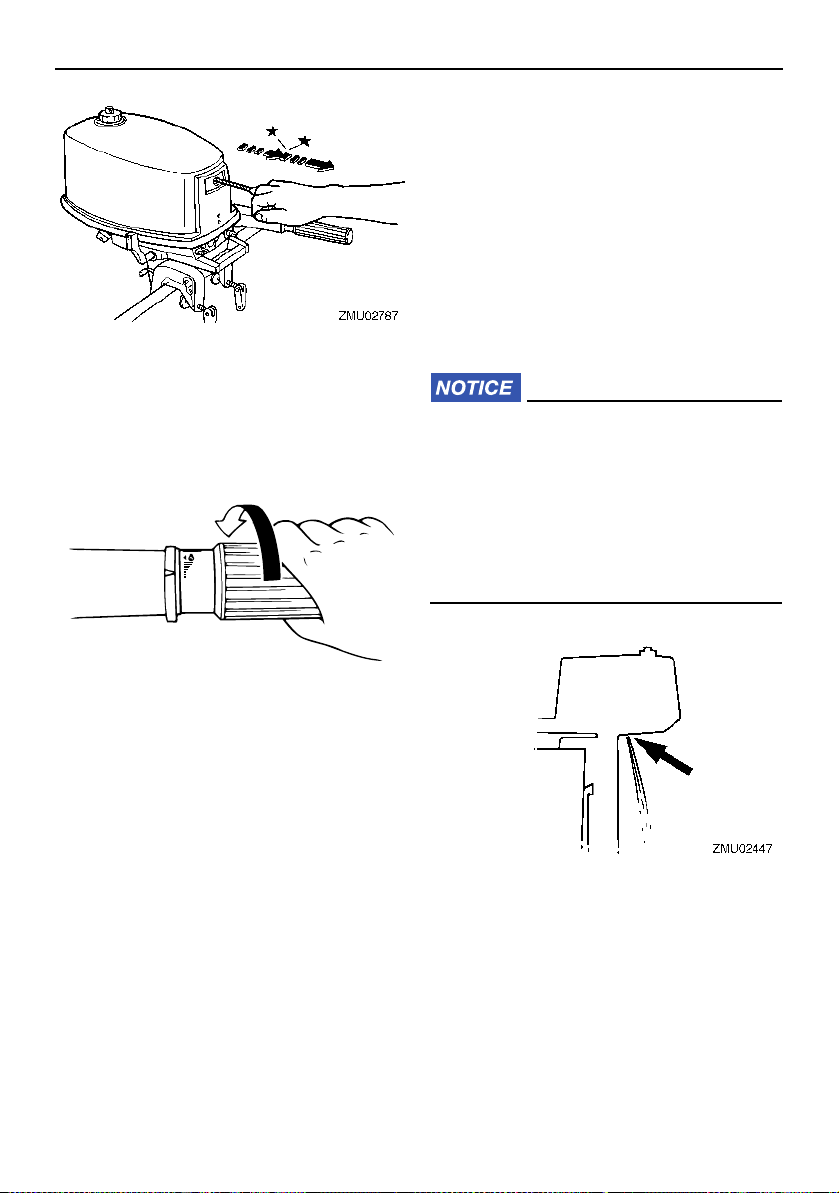

Checks after starting engine ......... 33
Cooling water ................................... 33
Warming up engine ....................... 33
Choke start models.......................... 33
Checks after engine warm up ....... 34

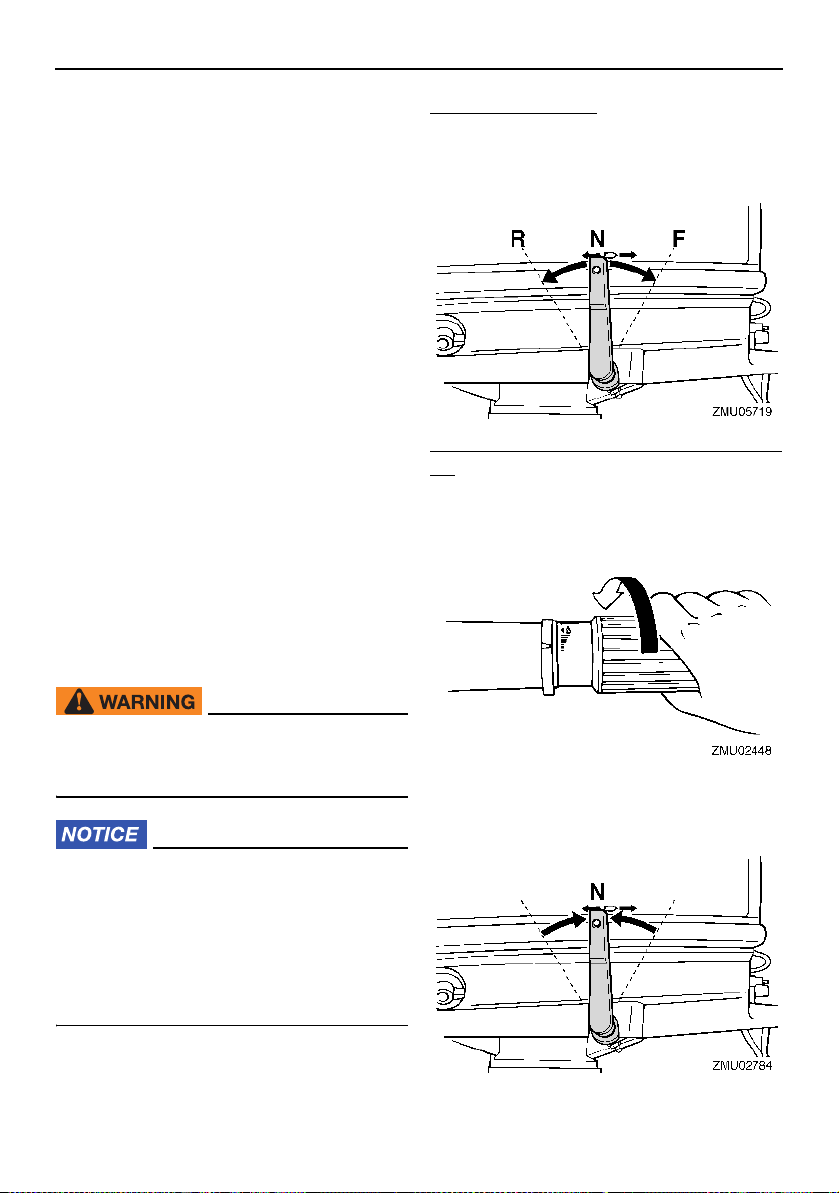

Shifting ............................................. 34
Stop switches................................... 34
Shifting .......................................... 34
Stopping boat ............................... 35
Stopping engine ............................ 35
Procedure......................................... 35
Trimming outboard motor ............. 36
Adjusting trim angle for manual tilt
models .......................................... 36
Adjusting boat trim........................... 37

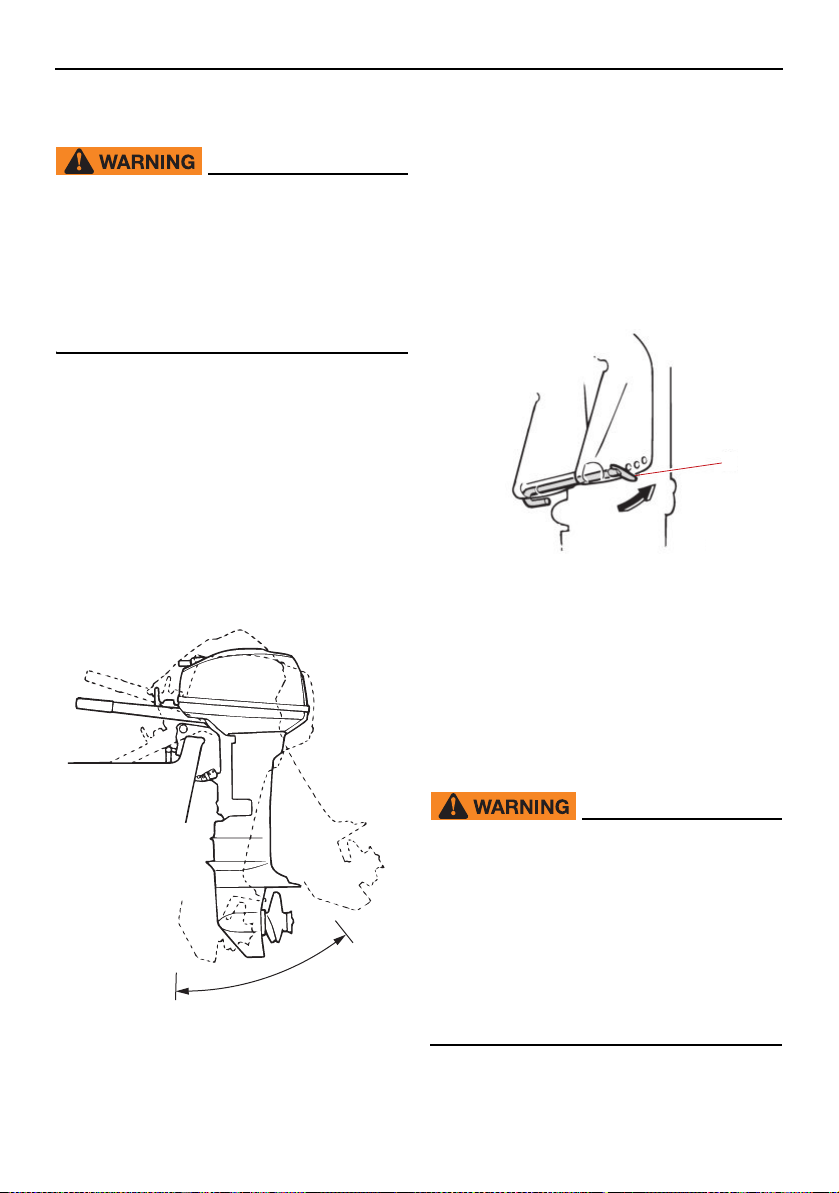

Tilting up and down ...................... 37
Procedure for tilting up (manual tilt
models) ......................................... 38
Procedure for tilting down (manual
tilt models) .................................... 39
Shallow water ............................... 39
Cruising in shallow water (manual
tilt models) .................................... 39
Cruising in other conditions.......... 40
Maintenance.................................... 42
Transporting and storing outboard
motor ......................................... 42
Clamp screw mounting models ....... 42
Storing outboard motor.................... 43
Procedure......................................... 43
Lubrication ....................................... 44
Cleaning the outboard motor........... 44
Checking painted surface of
outboard motor............................. 44
Periodic maintenance ................... 44
Replacement parts........................... 45
Severe operating conditions ............ 45
Maintenance chart 1......................... 46
Maintenance chart 2......................... 47
Greasing ........................................... 48

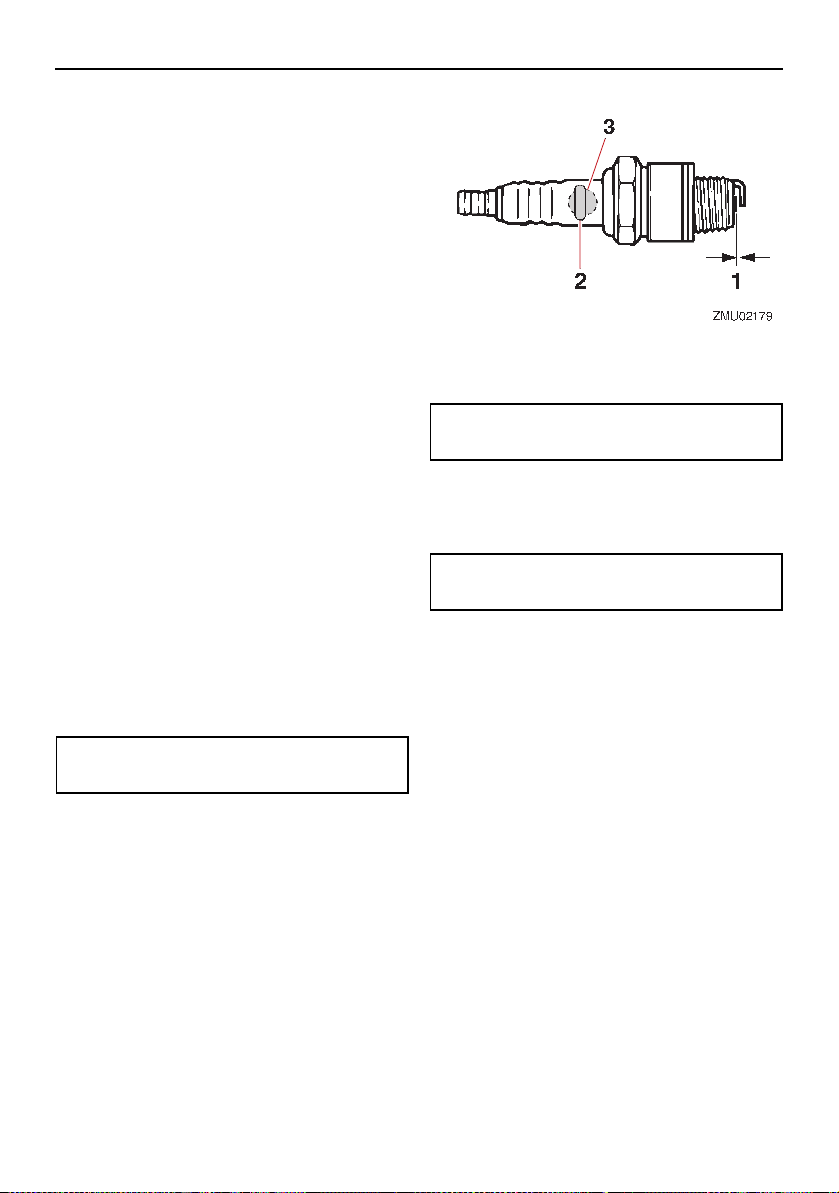

Cleaning and adjusting spark plug... 49
Checking fuel filter............................ 49
Inspecting idle speed ....................... 50
Inspecting wiring and connectors .... 50
Checking propeller ........................... 50

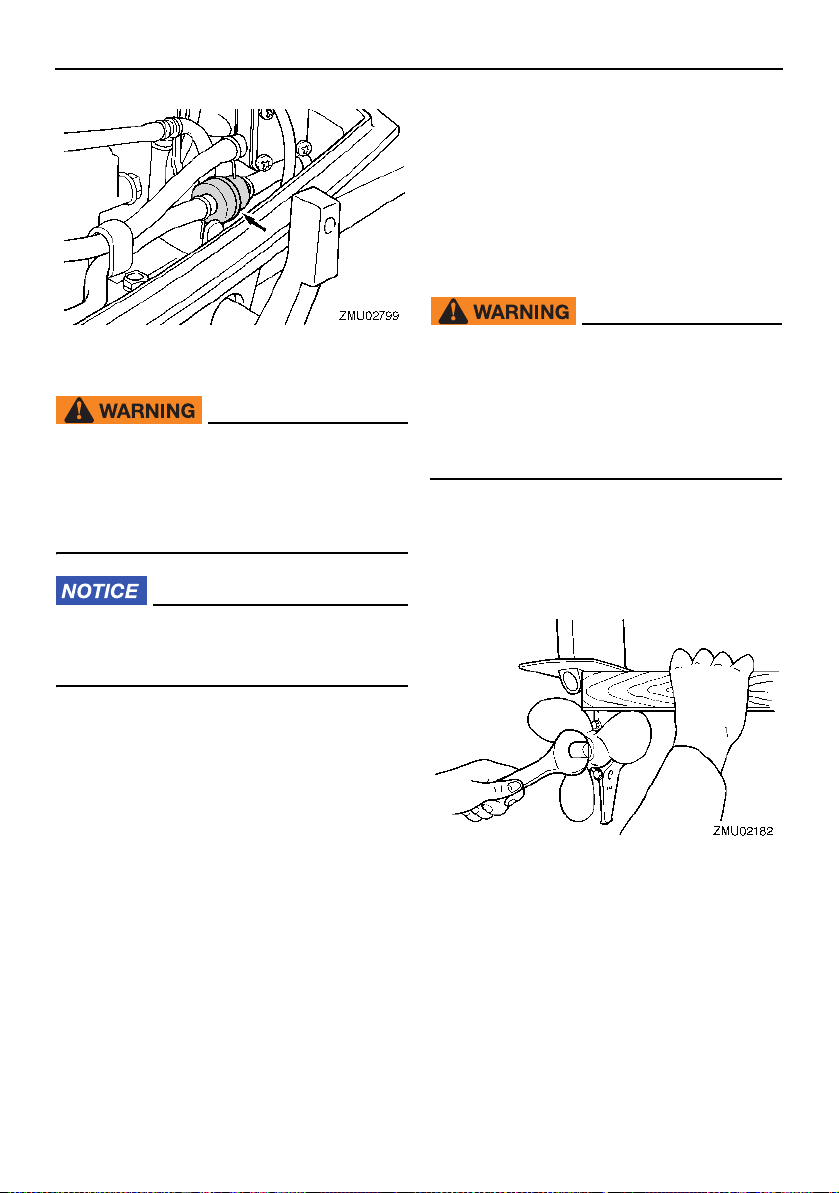

Removing propeller.......................... 51

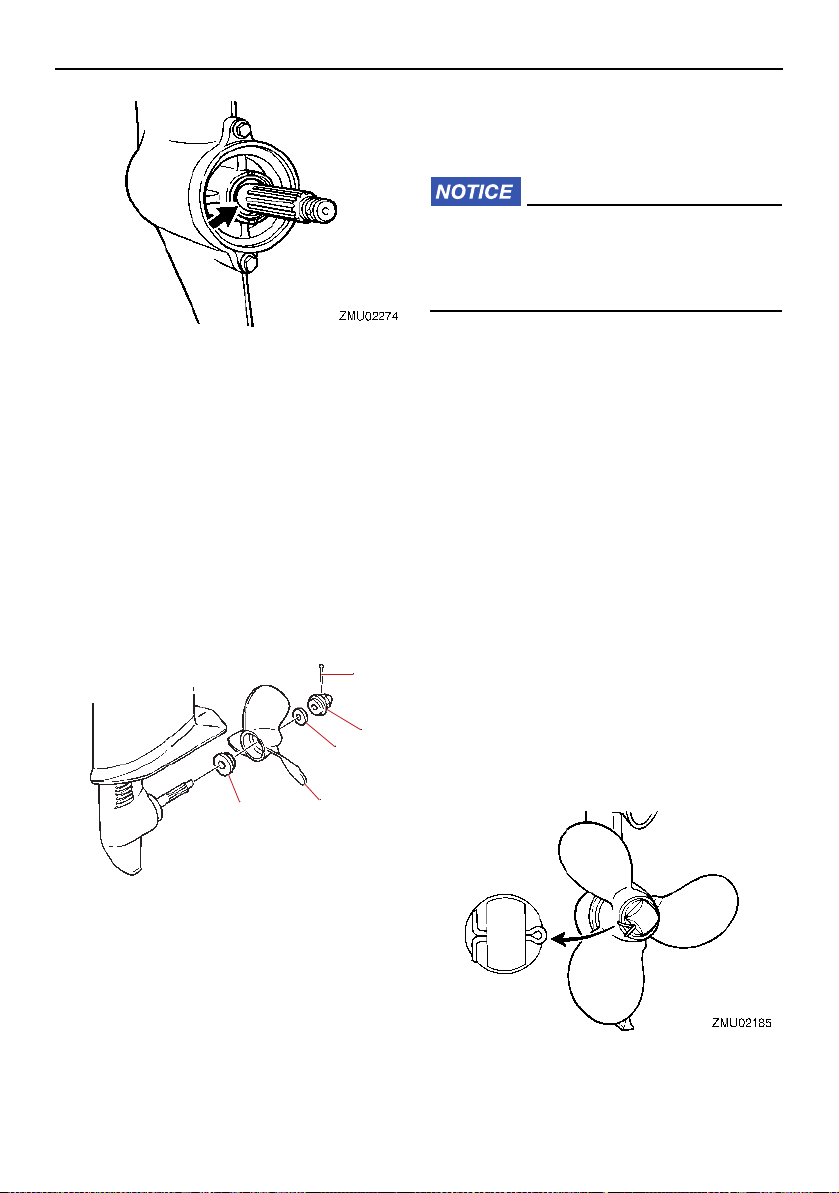

Installing propeller............................ 51
Changing gear oil ............................. 52
Inspecting and replacing anode(s) ... 53
Trouble Recovery............................ 54
Troubleshooting............................ 54
Temporary action in emergency ... 57
Impact damage ................................ 57
Starter will not operate..................... 57
Emergency starting engine............... 58

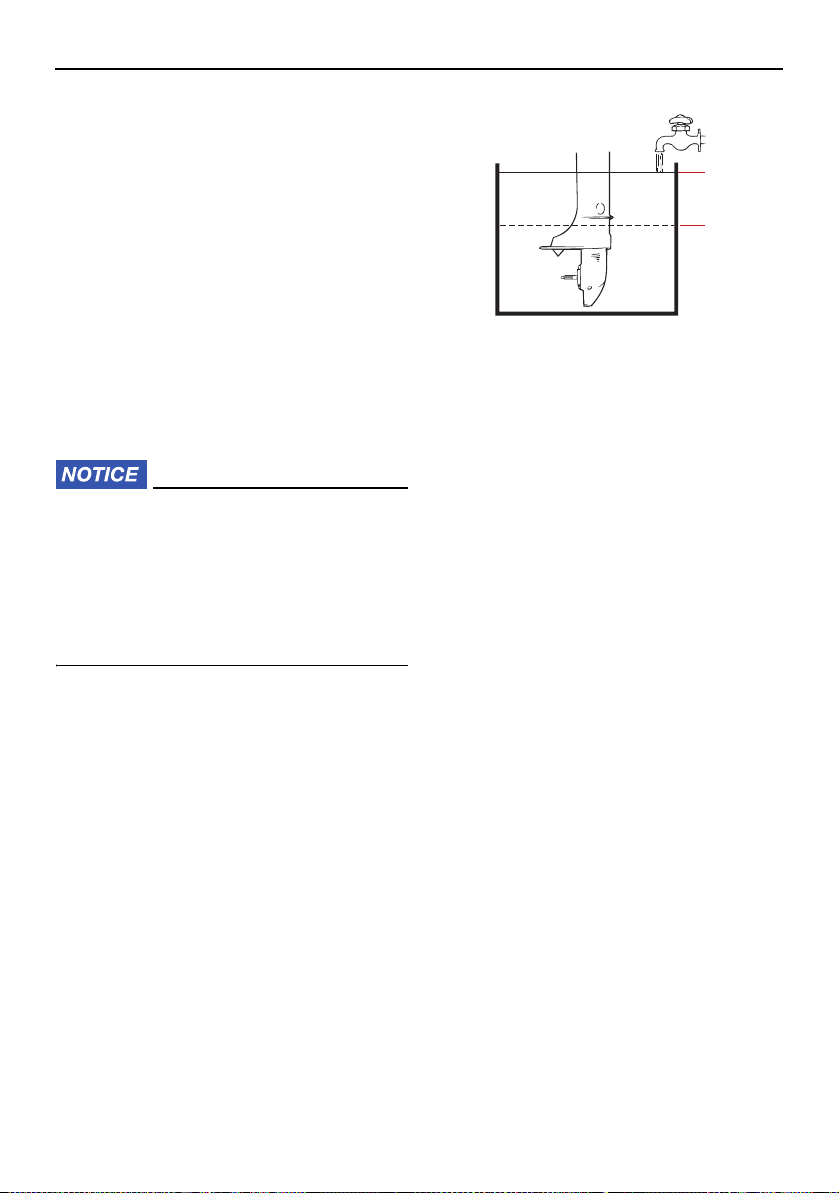

Treatment of submerged motor.... 59
INDEX ............................................... 60
Page 6

Safety information

EMU33623
Outboard motor safety
Observe these precautions at all times.
EMU36502
Propeller
People can be injured or killed if they come in contact with the propeller. The propeller can keep moving even when the motor is in neu­tral, and sharp edges of the propeller can cut even when stationary. Stop the engine when a person is in the
water near you.
Keep people out of reach of the propeller,
even when the engine is off.
EMU40272
Rotating parts
Hands, feet, hair, jewelry, clothing, personal flotation device (PFD) straps, etc., can be­come entangled with internal rotating parts of the engine, resulting in serious injury or death. Keep the top cowling in place whenever pos­sible. Do not remove or replace the top cowl­ing with the engine running. Only operate the engine with the top cowling removed according to the specific instruc­tions in the manual. Keep hands, feet, hair, jewelry, clothing, PFD straps, etc., away from any exposed moving parts.
EMU33641
Hot parts
During and after operation, engine parts are hot enough to cause burns. Avoid touching any parts under the top cowling until the en­gine has cooled.
EMU33651
Electric shock
Do not touch any electrical parts while start­ing or operating the engine. They can cause shock or electrocution.
EMU33672
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the engine stops if the operator falls overboard or leaves the helm. This prevents the boat from running away under power and leaving peo­ple stranded, or running over people or ob­jects. Always attach the engine shut-off cord to a secure place on your clothing or your arm or leg while operating. Do not remove it to leave the helm while the boat is moving. Do not at­tach the cord to clothing that could tear loose, or route the cord where it could be­come entangled, preventing it from function­ing. Do not route the cord where it is likely to be accidentally pulled out. If the cord is pulled during operation, the engine will shut off and you will lose most steering control. The boat could slow rapidly, throwing people and ob­jects forward.
EMU33811
Gasoline
Gasoline and its vapors are highly flamma­ble and explosive. Always, refuel according
to the procedure on page 30 to reduce the risk of fire and explosion.
EMU33821
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline spills, wipe it up immediately with dry rags. Dispose of rags properly. If any gasoline spills onto your skin, immedi­ately wash with soap and water. Change clothing if gasoline spills on it. If you swallow gasoline, inhale a lot of gaso­line vapor, or get gasoline in your eyes, get immediate medical attention. Never siphon fuel by mouth.
1
Page 7
Safety information
EMU33901
Carbon monoxide
This product emits exhaust gases which con­tain carbon monoxide, a colorless, odorless gas which may cause brain damage or death when inhaled. Symptoms include nausea, dizziness, and drowsiness. Keep cockpit and cabin areas well ventilated. Avoid blocking exhaust outlets.
EMU33781
Modifications
Do not attempt to modify this outboard mo­tor. Modifications to your outboard motor may reduce safety and reliability, and render the outboard unsafe or illegal to use.
EMU33742
Boating safety
This section includes a few of the many im­portant safety precautions that you should follow when boating.
EMU33711
Alcohol and drugs
Never operate after drinking alcohol or taking drugs. Intoxication is one of the most com­mon factors contributing to boating fatalities.
EMU40281
Personal flotation devices (PFDs)
Have an approved PFD on board for every occupant. Yamaha recommends that you must wear a PFD whenever boating. At a mi­nimum, children and non-swimmers should always wear PFDs, and everyone should wear PFDs when there are potentially hazard­ous boating conditions.
EMU33732
People in the water
Always watch carefully for people in the wa­ter, such as swimmers, skiers, or divers, whenever the engine is running. When some­one is in the water near the boat, shift into neutral and stop the engine. Stay away from swimming areas. Swimmers can be hard to see. The propeller can keep moving even when the motor is in neutral. Stop the engine when a person is in the water near you.
EMU33752
Passengers
Consult your boat manufacturer’s instruc­tions for details about appropriate passenger locations in your boat and be sure all passen­gers are positioned properly before acceler­ating and when operating above an idle speed. Standing or sitting in non-designated locations may result in being thrown either overboard or within the boat due to waves, wakes, or sudden changes in speed or direc­tion. Even when people are positioned prop­erly, alert your passengers if you must make any unusual maneuver. Always avoid jump­ing waves or wakes.
EMU33763
Overloading
Do not overload the boat. Consult the boat capacity plate or boat manufacturer for maxi­mum weight and number of passengers. Be sure that weight is properly distributed ac­cording to the boat manufacturer’s instruc­tions. Overloading or incorrect weight distribution can compromise the boat’s han­dling and lead to an accident, capsizing or swamping.
2
Page 8
Safety information

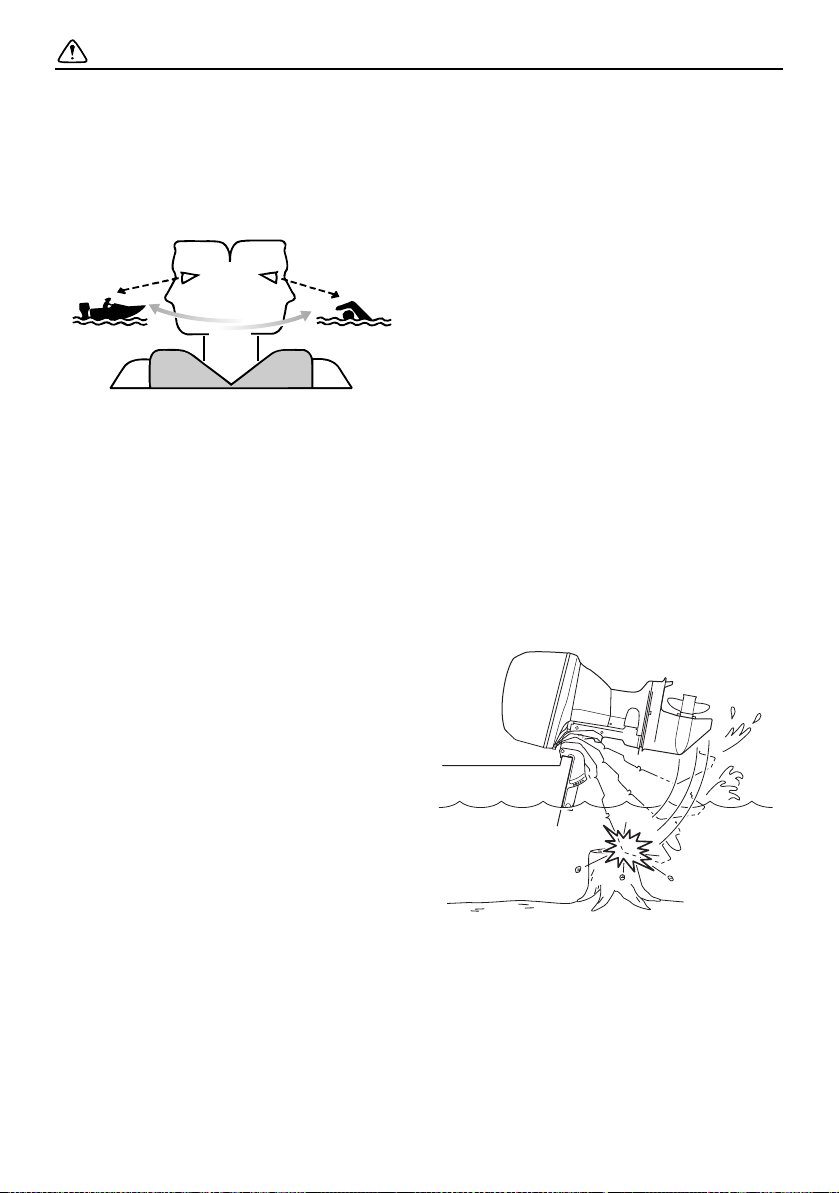

ZMU06025
EMU33773
Avoid collisions
Scan constantly for people, objects, and oth­er boats. Be alert for conditions that limit your visibility or block your vision of others.
Operate defensively at safe speeds and keep a safe distance away from people, objects, and other boats. Do not follow directly behind other boats or
waterskiers.
Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un­derstand where you are going.
Avoid areas with submerged objects or
shallow water.
Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss of control, ejection, and collision.
Take early action to avoid collisions. Re-
member, boats do not have brakes, and stopping the engine or reducing throttle can reduce the ability to steer. If you are not sure that you can stop in time before hitting an obstacle, apply throttle and turn in an­other direction.
The passengers and any loose equipment
or luggage could be thrown forward due to the sudden deceleration.
Parts of the outboard motor could come
loose as a result of the impact and could be thrown into the boat.
The boat or outboard motor could be dam-
aged as a result of the impact. When you operate the boat in an area where there might be floating objects or obstacles in the water, be sure to adjust the trim angle of the outboard motor, slow down, and operate carefully. For further information, see page

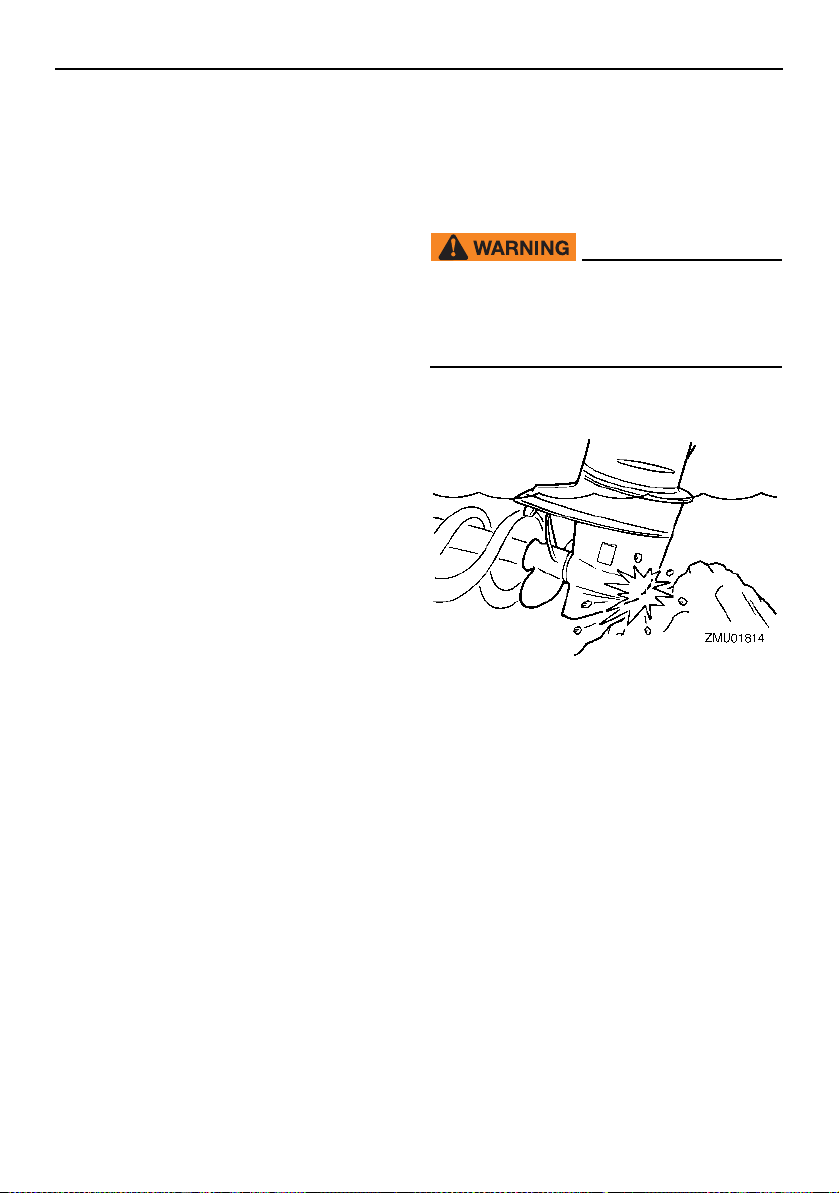

39. If the outboard motor hits a floating object or an obstacle in the water, make sure that there are no abnormalities with the boat and the outboard motor. If anything abnormal is found, return to the nearest harbor at low speed and have a Yamaha dealer inspect the outboard motor.
EMU48100
Collisions with floating or submerged objects
If the outboard motor hits a floating object or an obstacle in the water while cruising, the following could occur:
3
EMU33791
Weather
Stay informed about the weather. Check weather forecasts before boating. Avoid boating in hazardous weather.
Page 9
EMU33881
Passenger training
Make sure at least one other passenger is trained to operate the boat in the event of an emergency.
EMU33891
Boating safety publications
Be informed about boating safety. Additional publications and information can be obtained from many boating organizations.
EMU33602
Laws and regulations
Know the marine laws and regulations where you will be boating—and obey them. Several sets of rules prevail according to geographic location, but all are basically the same as the International Rules of the Road.
Safety information
4
Page 10

General information

11
3412
ZMU01692
1
EMU25172
Identification numbers record
EMU25186
Outboard motor serial number
The outboard motor serial number is stamped on the label attached to the port side of the clamp bracket. Record your outboard motor serial number in the spaces provided to assist you in ordering spare parts from your Yamaha dealer or for reference in case your outboard motor is sto­len.
1. Outboard motor serial number location
EMU38983
EC Declaration of Conformity
(DoC)
This declaration is included with outboard motors that conform to European regula­tions. This outboard motor conforms to certain por­tions of the European Parliament directive re­lating to machinery. Each conformed outboard motor accompa­nied with EC DoC. EC DoC contains the fol­lowing information;
Name of engine manufacturerModel nameProduct code of model (Approved model
code) Code of conformed directives
EMU38995
CE Marking
This label is affixed to outboard motors that conform to European regulations. Outboard motors affixed with this “CE” mark­ing conform with the directives of; 2006/42/EC, 94/25/EC - 2003/44/EC, 2014/30/EU, and 2004/108/EC, 2013/53/EU.
1. Serial number
2. Model name
3. Motor transom height
4. Approved model code
5
1. CE marking location
Page 11
General information
ZMU08148
2500 SHINGAI, IWATA,
SHIZUOKA, JAPAN
YAMAHA MOTOR CO., LTD.
YAMAHA
6
Page 12
General information
4
5
1
3
2
3
EMU33524
Read manuals and labels
Before operating or working on this outboard motor:
Read this manual.Read any manuals supplied with the boat.Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33836
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
7
Page 13
General information
6EE-G2794-40
1
2
3
6EE-G2794-50
6EE-H1994-40
6EE-H1994-50
6EE-H1995-40
6EE-H1995-50
6EE-G2698-50
4
6EE-G2698-40
EMU35282
Contents of labels
The above warning labels mean as follows.
1
EWM01692
Emergency starting does not have start­in-gear protection. Ensure shift control is in neutral before starting engine.
2
EWM01682
Keep hands, hair, and clothing away
from rotating parts while the engine is running.
Do not touch or remove electrical parts
when starting or during operation.
3
EWM01672
Read Owner’s Manuals and labels.Wear an approved personal flotation de-
vice (PFD). Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the helm,
which could prevent a runaway boat.
8
Page 14
General information
E10E5
BB8-F817K-30
5
ZMU05696
ZMU05664
ZMU05665
ZMU05666
4
EWM01702
Gasoline is highly flammable and explo­sive. Shut off engine before refueling. Tighten tank cap and air vent screw when not in use.
EMU33851
Other labels
EMU35133
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
9
Page 15

Specifications and requirements

TIP:
EMU38092
Specifications
“(AL)” stated in the specification data below represents the numerical value for the alumi­num propeller installed.
EMU48360
Dimension and weight:
Overall length:
677 mm (26.7 in)
Overall width:
322 mm (12.7 in)
Overall height S:
1011 mm (39.8 in)
Overall height L:
1138 mm (44.8 in)
Motor transom height S:
444 mm (17.5 in)
Motor transom height L:
571 mm (22.5 in)
Dry weight (AL) S:
21 kg (46 lb)
Dry weight (AL) L:
22 kg (47 lb)
Performance:
Full throttle operating range:
4500–5500 r/min
Rated power:
2.9 kW (4 HP)
Idle speed (in neutral):
1100–1200 r/min
Power unit:
Type:
2-stroke S1
Total displacement:
103 cm³ (6.3 c.i.)
Bore × stroke:
54.0 × 45.0 mm (2.13 × 1.77 in)
Ignition system:
CDI
Spark plug with resistor (NGK):
BR7HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Steering system:
Tiller handle
Starting system:
Manual starter
Starting carburetion system:
Choke valve
Alternator output:
40/60 W
Lower unit:
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Propeller mark:
BA
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
Fuel tank capacity:
12 L (3.17 US gal, 2.64 Imp.gal)
Fuel tank capacity (built in type):
2.8 L (0.74 US gal, 0.62 Imp.gal)
Recommended engine oil:
YAMALUBE 2-stroke outboard motor oil
Recommended engine oil:
TC-W3
Gasoline:oil mixing ratio:
100 : 1
Lubrication system:
Pre-mixed fuel and oil
10
Page 16
Specifications and requirements
Recommended gear oil:
YAMALUBE outboard gear oil or Hypoid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.100 L (0.106 US qt, 0.088 Imp.qt)
Noise and vibration level:
Operator sound pressure level (ICOMIA 39/94):
81.4 dB(A)
Vibration on tiller handle (ICOMIA 38/94):
6.0 m/s²
EMU33556
Installation requirements
EMU33566
Boat horsepower rating
EWM01561
Overpowering a boat can cause severe in­stability.
Before installing the outboard motor(s), con­firm that the total horsepower of your out­board motor(s) does not exceed the boat’s maximum horsepower rating. See the boat’s capacity plate or contact the manufacturer.
EMU40491
Mounting outboard motor
EWM02501
Improper mounting of the outboard mo-
tor could result in hazardous conditions such as poor handling, loss of control, or fire hazards.
Because the outboard motor is very
heavy, special equipment and training is required to mount it safely.
Your dealer or other person experienced in proper rigging should mount the outboard motor using correct equipment and complete rigging instructions. For further information, see page 21.
EMU25695
Battery requirements
EMU25733
To use the battery
ECM01091
A battery cannot be connected to models that do not have a rectifier or Rectifier Regulator.
If you wish to use a battery, your outboard motor must be equipped with the following parts.
Rectifier or Rectifier RegulatorLighting coil
If you do not know if your outboard motor is equipped with these parts, consult your Yamaha dealer. Using maintenance-free sealed batteries or gel cell batteries is not recommended be­cause they may not be compatible with Yamaha’s charging system for this outboard motor. Install an optional Rectifier Regulator or use accessories rated to withstand 18 volts or higher with the above models. Consult your Yamaha dealer for details on installing an op­tional Rectifier Regulator.
EMU34196
Propeller selection
Next to selecting an outboard motor, select­ing the right propeller is one of the most im­portant purchasing decisions a boater can make. The type, size, and design of your pro­peller have a direct impact on acceleration, top speed, fuel economy, and even engine
11
Page 17
Specifications and requirements
ZMU04604
-
x
123
life. Yamaha designs and manufactures pro­pellers for every Yamaha outboard motor and every application. Your outboard motor came with a Yamaha propeller selected to perform well over a range of applications, but there may be uses where a different propeller would be more appropriate. Your Yamaha dealer can help you select the right propeller for your boating needs. Select a propeller that will allow the engine to reach the middle or upper half of the operating range at full throttle with the maximum boat­load. Generally, select a larger pitch propeller for a smaller operating load and a smaller pitch propeller for a heavier load. If you carry loads that vary widely, select the propeller that lets the engine run in the proper range for your maximum load but remember that you may need to reduce your throttle setting to stay within the recommended engine speed range when carrying lighter loads. To check the propeller, see page 50.
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
EMU39192
Start-in-gear protection
Yamaha outboard motors are equipped with start-in-gear protection device. This feature permits the engine to be started only when it is in neutral. Always select neutral before starting the engine.
EMU25653
Engine oil requirements
Recommended engine oil:
YAMALUBE 2-stroke outboard motor oil
If the recommended engine oil is not avail­able, another 2-stroke engine oil with an NMMA-certified TC-W3 rating may be used.
EMU48120
Why Yamalube
YAMALUBE oil is a Genuine YAMAHA Part born of the engineers’ passion and belief that engine oil is an important liquid engine com­ponent. We form teams of specialists in the fields of mechanical engineering, chemistry, electronics and track testing, and have them develop the engine together with the oil it will use. Yamalube oils take full advantage of the base oil’s qualities and blend in the ideal ba­lance of additives to make sure the final oil clears our performance standards. Thus, Yamalube mineral, semisynthetic and syn­thetic oils have their own distinct characters and value. Yamaha’s experience gained over many years of research and development into oil since the 1960’s helps make Yamalube the best choice for your Yamaha engine.
12
Page 18
Specifications and requirements
TIP:
This mark identifies the recommended fuel
for this outboard motor as specified by Eu-
ropean regulation (EN228). Check that gasoline nozzle has the same
identifier when fueling.
EMU36361
Fuel requirements
EMU40203
Gasoline
Use a good quality gasoline that meets the minimum octane rating. If knocking or ping­ing occurs, use a different brand of gasoline or premium unleaded fuel.
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
ECM01982
Do not use leaded gasoline. Leaded
gasoline can seriously damage the en­gine.
Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can cause poor performance or engine dam­age. Use only fresh gasoline that has been stored in clean containers.
E5 E10
Gasohol
There are two types of gasohol: gasohol con­taining ethanol (E5 and E10) and that contain­ing methanol. Ethanol can be used if the ethanol content does not exceed 10% and the fuel meets the minimum octane ratings. E85 is a fuel containing 85% ethanol and must not be used in your outboard motor. All ethanol blends containing more than 10% ethanol can cause fuel system damage or cause engine starting and running problems. Yamaha does not recommend gasohol con­taining methanol because it can cause fuel system damage or engine performance prob­lems. It is recommended that you install a water­separating marine fuel filter assembly (10 mi­cron minimum) between your boat’s fuel tank and outboard motor when using ethanol. Eth­anol is known to allow moisture to be ab­sorbed into boat fuel tanks and systems. Moisture in the fuel can cause corrosion of metallic fuel system components, starting and running complaints and require addition­al fuel system maintenance.
EMU36881
Muddy or acidic water
Yamaha strongly recommends that you have your dealer install the optional chromium­plated water pump kit if you use the outboard motor in muddy or acidic water conditions. However, depending on the model it might not be required.
13
Page 19
Specifications and requirements
EMU36331

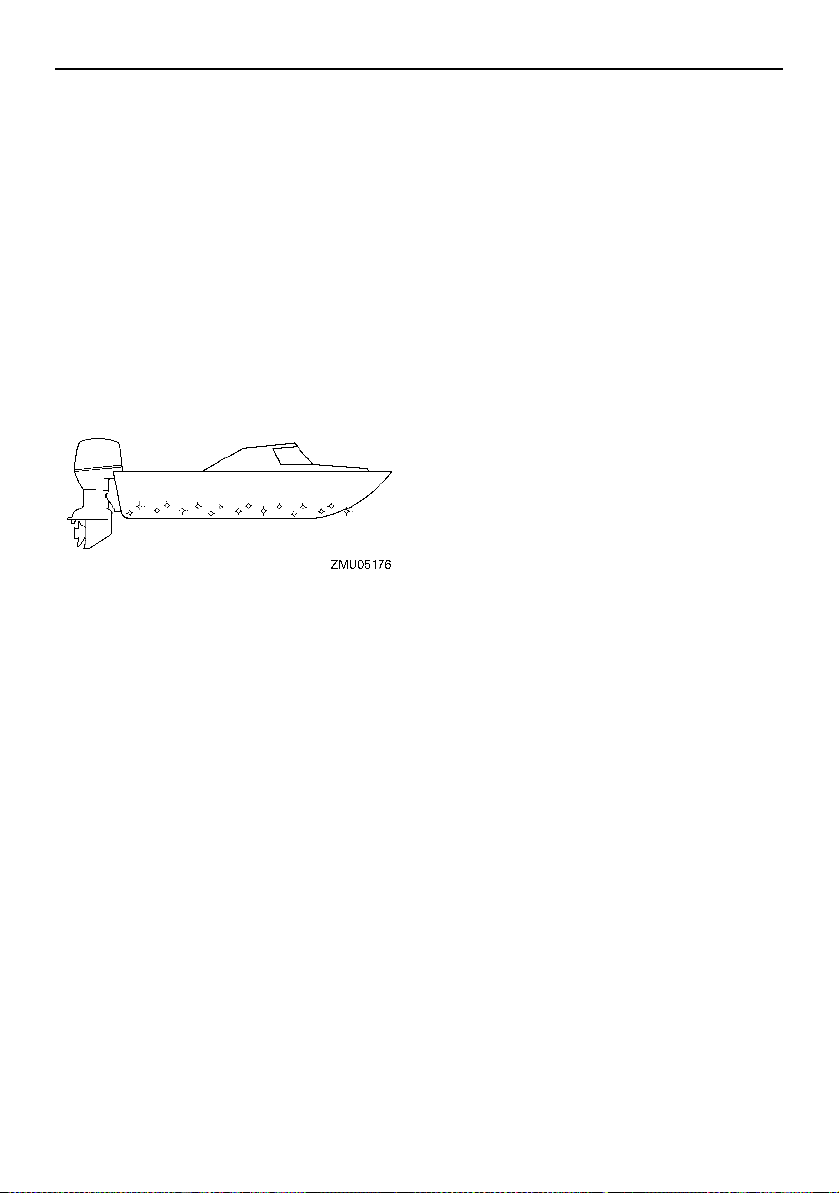

Anti-fouling paint
A clean hull improves boat performance. The boat bottom should be kept as clean of mari­ne growth as possible. If necessary, the boat bottom can be coated with an anti-fouling paint approved for your area to inhibit marine growth. Do not use anti-fouling paint which includes copper or graphite. These paints can cause more rapid engine corrosion.
EMU40302
Outboard motor disposal re-
quirements
Never illegally discard (dump) the outboard motor. Yamaha recommends consulting the dealer about discarding the outboard motor.
EMU36353
Emergency equipment
Keep the following items onboard in case there is trouble with the outboard motor. A tool kit with assorted screwdrivers, pliers,
wrenches (including metric sizes), and electrical tape.
Waterproof flashlight with extra batteries.An extra engine shut-off cord (lanyard) with
clip.
Spare parts, such as an extra set of spark
plugs.
Consult your Yamaha dealer for details.
14
Page 20

Components

TIP:
22
1
2
3
4 5
6
23
8
9
10
18
19
14
15
16
17
11
12
13
7
20
21
EMU46722
Components diagram
* May not be exactly as shown; also may not be included as standard equipment on all models (order from dealer).
1. Air vent screw
2. Fuel tank cap
3. Top cowling
4. Cowling lock lever
5. Steering friction adjuster
6. Anti-cavitation plate
7. Propeller
8. Cooling water inlet
9. Trim rod
10.Clamp bracket
11.Clamp screw
12.Tiller handle
13.Throttle friction adjuster
14.Manual starter handle
15.Choke knob
15
16.Engine stop button/Engine shut-off switch
17.Fuel joint
18.Restraint cable attachment
19.Tilt support bar
20.Gear shift lever
21.Fuel cock
22.Fuel tank
23.Anode
EMU25804
Fuel tank
If your model was equipped with a portable fuel tank, its function is as follows.
Page 21
Components
1
2
3
1
2
1
1

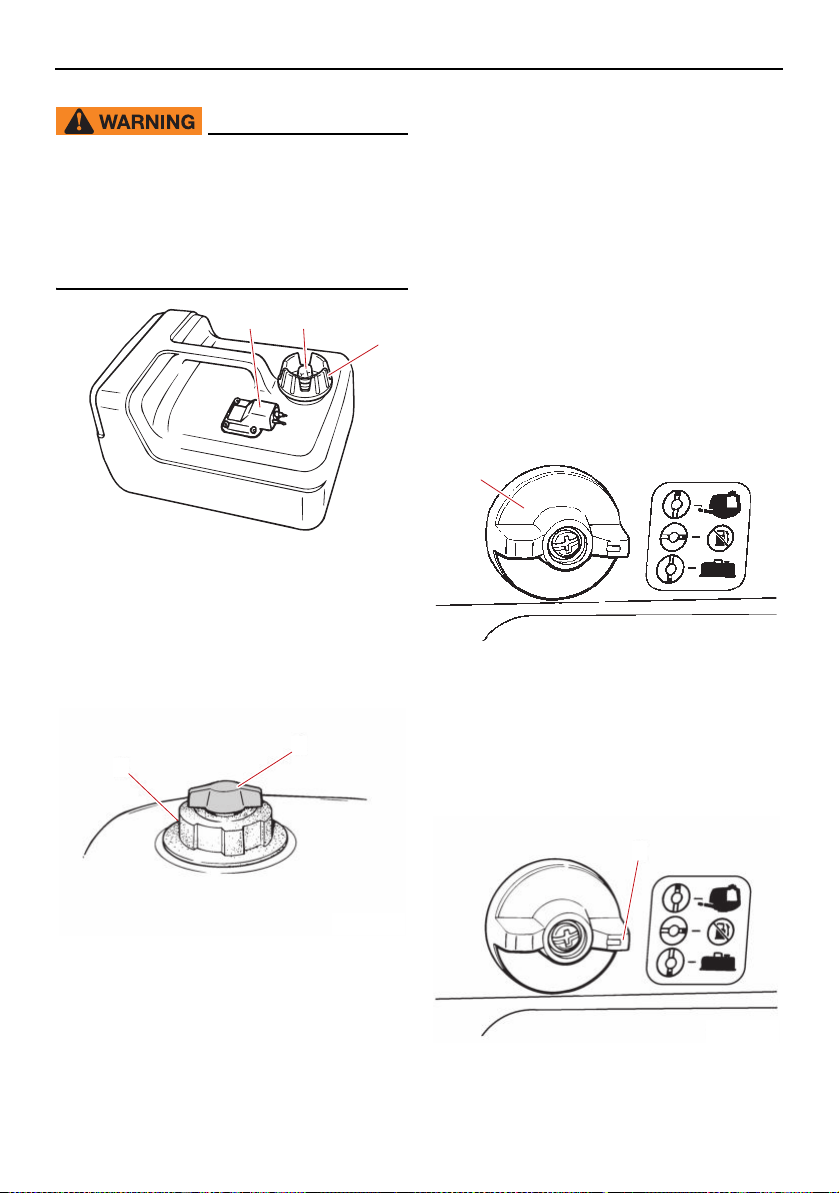

EWM00021
The fuel tank supplied with this engine is its dedicated fuel reservoir and must not be used as a fuel storage container. Com­mercial users should conform to relevant licensing or approval authority regula­tions.

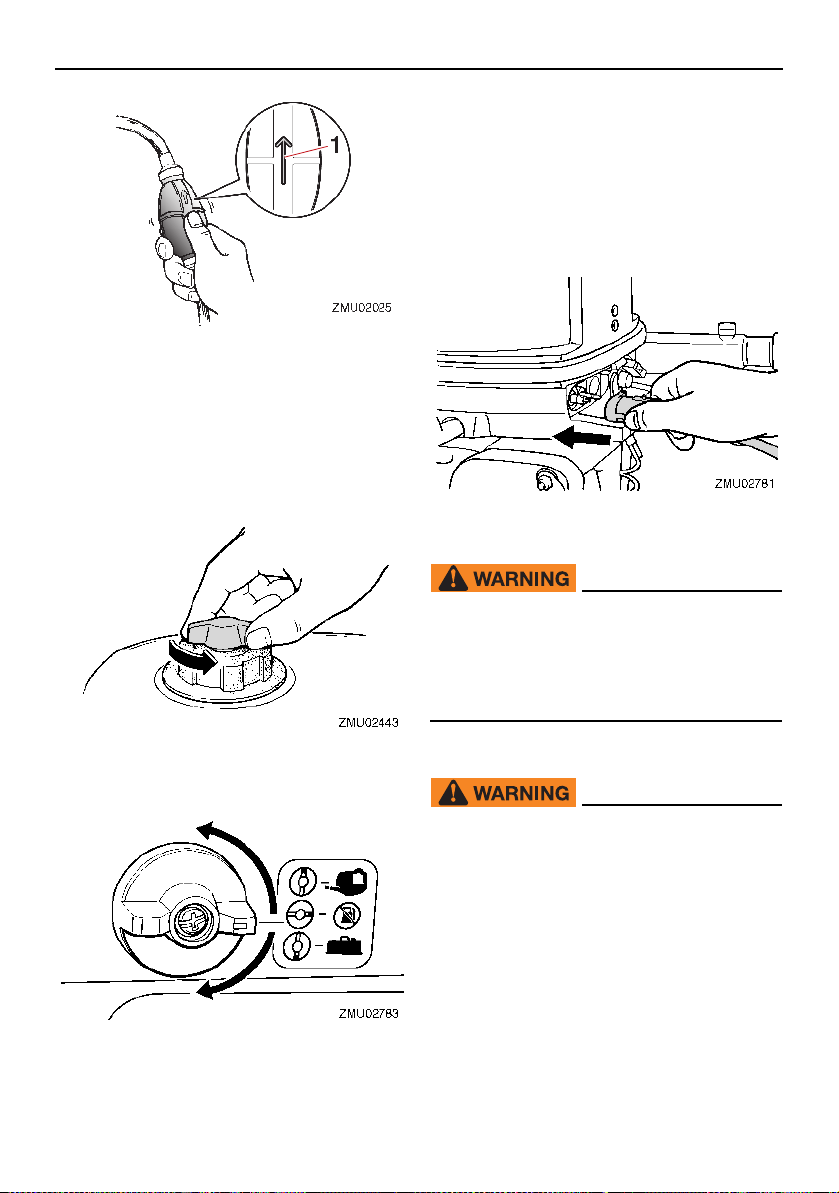

1. Fuel joint
2. Fuel tank cap
3. Air vent screw
EMU25822
Fuel tank
If your model included a fuel tank, its parts and functions are as follows.
EMU25851
Fuel tank cap
This cap seals the fuel tank. When removed, the tank can be filled with fuel. To remove the cap, turn it counterclockwise.
EMU25861
Air vent screw
This screw is on the fuel tank cap. To loosen the screw, turn it counterclockwise.
EMU25873

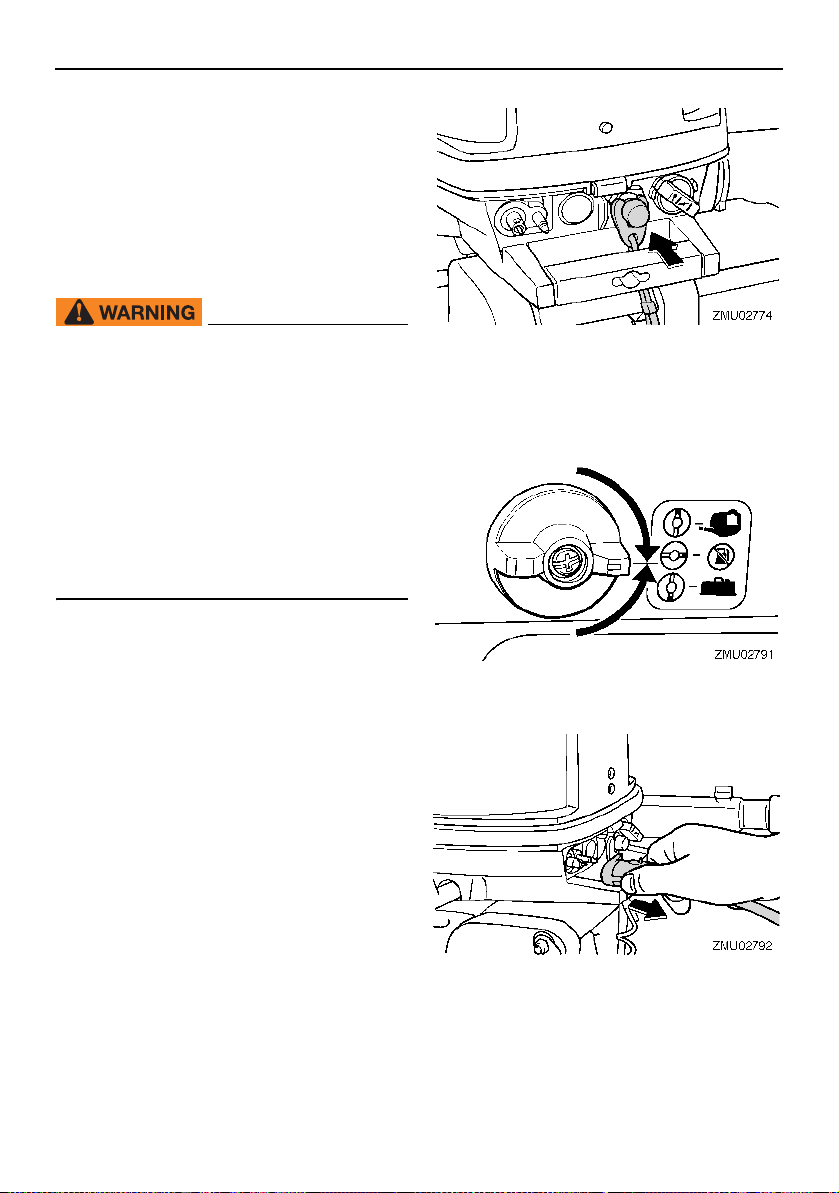

Fuel cock
The fuel cock turns on and off the supply of fuel from the fuel tank to the engine.
1. Fuel cock
EMU25882
Close
To stop fuel flow to the engine, turn the lever or knob to close position. Always turn the lever or knob to close posi­tion when the engine is not running.
1. Air vent screw
2. Fuel tank cap
EMU25831
Fuel joint
This joint is used to connect the fuel line.
1. Close position
16
Page 22
Components
1
2
1
23

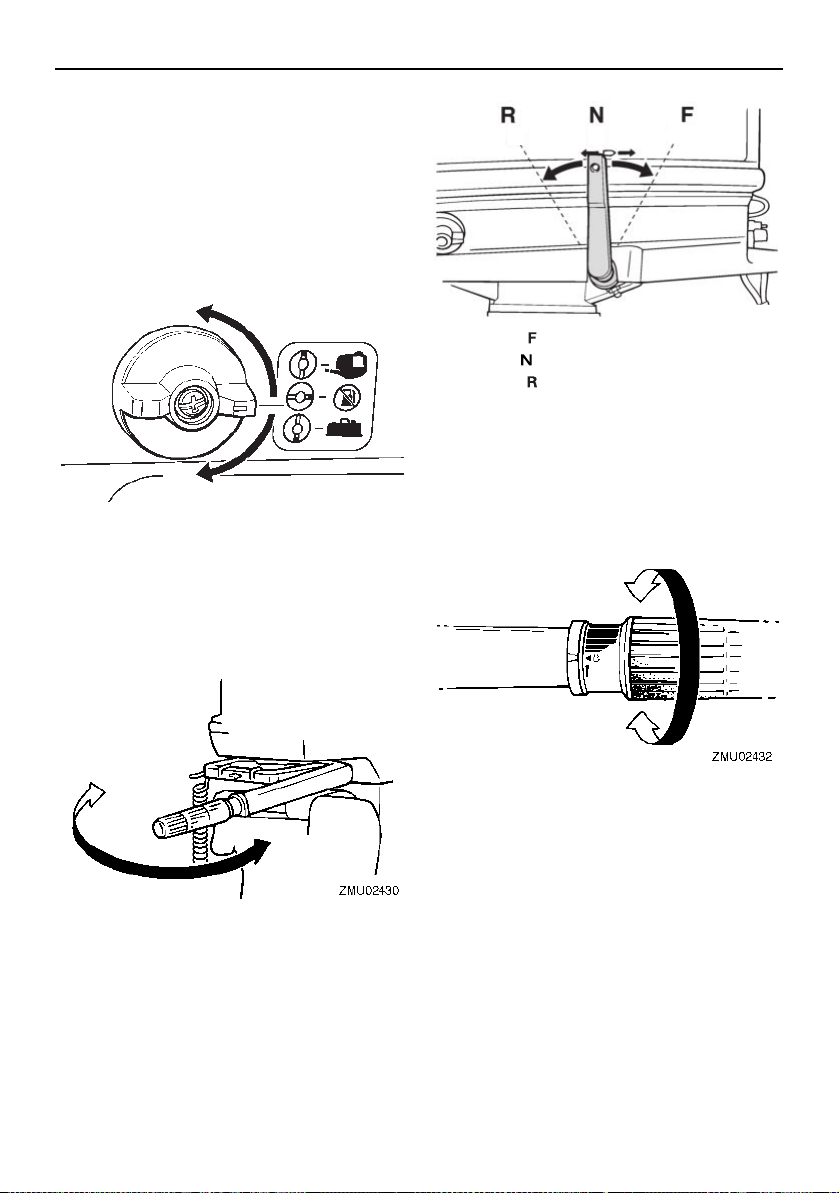

EMU25902
Open
The fuel cock has two open positions, one for selecting fuel flow from the built-in fuel tank, and one for an external tank. Fuel flows to the carburetor with the lever or knob in either open position. These are the normal running positions.
1. “OPEN” position for the built-in tank
2. “OPEN” position for the portable tank
EMU25914
Tiller handle
To change direction, move the tiller handle to the left or right as necessary.
1. Forward “ ”
2. Neutral “ ”
3. Reverse “ ”
EMU25943
Throttle grip
The throttle grip is on the tiller handle. Turn the grip counterclockwise to increase speed and clockwise to decrease speed.
EMU25925
Gear shift lever
Move the gear shift lever forward to engage the forward gear or rearward to engage the reverse gear.
17
EMU25963
Throttle indicator
The fuel consumption curve on the throttle in­dicator shows the relative amount of fuel con­sumed for each throttle position. Choose the setting that offers the best performance and fuel economy for the desired operation.
Page 23
1. Throttle indicator
1
1
2
3
EMU25978
Throttle friction adjuster
A friction device provides adjustable resis­tance to movement of the throttle grip or the remote control lever, and can be set accord­ing to operator preference. To increase resistance, turn the adjuster clockwise. To decrease resistance, turn the adjuster counterclockwise. WARNING! Do
not overtighten the friction adjuster. If there is too much resistance, it could be difficult to move the remote control lever or throttle grip, which could result in an accident.
[EWM00033]
Components
EMU25996
Engine shut-off cord (lanyard) and clip
The clip must be attached to the engine shut­off switch for the engine to run. The cord should be attached to a secure place on the operator’s clothing, or arm or leg. Should the operator fall overboard or leave the helm, the cord will pull out the clip, stopping ignition to the engine. This will prevent the boat from running away under power. WARNING! At-
tach the engine shut-off cord to a secure place on your clothing, or your arm or leg while operating. Do not attach the cord to clothing that could tear loose. Do not rou­te the cord where it could become entan­gled, preventing it from functioning. Avoid accidentally pulling the cord during nor­mal operation. Loss of engine power means the loss of most steering control. Also, without engine power, the boat could slow rapidly. This could cause peo­ple and objects in the boat to be thrown forward.
[EWM00123]
When constant speed is desired, tighten the adjuster to maintain the desired throttle set­ting.
1. Engine shut-off cord (lanyard)
2. Clip
3. Engine shut-off switch
EMU26004
Engine stop button
The engine stop button stops the engine when the button is pushed.
18
Page 24
Components
EMU26021
Choke knob

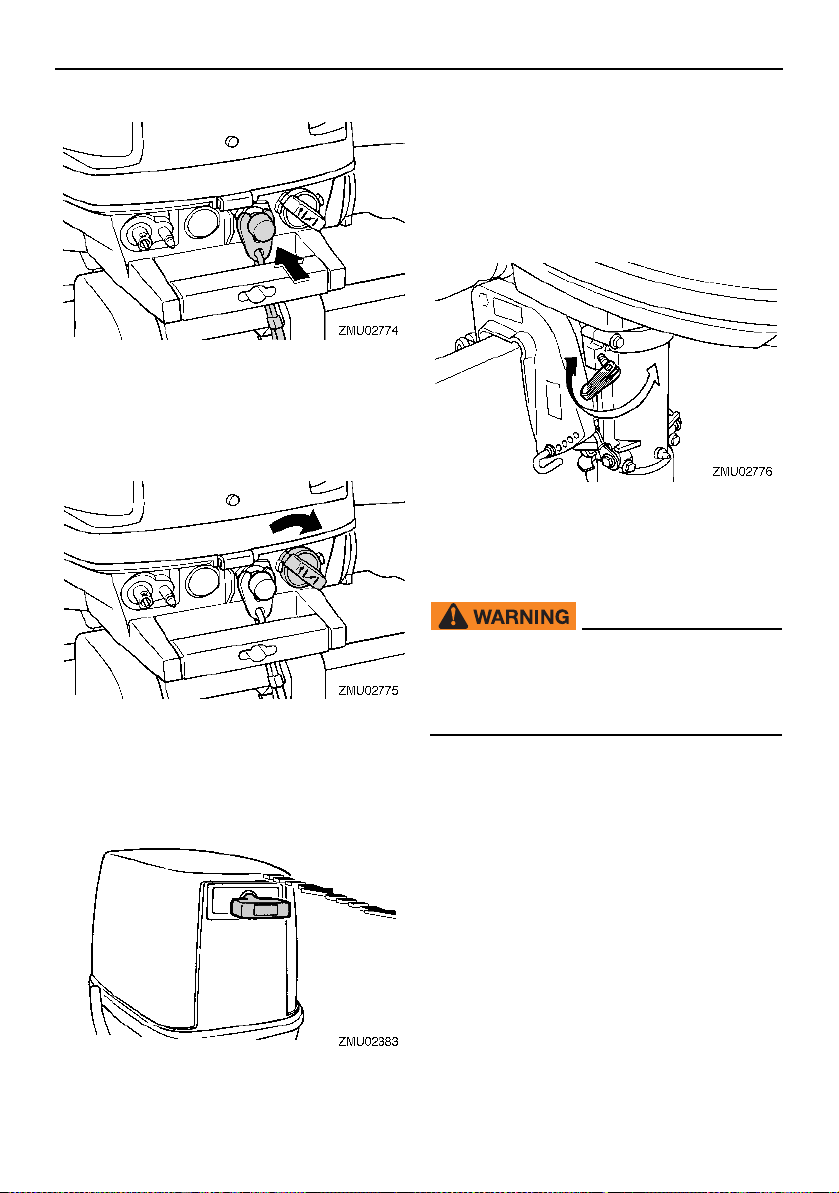

To supply the engine with the rich fuel mix­ture required to start, turn this knob to the right.
EMU26124
Steering friction adjuster
A friction device provides adjustable resis­tance to the steering mechanism, and can be set according to operator preference. An ad­justing screw or bolt is located on the swivel bracket.
To increase resistance, turn the adjuster clockwise. To decrease resistance, turn the adjuster counterclockwise.
EWM00041
EMU26075
Manual starter handle
The manual starter handle is used to crank and start the engine.
19
Do not overtighten the friction adjuster. If there is too much resistance, it could be difficult to steer, which could result in an accident.
EMU26263
Trim rod (tilt pin)
The position of the trim rod determines the minimum trim angle of the outboard motor in relation to the transom.
Page 25
Components
1

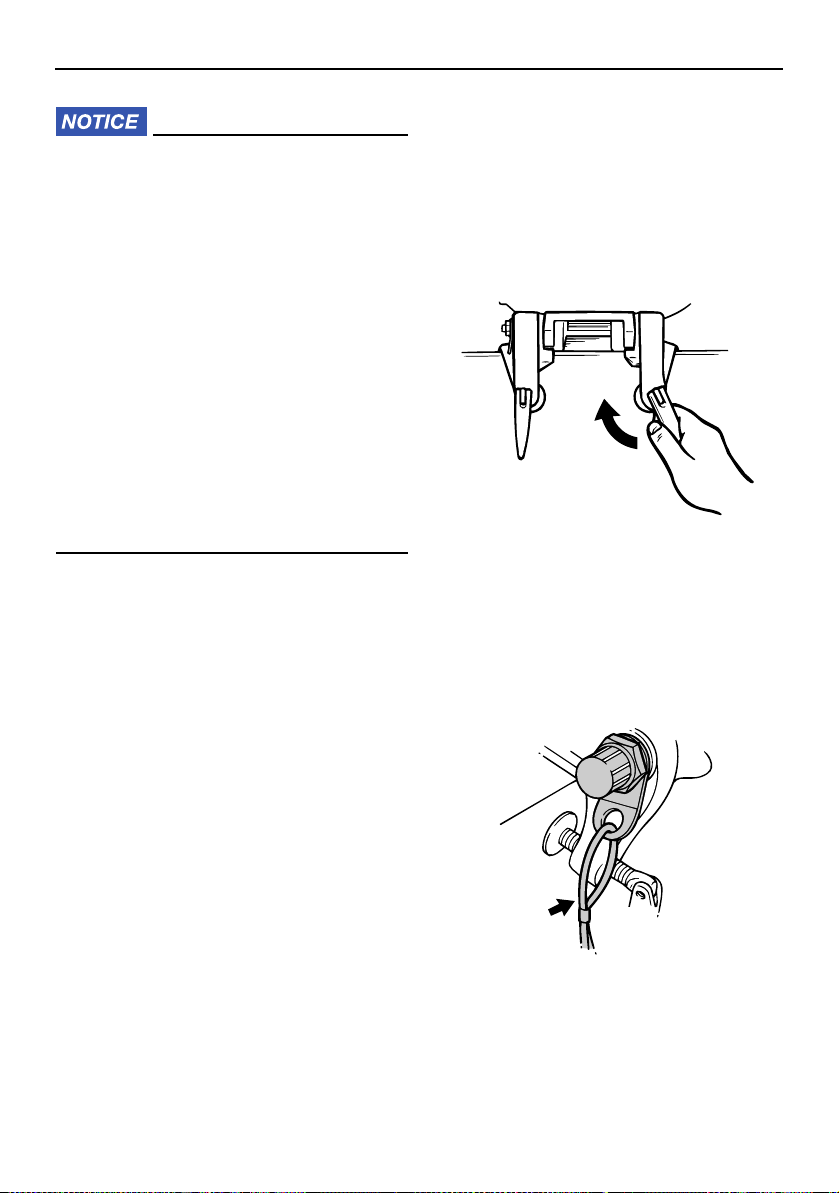

EMU26334

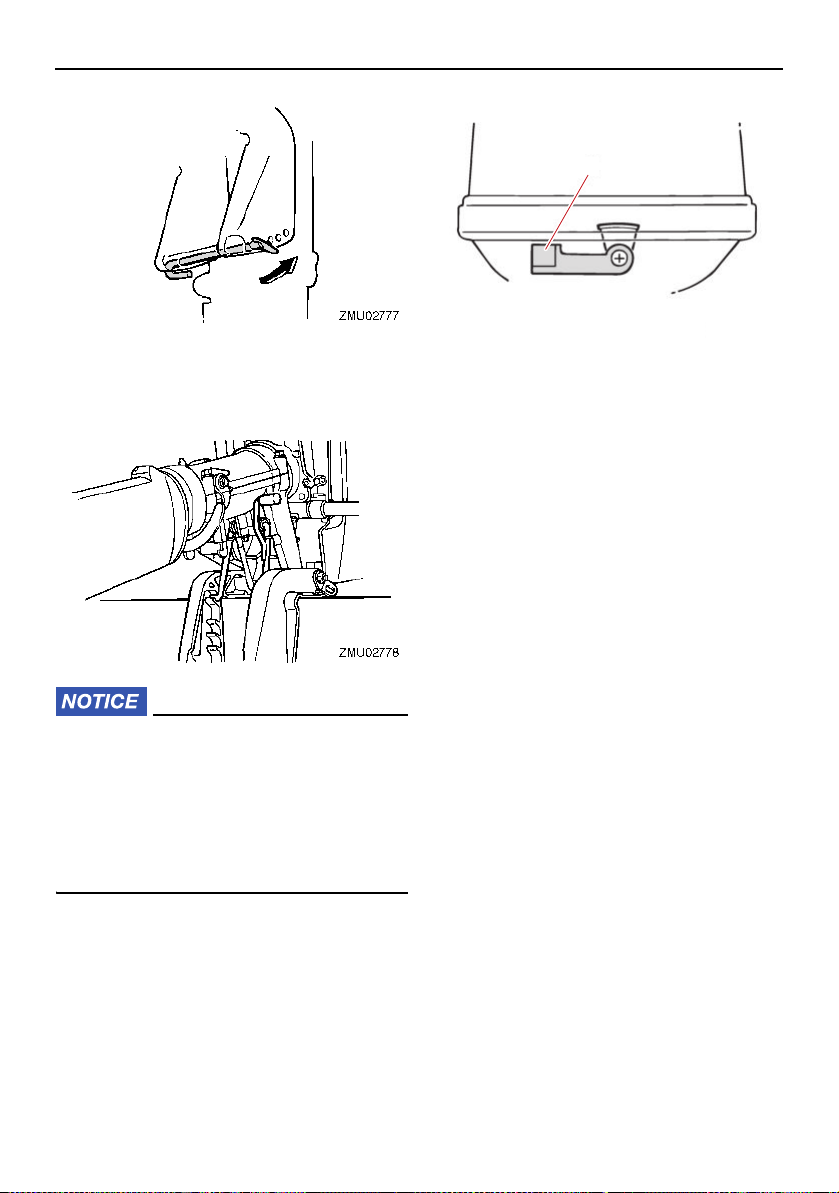

Tilt support bar
The tilt support bar keeps the outboard motor in the tilted up position.
ECM01661
Do not use the tilt support bar when traile­ring the boat. The outboard motor could shake loose from the tilt support and fall. If the motor cannot be trailered in the nor­mal running position, use an additional support device to secure it in the tilt posi­tion.
EMU39264
Cowling lock lever
The cowling lock lever(s) is used to secure the top cowling.
1. Cowling lock lever
20
Page 26

Installation

1
ZMU02011
0–25mm (0–1in)
EMU26903
Installation
The information presented in this section is intended as reference only. It is not possible to provide complete instructions for every possible boat and motor combination. Proper mounting depends in part on experience and the specific boat and motor combination.
EWM01591
Overpowering a boat could cause se-
vere instability. Do not install an out­board motor with more horsepower than the maximum rating on the capaci­ty plate of the boat. If the boat does not have a capacity plate, consult the boat manufacturer.
Improper mounting of the outboard mo-
tor could result in hazardous conditions such as poor handling, loss of control, or fire hazards. For permanently mount­ed models, your dealer or other person experienced in proper rigging should mount the motor.
EMU26912
Mounting the outboard motor
EWM01721
Your dealer or other person experienced in proper outboard motor mounting should show you how to mount your out­board motor.
The outboard motor should be mounted so that the boat is well balanced. Otherwise, the boat could be hard to steer. For single-engine boats, mount the outboard motor on the cen­terline (keel line) of the boat.
1. Center line (keel line)
EMU26926
Mounting height
To run your boat at optimum efficiency, the water resistance (drag) of the boat and out­board motor must be made as little as possi­ble. The mounting height of the outboard motor greatly affects the water resistance. If the mounting height is too high, cavitation tends to occur, thus reducing the propulsion; and if the propeller tips cut the air, the engine speed will rise abnormally and cause the en­gine to overheat. If the mounting height is too low, the water resistance will increase and thereby reduce engine efficiency. Mount the outboard motor so that the anti-cavitation plate is between the bottom of the boat and a level 25 mm (1 in) below it.
21
Page 27
Installation
TIP:
ZMU02012
ZMU02013
ECM01635
Make sure that the idle hole is high
enough to prevent water from entering the engine even if the boat is stationary with the maximum load.
Incorrect engine height or obstructions
to the smooth flow of water (such as the design or condition of the boat, or ac­cessories, such as transom ladders or depth finder transducers) can create air­borne water spray while the boat is cruising. If the outboard motor is oper­ated continuously in the presence of air­borne water spray, enough water could enter the engine through the air intake opening in the top cowling to cause se­vere engine damage. Remove the cause of the airborne water spray.
The optimum mounting height of the out-
board motor is affected by the boat and motor combination and the desired use. Test runs at different heights can help de­termine the optimum mounting height. Consult your Yamaha dealer or boat man­ufacturer for further information on deter­mining the proper mounting height.

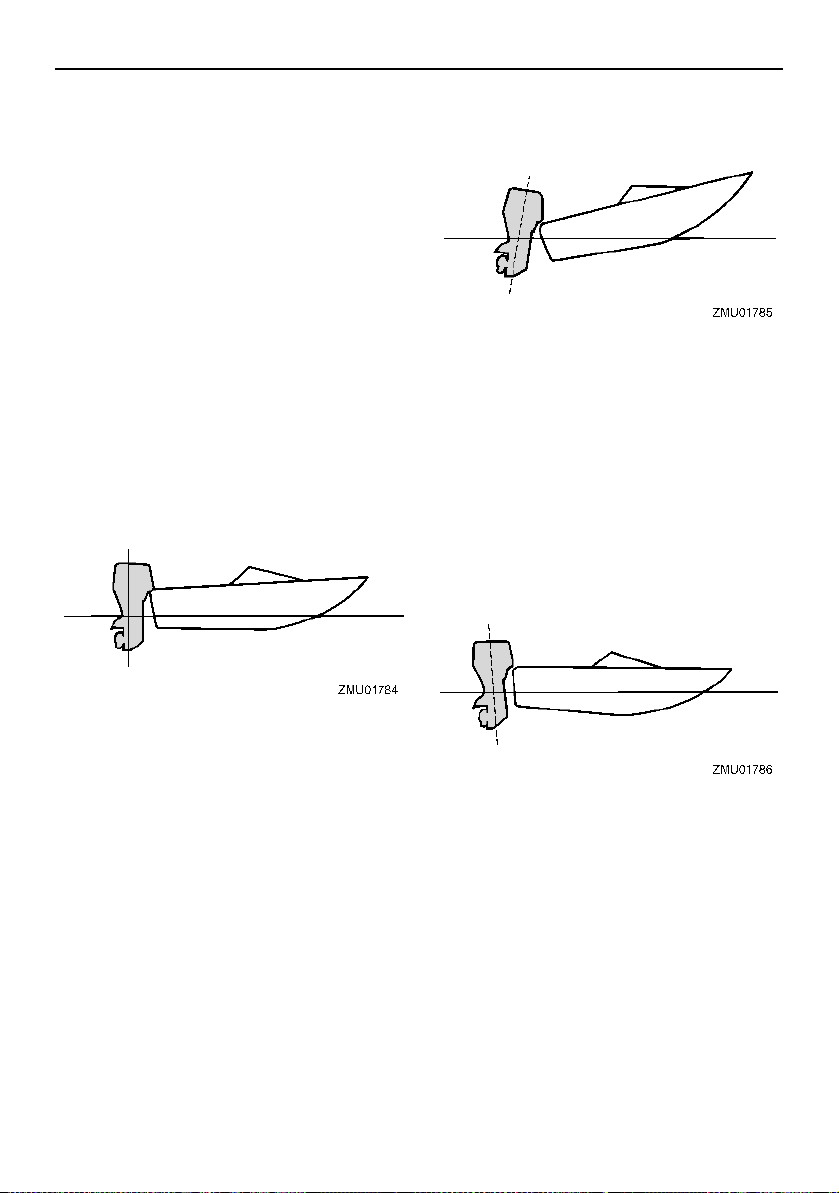

For instructions on setting the trim angle of
the outboard motor, see page 36.
WARNING! Loose clamp screws could allow the outboard motor to fall off or move on the transom. This could cau­se loss of control and serious injury. Make sure the clamp screws are tight­ened securely. Occasionally check the screws for tightness during operation.
[EWM00643]
(2) If the restraint cable attachment is
equipped on your engine, a restraint ca­ble or chain should be used. Attach one end to the restraint cable attachment and the other to a secure mounting point on the boat. Otherwise the engine could be completely lost if it accidentally falls off the transom.
EMU26974
Clamping the outboard motor
(1) Place the outboard motor on the tran-
som so that it is positioned as close to the center as possible. Tighten the tran­som clamp screws evenly and securely. Occasionally check the clamp screws for tightness during operation of the out­board motor because they could be­come loose due to engine vibration.
(3) Secure the clamp bracket to the transom
using the bolts provided with the out­board (if packed). For details, consult your Yamaha dealer. WARNING! Avoid
using bolts, nuts or washers other
22
Page 28
Installation
than those contained in the engine packaging. If used, they must be of at least the same quality of material and strength and must be tightened se­curely. After tightening, test run the engine and check their tightness.
[EWM00652]
23
Page 29

Operation

EMU36382
First-time operation
EMU30175
Breaking in engine
Your new engine requires a period of break­in to allow mating surfaces of moving parts to wear in evenly. Correct break-in will help en­sure proper performance and longer engine life. NOTICE: Failure to follow the break-in
procedure could result in reduced engine life or even severe engine damage.
EMU27061
Gasoline and engine oil mixing chart (50:1)
1. : Gasoline
2. : Engine oil
ECM00151
Be sure to mix gasoline and oil completely, otherwise the engine may be damaged.
EMU27075
Procedure for pre-mixed models
Run the engine under load (in gear with a pro­peller installed) for 10 hours as follows. (1) First 10 minutes:
Run the engine at the lowest possible speed. A fast idle in neutral is best.
(2) Next 50 minutes:
Do not exceed half throttle (approxi­mately 3000 r/min). Vary engine speed occasionally. If you have an easy-planing boat, accelerate at full throttle onto plane, then immediately reduce the throttle to 3000 r/min or less.
[ECM00802]
(3) Next two hours:
Accelerate at full throttle onto plane, then reduce engine speed to three-quarter throttle (approximately 4000 r/min). Vary engine speed occasionally. Run at full throttle for one minute, then allow about 10 minutes of operation at three-quarter throttle or less to let the engine cool.
(4) Remaining seven hours:
Run the engine at any speed. However, avoid operating at full throttle for more than 5 minutes at a time.
(5) After the first 10 hours:
Operate the engine normally. Use the standard premix ratio of gasoline and oil. For details on mixing fuel and oil, see page 26.
EMU36402
Getting to know your boat
All boats have unique handling characteris­tics. Operate cautiously while you learn how your boat handles under different conditions and various trim angles (see page 36).
EMU36414
Checks before starting engine
EWM01922
If any item in “Checks before starting en­gine” is not working properly, have it in­spected and repaired before operating the outboard motor. Otherwise, an accident could occur.
ECM00121
Do not start the engine out of water. Over­heating and serious engine damage can occur.
24
Page 30
Operation
ZMU06089
ZMU06873
1
2
EMU37142
Fuel level
Be sure you have plenty of fuel for your trip. A good rule is to use 1/3 of your fuel to get to the destination, 1/3 to return, and to keep 1/3 as an emergency reserve. With the boat level on a trailer or in the water, check the fuel lev­el. For fuel filling instructions, see page 26.
EMU36573
Remove the top cowling
For the following checks, remove the top cowling from the bottom cowling. To remove the top cowling, release the cowling lock le­ver and lift off the top cowling.
EMU36453
Check for fuel leaks
Check for fuel leaks or gasoline fumes in
the boat. Check for fuel leakage from the fuel sys-
tem. Check the fuel tank and fuel lines for
cracks, swellings, or other damage.
EMU36893
Controls
Move the tiller handle fully to the left and
right to make sure operation is smooth. Turn the throttle grip from the fully closed
to the fully open position. Make sure that it
turns smoothly and that it completely re-
turns to the fully closed position. Look for loose or damaged connections of
the throttle and shift cables.
EMU36484
Engine shut-off cord (lanyard)
Inspect the engine shut-off cord and clip for damage, such as cuts, breaks, and wear.
EMU36443
Fuel system
EWM00061
Gasoline and its vapors are highly flamma­ble and explosive. Keep away from sparks, cigarettes, flames, or other sources of ig­nition.
EWM00911
Leaking fuel can result in fire or explosion.
Check for fuel leakage regularly.If any fuel leakage is found, the fuel sys-
tem must be repaired by a qualified me­chanic. Improper repairs can make the outboard unsafe to operate.
25
1. Clip
2. Engine shut-off cord (lanyard)
EMU27121
Oil
Check to be sure you have plenty of oil for
your trip.
EMU27142
Engine
Check the engine and engine mounting.
Page 31
Look for loose or damaged fasteners.
ZMU06114
Check the propeller for damage.
EMU36956

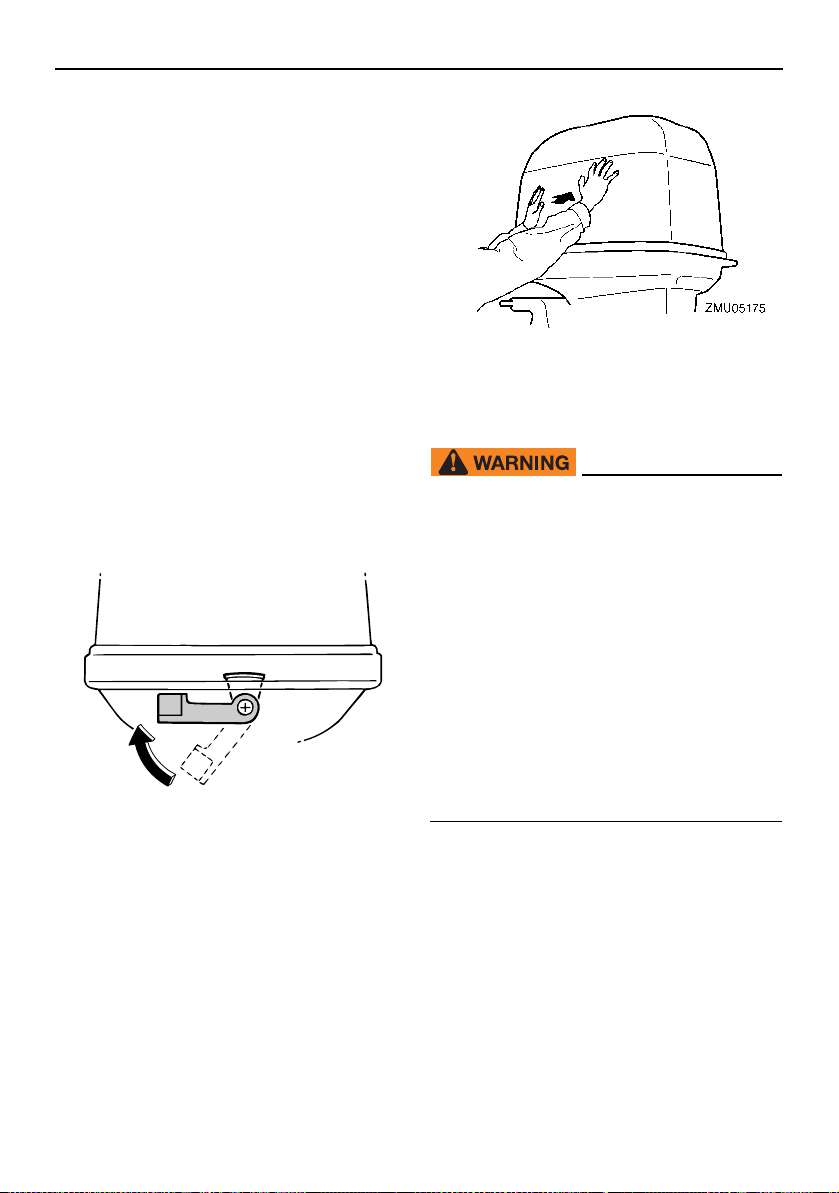

Install top cowling
(1) Be sure that the cowling lock lever is re-
leased.
(2) Be sure that the rubber seal is seated all
the way around the top cowling.
(3) Place the top cowling on the bottom
cowling.
(4) Check to be sure the rubber seal is seat-
ed correctly between the top cowling and the bottom cowling.
(5) Move the cowling lock lever to lock the
top cowling as shown. NOTICE: If the
top cowling is not installed correctly, water spray under the top cowling can damage the engine, or the top cowling can blow off at high speeds.
After installing, check the fitting of the top cowling by pushing it with both hands. If the top cowling is loose, have it repaired by your Yamaha dealer.
[ECM01992]
Operation
EMU27235
Filling fuel and engine oil
EMU2724A
Filling fuel for portable tank
EWM01831
Gasoline and its vapors are highly flam-
mable and explosive. Always refuel ac-
cording to this procedure to reduce the
risk of fire and explosion. Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline or inhale
a lot of gasoline vapor, or get some gas-
oline in your eyes, see your doctor im-
mediately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
(1) Be sure the engine is stopped. (2) Disconnect the fuel line from the fuel tank
and tighten the air vent screw on the fuel tank cap.
26
Page 32
Operation
ZMU06621
ZMU04484
(3) Remove the portable tank from the boat. (4) Be sure you are in a well-ventilated out-
door area, either securely moored or trailered.
(5) Do not smoke and keep away from
sparks, flames, static electric discharge, or other sources of ignition.
(6) If you use a portable container to store
and dispense fuel, use only an approved GASOLINE container.
(7) Touch the fuel nozzle to the filler opening
or funnel to help prevent electrostatic sparks.
(8) Fill the fuel tank, but do not overfill.
WARNING! Do not overfill. Otherwise fuel can expand and overflow if the temperature increases.
Fuel tank capacity:
12 L (3.17 US gal, 2.64 Imp.gal)
[EWM02611]
(9) Tighten the filler cap securely. (10) Wipe up any spilled gasoline immediate-
ly with dry rags. Dispose of rags properly according to local laws or regulations.
EMU27258
Filling fuel for built-in tank
EWM01951
Be sure the outboard motor is securely fastened to the transom or a stable stand.
EWM01831
Gasoline and its vapors are highly flam-
mable and explosive. Always refuel ac-
cording to this procedure to reduce the
risk of fire and explosion. Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline or inhale
a lot of gasoline vapor, or get some gas-
oline in your eyes, see your doctor im-
mediately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
(1) Be sure the engine is stopped. (2) Be sure you are in a well-ventilated out-
door area, either securely moored or trailered.
27
Page 33
Operation
100:1
1 L
(0.26 US gal,
0.22 Imp gal)
12 L
(3.2 US gal,
2.6 Imp gal)
14 L
(3.7 US gal,
3.1 Imp gal)
24 L
(6.3 US gal,
5.3 Imp gal)
0.01 L
(0.01 US qt,
0.01 Imp qt)
0.12 L
(0.13 US qt,
0.11 Imp qt)
0.14 L
(0.15 US qt,
0.12 Imp qt)
0.24 L
(0.25 US qt,
0.21 Imp qt)
ZMU04910
(3) Do not smoke and keep away from
sparks, flames, static electric discharge, or other sources of ignition.
(4) If you use a portable container to store
and dispense fuel, only use a locally ap­proved GASOLINE container.
(5) Touch the fuel nozzle to the filler opening
or funnel to help prevent electrostatic sparks.
(6) Fill fuel to the upper fuel level mark on the
fuel tank. Do not overfill. WARNING! Do
not overfill. Otherwise fuel can expand and overflow if the temperature in­creases.
[EWM02611]
Fuel tank capacity:
2.8 L (0.74 US gal, 0.62 Imp.gal)
(7) Tighten the filler cap securely. (8) Wipe up any spilled gasoline immediate-
ly with dry rags. Dispose of rags properly according to local laws or regulations.
If the mixture is not thoroughly mixed, or
if the mixing ratio is incorrect, the fol-
lowing problems could occur. Low oil ratio: Lack of oil could cause
major engine trouble, such as piston
seizure. High oil ratio: Too much oil could cause
fouled spark plugs, smoky exhaust, and
heavy carbon deposits.
Gasoline to engine oil
ratio
Break-in period See page 24
After break-in 100:1
1. : Gasoline
2. : Engine oil
If equipped with a portable fuel tank (1) Pour oil into the portable fuel tank, and
then add gasoline.
EMU27407
Gasoline and oil mixing (100:1)
ECM00812
Avoid using any oil other than the spec-
ified type.
Use a thoroughly blended fuel-oil mix-
ture.
28
Page 34
Operation
TIP:
111
22
1
2
1. Engine oil
2. Gasoline
(2) Replace the fuel tank cap and close
tightly.
(3) Shake the fuel tank to mix the fuel thor-
oughly.
(4) Make sure that the oil and gasoline are
mixed. If equipped with a built-in fuel tank (1) Pour oil into a clean fuel can, and then
add gasoline.
29
1. Engine oil
2. Gasoline
(2) Replace the fuel can cap and close tight-
ly.
(3) Shake the fuel can to mix the fuel thor-
oughly.
(4) Make sure that the oil and gasoline are
mixed.
(5) Pour the gasoline and oil mixture into the
built-in fuel tank.
If using a permanently installed tank, pour the oil gradually as the gasoline is being added to the tank.
Page 35
Operation
TIP:
ZMU02024
EMU27453
Operating engine
EWM00421
Before starting the engine, make sure
that the boat is tightly moored and that you can steer clear of any obstructions. Be sure there are no swimmers in the water near you.
When the air vent screw is loosened,
gasoline vapor will be released. Gaso­line is highly flammable, and its vapors are flammable and explosive. Refrain from smoking, and keep away from open flames and sparks while loosening the air vent screw.
This product emits exhaust gases which
contain carbon monoxide, a colorless, odorless gas which could cause brain damage or death when inhaled. Symp­toms include nausea, dizziness, and drowsiness. Keep cockpit and cabin ar­eas well ventilated. Avoid blocking ex­haust outlets.
fuel line to the joint while pinching the joint. Then firmly connect the other end of the fuel line to the joint on the fuel tank.
EMU2746B

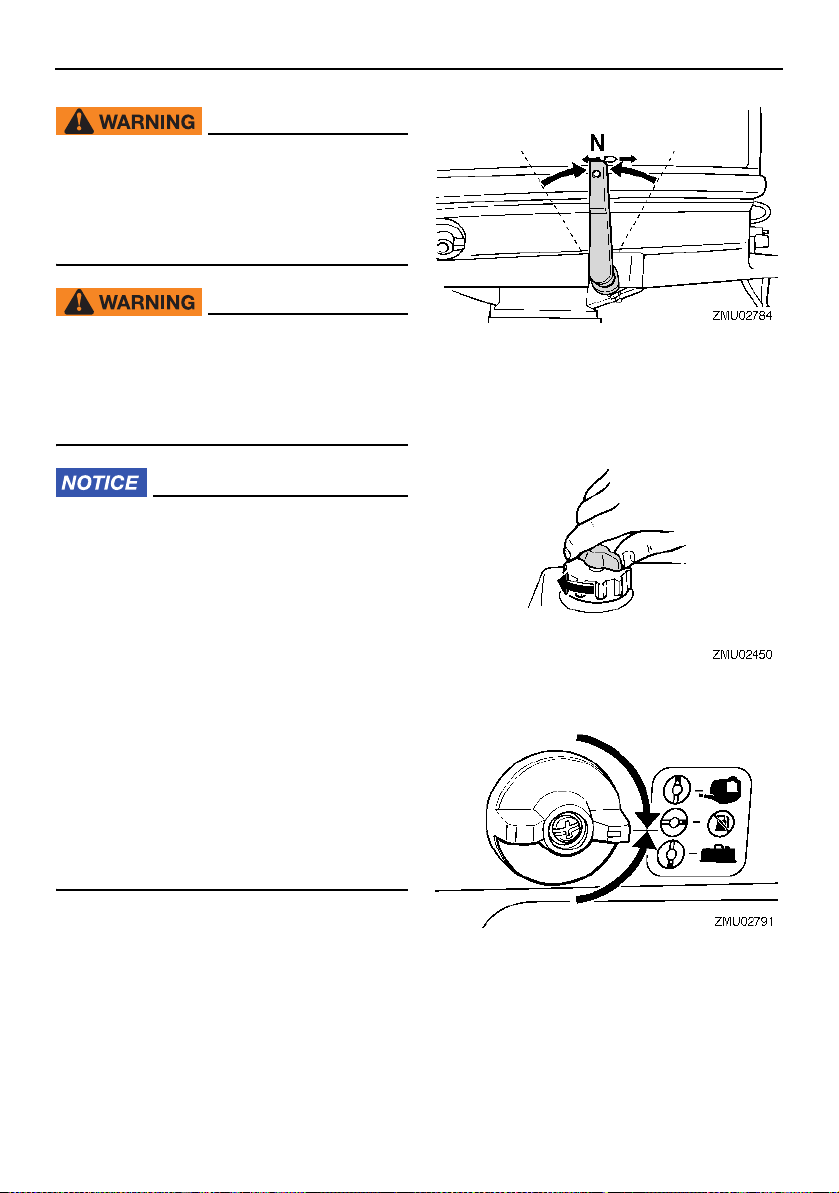

Sending fuel (portable tank)
(1) If there is an air vent screw on the fuel
tank cap, loosen it 2 or 3 turns.
(2) If there is a fuel joint on the motor, align
the fuel joint on the fuel line with the fuel
joint on the motor and firmly connect the
Wipe up any spilled gasoline immediately with dry rags. Dispose of rags properly ac­cording to local laws or regulations. (3) Squeeze the primer pump, with the ar-
row pointing up, until you feel it become firm. During engine operation, place the tank horizontally, otherwise fuel cannot be drawn from the fuel tank.
30
Page 36
Operation
11
1. Arrow
EMU27477
Sending fuel
(1) For the built in tank, loosen the air vent
screw on the fuel tank cap by one turn.
For the external fuel tank, loosen it on the
fuel tank cap by 2 or 3 turns.
(2) Select the fuel tank using the fuel cock or
open the fuel cock.
(3) If you are using an external fuel tank,
align the fuel joint on the fuel line with the fuel joint on the motor and connect the fuel joints securely while pinching the joint. Then squeeze the primer pump, with the arrow pointing up, until you feel it become firm (if equipped the fuel joint).
EMU27495
Starting engine
EWM01601
Before starting the engine, make sure that the boat is tightly moored and that you can steer clear of any obstructions. Be sure there are no swimmers in the water near you.
EMU2750A
Manual start models (tiller control)
EWM01842
31
Failure to attach the engine shut-off
cord could result in a runaway boat if operator is ejected. Attach the engine shut-off cord to a secure place on your clothing, or your arm or leg while oper­ating. Do not attach the cord to clothing that could tear loose. Do not route the cord where it could become entangled, preventing it from functioning.
Page 37
Avoid accidentally pulling the cord dur-
TIP:
TIP:
ing normal operation. Loss of engine power means the loss of most steering control. Also, without engine power, the boat could slow rapidly. This could cau­se people and objects in the boat to be thrown forward.

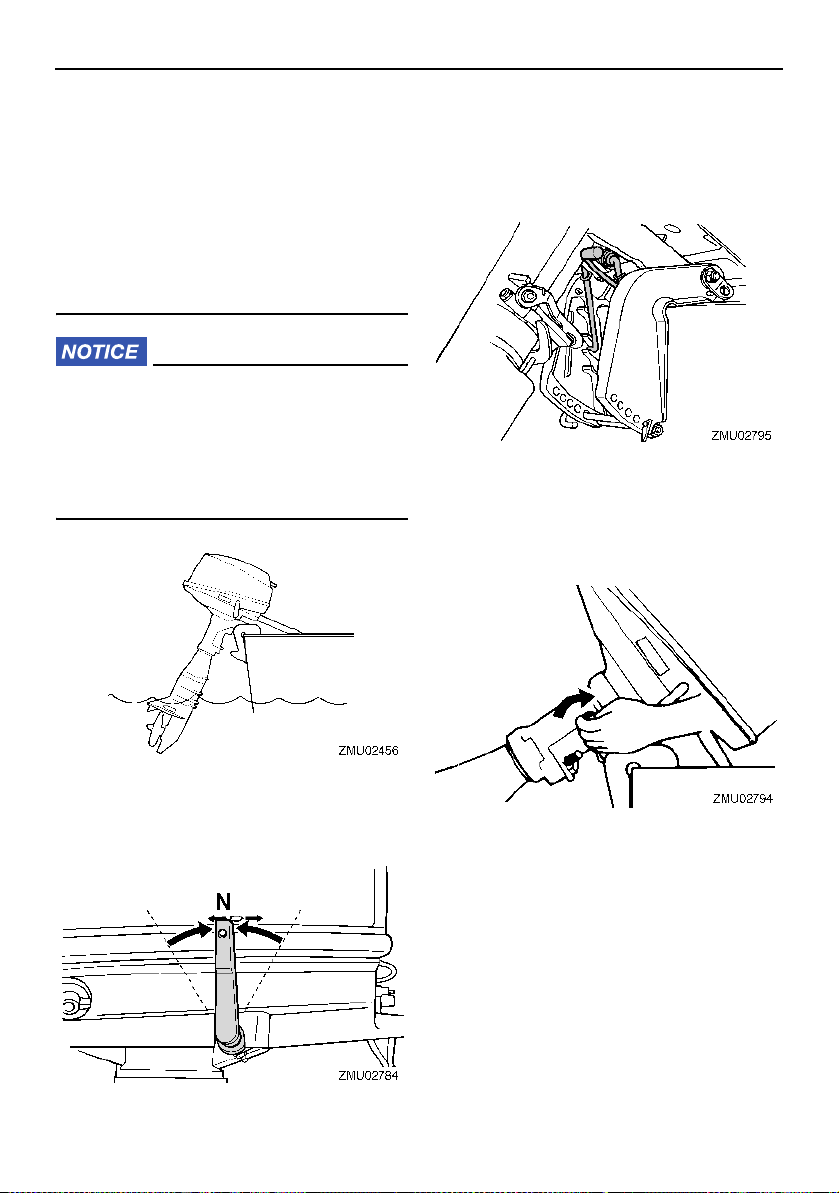

(1) Place the gear shift lever in neutral.
The start-in-gear protection device prevents the engine from starting except when in neu­tral. (2) Attach the engine shut-off cord to a se-
cure place on your clothing, or your arm
or leg. Then install the clip on the other
end of the cord into the engine shut-off
switch.
Operation
(4) Pull out / turn the choke knob fully. After
the engine starts, replace / return the knob to the home position.
It is not necessary to use the choke when
starting a warm engine.
If the choke knob is left in the “ ” (start)
position while the engine is running, the en­gine will run poorly or stall.
(5) Pull the manual starter handle slowly un-
til you feel resistance. Then give a strong pull straight out to crank and start the en­gine. Repeat if necessary.
(3) Place the throttle grip in the “ ”
(start) position.
32
Page 38
Operation
TIP:
ZMU02030
(6) After the engine starts, slowly return the
manual starter handle to its original posi-
tion before releasing it. (7) Slowly return the throttle grip to the fully
closed position.
EMU36511

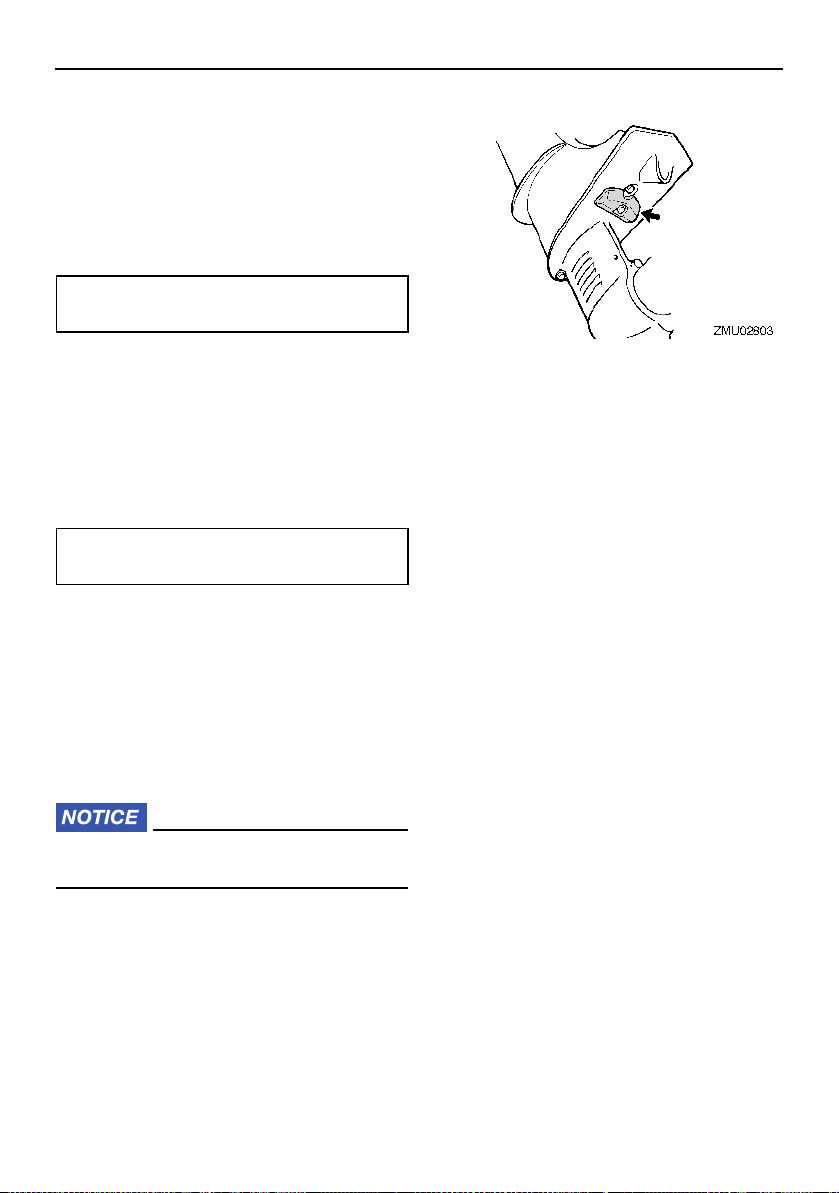

Checks after starting engine
EMU36524
Cooling water
Check for a steady flow of water from the cooling water pilot hole. A continuous flow of water from the pilot hole indicates that the water pump is pumping water through the cooling water passages. If the cooling water passages are frozen, it may take a while for water to start flowing out of the pilot hole.
ECM01811
If water is not flowing out of the pilot hole at all times while the engine is running, overheating and serious damage could occur. Stop the engine and check whether the cooling water inlet on the lower case or the cooling water pilot hole is blocked. Consult your Yamaha dealer if the prob­lem cannot be located and corrected.
When the engine is cold, it needs to be
warmed up. For further information, see page 33.
If the engine does not start on the first try,
repeat the procedure. If the engine fails to start after 4 or 5 tries, open the throttle a small amount (between 1/8 and 1/4) and try again. Also if the engine is warm and fails to start, open the throttle a same amount and try to start the engine again. If the engine still fails to start, see page 54.
33
EMU27671
Warming up engine
EMU27685
Choke start models
After starting the engine, allow it to idle for 3 minutes to warm up. NOTICE: Failure to do
so will shorten engine life.
return the choke knob to its home position as the engine warms up.
[ECM04550] Gradually
Page 39
Operation
EMU36532
Checks after engine warm up
EMU36542
Shifting
While the boat is tightly moored, and without applying throttle, confirm that the engine shifts smoothly into forward and reverse, and back to neutral.
EMU36973
Stop switches
Perform the following procedure to check that the engine stop button and engine shut­off switch operate properly. Start the engine, and then check that the
engine stops when the engine stop button is pushed.
Restart the engine, and then check that the
engine stops when the clip is pulled from the engine shut-off switch.
Check that the engine cannot be started
with the clip removed from the engine shut­off switch.
EMU34611
Shifting
EWM00181
To shift out of neutral Move the gear shift lever firmly and crisply forward (for forward gear) or backward (for reverse gear).
To shift from in gear (forward/reverse) to neu­tral (1) Close the throttle so that the engine
slows to idle speed.
Before shifting, make sure there are no swimmers or obstacles in the water near you.
ECM01611
Warm up the engine before shifting into gear. Until the engine is warm, the idle speed may be higher than normal. High idle speed can prevent you from shifting back to neutral. If this occurs, stop the en­gine, shift to neutral, then restart the en­gine and allow it to warm up.
(2) After the engine is at idle speed in gear
move the gear shift lever firmly and crisp­ly into the neutral position.
34
Page 40
Operation
TIP:
TIP:
The outboard motor can turn 360° in its bracket (full-pivot system). The boat can also be backed up by simply turning the outboard motor around 180° with the steering handle facing toward you.
EMU31743
EWM01511
Stopping boat
Do not use the reverse function to slow
down or stop the boat as it could cause you to lose control, be ejected, or im­pact the steering wheel or other parts of the boat. This could increase the risk of serious injury. It could also damage the shift mechanism.
Do not shift into reverse while traveling
at planing speeds. Loss of control, boat swamping, or damage to the boat could occur.
The boat is not equipped with a separate braking system. Water resistance stops it af­ter the throttle lever is moved back to idle. The stopping distance varies depending on gross weight, water surface conditions, and wind direction.
EMU27822
Stopping engine
Before stopping the engine, first let it cool off for a few minutes at idle or low speed. Stop­ping the engine immediately after operating at high speed is not recommended.
EMU27835
Procedure
(1) Push and hold the engine stop button
until the engine comes to a complete
stop.
(2) After stopping the engine, tighten the air
vent screw on the fuel tank cap and set the fuel cock lever or knob to the closed position, if equipped.
(3) Disconnect the fuel line if you are using
an external fuel tank.
If the outboard motor is equipped with an en­gine shut-off cord, the engine can also be stopped by pulling the cord and removing the clip from the engine shut-off switch.
35
Page 41
Operation
1
1
EMU27865
Trimming outboard motor
EWM00741
Excessive trim for the operating condi­tions (either trim up or trim down) can cau­se boat instability and can make steering the boat more difficult. This increases the possibility of an accident. If the boat be­gins to feel unstable or is hard to steer, slow down and/or readjust the trim angle.
The trim angle of the outboard motor helps determine the position of the bow of the boat in the water. Correct trim angle will help im­prove performance and fuel economy while reducing strain on the engine. Correct trim angle depends upon the combination of boat, engine, and propeller. Correct trim is also affected by variables such as the load in the boat, sea conditions, and running speed.
EMU27873
Adjusting trim angle for manual tilt models
There are 4 or 5 holes provided in the clamp bracket to adjust the outboard motor trim an­gle. (1) Stop the engine. (2) Tilt the outboard motor up, and then re-
move the trim rod from the clamp brack­et.
1. Trim rod
(3) Reposition the rod in the desired hole. To raise the bow (“trim-out”), move the rod away from the transom. To lower the bow (“trim-in”), move the rod to­ward the transom. Make test runs with the trim set to different angles to find the position that works best for your boat and operating conditions.
EWM00401
1. Trim operating angle
Stop the engine before adjusting the
trim angle.
Use care to avoid being pinched when
removing or installing the rod.
Use caution when trying a trim position
for the first time. Increase speed gradu­ally and watch for any signs of instability or control problems. Improper trim an­gle can cause loss of control.
36
Page 42
Operation
TIP:
TIP:
The outboard motor trim angle can be changed approximately 4 degrees by shifting the trim rod one hole.
EMU27913
Adjusting boat trim
When the boat is on plane, a bow-up attitude results in less drag, greater stability and effi­ciency. This is generally when the keel line of the boat is up about 3 to 5 degrees. With the bow up, the boat may have a greater tenden­cy to steer to one side or the other. Compen­sate for this as you steer. When the bow of the boat is down, it is easier to accelerate from a standing start onto plane.
Bow Down
Too much trim-in causes the boat to “plow” through the water, decreasing fuel economy and making it hard to increase speed. Oper­ating with excessive trim-in at higher speeds also makes the boat unstable. Resistance at the bow is greatly increased, heightening the danger of “bow steering” and making opera­tion difficult and dangerous.
Bow Up
Too much trim-out puts the bow of the boat too high in the water. Performance and econ­omy are decreased because the hull of the boat is pushing the water and there is more air drag. Excessive trim-out can also cause the propeller to ventilate, which reduces per­formance further, and the boat may “por­poise” (hop in the water), which could throw the operator and passengers overboard.
37
Depending on the type of boat, the outboard motor trim angle may have little effect on the trim of the boat when operating.
EMU27924

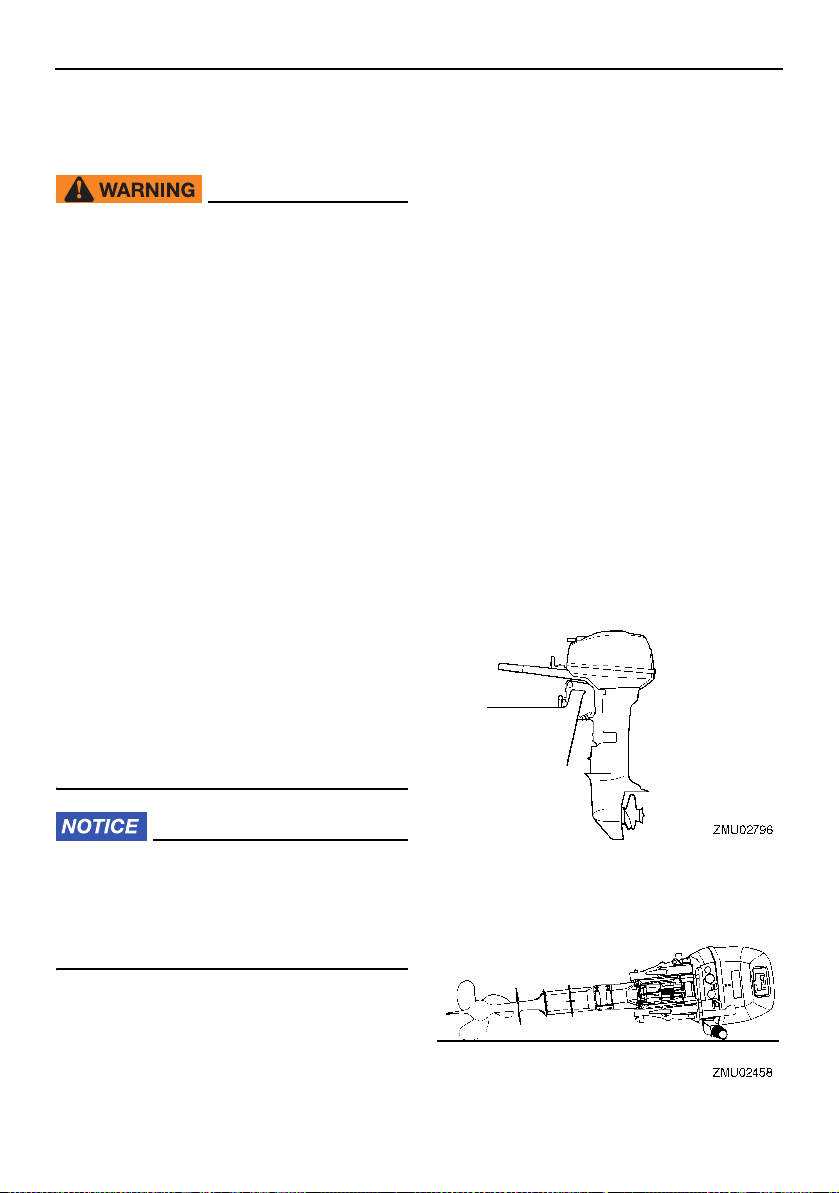

Tilting up and down
If the engine will be stopped for some time or if the boat is moored in shallows, the out­board motor should be tilted up to protect the propeller and lower casing from damage by collision with obstructions, and also to re­duce salt corrosion.
Page 43
EWM00223
Make sure that no one is near the out­board motor when tilting the outboard motor up or down. Otherwise, body parts could be crushed between the outboard motor and the clamp bracket.
EWM00231
Operation
Leaking fuel is a fire hazard. Tighten the air vent screw and place the fuel cock in the closed position if the outboard motor will be tilted for more than a few minutes. Otherwise fuel may leak.
ECM00232
Before tilting the outboard motor, follow
the procedure under “Stopping engine” in this chapter. Never tilt the outboard motor while the engine is running. Se­vere damage from overheating can re­sult.
Do not tilt up the engine by pushing the
tiller handle because this could break the handle.
Keep the power unit higher than the pro-
peller at all times. Otherwise water could run into the cylinder and cause damage.
The outboard motor cannot be tilted
when in reverse or when the outboard motor is turned 180° (facing the rear).
(2) Tighten the steering friction adjuster by
turning it clockwise to prevent the motor from turning freely.
(3) Tighten the air vent screw.
(4) Close the fuel cock.
EMU34621

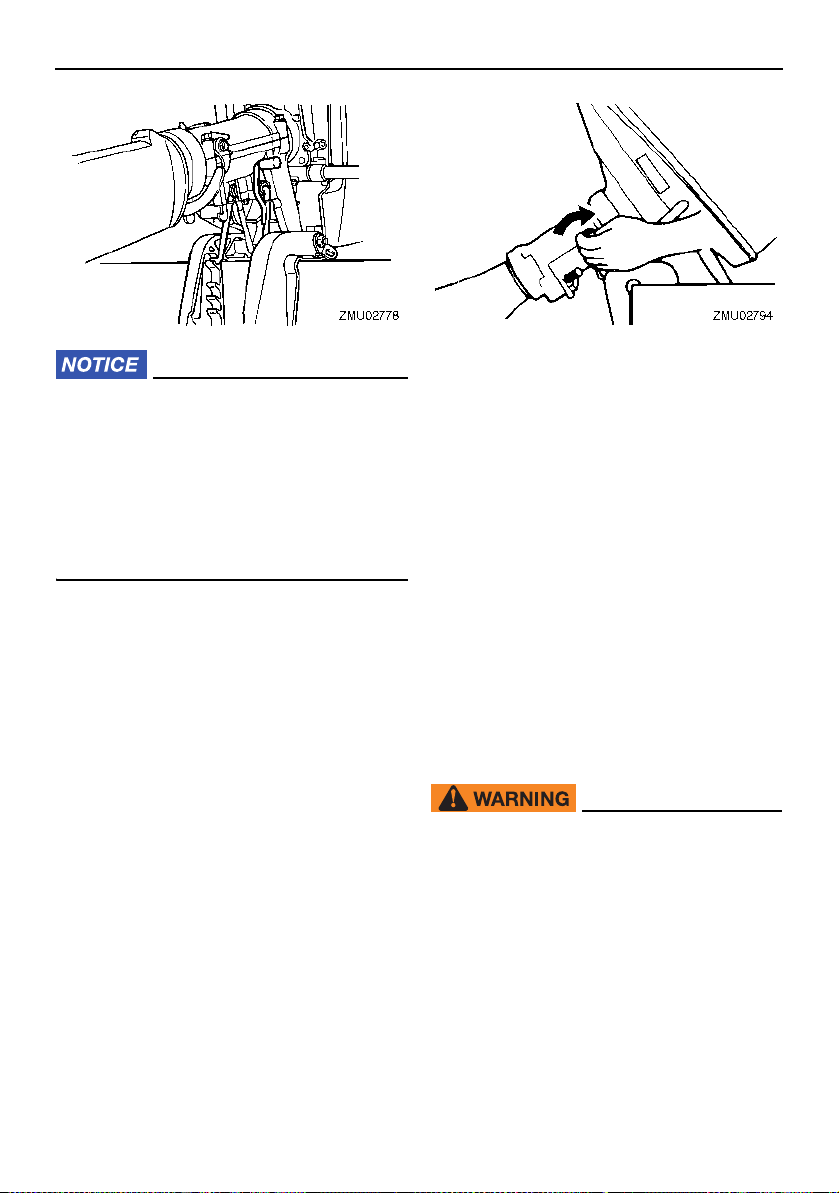

Procedure for tilting up (manual tilt models)
(1) Place the gear shift lever in neutral and
face the outboard motor forward.
(5) Hold the rear of the top cowling or the
rear handle (if equipped) with one hand and tilt the outboard motor up fully until the tilt support bar automatically locks.
38
Page 44
Operation
TIP:
ECM01671
Do not use the tilt support bar when traile­ring the boat. The outboard motor could shake loose from the tilt support and fall. If the motor cannot be trailered in the nor­mal running position, use an additional support device to secure it in the tilt posi­tion. For more detailed information, see page 42.
If the motor is not facing forward, the tilt sup­port bar cannot automatically turn to the locked position. If the tilt support bar does not automatically lock, swing the motor a little to the left and right.
EMU28034
Procedure for tilting down (manual tilt models)
(1) Slightly tilt the outboard motor up. (2) If equipped with the tilt support bar:
Slowly tilt the outboard motor down
while pulling the tilt support bar lever up.
(3) If equipped with the tilt support knob:
Pull the knob out, and then slowly tilt the outboard motor down.
(4) If equipped with the tilt support lever:
Slowly tilt the outboard motor down while pulling the tilt support lever up.
(5) Loosen the steering friction adjuster by
turning it counterclockwise, and adjust the steering friction according to opera­tor preference. WARNING! If there is
too much resistance it could be diffi­cult to steer, which could result in an accident.
EMU28063
[EWM00722]
Shallow water
EMU35692
Cruising in shallow water (manual tilt models)
EWM00712
Run the boat at the lowest possible
speed when using the shallow water cruising system. The tilt lock mecha­nism does not work while the shallow water cruising system is being used. Hit­ting an underwater obstacle could cau­se the outboard motor to lift out of the water, resulting in loss of control.
39
Page 45
Operation
Do not rotate the outboard motor 180°
and operate the boat in reverse. Place the gear shift in reverse to operate the boat in reverse.
Use extra care when operating in re-
verse. Too much reverse thrust can cau­se the outboard motor to lift out of the water, increasing the chance of acci­dent and personal injury.
ECM00261
Do not tilt the outboard motor up so that the cooling water inlet on the lower unit is above the surface of the water when set­ting up for and cruising in shallow water. Otherwise severe damage from overheat­ing can result.
(2) Slightly tilt the outboard motor up until
the tilt support bar automatically turns to the lock position to support the engine. The outboard motor is equipped with 2 or 3 positions for shallow water cruising.
(3) To lower the outboard motor to the nor-
mal running position, first slightly tilt the outboard motor up. Then pull up the tilt support bar lever and slowly tilt the en­gine down.
EMU28103
Procedure
(1) Place the gear shift lever in neutral and
face the outboard motor forward.
EMU28196
Cruising in other conditions
Cruising in salt water

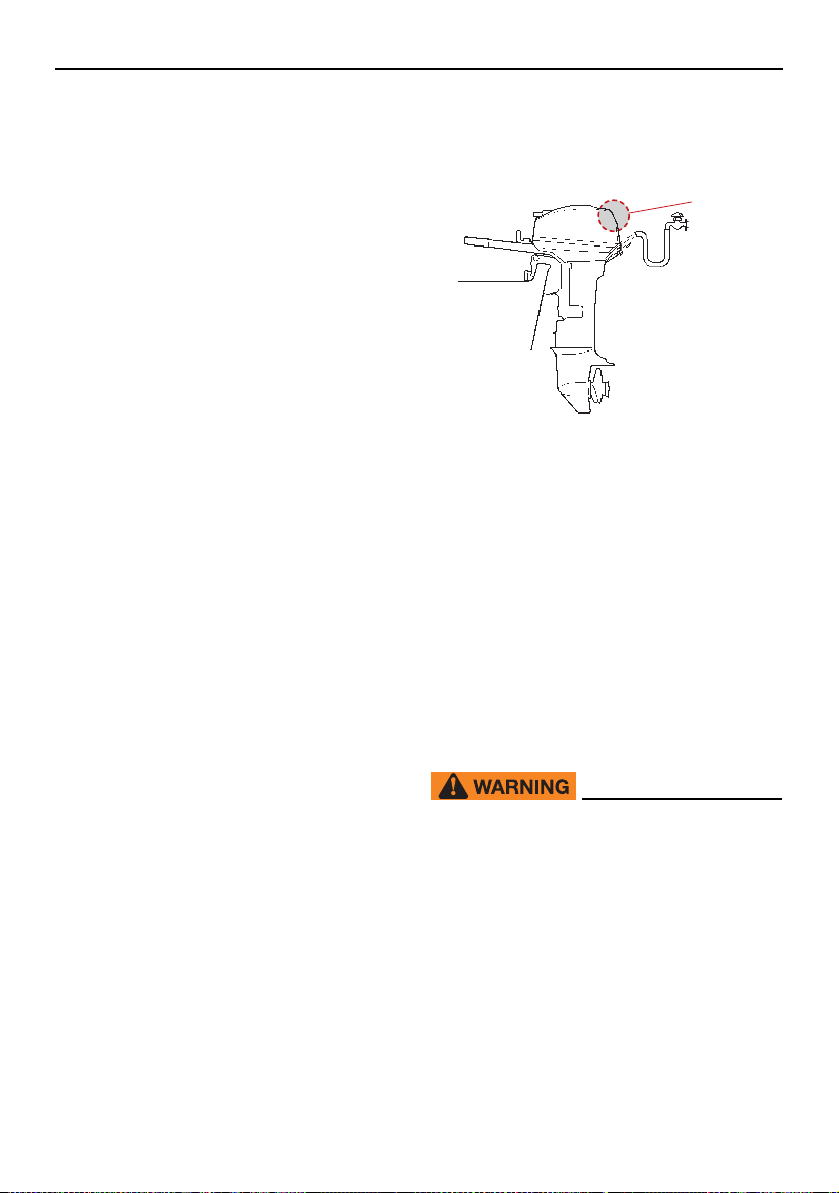

After operating in salt water, flush the cooling water passages with fresh water to prevent them from becoming clogged. Also rinse the outside of the outboard motor with fresh wa­ter.
Cruising in muddy, turbid, or acidic water
Yamaha strongly recommends that you use the optional chromium-plated water pump kit (see page 13) if you use the outboard motor
40
Page 46
Operation
in acidic water or water with a lot of sediment in it, such as muddy or turbid (cloudy) water. After operating in such water, flush the cool­ing passages with fresh water to prevent cor­rosion. Also rinse the outside of the outboard motor with fresh water.
41
Page 47

Maintenance

EMU2822B
Transporting and storing out-
board motor
EWM02621
USE CARE when transporting fuel tank,
whether in a boat or car.
DO NOT fill fuel container to maximum
capacity. Gasoline will expand consider­ably as it warms up and can build up pressure in the fuel container. This can cause fuel leakage and a potential fire hazard.
Leaking fuel is a fire hazard. When
transporting and storing the outboard motor, disconnect the fuel line from the outboard motor to prevent fuel from leaking.
Never get under the outboard motor
while it is tilted. Severe injury could oc­cur if the outboard motor accidentally falls.
Do not use the tilt support lever or knob
when trailering the boat. The outboard motor could shake loose from the tilt support and fall. If the outboard motor cannot be trailered in the normal run­ning position, use an additional support device to secure it in the tilt position.
ECM02441
Disconnect the fuel line from the outboard
motor.
Tighten the fuel tank cap and its air vent
screw.
When the outboard motor is tilted pro-
longed time for mooring or trailering the boat, disconnect the fuel line from the out­board motor. Tighten the fuel tank cap and
its air vent screw. The outboard motor should be transported and stored in the normal running position. If there is insufficient road clearance in this po­sition, then trailer the outboard motor in the tilt position using a motor support device such as a transom saver bar. Consult your Yamaha dealer for further details.
EMU28237
Clamp screw mounting models
When transporting or storing the outboard motor while removed from a boat, keep the outboard motor in the attitude shown.
When storing the outboard motor for pro­longed time, fuel must be drained from the fuel tank. The deteriorated fuel could clog the fuel line causing engine start difficulty or malfunction.
When storing or transporting the outboard motor, make sure to follow the procedure list­ed below.
42
Page 48
Maintenance
TIP:
2
1
Place a towel or something similar under the outboard motor to protect it from damage.
EMU30273
Storing outboard motor
When storing your Yamaha outboard motor for prolonged periods of time (2 months or longer), several important procedures must be performed to prevent excessive damage. It is advisable to have your outboard motor serviced by an authorized Yamaha dealer pri­or to storage. However, you, the owner, with a minimum of tools, can perform the follow­ing procedures.
ECM01412
Do not place the outboard motor on its
side before the cooling water has drained from it completely, otherwise water may enter the cylinder through the exhaust port and cause engine trouble.
Store the outboard motor in a dry, well-
ventilated place, not in direct sunlight.
EMU28306
Procedure
EMU28316
Flushing in a water tank
(1) Wash the outboard motor body using
fresh water. NOTICE: Do not spray wa-
ter into the air intake.
information, see page 44.
(2) Place the fuel cock in the closed position
and disconnect the fuel line if equipped. Tighten the air vent screw, if equipped.
(3) Remove the engine top cowling and si-
lencer cover.
(4) Install the outboard motor on the test
tank.
[ECM01841] For further
1. Lowest water level
2. Water surface
(5) Fill the tank with fresh water to above the
level of the anti-cavitation plate.
NOTICE: If the fresh water level is be­low the level of the anti-cavitation plate, or if the water supply is insuffi­cient, engine seizure may occur.
[ECM00292]
(6) Cooling system flushing is essential to
prevent the cooling system from clog­ging up with salt, sand, or dirt. In addi­tion, fogging/lubricating of the engine is mandatory to prevent excessive engine damage due to rust. Perform the flushing and fogging at the same time.
WARNING! Do not touch or remove electrical parts when starting or dur­ing operation. Keep hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.
[EWM00092]
(7) Run the engine at a fast idle for a few mi-
nutes in neutral position.
(8) Just prior to turning off the engine, quick-
ly spray “Fogging Oil” alternately into each carburetor or the fogging hole of the silencer cover, if equipped. When properly done, the engine will smoke ex­cessively and almost stall.
43
Page 49
Maintenance
TIP:
TIP:
1
(9) If “Fogging Oil” is not available, run the
engine at a fast idle until the fuel system empties and the engine stops.
(10) Remove the outboard motor from the
test tank.
(11) Install the silencer cover or fogging hole
cap, and the top cowling.
(12) Drain the cooling water completely out of
the motor. Clean the body thoroughly.
(13) If “Fogging Oil” is not available, remove
the spark plug(s). Pour a teaspoonful of clean engine oil into each cylinder. Crank several times manually. Replace the spark plug(s).
(14) Drain the fuel from both the built-in and
portable fuel tanks, on equipped models.
Portable fuel tank equipped models: Store the portable fuel tank in a dry, well-ventilated place, not in direct sunlight.
EMU41072
Lubrication
(1) Change the gear oil. For instructions, see
page 52. Check the gear oil for the pres­ence of water that indicates a leaky seal. Seal replacement should be performed by an authorized Yamaha dealer prior to use.
(2) Lubricate all grease fittings. For further
details, see page 48.
For long-term storage, fogging the engine with fogging oil is recommended. Contact your Yamaha dealer for information about fogging oil and procedures for your outboard motor.
EMU44342
Cleaning the outboard motor
When cleaning the outboard motor, the top cowling must be installed.
(1) Wash the exterior of the outboard motor
using fresh water. NOTICE: Do not
spray water into the air intake.
1. Air intake
[ECM01841]
(2) Drain the cooling water completely out of
the outboard motor. Clean the body thoroughly.
EMU28463
Checking painted surface of outboard motor
Check the outboard motor for scratches, nicks, or flaking paint. Areas with damaged paint are more likely to corrode. If necessary, clean and paint the areas. Touch-up paint is available from your Yamaha dealer.
EMU37077
Periodic maintenance
EWM01982
These procedures require mechanical skills, tools, and supplies. If you do not have the proper skills, tools, or supplies to perform a maintenance procedure, have a Yamaha dealer or other qualified mechan­ic do the work. The procedures involve disassembling the motor and exposing dangerous parts. To reduce the risk of injury from moving, hot, or electrical parts:
44
Page 50
Maintenance
Turn off the engine and keep engine
shut-off cord (lanyard) with you when you perform maintenance unless other­wise specified.
Allow the engine to cool before handling
hot parts or fluids.
Always completely reassemble the mo-
tor before operation.
EMU28512
Replacement parts
If replacement parts are necessary, use only genuine Yamaha parts or parts of equivalent design and quality. Any part of inferior quality may malfunction, and the resulting loss of control could endanger the operator and pas­sengers. Yamaha genuine parts and acces­sories are available from your Yamaha dealer.
EMU34152
Severe operating conditions
Severe operating conditions involve one or more of the following types of operation on a regular basis: Operating continuously at or near maxi-
mum engine speed (rpm) for many hours
Operating continuously at a low engine
speed (rpm) for many hours
Operating without sufficient time for engine
to warm up and cool down
Frequent quick acceleration and decelera-
tion
Frequent shiftingFrequently starting and stopping the en-
gine(s)
Operation that fluctuates often between
light and heavy cargo loads Outboard motors operating under any of these above conditions require more fre­quent maintenance. Yamaha recommends that you do this service twice as often as specified in the maintenance chart. For ex-
ample, if a particular service should be done at 50 hours, do it instead at 25 hours. This will help prevent more rapid deterioration of en­gine components.
45
Page 51
Maintenance
TIP:
EMU34449
Maintenance chart 1
Refer to the sections in this chapter for explanations of each owner-specific action.The maintenance cycle on these charts assume usage of 100 hours per year and regular
flushing of the cooling water passages. Maintenance frequency should be adjusted when
operating the engine under adverse conditions such as extended trolling. Disassembly or repairs may be necessary depending on the outcome of maintenance
checks. Expendable or consumable parts and lubricants will lose their effectiveness over time and
through normal usage regardless of the warranty period. When operating in salt water, muddy, other turbid (cloudy), acidic water, the engine should
be flushed with clean water after each use. The “ ” symbol indicates the check-ups which you may carry out yourself. The “ ” symbol indicates work to be carried out by your Yamaha dealer.
Initial Every
Item Actions
Anode(s) (external)
Cooling water leakage
Cowling lock lever Inspection
Engine starting condi­tion/noise
Engine idle speed/noise
Fuel filter (disposal ty­pe)
Fuel filter (inside built­in fuel tank)
Fuel line Inspection
Fuel line
Fuel pump
Fuel/engine oil leakage Inspection
Gear oil Replacement
Greasing points Greasing
Impeller/water pump housing
Impeller/water pump housing
Inspection or replace­ment as necessary
Inspection or replace­ment as necessary
Inspection
Inspection
Replacement
Inspection and clean­ing as necessary
Inspection or replace­ment as necessary
Inspection or replace­ment as necessary
Inspection or replace­ment as necessary
Replacement
20 hours
(3 months)
100 hours
(1 year)
300 hours
(3 years)
500 hours
(5 years)
46
Page 52
Maintenance
Item Actions
Propeller/propeller nut/cotter pin
Shift link/shift cable
Spark plug(s)
Spark plug caps/spark plug wires
Water from the cooling water pilot hole
Throttle link/throttle cable/throttle pick-up timing
Thermostat
Cooling water inlet Inspection
Main switch/stop switch/choke switch
Wire harness connec­tions/wire coupler con­nections
Fuel tank (Yamaha por­table tank)
Fuel tank (built-in tank)
Inspection or replace­ment as necessary
Inspection, adjust­ment or replacement as necessary
Inspection or replace­ment as necessary
Inspection or replace­ment as necessary
Inspection
Inspection, adjust­ment or replacement as necessary
Inspection or replace­ment as necessary
Inspection or replace­ment as necessary
Inspection or replace­ment as necessary
Inspection and clean­ing as necessary
Inspection and clean­ing as necessary
Initial Every
20 hours
(3 months)
100 hours
(1 year)
300 hours
(3 years)
500 hours
(5 years)
EMU34452
Maintenance chart 2
Item Actions
Exhaust guide/ex­haust manifold
47
Every
1000 hours
Inspection or replace­ment as necessary
Page 53
EMU28945

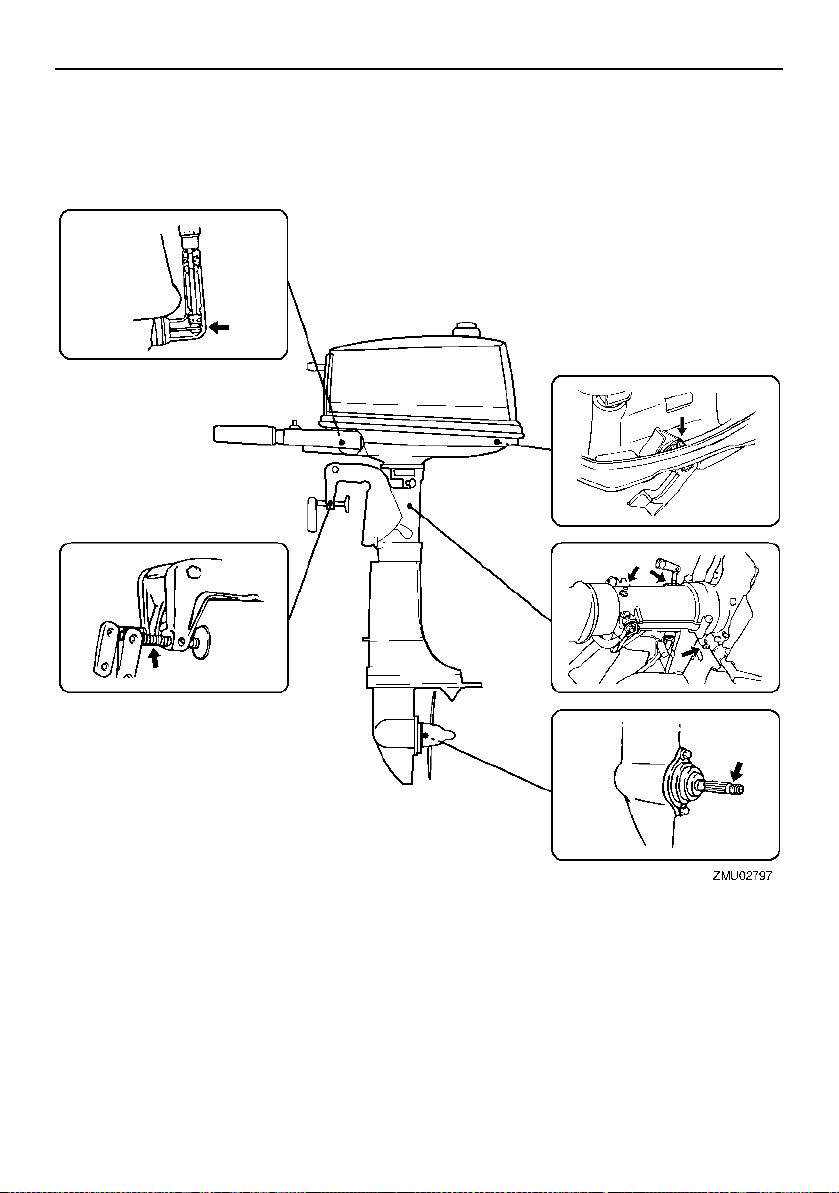

Greasing
Yamaha grease A (water resistant grease) Yamaha grease D (corrosion resistant grease; for propeller shaft)
Maintenance
48
Page 54
Maintenance
TIP:
11
22
33
EMU44493
Cleaning and adjusting spark plug
The spark plug is an important engine com­ponent and is easy to inspect. The condition of the spark plug can indicate something about the condition of the engine. For exam­ple, if the center electrode porcelain is very white, this could indicate an intake air leak or carburetion problem in that cylinder. Do not attempt to diagnose any problems yourself. Instead, take the outboard motor to a Yamaha dealer. You should periodically re­move and inspect the spark plug because heat and deposits will cause the spark plug to slowly break down and erode. (1) Remove the spark plug caps from the
spark plugs.
(2) Remove the spark plug. If electrode ero-
sion becomes excessive, or if carbon and other deposits are excessive, you should replace the spark plug with an­other of the correct type. WARNING!
When removing or installing a spark plug, be careful not to damage the in­sulator. A damaged insulator could al­low external sparks, which could lead to explosion or fire.
Standard spark plug:
BR7HS
(3) Be sure to use the specified spark plug,
otherwise the engine may not operate properly. Before fitting the spark plug, measure the electrode gap with a wire thickness gauge; replace it if out of spec­ification.
[EWM00562]
1. Spark plug gap
2. Spark plug part number
3. Spark plug I.D. mark (NGK)
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
(4) When fitting the plug, wipe off any dirt
from the threads, and then screw it in to the correct torque.
Spark plug torque:
25 N·m (2.5 kgf·m, 18 lb·ft)
If a torque-wrench is not available when you are reinstalling a spark plug, a good estimate of the correct torque is 1/12 turn past finger­tight. When you are installing a new spark plug, a good estimate of the correct torque is 1/2 to 2/3 turn past finger-tight.
EMU28992
Checking fuel filter
Check the fuel filter periodically. The fuel filter is a one piece, disposable type. If foreign matter is found in the filter, replace it. For re­placement of the fuel filter, consult your Yamaha dealer.
49
Page 55
Maintenance
EMU29116
Inspecting wiring and connectors
Inspect that each connector is engaged se-
curely.
Inspect that each ground lead is properly
secured.
EMU39303
Checking propeller
EWM02281
EMU29045
Inspecting idle speed
EWM00452
Do not touch or remove electrical parts
when starting or during operation. Keep hands, hair, and clothes away
from the flywheel and other rotating
parts while the engine is running.
ECM00491
This procedure must be performed while the outboard motor is in the water. A flush­ing attachment or test tank can be used.
If the boat is not equipped with a tachometer for the outboard motor, use a diagnostic ta­chometer for this procedure. Results may vary depending on whether testing is con­ducted with the flushing attachment, in a test tank, or with the outboard motor in the water. (1) Start the engine and allow it to warm up
fully in neutral until it is running smoothly.
(2) Once the engine has warmed up, verify
whether the idle speed is set to specifi­cation. For idle speed specifications, see page 10. If you have difficulty verifying the idle speed, or the idle speed requires adjustment, consult a Yamaha dealer or other qualified mechanic.
You could be seriously injured if the en­gine accidentally starts when you are near the propeller. Before inspecting, remov­ing, or installing the propeller, place the gear shift lever in neutral, and remove the clip from the engine shut-off switch.
Do not use your hand to hold the propeller when loosening or tightening the propeller nut. Put a wood block between the anti-cavi­tation plate and the propeller to prevent the propeller from turning.
Checkpoints Check each of the propeller blades for ero-
sion from cavitation or ventilation, or other damage.
Check the propeller shaft for damage.Check the splines for wear or damage.Check for fish line tangled around the pro-
peller shaft.
50
Page 56
Maintenance
1
2
3
4
5
EMU30673
Installing propeller
EMU30374
Spline models
ECM00502
Make sure to use a new cotter pin and bend the ends over securely. Otherwise, the propeller could come off during oper­ation and be lost.
Check the propeller shaft oil seal for dam-
age.
EMU30663
Removing propeller
EMU29198
Spline models
(1) Straighten the cotter pin and pull it out
using a pair of pliers.
(2) Remove the propeller nut, washer, and
spacer (if equipped). WARNING! Do not
use your hand to hold the propeller when loosening the propeller nut.
[EWM01891]
1. Cotter pin
2. Propeller nut
3. Washer
4. Propeller
5. Thrust washer
(3) Remove the propeller, washer (if
equipped), and thrust washer.
(1) Apply Yamaha marine grease or a corro-
sion resistant grease to the propeller shaft.
(2) Install the spacer (if equipped), thrust
washer, and propeller on the propeller shaft. NOTICE: Make sure to install the
thrust washer before installing the propeller. Otherwise, the lower case and propeller boss could be damaged.
[ECM01882]
(3) Install the spacer (if equipped) and the
washer. Tighten the propeller nut until there is no forward-and-backward movement.
(4) Align the propeller nut with the propeller
shaft hole. Insert a new cotter pin in the hole and bend the cotter pin ends.
NOTICE: Do not reuse the cotter pin. Otherwise, the propeller can come off during operation.
[ECM01892]
51
Page 57
Maintenance
TIP:
TIP:
TIP:
1
2
If the propeller nut does not align with the propeller shaft hole after tightening it, loosen the nut until it aligns with the hole.
EMU47070

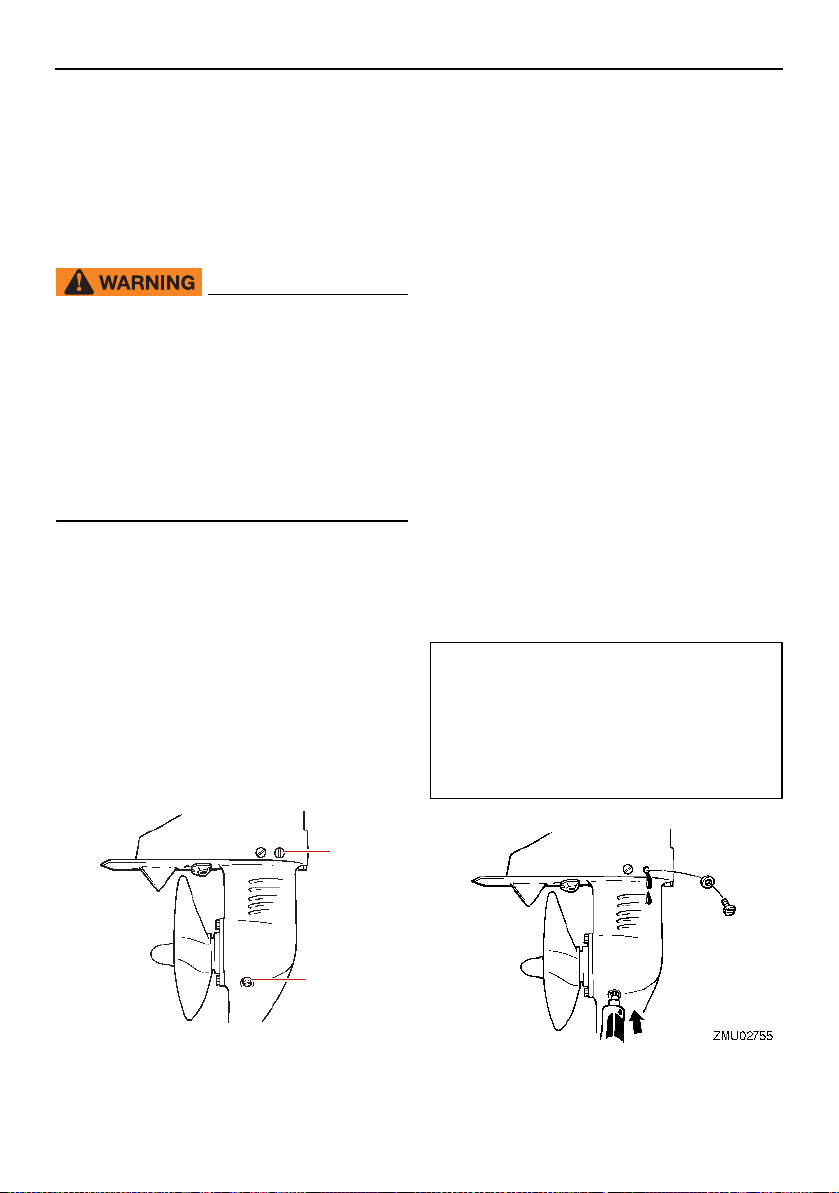

Changing gear oil
EWM00801
Be sure the outboard motor is securely
fastened to the transom or a stable
stand. You could be severely injured if
the outboard motor falls on you. Never get under the lower unit while it is
tilted, even when the tilt support lever or
knob is locked. Severe injury could oc-
cur if the outboard motor accidentally
falls.
(1) Tilt the outboard motor so that the gear
oil drain screw is at the lowest point pos­sible.
(2) Place a suitable container under the gear
case.
(3) Remove the gear oil drain screw and
gasket. NOTICE: If there is an exces-
sive quantity of metal particles on the magnetic gear oil drain screw, this can indicate lower unit problem. Con­sult your Yamaha dealer.
[ECM01901]
If a magnetic gear oil drain screw is
equipped, remove all metal particles from the screw before installing it.
Always use new gaskets. Do not reuse the
removed gaskets.
(4) Remove the oil level plug and gasket to
allow the oil to drain completely.
NOTICE: Check the used gear oil after it has been drained. If the gear oil is milky or contains water or a large amount of metal particles, the gear case may be damaged. Have a Yamaha dealer check and repair the outboard motor.
[ECM00714]
For disposal of used oil, consult your Yamaha dealer. (5) Put the outboard motor in a vertical posi-
tion. Using a flexible or pressurized filling device, inject the gear oil into the gear oil drain screw hole.
Recommended gear oil:
YAMALUBE outboard gear oil or Hyp­oid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.100 L (0.106 US qt, 0.088 Imp.qt)
1. Gear oil drain screw
2. Oil level plug
52
Page 58
Maintenance
TIP:
TIP:
TIP:
(6) Put a new gasket on the oil level plug.
When the oil begins to flow out of the oil level plug hole, insert and tighten the oil level plug.
Apply a light coat of gear oil to the oil level plug thread and gasket before installation.
Tightening torque:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
(7) Put a new gasket on the gear oil drain
screw. Insert and tighten the gear oil drain screw.
Apply a light coat of gear oil to the gear oil drain screw thread and gasket before instal­lation.
Tightening torque:
7 N·m (0.7 kgf·m, 5.2 lb·ft)
EMU29318
Inspecting and replacing anode(s)
Yamaha outboard motors are protected from corrosion by sacrificial anodes. Inspect the external anodes periodically. Remove scales from the surfaces of the anodes. Consult a Yamaha dealer for replacement of external anodes.
ECM00721
Inspect ground leads attached to external an­odes on equipped models. Consult a Yamaha dealer for inspection and replace­ment of internal anodes attached to the pow­er unit.
Do not paint anodes, as this would render them ineffective.
53
Page 59

Trouble Recovery

EMU29428
Troubleshooting
A problem in the fuel, compression, or igni­tion systems can cause poor starting, loss of power, or other problems. This section de­scribes basic checks and possible remedies, and covers all Yamaha outboard motors. Therefore some items may not apply to your model. If your outboard motor requires repair, bring it to your Yamaha dealer. If the engine trouble-alert indicator is flashing, consult your Yamaha dealer.
Starter will not operate.
Q. Is battery capacity weak or low? A. Check battery condition. Use battery of recommended capacity.
Q. Are battery connections loose or corrod­ed? A. Tighten battery cables and clean battery terminals.
Q. Is fuse for electric start relay or electric cir­cuit blown? A. Check for cause of electric overload and repair. Replace fuse with one of correct am­perage.
Q. Are starter components faulty? A. Have serviced by a Yamaha dealer.
Q. Is shift lever in gear? A. Shift to neutral.
Engine will not start (starter operates).
Q. Is fuel tank empty? A. Fill tank with clean, fresh fuel.
Q. Is fuel contaminated or stale?
A. Fill tank with clean, fresh fuel.
Q. Is fuel filter clogged? A. Clean or replace filter.
Q. Is starting procedure incorrect? A. See page 31.
Q. Has fuel pump malfunctioned? A. Have serviced by a Yamaha dealer.
Q. Are spark plug(s) fouled or of incorrect ty­pe? A. Inspect spark plug(s). Clean or replace with recommended type.
Q. Are spark plug cap(s) fitted incorrectly? A. Check and re-fit cap(s).
Q. Is ignition wiring damaged or poorly con­nected? A. Check wires for wear or breaks. Tighten all loose connections. Replace worn or broken wires.
Q. Are ignition parts faulty? A. Have serviced by a Yamaha dealer.
Q. Is engine shut-off cord (lanyard) not at­tached? A. Attach cord.
Q. Are engine inner parts damaged? A. Have serviced by a Yamaha dealer.
Engine idles irregularly or stalls.
Q. Are spark plug(s) fouled or of incorrect ty­pe? A. Inspect spark plug(s). Clean or replace with recommended type.
54
Page 60
Trouble Recovery
Q. Is fuel system obstructed? A. Check for pinched or kinked fuel line or other obstructions in fuel system.
Q. Is fuel contaminated or stale? A. Fill tank with clean, fresh fuel.
Q. Is fuel filter clogged? A. Clean or replace filter.
Q. Have ignition parts failed? A. Have serviced by a Yamaha dealer.
Q. Has alert system activated? A. Find and correct cause of alert.
Q. Is spark plug gap incorrect? A. Inspect and adjust as specified.
Q. Is ignition wiring damaged or poorly con­nected? A. Check wires for wear or breaks. Tighten all loose connections. Replace worn or broken wires.
Q. Is specified engine oil not being used? A. Check and replace oil as specified.
A. Return to home position.
Q. Is motor angle too high? A. Return to normal operating position.
Q. Is carburetor clogged? A. Have serviced by a Yamaha dealer.
Q. Is fuel joint connection incorrect? A. Connect correctly.
Q. Is throttle valve adjustment incorrect? A. Have serviced by a Yamaha dealer.
Q. Is battery cable disconnected? A. Connect securely.
Alert buzzer sounds or indicator lights.
Q. Is cooling system clogged? A. Check water intake for restriction.
Q. Is engine oil level low? A. Fill oil tank with specified engine oil.
Q. Is heat range of spark plug incorrect? A. Inspect spark plug and replace it with rec­ommended type.
Q. Is thermostat faulty or clogged? A. Have serviced by a Yamaha dealer.
Q. Are carburetor adjustments incorrect? A. Have serviced by a Yamaha dealer.
Q. Is fuel pump damaged? A. Have serviced by a Yamaha dealer.
Q. Is air vent screw on fuel tank closed? A. Open air vent screw.
Q. Is choke knob pulled out?
55
Q. Is specified engine oil not being used? A. Check and replace oil with specified type.
Q. Is engine oil contaminated or deteriorat­ed? A. Replace oil with fresh, specified type.
Q. Is oil filter clogged? A. Have serviced by a Yamaha dealer.
Q. Has oil feed/injection pump malfunc­tioned?
Page 61
Trouble Recovery
A. Have serviced by a Yamaha dealer.
Q. Is load on boat improperly distributed? A. Distribute load to place boat on an even plane.
Q. Is water pump or thermostat faulty? A. Have serviced by a Yamaha dealer.
Q. Is there excess water in fuel filter cup? A. Drain filter cup.
Engine power loss.
Q. Is propeller damaged? A. Have propeller repaired or replaced.
Q. Is propeller pitch or diameter incorrect? A. Install correct propeller to operate out­board at its recommended speed (r/min) range.
Q. Is trim angle incorrect? A. Adjust trim angle to achieve most efficient operation.
Q. Is motor mounted at incorrect height on transom? A. Have motor adjusted to proper transom height.
Q. Are weeds or other foreign matter tangled on gear housing? A. Remove foreign matter and clean lower unit.
Q. Is fuel system obstructed? A. Check for pinched or kinked fuel line or other obstructions in fuel system.
Q. Is fuel filter clogged? A. Clean or replace filter.
Q. Is fuel contaminated or stale? A. Fill tank with clean, fresh fuel.
Q. Is spark plug gap incorrect? A. Inspect and adjust as specified.
Q. Is ignition wiring damaged or poorly con­nected? A. Check wires for wear or breaks. Tighten all loose connections. Replace worn or broken wires.
Q. Have electrical parts failed? A. Have serviced by a Yamaha dealer.
Q. Is specified fuel not being used? A. Replace fuel with specified type.
Q. Has alert system activated? A. Find and correct cause of alert.
Q. Is boat bottom fouled with marine growth? A. Clean boat bottom.
Q. Are spark plug(s) fouled or of incorrect ty­pe? A. Inspect spark plug(s). Clean or replace with recommended type.
Q. Is specified engine oil not being used? A. Check and replace oil with specified type.
Q. Is thermostat faulty or clogged? A. Have serviced by a Yamaha dealer.
Q. Is air vent screw closed? A. Open the air vent screw.
Q. Is fuel pump damaged?
56
Page 62
Trouble Recovery
A. Have serviced by a Yamaha dealer.
Q. Is fuel joint connection incorrect? A. Connect correctly.
Q. Is heat range of spark plug incorrect? A. Inspect spark plug and replace it with rec­ommended type.
Q. Is high pressure fuel pump drive belt bro­ken? A. Have serviced by a Yamaha dealer.
Q. Is engine not responding properly to shift lever position? A. Have serviced by a Yamaha dealer.
Engine vibrates excessively.
Q. Is propeller damaged? A. Have propeller repaired or replaced.
Q. Is propeller shaft damaged? A. Have serviced by a Yamaha dealer.
Q. Are weeds or other foreign matter tangled on propeller? A. Remove and clean propeller.
Q. Is motor mounting bolt loose? A. Tighten bolt.
Q. Is steering pivot loose or damaged? A. Tighten or have serviced by a Yamaha dealer.
EMU29435
Temporary action in emergen-
cy
EMU29442
Impact damage
EWM00871
The outboard motor can be seriously damaged by a collision while operating or trailering. Damage could make the out­board motor unsafe to operate.
If the outboard motor hits an object in the wa­ter, follow the procedure below.
(1) Stop the engine immediately. (2) Check the control system and all compo-
nents for damage. Also, check the boat for damage.
(3) Whether damage is found or not, return
to the nearest harbor slowly and careful­ly.
(4) Have a Yamaha dealer check the out-
board motor before operating it again.
EMU39792
Starter will not operate
If the starter mechanism does not operate (the engine cannot be cranked with the start­er), the engine can be started with an emer­gency starter rope.
57
Page 63
Trouble Recovery
EWM02362
Use this procedure only for emergency
engine starting to return to the nearest
port for repairs. When the emergency starter rope is
used to start the engine, the start-in-
gear protection device does not oper-
ate. Make sure that the shift lever is in
the neutral position. Otherwise, the boat
could unexpectedly start to move, which
could result in an accident. Attach the engine shut-off cord to a se-
cure place on your clothing, or your arm
or leg while operating the boat. Do not attach the cord to clothing that
could tear loose. Do not route the cord
where it could become entangled, pre-
venting it from functioning. Avoid accidentally pulling the cord dur-
ing normal operation. Loss of engine
power means the loss of most steering
control. Also, without engine power, the
boat could slow rapidly. This could cau-
se people and objects in the boat to be
thrown forward. Make sure that no one is standing be-
hind you when pulling the starter rope. It
could whip behind you and injure some-
one. An unguarded, rotating flywheel is very
dangerous. Keep loose clothing and
other objects away when starting the
engine. Use the emergency starter rope
only as instructed. Do not touch the fly-
wheel or other moving parts when the
engine is running. Do not install the
starter mechanism or top cowling after
the engine is running.
Do not touch the ignition coil, spark plug
wire, spark plug cap, or other electrical components when starting or operating the outboard motor. You could get an electrical shock.
EMU29563
Emergency starting engine
(1) Remove the top cowling. (2) Remove the start-in-gear protection ca-
ble from the starter, if equipped.

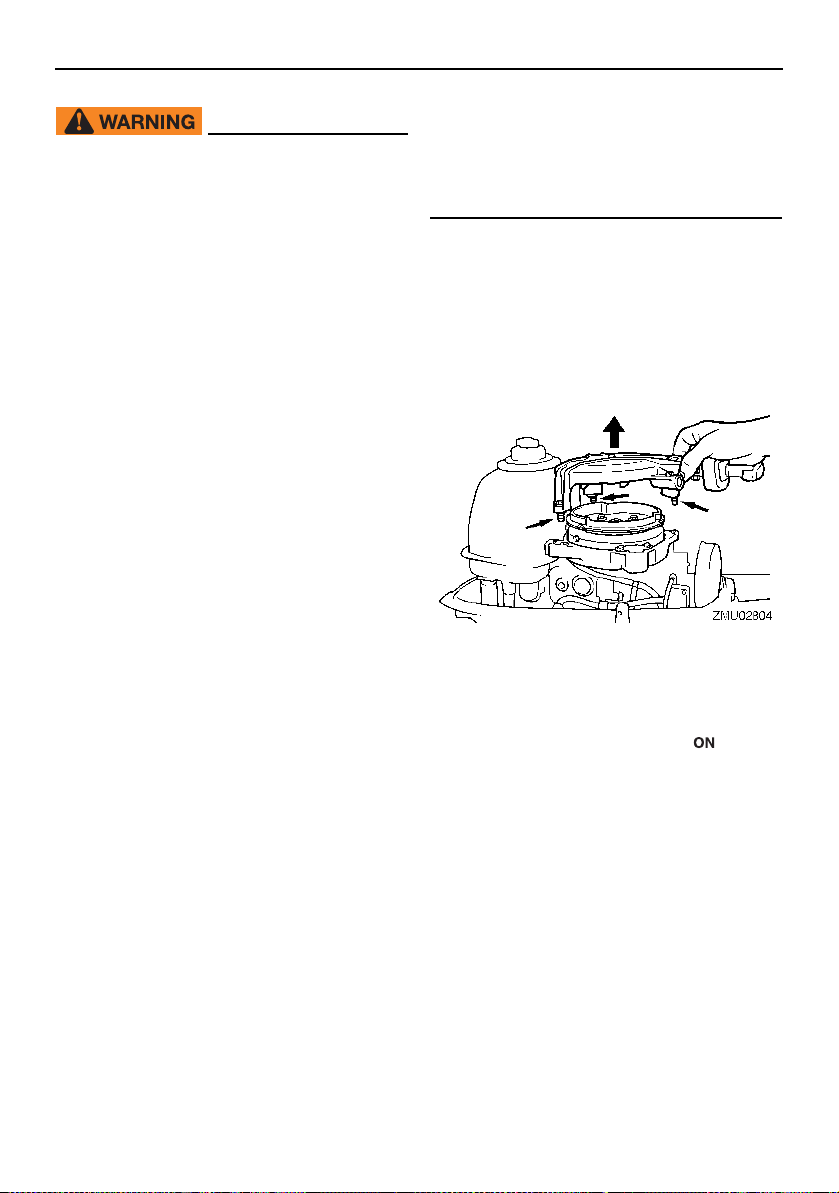

(3) Remove the starter/flywheel cover after
removing the bolt(s).
(4) Prepare the engine for starting. For fur-
ther information, see page 31. Be sure the engine is in neutral and that the clip is attached to the engine shut-off switch. The main switch must be “ ” (on), if equipped.
(5) If equipped the choke knob, pull out it
when the engine is cold. After the engine starts, gradually return the choke knob to its home position as the engine warms up.
(6) Insert the knotted end of the emergency
starter rope into the notch in the flywheel rotor and wind the rope several turns around the flywheel clockwise.
(7) Give a strong pull straight out to crank
and start the engine. Repeat if neces­sary.
58
Page 64
Trouble Recovery
EMU33502
Treatment of submerged motor
If the outboard motor is submerged, immedi­ately take it to a Yamaha dealer. Otherwise some corrosion may begin almost immedi­ately. NOTICE: Do not attempt to run the
outboard motor until it has been com­pletely inspected.
[ECM00402]
59
Page 65

INDEX

A
Alcohol and drugs...................................2
Anode(s), inspecting and replacing ...... 53
Anti-fouling paint .................................. 14
Avoid collisions.......................................3
B
Battery requirements............................11
Boat horsepower rating........................ 11
Boating safety......................................... 2
Boating safety publications .................... 4
Breaking in engine................................ 24
C
Carbon monoxide................................... 2
CE Marking............................................. 5
Checks after engine warm up............... 34
Checks after starting engine................. 33
Checks before starting engine.............. 24
Choke knob .......................................... 19
Clamping the outboard motor .............. 22
Cleaning the outboard motor ............... 44
Collisions with floating or submerged
objects.................................................. 3
Components diagram........................... 15
Control functions, checking.................. 25
Cooling water ....................................... 33
Cowling lock lever ................................ 20
Cruising in salt water or other
conditions...........................................40
F
Filling fuel for built-in tank .................... 27
Filling fuel for portable tank ..................26
First-time operation ..............................24
Flushing in a water tank........................ 43
Fuel and engine oil, filling ..................... 26
Fuel cock .............................................. 16
Fuel filter, checking............................... 49
Fuel leaks, checking for........................ 25
Fuel level...............................................25
Fuel requirements................................. 13
Fuel system...........................................25
Fuel tank ......................................... 15, 16
G
Gasoline............................................1, 13
Gasoline and oil mixing ........................28
Gasoline exposure and spills.................. 1
Gear oil, changing................................. 52
Gear shift lever...................................... 17
Greasing ............................................... 48
H
Hot parts................................................. 1
I
Identification numbers record.................5
Idle speed, inspecting........................... 50
Impact damage.....................................57
Installation requirements ...................... 11
E
EC Declaration of Conformity (DoC)....... 5
Electric shock ......................................... 1
Emergency equipment ......................... 14
Emergency starting engine................... 58
Emergency, temporary action in........... 57
Engine, checking .................................. 25
Engine oil, checking.............................. 25
Engine oil requirements........................ 12
Engine shut-off cord (lanyard) .......... 1, 25
Engine shut-off cord (lanyard) and
clip...................................................... 18
Engine stop button ............................... 18
L
Laws and regulations.............................. 4
Lubrication............................................44
M
Maintenance chart 1............................. 46
Maintenance chart 2............................. 47
Manual starter handle...........................19
Modifications .......................................... 2
Mounting height....................................21
Mounting outboard motor .................... 11
Mounting the outboard motor .............. 21
Muddy or acidic water.......................... 13
60
Page 66
INDEX
O
Operating engine .................................. 30
Outboard motor disposal
requirements ......................................14
Outboard motor (painted surface),
checking............................................. 44
Outboard motor safety ...........................1
Outboard motor serial number............... 5
Overloading ............................................ 2
P
Passenger training.................................. 4
Passengers............................................. 2
People in the water................................. 2
Periodic maintenance........................... 44
Personal flotation devices (PFDs) ........... 2
Propeller ................................................. 1
Propeller, checking............................... 50
Propeller, installing ............................... 51
Propeller, removing .............................. 51
Propeller selection................................ 11
R
Read manuals and labels ....................... 7
Replacement parts ............................... 45
Rotating parts......................................... 1
S
Sending fuel..........................................31
Sending fuel (portable tank).................. 30
Severe operating conditions................. 45
Shallow water ....................................... 39
Shifting.................................................. 34
Shifting (checks after engine warm
up) ...................................................... 34
Spark plug, cleaning and adjusting ...... 49
Specifications ....................................... 10
Starter will not operate ......................... 57
Starting engine ..................................... 31
Start-in-gear protection........................ 12
Steering friction adjuster ...................... 19
Stop switches....................................... 34
Stopping boat....................................... 35
Stopping engine ................................... 35
Storing outboard motor ........................ 43
Submerged outboard motor................. 59
T
Throttle friction adjuster........................18
Throttle grip .......................................... 17
Throttle indicator................................... 17
Tiller handle .......................................... 17
Tilt support bar .....................................20
Tilting up and down.............................. 37
To use the battery................................. 11
Top cowling, installing.......................... 26
Top cowling, removing .........................25
Transporting and storing outboard
motor .................................................. 42
Trim rod (tilt pin).................................... 19
Trimming outboard motor.....................36
Troubleshooting....................................54
W
Warming up engine...............................33
Warning labels ........................................ 7
Weather .................................................. 3
Wiring and connectors, inspecting....... 50
Y
Yamalube..............................................12
61
Page 67
Page 68
Printed in Japan December 2019–0.1 × 1 CR
Loading...
