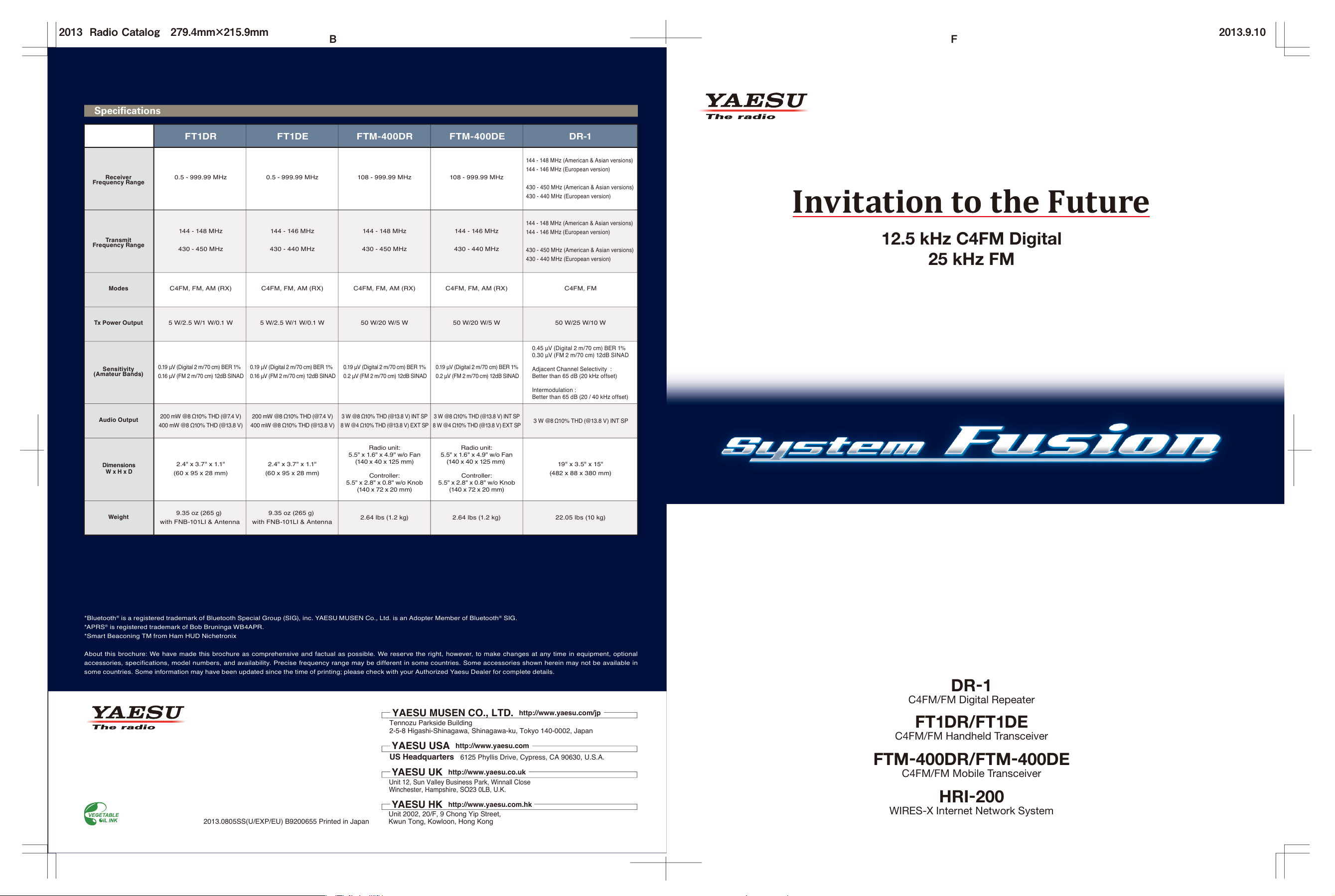

2013RadioCatalog 279.4mm×215.9mm
Specifications
Receive r
Frequency Range
Tra nsm it
Frequency Range
0.5 - 999.99 MHz 0.5 - 999.99 MHz 108 - 999.99 MHz 108 - 999.99 MHz
144 - 148 MHz
430 - 450 MHz
144 - 146 MHz
430 - 44 0 MHz
BF
DR -1FTM-400DEFTM-400DRFT 1DEFT1DR
144 - 148 MHz (American & As ian vers ions)
144 - 146 MHz (European vers ion)
430 - 45 0 MHz (American & A sian ver sions)
430 - 44 0 MHz (Euro pean ver sion)
Invitation to the Future
144 - 148 MHz
430 - 450 MHz
144 - 146 MHz
430 - 44 0 MHz
144 - 148 MHz (American & As ian vers ions)
144 - 146 MHz (European vers ion)
430 - 45 0 MHz (American & A sian ver sions)
430 - 44 0 MHz (Euro pean ver sion)
12.5 kHz C4FM Digital
25 kHz FM
2013.9.10
Modes
Tx Power Output
Sensitivity
(Amateur Bands)
Audio Output
Dimensions
W x H x D
Weight
C4FM, FM, AM (RX) C4FM, FM, AM (RX) C4FM, FM, AM (R X) C4FM, FM, AM (RX) C4FM, FM
5 W/2.5 W/1 W/0.1 W 5 W/2.5 W/1 W/0.1 W 50 W/20 W/5 W 50 W/20 W/5 W 50 W/25 W/10 W
0.45 μV (Digital 2 m/ 70 cm) BER 1%
0.30 μV (FM 2 m/ 70 cm) 12dB SINA D
0.19 μV (Digital 2 m/ 70 cm) BER 1%
0.16 μV (FM 2 m/70 cm) 12dB SINAD
200 mW @8 Ω10% THD (@7.4 V)
400 mW @8 Ω10% THD (@13.8 V)
2.4" x 3.7" x 1.1"
(60 x 95 x 28 mm)
9.35 oz (265 g)
with FNB -101LI & Antenna
0.19 μV (Digital 2 m/ 70 cm) BER 1%
0.16 μV (FM 2 m/70 cm) 12dB SINAD
200 mW @8 Ω10% THD (@7.4 V)
400 mW @8 Ω10% THD (@13.8 V)
2.4" x 3.7" x 1.1"
(60 x 95 x 28 mm)
9.35 oz (265 g)
with FNB -101LI & Antenna
0.19 μV (Digital 2 m/ 70 cm) BER 1%
0.2 μV (FM 2 m/ 70 cm) 12dB SINAD
3 W @8 Ω10% THD (@13.8 V) INT SP
8 W @4 Ω10% THD (@13.8 V) EXT SP
Radio unit:
5.5" x 1.6" x 4.9" w/o Fan
(140 x 40 x 125 mm)
Controller:
5.5" x 2.8" x 0.8" w/o Knob
(140 x 72 x 20 mm)
2.64 lbs (1.2 kg) 2.64 lbs (1.2 kg) 22.05 lbs (10 kg)
0.19 μV (Digital 2 m/ 70 cm) BER 1%
0.2 μV (FM 2 m/ 70 cm) 12dB SINAD
3 W @8 Ω10% THD (@13.8 V) INT SP
8 W @4 Ω10% THD (@13.8 V) EXT SP
Radio unit:
5.5" x 1.6" x 4.9" w/o Fan
(140 x 40 x 125 mm)
Controller:
5.5" x 2.8" x 0.8" w/o Knob
(140 x 72 x 20 mm)
Adjace nt Chann el Sele ctivity :
Better than 65 dB (20 kHz offset)
Intermodulation :
Better than 65 dB (20 / 40 kHz of fset)
3 W @
8 Ω
(482 x 88 x 380 mm)
10% THD (@13.8 V) INT SP
19" x 3.5" x 15"
*Bluetooth
*AP RS® is registered trademark of B ob Bruninga WB4APR.
*Smart Beaconing TM from Ham HUD Nichetronix
About th is brochure: We have made th is brochure as comprehensive and f actual as possible. We reser ve the ri ght, however, to make chang es at any time in equipm ent, opt ional
accessories , speci ficati ons, model numbers, and ava ilability. Precise frequency range may be dif ferent in s ome countries. Some acc essor ies shown herein may n ot be availa ble in
some cou ntries. Some information m ay have been up dated since the time of printing; plea se chec k with your Authorized Yaesu Dealer for compl ete detai ls.
®
is a registered trademark of B luetooth Special Group (SIG), inc. YAESUMUSEN C o., Ltd. is an Ado pter Mem ber of Bluetooth
YAESU MUSEN CO., LTD.
Tennozu Parkside Building
2-5-8 Higashi-Shinagawa, Shinagawa-ku, Tokyo 140-0002, Japan
http://www.yaesu.com
6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
http://www.yaesu.co.uk
http://www.yaesu.com.hk
2013.0805SS(U/EXP/EU) B9200655 Printed in Japan
YAESU USA
US Headquarters
YAESU UK
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
YAESU HK
Unit 2002, 20/F, 9 Chong Yip Street,
Kwun Tong, Kowloon, Hong Kong
®
SIG.
http://www.yaesu.com/jp
DR-1
C4FM/FM Digital Repeater
FT1DR/FT1DE
C4FM/FM Handheld Transceiver
FTM-400DR/FTM-400DE
C4FM/FM Mobile Transceiver
HRI-200
WIRES-X Internet Network System
2013RadioCatalog 279.4mm×215.9mm
12
2013.9.9

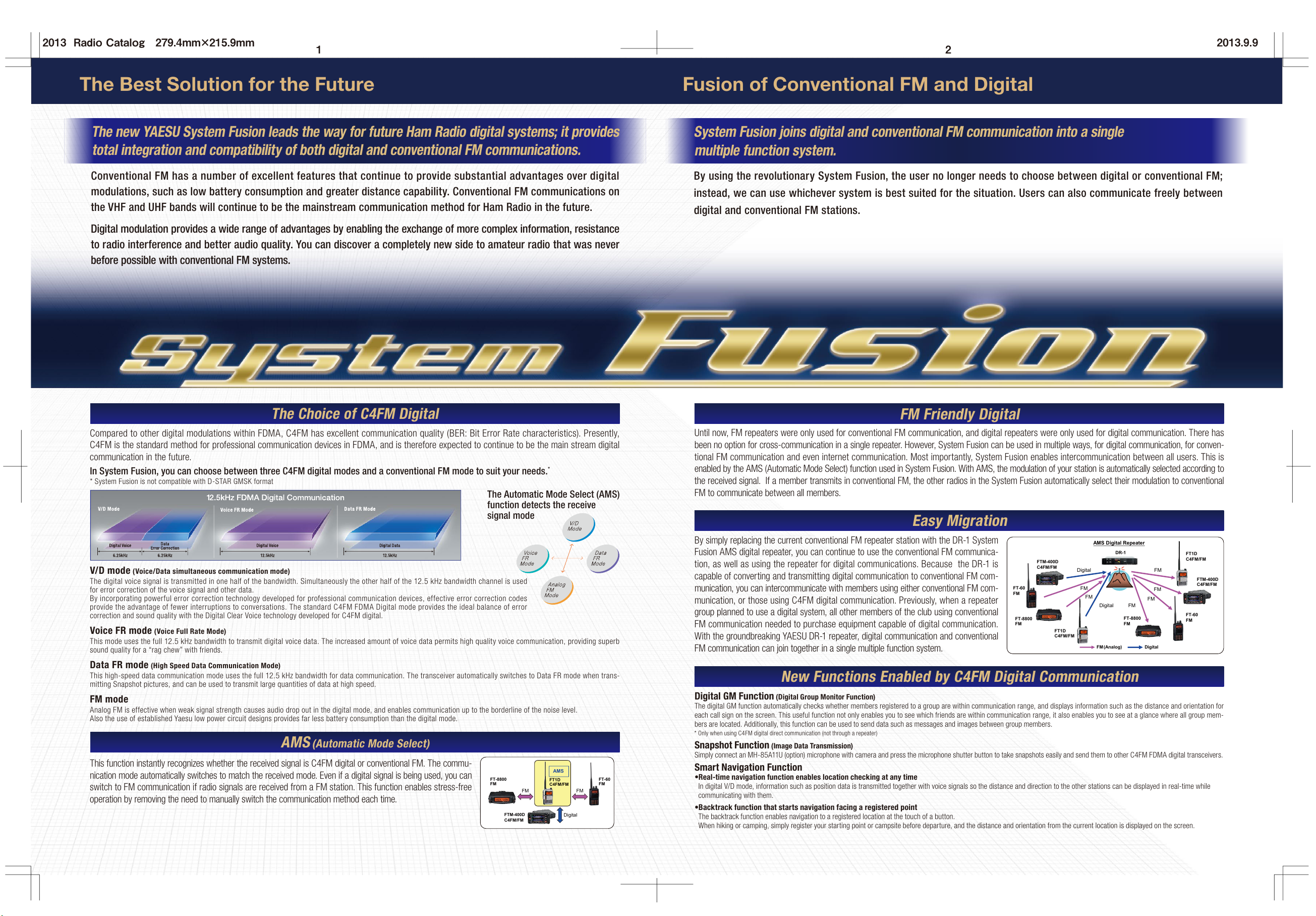

The Best Solution for the Future
The new YAESU System Fusion leads the way for future Ham Radio digital systems; it provides
total integration and compatibility of both digital and conventional FM communications.
Conventional FM has a number of excellent features that continue to provide substantial advantages over digital
modulations, such as low battery consumption and greater distance capability. Conventional FM communications on
the VHF and UHF bands will continue to be the mainstream communication method for Ham Radio in the future.
Digital modulation provides a wide range of advantages by enabling the exchange of more complex information, resistance
to radio interference and better audio quality. You can discover a completely new side to amateur radio that was never
before possible with conventional FM systems.
Fusion of Conventional FM and Digital
System Fusion joins digital and conventional FM communication into a single
multiple function system.
By using the revolutionary System Fusion, the user no longer needs to choose between digital or conventional FM;
instead, we can use whichever system is best suited for the situation. Users can also communicate freely between
digital and conventional FM stations.
The Choice of C4FM Digital
Compared to other digital modulations within FDMA, C4FM has excellent communication quality (BER: Bit Error Rate characteristics). Presently,
C4FM is the standard method for professional communication devices in FDMA, and is therefore expected to continue to be the main stream digital
communication in the future.
In System Fusion, you can choose between three C4FM digital modes and a conventional FM mode to suit your needs.
* System Fusion is not compatible with D-STAR GMSK format
The Automatic Mode Select (AMS)
function detects the receive
signal mode
V/D mode (Voice/Data simultaneous communication mode)
The digital voice signal is transmitted in one half of the bandwidth. Simultaneously the other half of the 12.5 kHz bandwidth channel is used
for error correction of the voice signal and other data.
By incorporating powerful error correction technology developed for professional communication devices, effective error correction codes
provide the advantage of fewer interruptions to conversations. The standard C4FM FDMA Digital mode provides the ideal balance of error
correction and sound quality with the Digital Clear Voice technology developed for C4FM digital.
Voice FR mode
This mode uses the full 12.5 kHz bandwidth to transmit digital voice data. The increased amount of voice data permits high quality voice communication, providing superb
sound quality for a “rag chew” with friends.
Data FR mode
This high-speed data communication mode uses the full 12.5 kHz bandwidth for data communication. The transceiver automatically switches to Data FR mode when trans-
mitting Snapshot pictures, and can be used to transmit large quantities of data at high speed.
(Voice Full Rate Mode)
(High Speed Data Communication Mode)
FM mode
Analog FM is effective when weak signal strength causes audio drop out in the digital mode, and enables communication up to the borderline of the noise level.
Also the use of established Yaesu low power circuit designs provides far less battery consumption than the digital mode.
AMS
(Automatic Mode Select)
This function instantly recognizes whether the received signal is C4FM digital or conventional FM. The commu-
nication mode automatically switches to match the received mode. Even if a digital signal is being used, you can
switch to FM communication if radio signals are received from a FM station. This function enables stress-free
FT-8800
FM
operation by removing the need to manually switch the communication method each time.
FTM-400D
C4FM/FM
*
AMS
FT1D
C4FM/FM
FM
Digital
FT-60
FM
FM
FM Friendly Digital
Until now, FM repeaters were only used for conventional FM communication, and digital repeaters were only used for digital communication. There has
been no option for cross-communication in a single repeater. However, System Fusion can be used in multiple ways, for digital communication, for conven-
tional FM communication and even internet communication. Most importantly, System Fusion enables intercommunication between all users. This is
enabled by the AMS (Automatic Mode Select) function used in System Fusion. With AMS, the modulation of your station is automatically selected according to
the received signal. If a member transmits in conventional FM, the other radios in the System Fusion automatically select their modulation to conventional
FM to communicate between all members.
Easy Migration
By simply replacing the current conventional FM repeater station with the DR-1 System
Fusion AMS digital repeater, you can continue to use the conventional FM communica-
tion, as well as using the repeater for digital communications. Because the DR-1 is
capable of converting and transmitting digital communication to conventional FM com-
munication, you can intercommunicate with members using either conventional FM com-
munication, or those using C4FM digital communication. Previously, when a repeater
group planned to use a digital system, all other members of the club using conventional
FM communication needed to purchase equipment capable of digital communication.
With the groundbreaking YAESU DR-1 repeater, digital communication and conventional
FM communication can join together in a single multiple function system.
FT-60
FM
FT-8800
FM
FTM-400D
C4FM/FM
FT1D
C4FM/FM
AMS Digital Repeater
Digital
FM
FM
Digital
FM(Analog) Digital
DR-1
FM
FT-8800
FM
FT1D
C4FM/FM
FM
FM
FM
FT-60
FM
FTM-400D
C4FM/FM
New Functions Enabled by C4FM Digital Communication
Digital GM Function (Digital Group Monitor Function)
The digital GM function automatically checks whether members registered to a group are within communication range, and displays information such as the distance and orientation for
each call sign on the screen. This useful function not only enables you to see which friends are within communication range, it also enables you to see at a glance where all group mem-
bers are located. Additionally, this function can be used to send data such as messages and images between group members.
* Only when u sing C4 FM digital direc t communication (not through a repeater)
Snapshot Function (Image Data Transmission)
Simply connect an MH-85A11U (option) microphone with camera and press the microphone shutter button to take snapshots easily and send them to other C4FM FDMA digital transceivers.
Smart Navigation Function
•Real-time navigation function enables location checking at any time
In digital V/D mode, information such as position data is transmitted together with voice signals so the distance and direction to the other stations can be displayed in real-time while
communicating with them.
•Backtrack function that starts navigation facing a registered point
The backtrack function enables navigation to a registered location at the touch of a but ton.
When hiking or camping, simply register your starting point or campsite before departure, and the distance and orientation from the current location is displayed on the screen.
2013RadioCatalog 279.4mm×215.9mm
144/430 MHz Dual Band C4FM/FM Digital Repeater DR-1
YAESU DR-1 is a digital/conventional FM dual mode repeater that covers the VHF and UHF amateur radio bands.
It was developed for use with System Fusion. Replacing your conventional analog FM repeater with the DR-1 will provide
continued use of conventional FM communication while integrating the use of digital communication functions
through its unique AMS capability.
34
User Friendly Set-up
The large color touch-panel screen installed in the front panel is used to configure various settings such as transmit and receive frequencies, transmit power
output and AMS function. The display can be switched off after configuring the settings to prevent accidental operation. Simply turn the display switch ON and
use the touch panel screen to confirm or change settings.
The transmit and receive frequencies, CTCSS frequency and other functions are configured by the touch panel screen.
CTCSS can be set for Tx/Rx (Same frequency) or Rx only.
Easy Migration
The repeater controller, receiver and transmitter are all packaged into a 19” standard mount cabinet for simple replacement of the existing repeater. Other
peripheral devices such as the duplexer and amplifier, etc., can continue to be used as-is.
Frequency setting screenSetup screen CTCSS setting screen
2013.9.9
144/430 MHz DUAL BAND C4FM/FM DIGITAL REPEATER
DR-1
AC Power Cable included
Features:
• Modulation Mode: 25 kHz FM, 12.5 kHz C4FM Digital (V/D Mode, VFR Mode, DFR Mode)
* System Fusion is not compatible with the D-STAR GMSK digital format.
*
• Output Power: 50 W/25 W/10 W
Equipped with large-size heat-sink and cooling fan to ensure a stable transmission output.
• Emergency Operation: Supports operation on an emergency battery.
• AMS (Automatic Mode Select) function automatically recognizes whether the signal is a C4FM digital or conventional FM
signal, and transmits using the set communication method.
• Built-in large-size monitor speaker with volume control for checking the reception state during setup. The speaker can
also be used to constantly monitor the reception state.
• A microphone terminal is provided on the front panel for use in repeater transmitter tests and to enable use as a
base station.
In addition to the convenient and easy-to-use digital function, advanced VoIP wireless WIRES-X is also available.
FM
FM(Analog) transmit
Digital
FM
FM
FM
FM
Installation Examples
of Repeater Set-up
FM
Digital
AMS receive → AMS transmitAMS receive → FM transmit
AMS transmit
FM
DigitalDigital
Digital
Digital
FM
FM
AMATEUR RADIO INTERNET LINKING KIT
HRI-200
USB Cable and Dat a Cable ( MDIN10 pin to MDIN10 pin) included
NODE NODE
INTERNET
Installation Example 1: Replacing Existing Analog FM Repeater
When replacing an existing conventional FM repeater, AMS on the
receiver side is set to AUTO mode and AMS on the transmitter side is
set to FM FIX mode. If the DR-1 repeater receives C4FM Digital signals,
it converts them, and retransmits them in conventional FM automatically.
When receiving conventional FM signals it retransmits them unchanged
as the FM repeater.
*C4FM digital signals are converted to FM signals in the repeater. Therefore, digital
information such as GPS data included in the C 4FM digital signals is not transmitted.
Installation Example 2: New Repeater set-up for C4FM Digital
and conventional FM
AMS is set to AUTO mode on both the receiver and transmitter sides.
DR-1 transmits received conventional FM signals unchanged as conven-
tional FM signals, and transmits received C4FM digital signals
unchanged as C4FM digital signals.*
*When this setting is used, members using transceivers that are not equipped with the
C4FM and A MS function cannot receive digital transmitted signals.
2013RadioCatalog 279.4mm×215.9mm
144/430 MHz Dual Band Digital/FM Handheld Transceiver 144/430 MHz Dual Band Digital/FM Mobile Transceiver
56
Exciting New Amateur Digital Transceiver
2013.9.9
Equipped with advanced touch panel operation
and full-color TFT large-scale display
SILVER
Digital Group Monitor (GM) Function
This function automatically checks whether members
registered to a group are within communication range, and
displays information such as the distance and orientation on
the screen. This useful function not only informs you which
friends are within communication range, it also enables you
to see at a glance where all group members are located.
In range
Group Monitor Function
Out of range
In range
Out of range
Group Monitor screen
Directi on
Distance
Snapshot Function (Image Data Transmission)
Simply connect an MH-85A11U (option) speaker microphone
with camera. Press the microphone shut ter button to take
snapshots, and then easily send them to other C4FM FDMA
digital transceivers.
Lens
Image transmis sion
button
Shutter button
C4FM FDMA 144/430 MHz DUAL BAND
5W DIGITAL/FM TRANSCEIVER
FT1DR
FT1DE
BLACK
Smart Navigation Screen
Check location relationships at any time
Real Time Navigation Function
Displays dir ection
Backtrack function for returning
to your departure point
With the simple touch of a button you can
start navigating to your departure point or
any location previously saved in the memory.
Equipped with
micro SD card slot
(micro S D card no t included)
7.4V 1100 mAh Lithium Ion Battery FNB-101LI, Battery charger PA-48
/ SAD-11B(USA version), and PC connection Cable SCU-18 included
Distance to other st ation
Distance to saved loc ation
Battery Operating Time (Approximately)
Saved location (★, L1 or L2)
14 4M Hz
430MHz
* Duty Cycle based on Tx 6 sec., Rx 6 sec., Standby 48 sec.
( Tx Power 5 Watts, Rx a udio output 10%T HD, Batter y save 1:5, Monoba nd receive, and GP S function of f. )
* Operating times may very depending on operating conditions.
OPTIONS
American and Asian versions
European version
Band • Mode
Analog Mode
Digital Mode
Analog Mode
Digital Mode
Tough waterproof design
equivalent to IPX5
(water-jet-resistant)
You will be safe using this transceiver in
the field when sudden changes in
weather may cause it to become wet
with rain or splashed with water.
Built-in GPS with antenna
in the top section of the unit
FNB-101LI
5 hours
4 hours
4.5 hours
3.6 hours
FNB-102LI
8 hours
6.5 hours
7.5 hours
6.0 hours
Battery Ca se
FBA-39(0.8W)
15.5 hours
11 hours
15 hours
10.5 hours
Digital Group Monitor Screen
Equipped with
micro SD Card Slot/
Data communication Terminal
(micro S D card no t included)
Built-in GPS with Antenna
C4FM FDMA 144/430 MHz DUAL BAND
50W DIGITAL/FM TRANSCEIVER
FTM-400DR
FTM-400DE
DTMF Microphone MH-48A6JA, Mounting Bracket, Bracket for Controller,
Control Cable 10 ft (3m), PC connection Cable SCU-20, and DC Power Cable included
3.5-inch full color touch panel operation
The icon symbols, multi-function key display and pop-up messages are all
displayed in high-resolution color thanks to the full-color, high luminance TFT
liquid crystal screen. The settings and status of the wireless devices are
displayed in an easy-to-understand format. You can perform various function
operations simply and easily by gently touching the screen.
Screen (actual size)
Data communication Terminal
Front side of the Radio Unit
micro SD card slot
OPTIONS
Built-in GPS with antenna
Rear side of the Controller
American and Asian versions
European version
Smart Navigation ScreenBand Scope Screen
Frequency Direct Input Screen
APRS® Screen
Speaker Microphone
with Snapshot camera
MH-85A11U
3x"AA"Cell
Battery Case
FBA-39
Speaker /
Microphone
MH-34
B4B
PC Connection
Cable
*1
SCU-18
Earpiece
Microphone
MH-37
A4B
Data Cable
CT-170
VOX Headset
VC-25
Data Cable (2.5
CT-176
φ）
Microphone
Adapter
CT-44
Clone Cable
CT-168
Lithium Ion
Battery Pack
(7.4V 1100 mAh)
FNB-101LI
DC Cable
*1
E-DC-6
Lithium Ion
Battery Pack
(7.4V 1800 mAh)
FNB-102LI
DC Cable w /
Noise Filter
E-DC-5B
Battery Charger
SAD-11B,
PA-48B/C/U
BNC-to-SMA
Adapter
CN-3
*1
*2
Rapid Charger
CD-41
Soft Case
CSC-97
Microphone with
Snapshot camera
A11U
MH-85
High-Power
External Speaker
MLS-200-M10
DTMF Microphone
A6JA*1
MH-48
Voice Guide Unit
FVS-2
Normal Microphone
C6J
MH-42
Vacuum Cup
Mount Bracket
for Controller
MMB-98
Bluetooth ® Adapter Unit
BU-2
PC Connection Cable
*1
SCU-20
*1 The same as the supplied accessory *2 ”B” : for USA version / ”C”: for 220 – 240 VAC / ”U” for 230VAC w/ UK Plug*1 The same as the supplied accessory *2 SAD-11B for USA version / PA-48B for 120VAC / PA-48C for 220 – 240 VAC / PA-48U for 230VAC w/ UK Plug
Bluetooth ® Headset
BH-2A
Separation Cable
20 ft (6m)
CT-162
Charger Cradle (3 hours)
BH-2A Bluetoo th
for
Headset
CD-40
Cloning Cable
CT-166
®
AC Adapter for CD-40
PA-46B/C/U
Data Cable
CT- 163
CT- 164
CT- 165
CT- 167
*2
MDIN10 pin to MDIN6 pin
MDIN10 pin to MDIN6 pin
MDIN10 pin to Dsub9
MDIN10 pin to Open
+ Dsub9
Loading...
