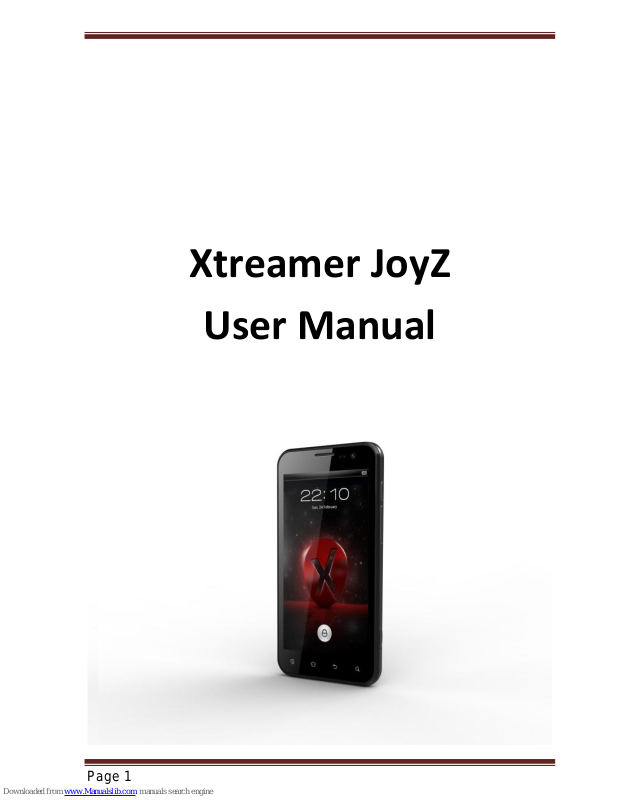

Xtreamer JoyZ User Manual

Page 1

Xtreamer JoyZ

User Manual

Page 2

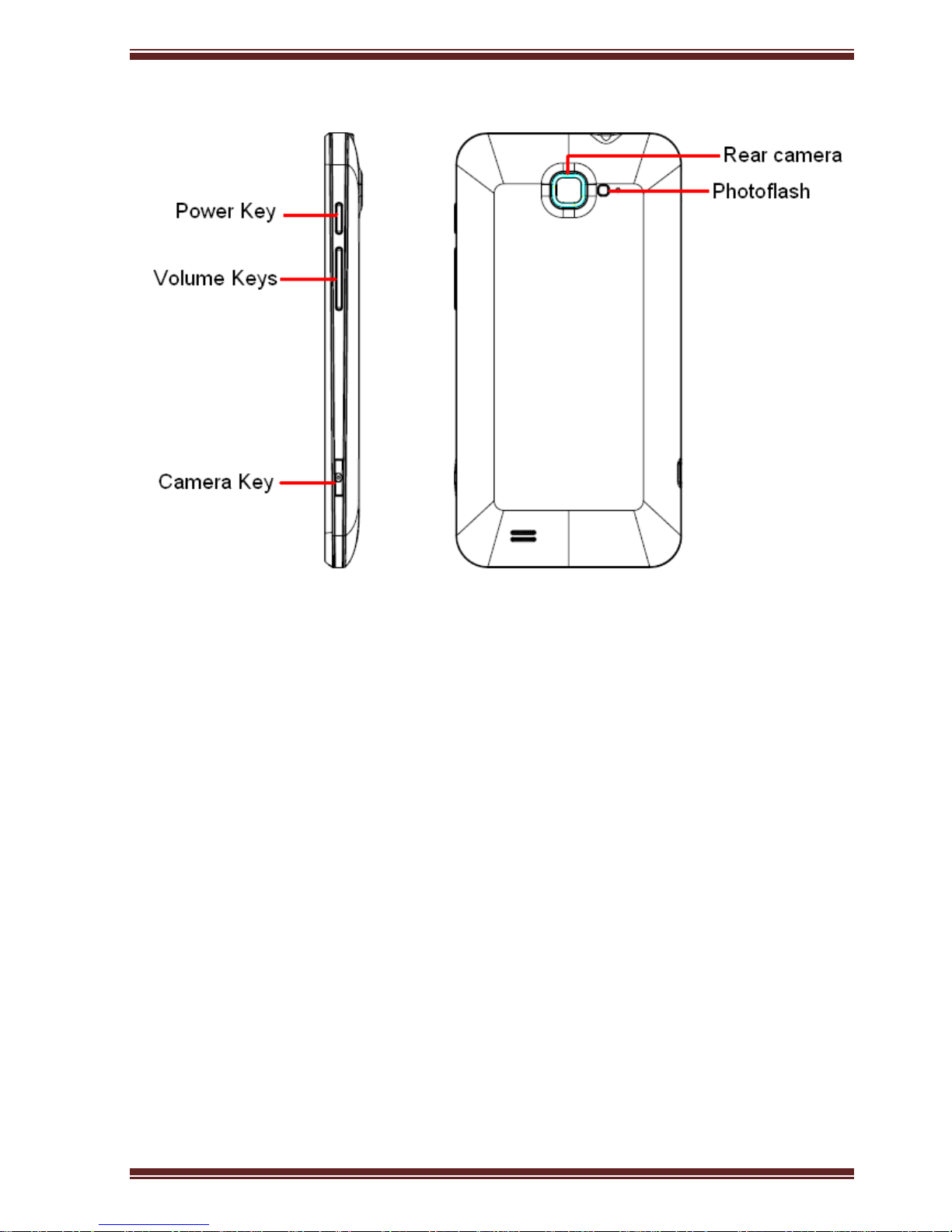

Phone display & key basics

To turn on your JoyZ, long press Power Key.
To turn off your JoyZ, press and hold Power Key till Phone options
menu appears. And then touch Power off.
HOME Key: Press to return to the Home screen. Press and hold to

bring up the recent applications window.
MENU Key: Press to open a list of actions you can take on the
current screen.
BACK Key: Within a menu, press to return to the previous screen
or to dismiss a dialog box or menu. When the onscreen keyboard
is open, press to close the onscreen keyboard.
Search Key: On the Home screen, opens search for searching
your phone and the web.
Volume Keys: Press to adjust the volume.

Page 3

Page 4

Installing the battery and SD Card

(1) Remove the back cover

(2) Remove the battery

(3) Install the SIM card

Page 5

(4) Install the battery

(5) Install the back cover

(6) Insert T-flash card

Page 6

Locking and unlocking

Press Power Key to wake up/lock screen.
In the lock screen,touch icon not lift and slide to the icon

location in order to unlock screen.

Page 7

Home screen

Wherever you are, whatever you’re doing on your JoyZ, simply
press HOME Key to return to Home screen.
The home screen is your starting point for using applications on
your phone. You can customize your Home screen as you like.
To add a Home screen item, touch and hold a specific application
or widget add it to the home screen.
To remove items from the Home screen, touch and hold an item

until Remove icon appears , drag it to the Remove icon.

Page 8

Onscreen Keyboard

When you start a program or select a field that requires text or
numbers, the onscreen keyboard becomes available.
When you do not need the keyboard, you can close it by pressing
Back Key.
To adjust onscreen keyboard settings, you can go to Settings >
Language & input > Android keyboard.

Page 9

Phone calls

To make a call, touch a phone number in Contacts, an Email, a
text message or anywhere on your phone.
You can also enter the phone number manually by virtual keypad
and dial directly.
To answer a call, drag the green phone icon to the right.
To reject a call, drag the red phone icon to the left.

To end a call, touch the End Call icon .

Page 10

Gallery

Gallery lets you to access photos and videos you have taken. For
photos, you can do basic editing tasks, set them as wallpaper or
contact picture and share them to your friends.
To view a picture, press Home Key, touch the application tab and
then touch Gallery icon.
Slide your finger left or right to move between pictures.

Page 11

Camera

Your phone lets you take pictures and record videos with the built­in camera.
To open camera, press Home Key, touch the application tab and
then select Camera.

In picture mode, touch icon to take a picture.

In video mode, touch icon to record a video.

Page 12

Music

At any level in your music library, touch and hold a list (a song,
artist, album or playlist) to open the context menu. Select a song to
play and go to the playback screen.

Page 13

Video

To record a video, press Home key, touch application tab and then
touch Camcorder. You can also touch icon and switch to

video mode in Camera menu.
To play video files, press Home key, touch application tab and
touch Videos icon. Touch a video you want to watch in the video
list to play.

Page 14

Browser

Browser supports you to browse web pages when your JoyZ is
connected to available network.
To connect to WLAN or enable mobile network, you can go to
Settings > Wireless & networks.
Open the Browser screen and tap the web address tab to enter the
address you’d like to visit.
To zoom in or zoom out within a web page, you can also pinch
your fingers together or apart.

Page 15

Clock

Your JoyZ has a built-in alarm clock which enables you to set
multiple clocks.
To set an alarm, touch Add alarm. After editing the alarm details,
touch Done to save the alarm.
To turn alarm off, long press an alarm and select Turn alarm off
on the context menu that appears.
To delete an alarm, long press the alarm and select Delete alarm
on the context menu that appears.

Page 16

Search

To search your JoyZ, press Search Key to open the search bar.
Type in what you’d like to search, the search results will be listed
under the search bar.
To make search faster, you can select the search type like All,
Web, Apps, Contacts or others.

Page 17

Safety Information and Notices

Failure to comply with the following precautions may be dangerous
or illegal.
Please carefully read and observe the terms below:

Safe power on

Do not use your mobile phone where it is forbidden to use or you
might cause a disturbance or danger.

Safe transportation first

Please observe all related local laws and regulations.
Please drive with both hands.
Transportation security should be considered when driving.

Disturbance

All mobile phone performances might be disturbed

Turn off when in hospital

Please follow related limitations.
Please turn off your mobile phone when near a medical instrument.

Turn off on an airplane

Please follow related limitations.
Do not use your phone on an airplane.

Turn off when at a gasoline station

Do not use your mobile phone at a filling station or around fuels or
chemicals.

Turn off around exposure Area

Please observe related limitations and do not use your mobile
phone around an area where explosions can occur.

Proper use

As described in this manual, your mobile phone can be used only
in right location.
If possible, please do not touch the antenna area on your phone.
Use qualified after sale service
Only a qualified maintainer can install or repair your mobile phone.

Accessories and batteries

Page 18

Only use the authorized accessories and batteries and do not
connect to unmatched manufacturers or products.

Waterproof

Your mobile phone is not waterproof. Please keep it away from
water.

Backup

Do remember to make a backup or keep a written record of all
important information saved in your mobile phone.

Connect to other devices

Please read the user manual of the device to get more detailed
security instructions before connecting to other devices and do not
connect to unmatched product.

SOS emergency calls

Make sure your mobile phone is switched on and in a service area.
In home screen, tap the dial key, input the SOS number, then press
the Dial Key. Tell where you are and do not hang up without
permission.

Page 19

Specific Absorption Rate (SAR) information

This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate
at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the
FCC when tested for use at the ear is 1.357W/kg and when worn
on the body, as described in this user guide, is 1.279 W/kg (Body­worn measurements differ among phone models, depending upon
available accessories and FCC requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC
ID: T38 8690.
For body worn operation, this phone has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of 1.5
cm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. If you do no t use a
body-worn accessory and are not holding the phone at the ear,

Page 20

position the handset a minimum of 1.5 cm from your body when
the phone is switched on.

FCC Regulations

This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the
user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.

.
