NuStreams-600i/2000i
User’s Manual
USM Ver 1.0
Foreword
Copyright
Copyright © 2013 Xtramus Technologies, all rights reserved. The information contained in this document is the property of Xtramus
Technologies. No part of this publication shall be reproduced, stored in a retrieval system, or transmitted, in any form or by any
means, without the prior written permission of Xtramus Technologies.
Disclaimer
The information contained in this document is subject to change without notice and does not represent a commitment on the part of
Xtramus Technologies. The information in this document is believed to be accurate and reliable. However, Xtramus Technologies
assumes no responsibility or liability for any errors or inaccuracies that may appear in the document.
Trademarks
NuStreams-600i/2000i is a trademark or registered trademark of Xtramus Technologies. All other trademarks and registered
trademarks are the property of their respective owners.
Warranty
Xtramus Technologies warrants for the hardware provided along with this document under proper usage and conditions in normal
environment; any improper operation or in irregular environment may possibly cause this product NOT function well. For detailed
terms, please contact your local dealer.
Contact Information
Xtramus Technologies
E-mail: sales@xtramus.com
Website: www.xtramus.com
Tel: +886-2-8227-6611
Fax: +886-2-8227-6622
XTRAMUS TECHNOLOGIES®
2
E-mail: sales@xtramus.com
Website: www.Xtramus.com
Revision History
Date Version History
2013/01/15 1.0 First draft version
XTRAMUS TECHNOLOGIES®
3
E-mail: sales@xtramus.com
Website: www.Xtramus.com
Table of Contents
Foreword ..........................................................................................................................................2
Revision History ..............................................................................................................................3
1. NuStreams-600i/2000i Overview ................................................................................................5
1.1. NuStreams-600i/2000i General Description ..................................................................... 5
1.2. Key Features of NuStreams-600i/2000i.............................................................................6
1.3. Main Applications............................................................................................................... 6
2. NuStreams-600i Functions and Structure Overview................................................................ 8
3. NuStreams-2000i Functions and Structure Overview..............................................................9
4. NuStreams-600i/2000i Installation ...........................................................................................10
4.1. Choices of UTP Cable and Optical fiber......................................................................... 10
4.1.1. 10GBASE-T (Copper Wire).......................................................................................... 10
4.1.2. 10GBASE-R (Optical Fiber)......................................................................................... 11
4.2. Hardware Installation ....................................................................................................... 13
4.2.1. Bracket installation......................................................................................................13

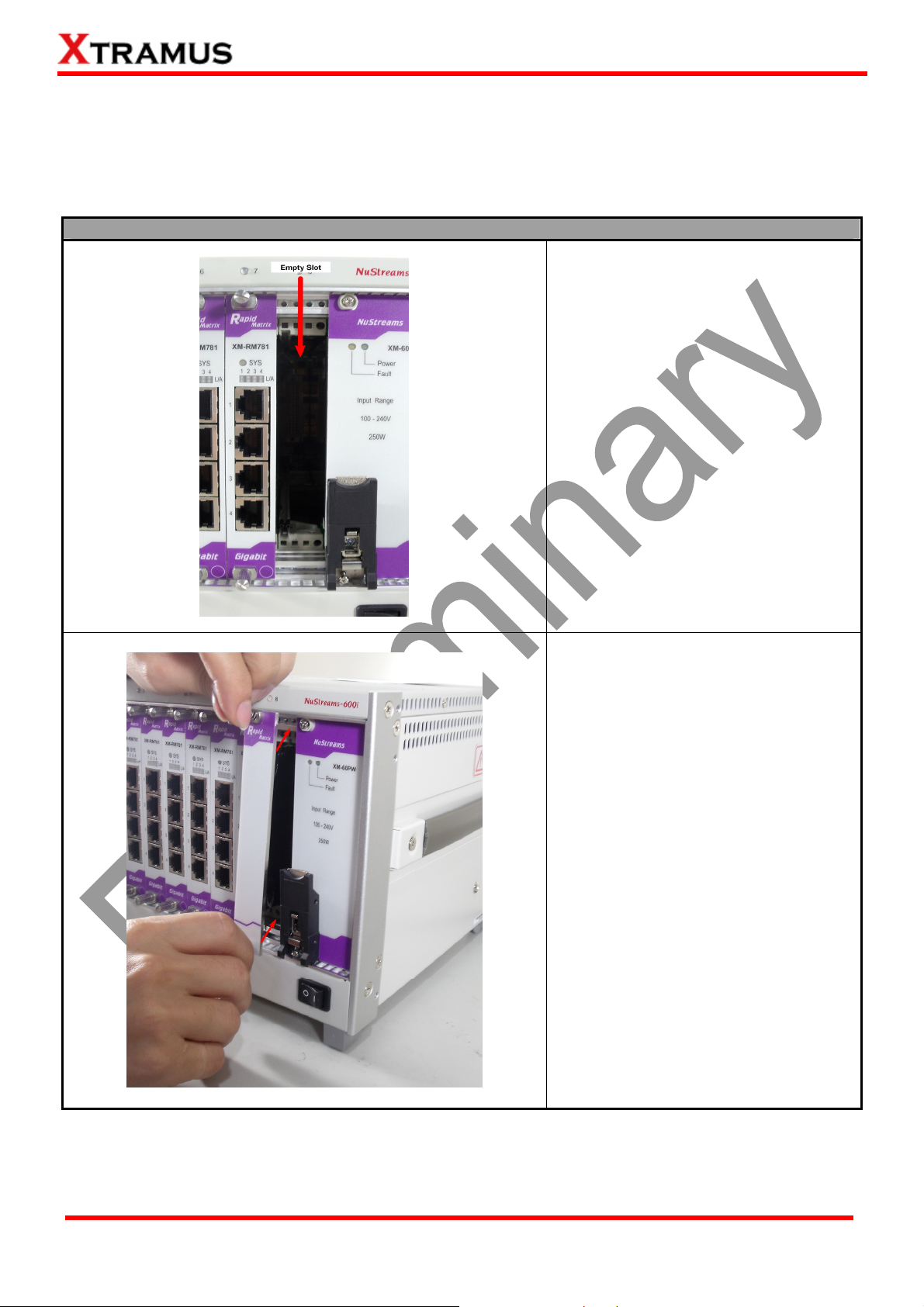

4.2.2. Module Cards Installation........................................................................................... 14
5. NuStreams-600i/2000i’s Module Cards....................................................................................15
5.1. System Module Cards ......................................................................................................16
A. XM-2S19 .............................................................................................................................16
B. XM-2S10 .............................................................................................................................17
C. XM-60PW............................................................................................................................ 18
5.2. Measuring Module Cards................................................................................................. 19
A. XM-RM661.......................................................................................................................... 19
B. XM-RM671.......................................................................................................................... 20
C. XM-RM681.......................................................................................................................... 21
D. XM-RM731.......................................................................................................................... 22
E. XM-RM751 ..........................................................................................................................23
F. X M- RM 76 1 ........................................................................................................................... 24
G. X M- RM 7 8 1 ..........................................................................................................................25
H. XM-RM881.......................................................................................................................... 26
6. Example of suitable software for NuStreams-600i/2000i ....................................................... 27
6.1. NuWIN-RM .........................................................................................................................27

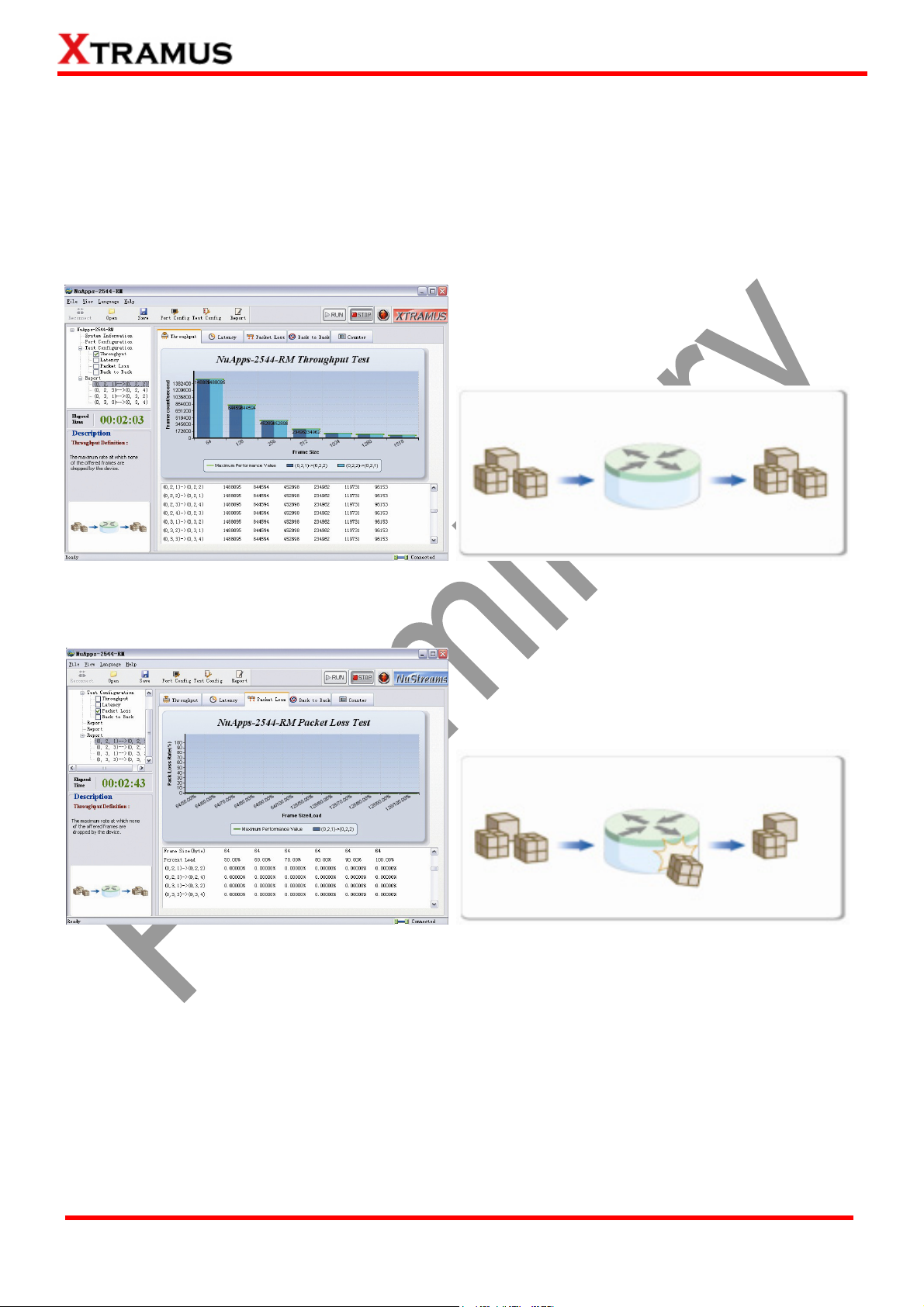

6.2. NuApps-2544-RM.............................................................................................................. 28
6.3. NuApps-MultiUnits-RM.....................................................................................................30
7. Appendix – Other Utility Softwares for NuStreams-600i/2000i.............................................. 31
XTRAMUS TECHNOLOGIES®
4
E-mail: sales@xtramus.com
Website: www.Xtramus.com
1. NuStreams-600i/2000i Overview
1.1. NuStreams-600i/2000i General Description
Built on open software platform
and a highly scalable architecture,
NuStreams-600i/2000i is highly
flexible and its functionality and
applications can be enhanced by
applying software upgrade or
adopting new test modules.
NuWIN-RM, a powerful MS-Windows XP based GUI, provides an easy way to configure and control
NuStreams-600i/2000i for different tests and to monitor and gather test statistics. Users may generate
customized traffic patterns using packet streams and easily configure packets with incrementing,
decrementing, or random MAC addresses and through user-defined fields. Protocol editors are available
for IP, UDP, IPX, TCP, IGMP, MPLS, VLAN, and OSPF. Each port can generate ARP requests and Ping
requests and response to such messages.
For switching device tests, users may use NuApps-2889-RM, an application software suite based on RFC
2889 and 2285, or NuApps-2544-RM, another suite based on RFC 1242 and 2544, to perform tests on
NuStreams-600i/2000i.
In addition to the software suites provided by Xtramus, users may develop customized application
programs to take full advantage of NuStreams-600i/2000i by using the NuStreams API. Customized
mass production test programs are also available to apply.
X-trailer, a feature for verifying the integrity of the embedded memory of a switch controller by checking
an unique tag attached to each packet sent from NuStreams-600i/2000i is supported by all test modules.
Intelligence chassis with enhanced fan development makes NuStreams-600i/2000i even more stable
and reliable. Chassis temperature and voltage are also measurable at all times.
NuStreams-600i/2000i is the most cost-effective, efficient and professional network performance testing
and analysis solution available on the market. The combination of high performance, multi-port traffic
generation and analysis functions, test modules, and reasonable pricing makes it the ideal solution for
R&D and Mass Production Test applications.
XTRAMUS TECHNOLOGIES®
5
E-mail: sales@xtramus.com
Website: www.Xtramus.com
1.2. Key Features of NuStreams-600i/2000i
• Intuitive utility software for monitoring system temperature and the fan speed
• All slots support hot-swapping
• Performing synchronized tests between module cards
• Multi-user function for module cards that ca provide greater hardware-efficiency
• Utility softwares provided by Xtramus Technologies which can analyze the test results and DUT
performance with intuitive GUI interface.
• Module cards that work as management interfaces of NuStreams-2000i/600i are available and
support different Ethernet transferring rate.
• Simple and easy-to-understand system status LEDs
• Replaceable fan tray
• Utility softwares that complied with RFC-2544 and RFC-2889
1.3. Main Applications
• Performance validation and analysis of DUT in mass production line
• Troubleshooting of DUT in the lab
• Production testing and quality assurance during manufacturing process of network products
XTRAMUS TECHNOLOGIES®
6
E-mail: sales@xtramus.com
Website: www.Xtramus.com
XTRAMUS TECHNOLOGIES®
7
E-mail: sales@xtramus.com
Website: www.Xtramus.com
2. NuStreams-600i Functions and Structure Overview
NuStreams-600i’s outer case consists of: Front Part, Back Part and Side Part. The figure above shows
the outer case of NuStreams-600i.
NuStreams-600i Outer Case Overview
NuStreams-600i has 7 slots for installation of module cards, where each module
Front Part
card provides streams generating platforms for different types of media. Besides,
the Front Part includes 2 slots with System and Power module card installed,
which should not be withdrawn.
Back Part
Side Part
NuStreams-600i’s back part includes a back platform which should not be
withdrawn and a power plug-in.
NuStreams-600i’s each side part includes a handle for carrying use, and
numerous cooling holes.
XTRAMUS TECHNOLOGIES®
8
E-mail: sales@xtramus.com
Website: www.Xtramus.com
3. NuStreams-2000i Functions and Structure Overview
NuStreams-2000i’s outer case consists of: Front Part, Back Part. The figure above shows the outer case
of NuStreams-2000i.
NuStreams-2000i Outer Case Overview
NuStreams-2000i has 18 slots for installation of module cards, where each
module card provides streams generating platforms for different types of media.
Front Part
Besides, the Front Part includes 1 far right slot with System module card
installed, which should not be withdrawn.
On each end right and end left side includes a handle for carrying use.
Back Part
NuStreams-2000i’s back part includes a back platform with power module with
Fan device which should not be withdrawn and a power plug-in.
XTRAMUS TECHNOLOGIES®
9
E-mail: sales@xtramus.com
Website: www.Xtramus.com
4. NuStreams-600i/2000i Installation
As cited above, NuStreams-600i is a chassis with 7 slots and NuStreams-2000i is a chassis with 18 slots
for installation of module cards. Installing NuStreams-600i/2000i is very easy and simple: all you have to do
is to plug the proper fiber/UTP cables into NuStreams-600i/2000i ports. Selecting the proper physical
media and applications in your network environment is crucial when installing NuStreams-600i/2000i.
Besides, using the proper method for installing module cards into NuStreams-600i/2000i’ slots is also
crucial for the proper functionality of NuStreams-600i/2000i. Please see the sections down below for
detailed information regarding to physical media types and the proper method for installing a module card.
4.1. Choices of UTP Cable and Optical fiber
4.1.1. 10GBASE-T (Copper Wire)
10GBASE-T, or IEEE 802.3an-2006, is a standard released in 2006 to provide 10 gigabit/second
connections over unshielded or shielded twisted pair cables and over distances up to 100 meters (330 ft).
10GBASE-T cable infrastructure can also be used for 1000BASE-T, allowing a gradual upgrade from
1000BASE-T, and auto-negotiation to select which speed to use.
10GBASE-T Connectors
10GBASE-T uses 650 MHz versions of the venerable IEC 60603-7 8P8C (RJ-45) connectors, which is
already widely used in Ethernet.
10GBASE-T Cables
10GBASE-T works up to 55 m (180 ft) with existing Category 6 cabling. In order to allow deployment at
the usual 100 m (330 ft), the standard uses a new partitioned Category 6a cable specification, designed
to reduce crosstalk between UTP cables.
The table down below is a reference regarding to UTP cable categories.
UTP Cable Categories References
Cat 5
Cat 5e
Cat 6
Provides performance of up to 100 MHz, and was frequently used on 100 Mbps Ethernet
networks. Cat 5 may not be suitable for 1000BASE-T gigabit Ethernet.
Provides performance of up to 100 MHz, and is frequently used for both 100 Mbps and
Gigabit Ethernet networks.
Provides performance of up to 250 MHz, more than double of category 5 and 5e. It works up
to 55 m (180 ft) for 10Gbps Ethernet.
Provides performance of up to 500 MHz. It is suitable for
10GBASE-T and works up to 100 m (330 ft) for 10Gbps
Cat 6a
Ethernet. All the cables mentioned above do not have
individually- shielded pairs as the picture here, including
Cat 6a.
This standard specifies four individually-shielded pairs (STP) inside an overall shield.
Cat 7
Designed for transmission at frequencies up to 600 MHz. It has better performance than Cat
6a.
XTRAMUS TECHNOLOGIES®
10
E-mail: sales@xtramus.com
Website: www.Xtramus.com

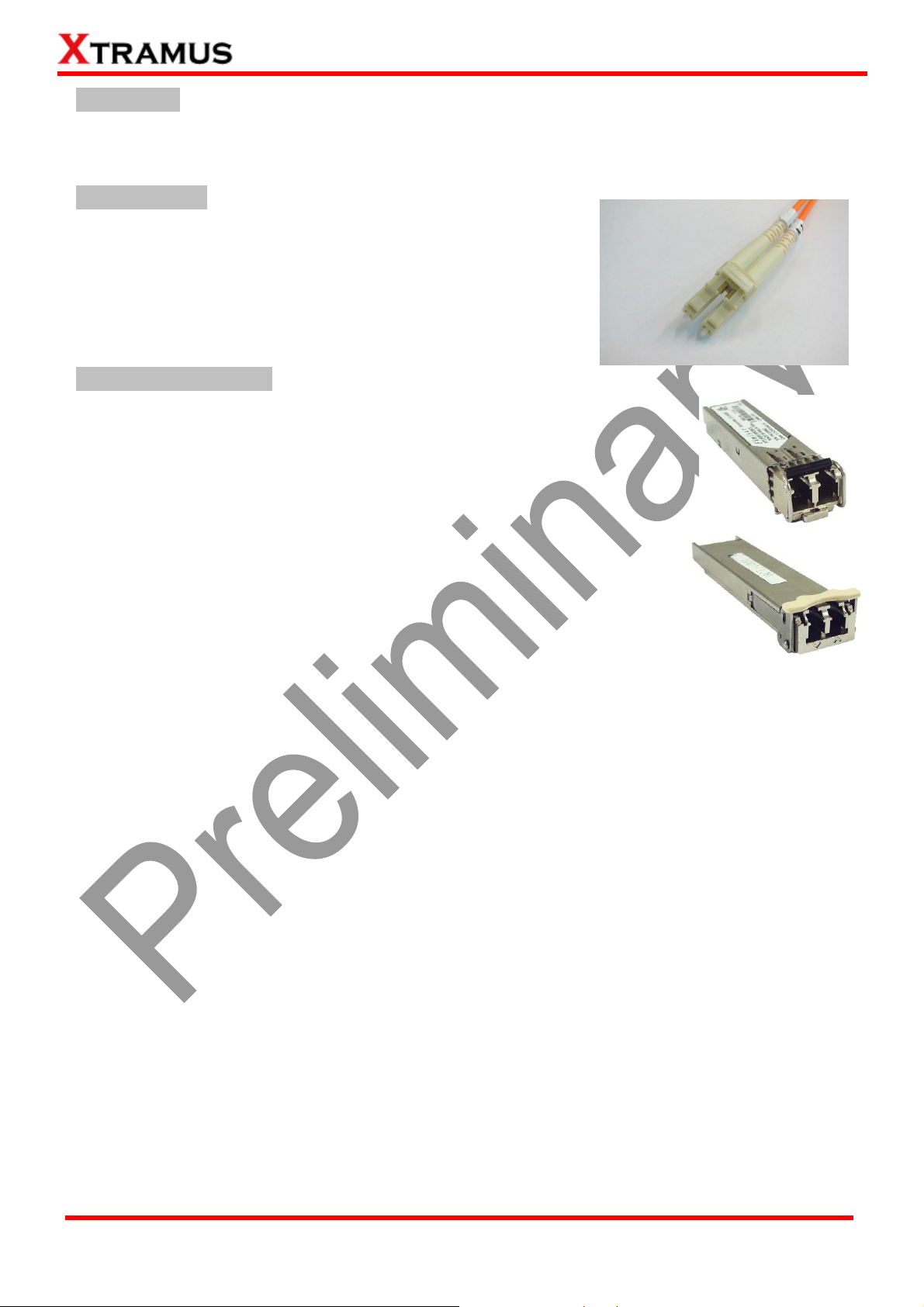

4.1.2. 10GBASE-R (Optical Fiber)
10GBASE-R is 10Gbps Ethernet connection that based on IEEE802.3ae. It uses fiber as transmission
media with different specification of fiber, connector and transceiver. MCS-2160 uses two standards,
10GBASE-LR and 10GBASE-SR.
10GBASE-SR
10GBASE-SR ("Short Range") uses 64B/66B encoding and 850 nm wavelength lasers. It is designed to
support short distances over deployed multi-mode fiber cabling, it has a range of between 26 meters (85
ft) and 82 meters (270 ft) depending on cable type. It also supports 300 meters (980 ft) operation over
new, 50 µm 2000 MHz⋅km OM3 multi-mode fiber (MMF).
The transmitter can be implemented with a VCSEL (Vertical Cavity Surface Emitting Laser) which is low
cost and low power. MMF has the advantage of having lower cost connectors than SMF (single-mode
fiber) due to its wider core.
10GBASE-SR delivers the lowest cost, lowest power and smallest form factor optical modules.
10GBASE-LR
10GBASE-LR ("Long Range") is a Long Range Optical technology delivering serialized 10 gigabit
Ethernet over a laser with 1310 nm wavelength connection on single-mode fiber via IEEE 802.3 Clause
49 64B-66B Physical Coding Sub layer (PCS) using a line rate of 10.3125.
Single-mode optical cabling is used to interconnect transceivers at a distance spaced at 10 kilometers
(6.2 mi), but it can often reach distances of up to 25 kilometers (16 mi) with no data loss.
Fabry–Pérot lasers are commonly used in 10GBASE-LR optical modules. Fabry–Pérot lasers are more
expensive than VCSELs (mentioned above) but their high power and focused beam allow efficient
coupling into the small core of single mode fiber.
Fiber Specification
Fibers which support many propagation paths or transverse modes are called multi-mode fibers (MMF).
Fibers which can only support a single mode are called single-mode fibers (SMF). Multi-mode fibers
generally have a larger core diameter, and are used for short-distance communication links and for
applications where high power must be transmitted. Single-mode fibers are used for most
communication links longer than 200 meters.
Fiber Buffer/Jacket Color Meaning
Yellow Single-mode optical fiber, long distance connection
XTRAMUS TECHNOLOGIES®
Orange Multi-mode optical fiber, short distance connection
11
E-mail: sales@xtramus.com
Website: www.Xtramus.com
Optical Fiber
As mentioned above, there are Single-mode and Multi-mode optical fiber. Both of them can be used for
XC media converter module series.
Fiber Connector
Optical fiber connector contains two ends of fibers and can attach
to SFP+ transceivers. There are two ports for one SFP+
transceiver: one fiber is for receiving and one fiber is for
transmitting. The picture here is called LC connector that can
attach to SFP+ transceiver.
Transceiver (Connector)
SFP+/XFP Transceivers can be plugged into XC media converter module’s
SFP+/XFP Ports. SFP+/XFP Transceivers are active components that
consume power from XC media converter module and are capable of
converting signals between optical data flow and electronic data flow.
For different transmission purpose, the component inside SFP+ form factor can
be 10BASE-LR or 10BAST-SR mode.
XTRAMUS TECHNOLOGIES®
12
E-mail: sales@xtramus.com
Website: www.Xtramus.com
4.2. Hardware Installation
Please follow the steps shown below for a better understanding on how to install hardware in
NuStreams-600i/2000i.
4.2.1. Bracket installation
Steps for installing a Bracket in NuStreams-600i/2000i
First of all, you must have an Empty
Slot for the Installation of a Bracket.
Attach the Bracket’s screw end on the
internal Chassis’ screw holes, and lock
the screw on the screw hole.
Note: we advise to use brackets to
close the unused slots of the
NuStreams-600i/2000i for internal
protection.
XTRAMUS TECHNOLOGIES®
13
E-mail: sales@xtramus.com
Website: www.Xtramus.com
4.2.2. Module Cards Installation
Steps for installing a XM-RM Module Card in NuStreams-600i/2000i
Aim the border side of a XM-RM Module
Card with the NuStreams-600i/2000i
internal slide road, and push this
Module Card into the
NuStreams-600i/2000i.
Please, make sure if the XM-RM
Module Card is well fixed into
NuStreams-600i/2000i by pushing the
bracket of the XM-RM Module Card into
NuStreams-600i/2000i.
XTRAMUS TECHNOLOGIES®
14
E-mail: sales@xtramus.com
Website: www.Xtramus.com
5. NuStreams-600i/2000i’s Module Cards
NuStreams-600i/2000i’s module cards can be divided into two categories: System Module Cards and
Measuring Module Cards.
Module Card Type Module Card Description
The XM-2S10 is the system module of
NuStreams-600i and XM-2S19 is the system
module of NuStreams-2000i. The XM-60PW is
the power module of NuStreams-600i. The power
System Module Cards
Measuring Module
Cards
y XM-2S19
y XM-2S10
y XM-60PW
y XM-RM881
y XM-RM731
y XM-RM751
y XM-RM761
y XM-RM781
y XM-RM661
y XM-RM671
y XM-RM681
module of NuStreams-2000i is installed to its rear
side.
Please note that System Module Cards do not
support hot-swap, and must be installed to their
designated slots on NuStreams-600i/2000i
chassis.
Measuring Module cards for Packets
sending/receiving. These Measuring Module
cards can be installed in NuStreams-600i/2000i
support hot-swap.
Please see the sections down below for more detail information regarding to NuStreams-600i/2000i
Module Cards.
XTRAMUS TECHNOLOGIES®
15
E-mail: sales@xtramus.com
Website: www.Xtramus.com
5.1. System Module Cards
A. XM-2S19
The XM-2S19 comes with your NuStreams-2000i chassis, and shall be installed on the slot located on
the far left side of NuStreams-2000i chassis. This module card allows you to connect your
NuStreams-2000i to your PC.
Interface Ports
2x RJ45 Port
It consists of one Up port and one Down port.
This is adjustment for cascade mode between more than one
NuStreams-600i/2000i for network connection. Adjust the H/L ID to distinct
ID
more than one NuStreams-600i/2000i during network operation.
Note: H ID (High ID) adjustment is for UP port cascade, and L ID (Low ID)
adjustment is for Down port cascade.
LED
Yellow ON
Sys
Green ON
Green OFF
*Note: Please do not draw the XM-2S19 module card from NuStreams-2000i chassis when the system is power
on.
XM-2S19 is booting and preparing for test
XM-2S19 is booting properly and is ready for test
XM-2S19 is power off
XTRAMUS TECHNOLOGIES®
16
E-mail: sales@xtramus.com
Website: www.Xtramus.com
B. XM-2S10
The XM-2S10 comes with your NuStreams-600i chassis, and shall be installed on the slot located on the
far left side of NuStreams-600i chassis. This module card allows you to connect your NuStreams-600i to
your PC.
Interface Ports
2x RJ45 Port
It consists of one Up port and one Down port.
This is adjustment for cascade mode between more than one
NuStreams-600i/2000i for network connection. Adjust the H/L ID to distinct
ID
more than one NuStreams-600i/2000i during network operation.
Note: H ID (High ID) adjustment is for UP port cascade, and L ID (Low ID)
adjustment is for Down port cascade.
LED
Yellow ON
Sys
Green ON
Green OFF
*Note: Please do not draw the XM-2S10 module card from NuStreams-600i chassis when the system is power on.
XM-2S10 is booting and preparing for test
XM-2S10 is booting properly and is ready for test
XM-2S10 is power off
XTRAMUS TECHNOLOGIES®
17
E-mail: sales@xtramus.com
Website: www.Xtramus.com
C. XM-60PW
The XM-60PW comes with your NuStreams-600i chassis, and shall be installed on the slot located on
the far left side of NuStreams-600i chassis. This module card allows you to connect your
NuStreams-600i to your PC.
Handle
Located on the left down side of the bracket of the XM-60PW. Push down to draw the XM-60PW.
LED
Power
Green ON
Green OFF
Fault
Yellow ON
Yellow OFF
*Note: Please do not draw the XM-60PW module card from NuStreams-600i chassis when the system is power on.
XM-60PW is power on
XM-60PW is power off
XM-60PW is booting and preparing for test, or is power on but not
operating properly
XM-60PW is OFF or is operating
XTRAMUS TECHNOLOGIES®
18
E-mail: sales@xtramus.com
Website: www.Xtramus.com
5.2. Measuring Module Cards
A. XM-RM661
XM-RM661 Front Panel Specification
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
SFP
SFP
SFP
SFP
100 Mbps
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
XTRAMUS TECHNOLOGIES®
19
E-mail: sales@xtramus.com
Website: www.Xtramus.com
B. XM-RM671
XM-RM671 Front Panel Specification
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
POF
POF
POF
POF
100 Mbps
XTRAMUS TECHNOLOGIES®
20
E-mail: sales@xtramus.com
Website: www.Xtramus.com
C. XM-RM681
XM-RM681 Front Panel Specification
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
RJ45
RJ45
RJ45
RJ45
100 Mbps
XTRAMUS TECHNOLOGIES®
21
E-mail: sales@xtramus.com
Website: www.Xtramus.com
D. XM-RM731
XM-RM731 Front Panel Specification
Interface
Port 1
Port 2
Data Transfer Rate
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
RJ45 + SFP
RJ45 + SFP
1000 Mbps
XTRAMUS TECHNOLOGIES®
22
E-mail: sales@xtramus.com
Website: www.Xtramus.com
E. XM-RM751
XM-RM751 Front Panel Specification
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
RJ45
RJ45
SFP
SFP
1000 Mbps
XTRAMUS TECHNOLOGIES®
23
E-mail: sales@xtramus.com
Website: www.Xtramus.com
F. X M- RM 76 1
XM-RM761 Front Panel Specification
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
SFP
SFP
SFP
SFP
1000 Mbps
XTRAMUS TECHNOLOGIES®
24
E-mail: sales@xtramus.com
Website: www.Xtramus.com
G. XM-RM781
XM-RM-781 Front Panel Specification
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The streams generated is up to 100M
The streams generated is under 10M
The port is currently linked
The port is currently link down
SYS
Port
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Yellow ON
Green ON
Green OFF
RJ45
RJ45
RJ45
RJ45
1000 Mbps
XTRAMUS TECHNOLOGIES®
25
E-mail: sales@xtramus.com
Website: www.Xtramus.com
H. XM-RM881
XM-RM881 Front Panel Specification
+
Port 1
Interface
Port 2
Port 3
Port 4
Data Transfer Rate
SFP
+
SFP
+
SFP
+
SFP
10 Gbps
LED Status
The module card is operating
The module card is updating the Firmware
The module card is booting and preparing for
test
The port is currently linked
The port is currently link down
SYS
L/A
Green ON
Yellow ON
(Blinking)
Yellow/Green
ON (Blinking)
Green ON
Green OFF
XTRAMUS TECHNOLOGIES®
26
E-mail: sales@xtramus.com
Website: www.Xtramus.com
6. Example of suitable software for NuStreams-600i/2000i
Some software suitable for NuStreams-600i/2000i are showed below, please note that the software
showed below don’t include all software suitable for NuStreams-600i/2000i, for more information regarding
the others software, please contact our account managers.
6.1. NuWIN-RM
NuWIN-RM is a powerful and sophisticated virtual control suite for managing NuStreams-600i/2000i
chassis. Each test port can be configured separately with different parameters that define streams, filters,
and capture capabilities. With its comprehensive statistics reports, NuWIN-RM is the best solution for
performing in-depth analysis of DUT performance.
NuWIN-RM has a flexible and intuitive interface to control test modules in a single or multiple chassis
through a click of the mouse. Any combination of test modules can be inserted into NuStreams chassis
and be instantly identified.
XTRAMUS TECHNOLOGIES®
27
E-mail: sales@xtramus.com
Website: www.Xtramus.com
6.2. NuApps-2544-RM
Designed for Xtramus Technologies XM-RM series module cards, NuApps-2544-RM is an application
designed based on RFC 2544 for analyzing Ethernet switches, bridges, and routers, NuApps-2544-RM’s
load-generating capabilities provide an effective way to evaluate DUT Throughput, Latency, Packet Loss,
and Back to Back under different modes such as One-to-One, One-to-Many, and Many-to-One.
• Throughput
The maximum rate at which none of the offered frames are dropped be the device.
• Packet Loss
Percentage for frames that should have been forwarded by a network device under steady state (constant)
load that ware not forwarded due to lack of resources.
XTRAMUS TECHNOLOGIES®
28
E-mail: sales@xtramus.com
Website: www.Xtramus.com
• Latency
The time interval for store and forward devices.
• Back to Back
Fixed length frames presented at a rate such that there is the minimum legal separation for a given
medium between frames over a short to medium period of time, starting from an idle state.
With its real-time display of the results and various customizable report formats that allow users to view
the test data and organize them into an appropriate form for debug, report, and record. NuApps-2544-RM
is the best solution for RFC 2544 Benchmarking Methodology. And now supporting IPv6.
XTRAMUS TECHNOLOGIES®
29
E-mail: sales@xtramus.com
Website: www.Xtramus.com
6.3. NuApps-MultiUnits-RM
NuApps-MultiUnits-RM is a utility software that displays up to 8 independent windows in 1 user interface,
where each window can run different settings with an independent DUT (Device Under Test). The
NuApps-MultiUnits-RM supports all XM-RM module cards and can reserve the XM-RM module card’s
ports on each testing window, where the testing result of each window can be showed separately on a log
file.
The NuApps-MultiUnits-RM not only economizes the resource to accomplish the mass production, but
also allows to input the MAC serial number of the device under test, as also detects the link status for auto
tests and many others functions.
XTRAMUS TECHNOLOGIES®
30
E-mail: sales@xtramus.com
Website: www.Xtramus.com
7. Appendix – Other Utility Softwares for NuStreams-600i/2000i
There are several other optional utility softwares for NuStreams-600i/2000i for different kinds of test
requirements. The following section contains brief descriptions of these utility softwares.
NuApps-2889-RM: RFC 2889 Benchmark Test Utility
Designed for Xtramus Technologies XM-RM series module cards, NuApps-2889-RM is an application
that’s designed base on RFC 2889 for analyzing Ethernet switches, bridges, and routers.
NuApps-2889-RM’s multiple topologies and the load-generating capabilities provide an effective way to
evaluate DUT’s on subjects such as Error Filtering, Forwarding, Broadcast Forwarding, Broadcast Latency,
Forward Pressure, Address Learning, Address Caching and Congestion Control. With its real-time display
of test results and various customizable report formats that allow users to view the test data and organize
them into an appropriate form for debug, report, and record, NuApps-2889-RM is the best solution for RFC
2889 Benchmarking Methodology.
APMPT-4: Test Utility for Network Device Manufacturing
APMPT-4’s 1-to-Many function is designed for EoC/EPON products, allowing users to perform Layer 2
MAC/VLAN address unicast/multicast performance tests from one source to multiple ports with different
media types (such as 100 Mbps and 1000Mbps Full). With APMPT-4’s Stream Counters and its capabilities
of generating one data stream containing various test parameters, users can shorten the time consumed
for testing products significantly, and acquire more detailed/precise test reports. All these benefits and
advantages make APMPT-4 and its 1-to-Many functions the most complete testing solutions for
EoC/EPON products.
NuApps-QoS-RM: QoS-Testing Layer 2 & 3
Network QoS (quality of service) is a way to classify the transmission priority of packets while the volume of
to-be transmitted packets is beyond the Ethernet switch or router’s throughput capability. Packets with
higher priorities are processed and transmitted first. For Ethernet frame, each packets can be tagged with
a VLAN ID and CoS (class od service), and Layer 3 IP/UDP packets are marked according to the type of
service they need. For Ethernet switch or router that supports QoS, packets with higher CoS priority should
be transmitted first if network traffic is congested. NuApps-QoS-RM can limit acceptable network traffic at
receiving port, analyze the traffic distribution of packets with different priority received from DUT (router or
switch), and test the performance of Layer 3 Router, Switch with QoS function.
NuApps-SwitchPerform: Ethernet Switch, Network Interface Card (NIC), and Network Video Player
Test Utility
NuApps-SwitchPerform is an utility software designed for analyzing Ethernet switch, network interface
cards from PC/Notebook and network video player. NuApps-SwitchPerform’s load-generating capabilities
provide an effective way to evaluate DUT’s (Device Under Test) Utilization, Throughput, Packet Loss, CRC
Error, and Latency with its three different modes: Network Switch, PC/Notebook, and Others (Network
Video Player). Also, NuApps-SwitchPerform’s Burst function allows packets to be generated and sent in a
burst manner for the set amount of time, stop, and start generating and sending packets in a burst manner
XTRAMUS TECHNOLOGIES®
31
E-mail: sales@xtramus.com
Website: www.Xtramus.com
for another set amount of time. The amount of times available for the Burst function include: 200ms, 500ms,
1 second, 2 seconds, 4 seconds and 5 seconds. With these features, NuApps-SwitchPerform is the best
solution for testing Ethernet switch, PC or Notebook’s network interface card (NIC), and Network Video
Player.
NuApps-G8261-RM: Test Suite Based on ITU-T Recommendation G.8261
.ITU-T Recommendation G.8261 is a recommendation defined by ITU’s Telecommunication
Standardization Sector regarding to the maximum tolerance network jitter/wander and the minimum
network equipment tolerance at the boundary of these packet networks at TDM and synchronization
interfaces, as well as the minimum requirements for these network equipments for the synchronization
function of network elements. With intuitive charts and detailed statistics logs, NuApps-G8261-RM is the
best solution for ITU-T Recommendation G.8261.
NuApps-IGMP-RM: Test Suite for Multicast Group Test
NuApps-IGMP-RM is the professional testing software for internet Group Management Protocol (IGMP), a
communication protocol designed to manage the membership of internet Protocol multicast groups. IGMP
establishes multicast group memberships by connecting IP hosts and adjacent multicast group
memberships by connecting IP hosts and adjacent multicast routers. It will be an important protocol when
multicast-enabled application such as webinars, Internet radio/TV, and video/audio conferences are now
being used widely over the Internet.
XTRAMUS TECHNOLOGIES®
32
E-mail: sales@xtramus.com
Website: www.Xtramus.com
Note: Information and specifications contained in this document are subject to change without notice.
XTRAMUS TECHNOLOGIES®
All products and company names are trademarks of their respective corporations.
Copyright © 2013 Xtramus Technologies, all rights reserved.
Do not reproduce, redistribute or repost without written permission from Xtramus.
Doc # USM_NuStreams-600i/2000i_V1.0_ENG_Preliminary_20130115
33
E-mail: sales@xtramus.com
Website: www.Xtramus.com
Loading...
