FITNESS
TR150 TREADMILL
Owner’s Manual
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL
2
TABLE OF CONTENTS
4PRODUCT REGISTRATION
5IMPORTANT SAFETY INSTRUCTIONS
6IMPORTANT ELECTRICAL INSTRUCTIONS
7IMPORTANT OPERATION INSTRUCTIONS

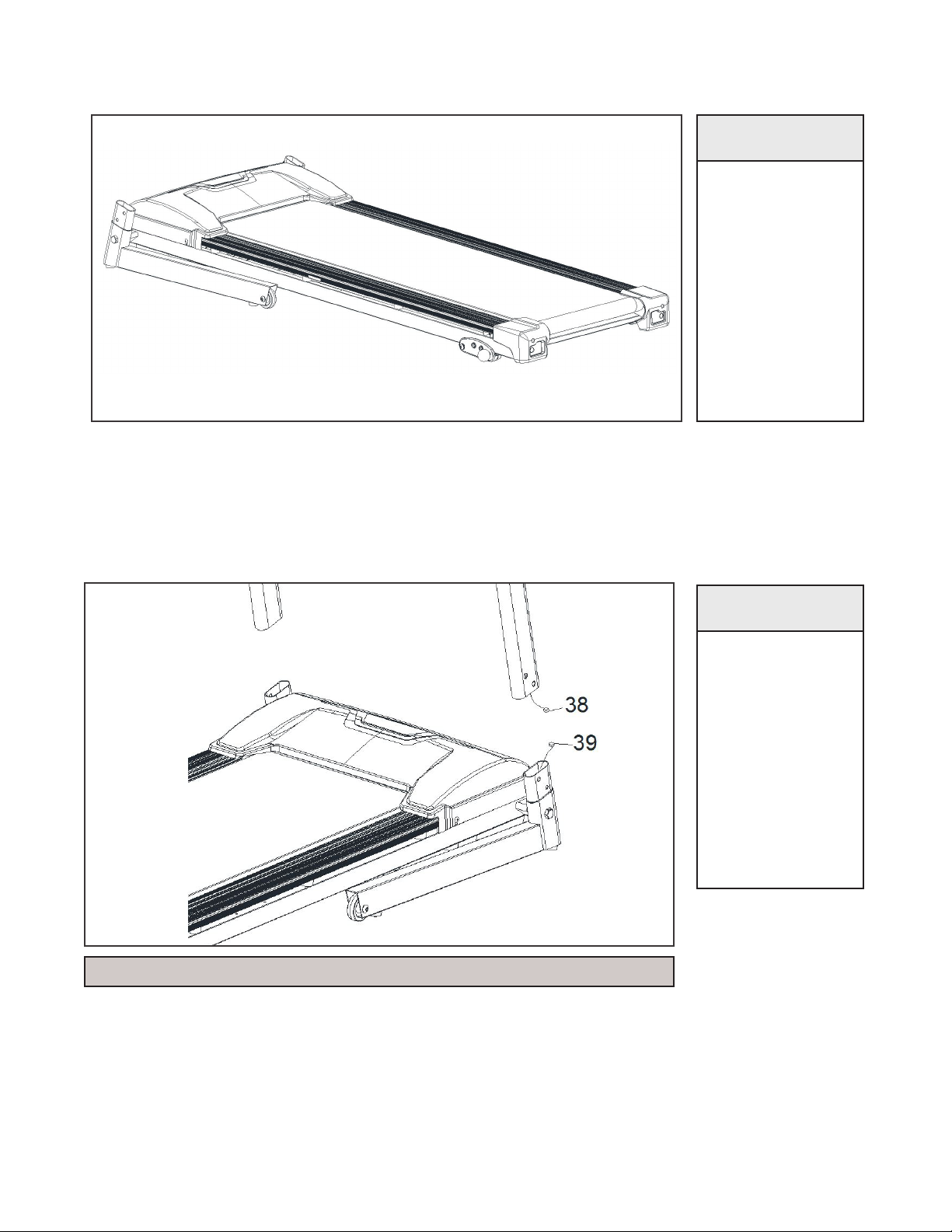

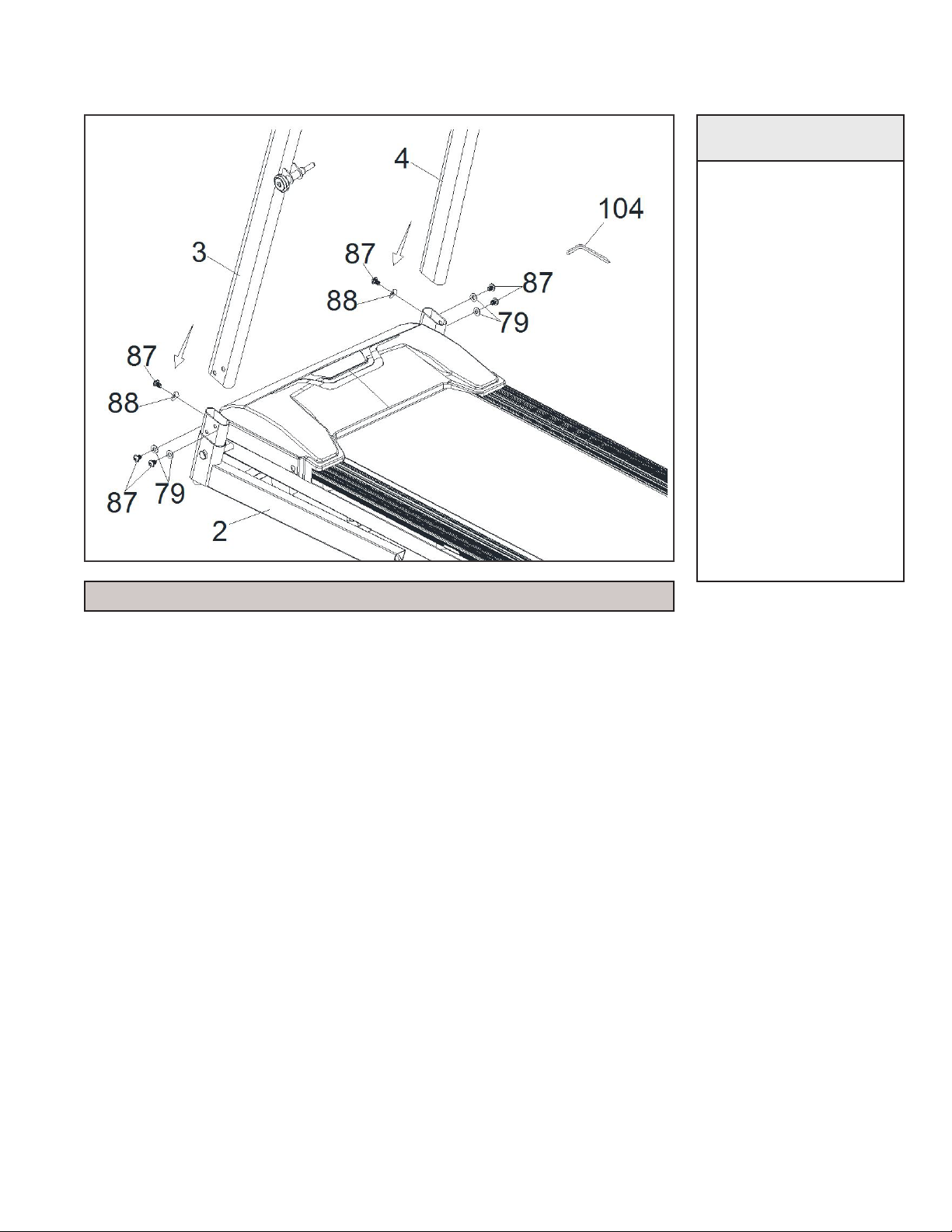

8TR150 ASSEMBLY INSTRUCTIONS

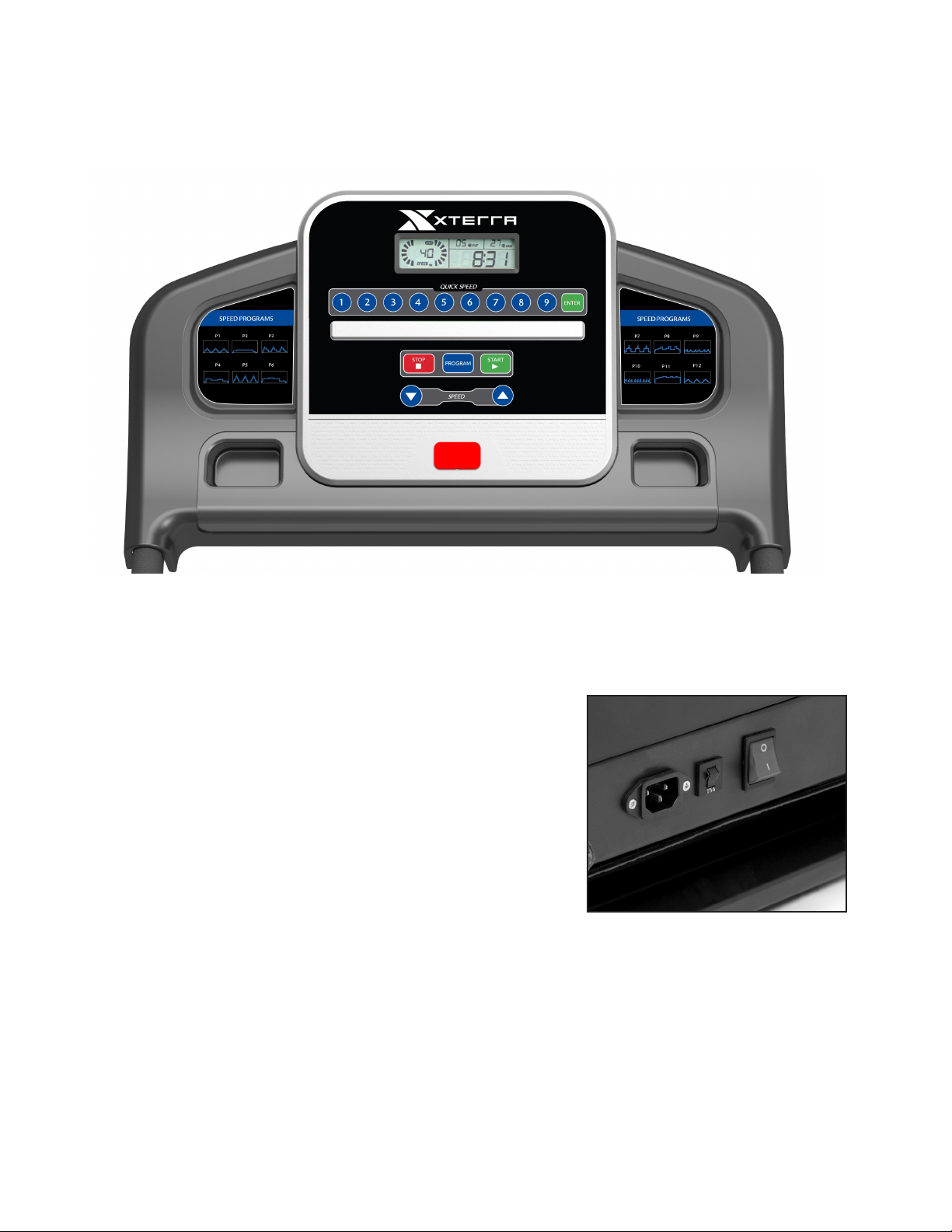

15 OPERATION OF YOUR CONSOLE
17PROGRAMMABLE FEATURES
18GENERAL MAINTENANCE
21TROUBLE SHOOTING
22 MANUFACTURER’S LIMITED WARRANTY
ATTENTION
THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
WARNING
THIS PRODUCT MAY CONTAIN A CHEMICAL KNOW TO THE STATE OF CALIFORNIA TO CANCER, BIRTH DEFECTS, OR OTHER REPRODUCTIVE HARM.
PREVENTATIVE MAINTENANCE CHART
Vacuum Under |
|
|
|
|
Motor Cover & |
Clean & Inspect Deck |
Lubricate Deck |

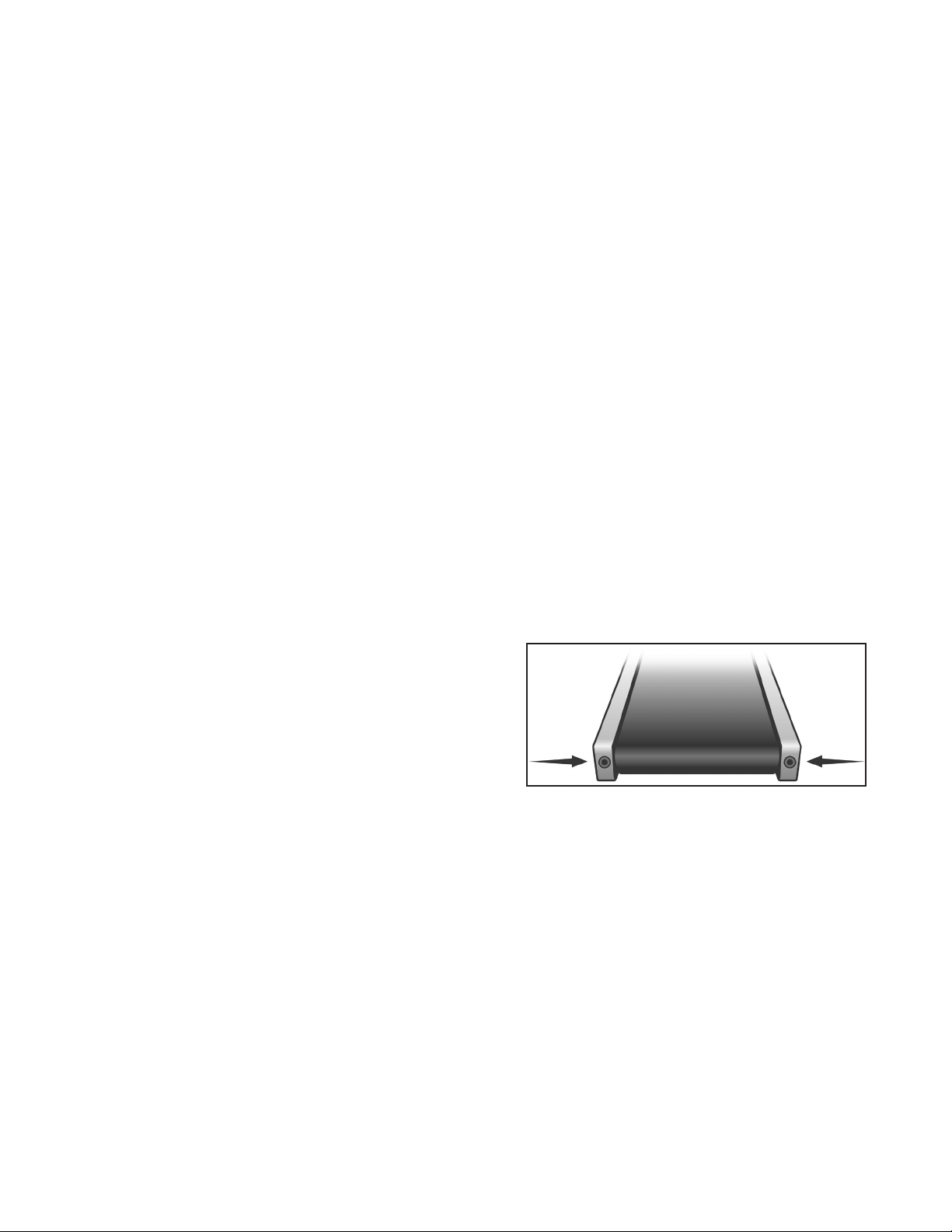

Inspect Belt Tracking |
|
Check Wiring |
for Lubrication |
(Every 40 hours |
(Monthly) Adjust if |
Date |
(Every Other |
(Every Other Month) |
or sooner if dry) |
necessary |
|
Month) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3
FITNESS
Congratulations On Your New Treadmill and Welcome to the XTERRA Family!
Thank you for your purchase of this quality treadmill from XTERRA.Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available. XTERRA will do all we can to make your ownership
experience as pleasant as possible for many years to come. If you have questions, or if parts are missing or damaged, or you require customer service, call (870) 336-4286. Please have your model number and serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of purchase for future reference.We appreciate your confidence in XTERRA and we will always remember that you are the reason that we are in business. Please complete and mail your registration card today and enjoy your new treadmill.
Yours in Health,
XTERRA Fitness
Purchase Location:
Purchase Date:
RECORD YOUR SERIAL NUMBER
Please record the Serial Number of this fitness product in the space provided below.
Serial Number:
REGISTER YOUR PURCHASE
The self-addressed product registration card must be completed in full and returned to XTERRA Fitness.You can also go to www.xterrafitness.com/warrantyreg.html to register online.
4
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING
To reduce the risk of burns,fire,electric shock,or injury to persons:
•An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
• Do not operate under blanket or pillow.Excessive heating can occur and cause fire,electric shock,or injury to persons.
•Close supervision is necessary when this appliance is used by, on, or near children or disabled persons.
•Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
•Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Return the appliance to a service center for examination and repair.
•Do not carry this appliance by supply cord or use cord as a handle.
•Keep the cord away from heated surfaces.
•Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
•Never drop or insert any object into any opening.
•Do not use outdoors.
•Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
•Connect this appliance to a properly grounded outlet only.
•The appliance is intended for household use.
WARNING
To reduce the risk of burns,fire,electric shock,or injury to persons,install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet.
DO NOT USE AN EXTENSION CORD UNLESS IT IS 14AWG OR BETTER, WITH ONLY ONE OUTLET ON THE END.The treadmill should be the only appliance in the circuit in which it is connected. DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET. A serious shock or fire hazard may result along with computer malfunctions.
FITNESS EQUIPMENT SAFETY INSTRUCTIONS
• To disconnect, turn all controls to the off position, remove tether cord, then remove the plug from the outlet.
•Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and equipment may result
•Before beginning this or any exercise program, consult a physician.This is especially important for persons over the age of 35 or persons with pre-existing health conditions.
•Do not block the rear of the equipment. Provide a minimum of 3 1/2 feet clearance between the rear of the equipment and any fixed object.
•Product Weight Limit: 250 lbs.
•Keep hands away from all moving parts.
•Use handrails provided; they are for your safety.
•Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
•Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your equipment. Quality athletic shoes are recommended to avoid leg fatigue.
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
5
IMPORTANT ELECTRICAL INFORMATION
WARNING
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill.As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels.
NEVER remove any cover without first disconnectingAC power.If voltage varies by ten percent (10%) or more,the performance of your treadmill may be affected. Such conditions are not covered under your warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for proper testing.
NEVER expose this treadmill to rain or moisture.This product is NOT designed for use outdoors, near a pool or spa, or in any other high humidity environment.The temperature specification is 40 degrees Celsius,and humidity is 95%,non-con- densing (no water drops forming on surfaces).
Circuit breakers: Some circuit breakers used in homes are not rated for high inrush currents that can occur when a treadmill is first turned on or even during normal use.If your treadmill is tripping the house circuit breaker (even though it is the proper current rating) but the circuit breaker on the treadmill itself does not trip, you will need to replace the home breaker with a high inrush type.This is not a warranty defect.This is a condition we as a manufacture have no ability to control.
This part is available through most electrical supply stores.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill’s electrical system should malfunction or breakdown grounding provides a path of least resistance for electric current, reducing the risk of electric shock.This product is equipped with a cord having an equipment-grounding plug.The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded.Do not modify the plug provided with the product if it will not fit the outlet;have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated below.A temporary adapter that looks like the adapter illustrated below may be used to connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is not available.The temporary adapter should be used only until a properly
grounded outlet,(shown below) can be installed by a qualified electrician.The green colored rigid ear-lug,or the like,extending from the adapter, must be connected to a permanent ground such as a properly grounded outlet box cover.Whenever the adapter is used, it must be held in place by a metal screw.
6
IMPORTANT OPERATION INSTRUCTIONS
•NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer.
•Understand that changes in speed do not occur immediately. Set your desired speed on the computer console and release the adjustment key.The computer will obey the command gradually.
•NEVER use your treadmill during an electrical storm. Surges may occur in your household power supply that could damage treadmill components.
•Use caution while participating in other activities while walking on your treadmill; such as watching television, reading, etc.These distractions may cause you to lose balance or stray from walking in the center of the belt, which may result in serious injury.
•NEVER mount or dismount the treadmill while the belt is moving. XTERRA treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.
•ALWAYS hold on to a handrail or hand bar while making control changes (speed, etc.).
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all times. It is for your safety should you fall or move too far back on the tread-belt. Pulling this safety tether cord will stop tread-belt movement.
To Use:
1.Place the magnet into position on the round portion of the console control head.Your treadmill will not start and operate without this.Removing the magnet also secures the treadmill from unauthorized use.
2.Fasten the plastic clip onto your clothing securely to assure good holding power. Note:The magnet has strong enough power to minimize accidental,unexpected stopping.The clip should be attached securely to make certain it does not come off. Be familiar with its function and limitations.The treadmill will stop, depending on speed, with a one to two step coast anytime the magnet is pulled off the console.
REMOVE TETHER CORD AFTER USE TO PREVENT UNAUTHORIZED TREADMILL OPERATION.
7

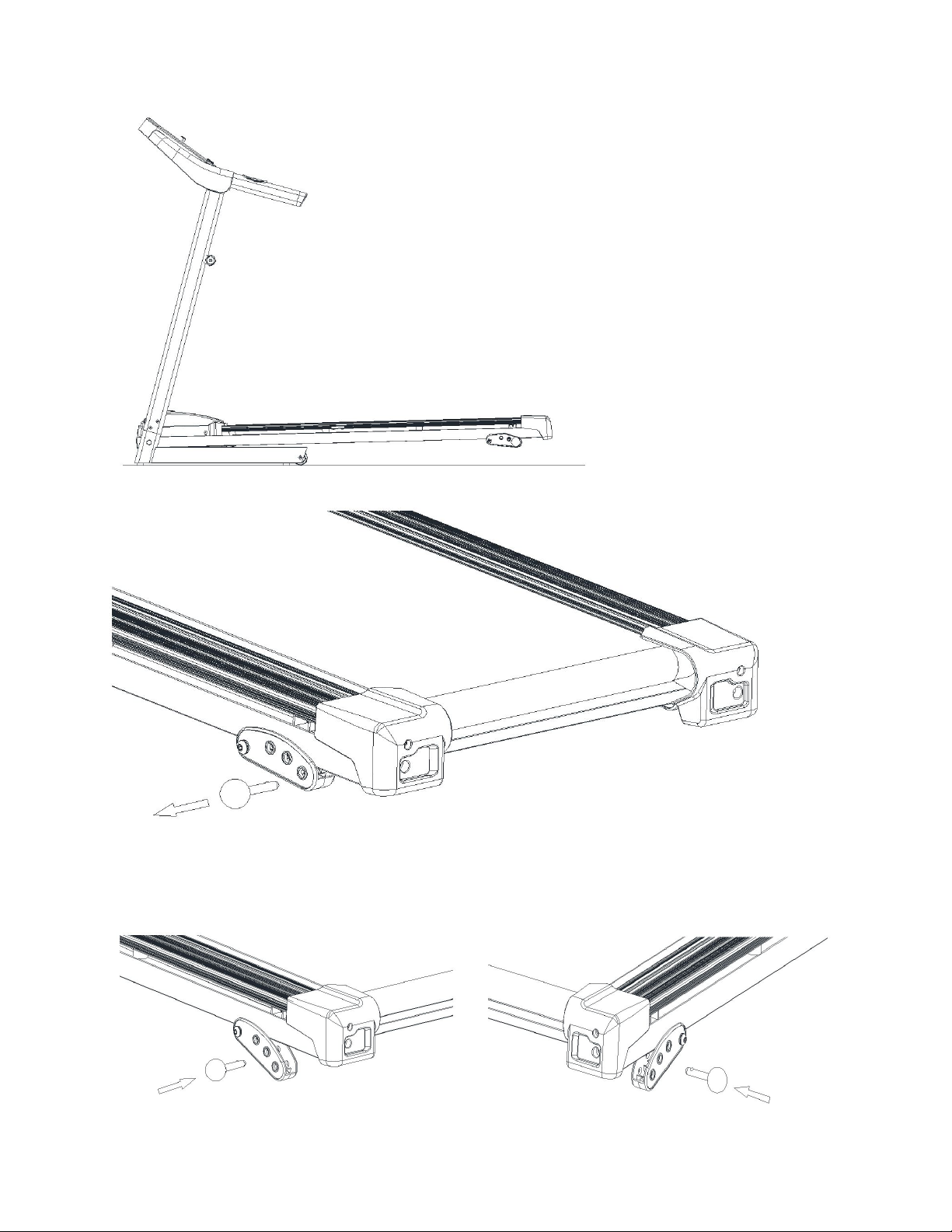

TR150 ASSEMBLY PACK CHECKLIST
