XPower PL-700A, XL-730A User Manual

LOW PROFILE AIR MOVER
OWNER'S MANUAL
MODEL: PL-700A, XL-700A, XL-730A,
XL-760AM (115V/60HZ)
XPOWER MANUFACTURE, INC. 240 Clary Avenue San Gabriel, CA 91776, USA Tel: 626-285-3301 Fax: 626-285-3302 www.xpower.com
PLEASE READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS Introduction
Introduction..................................................................................................................................... 3
Operation Intrusctions .................................................................................................................... 4
Safety Instructions ....................................................................................................................... 5, 6
Maintenance Instructions ............................................................................................................... 6
Troubleshooting .............................................................................................................................. 7
Specifications................................................................................................................................... 8
Accessoreis ...................................................................................................................................... 9
Parts List ................................................................................................................................. 10, 11
More XPOWER Products.......................................................................................................... 12, 13
XPOWER Warranty / Service ......................................................................................................... 14
Warranty Registration Form .................................................................................................... 15, 16
XPOWER Low Profile Air Movers are ETL & C-ETL certified professional level multi functional blowers / fans with the most efficient engineering design.
Feartures:
• Low power draw with a high velocity air flow from 1050 CFM to 1150 CFM
• Super quiet and super light weight
• Easy carry handle and stackable up to 6 units high
• Quick to disassemble for thorough cleaning and service
• Convenient cord wrap design
• Power cord length up to 15'
• Safety screens on open vents
• Built-in power outlets for daisy chain
• Durable and rugged housing with 1 year warranty
- 3 -
Operation Instructions Safety Instructions
XPOWER Low Profile Air Movers are intended to move air and to dry floors, walls, furniture, etc. Durable and easy to operate with an effective balance of static pressure and airflow, the units are suitable for a variety of applications.
1. XPOWER Low Profile Air Movers are shipped ready-to-use. Prior to plugging the unit into the power source, inspect completely for any shipping damage.
2. Plug the electrical cord into a standard 3-prong outlet.
3. Carefully place the unit on a stable, flat dry surface.
4. Turn the switch to desired speed, while making sure unit operates normally.
5. To Reduce the risk of injury, close supervision is neceesary when the appliance is used near children. Do not allow children to play with or around an air mover at any time.
STORAGE:
Low Profile Air Movers can be stacked (up to 6) high for storage.
1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug the unit with wet hands or while standing in water.
2. To avoid risk of injury, do not redirect air flow at face or body.
3. To reduce the risk of fire or electric shock, do not use the Low Profile Air Mover with any solid- state speed control device.
4. Use only with GFCI protected receptacles. Please contact a qualified electrician for verification and / or installation of a GFCI receptacle if necessary.
5. Do not operate the Low Profile Air Mover with a damaged cord or plug. Discard the unit or return it to an authorized service facility for examination and / or repair.
6. Unplug the Low Profile Air Mover from the power supply before servicing or cleaning.
7. Do not run the power cord under carpet. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
8. Do not allow children to play with or around the Low Profile Air Mover at any time.
9. Do not move or carry the Low Profile Air Mover while the unit is operating.
(Continued at Page 6)
- 5 -- 4 -
Safety Instructions
Troubleshooting
10. Always place the Low Profile Air Mover on a smooth and level surface for safe operation.
11. Any misuse or abuse of this product will void its warranty.
12. It's automatically operated device. To reduce the risk of injury disconnect from power supply before servicing.
Maintenance Instructions
1. To keep the Low Profile Air Mover clean, use a damp cloth to wipe the surface of the housing.
2. Never clean the Low Profile Air Mover with water.
3. When not in use, unplug and store the Low Profile Air Mover in a dry indoor place out of reach of children.
4. Always disconnect the Low Profile Air Mover from its power source before cleaning, disassembly, or servicing,
PROBLEM POSSIBLE CAUSE SOLUTION
Low Profile Air Mover not running
Low Profile Air Mover
vibrates / makes noise
No power input / Switch not turned on
Intake or exhaust blocked
Fan jammed Remove material jamming the fan
Wiring failure / Motor Failure
Fan jammed / broken
- 7 -- 6 -
Check outlet / switch to another outlet, make sure unit is plugged
in and switch is turned on. Turn unit off to cool down, then
remove blockage
contact XPOWER Customer Service
Remove material jamming the
fan or contact XPOWER Customer Service
Specifications
Model PL-700A XL-700A XL-730A XL-760AM
Volt / Frequency 115V / 60HZ 115V / 60HZ 115V / 60HZ 115V / 60HZ
Power 1/3 HP 1/3 HP 1/3 HP 1/3 HP
Amp 2.8 Amps 2.8 Amps 2.8 Amps 2.8 Amps
Rated Airflow (On
High)
RPM 1000 / 1300 / 1600 1000 / 1300 / 1600
Speeds 3 Speed 3 Speed 5 Speed 1 Speed
Built-in Power Outlets Yes Yes Yes (GFCI) Yes (GFCI)
Hour Meter - - - Yes
Unit / Box Weight 19.8 lbs. / 21.2 lbs. 21.2 lbs. / 22.5 lbs. 22.9 lbs. / 24.3 lbs. 20.7 lbs. / 22.0 lbs.
Unit / Box Dimension
(L x W x H)
Power Cord (Length /
Size)
Thermal Protection Ye s Yes Yes Yes
Housing PP ABS ABS ABS
Safety Certification ETL / C-ETL ETL / C-ETL ETL / C-ETL ETL / C-ETL
1050 CFM 1050 CFM 1150 CFM 1150 CFM
400 / 700 / 1000 /
1300 / 1600
17.7" x 17.7" x 8.3" /
18.0" x 8.7" x 18.1"
15' / 14AWG 15' / 14AWG 15' / 14AWG 15' / 14AWG
17.7" x 17.7" x 8.3" /
18.0" x 8.7" x 18.1"
17.7" x 17.7" x 8.3" /
18.0" x 8.7" x 18.1"
17.7" x 17.7" x 8.3" /
18.0" x 8.7" x 18.1"
1600
Accessories

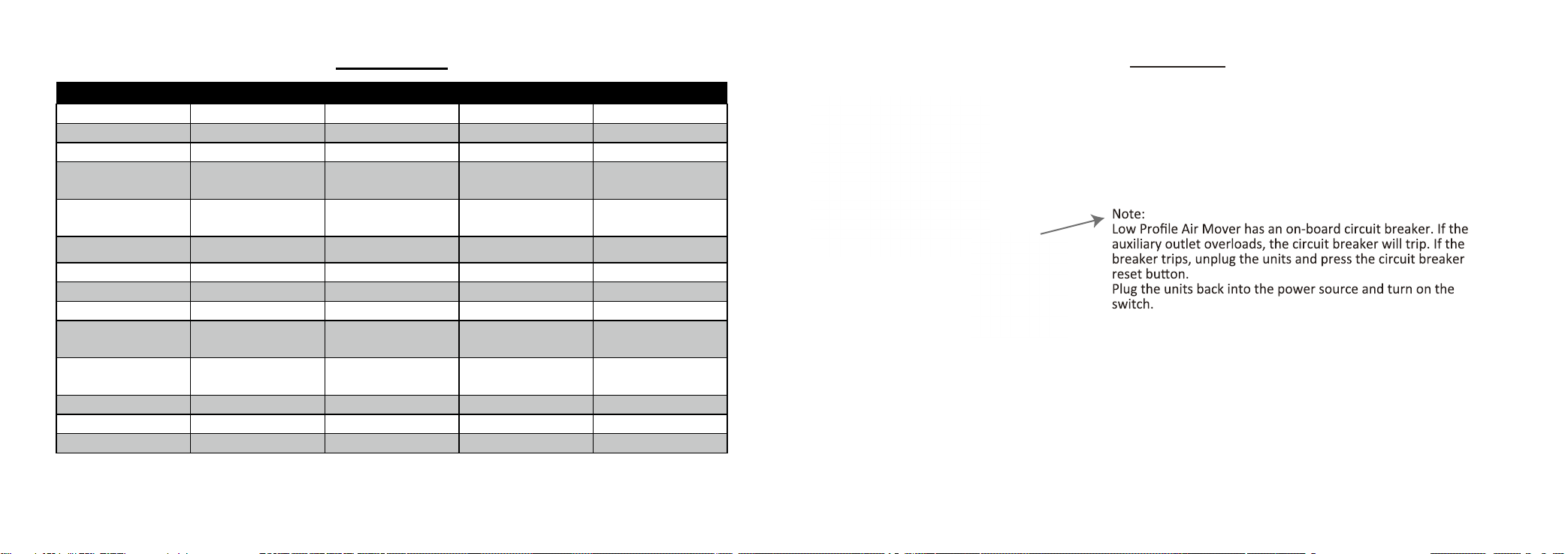

Daisy Chain Specifications
XPOWER Low Profile Air Mover is daisy chainable with a low 2.8 amp draw. The 12-amp on-board circuit breaker will allow three (3) additional same units to run on one circuit at the same time.
Hour Meter (For XL-760AM)
A embed Hour Meter automatically accumulates operated time for Low Profile Air Mover. The number indicates worked hours for the unit, and can not be revised.
- 9 -- 8 -

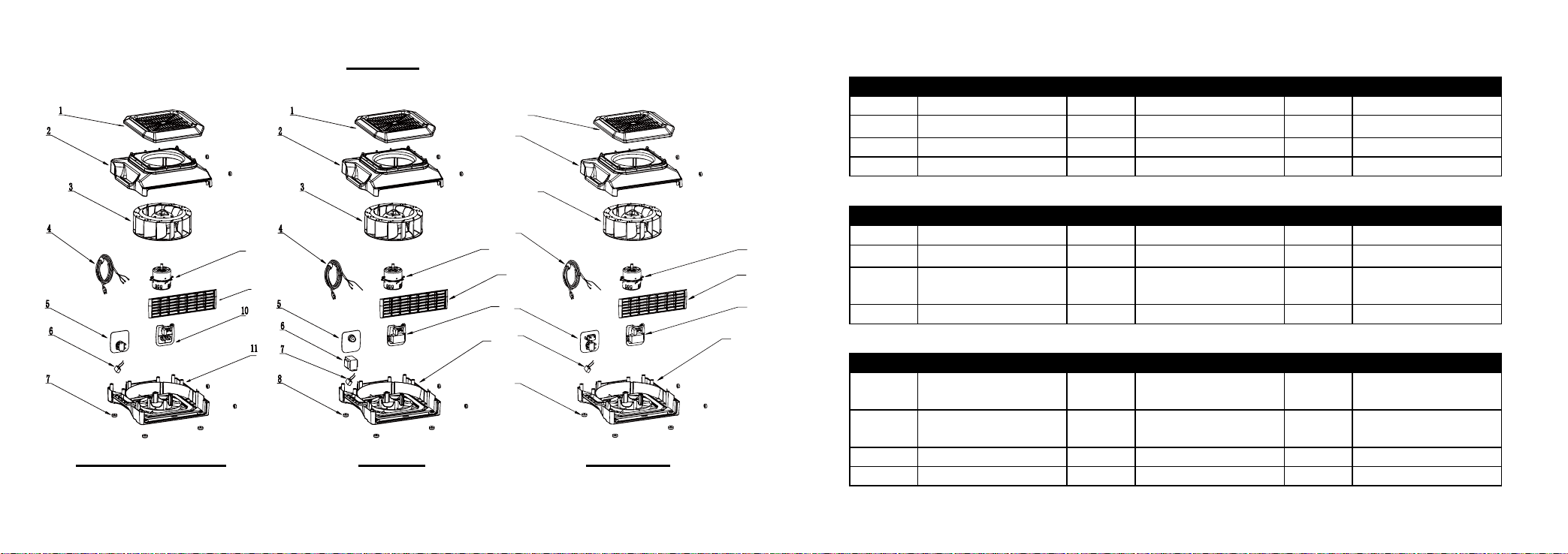

Parts List
10
1
2
3
4
8
9
9
5
11
6
12
7
PL-700A / XL-700A XL-730A XL-760AM
11
10
PL-700A / XL-700A
Item No. Parts Name Item No. Parts Name Item No. Parts Name
1 Top cover 5 Switch assembly 9 Air outlet grid cover 2 Housing 6 Capacitor 10 AC receptacle assembly
3 Fan 7 Rubber feet 11 Bottom cover 4 Power cord 8 Motor
XL-730A
Item No. Parts Name Item No. Parts Name Item No. Parts Name
8
9
1 Top cover 5 Switch assembly 9 Motor 2 Housing 6 Transformer 10 Air outlet grid cover
3 Fan 7 Capacitor 11
GFCI receptacle
assembly
4 Power cord 8 Rubber feet 12 Bottom cover
XL-760AM
Item No. Parts Name Item No. Parts Name Item No. Parts Name
1 Top cover 5
2 Housing 6 Capacitor 10
3 Fan 7 Rubber feet 11 Bottom cover 4 Power cord 8 Motor
Switch and hour meter
assembly
- 11 -- 10 -
9 Air outlet grid cover
GFCI receptacle
assembly
More XPOWER Products Available
Jan/San - Restoration & Mitigation Equipment:
Centrifugual Fans Low Profile Air Movers Scented Air Mover Fans
Airrow Pro Blower
Confined Space Fans Axial Fans High Temp Axial Fans Air Scrubbers Dehumidifiers Misting Fans
Inflatable Advertising Equipment:
High Static Blowers Centrifugal Blowers Vertical Advertisement Blowers
Air Pumps
Professional & Retail Pet Grooming Equipment:
Professional Pet Grooming Dryers DIY Pet Grooming Dryers
Air Care Equipment
Learn more at www.xpower.com or call 1-855-855-8868
- 13 -- 12 -
XPOWER Limited Warranty (USA)
XPOWER's Limited Warranty covers the unit (excludes power cord, filters, motor brushes, hoses and any other consumable parts) from defects in material and craftsmanship. The Warranty covers normal use for a term of one year from the original date of purchase including parts, labor, and one way shipping. Non-contiguous states must pay for roundtrip freight. Warranty honored with original proof of purchase only.
Important!
This Warranty does not cover or apply to defects directly or indirectly due to misuse, abuse, disassembly, alteration, corrosive chemicals, improper voltage, fire, flood, negligence, accident, improperly or incorrectly performed maintenance or repair, or failure to perform necessary maintenance or repair, or if the use of this product is not in compliance with the instructions and specifications for its use.
Service
For Warranty service and parts replacement (US customer only), you must:
A. Call 1-855-855-8868 for a RMA (Return-Merchandise-Authorization) number. B. Have original proof of purchase provided. C. Use the original undamaged packaging or an industrial certified packaging method.
End user will be responsible for shipping the unit (with RMA Number showing on the shipping label) to XPOWER Customer Service Department. XPOWER will inspect, assess and advise the repairs needed and appllicable cost, if any.
For users outside US, please contact an XPOWER Distributor in your country or region for warranty service and parts replacement.
Warranty Registration
For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC.
Address: 240 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301 Fax: 626-285-3302
(For your convenience, register your product online at xpower.com)
