XPower FC-100, FC-200, FC-300, FC-420 User Manual
Air Circulator Owner's Manual
Model:
FC-100, FC-200, FC-300, FC-420
(115V 60HZ)
Read and save these instructions before use
www.xpower.com | 1-(855)-855-8868 | info@xpower.com
Index: NA-1-A9
Edition: 2.0.Alpha
Safety Instructions
!
WARNING - READ AND SAVE THIS INSTRUCTIONS BEFORE USING THIS PRODUCT.
The user of electrical products may create hazards that include, but are not limited to
injury, fire, electrical shock. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
• Before operating, remove all packaging material and check for any damage that may
have occurred during shipping or any missing items.
• Check household power supply to ensure it matches the appliance’s specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an
authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for
verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or
similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away
from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state
speed control device.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and
objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may
damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from
power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the
power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this
appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the
product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity,
or other extreme environments, when not in use.

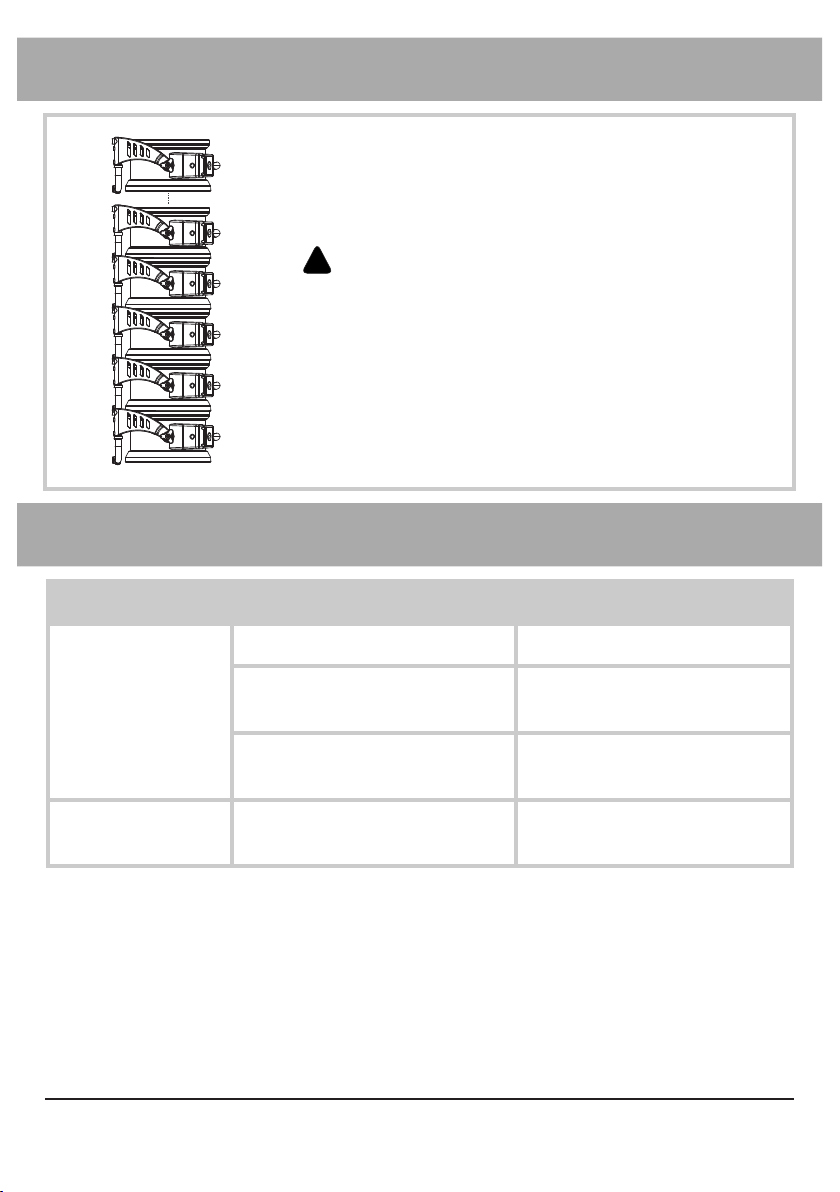

• For model FC-100 / FC-200, DO NOT stack more than six units of this appliance. For
model FC-300 / FC-420, DO NOT stack more than five units of this appliance.
• An electronic instruction manual can be obtained through manufacturer’s website
www.xpower.com.
English - 2
Items Included
• Rack x 1**
• Air Circulator
Body x 1**• Air Circulator x 1*
Axial Fan Owner's Manual
XXX Manual De Usuario (página 10)
XXX Mode d'emploi (page 18)
Model / Modelo / Modèle:
P-80 Series, P-100 Series, P-200 Series
(115V 60HZ)
Read and save these instructions before use
Lea y guarde estas instrucciones antes de usar la unidad
Lire et conserver ces instructions avant utilisation
www.xpower.com | 1-(855)-8868 | info@xpower.com
Index: NA-1-A2
• Rubber Washer
x 2**
• Rack Handle x 2**
• Owner’s Manual x 1
Edition: 1.0.Alpha
* For model FC-100/FC-200/FC-420 only.
The exact appearance of the products might be slightly different from the diagram.
** For model FC-300 only.
Parts Description
5
4
2
1
7
3
6
10
11
12
13
8
9
English - 3
Parts Description
(Continued)
(1) Front Grille Cover
(2) Motor
(3) Housing
(4) Capacitor
(5) Housing Handle
* For model FC-100 / FC-200 / FC-300 only.
** For model FC-420 only.
(6) Switch Plate*/ Switch
and Timer Plate**
(7) Rack Handle
(8) Rubber Washer
(9) Rack
Air Circulator Introduction
• XPOWER Air Circulators are designed to offer
efficient air circulation and ventilation with its
high and long-distance focused airflow.
• It’s perfect for air circulation and ventilation in
janitorial/sanitation jobs, air condition control
and more.
Installation and Operation Guide
Installing the Rack*
②
①
(10) Fan
(11) Rear End Cover
(12) Rear Grille Cover
(13) Power Cord
①
②
③
①
Fit both rubber washers onto bolts on both sides of unit.
②
Align the rack onto the air circulator.
③
Fasten the connection with the rack handle.
* For model FC-300 only.
English - 4
③
Installation and Operation Guide
Switch Plate
(Continued)
2 3
1
OFF
Four Speed Control
Four Speed Switch ( For model FC-100/FC-200/FC-300 only)
• Turn to “OFF” position to switch the Air Circulator OFF. Turn to any speed position to
switch the Air Circulator ON.
• Turn clockwise to set the desired speed. There are 4 speeds from: 4, 3, 2, 1. “4” is the
highest speed and “1” is the lowest speed .
Five Speed Switch (For model FC-420 only)
• Turn to “OFF” position to switch the Air Circulator OFF. Turn to any speed position to
switch the Air Circulator ON.
• Turn clockwise to set the desired speed. There are 5 speeds from: 5, 4, 3, 2, 1. “5” is
the highest speed and “1” is the lowest speed .
Timer Switch
4
OFF 5
2 3
1
Five Speed Control
4
ON
180
Timer Switch
0
60
120
• Turn clockwise to set timer for minutes count
down to an automatic stop.
• The timer can be set for up to 180 minutes (3
hours).
• When the timer reaches “0” position, the unit
stops working. On “ON” position, it will work
constantly.
English - 5
