XPower F-16 User Manual

Electric Fogger Owner's Manual

Model:

F-8, F-16

(115 V~60Hz)

Read and save these instructions

www.xpower.com | 1-(855)-855-8868 | [e-mail]

Index: NA-1-30

Edition: 1.2.Final

Safety Instructions

WARNING: READ AND SAVE THESE INSTRUCTIONS BEFORE USING THIS

!

PRODUCT.

When using electrical appliances, especially when children or animals are present, basic
safety precautions should always be followed to reduce the risk of fire, electric shock,
and personal injury, including, but not limited to the following:

• DO NOT attempt to perform any service or maintenance not outlined in instruction
manual.

• WARNING: To reduce the risk of electric shock – Use indoors only. DO NOT use
outdoors.

• WARNING: This machine is not intended for use by children. Adult assembly and
operation required. To reduce the risk of injury, close supervision is necessary when an
appliance is used near children.

• DO NOT use as a toy.

• DO NOT leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.

• DO NOT use extension cords with machine.

• DO NOT unplug unit by pulling on cord, to unplug, grasp the plug, not the cord.

• WARNING: Never use a machine with a damaged cord or plug, or after the machine
malfunctions or is dropped, damaged. Return to an authorized service center for
service, examination, repair, or electrical or mechanical adjustment.

• To disconnect, turn all controls to the off (“O”) position, then remove plug from outlet.

• DO NOT pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. DO NOT run appliance over cord. Keep cord away from
heated surfaces.

• DO NOT handle plug or appliance with wet hands.

• Use extra care when cleaning on stairs.

• DANGER: DO NOT expose the machine to rain or water.

• DO NOT use or store machine where it can fall or be pulled into tub or sink or standing
water. If machine falls into water, unplug it, DO NOT reach into the water. Keep units
out of baths and DO NOT operate on a wet floor, or wet surface.

• WARNING: DO NOT allow any material to clog or block air intakes as this may cause
units to overheat and result in a fire or electrical hazard. DO NOT direct the air /
fogging outlet to huamn beings or living animals.

• WARNING: DO NOT expose this machine to extreme temperature.

• (For Model F-16) Connect to a properly grounded outlet only. See Grounding
Instructions.

• WARNING: Filling these types of solution / liquid into the solution tank, may cause
safety hazzards, corrosive damages to the machine or blockage of the fogging system.

(1) Strong acids, strong bases or other corrosive liquids
(2) Alcohol, or flammable or explosive liquids

English - 2

(3) Oil, or other organic oils
(4) Suspensions, such as water with sands
(5) Detergents

Grounding Instructions (For Model F-16)

This appliance must be grounded. In the event of malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.

A qualified electrician should be consulted if there is any doubt as to whether an outlet
box is properly grounded.

DANGER: Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. The conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-grounding conductor. If repair or
replacement of the cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal. Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood, or if in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance – if it
will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 115V circuit (NEMA 5-15R), and has a grounding
plug (NEMA 5-15P) as illustrated below. Make sure that the appliance is connected to an
outlet having the same configuration as the plug. No adapter should be used with this
appliance.

RESET

RESET

TEST

TEST

NEMA 5-15R

Grounding Pin

NEMA 5-15P

English - 3

Electric Fogger Introduction

• The Electric Fogger produces ULV fine mist with
high velocity airflow helping the distribution
of different liquids to the indoor space and
surfaces for varies applications.

Items Included

Air Mover Owner's Manual

XXX Manual De Usuario (página 10)

XXX Mode d'emploi (page 18)

Model / Modelo / Modèle:

P-80 Series, P-100 Series, P-200 Series

Read and save these instructions before use

Lea y guarde estas instrucciones antes de usar la unidad

Lire et conserver ces instructions avant utilisation

www.xpower.com | 1-(855)-8868 | [e-mail]

(115V 60HZ)

Index: NA-1-A2

Edition: 1.0.Alpha

• Electric Fogger x 1

• Owner’s Manual x 1

• Fogging Outlet x 1

* The fogging outlet might be sold separately. Some of the models may already include
extra fogging outlets.

English - 4

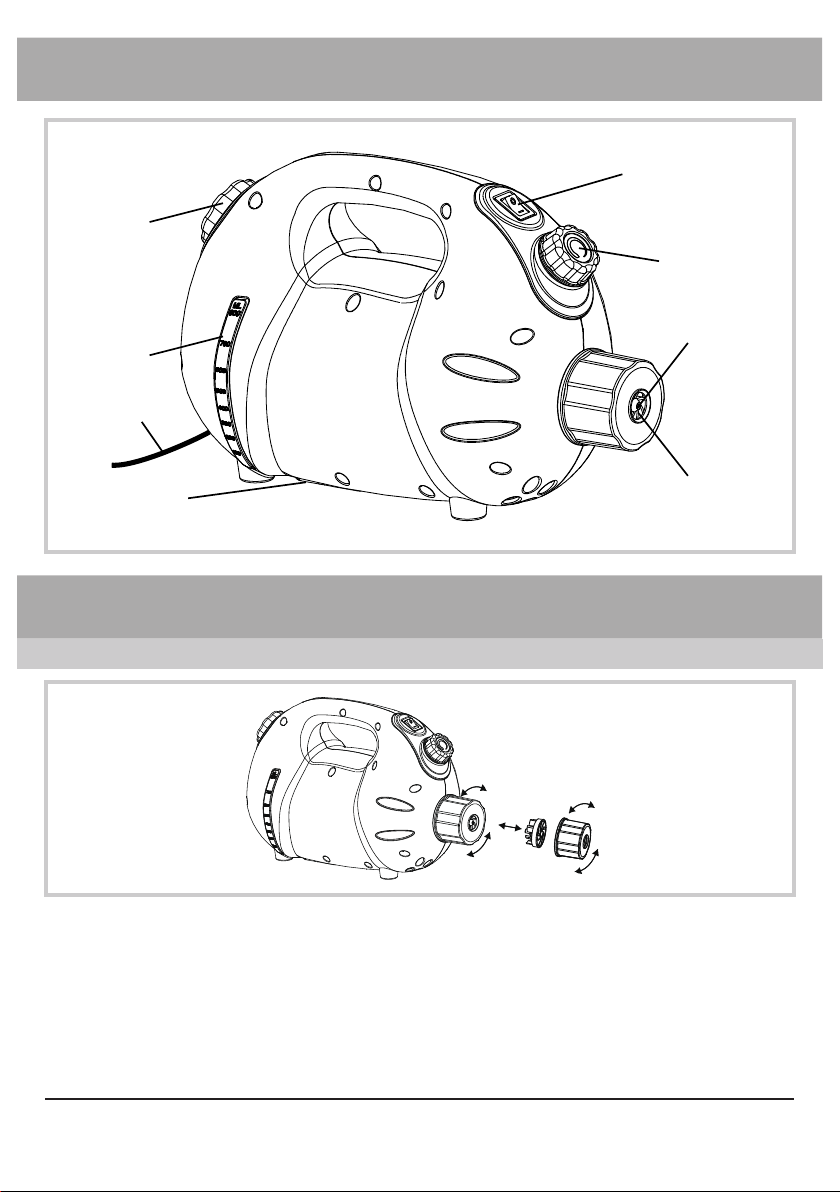

Parts Description

Solution

Tank Cover

Speed Switch /

Power Switch

Fogging

Volume Control

Solution

Tank

Power

Cord

Air Inlet

Operation Guide

Change the Fogging Outlet*

Fogging

Outlet

Air Outlet

• Turn counterclockwise to uninstall the fogging outlet cover and take out the fogging
outlet. Apply the new fogging outlet and reinstall the fogging outlet cover.

• The size of the fogging outlet varies and produces different fogging effects. (See Page

11: Technical Specifiations)

* The fogging outlet might be sold separately. Some of the models may already include
extra fogging outlets.

English - 5

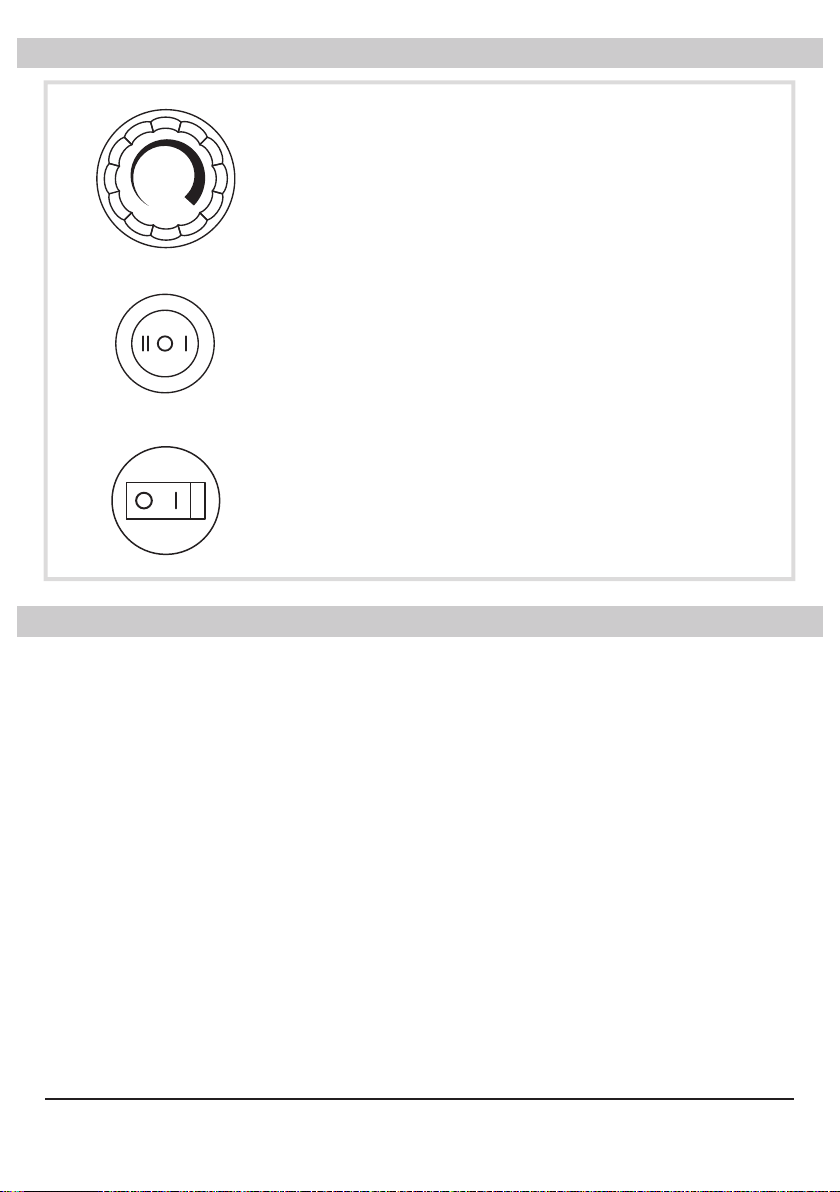

Control Panel

Start Your Job

Fogging Volume Control

• Turn counterclockwise to highen the fogging volume.
Turn clockwise to lowen the fogging volume.

• When at the lowest position, no liquid will coming out.

Speed Switch (For model F-16 only)

• Switch to “O” setting to turn the machine OFF.

• Switch to other settings to turn the machine on. “I”/“II”
means the lower/higher speed setting.

Power Switch (For model F-8 only)

• Switch to “O” setting to turn the machine OFF. Switch
to “I” setting to turn the machine ON.

Fill the Solutiong Tank

• IMPORTANT: Always turn the fogging volume control to the lowest setting and
disconnect the machine from the power source before filling the solution tank.

• Turn counterclockwise to open the solution tank cover, and fill designated solution or
liquid into the solution tank. Do not exceed the maximum capacity of the solution tank.
(See Page 8: Fogging System Maintenance) Close the solution tank cover.

• WARNING: Filling these types of solution / liquid into the solution tank may cause
safety hazzards, corrosive damages to the machine or blockage of the fogging system:

(1) Strong acids, strong bases or other corrosive liquids
(2) Alcohol, or flammable or explosive liquids
(3) Oil, or other organic oils
(4) Suspensions, such as water with sands
(5) Detergents

• IMPORTANT: If you intend to fill the solution of the types mentioned above, please
contact the manufacturer of the solution for usage reference and proper methods of
cleaning. (See Page 8: Fogging System Maintenance)

English - 6

Start Your Job (Continued)

Select a Power Source with a Proper Location

• Check the throw distance of the machine. (See Page 10: Technical Specifications)

• Please find a power source with a proper location where the fogging droplets can reach
designated objects.

Start Fogging

• Connect the machine to power source.

• IMPORTANT: Make sure the fogging volume control is on the lowest setting before
turning the power on.

• Turn on the machine and set to designated speed.

• Turn the fogging volume control counterclockwise to set designated fogging volume.

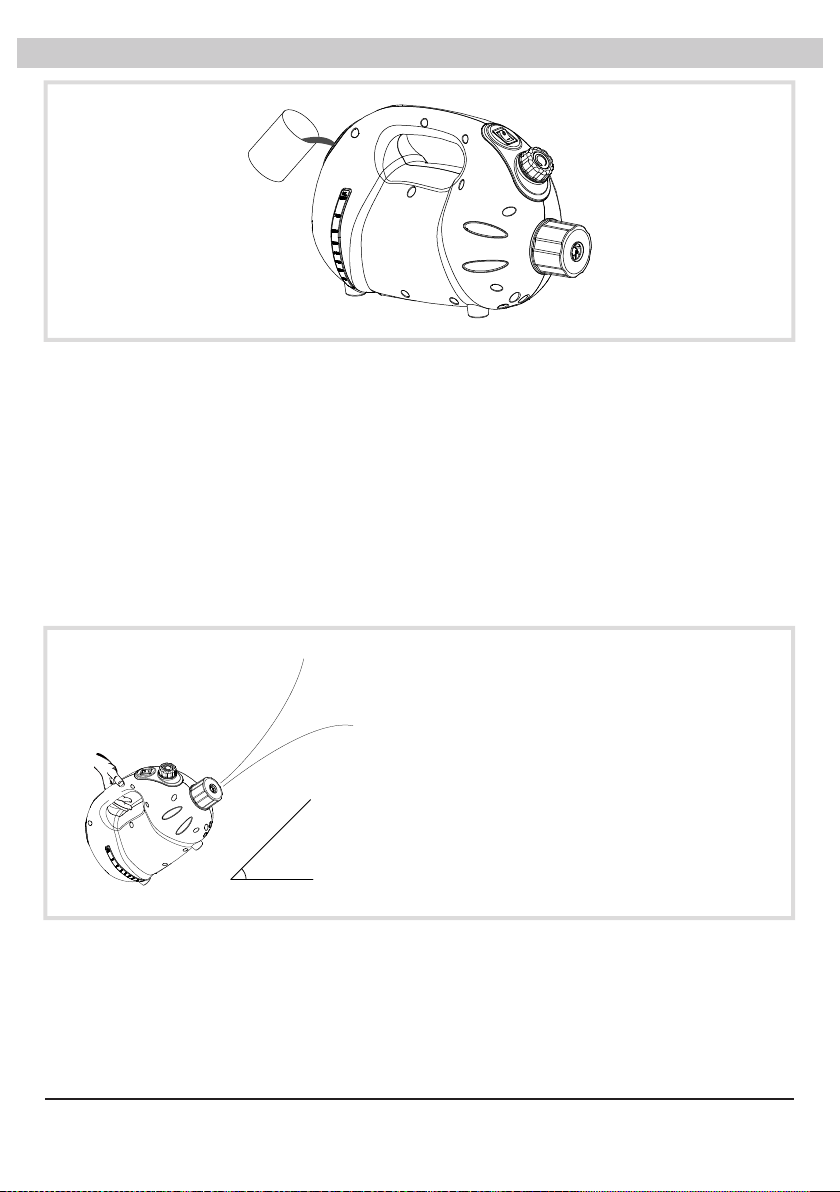

Tips:

• You could adjust the operation angle for
different applications.

• When working at an angle 45° with the
ground level, the machine can deliver
the fogging droplets to the farthest
distance.

• When working at an angle over 45°, the

45°

Turn off the Machine

• Turn the fogging volume control clockwise to the lowest setting.

• Turn off the machine and disconnect the machine from its power source.

• IMPORTANT: Discard or use up the liquids in the solution tank. If you are not able
to use up the liquids, transfer the liquids into a safe container, or follow the disposal
instructions of the liquids if applicable.

fogging volume will decrease due to the
gravatiy. It’s suggest to work at an angle
no more than 45°.

English - 7

Start Your Job (Continued)

• Use proper methods of cleaning for the solution tank. (See Page 8: Fogging System

Maintenance)

User Maintenance and Servicing Instructions

Frequent maintenance is recommended on this appliance. Failure to follow the
maintenance instructions may cause failure of the appliance and void the warranty.
Always disconnect the machine from the power source before any maintenance or
servicing.

Cleaning the Surface

• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water
directly.

• Remove dirt or any other objects that could block the air inlet, air outlet or the fogging
outlet.

Storage

• When not in use, make sure no liquids are left in the solution tank.

• Store the appliance in a dry and cool indoor place. Make sure it’s out of reach of
children.

Fogging System Maintenance

Cleaning the Solution Tank

• Turn the fogging volume control to the lowest setting.

• Fill the solution tank with cold water to half of maximum capacity, close the solution
tank and shake the machine a few times. Then open the solution tank and discard the
water inside. Repeat the steps above 2 times.

• Check if the solution tank is clean. If not, you might repeat the steps above.

Cleaning the Liquid Conduit and Fogging Outlet

• Turn the fogging volume control to the lowest setting.

• Fill the solution tank with cold water to half of maximum capacity and close the
solution tank.

• Connect to power source.

• Turn on the machine and turn the fogging volume control to the highest setting.

• Keep the machine working for 3 minutes. Turn the fogging volume control to the lowest
setting, turn off the machine and disconnect the power source.

• Open the solution tank and discard the water inside. Close the solution tank. Wipe the
water on the machine surface and the fooging outlet.

Selection Suggestions of Cleaning Agent

• It’s recommended to use COLD WATER ONLY to clean the fogging system.

English - 8

Fogging System Maintenance (Continued)

• You might follow the cleaning and disposal instructions of the liquids used for fogging if
applicable.

• WARNING: Filling these types of solution / liquid into the solution tank for cleaning,
may cause safety hazzards, corrosive damages to the machine or blockage of the
fogging system.

(1) Strong acids, strong bases or other corrosive liquids
(2) Alcohol, or flammable or explosive liquids
(3) Oil, or other organic oils
(4) Suspensions, such as water with sands
(5) Detergents

Troubleshooting Guide

PROBLEM POSSIBLE CAUSE SOLUTION

Unit does not start No electricity. Check for power supply.

Unit runs but the
speed / noise is
abnormal

Unit runs but no
liquid or fog is
coming out

The power cord is not properly
plugged in.

Air inlet, air outlet or fogging
outlet is blocked.

No liquid in the solution tank. Fill up the solution tank with

The solution tank is not
enclosed.

The fogging volume control is
turned to the lowest setting.

The fogging outlet is blocked. Remove blockage. Clean the

The liquid conduit is blocked.

Remove and reconnect the
power cord.

Remove blockage. (See

Page 8: Fogging System
Maintenance)

designated liquid.

Close the solution tank and
fasten the solution tank cover.

Turn the fogging volume
control to a higher setting.

fogging outlet and the liquid
conduit. (See Page 8: Fogging

System Maintenance)

English - 9

Technical Specication

MODEL NUMBER F-8 F-16

Voltage/Frequency 115 V~60 Hz

Amperage 3.0 A 4.5 A

Solution Tank Capacity 800 ml 1600 ml

Airflow Speed Settings 1 Speed 2 Speeds

Cord Length 20 ft. / 6.1 m 25 ft. / 7.6 m

Housing PP

Unit Dimension
(L) x (W) x (H)

Unit Weight 4.9 lbs. /2.2 kg 6.0 lbs. /2.73 kg

Safety Certification ETL/C-ETL

If your product(s) is not listed above, please visit www.xpower.com for more information.

Fogging Outlet Specication

Fogging Outlet Max Fogging Volume Max Throw Distance

0.9 mm (Marked 1) 100 ml / min 26 ft. / 8.0 m

F-8

1.5 mm (Marked 2) 200 ml / min 28 ft. / 8.5 m

F-16 2.0 mm (Marked 3) 250 ml / min 33 ft. / 10.0 m

12.1 x 6.4 x 7.8 in. / 30.7

16.2 x 19.7 cm

14.6 x 6.8 x 8.3 in. / 37.1
x 17.2 x 21.0 cm

XPOWER Limited Warranty (USA)

1 YEAR LIMITED WARRANTY

XPOWER-branded products purchased in the U.S. from authorized distributors include
a 1-year limited warranty. Contact XPOWER to confirm warranty information about your
product(s).

This limited warranty covers defects in materials and workmanship in your XPOWER­branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your

English - 10

country will cover products purchased outside the U.S.

Items mentioned but not limited to below are not covered by warranty:

!

IMPORTANT:

(1) Please finish the online warranty registration before usage. Visit www.xpower.com/

service-support/warranty-registration.

(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit

www.xpower.com for more information.

(1) Power cord, filters or any other components considered as a “consumable parts” by

XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER’s sole discretion, from:

(3.1) External causes such as accident, abuse, misuse or problems with electrical power

supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner’s Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated

in Owner’s Manual.

Before contacting XPOWER, please try one or more of the following:

(1) Consult this Owner’s Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to

address your problems.

If you need additional assistance from XPOWER, please:

(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers

provided on www.xpower.com.

(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the

most current address provided on www.xpower.com.

Please also have your original proof of purchase and the serial number(s) of your
product(s) ready when you contact XPOWER.

If you are instructed to return the unit for service or replacement, please:

(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own

expense to the address provided by XPOWER, with the RMA number on the shipping
label or the packaging.

(3) Include all the original parts and components.

XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any.
For products under warranty, we will pay to ship the repaired or replaced product(s) to
you if you use an address within the Contiguous United States. Otherwise, we will ship
the product(s) to you at your own expense.

English - 11

XPOWER Manufacture, INC.

668 S. 6th Ave.,

City of Industry, CA 91746 USA

www.xpower.com | 1-(855)-855-8868 | [e-mail]

Read and save these instructions

Paper Size: A4/297 mm x 210 mm
Layout: A5/148 mm x 210 mm

Index: NA-1-30

Edition: 1.2.Final
