X-MICRO EVA 120 MP3 PLAYER

User’s Manual

V1.0

INFORMATION TO USER

Product Name: X-MICRO EVA 120 MP3 PLAYER
Model Name: XMP3A-F512, XMP3A-F1G, XMP3A-2G

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:(1)this device may not cause harmful

interference,and (2) this device must accpt any
interference received, including interference that may cause
undesired operation. Conforms to the following EMC Product
Testing Specifications FCC part 15.109, Class B-Residential
Emissions at 3 meters. Testing was performed in a FCC Listed 3
meter semi-anechoic chamber. FCC Part 15.107, Class B­Residential Emissions at shield Room. Testing was performed in a
FCC Listed shield Room.

The referred test report(s) show that the product

complies with standard(s) recognized as giving

presumption of compliance with the essential

requirement in the above listed EU Directive(s).

Other relevant Directives have to be observed.

1

Copyright

Copyright 2006 by X-Micro Technology Corp., All rights reserved.
No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of X-Micro
Technology Corp.

Disclaimer

X-Micro Technology Corp. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof
and specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Any software described in this manual
is sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not this company, its
distributor, or its dealer) assumes the entire cost of all necessary
servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, X-Micro
Technology Corp., reserves the right to revise this publication and
to make changes from time to time in the contents hereof without
obligation to notify any person of such revision or change.

All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective
holders.

2

INDEX

1. Introduction ……………………………………………..……4

2. Installing the MP3 Player

3. Transfer data to and from the MP3 Player

4. Listen to WMA/MP3 music files with the MP3 Player

5. MP3 Player Controls

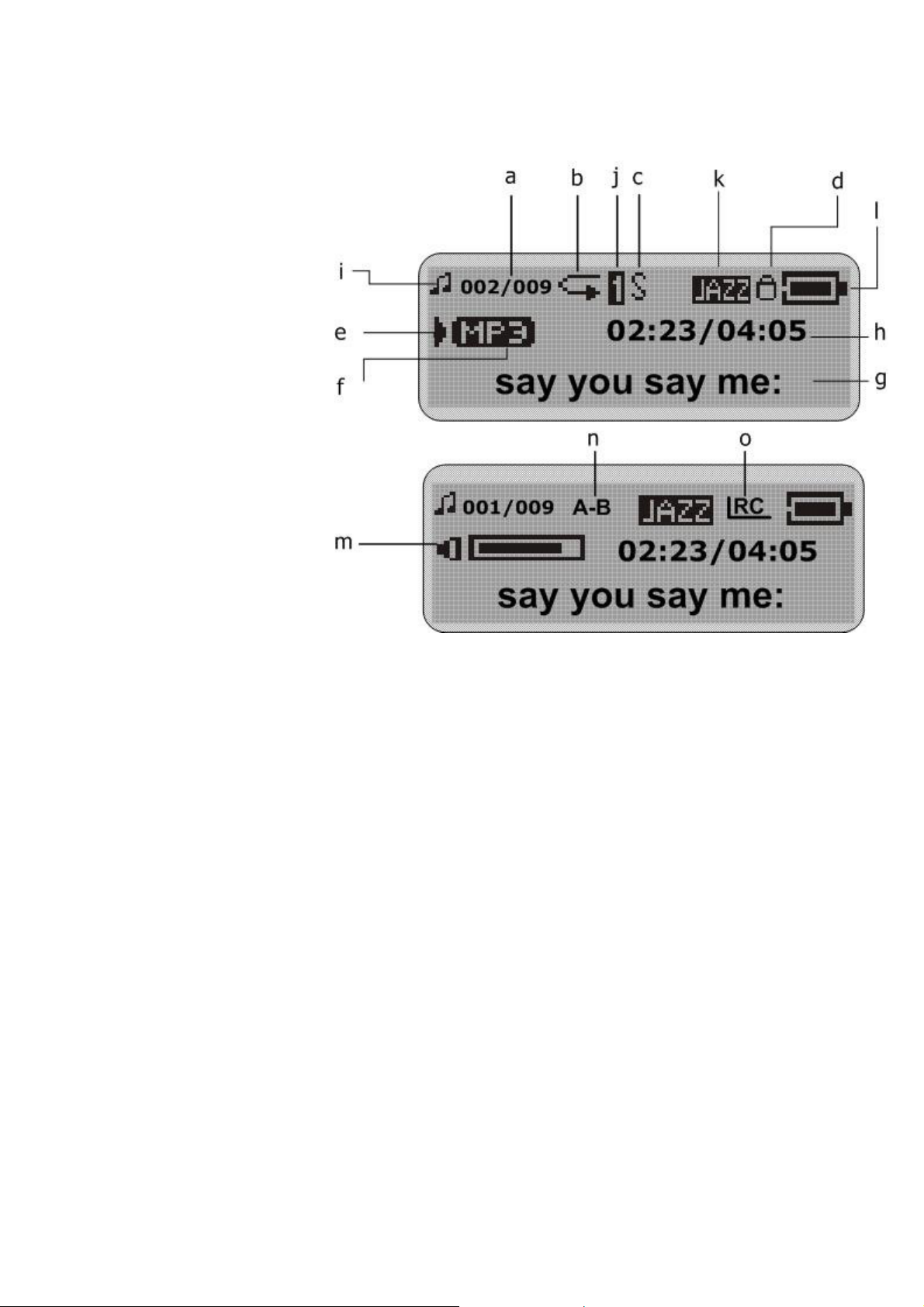

6. LCD Display

7. Voice Recorder

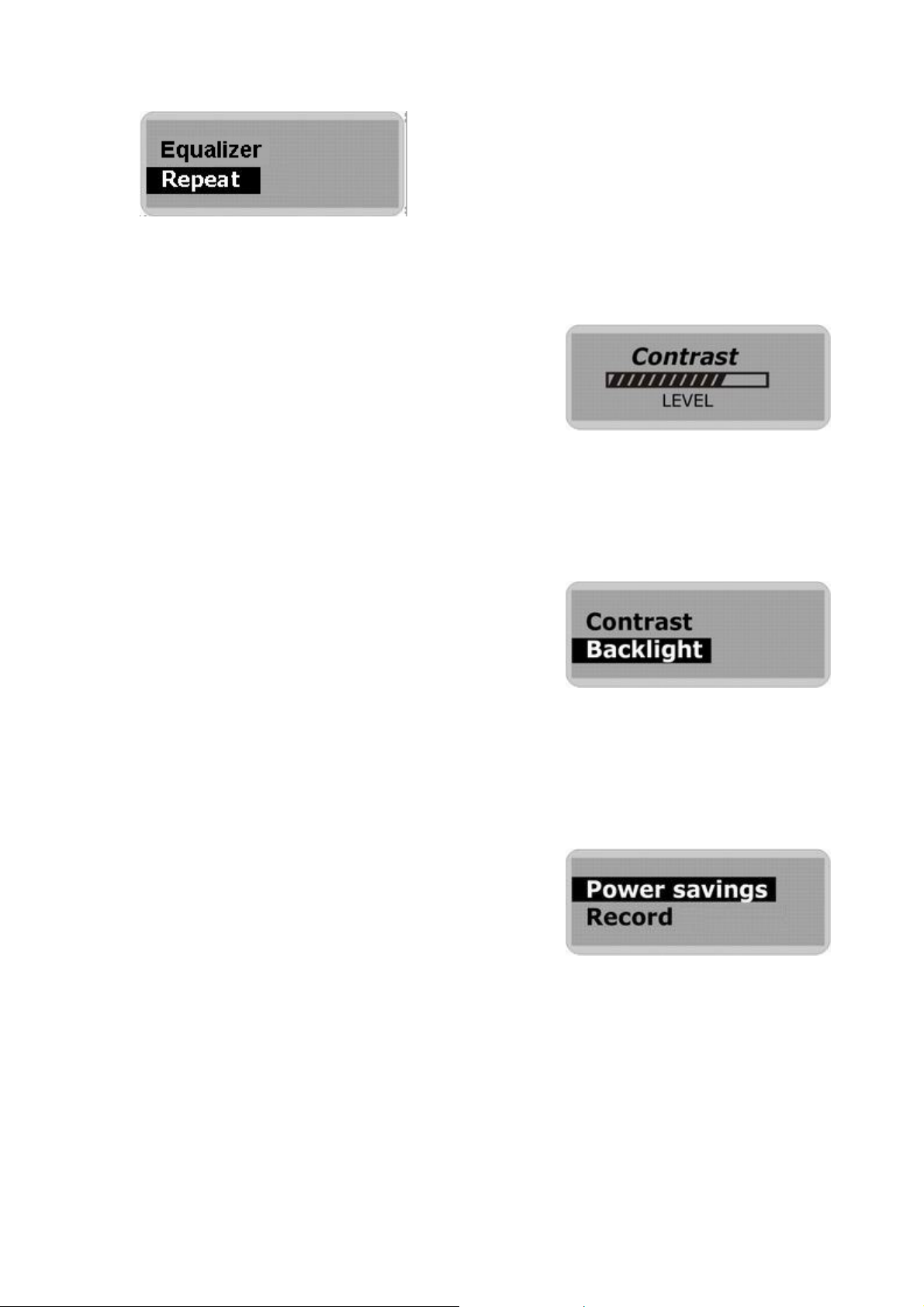

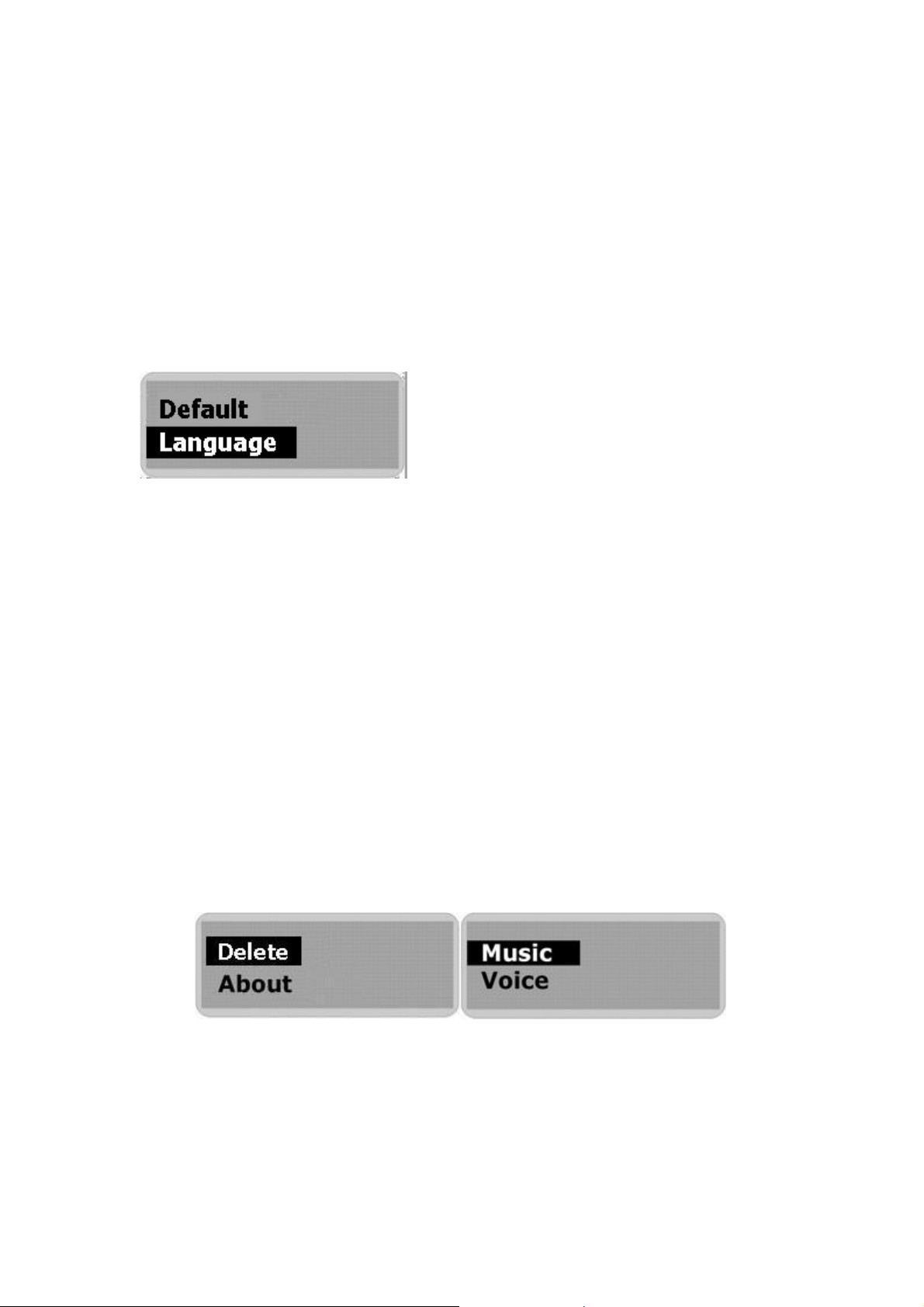

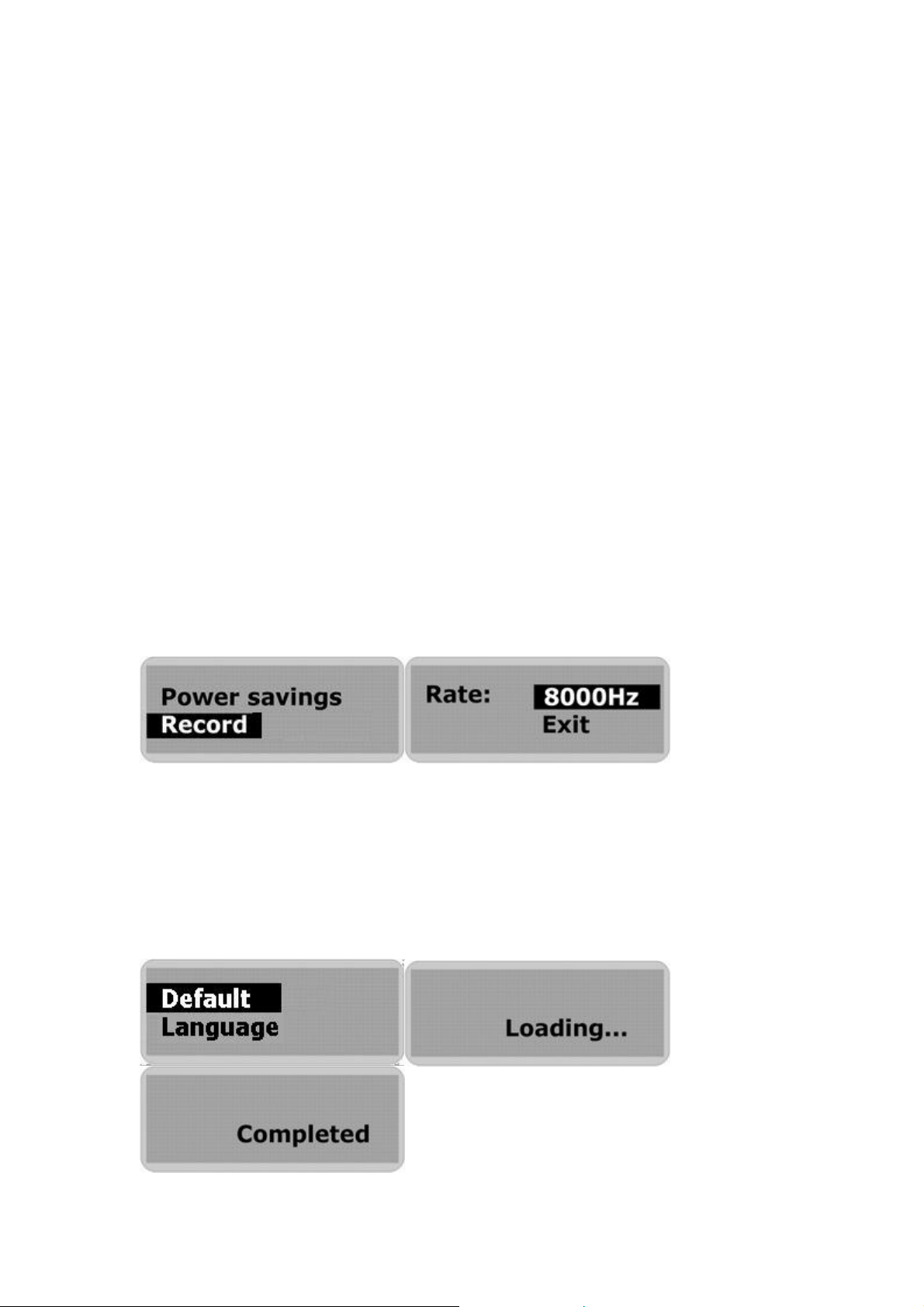

8. Advanced Settings

9. Upgrade the Firmware

10. Removing the MP3 Player from your computer

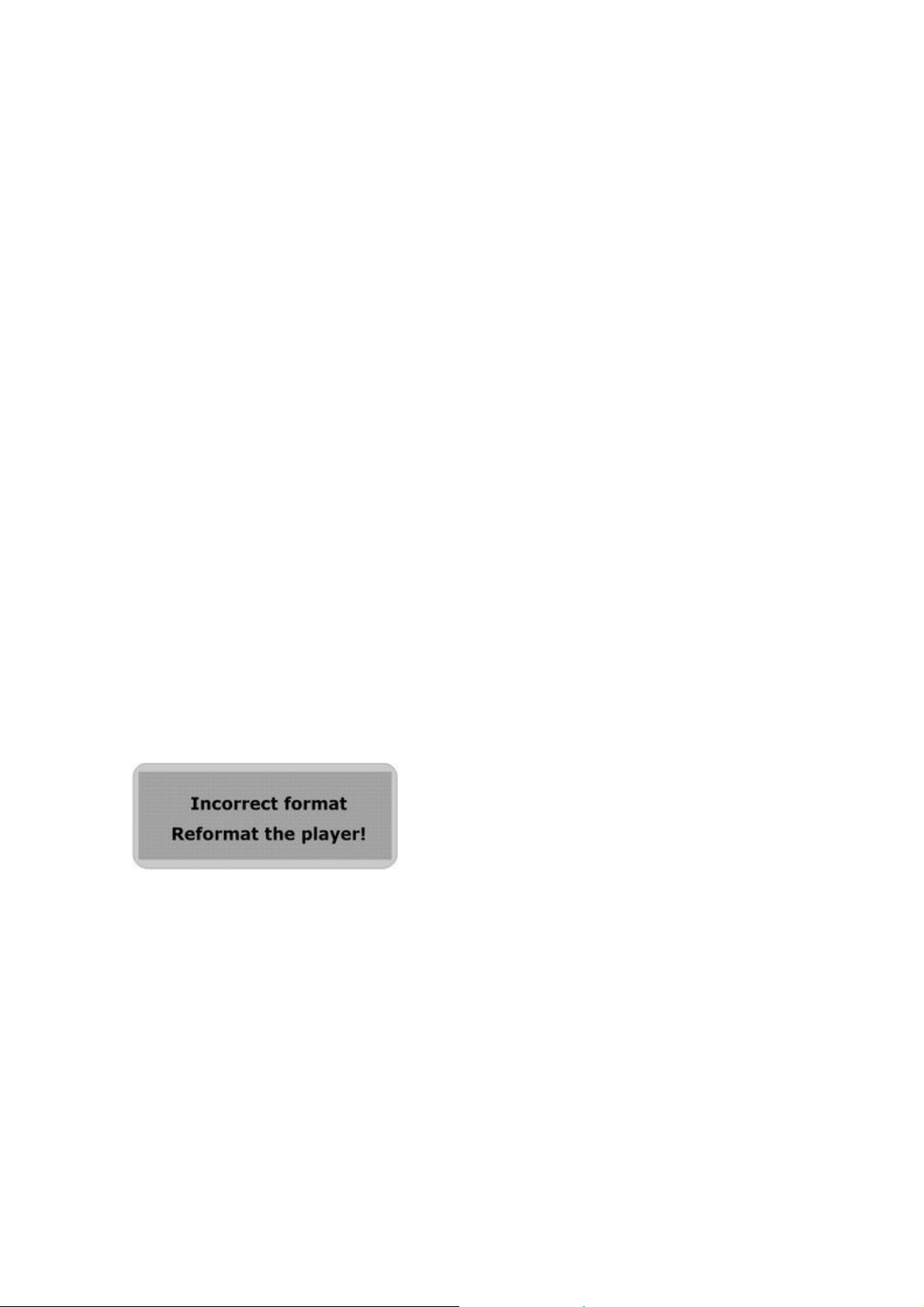

11. Trouble Shootings

…………………………………………………...9

………………………………………………10

………………………………………….8

………………………………………….15

………………………………………….22

………………………………..….5

……………….6

………………………………………20

……….21

…..7

12. Specifications

13. Safety

14. Contact us

………………………………………………………….26

……………………………………………………26

………………………………………………..24

3

1. Introducing

The MP3 Player incorporates a portable WMA/MP3 Player, Voice Recorder ,
FM tuner(Optional) and USB Mass Storage Device .

MP3 Player Features:

• WMA/MP3 player.

• Synchronous lyric display with WMA/MP3 music.

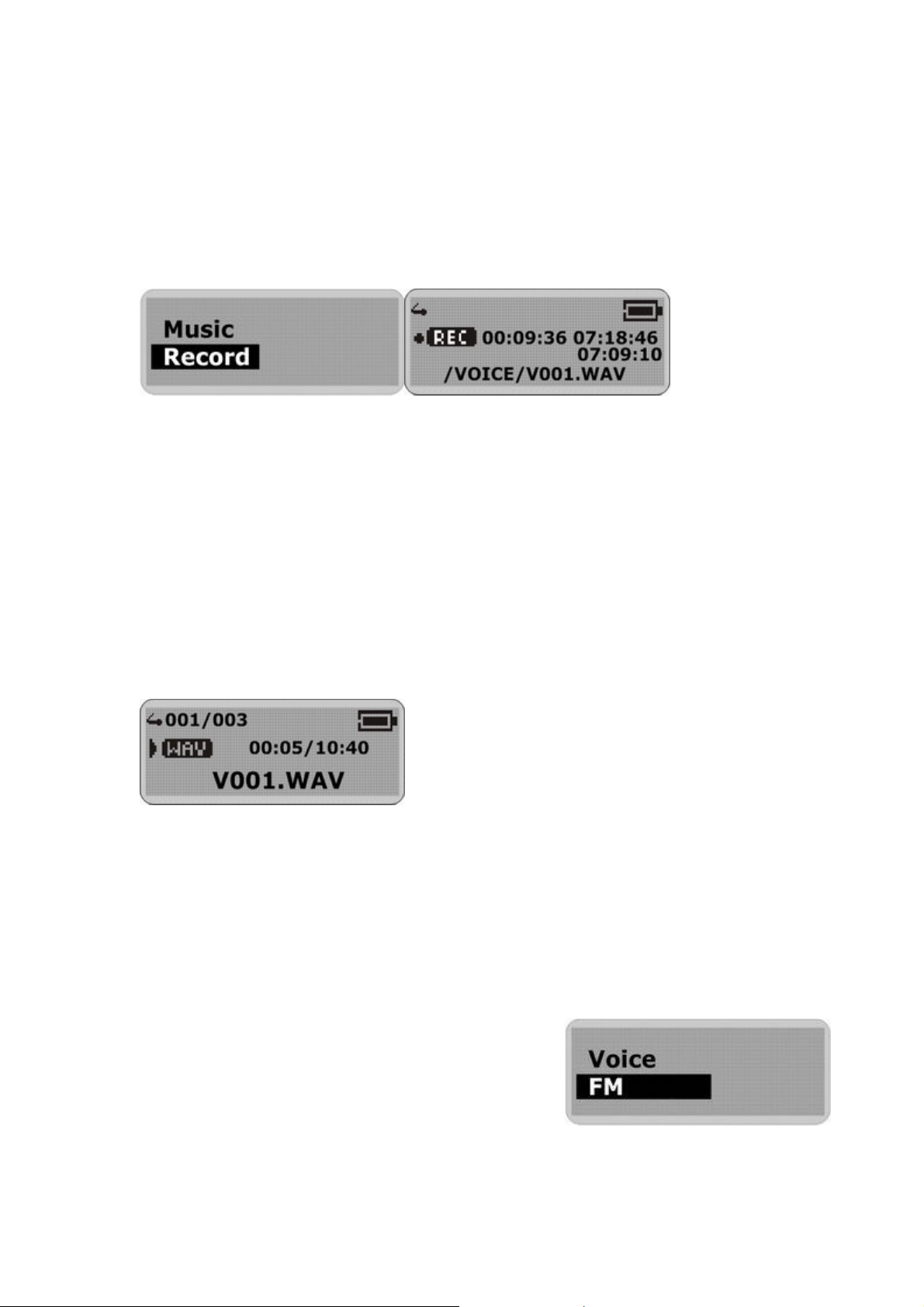

• Voice recorder.

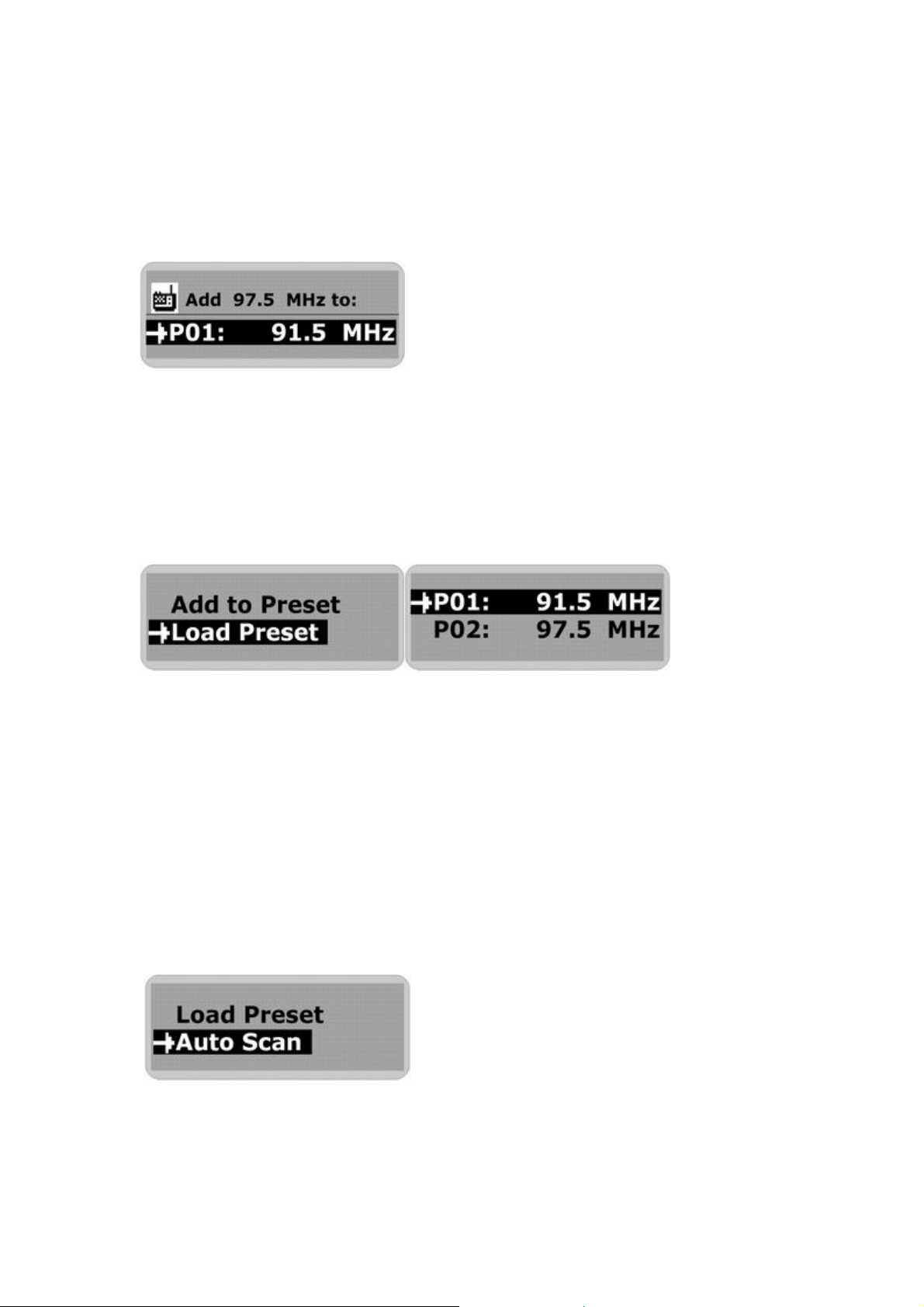

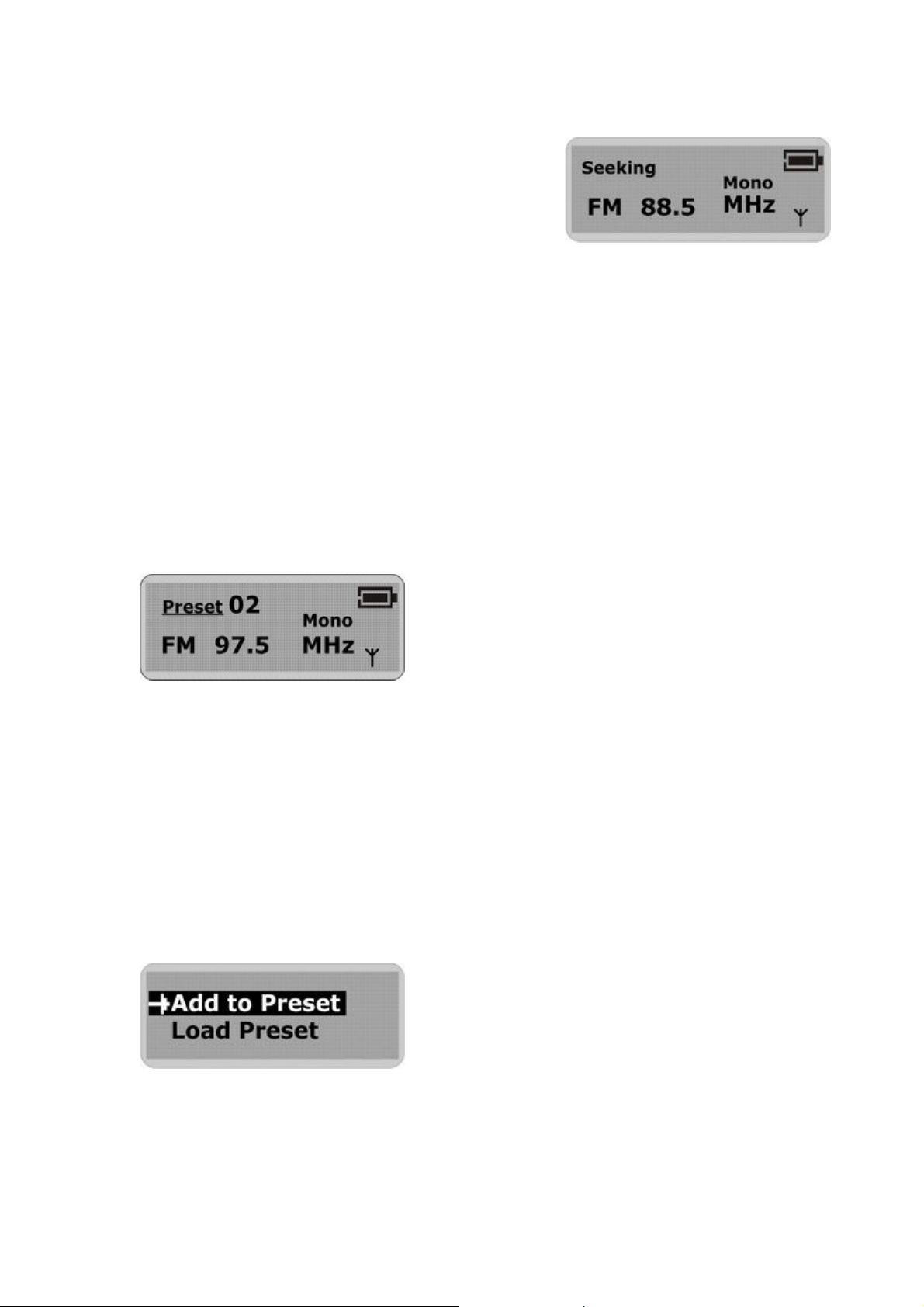

• FM Radio with 20 preset

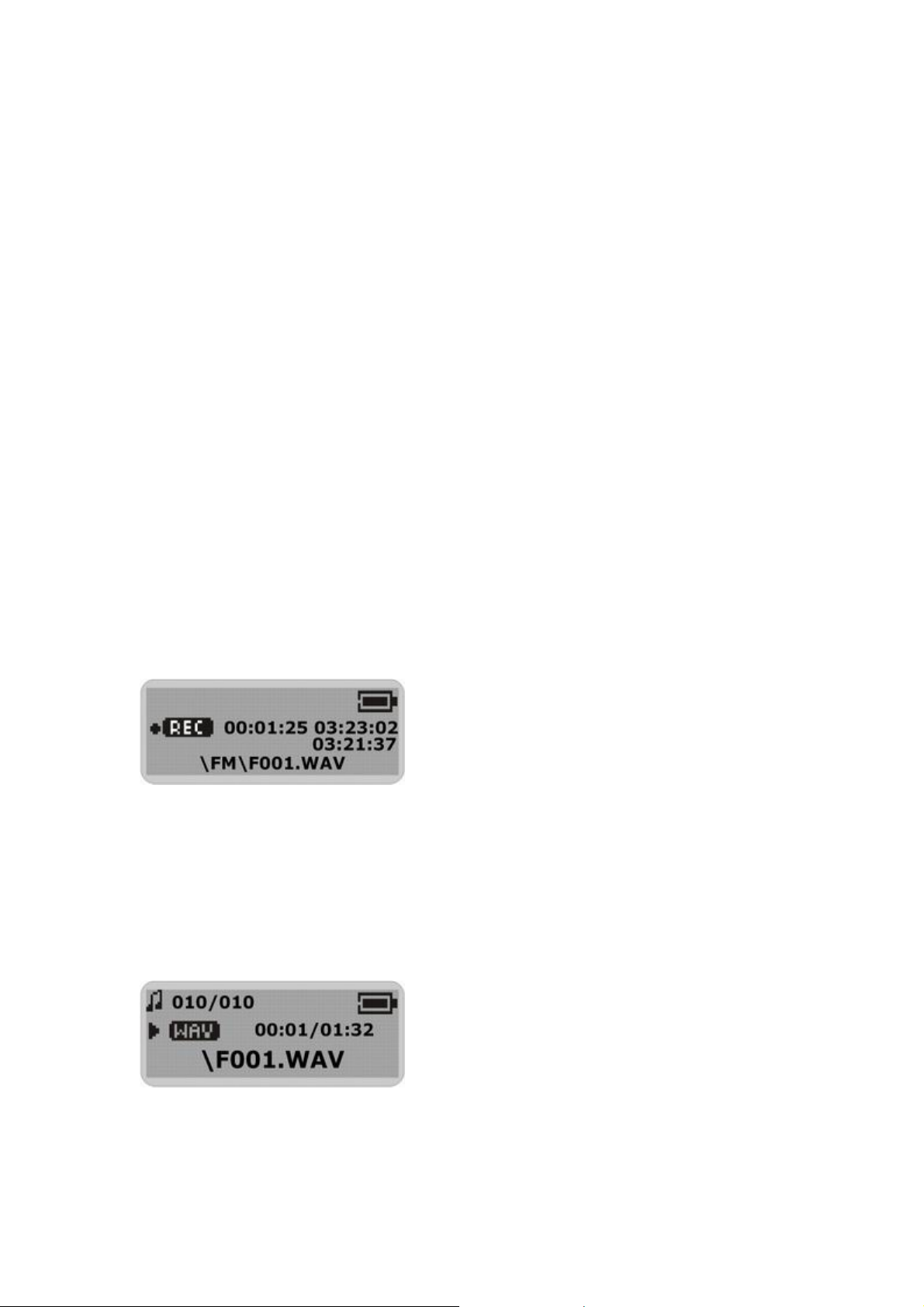

• FM Recording

• Navigation function

• WMA DRM support

• USB mass storage device.

• Integrated USB connector.

• Backlit display.

• Superb audio quality.

• No cable required.

• Requires 1 AAA battery .

System support:

• Supports Windows Me/2000/XP.

Note for Windows Me/2000/XP users: Installation of the MP3 Player
drivers is required only if you wish to upgrade the firmware of the
player.

Note for Windows 2000 users: Windows Service Pack 3 must be
installed .

• Supports Windows 98 SE after installation of drivers (see below).

• Supports Mac OS X (version 10.2.6 or above) without driver.

Note:

• To minimize static electricity, avoid operating the player in an extremely

dry environment.

• Under the environment with electrostatic discharge, the product may

malfunction and requirement user to reset the product.

4

2. Installing the MP3 Player

Installation of drivers for computers using Windows Me/2000/XP is not
necessary.

Note for Windows Me/2000/XP users: Installation of the MP3 Player drivers is
required only if you wish to upgrade the firmware of the player.

Note for Windows 2000 users: Windows Service Pack 3 must be installed .

Windows 98 SE users will need to install the MP3 Player on their system:

1. Please install the driver from the bundled CD disc.

2. Follow the on-screen instructions to complete the installation.

3. After installation is complete, please restart your computer.

5

3. Transfer data to and from the MP3 Player.

1. Make sure that the MP3 Player is turned off.

2. Remove the USB port cover & disconnect the
earphone.

3. Plug the MP3 Player into the USB port of your
computer. The built-in LCD displays "USB
Connected", indicating that the MP3 Player is in
USB mode. The MP3 Player is then
automatically recognized (in 'My Computer') as
a removable media device.

4. Transfer files to or from the internal Flash RAM
using Windows explorer.

5. Unplug the MP3 Player from your computer
(click here to see how to do this safely),
WMA/MP3 files can now be listened to and all
data stored can be transferred to another
computer.

6

4. Listen to WMA/MP3 music files with the MP3 Player

1. Follow the instructions for the transfer of data to and from the MP3
Player to copy WMA/MP3 music files to the MP3 Player.

2. Install 1 AAA/LR03 battery into the battery compartment.

3. Connect the supplied headphones to the headphone socket.

4. Press the Play button.

5. Use the MP3 Player controls to adjust playback and volume level to
listen to your WMA/MP3 music.

Note: Installing the battery:

1. Push and slide out the battery compartment door

2. Install the battery.

Lyric display function

The MP3 Player supports lyric files in LRC format.

1. Prepare a MP3 or WMA music, for example, happymusic.mp3;

2. Download a lyric file from internet. The lyric file must have to be with an
extension file name LRC. For example, happymusic-2004.lrc.

3. Rename the lyric file. For example, happymusic.lrc. It is to make sure
the lyric filename is same as the corrosponding music filename.

4. Copy the lyric file & music file to the MP3 player.

5. Disconnect the MP3 player.

6. Use Skip buttons to select the music file, for example, abc.mp3. Press
Play button to play.

7. The LRC icon would appears, and the lyric would display
Synchronously on LCD while the music is being playback.

Note: The MP3 player supports LRC format only.
Note: If the lyric does not synchronize with the music, please download one

better lyric file from internet and try again.
Note: Make sure the MP3 music and LRC file is located in same directory and

the filename is same. If not, the MP3 player can not recognize the lyric file.

7

5. MP3 Player Controls

A. USB Port Cover
B. Headphone Socket

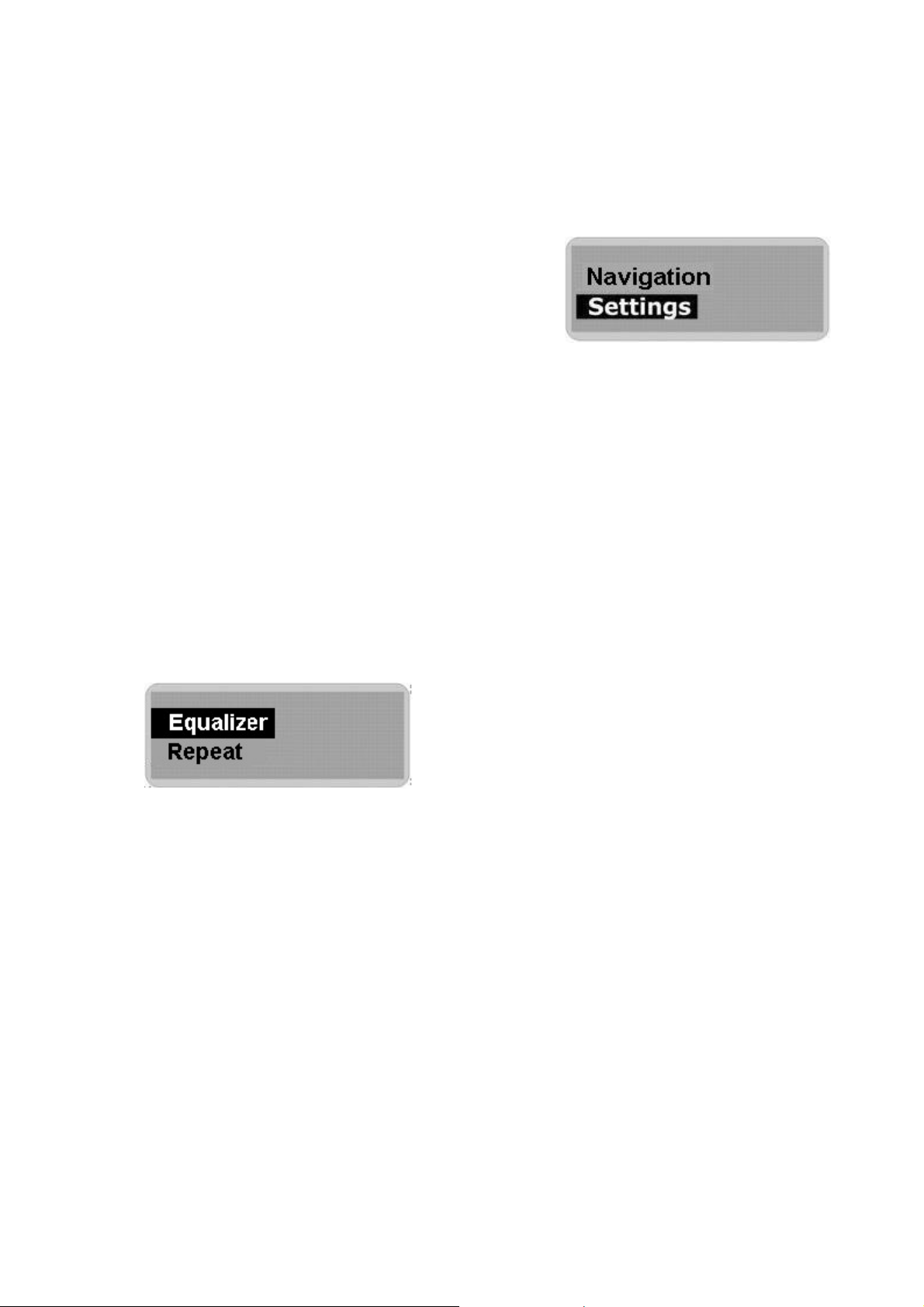

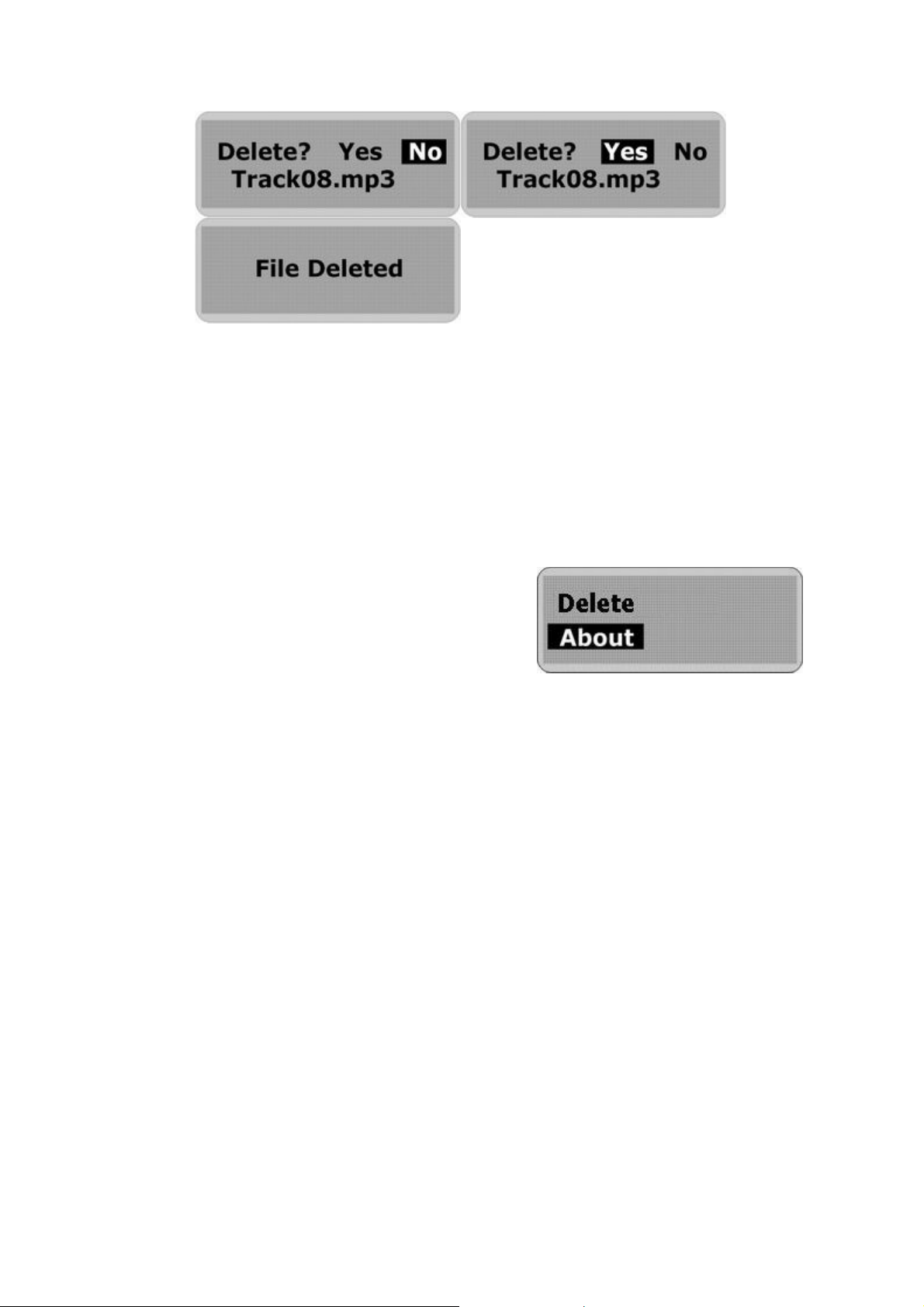

C. A-B / Menu Button
D. Skip Previous / Fast Rewind
E. Skip Next / Fast Forward
F. Power Off/Stop
G. Power On/Play/Pause

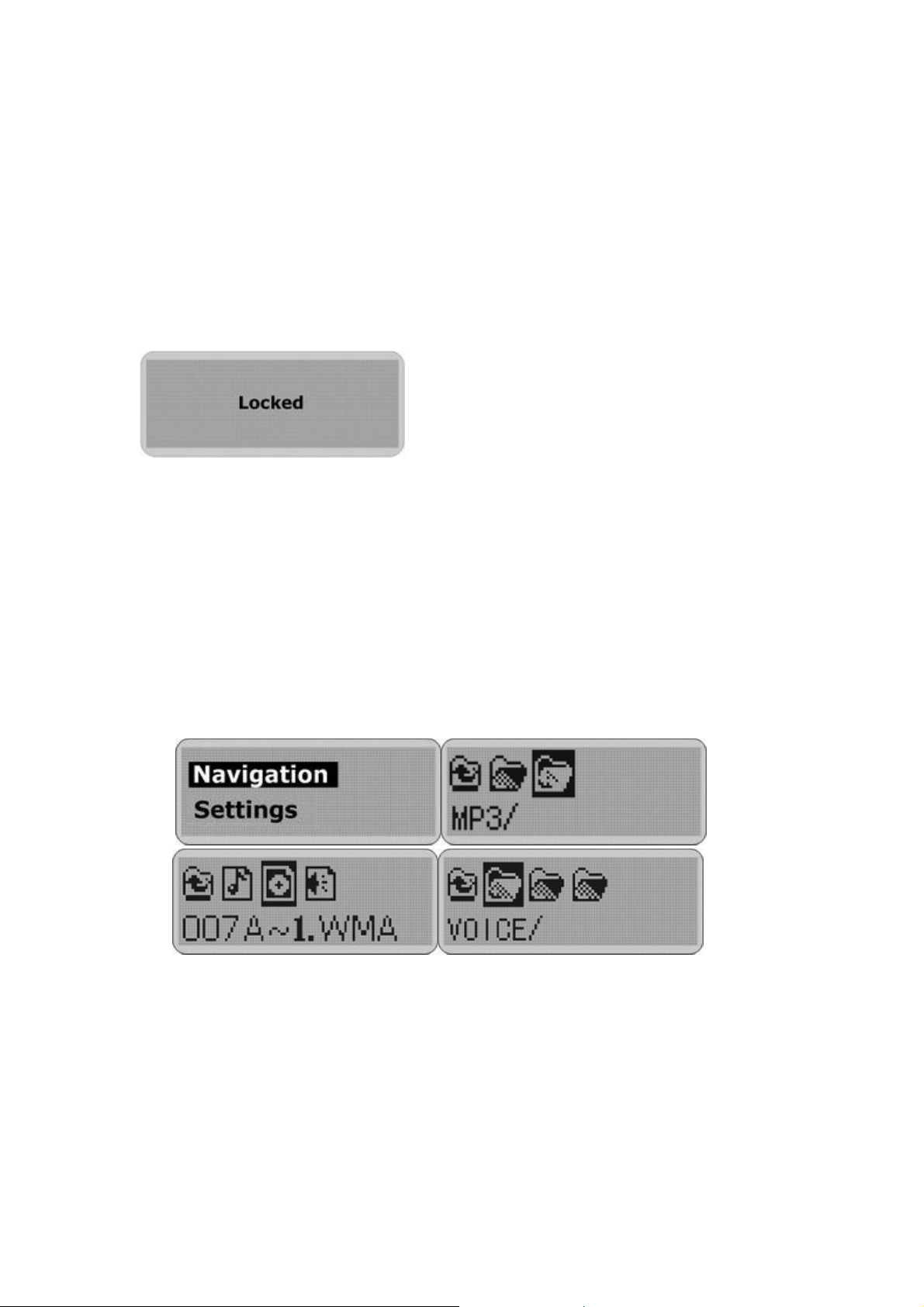

H. Hold Switch
I. Volume Down
J. Volume Up
K. Microphone
