Copyright 2004 by X-Micro Technology Corp., All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior
written permission of X-Micro Technology Corp.
Disclaimer
X-Micro Technology Corp. makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Any software described in this
manual is sold or licensed "as is". Should the programs prove defective following their
purchase, the buyer (and not this company, its
entire cost of all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Further, X-Micro Technology Corp., reserves the
right to revise this publication and to make changes from time to time in the contents
hereof without obligation to notify any person of such revision or change.
All brand and product names mentioned in this manual are trademarks and/or registered
trademarks of their respective holders
.
distributor, or its dealer) assumes the
CONTENT
Introduction 1
1.1 Product overview 1
1.2 Package contents 1
1.3 The characters of X-Micro Digital MP3 Player 1
1.4 The index parameter 2
1.5 The system requirement of X-Micro Digital MP3 Player 2
Installation guide of X-Micro Digital MP3 Player 3
2.1 Windows 98 operation system 3
2.2 Windows Me/2000/XP operation system 5
2.3 MAC OS 9.X operation system 6
2.4 Linux 2.4 core operation system . 6
Uninstall X-Micro Digital MP3 Player 7
3.1 Uninstall in windows 98 7
3.2 Uninstall in windows Me/2000/XP 7
3.3 Uninstall in MAC OS 9.X 8
3.4 Uninstall in Linux 2.4 8
Functions and guide 9
4.1 Power On/OFF 9
4.2 Playing music files 9
4.3 Repeat mode control 9
4.4 EQ mode 9
4.5 A-B replay 10
4.6 Volume control 10
4.7 Hold function 10
4.8 Main menu 11
4.9 System setting menu 11
4.10 Voice recording 12
4.11 Voice Directory select 13
4.12 File system operate 13
4.13 Voice playing 14
4.14 How to display the lyric synchronously 14
4.14.1 How to make lyric file 14
4.14.2 Lyric file display 15
4.15 Software using 15
4.15.1 Use the software to format your computer 15
4.15.2 Use the sound converter tool 16
4.15.3 Use the firmware update tool . 17
Safety Precaution 18
FAQ 19
1
Introduction
1.1 Product Overview
Hold switch: for holding all function
keys
Volume
Volume +:
Power ON / Play / Pause / Stop /
Power OFF key : for Power ON /
Play / Pause / Stop / Power OFF
control
Prev /mode / Next key: the key for
enter menu and for next&prev
select.
-: for down the volume
for up the volume
1.2 Package Contents
The package should include the following accessories. Please contact the dealer if
any of the listed items are missing from the package.
; X-Micro Digital MP3 Player
; QSG
; AAA battery
; Neck strap type Earphones
; Installation CD
1.3 The Characters of X-Micro Digital MP3 Player
Your X-Micro Digital MP3 player is a multi-functional with high sound quality and low
power consumption.
Main feature contented:
◆ Support MP3, WMA files playing.
◆ Support lyric synchronously display.
◆ Can update the firmware freely via the USB interface.
◆ Support 7 EQ modes
◆ Support long time voice recording and VOX recording.
- 1 -
◆ Support changing the contrast and EL display time of LCD displaying.
◆ Can be used as a mass storage device.
◆ Support series play modes and A-B replaying.
◆ Can resume the playing state before turn off.
1.4 The index parameter
Index Parameter specification
Hard disk
Interface
Storage medium
Power
Transfer speed
Operation System
Earphone Output
Record Time
Bit Rate Support
Capacity
LCD Display
Operating
Conditions
Common
Conditions
Size
Life-span
Driver
IBM PC, compatible PC, notebook with USB interface
Universal Serial Bus 1.0/1.1 (USB 1.0/1.1)
Flash EMS memory
Supply by USB interface without connect power, when
play songs, need 1xAAA
Max. Writing: 1000KB/S, Max. Reading: 1000 KB/S
Windows98/Me/2000/XP, MAC OS 9.x, Linux2.4 Core
16 ohm earphone,10mW+10mW output
Max 17 hours,128M
MPEG1 Layer1:32K-448K bps;
MPEG1 Layer2: 32K-384K bps;
MPEG1 Layer3:32K-320K bps;
MPEG2/2.5 Layer1: 32K-256K bps;
MPEG2/2.5 Layer2: 8K-160K bps;
MPEG2/2.5 Layer3: 8K-160K bps;
64MB/128MB/256MB/512MB
96×26 dots
-20ºC~ +40ºC
-40ºC ~ +60ºC
96.5mmx30mmx21mm
Writing over one million times, reading doesn’t
influence the life; data can be stored over ten years
Installation only be needed under Windows98, other
operation systems don’t need to install, such as
Windows Me, Windows 2000 and above
1.5 The system requirement of X-Micro Digital MP3 Player
1) PC Hard disk Requirements:
IBM PC, compatible PC, notebook with USB interface
2) Operator System Requirements
Microsoft Windows XP/2000/ME/98 or Mac OS 9.X, Linux 2.4 Core above or
other operator systems which support the protocol of USB Mass Storage
- 2 -
Installation Guide of X-Micro Digital MP3 Player
When the MP3 Player is connected to computer, the LCD will show the following
picture:
And when the MP3 Player is writing & reading data, the LCD will show the following
graphic:
You should not disconnect the MP3 Player from the PC while it’s reading or writing, or
else it will cause your data lost.
2.1 Windows98 Operation System
Under win98, this installation will install the driver & Tools for the player.
1) Put the driver CD into CD-ROM.
2) An Autorun interface will appear, click the Installation ICON and the follow window will
appear:
3) Click the Next button and follow the install wizard steps, the following window will
appear:
- 3 -

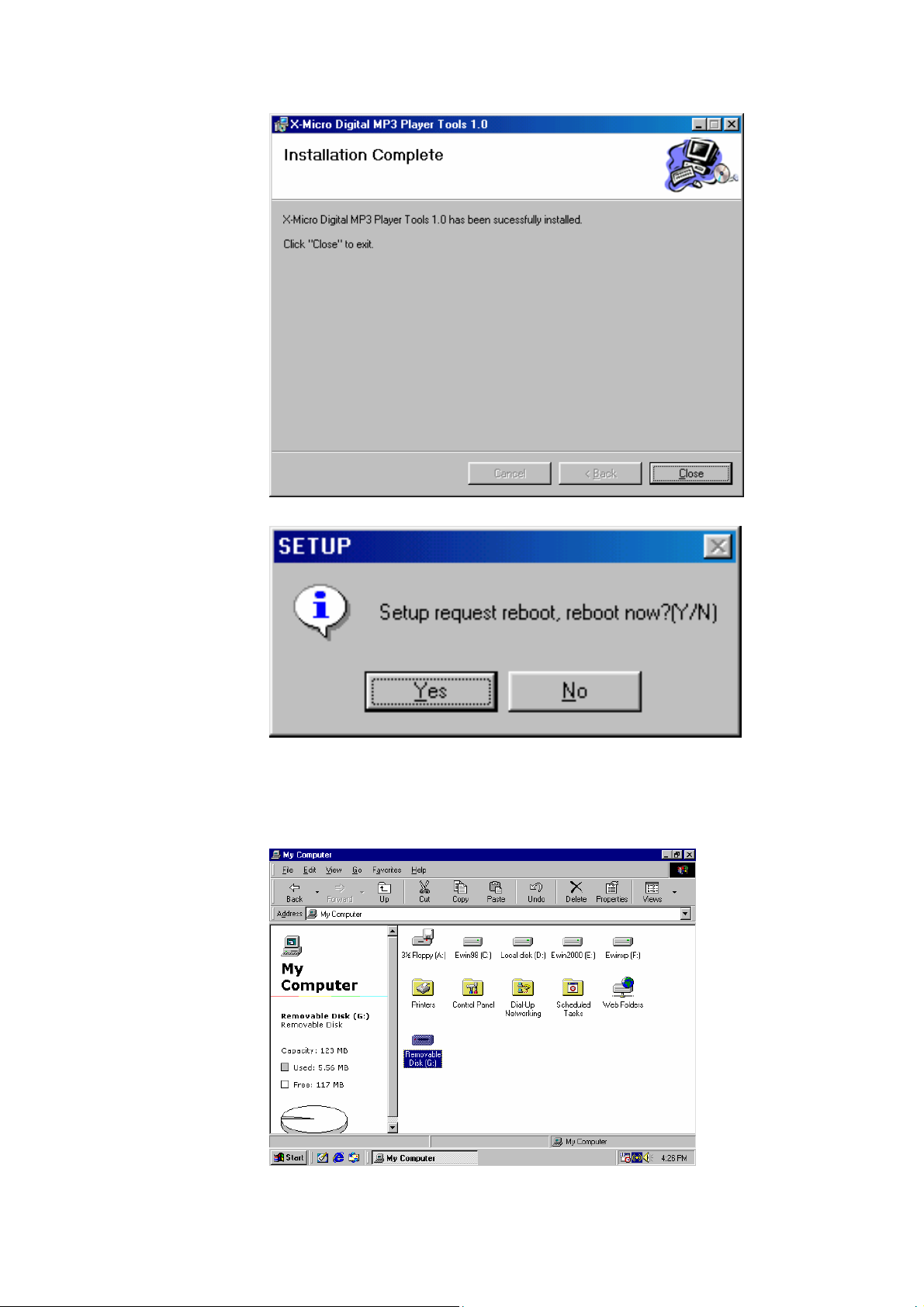

4) Click the Finish button; it will pop up a window as the follow.
5) Click the button Finish and the system will restart.

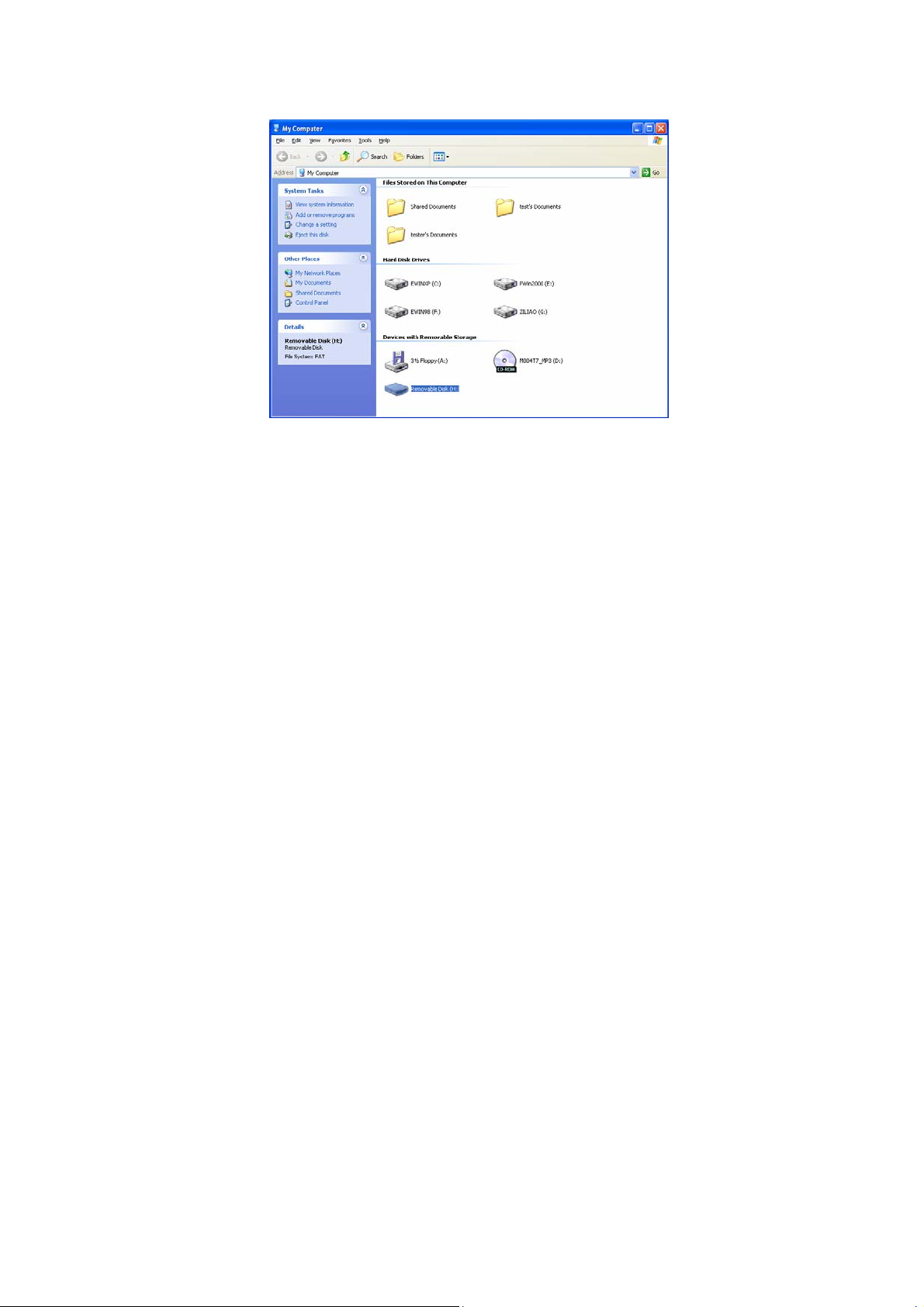

6) After the system is rebooted, insert the player into the USB port and a “Removable
disk” symbol will appear. That means you can use X-Micro Digital MP3 Player as a
hard disk.
- 4 -
