Xerox Phaser 6360 User Guide

Download

User Guide

Guide d’utilisation

Phaser ® 6360

color laser printer

Guida dell'utente

Benutzerhandbuch

Guía del usuario

Guia do Usuário

Gebruikershandleiding

Användarhandbok

Betjeningsvejledning

Εγχειρίδιο χρήστη

www.xerox.com/support

Copyright © 2007 Xerox Corporation. All Rights Reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation.

Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

XEROX

, CentreDirect®, CentreWare®, Phaser®, PhaserSMART®, PrintingScout™, TekColor™, and Walk-Up® are trademarks

of Xerox Corporation in the United States and/or other countries.

Reader®, Adobe Type Manager®, ATM™, Flash®, Macromedia®, Photoshop®, and PostScript® are trademarks of

Adobe Adobe Systems Incorporated in the United States and/or other countries.

, AppleTalk®, Bonjour®, ColorSync®, EtherTalk®, LaserWriter®, LocalTalk®, Macintosh®, Mac OS®, and TrueType® are

Apple trademarks of Apple Computer, Inc. in the United States and/or other countries.

, HP-UX®, and PCL® are trademarks of Hewlett-Packard Corporation in the United States and/or other countries.

HP-GL

and AIX® are trademarks of International Business Machines Corporation in the United States and/or other countries.

IBM

Microsoft

, Vista™, Windows®, and Windows Server™ are trademarks of Microsoft Corporation in the United States and/or other

countries.

, NetWare®, NDPS®, NDS®, Novell Directory Services®, IPX™, and Novell Distributed Print Services™are trademarks

Novell of Novell, Incorporated in the United States and/or other countries.

Sun

, Sun Microsystems™, and Solaris™ are trademarks of Sun Microsystems, Incorporated in the United States and/or other

countries.

is a trademark of SWOP, Inc.

SWOP

is a trademark in the United States and other countries, licensed exclusively through X/Open Company Limited.

UNIX

NERGY STAR

As an E Phaser 6360DX configurations) meets the E

partner, Xerox Corporation has determined that this product (Phaser 6360DN, Phaser 6360DT, and

NERGY STAR guidelines for energy efficiency. The ENERGY STAR name and logo are

registered U.S. marks.

PANTONE

Colors generated may not match PANTONE-identified standards. Consult current PANTONE Publications for

accurate color. PANTONE

and other Pantone, Inc. trademarks are the property of Pantone, Inc. © Pantone, Inc., 2000.

1 Printer Features

Parts of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Front-Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Rear-Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Inside View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Printer Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Available Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Control Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Control Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Information Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Sample Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Xerox Support Centre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

2Network Basics

Overview of Network Setup and Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Choosing a Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Connecting via Ethernet (Recommended) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Connecting via USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Configuring the Network Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

TCP/IP and IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Automatically Setting the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Dynamic Methods of Setting the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Manually Setting the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Installing the Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Available Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Windows 2000 or Later. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Macintosh OS X, Version 10.2 and Higher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Phaser® 6360 Color Laser Printer

Contents

3 Printing Basics

Overview of Basic Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Supported Paper and Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Paper Usage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Paper That Can Damage Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Paper Storage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Supported Paper Sizes and Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

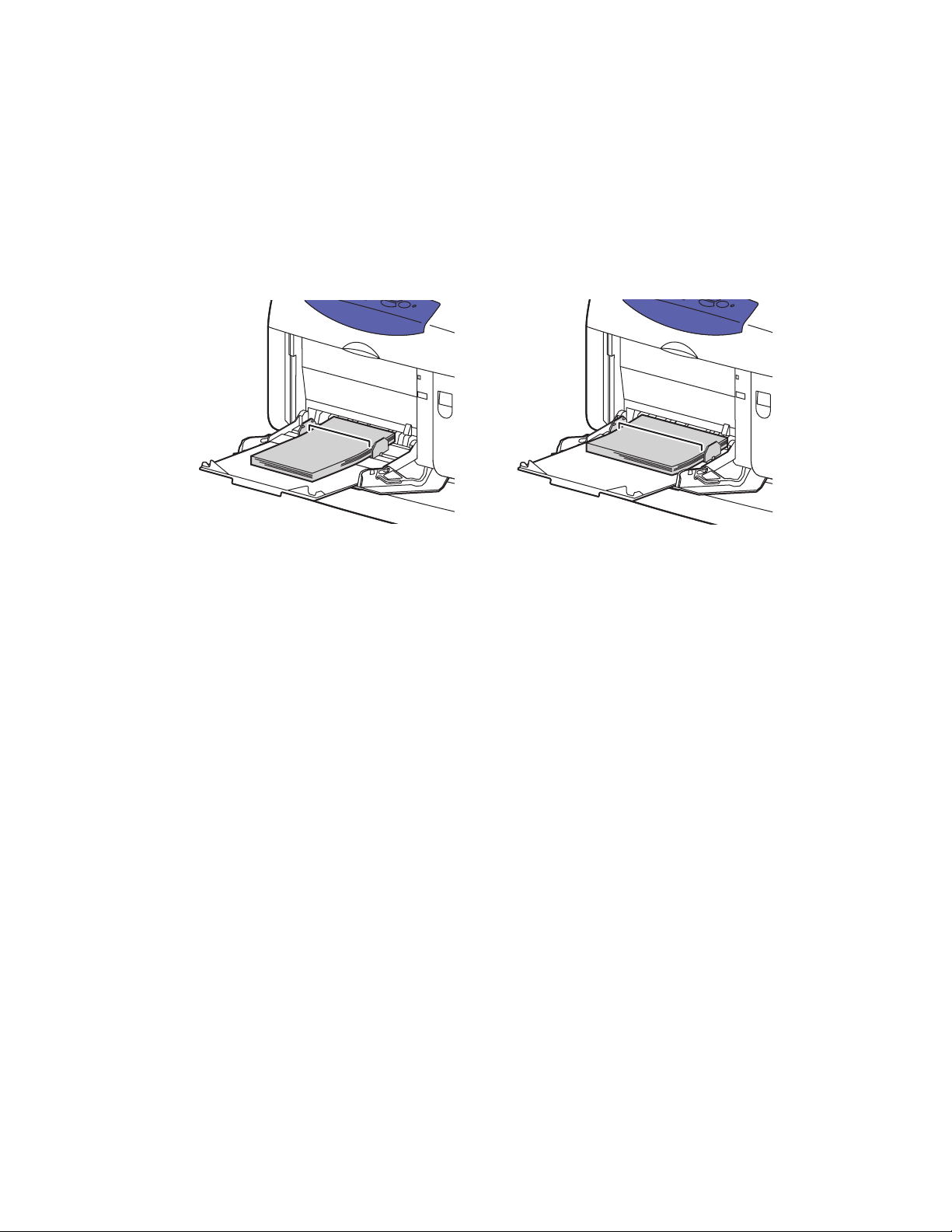

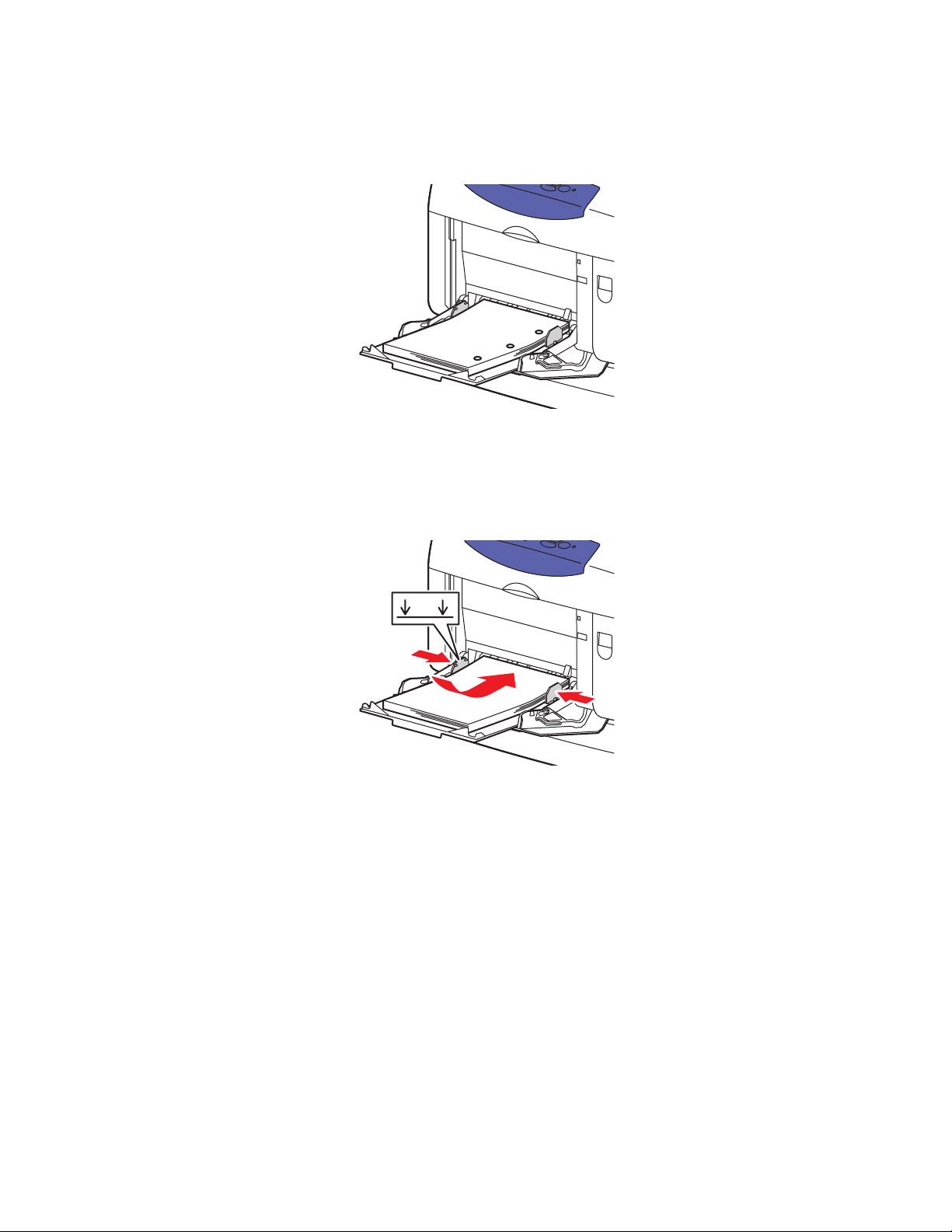

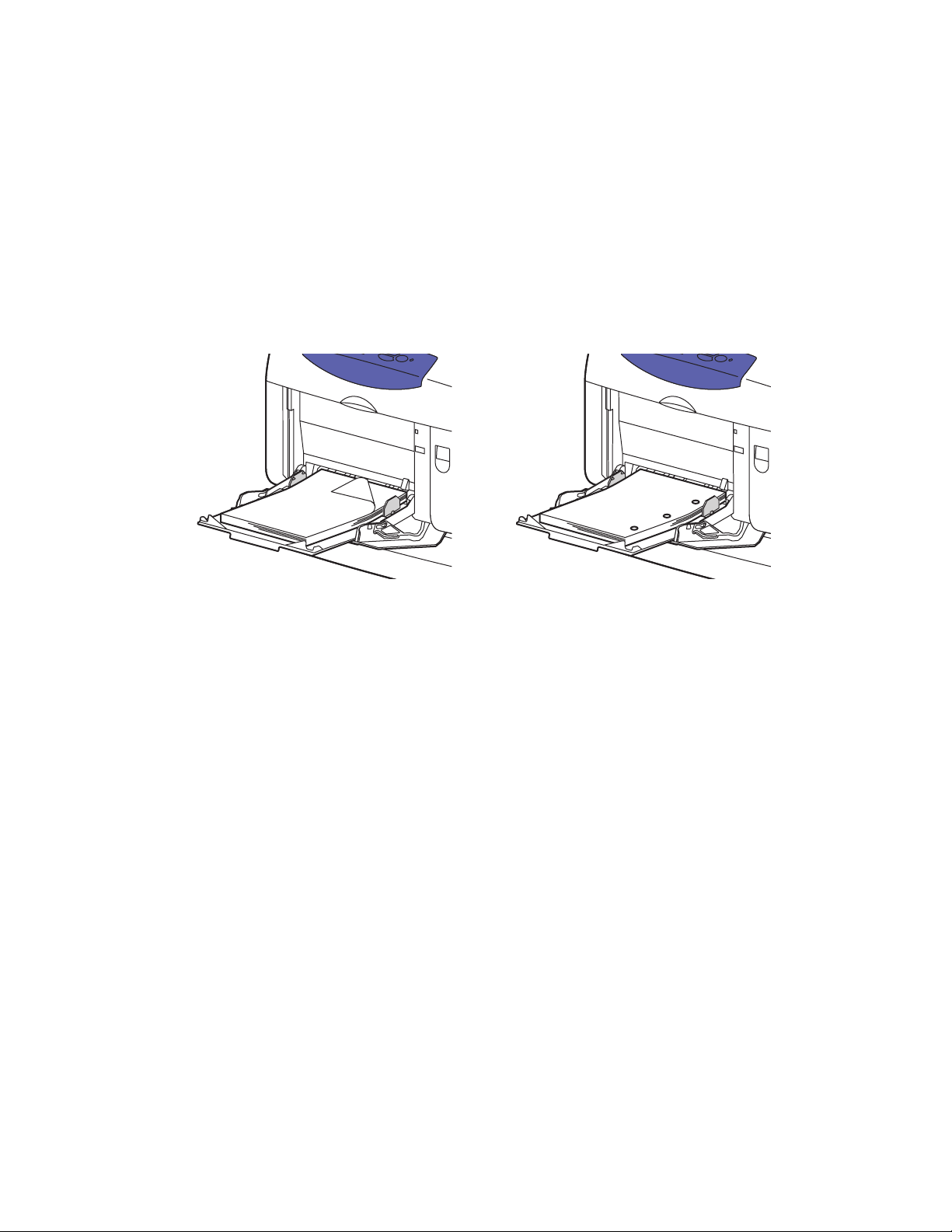

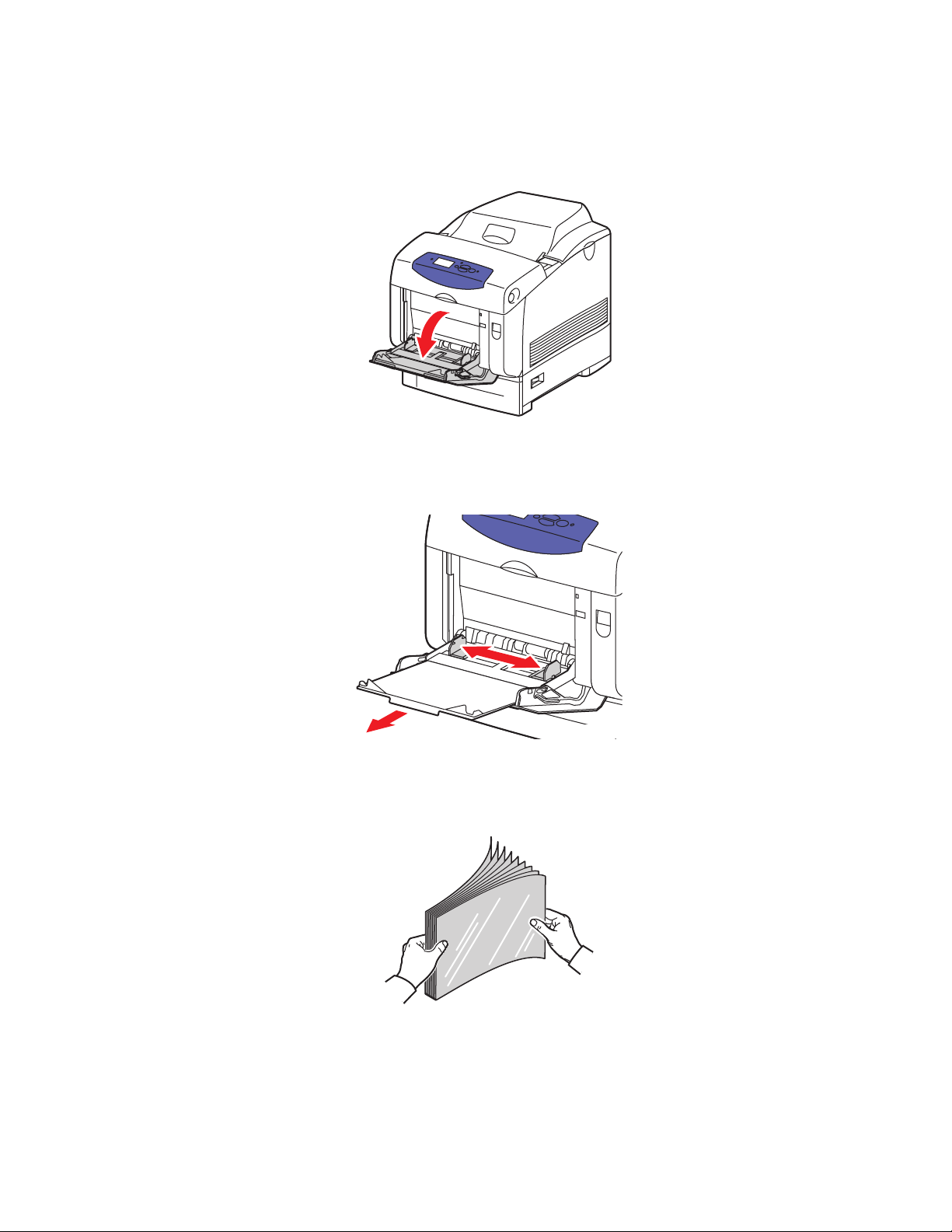

Loading Paper in Tray 1 (MPT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Using Manual Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

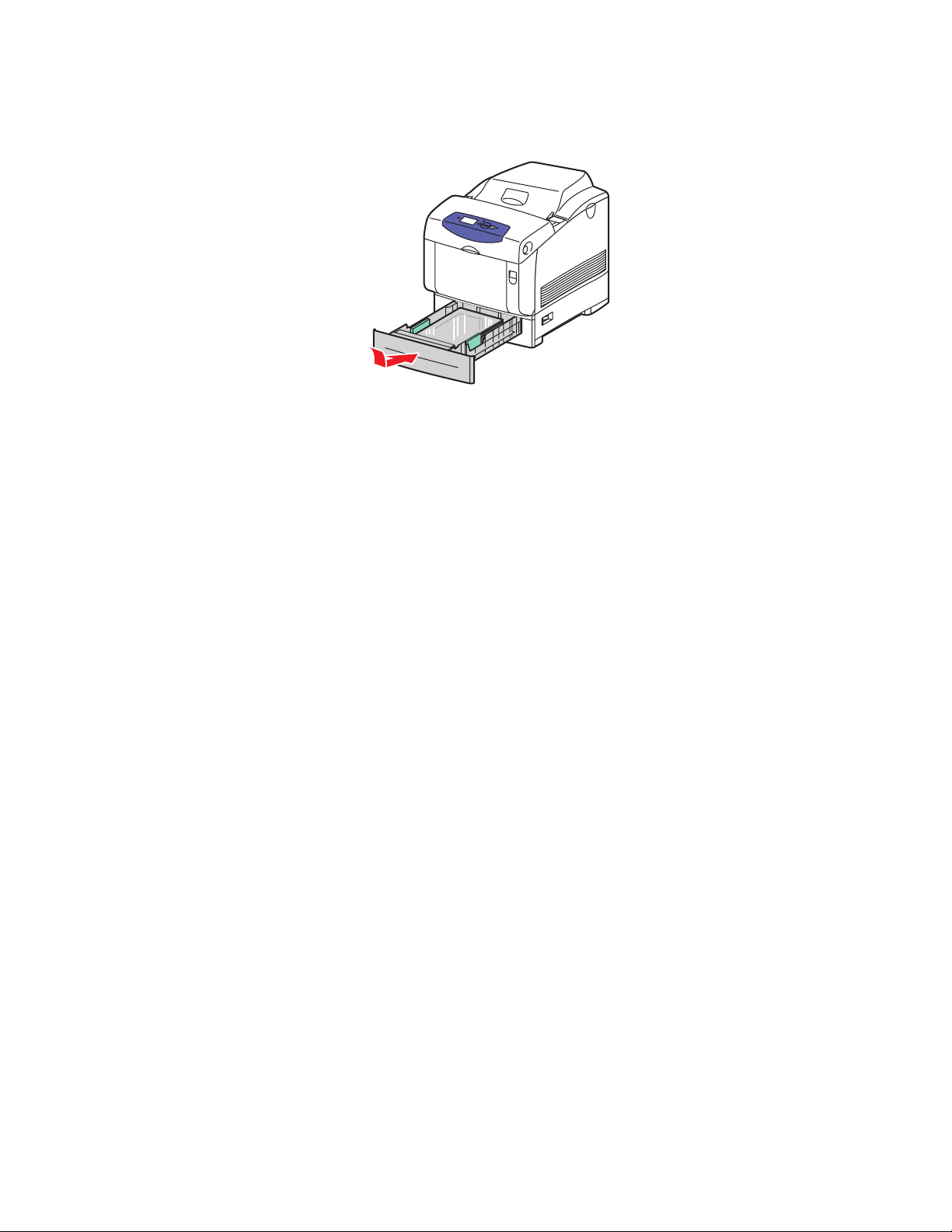

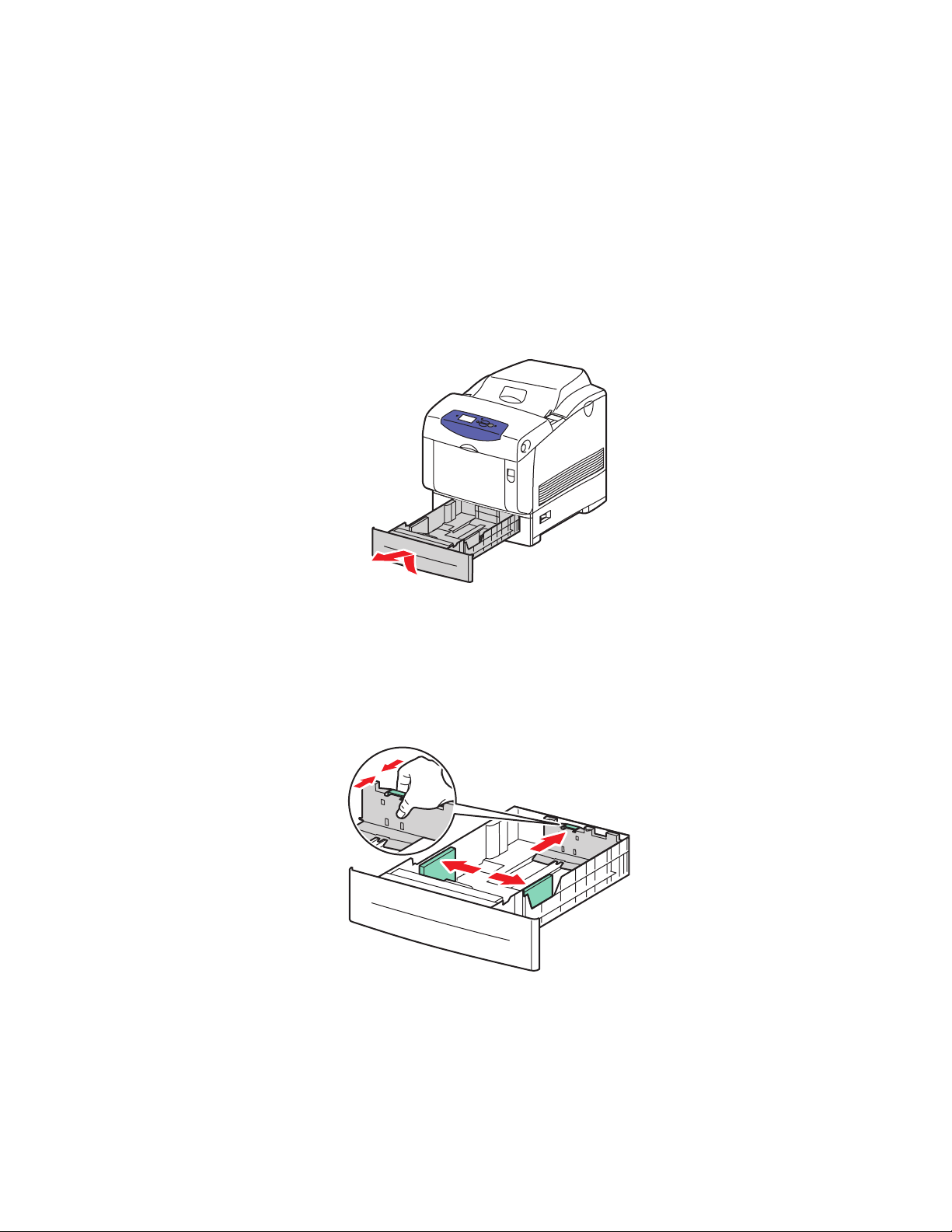

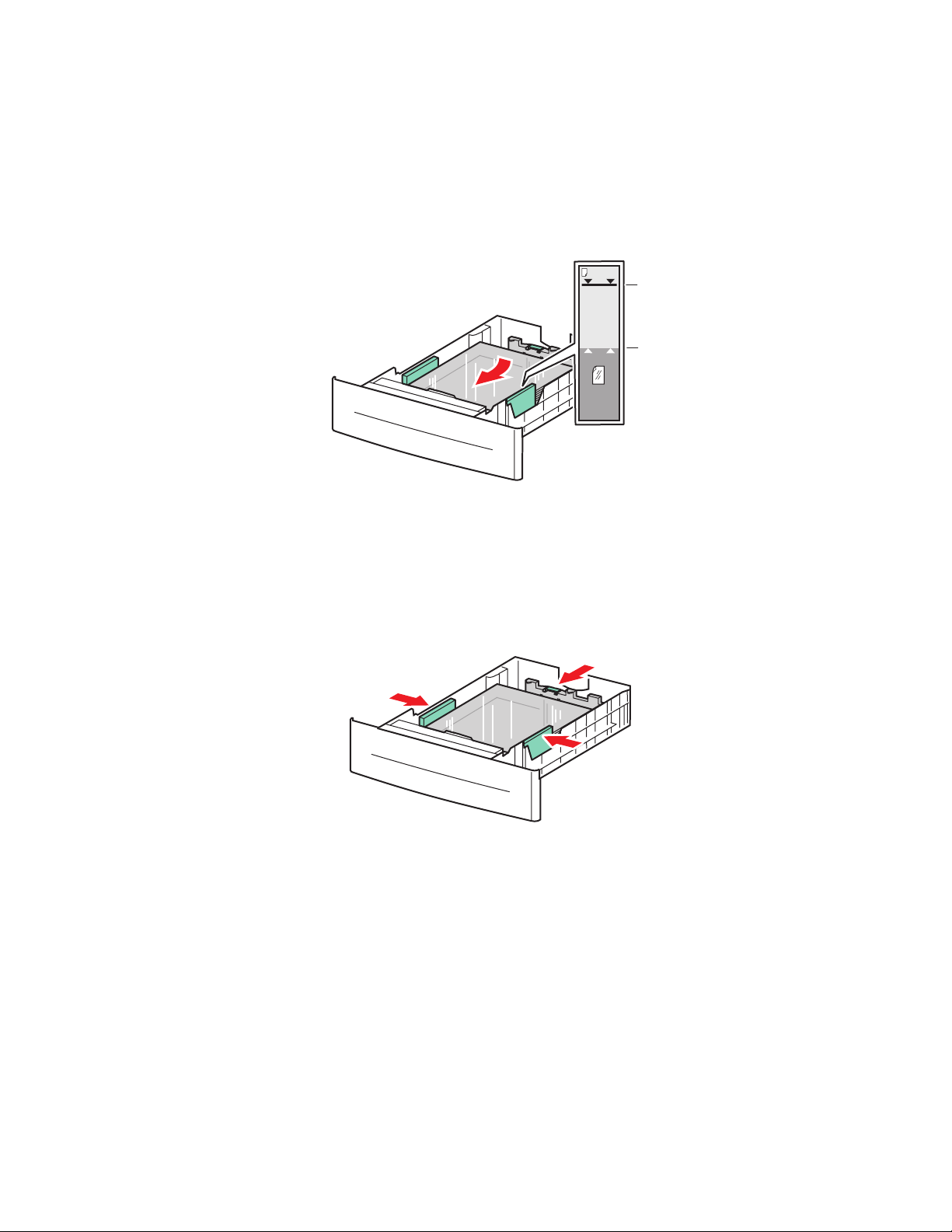

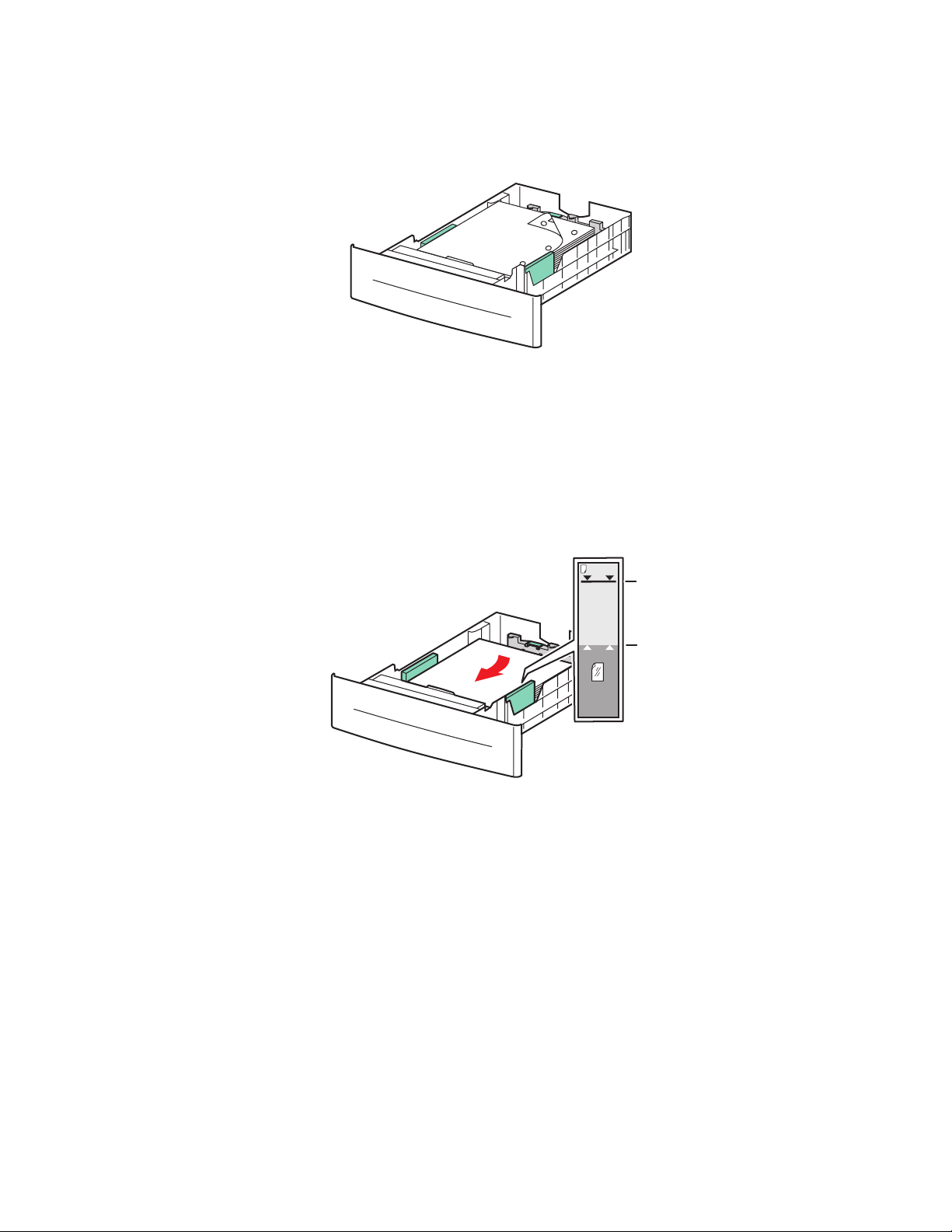

Loading Paper in Trays 2–5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Selecting Printing Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Selecting Printing Preferences (Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Selecting Options for an Individual Job (Windows). . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Selecting Options for an Individual Job (Macintosh) . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Printing on Both Sides of the Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23

Automatic 2-Sided Printing Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23

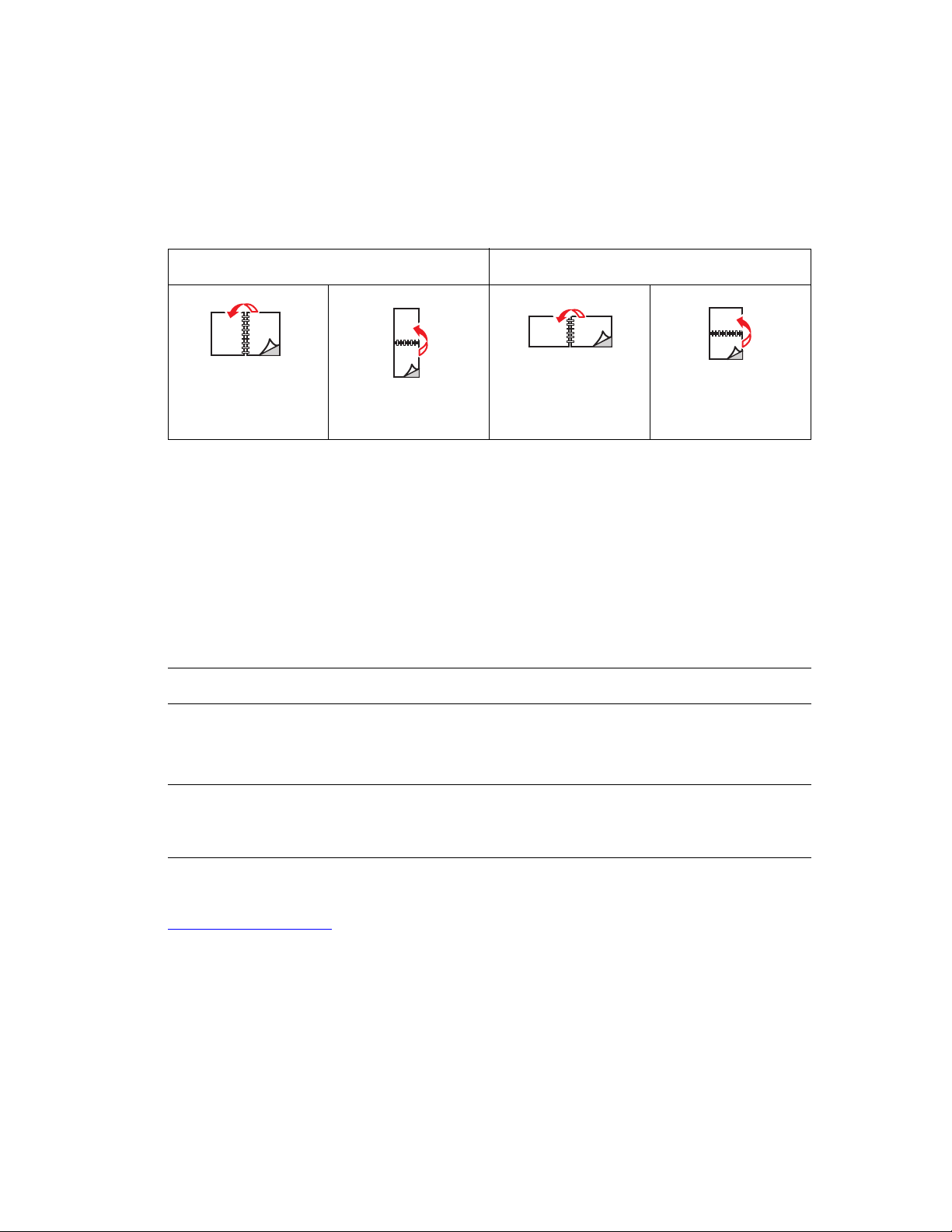

Binding Edge Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

Selecting 2-Sided Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

Printing on Specialty Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

Printing Transparencies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

Printing Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31

Printing Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34

Printing Glossy Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39

Printing Custom Size Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44

Creating Custom Paper Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47

Phaser® 6360 Color Laser Printer

Contents

4 Print Quality

Controlling the Quality of Your Prints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Selecting a Print-Quality Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Adjusting Color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Solving Print-Quality Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Lines, Smudges, or Streaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Repeating Defects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Colors Align Incorrectly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Fusing Is Incomplete. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

All Colors Are Too Light or Too Dark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Grays Are Not Neutral . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Colors Vary Between Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Color Settings Not Applied. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Printed Colors Do Not Match Monitor Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

PANTONE Colors Do Not Match . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Print Area Is Not Centered on the Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

5 Maintenance

Cleaning the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Cleaning the Outside of the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Cleaning the Density Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Ordering Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Routine Maintenance Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

When to Order Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Recycling Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Requesting a Maintenance Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Moving and Repacking the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Precautions for Moving the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Moving the Printer Within the Office. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Preparing the Printer for Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Phaser® 6360 Color Laser Printer

iii

Contents

6 Troubleshooting

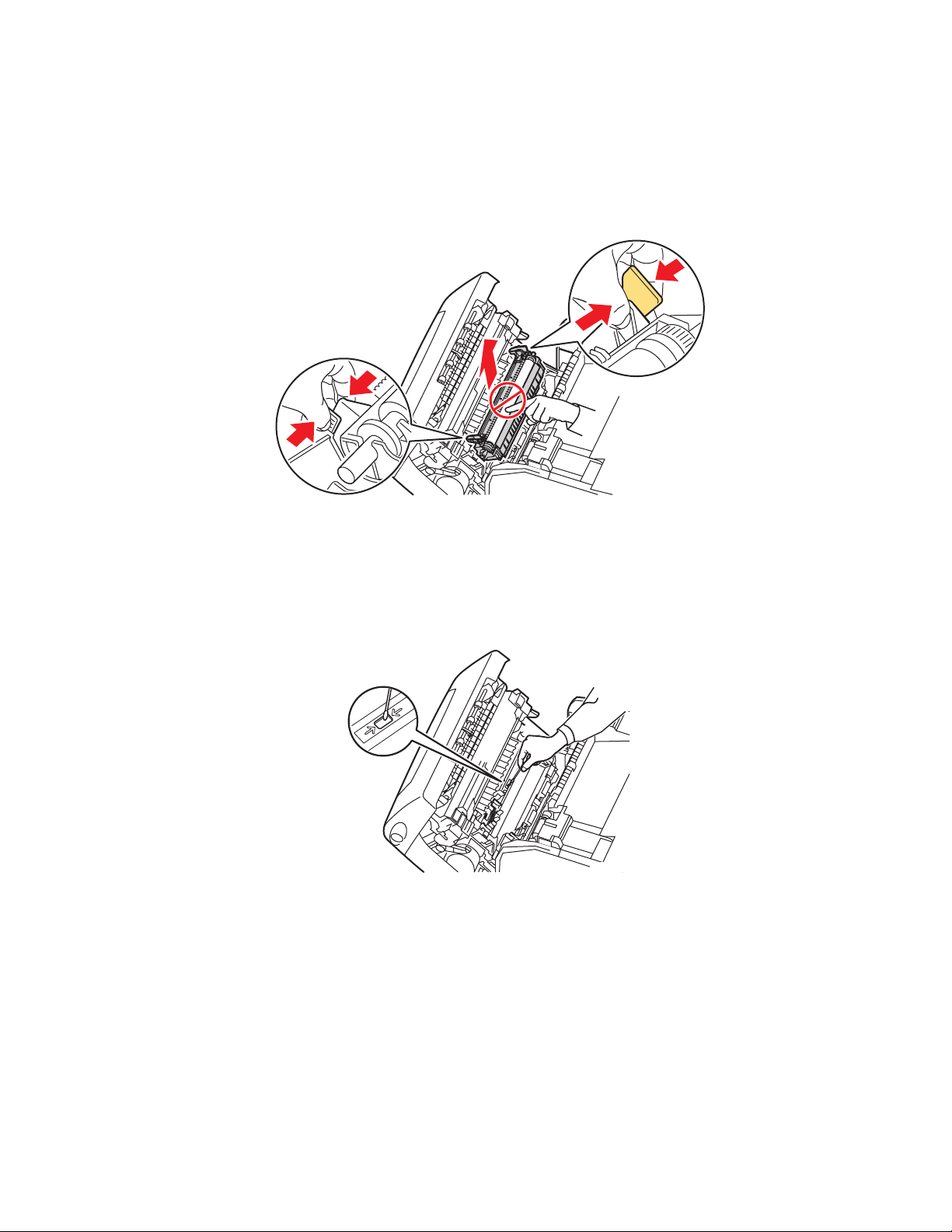

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Preventing Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

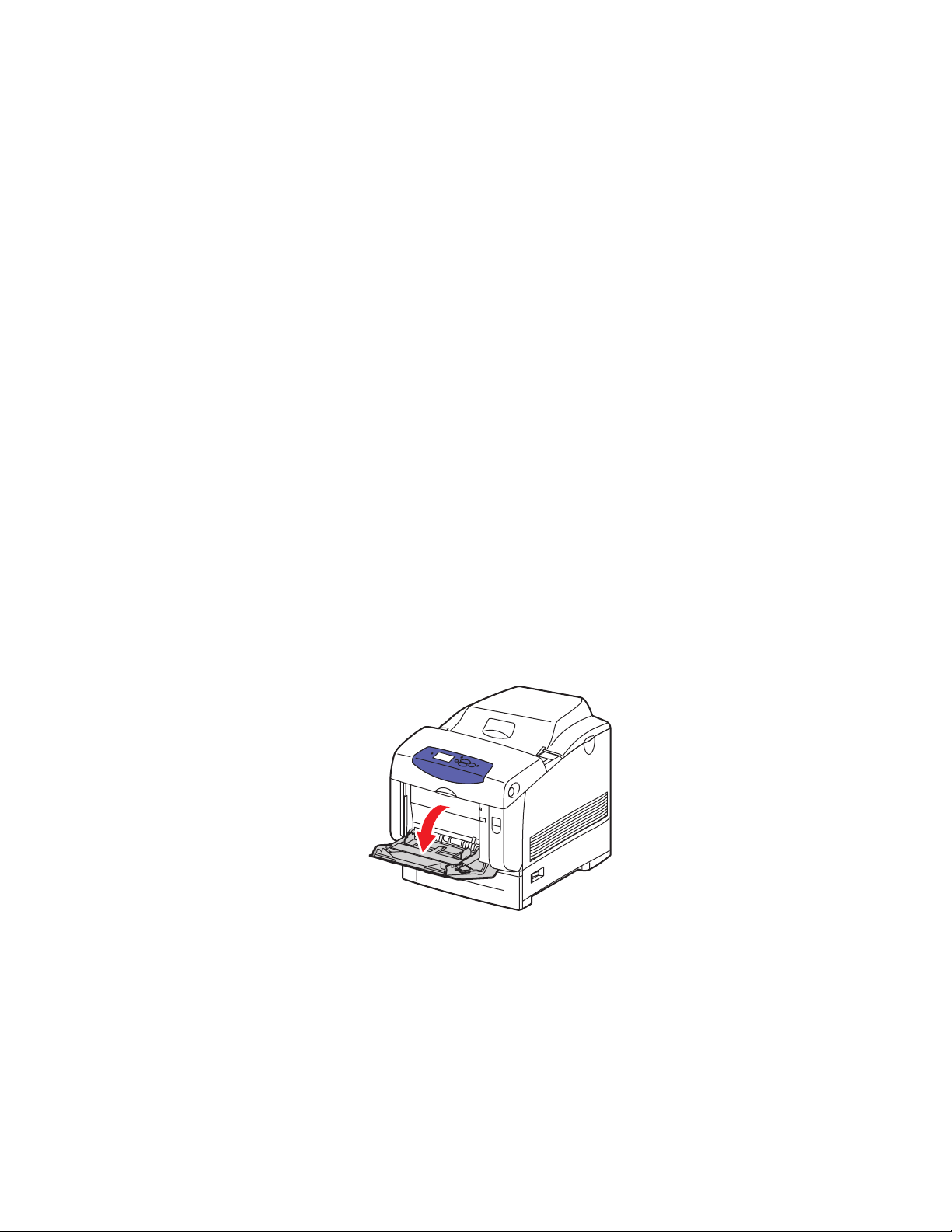

Misfeed at Tray 1 (MPT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Misfeed at Trays 2–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Jam at the Fuser. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Jam at the Duplex Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

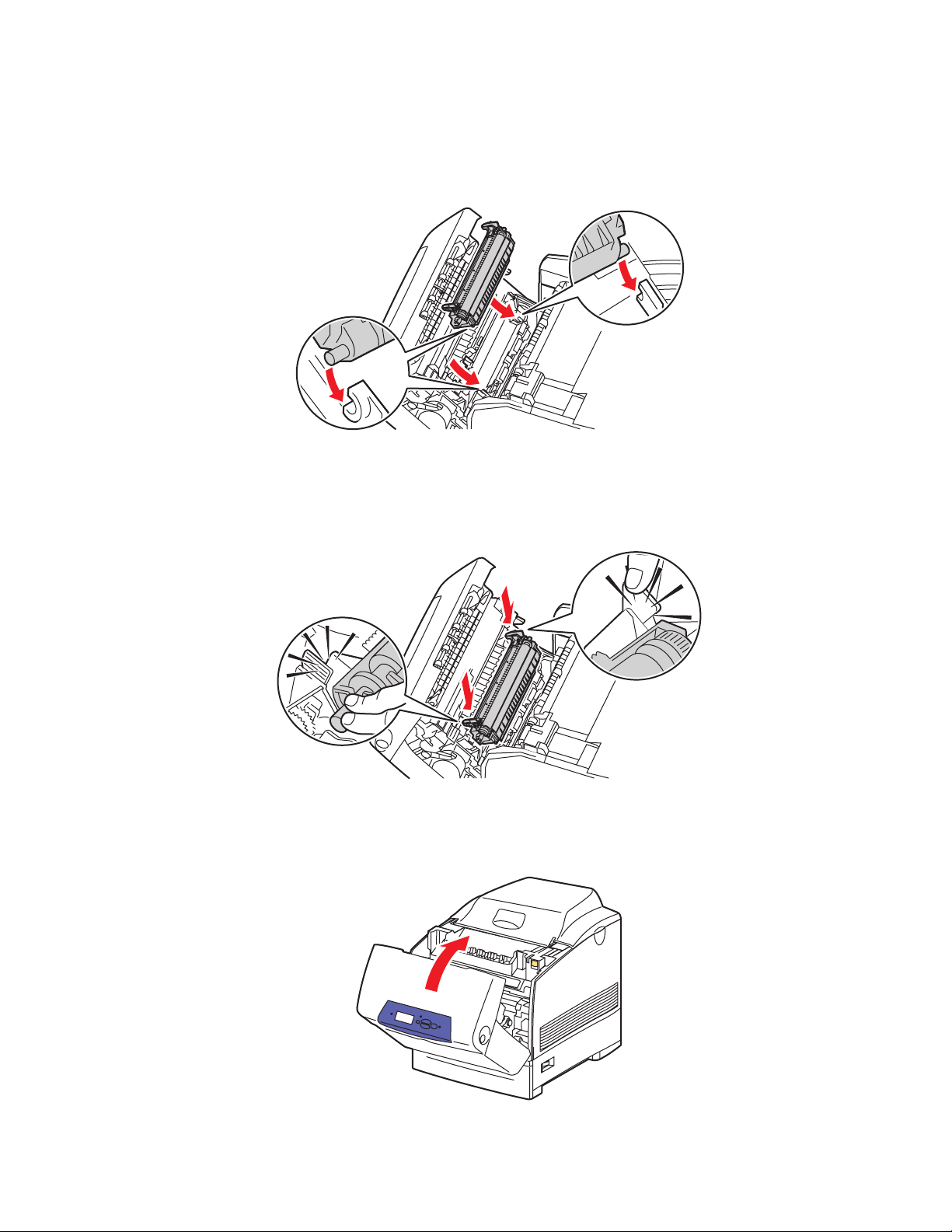

Jam at the Registration Roller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Control Panel Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

PrintingScout Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

PhaserSMART Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Online Support Assistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Web Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

A User Safety

Index

Phaser® 6360 Color Laser Printer

Printer Features

This chapter includes:

■ Parts of the Printer on page 1-2

■ Printer Configurations on page 1-4

■ Control Panel on page 1-6

■ More Information on page 1-9

Phaser® 6360 Color Laser Printer

1-1

Parts of the Printer

This section includes:

■ Front-Right View on page 1-2

■ Rear-Left View on page 1-3

■ Inside View on page 1-3

■ Printer Configurations on page 1-4

Front-Right View

Parts of the Printer

1. Top cover

2. Control panel

3. Front door

4. Handle to open Tray 1 (Multi-Purpose Tray)

5. Tray 2

6. Trays 3, 4, and 5 (optional)

7. Button to open Front Door B

8. Latch to open Front Door A

9. Power switch

6360-040

Phaser® 6360 Color Laser Printer

1-2

Rear-Left View

Parts of the Printer

1. Top cover

2. Toner cartridges (high capacity)

3. USB connection

4. Ethernet 10/100 Base-Tx connection

5. Power cord connection

Inside View

Doors A and C Open Door B Open

432

6360-041

1. Front Door A

2. Transfer roller

3. Imaging unit

4. Door C

5. Door C latch

6360-042

1. Front Door B

2. Fuser

Phaser® 6360 Color Laser Printer

1-3

6360-043

Printer Configurations

This section includes:

■ Standard Features on page 1-4

■ Available Configurations on page 1-4

■ Options on page 1-5

■ Upgrades on page 1-5

Standard Features

■ Maximum print speed (pages per minute):

■ 42 ppm color

■ 42 ppm monochrome

■ Maximum resolution (dpi): 2400

■ Fonts: PostScript and PCL

■ Trays:

■ Tray 1 (MPT): 150-sheet capacity

■ Tray 2: 550-sheet capacity

■ Connection:

■ USB 2.0

■ Ethernet 10/100 Base-Tx

Printer Configurations

Available Configurations

Printer Configurations

Features

Memory (MB) 256 256 512 512

Hard Drive No* No* No* Yes

Automatic 2-Sided Printing No Yes Yes Yes

550-Sheet Feeder (Tray 3) No* No* Yes No*

1100-Sheet Feeder (Trays 3 and 4 or Trays 4 and 5)

*This option can be purchased separately for these configurations.

6360N 6360DN 6360DT 6360DX

No* No* No* Yes

Phaser® 6360 Color Laser Printer

1-4

Printer Configurations

Options

You can order additional trays, memory, and a hard drive if these items are not standard on your printer. Print the Configuration page to see which options are already installed. To print the Configuration page, see Information Pages on page 1-7.

Additional Trays

■ 550-Sheet Feeder

■ 1100-Sheet High-Capacity Feeder

Phaser 6360 printers can have feeders in the following combinations:

■ One 550-Sheet Feeder (Tray 3)

■ One 1100-Sheet High-Capacity Feeder (Trays 3 and 4)

■ One 550-Sheet Feeder (Tray 3) and one 1100-Sheet High-Capacity Feeder (Trays 4 and 5)

Memory

All configurations have two memory slots supporting 256 MB and 512 MB SODIMM modules (up to a total of 1 GB).

Hard Drive

The hard drive is 40 GB or greater and provides additional printer features:

■ Secure, personal, personal saved, print with, proof, and saved print jobs

■ Font storage

Upgrades

To order the Phaser 6360N to 6360DN upgrade, contact your local reseller or go to

www.xerox.com/office/6360supplies

Phaser® 6360 Color Laser Printer

1-5

Control Panel

This section includes:

■ Control Panel Features on page 1-6

■ Control Panel Layout on page 1-6

■ Menu Map on page 1-7

■ Information Pages on page 1-7

■ Sample Pages on page 1-7

Control Panel Features

The control panel:

■ Displays the printer’s operating status (for example, Printing, Ready to Print), printer

errors, and warnings.

■ Prompts you to load paper, order and replace supplies, and clear jams.

■ Enables you to access tools and information pages to help resolve problems.

■ Enables you to change printer and network settings.

■ Enables you to access supply status.

Control Panel Layout

READY TO PRINT

Walk-Up Features

Information Paper Tray Setup Printer Setup Troubleshooting

1. Status Indicator LED:

Green: Printer is ready to print.

Yellow : Warning condition, printer continues to

print.

Red: Startup sequence or error condition.

Blinking: Printer is busy or warming up.

2. Graphic display indicates status messages,

menus, and toner levels.

3. Cancel button

Cancels the current print job.

CMYK

4 687

4. Back button

Returns to the previous menu item.

5. Up Arrow button

Scrolls upward through the menus.

6. Down Arrow button

Scrolls downward through the menus.

7. OK button

Accepts the setting selected.

8. Help (?) button

Displays a help message with information about the printer, such as printer status, error messages, and maintenance information.

6360-044

Phaser® 6360 Color Laser Printer

1-6

Control Panel

Menu Map

The Menu Map helps you navigate the control panel menus. To print the Menu Map:

1. On the control panel, select

2. Select

Note: Print the Menu Map to see other information pages available for printing.

Menu Map, and then press the OK button to print.

Information, and then press the OK button.

Information Pages

Your printer comes with a set of information pages to help you obtain the best results from your printer. Access these pages from the control panel. Print the Menu Map to see where these information pages are located in the control panel menu structure.

Note: This print icon appears before the titles of information pages that can

be printed. When the page is highlighted on the control panel, press the OK button to print that page.

For example, to print the Configuration page or the Supplies Usage page to view current information about your printer, do the following:

1. On the control panel, select

2. Select

3. Select

Information Pages, and then press the OK button.

Configuration Page or Supplies Usage Page, and then press the OK button to

print.

Information, and then press the OK button.

Note: You can also print information pages from CentreWare Internet Services (IS) and from

the printer driver.

Sample Pages

Your printer comes with a set of sample pages that demonstrate different printer functions.

To print sample pages:

1. On the control panel, select

2. Select

3. Select the desired sample page, and then press the OK button to print.

Sample Pages, and then press the OK button.

Information, and then press the OK button.

Phaser® 6360 Color Laser Printer

1-7

Control Panel

Color Sampler Pages

The color sampler pages are designed to help you select colors to use in your print jobs. Each sampler page lists either the percentages of cyan, magenta, yellow, and black that are used, or the amounts (from 0 to 255) of red, green, and blue that are used.

Note: Before you print the sampler pages, select the appropriate PostScript Setup settings for

the default print-quality mode and color correction from the Printer Setup menu on the control panel.

To print the color sampler pages:

1. On the control panel, select

2. Select

3. Select either

Sample Pages, and then press the OK button.

CMYK Sampler Pages or RGB Sampler Pages, and then press the

Information, and then press the OK button.

OK button to print.

See also:

Advanced Features Guide at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

1-8

More Information

This section includes:

■ Resources on page 1-9

■ Xerox Support Centre on page 1-10

Obtain information regarding your printer and its capabilities from the following sources.

Resources

Information Source

Installation Guide* Packaged with printer

Quick Use Guide* Packaged with printer

User Guide (PDF)* Software and Documentation CD-ROM

Advanced Features Guide (PDF) www.xerox.com/office/6360support

Quick Start Tutorials www.xerox.com/office/6360support

Video Tutorials www.xerox.com/office/6360support

Recommended Media List Recommended Media List (United States)

Recommended Media List (Europe)

Printer Management Tools www.xerox.com/office/pmtools

Online Support Assistant www.xerox.com/office/6360support

PhaserSMART www.phaserSMART.com

Technical Support www.xerox.com/office/6360support

Information about menu selection or error messages on control panel

Information pages Control panel menu

* Also available on the Support website.

Control panel Help (?) button

Phaser® 6360 Color Laser Printer

1-9

More Information

Xerox Support Centre

The Xerox Support Centre is a utility that is installed during printer driver installation. It is available for printers with Windows 2000 and later or Mac OS X, version 10.2 and higher.

The Xerox Support Centre appears on the desktop for Windows printers or is placed in the Mac OS X dock. It provides a central location for accessing the following information:

■ User manuals and video tutorials

■ Solutions to troubleshooting problems

■ Printer and supplies status

■ Supplies ordering and recycling

■ Answers to frequently asked questions

■ Default printer driver settings (Windows only)

To start the Xerox Support Centre utility:

1. Select one of the following options:

■ Windows: Double-click the Xerox Support Centre icon

on your desktop.

■ Macintosh: Click the Xerox Support Centre icon in the

dock.

2. Select your printer from the Select Printer drop-down list.

See also:

Using the Xerox Support Centre tutorial at www.xerox.com/office/6360support

Note: If you have a USB connection, some of the status information is not available. You

must have an Internet connection to view manuals and videos on the website.

Phaser® 6360 Color Laser Printer

1-10

Network Basics

This chapter includes:

■ Overview of Network Setup and Configuration on page 2-2

■ Choosing a Connection Method on page 2-3

■ Configuring the Network Address on page 2-5

■ Installing the Printer Drivers on page 2-9

This chapter provides basic information about setting up and connecting to your printer.

See also:

Advanced Features Guide at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

2-1

Overview of Network Setup and Configuration

To set up and configure the network:

1. Connect the printer to the network using the recommended hardware and cables.

2. Turn on the printer and the computer.

3. Print the Configuration page and keep if for referencing network settings.

4. Configure the printer’s TCP/IP address, which is required to identify the printer on the

network.

■ Windows operating systems: Run the Installer on the Software and Documentation

CD-ROM to automatically set the printer’s IP address if the printer is connected to an

established TCP/IP network. You can also manually set the printer’s IP address on the control panel.

■ Macintosh systems: Manually set the printer’s TCP/IP address on the control panel.

5. Install the driver software on the computer from the Software and Documentation

CD-ROM. For information on driver installation, see the section in this chapter for the

specific operating system you are using.

Note: If the Software and Documentation CD-ROM is not available, you can download the

latest driver from www.xerox.com/drivers

See also:

Advanced Features Guide at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

2-2

Choosing a Connection Method

Connect the printer via Ethernet or USB. A USB is a direct connection and is not used for networking. An Ethernet connection is used for networking. Hardware and cabling requirements vary for the different connection methods. Cabling and hardware are generally not included with your printer and must be purchased separately. This section includes:

■ Connecting via Ethernet (Recommended) on page 2-3

■ Connecting via USB on page 2-4

Connecting via Ethernet (Recommended)

Ethernet can be used for one or more computers. It supports many printers and systems on an Ethernet network. An Ethernet connection is recommended because it is faster than a USB connection. It also allows you direct access to CentreWare Internet Services (IS). The CentreWare IS web interface enables you to manage, configure, and monitor networked printers from your desktop.

Network Connection

Depending on your particular setup, the following hardware and cabling is required for Ethernet.

■ If you are connecting to one computer, an Ethernet RJ-45 crossover cable is required.

■ If you are connecting to one or more computers with an Ethernet hub, or cable or DSL

router, two or more twisted-pair (category 5/RJ-45) cables are required. (One cable for each device.)

If you are connecting to one or more computers with a hub, connect the computer to the hub with one cable, and then connect the printer to the hub with the second cable. Connect to any port on the hub except the uplink port.

See also:

Configuring the Network Address on page 2-5 Installing the Printer Drivers on page 2-9

Phaser® 6360 Color Laser Printer

2-3

Choosing a Connection Method

Connecting via USB

If you are connecting to one computer, a USB connection offers fast data speeds. However, a USB connection is not as fast as an Ethernet connection. To use USB, PC users must have Windows 2000/XP/Server 2003 or newer. Macintosh users must use Mac OS X, version 10.2 and higher.

USB Connection

A USB connection requires a standard A/B USB cable. This cable is not included with your printer and must be purchased separately. Verify that you are using the correct USB (1.x or

2.0) cable for your connection.

1. Connect one end of the USB cable to the printer and turn it on.

2. Connect the other end of the USB cable to the computer.

See also:

Installing the Printer Drivers on page 2-9

Phaser® 6360 Color Laser Printer

2-4

Configuring the Network Address

This section includes:

■ TCP/IP and IP Addresses on page 2-5

■ Automatically Setting the Printer’s IP Address on page 2-6

■ Dynamic Methods of Setting the Printer’s IP Address on page 2-6

■ Manually Setting the Printer’s IP Address on page 2-7

TCP/IP and IP Addresses

If your computer is on a large network, contact your network administrator for the appropriate TCP/IP addresses and additional configuration information.

If you are creating your own small Local Area Network or connecting the printer directly to your computer using Ethernet, follow the procedure for automatically setting the printer’s Internet Protocol (IP) address.

PCs and printers primarily use TCP/IP protocols to communicate over an Ethernet network. With TCP/IP protocols, each printer and computer must have a unique IP address. It is important that the addresses are similar, but not the same; only the last digit needs to be different. For example, your printer can have the address 192.168.1.2 while your computer has the address 192.168.1.3. Another device can have the address 192.168.1.4.

Generally, Macintosh computers use either TCP/IP or the EtherTalk protocol to talk to a networked printer. For Mac OS X systems, TCP/IP is preferred. Unlike TCP/IP, however, EtherTalk does not require printers or computers to have IP addresses.

Many networks have a Dynamic Host Configuration Protocol (DHCP) server. A DHCP server automatically programs an IP address into every PC and printer on the network that is configured to use DHCP. A DHCP server is built into most cable and DSL routers. If you use a cable or DSL router, see your router’s documentation for information on IP addressing.

See also:

Online Support Assistant at www.xerox.com/office/

6360support

Phaser® 6360 Color Laser Printer

2-5

Configuring the Network Address

Automatically Setting the Printer’s IP Address

If the printer is connected to a small established TCP/IP network without a DHCP server, use the installer on the Software and Documentation CD-ROM to detect or assign an IP address to your printer. For further instructions, insert the Software and Documentation CD-ROM into your computer’s CD-ROM drive. After the Xerox Installer launches, follow the prompts for installation.

Note: For the automatic installer to function, the printer must be connected to an established

TCP/IP network.

Dynamic Methods of Setting the Printer’s IP Address

There are two protocols available for dynamically setting the printer’s IP address:

■ DHCP (enabled by default on all Phaser printers)

■ AutoIP

You can turn on/off both protocols using the control panel, or use CentreWare IS to turn on/off DHCP.

Note: You can view the printer’s IP address at any time. On the control panel, select

Information, press the OK button, select Printer Identification, and then press the OK

button.

Using the Control Panel

To turn on/off either the DHCP or AutoIP protocol:

1. On the control panel, select

2. Select

3. Select

4. Select

5. Select

Connection Setup, and then press the OK button.

Network Setup, and then press the OK button.

TCP/IP Setup, and then press the OK button.

DHCP/BOOTP or AutoIP.

6. Press the OK button to turn the selection

Printer Setup, and then press the OK button.

On or Off.

Using CentreWare IS

To turn on/off the DHCP protocol:

1. Launch your web browser.

2. Enter the printer’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx).

3. Select Properties.

4. Select the Protocols folder on the left navigation panel.

5. Select TCP/IP.

6. In the BOOTP/DHCP Settings section, set the BOOTP/DHCP option to On or Off.

7. Click the Save Changes button.

Phaser® 6360 Color Laser Printer

2-6

Configuring the Network Address

Manually Setting the Printer’s IP Address

Note: Verify that your computer has a properly configured IP address for your network.

Contact your network administrator for more information.

If you are on a network without a DHCP server, or in an environment where the network administrator assigns printer IP addresses, you can use this method to manually set the IP address. Manually setting the IP address overrides DHCP and AutoIP. Alternatively, if you are in a small office with a single PC and use a dialup modem connection, you can manually set the IP address.

Information Required for Manual IP Addressing

Information Comments

Internet Protocol (IP) address of the printer Format is xxx.xxx.xxx.xxx, where xxx represents

a decimal number from 0–255.

Network Mask If you are unsure, leave this blank; the printer

chooses an appropriate mask.

Default Router/Gateway address Router address is required to communicate with

the host device from anywhere other than the local network segment.

To manually set the IP address:

1. On the control panel, select

2. Select

3. Select

4. Select

5. Select

6. Select

Connection Setup, and then press the OK button.

Network Setup, and then press the OK button.

TCP/IP Setup, and then press the OK button.

DHCP/BOOTP, and then press the OK button to select Off.

TCP/IP Address, and then press the OK button.

Printer Setup, and then press the OK button.

7. Enter the printer’s IP address, and then press the OK button.

Phaser® 6360 Color Laser Printer

2-7

Configuring the Network Address

Changing or Modifying the IP Address Using CentreWare IS

CentreWare IS provides a simple interface that enables you to manage, configure, and monitor networked printers from your desktop using an embedded web server. For complete information about CentreWare IS, click the Help button in CentreWare IS to go to the CentreWare IS Online Help.

After setting the printer’s IP address, you can modify TCP/IP settings using CentreWare IS.

1. Launch your web browser.

2. Enter the printer’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx).

3. Click Properties.

4. Select the Protocols folder on the left sidebar.

5. Select TCP/IP.

6. Enter or modify the settings, and then click Save Changes at the bottom of the page.

See also:

Advanced Features Guide at www.xerox.com/office/ System Administrator Guide at www.xerox.com/office/6360support

6360support

Phaser® 6360 Color Laser Printer

2-8

Installing the Printer Drivers

This section includes:

■ Available Drivers on page 2-9

■ Windows 2000 or Later on page 2-10

■ Macintosh OS X, Version 10.2 and Higher on page 2-10

Available Drivers

To access special printing options, use a Xerox printer driver.

Xerox provides drivers for a variety of page description languages and operating systems. The following printer drivers are available:

Printer Driver Source* Description

Windows PostScript Driver CD-ROM and

Web

PCL5c Web only The Printer Command Language driver can

Xerox Walk-Up Printing Driver (Windows and Macintosh)

Mac OS X (version 10.2 and higher) Driver

UNIX Driver Web only This driver enables printing from a UNIX

* Go to www.xerox.com/drivers

Web only This driver enables printing from a PC to any

CD-ROM and Web

for the latest printer drivers.

The PostScript driver is recommended to take full advantage of your system's custom features and genuine Adobe® PostScript®. (Default printer driver)

be used for applications requiring PCL.

Note: For Windows 2000/XP only.

Xerox PostScript-enabled printer. This is especially helpful for mobile professionals who travel to multiple locations and need to print to different printers.

This driver enables printing from a Mac OS X (version 10.2 and higher) operating system.

operating system.

Phaser® 6360 Color Laser Printer

2-9

Installing the Printer Drivers

Windows 2000 or Later

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the computer’s CD-ROM drive. If the installer does not launch,

do the following:

a. Click Start, and then click Run. b. In the Run window, type: <CD drive>:\INSTALL.EXE.

2. Select your desired language from the list.

3. Select Install Printer Driver.

4. Select the installation method you want to use, and then follow the onscreen instructions.

See also:

Advanced Features Guide at www.xerox.com/office/

Online Support Assistant at www.xerox.com/office/6360support

6360support

Macintosh OS X, Version 10.2 and Higher

Set up your printer using Bonjour (Rendezvous), create a desktop USB connection, or use an LPD/LPR connection for Macintosh OS X, version 10.2 and higher.

Macintosh OS X, Version 10.2 and 10.3

Bonjour (Rendezvous) Connection

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the CD-ROM drive and select the VISE installer to install the

printer software.

2. When installation is complete, select one of the following options:

■ Open the Print Center utility for Mac OS X, version 10.2.x.

■ Open the Printer Setup Utility for Mac OS X, version 10.3.x.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder, and

then open the Utilities folder.

3. Confirm that the first drop-down menu is set to Bonjour (Rendezvous).

4. Select the printer in the window.

5. Select Xerox from the list of manufacturers in the lower drop-down menu.

6. Select the appropriate printer model from the list of available devices.

7. Click the Add button.

See also:

Advanced Features Guide at www.xerox.com/office/

Online Support Assistant at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

2-10

6360support

Installing the Printer Drivers

USB Connection

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the CD-ROM drive.

■ Open the Print Center utility for Mac OS X, version 10.2.x.

■ Open the Printer Setup Utility for Mac OS X, version 10.3.x.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder, and

then open the Utilities folder.

2. Click the Add button.

3. Select USB from the drop-down menu.

4. Select the printer in the window.

5. Select Xerox from the manufacturers in the drop-down menu.

6. Select the appropriate printer configuration from the list of available printers.

7. Click the Add button.

LPD/LPR Connection

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the CD-ROM drive and select the VISE installer to install the

printer software.

2. Once installation is complete, select one of the following options:

■ Open the Print Center utility for Mac OS X, version 10.2.x.

■ Open the Printer Setup Utility for Mac OS X, version 10.3.x.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder, and

then open the Utilities folder.

3. Click the Add button.

4. Select one of the following options:

■ Mac OS X, Version 10.2: Select IP Printing from the pull-down menu. Enter the

printer’s IP address in the Printer Address field. Select Xerox from the Printer Model pull-down menu, and then select the corresponding PPD file. Click the Add button. The printer is added to the list.

■ Mac OS X, Version 10.3: Select IP Printing from the first pull-down menu. Select

LPD/LPR from the second pull-down menu. Enter the printer’s IP address in the Printer Address field. Verify that the Queue Name field is blank. Select Xerox from

the Printer Model pull-down menu, and then select the corresponding PPD file. Click the Add button. The printer is added to the list.

Phaser® 6360 Color Laser Printer

2-11

Installing the Printer Drivers

Macintosh OS X, Version 10.4

Bonjour Connection

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the CD-ROM drive.

2. Open the Printer Setup Utility.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder, and

then open the Utilities folder.

3. Click the Add button.

4. Select the Default Browser in the Printer Browser.

5. Select the Bonjour printer in the list of available printers. If the Printer Browser:

■ Selects the appropriate printer from the Print Using drop-down list, go to Step 8.

■ Does not select the appropriate printer from the Print Using drop-down list, go to

Step 6.

6. Select Xerox from the list of manufacturers in the lower drop-down menu.

7. Select the appropriate printer from the list of available printers.

8. Click the Add button.

USB Connection

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the CD-ROM drive.

2. Open the Printer Setup Utility.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder, and

then open the Utilities folder.

3. Click the Add button.

4. Select the Default Browser in the upper left corner of the Printer Browser.

5. Select the USB-connected printer in the printers window. The Printer Browser selects the

appropriate printer configuration in the Print Using drop-down list.

■ If the appropriate printer configuration is selected, proceed to Step 8.

■ If the appropriate printer configuration is not selected, proceed to Step 6.

6. Select Xerox from the manufacturers in the drop-down menu.

7. Select the appropriate printer configuration from the list of available printers.

8. Click the Add button. The printer is displayed as an available printer in the Printer Setup

Utility.

Phaser® 6360 Color Laser Printer

2-12

Installing the Printer Drivers

LPD Connection

To install the printer driver from the Software and Documentation CD-ROM:

1. Insert the CD-ROM into the CD-ROM drive and select the VISE installer to install the

printer software.

2. Once installation is complete, open the Printer Setup Utility.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder, and

then open the Utilities folder.

3. Click the Add button.

4. Select IP Printer from the upper left corner of the Printer Browser.

5. Select LPD from the pull-down menu.

6. Enter the printer’s IP address in the Address field.

7. Click the Add button. The printer is added to the list.

Phaser® 6360 Color Laser Printer

2-13

Printing Basics

This chapter includes:

■ Overview of Basic Steps on page 3-2

■ Supported Paper and Media on page 3-3

■ Loading Paper on page 3-9

■ Selecting Printing Options on page 3-19

■ Printing on Both Sides of the Paper on page 3-23

■ Printing on Specialty Media on page 3-25

■ Creating Custom Paper Types on page 3-47

See also:

Using paper trays video tutorials at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

3-1

Overview of Basic Steps

1. Load paper in the tray.

2. If you are prompted by the control panel, either confirm the paper type and size or change

it as required.

3. From the software application, access the Print dialog box, and then select printing

options in the printer driver.

4. Send the job to the printer from the software application’s Print dialog box.

See also:

Loading Paper on page 3-9 Selecting Printing Options on page 3-19 Printing on Specialty Media on page 3-25

Phaser® 6360 Color Laser Printer

3-2

Supported Paper and Media

This section includes:

■ Paper Usage Guidelines on page 3-4

■ Paper That Can Damage Your Printer on page 3-5

■ Paper Storage Guidelines on page 3-5

■ Supported Paper Sizes and Weights on page 3-6

Your printer is designed to be used with a variety of paper types. Follow the guidelines in this section to ensure the best print quality and to avoid jams.

For best results, use Xerox printing media specified for your Phaser 6360 printer. They are guaranteed to produce excellent results with your printer.

To order paper, transparencies, or other specialty media, contact your local reseller or go to

www.xerox.com/office/6360supplies

Caution: Damage caused by using unsupported paper, transparencies, and other specialty

media is not covered by the Xerox warranty, service agreement, or Total Satisfaction Guarantee. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas; please contact your local representative for details.

See also:

Recommended Media List (United States) Recommended Media List (Europe)

Phaser® 6360 Color Laser Printer

3-3

Supported Paper and Media

Paper Usage Guidelines

The printer trays accommodate most sizes and types of paper, transparencies, or other specialty media. Follow these guidelines when loading paper and media in the trays:

■ Envelopes, thick card stock, and custom size paper can be printed from Tray 1 (MPT)

only.

■ Fan paper, transparencies, or other specialty media before loading in the paper tray.

■ Do not print on label stock once a label has been removed from a sheet.

■ Use only paper envelopes. Do not use envelopes with windows, metal clasps, or adhesives

with release strips.

■ All envelopes should be printed single-sided only.

■ Some wrinkling and embossing may occur when printing envelopes.

■ Do not overload the paper trays. Do not load paper above the fill line on the inside of the

paper guide.

■ Adjust the paper guides to fit the paper size. For Trays 2–5, the paper guides click into

place when they are adjusted correctly.

■ If excessive jams occur, use paper or other media from a new package.

See also:

Printing Transparencies on page 3-25 Printing Envelopes on page 3-31 Printing Labels on page 3-34 Printing Glossy Paper on page 3-39 Printing Custom Size Paper on page 3-44

Phaser® 6360 Color Laser Printer

3-4

Supported Paper and Media

Paper That Can Damage Your Printer

Your printer is designed to use a variety of media types for print jobs. However, some media can cause poor output quality, increased paper jams, or damage to your printer.

Unacceptable media includes:

■ Rough or porous media

■ Plastic media other than supported transparencies

■ Paper that has been folded or wrinkled

■ Paper with staples

■ Envelopes with windows or metal clasps

■ Padded envelopes

■ Non-laser glossy or coated paper

■ Perforated media

Paper Storage Guidelines

Providing good storage conditions for your paper and other media contributes to optimum print quality.

■ Store paper in dark, cool, relatively dry locations. Most paper items are susceptible to

damage from ultraviolet (UV) and visible light. UV radiation, which is emitted by the sun and fluorescent bulbs, is particularly damaging to paper items. The intensity and length of exposure to visible light on paper items should be reduced as much as possible.

■ Maintain constant temperatures and relative humidity.

■ Avoid attics, kitchens, garages, and basements for storing paper. Inside walls are drier than

outside walls where moisture can collect.

■ Store paper flat. Paper should be stored on pallets, cartons, shelves, or in cabinets.

■ Avoid having food or drinks in the area where paper is stored or handled.

■ Do not open sealed packages of paper until you are ready to load them into the printer.

Leave paper in the original packaging. For most commercial cut-size grades, the ream wrapper contains an inner lining that protects the paper from moisture loss or gain.

■ Leave the media inside the bag until you are ready to use it; reinsert unused media in the

bag and reseal it for protection. Some specialty media is packaged inside resealable plastic bags.

Phaser® 6360 Color Laser Printer

3-5

Supported Paper and Media

Supported Paper Sizes and Weights

The following sections provide information about paper sizes and weights that can be used in the printer trays. For more detailed information about paper and other media, print the Paper Tips page:

1. On the control panel, select

2. Select

3. Select

See also:

Information Pages, and then press the OK button.

Paper Tips Page, and then press the OK button to print.

Recommended Media List (United States) Recommended Media List (Europe)

Information, and then press the OK button.

Phaser® 6360 Color Laser Printer

3-6

Paper Sizes and Weights for Tray 1 (MPT)

1 (MPT)

Tray1(MPT)

65–216 g/m

Statement 5.5 x 8.5 in. Custom Sizes

Executive 7.25 x 10.5 in.

Letter 8.5 x 11 in.

(17–40 lb. Bond, 50–80 lb. Cover)

Supported Paper and Media

6360-055

Short edge: 89

Long edge: 140–914 mm (5.5–36 in.)

–216 mm (3.5–8.5 in.)

US Folio 8.5 x 13 in.

Legal 8.5 x 14 in.

A4 210 x 297 mm

A5 148 x 210 mm

A6 105 x 148 mm

B5 JIS 182 x 257 mm

ISO B5 176 x 250 mm

#10 Commercial 4.12 x 9.5 in.

Monarch 3.87 x 7.5 in.

A7 5.25 x 7.25 in.

DL 110 x 220 mm

C6 114 x 162 mm

C5 162 x 229 mm

B5 176 x 250 mm

Phaser® 6360 Color Laser Printer

3-7

Paper Sizes and Weights for Trays 2–5

Supported Paper and Media

Trays 2– 5

65 – 163 g/m2 (17 – 40 lb. Bond, 50 – 60 lb. Cover)

Executive 7.25 x 10.5 in.

Letter 8.5 x 11 in.

US Folio 8.5 x 13 in.

Legal 8.5 x 14.0 in.

A4 210 x 297 mm

A5 148 x 210 mm

B5 JIS 182 x 257 mm

6360-056

Phaser® 6360 Color Laser Printer

3-8

Loading Paper

This section includes:

■ Loading Paper in Tray 1 (MPT) on page 3-9

■ Loading Paper in Trays 2–5 on page 3-14

■ Using Manual Feed on page 3-13

Loading Paper in Tray 1 (MPT)

Use Tray 1 (MPT) for a wide range of media including:

■ Plain paper, heavy plain paper, letterhead, colored paper, and prepunched paper

■ Card stock

■ Labels

■ Envelopes

■ Transparencies

■ Glossy paper

■ Specialty media including business cards, postcards, trifold brochures, and weatherproof

paper

■ Pre-printed paper (paper already printed on one side)

■ Custom size paper

See also:

Paper Sizes and Weights for Tray 1 (MPT) on page 3-7

Advanced Features Guide at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

3-9

To load paper or other media in Tray 1 (MPT):

1. Open Tray 1 (MPT) by pulling out on the handle.

2. Pull out the tray extension, and open the paper guides.

Loading Paper

6360-046

3. Fan the paper to release sheets that are stuck together.

Phaser® 6360 Color Laser Printer

3-10

6360-062

Loading Paper

4. Insert the paper, transparencies, or envelopes in Tray 1 (MPT), and adjust the paper guides

to fit the paper. If you are using preprinted or prepunched paper, follow these guidelines:

■ For single-sided printing, place the side to be printed facedown with the top of the

paper entering the printer first.

6360-064

■ For 2-sided printing, place the first side to be printed faceup with the bottom of the

page entering the printer first.

Phaser® 6360 Color Laser Printer

3-11

Loading Paper

■ For prepunched paper, place the paper with the holes toward the right side of the

tray.

6360-065

Caution: Do not load paper or media above the fill line indicated on the tray. Overloading

the tray may cause jams.

MAX

6360-013

5. To use the current tray setup, press the OK button on the control panel. If you load a new

type or size of paper in the tray, do the following:

a. Select

Change setup, and then press the OK button.

b. Select the paper type, and then press the OK button. c. Select the paper size, and then press the OK button.

See also:

Paper Sizes and Weights for Tray 1 (MPT) on page 3-7 Printing on Specialty Media on page 3-25 Printing Custom Size Paper on page 3-44

Phaser® 6360 Color Laser Printer

3-12

Loading Paper

Setting Tray 1 (MPT) Mode

Tray 1 (MPT) Mode defines the printer’s media handling behavior to better fit the kind of printing you want to do. Three distinct modes determine how paper type and size are set for Tray 1 (MPT), and which tray is used if you do not select a specific tray:

Automatic (Factory Default): Tray 1 (MPT) is the highest priority tray. It allows incoming print jobs to set paper type and size. It prints from Tray 1 (MPT) if paper is present at the start of a job that does not select another tray.

Dynamic: The printer searches the trays to find the paper size and type to match your print job. If no size or type matches are found in Trays 2-5, and Tray 1 (MPT) media size and type have not been set on the printer’s control panel, the printer sets the paper type and size from the print job, and then prints from Tray 1 (MPT).

Static: Set the paper type and size on the printer’s control panel so that the printer can determine which tray contains the paper type and size each print job requires. The paper type and size of your print job must match the Tray 1 (MPT) paper type and size settings on the control panel (to print from Tray 1 (MPT).

Tray 1 (MPT) Mode controls two aspects:

■ Tray 1 (MPT) is used if paper is present in it (and no other tray is specified).

■ How the paper type and size are determined if not set from the control panel.

See also:

Advanced Features Guide at www.xerox.com/office/6360support

Using Manual Feed

If you are using paper, such as letterhead, and do not want others to use it by mistake, you can set the printer to prompt you when it is time to load the paper for your print job.

Windows

To select manual feed using Windows 2000, Windows XP, or Windows Server 2003:

1. In the Windows printer driver, click the Paper/Quality tab.

2. Select Force Printing from a Specific Tray, and then select Tray 1 (MPT) from the list.

3. Select Manual Feed, and then click OK to save the driver settings.

4. Submit your print job.

5. When prompted by the control panel, remove the paper from Tray 1 (MPT).

6. Load the appropriate paper for your job into the tray.

Phaser® 6360 Color Laser Printer

3-13

Loading Paper

Macintosh

To select manual feed using Macintosh OS X, version 10.2 or higher:

1. In the Print dialog box, select Paper Feed from the drop-down list.

2. Select Manual Feed in the All pages from drop-down list.

3. Submit your print job.

4. When prompted by the control panel, remove the paper from Tray 1 (MPT).

5. Load the appropriate paper for your job into the tray.

See also:

Loading Paper in Tray 1 (MPT) on page 3-9

Loading Paper in Trays 2–5

Use Trays 2–5 for a wide range of media including:

■ Plain paper, heavy plain paper, letterhead, colored paper, preprinted paper, and prepunched

paper

■ Thin card stock

■ Glossy paper

■ Transparencies

■ Labels

See also:

Paper Sizes and Weights for Trays 2–5 on page 3-8 Printing on Specialty Media on page 3-25

Phaser® 6360 Color Laser Printer

3-14

Loading Paper

To load paper into Trays 2–5:

1. Pull out the tray.

6360-020

2. If necessary, open the paper guides:

■ Squeeze the green tab on the length guide, and then slide it back. The guide clicks into

place.

■ Slide the green side guides outward.

6360-021

Phaser® 6360 Color Laser Printer

3-15

Loading Paper

3. Fan the paper to release sheets that are stuck together.

4. Insert paper into the tray. If you are using preprinted or prepunched paper, follow these

guidelines:

■ For single-sided printing, place the side to be printed faceup with the top of the page

toward the front of the tray.

XEROX

6360-048

■ For 2-sided printing, place the first side to be printed with the odd-numbered pages

facedown and the top of the page toward the back of the tray. For more information

on 2-sided printing, see Printing on Both Sides of the Paper on page 3-23.

Phaser® 6360 Color Laser Printer

3-16

Loading Paper

■ For prepunched paper, place the paper with the holes toward the right side of the

tray.

6360-049

Caution: Do not load paper above the fill line indicated on the tray. Overloading the tray

may cause jams. In the following illustration, 1 indicates the maximum fill line for paper and 2 indicates the maximum fill line for transparencies, labels, glossy paper, and thin card stock.

MAX

6360-022

Phaser® 6360 Color Laser Printer

3-17

Loading Paper

5. If necessary, press the paper guides inward to fit the paper.

6360-023

Note: When the paper guides are adjusted correctly, there may be a small space between

the paper and the guides.

6. Insert the tray into the tray slot, and push the tray completely into the printer.

6360-009

7. To use the current tray setup, press the OK button on the control panel. If you load a new

type of paper in the tray:

a. Select

Change setup, and then press the OK button.

b. Select the paper type, and then press the OK button

See also:

Printing on Specialty Media on page 3-25 Printing Custom Size Paper on page 3-44

Phaser® 6360 Color Laser Printer

3-18

Selecting Printing Options

This section includes:

■ Selecting Printing Preferences (Windows) on page 3-19

■ Selecting Options for an Individual Job (Windows) on page 3-20

■ Selecting Options for an Individual Job (Macintosh) on page 3-21

See also:

Advanced Features Guide at www.xerox.com/office/6360support

Selecting Printing Preferences (Windows)

Printer preferences control all of your print jobs, unless you override them specifically for a job. For example, if you want to use automatic 2-sided printing for most jobs, set this option in printer settings.

To select printer preferences:

1. Select one of the following options:

■ Windows 2000 and Windows Server 2003: Click Start, select Settings, and then

click Printers.

■ Windows XP: Click Start, and then select Printers and Faxes.

2. In the Printers folder, right-click the icon for your printer.

3. From the pop-up menu, select Printing Preferences or Properties.

4. Make selections on the driver tabs, and then click the OK button to save your selections.

Note: For more information about Windows printer driver options, click the Help button on

the printer driver tab to view the online help.

Phaser® 6360 Color Laser Printer

3-19

Selecting Printing Options

Selecting Options for an Individual Job (Windows)

If you want to use special printing options for a particular job, change the driver settings before sending the job to the printer. For example, if you want to use Photo print-quality mode for a particular graphic, select this setting in the driver before printing that job.

1. With the desired document or graphic open in your application, access the Print dialog

box.

2. Select the Phaser 6360 printer and click its Properties button to open the printer driver.

3. Make selections from the driver tabs. See the following table for specific printing options.

Note: In Windows 2000, Windows XP, and Windows Server 2003, you can save current

printing options with a distinctive name and apply them to other print jobs. Select Saved Settings at the bottom of the tab. Click the Help button for more information.

4. Click the OK button to save your selections.

5. Print the job.

See the following table for specific printing options:

Printing Options for Windows Operating Systems

Operating System Driver Tab Printing Options

Windows Vista, Windows 2000, Windows XP, or Windows Server 2003

Paper/Output tab

Color Options tab

Layout/Watermark tab

Advanced tab

■ Job Type

■ Document size, paper type, and tray selection

■ 2-sided printing

■ Print quality

■ Output destination

■ Saved settings

■ Color corrections

■ Black and white conversion

■ Color adjustments

■ Saved settings

■ Pages per sheet

■ Booklet layout

■ Orientation

■ 2-sided printing

■ Watermark

■ Paper/Output: copies, collate

■ Image options: reduce/enlarge, image smoothing

■ Booklet layout

Note: If your driver does not display the options listed in the table above, go to the website at

www.xerox.com/drivers

to download the latest driver.

Phaser® 6360 Color Laser Printer

3-20

Selecting Printing Options

Selecting Options for an Individual Job (Macintosh)

To select print settings for a particular job, change the driver settings before sending the job to the printer.

1. With the document open in your application, click File, and then click Print.

2. Select the desired printing options from the menus and drop-down lists that are displayed.

Note: In Macintosh OS X, click Save Preset on the Print menu screen to save the current

printer settings. You can create multiple presets and save each with its own distinctive name and printer settings. To print jobs using specific printer settings, click the applicable saved preset in the Presets list.

3. Click Print to print the job.

See the following table for specific printing options:

Macintosh PostScript Driver Settings

Operating System Driver Drop-Down Title Printing Options

Mac OS X, Version

10.4

Copies & Pages

Layout

Paper Handling

ColorSync

Cover Page

Paper Feed

Job Type

Image Quality

Printer Features

■ Copies

■ Pages

■ Pages per sheet

■ Layout direction

■ Border

■ 2-sided printing

■ Reverse page order

■ Print (all, odd, even)

■ Color matching

■ Cover pages

■ Paper source

■ Secure prints, personal prints, personal

saved prints, proof prints, saved prints, print with

■ Print quality

■ Color correction or color conversion

■ Image smoothing

■ Paper types

■ Separation pages

Phaser® 6360 Color Laser Printer

3-21

Macintosh PostScript Driver Settings (Continued)

Operating System Driver Drop-Down Title Printing Options

Selecting Printing Options

Mac OS X, Version

10.2 and 10.3

Copies & Pages ■ Copies

■ Pages

Layout

Paper Handling

ColorSync

Cover Page

Paper Feed

Job Types

■ Pages per sheet

■ Layout direction

■ Border

■ Two-sided printing

■ Reverse page order

■ Print (all, odd, even)

■ Color matching

■ Cover pages

■ Paper source

■ Secure prints, personal prints, proof prints,

and saved prints

Image Quality

Printer Features

■ Print quality

■ RGB color corrections neutral grays

■ Image smoothing

■ Paper types

■ Separation pages

Phaser® 6360 Color Laser Printer

3-22

Printing on Both Sides of the Paper

This section includes:

■ Automatic 2-Sided Printing Guidelines on page 3-23

■ Binding Edge Options on page 3-24

■ Selecting 2-Sided Printing on page 3-24

Note: For information about manual two-sided printing, go to the Online Support Assistant at

www.xerox.com/office/6360support

Automatic 2-Sided Printing Guidelines

Automatic 2-sided printing is available from the Phaser 6360DN, 6360DT, and 6360DX configurations. Before printing a 2-sided document, verify that the paper is a supported size for the tray. For a list of supported paper sizes, see Supported Paper and Media on page 3-3. For a list of paper types and weights, print the Paper Tips page:

a. Select b. Select c. Select

Information, and then press the OK button. Information Pages, and then press the OK button. Paper Tips Page, and then press the OK button.

The following paper and media cannot be used for 2-sided printing:

■ Transparencies

■ Envelopes

■ Labels

■ Any die-cut specialty media, such as business cards

■ Thick card stock

See also:

Supported Paper and Media on page 3-3 Printer Configurations on page 1-4

Phaser® 6360 Color Laser Printer

3-23

Printing on Both Sides of the Paper

Binding Edge Options

When you use the printer driver to select 2-sided printing, also select the binding edge, which determines how the pages turn. The actual outcome depends on the orientation (portrait or landscape) of images on the page, as displayed in the following illustrations.

Portrait Landscape

Bind on Side Edge

Flip on Long Edge

Bind on Top Edge

Flip on Short Edge

Bind on Side Edge

Flip on Short Edge

Bind on Top Edge

Flip on Long Edge

Selecting 2-Sided Printing

To select automatic 2-sided printing:

1. Insert paper in the tray. For more information, see Loading Paper on page 3-9.

2. In the printer driver, select 2-sided printing as shown in the following table, and then press

the OK button.

To select automatic 2-sided printing:

Operating System Steps

Windows Vista, Windows 2000, Windows XP, or Windows Server 2003

Mac OS X, version

10.2 and higher

1. Select the Paper/Output tab.

2. Select 2-Sided Print under 2-Sided Printing.

1. In the Print dialog box, select Layout.

2. Select Print on Both Sides.

3. Click the Binding icon that matches the edge to bind.

Note: If your driver does not display the options listed in the table above, go to the website at

www.xerox.com/drivers

to download the latest driver.

See also:

Loading Paper in Tray 1 (MPT) on page 3-9 Loading Paper in Trays 2–5 on page 3-14

Phaser® 6360 Color Laser Printer

3-24

Printing on Specialty Media

This section includes:

■ Printing Transparencies on page 3-25

■ Printing Envelopes on page 3-31

■ Printing Labels on page 3-34

■ Printing Glossy Paper on page 3-39

■ Printing Custom Size Paper on page 3-44

Printing Transparencies

Transparencies can be printed from all trays. They should be printed on one side only. For best results, use only recommended Xerox transparencies.

To order paper, transparencies, or other specialty media, contact your local reseller or go to

www.xerox.com/office/6360supplies

Caution: Damage caused by using unsupported paper, transparencies, and other specialty

See also:

Recommended Media List (United States) Recommended Media List (Europe)

Guidelines

■ Remove all paper before loading transparencies in the tray.

■ Do not load more than 25 sheets in Tray 1 (MPT). Do not load more than 200 sheets in

Trays 2–5. Overloading the tray may cause the printer to jam.

■ Handle transparencies by the edges using both hands to avoid fingerprints and creases,

which may cause poor print quality.

■ Fan transparencies before loading in the paper tray.

Phaser® 6360 Color Laser Printer

3-25

Printing Transparencies from Tray 1 (MPT)

1. Open Tray 1 (MPT) by pulling out on the handle.

2. Pull out the tray extension, and open the paper guides.

Printing on Specialty Media

6360-046

6360-062

3. Fan the transparencies to release sheets that are stuck together.

6360-047

Phaser® 6360 Color Laser Printer

3-26

Printing on Specialty Media

4. Insert the transparencies into Tray 1 (MPT), and adjust the paper guides to fit the

transparencies. Do not load more than 25 transparencies.

MAX

6360-050

5. On the control panel, select the transparency type and size: a. Select

b. Select

Change setup, and then press the OK button. Transparency, and then press the OK button.

c. Select the transparency size, and then press the OK button.

6. In the printer driver, select either Transparency as the paper type or Tray 1 (MPT) as the

paper source.

Phaser® 6360 Color Laser Printer

3-27

Printing on Specialty Media

Printing Transparencies from Trays 2–5

1. Pull the tray out of the printer.

6360-020

2. If necessary, open the paper guides:

■ Squeeze the green tab on the length guide, and then slide it back. The guide clicks into

place.

■ Slide the green side guides outward.

6360-021

3. Fan the transparencies to release sheets that are stuck together.

6360-047

Phaser® 6360 Color Laser Printer

3-28

Printing on Specialty Media

4. Insert the transparencies into the tray.

Caution: Do not load transparencies above the fill line indicated on the paper tray.

Overloading the tray may cause jams. In the following illustration, 2 indicates the maximum fill line for transparencies, labels, glossy paper, and thin card stock.

MAX

6360-051

5. If necessary, press the guides inward to fit the transparencies.

Note: When the paper guides are adjusted correctly, there may be a small space between

the transparencies and the guides.

6360-052

Phaser® 6360 Color Laser Printer

3-29

Printing on Specialty Media

6. Insert the tray into the tray slot, and push the tray completely into the printer.

6360-053

7. On the control panel, select the transparency type: a. Select

b. Select

Change setup, and then press the OK button. Transparency, and then press the OK button.

8. In the printer driver, select either Trans parency as the paper type or the appropriate tray

as the paper source.

Phaser® 6360 Color Laser Printer

3-30

Printing on Specialty Media

Printing Envelopes

Envelopes can be printed only from Tray 1 (MPT).

See also:

Paper Sizes and Weights for Tray 1 (MPT) on page 3-7

Guidelines

■ Use only paper envelopes specified in the Supported Paper Sizes and Weights table.

Successful envelope printing is highly dependent on the quality and construction of the envelopes. Use envelopes made specifically for laser printers.

■ It is recommended that you maintain constant temperatures and relative humidity.

■ Store unused envelopes in their packaging to avoid the effects of moisture and dryness

which can affect print quality and cause wrinkling. Excessive moisture can cause the envelopes to seal before or during printing.

■ Avoid padded envelopes; purchase envelopes that lie flat on a surface.

■ Remove air bubbles from the envelopes before loading by setting a heavy book on top of

the envelopes.

■ If wrinkling or embossing problems occur, use a different brand of envelopes made

specifically for laser printers.

Caution: Never use envelopes with windows or metal clasps; they can damage the printer.

Damage caused by using unsupported envelopes is not covered under the Xerox warranty, service agreement, or Total Satisfaction Guarantee. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas, please contact your local representative for details.

Printing Envelopes from Tray 1 (MPT)

1. Open Tray 1 (MPT) by pulling out on the handle.

6360-046

Phaser® 6360 Color Laser Printer

3-31

Printing on Specialty Media

2. Pull out the tray extension, and open the paper guides.

6360-062

3. Insert the envelopes into Tray 1 (MPT), and adjust the paper guides to fit the envelopes.

■ For #10 Commercial, C5, and B5 envelopes, place the envelopes in the tray flap-side

up with the top of the envelopes toward the right of the printer.

■ Do not load more than 10 envelopes.

6360-019

Phaser® 6360 Color Laser Printer

3-32

Printing on Specialty Media

■ For Monarch, A7, DL, and C6 envelopes, place the envelopes in the tray flap-side up

with the bottom of the envelope entering first.

6360-054

4. On the control panel, select the envelope type and size: a. Select b. Select

Change setup, and then press the OK button. Envelope as the paper type, and then press the OK button.

c. Select the envelope size, and then press the OK button.

5. In the printer driver, select either Envelope as the paper type or Tray 1 (MPT) as the

paper source.

Phaser® 6360 Color Laser Printer

3-33

Printing on Specialty Media

Printing Labels

Labels can be printed from all trays.

To order paper, transparencies, or other specialty media, contact your local reseller or go to

www.xerox.com/office/6360supplies

See also:

Paper Sizes and Weights for Tray 1 (MPT) on page 3-7 Paper Sizes and Weights for Trays 2–5 on page 3-8

Guidelines

■ Do not use vinyl labels.

■ Print only on one side of the sheet of labels.

■ Do not use any sheet where labels are missing; it may damage the printer.

■ Store unused labels flat in their original packaging. Leave the sheets of labels inside the

original packaging until ready to use. Return any unused sheets of labels to the original packaging and reseal it.

■ Do not store labels in extremely dry or humid conditions or extremely hot or cold

conditions. Storing them in extreme conditions may cause print-quality problems or cause them to jam in the printer.

■ Rotate stock frequently. Long periods of storage in extreme conditions can cause labels to

curl and jam the printer.

Printing Labels from Tray 1 (MPT)

1. Open Tray 1 (MPT) by pulling out on the handle.

6360-046

Phaser® 6360 Color Laser Printer

3-34

2. Pull out the tray extension, and open the paper guides.

3. Fan the labels to release sheets that are stuck together.

Printing on Specialty Media

6360-062

4. Insert the labels into Tray 1 (MPT), and adjust the paper guides to fit the sheets.

■ Place the side to be printed facedown with the top of the sheets entering first.

■ Do not load more than 25 sheets.

MAX

6360-013

Phaser® 6360 Color Laser Printer

3-35

Printing on Specialty Media

5. On the control panel, select the paper type and size: a. Select

b. Select

Change setup, and then press the OK button. Labels, and then press the OK button.

c. Select the label sheet size, and then press the OK button.

6. In the printer driver, select either Labels as the paper type or Tray 1 (MPT) as the paper

source.

Printing Labels from Trays 2–5

1. Pull the tray out of the printer.

6360-020

2. If necessary, open the paper guides:

■ Squeeze the green tab on the length guide, and then slide it back. The guide clicks into

place.

■ Slide the green side guides outward.

6360-021

Phaser® 6360 Color Laser Printer

3-36

Printing on Specialty Media

3. Fan the label sheets to release sheets that are stuck together.

4. Insert the label sheets into the tray. Place the the side to be printed faceup with the top of

the page toward the front of the printer.

Note: Do not load the paper above the fill line indicated on the tray. Overloading the tray

may cause jams. In the following illustration, 2 indicates the maximum fill line for transparencies, labels, glossy paper, and thin card stock.

MAX

6360-022

Phaser® 6360 Color Laser Printer

3-37

Printing on Specialty Media

5. If necessary, press the paper guides inward to fit the sheets.

Note: When the paper guides are adjusted correctly, there may be a small space between

the labels and the guides.

6360-023

6. Insert the tray into the tray slot, and push the tray completely into the printer.

6360-009

7. On the control panel, select the paper type: a. Select

b. Select

Change setup, and then press the OK button. Labels, and then press the OK button.

8. In the printer driver, select either Labels as the paper type or the appropriate tray as the

paper source.

Phaser® 6360 Color Laser Printer

3-38

Printing on Specialty Media

Printing Glossy Paper

Glossy paper can be printed from any tray. It can be printed on both sides.

To order paper, transparencies, or other specialty media, contact your local reseller or go to

www.xerox.com/office/6360supplies

Guidelines

■ Do not open sealed packages of glossy paper until you are ready to load them into the

printer.

■ Leave glossy paper in the original wrapper, and leave the packages in the shipping carton

until ready to use.

■ Remove all other paper from the tray before loading glossy paper.

■ Load only the amount of glossy paper you are planning to use. Do not leave glossy paper

in the tray when you are finished printing. Reinsert unused glossy paper in the original wrapper and seal.

■ Rotate stock frequently. Long periods of storage in extreme conditions can cause glossy

paper to curl and jam the printer.

Printing Glossy Paper from Tray 1 (MPT)

1. Open Tray 1 (MPT) by pulling out on the handle.

6360-046

Phaser® 6360 Color Laser Printer

3-39

2. Pull out the tray extension, and open the paper guides.

6360-062

3. Fan the glossy paper to release sheets that are stuck together.

Printing on Specialty Media

4. Insert the glossy paper into Tray 1 (MPT), and adjust the paper guides to fit the paper.

■ Place the side to be printed facedown.

■ Do not load more than 25 sheets.

MAX

6360-013

Phaser® 6360 Color Laser Printer

3-40

Printing on Specialty Media

5. On the control panel, select the glossy paper type and size: a. Select

b. Select

Change setup, and then press the OK button. Glossy Paper, and then press the OK button.

c. Select the paper size, and then press the OK button.

6. In the printer driver, select either Glossy Paper as the paper type or Tray 1 (MPT) as the

paper source.

Printing Glossy Paper from Trays 2–5

1. Pull the tray out of the printer.

6360-020

2. If necessary, open the paper guides:

■ Squeeze the green tab on the length guide, and then slide it back. The guide clicks into

place.

■ Slide the green side guides outward.

6360-021

Phaser® 6360 Color Laser Printer

3-41

Printing on Specialty Media

3. Fan the paper to release sheets that are stuck together.

4. Insert the paper into the tray.

Note: Do not load the paper above the fill line indicated on the tray. Overloading the tray

may cause jams. In the following illustration, 2 indicates the maximum fill line for transparencies, labels, glossy paper, and thin card stock.

MAX

6360-022

Phaser® 6360 Color Laser Printer

3-42

Printing on Specialty Media

5. If necessary, press the paper guides inward to fit the paper.

Note: When the paper guides are adjusted correctly, there may be a small space between

the paper and the guides.

6360-023

6. Insert the tray into the tray slot, and push the tray completely into the printer.

6360-009

7. On the control panel, select the glossy paper type: a. Select

b. Select

Change setup, and then press the OK button. Glossy Paper, and then press the OK button.

8. In the printer driver, select either Glossy Paper as the paper type or the appropriate tray as

the paper source.

Phaser® 6360 Color Laser Printer

3-43

Printing on Specialty Media

Printing Custom Size Paper

In addition to the wide variety of standard paper sizes that you can use for printing, you can also print on custom size paper within the following dimensions.

Note: You can only print custom size paper from Tray 1 (MPT).

Tray 1 (MPT)

Short edge 89 – 216 mm (3.5 – 8.5 in.)

Long edge 140 – 914 mm (5.5 – 36 in.)

Printing Custom Size Paper from Tray 1 (MPT)

1. Open Tray 1 (MPT) by pulling out on the handle.

2. Pull out the tray extension, and open the paper guides.

6360-046

6360-062

Phaser® 6360 Color Laser Printer

3-44

Printing on Specialty Media

3. Insert the paper into Tray 1 (MPT), and adjust the paper guides to fit the paper.

■ The paper can be loaded with either the long or short edge entering first, as shown in

the illustrations.

■ The maximum width is 216 mm (8.5 in.).

■ For single-sided printing, if you are using preprinted or prepunched paper, place the

side to be printed facedown with the top of the paper entering the printer first.

■ For automatic 2-sided printing, if you are using preprinted or prepunched paper,

place the first side to be printed faceup with the bottom of the page entering the printer first.

6360-064

Single-Sided Printing 2-Sided Printing

6360-065

4. On the control panel, select Change setup, and then press the OK button.

5. Select the paper type, and then press the OK button.

6. Do one of the following:

■ If your custom paper size is listed in the menu, select it, and then press the OK button.

■ If your custom paper size is not listed in the menu, select New Custom Size, and then

press the OK button.

Phaser® 6360 Color Laser Printer

3-45

Printing on Specialty Media

7. If you selected

New Custom Size:

a. For Short Edge, use the Up Arrow and Down Arrow buttons to specify the short

edge, and then press the OK button.

b. For Long Edge, use the Up Arrow and Down Arrow buttons to specify the long

edge, and then press the OK button.

c. If the control panel prompts you for the Paper Orientation, use the Up Arrow and

Down Arrow buttons to select the direction you are feeding the paper into the tray.

6360-058

Short-Edge Feed Long-Edge Feed

6360-057

Note: When you define a new custom size, it is stored in the printer so it can be used

again. Up to five custom sizes can be stored in the printer. If you define a new custom size after five custom sizes have been stored, the new custom size replaces the bottom custom size entry.

8. Either use the custom size as the document size in the application or select Tray 1 (MPT)

in the driver as the paper source.

Phaser® 6360 Color Laser Printer

3-46

Creating Custom Paper Types

You can define custom paper types using CentreWare IS. Access these custom types in the printer driver, control panel, and CentreWare IS. Use this feature to create your own custom paper type with specific settings that you can reuse for routine print jobs, such as, monthly reports.

To create custom paper types:

1. Launch your web browser.

2. Enter the printer’s IP address in the browser’s Address field (http://xxx.xxx.xxx.xxx).

3. Click Properties.

4. Select the General folder on the left sidebar.

5. Select Custom Paper Types.

6. Enter or modify the settings, and then click Save Changes at the bottom of the page.

Note: For more information about creating custom paper types, click the Help button on the

Properties tab to view the online help.

Phaser® 6360 Color Laser Printer

3-47

Print Quality

This chapter includes:

■ Controlling the Quality of Your Prints on page 4-2

■ Solving Print-Quality Problems on page 4-6

Phaser® 6360 Color Laser Printer

4-1

Controlling the Quality of Your Prints

This chapter includes:

■ Selecting a Print-Quality Mode on page 4-3

■ Adjusting Color on page 4-4

The print-quality mode and color print-quality mode and paper type directly control the print speed. You can change these settings in the printer driver or on the control panel.

Note: Driver settings override the control panel settings.

See also:

Advanced Features Guide at www.xerox.com/office/6360support

correction directly control the quality of your prints. The

Phaser® 6360 Color Laser Printer

4-2

Controlling the Quality of Your Prints

Selecting a Print-Quality Mode

There are three print-quality modes:

Print-Quality Mode Type of Print Job

Automatic Automatically selects the optimal print-quality mode for the paper type

selected. For example, Enhanced print-quality mode is used when printing on Glossy Paper and Standard print-quality mode is used when printing on Plain Paper. (This setting is only available in the printer driver.)

Standard General-purpose mode for crisp, bright color prints at high speed.

Recommended for most office use and quick prints.

Enhanced High-quality mode for fine lines and sharp text. Recommended for

vibrant, saturated color prints.

To select the print-quality mode in a supported driver:

Operating System Steps

Windows Vista, Windows 2000, Windows XP, or Windows Server 2003

Mac OS X, version

10.2 and higher

1. Select the Paper/Output tab.

2. Select a print-quality mode.

1. In the Print dialog box, select Image Quality from the drop-down list.

2. Select a print-quality mode from the Print Quality drop-down list.

Note: If your driver does not display the options listed in the table above, go to the website at

www.xerox.com/drivers

to download the latest driver.

Phaser® 6360 Color Laser Printer

4-3

Controlling the Quality of Your Prints

Adjusting Color

The color correction options provide simulations of different color devices. Automatic is the default correction for general image processing. See the following table to determine what option you want to use.

Color Correction Description

Automatic Applies the best color correction to each graphic

element: text, artwork, and photographs.

Office Color sRGB Display Approximates the colors on a CRT computer display.

sRGB Vivid Produces brighter, more saturated colors than sRGB

Display.

LCD Display Approximates the colors on a LCD computer monitor.

Press Match SWOP Press Matches Specifications for Web Offset Publications.

Euroscale Matches FOGRA glossy paper specification.

Commercial Approximates U.S. commercial press target.

SNAP Press Matches Specifications for Newsprint Advertising

Production.

Japan Color Matches Japan Color 2001 specification.

ISO Coated Matches FOGRA 27L specification.

ISO Uncoated Matches FOGRA 29L specification.

None Applies no color correction. Use with other color

management tools, such as ICC (International Color

Consortium) profiles, ColorSync, or the PANTONE Color Chart for your printer.

Black and White Converts all colors to shades of gray.

Use Printer Control Panel Setting

Uses the color correction set in the printer. The color correction can be set in the printer using either the control panel or the CentreWare software (if available).

Phaser® 6360 Color Laser Printer

4-4

To select the color correction in a supported driver:

Operating System Steps

Controlling the Quality of Your Prints

Windows Vista, Windows 2000, Windows XP, or Windows Server 2003

Mac OS X, version

10.2 and higher

1. Select the Color Options tab.

2. Select the desired color correction. Some of the color corrections are

grouped under Office Color or Press Match.

1. In the Print dialog box, select Image Quality from the drop-down list.

2. Select the desired color correction from the Color Correction drop-

down list.

Note: If your driver does not display the options listed in the table above, go to the website at

www.xerox.com/drivers

to download the latest driver.

Phaser® 6360 Color Laser Printer

4-5

Solving Print-Quality Problems

This section includes:

■ Lines, Smudges, or Streaks on page 4-7

■ Repeating Defects on page 4-8

■ Colors Align Incorrectly on page 4-9

■ Fusing Is Incomplete on page 4-10

■ All Colors Are Too Light or Too Dark on page 4-11

■ Grays Are Not Neutral on page 4-12

■ Colors Vary Between Computers on page 4-12

■ Color Settings Not Applied on page 4-13

■ Printed Colors Do Not Match Monitor Colors on page 4-14

■ PANTONE Colors Do Not Match on page 4-14

■ Print Area Is Not Centered on the Paper on page 4-15

Solving Print-Quality Problems

Phaser® 6360 Color Laser Printer

4-6

Solving Print-Quality Problems

Lines, Smudges, or Streaks

Problem

Black and/or colored areas appear on the page in all colors and/or in non-printed areas.

Solution

To prevent black or colored lines, smudges, or streaks from printing on the page:

■ Verify that the paper you are using is the correct type for the printer and is properly loaded.

For more information on supported paper types, print the Paper Tips page:

a. On the control panel, select b. Select c. Select

Information Pages, and then press the OK button. Paper Tips Page, and then press the OK button.

Information, and then press the OK button.

Verify that the paper loaded in the tray matches the paper type selected on the control panel and in the computer’s printer driver.

■ Run the Remove Print Smears procedure:

a. Select b. Select c. Select

Troubleshooting, and then press the OK button. Print Quality Problems, and then press the OK button. Remove Print Smears, and then press the OK button. Three cleaning pages

run through the printer.

d. Repeat the previous step until no toner appears on the pages.

Phaser® 6360 Color Laser Printer

4-7

Solving Print-Quality Problems

Repeating Defects

Problem

Marks or voids are regularly repeated on a page.

Solution

Print the Repeating Defects page to view instructions for correcting the problem. To print the Repeating Defects page:

1. On the control panel, select

2. Select

3. Select

4. Follow the instructions on the page to measure the distance between the defects and

5. Replace the item causing the defects.

Print Quality Problems, and then press the OK button.

Repeating Defects, and then press the OK button.

The Repeating Defects page prints.

identify the item causing the defects.

Troubleshooting, and then press the OK button.

Phaser® 6360 Color Laser Printer

4-8

Colors Align Incorrectly

Problem

Printed items appear to be blurry, hazy, or have halos.

Pxxxx (2400 x 600dpi)

Solution

Solving Print-Quality Problems

To prevent printed items from appearing blurry, hazy, or with halos:

■ Verify that the printer is on a solid, level, flat surface.

■ On the control panel, print the Color Registration page:

a. Select b. Select c. Select

Troubleshooting, and then press the OK button. Print Quality Problems, and then press the OK button. Color Registration, and then press the OK button.

Follow the instructions on the page.

Phaser® 6360 Color Laser Printer

4-9

Solving Print-Quality Problems

Fusing Is Incomplete

Problem

The toner appears to be missing from the print, or is easy to rub off.

Solution

To prevent toner from rubbing off the page:

1. Verify that the paper you are using is the correct type for the printer. See Supported Paper

and Media on page 3-3.

2. Verify that the paper is properly loaded in the tray, and the correct paper type is selected in

Paper Tray Setup menu. See Loading Paper on page 3-9.

the

If the problem continues:

1. Do one of the following:

■ Tray 1 (MPT): Remove and re-insert the paper.

■ Trays 2-5: Open and close the selected paper tray. The control panel prompts you to

confirm or change the paper type.

2. On the control panel, select

Change, press the OK button, and then do one of the

following:

■ Select the correct paper type, and then press the OK button.

■ Select the next heavier type of paper, and then press the OK button.

Note: Paper types from lightest to heaviest are: Plain Paper, Heavy Plain Paper, Thin Card

Stock, Thick Card Stock, Extra Thick Card Stock.

Phaser® 6360 Color Laser Printer

4-10

Solving Print-Quality Problems

All Colors Are Too Light or Too Dark

Problem

Colors appear faded or too dark.

Solution

1. Use a different color correction in the printer driver.

Note: Setting the color correction to Automatic produces the best results for most

documents.

2. Verify the print-quality mode selected is appropriate for the paper type.

3. If the problem continues, in the Xerox printer driver (Windows 2000 or later), select the

Color Options tab, click the More Color Adjustments button, and then adjust the Lightness level.

4. If the problem continues, calibrate the colors using the procedures on the Color

Calibration Tutorial page. To print the Color Calibration Tutorial page:

a. On the control panel, select b. Select c. Select d. Select e. Follow the instructions on the page.

Print Quality Problems, and then press the OK button. Calibrate Colors, and then press the OK button. Tutor ial Page, and then press the OK button.

Troubleshooting, and then press the OK button.

See also:

Adjusting Color on page 4-4

Phaser® 6360 Color Laser Printer

4-11

Solving Print-Quality Problems

Grays Are Not Neutral

Problem

The grays on the printed page are not neutral; they contain color tints.

Solution

Follow the procedures on the Color Calibration Tutorial page to calibrate the printer’s colors. To print the Color Calibration Tutorial page:

1. On the control panel, select

2. Select

3. Select

4. Select

5. Follow the instructions on the page.

Print Quality Problems, and then press the OK button.

Calibrate Colors, and then press the OK button.

Tutor ial Page, and then press the OK button.

Troubleshooting, and then press the OK button.

Colors Vary Between Computers

Problem

The colors printed from one computer do not match the colors printed from a different computer.

Solution

To prevent color differences in print jobs:

1. Confirm that the driver settings for Print Quality and Color Correction are identical on

both computers.

2. Adjust the settings as needed.

Note: Driver settings override the settings selected on the control panel.

Phaser® 6360 Color Laser Printer

4-12

Solving Print-Quality Problems

Color Settings Not Applied

Problem

If you change color settings on the control panel, it does not affect the colors in the printed document.

Solution

To change color settings:

1. In the printer driver, change the settings for Print Quality and Color Correction.

Note: Driver settings override the settings selected on the control panel.

Phaser® 6360 Color Laser Printer

4-13

Solving Print-Quality Problems

Printed Colors Do Not Match Monitor Colors

Problem

The color produced by the printer looks different from the color that appears on the monitor.

Solution

For more information about color matching between the monitor and the printed document, see the Advanced Features Guide at www.xerox.com/office/6360support

PANTONE Colors Do Not Match

Problem

The colors printed on the document do not match the Phaser 6360 PANTONE color chart.

Solution

To match the document colors to the color chart:

■ If the application software allows the user to select a printer PPD file for printing a

document, make sure the Phaser 6360 PPD is selected. The PANTONE colors in the printer are calibrated for the printer’s default halftone; overriding the printer’s default halftone will change the printer’s color reproduction. For more information about software settings for your applications, consult your application’s user manual.

■ Turning off other color matching software, such as ColorSync or ICM color matching,

when trying to match PANTONE Colors is recommended. Using other color matching software while matching PANTONE Colors can cause unpredictable color output. If you choose to use a Color Management software, set the printer’s color correction to none, and do not use the printer specific charts.

■ To match PANTONE spot colors, select Properties, click the Color Options tab, select

Automatic color correction, click the Advanced button, and then select the Spot Colors

tab. For example, print documents using the None color correction if the PANTONE Color chart was printed using none (the recommended setting). Also verify that the color’s CMYK values match the CMYK values on the chart.

■ The printed PANTONE charts can fade over time or when exposed to sunlight. Check the

color charts you printed against the PANTONE Color swatch book available from PANTONE, Inc. You may need to re-print the chart, especially if it has been exposed to light for some time. Storing the charts in a dark place helps preserve the color.

■ Print a test page from your control panel to check the colors. If your printer has media that

is out of specification, or other supplies that are at the end of useful life, color adjustments may not be able to get the printer to match PANTONE Colors.

See also:

Advanced Features Guide at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

4-14

Solving Print-Quality Problems

Print Area Is Not Centered on the Paper

Problem

The printed area appears outside the margins on the page.

Solution

1. On the control panel, select Paper Tray Setup, and then press the OK button.

2. Select the tray you are using, and then press the OK button.

3. Verify that the tray is set to the correct paper size.

4. If the problem continues, use the Calibrate Margins page to shift the print area on the

paper. The print area appears as a dashed rectangle on the Calibrate Margins page; the printer does not print outside this rectangle.

a. On the control panel, select b. Select c. Select d. Select e. Select the appropriate tray to calibrate, and then press the OK button. f. Follow the instructions on the Calibrate Margins page.

Print Quality Problems, and then press the OK button. Calibrate Margins, and then press the OK button. Calibrate Margins Page, and then press the OK button.

Troubleshooting, and then press the OK button.

Note: The standard margins are 5 mm on all sides.

Phaser® 6360 Color Laser Printer

4-15

Maintenance

This chapter includes:

■ Cleaning the Printer on page 5-2

■ Ordering Supplies on page 5-5

■ Recycling Supplies on page 5-6

■ Requesting a Maintenance Kit on page 5-7

■ Moving and Repacking the Printer on page 5-8

See also:

Maintenance video tutorials at www.xerox.com/office/6360support Replacing supplies video tutorials at www.xerox.com/office/6360support

Phaser® 6360 Color Laser Printer

5-1

Cleaning the Printer

This section includes:

■ Cleaning the Outside of the Printer on page 5-2

■ Cleaning the Density Sensor on page 5-2

For safety information, see User Safety on page A-1.

Cleaning the Outside of the Printer

To remove stains, clean the outside of the printer using a soft, damp cloth moistened with a mild neutral detergent. Do not spray detergent directly onto the printer.

Warning: To prevent electric shock, turn the printer off and unplug the power cord from the

electrical outlet before cleaning the printer.

Use only an approved toner vacuum to clean the printer. Do not lubricate the printer with oil.

Cleaning the Density Sensor

The printer displays a message when the density sensor needs cleaning. To clean the density sensor:

1. Push up the latch on the front of the printer to open Front Door A.

6360-046

Phaser® 6360 Color Laser Printer

5-2

Cleaning the Printer

2. Remove the transfer roller. Squeeze together the tabs at both sides of the transfer roller,

and gently lift it out of the printer.

Caution: Avoid touching the surface of the roller.

6360-035

3. Use a dry towel or cotton swab to clean the density sensor.

Caution: Do not use isopropyl alcohol or canned air on the sensor.

6360-038

Phaser® 6360 Color Laser Printer

5-3

Cleaning the Printer

4. Reinstall the transfer roller.

■ Insert the rounded ends of the transfer roller into the curved black guides inside the

printer.

6360-036

■ Lock the transfer roller into the printer by pushing down on the tabs until you hear a

click.

5. Close Front Door A.

6360-037

6360-059

Phaser® 6360 Color Laser Printer

5-4

Ordering Supplies

This section includes:

■ Consumables on page 5-5

■ Routine Maintenance Items on page 5-5

■ When to Order Supplies on page 5-6

■ Recycling Supplies on page 5-6

Certain consumables and routine maintenance items need to be ordered occasionally. Each supply includes installation instructions.

Consumables

Genuine Xerox Toner Cartridges (Cyan, Magenta, Yellow, and Black):

■ Standard capacity

■ High capacity

6360-066

Note: Each toner cartridge includes installation instructions on the box.

Routine Maintenance Items

Routine maintenance items are printer parts that have a limited life and require periodic replacement. Replacements may be parts or kits. Routine maintenance items are typically customer replaceable.

■ Imaging unit

■ Fuser

■ Transfer roller

■ Feed roller kit

Phaser® 6360 Color Laser Printer

5-5

Ordering Supplies

When to Order Supplies

The control panel displays a warning when the supply nears its replacement time. Verify that you have replacements on hand. It is important to order these supplies when the messages first appear to avoid interruptions to your printing. The control panel displays an error message when the supply must be replaced.

To view the current status of your printer supplies, print the Supplies Usage page:

1. On the control panel, select

2. Select

3. Select

To order supplies, contact your local reseller or go to the Xerox Supplies website at

www.xerox.com/office/6360supplies

Caution: Use of non-Xerox supplies is not recommended. The Xerox Warranty, Service

Agreements, and Total Satisfaction Guarantee do not cover damage, malfunction, or degradation of performance caused by use of non-Xerox supplies, or the use of Xerox supplies not specified for this printer. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas; please contact your local representative for details.

Supplies Info, and then press the OK button.

Supplies Usage Page to print.

Information, and then press the OK button.

Recycling Supplies

For information on Xerox supplies recycling programs, go to www.xerox.com/gwa.

Phaser® 6360 Color Laser Printer

5-6

Requesting a Maintenance Kit

A long-life maintenance kit is required once your printer reaches 300,000 pages. The long-life maintenance kit contains:

■ Developers (Cyan, Magenta, Yellow, and Black)

■ Feed Roller Kit

■ Registration Roller

When you receive a warning message, contact a Xerox support representative. For the Customer Support phone numbers, go to www.xerox.com/office/contacts

Phaser® 6360 Color Laser Printer

5-7

Moving and Repacking the Printer

This section includes:

■ Precautions for Moving the Printer on page 5-8

■ Moving the Printer Within the Office on page 5-8

■ Preparing the Printer for Shipment on page 5-8

See also:

User Safety on page A-1

Precautions for Moving the Printer

To view precautions and guidelines for safely moving your printer, see the User Safety appendix in this user guide.

Moving the Printer Within the Office

The printer can be safely moved from one location within an office to another as long as it travels in an upright position, gently over smooth surfaces. Any jarring movement, such as pushing the printer over a raised door threshold or across a parking lot, can damage the printer.

Preparing the Printer for Shipment

Caution: Do not remove the toner cartridges; leave them locked in the normal operating

position. If the printer is shipped without the toner cartridges locked in place, toner can spill in the printer and damage internal components.

Repack the printer using the original packing material and boxes or a Xerox repackaging kit. Additional instructions for repacking the printer are provided in the repackaging kit. If you do not have all the original packaging, or are unable to repackage the printer, contact your local Xerox service representative.

Caution: Damage to the printer resulting from improper moving or failure to repackage the

printer properly for shipment, is not covered by the warranty, service agreement, or Total Satisfaction Guarantee. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas; please contact your local representative for details.

Phaser® 6360 Color Laser Printer

5-8

Troubleshooting

This chapter includes:

■ Clearing Paper Jams on page 6-2

■ Getting Help on page 6-13

See also:

Troubleshooting video tutorials at www.xerox.com/office/6360support

Print Quality on page 4-1

Phaser® 6360 Color Laser Printer

6-1

Xerox Phaser 6360 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Printer Features

Parts of the Printer

Front-Right View

Rear-Left View

Inside View

Printer Configurations

Standard Features

Available Configurations

Options

Upgrades

Control Panel

Control Panel Features

Control Panel Layout

Menu Map

Information Pages

Sample Pages

More Information

Resources

Xerox Support Centre

Network Basics

Overview of Network Setup and Configuration

Choosing a Connection Method

Connecting via Ethernet (Recommended)

Connecting via USB

Configuring the Network Address

TCP/IP and IP Addresses

Automatically Setting the Printer’s IP Address

Dynamic Methods of Setting the Printer’s IP Address

Manually Setting the Printer’s IP Address

Installing the Printer Drivers

Available Drivers

Windows 2000 or Later

Macintosh OS X, Version 10.2 and Higher

Printing Basics

Overview of Basic Steps

Supported Paper and Media

Paper Usage Guidelines

Paper That Can Damage Your Printer

Paper Storage Guidelines

Supported Paper Sizes and Weights

Loading Paper

Loading Paper in Tray 1 (MPT)

Using Manual Feed

Selecting Printing Options

Selecting Printing Preferences (Windows)

Selecting Options for an Individual Job (Windows)

Selecting Options for an Individual Job (Macintosh)

Printing on Both Sides of the Paper

Automatic 2-Sided Printing Guidelines

Binding Edge Options

Selecting 2-Sided Printing

Printing on Specialty Media

Printing Transparencies

Printing Envelopes

Printing Labels

Printing Glossy Paper

Printing Custom Size Paper

Creating Custom Paper Types

Print Quality

Controlling the Quality of Your Prints

Selecting a Print-Quality Mode

Adjusting Color

Solving Print-Quality Problems

Lines, Smudges, or Streaks

Repeating Defects

Colors Align Incorrectly

Fusing Is Incomplete

All Colors Are Too Light or Too Dark

Grays Are Not Neutral

Colors Vary Between Computers

Color Settings Not Applied

Printed Colors Do Not Match Monitor Colors

PANTONE Colors Do Not Match

Print Area Is Not Centered on the Paper

Maintenance
