XES Synergix
8825/8830/8850/8855 Digital
Solution User Guide
701P37466 November 2001
EMC Notices
Australia/New Zealand
Changes or modifications to this equipment not specifically approved by Fuji
Xerox Australia Pty. Limited may void the user’s authority to operate this
equipment.
Shielded cables must be used with this equipment to maintain compliance
with the Radiocommunications Act 1992.
European Union
WARNING
This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Changes or modifications to this equipment not specifically approved by
Xerox Europe may void the user’s authority to operate this equipment.
Shielded cables must be used with this equipment to maintain compliance
with the EMC Directive (89/336/EEC).
Canada
This Class "A" digital apparatus complies with Canadian ICES-0003.
Cet appareil numérique de la classe "A" est conforme à la norme NMB-003
du Canada.
WARNING
In order to allow this equipment to operate in proximity to Industrial,
Scientific and Medical (ISM) equipment, the external radiation from ISM
equipment may have to be limited or special mitigation measures taken.
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE i
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE ii
EMC Notices (continued)
Japan
This is a Class A product based on the standard of the Voluntary Control
Council for Interference by Information Technology Equipment (VCCI). If this
equipment is used in a domestic environment, radio disturbance may arise.
When such trouble occurs, the user may be required to take corrective
actions.
Changes or modifications to this equipment not specifically approved by Fuji
Xerox Limited may void the user’s authority to operate this equipment.
Shielded cables must be used with this equipment to maintain compliance
with the Voluntary Control Council for Interference by Information Technology
Equipment regulations.
USA
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Changes or modifications to this equipment not specifically approved by the
Xerox Corporation may void the user’s authority to operate this equipment.
Shielded cables must be used with this equipment to maintain compliance
with FCC regulations.
Trademark Acknowledgments
XEROX®, 8825, XES Synergix 8825 Digital Solution, 8830, XES Synergix
8830 Digital Solution, 8855, XES Synergix 8855 Digital Solution, XES
Synergix 8850, Synergix Scan Digital Solution, the digital box icon, AccXES,
and acronym, XES are trademarks of XEROX CORPORATION.
Internet Explorer is a copyright protected program of Microsoft Corporation.
Netscape is a registered trademark of Netscape Communications
Corporation.
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE iii
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE iv
The components of this product are equipped with a three-wire, grounding-
Safety Notes
type plug (i.e., a plug having a grounding pin). This plug will only fit into a
grounding-type power outlet. This is a safety feature. To avoid the risk of
electric shock, contact your electrician to replace the receptacle if you are
unable to insert the plug into the outlet.
Your XES Synergix 8825/8830/8855 Digital Solution has been designed and
tested to meet strict safety requirements. These include safety agency
examination and approval plus compliance with established environmental
standards.
Please read the following instructions carefully before operating the XES
Synergix 8825/8830/8855 Digital Solution and refer to them as needed to
ensure continued safe operation.
Follow all warnings and instructions marked on or supplied with the product.
Unplug the units from the wall outlet before cleaning the exterior. Always use
materials specifically designated for the XES Synergix 8825/8830/8855
Digital Solution. Use of other materials may result in poor performance and
could create a hazardous situation.
Do not use aerosol cleaners. Follow the instructions in this operator manual
for the proper cleaning methods.
Never use supplies or cleaning materials for purposes other than what they
were intended. Keep all supplies and materials out of the reach of children.
Do not use the units near water, wet locations, or outdoors.
Never use a ground adapter plug to connect the system to a power source
that lacks a ground connection terminal.
This system should be operated from the type of power source indicated on
the marking label. If you are not sure of the type of power available, consult
your local power company.
The power supply cord is the disconnect device for this equipment. Make
sure that the installation is near the socket outlet and is easily accessible.
Do not allow anything to rest on the power cord. Do not locate the units
where someone will step on the cord.
Safety notes (continued)
Unplug the reprographic system from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
The units should not be placed in a built-in installation unless proper
ventilation is provided.
Never push objects of any kind into the slots of the units as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or
electric shock.
Never spill liquid of any kind on the units.
Never remove any covers or guards that require a tool for removal. There
are no operator serviceable areas within these covers.
Never attempt any maintenance function that is not specified in this operator
manual.
Never defeat interlock switches. Machines are designed to prevent operator
access to unsafe areas. Covers, guards, and interlock switches are provided
to ensure that the system will not operate with the covers opened.
When the power cord is damaged or frayed.
If liquid has been spilled into the product.
If the units have been exposed to rain or water.
If the units are producing unusual noises or odors.
If the units or the cabinets have been damaged.
Calling for Service
Local Phone Number_____________________________________
If you need additional safety information concerning the XES Synergix
8825/8830/8850/8855 or XES supplied materials, you may call:
Within the United States:
1-800-828-6571 toll free.
In other countries:
Please call your local Xerox Engineering Digital Solutions service office for
help.
Local Phone Number______________________________________
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE v
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE vi
What is a bad quality document? ............................................................27
Preparing documents ................................................................... 28
Table of Contents
Scanning strategies ...................................................................... 29
Making copies................................................................................ 31
Controlling the scan...................................................................... 31
Safety Notes.................................................................................... iv
Calling for Service........................................................................... v
Getting to know the Synergix Digital Solution .............................. 1
Scanner standard components ....................................................... 2
Scanner compact components ....................................................... 3
Scanner Control Panel ..............................................................................5
OPTIONS KEYS ...................................................................................6
MEDIA SELECTION ............................................................. 7
IMAGE QUALITY................................................................ 10
REDUCTION/ENLARGEMENT........................................... 12
GRAPHICAL DISPLAY AND NAVIGATION KEYS ............................14
GRAPHICAL DISPLAY....................................................... 15
NAVIGATION KEYS ........................................................... 15
NUMERIC KEYPAD AND SPECIAL FEATURES/CONTROL KEYS .17
NUMERIC KEYPAD............................................................ 17
SPECIAL FEATURES KEYS .............................................. 18
SCAN CONTROL KEYS..................................................... 18
The Printer and the Controller....................................................... 19
Powering On the Digital Solution .................................................. 20
Initial power-on........................................................................................ 20
Switching on the Scan System................................................................ 20
Switching on the Controller and the Printer (8825/8830/8850 Digital
Solution) ..................................................................................................21
Switching on the Controller and the Printer (8855 Digital Solution) ........ 22
Scanner Warm-up................................................................................... 23
Powering off the System............................................................... 24
Document quality........................................................................... 25
Dynamic IQ................................................................................... 25
Dynamic adjustment of copy quality........................................................ 25
Automatic edge detection and document centering................................ 26
Determining document quality ...................................................... 27
What is a good quality document? ..........................................................27
Making a copy with the default settings ........................................ 32
Making a copy the same size as the original document................ 33
Fitting the image to a fixed copy size............................................ 34
Scanning when using a Folder..................................................... 35
Scanning oversized documents ................................................... 37
LONG DOCUMENTS ......................................................... 37
WIDE DOCUMENTS.......................................................... 37
Special features keys .................................................................... 38
Printer Interrupt key...................................................................... 39
Store/Recall key ........................................................................... 40
Last Job................................................................................................... 40
RECALLING THE LAST JOB .............................................................41
DELETING THE LAST JOB ...............................................................41
Job Templates......................................................................................... 42
RECALLING JOB TEMPLATES .........................................................43
SAVING JOB TEMPLATES................................................................ 44
DELETING JOB TEMPLATES ...........................................................45
Save Default Template............................................................................46
Recall Factory Defaults ...........................................................................46
Finisher key.................................................................................. 47
Finisher menu options ............................................................................. 48
FOLD PROGRAM............................................................................... 48
OVERLENGTH OPTIONS.................................................................. 48
TAB OPTIONS.................................................................................... 48
PUNCH OPTIONS.............................................................................. 48
MARGIN OPTIONS ............................................................................ 49
CROSSFOLD OPTIONS ....................................................................49
TITLE BLOCK LOCATION ................................................................. 49
OUTPUT BIN ......................................................................................49
Sets Build key............................................................................... 50
Preparing to build the set ........................................................................50
Building and printing the set ....................................................................51
Batch key...................................................................................... 52
Transform key............................................................................... 53
Margins ...................................................................................................53
Justification ............................................................................................. 55
Transform................................................................................................ 56
CREATING A MIRROR IMAGE.......................................................... 56
INVERTING AN IMAGE...................................................................... 57
Sample key................................................................................... 58
Scanning to the Network (SCAN mode)....................................... 59
Switching between COPY mode and SCAN mode........................ 60
Understanding the READY TO SCAN screen............................... 61
Selections disabled in SCAN mode............................................... 62
Operating in SCAN mode ............................................................. 62
Clearing the scanned images ....................................................... 63
Managing the file system .............................................................. 64
Main Menu...................................................................................... 65
Configuration menu ...................................................................... 66
Localization .............................................................................................67
Control Panel........................................................................................... 68
Copy Options...........................................................................................69
MEDIA SERIES ..................................................................................70
CUSTOM MEDIA FORMATS ............................................................. 71
CUSTOM R/E PRESETS ...................................................................72
IMAGING ............................................................................................ 73
Scan Options (Line) ................................................................................ 74
Scan Options (Photo).............................................................................. 75
Scan Options (Color)............................................................................... 76
Timers ..................................................................................................... 78
Power Saver............................................................................................ 79
Scanner Control ......................................................................................80
System Information menu............................................................. 81
System Description .................................................................................82
Recent Fault List .....................................................................................83
Configuration Prints................................................................................. 84
System Administration menu ........................................................ 85
Entering the system administration password......................................... 86
Job accounting ........................................................................................87
File System.............................................................................................. 87
LISTING STORED IMAGE INFORMATION BY DIRECTORY.......... 88
DELETING STORED IMAGES BY DIRECTORY............................... 89
DELETING ALL STORED IMAGES ...................................................90
Change Password................................................................................... 91
Security Settings .....................................................................................92
Diagnostics menu ......................................................................... 93
USAGE METERS.................................................................................... 94
CLEAR SCANNER USAGE ....................................................................94
SCANNER DIAGNOSTICS..................................................................... 95
IMAGE PATH...................................................................................... 96
SCAN BAR..........................................................................................96
FULL SYSTEM TEST .........................................................................97
WRITE NVR .......................................................................................98
RESET NVR DEFAULTS ...................................................................98
SCANNER RELIABILITY METER ......................................................99
SCANNER FAULTS (ORDERED) ....................................................100
SCANNER FAULTS (COUNT) .........................................................101
CLEAR SCANNER FAULT LOG ...................................................... 102
COMPONENT TESTS...................................................................... 103
MOTOR SPEED ............................................................... 104
LEAD EDGE/TRAIL EDGE............................................... 104
SENSORS........................................................................ 105
MOTOR COMMUNICATIONS .......................................... 107
DOCUMENT MOTOR....................................................... 108
LAMP................................................................................ 109
CALIBRATION MOTOR ................................................... 110
READ NVR .......................................................................................111
PASSWORD .........................................................................................112
Job Accounting............................................................................ 113
Overview..................................................................................... 113
Job Accounting Mode menu ....................................................... 114
Submitting jobs........................................................................... 114
From the Scanner Control Panel........................................................... 114
Over the network................................................................................... 116
Terminating use under an account........................................................116
Cleaning and maintenance - Scanner ........................................ 117
Cleaning the Platen Glass and Document Drive Rolls ................ 118
Cleaning the Calibration Strip ..................................................... 118
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE vii
XES Synergix 8825/8830/8855 Digital Solution User Guide PAGE viii
Problem solving........................................................................... 119
Specifications .............................................................................. 128
Appendix 1.................................................................................. 129
Appendix 2.................................................................................. 130
Appendix 3.................................................................................. 132
Appendix 4.................................................................................. 133
Appendix 5.................................................................................. 134
Appendix 6.................................................................................. 135
Appendix 7.................................................................................. 136
Getting to know the Synergix Digital Solution
This manual contains operating instructions for the user and the system
administrator for the XES Synergix 8825/8830/8850/8855 Digital Solution with
version 6.1 software loaded into the Controller.
Your Synergix Digital Solution is an integrated solution for electronically
scanning and then printing images for engineering or architectural use. The
Digital Solution consists of the Synergix Scan System and Control Panel for
capturing images, the Controller for processing these images, and the XES
Synergix 8825,8830, 8850, or 8855 Printer for making good quality copies of
the captured images in engineering or architectural sizes.
Table 1 below shows the various Synergix Digital Solution configurations. An
optional Online Folder is available for each of these configurations to provide
further processing of the printed output.
Table 1. Synergix Digital Solution configurations
Scanner Printer Controller Product
Code
The Synergix Digital Solution has two modes of operation - Copy and Scan.
In the Copy mode, documents are scanned, temporarily stored in memory or
on the Controller hard disk, and then sent to the local Printer as soon as the
Printer is available. In the Scan mode, documents are scanned and then
stored on the Controller hard disk for later retrieval over a network by a
remote device. The Synergix Digital Solution allows concurrent printing,
copying, and scanning to the network, so there is no need to wait for the
Printer to finish before scanning the next document.
The Synergix Digital Solution contains Dynamic IQ technology from Xerox
Engineering Systems. Dynamic IQ enables the Digital Solution to examine a
sample of the document intelligently and to make automatic image quality
adjustments that yield a good copy even from poor original documents.
Dynamic IQ also automatically detects the width and adjusts the centering of
a scanned original for most opaque documents. Translucent documents
(transparencies, clear film, etc.) in most cases will not be detected.
For documents that require additional adjustments to obtain the best copy
quality, a variety of image quality and reduction/enlargement settings are
available. All of these functions are controlled from the Scanner Control
Panel. This Control Panel, which is mounted on top of the Scanner, receives
all power and information from the Scanner.
Synergix Scan System XES Synergix 8825 N5T/EV4
Synergix Scan System XES Synergix 8830 N5T/CNG
Synergix Scan System XES Synergix 8855 UP8
Synergix Scan System XES Synergix 8850 CNG
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 1
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 2
Getting to know the Synergix Digital Solution (continued)
Scanner standard components
The illustrations below show the components of the Scanner. These
components are standard on the XES Synergix 8825, 8830, and 8850. The
Stand is standard or optional on the 8850Digital Solution. . With the exception
of the Stand and Standard Organizer, the components are standard on the
XES Synergix 8855 Digital Solution. Following the illustrations are
descriptions of each of the components.
Document
Handler
Document
Feed Tray
Scanner
Control Panel
Thick Document
Lever
Standard
Stacker
Document
Exit Slot
Power
On/Off
Switch
Standard
Organizer
Front View
Stand
IEEE 1394
Cable and
Connector
Status Indicator
LED
Power Cord
and Connector
Rear View
Getting to know the Synergix Digital Solution (continued)
Scanner compact components
The illustrations show the optional compact stacker and organizer that are
available for the XES Synergix Scan System. The compact components allow
the Synergix Digital Solution to be installed in sites where space requirements
are at a premium.
Compact
Stacker
Compact
Organizer
Front View
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 3
Rear View
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 4
Getting to know the Synergix Digital Solution (continued)
Document Feed Tray
Insert documents to be scanned face down and centered into the Document
Feed Tray.
Document Handler
Raise the Document Handler for routine maintenance functions and to
access the optical paper sensors for diagnostic routines.
Scanner Control Panel
The control panel allows the selection of options and features and contains a
graphical display for the communication of information and instructions. Refer
to Scanner Control Panel on the following page for additional information.
Thick Document Lever
The Thick Document Lever is used to adjust the Scanner for thick documents
and to remove documents from the Scanner feed mechanism. When setting
the thickness for a document, raise the lever to the next thickness. If the
document slides past the Feed Rolls into the Document Handler, lower the
Lever to the next position.
Standard Organizer
The Organizer is located on the front of the Scanner. It is useful for holding
multiple documents that are to be scanned. It has two extensions at its end
that can be pulled out to accommodate longer documents (up to size E or
A0).
Standard Stacker
The Stacker is located at the rear of the Scanner. When the AUTORETURN
feature is set to REAR, documents exit the Scanner onto the Stacker. The
Stacker can be adjusted to any one of four positions by raising or lowering it.
The height of the Stacker should be adjusted to accommodate the document
being scanned. It has two extensions at its end that can be pulled out to
accommodate longer documents (up to size E or A0). When scanning most
common weight (20 lb, 80gsm) documents, move the Stacker to the 2
nd
rung
from the bottom.
NOTE: All thick documents exit from the rear of the Scanner (regardless of
the AUTORETURN setting). When scanning thick documents, the Stacker
must be set to the lowest position for optimum performance.
Document Exit Slot
When the DOCUMENT RETURN feature is set to REAR, documents exit the
Scanner through this slot and are delivered to the rear Stacker.
Status LED
The digital status LED provides an indication of the condition of the scanner
and communications with the controller. A P. display indicates that the
scanner is operating normally and has established communications with the
controller.

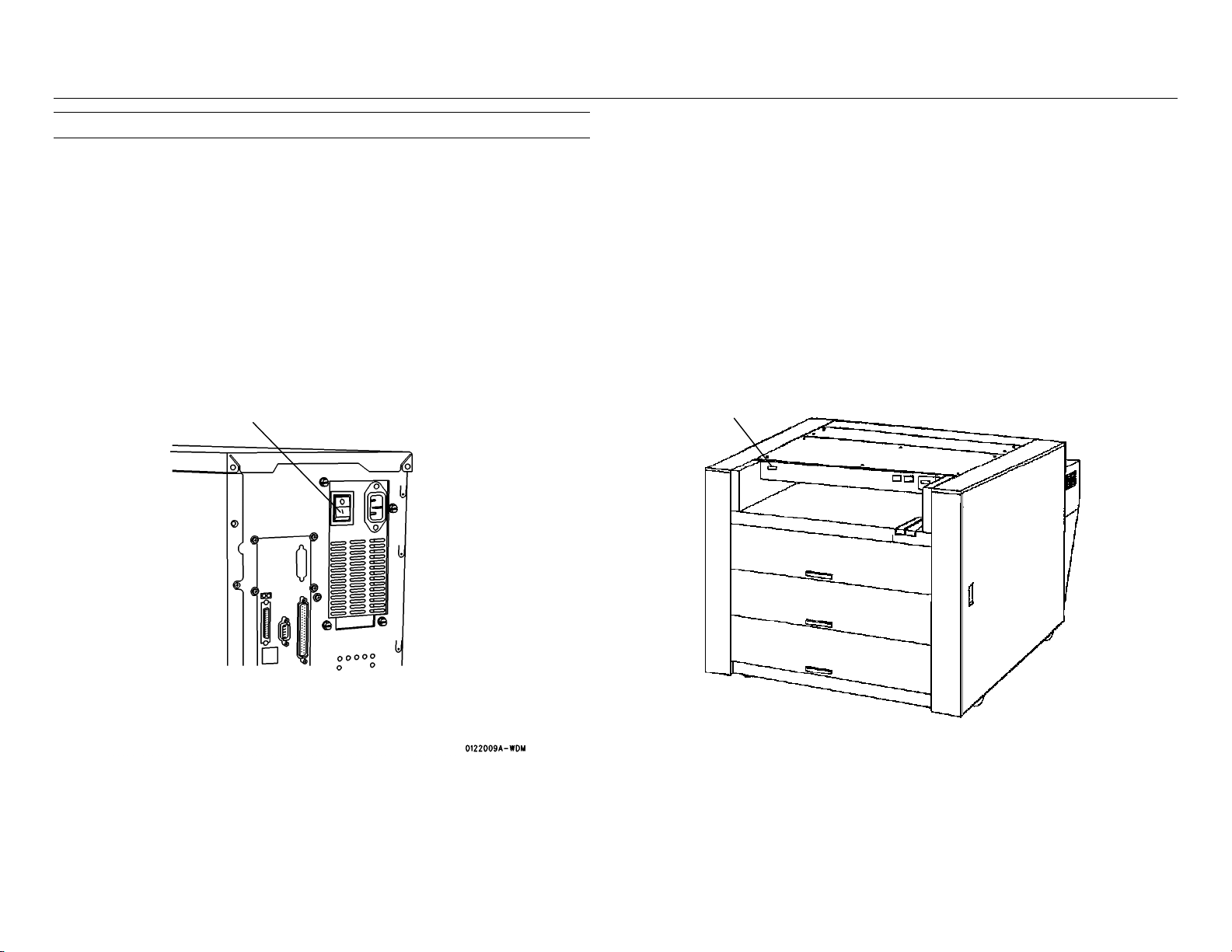

Power On/Off Switch
This switch turns the Scanner on and off. Press this switch to the on (I)
position to turn on the Scanner and to the off (O) position to turn off the
Scanner.
IEEE 1394 Cable and Connector
The IEEE 1394 Cable is the communications link between the Scanner and
the Controller. Plug one end of the cable into either one of the IEEE 1394
connections at the rear of the Scanner. Plug the other end into the IEEE
1394 connection on the Controller.
Power Cord and Connector
The Power Cord supplies power to the Scanner. Plug one end of the cord
into the Scanner and the other end into an electrical outlet.
Stand
The Stand is standard with the XES Synergix 8825 and 8830 Digital Solution,
and optional with the XES Synergix 8855 Digital Solution.
Getting to know the Synergix Digital Solution (continued)
Scanner Control Panel
The Scanner Control Panel is divided into three sections:
• The options keys section, which contains the - Media Selection, Image
Quality, and Reduction/Enlargement options selections
• The graphical display and the navigation keys section.
• The right-hand section, which contains the numeric keypad, the special
features keys, and the scan control keys.
If the BEEP function is enabled (factory default), a beep sound will be heard
when a key is pressed. If an improper key is pressed, a multiple beep sound
will be heard.
Graphical
Option Keys
Section
Display
Scan Control
Keys
Numerical Key
Pad
Special Features
Navigation
Keys
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 5
Keys
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 6
A
/
pp
A
g
Getting to know the Synergix Digital Solution (continued)
OPTIONS KEYS
The left side of the Scanner Control Panel contains the keys for the selection
of options. It is divided into three areas - Media Selection, Image Quality,
and Reduction/Enlargement.
To select an option, press the key(s) beneath the option. In some cases, a
screen requiring a selection or input is displayed on the graphical display.
When an option is selected, the indicator lamp to the left of the option
illuminates.
The illustration below depicts the options portion of the Scanner Control
Panel.
Media Selection
Source Type
Sheet
R3
R4R2
R1
uto
Film
Vellum
Tracing
Bond
Output Format
Manual
Preset
Synchro
Original
Type
Mixed/
Custom
Line
Image Quality
Background
Su
ression
Off
uto
Copy
Reduction/
Enlar
ement
Auto
Manual
Preset
Getting to know the Synergix Digital Solution (continued)
A
/
MEDIA SELECTION
The Media Selection area of the Scanner Control Panel allows you to select
the media Source, Type, and Output Format. The illustration below depicts
the Media Selection portion of the Control Panel.
Source
The Source option allows you to select the source of the media on which the
image will be printed. To select the media source, press the key beneath the
Source settings until the desired source indicator lamp illuminates.
The Source settings are:
• Sheet – This setting tells the Printer to print from a manually inserted
sheet of media.
Media Selection
Source Type
Sheet
R3
R4R2
R1
uto
Film
Vellum
Tracing
Bond
Output Format
Manual
Preset
Synchro
• R4 – This setting is applicable to the Synergix 8855 Digital Solution only.
When it is selected on the 8855 Digital Solution, both the R1 and R3
indicator lamps illuminate and the Printer selects the media stored on
Roll 4.
• R3 – This setting is applicable to the Synergix 8830 and 8855 Digital
Solutions only. When it is selected on those systems, the R3 indicator
lamp illuminates and the Printer selects the media stored on Roll 3.
• R2 – This setting tells the Printer to select the media stored on Roll 2.
• R1 – This setting tells the Printer to select the media stored on Roll 1.
• Auto (factory default) – This setting automatically selects the roll
containing the media that best fits the size of the captured image. For
most documents, the Scanner is able to automatically detect the width of
the scanned document. This permits the Auto function to automatically
select the most appropriate roll of media.
NOTE: Roll 2 and sheet feed are optional on the Synergix 8825 Digital
Solution. If these options are not installed, they cannot be selected. To print
from a cut sheet, Sheet mode must be explicitly selected. The Auto mode
cannot select a cut sheet.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 7
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 8
Getting to know the Synergix Digital Solution (continued)
Type
The Type option allows you to select the kind of media on which to print Bond, Vellum/Tracing, or Film. To select the media type, press the key
beneath the Type settings until the desired type indicator lamp illuminates.
NOTE: Only media types actually loaded into the Printer can be selected.
When a roll is selected, the media type for that roll is automatically selected
also. If more than one media type is loaded when the media source is set to
Auto, the default choice priority is Bond (first), Vellum (second), and Film
(third). Refer to the applicable Printer Operator Manual for instructions about
how to load rolls and specify the width and media type.
Output format
The Output Format option allows you to select the size to which the roll feed
media will be cut. It has three modes – Manual, Preset, and Synchro.
Manual
Manual allows you to enter the desired length and width manually.
To select the Manual mode:
1. Press the key beneath Output Format until the Manual indicator lamp
illuminates. The CUSTOM OUTPUT FORMAT screen is displayed.
NOTE: If the indicator lamp is already lit, press the key once to display the
screen.
2. Press the Previous or Next key to select WIDTH or LENGTH.
3. Press the Enter key to confirm the choice.
4. Use the numeric keypad to enter the desired value.
NOTE: The entered value must be within the limits shown in parentheses on
the screen.
5. Press the Enter key to confirm the value.
6. Repeat steps 3 to 5 to enter the value for the remaining setting.
7. When the values for WIDTH and LENGTH are correct, press the Exit key
to return to the READY screen.
CUSTOM OUTPUT FORMAT
ENTER CUSTOM MEDIA SIZE:
WIDTH (11.0 - 36.0): 11.0 IN
LENGTH (8.3 – 1200.0): 8.5 IN
Getting to know the Synergix Digital Solution (continued)
Preset
Preset allows you to select a predefined length to which the roll media should
be cut during printing. The associated width specification will depend on the
Media Source selection. If the Media Source selection is set to Auto, the
system will select the roll of media that best matches the width specification.
If Media Source is set to R1, R2, R3, or R4, the system will use the selected
roll regardless of the width specification.
To select the Preset mode:
1. Press the key beneath Output Format until the Preset indicator lamp
illuminates. The PRESET OUTPUT FORMAT screen is displayed.
NOTE: If the indicator lamp is already lit, press the key once to display the
screen.
PRESET OUTPUT FORMAT
SELECT: 8.5 X 11 ANSI A
2. Press the Previous or Next key to select an item from the list.
NOTE: Formats can be added or removed from this list. Refer to "Custom
Media Formats" in the "Main Menu" section for more information.
Synchro
When the Synchro mode is selected, the Synergix Digital Solution measures
the length of the original as it passes through the Scanner and automatically
cuts the media at the Printer to match the length of the original document.
Synchro is the factory default. To select the Synchro mode, press the key
beneath Output Formats until the Synchro indicator lamp illuminates.
3. Press the Enter key to confirm the choice and return to the READY
screen.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 9
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 10
pp
A
Getting to know the Synergix Digital Solution (continued)
IMAGE QUALITY
The Image Quality area of the Scanner Control Panel allows you to make
corrective adjustments to the image and extract the best possible copy quality
from an original document. It contains the Type, Background Suppression,
and Copy options.
The illustration below depicts the Image Quality portion of the Control Panel.
Image Quality
Original
Type
Mixed/
Custom
Line
Background
Su
ression
Off
uto
Copy
Type
The Type option allows you to specify the type classification of your
document. To select the document type, press the key beneath the Type
settings until the desired Type indicator lamp illuminates.
The Type settings are:
• Line (factory default) - Select Line for an image containing text, line art,
or a mixture of these.
• Photo - Select Photo when the document contains a gray scale or color
image, such as a photograph.
NOTE: The Background Suppression option cannot be used with the Photo
setting. If Photo is selected, Background Suppression is automatically set to
Off.
• Mixed/Custom - Select Mixed/Custom if the document contains a
mixture of photographic and line images or halftone images.
NOTE: The Background Suppression option cannot be used when scanning
in color and Mixed/Custom is selected. If SCAN OPTIONS (COLOR) is
selected, Background Suppression is automatically set to Off.
NOTE: The scanning speed changes, depending on the above
selection. The speeds are listed in Appendix 1.
Getting to know the Synergix Digital Solution (continued)
Background Suppression
The Background Suppression option enables you to make adjustments for
documents that contain poor contrast between the foreground image and the
background. The Background Suppression selections work with the Dynamic
Image Quality (Dynamic IQ) feature, that pre-scans the image, to ensure the
best image quality possible. Refer to Menu, Configuration, Scanner Control to
select this feature,
NOTE: Background Suppression is disabled when scanning in color, and
MIXED is selected.
Four choices are provided:
Off This setting disables Background Suppression. It produces a
document that reproduces all the characteristics of the original
document with minimum alteration. Choose this selection when:
• The lead edge of the document is very different from the rest of
the document (e.g., the lead edge contains a black border).
• Maps with grayscale or color content may copy best in this mode.
• To retain more light color information such as light gray or yellow
NOTE: If Photo is selected as the Original Type, the Off setting
is automatically selected. The contrast can still be adjusted by
pressing the key(s) beneath Image Quality Copy.
(Dark)
Auto (factory default) – The Scanner automatically adjusts the image
NOTE: All three Background Suppression settings can be adjusted further
by changing the contrast setting in the Image Quality Copy area.
Use this setting for documents with a dark background or with
medium contrast between the foreground and background. In this
mode, the background is not suppressed, but the foreground image
is improved to increase the contrast.
quality parameters to obtain the best copy
Copy
The Copy option allows you to darken or lighten the contrast of the copy with
respect to the original document. Press the down arrow key to darken the
contrast. Press the up arrow key to lighten the contrast. The indicator lamp
for the selected contrast setting illuminates. The middle contrast setting is
the factory default setting.
You can use this feature to further adjust the effects of the Type and
Background Suppression selections. The feature operates with all four
Background Suppression modes.
This setting works best for documents on translucent or transparent
media, such as vellum (tracing paper) or film, or with medium levels
(Light)
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 11
of colored background on opaque media or for documents.. Such
documents have a higher contrast between the foreground and
background than dark documents, but less contrast than normal
documents.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 12
g
Getting to know the Synergix Digital Solution (continued)
REDUCTION/ENLARGEMENT
The Reduction/Enlargement area of the Scanner Control Panel allows you
to select one of three reduction/enlargement modes – Auto, Manual, and
Preset. The illustration below depicts the Reduction & Enlargement portion
of the Control Panel.
NOTE: Reduction/Enlargement can only be selected in COPY mode.
Reduction/
Enlar
ement
Auto
Manual
Preset
Auto
Auto automatically adjusts the reduction/enlargement to fit the size of media
selected. To select the Auto mode, press the key beneath
Reduction/Enlargement until the Auto indicator lamp illuminates.
NOTE: The size of the output media must be known in advance for this
feature to operate. Therefore, Auto is not a valid selection if both the Synchro
cut option and the Sheet or Auto media source option are selected. If you
select this combination, an INVALID AUTO COMBINATION status is
displayed.
Manual
Manual allows you to reduce the image captured by the Scanner to as little
as 25% or as much as 400% of the original size before the copy is printed.
To select the Manual mode:
1. Press the key beneath Reduction/Enlargement until the Manual
indicator lamp illuminates. The MANUAL REDUCTION/ENLARGEMENT
screen is displayed.
NOTE: If the indicator lamp is already lit, press the key once to display the
screen.
MANUAL REDUCTION/ENLARGEMENT
ENTER (25.0 – 400.0): 100.0%
2. Enter a reduction/enlargement between 25 and 400. You can select any
value between these limits in 0.1% increments.
3. Press the Enter key to confirm your choice and return to the READY
screen. The READY screen now displays the new reduction/enlargement
percentage.
NOTE: Pressing the Exit key rejects the choice and retains the previous
setting.
Getting to know the Synergix Digital Solution (continued)
Preset
Preset (factory default) allows you to select a predefined reduction or
enlargement percentage.
To select the Preset mode:
1. Press the key under Reduction/Enlargement until the Preset indicator
lamp illuminates. The PRESET REDUCTION/ENLARGEMENT screen is
displayed.
NOTE: If the indicator lamp is already lit, press the key once to display the
screen.
PRESET REDUCTION/ENLARGEMENT
SELECT: 100.0%
2. Press the Previous or Next key until the desired reduction/enlargement
ratio is displayed. The possible choices are any combination of the
following:
• 50%, 100% (default), and 200%
3. Press the Enter key to confirm your choice and return to the READY
screen. The READY screen now displays the new reduction/enlargement
percentage.
NOTE: Pressing the Exit key rejects the choice and retains the previous
setting.
• 65% and 129%, if the ANSI and ARCH sizes are enabled
• 71% and 141%, if the ISO A, ISO B or JIS B sizes are enabled
• Up to six additional preset values, if these values have been defined
using the CUSTOM R/E Presets menu function.
NOTE: Refer to "Media Series" in the "Main Menu" section for more
information about enabling media series and defining custom presets.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 13
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 14
Getting to know the Synergix Digital Solution (continued)
GRAPHICAL DISPLAY AND NAVIGATION KEYS
The middle portion of the Scanner Control Panel contains the graphical
display and the navigation keys. The illustration below depicts the middle
portion of the Control Panel.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0%
Previous Enter Exit ModeMenu
Next
1
Getting to know the Synergix Digital Solution (continued)
GRAPHICAL DISPLAY
The graphical display provides you with information and instructions
pertaining to the system. It consists of up to four lines of text and graphics.
The display can be adjusted upward for better viewing.
NAVIGATION KEYS
The navigation keys, located beneath the display, are used to move through
the menu screens, to select items on the screen, and to specify parameters
when an options screen is displayed. Some keys have more than one
function depending on the screen being displayed at the time. These special
functions are explained in later sections.
Menu
The Menu key invokes the main menu. If a menu screen is already being
displayed, pressing this key exits the menus and directly returns you to the
previous READY state.
Previous
The Previous key highlights the previous item in a displayed list.
Mode
The Mode key is a valid selection only when READY is displayed on the
screen. This key is used to switch between the READY TO COPY mode and
the READY TO SCAN mode. The SCAN mode can be entered only if the
Synergix Digital Solution is configured for use on a network.
Below are examples of the READY screen in COPY and SCAN modes.
NOTE: The copy mode will be disabled and the READY TO COPY screen will
not be accessible when the SCAN OPTION (COLOR) is enabled and a color
printer is connected to the AccXES. When the Scanner is switched on and
initialization is complete the READY TO SCAN screen will be displayed. In
addition, if the SCAN MODE is disabled and a color printer is connected, the
Scanner will be disabled.
READY TO COPY
INSERT DOCUMENT
AUTO
Next
The Next key highlights the following item in a displayed list.
100.0%
1
Enter
The Enter key either confirms the selection of the currently highlighted item
or confirms an entered numeric value.
READY TO SCAN
INSERT DOCUMENT
Exit
The Exit key cancels a selection operation and returns you to a previous
screen. It has other effects, depending upon the specific situation, that are
explained later.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 15
AUTO
TIFF/CCITTG4
1 BIT
400 DPI
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 16
Getting to know the Synergix Digital Solution (continued)
In the COPY mode, the scanned image, or set of images, is printed on the
Printer and then deleted from the hard disk.
In the SCAN mode, the scanned image, or set of images, is stored on the
hard disk for later retrieval over a network by a client running on a remotely
located device. Refer to the "Scanning to the Network" section for more
information about the SCAN mode.
NOTE: The SCAN mode is an optional feature in the 8825 Synergix
Digital Solution. Contact your XES representative for ordering
information.
Getting to know the Synergix Digital Solution (continued)
NUMERIC KEYPAD AND SPECIAL FEATURES/CONTROL KEYS
The right side of the Scanner Control Panel contains a numeric keypad for
entering quantities, keys for selecting other features, and keys for controlling
the scanning and printing of images. To the left of some of the keys are
indicator lamps that illuminate when the associated feature has been
selected.
Batch
Transform
Sample
NUMERIC KEYPAD
The numeric keypad contains the 0 to 9 numeric keys, the decimal key and
the C/CA key.
Numeric (0-9) keys
These keys are used for numeric entry, password entry, and copy quantity
fields.
NOTE: The letters below the numbers are for future use.
Decimal key
This key is used for entering numeric values and string entries for account
number fields.
Sets Build
Finisher
Store/
Recall
Printer
Interrupt
1
4
7
/.
Stop
NOTE: The forward slash (/) to the left of the decimal is for future use.
3
6
9
C/CA
D
E
F
M
N
O
W
X
Y
This key has the following functions:
• When in READY TO COPY mode, one press clears the current copy
count to one. Two presses within one second resets the copy
parameters to the default settings.
C/CA (Clear/Clear All) key
• When in READY TO SCAN mode, pressing this key brings up the
CLEAR SCANNED IMAGE screen.
• When in READY TO BUILD SET mode, pressing this key brings up the
scanned document (Refer to Sets Build key for additional information).
A
2
B
C
G
H
I
P
R
S
J
5
K
L
T
8
U
V
0
Start
• When in the entry state for numeric entry fields, pressing this key acts as
a backspace/delete key. When the last digit is deleted, the numeric field
goes to zero.
• When in password entry and string entry fields, pressing this key acts as
a backspace key. When the last character is deleted, the field is blank.
• When in quantity entry fields, pressing this key clears the field to 1.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 17
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 18
Getting to know the Synergix Digital Solution (continued)
SPECIAL FEATURES KEYS
The special features keys are used to activate, deactivate, or change
parameters associated with special features. An indicator lamp adjacent to
each feature key illuminates whenever the corresponding feature is activated.
The special features keys include the Printer Interrupt, Store/Recall,
Finisher, Sets Build, Batch, Transform, and Sample keys. These keys are
described in detail in the Special features keys section of this guide.
SCAN CONTROL KEYS
The Start and Stop keys control the scanning and printing of images.
Start key
The Start key is used to begin the copy sequence when the AUTOSCAN
feature is not enabled.
If you press the Start key while the status is NOT READY or INVALID AUTO
COMBINATION, the system will beep to indicate an invalid key press. If you
press the Start key while the status is READY TO COPY or READY TO
SCAN, the document is scanned.
NOTE: INVALID AUTO COMBINATION indicates an incompatible
combination of AUTO settings (i.e., Media Selection Source set to Sheet or
Auto, Media Selection Output Format set to Synchro, and
Reduction/Enlargement set to Auto).
Stop key
The Stop key allows you to immediately stop the scanning operation to
prevent damage to the document. Any scanned information is discarded.
The READY screen prompts you to remove the document.
The Printer and the Controller
For information about the Printer and Controller components of the Synergix
Digital Solution and about network connectivity, refer to the documentation
listed below.
The XES Synergix 8825/8830 Printer Operator Manual, 8850 Printer Opertor
Manual, and the XES Synergix 8855 Engineering Printer Operator Manual
contain instructions for installing media and other consumable supplies, as
well as detailed operating instructions for the Printer.
The XES Synergix 8825/8830/8850 Controller Setup Guide and the XES
Synergix 8855 Controller Setup Guide contain details on configuring all the
settings for the Controller.
The XES Synergix 8825/8830/8850/8855 Network Administrator's Guide
contains valuable information about network connectivity and help in
determining network connectivity settings.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 19
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 20
Getting to know the Synergix Digital Solution (continued)
Powering On the Digital Solution
To power on the Digital Solution, you first must switch on the Scan System
and wait for 30 seconds or check that a P is displayed on the status LED in
the back of the Scan System. Then switch on the Controller, then the Printer.
The procedures for powering on the Controller and the Printer vary for the
8825/8830 Digital Solution and the 8855 Digital Solution. Follow the
instructions provided in this section for your system.
Initial power-on
When the Synergix Scan System is present, the DDS parameter must be set
to Enabled in order to enable the copy/scan functionality. If the DDS
parameter is set to Disabled, copy/scan functionality will not be enabled.
The default for this parameter is Disabled. You must ensure that it is set to
Enabled when powering on the Digital Solution for the first time. After setting
the DDS parameter, wait 30 seconds, then power the system off then on.
Once you enable this parameter, it will remain enabled (even following future
software upgrades).
For the Synergix 8825, 8830, and 8850 Digital Solution, you can set this
parameter from either the CONTROLLER CONFIGURATION screen of the
Printer Control Panel or the PRINTER SETUP/Miscellaneous page of the
Web PMT. For the Synergix 8855 Digital Solution, you can only set this
parameter from the Web PMT. Refer to the 8825/8830/8850 Controller
Setup Manual or the Web PMT Printer Manager Tool User Guide for more
information.
Switching on the Scan System
To switch on the Scanner, press the Power On/Off Switch on the back of
the Scanner to the On (I) position as shown below. Wait for 30 seconds or
until a P is displayed on the status LED.
When the Scanner is switched on, the fluorescent lamp inside the Scanner
illuminates immediately. If the lamp does not illuminate, refer to the "Problem
solving" section of this guide.
Getting to know the Synergix Digital Solution (continued)
Switching on the Controller and the Printer
(8825/8830/8850 Digital Solution)
Certain Controllers receive their power from the Printer. They do not have a
separate power switch.
NOTE: Ensure that the Scanner is switched on first and the P. is displayed in
the Status Indicator window.
To power on these Controllers and the Printer, do the following:
1. Switch the Printer Power Switch to the Off (O) position.
2. Switch the Circuit Breaker Switch to the On (I) position.
3. Switch the Printer Power Switch to the On (I) position.
Controller
Circuit
Breaker
Switch
Printer
Power
switch
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 21
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 22
Getting to know the Synergix Digital Solution (continued)
Switching on the Controller and the Printer (8855
Digital Solution)
NOTE: Ensure that the Scanner is switched on first and the P. is displayed in
the Status Indicator window.
The UP8 Controller and the 8855 Printer each have their own power switch.
When powering them on, first power on the Controller and then power on the
Printer.
Controller
Power Switch
Printer
Power Switch
Getting to know the Synergix Digital Solution (continued)

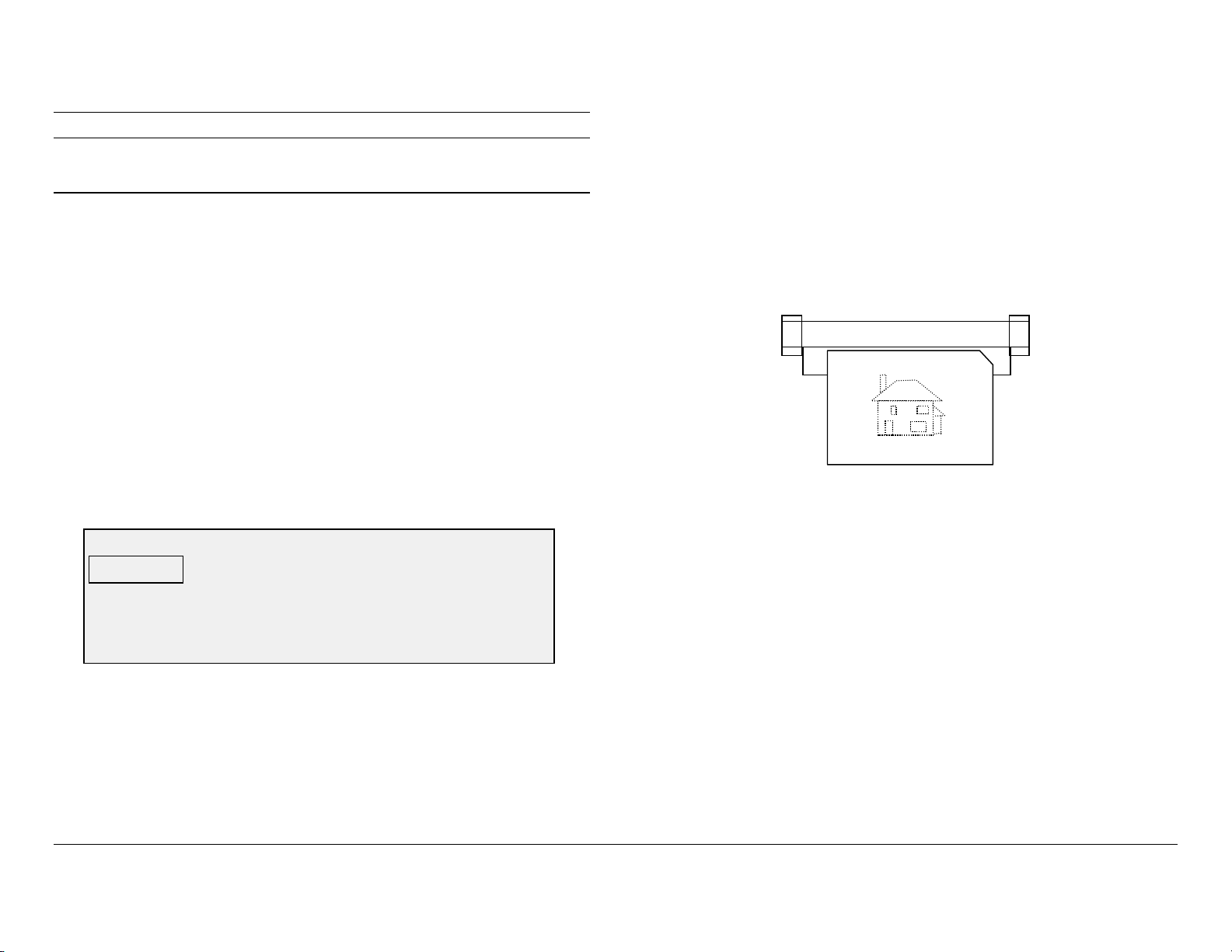

Scanner Warm-up
The Scanner requires about 45 seconds to warm up and initialize after you
power on the Synergix Digital Solution. Once the initialization is complete,
the READY screen is displayed. Below is an example of the READY screen.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0
You can now insert a document into the Document Feed Tray of the Scanner.
The Scanner will then transport the document to the starting position. This
transportation of the document is called staging.
If you cannot insert a document into the feed mechanism and achieve staging
after approximately 4 minutes, refer to the "Problem solving" section of this
guide.
1
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 23
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 24
Getting to know the Synergix Digital Solution (continued)
Powering off the System
To power off the Synergix Digital Solution, do the following:
1. Power off the Controller and the Printer.
• For the 8825/8830/8850 Digital Solution, switch the Circuit Breaker
Switch to the Off (O) position. Then switch the Printer Switch to the
Off (O) position.
• For the 8855 Digital Solution, first power off the Printer. Then power
off the Controller.
2. Switch off the Scanner by pressing the Power On/Off Switch on the
back of the Scanner to the Off (O) position as shown below.
Document quality
appropriate compensation to optimize the reproduction of the dark details. If
the input document has a faded background, the Dynamic IQfeature will
enable a faithful reproduction of the original. However, the faded background
must be inserted with the fading running in the process direction with the
darker side being inserted first.
Document quality is the primary factor in obtaining good copies from scanned
originals. For most documents, the Dynamic IQ feature of the Synergix
Digital Solution provides an accurate copy. Some documents, however,
require manual adjustments to the settings to achieve the best copy quality.
This section explains the Dynamic IQ feature, describes the characteristics of
good quality and bad quality documents, provides tips for preparing and
organizing documents for scanning, and summarizes the procedures for
scanning documents of different quality types.
Dynamic IQ
The Dynamic IQfeature of the Synergix Digital Solution eliminates the need to
make additional manual adjustments for most input documents. Refer to
Menu, Configuration, Scanner Control to enable/disable this feature
Dynamic adjustment of copy quality
This feature allows the system to dynamically adjust itself for each document.
There are two modes associated with this feature:.
• When Dynamic IQ is enabled, the image is continually monitored as it is
being scanned and the copy quality parameters adjusted to achieve the
best copy quality.
In some cases, you may wish to optimize the settings for individual
documents. For example, you may not wish to faithfully reproduce paste-up
lines, or other artifacts on the original. For this reason, additional controls are
available for selection of document type, document image quality, desired
output darkness, and background suppression.
The Dynamic IQfeature, when enabled, uses information about the document
captured during the scanning process to set image quality settings. The
system automatically adjusts for the darkness of the background and the
image content through out the length of the document. When not enable, it
only uses the information in a 0.70 (17.8 mm) area over the width of the
document to establish the image quality settings. Therefore, best results can
be obtained if the document is fed in with an edge that has a representative
sampling of both the background and the foreground image.
The Dynamic IQ™ feature provides an accurate copy for most documents
including blueline, blueprints, color line art/text, and mixed documents
containing combinations of halftone and art, or photograph and art. For
documents with inverted images, the INVERT function should be enabled.
Refer to "Inverting an image" in the "Special features keys" section for
instructions on the INVERT function.
• When Dynamic IQ is not enabled, the process takes a 0.70 inch (17.8
mm) snapshot over the full width of the image after the first 1.5 inches
scanned. It uses this fixed area to set the copy parameters for the
remainder of the image being scanned
Dynamic Background Suppression only monitors the document in the
process direction, from the lead edge to the trail edge. It cannot make
adjustment from the left side to the right side of the document. For example,
if the input document is dark, Dynamic IQwill automatically make the
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 25
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 26
Automatic edge detection and document centering
The AUTOWIDTH and AUTOCENTER features enable the system to
automatically detect the width and center of the document. In cases such as
transparencies or translucent documents where automatic detection is not
possible, the System will prompt you to enter the width manually. You then
must center the document before inserting it into the Scanner.
You can enable/disable the AUTOWIDTH/CENTER feature at any time.
Refer to "Scanner Control" in the "Main Menu" section for more information.
Document quality (continued)
Determining document quality
Some documents require additional adjustments to obtain the best copy
quality. Documents of good quality are easy to scan and usually give good
copies on the first attempt. Documents of bad quality may require more than
one attempt, using different settings, to obtain the best copy quality.
What is a good quality document?
Background
Foreground
4"
4"
• If the document is white on black or white on blue, the foreground is clear
white or nearly white, and the background is a solid, high-density black or
dark color.
• The background is white or light-colored and is free of speckling or other
noise. The background density is uniform.
• The document has no creases, folds, stains, tears or extraneous marks
that the Scanner might interpret as foreground.
What is a bad quality document?
Bad quality documents often require special attention to achieve a usable
image. Fortunately, the Synergix Digital Solution incorporates special image
processing technology that can extract acceptable images from documents
degraded by many kinds of problems.
A bad quality document has one or more of the following problems:
• The foreground is light (e.g., a faded or overexposed blueprint or light
pencil lines).
A good quality document has all of these characteristics:
• The contrast between the foreground (the image of interest) and the
background is high. The foreground may be color or black.
• The foreground is a solid, high-density black or dark color (or dark blue
on a blueline, or dark brown on a sepia). The foreground density is
uniform. There is only one kind of foreground (e.g., there are no pencil
additions on ablueline). If the document is of mixed type, the foreground
is color.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 27
• The foreground has variable density (i.e., some parts are dark and some
parts are light).
• The foreground consists of two or more densities or colors (e.g., pencil
additions on an ink drawing, or pencil or ink additions on a sepia).
• The background is medium dark or dark (e.g., underexposed blueprint).
• The background has variable density.
• The background has speckles.
• The document has creases, folds, stains, tears, or extraneous marks that
the Scanner might interpret as foreground.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 28
Document quality (continued)
Preparing documents
When preparing documents for scanning, keep the following points in mind:
If documents have been stored rolled up, flatten them out. They will be much
easier to handle if they have been stored flat for at least eight hours. The
longer that documents have been stored flat, the easier it will be to scan
them. Rolled-up documents will typically roll back up after being
scanned.
If possible, sort the documents you are going to scan according to these
guidelines:
− First, group the documents by media type -bond, vellum or film.
Within each document type, you can further group the documents by
image type (e.g., blueprint, pencil, sepia, line, photo, mixed (photo
and line, blueline and pencil), and so forth).
Line documents contain lines or text against a highly contrasted
background.
Photo documents are continuous-tone or grayscale images.
Mixed/Custom documents contain both line elements and photo
elements or halftone images.
− Next, determine if any of the documents are inverted (i.e., white or
light foreground against dark background). If any documents are
inverted, refer to "Inverting an image" in the "Special features keys"
section.
− Finally, sort the documents by size. This minimizes the number of
times you will need to change the Media Selection Output Format
settings when using preset or custom format sizes.
Scanning groups of documents of the same type minimizes the
number of changes you will need to make to the Image Quality
settings.
− Next, divide the documents in each media type group into "good" and
"bad" piles based on your evaluation of their foreground and
background quality. See "What is a good quality document?" and
"What is a bad quality document?" in this section for assistance in
doing so.
By grouping the documents in this way, you can scan the good
quality documents first. Then you can focus on the bad quality
documents, which will require more attention.
Document quality (continued)
Scanning strategies
When scanning documents, always try the default image processing settings
first. Select the document type – Line, Photo, or Mixed/Custom and use the
default settings for that type. These settings have been designed to give the
optimum image quality for most documents.
If you have a special original type, you may want to try some of the advanced
image processing features available on the Scanner. Table 2 on the next
page describes the scanning strategies for special original types.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 29
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 30
Document quality (continued)
Table 2. Scanning strategies for special documents
Type of original First step to try Second step to try Third step to try
Color photograph
Color lithograph
Color map
Old blueprint or sepia with dark
background
Old blueprint or sepia with dark
background and side-to-side fading
Faded line/text drawing
Line, Photo, or Mixed/Custom original
on film, clear film, vellum/tracing or
other translucent media
Film original with banding in
background area
Film original with blurred text or gray
shadows
Set Original Type to Photo. Set Original Type to Mixed/Custom
and Background Suppression to
Off.
Set Original Type to Mixed/Custom
and Background Suppression to Off.
Set Original Type to Line and
Background Suppression to Off.
Set Original Type to Line,
Background Suppression to dark
original, and Transform, Invert to ON.
Set Original Type to Line and
Background Suppression to Auto.
Set Original Type to Line and
Background Suppression to Auto.
Set Background Suppression to
(light).
Set Background Suppression to
(light).
Set Background Suppression to
(light) and Type to Line or
Mixed/Custom.
Set Original Type to Line and
Background Suppression to Off.
Set Original Type to Mixed/Custom
and Background Suppression to
Off.
Set Original Type to Line and
Background Suppression to Auto.
If fade is still visible in the copy,
rotate the original 90 degrees.
Generally, feeding the darkest edge
first provides the best results.
If fade is still visible in the copy,
rotate the original 90 degrees.
Set Original Type to Line and
Background Suppression to Off.
Set Original Type to Photo.
Adjust the Copy contrast as
required for best image quality.
Adjust the Copy contrast as
required for best image quality.
Adjust the Copy contrast as
required for best image quality.
In reduction, use line suppression.
Making copies
AUTOSCAN enabled is the default setting. Normally, the AUTOSCAN mode
is enabled. When it is enabled, the Scanner automatically begins the
scanning of a document when the document is inserted. If AUTOSCAN is
disabled, the Scanner transports the document to the starting position and
then waits for you to press the Start key before beginning the scan.
When the Graphical Display indicates READY TO COPY, the Synergix Digital
Solution is ready to make copies.
Controlling the scan
Several settings are available for controlling how the Scanner starts and
finishes a scan. These settings are accessible from the SCANNER
CONTROL option of the CONFIGURATION menu.
When making a copy, you need to be aware of these settings. If any of these
settings have been changed from the default settings, the Scanner may not
operate according to your expectations.
Below is a brief summary of the scan control settings. For complete
information about these settings, refer to "Scanner Control" in the "Main
Menu" section.
DOCUMENT RETURN
FRONT is the default setting. When the DOCUMENT RETURN feature is
set to FRONT, the Scanner returns the document to the front or READY
position at the completion of the scan. W hen the DOCUMENT RETURN
feature is set to REAR, the Scanner delivers the document to the rear
Stacker at the completion of the scan.
NOTE Some documents will always exit to the rear at the completion of
the scan regardless of the DOCUMENT RETURN setting. These
documents include:
AUTOWIDTH
AUTOWIDTH enabled is the default setting. W hen AUTOWIDTH is enabled,
the Scanner automatically detects the width of the document. W hen
AUTOWIDTH is disabled, you must enter the width of the document
manually, and very carefullly center the document when inserting it into the
Scanner.
AUTOCENTER
AUTOCENTER enabled is the default setting. When AUTOCENTER is
enabled, the Scanner automatically centers the image. When
AUTOCENTER is disabled, you must carefully center the document during
insertion into the Scanner.
• Thick documents
• Documents longer than 5 feet
(1.52 meters)
• Very wide documents that cover both document width sensors
AUTOSCAN
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 31
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 32
Making copies (continued)
Making a copy with the default settings
When the default document settings are used, the display indicates that the
roll of media that best fits the size of the original document will be
automatically selected. The reduction/ enlargement setting is 100%, so the
copy will be the same size as the original document. The copy quantity is set
to 1.

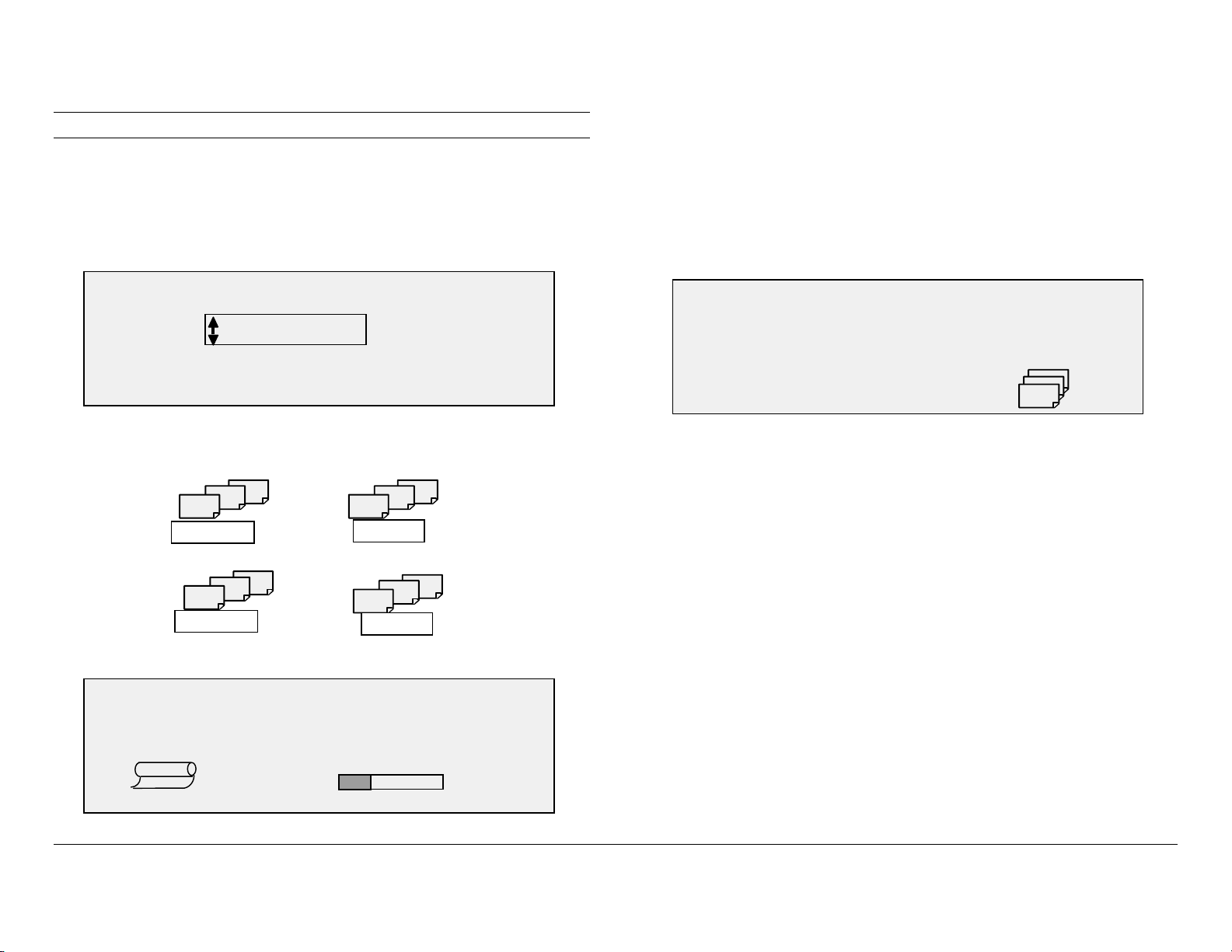

The illustration below shows the READY screen in its default state.
READY TO COPY
INSERT DOCUMENT
AUTO
100.0
NOTE: Many document settings other than the default settings are possible.
For example, the options keys on the Scanner Control Panel allow you to
control the media selection, image quality and reduction/enlargement
percentage. The Transform special features key allows you adjust the
margins around the image, specify the position of the image on the media,
and transform the image into a mirror and/or inverted image. Refer to the
applicable sections of this guide for detailed information about the many
document settings available to you.
1
To make a copy using the default document settings:
1. Insert the original document face down and centered on the Document
Feed Tray of the Scanner.
NOTE: If the document is not exactly centered and the AUTOCENTER
feature is enabled, the Synergix Digital Solution will automatically correct the
problem electronically. The resulting image will still be correctly positioned on
the output media. If AUTOCENTER or AUTOWIDTH is disabled, you will
need to carefully center the document when inserting it. Refer to "Controlling
the scan" on the previous page.
2. Gently move the document forward until the lead edge engages the feed
rolls. The Scanner transports the document to the starting position. It
then scans the document. The resulting image is electronically sent to
the Printer and your copy is printed.
NOTE: If AUTOSCAN is disabled, you will need to press the Start key to
begin the scan. Refer to "Controlling the scan" on the previous page.
3. When the document is returned to the READY position, do one of the
following:
• Pull the document to remove it. Lift the Thick Document Lever to
remove fragile or thick documents.
• Press the Start key on the Scanner Control Panel to scan the
document again.
NOTE: If DOCUMENT RETURN is set to REAR, the document is delivered
to the rear Stacker. Some documents exit to the rear Stacker regardless of
the DOCUMENT RETURN setting. Refer to "Controlling the scan" on the
previous page.
Making copies (continued)
Making a copy the same size as the original document
1. Set the Media Selection Source to Auto. The Auto indicator lamp
illuminates. This setting allows the Synergix Digital Solution to
automatically select the available media roll that best fits the image width.
NOTE: If the correct media size is not loaded, the next larger size will be
used.
2. Select the Media Selection Type. The default setting is Bond.
3. Set the Media Selection Output Format to Synchro. This setting cuts
the media to the same length as the original document.
4. Set Reduction/Enlargement to Preset. If the size is not already set to
100%, use the Previous and Next keys to select a reduction and press
the Enter key.
5. Insert the document face down into the Scanner. If the scan does not
start automatically, press the Start key.
NOTE: To set the scan to begin automatically, refer to "Scanner Control" in
the "Main Menu" section.
NOTE: If the Synergix Digital Solution must rotate the image to fit on the
selected media size, additional processing time is required. If possible, feed
the original image so that no image rotation is required. This will achieve the
fastest processing time.
The Scanner scans the document and the Printer (if not already busy) prints
the copy immediately. If the Printer is busy when the scan is made, the copy
will be printed when the Printer becomes available.
When the Scanner detects the trail edge of the document, the Printer
automatically cuts the media so that the copy is the same length as the
original document.
For example, if an A-size copy is required on a 12-inch (30.48 cm) roll, feed
the original with the short edge first, not the long edge first. If a B-size copy is
required on a 17-inch roll, feed the document with the long edge first, not the
short edge first.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 33
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 34
Making copies (continued)
Fitting the image to a fixed copy size
The Synergix Digital Solution can automatically fit the scanned image onto a
predefined size of media.
1. Set the Media Selection Source to Auto. The Auto indicator lamp
illuminates. This setting allows the Synergix Digital Solution to
automatically select the available media roll that best fits the image width.
2. Select the Media Selection Type of media. The default setting is Bond.
3. Set the Media Selection Output Format to Preset and select the
desired page size. This setting cuts the media to a previously defined
length that the operator chooses.
PRESET OUTPUT FORMAT
SELECT 8.5 X 11 ANSI A
4. Press the Previous or Next key until the desired output size is
highlighted.
5. Press the Enter key to confirm your choice.
6. Set the Reduction/Enlargement to Auto.
7. Insert the document face down into the Scanner. If the scan does not
start automatically, press the Start key.
NOTE: To set the scan to begin automatically, refer to "Scanner Control" in
the "Main Menu" section.
The Scanner scans the document, and the Printer (if not already busy)
prints the copy immediately. If the Printer is busy when the scan is made,
the copy will be printed when the Printer becomes available.
Making copies (continued)
Scanning when using a Folder
When using a Folder, the document must be inserted in the Scanner with the
title block positioned as shown in Table 3 on the next page in order to have
the title block visible after the copy is folded. To ensure that the correct size
fold is obtained, use the paper roll width indicated in the Recommended
Printer Media Roll Width column.
Documents larger than 80 inches (2.1M) can only be partially folded.
When using the Reduction/Enlargement feature and a Folder, you must
orient and insert the document title block in the same orientation as the
resulting enlargement or reduction copy size. In addition, the recommended
media should be used.
For example: the job requires that an A (A4) document be enlarged to a C
(A2) document. To have the title block be visible after folding, the A (A4)
document must be inserted as if it were a C (A2) document. Refer to Table 3
on the next page.
To ensure that the copy is folded correctly, and will not jam in the Folder, it is
recommended that you only select standard reductions and enlargements
(e.g., A to C, A to E, B to D, A4 to A2, A4 to A0, A3 to A1, etc.). These
selections are identified in Table 3 by the document icon. Those areas that
are blank are not recommended because the title block may not be visible
after the folding is complete. You may want to refer to "Custom R/E Presets"
in the "Main Menu" section, and set up the Reduction/Enlargement default to
show the standard reduction and enlargement shown in Table 3. Set the
reduction /enlargement to display A to C (A4 to A2) above the keys.
For additional folding information, refer to the Folder Operator Manual.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 35
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 36
Scanning when using a Folder (continued)
Table 3. Document title block orientation
OUTPUT STANDARD SIZES
E/A0 D/A1 C/A2 B/A3 A/A4
Input Title
Block
Position
Recommended
Printer Media Roll
Width
Input
Title
Block
Position
Recommended
Printer Media
Roll Width
Input Title
Block
Position
Recommended
Printer Media
Roll Width
Input
Title
Block
Position
Recommended
Printer Media
Roll Width
Input Title
Block
Position
Recommende
d Printer
Media Roll
Width
ANSI ARCH ANSI ARCH ANSI ARCH ANSI ARCH ANSI ARCH
R/E=100%
I
E/
N
A0
P
34 36 17 18
R/E=50%
Feed
Direction
U
T
Title Block
S
D/
T
A1
A
R/E=100%
22 24 11 12
R/E=50%
N
D
A
R/E=200%
R
D
C/
34 36 17 18 11 12
R/E=100%
R/E=50%
A2
S
I
22 24 11 12
Z
E
S
B/
R/E=200%
R/E=100%
A3
A/
A4
R/E=400%
34 36 17 18 11 12
R/E=200%
R/E=100%
Scanning oversized documents
An oversized document is defined as any document that is larger in width or
length than a standard E-size (A0) document.
LONG DOCUMENTS
Operator assistance will be required to guide and control the position of a
long document to prevent it from skewing or moving from side-to-side as it
feeds through the scanner.
WIDE DOCUMENTS
Documents wider than 36 inches (914 mm) but less than 42 inches (1057
mm) can be scanned. However, the scanned image area, of a document
centered on the Feed-in Shelve, is 36 inches (914 mm). Any image beyond
the 36 inch (914 mm) width will be clipped off on the output copy.
When a document wider than 36 inches (914 mm) is inserted into the
Document Handler, a message will be displayed to enter the scan width. To
scan the document, enter 36 in.(914 mm) then press the Enter key to start
the scan. A number larger than 36 (914) will not be accepted.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 37
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 38
Special features keys
The Synergix Digital Solution has many enhanced features for making copies
that meet special needs. The keys that control these features are on the right
side of the Scanner Control Panel.
To enable a feature, press the applicable key. If the feature has an
associated screen, that screen is displayed when the key is pressed. If any
settings are changed from the default state, the corresponding indicator lamp
next to the key illuminates. Pressing the C/CA key on the numeric keypad
twice returns all settings for the feature to the default state and the
corresponding indicator lamp is extinguished.
When the settings for a feature are appropriately set, pressing the same
feature key causes the changes to be accepted and the system returns to the
READY state. Pressing a different feature key while editing a setting is
invalid and causes a beep. Pressing a different feature key while not editing
a setting causes the requested feature screen to be displayed.
If a feature has no associated screen, pressing that feature key switches the
feature on (enabled) or off (disabled). When such a feature is enabled, the
corresponding indicator lamp is illuminated.
If the BEEP function (factory default) is enabled, a beep sound will be heard
when a key is pressed. If an improper key is pressed, a multiple beep sound
will be heard.
Batch
Sets Build
Finisher
Store/
Recall
Printer
Interrupt
Transform
1
G
4
H
I
P
7
R
S
/.
Stop
Sample
3
6
9
C/CA
D
E
F
M
N
O
W
X
Y
A
2
B
C
J
5
K
L
T
8
U
V
0
Start
The illustration to the right depicts the special features portion of the Scanner
Control Panel.
Special features keys (continued)
Printer Interrupt key
Jobs on the Synergix Digital Solution have the following priority:
1. Any job currently printing
2. A copy job that is ready to print
3. A remote print job.
If a remote print job is in progress, a copy job (one or more images captured
by the Scanner), cannot normally use the Printer until the remote print job has
finished. The Printer Interrupt key enables you to switch the copy priority
from normal to high.
To process a copy job immediately, press the Printer Interrupt key. The
Printer Interrupt indicator lamp illuminates. The current pages of the most
current remote print job are completed. Usually a maximum of two pages are
printed. The print job is then suspended and you can run copy jobs. When
the copy jobs are finished, you can press the Printer Interrupt key again.
The Printer Interrupt indicator lamp is extinguished. The interrupted remote
print job resumes.
If you send no more copy jobs, press no keys, and scan no documents, the
Printer Interrupt feature is automatically disabled after a time set by the
PRINTER INTERRUPT timer. Refer to "Timers" in the "Main Menu" section
for instructions about how to set this value. The default value is 1 minute. It
can be set to a value between 1 and 99 minutes.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 39
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 40
Special features keys (continued)
Store/Recall key
The Store/Recall feature contains the following menu choices:
• LAST JOB – Enables you to recall and reuse the information from the
last copy job.
• JOB TEMPLATES – Enables you to save the settings from previous jobs
in memory as templates.
• SAVE DEFAULT TEMPLATE – Enables you to save the settings from
the current job as the default template.
• RECALL FACTORY DEFAULTS – Enables you to recall the factory
default settings as the active default settings.
To access the STORE/RECALL menu:
1. Press the Store/Recall key. The STORE/RECALL menu screen is
displayed. The black arrows indicate that the menu contains more
options than are visible. The selected option is highlighted.
STORE/RECALL
LAST JOB
JOB TEMPLATES
SAVE DEFAULT TEMPLATE
Last Job
The LAST JOB option of the STORE/RECALL menu provides a sub-menu of
the following choices:
• RECALL LAST JOB - Enables you to recall and reuse the parameters,
images, and features associated with the last copy job. You can either
reprint the last job or print a new job using all of the recalled settings. If
you desired, the recalled settings could be changed without scanning the
job again.
• DELETE LAST JOB – Enables you to delete the information from the last
job.
NOTE: In the SCAN mode, the Last Job option is not available.
To access the LAST JOB menu:
1. Press the Store/Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Enter key to select LAST JOB. The LAST JOB menu screen
is displayed. The selected option is highlighted.
LAST JOB
RECALL LAST JOB
DELETE LAST JOB
2. Press the Previous or Next key to scroll through the list of options.
3. When the desired option is highlighted, press the Enter key to select the
option. The menu or screen for the selected option is displayed.
3. Press the Previous or Next key to highlight the desired option.
4. Press the Enter key to select the highlighted option. The screen for the
selected option is displayed.
Special features keys (continued)
A
RECALLING THE LAST JOB
DELETING THE LAST JOB
If, for security reasons, the parameters and images of the last job should not
be left stored, use the DELETE LAST JOB option.
Use the RECALL LAST JOB option to recall the information from the last job.
To recall the last job information:
1. Press the Store/Recall key. The Store/Recall menu screen is displayed.
2. Press the Enter key to select LAST JOB. The LAST JOB menu screen
is displayed.
3. Press the Enter key to select RECALL LAST JOB. The screen shown
below is displayed.
COPIER PARAMETERS AND IMAGES
FOR LAST JOB RECALLED
PRESS ENTER TO CONTINUE
4. Press the Enter key to return to the READY screen.
You can now use the settings as they have been recalled, or you can
change one or more of them.
NOTE: The recalled job must be printed or cleared before the next document
can be scanned. If there is no last job to be restored, as is the case at power
up or after the last job has been deleted, a warning message will advise you.
To delete the information from the last job:
1. Press the Store/Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Enter key to select LAST JOB. The LAST JOB menu screen
is displayed.
3. Press the Next key to highlight DELETE LAST JOB.
4. Press the Enter key to select DELETE LAST JOB. A delete confirmation
screen is displayed. The default response is NO.
DELETE LAST JOB
RE YOU SURE?: NO
5. Press the Previous or Next key to change the response to YES.
6. Press the Enter key to confirm the deletion. The screen shown below is
displayed. The last job images and parameters are deleted.
JOB PARAMETERS AND IMAGES
FOR LAST JOB DELETED
PRESS ENTER TO CONTINUE
7. Press the Enter key to return to the READY screen.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 41
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 42
Special features keys (continued)
Job Templates
The JOB TEMPLATES option of the STORE/RECALL menu provides a submenu of the following choices:
• RECALL TEMPLATE - Enables you to recall saved settings.
• SAVE TEMPLATE – Enables you to save job settings in memory.
• DELETE TEMPLATE – Enables you to delete saved settings.
To access the JOB TEMPLATES menu:
1. Press the Store/Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB TEMPLATES
menu screen is displayed. The selected option is highlighted.
JOB TEMPLATES
RECALL TEMPLATE
SAVE TEMPLATE
DELETE TEMPLATE
5. Press the Previous or Next key to highlight the desired option.
6. Press the Enter key to select the highlighted option. The screen for the
selected option is displayed.
Special features keys (continued)
RECALLING JOB TEMPLATES
The RECALL TEMPLATE option allows you to recall job parameters that
were previously saved as templates and use them for the current job.
6. Press the Enter key to confirm your choice. A recall confirmation screen
is displayed. The associated template is recalled and the Scanner
Control Panel settings are configured accordingly.
JOB PARAMETERS RECALLED
To recall a template:
1. Press the Store/ Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB TEMPLATES
menu screen is displayed.
4. Press the Enter key to select RECALL TEMPLATE. The RECALL
TEMPLATE screen is displayed. The storage locations that actually
contain templates are shown. Locations that do not contain a template
are not shown.
Below is an example of the RECALL TEMPLATE screen.
RECALL TEMPLATE
TEMPLATES IN USE:12345
ENTER TEMPLATE NUMBER 0
5. Use the numeric keypad to enter the location of the template to be
recalled.
PRESS ENTER TO CONTINUE
You can now use the parameter settings as they have been recalled, or
you may change some of them.
NOTE: If you change any of the Image Quality settings (i.e., document type,
background suppression, or copy contrast) or if you want to invert the image,
an error message will advise you to rescan the image. You must rescan the
image to change any image quality settings for a job that has been recalled.
7. Press the Enter key to return to the READY screen.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 43
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 44
Special features keys (continued)
SAVING JOB TEMPLATES
The SAVE TEMPLATE option allows you to save groups of settings
associated with a job in memory as templates. Up to nine such templates
can be saved.
To save a job template:
1. Press the Store/ Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB TEMPLATES
menu screen is displayed.
4. Press the Next key to highlight SAVE TEMPLATE.
5. Press the Enter key to select SAVE TEMPLATE. The SAVE TEMPLATE
screen is displayed. It shows the unused template locations. Locations
that contain a template already are not shown.
Below is an example of the SAVE TEMPLATE screen.
SAVE TEMPLATE
UNUSED TEMPLATES: 6 7 8 9
ENTER TEMPLATE NUMBER: 0
7. Press the Enter key to confirm your location choice. The settings from
the current copy job are saved at the location entered and a save
confirmation screen is displayed.
JOB PARAMETERS SAVED
PRESS ENTER TO CONTINUE
NOTE: You can replace the contents of a used location with the current job
settings information. If you choose a location that already contains
information, the TEMPLATE IS IN USE screen is displayed as shown below.
Press the Enter key to overwrite the contents. Press the Exit key to cancel
the operation.
TEMPLATE IS IN USE
PRESS ENTER TO CONTINUE
EXIT TO ABORT
8. Press the Enter key to return to the READY screen.
6. Choose an unused location and use the numeric keypad to enter its
location.
Special features keys (continued)
DELETING JOB TEMPLATES
Use the DELETE TEMPLATE option to delete previously saved templates.
Doing so leaves the template location blank and available to use again.
Once a template has been deleted, it cannot be recalled.
To delete a saved template:
1. Press the Store/ Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Next key to highlight JOB TEMPLATES.
3. Press the Enter key to select JOB TEMPLATES. The JOB TEMPLATES
menu screen is displayed.
4. Press the Next key until DELETE TEMPLATE is highlighted.
5. Press the Enter key to select DELETE TEMPLATE. The DELETE
TEMPLATE screen is displayed. This screen indicates the locations for
the templates currently in use. Locations that do not contain a template
are not shown.
Below is an example of the DELETE TEMPLATE screen.
6. Use the numeric keypad to enter the location of the template to be
deleted, then press the Enter key. The deleted location is removed from
the list in the DELETE TEMPLATE screen and the contents of that
location are deleted.
You can now select other locations to be deleted in the same way.
7. If no more locations are to be deleted, press the Exit key to return to the
READY screen.
DELETE TEMPLATE
TEMPLATES IN USE: 1 2 3 4 5
ENTER TEMPLATE NUMBER: 0
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 45
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 46
Special features keys (continued)
Save Default Template
The SAVE DEFAULT TEMPLATE option of the STORE/RECALL menu
enables you to save the settings for the current job as the default settings.
Each additional job will then have these settings established as the default
selections.
To save the current job settings as the default template:
1. Ensure that all the options under Media Selection, Image Quality, and
Reduction & Enlargement are set as desired. Make any necessary
changes.
2. Press the Store/Recall key. The STORE/RECALL menu screen is
displayed.
3. Press the Next key until SAVE DEFAULT TEMPLATE is highlighted.
4. Press the Enter key to select SAVE DEFAULT TEMPLATE. A
confirmation screen is displayed indicating that the job parameters have
been saved.
JOB PARAMETERS SAVED
PRESS ENTER TO CONTINUE
Recall Factory Defaults
The factory default job settings are permanently stored in memory. The
RECALL FACTORY DEFAULTS option of the STORE/RECALL menu
enables you to recall the factory default settings as the active default settings.
To recall the factory default settings:
1. Press the Store/ Recall key. The STORE/RECALL menu screen is
displayed.
2. Press the Next key until RECALL FACTORY DEFAULTS is highlighted.
3. Press the Enter key to select RECALL FACTORY DEFAULTS. The
factory default settings are immediately recalled. A confirmation screen
is displayed.
JOB PARAMETERS RECALLED
PRESS ENTER TO CONTINUE
4. Press the Enter key to return to the READY screen.
5. Press the Enter key to return to the READY screen.
Special features keys (continued)
Finisher key
A finishing device, such as a folder, can be connected to the Synergix Digital
Solution. If such a device is connected, the Finisher key enables or disables
that device.
To enable/disable a finishing device:
1. Press the Finisher key. The Finisher indicator lamp illuminates and the
FINISHER menu screen is displayed. The black arrows indicate that the
menu contains more options than are visible. The selected option is
highlighted.
FOLD PROGRAM
OVERLENGTH OPTIONS
TAB OPTIONS
NOTE: If no finishing device is connected, pressing the Finisher key
produces the error message shown below.
FINISHER OPTION
IS NOT AVAILABLE
FINISHER
FINISHER
When a set is being built, the finisher options cannot be changed and
pressing the Finisher key is invalid. The error screen shown below is
displayed. Enable the finisher and select the finisher options either before
selecting the Sets Build option or after the set has been built.
FINISHER
FINISHER OPTION CANNOT BE CHANGED
DURING SETS BUILD OPERATION
For either error screen, press the Exit key to return to the READY screen.
The Finisher indicator lamp is extinguished
2. Press the Previous or Next key to scroll through the list of options.
3. When the desired option is highlighted, press the Enter key to select the
option. The screen for the selected option is displayed. See the next
page for an illustration and description of each option. Also refer to the
Folder User Documentation for additional information on the available
folding options.
4. Press the Previous or Next key to scroll through the choices for the
selected option.
5. When the desired choice is highlighted, press the Enter key to confirm
your selection.
6. Repeat steps 4 and 5 if you want to change a setting for any other
options.
7. Press the Exit key to return to the READY screen.
8. To disable the finisher, press the Finisher key again. The Finisher
indicator lamp is extinguished.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 47
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 48
Special features keys (continued)
Finisher menu options
Below are descriptions of each of the Finisher menu options. Refer to the
Finisher user documentation for additional information on these options.
FOLD PROGRAM
The FOLD PROGRAM option enables you to select one of up to 20 userdefined programs. The program names are programmed into the finisher
and passed to the Controller when the finisher goes through its power-up
sequence.
FOLD PROGRAM
PROGRAM: USER PROGRAM NAME
OVERLENGTH OPTIONS
The OVERLENGTH OPTIONS option enables you to specify how long
documents (documents over 80 inches long) are handled by the folder. The
choices are NO FOLD and Z-FOLD. If NO FOLD is selected, the long
document will not be folded. If Z-FOLD is selected, the long document will be
Z-FOLDED, but not cross-folded. NO FOLD is the factory default setting.
TAB OPTIONS
The TAB OPTIONS option enables you to override the pre-programmed tab
settings for the selected finishing program. The choices are ALWAYS ON,
ALWAYS OFF, and USE PROGRAM SETTING. USE PROGRAM SETTING
is the factory default setting.
TAB OPTIONS
TAB: USE PROGRAM SETTING
PUNCH OPTIONS
The PUNCH OPTIONS option enables you to override the pre-programmed
hole punch settings for the selected finishing program. The choices are
ALWAYS ON, ALWAYS OFF, and USE PROGRAM SETTING. USE
PROGRAM SETTING is the factory default setting.
PUNCH OPTIONS
PUNCH: USE PROGRAM SETTING
OVERLENGTH OPTIONS
OVERLENGTH: NO FOLD
Special features keys (continued)
MARGIN OPTIONS
The MARGIN OPTIONS option enables you to override the pre-programmed
margin settings for the selected finishing program. The choices are ALWAYS
OFF and USE PROGRAM SETTING. Note that ALWAYS ON is not an
available setting. USE PROGRAM SETTING is the factory default setting.
MARGIN OPTIONS
MARGIN: USE PROGRAM SETTING
CROSSFOLD OPTIONS
The CROSSFOLD OPTIONS option enables you to override the preprogrammed crossfold settings for the selected finishing program. The
choices are ALWAYS ON, ALWAYS OFF, and USE PROGRAM SETTING.
USE PROGRAM SETTING is the factory default setting.
CROSSFOLD OPTIONS
CROSSFOLD: USE PROGRAM SETTING
TITLE BLOCK LOCATION
The TITLE BLOCK LOCATION option enables you to specify the location of
the title block for the copy jobs that are about to be run. The choices are
BOTTOM RIGHT, BOTTOM LEFT, TOP RIGHT, and TOP LEFT. BOTTOM
RIGHT is the factory default setting.
TITLE BLOCK LOCATION
TB LOCATION: BOTTOM RIGHT
OUTPUT BIN
The OUTPUT BIN option enables you to specify which finisher output bin to
use for the finished output. The choices are DON’T CARE, BIN X (where X
equals 1 to the actual number of finisher bins), FANFOLD, and BYPASS.
BYPASS is the factory default setting.
OUTPUT BIN
OUTPUT BIN: BYPASS
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 49
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 50
Special features keys (continued)
Sets Build key
The Sets Build mode allows you to scan a series of images and build an
electronically collated set. Once the set is built, one or more collated copies
can be printed.
NOTE: The Sets Build mode is not available unless the Synergix Digital
Solution is in the COPY mode.
If the set is to be processed by a finishing device, such as a folder, press the
Finisher key and configure the options for the finishing device before enabling
the Sets Build option. While the Sets Build mode is active, the finisher
options cannot be changed.
Preparing to build the set
In Sets Build mode, documents of C (A2) size and larger are normally
delivered to the rear of the Scanner after the scan. If the DOCUMENT
RETURN parameter is set to REAR, then all documents are delivered to the
rear after scanning. The Synergix Scan Digital Solution is equipped with a
document catching device, called the Stacker, to receive these documents.
Refer to "Scanner Control" in the "Main Menu" section for further information
about the DOCUMENT RETURN parameter.
Special features keys (continued)
Building and printing the set
To build a collated set:
1. Press the Sets Build key. The Sets Build indicator lamp illuminates and
the SETS BUILD screen is displayed.
SETS BUILD
COLLATION: FORWARD
4. Insert each document of the set one at a time into the Scanner as
prompted by the display. As the documents are scanned, the amount of
memory used is shown in the rectangular graphical display.
NOTE: You can select reduction/enlargement and copy quality settings for
each sheet prior to scanning that sheet.
5. When the set is completely scanned, press the Sets Build key again.
The Sets Build indicator lamp is extinguished when the Start key is
pressed then the READY TO PRINT SET screen is displayed.
READY TO PRINT SET
PRESS START TO PRINT
100.0
3
2. Press the Previous or the Next key to select FORWARD or REVERSE
collation.
FORWARD prints the collated set in the order that the sheets were
scanned.
3
SCANNED
REVERSE prints the set in the reverse order that they were scanned.
3
SCANNED
3. Press the Enter key to confirm your choice. The READY TO BUILD SET
screen is displayed.
1
2
1
2
3
PRINTED
1
PRINTED
1
2
3
2
6. If desired, you can now make further changes to the Media Source
selection and the Reduction/Enlargement value. Any such change will
be applied to that printing of the entire set.
7. Enter the number of copies desired and press the Start key. The Printer
prints the number of sets requested.
After the printing of the set, the set can be recalled, the values changed
again, and the set reprinted using the new values. To recall the set, refer
to "Store/Recall key" in the "Special features key" section for further
information.
READY TO BUILD SET
INSERT DOCUMENT: 1
AUTO
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 51
100.0
MEMORY
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 52
Special features keys (continued)
Batch key
The Batch feature allows you to improve copy speed by enabling Batch Mode
processing of several documents on the Scanner. When Batch Mode
processing is enabled, the Scanner collects prescan information for just the
first document inserted into the Scanner. Prescan information on subsequent
documents in the set is not collected. The subsequent documents will be
scanned using the information collected on the first document. Eliminating
the collection of this information increases overall copy speed.
To enable Batch Mode processing:
1. Press the Batch key. The Batch indicator lamp will begin flashing.
2. Insert the first original into the Scanner. The Scanner scans the original
and the screen shown below is displayed.
WIDTH FOUND FOR SET IS XX.X
INPUT ANOTHER WIDTH OR
PRESS ENTER TO ACCEPT
4. When the last document in the set has been scanned, press the Batch
key to disable batch mode. The Batch indicator lamp is extinguished.
NOTE: When Batch mode is disabled, the AUTOCENTER feature is
temporarily disabled. Be careful to manually center each document that is
inserted into the Scanner
3. Do one of the following:
Use the numeric keypad to enter the width of the set and press the Enter
key to accept the value.
Press the Enter key to accept the width detected by the Synergix Digital
Solution.
The Batch indicator lamp becomes steady and remains so until batch
mode is disabled.
Special features keys (continued)
Margins
Transform key
The Transform feature contains the following menu choices:
MARGINS - Allows you to adjust the dimensions of the margins around the
image. By entering positive margins, blank space is inserted around the
image. By entering negative values, unwanted parts of the image can be
cropped.
JUSTIFICATION – Allows you to adjust the position of the image on the
media.
TRANSFORM – Allows you to request transformation of the scanned image
into a mirror image, a negative photographic inversion, or both.
NOTE: The image can also be rotated. Refer to "Imaging" in the "Copy
Options" section for further information about image rotation.
To access the TRANSFORM MENU:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed. The selected option is highlighted.
TRANSFORM MENU
MARGINS
JUSTIFICATION
TRANSFORM
2. Press the Previous or Next key to highlight the desired option.
3. Press the Enter key to select the highlighted option. The screen for the
selected option is displayed.
The MARGINS option of the TRANSFORM MENU allows you to select the
dimensions for the margins that surround an image. These margins are
referred to as the lead, left, right and trail edges.
NOTE: Margins can only be adjusted when the Synergix Digital Solution is in
the COPY mode.
The example below illustrates an image entering the Scanner and the
orientation of the image margins.
Scanner
Lead edge
Right image edge
Trail edge
Margins are added to the image in one of two ways:
• If Synchro has been selected from the Output Format area of the
Scanner Control Panel, the lead margin is added before the image is
printed. The trail margin is added after the media cut signal is received
from the Scanner. Thus, the length of the media from the Printer will be
the scanned document length plus the lead and trail margins.
• If a fixed media length (Preset or Manual) has been selected as the
Output Format, the white space of the specified margin surrounds the
image, but the actual physical dimensions of the media remain as
specified. The margins reduce the allowable area on the media in which
the image may be placed.
Left image edge
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 53
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 54
Special features keys (continued)
To adjust the margins for an image:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Enter key to select MARGINS. A screen displaying the
settings for each margin is displayed. Below is an example of the screen.
LEAD + 1.0 IN
LEFT + 0.0 IN
RIGHT + 0.0 IN
TRAIL + 0.0 IN
If the unit of measure has been set to inches, "IN" appears next to each
value. If the unit of measure has been set to millimeters, "MM" appears
next to each value. Refer to "Localization" in the "Main Menu" section for
information about setting the display units.
The graphical display to the right of the margin settings illustrates the
approximate placement of the image as a result of the settings.
3. Press the Previous or Next key to highlight the setting you wish to
change.
NOTE: Each margin has two components. They are a "+/-" indicator and a
numeric value. As you press the Previous or Next key, the components
highlight individually.
4. Press the Enter key to select the setting.
5. Change the setting as follows:
• To change the "+" or "-" setting, press the Previous or Next key.
An edge of the image can be clipped by entering a negative margin
value for that edge. In that case, the affected edge is shown as a
dotted line and the image icon is shown as partially outside the
bounds of the media.
The illustration below shows a negative left margin with TOP LEFT
justification.
LEAD + 1.0 IN
LEFT - 1.0 IN
RIGHT + 0.0 IN
TRAIL + 0.0 IN
• To change the value setting, use the numeric keypad to enter the
value.
The values can be set in increments of 0.1 in (1.0 mm) and over a
range of +4 to -4 in (+100 to -100 mm). Values outside the allowed
range are rejected. If you enter an invalid value, press the Exit key
to clear it. The default margins are 0.
6. Press the Enter key to confirm the setting. The graphical display updates
accordingly
NOTE: To cancel the setting, press the Exit key
7. When you have set all the margins as desired, press the Exit key to
return to the TRANSFORM MENU screen.
Special features keys (continued)
Y
Justification
The JUSTIFICATION option of the TRANSFORM MENU allows you to adjust
the position of the image on the media.
NOTE: "Image" means the entire scanned page including the white space.
To specify the image position:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Next key to highlight JUSTIFICATION.
3. Press the Enter key to select JUSTIFICATION. The JUSTIFICATION
screen is displayed. This screen shows the current settings for the X and
Y coordinates. It also includes a graphical display of the approximate
position of the image as a result of the settings.
Below is an example of the JUSTIFICATION screen.
JUSTIFICATION
X: LEFT
: CENTER
7. Press the Enter key to confirm your choice. The graphical display
updates accordingly.
NOTE: To cancel your choice, press the Exit key.
8. Repeat steps 4 through 7 if you wish to change position of the other
coordinate.
9. Press the Exit key to return to the TRANSFORM MENU screen.
4. Press the Previous or the Next key to select the X (horizontal) or Y
(vertical) coordinate.
5. Press the Enter key to confirm your choice.
6. Press the Previous or Next key to select a choice for justification.
For the X direction, the choices are LEFT, CENTER, and RIGHT. For the
Y direction, the choices are TOP, CENTER, and BOTTOM.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 55
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 56
Special features keys (continued)
Transform
The TRANSFORM option of the TRANSFORM MENU allows you to create a
mirror image of a scanned image and to convert a scanned image to a
negative image.
CREATING A MIRROR IMAGE
The MIRROR option allows you to create a mirror image of a scanned image.
To create a mirror image:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Next key until TRANSFORM is highlighted.
3. Press the Enter key to select TRANSFORM. The TRANSFORM screen
is displayed.
Below is an example of the TRANSFORM screen with both the MIRROR
and INVERT options turned off.
TRANSFORM
MIRROR: OFF
5. Press the Previous or Next key to select the desired transformation.
Four choices are available – X, Y, XY, and OFF. Table 4 below
graphically depicts the choices.
Table 4. Mirror transformations
Axis Transformation
X
Y
XY
OFF
6. Press the Enter key to confirm your choice. The graphical display
updates accordingly. The illustration below shows the TRANSFORM
screen with "X" as the mirror image selection.
TRANSFORM
MIRROR: X
INVERT: OFF
INVERT: OFF
4. Press the Enter key to select MIRROR.
NOTE: To cancel your choice, press the Exit key
7. Press the Exit key to return to the READY screen.
Special features keys (continued)
INVERTING AN IMAGE
The INVERT option allows you to convert a scanned image to a negative
image. For black and white images, the white pixels will be printed black and
the black pixels will be printed white. For grayscale images, the image will be
converted into its photographic negative.
To invert an image:
1. Press the Transform key. The TRANSFORM MENU screen is
displayed.
2. Press the Next key until TRANSFORM is highlighted.
3. Press the Enter key to select TRANSFORM. The TRANSFORM screen
is displayed.
Below is an example of the TRANSFORM screen with both the MIRROR
and INVERT options turned off.
TRANSFORM
MIRROR: OFF
INVERT: OFF
7. Press the Enter key to confirm your choice. The graphical display
updates accordingly.
When INVERT is ON, the icon on the right side of the TRANSFORM
screen is inverted. The example below shows the TRANSFORM screen
with INVERT turned ON.
TRANSFORM
MIRROR OFF
INVERT ON
NOTE: To cancel your choice, press the Exit key.
8. Press the Exit key to return to the READY screen.
4. Press the Next key to highlight INVERT.
5. Press the Enter key to select INVERT.
6. Press the Previous or Next key to turn the option ON or OFF.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 57
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 58
Special features keys (continued)
Sample key
The Sample key allows you to print a small sample of a scanned image. You
can then check the sample for quality or observe the results of features or
copy quality adjustments. The dimensions of the sample are the width of the
page by 210 mm. The sample is taken from a point equidistant from the lead
and trail edge of the image.
To print a sample of a scanned image:
1. Press the Sample key. The Sample indicator lamp illuminates. The
Scanner Control Panel is placed in Printer Interrupt mode and the Printer
Interrupt indicator lamp illuminates. The Printer immediately prints a
sample of the next image inserted into the Scanner. The SAMPLE
MODE screen is displayed.
SAMPLE MODE
PRESS START TO ACCEPT PAGE.
PRESS C/CA TO REJECT.
2. Do one of the following:
Press the START key to print the complete image as a full-size copy.
Press the C/CA key to delete the scanned image.
3. Press the Sample key again to disable the Sample feature. The Printer
is returned to the default priority setting and the Sample and Printer
Interrupt indicator lamps are extinguished.
Scanning to the Network (SCAN mode)
The Synergix Digital Solution has two scanning modes of operation: COPY
mode and SCAN mode.
NOTE: The SCAN mode is optional on the Synergix 8825 Digital Solution. It
is a standard feature on the Synergix 8830 Digital Solution and Synergix 8855
Digital Solution.. For ordering information, contact your XES representative.
NOTE: The copy mode will be disabled and the READY TO COPY screen will
not be accessible when the SCAN OPTION (COLOR) is enabled and a color
printer is connected to the AccXES.
• In COPY mode, documents are scanned, temporarily stored in memory
or on the internal hard disk, and then sent to the local Printer as soon as
the Printer is available. When the next job is scanned, the file from the
previous job is automatically deleted from the hard disk, making room for
new files. Operation of the system works as described in the previous
sections.
• In SCAN mode, the image file created by scanning is stored directly on
the hard disk for later retrieval over a connected network by a remote
system. The image is stored in Tagged Image File Format (TIFF) 6.0
using CCITT Group 4, CALS compression, or PDF.
Other remote retrieval programs can use the File Transfer Protocol (FTP)
to retrieve and delete files from the Synergix Digital Solution hard disk
over the network. These other programs will copy the files rather than
move them, so the files remain on the local hard disk after retrieval.
After a file has been on the local hard disk for longer than the time specified
for the FILE DELETION Timer, the system automatically deletes the file.
Refer to the Main Menu, Configuration menu, Timers section for information
about setting the FILE DELETION timer.
Files stored in SCAN mode can be retrieved over the network. After the
file is retrieved by the AccXES Client Tools program running on a
network-connected computer, the image residing on the local hard disk is
deleted automatically. For more information, refer to the AccXES Client
Tools User Guide.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 59
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 60
Scanning to the Network (SCAN mode) (continued)
Switching between COPY mode and SCAN mode
NOTE: The copy mode will be disabled and the READY TO COPY screen will
not be accessible when the SCAN OPTION (COLOR) is enabled and a color
printer is connected to the AccXES.
To switch between the COPY mode and the SCAN mode, perform the
following steps:
1. Ensure that the READY TO COPY screen is displayed. If a menu is
displayed, press the Menu key to return to the READY screen. If
PLEASE ENTER ACCOUNT is displayed, enter a valid User ID code
then enter a valid account number to obtain the READY screen.
2. Press the Mode key. The system switches to the SCAN mode and the
screen now displays. Pressing the Mode key again returns the system to
the COPY mode.
PLEASE ENTER
DIRECTORY
IMAGES
3. Enter a Directory name, up to 16 characters, to which you will scan the
images. The name cannot begin with a period/decimal point.
NOTE: The TCP/IP network protocol must be enabled in the Controller or the
Synergix Digital Solution will not enter the SCAN mode. To enable the
TCP/IP protocol, refer to the Controller Setup Manual.
Scanning to the Network (SCAN mode) (continued)
Understanding the READY TO SCAN screen
This icon shows how much Random Access Memory (RAM)
is in use by the scanned file. As space is used, the dark area
increases. After the scan is complete, the file is processed
and then moved to the internal hard disk. The RAM space
then becomes available again.
Below is an example of the READY TO SCAN screen. Following the
example are descriptions of the special information displayed on the screen.
READY TO SCAN
INSERT DOCUMENT
400 DPI
TIFF/CCITTG4
1 BIT
TIFF/CCITTG4
1 BIT
400 DPI
This area indicates the selected file format. Refer to SCAN
OPTIONS (LINE) or SCAN OPTIONS (PHOTO) to set
these options. The options available are TIFF/CCITTG4 1
BIT, PDF and CALS1/CCITTG4 1BIT.
This area shows the selected scanning resolution. Press the
Previous or Next key to select a value of 100, 200, 300, or
400 DPI (Dots Per Inch). A new value can be selected
before each scan.
This icon shows how much hard disk space is in use by
stored files. As space is used, the dark area increases.
When files are moved off the disk over the network to remote
devices, the space becomes available again. Files are also
deleted when the age of the file exceeds the value set in the
timer. Refer to "Timers" in the "Main Menu" section to set
this value. The factory default is 24 hours.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 61
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 62
Scanning to the Network (SCAN mode) (continued)
Selections disabled in SCAN mode
Certain selections available in COPY mode are not available in SCAN mode.
The unavailable selections are:
• Sets build - In SCAN mode each document has a separate image stored
on the disk. Each image is separately retrieved at the remote device.
Images cannot be grouped in sets.
• Specifying the media source and type - Since the output is now an
electronic file, specifying the media is not applicable.
• Specifying the output format - The image file always has the format of the
length of the document by the scan width. The scan width can be
manually specified, if the entire width of the document is not desired.
Refer to "Scanner Control" in the "Main Menu" section to enable or
disable manual specification of the scan width.
• Selection of Margins or Justification – You can crop equal amounts from
each side edge of the document by manually specifying a scan width that
is narrower than the actual document. Refer to "Scanner Control" in the
"Main Menu" section to enable or disable manual specification of the
scan width.
• Specification of Finishing Options - Since there is no physical output, the
finishing operations are not applicable.
Operating in SCAN mode
To scan documents for later retrieval over the network:
1. If Job Accounting is enabled, enter a valid User ID code and press the
Enter key. Then enter a valid account code and press the Enter key to
display the PLEASE ENTER DIRECTORY screen
2. Enter a Directory name, up to 16 characters, to which you will Scan the
images. Press the Enter key to display the READY screen.
NOTE: If a directory contains no files, the directory will be deleted after a
period of time and will not be listed in the List By Directory. In addition, if the
files are retrieved from the directory, the directory will be deleted after a
period of time
3. Ensure that the READY screen displays READY TO SCAN. If not, press
the Mode key. Refer to "Switching between COPY mode and SCAN
mode" in this section for instructions.
4. Select the desired scanning resolution. Refer to "Understanding the
READY TO SCAN screen" in this section for instructions.
5. Insert the document into the Scanner.
6. If prompted to do so, enter the desired scanning width and press the
Enter key.
7. Inform the operator at the remote retrieval device which Directory was
used to scan the file.
• Selection of Reduction/Enlargement - The electronic file is saved without
alteration, so all scanned information is preserved.
• Selection of Image Type (Mixed) -Only Line ,Photo, and Color image
types are valid for SCAN mode.
• Sample Mode is also disabled.
• Background Suppression – This selection is automatically switched to off
if a color printer is connected.
Scanning to the Network (SCAN mode) (continued)
Clearing the scanned images
The C/CA key enables you to remove scanned images from the Synergix
Digital Solution hard disk.
To clear scanned images:
1. Press the C/CA key. The CLEAR SCANNED IMAGE screen is
displayed.
CLEAR SCANNED IMAGE
DO NOT CLEAR IMAGE
2. Press the Previous or Next key to highlight the desired selection.
3. Press the Enter key to select the highlighted selection. The choices are:
• DO NOT CLEAR IMAGE - The image is not deleted.
• CLEAR LAST IMAGE - The last image scanned by the currently
active account is deleted. Press the C/CA key again, followed by the
Enter key, to delete the next-to-last scanned image. This process
can be repeated until all desired images are removed from the hard
disk.
• CLEAR ALL IMAGES - All images stored under the currently active
account are deleted.
NOTE: It is not possible to skip images. For example, it is not possible to
leave the last image scanned, but delete the next-to-last image scanned.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 63
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 64
Scanning to the Network (SCAN mode) (continued)
Managing the file system
The file system stores images in directories on the internal hard disk drive.
The images are stored in the Directory specified by the user when entering
the SCAN mode. The default directory is “images”. Managing the file system
requires the System Administrator password.
The FILE SYSTEM option of the SYSTEM ADMINISTRATION menu enables
the System Administrator to perform a number of file system management
functions. They are:
• Listing the number of images stored under each directory and the
percentage of total hard disk space consumed by each account
• Deleting all of the images scanned under any directory
• Deleting all of the images currently stored on the hard disk.
Refer to "File System" in the "Main Menu" section for complete information
about the above functions.
To access the Main Menu:
A
Main Menu
The Main Menu provides options for configuring the system, obtaining system
information, performing system administration functions, and running system
diagnostics.
When you access the Main Menu, a menu containing the following submenus is displayed:
• CONFIGURATION – Enables you to configure the settings for a variety of
system options. These include localization, the Scanner Control Panel,
copy options, scan options for Line and Photo modes, timers, the power
saver timeout, and Scanner control for Copy and Scan modes.
• SYSTEM INFORMATION – Enables you to obtain information about the
system components, display the Scanner fault list, print configuration
pages, and view user account information.
• SYSTEM ADMINISTRATION – Enables the system administrator to
perform job accounting, file system management, security, and change
password functions. Access to this menu requires an administrator's
password.
• DIAGNOSTICS – Enables the Customer Service Engineer and/or the
operator to run a number of system diagnostic routines.
1. Press the Menu key.
READY TO COPY
INSERT DOCUMENT
UTO
100.0%
Menu
The MAIN MENU screen is displayed. The black arrows indicate that the
menu list contains more items than are visible. The selected option is
highlighted.
EnterNext ExitPrevious Mode
1
MAIN MENU
CONFIGURATION
SYSTEM INFORMATION
SYSTEM ADMINISTRATION
2. Press the Previous or Next key to scroll through the list options.
3. When the desired option is highlighted, press the Enter key to select the
option.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 65
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 66
Main Menu (continued)
Configuration menu
The CONFIGURATION option of the Main Menu provides a sub-menu of the
following choices:
• LOCALIZATION - Sets the display language and units of measurements.
• CONTROL PANEL - Controls whether the beeper is used for the key
click and invalid entry beeps. Also allows selection of the font display
style and the default operating mode.
• COPY OPTIONS - Sets the choices for standard media series, custom
media formats, custom reduction/enlargement values, and imaging
parameters.
• SCAN OPTIONS (LINE) - Controls the behavior of the Scan to Net
feature when in Line mode.
• SCAN OPTIONS (PHOTO) - Controls the behavior of the Scan to Net
feature when in Photo mode.
• TIMERS - Sets the values for the Feature, Printer Interrupt, and File
Deletion timers.
• POWER SAVER - Sets the number of hours of inactivity after which the
system goes into Power Saver mode.
To access the CONFIGURATION menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed. The black arrows indicate
the menu contains more options than are visible. The selected option is
highlighted.
CONFIGURATION
LOCALIZATION
CONTROL PANEL
COPY OPTIONS
3. Press the Previous or Next key to scroll through the list of options.
4. When the desired option is highlighted, press the Enter key to select the
options. The menu or screen for the selected option is displayed.
• SCANNER CONTROL - Sets the choices for the operation of the
Scanner for both copying and scan-to-file.
Main Menu (continued)
Localization
The LOCALIZATION option of the CONFIGURATION menu sets the
language in which messages are displayed. It also controls whether
measurements are displayed in English or metric units.
To set the display language or units:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Enter key to select LOCALIZATION. The LOCALIZATION
screen is displayed. Below is an example of the LOCALIZATION screen.
LOCALIZATION
LANGUAGE: ENGLISH
DISPLAY UNITS: INCHES
4. Press the Previous or Next key to highlight LANGUAGE or DISPLAY
UNITS.
5. Press the Enter key to select the highlighted option.
6. Press the Previous or Next key to highlight the desired setting for the
option.
The choices for LANGUAGE are ENGLISH, SPANISH, FRENCH,
ITALIAN, GERMAN, or PORTUGUESE. ENGLISH is the default setting.
7. Press the Enter key to select the highlighted setting.
8. Repeat steps 4 through 6 to change the remaining setting, if desired.
9. Press the Exit key to return to the CONFIGURATION menu screen.
The choices for DISPLAY UNITS are INCHES or MM (MILLIMETERS).
INCHES is the default setting.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 67
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 68
Main Menu (continued)
Control Panel
The CONTROL PANEL option of the CONFIGURATION menu controls
whether the beeper is used for the key click and invalid entry beeps. It also
allows selection of the font display style and the default mode of operation for
the Synergix Digital Solution.
To set the beeper, text style or default operating mode:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key to select CONTROL PANEL.
4. Press the Enter key to select CONTROL PANEL. The CONTROL
PANEL screen is displayed. Below is an example of the CONTROL
PANEL screen.
CONTROL PANEL
BEEPER: ENABLED
TEXT MODE: NORMAL
DEFAULT MODE: COPY
7. Press the Previous or Next key to highlight the desired setting for the
option.
The choices for BEEPER are ENABLED or DISABLED. ENABLED is the
default setting. The Initialization Beep and the Fault Beep are not
affected by this setting and cannot be turned off.
The choices for TEXT MODE are NORMAL or BOLD. NORMAL is the
default setting.
The choices for DEFAULT MODE are COPY or SCAN. COPY is the
default setting.
NOTE: The DEFAULT MODE setting will not be displayed unless the Scan
To Net feature is enabled. SCAN mode is an option on the 8825 and 8850
Digital Solutions. To order this feature, contact XES Representative.
8. Press the Enter key to select the highlighted setting.
9. Repeat steps 5 through 8 if you wish to change another setting.
10. Press the Exit key to return to the CONFIGURATION menu screen.
5. Press the Previous or Next key to highlight BEEPER, TEXT MODE or
DEFAULT MODE.
6. Press the Enter key to select the highlighted option.
Main Menu (continued))
Table 5. Media sizes
Copy Options
The COPY OPTIONS option of the CONFIGURATION menu provides a submenu of the following choices:
• MEDIA SERIES - Sets the standard media sizes for preset output
formats. Table 5 on the right shows the standard media series and the
sizes associated with them.
• CUSTOM MEDIA FORMATS - Sets the custom media sizes for preset
output formats.
• CUSTOM R/E PRESETS - Sets the reduction/enlargement ratios
• IMAGING - Sets the imaging options.
To access the COPY OPTIONS menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is displayed. The COPY
OPTIONS menu screen is displayed. The black arrows indicate that the
menu contains more options than are visible. The selected option is
highlighted.
COPY OPTIONS
MEDIA SERIES
CUSTOM MEDIA FORMATS
CUSTOM R/E PRESETS
Choose
Series
ANSI
ARCH
ISO A (JIS A)
ISO B
To Display
Sizes
A 8.5 x 11 inches (215.9 x 279.4 mm)
B 11 x 17 inches (279.4 x 431.8 mm)
C 17 x 22 inches (431.8 x 558.8 mm)
D 22 x 34 inches (558.8 x 863.6 mm)
E 34 x 44 inches (836.6 x 1117.6 mm)
A 9 x 12 inches (228.6 x 304.8 mm)
B 12 x 18 inches (304.8 x 457.2 mm)
C 18 x 24 inches (457.2 x 609.6 mm)
D 24 x 36 inches (609.6 x 914.4 mm)
E 36 x 48 inches (914.4 x 1219.2 mm)
30 30 x 42 Inches (76.2 x 106.7 mm)
A4 210 x 297 mm
A3 297 x 420 mm
A2 420 x 594 mm
A1 594 x 841 mm
A0 841 x 1189 mm
B4 250 x 353 mm
B3 353 x 500 mm
B2 500 x 707 mm
B1 707 x 1000 mm
Dimensions
(width x length)
4. Press the Previous or Next key to scroll through the list of options.
5. Press the Enter key to select the highlighted option. The screen for the
selected option is displayed.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 69
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 70
Main Menu (continued))
MEDIA SERIES
The MEDIA SERIES option controls which standard media series are
displayed when Preset is selected from the Output Format portion of the
Scanner Control Panel.
You can select one or more media series to be displayed. Refer to Table 5
on the previous page for a listing of the sizes associated with each media
series.
To enable/disable a media series:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY OPTIONS
menu screen is displayed.
5. Press the Enter key to select MEDIA SERIES. The MEDIA SERIES
screen is displayed. Below is an example of the MEDIA SERIES screen.
MEDIA SERES
ANSI ISO A
ARCH ISO B
JIS B
6. Press the Previous or Next key to highlight a media series.
7. Press the Enter key to ENABLE or DISABLE the highlighted media
series. A check mark appears in the box to the left of the series when
the series is enabled.
The factory default setting is ENABLED for the ANSI media series and
DISABLED for all others.
8. Repeat steps 6 and 7 for each media series you wish to enable or
disable.
9. Press the Exit key to return to the COPY OPTIONS menu screen.
Main Menu (continued)
CUSTOM MEDIA FORMATS
The CUSTOM MEDIA FORMATS option controls which custom media
formats are displayed when Preset is selected from the Output Format
portion of the Scanner Control Panel. You can specify up to six custom
media formats.
To specify a custom media format:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY OPTIONS
menu screen is displayed.
5. Press the Next key to highlight CUSTOM MEDIA FORMATS.
6. Press the Enter key to select CUSTOM MEDIA FORMATS. The
CUSTOM MEDIA FORMATS screen is displayed.
The first "0.0" in each "0.0 x 0.0" format represents the width. The
second "0.0" represents the length.
NOTE: The formats are expressed in the units of measurement selected for
the machine. Refer to "Localization" in the "Main Menu" section for further
information.
7. Press the Previous or Next key to highlight the desired field.
8. Use the numeric keypad to enter the value for the highlighted field.
Widths in excess of 36 inches (914 mm) or less than 11 inches (297 mm)
are not valid.
9. Press the Enter key to confirm the value.
10. Repeat steps 7 through 9 until all desired formats are defined.
NOTE: Any custom formats that are not defined are automatically set to zero
and are not displayed elsewhere.
11. Press the Exit key to return to the COPY OPTIONS menu screen.
Below is an example of the MEDIA SERIES screen. In the example, the
display units have been set to inches.
CUSTOM MEDIA FORMATS (IN)
0.0 X 0.0 0.0.X 0.0
0.0 X 0.0 0.0.X 0.0
0.0 X 0.0 0.0.X 0.0
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 71
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 72
Main Menu (continued))
CUSTOM R/E PRESETS
The CUSTOM R/E PRESETS option controls which reduction/enlargement
ratios are displayed when Preset is selected from the Reduction/Enlargement
portion of the Scanner Control Panel. You can specify up to six
reduction/enlargement presets.
To specify a reduction/enlargement preset:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY OPTIONS
menu screen is displayed.
5. Press the Next key until CUSTOM R/E PRESETS is highlighted.
6. Press the Enter key to select CUSTOM R/E PRESETS. The CUSTOM
R/E PRESETS screen is displayed. Below is an example of the
CUSTOM R/E PRESETS screen.
CUSTOM R/E PRESETS
100.0% 100.0%
100.0% 100.0%
100.0% 100.0%
7. Press the Previous or Next key to highlight the value you wish to
change.
8. Use the numeric keypad to enter the desired value. The valid value
range is from 25 to 400%.
NOTE: Duplicate values are not displayed in the Preset
Reduction/Enlargement list. You can remove a preset value from the list by
setting the value to 100.0%.
9. Press the Enter key to confirm the value.
10. Repeat steps 7 through 9 for each value you wish to change.
11. Press the Exit key to return to the COPY OPTIONS menu screen.
Main Menu (continued)
IMAGING
The IMAGING option allows you to perform the following functions:
• Enable or disable automatic image rotation. If AUTO-ROTATE is
enabled, the scanned image will be electronically rotated, if necessary, to
better fit the specified output format.
• Enable or disable line mode line preservation. If LINE MODE LINE
PRESERVATION is enabled, fine lines in the original document are
preserved when reducing images during copying.
To enable/disable the imaging options:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until COPY OPTIONS is highlighted.
4. Press the Enter key to select COPY OPTIONS. The COPY OPTIONS
menu screen is displayed.
5. Press the Next key until IMAGING is highlighted.
6. Press the Enter key to select IMAGING. The IMAGING screen is
displayed. Below is an example of the IMAGING screen.
7. Press the Previous or Next key to highlight the desired option.
8. Press the Enter key to enable or disable the highlighted option. A check
mark appears in the box to the left of the option when the option is
enabled.
The factory default setting is disabled for AUTO-ROTATE and enabled
for LINE MODE LINE PRESERVATION.
9. Repeat steps 7 and 8 to enable or disable the remaining setting, if
desired.
10. Press the Exit key to return to the COPY OPTIONS menu screen.
IMAGING
AUTO-ROTATE
LINE MODE LINE PRESERVATION
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 73
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 74
Main Menu (continued)
Scan Options (Line)
The SCAN OPTIONS (LINE) option of the CONFIGURATION menu allows
you to perform the following functions:
• Enable or disable create preview in Line mode. When CREATE
PREVIEW is enabled, a small JPEG (.JPG) file is created during the
scanning process and stored on the hard disk. AccXES Client Tools
software, running on a network connected terminal, can use this file to
display a preview of the scanned image.
• Enable or disable error diffusion in Line mode.
• Specify the saved document file format for Line mode.
NOTE: This option will not be displayed unless the Scan to Net feature is
enabled. SCAN mode is an option on the Synergix 8825 Digital Solution. If
SCAN mode has not been enabled, the FILE SYSTEM information is not
available. To order this feature, contact your XES representative.
To specify the scan options for Line Mode:
1. Press the Menu key. The Main Menu screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until SCAN OPTIONS (LINE) is highlighted.
4. Press the Enter key to select SCAN OPTIONS (LINE). The SCAN
OPTIONS (LINE) screen is displayed.
5. Press the Previous or Next key to highlight the scan option you wish to
change.
6. Do one of the following:
• For CREATE PREVIEW and ERROR DIFFUSION, press the Enter key
to enable or disable the option. A check mark appears in the box to the
left of the option when the option is enabled. The factory default setting
for both options is enabled.
• For FILE FORMAT, press the Previous or Next key to highlight the
desired file format. Then press the Enter key to select the highlighted
format. The choices are TIFF (saved document format is 1 bit TIFF),PDF
(1bit with CITT Group IV compression), and CALS1 (Group IV
compression). The factory default setting is TIFF.
7. Repeat steps 5 and 6 for each option you wish to change.
8. Press the Exit key to return to the CONFIGURATION menu screen.
SCAN OPTIONS (LINE)
CREATE PREVIEW
ERROR DIFFUSION
FILE FORMAT: TIFF
Main Menu (continued)
Scan Options (Photo)
The SCAN OPTIONS (PHOTO) option of the CONFIGURATION menu
allows you to perform the following functions:
• Enable or disable create preview in Photo mode. When CREATE
PREVIEW is enabled, a small JPEG (.JPG) file is created during the
scanning process and stored on the hard disk. Document retrieval
software, running on a network connected terminal, can use this file to
display a preview of the scanned image.
• Specify the saved document compression format for Photo mode.
• View the saved document file format for Photo mode. The format is 8 bit
TIFF.
NOTE: This option will not be displayed unless the Scan to Net feature is
enabled. SCAN mode is an option on the Synergix 8825 Digital Solution. If
SCAN mode has not been enabled, the FILE SYSTEM information is not
available. To order this feature, contact your XES representative.
To specify the scan options for Photo Mode:
1. Press the Menu key. The Main Menu screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until SCAN OPTIONS (PHOTO) is highlighted.
4. Press the Enter key to select SCAN OPTIONS (PHOTO). The SCAN
OPTIONS (PHOTO) screen is displayed.
5. Press the Previous or Next key to highlight the scan option you wish to
change.
6. Do one of the following:
• For CREATE PREVIEW, press the Enter key to enable or disable the
option. A check mark appears in the box to the left of the option when
the option is enabled. The factory default setting is enabled.
• For COMPRESSION, press the Previous or Next key to highlight the
desired setting. Then press the Enter key to select the highlighted
format.
The choices are RAW and PACKBITS. The factory default setting is
RAW.
7. Repeat steps 5 and 6 to change the remaining setting, if desired.
8. Press the Exit key to return to the CONFIGURATION menu screen.
SCAN OPTIONS (PHOTO)
CREATE PREVIEW
COMPRESSION: RAW
FILE FORMAT: TIFF
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 75
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 76
Main Menu (continued)
Scan Options (Color)
This option will not be displayed unless the Scan to Net feature is enabled.
SCAN mode is standard on the 8830/8850/8855 Digital Solution and optional
on the Synergix 8825 Digital Solution. If SCAN mode has not been enabled,
the FILE SYSTEM information is not available. To order this feature, contact
your XES representative.
The SCAN OPTIONS (COLOR) option of the CONFIGURATION menu
allows you to perform the following functions:
• Enable or disable PREVIEW in Color mode. When PREVIEW is
enabled, a small JPEG (.JPG) file is created during the scanning process
and stored on the AccXES Controller hard disk in the Scan Directory. The
image can be retrieved at your workstation using the Retrieval Tool of the
AccXES Client Tools.
• Specify the saved document compression format for Color mode.
• View the saved document file format for Photo mode. The format are:
24-bit RGB TIFF (6) with Packbits lossless compression
8-bit Indexed Color TIFF with Packbits lossless compression and
selectable error diffusion
and JPEG lossy compression with selectable SRGB output.
To select the scan options for Color Mode:
1. Press the Menu key. The Main Menu screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until SCAN OPTIONS (COLOR) is highlighted.
4. Press the Enter key to select SCAN OPTIONS (COLOR). The SCAN
OPTIONS (COLOR) default screen is displayed
SCAN OPTIONS (COLOR)
PREVIEW FORMAT: TIFF
COMPRESSION: PACKBITS
SRGB
The options available for selections displayed on the screen will change
depending on the FORMAT and COMPRESSION that are selected. Listed
below are the selections and available options and their definition:
PREVIEW – Use this checkbox to enable or disable the generation of a
preview image for your scanned document. Default is enabled (checkbox
is checked)
FORMAT – Use this selection to determine which format you would like to
have the scanned image saved in, TIFF or JPEG. Default is TIFF.
COMPRESSION (TIFF selected) – Use this selection to determine the
compression method to apply to the saved TIFF document. Select one of
the following:
PACKBITS – Saves the document as 24-bit RGB compressed with
PACKBITS.INDEX – Saves the document as 8-bit indexed RGB
(using thresholding) compressed with PACKBITS.
INDEXED – Saves the document as 8-bit indexed RGB (using error
diffusion) compression with PACKBITS
Default is PACKBITS
Main Menu (continued)
Scan Options (Color) (continued)
COMPRESSION (JPEG selected) –Use this selection to determine the
compression method to apply to the saved JPEG document. Select one
of the following:
BEST IQ – Saves a document at a lower compression ratio but has
higher image quality.
NORMAL – Saves a document at an average compression ratio and
has average image quality.
BEST COMPRESSION – Saves a document at a higher
compression ratio but has a lower image quality
Default is NORMAL
PALLETTE – Is shown only when the selected FORMAT is TIFF and the
COMPRESSION is INDEX or INDEXED. Use this selection to determine
which palette to use during RGB-to-index color conversion. Select one of
the following:
DEFAULT – Is the standard Windows system palette.
CAD_GIS – Is an AutoCAD-based palette suitable for scanning CAD
documents and GIS maps.
WEB – Is a W indows WEB palette of 216 colors suitable for
publishing documents on the WEB.
PERCEPTUAL – Perceptual palette or Visual palette gives mor
weight to visiually sensitive colors.
Default is DEFAULT
SRGB (Sanner data representation) – Is shown when the FORMAT is TIFF
and COMPRESSION is PACKBIT or when the FORMAT is JPEG. This
checkbox enables or disables scanner generation of standard RGB
(sRGB) data. The default is enabled (checkbox is checked).
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 77
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 78
Main Menu (continued)
Timers
The TIMERS option of the CONFIGURATION menu allows you to set the
values for the time-out functions. Pressing any key or scanning a document
resets the timers.
The timers are as follows:
• FEATURE – Controls how long the current feature parameters remain in
effect after the last key press, scan completion, or insertion of a
document into the Scanner. The FEATURE timer can be set between 0
and 99 minutes. The factory default is 5 minutes. A value of 0 means
that the feature will never time out.
NOTE: To prevent images from being lost, feature time-outs will not occur
during the sets build process.
• PRINTER INTERRUPT – Controls how long the Printer remains in the
interrupted state with no interruption at the Scanner Control Panel. This
timer pertains to print jobs that have been interrupted to allow a copy job
to process. The allowed range is 1 to 99 minutes. The factory default is
1 minute.
• FILE DELETION – Specifies the maximum amount of time a scanned
image file remains on the file system before being deleted. This timer
pertains only to files scanned when the Synergix Digital Solution is in the
READY TO SCAN mode.
To adjust a timer:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until TIMERS is highlighted.
4. Press the Enter key to select TIMERS. The TIMERS screen is
displayed.
TIMERS
FEATURE (0 − 99 MIN): 5
PRINTER INTERRUPT (1 − 99 MIN): 1
FILE DELETION (1-24 HR): 24
5. Press the Previous or Next key to highlight the desired timer.
6. Press the Enter key to select the highlighted timer.
7. Use the numeric keypad to enter the timer value.
8. Press the Enter key to confirm the value.
9. Repeat steps 5 through 8 if you want to set the value for additional
timers.
10. Press the Exit key to return to the CONFIGURATION menu screen.
This timer can be set between 1 and 24 hours in increments of 1 hour.
When a file is scanned in, it is given a time stamp. When the age of the
file on the hard disk exceeds the value of the FILE DELETION timer, the
file is automatically deleted to allow space for new files. The default
value is 24 hours. After the files have been deleted, the directory will also
be deleted if no other files are scanned to it.
Main Menu (continued)
Power Saver
The POWER SAVER option of the CONFIGURATION menu allows you to
set the number of hours of inactivity after which the system goes into Power
Saver mode.
To adjust the power saver:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until POWER SAVER is highlighted.
4. Press the Enter key to select POWER SAVER. The POWER SAVER
screen is displayed.
POWER SAVER
POWER SAVER DELAY (0 − 4 HR): 3
5. Use the numeric keypad to enter the power saver value. The valid value
range is 0 to 4 hours. The factory default is 3 hours.
6. Press the Enter key to confirm the value.
7. Press the Exit key to return to the CONFIGURATION menu screen.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 79
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 80
Main Menu (continued)
Scanner Control
The SCANNER CONTROL option of the CONFIGURATION menu allows you
to set the options for how the Scanner starts and finishes a scan. It contains
the following features:
• DOCUMENT RETURN – Tells the Scanner, after the scan, either to
return the document to the front of the Scanner (FRONT), or to drop the
document from the rear of the Scanner into the catch tray (REAR).
REAR is the factory default setting.
NOTE: Refer to Controlling the Scan for additional information.
• AUTOSCAN – Tells the Scanner either to start the scan automatically
when the document is inserted (ENABLED), or to wait until the Start key
is pressed (DISABLED). ENABLED is the factory default setting.
• DYNAMIC IQ When enabled, monitors the image over the width of the
whole document as it is scanned and uses the information to ensure the
best reproduction of the entire image. When not enabled, only monitors a
0.70 inch (17.5 mm) X document width area after the first 1.5 inches
(37.5 mm) of the document is scanned. Then uses this fixed information
to adjust the quality for the entire image being scanned. Enabled is the
default setting .AUTOWIDTH - Enables the automatic detection of the
width of the document. If the feature is disabled, you must enter the
width of the document manually. ENABLED is the factory default setting.
To set the Scanner control features:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Enter key to select CONFIGURATION. The
CONFIGURATION menu screen is displayed.
3. Press the Next key until SCANNER CONTROL is highlighted.
4. Press the Enter key to select SCANNER CONTROL. The SCANNER
CONTROL screen is displayed.
SCANNER CONTROL
DOCUMENT RETURN: FRONT
AUTOSCAN DYNAMIC IQ
AUTOWIDTH AUTOCENTER
5. Press the Previous or Next key to select the desired feature.
6. Press the Enter key to confirm the choice.
7. Press the Previous or Next key to select the desired setting.
For DOCUMENT RETURN, the selections are FRONT and REAR.
FRONT is the factory default setting.
For AUTOSCAN, AUTOWIDTH, DYNAMIC IQ and AUTOCENTER, you
can enable or disable the feature. A check mark in the box to the left of
the feature indicates that the feature is enabled. Enabled is the factory
default setting for these features.
• AUTOCENTER - Enables the automatic centering of the image. If the
feature is disabled, you must center the document during insertion into
the Scanner. ENABLED is the factory default setting.
8. Press the Exit key to return to the CONFIGURATION menu screen.
Main Menu (continued)
System Information menu
The SYSTEM INFORMATION option of the MAIN MENU contains the
following menu choices:
• SYSTEM DESCRIPTION - Provides information about each component
connected to the Synergix Digital Solution.
• RECENT FAULT LIST - Displays the most recent faults related to the
Scanner.
• CONFIGURATION PRINTS - Prints Copier and Printer configuration
pages.
To access the SYSTEM INFORMATION menu:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight SYSTEM INFORMATION.
3. Press the Enter key to select SYSTEM INFORMATION. The SYSTEM
INFORMATION menu screen is displayed. The black arrows indicate
that the menu contains more options than are visible. The selected
option is highlighted.
SYSTEM INFORMATION
SYSTEM DESCRIPTION
RECENT FAULT LIST
CONFIGURATION PRINTS
•
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 81
4. Press the Previous or Next key to scroll through the list of options.
5. When the desired option is highlighted, press the Enter key to select the
option. The menu or screen for the selected option is displayed.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 82
Main Menu (continued)
System Description
The SYSTEM DESCRIPTION option of the SYSTEM INFORMATION menu
provides information on the model identity and firmware version for each
component connected to the Synergix Digital Solution.
To display component information:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight the SYSTEM INFORMATION option.
3. Press the Enter key to select SYSTEM INFORMATION. The SYSTEM
INFORMATION menu screen is displayed.
4. Press the Enter key to select SYSTEM DESCRIPTION. The SYSTEM
DESCRIPTION screen is displayed.
SYSTEM DESCRIPTION
SCANNER
CONTROLLER
CONTROL PANEL
5. Press the Previous or Next key to highlight the component about which
you want to view information.
6. Press the Enter key to select the highlighted component. The screen for
the selected component is displayed. Following are examples of the
screens for each of the components.
SCANNER
MODEL: XES Synergix
FIRMWARE: 1234
CONTROLLER
MODEL: 2
FIRMWARE: 6.0
RAM: 64MB
NOTE: The CONTROLLER screen also provides the amount of Random
Access Memory (RAM) and the size of the hard disk drive.
CONTROL PANEL
MODEL: 1
FIRMWARE: 1.1.0
Main Menu (continued)
Recent Fault List
PRINTER
MODEL: XES 8830
FIRMWARE: xxxxxxx
FINISHER
MODEL:
NOTE: This screen identifies the finisher, if any. If there is no finisher, the
MODEL is displayed as NONE. If a Folder is connected, the FINISHER
screen displays the configuration of the connected Folder.
7. Press the Exit key to return to the SYSTEM DESCRIPTION screen.
The RECENT FAULT LIST option of the SYSTEM INFORMATION menu
displays the most recent faults related to the Scanner. Fault messages are
stored in the Controller. Each fault message contains a fault code and a
digital time stamp. W hen you call for service, the service center may ask you
for this information.
To display the recent fault list:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight SYSTEM INFORMATION.
3. Press the Enter key to select SYSTEM INFORMATION. The SYSTEM
INFORMATION menu screen is displayed.
4. Press the Next key to highlight RECENT FAULT LIST.
5. Press the Enter key to select RECENT FAULT LIST. The RECENT
FAULT LIST screen is displayed. Below is an example of the RECENT
FAULT LIST screen.
RECENT FAULT LIST
37449914 50000008
37449868 50000008
6. Press the Previous or Next key to scroll through the list.
7. Press the Exit key to return to the SYSTEM INFORMATION menu
screen.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 83
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 84
Main Menu (continued)
Configuration Prints
The CONFIGURATION PRINTS option of the SYSTEM INFORMATION
menu allows you to print one of the following selections:
• Copier Configuration
• Printer Configuration
• Printer Settings
• All of the above.
To print a configuration:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Next key to highlight SYSTEM INFORMATION.
3. Press the Enter key to select SYSTEM INFORMATION. The SYSTEM
INFORMATION menu screen is displayed.
4. Press the Previous or Next key until CONFIGURATION PRINTS is
highlighted.
5. Press the Enter key to select CONFIGURATION PRINTS. The
CONFIGURATION PRINTS screen is displayed.
CONFIGURATION PRINTS
COPIER CONFIGURATION
PRINTER CONFIGURATION
PRINTER SETTINGS
7. Press the Enter key to select the highlighted configuration. The screen
for the selected configuration is displayed. The default response is YES.
Below is an illustration of the COPIER CONFIGURATION screen.
COPIER CONFIGURATION
QUEUE TO PRINTER: YES
8. Press the Enter key to confirm the response. A status message is
displayed indicating that the configuration has been queued to the Printer.
Below is an illustration of the COPIER CONFIGURATION screen with the
status message.
COPIER CONFIGURATION
QUEUE TO PRINTER: YES
QUEUED TO PRINTER
9. Press the Exit key to return to the CONFIGURATION PRINTS screen.
6. Press the Previous or Next key to highlight the configuration page you
want to print.
Main Menu (continued)
System Administration menu
The SYSTEM ADMINISTRATION option of the MAIN MENU is reserved for
the system administrator. It can be accessed only after entering the system
administration password.
When this option is selected, the system administrator is immediately
prompted for a password. See "Entering the system administration
password" in this section for complete information about the password entry.
Once the system administration password has been entered correctly, the
SYSTEM ADMINISTRATION menu screen is displayed. It contains the
following options:
JOB ACCOUNTING - Allows the system administrator enable the Job
Accounting Mode. The options are DISABLED, ENABLED, and OPTIONAL.
The default is DISABLED.
FILE SYSTEM – Allows the system administrator to view and delete account
information.
CHANGE PASSWORD – Allows the system administrator to change the
system administration password
SECURITY SETTINGS - Allows the system administrator to set the image
recall feature.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 85
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 86
Main Menu (continued)
Entering the system administration password
Access to the SYSTEM ADMINISTRATION menu requires the entry of the
system administration password.
To enter the system administration password:
1. Press the Menu key. The MAIN MENU screen is displayed.
2. Press the Previous or Next key until SYSTEM ADMINISTRATION is
highlighted.
3. Press the Enter key to select SYSTEM ADMINISTRATION. The
SYSTEM ADMINISTRATION password screen is displayed.
SYSTEM ADMINISTRATION
ENTER PASSWORD:
4. Use the numeric keypad to enter the password. The password will
display as asterisks.
5. Press the Enter key to confirm the password entry. The SYSTEM
ADMINISTRATION menu screen is displayed. The black arrows indicate
the menu contains more options than are visible. The selected option is
highlighted.
SYSTEM ADMINISTRATION
JOB ACCOUNTING MODE
FILE SYSTEM
CHANGE PASSWORD
SECURITY SETTINGS
NOTE: If an incorrect password is entered, an error message will be
displayed as shown below. Enter the password again.
SYSTEM ADMINISTRATION
PASSWORD: *****
INVALID PASSWORD, RE-ENTER
6. Press the Previous or Next key to scroll through the list of system
administration options.
7. Press the Enter key to select the desired option.
Main Menu (continued)
Job accounting
The JOB ACCOUNTING option of the System Administration menu allows
the system administrator with access to enable Job Accounting. The options
are DISABLED, ENABLED, and OPTIONAL. The default is DISABLED.
File System
NOTE: This option will not be displayed unless the Scan to Net feature is
enabled. SCAN mode is an option on the Synergix 8825 and 8850 Digital
Solutions. If SCAN mode has not been enabled, the FILE SYSTEM
information is not available. To order this feature, contact your XES
representative.
The FILE SYSTEM option of the SYSTEM ADMINISTRATION menu provides
a sub-menu of the following menu choices:
• LIST BYDIRECTORY– Allows the system administrator to list the
number of images stored under each directory and the percentage of
total hard disk space consumed by the directory.
• DELETE IMAGES – Allows the system administrator to delete all of the
images scanned for a particular directory.
• DELETE ALL IMAGES – Allows the system administrator to delete all of
the images currently stored on the hard disk.
To access the FILE SYSTEM menu:
1. Access the SYSTEM ADMINISTRATION menu. See "Entering the
system administration password" in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE SYSTEM menu
screen is displayed.
FILE SYSTEM
LIST BY DIRECTORY
DELETE IMAGES
DELETE ALL IMAGES
4. Press the Previous or Next key to highlight the desired option.
5. Press the Enter key to select the highlighted option.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 87
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 88
Main Menu (continued)
LISTING STORED IMAGE INFORMATION BY DIRECTORY
The LIST BY DIRECTORY option allows the system administrator to display
a list of the number of images stored under each directory and the
percentage of total hard disk space consumed by each accountTo list
scanned image information by account:
1. Access the SYSTEM ADMINISTRATION menu. See "Entering the
system administration password" in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE SYSTEM menu
screen is displayed.
4. Press the Enter key to select LIST BYDIRECTORY. The LIST BY
DIRECTORY screen is displayed. Below is an DIRECTORYexample of
the LIST BY screen.
NOTE: Directories that do not contain files will not be displayed. Directories
not containing files are deleted.
LIST BY DIRECTORY
DIRECTORY COUNT SIZE (%)
images 2* <1
images 35 2
For each directory, the account name( DIRECTORY), the number of
images stored under the directory(COUNT), and the percentage of total
disk space consumed by the account (SIZE (%)) are shown. The length
of the directory name may cause the information associated with the
directory to wrap to the next line. Also, if the directory name exceeds the
character limit of the first line, the name will be truncated at the width of
the screen.
Use the Previous or Next key to scroll through the list.
An asterisk in the COUNT field indicates that some images in memory
have not yet been processed. A "<1" in the SIZE field indicates the
account uses less than 1% of the total disk space on the file system.
5. Press the Exit key to return to the FILE SYSTEM menu screen.
Main Menu (continued)
A
A
DELETING STORED IMAGES BY DIRECTORY
The DELETE IMAGE option allows the system administrator to delete all the
images stored for a particular account.
To delete stored images by account:
1. Access the SYSTEM ADMINISTRATION menu. See "Entering the
system administration password" in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE SYSTEM menu
screen is displayed.
4. Press the Next key to highlight DELETE IMAGES.
5. Press the Enter key to select DELETE IMAGES. The DELETE IMAGES
screen is displayed.
7. Press the Enter key to confirm the account number. A delete
confirmation screen is displayed. The default response is NO.
Below is an example of the DELETE IMAGES screen.
DELETE IMAGES
DIRECTORY: images
RE YOU SURE?: NO
8. Press the Previous or Next key to change the response to YES.
9. Press the Enter key to confirm the deletion. While the deletion is in
process, a "DELETING. . ." message is displayed. When the deletion is
complete, the status changes to IMAGES DELETED. Below is an
example of the deletion screen.
DIRECTORY:
DELETE IMAGES
DIRECTORY: images
DELETE IMAGES
RE YOU SURE?: YES
IMAGES DELETED
6. Use the numeric keypad to enter the name of the directory from which
you would like delete the stored images.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 89
10. Press the Exit key to return to the FILE SYSTEM menu screen.
XES Synergix 8825/8830/8850/8855 Digital Solution User Guide 90
A
A
7. Press the Enter key to confirm the deletion. While the deletion is in
Main Menu (continued)
process, a "DELETING. . ." message is displayed. When the deletion is
complete, the status changes to IMAGES DELETED.
DELETING ALL STORED IMAGES
The DELETE ALL IMAGES option allows the system administrator to delete
all the images stored on the file system.
To delete all stored images:
1. Access the SYSTEM ADMINISTRATION menu. See "Entering the
system administration password" in this section.
2. Press the Next key to highlight FILE SYSTEM.
3. Press the Enter key to select FILE SYSTEM. The FILE SYSTEM menu
screen is displayed.
4. Press the Next key until DELETE ALL IMAGES is highlighted.
5. Press the Enter key to select DELETE ALL IMAGES. The DELETE ALL
IMAGES screen is displayed. The default response is NO.
DELETE ALL IMAGES
RE YOU SURE?: NO
6. Press the Previous or Next key to change the response to YES.
DELETE IMAGES
RE YOU SURE?: YES
IMAGES DELETED
8. Press the Exit key to return to the FILE SYSTEM menu screen.
