Xerox 8570N User Guide

Xerox ColorQube 8570 / 8870

Color Printer

Italiano Guida dell'utente Deutsch Benutzerhandbuch Español Guía del usuario Português Guia do usuário Nederlands Gebruikershandleiding

Svenska Användarhandbok Dansk Betjeningsvejledning Čeština Uživatelská příručka Polski

Przewodnik użytkownika

Magyar

Felhasználói útmutató

Русский Руководство пользователя

Türkçe

Kullanıcı Kılavuzu

Ελληνικά Εγχειρίδιο χρήστη

Xerox® ColorQube

8570 / 8870

User Guide Guide d'utilisation

© 2014 Xerox Corporation. All Rights Reserved. Unpublished rights reserved under the copyright laws of the United States. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation.

Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

Xerox

, CentreWare®, PrintingScout®, Walk-Up®, ColorQube, Global Print Driver, Mobile Express Driver, and the sphere of

connectivity design are trademarks of Xerox Corporation in the United States and/or other countries.

Adobe Reader

, Adobe Type Manager®, ATM™, Flash®, Macromedia®, Photoshop®, and PostScript® are trademarks of Adobe

Systems Incorporated in the United States and/or other countries.

Apple

, AppleTalk®, Bonjour®, EtherTalk®, Macintosh®, Mac OS®, and TrueType® are trademarks of Apple Computer, Inc. in the

United States and/or other countries.

, HP-UX®, and PCL® are trademarks of Hewlett-Packard Corporation in the United States and/or other countries.

HP-GL

IBM

and AIX® are trademarks of International Business Machines Corporation in the United States and/or other countries.

Microsoft

, Windows Vista®, Windows®, and Windows Server® are trademarks of Microsoft Corporation in the United States and/or

other countries.

Novell

, NetWare®, NDPS®, NDS®, Novell Directory Services®, IPX™, and Novell Distributed Print Services™ are trademarks of Novell,

Incorporated in the United States and/or other countries.

SGI

IRIX® is a trademark of Silicon Graphics, Inc.

, Sun Microsystems™, and Solaris™ are trademarks of Sun Microsystems, Incorporated in the United States and/or other

Sun countries.

UNIX

is a trademark in the United States and other countries, licensed exclusively through X/ Open Company Limited.

PAN TO NE

and other Pantone, Inc. trademarks are the property of Pantone, Inc.

Document version 1.0: February 2014

Contents

1Safety

Electrical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

General Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Power Cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operational Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Printer Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Operational Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Printer Supplies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Printer Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2Features

Parts of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Right-Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Right-Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Printer Configurations and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Options and Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Information Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuration Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Other Information Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sample Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ColorQube 8570 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ColorQube 8870 Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Xerox Support Centre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3 Installation and Setup

Installation and Setup Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Choosing a Connection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting to a Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Connecting Directly Using USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Assigning the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Automatically Assigning the IPv4 Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Manually Assigning the IPv4 Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Configuring IPv6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Resetting the TCP/IP Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

ColorQube 8570/8870 Color Printer

User Guide

Contents

Using CentreWare Internet Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Accessing CentreWare® Internet Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Finding the Printer’s IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Operating System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Available Printer Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Installing the Printer Driver for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Installing the Printer Driver for Macintosh OS X. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Installing the Printer Driver for UNIX (Linux) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Installing Other Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Installing Xerox Support Centre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Power Saver Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Power Saver Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Fast Resume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

4Printing

Printing Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Supported Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Recommended Media Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Ordering Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

General Media Loading Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Media That Can Damage Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Paper Storage Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Supported Paper Sizes and Weights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Loading Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Loading Paper in Tray 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using Manual Feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Loading Paper in Tray 2, 3, 4, or 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Setting Paper Handling Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Selecting the Tray 1 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Setting the Tray 1 Prompt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Selecting the Tray 2–N Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Printing on Specialty Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Printing on Transparencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

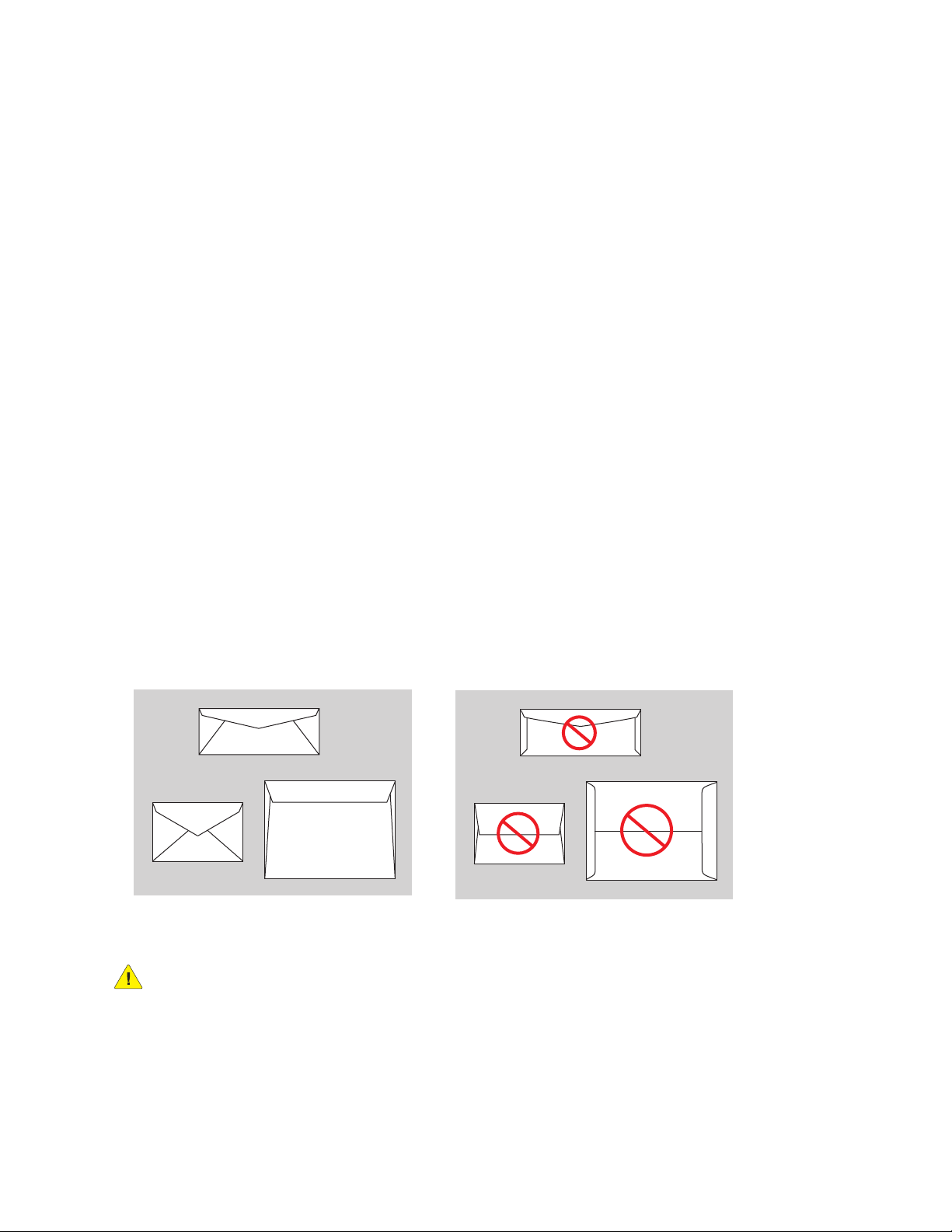

Printing on Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Printing on Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Printing on Glossy Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Printing on Prepunched Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Using Custom Paper Sizes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Defining a Custom Paper Size at the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Defining a Custom Paper Size in the Printer Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Printing on Custom-size Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Creating Custom Paper Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

ColorQube 8570/8870 Color Printer User Guide

Contents

Selecting Print Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Setting Default Print Options in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Selecting Print Options for an Individual Job in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Print Options for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Saving a Set of Commonly-Used Print Options in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Selecting Print Options for an Individual Job in Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Print Options for Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Saving a Set of Commonly-Used Print Options in Macintosh. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Job Completion Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Using Earth Smart Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Printing on Both Sides of the Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Automatic 2-Sided Printing Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Binding Edge Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Printing a 2-Sided Document Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Printing a 2-Sided Document Manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Printing Multiple Pages on a Single Sheet (N-Up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Printing N-Up in a Supported Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Printing Booklets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Selecting Booklet Printing in a Supported Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Enlarging and Reducing Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Scaling by Output Page Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Scaling by Percentage of Original. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Using Color Corrections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Using Color by Words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Selecting Color Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Adjusting Color Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Making Custom Color Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Adjusting Automatic Color Correction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Printing in Black and White . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Printing in Black and White in a Supported Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Printing Separators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Printing Separators in a Supported Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Printing Cover Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Printing Cover Pages in a Supported Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Printing Watermarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Printing Watermarks in a Supported Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Printing Mirror Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Printing Mirror Images in a Supported Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Printing Special Job Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Sending Secure, Proof, Personal Print, or Saved Print Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Sending Print With Jobs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Printing or Deleting Secure Print Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Printing or Deleting Proof Print Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Printing or Deleting Personal Print Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Printing or Deleting Saved Jobs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

ColorQube 8570/8870 Color Printer

User Guide

Contents

5 Maintenance

Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Cleaning the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Usage Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Ordering Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Locating the Printer Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Consumables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Routine Maintenance Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Customer Replaceable Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

When to Order Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Recycling Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Moving and Repacking the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Precautions for Moving the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Moving the Printer Within the Office. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Preparing the Printer for Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

6 Troubleshooting

General Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Restarting the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Printer is Powered On But There is No Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Cannot Print to the Printer with a Network Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Cannot Print to the Printer with a USB Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Printing Takes Too Long . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Printer is Making Unusual Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Date and Time are Incorrect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Automatic 2-Sided Printing Prints 1-Sided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Minimizing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Troubleshooting Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Print-Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Controlling the Quality of Your Prints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Printing the Troubleshooting Print Quality Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Selecting a Print-Quality Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Adjusting Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Troubleshooting Print-Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Removing Print Smears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Eliminating Light Stripes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Substituting an Ink Jet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Control Panel Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

PrintingScout Alerts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Online Support Assistant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Web Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

ColorQube 8570/8870 Color Printer User Guide

7 Printer Specifications

Physical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Optional Trays 3, 4, and 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Clearance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Print Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Controller Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

A Regulatory Information

Contents

Basic Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

United States (FCC Regulations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Canada (Regulations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Other Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Turkey (RoHS Regulation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Material Safety Data Sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

BRecycling and Disposal

Guidelines and Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

All Countries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Other Countries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

ColorQube 8570/8870 Color Printer

User Guide

Contents

ColorQube 8570/8870 Color Printer User Guide

Safety

This chapter includes:

• Electrical Safety on page 10

• Operational Safety on page 12

• Maintenance Safety on page 14

• Printer Symbols on page 15

Your printer and the recommended supplies have been designed and tested to meet strict safety requirements. Attention to the following information ensures the continued safe operation of your ColorQube 8570/8870 printer.

ColorQube 8570/8870 Color Printer

User Guide

Safety

Electrical Safety

General Guidelines

WARNING: Do not push objects into slots or openings on the printer. Making contact with a

voltage point or shorting out a part could result in fire or electrical shock.

WARNING: Do not remove the covers or guards that are fastened with screws unless you are

installing optional equipment and are specifically instructed to do so. Power should be OFF when performing these installations. Disconnect the power cord when removing covers and guards for installing optional equipment. Except for user-installable options, there are no parts that you can maintain or service behind these covers.

The following are hazards to your safety:

• The power cord is damaged or frayed.

• Liquid is spilled into the printer.

• The printer is exposed to water.

If any of these conditions occur, do the following:

1. Turn off the printer immediately.

2. Disconnect the power cord from the electrical outlet.

3. Call an authorized service representative.

Power Cord

• Use the power cord supplied with your printer.

• Plug the power cord directly into a properly-grounded electrical outlet. Make sure each end of the cord is securely connected. If you do not know if an outlet is grounded, ask an electrician to check the outlet.

• Do not use a ground adapter plug to connect the printer to an electrical outlet that does not have a ground connection terminal.

WARNING: Avoid the potential of electrical shock by ensuring that the printer is properly

grounded. Electrical products may be hazardous if misused.

• Verify that the printer is plugged into an outlet that is capable of providing the correct voltage and power. Review the printer’s electrical specification with an electrician if necessary.

• Do not place the printer in an area where people might step on the power cord.

• Do not place objects on the power cord.

ColorQube 8570/8870 Color Printer User Guide

Safety

The power cord is attached to the printer as a plug-in device at the right rear corner of the printer. If it is necessary to disconnect all electrical power from the printer, disconnect the power cord from the electrical outlet.

Note: Leave the printer on for optimum performance and to preserve ink; it does not pose a safety

hazard.

See also:

Electrical Specifications on page 182

Power Saver Settings on page 48

ColorQube 8570/8870 Color Printer

User Guide

Safety

Operational Safety

This section includes:

• Printer Location on page 12

• Operational Guidelines on page 12

• Printer Supplies on page 13

Your printer and supplies were designed and tested to meet strict safety requirements. These include safety agency examination, approval, and compliance with established environmental standards.

Your attention to the following safety guidelines helps to ensure the continued, safe operation of your printer.

Printer Location

• Do not block or cover the slots or openings on the printer. These openings are provided for ventilation and to prevent overheating of the printer.

• Place the printer where there is adequate space for operation and servicing. For details, see

Clearance Requirements on page 180.

• Place the printer in a dust-free area.

• Do not store or operate the printer in an extremely hot, cold, or humid environment. For optimum performance environmental specifications, see Environmental Specifications on page 181.

• Place the printer on a level, solid, non-vibrating surface with adequate strength to hold the weight of the printer. The base printer weight, without any packaging materials, is approximately 27.4 kg (60.5 lb.).

• Do not place the printer near a heat source.

• Do not place the printer where it is directly exposed to the cold air flow from an air conditioning system.

• Place the printer in an area within a temperature range of 10°–32°C / 50°–90°F and a relative humidity range of 10–80% non-condensing.

Operational Guidelines

• Do not open or remove the paper source tray that you selected in either the printer driver or control panel while the printer is printing.

• Do not open the doors while the printer is printing.

• Do not move the printer while it is printing.

• Do not move the printer while the ink is still hot; wait 30 minutes for the printer to cool down after shutting down using the shutdown sequence. For details, see Precautions for Moving the Printer on page 137.

• Keep hands, hair, neckties, etc., away from the exit and feed rollers.

• Use the printer at elevations below 2480 m (8,000 ft.)

ColorQube 8570/8870 Color Printer User Guide

Safety

Printer Supplies

• Use the supplies specifically designed for your printer. The use of unsuitable materials may cause poor performance and a possible safety hazard.

• Follow all warnings and instructions marked on, or supplied with, the printer, options, and supplies.

CAUTION: Use of non-Xerox supplies is not recommended. The Xerox Warranty, service

agreements, and Total Satisfaction Guarantee do not cover damage, malfunction, or degradation of performance caused by use of non-Xerox supplies, or the use of Xerox supplies not specified for this printer. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas; please contact your local representative for details.

See also:

Ordering Supplies on page 134

ColorQube 8570/8870 Color Printer

User Guide

Safety

Maintenance Safety

• Do not attempt any maintenance procedure that is not specifically described in the documentation supplied with your printer.

• Do not use aerosol cleaners. Clean the printer with a dry, lint-free cloth only unless otherwise specified.

• Do not burn any consumables or routine maintenance items. For information on Xerox supplies recycling programs, go to:

• ColorQube 8570 printer: www.xerox.com/gwa

• ColorQube 8870 printer: www.xerox.com/gwa

See also:

Maintenance and Cleaning on page 120

ColorQube 8570/8870 Color Printer User Guide

Printer Symbols

00:30

Symbol Description

Warning or Ca ution : Ignoring this warning could cause serious injury or even death. Ignoring this caution could cause injury or damage to the property.

Hot surface on or in the printer. Use caution to avoid personal injury.

Avoid pinching fingers in the printer. Use caution to avoid personal injury.

Allow 30 minutes for the printer to cool down before moving or packing it.

Safety

ColorQube 8570/8870 Color Printer

User Guide

Safety

ColorQube 8570/8870 Color Printer User Guide

Features

This chapter includes:

• Parts of the Printer on page 18

• Printer Configurations and Options on page 21

• Information Pages on page 23

• More Information on page 26

ColorQube 8570/8870 Color Printer

User Guide

Fea ture s

8X70-044

Parts of the Printer

This section includes:

• Right-Front View on page 18

• Right-Side View on page 19

• Rear View on page 19

• Control Panel on page 20

Right-Front View

View shows the ColorQube 8570/8870 printer with all three optional feeder trays.

1. Optional 525-Sheet Feeder (Tray 5)

2. Optional 525-Sheet Feeder (Tray 4)

3. Optional 525-Sheet Feeder (Tray 3)

4. Standard 525-Sheet Tray 2

5. Tray 1, 100-Sheet max. capacity

6. Control panel

7. Exit door release

ColorQube 8570/8870 Color Printer User Guide

8. Front door release

9. Exit door B

10. Ink loader door C

11. Legal/A4 output tray extension

12. Interface (I/O) door E

13. Side door D

14. Front door A

Right-Side View

8X70-045

5 6

8X70-046

Rear View

Fea ture s

1. Maintenance kit

2. Waste tray

3. Power cord connection

4. Power switch

5. USB connection

6. Configuration card

7. Ethernet 10Base-T/100/1000Base-TX connection

1. Optional hard drive

2. Two RAM slots

ColorQube 8570/8870 Color Printer

User Guide

Fea ture s

8X70-048

READY TO PRINT

Walk-Up Features

Information Paper Tray Setup Printer Setup Troubleshooting

6 8

Control Panel

The control panel displays the printer’s operating status, for example, Warming up, Ready to Print, Printing, etc., printer errors and warnings, and prompts you to load paper, order and replace supplies, and clear jams. From the control panel, you access tools and information pages to help resolve problems, and to change printer and network settings.

1. Status indicator light:

Green: Printer is ready to print. Yellow: Warning condition; printer continues to

print.

Red: Startup sequence or error condition. Blinking Green: Printer is busy or warming up.

2. Graphic display: Upper part displays status

messages and, for menus, the menu title. Lower part displays menus and menu options.

3. Cancel button:

Cancels the current print job.

4. Back button:

Returns to the previous menu item.

5. Up Arrow button:

Scrolls upward through the menus.

6. Down Arrow button:

Scrolls downward through the menus.

7. OK button:

Accepts the selected setting.

8. Help (?) button:

Displays a help message with information about the printer, such as printer status, error messages, and maintenance information. Also describes control panel menu items.

9. Power Saver button/indicator light:

Brings the printer out of, or puts the printer into, Power Saver mode.

On steady: Printer can be put in Power Saver mode at this time.

Off: Printer cannot be put in Power Saver mode at this time.

Blinking: Printer is in Power Saver mode.

ColorQube 8570/8870 Color Printer User Guide

Fea ture s

Printer Configurations and Options

This section includes:

• Standard Features on page 21

• Options and Upgrades on page 22

Standard Features

The ColorQube 8570 and 8870 printers come with the following standard features:

•1 GHz processor

• PostScript print-quality modes:

• Fast Color: For previewing or rush jobs

• Standard: General purpose mode for full-color printing

• Enhanced: For superior text resolution and vibrant, saturated colors

• Photo: High resolution for best detail, highest-quality color prints

• PCL driver print-quality modes:

• PCL Standard Mode

• PCL Enhanced Mode

• Tray 1 (multipurpose) that holds up to 100 sheets

• Tray 2 that holds up to 525 sheets

• 512 MB RAM memory, expandable to 2 GB, with two DDR2 SDRAM slots supporting 512 MB and 1 GB cards.

• PostScript and PCL fonts

• USB 2.0 and Ethernet 10Base-T/100/1000Base-TX connections

• RAM collation. Allows jobs to be stored in memory so that multiple copies can be printed in page sequence order: 123, 123, 123, 123, instead of copy number order: 1111, 2222, 3333.

• Cartridge-free solid ink

ColorQube 8570/8870 Color Printer

User Guide

Fea ture s

Options and Upgrades

You can order additional feeder trays, memory, and a hard drive if these items are not standard on your printer. To see which options are installed on your printer, print the Configuration page. For details, see

Configuration Page on page 23.

• Hard drive

• Automatic 2-sided printing

• 1, 2, or 3 additional 525-sheet feeder trays

•Memory

For ordering options and upgrades, contact your local reseller or go to the Xerox Supplies website for your printer:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570supplies

• ColorQube 8870 printer: www.xerox.com/office/CQ8870supplies

ColorQube 8570/8870 Color Printer User Guide

Fea ture s

Information Pages

This section includes:

• Menu Map on page 23

• Configuration Page on page 23

• Other Information Pages on page 24

• Sample Pages on page 25

Your printer comes with a set of information pages to help you track the printer’s performance and diagnose problems so you can obtain the best results from your printer. You access these pages from the printer control panel. Print the Menu Map to see where these information pages are located in the control panel menu structure.

The Menu Map and Configuration page are two commonly-used information pages.

Menu Map

The Menu Map information page lists all main and second-level control panel menu headings. Use the Menu Map to help you navigate to each of the printer’s functions and for getting to know your printer’s capabilities and settings.

To print the Menu Map:

1. On the printer control panel, select Information and then press the OK button.

2. Select Menu Map > OK.

Note: Print the Menu Map to see other information pages available for printing.

Configuration Page

The Configuration page lists information about the current configuration of your printer, including IP address, and is useful for network analysis and general troubleshooting.

To print the Configuration page:

1. On the printer control panel, select Information and then press the OK button.

2. Select Information Pages > OK.

3. Select Configuration Page > OK.

Note: You can also print Information pages from CentreWare Internet Services. For details, see Using CentreWare Internet Services on page 39.

See also:

Supported Paper Sizes and Weights on page 55

Other Information Pages on page 24

ColorQube 8570/8870 Color Printer

User Guide

Fea ture s

Other Information Pages

The following Information pages are available from the printer control panel. For the menu location of each page, print the Menu Map. For details, see Menu Map on page 23.

Information Page Description

Paper Tips Page Lists supported paper and gives tips on setting up and loading

paper trays. For details, see Supported Paper Sizes and

Weights on page 55.

Supplies Usage Page Provides coverage information and part numbers for

reordering supplies.

Connection Setup Page Provides information about setting up your printer on a

network, or connecting directly to your computer on a Windows or Macintosh system.

Startup Page Contains basic printer configuration and network information.

Prints during the Startup Sequence when enabled, or if the printer detects an error during the Power-On Self Test diagnostics.

Usage Profile A summary page of printer-usage information.

PostScript Font List List of PostScript fonts available within the printer, or installed

on the printer’s hard drive if the optional hard drive is installed.

PCL Font List List of PCL fonts available within the printer, or installed on

the printer’s hard drive if the optional hard drive is installed.

Disk Directory Requires optional printer hard drive. Prints pages listing all

downloaded files on the hard drive, such as fonts and macros.

Troubleshooting Print Quality Page Lists common print-quality problems and tips for solving

them. For details, see Printing the Troubleshooting Print

Quality Page on page 164.

See also:

Print-Quality Problems on page 164

ColorQube 8570/8870 Color Printer User Guide

Fea ture s

Sample Pages

Your printer comes with a set of sample pages that demonstrate different printer functions.

Page Description

Graphics Demonstration Prints a page demonstrating the printer's ability to print a

graphic image.

Office Demonstration Prints a page demonstrating the printer's ability to print an

office graphic image.

2-Sided Demonstration Requires automatic 2-sided printing option. Prints two pages

on one sheet to demonstrate the printer's 2-sided printing ability.

Print Mode Demonstration Prints three copies of the Office Demonstration Page in each

print-quality mode to demonstrate printer speed and resolutions.

CMYK Sampler Pages Prints the multi-page CMYK Color Sampler chart.

RGB Sampler Pages Prints the multi-page RGB Color Sample chart.

PANTONE Color Sampler Pages Prints the multi-page PANTONE\256 Color Sampler chart.

To print Graphics, Office, or 2-Sided Demonstration sample pages:

1. On the printer control panel, select Information and then press the OK button.

2. Select Sample Pages > OK.

3. Select the desired sample page and then press OK.

4. Select one of the following:

• Single Print: prints a single sample page.

• Continuous Print: prints sample pages until you stop printing by pressing the Cancel button

on the printer control panel.

5. Press OK to print.

Note: These pages can also be printed from CentreWare® Internet Services in the Print tab. For

details, see Using CentreWare Internet Services on page 39.

See also:

Using Color Sampler Pages on page 167

ColorQube 8570/8870 Color Printer

User Guide

Fea ture s

More Information

This section includes:

• ColorQube 8570 Printer on page 26

• ColorQube 8870 Printer on page 27

• Xerox Support Centre on page 28

You can obtain more information about your printer and its capabilities from the sources and Web links listed in the following tables.

ColorQube 8570 Printer

Information Source

Installation Guide Packaged with printer

Quick Use Guide Packaged with printer

User Guide (PDF) Packaged with printer on Software and

Documentation disc. Also available at:

www.xerox.com/office/CQ8570docs

System Administrator Guide www.xerox.com/office/CQ8570docs

Video Tutorials www.xerox.com/office/CQ8570docs

Recommended Media List United States: www.xerox.com/paper

Europe: www.xerox.com/europaper

Online Support Assistant www.xerox.com/office/CQ8570support

Tec h ni ca l Su ppo r t www.xerox.com/office/CQ8570support

PhaserSMART Technical Support www.phasersmart.com

Information about menus or error messages Control panel Help (?) button

Information pages Print from the control panel menu

ColorQube 8570/8870 Color Printer User Guide

ColorQube 8870 Printer

Information Source

Installation Guide Packaged with printer

Quick Use Guide Packaged with printer

User Guide (PDF) Packaged with printer on Software and

Documentation disc. Also available at:

www.xerox.com/office/CQ8870docs

System Administrator Guide www.xerox.com/office/CQ8870docs

Video Tutorials www.xerox.com/office/CQ8870docs

Recommended Media List United States: www.xerox.com/paper

Europe: www.xerox.com/europaper

Online Support Assistant www.xerox.com/office/CQ8870support

Tec h ni ca l Su ppo r t www.xerox.com/office/CQ8870support

Fea ture s

PhaserSMART Technical Support www.phasersmart.com

Information about menus or error messages Control panel Help (?) button

Information pages Print from the control panel menu

ColorQube 8570/8870 Color Printer

User Guide

Fea ture s

Xerox Support Centre

The Xerox Support Centre utility provides a central location for accessing the following information:

• User manuals and video tutorials

• Solutions to troubleshooting problems

• Printer and supplies status

• Supplies ordering and recycling

• Answers to frequently asked questions

Note: You can download and install the Xerox Support Centre utility from a link on the Software

and Documentation disc, or from the Xerox Drivers and Downloads website:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570drivers

• ColorQube 8870 printer: www.xerox.com/office/CQ8870drivers

Xerox Support Centre is available for systems with Windows XP SP1 and later or Mac OS X, version 10.3 and higher.

To start the Xerox Support Centre utility:

1. Select one of the following options:

• Windows: Double-click the Xerox Support Centre icon on your

desktop.

• Macintosh: Click the Xerox Support Centre icon in the dock.

2. Select your printer from the Select Printer drop-down list.

Note: You must have an Internet connection to view manuals and videos on the website.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

This chapter includes:

• Installation and Setup Overview on page 30

• Assigning the Printer’s IP Address on page 32

• Using CentreWare Internet Services on page 39

• Installing the Software on page 41

• Power Saver Settings on page 48

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Installation and Setup Overview

This section includes:

• Choosing a Connection Method on page 30

• Connecting to a Network on page 31

• Connecting Directly Using USB on page 31

Before you can use your printer, you must:

1. Make sure the printer is connected correctly and turned on.

2. Install software drivers and utilities. The software installation procedure depends on your connection type (network or USB).

3. Configure the software.

Choosing a Connection Method

You can connect to your printer over a network using an Ethernet cable, or directly using a USB cable. Hardware and cabling requirements vary for the different connection methods. Routers, network hubs, network switches, modems, Ethernet and USB cables are not included with your printer and must be purchased separately.

Printing the Connection Setup Page

Your printer comes with a Connection Setup information page, which includes illustrations, to help you with setup. The Connection Setup page is set to print the first time the printer is turned on if there is paper in one of the trays. If you need to print the page again, use the following instructions.

To print the Connection Setup page:

1. Plug in the printer, turn it on, then let it warm up.

2. On the printer control panel, select Printer Setup and then press the OK button.

3. Select Connection Setup > OK.

4. Select Connection Setup Page > OK.

Note: For more connection information and illustrations, refer to the Installation Guide that came

packaged with your printer.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Connecting to a Network

If your computer is connected to an office network or a home network, whether a hard-wired connection or wireless, you will use an Ethernet cable to connect the printer to the network. An Ethernet network can be used for one or more computers and supports many printers and systems simultaneously. An Ethernet connection is recommended because it is typically faster than a USB connection and it allows you direct access to the printer’s settings using CentreWare® Internet Services.

To connect the printer to a network:

1. Before turning on the printer, attach a Category 5 or better Ethernet cable from the printer to the network or router socket.

You will need an Ethernet hub, or a DSL or Cable router (direct or wireless), and two or more Category 5 or better Ethernet cables (one cable for each device). To connect using an Ethernet hub or router, first connect the computer to the hub/router with one cable and then connect the printer to the hub/router with the second cable. Connect to any port on the hub/router except the uplink port.

2. Attach the power cord and then plug in the printer and turn it on. For safety information, see

Electrical Safety on page 10.

3. Either manually set or automatically discover the printer’s IP (network) address. If your company has a system administrator, ask that person for the printer’s IP address. For details, see Assigning

the Printer’s IP Address on page 32.

Connecting Directly Using USB

If you are connecting the printer to one computer and do not have a network, you can use a USB connection. To use USB, PC users must have Microsoft XP SP1/Server 2003 or later. Macintosh users must use Mac OS X, version 10.3 or higher.

Note: A USB connection does not provide access to CentreWare® Internet Services, nor does it

allow bi-directional communication within the printer driver to provide, for example, information such as the status of paper loaded in the trays.

To connect the printer to the computer using a USB cable:

1. Attach the power cord and then plug in the printer and turn it on. For safety information, see

Electrical Safety on page 10.

2. Connect one end of a standard A/B USB 2.0 cable to the printer’s USB port. For the location of the USB port, see Right-Side View on page 19.

3. Connect the other end of the USB cable to the computer’s USB port.

4. When the Windows Found New Hardware Wizard appears, cancel it.

5. You are ready to install the printer drivers. Go to Installing the Software on page 41.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Assigning the Printer’s IP Address

This section includes:

• Automatically Assigning the IPv4 Address on page 32

• Manually Assigning the IPv4 Address on page 33

• Configuring IPv6 on page 34

• Resetting the TCP/IP Configuration on page 38

If your computer is on a large network, contact the network administrator for the appropriate TCP/IP addresses and additional configuration information.

If you are creating your own small Local Area Network or connecting the printer directly to your computer using Ethernet, follow the procedure for automatically setting the printer’s Internet Protocol (IP) address.

The IP address can be assigned automatically by using the AutoIP protocol or the DHCP protocol, or manually by specifying a fixed address. Network addresses assigned by DHCP are temporary, however. After a specified time, the network may assign a new IP address to the printer, which may cause a connectivity problem for you. To fix this, or if your network administrator requires a static IP address for the printer, you can assign the IP address to the printer manually. For details, see Manually Assigning

the IPv4 Address on page 33.

See also:

Online Support Assistant at:

ColorQube 8570 printer: www.xerox.com/office/CQ8570support

ColorQube 8870 printer: www.xerox.com/office/CQ8870support

Automatically Assigning the IPv4 Address

By default, your printer is set to be recognized automatically by the network to which it is connected, acquiring an IP address using DHCP. In this case, you do not need to do anything except write down the printer’s IP address; you will need it for accessing CentreWare® Internet Services and installing the software. After the printer is connected to the network, it will automatically seek an available IP address.

Notes:

• For the automatic Installer to function, the printer must be connected to an established

TCP/I P n etwork.

• You can view your printer’s IP address at any time from either the Configuration page or

the printer control panel. For details, see Finding the Printer’s IP Address on page 40.

If you need to assign the IP address using a method other than DHCP or for a protocol other than IPv4, such as IPv6, see Configuring IPv6 on page 34, or refer to the CentreWare® Internet Services online help.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Manually Assigning the IPv4 Address

Notes:

• These instructions are for connecting using the IPv4 protocol. For details on IPv6, see Configuring IPv6 on page 34, or refer to the CentreWare® Internet Services online help.

• Verify that your computer has a properly configured IP address for your network.

Contact the network administrator for more information.

If you are on a network without a DNS server, or in an environment where the network administrator assigns printer IP addresses, you can use this method to manually set the IP address. If you are in a small office with a single PC and use a dialup modem connection, you can also manually set the IP address using this method.

Notes:

• When assigning the IP address manually, you will need to supply a Network Mask

address. If you are unsure of what this is, leave it blank. The printer will choose an appropriate network mask address.

• When assigning the IP address manually, you will need to supply a default router or

gateway address. The router address is required to communicate with the host device from anywhere other than the local network segment.

To manually set the IP address from the printer control panel using IPv4:

1. On the printer control panel, select Printer Setup and then press the OK button.

2. Select Connection Setup > OK.

3. Select Network Setup > OK.

4. Select TCP/IPv4 Setup > OK.

5. At IPv4, check the setting. If the setting is Off, press OK to change it to On.

6. Select DHCP/BOOTP > OK to set it to Off.

7. Select AutoIP > OK to set it to Off.

8. Select IPv4 Address: > OK.

9. Use the arrow buttons and the OK button to enter the IP address. The IP address is composed of four banks of numbers separated by periods: xxx.xxx.xxx.xxx. At the first bank of numbers, use the Up and Down Arrow buttons to select the first number in the address and then press OK to set the number and move to the next bank of numbers. Repeat the process for the remaining banks of numbers.

10. Press OK. The printer will display a message that it is checking for duplicate IP address numbers. If it does not find any, you are done. If the number you entered is already being used by the network, you will need to enter a different address.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Configuring IPv6

This section includes:

• Enabling IPv6 on page 34

• Setting the Interface ID on page 35

• Automatically Assigning the IPv6 Address on page 35

• Using DHCPv6 on page 36

• Manually Assigning an IPv6 Address on page 37

• Setting Address Precedence on page 38

Enabling IPv6

IPv6 can be enabled or disabled independently of IPv4.

Note: If you disable both IPv4 and IPv6, you will lose your connection to the printer. For

information on restoring the default TCP/IP settings, see Resetting the TCP/IP Configuration on page 38.

To enable or disable IPv6, use one of the following options:

• The printer control panel

• CentreWare® Internet Services

Enabling IPv6 Using the Control Panel

1. On the printer control panel, select Printer Setup and then press the OK button.

2. Select Connection Setup > OK.

3. Select Network Setup > OK.

4. Select TCP/IPv6 Setup > OK.

5. At IPv6, press OK to switch between On and Off.

Enabling IPv6 Using CentreWare® Internet Services

1. Launch your computer’s Web browser.

2. Type your printer’s IP address in the browser’s Address field.

3. At the CentreWare® Internet Services page, click Properties.

4. In the navigation pane on the left, select the Protocols folder, then click TCP/IP.

5. Click the TCP/IP (v6) button.

6. Select the TCP/IP v6 Enabled check box to enable TCP/IP v6.

7. At the bottom of the page, click the Save Changes button.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Setting the Interface ID

Your IPv6-enabled printer has one interface with multiple addresses. The Interface ID is the part of the address after the prefix. The printer uses the Interface ID when assigning both the Link-Local address and automatic addresses that use router supplied prefixes. It is not used in addresses supplied by DHCPv6. Link-Local addresses are used by nodes to communicate with other nodes on the same local network. Two options are available for setting the Interface ID:

• The default is to have the Interface ID automatically computed from the MAC address associated with the interface. The ID is different for each device. This is the recommended method for setting the Interface ID.

• The other option is to manually set the Interface ID. The Interface ID must be 64 bits (8 bytes) in length, and must not contain special characters other than colons or valid hexadecimal digits (0 through 9, a through f, or A through F).

Note: Set the Interface ID using CentreWare® Internet Services. If you change the Interface ID,

you will be prompted to reset the printer before the changes take effect.

To set the Interface ID using CentreWare® Internet Services:

1. Launch your computer’s Web browser.

2. Type your printer’s IP address in the browser’s Address field.

3. At the CentreWare® Internet Services page, click Properties.

4. In the navigation pane on the left, expand the Protocols folder, then click TCP/IP.

5. Click the TCP/IP (v6) button.

6. Do one of the following:

•Select User Interface ID from MAC address.

•Select Use this Interface ID and then type the address into the field provided.

7. At the bottom of the screen, click the Save Changes button.

Automatically Assigning the IPv6 Address

Addresses can be assigned automatically when a router is found that offers one or more prefixes. Automatically-assigned addresses are routable. Each router-supplied prefix is combined with the Interface ID to create an address. The use of router-supplied prefixes is enabled by default.

To enable or disable automatic address assignment, use one of the following options:

• The printer control panel

• CentreWare® Internet Services

Enabling or Disabling Automatic Address Assignment Using the Control Panel

1. On the printer control panel, select Printer Setup and then press the OK button.

2. Select Connection Setup > OK.

3. Select Network Setup > OK.

4. Select TCP/IPv6 Setup > OK.

5. Select Auto Assign, then press OK to turn Auto Assign On or Off.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Enabling or Disabling Automatic Address Assignment Using CentreWare® Internet Services

1. Launch your computer’s Web browser.

2. Type your printer’s IP address in the browser’s Address field.

3. At the CentreWare® Internet Services page, click Properties.

4. In the navigation pane on the left, expand the Protocols folder, then click TCP/IP.

5. Click the TCP/IP (v6) button.

6. In the Automatic Address Assignment section, select/deselect Use router supplied prefixes.

7. At the bottom of the page, click the Save Changes button.

Using DHCPv6

DHCPv6 is used to acquire TCP/IP information.

The following DHCPv6 options are available in CentreWare® Internet Services:

• As directed by the router: DHCPv6 is performed according to values in a router advertisement. This is the default setting.

• Always, for all configuration options (stateful): Stateful DHCPv6 is always attempted, and router flags related to how to perform DHCP are ignored. Configuration options and an IPv6 address will be accepted if DHCPv6 is successful.

• Always, for all configuration options except address (stateless): Stateless DHCPv6 is always attempted, and router flags related to how to perform DHCP will be ignored. Configuration options will be accepted if DHCPv6 is successful, but no IPv6 address will be assigned.

• Never: DHCPv6 is not used even if directed to do so by a router.

Setting DHCPv6 Options Using the Control Panel

1. On the printer control panel, select Printer Setup and then press the OK button.

2. Select Connection Setup > OK.

3. Select Network Setup > OK.

4. Select TCP/IPv6 Setup > OK.

5. Select DHCPv6 Mode > OK.

6. Select the DHCPv6 option: Router, Stateful, Stateless, or Never.

7. Press OK.

Setting DHCPv6 Options Using CentreWare® Internet Services

1. Launch your computer’s Web browser.

2. Type your printer’s IP address in the browser’s Address field.

3. At the CentreWare® Internet Services page, click Properties.

4. In the navigation pane on the left, expand the Protocols folder, then click TCP/IP.

5. Click the TCP/IP (v6) button.

6. In the DHCPv6 section, select/deselect the desired DHCPv6 options.

7. At the bottom of the page, click the Save Changes button.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Manually Assigning an IPv6 Address

A manually entered IPv6 address is used in addition to any other IPv6 addresses. To create a manual address, enter the IPv6 address and prefix length in the fields provided in CentreWare® Internet Services.

To manually set the IPv6 address, use one of the following options:

• The printer control panel

• CentreWare® Internet Services

Setting the IPv6 Address Using the Control Panel

1. On the printer control panel, select Printer Setup and then press the OK button.

2. Select Connection Setup > OK.

3. Select Network Setup > OK.

4. Select TCP/IPv6 Setup > OK.

5. Select Manual Address and then press OK to turn manual addressing on.

6. Press the Down Arrow button to select Manual Address: :: and then press OK.

7. To set the address:

a. Use the Up Arrow and Down Arrow buttons to set the first number, then press OK to set the

number.

b. Continue setting individual numbers, pressing OK after setting each one. When you get to

the end of the address, press OK to return to the menu.

Setting the IPv6 Address Using CentreWare® Internet Services

1. Launch your computer’s Web browser.

2. Type your printer’s IP address in the browser’s Address field.

3. At the CentreWare® Internet Services page, click Properties.

4. In the navigation pane on the left, expand the Protocols folder, then click TCP/IP.

5. Click the TCP/IP (v6) button.

6. In the Manual Address Assignment field, select the Use this address check box and then type the address in the field provided.

7. At the bottom of the page, click the Save Changes button.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Setting Address Precedence

Address precedence can be set to prefer IPv6 or IPv4 addresses when both types are available. The default setting is to prefer IPv6 addresses. Set Address Precedence using CentreWare® Internet Services.

To set address precedence using CentreWare® Internet Services:

1. Launch your computer’s Web browser.

2. Type your printer’s IP address in the browser’s Address field.

3. At the CentreWare® Internet Services page, click Properties.

4. In the navigation pane on the left, expand the Protocols folder, then click TCP/IP.

5. Click the TCP/IP (v6) button.

6. In the Address Precedence section, select the desired option.

7. At the bottom of the page, click the Save Changes button.

Resetting the TCP/IP Configuration

Use the following procedure at the printer control panel to reset the TCP/IP configuration to the default settings:

1. Select Printer Setup and then press the OK button.

2. Select Connection Setup > OK.

3. Select Reset Connection Setup > OK.

4. At Reset Connection Setup NOW, press OK.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Using CentreWare Internet Services

This section includes:

• Accessing CentreWare® Internet Services on page 39

• Finding the Printer’s IP Address on page 40

CentreWare® Internet Services provides access to the printer’s embedded Web server. It enables you to easily manage, configure, and monitor network printers using a Web browser on a network computer. CentreWare® Internet Services gives administrators access to printer status, configuration, security settings, and diagnostic functions. It also provides access to special printing functions such as printing saved jobs.

CentreWare® Internet Services enables you to:

• Check supplies status from your computer, saving a trip to the printer.

• Access job accounting records to allocate printing costs and plan supplies purchases.

• Troubleshoot print-quality problems using built-in diagnostics.

• Define a network printer search and view a list of printers using Printer Neighborhood. The list provides current status information and allows you to manage printers independently of network servers and operating systems.

• Configure printers from your computer. CentreWare® Internet Services makes it easy to copy settings from one printer to another.

• Set up and use a simple Web browser-based printing system. Marketing collateral, sales materials, business forms, or other standardized, frequently-used documents can be saved as a group with their original driver settings and then reprinted on demand at high speed from any user's browser. A printer with a hard drive is required to support these functions.

• Access online manuals and technical support information located on the Xerox website.

CentreWare® Internet Services requires:

• A Web browser and a TCP/IP connection between the printer and the network (in Windows, Macintosh, or UNIX environments).

• JavaScript must be enabled in the Web browser. If JavaScript is disabled, a warning message appears and the pages do not function properly.

• TCP/IP and HTTP must be enabled in the printer.

Accessing CentreWare® Internet Services

1. Make sure your printer is turned on.

2. Launch your computer’s Web browser and then type your printer’s IP address in the Address field. Do not include “www” before the address. Type the address, separating the groups of numbers by periods.

For details on using CentreWare® Internet Services, click the Help button in CentreWare® Internet Services to go to the CentreWare® Internet Services online help.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Finding the Printer’s IP Address

The printer’s IP address is required to use CentreWare® Internet Services. If you do not know the IP address, print the Configuration page or locate the address on the printer control panel menu.

To print the Configuration page:

1. On the printer control panel, select Information and then press the OK button.

2. Select Information Pages > OK.

3. Select Configuration Page > OK.

To view the IP address from the printer control panel:

1. On the printer control panel, select Information and then press the OK button.

2. Select Printer Identification > OK.

3. To view the IP address, select whichever applies:

• TCP/IPv4 Address

• TCP/IPv6 Addresses

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Installing the Software

This section includes:

• Operating System Requirements on page 41

• Available Printer Drivers on page 41

• Installing the Printer Driver for Windows on page 42

• Installing the Printer Driver for Macintosh OS X on page 43

• Installing the Printer Driver for UNIX (Linux) on page 45

• Installing Other Drivers on page 46

• Installing Xerox Support Centre on page 47

Operating System Requirements

• PC: Windows Vista, XP SP1 or later, Windows Server 2003 or later.

• Macintosh: OS X, version 10.3 or higher.

• UNIX and Linux:

Your printer supports connection to a variety of UNIX platforms through the network interface. The workstations currently supported by CentreWare for UNIX/Linux to a network-connected printer are:

• Sun Solaris 8, 9, 10

•IBM AIX 51 v5.3

• Hewlett-Packard HPUX 11.0 and 11i

•Linux Intel

Available Printer Drivers

To access special printing options, use a Xerox printer driver. Xerox provides drivers for a variety of page description languages and operating systems. The following printer drivers are available for your printer. For more printer driver options and the latest printer drivers, go to the Xerox Drivers and Downloads website:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570drivers

• ColorQube 8870 printer: www.xerox.com/office/CQ8870drivers

Printer Driver Source Description

Windows PostScript Driver CD/DVD and Web The PostScript driver is recommended to take full

advantage of your system's custom features and genuine Adobe PostScript. (Default printer driver.)

Windows PCL5c Driver Web only The Printer Command Language driver can be

used for applications requiring PCL.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Printer Driver Source Description

Xerox Global Print Driver™ (Windows)

Xerox Mobile Express Driver™ (Windows)

Mac OS X (version 10.3 or higher) Driver

UNIX PostScript Driver Web only This driver enables printing from a UNIX or Linux

CD/DVD and Web This driver enables printing from a PC to any

Xerox PostScript-enabled printer. It configures itself for your individual printer upon installation.

Web only This driver enables printing from a PC to any

Xerox PostScript-enabled printer. This is especially helpful for mobile professionals who travel to multiple locations and need to print to different printers.

CD/DVD and Web This driver enables printing from a Mac OS X

(version 10.3 or higher) operating system.

operating system.

Installing the Printer Driver for Windows

These instructions are for installing the PostScript driver from the Software and Documentation disc that came with your printer. For installing the Windows PCL5 printer driver, see Installing Other Drivers on page 46.

1. Insert the disc into the computer’s CD or DVD drive. If the installer does not launch, do the following:

a. Click Start and then click Run. b. In the Run window, type: <CD or DVD drive>:\Setup.exe and then click OK.

2. At the bottom of the install screen, click Language and select your language from the list, then click OK.

3. Click Install Print Driver.

4. Click I Agree to accept the license agreement.

5. In the Discovered Printers list, select your ColorQube printer and then click Next.

Note: If you are installing drivers for a network-connected printer and you do not see your printer

displayed in the list, click the IP Address or DNS Name button near the top of the window. In the IP Address or DNS Name field, type your printer’s IP address and then click Search to locate your printer. Select your printer and then click Next. If you do not have your printer’s IP address, print the Configuration page from the control panel and then locate the printer IP address on it or ask your system administrator. To print the Configuration page, see Finding the Printer’s IP Address on page 40.

6. In the Installation Options dialog box, accept the defaults and then click Install.

7. When the installation is complete, click Finish.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

8. In the Information Forwarding dialog box, read the information provided and then do one of the following:

• To enable Information Forwarding, verify that the Enable Information Forwarding check

box is selected and then click Close.

• To disable Information Forwarding, clear the Enable Information Forwarding check box and

then click Close.

9. Register your printer or click Close.

A test page will print confirming the installation.

See also:

Online Support Assistant at:

ColorQube 8570 printer: www.xerox.com/office/CQ8570support

ColorQube 8870 printer: www.xerox.com/office/CQ8870support

Installing the Printer Driver for Macintosh OS X

This section includes:

• Installing the Printer for Macintosh OS X Version 10.3 on page 43

• Installing the Printer for Macintosh OS X Version 10.4 and 10.5 on page 44

For networking, you can set up your printer using Bonjour (Rendezvous), or connect using your printer’s IP address for an LPD/LPR connection for Macintosh OS X version 10.3 or higher.

For a non-network printer, connect using USB. For details, see USB Connection on page 44.

See also:

Online Support Assistant at:

ColorQube 8570 printer: www.xerox.com/office/CQ8570support

ColorQube 8870 printer: www.xerox.com/office/CQ8870support

Installing the Printer for Macintosh OS X Version 10.3

Bonjour (Rendezvous) Connection

To install the printer driver from the Software and Documentation disc:

1. Insert the disc into your computer’s CD or DVD drive and run the installation package.

2. After installing the printer driver, open the Printer Setup Utility.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder and then open

the Utilities folder.

3. Confirm that the first drop-down menu is set to Bonjour (Rendezvous).

4. Select the printer in the window.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

5. Select Xerox from the list of manufacturers in the lower drop-down menu.

6. Select your printer model from the list of Xerox printers and then click Add.

Note: If your printer was not detected, verify that the printer is on and that the Ethernet cable is

connected properly. If you have verified that the printer is on and connected correctly and you are using an Ethernet cable to connect to a network, try adding the printer using the IP address. See the following set of instructions for details.

LPD/LPR Connection

1. Insert the Software and Documentation disc into your computer’s CD or DVD drive and then run the installation package.

2. After installation is complete, open the Printer Setup Utility.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder and then open

the Utilities folder.

3. Click the Add button.

4. Select IP Printing from the first pull-down menu.

5. Select LPD/LPR from the second pull-down menu.

6. Type the printer’s IP address in the Printer Address field. Verify that the Queue Name field is blank.

7. Select Xerox from the Printer Model menu and then select the corresponding PPD file.

8. Click the Add button. The printer is added to the list.

USB Connection

1. Insert the Software and Documentation disc into your computer’s CD or DVD drive and then run the installation package.

2. After installation is complete, open the Printer Setup Utility.

Note: To locate utilities on the Macintosh hard drive, open the Applications folder and then open

the Utilities folder.

3. Click the Add button.

4. Select USB from the drop-down menu.

5. Select the printer in the window.

6. Select Xerox from the list of manufacturers.

7. Select the appropriate printer configuration from the list of available printers.

8. Click the Add button.

Installing the Printer for Macintosh OS X Version 10.4 and 10.5

To install the printer driver from the Software and Documentation disc:

1. Insert the disc into your computer’s CD or DVD drive.

2. At the Welcome screen, click Continue.

3. At the Software License Agreement screen, click Continue.

4. Read and accept the license agreement: click I Agree.

5. Click Install.

6. If prompted, enter your password and click OK.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

7. After installation, at the Select Printer screen, do one of the following as needed:

• Select your printer if it is displayed in the list.

• If your printer is not displayed in the list and you have a network connection to the printer,

click the IP Address or DNS Name button in the row at the top of the installation screen. In the field provided, type the printer’s IP address.

8. Click Continue.

9. In the Select Printer Model drop-down list, select the printer model and then click Continue.

10. Click OK.

11. At the Finish Up installation screen, register your printer if desired at this time, then verify that the Print a Test Page option is selected. Click Continue.

12. At the Install Succeeded screen, click Close.

Installing the Printer Driver for UNIX (Linux)

1. At the printer, do the following:

a. Verify that both the TCP/IP protocol and the proper connector are enabled.

b. On the printer control panel, do one of the following for the IP address:

• Allow the printer to set up a DHCP address.

• Enter the IP address manually.

c. Print the Configuration page and keep it for reference. For details, see Configuration Page on

page 23.

2. At your computer, do the following:

a. Go to the applicable Web page for your printer:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570drivers

• ColorQube 8870 printer: www.xerox.com/office/CQ8870drivers

b. From the Operating System drop-down menu, select UNIX and then click Go.

c. Click the CentreWare for Unix package for the operating system this will be installed on. This

is the core package and must be installed first before the printer package.

d. Click the Start button to begin downloading.

e. Repeat steps a and b, then click the Printer Package for use with CentreWare for Unix

installers link. f. Click the Start button to begin downloading.

g. In your browser, click the Installation Guide link, then follow the installation instructions.

Note: If print-quality problems exist, or your job did not print, access PhaserSMART Technical

Support through CentreWare® Internet Services. See the following instructions for details.

To access PhaserSMART Technical Support:

1. Launch your Web browser.

2. Type the printer’s IP address in the browser’s Address field.

3. Select Support.

4. Click the PhaserSMART Diagnostic Tool link to access PhaserSMART.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Installing the Printer When Using CUPS as the Print Spooler

When using CUPS as the print spooler, you need to add the printer’s PPD file to the /usr/share/cups/model/Xerox directory.

To install the PPD file:

1. Go to the applicable Web page for your printer:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570drivers

• ColorQube 8870 printer: www.xerox.com/office/CQ8870drivers

2. From the Operating System drop-down menu, select UNIX and then click Go.

3. Click the PPD Files using CUPS Printing Services link.

4. Click the Start button to begin downloading.

5. In your browser, click the README link and then follow the installation instructions.

Installing Other Drivers

Other available drivers include the Xerox Mobile Express Driver, the PCL5c printer driver for Windows, and driver versions for different Windows operating systems such as Windows Vista x64. These drivers can be downloaded from the Web.

To install other drivers:

1. Insert the Software and Documentation disc into the computer’s CD or DVD drive. If the installer

does not launch, do the following:

a. Click Start and then click Run. b. In the Run window, type: <CD or DVD drive>:\Setup.exe and then click OK.

2. Click Alternative Drivers (this requires an Internet connection).

3. At the website for your printer, in the Operating System box, select your operating system and

then, if necessary, select your language from the Language box. Click Go to search for drivers.

4. Locate the desired driver in the list of drivers, click the link, then follow the instructions for downloading and installing the driver.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Installing Xerox Support Centre

Download and install the Xerox Support Centre. A link to the files is located on the Software and Documentation disc.

1. Insert the disc into the computer’s CD or DVD drive. If the installer does not launch, do the following:

a. Click Start and then click Run.

b. In the Run window, type: <CD or DVD drive>:\Setup.exe and then click OK.

2. Click Guides and Tutorials.

3. Click Install Xerox Support Centre from Internet.

4. In the File Download dialog box, click Save and then save the Support Centre file to your computer.

5. Double-click the saved file. At the installation window, click Continue.

6. When the installation is complete, click Finish.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

Power Saver Settings

This section includes:

• Power Saver Mode on page 48

• Fast Resu m e on page 49

Power saver settings control the printer’s Power Saver mode behavior.

Power Saver Mode

This section includes:

• Configuring Power Saver Mode on page 48

• Enabling and Disabling Power Saver Mode on page 49

The ColorQube 8570/8870 printer comes with Power Saver settings designed to reduce energy consumption without the printer having to be shut off. These settings can be set at the printer control panel or in CentreWare® Internet Services. The Power Saver button on the control panel can be used to put the printer in, or bring it out of, Power Saver mode.

Configuring Power Saver Mode

To configure Power Saver mode from the printer control panel:

1. Select Printer Setup and press the OK button.

2. Select Printer Controls > OK.

3. Select Warmup Mode > OK.

4. Select the desired Warmup mode:

• Job Activated: The printer warms up when it receives a print job.

• Scheduled: The printer warms up at scheduled times. If you select this option, set the

warmup options in CentreWare® Internet Services. Go to CentreWare® Internet Services and then click the Help button for details.

• Intelligent Ready: The printer automatically monitors your printer-usage patterns and

follows a warmup schedule based on your printer usage.

5. Press OK.

ColorQube 8570/8870 Color Printer User Guide

Installation and Setup

Enabling and Disabling Power Saver Mode

1. On the printer control panel, if the Power Saver button is blinking slowly, the printer is in Power Saver mode. Press the blinking button to bring the printer out of Power Saver mode.

2. If the Power Saver button is off, the printer is not ready to be put in Power Saver mode. Wait until the button is on, then press it.

Note: You cannot put the printer into Power Saver mode if it is processing a job, in warmup mode,

cleaning, or shutting down. The Power Saver button is off when the printer cannot be put in Power Saver mode.

See also:

Control Panel on page 20

Fast Resume

When Fast Resume is enabled, it brings the printer out of Power Saver and Standby modes more quickly. However, this changes the default power saver timeouts and increases energy usage.

To enable or disable Fast Resume from the printer control panel:

1. Select Printer Setup and press the OK button.

2. Select Printer Controls > OK.

3. Select Fast Resume > OK. To change the setting, press OK again.

Note: You can also set Fast Resume from CentreWare® Internet Services. For details, click the Help

button in CentreWare® Internet Services.

ColorQube 8570/8870 Color Printer

User Guide

Installation and Setup

ColorQube 8570/8870 Color Printer User Guide

Printing

This chapter includes:

• Printing Overview on page 52

• Supported Media on page 53

• Loading Media on page 56

• Setting Paper Handling Options on page 63

• Printing on Specialty Media on page 66

• Using Custom Paper Sizes on page 81

• Creating Custom Paper Types on page 84

• Selecting Print Options on page 85

• Printing on Both Sides of the Paper on page 93

• Printing Multiple Pages on a Single Sheet (N-Up) on page 97

• Printing Booklets on page 98

• Enlarging and Reducing Pages on page 100

• Using Color Corrections on page 102

• Printing in Black and White on page 104

• Printing Separators on page 105

• Printing Cover Pages on page 106

• Printing Watermarks on page 108

• Printing Mirror Images on page 110

• Printing Special Job Types on page 112

ColorQube 8570/8870 Color Printer

User Guide

Printing

Printing Overview

1. Select media appropriate for your printer. For details, see Supported Media on page 53.

2. Load the media in the desired tray and then, if prompted, specify the paper size and type on the printer control panel.

3. In the application you are printing from, open the print settings dialog box.

4. Select your printer from the list.

5. Open the driver properties dialog box.

6. Modify the printer driver settings as desired and then do the following:

Windows: Click OK and then click Print. Macintosh: Click Print.

See also:

Loading Media on page 56

Selecting Print Options on page 85

Printing on Specialty Media on page 66

ColorQube 8570/8870 Color Printer User Guide

Printing

Supported Media

This section includes:

• Recommended Media Lists on page 53

• Ordering Media on page 53

• General Media Loading Guidelines on page 54

• Media That Can Damage Your Printer on page 54

• Paper Storage Guidelines on page 55

• Supported Paper Sizes and Weights on page 55

Your printer is designed to be used with a variety of media types. Follow the guidelines in this section to ensure the best print quality and to avoid jams.

For best results, use Xerox printing media specified for your ColorQube 8570/8870 printer.

Recommended Media Lists

A complete, regularly updated list of recommended media types is available:

• ColorQube 8570 printer:

Recommended Media List (United States): www.xerox.com/paper

Recommended Media List (Europe): www.xerox.com/europaper

• ColorQube 8870 printer:

Recommended Media List (United States): www.xerox.com/paper

Recommended Media List (Europe): www.xerox.com/europaper

You can also print the Paper Tips page, which provides a convenient list of the common paper types and sizes that can be printed from each tray. For details, see Supported Paper Sizes and Weights on page 55.

Ordering Media

To order paper, transparencies, or other specialty media, contact your local reseller or go to the Xerox Supplies website for your printer:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570supplies

• ColorQube 8870 printer: www.xerox.com/office/CQ8870supplies

CAUTION: Damage caused by using unsupported paper, transparencies, and other specialty

media is not covered by the Xerox warranty, service agreement, or Total Satisfaction Guarantee. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas; please contact your local representative for details.

See also:

Ordering Supplies on page 134

ColorQube 8570/8870 Color Printer

User Guide

Printing

General Media Loading Guidelines

Follow these guidelines when loading paper and media in the trays:

• Use only recommended transparencies; print quality may vary with other transparencies.

• Do not print on sheets of label stock that have labels removed.

• Do not print CD labels with this printer.

• Use only paper envelopes. Print envelopes 1-sided only.

• Do not overload the paper trays.

• Adjust the paper guides to fit the media size.

See also:

Printing on Transparencies on page 66

Printing on Envelopes on page 70

Printing on Labels on page 74

Printing on Glossy Paper on page 77

Printing on Custom-size Paper on page 83

Media That Can Damage Your Printer

Your printer is designed to use a variety of media types for print jobs. However, some media can cause poor output quality, increased paper jams, or damage to your printer.

Do not use the following:

• Rough or porous media

• Plastic media other than supported transparencies

• Paper with cutouts or perforations

• Paper with a prepunched hole in the center of the short edge

• Paper with staples attached

• Envelopes with windows, clasps of any type, side seams, or adhesives with release strips

ColorQube 8570/8870 Color Printer User Guide

Printing

Paper Storage Guidelines

Providing good storage conditions for your paper and other media contributes to optimum print quality.

• Store paper in dark, cool, relatively dry locations. Most paper is susceptible to damage from ultraviolet (UV) and visible light. UV radiation, which is emitted by the sun and fluorescent bulbs, is particularly damaging to paper items. The intensity and length of exposure to visible light on paper items should be reduced as much as possible.

• Maintain constant temperatures and relative humidity.

• Avoid storing paper in attics, kitchens, garages, or basements. These spaces are more likely to collect moisture.

• Store paper flat, either on pallets, cartons, shelves, or in cabinets.

• Avoid having food or drinks in the area where paper is stored or handled.

• Do not open sealed packages of paper until you are ready to load them into the printer. Leave stored paper in the original packaging. For most commercial cut-size grades, the ream wrapper contains an inner lining that protects the paper from moisture loss or gain.

• Some specialty media is packaged inside resealable bags. Store the media inside the bag until you are ready to use it; keep unused media in the bag and reseal it for protection.

Supported Paper Sizes and Weights

The Paper Tips page lists supported papers, transparencies, and other specialty media, along with sizes, supported in each tray for 1-sided and automatic 2-sided printing.

To print the Paper Tips page:

1. On the control panel, select Information and then press the OK button.

2. Select Information Pages > OK.

3. Select Paper Tips Page > OK.

The Paper Tips page prints.

See also:

Recommended Media Lists on page 53

ColorQube 8570/8870 Color Printer

User Guide

Printing

Loading Media

This section includes:

• Loading Paper in Tray 1 on page 56

• Using Manual Feed on page 58

• Loading Paper in Tray 2, 3, 4, or 5 on page 59

Loading Paper in Tray 1

Note: For instructions on loading specialty media, refer to the individual sections in Printing on Specialty Media on page 66.

You can use the following media types in Tray 1. For supported paper weights, print the Paper Tips page. For details, see Supported Paper Sizes and Weights on page 55:

• Plain paper (bond)

•Letterhead

• Colored paper

•Card stock

•Index card stock

• Custom-size paper

•Glossy paper

• Hole-punched (long edge)

•Labels

• Envelopes

• Transparencies

• Pre-printed paper (paper already printed on one side)

• Specialty media including business cards, photo paper, postcards, prepunched paper, Xerox Digital Color Duradocument paper, and trifold brochures

Tray 1 holds a maximum of:

• 100 sheets of plain paper (20 lb. Bond)

• 50 transparencies, postcards, sheets of labels, or sheets of glossy paper

•10 envelopes

See also:

Using Custom Paper Sizes on page 81

ColorQube 8570/8870 Color Printer User Guide

To load paper in Tray 1:

8X70-006

8X70-007

8X70-090

1. Pull out and down on the handle to open Tray 1.

2. Open the tray extension.

Printing

3. Insert the paper into the tray. For 1-sided printing, insert the side to be printed facedown with the top of the page entering the printer first.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-126

4. Adjust the paper guides to fit the paper loaded in the tray.

5. To use the current tray setup, on the printer control panel, press OK.

If you load a new paper size or type in the tray, do the following:

a. On the printer control panel, select Paper Tray Setup > OK.

b. Select Tray 1 Paper > OK.

c. Select Change Setup > OK. d. Select the paper size and then press OK.

e. Select the paper type and then press OK.

See also:

Printing on Specialty Media on page 66

Using Custom Paper Sizes on page 81

Using Manual Feed

Tray 1 can be used as a manual feeder. If you are using paper such as letterhead and do not want others to use it by mistake, you can set the printer to prompt you when it is time to load the paper for your print job.

To select manual feed in Windows:

1. In the application you are printing from, open the Print dialog box, select your printer and then open the printer driver settings.

2. In the Paper/Output tab, click the arrow button to the right of the Paper summary section and select Select By Tray and then select Manual Feed (Tray 1).

3. In the Manual Feed dialog box that appears, click Yes.

4. Click OK to save the driver settings.

5. Send your print job.

6. When prompted on the printer control panel, remove any paper in Tray 1 and then load the appropriate media for your job into the tray. The job prints.

ColorQube 8570/8870 Color Printer User Guide

Printing

To select manual feed using Macintosh OS X version 10.3 and higher:

1. In the application you are printing from, open the Print dialog box and select your ColorQube 8570/8870 printer.

2. From the pull-down menu, select Paper Feed.

3. From the All Pages From menu, select Manual Feed Tray 1 (MPT).

4. Click Print.

5. At the printer, when prompted on the control panel, remove any paper from Tray 1 and then load the appropriate paper for your job into the tray. The job prints.

See also:

Loading Paper in Tray 1 on page 56

Loading Paper in Tray 2, 3, 4, or 5

Note: For instructions on loading specialty media, refer to the individual sections in Printing on Specialty Media on page 66.

You can use the following media types in Trays 2–5. For supported paper weights, print the Paper Tips page. For details, see Supported Paper Sizes and Weights on page 55.

• Plain paper

•Letterhead

• Pre-printed paper (paper already printed on one side)

•Glossy paper

• Colored paper

•Card stock

• Envelopes: #10 Commercial, C5 (side-flap only), and DL

•Labels

• Specialty media including postcards, prepunched paper, solid ink high-resolution photo paper, and trifold brochures

• Transparencies

Trays 2–5 each hold a maximum of:

• 525 sheets of plain paper (20 lb. Bond)

• 120 transparencies, postcards, sheets of labels, or sheets of glossy paper

•40–60 envelopes

See also:

Using Custom Paper Sizes on page 81

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-002

8X70-029

To load paper in Tray 2, 3, 4, or 5:

1. Remove the tray from the printer.

2. Expand the paper guides if necessary to accommodate the size of the paper to be used.

Note: The paper guides detect the size of the paper based on where they are positioned in the

tray. This is important because some settings require that the paper in the tray match the size and type selected on the control panel. Also, if Automatically Select is set in the printer driver’s Paper field, the printer needs to detect what paper size it contains in its trays so it can match the right paper to the incoming job.

• Length guide: Press the sides of the guide as shown and slide the guide until the arrow on the

guide points to the appropriate paper size imprinted on the bottom of the tray. When properly positioned, the guide clicks into place.

• Width guides: Slide the width guides until the arrows on the guides point to the appropriate

paper size labeled on the bottom of the tray. When properly positioned, the guides click into place.

ColorQube 8570/8870 Color Printer User Guide

3. Insert the media into the tray.

8X70-092

XEROX

8X70-113

8X70-108

For 1-sided printing, insert the side to be printed faceup with the top of the page toward the front of the tray.

CAUTION: There are separate fill lines inside the tray for various media. Do not load the tray

above the appropriate fill line. Overloading the tray can cause jams.

Printing

4. If needed, adjust the paper guides to fit the media loaded in the tray.

Note: When the paper guides are adjusted correctly, there may be a small space between the

paper and the guides.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-005

5. Insert the tray into the tray slot and push it completely into the printer.

6. On the printer control panel:

a. Select Paper Tray Setup and then press the OK button. b. Select the tray you are using: Tray 2 Paper Type, Tray 3 Paper Type, Tray 4 Paper Type or

Tray 5 Paper Type.

c. Press OK. d. Select the desired paper type and then press OK.

ColorQube 8570/8870 Color Printer User Guide

Printing

Setting Paper Handling Options

This section includes:

• Selecting the Tray 1 Mode on page 63

• Setting the Tray 1 Prompt on page 64

• Selecting the Tray 2–N Mode on page 65

Paper handling refers to how the printer determines which tray to use when it receives a print job, and whether the printer control panel prompts you to specify the paper type and size when loading paper.

Selecting the Tray 1 Mode

The Tray 1 Mode setting specifies:

• How Tray 1 paper type and size are determined for print jobs when you load paper in the tray.

• Whether or not Tray 1 is used automatically for print jobs when it contains paper.

Tray 1 Mo d e Setting Description

Permanent Paper size and type are set from the control panel using the Paper Tray

Setup > Tray 1 Paper menu. Tray 1 is not automatically used whenever

it has paper and no other tray is specifically selected by the print job.

Static Same as Permanent, plus paper size and type can be set when paper is

inserted into Tray 1 if:

• The Tray 1 Prompt is not set to None.

• An error message on the control panel instructs you to load paper.

Dynamic (default) Same as Static, plus the paper size and type can be set by the first print

job that uses the tray after paper has been loaded. The size and type are determined by the settings in the print job.

Automatic Same as Dynamic, plus the printer will print from Tray 1 when paper is

loaded, unless a different tray is specified by the print job.

Set tray modes from the printer control panel or from CentreWare® Internet Services.

To set the Tray 1 Mode from the control panel:

1. On the printer control panel, select Paper Tray Setup and then press the OK button.

2. Select Tray 1 Mode > OK.

3. Use the Up and Down Arrow buttons to make a selection and then press OK.

4. To exit the menu, press the Back button until you return to the main menu.

ColorQube 8570/8870 Color Printer

User Guide

Printing

To set the Tray 1 Mode from CentreWare® Internet Services:

1. Launch your Web browser and then type the printer’s IP address in the browser’s Address field. For details on finding your printer’s IP address, see Finding the Printer’s IP Address on page 40.

2. At the CentreWare® Internet Services page, click Properties.

3. In the navigation pane on the left, expand the General folder and then click the Printer Defaults link.

4. In the User Preferences section, select the desired setting in the Tray 1 Mode list.

5. Scroll to the bottom of the page and click the Save Changes button.

Setting the Tray 1 Prompt

The Tray 1 prompt asks you to confirm the current tray setup or to specify the correct paper type and size for the print job. Use the Tray 1 prompt setting to turn the control panel prompt on or off for Tray 1, and to set the length of time that the prompt displays on the control panel.

To set the Tray 1 prompt at the control panel:

1. On the printer control panel, select Paper Tray Setup and then press the OK button.

2. Select Tray 1 Prompt > OK.

3. Select one of the following:

• None: No prompt will display for loading paper into Tray 1.

• 30 Seconds: The prompt will display for 30 seconds when paper needs to be loaded into

Tray 1.

• Infinite: The prompt will not time-out when paper needs to be loaded into Tray 1.

4. Press OK.

To set the Tray 1 prompt from CentreWare® Internet Services:

2. At the CentreWare® Internet Services page, click Properties.

3. In the navigation pane on the left, expand the General folder and then click the Printer Defaults link.

4. In the User Preferences section, select the desired behavior from the Tray 1 Prompt field:

• None: No prompt will display for loading paper into Tray 1.

• 30 Seconds: The prompt will display for 30 seconds when paper needs to be loaded into

Tray 1.

• Infinite: The prompt will not time-out when paper needs to be loaded into Tray 1.

5. At the bottom of the page, click the Save Changes button.

ColorQube 8570/8870 Color Printer User Guide

Printing

Selecting the Tray 2–N Mode

The Tray 2–N Mode setting specifies how paper size and type are determined for the feeder trays if size and type are not set at the control panel when new paper is loaded.

Note: If you do not have any optional feeder trays in your printer configuration, only Tray 2 Mode

displays. If you have optional feeder trays, “N” represents the highest installed tray number.

Tray 2 Mo d e Setting Description

Permanent Paper size and type are set from the control panel using the Paper Tray

Setup > Tray 2 Paper menu.

Static Same as Permanent, plus paper size and type can be set when paper is

loaded into Tray 2 when an error message on the control panel instructs you to load paper.

Dynamic (default) Same as Static, plus the paper size and type can be set by the first print

job that uses the tray after paper has been loaded. The size and type are determined by the settings in the print job.

Tray modes can be set from the control panel or from CentreWare® Internet Services.

To set the Tray 2-N mode from the control panel:

1. On the printer control panel, select Paper Tray Setup and then press the OK button.

2. Select Tray 2 Mode > OK.

3. Use the Up and Down Arrow buttons to make a selection and then press OK.

4. To exit the menu, press the Back button until you return to the main menu.

To set the Tray 2-N Mode from CentreWare® Internet Services:

2. At the CentreWare® Internet Services page, click Properties.

3. In the navigation pane on the left, expand the General folder and then click the Printer Defaults link.

4. In the User Preferences section, select the desired setting in the Tray 2–N Mode list.

5. Scroll to the bottom of the page and click the Save Changes button.

See also:

Printing on Specialty Media on page 66

ColorQube 8570/8870 Color Printer

User Guide

Printing

Printing on Specialty Media

This section includes:

• Printing on Transparencies on page 66

• Printing on Envelopes on page 70

• Printing on Labels on page 74

• Printing on Glossy Paper on page 77

• Printing on Prepunched Paper on page 79

To order paper, transparencies, or other specialty media, contact your local reseller or go to the Xerox Supplies website for your printer:

• ColorQube 8570 printer: www.xerox.com/office/CQ8570supplies

• ColorQube 8870 printer: www.xerox.com/office/CQ8870supplies

See also:

ColorQube 8570 printer:

Recommended Media List (United States): www.xerox.com/paper

Recommended Media List (Europe): www.xerox.com/europaper

ColorQube 8870 printer:

Recommended Media List (United States): www.xerox.com/paper

Recommended Media List (Europe): www.xerox.com/europaper

Printing on Transparencies

This section includes:

• Transparency Printing Guidelines on page 67

• Printing on Transparencies from Tray 1 on page 67

• Printing on Transparencies from Tray 2, 3, 4, or 5 on page 68

Transparencies can be printed from any tray. They should be printed on one side only. Use only transparencies recommended for solid ink printers.

CAUTION: Damage caused by using unsupported paper, transparencies, and other specialty

ColorQube 8570/8870 Color Printer User Guide

Printing

8X70-101

Transparency Printing Guidelines

• Remove all paper before loading transparencies in the tray.

• Do not load more than 50 transparencies in Tray 1. Do not load more than 400 transparencies in trays 2–5. Overloading the tray can cause the printer to jam.

• Handle transparencies by the edges using both hands. Fingerprints or creases can cause poor print quality.

• Use only recommended transparencies.

• After loading transparencies, change the paper type at the printer control panel to

Transparencies.

Printing on Transparencies from Tray 1

1. Open Tray 1 and its tray extension. For details, see Loading Paper in Tray 1 on page 56.

2. Insert transparencies into the tray and adjust the paper guides to fit the transparencies.

3. On the printer control panel, if the correct paper size and type (Transparency) are displayed as the current setup, press the OK button. Go to step 5.

4. If the correct paper size and type are not displayed, do the following:

a. Select Change setup > OK. b. At the Tray 1 Paper Size menu, select the paper size and then press OK.

c. At the Tray 1 Paper Type menu, select Transparency > OK.

5. In the printer driver, select either Transparency as the paper type or Tray 1 as the paper source.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-102

8X70-103

Printing on Transparencies from Tray 2, 3, 4, or 5

1. Remove the tray from the printer and position its paper guides. For details, see Loading Paper in

Tray 2, 3, 4, or 5 on page 59.

2. Insert transparencies into the tray.

Note: Do not load transparencies above the paper fill line inside the tray.

3. If necessary, adjust the paper guides to fit the transparencies.

Note: When the paper guides are adjusted correctly, there may be a small space between the

transparencies and the guides.

ColorQube 8570/8870 Color Printer User Guide

Printing

8X70-104

4. Insert the tray into the tray slot and then push it completely into the printer.

5. On the printer control panel:

a. Select Paper Tray Setup and then press the OK button.

b. Select the tray you are using: Tray 2 Paper Type, Tray 3 Paper Type, Tray 4 Paper Type, or

Tray 5 Paper Type.

c. Press OK.

d. Select Transparency as the paper type and then press OK.

6. In the printer driver, select either Transparency as the paper type, or the tray containing the transparencies as the paper source.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-088

8X70-089

Printing on Envelopes

This section includes:

• Envelope Printing Guidelines on page 70

• Printing on Envelopes from Tray 1 on page 71

• Printing on Envelopes from Tray 2, 3, 4, or 5 on page 72

Envelopes can be printed from any tray as long as the tray supports the type of envelope you are using. For information on supported envelope types by tray, see Supported Media on page 53.

Envelope Printing Guidelines

• Successful envelope printing is highly dependent on the quality and construction of the envelopes. Use only paper envelopes specified for use with your printer. For details, see Supported Paper Sizes

and Weights on page 55.

• Maintain constant temperatures and relative humidity where envelopes are stored and used.

• Store unused envelopes in their packaging to avoid the effects of moisture and dryness, which can affect print quality and cause wrinkling. Excessive moisture can cause the envelopes to seal before or during printing.

• Avoid padded envelopes; purchase envelopes that lie flat on a surface.

• Remove air bubbles from the envelopes before loading them into the tray by setting a heavy book on top of the envelopes.

• Do not use envelopes with windows or clasps.

• Use envelopes with diagonal seams, not side seams.

CAUTION: Never use envelopes with windows or metal clasps; they can damage the printer.

Damage caused by using unsupported envelopes is not covered under the Xerox warranty, service agreement, or Total Satisfaction Guarantee. The Total Satisfaction Guarantee is available in the United States and Canada. Coverage may vary outside these areas; please contact your local representative for details.

ColorQube 8570/8870 Color Printer User Guide

Printing on Envelopes from Tray 1

8X70-010

8X70-091

1. Open Tray 1 and its tray extension. For details, see Loading Paper in Tray 1 on page 56.

2. Insert no more than 10 envelopes into the tray and then adjust the paper guides to fit the envelopes:

• Side-flap envelopes: Insert the envelopes with the flap side up and the flap of the envelopes

toward the right side of the tray as shown.

Printing

• End-flap envelopes: Fold down the flaps before placing them in the tray. Insert the envelopes

with the flap side up and the flap entering the printer first as shown.

3. On the printer control panel, if the correct envelope size and type are displayed as the current setup, select Use current setup and then press the OK button. Go to step 9.

4. If the correct size and type are not displayed, select Change setup > OK.

5. At the Tray 1 Paper Size menu, do the following:

• If your envelope size is displayed in the list, select it and then press OK. Go to step 8.

• If your envelope size is not displayed in the list, select New Custom Size > OK.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-109

8X70-117

6. At the Short Edge menu, do the following:

• If the correct short edge size is displayed as the current setup, press OK. Go to step 8.

• If the correct short edge size is not displayed, select Change > OK. To enter a new short edge

size, use the Up and Down Arrow buttons to specify the envelope’s short edge size and then press OK.

7. At the Long Edge menu, do the following:

• If the correct long edge size is displayed as the current setup, press OK. Go to step 8.

• If the correct long edge size is not displayed, select Change > OK. To enter a new long edge

size, use the Up and Down Arrow buttons to specify the envelope’s long edge size and then press OK.

8. At the Tray 1 Paper Type menu, select Envelope > OK.

9. In the printer driver, select either Envelope as the paper type or Tray 1 as the paper source.

Printing on Envelopes from Tray 2, 3, 4, or 5

1. Remove the tray from the printer and position its paper guides. For details, see Loading Paper in

Tray 2, 3, 4, or 5 on page 59.

2. Insert no more than 40 envelopes into the tray, flap side down with the flap toward the right side of the tray as shown.

3. Adjust the paper guides to fit the envelopes.

Note: When the paper guides are adjusted correctly, there may be a small space between the

envelopes and the guides.

ColorQube 8570/8870 Color Printer User Guide

Printing

8X70-127

4. Insert the tray into the tray slot and then push it completely into the printer.

5. On the printer control panel: a. Select Paper Tray Setup and then press the OK button.

b. Select the tray you are using: Tray 2 Paper Type, Tray 3 Paper Type, Tray 4 Paper Type, or

Tray 5 Paper Type. c. Press OK.

d. Select Envelope as the paper type and then press OK.

6. In the printer driver, select either Envelope as the paper type or the appropriate tray as the paper

source.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-110

Printing on Labels

This section includes:

• Label Printing Guidelines on page 74

• Printing on Labels from Tray 1 on page 74

• Printing on Labels from Tray 2, 3, 4, or 5 on page 75

Labels can be printed from any tray.

Label Printing Guidelines

• Do not use vinyl labels.

• Print only on one side of the sheet of labels.

• Use only full sheets. Do not use any sheet where labels are missing; it may damage the printer.

• Store unused labels flat in their original packaging. Leave the sheets of labels inside the original packaging until ready to use. Return any unused sheets of labels to the original packaging and reseal it.

• Do not store labels in extremely dry or humid conditions or extremely hot or cold conditions. Storing them in extreme conditions may cause print-quality problems or cause them to jam in the printer.

• Rotate stock frequently. Long periods of storage in extreme conditions can cause labels to curl and jam the printer.

Printing on Labels from Tray 1

1. Open Tray 1 and its extension. For details, see Loading Paper in Tray 1 on page 56.

2. Insert no more than 50 sheets of labels into the tray with the side to be printed facedown and the top of the page entering the printer first.

ColorQube 8570/8870 Color Printer User Guide

Printing

8X70-075

8X70-081

3. Adjust the paper guides to fit the labels loaded in the tray.

4. On the printer control panel, if the correct paper size and type (Labels) are displayed as the current setup, press the OK button. Go to step 6.

5. If the correct size and type are not displayed, do the following:

a. Select Change setup > OK.

b. At the Tray 1 Paper Size menu, select the paper size and then press OK. c. At the Tray 1 Paper Type menu, select Labels > OK.

6. In the printer driver, select either Labels as the paper type or Tray 1 as the paper source.

Printing on Labels from Tray 2, 3, 4, or 5

1. Remove the tray from the printer. For details, see Loading Paper in Tray 2, 3, 4, or 5 on page 59.

2. Insert no more than 400 sheets of labels into the tray with the side to be printed faceup and the top of the page toward the front of the tray.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-118

8X70-120

3. If necessary, adjust the paper guides to fit the labels.

Note: When the paper guides are adjusted correctly, there may be a small space between the

labels and the guides.

4. Insert the tray into the tray slot and then push it completely into the printer.

5. On the printer control panel:

a. Select Paper Tray Setup and then press the OK button. b. Select the tray you are using: Tray 2 Paper Type, Tray 3 Paper Type, Tray 4 Paper Type, or

Tray 5 Paper Type.

c. Press OK. d. Select Labels as the paper type and then press OK.

6. In the printer driver, select either Labels as the paper type or the appropriate tray as the paper source.

ColorQube 8570/8870 Color Printer User Guide

Printing

8X70-075

Printing on Glossy Paper

This section includes:

• Glossy Paper Printing Guidelines on page 77

• Printing on Glossy Paper from Tray 1 on page 77

• Printing on Glossy Paper from Tray 2, 3, 4 or 5 on page 78

Glossy paper can be printed from any tray.

Glossy Paper Printing Guidelines

• Do not open sealed packages of glossy paper until you are ready to load the paper into the printer.

• Leave glossy paper in the original wrapper, and leave the packages in the shipping carton until ready to use.

• Remove all other paper from the tray before loading glossy paper.

• Load only the amount of glossy paper you plan to use. Do not leave glossy paper in the tray when you are finished printing. Reinsert unused glossy paper in the original wrapper and seal it.

• Rotate stock frequently. Long periods of storage in extreme conditions can cause glossy paper to curl and jam the printer.

Printing on Glossy Paper from Tray 1

1. Open Tray 1 and its extension. For details, see Loading Paper in Tray 1 on page 56.

2. Insert no more than 50 sheets of glossy paper in the tray. Adjust the paper guides to fit the paper.

3. On the printer control panel, if the correct paper size and type are displayed as the current setup, press the OK button. Go to step 5.

4. If the correct paper size and type are not displayed, do the following:

a. Select Change setup > OK. b. At the Tray 1 Paper Size menu, select the paper size and then press OK.

c. At the Tray 1 Paper Type menu, select Glossy Paper > OK:

5. In the printer driver, select Glossy Paper as the paper type, or Tray 1 as the paper source.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-003

8X70-108

8X70-005

Printing on Glossy Paper from Tray 2, 3, 4 or 5

1. Remove the tray from the printer and adjust the paper guides. For details, see Loading Paper in

Tray 2, 3, 4, or 5 on page 59.

2. Insert no more than 400 sheets of glossy paper into the tray.

3. If necessary, adjust the paper guides to fit the glossy paper.

Note: When the paper guides are adjusted correctly, there may be a small space between the

paper and the guides.

4. Insert the tray into the tray slot and then push it completely into the printer.

ColorQube 8570/8870 Color Printer User Guide

Printing

8X70-111

5. On the printer control panel:

a. Select Paper Tray Setup and then press the OK button. b. Select the tray you are using: Tray 2 Paper Type, Tray 3 Paper Type, Tray 4 Paper Type, or

Tray 5 Paper Type.

c. Press OK. d. Select Glossy Paper as the paper type and then press OK.

6. In the printer driver, select Glossy Paper as the paper type, or select the tray you are using as the paper source.

Printing on Prepunched Paper

This section includes:

• Printing on Prepunched Paper from Tray 1 on page 79

• Printing on Prepunched Paper from Tray 2, 3, 4, or 5 on page 80

Use the same printing guidelines as for regular paper, except take care not to print over the holes. Printing over the holes may cause ink to transfer onto subsequent pages.

Printing on Prepunched Paper from Tray 1

1. Open Tray 1 and its extension. For details, see Loading Paper in Tray 1 on page 56.

2. Insert the side to be printed facedown with the holes toward the right side of the tray as shown.

3. Adjust the print margins to accommodate the holes. A minimum margin of 19 mm (0.75 in.) is recommended.

4. On the printer control panel, if the correct paper size and type are displayed as the current setup, press the OK button. Go to step 6.

5. If the correct paper size and type are not displayed, do the following:

a. Select Change setup > OK.

b. At the Tray 1 Paper Size menu, select the paper size and then press OK. c. At the Tray 1 Paper Type menu, select Prepunched > OK.

6. In the printer driver, select Prepunched as the paper type, or Tray 1 as the paper source.

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-112

Printing on Prepunched Paper from Tray 2, 3, 4, or 5

1. Remove the tray from the printer and adjust the paper guides. For details, see Loading Paper in

Tray 2, 3, 4, or 5 on page 59.

2. Insert the side to be printed faceup with the holes toward the right side of the tray as shown.

3. Adjust the print margins to accommodate the holes. A minimum margin of 19 mm (0.75 in.) is recommended.

4. On the printer control panel:

a. Select Paper Tray Setup and then press the OK button.

b. Select the tray you are using: Tray 2 Paper Type, Tray 3 Paper Type, Tray 4 Paper Type, or

Tray 5 Paper Type.

c. Press OK.

d. Select Prepunched for the paper type and then press OK.

5. In the printer driver, select Prepunched as the paper type, or select the desired tray as the paper source.

ColorQube 8570/8870 Color Printer User Guide

Printing

Using Custom Paper Sizes

This section includes:

• Defining a Custom Paper Size at the Printer on page 81

• Defining a Custom Paper Size in the Printer Driver on page 82

• Printing on Custom-size Paper on page 83

The ColorQube 8570/8870 printer can print on custom-size paper from Tray 1. You can save customsize paper settings in the printer and in a supported printer driver. Use custom sizes saved in the driver when you print from your computer’s applications.

You can print on custom-size paper within the dimensions listed in the following table.

1-sided Printing 2-Sided Printing

Short edge 76–216 mm (3.0–8.5 in.) 140–216 mm (5.5–8.5 in.)

Long edge 127–356 mm (5.0–14.0 in.) 210–356 mm (8.3–14.0 in.)

Weight

60–220 g/m (16–55 lb. Bond, 80 lb. Cover)

60–120 g/m (16–32 lb. Bond, 22–44 lb. Cover)

You can print on custom-size paper two ways: define the custom paper size at the printer control panel and then select Tray 1 in the printer driver, or you can load the custom paper in Tray 1 and then select the custom paper size in the printer driver.

For best results when using custom-size paper:

1. Load the custom-size paper in Tray 1 and select or define the custom size at the printer control panel.

2. Define the custom size in the printer driver or application.

3. Send the print job.

Defining a Custom Paper Size at the Printer

Note: When you define a new custom size at the printer, it is stored in the printer so it can be used

again. The printer can store up to five custom sizes. Custom sizes display on the control panel in the order of frequency of use. Each time you select a custom size, it goes to the top of the customsize list. If you define a new custom size after five custom sizes have been stored, the new custom size replaces the least-used custom size, the one at the bottom of the list.

To define a custom size at the printer:

1. Load the paper into Tray 1. For details, see Loading Paper in Tray 1 on page 56.

2. When the printer control panel prompts you to confirm the type of paper in the tray, select Change setup and then press the OK button.

3. At the Tray 1 Paper Size menu, select New Custom Size > OK.

ColorQube 8570/8870 Color Printer

User Guide

Printing

4. At the Short Edge menu, do one of the following:

• If the correct short edge size is displayed as the current setup, press OK.

• If the correct short edge size is not displayed, select Change > OK and use the arrow buttons

to enter a new short edge size. Press OK.

5. At the Long Edge menu, do one of the following:

• If the correct long edge size is displayed as the current setup, press OK.

• If the correct long edge size is not displayed, select Change > OK, then use the arrow buttons

to enter a new long edge size. Press OK.

6. At the Tray 1 Paper Type menu, select the paper type and then press OK.

Defining a Custom Paper Size in the Printer Driver

To define a custom size in the printer driver in XP SP1 or later:

1. Navigate to your computer’s list of printers, select your printer driver and open the Printing Preferences dialog box.

2. In the Paper/Output tab, click the arrow button to the right of the Paper summary section and select Other Size.

3. In the Paper Size dialog box, select New from the Output Paper Size list.

4. In the New Custom Size dialog box, type a name for this size in the Name field, then define the dimensions in the Width and Height fields.

5. If you need to change the units of measurement, select the desired unit in the Units section.

6. Click OK.

7. In the Paper Size dialog box, click OK.

To define a custom size in Macintosh OS X version 10.3 or higher:

1. In the application you are printing from, select Page Setup (or equivalent) from the File menu.

2. In the Page Setup dialog box, select your ColorQube 8570/8870 printer from the Format For menu.

3. In the Paper Size list, select Manage Custom Sizes.

4. Click the plus (+) button to add a new custom page size.

5. In the Untitled field, type a name for the custom page size.

6. Specify page size and margin information.

ColorQube 8570/8870 Color Printer User Guide

Printing

Printing on Custom-size Paper

Notes:

• Print custom-size paper from Tray 1 only.

• You must create a custom size in the printer driver before printing on custom-size paper.

If you have not created a custom size, see Defining a Custom Paper Size in the Printer

Driver on page 82.

1. Open Tray 1 and its tray extension. For details, see Loading Paper in Tray 1 on page 56.

2. Insert the custom-size paper into the tray.

3. Adjust the paper guides to fit the custom-size paper.

4. On the printer control panel, select the custom size. If the custom size has not been defined, see

Defining a Custom Paper Size at the Printer on page 81.

5. At the Tray 1 Paper Type menu, select the paper type and then press OK.

6. Do the following:

Windows:

a. In the application you are printing from, open the Print dialog box, select the printer driver

and then open the printer driver Properties.

b. In the Paper/Output tab, click the arrow button to the right of the Paper summary section

and select Other Size.

c. In the Paper Size dialog box, select the custom size from the Output Paper Size list. d. Click OK, then click OK in the Paper/Output tab and then send the print job.

Macintosh:

a. In the application you are printing from, open the Print dialog box and select your ColorQube

8570/8870 printer.

b. From the pull-down menu, select Paper Handling.

c. Select the Scale to fit paper size check box.

d. From the Destination Paper Size list, select the name of your custom size.

e. Select other options as desired and then click Print to send the print job.

ColorQube 8570/8870 Color Printer

User Guide

Printing

Creating Custom Paper Types

Using CentreWare® Internet Services, you can create your own custom paper type with specific settings that you can reuse for routine print jobs, such as monthly reports. You can then access these custom types in the printer driver, control panel, and CentreWare® Internet Services.

To create custom paper types:

1. Launch your Web browser and then type the printer’s IP address in the browser’s Address field. To find your printer’s IP address, see Finding the Printer’s IP Address on page 40.

2. At the CentreWare® Internet Services page, click Properties.

3. In the navigation pane on the left, expand the General folder.

4. Click the Custom Paper Types link.

5. Enter or modify the settings and then scroll to the bottom of the page and click the Save Changes button.

Note: For more information about creating custom paper types, click the Help button at the top of

the CentreWare® Internet Services page.

ColorQube 8570/8870 Color Printer User Guide

Selecting Print Options

This section includes:

• Setting Default Print Options in Windows on page 85

• Selecting Print Options for an Individual Job in Windows on page 86

• Print Options for Windows on page 87

• Saving a Set of Commonly-Used Print Options in Windows on page 89

• Selecting Print Options for an Individual Job in Macintosh on page 89

• Print Options for Macintosh on page 90

• Saving a Set of Commonly-Used Print Options in Macintosh on page 90

• Job Completion Notification on page 91

• Using Earth Smart Features on page 91

Note: This section covers basic steps for selecting printer driver options available in Windows and

Macintosh.

Printing

Setting Default Print Options in Windows

Printing Preferences control all of your print jobs unless you override them for a specific job at the time of printing. When you print from a software application, the printer uses the print job settings specified in the driver Properties dialog box. The driver Properties dialog box gets defaults from the settings in the driver’s Printing Preferences. You can select your most commonly-used printing options and save them as defaults so that you do not have to select them every time you print. For example, if you want to use automatic 2-sided printing for most jobs, set this option in the Printing Preferences dialog box.

To select printing preferences:

1. Navigate to your computer’s list of printers:

• For Windows XP SP1 or later, click Start > Settings > Printers and Faxes.

• For Windows Vista, click Start > Control Panel > Hardware and Sound > Printers.

• For Windows Server 2003, click Start > Settings > Printers.

• For Windows Server 2008, click Start > Settings > Printers.

2. In the Printers folder, right-click the name of your printer and select Printing Preferences.

3. Make selections in the driver tabs as desired and then click OK to save your selections.

Note: For more information about Windows printer driver options, click the Help (?) button on the

printer driver tab to view the online help.

ColorQube 8570/8870 Color Printer

User Guide

Printing

Selecting Print Options for an Individual Job in Windows

To use special printing options for a particular job, change the driver settings before sending the job to the printer. For example, if you want to use Photo print-quality mode for a particular graphic, select this setting in the driver before printing that job.

1. In the application you are printing from, open the Print dialog box, select the printer driver and then open the printer driver settings.

2. To select the paper and tray settings, in the Paper/Output tab, click the arrow button to the right of the Paper summary section and then select as desired:

• To specify a tray, select the tray from the Select By Tray menu.

• To specify a paper type, select the type from the Other Type menu.

• To specify a paper size, click Other Size and then, in the Paper Size dialog box, select the

desired Output Paper Size and click OK.

• To specify both a paper type and tray, select Advanced Paper Selection and then make the

desired selections in the Advanced Paper Selection dialog box and click OK.

3. Select other options as desired from the driver tabs. See Print Options for Windows on page 87 for specific printing options.

4. Click OK to save your selections.

5. Send the print job.

The following table lists specific printing options for the PostScript and PCL drivers. For details, click the Help (?) button in the printer driver to view the online help.

ColorQube 8570/8870 Color Printer User Guide

Printing

Print Options for Windows

Driver Tab Printing Options

Paper/Output Job Type (all except Normal Print require the optional printer hard drive):

Normal Print, Proof Print, Saved Print, Secure Print, Personal Print, Personal Saved Print, Print With (requires network connection)

Paper:

• Other Size: Output Paper Size, Scale Options, Original Document Size,

Original Document Orientation

• Other Type: Select from a list of paper types.

• Select By Tray: Select the tray to print from.

• Advanced Paper Selection: Paper in the Trays (requires network

connection), Paper Tray, Paper Size, Output Paper Type

• Separators: Location in print job, and source tray to use.

• Covers: Location in print job, and source tray to use. 2-Sided Printing: 1-Sided Print; 2-Sided Print; 2-Sided Print, Flip on Short

Edge Print Quality (PostScript driver only): Automatic, Fast Color, Standard,

Enhanced, Photo

Color Options PostSCript driver:

• Color correction: Automatic Color (Recommended), Vivid Color, Black

and White, Color Adjustments (color correction methods)

• Print Settings On Page: Prints color settings, print-quality mode, and

file name on page.

PCL driver:

• Color correction: Color, Black and White

Layout/Watermark Page Layout: Pages Per Sheet (N-Up), Booklet Layout, Booklet Options

(PostScript driver only), Page Layout Options Watermark: None, Draft, Confidential, Copy, Options, New, Edit, Delete

ColorQube 8570/8870 Color Printer

User Guide

Printing

Driver Tab Printing Options

Advanced PostScript driver:

• Paper/Output: Copies (number of), Collate

• Image Options: Application Reduction/Enlarge, Printing Optimization,

Mirrored Output, PostScript Pass-Through, RGB Neutral Gray, Halftones, Spot Colors, Color Configuration

• Booklet Layout: Booklet Image Order

• Xerox Job Ticket: Send Xerox Job Ticket When Printing (Enabled,

Disabled)

• Driver Defaults (available from Printing Preferences only): Restore

Original Driver Defaults; Earth Smart Settings (available from Printing Preferences only): Setup: Hide Earth Smart Settings Button

• Advanced Printing Features: Enabled, Disabled

• True Type Font: Substitute with Device Font, Download as Softfont

• True Type Font Down load O ption : Automatic, Outline, Bitmap, Native

Tru eType

• PostScript Output Option: Optimize for Speed, Optimize for

Portability, Encapsulated PostScript (EPS)

• PostScript Language Level: 2, 3

• Send PostScript Error handler: Yes, No

• About: Printer driver version

• Xerox Web Links: Various support links (Internet connection required)

PCL driver:

• Paper/Output: Copies (number of), Collate

• Image Options: Application Reduction/Enlarge, Printing Optimization,

Graphics Mode

• Xerox Job Ticket: Send Xerox Job Ticket When Printing (Enabled,

Disabled)

• Driver Defaults (available from Printing Preferences only): Restore

Original Driver Defaults; Earth Smart Settings (available from Printing Preferences only): Setup: Hide Earth Smart Settings Button

• Advanced Printing Features: Enabled, Disabled

• Print Optimization: Enabled, Disabled

• True Type Font: Substitute with Device Font, Download as Softfont

• True Type Font Down load O ption : Download as TrueType, Download

as Bitmap, Print as Graphics (None)

All tabs More Status button (network connection required): Opens PrintingScout

Status dialog box where you can track supply status, active jobs, and completed jobs. Also provides a link to PhaserSMART troubleshooting website.

Help (?) button: Opens printer driver online help. Earth Smart Settings button: Opens Earth Smart Settings. Saved Settings: Opens saved sets of printing options.

ColorQube 8570/8870 Color Printer User Guide

Printing

Saving a Set of Commonly-Used Print Options in Windows

You can save and name a set of printing options so that you can quickly apply them to future print jobs.

To save a set of printing options:

1. In the printer driver, select the settings to save.

2. At the bottom of the driver dialog box, in the Saved Settings field, click the arrow to the right of the field and select Save As.

3. In the Save As dialog box, type a name for this set of options and then click OK.

The set of options is saved and will appear in the Saved Settings list. The next time you want to print using these options, select the name from the list and click OK.

Selecting Print Options for an Individual Job in Macintosh

To select print settings for a particular job, change the driver settings before sending the job to the printer.

1. In the application you are printing from, open the Print dialog box and select your ColorQube 8570/8870 printer.

2. To select paper size and type, select Paper Feed from the pull-down menu.

3. From the All Pages From list, select Auto Select to select paper based on your application settings, or select a specific paper type or tray.

4. Select other options as desired from the menus and lists displayed.

Note: In Macintosh OS X version 10.3 or higher, you can create multiple presets and save each

with its own distinctive name and printer settings. For details, see Saving a Set of Commonly-Used

Print Options in Macintosh on page 90.

5. Click Print to send the print job.

ColorQube 8570/8870 Color Printer

User Guide

Printing

Print Options for Macintosh

The following tables list specific printing options available from the Xerox Features pull-down menu in the printer driver.

Xerox Features Menu Printing Options

Paper/Output Job Type: Specifies the type of print job. Normal Print, Secure Print,

Personal Print, Personal Saved Print, Proof Print, Saved Print, Print With (requires network connection)

Paper: Size, Other Type, Paper Mismatch Policy, Separators, Covers 2-Sided Printing: 1-Sided Print; 2-Sided Print; 2-Sided Print, Flip on Short

Edge Print Quality: Automatic, Fast Color, Standard, Enhanced, Photo

Color Options Color correction: Automatic Color (Recommended), Vivid Color, Black and

White, Color Adjustments (color correction methods) Print Settings On Page: Prints color settings, print-quality mode, and file

name on page.

Booklet/Watermark Booklet Layout: Disabled, Enabled

Booklet Options: Scale to New Paper Size, Gutter, Creep Draw Page Borders: Select to print borders around pages. Watermark: Specifies watermark to use, watermark options, and settings

for creating and editing watermarks.

Advanced Booklet Image Order: Left To Right, Right To Left

Mirrored Output: Disabled, Enabled Print Optimization: Optimize for Speed, Optimize for Economy sRGB Neutral Gray: Automatic Black, Pure Black, Composite Black Use Printer Halftones or Use Application Halftones Allow Printer to Manage Spot Color or Allow Software to Manage Spot

Color

Saving a Set of Commonly-Used Print Options in Macintosh

You can save and name a set of printing options to apply to future print jobs.

To save a set of printing options:

1. Select the desired printing options from the menus in the Print dialog box.

2. From the Presets menu, select Save As.

3. In the Save Preset As dialog box, type a name for the preset and then click OK.

The set of options is saved and will appear in the Presets list. You can print using these options next time by selecting the name from the list.

ColorQube 8570/8870 Color Printer User Guide

Printing

Job Completion Notification

You can select to be notified when your job is done printing. A message appears in the lower-right corner of your computer screen with the name of the job and the name of the printer used.

Note: This feature is only available when your printer is connected to your computer over a

network.

To select job completion notification in a supported driver in Windows:

1. Open the printer driver settings.

2. At the bottom of the dialog box, click the More Status button.

3. In the PrintingScout Status window, click the PrintingScout menu and select the desired notification:

• Notify me when jobs have completed

• Notify me when jobs have completed or failed

4. Close the PrintingScout Status window.

To select job completion notification in Macintosh OS X version 10.3 or higher:

1. In the application you are printing from, open the Print dialog box and select your ColorQube 8570/8870 printer.

2. From the pull-down menu, select Xerox Features.

3. From the next pull-down menu, select Advanced.

4. In the Configuration list, select Bi-Directional Communication.

5. In the Bi-Directional Communication field, select On.

6. In the PrintingScout Job Notification field, select Notify me when job has completed.

7. Click OK.

8. Click Print to send the print job.

Using Earth Smart Features

Note: These features are only available in Windows drivers.

The ColorQube 8570/8870 printer provides options that reduce ink and paper used by each print job. You can use the Earth Smart features as desired when you select printing options for individual print jobs, or you can enable or disable the Earth Smart driver settings as part of the printer driver defaults.

Note: Some of the Earth Smart features require the printer to have automatic 2-sided printing

capability or the optional printer hard drive installed.

To select Earth Smart features in a supported driver:

1. Open the printer driver settings.

2. At the bottom of the dialog box, click the green Earth Smart Settings button.

ColorQube 8570/8870 Color Printer

User Guide

Printing

3. In the Earth Smart Settings dialog box, select any or all of the features:

• Set 2-Sided Print: Select to have 2-sided printing be the printer’s default output type. This

option requires that your printer have automatic 2-sided printing enabled.

• Set 2-Up as my Layout / Enable Earth Smart 2-Up: Select to automatically choose the best

way to print a job without wasting paper. When the document has more pages than will fit on one sheet, the printer driver chooses Pages Per Sheet N-Up to print two reduced-size images on both sides of the paper, or on one side of one sheet if you do not have automatic 2-sided printing enabled for your printer.

Note: For details, see the printer driver online help. In the printer driver, click the Earth Smart

Settings button and then in the Earth Smart Settings dialog box, click the Help (?) button.

• Set Proof Print as my Job Type / Enable Earth Smart Proof Print: Automatically uses the

Proof Print feature. When you print more than one copy of a job, only one sample copy prints. The printer holds the remaining copies. After you review the proof copy, you can print or delete the remaining copies.

Note: From the Printing Preferences dialog box, you have the option to hide Earth Smart features

settings by selecting the Hide Earth Smart Settings Button check box in the Earth Smart Settings dialog box. This removes the Earth Smart Settings button from the driver dialog box. To enable Earth Smart features and make the button available again, enable Earth Smart Settings from the Advanced tab of the Printing Preferences dialog box. For details, see Enabling or Disabling Earth

Smart Features on page 92.

4. Click OK.

Enabling or Disabling Earth Smart Features

1. Navigate to your computer’s list of printers:

• For Windows XP SP1 or later, click Start > Settings > Printers and Faxes.

• For Windows Vista, click Start > Control Panel > Hardware and Sound > Printers.

• For Windows Server 2003, click Start > Settings > Printers.

• For Windows Server 2008, click Start > Settings > Printers.

2. In the list of printers, right-click the name of your printer and select Printing Preferences.

3. Select the Advanced tab.

4. Under Advanced Settings, click the plus sign (+) to the left of the Driver Defaults folder to expand the options.

5. Under Earth Smart Settings, click Setup. In the Earth Smart Settings dialog box, select the Hide Earth Smart Settings Button to disable selecting Earth Smart features. To enable selecting the features, clear the check box.

6. Click OK.

ColorQube 8570/8870 Color Printer User Guide

Printing

Printing on Both Sides of the Paper

This section includes:

• Automatic 2-Sided Printing Guidelines on page 93

• Binding Edge Options on page 94

• Printing a 2-Sided Document Automatically on page 94

• Printing a 2-Sided Document Manually on page 95

Automatic 2-sided printing is available from all trays in the ColorQube 8870 printer, and in ColorQube 8570 printer configurations with the automatic 2-sided printing option.

Automatic 2-Sided Printing Guidelines

• Before printing a 2-sided document automatically, verify that the paper is a supported size and type for the tray. For a list of supported paper sizes, see Supported Media on page 53.

• For a list of paper types and weights that can be used for automatic 2-sided printing, print the Paper Tips page from the control panel. For details, see Supported Paper Sizes and Weights on page 55.

• The paper’s short edge (the edge that gets loaded into the printer first) must have a length within the range of 140–216 mm (5.5–8.5 in.).

• The paper’s long edge must have a length within the range of 211–356 mm (8.3–14 in.).

• The paper must have a weight within the range of 60–120 g/m

• For Trays 2–5, load paper facedown with the top of the paper pointed away from the printer.

• For Tray 1, load paper faceup with the top of the paper pointed away from the printer.

(16–32 lb. Bond only).

The following paper and media cannot be used for automatic 2-sided printing:

• Transparencies

• Envelopes

•Labels

• Index Cards (3 x 5 in.)

•A6 paper

• Coated/glossy paper

• Custom-size paper with a short edge under 5.5 inches or a long edge under 8.3 inches

• Media of weights greater than 120 g/m

See also:

Printer Configurations and Options on page 21

(32 lb.)

ColorQube 8570/8870 Color Printer

User Guide

Printing

8X70-106

XEROX

Binding Edge Options

When you select automatic 2-sided printing, you can select the binding edge. The binding edge determines how the pages turn. The actual outcome depends on the orientation (portrait or landscape) of images on the page, as displayed in the following illustrations.

Portrait Landscape

Bind on Side Edge Flip on Long Edge

Bind on Top Edge Flip on Short Edge

Bind on Side Edge Flip on Short Edge

Bind on Top Edge Flip on Long Edge

The default is for the binding to be on the side edge (long end). You can also select short edge as the binding edge.

Printing a 2-Sided Document Automatically

1. Insert paper in the tray.

• If you are using Tray 1: Insert side one faceup with the bottom of the page entering the

printer first.

ColorQube 8570/8870 Color Printer User Guide

• If you are using Tray 2, 3, 4, or 5: Insert side one facedown with the top of the page toward

8X70-093

the back of the tray.

2. In the printer driver, select automatic 2-sided printing:

In Windows:

In the Paper/Output tab, select an option under 2-Sided Printing:

• 2-Sided Print

• 2-Sided Print, Flip on Short Edge

In Macintosh OS X version 10.3 or higher: a. From the pull-down menu, select Xerox Features.

b. From the next pull-down menu, select Paper/Output.

c. From the 2-Sided Printing list, select 2-Sided Print or 2-Sided Print, Flip on Short Edge.

Printing

See also:

Loading Paper in Tray 1 on page 56

Loading Paper in Tray 2, 3, 4, or 5 on page 59

Printing a 2-Sided Document Manually

You can manually print on both sides of the paper when you are using paper types that are either too small or too heavy for automatic 2-sided printing. If your printer does not support automatic 2-sided printing, manual 2-sided printing is available from Tray 1.

You can also manually print on the second side of paper that is pre-printed on side one. See Printing

Side Two on page 96 for instructions on loading pre-printed paper and selecting the 2nd Side option

on the control panel.

Notes:

• Before printing the second side of your paper, always select 2nd Side as the paper type

on the printer control panel and in the printer driver. Selecting 2nd Side ensures good print quality for manual 2-sided printing.

• Manual 2-sided printing can be done from Tray 1 only.

ColorQube 8570/8870 Color Printer

User Guide

Printing

The following paper and media cannot be used for manual 2-sided printing:

• Transparencies

• Envelopes

•Labels

• Coated/glossy paper

• Media of weights greater than 120 g/m

(32 lb.)

See also:

Supported Paper Sizes and Weights on page 55

Printing Side One

1. Load paper in Tray 1. Insert side one facedown with the top of the page entering the printer first.

2. On the printer control panel, select the paper size and type.

3. In the printer driver, select the options for paper size and paper type and then print side one to Tray 1.

Printing Side Two

1. Remove the paper from the output tray and reload it in Tray 1 with side two facedown with the top of the page entering the printer first.

2. On the printer control panel, do the following: a. Select Change setup and then press the OK button.

b. At the Tray 1 Paper Size menu, select the paper size and then press OK.

c. At the Tray 1 Paper Type menu, select 2nd Side > OK.

3. In the printer driver, do the following:

Windows:

a. In Paper/Output tab, click the arrow to the right of the Paper summary section and select

Other Type and then select 2nd Side.

b. Click OK.

Macintosh:

a. From the pull-down menu, select Xerox Features. b. From the next pull-down menu, select Paper/Output.

c. From the Paper summary menu, select Other Type and then select 2nd Side.

4. Send the print job.

ColorQube 8570/8870 Color Printer User Guide

Printing

1 2

Printing Multiple Pages on a Single Sheet (N-Up)

When printing a multiple-page document, you can print more than one page on a single sheet of paper. Print one, two, four, six, nine, or 16 pages per side.

Printing N-Up in a Supported Driver

Note: In Windows, you can print N-Up using both PostScript and PCL printer drivers.

Printing N-Up in Windows XP SP1 or Later

1. In the printer driver settings, select the Layout/Watermark tab.

2. In the Page Layout section, select the Pages Per Sheet (N-Up) option.

3. Click the button for the number of pages you want to print on each side of the sheet. The sample image changes to reflect your selection.

4. In the Page Layout Options section, select other desired page layout options such as page orientation, 1-sided or 2-sided, and page borders.

5. In the Paper/Output tab, select the paper size and type. If you are selecting the paper tray, make sure the paper tray settings on the printer control panel match those selected in the printer driver.

6. Click OK.

7. Send the print job.

Printing N-Up in Macintosh OS X Version 10.3 or Higher

1. In the application you are printing from, open the Print dialog box and then select your ColorQube 8570/8870 printer.

2. From the pull-down menu, select Layout.

3. Select the number of Pages Per Sheet and the Layout Direction.

4. If desired, select a page border type from the Border menu.

5. Click Print to send the print job.

ColorQube 8570/8870 Color Printer

User Guide

Printing

Printing Booklets

With automatic 2-sided printing, you can print a document in the form of a small book. Create booklets for any paper size supported for automatic 2-sided printing. The driver automatically reduces each page image and prints four pages per sheet of paper (two on each side). The pages are printed in the correct order so that you can fold and staple the pages to create a booklet.

When you print booklets, you can also specify the creep and gutter.

• Creep: Specifies how much the page images are shifted outward (in 10ths of a point). This compensates for the thickness of the folded paper, which otherwise would cause the page images to shift slightly outward when folded. You can select a value from zero to 1.0 points.

• Gutter: Specifies the horizontal distance in points between the page images. A point is 0.35 mm (1/72 in.).

Creep Gutter

The following additional booklet printing options are available in some drivers:

• Draw Page Borders: Prints a border around each page.

• Targ et Pap er S iz e: Specifies the size of the paper for the booklet.

• Right to Left: Reverses the order of the pages in the booklet.

ColorQube 8570/8870 Color Printer User Guide

Printing

Selecting Booklet Printing in a Supported Driver

Printing Booklets in Windows XP SP1 or Later

1. In the application you are printing from, open the Print dialog box, select your printer and then open the printer driver settings.

2. Select the Layout/Watermark tab.

3. Select the Booklet Layout option.

4. If you are using the PostScript driver, click the Booklet Options button and then select the booklet paper size, margins, gutter and creep settings, then click OK.

5. In the Page Layout Options section, select the page orientation (Portrait or Landscape), 1-sided or 2-sided printing, and page borders if desired.

6. Select additional desired settings and then click OK.

7. Send the print job.

Printing Booklets in Macintosh OS X Version 10.3 or Higher

1. In the application you are printing from, open the Print dialog box and select your ColorQube 8570/8870 printer.

2. From the pull-down menu, select Xerox Features.

3. From the next pull-down menu, select Booklet/Watermark.

4. In the Booklet Layout section, select Enabled.

5. If desired, click the Booklet Options button and select the desired creep, gutter, and scaling settings.

6. Click OK.

7. Click Print to send the print job.

ColorQube 8570/8870 Color Printer

User Guide

Printing

Enlarging and Reducing Pages

This section includes:

• Scaling by Output Page Size on page 100

• Scaling by Percentage of Original on page 101

You can reduce or enlarge your page images when they are printed by selecting a scaling value or output page size different from the original. The scaling default, No Scaling, is 100% on output paper the same size as the original page.

When scaling, you can choose to print the page image on paper smaller or larger than the original and have the printer driver automatically reduce or enlarge the page image to fit the output paper. Or, you can print on paper the same size as the original but change the scaling, as shown in the following example.

50% 100% 200%

Scaling by Output Page Size

To scale pages from a supported printer driver in Windows:

1. In the application you are printing from, open the Print dialog box, select your printer and then open the driver settings.

2. In the Paper/Output tab, click the arrow button to the right of the Paper summary section and select Other Size.

3. In the Output Paper Size field of the Paper Size dialog box, select the new page size to print to.

4. In the Scale Options section, select Automatically Scale, and if desired, select how you want the image positioned on the page (Center, Bottom, To p, etc.).

5. Click OK.

6. Select other driver options as desired, click OK, and then send the print job.

100

ColorQube 8570/8870 Color Printer User Guide
