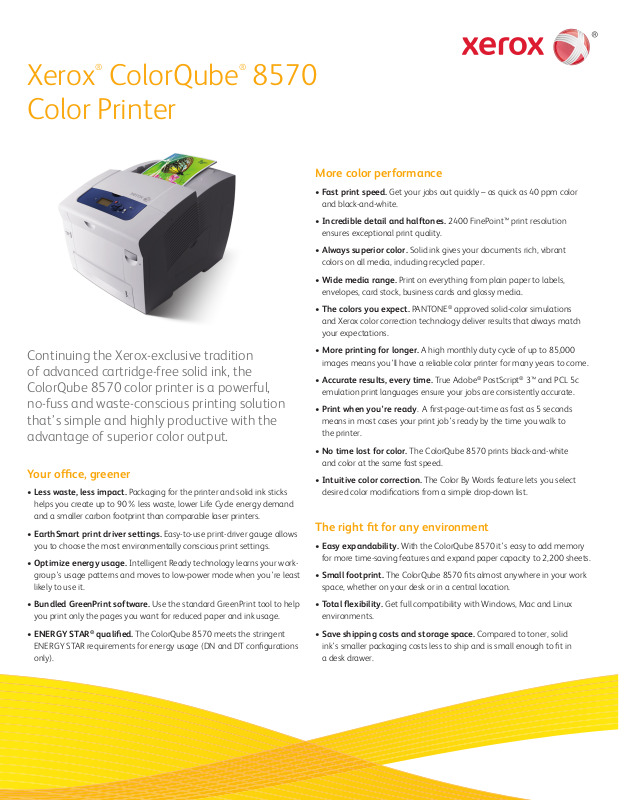

Xerox® ColorQube® 8570
Color Printer

More color performance

• Fast print speed. Get your jobs out quickly – as quick as 40 ppm color

and black-and-white.

• Incredible detail and halftones. 2400 FinePoint™ print resolution

ensures exceptional print quality.

• Always superior color. Solid ink gives your documents rich, vibrant

colors on all media, including recycled paper.

• Wide media range. Print on everything from plain paper to labels,

envelopes, card stock, business cards and glossy media.

• The colors you expect. PANTONE

and Xerox color correction technology deliver results that always match
your expectations.

®

approved solid-color simulations

Continuing the Xerox-exclusive tradition
of advanced cartridge-free solid ink, the
ColorQube 8570 color printer is a powerful,
no-fuss and waste-conscious printing solution
that’s simple and highly productive with the
advantage of superior color output.

Your office, greener

• Less waste, less impact. Packaging for the printer and solid ink sticks

helps you create up to 90% less waste, lower Life Cycle energy demand
and a smaller carbon footprint than comparable laser printers.

• EarthSmart print driver settings. Easy-to-use print-driver gauge allows

you to choose the most environmentally conscious print settings.

• Optimize energy usage. Intelligent Ready technology learns your work-

group’s usage patterns and moves to low-power mode when you’re least
likely to use it.

• Bundled GreenPrint software. Use the standard GreenPrint tool to help

you print only the pages you want for reduced paper and ink usage.

• ENERGY STAR

ENERGY STAR requirements for energy usage (DN and DT configurations
only).

®

qualified. The ColorQube 8570 meets the stringent

• More printing for longer. A high monthly duty cycle of up to 85,000

images means you’ll have a reliable color printer for many years to come.

• Accurate results, every time. True Adobe

emulation print languages ensure your jobs are consistently accurate.

• Print when you’re ready. A first-page-out-time as fast as 5 seconds

means in most cases your print job’s ready by the time you walk to
the printer.

• No time lost for color. The ColorQube 8570 prints black-and-white

and color at the same fast speed.

• Intuitive color correction. The Color By Words feature lets you select

desired color modifications from a simple drop-down list.

®

PostScript® 3™ and PCL 5c

The right fit for any environment

• Easy expandability. With the ColorQube 8570 it’s easy to add memory

for more time-saving features and expand paper capacity to 2,200 sheets.

• Small footprint. The ColorQube 8570 fits almost anywhere in your work

space, whether on your desk or in a central location.

• Total flexibility. Get full compatibility with Windows, Mac and Linux

environments.

• Save shipping costs and storage space. Compared to toner, solid

ink’s smaller packaging costs less to ship and is small enough to fit in
a desk drawer.

ColorQube® 8570

Color Printer

Speed

Duty Cycle

ColorQube 8570N ColorQube 8570DN ColorQube 8570DT

Up to 40 ppm color / 40 ppm black-and-white

85,000 images / month

Paper Handling

Paper input Standard

Tray 3: 525 sheets

Tray 4: 525 sheets

Tray 5: 525 sheets

Paper output 350 sheets

Automatic two-sided printing Optional Standard

Tray 1 (MPT): 100 sheets; Custom sizes: 3 x 5 in. to 8.5 x 14 in. / 76 x 127 mm to 216 x 356 mm

Tray 2: 525 sheets; Selectable sizes: 3.9 x 8.3 in. to 8.5 x 14 in. / 99 x 211 mm to 216 x 356 mm

Optional Standard

Optional

Optional

Print

First-page-out-time

Resolution (max) Up to 2400 FinePoint™

Memory (std / max) 512 MB / 2 GB

Processor 1 GHz

Connectivity 10/100/1000Base-TX Ethernet, USB 2.0, IPv6

Page description languages True Adobe

Print features Standard Color By Words, RAM Collation, Smart Duplex**, Earth Smart Driver settings, Bi-directional drivers, Booklet printing**, Watermarks, N-up printing,

Optional Productivity Kit (adds: Hard drive, Personal/Personal Saved/Secure/Proof/Saved Print, Print With, Extended font/form storage, Hard Drive Overwrite,

Warranty

* Requires Hard Drive ** DN and DT configurations only

As fast as 5 seconds color

®

PostScript® 3™, PCL® 5c emulation, PDF*

Graphical ink gauge, Run Black

Hard Drive Collation)

One-year on-site warranty, Xerox Total Satisfaction Guarantee

Device Management

Xerox CentreWare
Admin Interface, Tivoli, Bonjour, PhaserSMART

Print Drivers

Windows
and higher, Sun MicroSystems Solaris 9,10, Novell NetWare

®

Internet Services, CentreWare Web, WebJet

®

XP/2003/2008 Server, Vista, 7; Mac OS® version 10.5

®

, PrintingScout

®

®

5.x/6.x Open Enterprise Server, UNIX, Linux Red Hat Enterprise
4, Fedora Core 1, 5, SUSE 10.x, 11.x; IBM AIX 5, HP-UX 11.0/11i,
Xerox Global Print Driver

®

, Xerox Mobile Express Driver®, Walk-Up®

Printer Drivers

Security

SSLv3, IPsec, 802.1X , HTTPS, IPPS, SMTP Authentication,
IP Filtering, Hard disk overwrite security, Image overwrite, Audit log;
Optional Wireless: 802.11 b, g

Media Handling

Tray 1: 16 – 80 lb. cover / 60 – 220 gsm; Trays 2 – 5: 16 – 80 lb.
cover / 60 – 220 gsm; Media types: Plain paper, transparencies,
envelopes, labels, glossy paper, custom-size paper, punched, card/
cover stock

Operating Environment

Temperature: Operating: 50° to 90° F / 10° to 32° C; Relative
Humidity: Operating: 10% to 80%; Sound power levels: Printing:
less than 59 dBA, Standby: less than 31 dBA

Electrical

Power: 100 – 240 V, 50 – 60 Hz; Power consumption: Average:
252 W; Standby: 104 W; Sleep Mode: 45 W

Dimensions (WxDxH)

8570DN: 16 x 20.5 x 14.5 in. / 406 x 521 x 368 mm; Weight: 60.5
lb. / 27.4 kg; 8570DT: 16 x 20.5 x 19.5 in. / 406 x 521 x 495 mm;
Weight: 72 lb. / 32.6 kg; 525-sheet feeder: 15.5 x 20 x 5 in. / 394 x
508 x 127 mm; Weight: 11.5 lb. / 5.2 kg; System Cart with Storage
Drawer: 19.75 x 27 x 14 in. / 502 x 686 x 356 mm; Weight: 63.5
lb. / 28.8 kg

Package Dimensions (WxDxH)

8570DN: 22 x 26.5 x 21.3 in. / 559 x 673 x 540 mm; Weight: 75
lb. / 34 kg; 8570DT: 23.9 x 28.7 x 37 in. / 606 x 730 x 940 mm;
Weight: 127 lb. / 58 kg; 525-sheet feeder: 20 x 24.3 x 10.5 in. /
508 x 616 x 267 mm; Weight: 11.5 lb. / 5.2 kg; System Cart with
Storage Drawer: 25.6 x 33.6 x 20 in. / 650 x 854 x 508 mm; Weight:

76.9 lb. / 34.9 kg

What Comes in the Box

• ColorQube 8570 Color Printer

• Solid Ink Rainbow Pack plus a preloaded starter stick of each color

(total capacity = 3,000 pages per color

1

)

• Software and Documentation CD (with Quick Installation Guide,

Quick Use Guide, User Manual, System Admin Guide)

• Power Cable

Certifications

Certified to UL 60950-1/CSA 60950-1-07, 2nd Edition, FCC Part
15 Class A, Low Voltage Directive 2006/95/EC, EN 60950-1, 2nd
Edition, EMC Directive 2004/108/EC, EN 55024, ROHS Directive
2002/95/EC, 508 Compliance, ENERGY STAR

®

Qualified, GOST

EN55022 Class A, TAA Compliant (Y configuration)

8570 DN and
DT Only

Supplies

Genuine Xerox Solid Ink
2 Sticks Cyan: 4,400 pages
2 Sticks Magenta: 4,400 pages
2 Sticks Yellow: 4,400 pages
2 Sticks Black: 4,300 pages
4 Sticks Black: 8,600 pages

Routine Maintenance Items

Maintenance Kit: <10,000 pages
Maintenance Kit: <30,000 pages

1

108R00926

1

108R00927

1

108R00928

1

108R00929

1

108R00930

2

109R00784

2

109R00783

Waste Tray 109R00754

Options

N to DN Upgrade 097S04144
Productivity Kit with Hard Drive 097S04141
512 MB Memory 097S03635
525-sheet Paper Tray 097S04142
System Cart with Storage Drawer 097S03636
Wireless Network Adapter
–N. American power converter 097S03740
–Euro power converter 097S03741
–UK power converter 097S03742

1

Aver age standar d pages. Dec lared Yield i n accordance wi th ISO/IEC 24711.

Yield wil l vary base d on image, area c overage and pr int mode.

2

Ap proximate pag es. Decla red Yield bas ed on letter-/A4 -size 20 lb. (75 gsm) pa ges.

Yield wil l vary base d on media typ e, size, weight, o rientation , and usage pa tterns.

For more information, call 1-877-362-6567 or visit us at www.xerox.com/office
