Xerox 8254E, 8264E User Manual
September 2008
100kg Unwinder / Winder
8264E Color Wide Format Printer
User Guide
701P49052
1
Table of Contents
1 Safety and Warning Label Information..................................................................1
1.1 Safety Considerations......................................................................................1
1.2 Warning Labels.................................................................................................1
1.2.1 Warning Label Locations and Types ............................................................ 2
1.3 Operating Instructions Labels.........................................................................3
1.3.1 Instruction Label Locations and Types ......................................................... 3
2 Unwinder / Winder Operation................................................................................. 5
2.1 Location of Major Components....................................................................... 5
2.1.1 Unwinder Components ................................................................................. 5
2.1.2 Winder Components..................................................................................... 6
2.1.3 Unwinder Control Panel................................................................................ 7
2.1.3.1 Switches / Button ................................................................................... 7
2.1.3.2 Indicators................................................................................................ 7
2.1.4 Winder Control Panel ................................................................................... 8
2.1.4.1 Switches................................................................................................. 8
2.1.4.2 Indicators................................................................................................ 8
2.2 Connecting the Power Cable ...........................................................................9

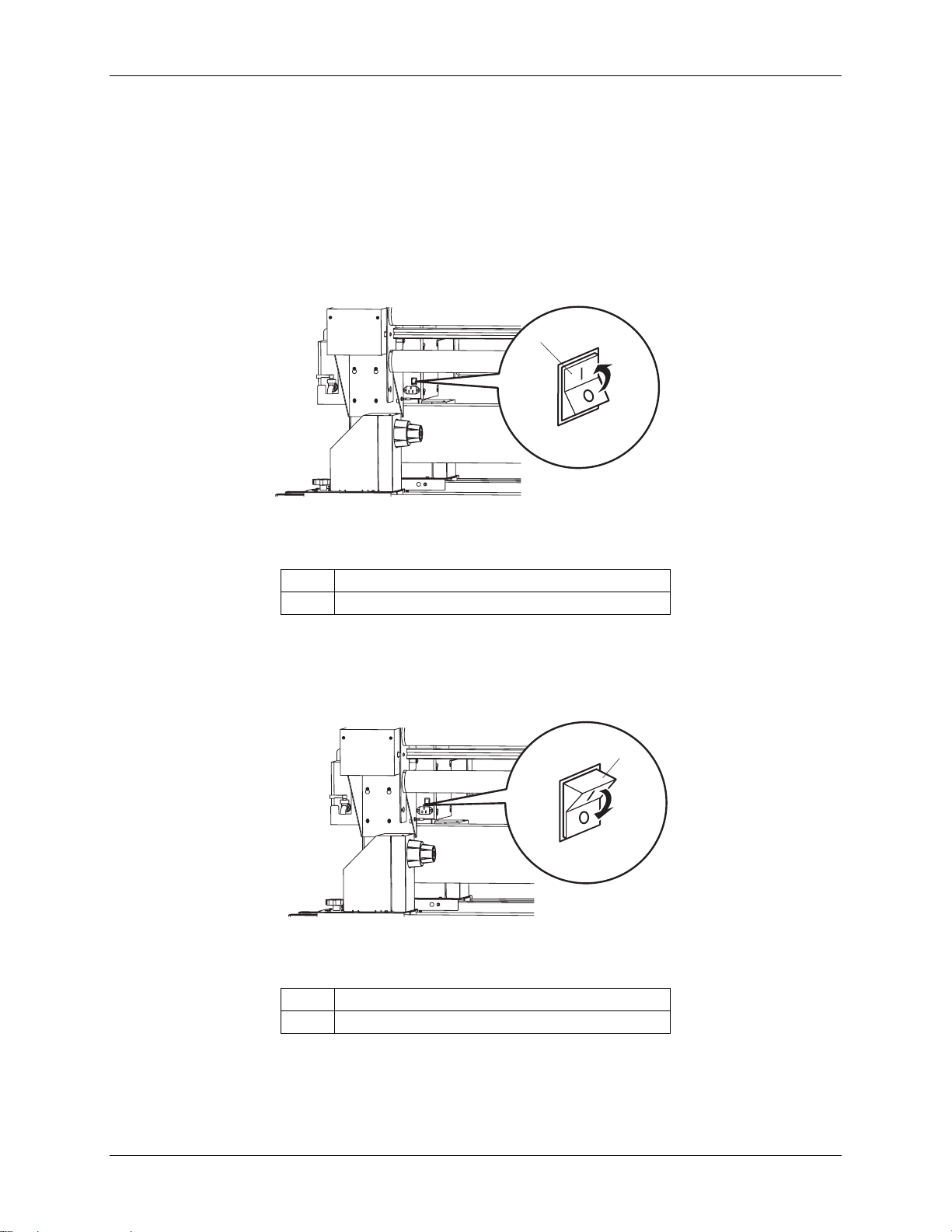

2.3 Turning the Power ON and OFF ....................................................................10
2.3.1 Turning the Power ON................................................................................ 10
2.3.2 Turning the Power OFF .............................................................................. 10

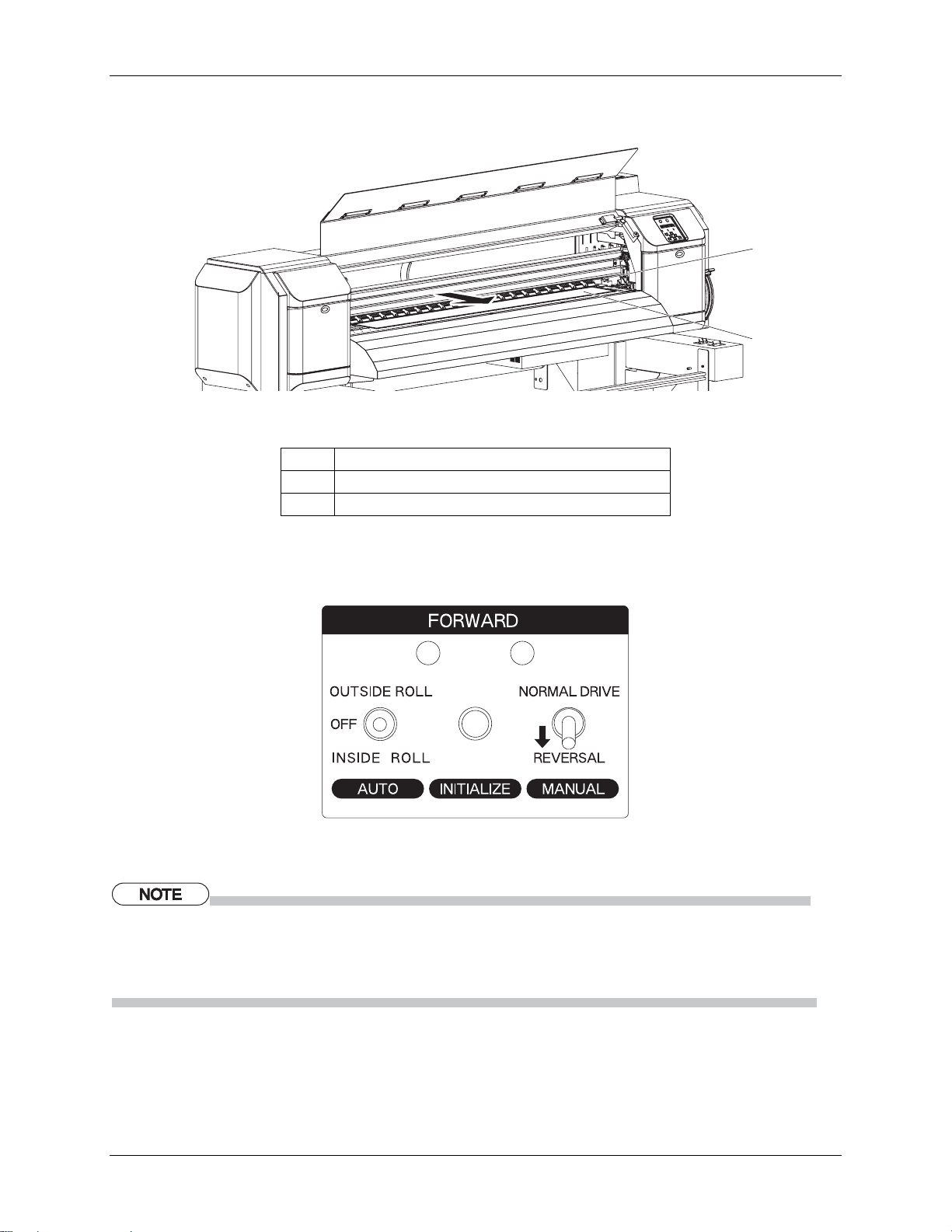

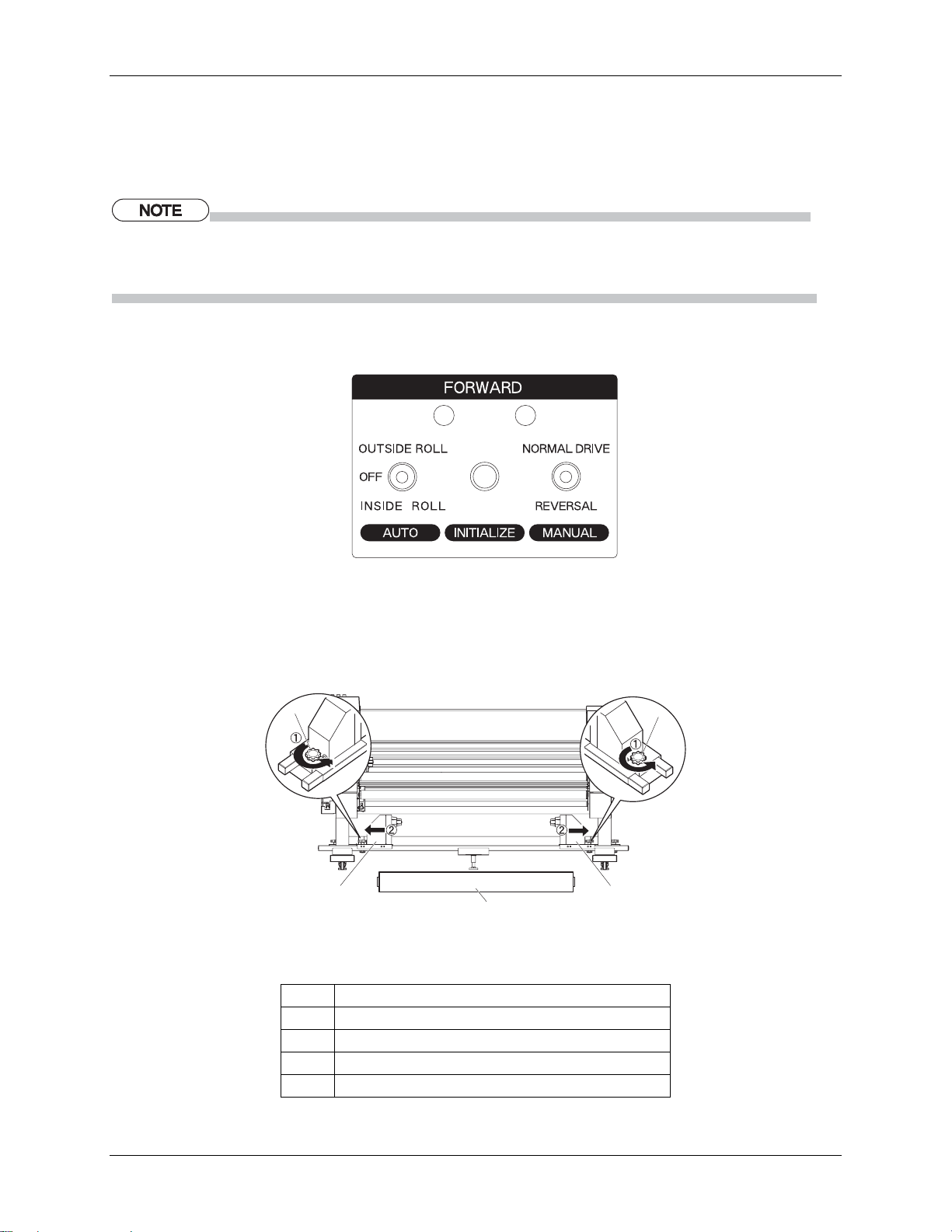

2.4 Loading Roll Media onto the Unwinder ........................................................ 11

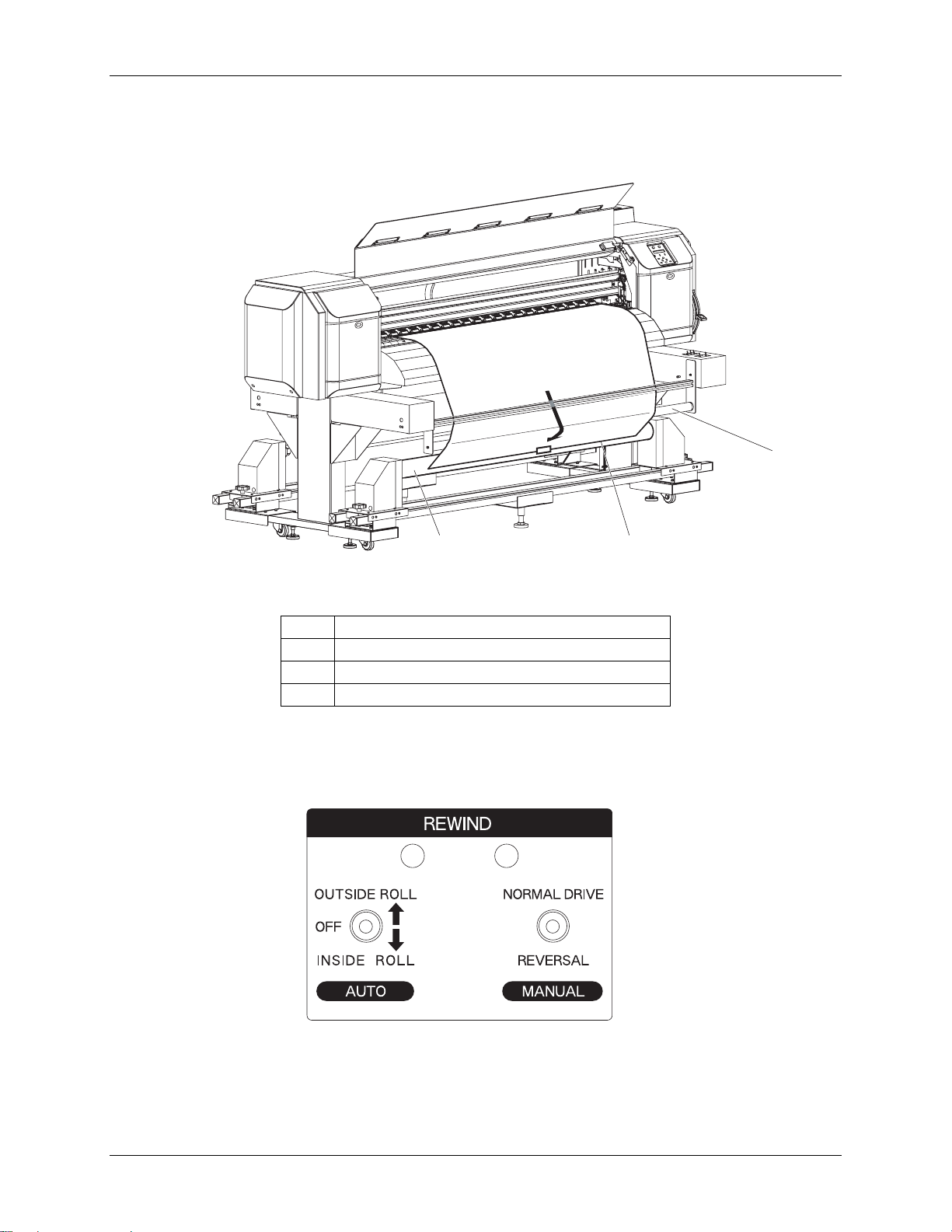

2.5 Operating the Winder ..................................................................................... 21
2.6 Removing a Printed Media Core from the Winder ....................................... 23
100kg Unwinder / Winder User Guide i
This page has been intentionally left blank.
ii 100kg Unwinder / Winder User Guide
1 Safety and Warning Label Information
1.1 Safety Considerations
Various procedures throughout this user guide may list 2 levels of safety indicators that need to be
adhered to during the performance of a procedure. These indicators take into account the level of
danger or the size of the potential incidence that can occur while performing a step in a procedure.
Below is a list of these indicators and their meaning as they apply to this user guide.
Used for a potentially dangerous situation that could lead to small to medium-sized
damage, or when a part or the entire product may be damaged
Used for information that should be noticed or emphasized
1.2 Warning Labels
This section explains the different types of warning labels and where they are located. Warning
labels are applied to the product in places where special attention is required. Please ensure that
you understand the exact locations of such parts and the contents of the danger before operating this
product.
Make sure you can read all the contents on a warning label.
If some of words or diagrams cannot be read, please clean the label.
To remove dirt from the warning labels, please use a cloth, water, and mild detergent.
Do not use organic solvents or gasoline to clean the labels.
Warning labels must be replaced if damaged, lost, or cannot be read.
Contact your local Xerox Representative if an warning label needs to be replaced.
100kg Unwinder / Winder User Guide
1
1 Safety and Warning Label Information
1.2.1 Warning Label Locations and Types
The figures below indicate the locations of the warning labels.
1
Figure 1. Front Warning Label Locations
1
1
1
Figure 2. Rear Warning Label Locations
No.
Types of warning label
1
2 100kg Unwinder / Winder User Guide
1 Safety and Warning Label Information
1.3 Operating Instructions Labels
This section explains the different types of operating instructions labels and where they are located.
The operating instruction labels are used in this product to briefly explain the operation method for
procedures that may require special attention when operating this product. Please ensure you
understand the exact locations and the contents of the labels before operating this product.
Make sure you can read all the contents on the operating instruction label.
If some of words or diagrams cannot be read, please clean the label.
To remove dirt from the operating instruction label, please use a cloth, water, and mild
detergent.
Do not use organic solvents or gasoline to clean the labels.
Operating instructions labels must be replaced if damaged, lost, or cannot be read.
Contact your local Xerox Representative if an warning label needs to be replaced.
1.3.1 Instruction Label Locations and Types
The figures below indicate the locations of the operating instruction labels.
No.
1
Figure 3. Operating Instruction Label Location
Types of operating instruction labels
1
100kg Unwinder / Winder User Guide 3
1 Safety and Warning Label Information
This page has been intentionally left blank.
4 100kg Unwinder / Winder User Guide
2 Unwinder / Winder Operation
2.1 Location of Major Components
This section will explain the names and functions of the major components of the Unwinder / Winder.
2.1.1 Unwinder Components
3
2
1
1
Figure 4. Location of Major Components (Unwinder)
No. Part name Function
1 Unwinder Spindles Feeds paper into the printer.
2 Unwinder Tension Bar Roller Used to guide the paper after printing to the roll-in
device. Tension Roller activates the Unwinder
Motor to feed paper into the printer.
3 Unwinder / Winder Power
Switch
Used to turn the Unwinder / Winder power ON and
OFF.
100kg Unwinder / Winder User Guide
5
