Xerox 700i, 700 Image Shift

Version 1.0
October 2009

®

Xerox

700 Digital Color Press

Image Shift/Corner Shift

©

2009 Xerox Corporation. All rights reserved. Xerox, Xerox Canada Ltd, Xerox Limited, and the
sphere of connectivity design are trademarks of Xerox Corporation in the United States and/or
other countries.

Changes are periodically made to this document. Changes, technical inaccuracies, and
typographic errors will be corrected in subsequent editions.

Table of contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Image Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Accessing the Image Shift feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Image Shift options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

No Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Auto Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Corner Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Margin Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Presets values (buttons). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Original Orientation and Mirror Side 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Original Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mirror Side 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Xerox 700 Digital Color Press Image Shift/Corner Shift i

Table of contents Xerox 700 Digital Color Press

ii Image Shift/Corner Shift

Overview

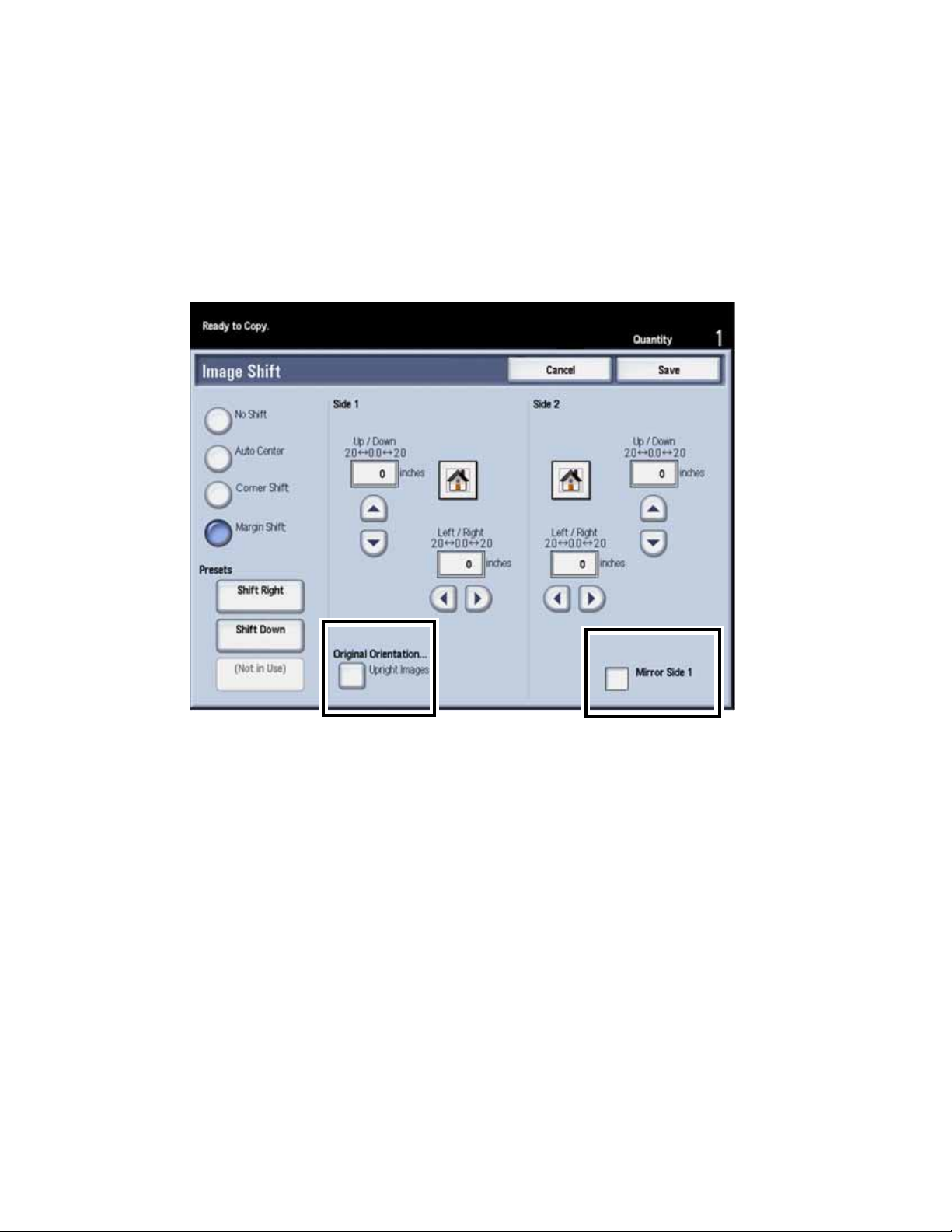

Image Shift

The Image Shift feature is used with copy jobs. This feature allows you to move the image of
your original so that it positions onto a desired area of the printed output page. This is
especially useful when you need to leave a margin for binding (such as three-hole punch)
without losing any information on the printed page.

The Image Shift feature consists of the following options:

•No Shift

•Auto Center

•Corner Shift

•Margin Shift

• Three Preset values/buttons

Each of these options is discussed in the remainder of this document.

Accessing the Image Shift feature

You can access the Image Shift feature from the machine’s User Interface (UI) by performing
the following steps:

1. If necessary, select the All Services feature, and then select the Copy feature.

Xerox 700 Digital Color Press Image Shift/Corner Shift 1
