INTRODUCTION

Terminology and conventions

INTRODUCTION 7

This document describes how to set up network servers and clients to use the Splash RPX-iii Xerox 700 Digital Color Press. For general information about using the digital press, your computer, application software, or network, see the documentation that accompanies those products.

This document uses the following terminology and conventions.

Term or convention Refers to

Digital press Xerox 700 Digital Color Press

Fiery Xerox EX Print Server and Integrated Fiery Color Server

Mac OS Apple Mac OS X

EFI Splash RPX-iii Splash RPX-iii Xerox 700 Digital Color Press

Titles in italics Other documents in this set

Windows Microsoft Windows 2000, Windows XP, Windows Server 2003,

About this document

This document covers the following topics:

• Setting up the network environment

• Setting preferences for the EFI Splash RPX-iii

• Using the Web Queue Manager

• Administering the EFI Splash RPX-iii

NOTE: The EFI Splash RPX-iii server can run on Mac OS 10.5 or Mac OS 10.4. Differences

between the two operating systems are noted in instructions throughout this document.

Windows Vista

NETWORK SETUP

Configuring the EFI Splash RPX-iii for AppleTalk printing

NETWORK SETUP 8

This chapter describes environments that typically include one or more network configurations. It describes how to set up and configure your network for printing to the EFI Splash RPX-iii from Mac OS or Windows computers.

The EFI Splash RPX-iii supports AppleTalk, Bonjour/Rendezvous, AppleShare, Microsoft TCP/IP, Novell NetWare NDPS for TCP/IP or LPR or Port 9100 Printing, and legacy support for NetWare Print Queue setup through PConsole.

This section describes how to configure the EFI Splash RPX-iii to receive jobs from computers on an AppleTalk network.

TO CONFIGURE THE EFI SPLASH RPX-iii FOR APPLETALK PRINTING

1 Choose System Preferences from the Apple menu on the EFI Splash RPX-iii, and then choose

Network preferences.

2 For Mac OS 10.5, click Advanced and click AppleTalk.

NETWORK SETUP 9

Mac OS 10.4: Choose Built-in Ethernet from the Show menu and click the AppleTalk tab.

3 Select the Make AppleTalk Active option.

4 If more than one zone is displayed, select the appropriate AppleTalk Zone.

5 Click Apply Now (Mac OS 10.4) or OK (Mac OS 10.5).

6 Close Network preferences.

7 Start the EFI Splash RPX-iii application and log on with Administrator privileges.

8 In the EFI Splash RPX-iii application, choose Preferences from the Splash Server menu.

The Splash Server Preferences dialog box appears.

9 Click the Network icon and select the AppleTalk Registration option.

For more information, see page 30.

10 Click OK.

Configuring the EFI Splash RPX-iii for TCP/IP and LPR printing

This section describes how to configure the EFI Splash RPX-iii to receive print jobs from a TCP/IP or LPR network.

To configure the EFI Splash RPX-iii and users’ computers for TCP/IP printing, complete the following procedures:

• Connect the EFI Splash RPX-iii to the TCP/IP network.

• Configure the EFI Splash RPX-iii for the TCP/IP network.

• Enable TCP/IP printing.

• Configure users’ computers for TCP/IP printing.

NETWORK SETUP 10

Connecting the EFI Splash RPX-iii to the TCP/IP network

Connect the Local Area Network (LAN) card or Ethernet port to the network.

Configuring the EFI Splash RPX-iii for the TCP/IP network

The following procedure explains how to configure the EFI Splash RPX-iii for the TCP/IP network.

TO CONFIGURE THE EFI SPLASH RPX-iii FOR THE TCP/IP NETWORK

1 Obtain a router address from your network administrator.

2 Choose System Preferences from the Apple menu on the EFI Splash RPX-iii, and then choose

Network Preferences.

3 Mac OS 10.5: Click Advanced.

NETWORK SETUP 11

Mac OS 10.4: Choose the local area network (LAN) card type or Built-in Ethernet from the Show menu for the TCP/IP network.

4 To configure the TCP/IP address manually, choose Manually from the Configure menu.

Assigning the EFI Splash RPX-iii a static TCP/IP address allows users to locate the EFI Splash RPX-iii reliably on the network. To set up the DHCP server to use the same TCP/IP address, contact your network administrator.

Type the EFI Splash RPX-iii IP address.

NOTE: Type a Subnet mask number, if required.

NOTE: If the Subnet mask number is different than the default mask number, change it to

match the number used on your network. For more information, contact your network administrator.

Type the Router address (gateway address), if required.

A network router maintains a list of IP addresses for two or more groups of network devices. The router then uses the list of addresses to direct network data to the appropriate location on the network. To enter two or more router addresses, press Return after typing each address.

Type the Name server address for your local DNS server on your network (Mac OS 10.4 only, optional).

Type the search domain name that pertains to your DNS name; for example, design.corp.com (Mac OS 10.4 only, optional ).

Or to have a TCP/IP address automatically assigned from the network, choose Using DHCP.

5 If the Mac OS computer is on an IPv6 network, click Configure IPv6 and proceed to step 6.

If the Mac OS computer is not on an IPv6 network, proceed to step 7.

NETWORK SETUP 12

6 To configure IPv6 manually, type the IPv6 address and Router address (if required), and

then click OK.

To configure IPv6 automatically, choose Automatically from the Configure IPv6 menu and click OK.

7 Click Apply Now (Mac OS 10.4) or OK (Mac OS 10.5) to confirm the new setup.

8 Close the Network Control Panel.

Enabling TCP/IP printing from the EFI Splash RPX-iii

The following procedure explains how to enable TCP/IP printing from the EFI Splash RPX-iii.

TO ENABLE TCP/IP DIRECT PRINTING

1 Start the EFI Splash RPX-iii application.

2 Choose Login from the Server menu.

3 Type the Administrator password and click OK.

4 Choose Preferences from the Splash Server menu.

The Splash Server Preferences dialog box appears.

5 Click the Network icon.

6 Select the Enterprise Networking option and click OK.

The EFI Splash RPX-iii is ready to check that the network status for LPR/IP is online.

Configuring Windows 2000/XP/Server 2003/Vista for TCP/IP printing

The EFI Splash RPX-iii accepts print jobs from the TCP/IP network on a Windows 2000/ XP/Server 2003/Vista or Novell NetWare NDPS LPR network. In addition, users on a TCP/IP network can print files directly to the EFI Splash RPX-iii by using Drop folders or Hot Folders.

NOTE: To print over the TCP/IP network, your computer must have Splash software

appropriate for your operating system installed, and must be connected to the EFI Splash RPX-iii.

Windows computers are preconfigured with the Microsoft TCP/IP software installed. For information about configuring Windows for TCP/IP printing to the EFI Splash RPX-iii, see the Printing Guide.

NETWORK SETUP 13

Configuring the EFI Splash RPX-iii for the IPv6 network and 802.1x

The following procedure explains how to configure the EFI Splash RPX-iii for the IPv6 network and 802.1x.

When you configure for the IPv6 network, you must configure both the Macintosh and the Splash Server before you can configure 802.1x.

TO CONFIGURE THE MACINTOSH FOR IPV6

1 Choose System Preferences from the Apple menu on the EFI Splash RPX-iii, and then choose

Network preferences.

2 Mac OS 10.5: Click Advanced.

Mac OS 10.4: Choose Built-in Ethernet from the Show menu.

3 Click Configure IPv6 on the TCP/IP tab.

4 To configure IPv6 automatically, choose Automatically from the Configure IPv6 menu.

Click OK (Mac OS 10.4).

To configure IPv6 manually, type the IPv6 address and the Router address (if required).

Click OK (Mac OS 10.4).

5 Click Apply Now (Mac OS 10.4) or OK (Mac OS 10.5) to confirm the new setup.

6 Close the Network Control Panel.

TO CONFIGURE THE EFI SPLASH RPX-iii FOR IPV6

1 Start the EFI Splash RPX-iii application.

2 Log on with Administrator privileges.

3 Choose Preferences from the Splash Server menu.

The Splash Server Preferences dialog box appears.

4 Click the Network icon.

5 Select the Use IPv6 option.

6 Click OK to close the Splash Server Preferences dialog box.

NETWORK SETUP 14

TO CONFIGURE 802.1X (MAC OS 10.4)

1 Double-click Internet Connect in the Applications Folder.

2 Choose New 802.1X Connection from the File menu.

3 Choose Edit Configurations from the Configuration menu.

4 Choose Built-In Ethernet 1 from the Network Port menu.

5 Specify the other information on the pane as appropriate for your network.

TO CONFIGURE 802.1X (MAC OS 10.5)

1 Choose System Preferences from the Apple menu on the EFI Splash RPX-iii, and then choose

Network preferences.

2 Click Advanced.

3 Click 802.1X.

4 Specify the information on the pane as appropriate for your network.

Configuring the EFI Splash RPX-iii for NDPS Printing

The Novell NetWare server must be set up and configured prior to installing and configuring the NetWare Client. The NetWare Client must be installed on the workstation being used to configure the NetWare server for NDPS printing.

NOTE: Use the latest NetWare support pack and NetWare Client. For more information, see

the documentation that accompanies NetWare.

The following procedures assume NDPS has been installed on your NetWare server and is properly configured. An NDPS Broker and NDPS Manager are required for configuring NDPS printing. If these are not in place, contact your network administrator.

TO ADD THE EFI SPLASH RPX-iii PPD TO THE NOVELL NETWARE NDPS BROKER

1 Log on to the NetWare file server with Administrator privileges.

2 Start NetWare Administrator.

NOTE: To start NetWare Administrator, go to the Sys:Public\Win32 folder on the NetWare

server and click the nwadmin32 icon.

3 Double-click the Broker icon in the NetWare Admin window.

1 Resource Management

(RMS)

NETWORK SETUP 15

4 Click Resource Management (RMS).

1 Add Resources

5 Click Add Resources.

6 In Resource Types, select the Windows operating system that you want for the EFI

Splash RPX-iii Driver installation.

NOTE: You can add printer drivers for more than one Windows operating system, but you

must repeat this procedure and the following procedure to install the appropriate printer driver for each Windows platform.

If the EFI Splash RPX-iii driver has already been installed, it appears in the installed printer drivers listed in the Current Resources section. If the EFI Splash RPX-iii driver is not listed, you must install it from the EFI Splash RPX-iii User Software and Documentation DVD.

NETWORK SETUP 16

7 Insert the EFI Splash RPX-iii User Software and Documentation DVD into the CD/DVD-ROM

drive.

8 In the Manage Resources dialog box, click Add.

The Add Resources dialog box appears.

9 Click Browse in the Add Resources dialog box.

10 Browse to the CD/DVD-ROM drive, select the appropriate driver from the Standard drivers

folder, and then click OK.

11 Verify the location of the file and click OK.

12 Click Continue.

The printer driver is copied to the Novell NDPS Server.

Use the following procedure to create a Printer Agent for the NDPS Manager.

TO CREATE A PRINTER AGENT

1 Log on to the NetWare file server with Administrator privileges.

2 Start NetWare Administrator.

NOTE: To start NetWare Administrator, go to the Sys:Public\Win32 folder on the

NetWare server and click the nwadmin32 icon. For more information, see the documentation that accompanies NetWare.

3 In the NetWare Administrator window, choose Create from the Object menu.

NETWORK SETUP 17

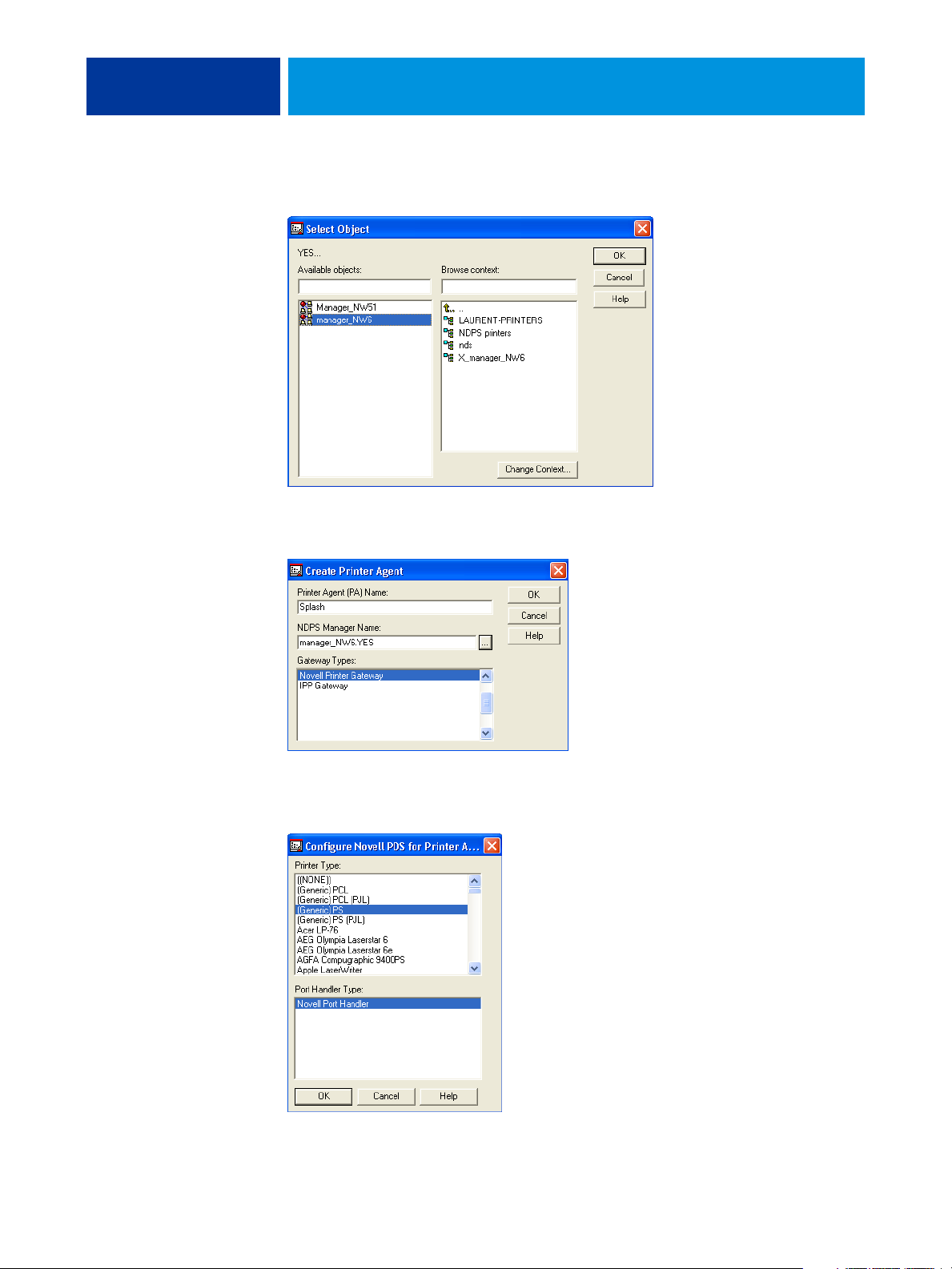

4 In the New Object dialog box, select NDPS Printer and click OK.

5 In the Create NDPS Printer dialog box, type a name in the NDPS Printer Name field.

6 Select the Create a New Printer Agent option in the Printer Agent Source area.

7 Click Create.

The Create Printer Agent dialog box appears with the NDPS Printer Name you chose displayed.

8 For the NDPS Manager Name, click the Browse button (“...”).

+ 39 hidden pages
