XC-32, XC-320, XC-4200
User MANUAL
Version 1.2
DECISION Europe 3 rue de Lattre de Tassigny BP14 85170 ST DENIS LA CHEVASSE
FRANCE
Tel : (33) 02 51 41 41 89 - Fax : (33) 02 51 41 41 90
Web : http://www.xcell.com/ - E-mail : support@xcell.com
User manual XC-32 XC-320 XC-4200
Table des matières
I.Introduction......................................................................6
I.1 - XC-32 XC-320 XC-4200, remote access server................................6
I.2 - Furnished features.............................................................................6
I.3 - Symbolics...........................................................................................6
II.Xcell overview.................................................................8
II.1 - XC-32..................................................................................................8
II.2 - XC-320................................................................................................8
II.3 - XC-4200..............................................................................................8
III.Installation....................................................................11
III.1 - Indicating LEDS of XC-32..............................................................11
III.2 - Indicating LEDS of XC-320............................................................12
III.3 - - indicating LEDS of XC-4200........................................................13
III.4 - Ports and interfaces of XC-32.......................................................13
III.5 - Ports and interfaces of XC-320.....................................................14

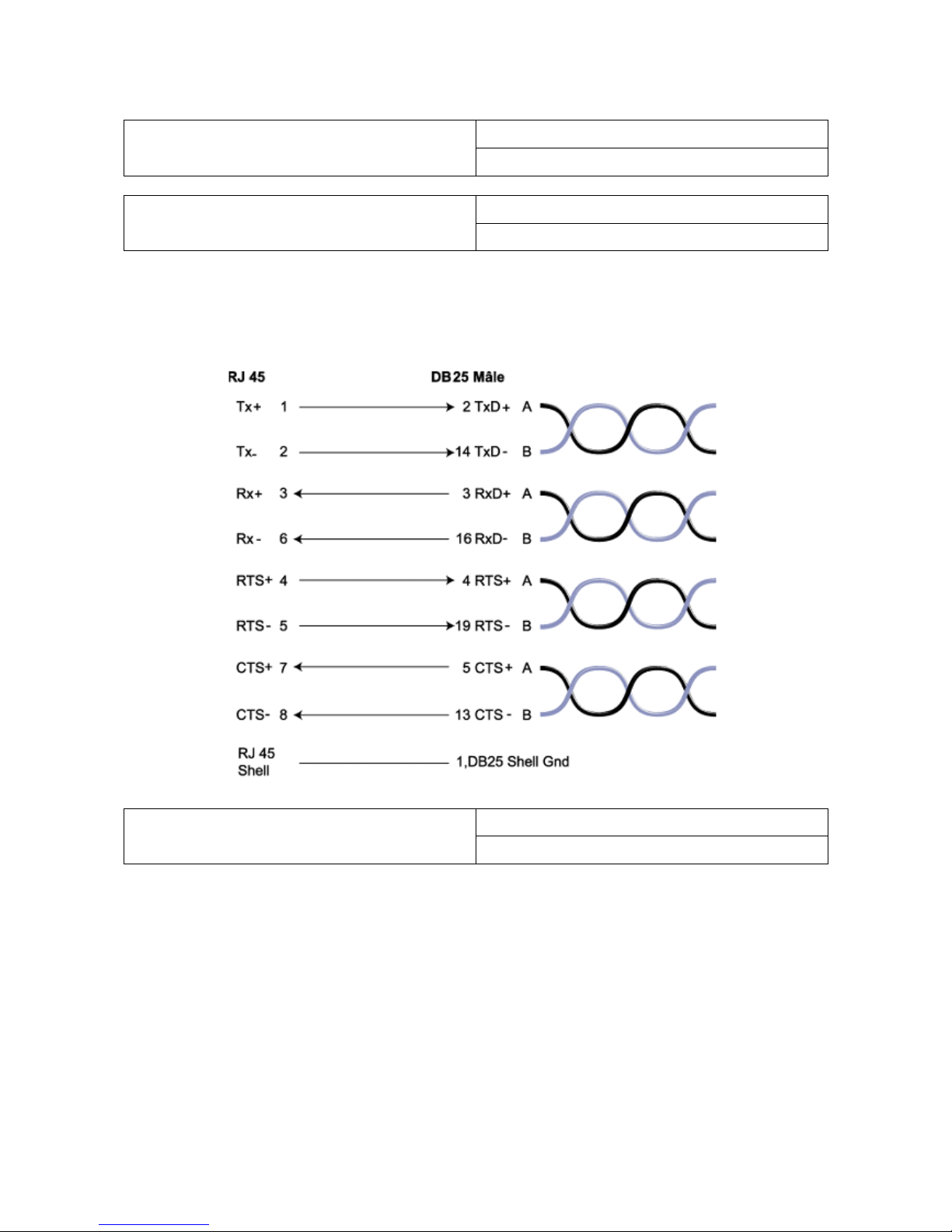

III.6 - Ports and interfaces of XC-4200 ..................................................14
III.7 - Cautions..........................................................................................14
III.7.1 - Cleaning XC.................................................................................................14
III.7.2 - Note..............................................................................................................15
III.7.2.1 - About XC-32...........................................................................................15
III.7.2.2 - General note..........................................................................................15
IV.Configuration...............................................................16
IV.1 - Introduction....................................................................................16
IV.2 - Entering IP address.......................................................................16

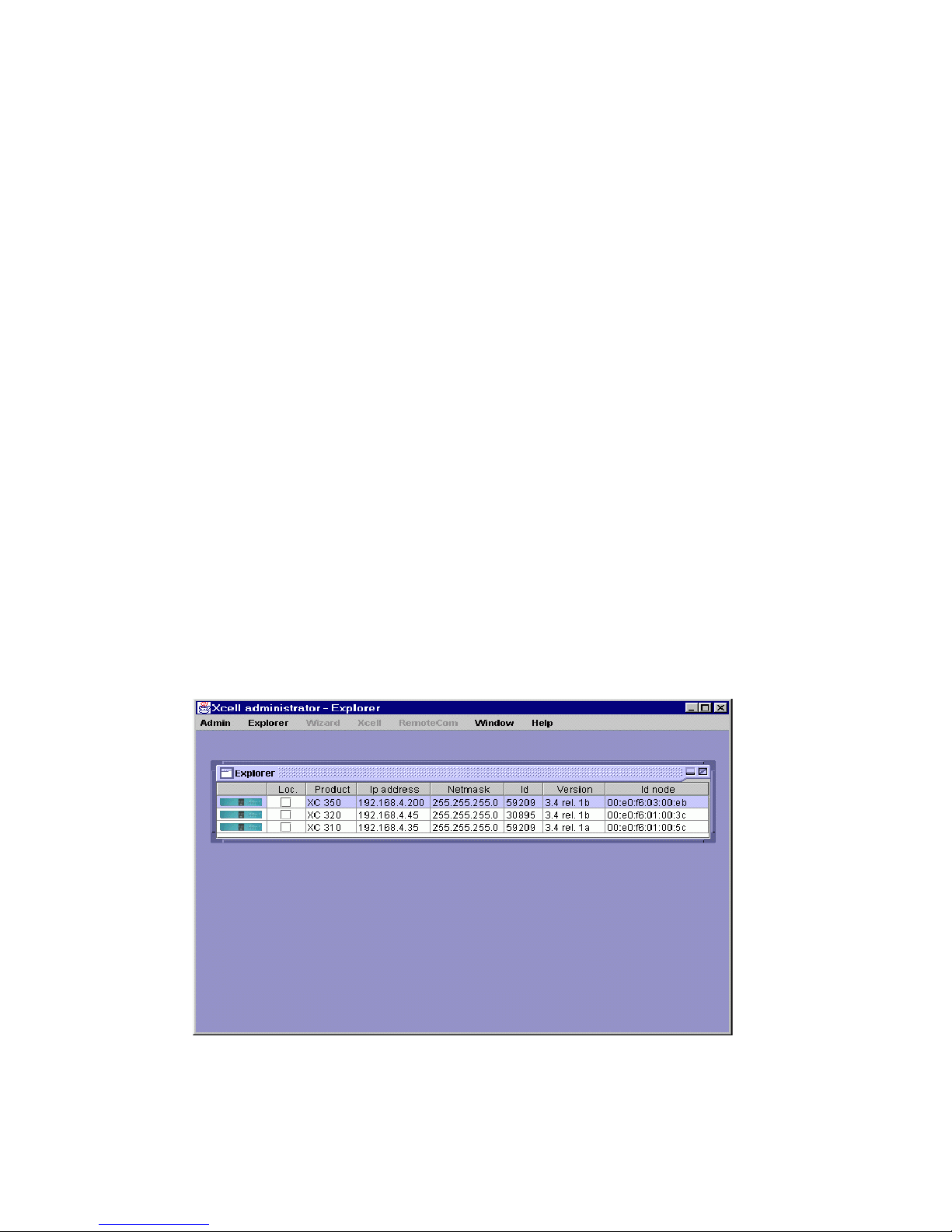

IV.2.1 - Entering IP address from Xcell administrator..........................................16
IV.2.2 - Entering IP address from a terminal.........................................................17
IV.3 - HTTP Configuration (Netscape, Internet Explorer).....................17
IV.4 - Network interface..........................................................................19
IV.4.1 - Identification................................................................................................19
IV.4.2 - Route checking with PING command.......................................................19

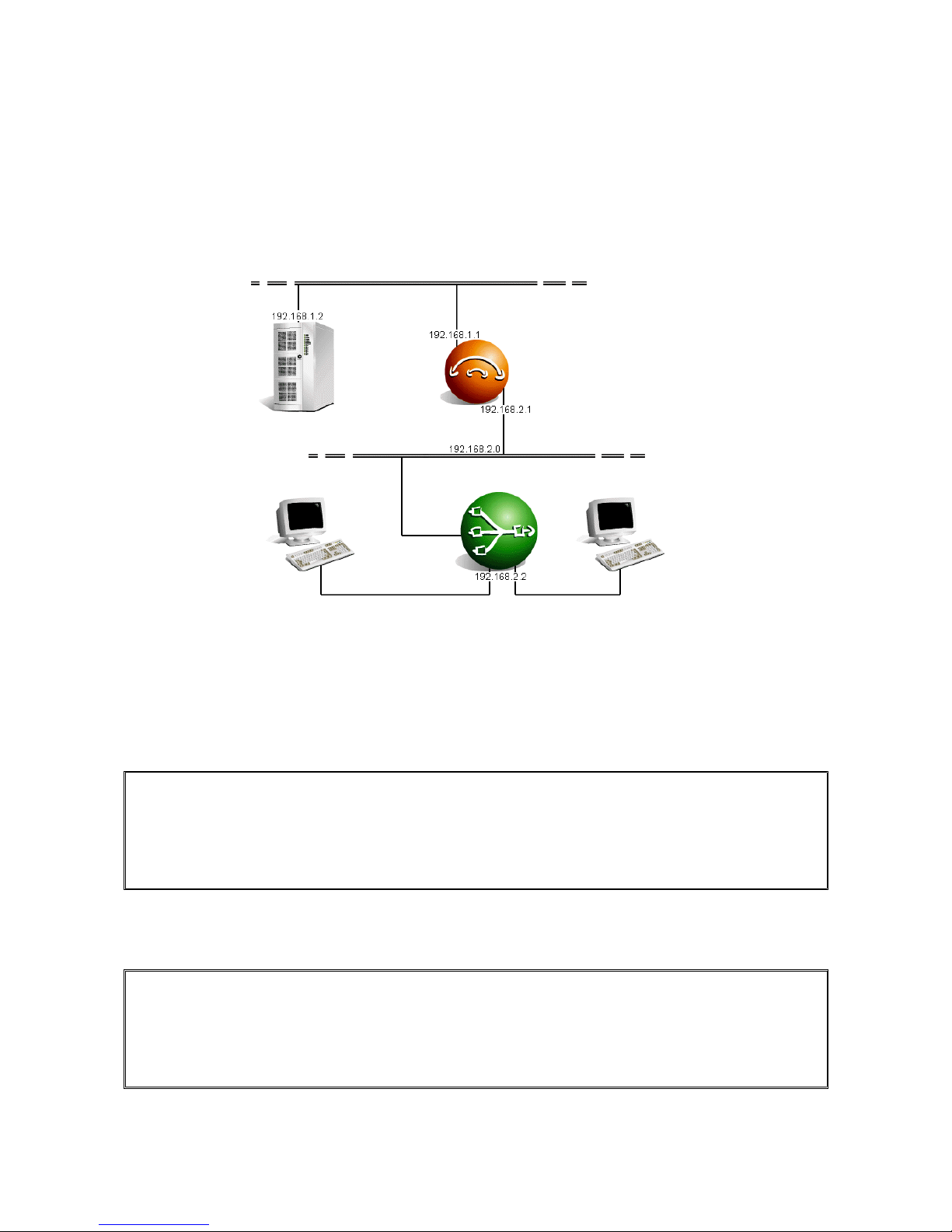

IV.4.3 - Routing table...............................................................................................20
IV.5 - Asynchronous interfaces..............................................................21
IV.5.1 - Software settings........................................................................................21
IV.5.2 - Asynchronous port mode..........................................................................22
IV.5.3 - Type of control............................................................................................22
IV.5.4 - Flow control.................................................................................................23
IV.5.5 - Automatic disconnection of a Modem......................................................23
IV.5.6 - Association of a modem form to a port....................................................24
IV.5.7 - AutoUser mode...........................................................................................24
IV.6 - Saving and restoring Xcell configuration....................................24
IV.6.1 - Saving in FLASH memory..........................................................................24
IV.6.2 - Saving a configuration copy......................................................................24
IV.7 - Opening of a user account............................................................25
-2-
User manual XC-32 XC-320 XC-4200
IV.7.1 - Name and password...................................................................................25
IV.7.2 - Comments...................................................................................................26
IV.7.3 - In and Out communication.........................................................................26
IV.7.4 - Callback.......................................................................................................26
IV.7.5 - Audit.............................................................................................................27
IV.7.6 - Optional remote IP Address.......................................................................28
IV.7.7 - Telnet Address............................................................................................28
IV.8 - Management of a modem connection..........................................28
IV.9 - Audit...............................................................................................29
IV.9.1 - Audit on a remote machine........................................................................29
IV.9.2 - Audit on your console................................................................................30
IV.9.3 - Audit in a file...............................................................................................31
IV.9.4 - List of created audits..................................................................................31
IV.9.5 - Delete audit..................................................................................................31
IV.9.6 - Start/stop audit............................................................................................32
V.Terminal Mode (Telnet).................................................33
V.1 - Introduction.....................................................................................33
V.2 - Telnet...............................................................................................33

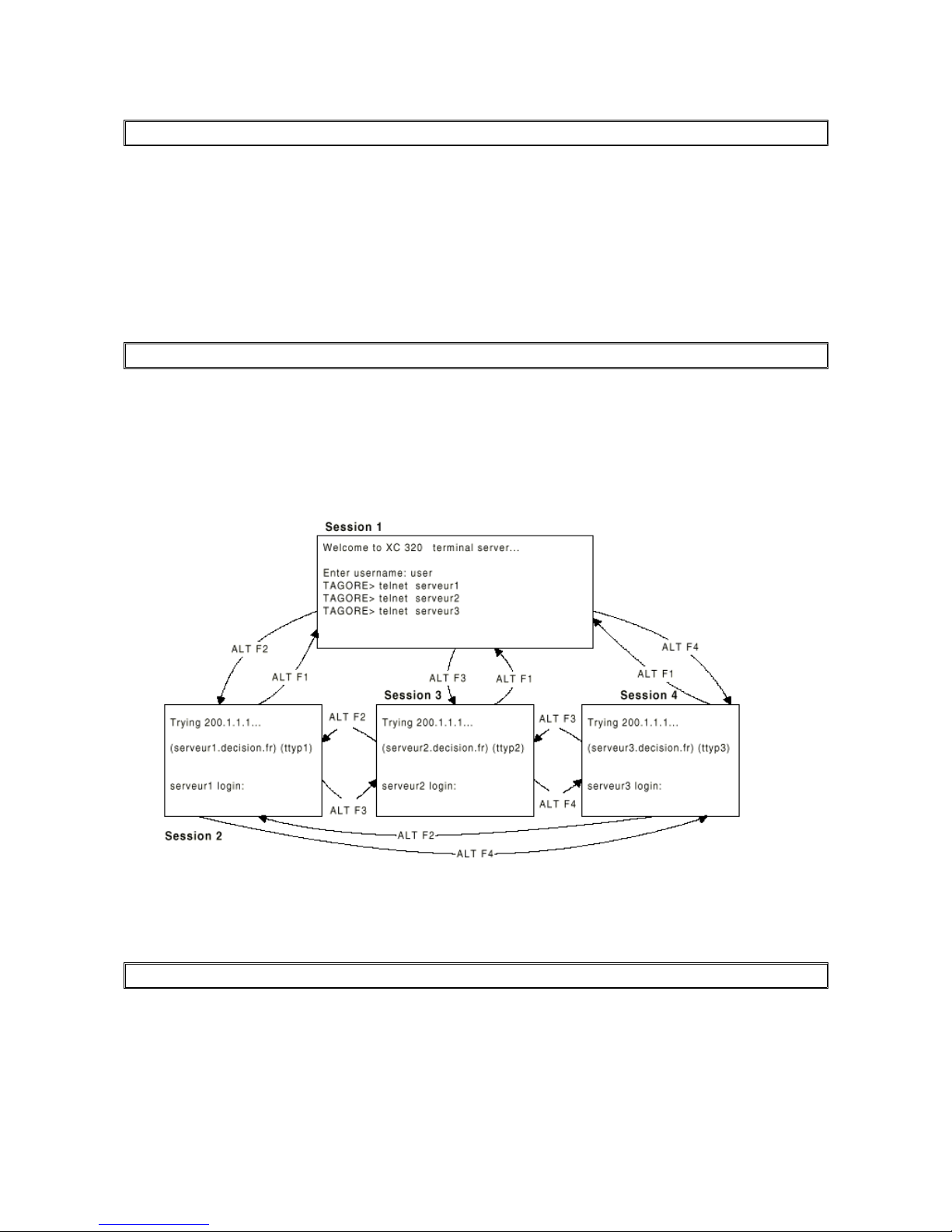

V.3 - Multi-sessions.................................................................................34
V.4 - Automatic Telnet.............................................................................35
V.5 - User connection diagram...............................................................35
VI.Rawtty and RemoteCOM.............................................37
VI.1 - Introduction....................................................................................37
VI.2 - RemoteCOM...................................................................................37
VI.2.1 - RemoteCOM under Windows 95/98...........................................................37
VI.2.1.1 - Setting up the Xcell................................................................................37
VI.2.1.2 - Installation of RemoteCOM driver..........................................................38
VI.2.2 - RemoteCOM under Windows NT system..................................................41
VI.2.2.1 - Setting up the Xcells..............................................................................41
VI.2.2.2 - Installation of RemoteCOM driver..........................................................42
VI.2.2.3 - Displaying RemoteCOM service status.................................................44
VI.3 - Rawtty.............................................................................................45
VI.3.1 - Server configuration...................................................................................45
VI.3.2 - Setting up the XC........................................................................................46
VI.3.3 - rawtty, rawclose..........................................................................................46
VII.Mux mode....................................................................48
VII.1 - Introduction...................................................................................48
VII.2 - TCP Mux........................................................................................48
VII.3 - UDP Mux........................................................................................48

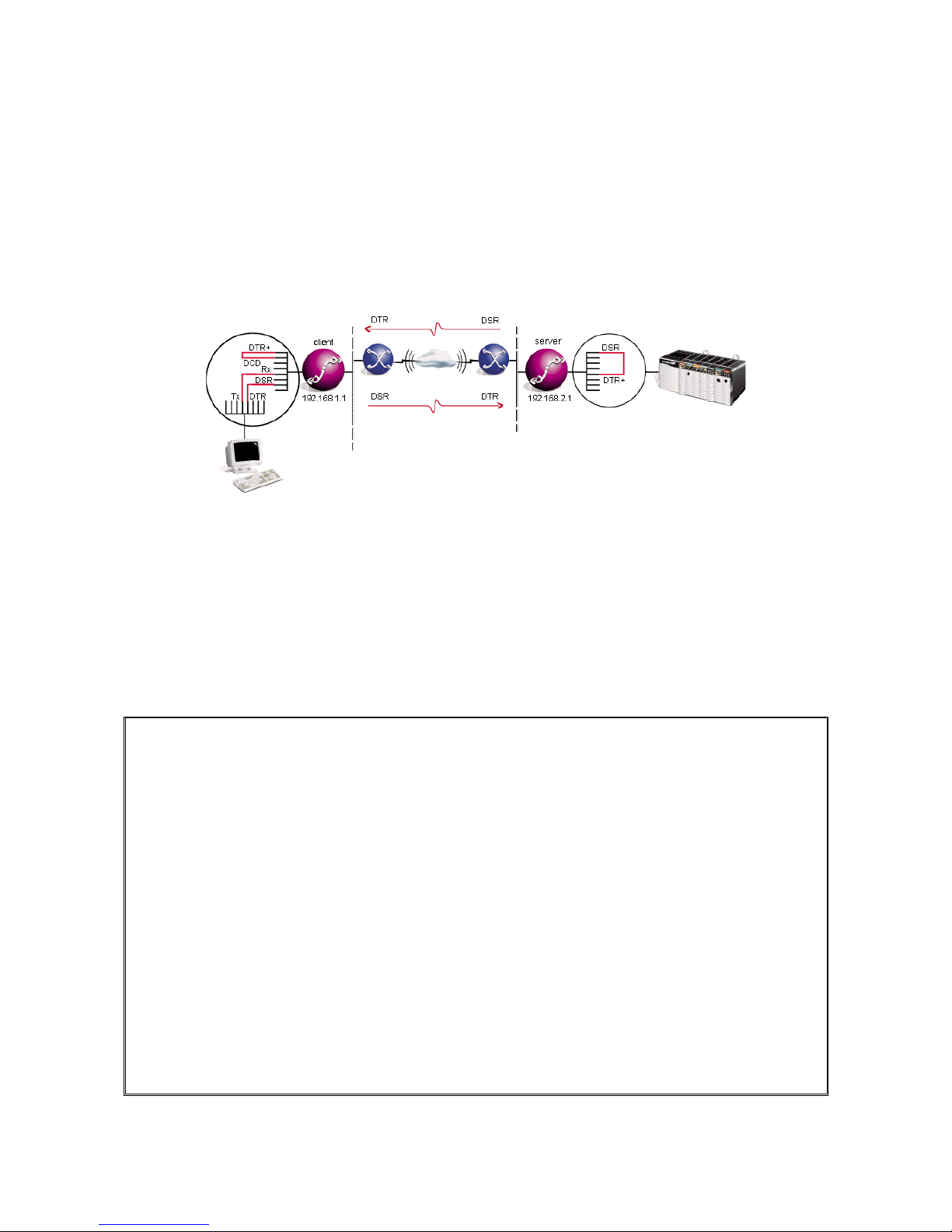

VII.4 - Example n°1: Remote management of a PLC by a technician. .48
VII.4.1 - Description.................................................................................................48
VII.4.2 - Configuration of client's side XC..............................................................49
VII.4.3 - Configuration of server's side XC............................................................50
VII.5 - Example n°2: Remote management of a PLC by more than one
technician (solution 1)............................................................................50
-3-
User manual XC-32 XC-320 XC-4200
VII.5.1 - Description.................................................................................................50
VII.5.2 - Solution.......................................................................................................51
VII.5.3 - Configuration of client's side Xcell..........................................................52
VII.5.4 - Configuration of server's side Xcell.........................................................52
VII.6 - Example n°3: Remote management of a PLC by more than one
technician (solution 2)............................................................................53
VII.6.1 - Description.................................................................................................53
VII.6.2 - Solution.......................................................................................................53
VII.6.3 - Configuration of client's side Xcell..........................................................54
VII.6.4 - Configuration of server side's XC............................................................55
VII.7 - Example n°4: Remote management of a PLC by more than one
technician (solution 3)............................................................................55
VII.7.1 - Description.................................................................................................55
VII.7.2 - Solution.......................................................................................................56
VII.7.3 - Configuration of client's side Xcell..........................................................57
VII.7.4 - Configuration of server's side XC............................................................58
VIII.Printer Mode (LPD)....................................................59
IX.Rtelnet Mode................................................................60
IX.1 - Definition........................................................................................60
IX.2 - Configuration.................................................................................60
IX.3 - Rtelnet Pool....................................................................................61
X.Asynchronous PPP Mode............................................62
X.1 - Introduction.....................................................................................62
X.2 - PAP and CHAP authentication.......................................................62
X.3 - PPP connection setup....................................................................62
X.4 - Dial-IN connection..........................................................................62
X.5 - PPP form.........................................................................................63
X.5.1 - Creation, cancelling and displaying of a form..........................................63
X.5.2 - Comments....................................................................................................63
X.5.3 - Security.........................................................................................................63
X.5.4 - Authname and password............................................................................64
X.5.5 - Local IP.........................................................................................................64
X.5.6 - Remote IP.....................................................................................................65
X.5.7 - Proxy ARP....................................................................................................65
X.5.8 - Mask..............................................................................................................65
X.5.9 - Routing.........................................................................................................65
X.5.10 - Asyncmap...................................................................................................66
X.5.11 - MRU.............................................................................................................66
X.5.12 - MTU.............................................................................................................66
X.6 - PPP connection establishment......................................................66
X.6.1 - Dial-IN user connection phase...................................................................66
X.6.2 - Authentication phase..................................................................................67
X.6.3 - IP address negotiation phase.....................................................................67
X.7 - Compression...................................................................................68

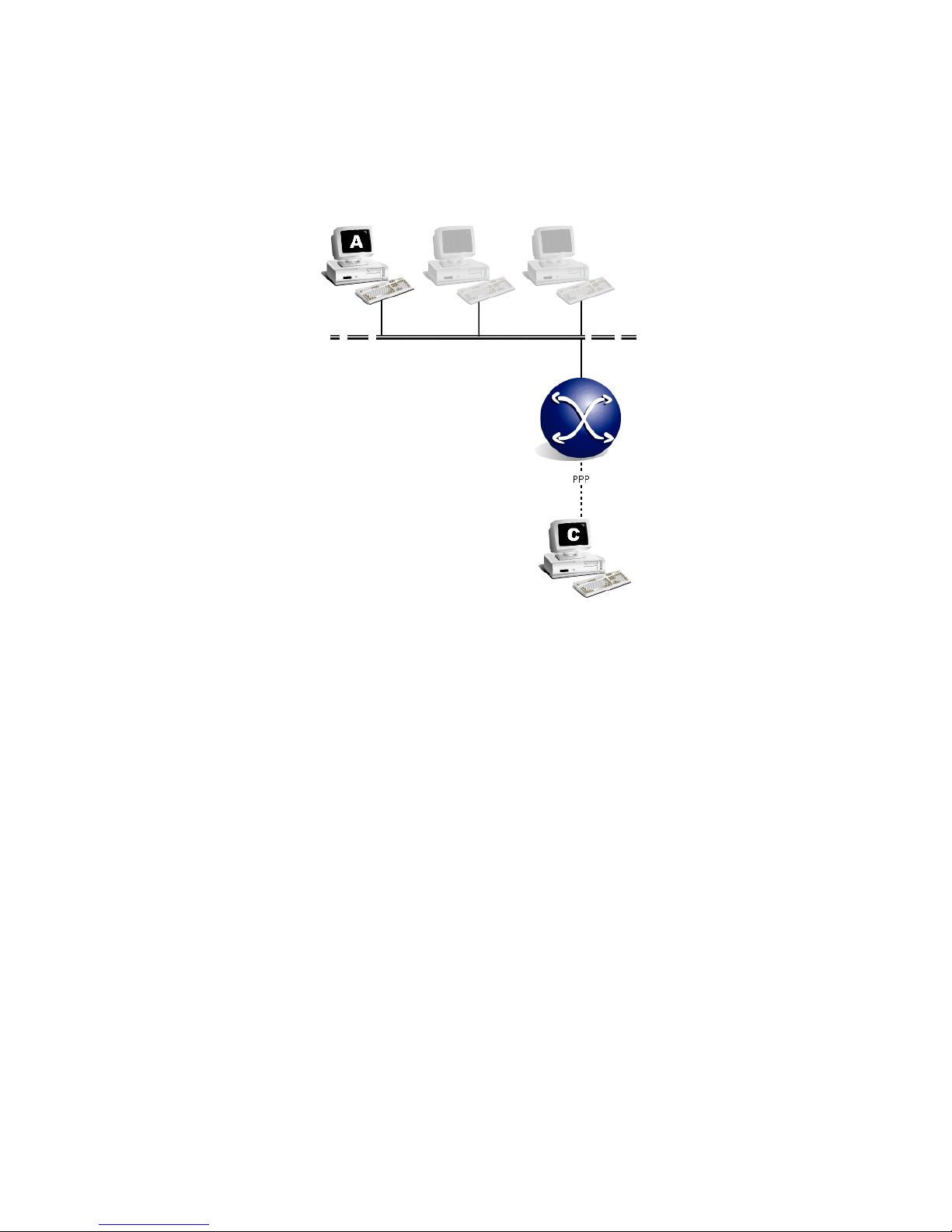

X.8 - Proxy-ARP.......................................................................................68
-4-
User manual XC-32 XC-320 XC-4200
X.9 - Example n°1 : Remote access server............................................70
X.9.1 - Configuration...............................................................................................70
X.9.2 - Configuration of Windows 95 Dial-Up PPP Client.....................................72
X.9.3 - Resources sharing on WINDOWS 95/NT...................................................73
X.10 - Access Server function without Proxy-ARP...............................73
XI.Advanced functions.....................................................75
XI.1 - Firewall...........................................................................................75
XI.1.1 - Definition.....................................................................................................75

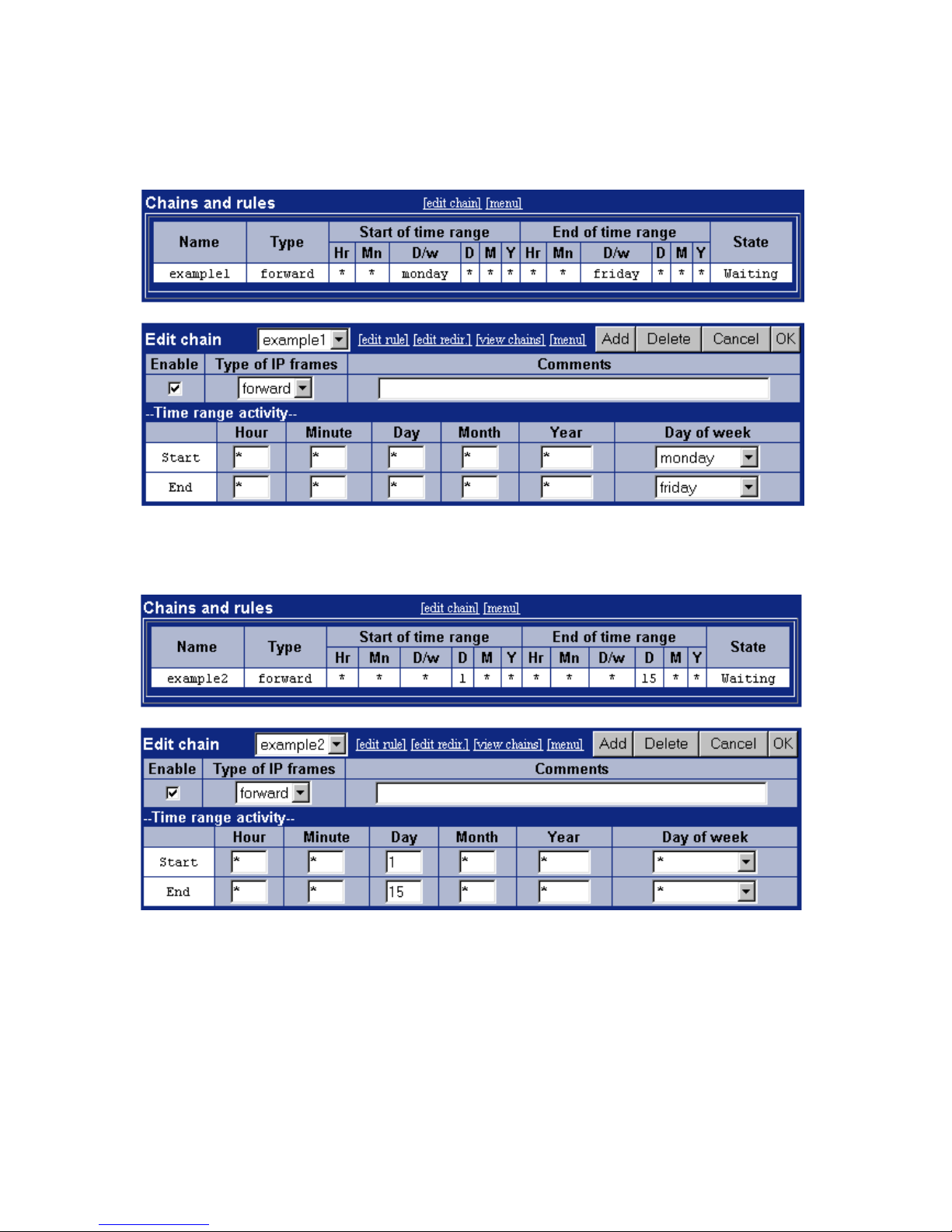

XI.1.2 - Chains..........................................................................................................75
XI.1.2.1 - Examples...............................................................................................76
XI.1.3 - Rules............................................................................................................77
XI.1.3.1 - Bidirectionnal option..............................................................................78
XI.1.3.2 - Type Of Service (TOS)..........................................................................78
XI.1.4 - Examples.....................................................................................................78
XI.1.4.1 - Forward Firewall....................................................................................79
XI.1.4.2 - Input Firewall.........................................................................................81
XI.1.4.3 - Output Firewall.......................................................................................81
XI.2 - Radius.............................................................................................82
XI.2.1 - Introduction.................................................................................................82
XI.2.2 - Xcell-hold Radius attributes......................................................................82
XI.2.3 - Radius requests..........................................................................................83
XI.2.4 - Configuration of the Radius client on Xcell..............................................84
XI.3 - DHCP..............................................................................................85
XI.3.1 - Definition.....................................................................................................85
XI.3.2 - DHCP client.................................................................................................86
XI.3.3 - DHCP relay..................................................................................................86
XII.Technical specifications............................................88
XIII.Cabling........................................................................90
XIII.1 - RJ45 connector............................................................................90
XIII.2 - Xcell (DTE) to DTE equipment....................................................90
XIII.3 - Xcell (DTE) to asynchronous terminal (DTE).............................91
XIII.4 - Xcell (DTE) to DCE equipment - RS232C (Modem)...................91
XIII.5 - Xcell (DTE) to DCE equipment - RS422A...................................92
XIII.6 - Xcell (DTE) to DCE equipment - RS485......................................93
-5-
User manual XC-32 XC-320 XC-4200
I.Introduction
I.1 - XC-32 XC-320 XC-4200, remote access server.
A terminal server enables you to connect passive terminals on a TCP/IP network. Thanks
to XC's integrated Telnet client, every terminal will be able to open up to three sessions on
the server.
Thanks to XC's remote access server function, you can perform a dial-in PPP connection
on each XC's port. It makes possible for a PPP compatible portable (using a modem) to
connect to the company's network.
Thanks to the Mux mode, you can also establish a communication between to serial
equipments through an asynchronous link. You can, for example, use a terminal on your
XC to manage a PLC located on a remote Xcell.
Remote access server's family is composed by the following products :
p XC-32 provides 2 asynchronous ports (RS232C) and one Ethernet port.
p XC-320 provides 4 or 8 asynchronous ports (RS232C or RS422/485A) and one
Ethernet port.
p XC-4200 provides 4, 8, 12 or 16 asynchronous ports (RS232C or RS422/485A) and
one Ethernet port.
I.2 - Furnished features
You will find the following features with any XC :
p A document titled "Getting started with Xcell server/router".
p Xcell Technology CD-ROM contains RemoteCOM drivers, Rawtty drivers and a few
usefull softs. Please read the readme.html file for more information.
p A DTE DB25 cable (ref F00132) and a DTE DB9 cable (ref F00142). These cables are
PC COM port compatible - RS232C).
p A power supply cable.
p A 5V power supply (XC-32 and XC-320 only)
I.3 - Symbolics
In all pictures of this documentation, we will use the following symbols :
-6-
User manual XC-32 XC-320 XC-4200
WAN Link Printer
Ethernet Network Modem
Lan link
Aquisition de
données
Work
Portable
computer
Serial port server
function / Raw Mode
Gateway
Terminal server
function
Remote access
router function
Mux Mode function Server
-7-
User manual XC-32 XC-320 XC-4200
II.Xcell overview
II.1 - XC-32
XC-32 provides 2 asynchronous ports on which you can connect passive terminals.
Thanks to XC's integrated Telnet client, every terminal will be able to open up to three
sessions on the server.
Thanks to XC's remote access server function, you can perform a dial-in PPP connection
on each XC's port. It makes possible for a PPP compatible portable (using a modem) to
connect to the company's network.
Thanks to the "raw" function of Xcell, you can connect printers or any other serial
equipment (bar-code reader, data acquisition system, a.s.o...).
Just run on your Unix server the "rawtty" application to redirect the in and out data flow of
the specified communication port ('/dev/ttyx') to one of XC-320 port.
RemoteCOM is provides the same function for Windows 95/98/NT systems. This function
is optionnal.
Thanks to the Mux mode, you can also establish a communication between to serial
equipments through an asynchronous link. You can, for example, use a terminal on your
XC to manage a PLC located on a remote Xcell. This function is optionnal.
II.2 - XC-320
XC-320 supports the same functions as XC-31 but provides 4 or 8 asynchronous ports.
With XC-320, you can use RemoteCOM function on 1 port. You can extend this fonction
to many ports (optionnal).
II.3 - XC-4200
XC-4200 supports the same functions as XC-310 but provides 4, 8, 12 or 16
asynchronous ports. XC-4200 also uses the XC-4 architecture.
-8-
User manual XC-32 XC-320 XC-4200
Figure 1 - Using of XC as a terminal server.
Figure 2 - Using of XC as remote access server
-9-
User manual XC-32 XC-320 XC-4200
Figure 3 - Using of XC to connect serial equipments.
-10-
User manual XC-32 XC-320 XC-4200
III.Installation
This chapter details the first steps to install XC-32, XC-320, XC-4200.
III.1 - Indicating LEDS of XC-32
The top face of XC-is composed by a line of five LEDS
XC 32
Designation Color State Meaning
Setup - Locate Red
On Setup mode activated
Off Normal mode
Clignotemen
t
Locate function activated
Link Red
On No presence of the network
Off Presence of the network
TxD Green Data transmission To the network
RxD Green Data reception from the network
Power Green
On XC is on
Off XC is off
-11-
User manual XC-32 XC-320 XC-4200
III.2 - Indicating LEDS of XC-320
XC 320
The front panel of XC-320 composed by a line of five LEDS
Designatio
n
Color State Meaning
Setup Red
On Setup mode activated
Off Normal mode
Blinking
Locate function activated
LAN Link Red
On No presence of the network
Off Presence of the network
LAN Tx Green
Data transmission from the
network
LAN Rx Green Data reception from the network
Power Green
On XC is on
Off XC is off
-12-
User manual XC-32 XC-320 XC-4200
III.3 - - indicating LEDS of XC-4200
XC 4200
The front panel of XC-4200 IS composed by a line of seven LEDS.
Designation Color State Meaning
Setup Red
On Setup mode activated
Off Normal mode
Blinking
Locate function activated
Sync - Fan
fault
Orange
On
One synchrone interface actived at
least
Off No synchrone interface activated
Blinking Fan fault
Isdn-Fan fault Green
On One isdn interface activated at least
Off No isdn interface activated
Blinking Fan fault
Link Red
On No presence of the network
Off Presence of the network
Tx Orange Data transmission from the network
Rx Green Data reception from the network
III.4 - Ports and interfaces of XC-32
The rear face of XC-340 displays the followings elements :
p 1 power supply connector.
p 1 Ethernet port 10baseT.
The front face of XC-32 displays the following elements :
p 2 asynchronous ports RS232C/V24 noted ''Serial 1
The port n°1 is the console port in setup mode
-13-
User manual XC-32 XC-320 XC-4200
III.5 -
Ports and interfaces of XC-320
The rear face of XC-320 displays the followings elements :
p 1 power supply connector.
p 1 Ethernet port 10baseT.
p 4 or 8 asynchronous ports (RS232C/V24 or RS422/485A)
The port n°1 is the console port in setup mode
III.6 -
Ports and interfaces of XC-4200
The rear face of XC-4200 displays the followings elements :
p 1 power supply connector.
p 1 Ethernet port 10baseT.
pppp 1 on/off button
The front face of XC-4200 displays the following elements :
pppp 4, 8, 12 or 16 asynchronous ports (RS232C/V24 or RS422/485A)
p 1 asynchronous port noted ''Serial 1/Console''.
pppp 1 port ''Serial 2''
III.7 - Cautions
The opening of the box is strictly reserved to persons authorized by Decision Europe.
Manipulation of the open box is forbidden.
III.7.1 - Cleaning XC
p Remove the power supply cable from the rear panel
p Please use watertown.
Caution
: do not use chemical products which can damage the box paint (Alcohol,
trichlo,.. )
p Please be sure the box is completely dry before powering on.
-14-
User manual XC-32 XC-320 XC-4200
III.7.2 - Note
III.7.2.1 - About XC-32
Security of this equipment is guaranteed only if you use the furnished power supply or an
equivalent model.
Cables must only be plug at very low security voltages (VLSV).
Warning
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
III.7.2.2 - General note
The hardware and software described in this document may change without warning.
The information in this document may change without warning. Xcell Technology reserves
itself the right to revise this publication without having to provide notification for such
revisions. Aslong as reasonable precautions have been taken, Xcell Technology assumes
no responsibility for errors that may appear in this document.
Xcell Technology
is a registered trademark of
DECISION Europe
.
No part of this publication may be copied or reproduced in any form or by means without
prior written consent of Xcell Technology.
Windows and Microsoft Windows are trademarks of Microsoft Corporation. Ethernet is a
trademark of the Xerox corporation. Netscape is a trademark of Netscape
Communications Corporation.
All other brand and product names and trademarks mentioned herein are trademarks of
their respective owners.
-15-
User manual XC-32 XC-320 XC-4200
IV.Configuration
IV.1 - Introduction
The three ways to configure your Xcell are :
p With an asynchronous terminal (or a terminal emulator) connected to one of its serial
ports.
p From another network host using Telnet protocol.
p From a web browser (Netscape, Internet Explorer,...).
Before using Telnet or HTTP protocols, you just need to fix Xcell IP address. This can be
made with Xcell administrator or with a terminal.
IV.2 - Entering IP address
IV.2.1 - Entering IP address from Xcell administrator
Xcell administrator enables you to locate and setup all Xcells of your LAN.
To search for all Xcells on your LAN, click on "Adminstration" then on "Explorer". A
window like this one must appears on your screen :
To change Xcell's IP address, click on "IP address" cell and type new IP adress.
-16-
User manual XC-32 XC-320 XC-4200
IV.2.2 - Entering IP address from a terminal
Use a terminal ( 9600 bauds, 8 bits, no parity ) connected on Xcell's Console part.
The Setup mode can be selected after Xcell startup. When the Setup LED blinks, press
three times on '@' :
The terminal screen should display the following message :
ROOT>>
Now, you have access to a classic line shell (with a vt100, vt220, ansi terminal). Data input
errors may be corrected by using 'left arrow ', 'right arrow' and 'backspace’ keys. The 'up
arrow' and 'down arrow' keys re-edit the last command.
You can now enter IP address and the network where your Xcell is connected, with the
following commands :
IFCONFIG IP <interface> <IP_address>
ROUTE ADD NET <interface> <destination> <gateway> <netmask>
Example :
ROOT>> ifconfig ip eth0 192.168.1.11
Ok!
ROOT>> route add net eth0 192.168.1.0 0.0.0.0 255.255.255.0
Ok!
To save your configuration parameters, it is necessary to write it in permanent memory
(FLASH-EPROM). Enter the
save
command to do achieve this :
ROOT>> save
Status: Done.
ROOT>>
IV.3 - HTTP Configuration (Netscape, Internet Explorer)
Xcell can be configured in text mode (Console, Telnet) or in graphic mode (HTTP).
The following pages of this manual excusively deal with a text mode configuration.
However, all text mode commands have their equivalents in graphic mode.
To set up parameters in graphic mode, you just need a web browser (Netscape, Internet
Explorer), and to enter Xcell's IP address in URL field :
-17-
User manual XC-32 XC-320 XC-4200
Click on GO, and open a session under the name root. Default password is root.
Now you can configure your Xcell.
-18-
User manual XC-32 XC-320 XC-4200
IV.4 - Network interface
IV.4.1 - Identification
To correctly initialize the network connection, use the
ifconfig
command to enter the
following parameters :
p IP address. The location of your Xcell on the network. This address consists in four
numbers separated by dots (.), valid values for each of the four numbers are whole
numbers between 1 and 254, for example "192.168.2.3".
p Network mask (netmask). It is a number similar to IP address, which determines what
address is specified by the network and what place on this network is specified by your
Xcell. For an IP address "192.168.2.3", if you enter 255.255.255.0" as a mask value,
this means that your network address is "192.168.2.0".
p The maximal transfer unit system (MTU). On an Ethernet system the MTU value is
commonly established at 1500.
p Broadcast address. By default, this address is the one of the system with 255 in place
of the machine address. For a network address "192.168.2.0", broadcast address will
be "192.168.2.255".
By default, network mask is configured at "255.255.255.0" (class C) and the MTU at 1500
(Ethernet). Only in some particular cases, you have to change these values.
IV.4.2 - Route checking with PING command
In order to check if Xcell is can be reached inside the network, you can run the ping
command :
ROOT>> ping 192.168.1.20 machine IP address on the
network
PING 192.168.1.20 (192.168.1.20): 56 data bytes
64 bytes from 192.168.1.20: icmp_seq=0 ttl=255 time=0.6 ms
64 bytes from 192.168.1.20: icmp_seq=1 ttl=255 time=38.2 ms
64 bytes from 192.168.1.20: icmp_seq=2 ttl=255 time=2.7 ms
64 bytes from 192.168.1.20: icmp_seq=3 ttl=255 time=2.7 ms
64 bytes from 192.168.1.20: icmp_seq=4 ttl=255 time=2.8 ms
--- 192.168.1.20 ping statistics --5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 0.6/9.4/38.2 ms
ROOT>
IV.4.3 - Routing table
-19-
User manual XC-32 XC-320 XC-4200
Before sending an IP frame, Xcell consults its routing table in order to find an entry
indicating the route to use.
In the following example, terminals connect to server thanks to Xcell.
Note that the server is to be found on the sub-network 192.168.1.0 at the address
192.168.1.2 and that Xcell belongs to the sub-network 192.168.2.0 at the address
192.168.2.2. A bridge helps to the interconnection of the two sub-networks :
Figure 5 - Network example to make a routing table
To send IP frames to server, you must necessarily inform Xcell that these frames run
through the 192.168.2.1 router.
There are three manners for this :
The first consists in informing Xcell that all IP frames intended for the 192.168.1.2 server
have to be sent to the 192.168.2.1 router :
ROOT>> route add host eth0 192.168.1.2 192.168.2.1 255.255.255.255
Ok!
ROOT>> route static
Kernel routing table
Destination Gateway Genmask Typ Iface
192.168.1.2 192.168.2.1 255.255.255.255 host eth0
The second consists in informing Xcell that all IP frames intended for the 192.168.1.0
network have to be transmitted to the 192.168.2.1 router :
ROOT>> route add net eth0 192.168.1.0 192.168.2.1 255.255.255.0
Ok!
ROOT>> route static
Kernel routing table
Destination Gateway Genmask Typ Iface
192.168.2.0 0.0.0.0 255.255.255.0 net eth0
-20-
User manual XC-32 XC-320 XC-4200
192.168.1.0 192.168.2.1 255.255.255.255 net eth0
The third, (and most often used manner) consists in informing Xcell that, if the routing
table does not contain any entry corresponding to the IP frame to send, then this one will
be sent (by default) to the 192.168.2.1 router :
ROOT>> route add net eth0 0.0.0.0 192.168.2.1 0.0.0.0
Ok!
ROOT>> route static
Kernel routing table
Destination Gateway Genmask Typ Iface
192.168.2.0 0.0.0.0 255.255.255.0 net eth0
0.0.0.0 192.168.2.1 0.0.0.0 net eth0
IV.5 - Asynchronous interfaces
IV.5.1 - Software settings
Configuration of a serial port can be done with
serial
command :
You must enter individually each parameter :
ROOT>> serial speed 9600 4
ROOT>> serial csize 8 4
ROOT>> serial parity none 4
ROOT>> serial stopb 1 4
Port 4 can then be setup to 9600 bauds, without parity control, with a 8 bits data width and
one stop bit.
To set the port speed of ports 3, 6 and 7 to 19200 bps, type the following command :
ROOT>> serial speed 19200 3 6 7
To set all ports to 38400 bps, enter the following command :
ROOT>> serial speed 38400 all
To set all ports but ports 3 and 5 to 4800 bps, enter :
ROOT>> serial speed 4800 all 3 5
You can see, at every time, all current ports parameters with the following command :
ROOT>> serial show all
-21-
User manual XC-32 XC-320 XC-4200
IV.5.2 - Asynchronous port mode
Each asynchronous port can work in one of the following modes (regardless of the other
ports configurations) :
Terminal mode
Connection of an asynchronous terminal
(Telnet).
Printer mode
Connection of a printer (LPD).
Raw mode
Connection of a passive equipment
(RemoteCOM or rawTTY).
PPP mode
Connection of a remote host to a network or
remote networks interconnection.
(asynchronous PPP).
Rtelnet mode
Access through a TCP/IP network to an
equipment or to an operating system not
equiped with the TCP/IP protocol.
For example, to program the first five Xcell ports in each of these modes, commands
would respectively be :
ROOT >> serial mode term 1
Ok!
ROOT >> serial mode printer 2
Ok!
ROOT >> serial mode raw 3
Ok!
ROOT >> serial mode ppp 4
Ok!
ROOT >> serial mode rtelnet 5
Ok!
IV.5.3 - Type of control
A port can be configured in local control or in modem control. In modem control, Xcell will
ignore state of the DCD signal for this port. On the other hand, in modem control, Xcell will
propose to open a session only if the DCD is active. Moreover, if the DCD signal becomes
inactive, Xcell will close all the open sessions on this port.
To configurate port 3 in local control, enter:
ROOT>> serial linectrl local 3
To use a modem on port 2, you have to setup the port with this command :
ROOT>> serial linectrl modem 2
-22-
User manual XC-32 XC-320 XC-4200
IV.5.4 - Flow control
Flow control can have four different values :
Soft control
XON/XOFF. Sending of XON(11H) and XOFF(13H)
characters.
Hard control
RTS/CTS. Signal shift.
Soft and hard control
XON/XOFF and RTS/CTS. This kind of flow control is
used when one want to connect a serial printer on a
port.
No control
No flow control will be performed.
For example, to set up the first four ports of Xcell in each of these flow control modes, you
have to enter the following commands :
ROOT>> serial flowctrl soft 1
Ok!
ROOT>> serial flowctrl hard 2
Ok!
ROOT>> serial flowctrl softhard 3
Ok!
ROOT>> serial flowctrl none 4
Ok!
IV.5.5 - Automatic disconnection of a Modem
If there is no data traffic during a determined deplay on port where the modem is
connected, Xcell can decide to disconnect the modem (DTR signal deasserted).
For example, to disconnect the modem installed on port 3 if this one is not used during 2
mn, use the following command :
ROOT>> serial timeout 120 3
To disable this option, please set a delay of 0 second.
WARNING !!
This automatic disconnection is sometimes managed directly by the modem.
IV.5.6 - Association of a modem form to a port
To use a modem on a port, you have to associate a modem form to this part. A modem
form contains configuration parameters for the modem (see IV-8 Management of a
modem connection).
To associate a modem form named "gen33600" to port 1, enter :
-23-
User manual XC-32 XC-320 XC-4200
ROOT>> serial modem gen33600 1
IV.5.7 - AutoUser mode
AutoUser mode enables Xcell to launch automatically a session on the specified port for a
certain user. To configure Xcell's port 1 in AutoUser mode for a user named "Paul", enter :
ROOT>> serial autouser paul 1
CAUTION !!
You must definitely not define any password for the session lauching to be
automatical. (see IV.7 - Creation of a user.).
To come back to usual mode on port 1, enter :
ROOT>> serial autouser none 1
Consult reference manual for more details about commands that are dealt with in this
chapter.
IV.6 - Saving and restoring Xcell configuration
IV.6.1 - Saving in FLASH memory
All parameters are conserved by Xcell in RAM, up to the next Xcell boot. If you want to
conserve all your parameters, you must write them in FLASH memory. Make this
operation with the following command :
ROOT>> save
Status: done.
ROOT>>
IV.6.2 - Saving a configuration copy
You can save a Xcell configuration copy on a remote machine ; thanks to the TFTP (trivial
file transfer protocol) protocol. Xcell parameters will be sent via TFTP to a file previously
created on the remote machine.
Proceed as follows :
Create an empty file on your TFTP server, example with the following UNIX command :
echo -n > /tmp/xcell.conf
chmod 666 /tmp/xcell.conf
-24-
User manual XC-32 XC-320 XC-4200
Indicate to Xcell the IP address of the server where the file will be staved, as well as the
name of this file and start the transfer :
ROOT>> system config server 192.168.1.1
ROOT>> system config path "/tmp/xcell.conf"
ROOT>> system config store
To restore configuration file, execute the next command :
ROOT>> system config load
CAUTION !!
The loaded configuration is stocked in RAM. Save it in FLASH memory with
the
save
command :
ROOT>> save
Status: Done.
ROOT>>
IV.7 - Opening of a user account
The opening of a user account can be made through the user commands.
Thanks to these commands, you can create or modify a user form.
To create a new form, use the
user add
command. You have to specify fields values
according to your needs :
IV.7.1 - Name and password
When you create a user, use the
user add
command, and precise the name and
password of this user. Example :
ROOT>> user add paul pws25d
If you do not need a password for this user (to use Autouser mode for example), replace it
by quotations marks.
The
user delete
command delete a user form. Example :
ROOT>> user delete paul
The
user show
command displays the users list or one particular user's characteristics.
ROOT>> user show
-25-
User manual XC-32 XC-320 XC-4200
User Comment
--------------------------------------------------------------paul
IV.7.2 - Comments
The
user comment
command enables you to insert a comment about the user (his whole
name for instance). This comment appears on the right of the screen when you display the
users list.
ROOT>> user comment paul "Paul Duchemin"
IV.7.3 - In and Out communication
The
user in
and
user out
commands respectively allows the incoming and outcoming
connections in asynchronous PPP mode only. Example :
ROOT>> user in paul yes
Ok!
ROOT>> user out paul no
Ok!
IV.7.4 - Callback
In case of a modem connected on a port in terminal mode (or in PPP mode), Xcell can be
configurated so that it calls dial-in user back. Thus, phone number dialed by Xcell can be
predefined, (static callback), or provided by the user, (dynamic callback).
In case of a static callback, Xcell calls the first number that is specified in the callback list.
ROOT>> user callback paul static
In case of a dynamic callback, Xcell asks its number to the dial-in user. For safety
reasons, number provided by the client must belong to a determinate list containing not
more than three numbers. Neverless, if the "*" character is specified as the first number,
every number provided by the user will be accepted.
ROOT>> user callback paul dynamic
To enter numbers in the callback list, use the following command :
ROOT>> user callbacknb paul 1 0240252326
Ok!
ROOT>> user callbacknb paul 2 0251235689
Ok!
-26-
User manual XC-32 XC-320 XC-4200
Call-back between WINDOWS 95/98 and Xcell :
In case of a PPP connection from Windows 95/98, at the moment when user is identifying
himself to Xcell login, Xcell will cut current connection in order to call the user back.
Consequently, Windows 95/98 PPP connection phase will be interrupted. Indeed,
Windows 95 looks after modem DCD state and interrupts the connection if it falls.
One simple solution to this problem is to make the modem DCD always active:
p Configuration panel
p Modems
p Your modem's properties
p Connection tab
p Advanced...
p Supplementary parameters field
p Add : "at&c0s0=2"
You also have to activate terminal window after dialing :
p Your modem's properties
p Options tab
IV.7.5 - Audit
The user audit command enables to record connections achieved by ther. They can be
consulted using
audit show login
command. Example :
ROOT>> user audit paul yes
IV.7.6 - Optional remote IP Address
-27-
User manual XC-32 XC-320 XC-4200
The Optionnal remote IP address can be configured thanks to
user netaddr
command. In
PPP or ISDN mode, (integrated ISDN), Xcell assigns this IP address to the user when he
connects from a remote machine. If IP address is already attributed, connection is
refused.
ROOT>> user netaddr paul 192.168.1.50
Address' mask can be modified thanks to the
user netmask
command. Example :
ROOT>> user netmask paul 255.255.255.0
IV.7.7 - Telnet Address
In terminal mode (telnet), Xcell will automatically launch a telnet session on a remote
machine corresponding to the specified IP address.
ROOT>> user telnetaddr paul 1 192.168.1.20
If you want to launch telnet session on another port (other than port 23), you just have to
enter the following command :
ROOT>> user telnetport paul 1 25
IV.8 - Management of a modem connection
A Terminal can be connected directly on a Xcell port (serial local control) or through
modem pair. In this last case, the prompt will be displaged only if the DCD entry signal of
the port becomes active (
serial linectrl modem
). If this signal becomes inactive, all open
sessions on this port will be closed.
Xcell uses Modem form in which the administrator can specify a list of AT commands to
setup a modem.
To create a new modem form, use the
modem add
command. Example:
ROOT>> modem add mod33600
The modem name is used when you have to associate the modem form to a Xcell port.
To display modem forms list or the characteristics of a particular form, use the following
commands :
ROOT>> modem show
Modem Comment
-----------------------------------------------------------------
-28-
User manual XC-32 XC-320 XC-4200
dialin
ROOT>> modem show dialin
The
modem comment
command enables you to add comments about the modem (its
whole name for example) :
ROOT>> modem comment mod33600 "modem Xcell 33600 bauds"
The
init modem
command enables you to change modem initialization sequence. For
more informations about the AT commands, consult your modem's documentation.
Example :
ROOT>> modem init mod33600 at&k3%c3
The
modem dial
command enables to define connection sequence of the modem.
Example :
ROOT>> modem dial mod33600 atd
This form must be associated to the port where the modem is located :
ROOT>> serial modem mod33600 1
IV.9 - Audit
Audits generate some usefull information to control Xcell's activity or to analyse
configuration errors. These information are displayed in real time or redirected a file. Audit
commands enable you to set type and level of captured information, as well as the
displaying mode of information.
IV.9.1 - Audit on a remote machine
To create an audit on a remote machine, use the
audit add
command with following
parameters :
AUDIT ADD <syslog | trap> <remote IP> <level> <type>
p
Syslog / Trap
: if you use syslog option , information will be sent to syslogd daemon of
the specified remote machine. If your machine does not run syslogd daemon, you must
install one.
If you use an smtp administration soft, you can display Xcell's audit thanks to the trap
option.
p
Remote IP
: It is the IP address of the remote machine on which you will display Xcell's
-29-
User manual XC-32 XC-320 XC-4200
audit.
p
Level
: It is preciseness level of audit messages. These differents levels are
warning
Minimum (displaying of errors
messages).
notice
Like
warning
level but there is messages
about Xcell's activity.
info
Like
notice
level with more detailled
messages about running process.
debug
All existing messages with maximum
details.
Type
: It defines type of messages that you want to see in audit. These differents types
are
auth
Messages about authentication
printer
Messages about lpd daemon.
isdn
Messages about isdn connections.
system
Messages about system
parameters (DHCP, RADIUS,
save, ...).
ppp
Messages about PPP negociation.
async
Messages about asynchronous
ports.
net
Messages about network
firewall
Messages about Firewall
all
All preceeding types.
IV.9.2 - Audit on your console
To create audit on your console, use the
audit add console
command in this way :
AUDIT ADD console <level> <type>
Audit will display in your current session's window. You will still be able to enter
commands with this shell.
Level and type parameters do not change.
-30-
User manual XC-32 XC-320 XC-4200
IV.9.3 - Audit in a file
To send auditin a file, use the
audit add buffer
command in this way :
AUDIT ADD buffer <level> <type>
Level and type parameters do not change.
You will be able to show this file thanks to
audit view
and
audit last
commands. The
audit view
command enables you to show the entire audit file.
ROOT>> audit view
With the
audit last
command, you can display the last lines of the audit file :
ROOT>> audit last 10
In this example, you will show the ten last lines of the audit file.
IV.9.4 - List of created audits
The
audit show
command enables you to display the list of declared audits. Example :
ROOT>> audit show
buffer 0.0.0.0
debug : async
warning : auth printer isdn ppp firewall net system
console 0.0.0.0
warning : all
IV.9.5 - Delete audit
To delete an audit, use one of the following commands :
AUDIT DELETE <syslog | trap> <remote IP> <level> <type>
AUDIT DELETE <buffer | console> <level> <type>
IV.9.6 - Start/stop audit
When you create an audit with the
audit add
command, it is immediatly actived. But you
must restart a console audit after any reboot of your Xcell. This can be made thanks to the
audit start
command :
-31-
User manual XC-32 XC-320 XC-4200
ROOT>> audit start
Ok!
To stop a console audit, use the audit stop command :
ROOT>> audit stop
Ok!
-32-
User manual XC-32 XC-320 XC-4200
V.Terminal Mode (Telnet)
V.1 - Introduction
In this mode, Xcell affords a login connection as a UNIX system would. This implies a user
account and terminal definition notion. It is necessary, for each port defined in the terminal
mode :
p to specify the type of terminal used (ANSI, VT100, WYSE, etc...).
p to redefine, if necessary, keys sequences dealing with the management of terminals
(EOF, ERASE, KILL).
p to create users accounts.
It is possible to allocate a port to a user (AutoUser mode). In this case, Xcell will open a
session without asking for a user name.
User will be in a Xcell shell like the administrator one, but with a limited choice of
commands.
Moreover, up to 3 different sessions can be open on any server. Use the command :
XCELL> telnet myserver
Connection login can be immediately displayed on the terminal screen (
serial quick yes
)
or after pressing the touch of the Enter key (
serial quick no
).
Moreover, Xcell has specific functionalities making a remote terminal connection through
modems possible.
V.2 - Telnet
Telnet protocol can be represented as follows :
Telnet protocol has a "client" part linked to the terminal and a "server" part linked to the
network server. These 2 parts communicate through TCP/IP whose physical support can
be, for example, an Ethernet LAN.
Xcell manages Telnet client part, while server part is managed by the system server.
For example, if the user wants to connect to the server "myserver", he will execute the
following command :
-33-
User manual XC-32 XC-320 XC-4200
XCELL> telnet myserver
From now on,the Telnet client will ask Telnet server to open a session on the system
server.
Then, Telnet client and server are going to converse together, so that all characters
entered with the keyboard will be transmitted to the open session on the system server. As
a consequence, the server will return characters to display on the terminal screen .
A Telnet session is open on TCP port 23. If you want to open a session on another port
(1301 for example), type the following command :
XCELL> telnet myserver 1301
V.3 - Multi-sessions
Up to three Telnet sessions may be issued on one same terminal :
A terminal with an emulation that can bear a change of screen switching (ANSI, WYSE60,
etc...) makes a multi-screens between different Telnet sessions possible. It is necessary to
setup asynchronous port with :
ROOT>> serial termtype "ansi"
Note that the specified terminal type (ANSI in this example) is the remote application
terminal type negociated during session establishment.
With 'ALT F2', 'ALT F3' and 'ALT F4' control keys you can respectively commute terminal
on sessions 2, 3 and 4.
With 'ALT F1' combination you can go back to session 1 in order to execute a new session
-34-
User manual XC-32 XC-320 XC-4200
or to suppress an active session.
It is possible to display the open sessions list :
XCELL> serial session 5
Port Session1 Host1 Session2 Host2 Session3 Host3
-----------------------------------------------------------------5 closed 0.0.0.0 closed 0.0.0.0 closed 0.0.0.0
To close one or several sessions on a port, use the
close session
command. For
example, if user connected on port 7 wants to close his first session, he will have to enter :
XCELL> close session 1
If the same user wants to close all his sessions, he will enter :
XCELL> close session all
V.4 - Automatic Telnet
It is possible to automatically launch a Telnet to a certain server system as soon as the
user is
connected. To achieve this, you just have to add the system IP address to the user form,
thanks to the
user telnetaddr
command (see IV.7.7 - Telnet Address).
V.5 - User connection diagram
The user connection scheme can be summarize by the following diagram :
-35-
User manual XC-32 XC-320 XC-4200
-36-
User manual XC-32 XC-320 XC-4200
VI.Rawtty and RemoteCOM
VI.1 - Introduction
Rawtty and RemoteCOM enable a server to use an Xcell asynchronous port as one of its
own ports. To perform this operation, you just have to install a driver on server and to
setup a few parameters on your Xcell.
VI.2 - RemoteCOM
RemoteCOM is a driver for Windows systems which enables you to redirect COM ports on
Xcell. RemoteCOM is made to manage flow control signals (DTR, DSR and DCD).
VI.2.1 - RemoteCOM under Windows 95/98
VI.2.1.1 - Setting up the Xcell
Only flow control parameter must be set on the Xcell.
Configuration example with Telnet console :
First, display current ports configuration :
ROOT>> serial show all
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName Rtelnet
Time0
1 raw 9600 soft local 8 none 1 2001 0
2 raw 9600 soft local 8 none 1 2002 0
If you want to set hard flow control on ports 1 and 2, enter :
ROOT>> serial flowctrl hard 1 2
Then, reset ports with new parameters :
ROOT>> reset port 1 2
Display ports configuration again to see if new parameters are well set :
ROOT>> serial show all
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTime0
1 raw 9600 hard local 8 none 1 2001 0
-37-
User manual XC-32 XC-320 XC-4200
2 raw 9600 hard local 8 none 1 2002 0
Speed, parity, csize and stop bit are send by RemoteCOM to the Xcell.
RemoteCOM transmits DTR signal and recepts states of DCD and DSR signals.
VI.2.1.2 - Installation of RemoteCOM driver
1 - To install RemoteCom driver, open Windows's control panel.
p Click on "Add new hardware"
p Ask "No" to Windows's automatic detection.
p Click on "Others".
p Then click on "Have disk" and find the way to the path in which you have make a copy
of RemoteCOM driver (remcom.inf).
p Restart Windows after the installation of the first RemoteCOM port.
2 - Choosing COM port number.
When your system is restarted :
p In the control panel, click on "system" and device control tab.
p Click on "RemoteCOM(tm)" in the menu "Ports(COM&LPT)" and choose the COM
port's number associated to the RemoteCOM port.
p Click on "Refresh", the "RemoteCOM(tm)" label will changes in "COMx".
-38-
User manual XC-32 XC-320 XC-4200
3 - RemoteCOM configuration.
p In the device control tab, click on "RemoteCOM(COMx)" in the menu
"Ports(COM&LPT)".
p Click on "properties", then change Xcell's IP address and Xcell's port number.
p Example : Xcell 192.168.4.23, port 7.
4 - Using RemoteCom.
You can audit RemoteCOM activity using the RemoteCOM application (icon in the task
bar).
p Click on RemoteCOM icon.
p Click on "Status".
p Displaying of connections and associated COM ports.
p Displaying of connections/disconnections and errors (log file).
p Displaying of transmitted/received datas in real time.
p Displaying of active datas.
-39-
User manual XC-32 XC-320 XC-4200
5 - Installating another RemoteCOM port
p Control panel.
p Add new hardware.
p Ask "No" to Windows's automatic detection.
p Click on "Ports(COM & LPT)".
p Choose DECISION EUROPE ->;RemoteCOM(tm).
p Restart your system.
p Return to step 2 Choosing COM port number.
6 - Troubleshooting.
p Check if Xcell is visible on the network. (using ping or telnet).
p Check configuration and state of Xcell's port.
p Read the log file.
VI.2.2 - RemoteCOM under Windows NT system
VI.2.2.1 - Setting up the Xcells
Only flow control parameter must be set on the Xcell.
Configuration example with Telnet console :
First, display current ports configuration :
ROOT>> serial show all
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTime0
-40-
User manual XC-32 XC-320 XC-4200
1 raw 9600 soft local 8 none 1 2001 0
2 raw 9600 soft local 8 none 1 2002 0
If you want to set hard flow control on ports 1 and 2, enter :
ROOT>> serial flowctrl hard 1 2
Then, reset ports with new parameters :
ROOT>> reset port 1 2
Display ports configuration again to see if new parameters are well set :
ROOT>> serial show all
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName Rtelnet
Time0
1 raw 9600 hard local 8 none 1 2001 0
2 raw 9600 hard local 8 none 1 2002 0
Speed, parity, csize and stop bit are send by RemoteCOM to the Xcell.
RemoteCOM transmits DTR signal and recepts states of DCD and DSR signals.
VI.2.2.2 - Installation of RemoteCOM driver
RemoteCOM for WINNT is composed of :
p A service module: RemoteCOM(service).
p A driver : RemoteCOM(driver).
p A program for setup, audit and control of RemoteCOM service.
WARNING
: Do not mistake RemoteCOM service and RemoteCOM driver (that is also a
service). This one is automatically started and stopped by RemoteCOM service.
To install RemoteCOM, click on the "Setup" file of the installation disk/path.
p Restart your system.
p In the "Start" menu, click on :
p Programs ->; RemoteCOM ->; RemoteCOM Administration.
p Click on "Edit" in the main menu.
p Create : select "Create".
p Enter XC's IP address (ex : 192.168.4.23) , XC's port number (ex : 7), WINDOWS
device (ex : COM3) and connection's parameters.
p Change : select "View&Modify".
p Delete : select "Delete".
-41-
User manual XC-32 XC-320 XC-4200
Opening timeout
: Default parameter is 10 secondes (rarely modified).
WARNING : You must add some timeouts created by the network. Results of the
connection trie can come after the open timeout delay.
Keepalive
: Enables you to detect any error on the network link.
0 means that KEEPALIVE is stopped. A too small value uselessly overloads the network
(15 seconds is a "good" value).
Keep the connection
: The network connection will be established at start of
RemoteCOM service. The port will not be used by another station.
Restart connection if error
: Automatically restart connection (with a delay of 10
seconds) after a disconnection performed by remote Xcell. RemoteCOM will try to restart
connection every 10 seconds.
Packet mode :
Synchronise application that is use RemoteCOM with data flow. The
"data transmitted"(EV_TXEMPTY in WaitCommEvent()) label is right only when
transmitted data have really been send by the remote port.
The "COMSTAT.cbOutQue" field in ClearCommError() is updated in the same way.
Note : With FAX CLASS 1 modem, this mode (used with a buffer size of 128 bytes) make
possible reception and transmission of FAX.
Signals/data synchronised mode :
Activate this mode to transmit all signals (TX, RX,
RTS,CTS,DTR,DSR,DCD) synchronised with data. You must not activate flow control to
use this mode.
Buffers size :
1 to 4096 octets
Default size is 2048 (value 0 or 2048).
In some cases, application seems to have send all data but these data are in buffers. If
the application stops the connection before all data have been transmitted, you can
reduce buffers size to fix this problem.
Overhelming of inter-character timeout :
0 to 500 milliseconds.
The Network cut data into several packets. Then, characters of a same "logical" frame (ex:
reply message of a modem ) can be divide and received with an higher delay than delay
-42-
User manual XC-32 XC-320 XC-4200
of a standard COM port. If you use inter characters timeout option of windows's COM
ports, you may have to use this option too.
WARNING
: Any modification will be effective after a restart of RemoteCOM service. If
RemoteCOM service is already running, you must stop and restart it.
In the main menu, click on "Service", then click on "Start" (or "Stop" and "Start").
Note : When you have just finished RemoteCOM installation, RemoteCOM service is
disable.
The first time you will restart your system, RemoteCOM will warn you and then you will be
able to choose the activation mode of RemoteCOM service.
You can change service activation mode service at any time with WINNT services control
panel.
VI.2.2.3 - Displaying RemoteCOM service status
Click on Service -> parameters
p Select COM port you want display.
p Check log box if you want keep information in a file.
p Be sure that RemoteCOM is not used by any application.
p Click on Service ->Stop
p Click on Service ->Start to reset RemoteCOM with new parameters.
Click on Status -> View in the main menu
-43-
User manual XC-32 XC-320 XC-4200
VI.3 - Rawtty
VI.3.1 - Server configuration
Installation example for a rawTTY device driver on UNIX SCO Open Server :
#./install.sh
Xcell rawTTY installation
Xcell IP address ? ? : 192.168.1.42
>;>;192.168.1.42 Ok [RET,ÆOÆ] Non [æNÆ] DEL-exit ? O
PORTS in RAW mode (ex: 1 2 7 (enter) ) ? : 5 6
>;>; ( 5 6 ) Ok [RET,ÆOÆ] Non [æNÆ] DEL-exit ? O
kernel relinking is running (...)
Ok
INFO:
- REBOOT your system to update
- default logins are off
-44-
User manual XC-32 XC-320 XC-4200
ttys names are : /dev/tag
use the SCO command : enable to active the logins
ex: enable tag01 tag02 tag07
VI.3.2 - Setting up the XC
On Xcell, you must setup the corresponding port(s) in "raw" mode:
ROOT>> serial mode raw 5 6
ROOT>> serial speed 9600 5 6
ROOT>> serial parity none 5 6
ROOT>> serial csize 8 5 6
ROOT>> serial stopb 1 5 6
ROOT>> reset port 5 6
VI.3.3 - rawtty, rawclose
On a UNIX server, with
rawtty
and
rawclose
commands , you can adjust some
parameters of the "Rawtty" function.
WARNING !! These two commands must not be used when the Driver has been installed !
The syntax of the
rawtty
command is :
rawtty [-keepalive <;delay>;] [-v1] [-d] [-u username] [-c] device xcell_IP port_num
Keepalive
helps to regularly check Xcell's physical presence on the network.
A request is carried out every <delay>; second(s), to check if the connection is still valid. If
there is no answer within this time range, connection is cut down.
p "-v1" option enables to use command with Xcell versions previous to the 3.2 version.
p "-d" option enables to enter in debug mode.
p "-u" option enables to create a device under another user account.
p "-c" option enables to cancel created device, (ex: /dev/raw1), at the end of the rawtty
process.
Two commands enable to increase or to decrease delay of the connected keepalive :
The first command increase keepalive delay with one second.
kill -USR1 pid_rawtty
The second decrease keepalive delay with one second.
kill -USR2 pid_rawtty
Example for a UNIX server:
-45-
User manual XC-32 XC-320 XC-4200
rawtty /dev/raw4 192.168.1.12 5 &
The
rawclose
command enables to force to close port declared in "rawtty". Syntax:
rawclose server_IP_address port_number
Example :
rawclose 192.168.1.12 5
-46-
User manual XC-32 XC-320 XC-4200
VII.Mux mode
VII.1 - Introduction
Mux mode enables you to establish an asynchronous link from end to end through an IP
network.
To make this possible, data (composed by characters and changes of signal's states) are
separated into packets. These packets are then transmitted, thanks to TCP or UDP
transfert's protocols, from one serial port to the other.
VII.2 - TCP Mux
The TCP protocol warrants retransmission of lost or mistaken data and manages packets.
This mode must be used in most of the cases.
To configure this connection, you must set the 'client' port in mux mode and the 'server'
port in raw mode.
VII.3 -
UDP Mu
x
To transmit the data flow that forwards the asynchronous link from one end of the network
to the other, we must change this data flow in a characters flow mixed with codes which
match with signal's states. Packaging of data and forwarding of an IP network can
generate delays between characters and changes of signal states if they are in different
packets. It means that out data flow and in data flow can have mismatching
chronogrammes. It can disrupt the good running of some serial transmission's protocols
like ones used in industrial environment.
Thanks to a measured delay between in data flow and out data flow, UDP mux mode
enables most of transmission's protocols to use a connection through an IP network. To
configure this connection, you must set both ports in mux_dg mode.
VII.4 - Example n°1: Remote management of a PLC by a technician
VII.4.1 - Description
A technician wants to manage a PLC located on a remote TCP/IP network thanks to a
terminal (or a terminal emulator).
-47-
User manual XC-32 XC-320 XC-4200
VII.4.2 - Configuration of client's side XC
ROOT>> serial mode mux 1
Ok!
ROOT>> mux ip 192.168.2.1 1
Ok!
ROOT>> mux port 1 1
Ok!
ROOT>> mux dsrredirect none 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port)DCD->DSR->CTS->debug
-----------------------------------------------------------------1 mux No Yes 0 192.168.2.1 1 none none none No
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 mux 9600 soft local 8 none 1 2001 0
-48-
User manual XC-32 XC-320 XC-4200
VII.4.3 - Configuration of server's side XC
ROOT>> serial mode raw 1
Ok!
ROOT>> mux dsrredirect none 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port)DCD->DSR->CTS->debug
-----------------------------------------------------------------1 raw No Yes 0 0.0.0.0 0 none none none No
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 raw 9600 soft local 8 none 1 2001 0
VII.5 - Example n°2: Remote management of a PLC by more than one
technician (solution 1)
VII.5.1 - Description
Two technicians each have a terminal and they want to manage, one after the other, a
PLC located on a remote TCP/IP network.
-49-
User manual XC-32 XC-320 XC-4200
VII.5.2 - Solution
You cannot establish two mux TCP connections to the same destination port at the same
time.
To solve this problem, we will establish each mux TCP connection only when technician's
terminal will be powered.
The technician must power off his terminal to permit the other technician to manage the
PLC.
When a terminal is powered, there is at least one signal activated (RTS for a terminal or
DTR for a terminal emulator). You just have to link this signal to serial port's DCD entry of
Xcell and to configure management of DCD signal by Xcell (serial linectrl modem). TCP
connection will be established only if terminal is powered. This connection will be stopped
if DCD signal is not on (terminal is off).
-50-
User manual XC-32 XC-320 XC-4200
VII.5.3 - Configuration of client's side Xcell
Make a cable with terminal's RTS (or DTR) signal linked on serial port's DCD signal.
ROOT>> serial mode mux 1
Ok!
ROOT>> serial linectrl modem 1
Ok!
ROOT>> mux ip 192.168.2.1 1
Ok!
ROOT>> mux port 1 1
Ok!
ROOT>> mux dsrredirect none 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port)DCD->DSR->CTS-> debug
-----------------------------------------------------------------1 mux No Yes 0 192.168.2.1 1 none none none No
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 mux 9600 soft modem 8 none 1 2001 0
VII.5.4 - Configuration of server's side Xcell
ROOT>> serial mode raw 1
Ok!
ROOT>> mux dsrredirect none 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port)DCD->DSR->CTS->debug
-----------------------------------------------------------------1 raw No Yes 0 0.0.0.0 0 none none none No
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 raw 9600 soft local 8 none 1 2001 0
-51-
User manual XC-32 XC-320 XC-4200
VII.6 - Example n°3: Remote management of a PLC by more than one
technician (solution 2)
VII.6.1 - Description
VII.6.2 - Solution
The solution above needs that the technician powers off his terminal to allow another
technician to manage the PLC. If the first technician forgets to power off his terminal, the
PLC is not reachable for the second technician. Another solution is to automatically break
the unused connection after a specified timeout.
Connection will be automatically relaunched when the technician will type any character
on his keyboard.
On client's side Xcell :
p Link terminal's DTR signal and DCD signal of serial port n°1(make a cable).
p Activate DTR signal on port n°1 (
mux defaultdtr yes 1
).
p Configure management of DCD signal by Xcell (
serial linectrl modem
1).
p Configure Xcell to wait a character before launching the connection (
serial quick no
1).
p Specify the timeout delay of the unused connection (
serial timeout
180 1).
On server's side Xcell :
-52-
User manual XC-32 XC-320 XC-4200
p Be sure that DTR signal state on client Xcell will not be changed by DSR signal state of
server Xcell (
mux dsrredirect none
1).
Two conditions must be satisfied to establish the connection :
p
DCD signal on
: DTR is on and is linked to DCD of the serial port, the condition will
ever be satisfied. But we must be sure that no change of client XC's DTR signal's state
occurs. It is the reason why we stop redirection of DSR signal (mux dsrredirect none 1).
p
Receive a character
: thanks to the serial quick no command, Xcell will wait for a
character on its serial port before establishing the connection.
VII.6.3 - Configuration of client's side Xcell
ROOT>> serial mode mux 1
Ok!
ROOT>> serial linectrl modem 1
Ok!
ROOT>> serial timeout 180 1
Ok!
ROOT>> serial quick no 1
Ok!
ROOT>> mux defaultdtr yes 1
Ok!
ROOT>> mux ip 192.168.2.1 1
Ok!
ROOT>> mux port 1 1
Ok!
ROOT>> mux dsrredirect none 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port) DCD-> DSR-> CTS->
debug
------------------------------------------------------------------
--1 mux No Yes 0 192.168.2.1 1 none none none No
-53-
User manual XC-32 XC-320 XC-4200
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 mux 9600 soft modem 8 none 1 2001 180
VII.6.4 - Configuration of server side's XC
ROOT>> serial mode raw 1
Ok!
ROOT>> mux dsrredirect none 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port) DCD->DSR->CTS->debug
-----------------------------------------------------------------1 raw No Yes 0 0.0.0.0 0 none none none No
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 raw 9600 soft local 8 none 1 2001 0
VII.7 - Example n°4: Remote management of a PLC by more than one
technician (solution 3)
-54-
User manual XC-32 XC-320 XC-4200
VII.7.1 - Description
VII.7.2 - Solution
The solution above assign the PLC to a technician for a minimum of 3 minutes, even if his
terminal is off.
This solution have all advantages of the two preceeding solutions. Access to the PLC will
be assigned to the first technician who will try to establish the connection. If the technician
power off his terminal, the PLC will be immediatly accessible to the second technician.
One the other hand, if the technician forgets to power off his terminal, the PLC will be
accessible to the second technician after 3 minutes.
On client's side Xcell :
p Link DTR (or RTS) signal of the terminal to DSR signal of serial port n°1 (make a
cable).
p Enable redirection of DSR signal to DTR signal of server Xcell (
mux dsrredirect dtr
1).
p Link DTR signal and DCD signal of serial port n°1 (make a cable).
p Activate DTR signal of serial port n°1 (
mux defaultdtr yes
1).
p Configure management of DCD signal by Xcell (
serial linectrl modem
1).
p Configure Xcell to wait a character before launching the connection (
serial quick no
1).
p Specify the timeout delay of the unused connection (
serial timeout
180 1).
On server's side Xcell :
p Link DTR signal and DSR signal of serial port n°1 (make a cable).
-55-
User manual XC-32 XC-320 XC-4200
p Activate DTR signal of serial port n°1 (mux defaultdtr yes 1).
p Enable redirection of DSR signal to DTR signal of client Xcell (mux dsrredirect dtr 1).
DSR signals of client and server's Xcell must absolutly be activated at startup. If DSR
signal on client's side Xcell is not activated at startup, Xcell can't establish the initial
connection.
Moreover, an undetermined DSR signal on server's side Xcell can force client Xcell to
break initial connection before this connection can be established.
State of DTR (or RTS) signal on the terminal will be applied to DCD on client Xcell. This
Xcell will be able to establish or break the connection matching with terminal state (on or
off).
Others parameters (
serial quick yes
and
serial timeout 180
) allow to start the
connection only if Xcell is receive a character.
VII.7.3 - Configuration of client's side Xcell
ROOT>> serial mode mux 1
Ok!
ROOT>> serial linectrl modem 1
Ok!
ROOT>> serial timeout 180 1
Ok!
ROOT>> mux defaultdtr yes 1
Ok!
ROOT>> mux ip 192.168.2.1 1
Ok!
ROOT>> mux port 1 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port)DCD->DSR->CTS-> debug
-----------------------------------------------------------------1 mux No Yes 0 192.168.2.1 1 none dtr none No
ROOT>> serial show 1
-56-
User manual XC-32 XC-320 XC-4200
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 mux 9600 soft modem 8 none 1 2001 180
VII.7.4 - Configuration of server's side XC
ROOT>> serial mode raw 1
Ok!
ROOT>> mux ctsredirect none 1
Ok!
ROOT>> mux defaultdtr yes 1
Ok!
ROOT>> mux show 1
Port Mode Sync Flush KAlive Remote( IP, port)DCD->DSR->CTS->debug
-----------------------------------------------------------------1 raw No Yes 0 0.0.0.0 0 none dtr none No
ROOT>> serial show 1
Port Mode Speed FlowCtrl LineC Cs Par. Stop ModemName RtelnetTimeO
-----------------------------------------------------------------1 raw 9600 soft local 8 none 1 2001 0
-57-
User manual XC-32 XC-320 XC-4200
VIII.Printer Mode (LPD)
Xcell integrates a LPD spooler to manage several serial printers.
Installing a printer located on a Xcell, for most UNIX servers, consists simply in adding an
entry in the /etc/printcap file.
Example of entry added to the /etc/printcap file :
lpXC:lp=:rm=XC:rp=printer4:
This line means that all prints to the
lpXcell
printer, issued by an application running on
the server, will be redirected to the printer connected on Xcell port 4.
The remote printer name is 'printern' where 'n' is Xcell port number on which the printer is
connected to.
If a printer is found on the port 4, the configuration will be the following :
ROOT>> serial mode printer 4
Ok!
In order to control "paperoff" or "offline" signal, you must use Xon/Xoff-RTS/CTS double
flow control with the following wiring :
Xcell (DTE) toward the asynchronous printer (DTE).
Use the XON/XOFF flow control.
Detection of the printer unavailability (OFF LINE) is possible thanks to the printer DTR.
Signals that are not by a "*" are necessary and sufficient, the ones that are by a "*" are
optionnals and correspond to a more standard wiring.
-58-
User manual XC-32 XC-320 XC-4200
IX.Rtelnet Mode
IX.1 - Definition
With the Rtelnet protocol you can interconnect an equipment without network interface
with a TCP/IP network. This equipment can be, for example, an operating system without
TCP/IP stack (MOS, PICK, etc...) or a peripheral that can be setup by a serial terminal.
The serial equipment interface is connected to a Xcell port in Rtelnet mode. The user
connects to this equipment when he executes a Telnet session from a TCP/IP machine.
Figure 6 : The TCP/IP workstation connects to the no-TCP/IP server through a Telnet session on Xcell
Under UNIX, the command to execute will be :
# telnet 192.168.1.1 2001
If you have an external modem online on one of Xcell port, you could temporarily use the
Rtelnet mode to setup it from a remote site .
IX.2 - Configuration
The network port number that is attributed to the Telnet connection is like "20nn"-shaped.
"nn" is Xcell port number declared in the Rtelnet mode. This declaration is made with the
command :
-59-
User manual XC-32 XC-320 XC-4200
ROOT>> serial mode rtelnet 1
ROOT>> reset port 1
It is possible to change TCP port number assigned to one Xcell port. To achieve this,
enter :
ROOT>> serial rtelnet 2004 1
In our example, port number 2004 is associated to Xcell port 1.
To know what TCP port numbers are assigned to Xcell ports, enter :
ROOT>> serial show all
IX.3 - Rtelnet Pool
If you assign the same TCP port number to a group of asynchronous ports, you can create
a rtelnet pool. The Telnet client will connect to the first available asynchronous port.
Example :
ROOT>> serial rtelnet 2001 1 2 3 4 5 6 7 8
-60-
User manual XC-32 XC-320 XC-4200
X.Asynchronous PPP Mode
X.1 - Introduction
The PPP (Point to Point Protocol) protocol provides a transmission method for IP
datagram on serial connections. This enables an interconnection of two remote networks
or more simply connection of a remote host to a network.
The serial connection can commute through public network systems (PSTN, ISDN, ...),
that is why this protocol provides a double level of security with PAP (Password
Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol).
Xcell can accept a PPP connection (Dial-IN). This property gives Xcell
a remote access
server function
.
X.2 - PAP and CHAP authentication
PAP is similar to the Unix password system. The client introduces itself by providing Xcell
with a user name and a password. These are compared to the ones defined in Xcell user
forms.
With CHAP, Xcell sends a "challenge" to the client for an authentication, this is a
generated random chain of characters sent with its host name. The client has to use the
name to find the corresponding code, to combine it with the chain, and to encrypt the
chain. The result is sent back to Xcell with the client machine name. Xcell computes these
informations, and in matching case, authorizes the access to the client. Moreover, CHAP
sends challenges regularly during the communication to insure that the machine has not
been replaced by another.
X.3 - PPP connection setup
Xcell uses the concept of PPP form which includes the totality of the necessary
parameters for the definition of a PPP connection. If the administrator wants to define, for
example, PPP output connections (Dial-OUT) and PPP input connections (Dial-IN), he will
create a different form for each of these two configurations.
The creation of PPP forms is detailed in paragraph X.6 - PPP form.
X.4 - Dial-IN connection
The Dial-IN connection steps are :
p A PPP connection request is sent by a remote host.
p The first online free modem answers.
p The modem informs Xcell that a connection is active (DCD signal asserted).
-61-
User manual XC-32 XC-320 XC-4200
p The PPP connection is then established using parameters found in the PPP form
associated to the port.
X.5 - PPP form
You can create , edit or delete a PPP form thanks to the
ppp
commands.
X.5.1 - Creation, cancelling and displaying of a form
The
ppp add
command enables you to create a PPP form. Example :
ROOT>> ppp add internet
To display PPP forms list or all parameters of a form, use the
ppp show
command.
Example :
ROOT>> ppp show
Ppp Comment
-----------------------------------------------------------------internet
ROOT>> ppp show internet
To delete a form, use the following command:
ROOT>> ppp delete internet
X.5.2 - Comments
Thanks to the
ppp comment
command, you can add a commentary line to the form.
Example :
ROOT>> ppp comment internet "Internet connection form"
This line appears when the PPP forms list is displayed (
ppp show
).
X.5.3 - Security
The
ppp security
command manages protection of incoming calls.Three different modes
exist:
None
: no security.
-62-
User manual XC-32 XC-320 XC-4200
ROOT>> ppp security internet none
PAP
: Xcell requests a PAP authentication from the remote host (see X.2 - PAP and
CHAP authentication).
ROOT>> ppp security internet pap
CHAP :
Xcell requests a CHAP authentication from the remote host (see X.2 - PAP and
CHAP authentication).
ROOT>> ppp security internet chap
X.5.4 - Authname and password
The ppp authname command enables you to define the user account name that will be
used by Xcell to authenticate itself to the remote host. Example :
ROOT>> ppp authname internet paul
Enter the user account password thanks to the
ppp password
command. Example :
ROOT>> ppp password internet pws25d
X.5.5 - Local IP
Local address of the PPP interface.
If you enter the address 255.255.255.255, Xcell will accept the address provided by the
remote machine.
ROOT>> ppp local internet 255.255.255.255
If you enter the address 0.0.0.0, Xcell will negotiate its own address, (network interface IP
address), with the remote machine.
ROOT>> ppp local internet 0.0.0.0
X.5.6 - Remote IP
-63-
User manual XC-32 XC-320 XC-4200
Remote IP address of the PPP interface.
If you enter the address 255.255.255.255, Xcell will accept address provided by the
remote machine.
ROOT>> ppp remote internet 255.255.255.255
If Xcell has already attributed the specified address to another PPP interface, it will
negotiate the next available address.
X.5.7 - Proxy ARP
This command define if Xcell's ARP table has to include the remote machine IP address
(see X.10 - Proxy ARP).
ROOT>> ppp proxy internet yes
X.5.8 - Mask
It is the network mask of the created ppp interface.
ROOT>> ppp mask internet 255.255.255.255
X.5.9 - Routing
induce modifications Xcell has to carry out on its routing table after a PPP link has been
established :
Yes :
After a PPP link has been established, Xcell will add the next entry to its routing
table : destination=Remote IP and mask, bridge=local IP, interface= PPPx.
ROOT>> ppp route internet yes
Default :
After a PPP link has been established, Xcell will add the next entry to its routing
table : destination=Remote IP and mask, bridge=local IP, interface= PPPx.
ROOT>> ppp route internet default
No
: Xcell's routing table is not modified.
ROOT>> ppp route internet no
-64-
User manual XC-32 XC-320 XC-4200
X.5.10 - Asyncmap
Enables to transcode, if necessary, one control character or more among the 32 of the
ASCII table.If one bit among the 32 of the word Asyncmap is fixed at 1, the rank character
that corresponds in the ASCII table will be transcoded.By default, the XON (17), XOFF
(19) and GS characters are transcoded. Here is the result : in binary
00100000000010100000000000000000. in hexa. 200A0000. Example :
ROOT>> ppp asyncmap internet 200A0000
X.5.11 - MRU
Maximum size of IP packets in reception.
ROOT>> ppp mru internet 1500
X.5.12 - MTU
Maximum size of IP packets in transmission.
ROOT>> ppp mtu internet 1500
X.6 - PPP connection establishment
The establishment of an incoming PPP connection proceeds in three steps :
p User connection phase.
p Authentication phase.
p IP address negotiation.
X.6.1 - Dial-IN user connection phase
This phase is the same as the one described in paragraph V.5 - User connection diagram.
However, if PAP option is turned on, the user authentication phase (wait login/password)
can be interrupted if the calling unit starts directly the PPP negotiation. In this case, the
calling unit is identified by the name and the PAP password.
-65-
User manual XC-32 XC-320 XC-4200
X.6.2 - Authentication phase
Dial-IN
: Xcell consults its user database to authenticate the calling unit.
Dial-OUT
: Xcell provides the caller with the name and the password contained in the PPP
form.
X.6.3 - IP address negotiation phase
In this negotiation phase, each machine located at the end of the serial connection sends
a request to the other to establish the two IP addresses that will be used during the
connection.
To achieve negotiation, the 2 IP address have to be defined by one machine or the other.
If the first or the second IP address is not defined, negotiation will fail.
If one of both IP addresses is defined by each of the machines, negotiation result will be
undetermined.
Local address :
The local address negotiated by Xcell is the one defined in the
Local IP
field of the PPP
form.
If
Local IP
contains 255.255.255.255, Xcell will accept the address provided by the
remote host.
If Local IP
contains 0.0.0.0, Xcell will negotiate the IP address of its network interface.
Remote address :
To determine the remote address for negotiation, Xcell proceeds in the following order :
-66-
User manual XC-32 XC-320 XC-4200
p In case of a
Dial-IN
access, it uses in priority IP address specified in the user form (see
IV.7.6 - Optionnal remote IP address).
p If the form does not contain an optional remote IP adress, it takes the IP address
specified in the Remote IP field from the PPP form.
p If this address is already allocated to another interface, it takes the next free address.
example : Remote IP contains 192.168.5.1
User A connected IP address 192.168.5.1
User B connected IP address 192.168.5.2
User A disconnected IP address 192.168.5.1 free
User C connected IP address 192.168.5.1
If
Remote IP
contains 255.255.255.255, Xcell will accept the address provided by the
remote host.
If
Remote IP
contains 0.0.0.0, Xcell will negotiate the next free IP address to its network
interface.
If
Remote IP
field contains a network address, Xcell will accept the address provided by
the remote
host (See X.5 - Dial-OUT connection).
WARNING !!
The network administrator will have to insure that IP addresses, susceptible
to be provided by Xcell, are not used by other machines.
X.7 - Compression
Xcell bears BSD compression over a PPP link.
In case of PPP connection through modems between two Xcells, please avoid to active
V.42bis compression from modems and the BSD compression for Xcell together..
X.8 - Proxy-ARP
In an Ethernet-located TCP/IP network, each machine is both characterized by its IP
address and by is MAC address (Medium Access Control). For an IP frame to be lead
from one machine to another, you previously have to encapsulate it in an ETHERNET
frame. This implies that an A machine dispatching an IP frame to a B machine must
necessarily know B’s MAC address. To achieve this, each machine manages an IP and
MAC address matching table. This ARP table is dynamically built. Its entries are
determined according to the needs and are destroyed after a certain time. If the A
machine can’t find in its ARP table an entry giving the B machine’s MAC address, it will
make an ARP request to all the network physically present machines. Theoretically, only
the machine corresponding to this IP address can react and issue its MAC address to the
B machine.
-67-
User manual XC-32 XC-320 XC-4200
This rule from the ARP protocol, does not apply if for instance, the B machine wants to
play the part of a proxy-ARP to the C machine. Examine step by step this mechanism on
the following example :
p The A machine wants to emit an IP frame to the C machine.
p A’s ARP table has no entry indicating the C‘s MAC address.
p A sends a request to all the Ethernet network physically present machines.
p Xcell deceives A, by sending its own MAC addresses to it.
p A encapsulates C-assigned IP frame in a Xcell-assigned Ethernet frame.
p Xcell receives the Ethernet frame and extracts the IP frame.
p As the IP frame is not assigned for it, Xcell consults its routing table in order to
determine the real addressee.
p Xcell observes that address is accessible via its PPP interface.
p Xcell encapsulates the C-assigned IP frame in a C-assigned PPP frame.
p C receives the PPP frame and extracts the IP frame first emitted by A.
If one or several C machines are temporarily network connected, proxy-ARP simplifies the
IP frames routing. Indeed, all machines of the local network see these remote connection
as a local connection.
X.9 - Example n°1 : Remote access server
-68-
User manual XC-32 XC-320 XC-4200
X.9.1 - Configuration
To setup Xcell, please execute the following process :
p Setup the network interface :
ROOT>> ifconfig ip eth0 192.168.1.45
Ok!
ROOT>> route add net eth0 192.168.1.0 0.0.0.0 255.255.255.0
Ok!
p Specify your DNS address. It will be transmitted to the client when the PPP link will be
established :
ROOT>> domain server1 <DNS_IP_Address>
p Setup asynchronous interfaces :
ROOT>> serial speed 115200 1
Ok!
ROOT>> serial mode ppp 1
Ok!
ROOT>> serial control modem 1
Ok!
p Create users account :
ROOT>> user add paul xxxx
-69-
User manual XC-32 XC-320 XC-4200
OK!
ROOT>> user comment paul "Paul Smith"
OK!
ROOT>> user in paul yes
OK!
ROOT>> user out paul no
OK!
ROOT>> user audit paul yes
OK!
To give a user a particular address, you just have to use the
user netaddr
command :
ROOT>> user netaddr paul 192.168.1.50
Ok!
To allow Xcell to call a particular user back (callback), just choose the static option and
define the user number in the Callback list field :
ROOT>> user callback paul static
Ok!
ROOT>> user callbacnb paul 1 0251809000
Ok!
Define a modem form if none of those predefined corresponds to your modem :
ROOT>> modem add sporster
Ok!
ROOT>> modem comment sporster "Us Robotics Sporster 56k"
Ok!
ROOT>> modem init sporster at&k3%c3
Ok!
ROOT>> modem dial sporster atd
Ok!
p Associate the Modem form to the port where the modem is connected :
ROOT>> serial modem sporster 1
p Define the PPP connection parameters (PPP form) :
ROOT>> ppp add ppptest1
Ok!
ROOT>> ppp comment ppptest1 "Test Nb 1"
Ok!
ROOT>> ppp security ppptest1 pap
Ok!
ROOT>> ppp local ppptest1 0.0.0.0
Ok!
ROOT>> ppp remote ppptest1 192.168.1.46
-70-
User manual XC-32 XC-320 XC-4200
Ok!
ROOT>> ppp mask ppptest1 255.255.255.255
Ok!
ROOT>> ppp proxy ppptest1 yes
Ok!
ROOT>> ppp route ppptest1 no
Ok!
p Save and activate the configuration :
ROOT>> save
Status : done
Ok!
ROOT>> reset port 1
Ok!
X.9.2 - Configuration of Windows 95 Dial-Up PPP Client
In the Dial-Up Networking window, right-click on a connection icon, and then click on
Properties. Create a "remote access network" new connection. The "Type of Dial-Up
Server" menu in the property window of this connection, should look like this :
Click on "TCP/IP Settings". The DNS IP address will be provided by Xcell :
-71-
User manual XC-32 XC-320 XC-4200
Start remote connection :
X.9.3 - Resources sharing on WINDOWS 95/NT
If your LAN is composed by WINDOWS machines, the resources sharing uses the
NETBIOS protocol. Xcell does not route NETBIOS frames, they must be encapsulated in
IP frames. To do this, you must use a
WINS
server or edit "lmhosts" files on each LAN
machines.
X.10 - Access Server function without Proxy-ARP
The situation is almost the same as previous. However, modify the routing table of the
server. A simple solution is to add the next route on the server :
# route add -host 192.168.1.46 gw 192.168.1.45 (Unix system
Command)
If the remote host connection is unpermanent, this solution is not valid. It is indeed not
-72-
User manual XC-32 XC-320 XC-4200
conceivable to adapt the server routing table to each connection and disconnection of a
remote host.
A solution to this problem is to assign to remote hosts an IP address belonging to a subnetwork different from that used by the server. For example, if you initiated Remote IP with
the value 192.168.2.1, all machines connected on Xcell will be respectively assigned
numbers 192.168.2.1, 192.168.2.2, 192.168.2.3, etc...Thus, you just have to add the next
route on the server :
# route add -net 192.168.2.0 gw 192.168.1.45 (Unix system
Command)
-73-
User manual XC-32 XC-320 XC-4200
XI.Advanced functions
XI.1 - Firewall
XI.1.1 - Definition
The different network interfaces of Xcell (eth0, ppp, isdn) are made to receive and
transmit IP frames. The firewall embedded in Xcell enables the network administrator to
precisely define Xcell behavior during reception and broadcast of each frame. The firewall
also enables you to define diiferent behavior depending on time and day. The choice can
be made in the three following situations :
p The IP frame is Xcell-assigned (Input).
p The IP frame is sent by Xcell (Output).
p The IP frame pass through Xcell (Forward).
In each of these situations and according to the frame type, Xcell can behave one of the
following ways :
p Accepting the operation (Accept).
p Refusing the operation and advising the sender (Reject).
p Refusing the operation without warning the sender (Deny).
A frame type is characterized by :
p The transmitter.
p The receiver.
p The protocol (UDP, TCP, ICMP).
p Eventually, the port number (telnet, ftp, smtp, ...).
The firewall profile can be achieve in defining chains and policy rules. All parameters are
specify in the Firewall page, with the HTTP configuration tool.
XI.1.2 - Chains
A chain enables you to define enviromnent in which rules will be applied. To create a
chain, define the chain starting day (or hour), the chain ending day (or hour) and the
Firewall type concerned. While the chain is activated, the rules it contains are used by
XCell.
To select the starting day (or ending day) of a chain, just fill some of the following fields :
Year, month, day, day of the week, hour, minute. You are not obliged to fill all fields. For
example, if you just define the starting hour and th ending hour, this chain will be activated
every day during this time range.
-74-
User manual XC-32 XC-320 XC-4200
XI.1.2.1 - Examples
Chain activated every week from Monday to Friday. Just select, "
Start Day of the Week
:
Monday" and "
End Day of the Week
: Friday".
Chain activated every month from the 1st to 15th. Just fill these two fields, "
Start Day
: 1"
and "
End Day
: 15".
-75-
User manual XC-32 XC-320 XC-4200
Chain activated every day from 8AM to 7PM. Just fill these two fields, "
Start Hour
: 8" and
"
End Hour
: 19".
To create a chain, you must precise the chain's Firewall type (Input, Output or Forward).
Select the Firewall type in the menu.
XI.1.3 - Rules
These rules are made of a premise the characterizes a frame type and of a conclusion
that specifies the kind behavior to be adopted.
Premise > Conclusion
sender AND target AND
protocol AND port
> accept OR reject OR deny
( AND : logical and ; OR : logical or)
Xcell looks for the first rule that characterizes the IP frame to be analyzed. If it finds none,
a default
policy
is adopted.
WARNING !!
: Xcell looks for the first rule that characterizes the IP frame. Order of rules is
very important. Enter rules in bad order may forbid any access to Xcell.
A rule is applied to an IP frame if the following conditions occur :
p IP-sender AND Mask = Source
p IP-target AND Mask = Destination.
p The protocol matches the one indicated in the rule.
-76-
User manual XC-32 XC-320 XC-4200
p Eventually, port matches the one(s) indicated in the rule.
There is two other parameters that you must define when you create a rule :
XI.1.3.1 - Bidirectionnal option
The Bidirectionnal option create a reciprocal rule. It is equivalent as the creation of a
second rule with target value of the first rule as source and source value of the first rule as
target.
WARNING !!
This option is valide only in a Forward Firewall chain.
XI.1.3.2 - Type Of Service (TOS)
There are five Type of Service :
p Minimum Delay.
p Maximum Throughput.
p Maximum Reliability.
p Minimum Cost.
p Standard.
These services allows, in few cases, to optimize connections. Most of the time, standard
option is good enough.
Mostly used configurations are
Minimun Delay
for Telnet connections and
Maximum
throughput
for data transfert with FTP.
XI.1.4 - Examples
-77-
User manual XC-32 XC-320 XC-4200
This figure will act as a support for examples described below :
XI.1.4.1 - Forward Firewall
For example, you can forbid a particular LAN machine all connections to Internet or forbid
a machine to use some services (FTP, mail, web). To forbid these connections, just say to
Xcell not to route frames coming from the machine to the selected services.
It can be made with a Forward Firewall rule.
1 - Create an active chain in Forward Firewall mode.
Enter the chain name ("chain" for example) in the Name field And select
Forward
in the
menu.
-78-
User manual XC-32 XC-320 XC-4200
2 - To create the second rule of this example, please execute the following process :
Xcell default behavior is to accept all connections (
default policy
= accept).
In the Address field of the
Source
line, enter the IP address of the LAN machine that will
not be able to connect to Internet, then enter the mask value in the Mask field of the
Source
line.
To join Internet, Xcell uses the default route, therefore enter the value 0.0.0.0 in the
Address field of the
Destination
line and the value 0.0.0.0 in the Mask field of the
Destination
line.
In the
Protcol
field, enter the filtred frames type (all in this case).
In the
Policy
field, enter Xcell policy for these frames.
And then, keep
Bidirectionnal
box unchecked and
TOS
to standard.
In this example, all frames (
Protocol
= all) coming from the 192.168.2.11 machine
(
Source
= 192.168.2.11) and targeting an Internet host (
Destination
= 0.0.0.0) will be
rejected (
Policy
= reject).
To specify a particular port in a rule, just enter its number in the ports field. You can also
type the service name in the ports
field
(Ex : telnet to 23).
In the Ports field of the
Source
line, enter the user plage range that will be forbid (or
autorised) by the rule. To do this, you must enter the first and the last number separed by
a ":" (Ex : 1024:65535).
In the Ports field of the
Destination
line, enter the port(s) number(s) (or service(s)
name(s)) that will be autorised or forbid by the rule. To enter more than one port, just
separate them by a space (Ex : telnet ftp).
For example, the 192.168.1.11 machine will not be able to connect to a web site (
Ports
=
www) but it be able to send e-mails or to make ftp transfert.
-79-
User manual XC-32 XC-320 XC-4200
As well, the 192.168.1.12 machine will not be able to send (smtp) or receive (pop) e-mails.
Other services can be used. The 192.168.1.13 machine cannot issue a telnet session, nor
a FTP transfert.
The last rule allows all 192.168.0.0 subnetwork's machines to connect to Internet.
XI.1.4.2 - Input Firewall
For security reasons, we can expected that an Internet host could not issue a Telnet
session or access to a Rawtty port on Xcell. Only the LAN machines will be authorized to
administrate Xcell or to connect to a Rawtty port. To do this, make this
Input Firewall
chain.
XI.1.4.3 - Output Firewall
If you want that a terminal connected to Xcell cannot issue a Telnet session on any
Internet machines, make this
Output Firewall
chain.
-80-
User manual XC-32 XC-320 XC-4200
XI.2 - Radius
XI.2.1 - Introduction
Radius is a client-server protocol aiming at centralizing the users authentication on a
dedicated server (see RFC 2138).
To use Radius terminology, we will call Xcell NAS (Network Access Server).
The obvious interest of this protocol is the fact that it enables to manage all the accesses
to an information site with only one users database, and whatever the type and number of
NAS may be.
In addition to its authentication function, a RADIUS server also enables to rule the
connection type and parameters, (PPP, telnet, admin, asynchronous or/and RNIS access,
connection time...), according to the user who wish to connect.
An extension of the Radius protocol, (RFC 2139), also enables to count the connections.
You can thus keep a track of the connections made by all the users (name, connection
length, amount of informations transmitted and received, cause of the end of session).
The working process of Xcell integrated Radius client is the following :
A user authentication request, (login, PAP, CHAP), is first locally analysed. If Xcell
contains a suitable user account, connection type and parameters are managed by Xcell.
When the session starts, Xcell sends a starting signal to the RADIUS server (START).
When the session ends, Xcell transmits an ending signal (STOP).
If Xcell cannot manage to authenticate the user, the request is transmitted to the RADIUS
server. If RADIUS accepts the request, it will transmit the connection type and parameters
to Xcell. Later, informations about beginning and end of session are transmitted to
RADIUS.
XI.2.2 - Xcell-hold Radius attributes
Attribute Definition Notes
User-Name
Name of the user to identify.
Maximum size : 16
alphanumerical characters
User-Password
User password
Maximum size : 8
alphanumerical characters
CHAP-Password
Challenged user answer
emitted by the NAS
Size : 128 bits
NAS-IP-Address
NAS IP address
NAS-Port
Asynchronous port or ISDN
channel number
NAS-Port-Type
Port type Asynchronous or ISDN
-81-
User manual XC-32 XC-320 XC-4200
Attribute Definition Notes
Service-Type
Service type
Login,Framed,Callback
Login,Admin,NAS Prompt,
Callback NAS Prompt
Framed-Protocol
Frame type PPP only
Framed-IP-Address
IP address attributed to the
user
Login-IP-Host
Telnet server IP address
Callback Login and Login
service
Login-TCP-Port
Telnet server port number
Callback Login and Login
service
Login-Service
Kind of service used to
connect the user with an
host machine
Telnet only
Reply-Message
Message to be transmitted
to the user
Callback-Number
Callback number
Implanted only on
asynchronous ports
Acct-Status-Type
Session starting or ending
informations
START or STOP
Acct-Input-Octets
Number of bytes received
during a session
Acct-Output-Octets
Number of bytes transmitted
during a session
Acct-Session-Id
Session identifier
Acct-Session-Time
Session duration
Acct-Terminate-Cause
Session ending cause
User Request, Lost
Carrier,...
XI.2.3 - Radius requests
To authenticate a user, the NAS emits a request ("Access Request") toward the Radius
server. The Radius server can reject the request ("Access Reject") or accept the request
("Access Accept").
If the request is accepted, the NAS can inform the Radius server about the starting and
ending of the
session ("Accounting Request").
Radius requests carry several attributes. The following table shows the requests emitted
by the NAS.
-82-
User manual XC-32 XC-320 XC-4200
Attribut
Access
Request
Account
Request "Start"
Account
Request "Stop"
Note
User-Name
11 1
User-Password
0-1 0 0
CHAP-
Password
0-1 0 0
NAS-Port
11 0
NAS-Port-Type
11 0
Service-Type
0-1 0-1 0
FramedProtocol
0-1 0-1 0
=1 if Service-Type =
Framed or Callback
Framed
Framed-IP-
Address
0-1 0-1 0
=1 if Service-Type =
Framed or Callback
Framed
Login-IP-Host
0-1 0-1 0
=1 if Service-Type =
Login or Callback
Login
Login-TCP-Port
0-1 0-1 0
=1 if Service-Type =
Login or Callback
Login
Login-Service
=1 if Service-Type =
Login or Callback
Login
Acct-Input-
Octets
00 1
Acct-Output-
Octets
00 1
Acct-Session-Id
01 1
Acct-Session-
Time
00 1
Acct-
Terminate-
Cause
00 1
User Request, Lost
Carrier,...
XI.2.4 - Configuration of the Radius client on Xcell
To activate the authentication Radius client, you just have to give Xcell the RADIUS server
IP address. A nil value ("0.0.0.0") stop the Radius client.
This setting up can be done, either with a navigator (System page), or in command line :
-83-
User manual XC-32 XC-320 XC-4200
SYSTEM RADIUS AUTHENTIC <server node name | IP address>
In the same way, you can activate the accounting Radius client like this :
SYSTEM RADIUS ACCOUNTING <server node name | IP address>
TCP ports attributed to the Radius server are by default 1645, (authentication), and 1646,
(accounting). These two port numbers have been modified in the last two RFC about
RADIUS. These new values are 1812 and 1813. If your Radius server takes these new
numbers into account, modify them with the following commands :
SYSTEM RADIUS AUTHPORT <TCP port No. of authentic. server>
SYSTEM RADIUS ACCTPORT <TCP port No. of accounting server>
When Xcell emits a request to the Radius server, it waits no more than 3 seconds for the
server's answer. You can modify this duration with the commands :
SYSTEM RADIUS AUTHTIMEOUT <authentic. server request timeout>
SYSTEM RADIUS ACCTTIMEOUT <accounting server request timeout>
If Xcell has no answer at the end of the Time-Out, it repeats its request three times. You
can modify this number with the following command :
SYSTEM RADIUS AUTHRETRIES <authentic. server request retries>
SYSTEM RADIUS ACCTRETRIES <accounting server request retries>
The Radius protocol cyphers the passwords so that they do not appear clearly in the
requests IP frames. You must therefore necessarily specify the coding key (secret). It
must be the same as the one of the Radius server.
SYSTEM RADIUS SECRET "key"
XI.3 - DHCP
XI.3.1 - Definition
DHCP is a client-server protocol that aimed at a dynamical attribution of the IP addresses
to the machines of a network.
At the starting point, each network machine sends a request to the DHCP server and is
given an IP address. Xcell integrates a DHCP client that enables it to get an IP address
from a DHCP server.
A problem occurs at the networks interconnection: the DHCP requests are frames that do
not go through the routers. Consequently, for two connected networks to use the same
DHCP server, the router must play the part of a DHCP relay; that is to say that it must pick
the DHCP requests up and transmit them back to the DHCP server.
-84-
User manual XC-32 XC-320 XC-4200
Xcell from the network 192.168.2.0 will transmit the DHCP requests from the two
machines back to the DHCP server (192.168.1.1). Both interconnected networks can thus
use the same DHCP server.
XI.3.2 - DHCP client
Xcell holds a DHCP client function. If a DHCP server is active on your network, Xcell can
receive its IP address and many others parameters from the DHCP server. In factory
configuration, Xcell boots with the DHCP mode active. The system
dhcp client mode
command enables you to select the running mode of DHCP client.
SYSTEM DHCP MODE <dhcp | bootp | none>
The
bootp
mode enables Xcell to act as a BOOTP client (Bootstrap Protocol). This
protocol, which is the predecessor of DHCP protocol, supports less options than DHCP.
To deactivate XC's DHCP client, use the
none
option.
Xcell does not know the DHCP server IP address. It broadcast is request on the LAN to
join the DHCP server. If you want to specify a particular DHCP server IP address, just use
the
system dhcp server
command.
Example :
ROOT>> system dhcp server 192.168.10.1
If you want to go back to the broadcast method, enter the following command :
ROOT>> system dhcp server 255.255.255.255
When Xcell is booting (if the DHCP client is active), it sends its DHCP request on the LAN
and waits for a reply. If it does not receive a reply after 30 seconds, Xcell assumes that
the request fails. Then, Xcell use IP address and other parameters saved in flash memory.
To modify the reply timeout, use the
dhcp clent timeout
command.
Example :
ROOT>> system dhcp timeout 60
WARNING !!
To validate DHCP commands, you must save new parameters in flash
memory. The next time Xcell will boot, it will use these new parameters.
XI.3.3 - DHCP relay
Xcell holds the function of DHCP relay. To activate this function, you just have to use the
system dhcp relay
command. This syntax command is the following :
-85-
User manual XC-32 XC-320 XC-4200
DHCP RELAY <server1/server2> <IP adress>
If the IP address of your DHCP server is 192.168.1.1, the following command will activate
XC's DHCP relay :
ROOT>>dhcp relay server 1 192.168.1.1
Note that you can enter IP address of a second DHCP server. In this case, Xcell will
retransmit DHCP requests to both servers and will take care of the first reply that it will
receive.
To launch the DHCP relay, enter :
ROOT>>dhcp relay enable yes
To stop the DHCP relay, enter:
ROOT>>dhcp relay enable no
-86-
User manual XC-32 XC-320 XC-4200
XII.Technical specifications
XC-32 XC-320 XC-4200
LAN ETHERNET
10 base T Yes (1) Yes Yes
10 base FL
Multimode
Yes (1)
ASYNCHRONOUS
Numbers of ports 2 04/08/00 4/8/12/16
RS232C Interface Yes (1) Yes (1) Yes (1)
RS422/485AInterfac
e
Yes (1) Yes (1) Yes (1)
Overvoltage 15kV ESD
Signals XON / XOFF, RTS / CTS, DTR, DSR, DCD
Speed 440 kbd
Cabling RJ45 (Option DB25M/DB9)
ROUTING
Static routing Yes Yes Yes
SECURITY
PAP, CHAP Yes Yes
Yes
Radius Client Yes Yes Yes
Users database Yes Yes Yes
Automatic callback Yes Yes Yes
Embedded Firewall Yes Yes Yes
Time range Yes Yes Yes
HTTPS SSLV2-V3 Yes (3) Yes (3) Yes
Secured Remote
COM
SSL V3 - DES 40 ou 56 bits, RC4 40 ou 128 bits, RSA 512 ou
1024 bits
ADMINISTRATION
HTTP Yes Yes Yes
SNMP MIBII, MIB
Xcell
Yes (2) Yes (2) Yes
Java Yes Yes Yes
DHCP client, relay Yes (2) Yes (2) Yes
Telnet Console Yes Yes Yes
-87-
User manual XC-32 XC-320 XC-4200
HTTP Yes Yes Yes
Serial ports ( I / O ) Yes Yes Yes
MISCELLEANEOUS
Protocols IP, TCP, UDP, ICMP, ARP, Finger, TFTP, Telnet, RTelnet, DHCP,
BOOTP, HTTP, SNMP, Syslog
PPP Yes Yes Yes
Multilink PPP Yes
LPD Yes Yes Yes
RemoteCOM Option 1 1
Mux mode yes
GENERAL
Mémoiry 8 Mo 16 Mo
Timer WatchDog Yes Yes Yes
CPU 32 bits - 40 Mhz 32 bits- 133 Mhz
Size 69*135*27 mm 220*166*31
mm
446*187*44 mm
Power supply Externe, 100V à 240V - 47 à 63
Hz
-13 max
Interne, 85V à 265V - 47 à 68
Hz
30W max
Certifications EN55022B, CISPR22, EN60950, EN41003, CISPR24
(1) : Or
(2): Basical version available
(3) : Basical version available without HTTPS
-88-
User manual XC-32 XC-320 XC-4200
XIII.Cabling
XIII.1 - RJ45 connector
PIN Circuit
1CTS
2TxD
3 Ground
4RxD
5 DCD
6DTR
7RTS
8
DSR
Figure 8 - RJ45 Front view
XIII.2 - Xcell (DTE) to DTE equipment
With RTS/CTS flow control
-89-
User manual XC-32 XC-320 XC-4200
XIII.3 - Xcell (DTE) to asynchronous terminal (DTE)
With DTR/DSR flow control
XIII.4 - Xcell (DTE) to DCE equipment - RS232C (Modem)
-90-
User manual XC-32 XC-320 XC-4200
RJ45-DB25 Male - Comx 232
Reference : F00132
Update B
19/08/98
RJ45 - DB9 Male - Comx 232
Reference : F00142
Update B
19/08/98
XIII.5 - Xcell (DTE) to DCE equipment - RS422A
RJ45 - DB25 Male - Comx 422
Reference : F00172
Update C
28/0699
-91-
User manual XC-32 XC-320 XC-4200
RJ45 - DB9 Male - Comx 422
Reference : F00162
Update C
28/06/99
XIII.6 - Xcell (DTE) to DCE equipment - RS485
RJ45 - DB9 Male - Comx 485
Reference : F00181
Update A
02/07/99
-92-
