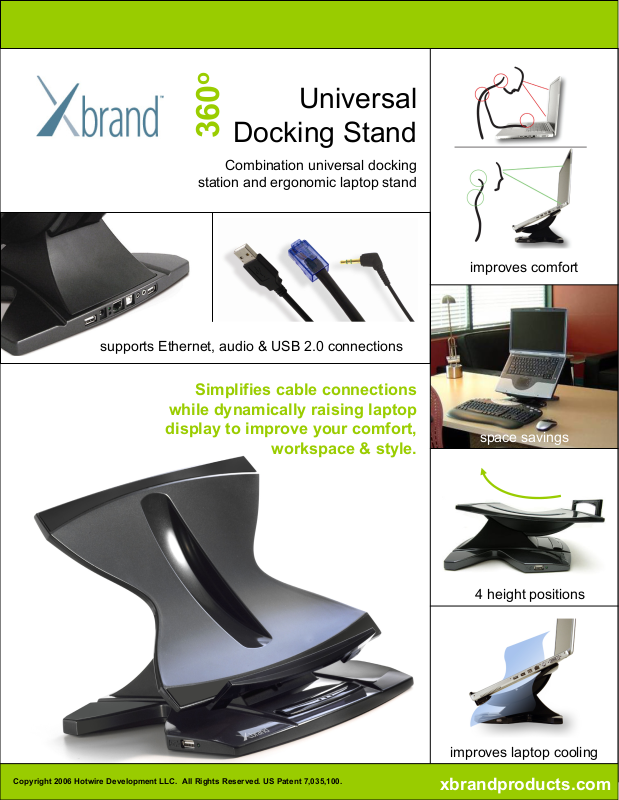

Page 1
o
Universal
360
Docking Stand
Combination universal docking
station and ergonomic laptop stand
supports Ethernet, audio & USB 2.0 connections
improves comfort
Simplifies cable connections
while dynamically raising laptop
display to improve your comfort,
workspace & style.
space savings
4 height positions
Copyright 2006 Hotwire Development LLC. All Rights Reserved. US Patent 7,035,100.
improves laptop cooling
xbrandproducts.com
Page 2
o
FAQ
Universal
360
Docking Stand
Combination universal docking
station and ergonomic laptop stand
How does the dock
connect to the laptop?
The connection from the
Dock to the laptop is made
with a high speed USB 2.0
link cable – it’s included
with the product.
How do you type on the
laptop when it’s
docked?
Simple. You don’t. The
Dock is designed for use
with an external keyboard
and mouse. You can plug
them into any of the
Dock’s 4 USB 2.0 ports.
WHY TO BUY
• universal – works will all laptops running 98SE, ME, 2000,
XP, XP Pro and even Vista
• superior value & features – includes docking, improved
comfort via proper screen height positioning, desk space
savings, enhanced laptop cooling, 360
price of a typical port replicator or docking station
• it’s just plain cool – stunning, award winning design
functions as good as it looks
o
swivel … all for the
Will it hold a 17’’ laptop?
The basic answer is, YES.
The Dock is engineered to
hold more than 30 lbs of
weight. In general if the
laptop is less than 1.75’’
thick it should be just fine
when placed in the Dock.
Why doesn’t it have a
VGA (monitor) port?
Today’s laptop screens
are big, bright & have
great resolutions. By
raising your laptop’s
display to eye-level the
Dock eliminates the need
to purchase and use an
external monitor.
Copyright 2006 Hotwire Development LLC. All Rights Reserved. US Patent 7,035,100.
xbrandproducts.com
Page 3
o
Universal
360
Docking Stand
docking station
with USB 2.0, LAN & Audio
Connections
improved comfort
Technical Specifications
360
XB-1008-USModel Number
4.25 lbs (1.92 kg)Weight
11.8'' (w) x 11.0'' (d) x 4.25'' (h) / 8.5'' (h)Dimensions in Inches
300mm (w) x 280mm (d) x 108mm (h) / 216mm (h)Dimensions in Millimeters
1 yearWarranty
Universal, including most 17’’ screen laptopsPhysical Laptop Compatibility
CE, FCC Class BCertifications
Humidity: 5% ~ 85% non-condensingOperating Conditions
Operating Temp: 0 ~ 45 degree C
Storage Temp: 10 ~ 70 degree C
(4) Hi-Speed USB 2.0 ports – 2 rear facing & 1 each on left & right forward sides
(1) Type B uplink port for connection to notebook.
360 swivel laptop cooling front edge access
o
Universal Docking StandProduct Name
(1) 10/100 Ethernet RJ45 Jack
(1) Audio Line-In + (1) Audio Line Out – 3.5mm stereo mini plug
2 ft Hi-Speed USB 2.0 cable to connect laptop to universal docking stationIncluded Accessories
power adapter to support self powered docking station
up to 480Mbps for USB and up to100 Mbps for EthernetData Transfer Rate
USB 2.0/1.1 peripherals , 3.5 mm stereo mini plugs, RJ 45 10/100 EthernetPeripheral Compatibility
Windows XP, Win 2000, Win Server 2003, Win 98SE, Win MEOS Compatibility
Specifications subject to change without notice
Copyright 2006 Hotwire Development LLC. All Rights Reserved. US Patent 7,035,100.
xbrandproducts.com
