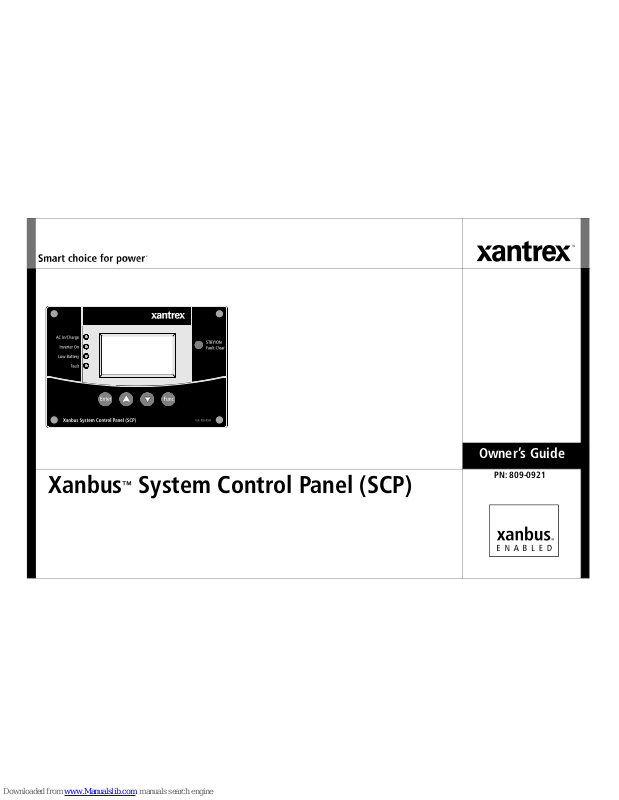

Xanbus™ System Control Panel (SCP)

Owner’s Guide

TM

PN: 809-0921

97-0022-01-01 i

Trademarks

Xantrex, Xanbus, and Smart choice for power are trademarks of Schneider
Electric Services International sprl, registered in the U.S. and other countries. Other
trademarks, registered trademarks, and product names are the property of their
respective owners and are used herein for identification purposes only.

Notice of Copyright

Xanbus System Control Panel Owner’s Guide © March 2011 Xantrex Technology
USA Inc. All rights reserved. No part of this document may be reproduced in any
form or disclosed to third parties without the express written consent of: Xantrex
Technology USA Inc., 541 Roske Drive, Suite A, Elkhart, Indiana USA 46516.
Xantrex Technolo gy USA Inc. reserves the right to revise this document and to
periodically make changes to the content hereof without obligation or organization of
such revisions or changes unless required to do so by prior arrangement.

Exclusion for Documentation

UNLESS SPECIFICALLY AGREED TO IN WRITING, XANTREX TECHNOLOGY USA INC. (“XANTREX”)
(

A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY

TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION;

(

B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES,
WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE
OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY
AT THE USER’S RISK; AND

(C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH,

ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE
ACCURACY CANNOT BE GUARANTEED. APPROVED XANTREX CONTENT IS CONTAINED WITH THE

E

NGLISH LANGUAGE VERSION WHICH IS POSTED AT WWW.XANTREX.COM.

Date and Revision

March 2011 Rev A

Document Part Number

97-0022-01-01

Product Number

809-0921

Contact Information

Telephone: [phone]
Fax: [phone]
Web: www.xantrex.com

ii Xanbus System Control Panel (SCP) Owner’s Guide

About This Guide

Purpose

The purpose of this Owner’s Guide is to provide explanations and
procedures for installing, troubleshooting, operating and maintaining the
Xanbus System Control Panel (SCP).

Scope

The Guide provides safety and operating guidelines, procedures for
installing the SCP, as well as information on configuring the SCP. It also
provides information about troubleshooting the unit. It does not provide
details about configuring every Xanbus-enabled device to which the SCP
connects to within the Xanbus network. You need to consult these other
Xanbus-enabled devices’ owner’s and installation guides.

Audience

The Guide is intended for users and operators of the Xanbus System
Control Panel (SCP). The Installation section is primarily intended for
qualified installers who need to install and configure an SCP. The installer
should have knowledge and experience in installing electrical equipment,
knowledge of the applicable installation codes, and awareness of the
hazards involved in performing electrical work and how to reduce those
hazards. A qualified technician or electrician has this knowledge and
experience.

Conventions Used

The following conventions are used in this guide.

STATEMENT OF HAZARD

Contains statements of avoidance or strict compliance.

Failure to follow these instructions will result in death or serious
injury.

STATEMENT OF HAZARD

Contains statements of avoidance or strict compliance.

Failure to follow these instructions can result in death or serious
injury.

STATEMENT OF HAZARD

Contains statements of avoidance or strict compliance.

Failure to follow these instructions can result in minor or moderate
injury.

97-0022-01-01 iii

Related Information

You can find more information about Xantrex Techn ology USA Inc. as
well as its products and services at www.xantrex.com.

STATEMENT OF HAZARD

Contains statements of avoidance or strict compliance.

Failure to follow these instructions can damage the unit and/or
damage other equipment.

IMPORTANT:

These notes describe things which are important for you to

know, however, they are not as serious as a danger, warning, or caution.

The product marking on the left when found imprinted on
electrical and electronic units and appliances means that you
are to refer to this guide for cautions and warnings.

iv Xanbus System Control Panel (SCP) Owner’s Guide

Important Safety Instructions

IMPORTANT: READ AND SAVE THIS OWNER’S GUIDE FOR FUTURE

REFERENCE.

This chapter contains important safety and installation instructions for the
Xanbus System Control Panel (SCP). Each time, before using the SCP,
READ ALL instructions and cautionary markings on or provided with the
SCP, the batteries, and all appropriate sections of this guide.

NOTE: The Xanbus System Control Panel (SCP) contains no user­serviceable parts. For obtaining service, see “Warranty and Return
Information” on page 38 for guidance.

FCC Information to the User

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. Thes e limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

EXPLOSION HAZARD

This equipment is not ignition protected. To prevent fire or explosion, do
not install the Xanbus SCP in compartments containing flammab le
materials or in locations that require ignition-protected equipment. This
includes any space containing gasoline-powered machinery, fuel tanks, as
well as joints, fittings, or other connections between components of the
fuel system.

Failure to follow these instructions can result in death or serious
injury.

Unauthorized changes or modifications to the equipment could void the
user’s authority to operate the equipment.

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Mechanical Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Xanbus System Control Panel Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Xanbus-Enabled Device Configuration Using the SCP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Operation of the Xanbus System Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Warranty and Return Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Contents

97-0022-01-01 1

Introduction

Complete system control

The Xanbus SCP provides configuration and monitoring capability for a
Xanbus system. The SCP:

• Monitors activity throughout your power system.

• Displays the settings and status of each Xanbus-enabled device.

• Enables you to adjust settings for each Xanbus-enabled device.

System component The Xanbus SCP is part of a network
communications protocol developed by Xantrex, to communicate its
settings and activity to other Xanbus-enabled devices.

Xanbus-enabled products are:

• Easy to use. The Xanbus network simplifies operation and automates
routine tasks.

• Reliable. Software control eliminates errors due to analog signaling.

• Accurate. Digital information is less susceptible to interference and
line loss.

• Upgradable. Software upgrades mean your purchase will remain up to
date.

System requirements

The SCP requires a Xanbus power supply to operate. Network power is
carried by the network cables, and can be supplied by a Xanbus-enabled
product (such as an inverter/charger) or an external Xanbus power supply.

As a device that draws network power, the SCP consumes a maximum of 3
watts.

For detailed instructions and a complete list of Xanbus-enabled devices,
visit the website at www.xantrex.com.

IMPORTANT: The Xanbus SCP is compatible with Xanbus-enabled devices
such as Freedom SW 2012/2024 (PN: 815-2012/815-2024) and
Freedom SW 3012/3024 (PN: 815-3012/815-3024 ) inverter/chargers as
well as the Xanbus Automatic Generator Start (PN: 809-0915).

The SCP is not compatible with Prosine, Freedom SW 2000, Freedom SW
3000, Freedom HW, and Freedom HF, or RV Series inverter/chargers from
Xantrex.

2 Xanbus System Control Panel (SCP) Owner’s Guide

Introduction

Operational Features

Other features of the SCP include:

• Time and date—has an internal clock that kee ps time for the entire
system.

• Audible alarm—if enabled, alerts you to a low battery condition in the
system and notifies you when a fault condition arises.

• Low power consumption—automatically turns off the backlight and
displays a screensaver after a period of inactivity to minimize battery
drain.

• Non-volatile memory—preserves all its settings if network power is
interrupted or network communication is disrupted.

Material List

The Freedom Sequence ships with the following items:

• one Xanbus System Control Panel (SCP) unit,

• owner’s guide,

• mounting template,

• network terminator, and

• mounting screws (4).

NOTE: Keep the carton and packing material in case you need to return
the SCP for servicing.

owner’s guide and
mounting template

TM

SCP
unit

mounting screws

network terminator

97-0022-01-01 3

Introduction

Xanbus-Enabled Products and Accessories

The Freedom SW Inverter/Charger is a true sine wave inverter/charger that
can be used for mobile, marine and commercial applications. The Freedom
SW Inverter/Chargers are designed to operate with a wide variety of
generators and are capable of operating in parallel with a generator for short
durations to assist with starting large loads. The Freedom SW is a
convenient combination of an inverter, multistage battery charger, and
transfer switch in one electronic device.

The Xantrex Automatic Generator Start automatica lly starts and stops a
generator using dry contact relays to operate the auto-start function of a
generator.

The Freedom Sequence Intelligent Power Manager is a fully integrated
power management system that provides automatic power and load
management for use in recreational vehicles (RV) while receiving power
from a generator or shore power.

Product/Accessory Product Number

Freedom SW Series Inverter/Charger 815-2012 (2kW power rating),

815-3012 (3kW power rating)

Freedom Sequence Intelligent Power
Manager

809-0913 (four-circuit model),

809-0912 (six-circuit model)
Xanbus Automatic Generator Start (AGS) 809-0915
25-ft network cable for Accessories 809-0940
75-ft network cable for Accessories 809-0942

FREEDOM SW 3012

FREEDOM SW

3012

I

n

v

e

r

ter

Reset Enable

I

nverter AC/
On

Charge Fault

Freedom SW
Inverter/Charger

AGS

Freedom Sequence
power manager

25-ft cable

75-ft cable

4 Xanbus System Control Panel (SCP) Owner’s Guide

Mechanical Features

The SCP has important features on the front and back of the unit. Features
on the front of the SCP are the display, indicator lights, and buttons for
selecting device menus and changing settings (see Figure 1). The back of
the unit features the inputs where the SCP connects to the Xanbus system
(see Figure 2).

Front panel features

Figure 1

SCP Front Panel

Xanbus System Control Panel (SCP)

FGA: 809-0921

AC In/Cha rge

Inverter On

Low Battery

Fault

STBY/ON
Fault Clear

TM

Enter Func

2

1

3

5

4

6 7 8

10

9

Item Description

1AC In/Charge light (green) indicates qualified AC is present at the

input of an inverter/charger or charger.

2Inverter On light (green) indicates an inverter is using energy from

batteries to provide AC to your appliances.

3Low Battery light (yellow) indicates that a low battery voltage

condition exists in the system.

4Fault light (red) indicates a device on the network is experiencing a

fault and requires user attention and intervention.

5Enter button

1. Confirms selection of a menu item

2. Displays the next screen

6 Up arrow button

1. Scrolls up one line of text

2. Increases a selected value

7 Down arrow button

1. Scrolls down one line of text

2. Decreases a selected value

8Func button

1. Cancels selection of a menu item

2. Displays the previous screen

9 STBY/ON Fault Clear button puts all devices in the system into Safe

mode. Hold for five seconds to activate Safe mode.
Press momentarily to clear active faults.

10 Screen shows menus, settings, and system information.

97-0022-01-01 5

Mechanical Features

Back panel features

Tw o network connector inputs on the ba ck panel let you connect the SCP to
other Xanbus-enabled devices. See Figure 2.

Figure 2

SCP Back Panel

8-pin RJ-45 network ports

6 Xanbus System Control Panel (SCP) Owner’s Guide

Mechanical Features

System Components

The Xanbus system includes the SCP and other Xanbus-enabled devices.
Each device interacts and communicates with the other devices.

In Figure 3, network connections are represented by dotted lines and
conventional electrical connections are represented by solid lines.

Figure 3

Sample Network Diagram

Xanbus System Control Panel

Xanbus Automatic Generator Start

System Control Panel

network terminator network terminator

Automatic Generator Start

Freedom Sequence

Freedom SW Inverter/Charger

FREEDOM SW 3012

FREEDOM SW 3012

I

nv

e

r

t

er

Reset Enable

I

nve

r

ter A

C/

On

C

ha

r

ge Fault

Generator

Shore
Power

AC Loads

AC Panel

BATTERY

Inverter

Load Panel

97-0022-01-01 7

Xanbus System Control Panel Installation

The Xanbus System Control Panel (SCP) is designed to be wall mounted
and requires no connections other than Xanbus network cables or a
terminator plugged into the back of the unit.

Because you cannot access the SCP network inputs once the unit is
mounted, the Xanbus cables must be routed through the wall and connected
before securing the SCP.

Materials and Tools Required

The following materials and tools are required to complete the installation:

❐ Mounting template (supplied)
❐ Four mounting screws (supplied)

❐ Cable clam ps or hardware fasteners
❐ Xanbus network cables or equivalent (CAT 5 or CAT 5e cable with RJ-

45 connectors wired to T568A standard.

❐ Network terminators (supplied)
❐ Phillips head screwdriver
❐ Jigsaw or small keyhole saw
❐ Power drill with 1/8" bit (optional)

Choosing a Location

Choose a location that allows unobstructed access to the SCP screen and
buttons.

The location should be indoors, dry, and free from corrosive or explosive
fumes.

Network Installation

This section describes requirements for installing the SCP as part of a
Xanbus network-managed power system. For the system to function
properly, requirements for network layout and termination must be
followed.

EXPLOSION HAZARD

The SCP is not Ignition Protected. Do not install in areas requiring
Ignition-Protected equipment, such as areas containing gasoline engines,
tanks, or fuel-line fittings.

Failure to follow these instructions will result in death or serious
injury.
